C15920_STRADELLA-8-HV-CY
Print

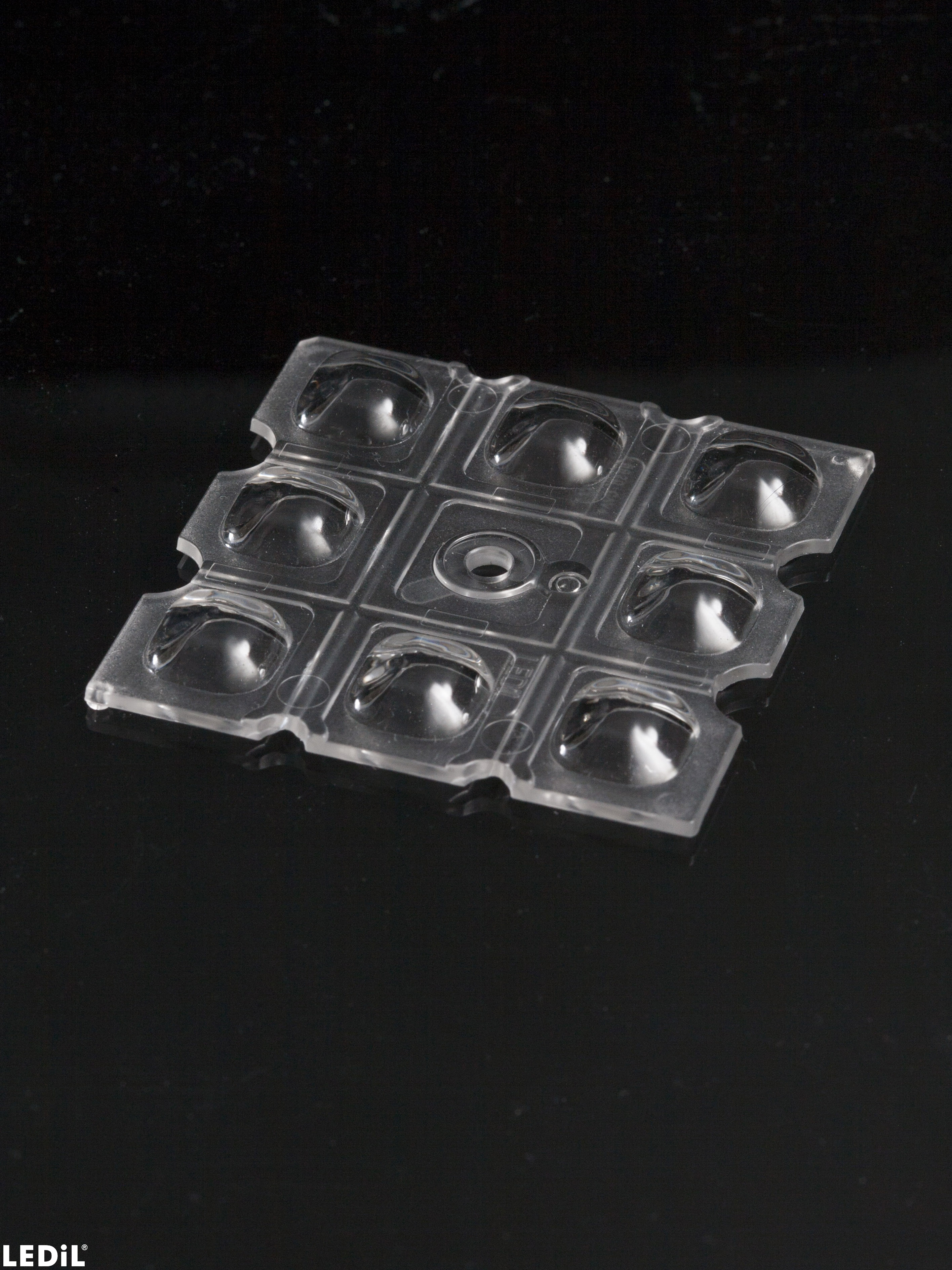

Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting. Variant with improved creepage distance for high voltage circuit designs.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

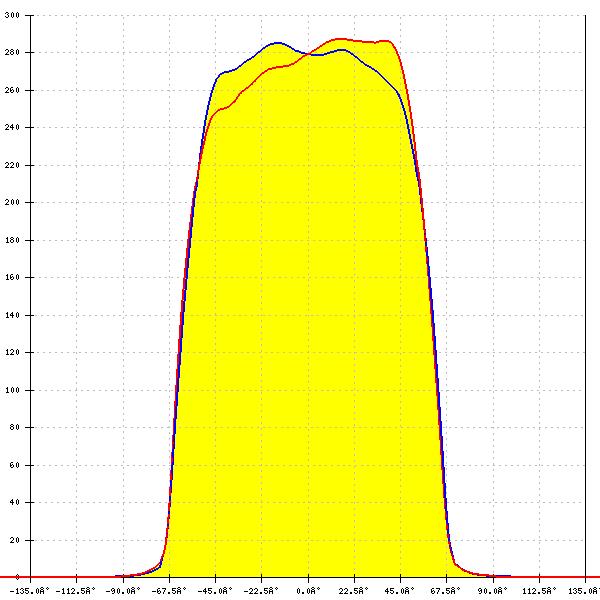

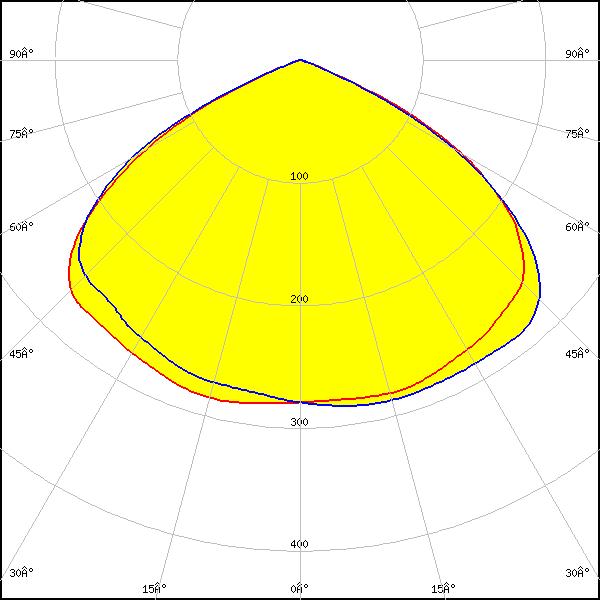

LED:
JB3030 HE B Class
FWHM:
121°
FWTM:
136°
Peak intensity:
0.414 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

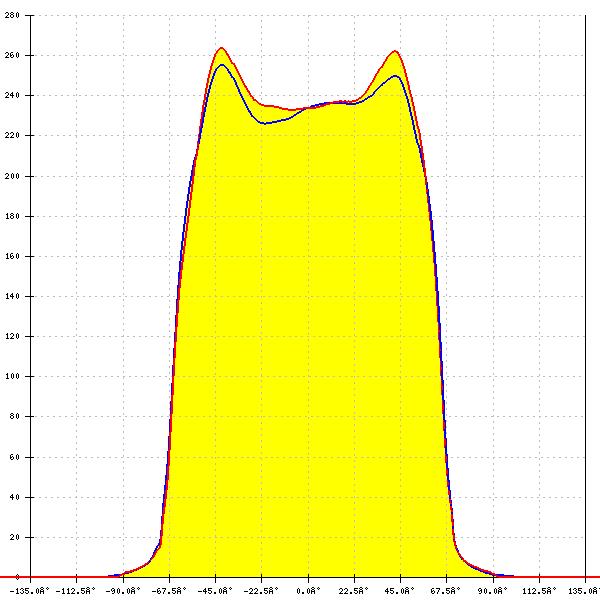

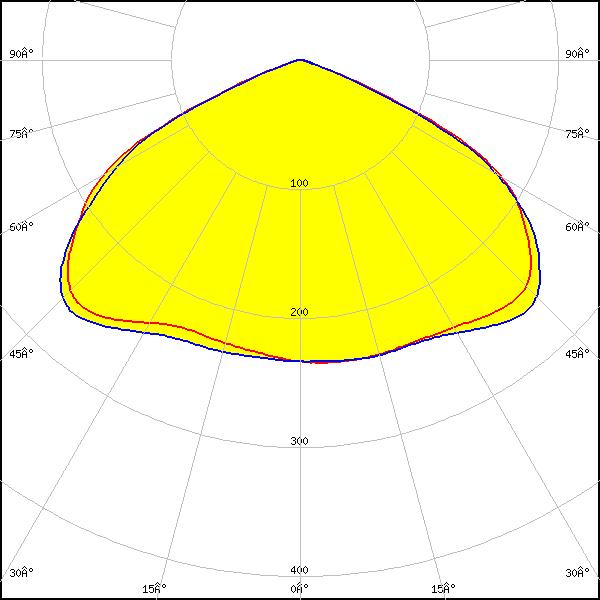

LED:
XD16
FWHM:
129°
FWTM:
142°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

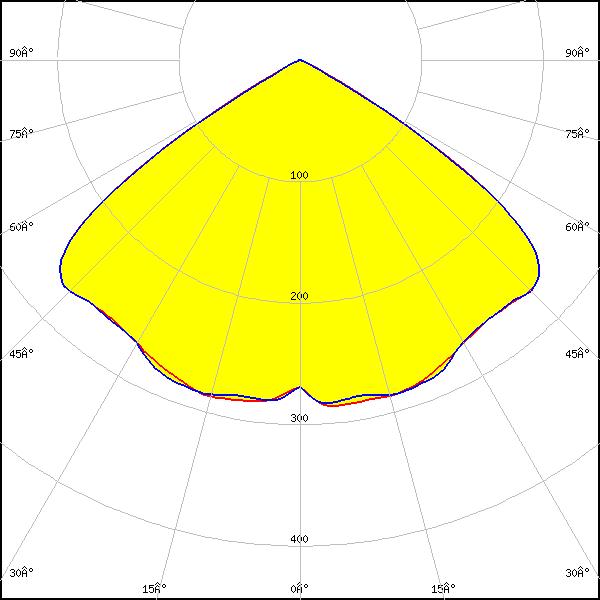

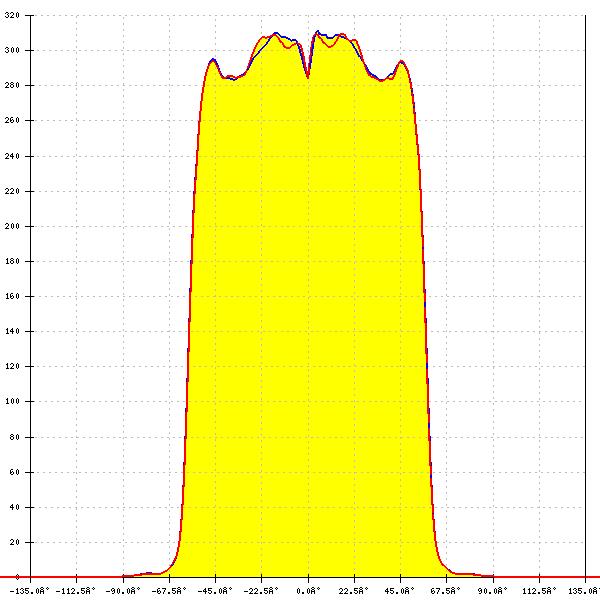

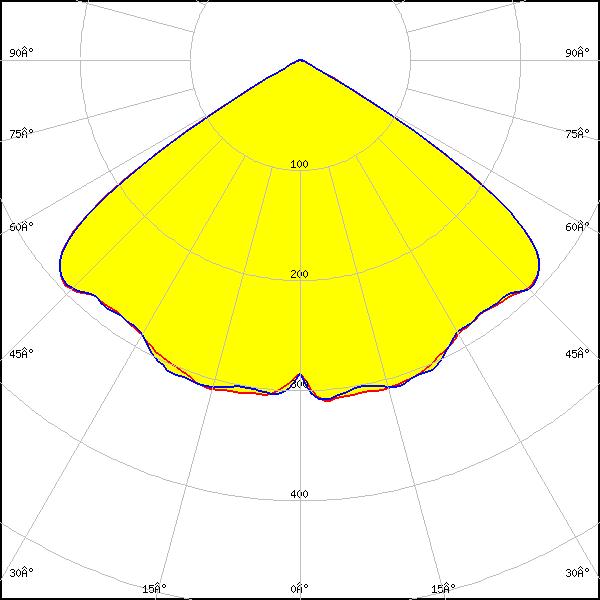

LED:
XP-G4
FWHM:
114°
FWTM:
122°
Peak intensity:
0.411 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

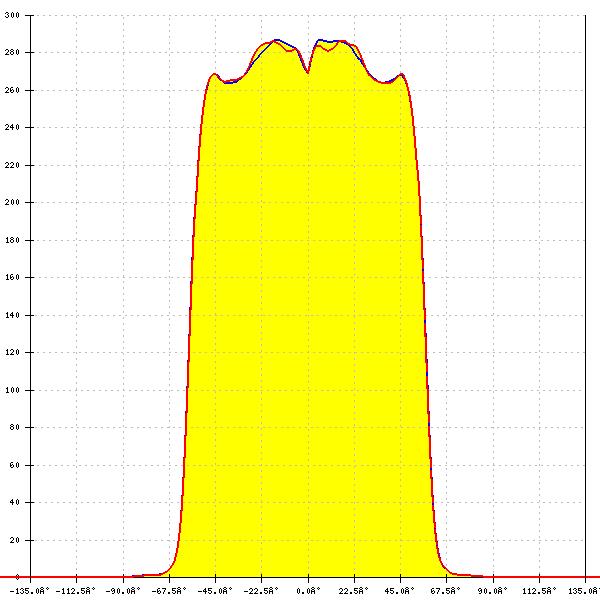

LED:
XP-G4
FWHM:
114°
FWTM:
124°
Peak intensity:
0.355 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

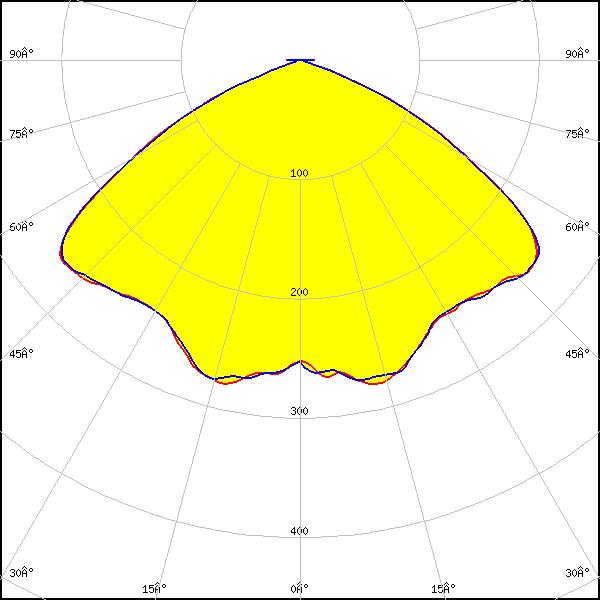

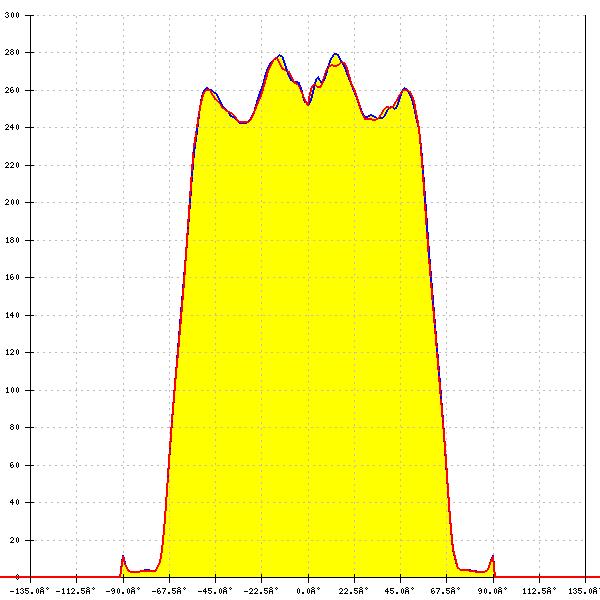

LED:
XP-G4 HI
FWHM:
124°
FWTM:
140°
Peak intensity:
0.379 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

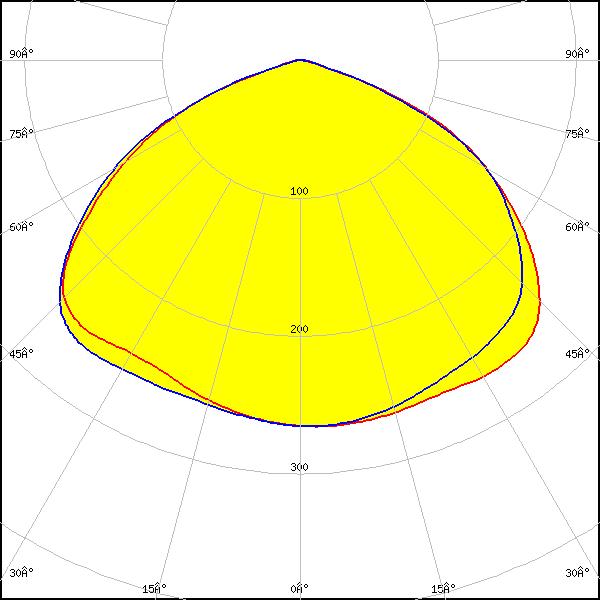

LED:

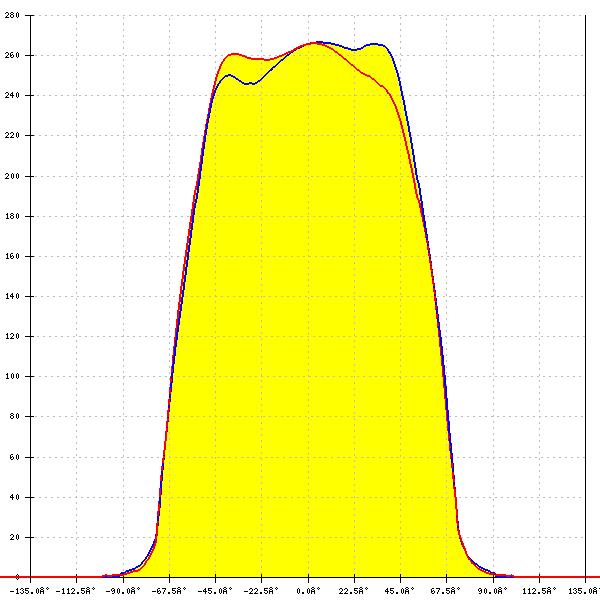

XT-E
FWHM:
125° + 126°
FWTM:
146° + 146°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

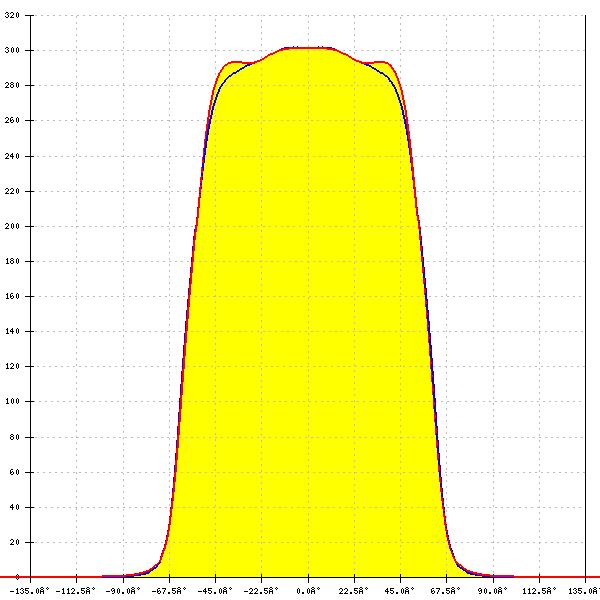

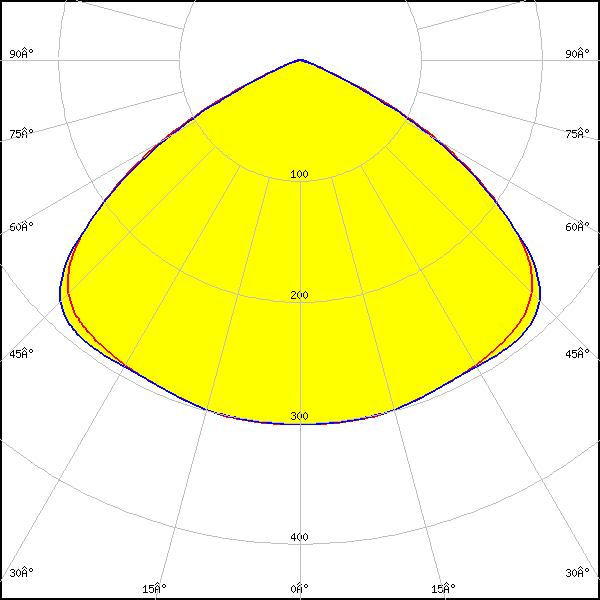

LED:
PL-BRICK HP 3x8 Stradella-8
FWHM:
116°
FWTM:
135°
Peak intensity:
0.388 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:

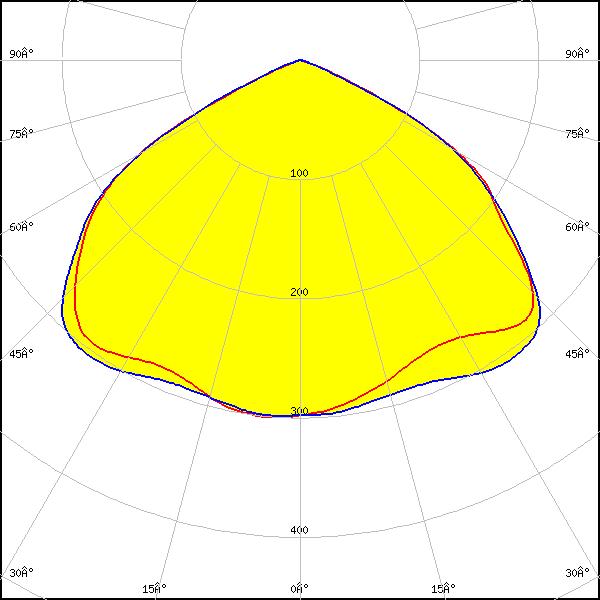

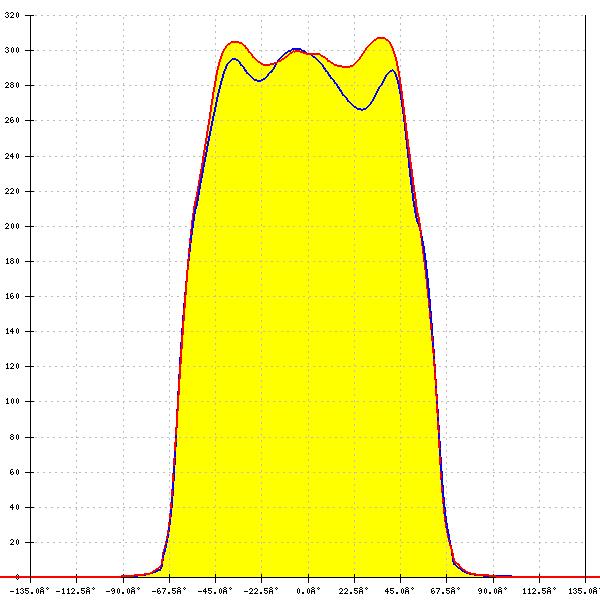

LUXEON 3030 2D (Round LES)
FWHM:
120°
FWTM:
135°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

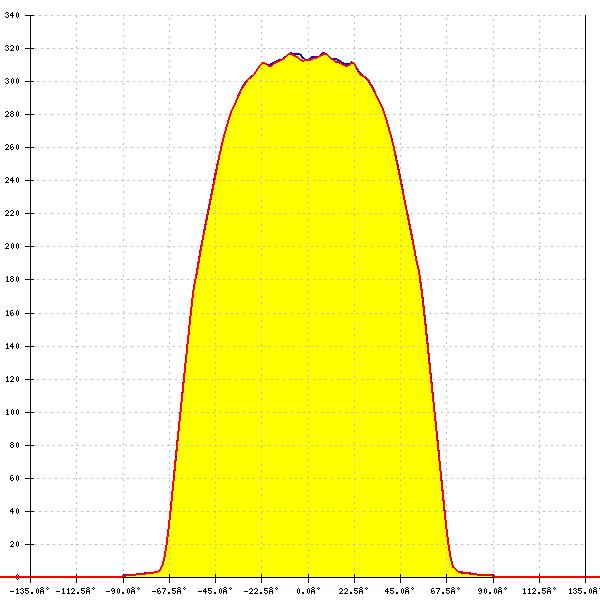

LED:

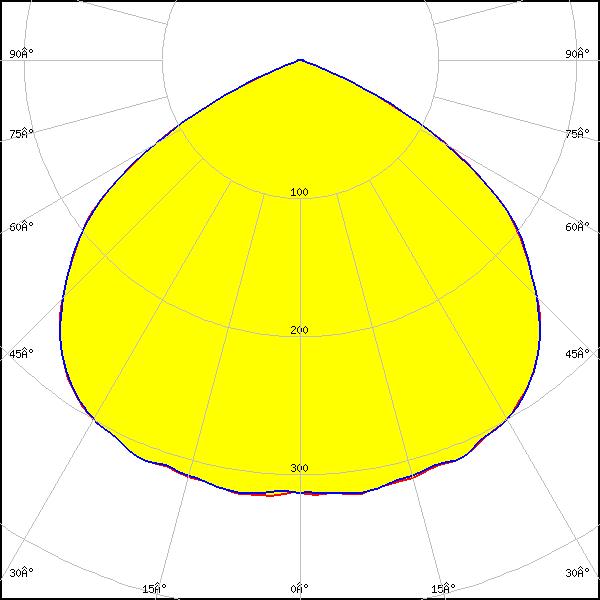

LUXEON 5050 Square LES
FWHM:
114°
FWTM:
136°
Peak intensity:
0.325 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

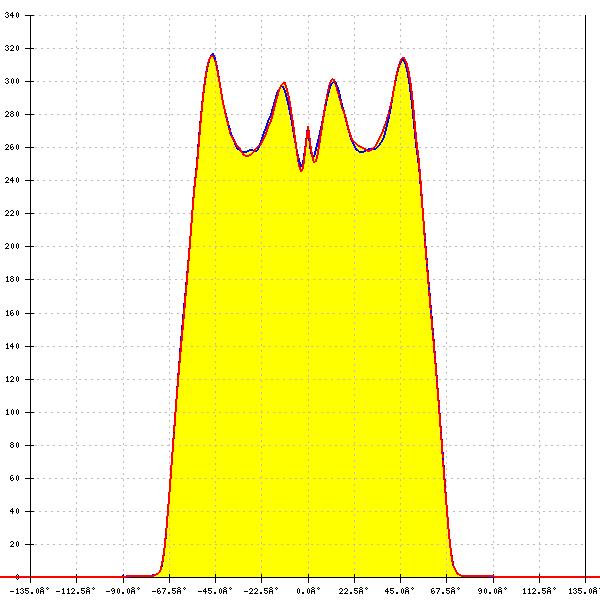

LED:

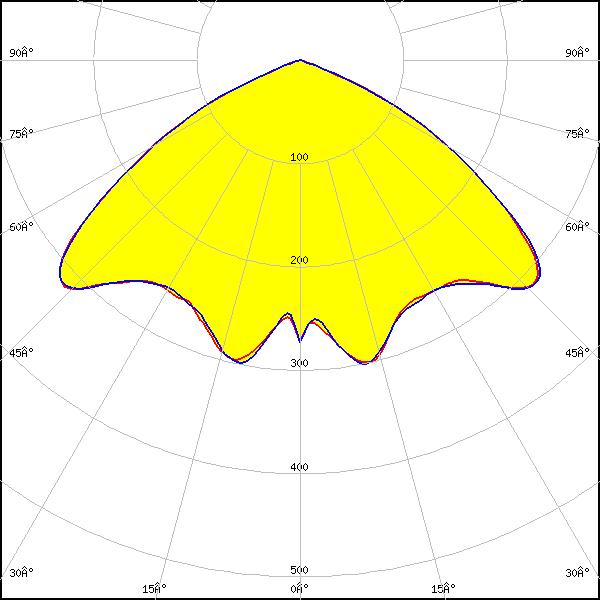

LUXEON CZ
FWHM:
120°
FWTM:
138°
Peak intensity:
0.427 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Blue

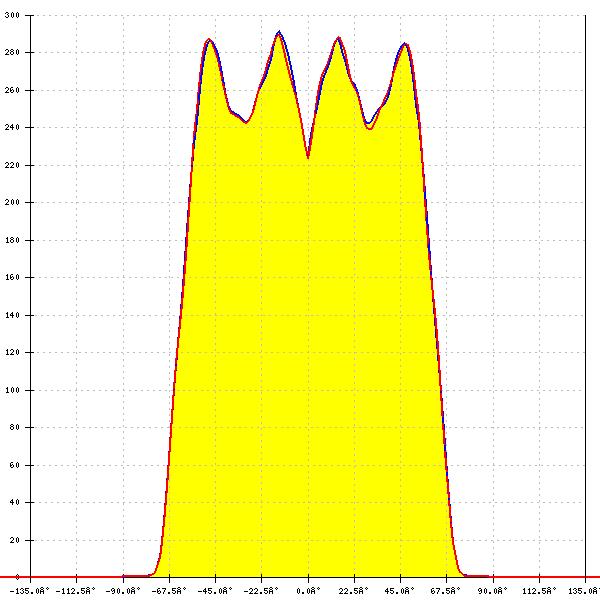

LED:
LUXEON CZ
FWHM:
123°
FWTM:
140°
Peak intensity:
0.403 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

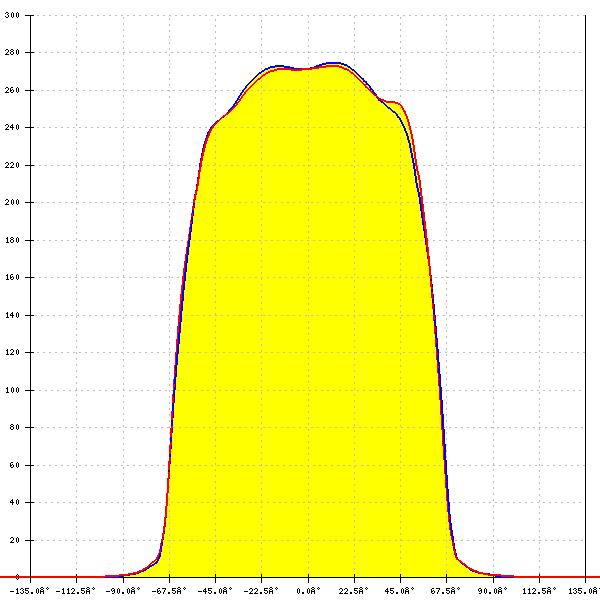

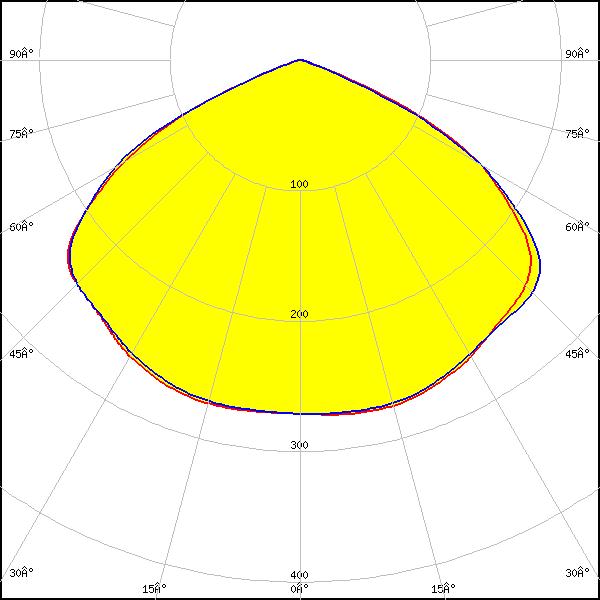

LUXEON V2
FWHM:
124°
FWTM:
140°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

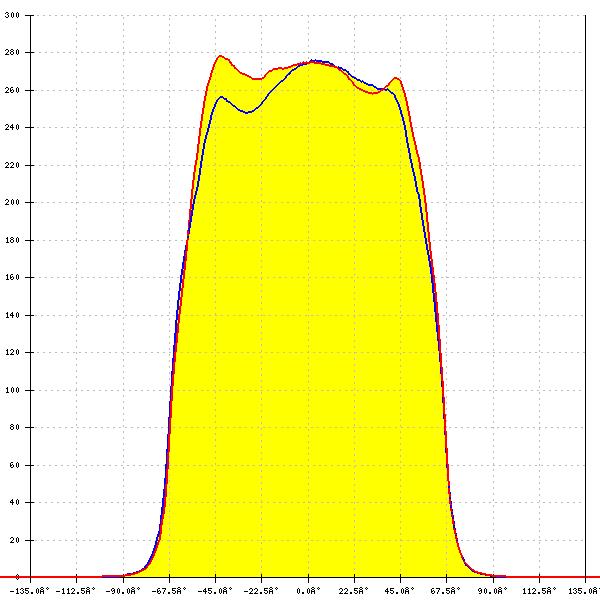

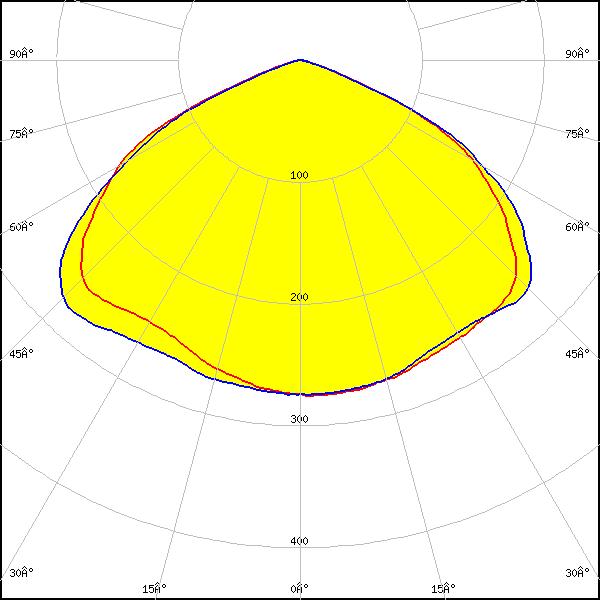

SST-10-B130
FWHM:
126°
FWTM:
144°
Peak intensity:
0.399 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
Deep Red

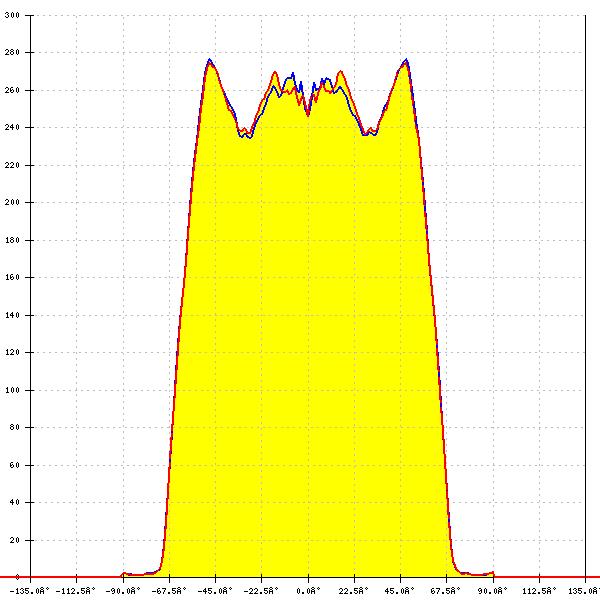

LED:

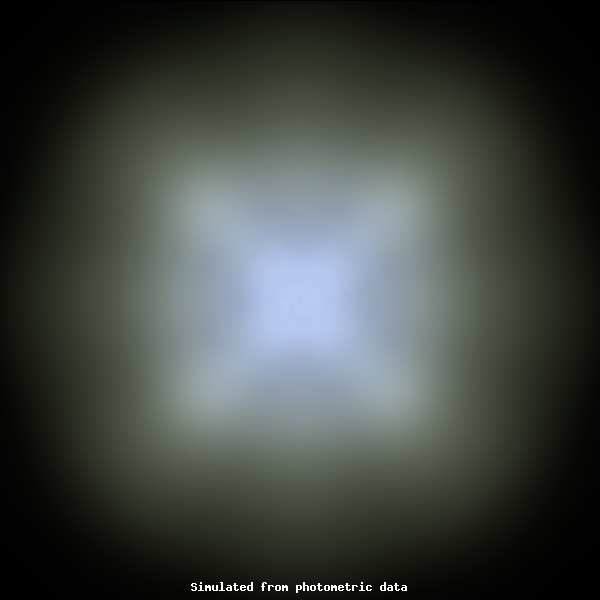

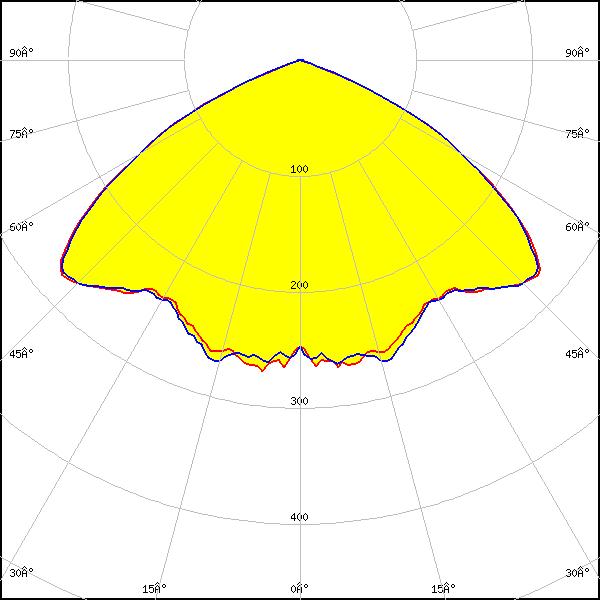

SST-20 Gen2
FWHM:
124°
FWTM:
138°
Peak intensity:
0.409 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-20 Gen2
FWHM:
122°
FWTM:
138°
Peak intensity:
0.357 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

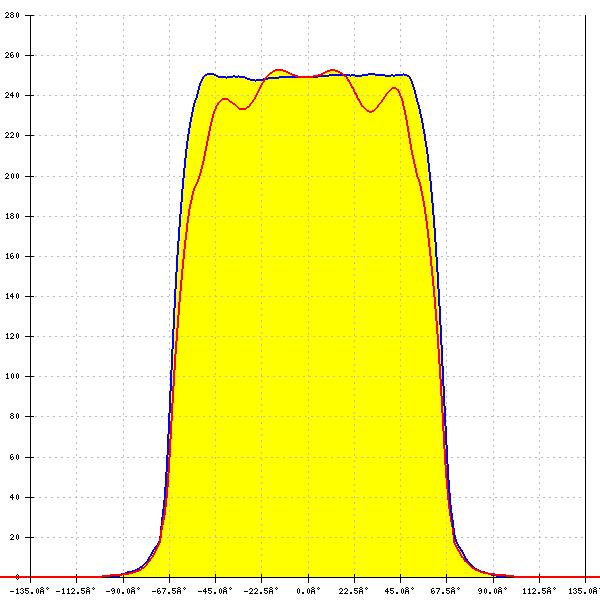

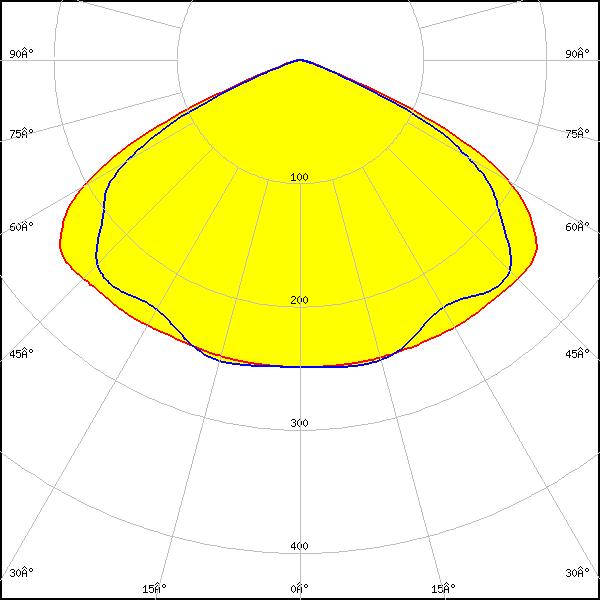

NF2W585AR
FWHM:
130°
FWTM:
143°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

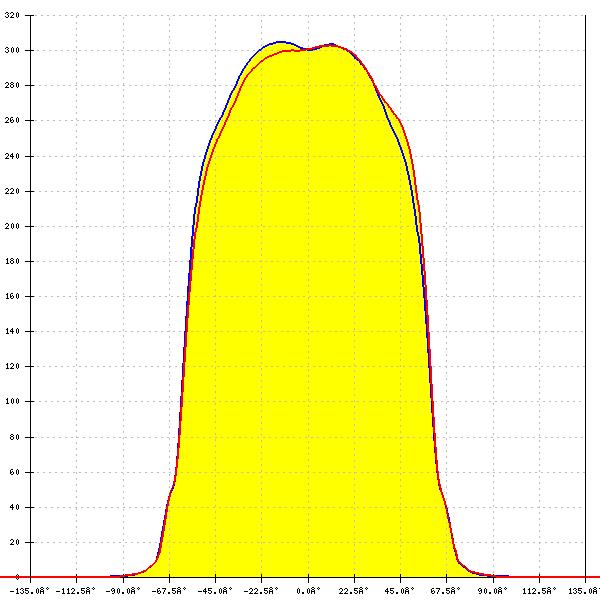

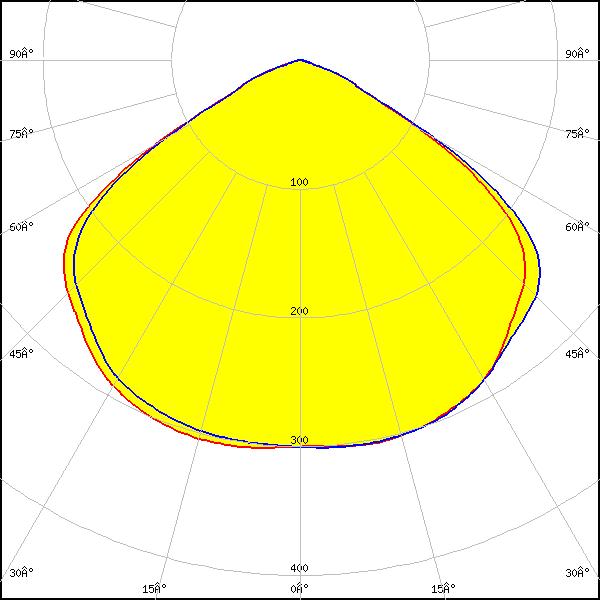

NVSW219D
FWHM:
116°
FWTM:
140°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

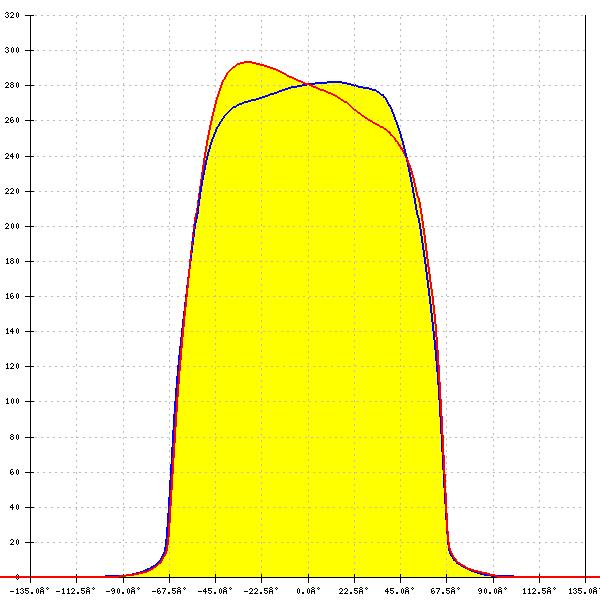

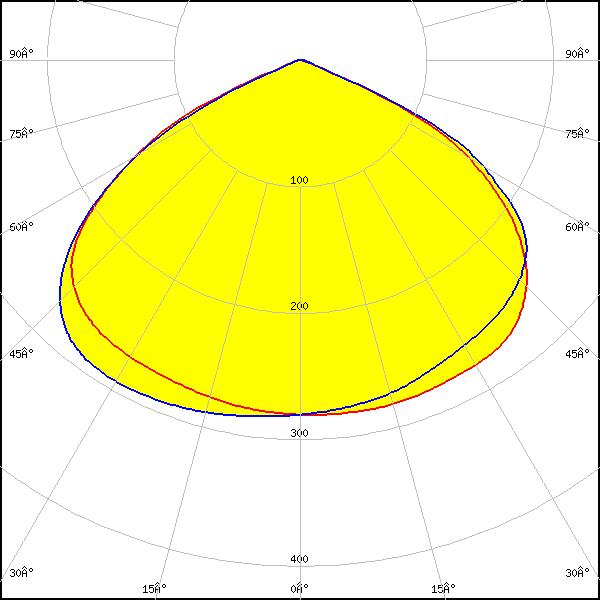

NVSW319B
FWHM:
122°
FWTM:
136°
Peak intensity:
0.360 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

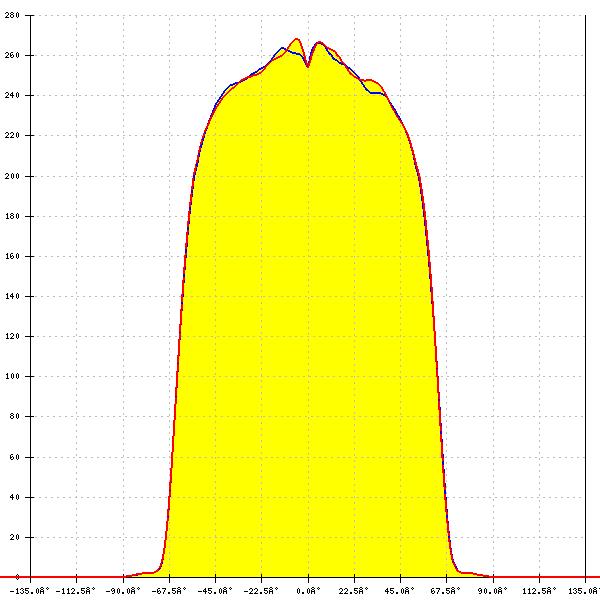

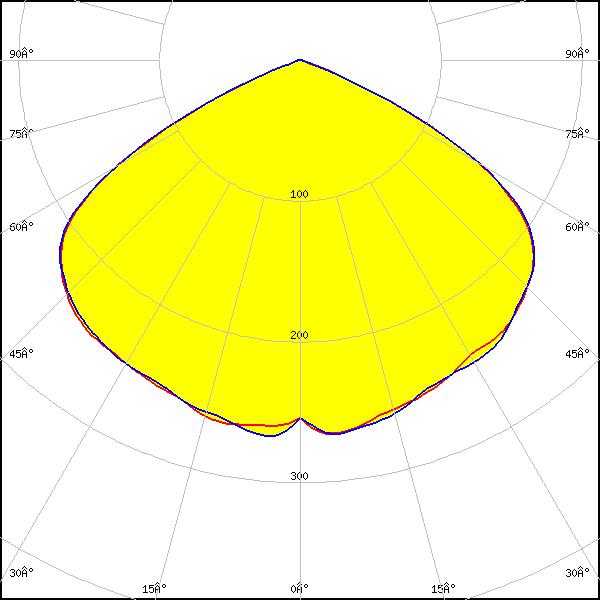

NVSW519A
FWHM:
123°
FWTM:
136°
Peak intensity:
0.323 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

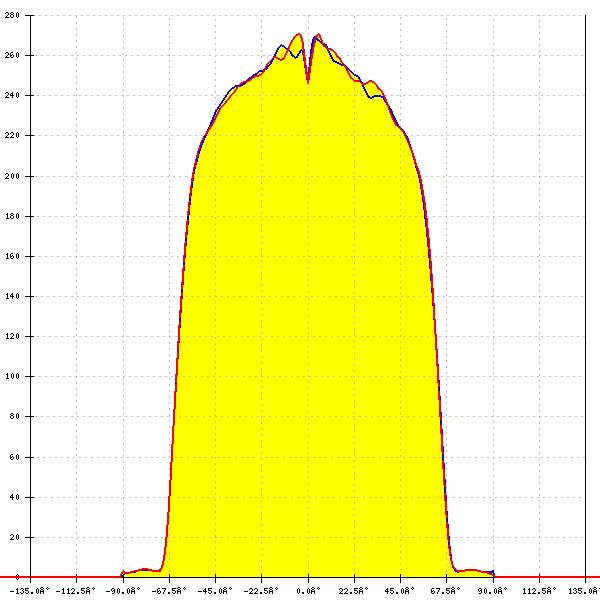

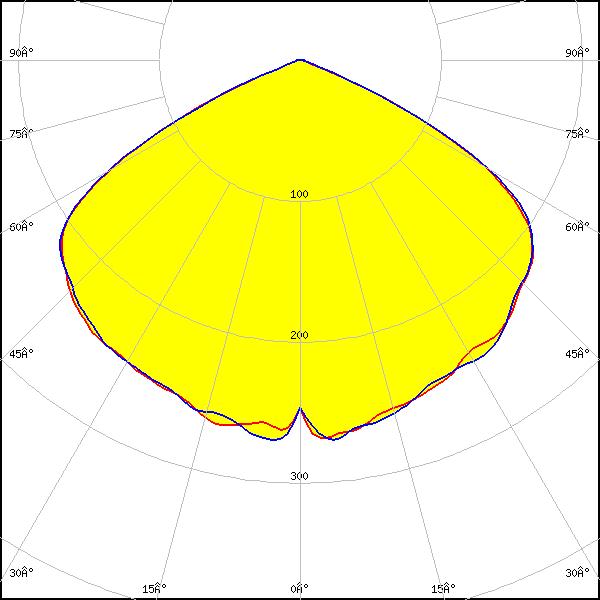

NVSW519A
FWHM:
122°
FWTM:
136°
Peak intensity:
0.297 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

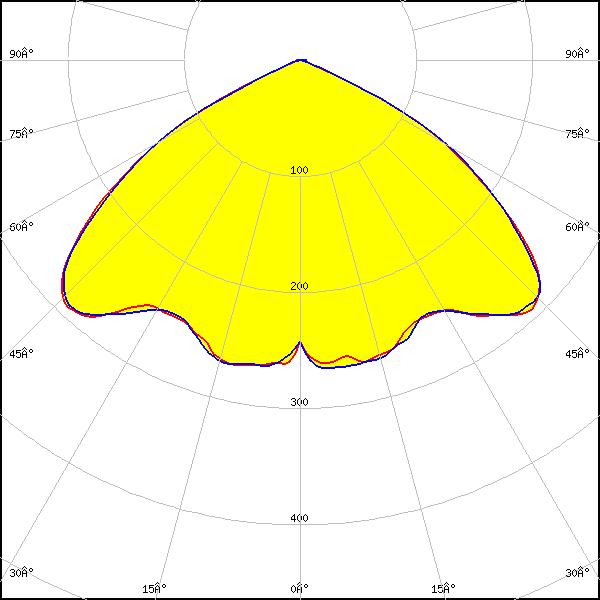

LED:

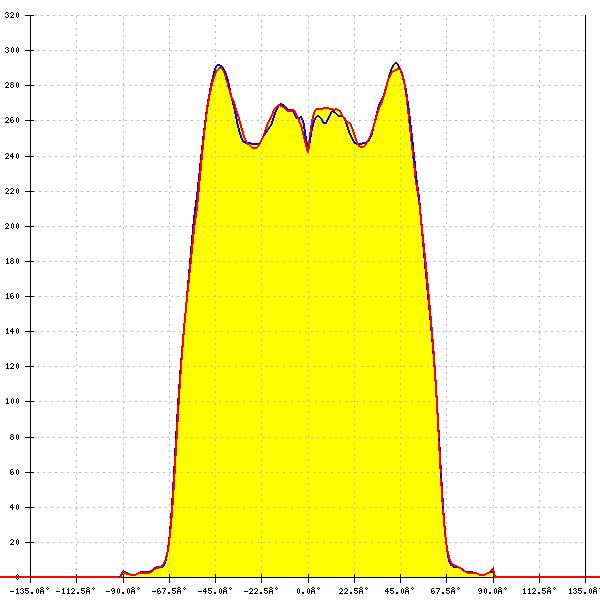

NVSxE21A
FWHM:
120°
FWTM:
133°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

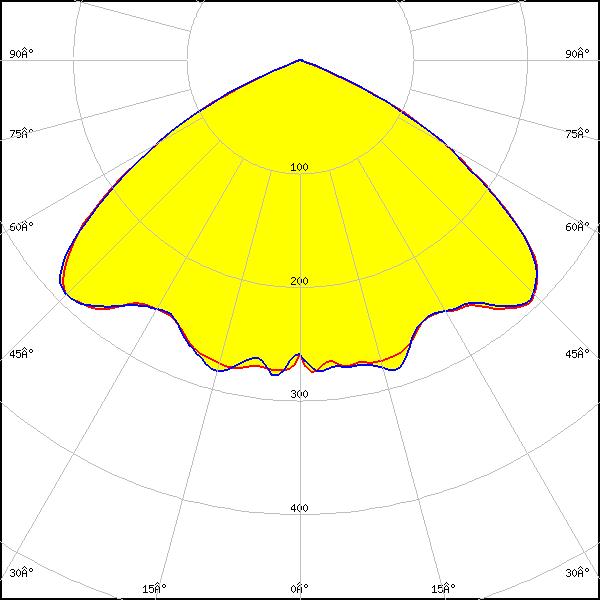

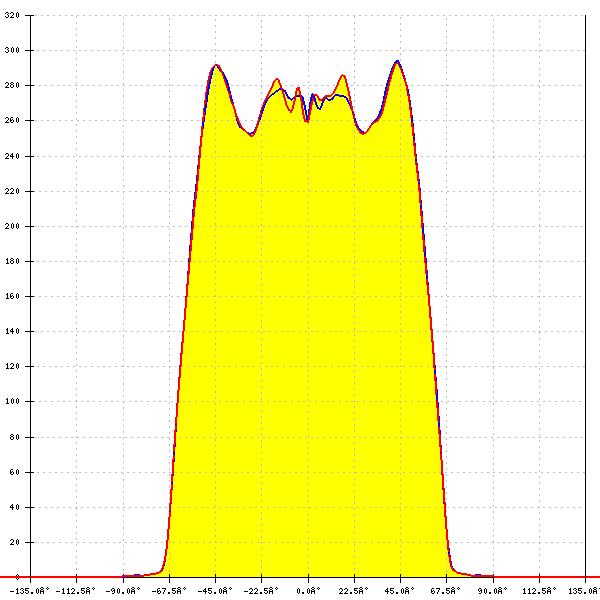

LED:
OSCONIQ C 2424 Gen1
FWHM:
120°
FWTM:
136°
Peak intensity:
0.415 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

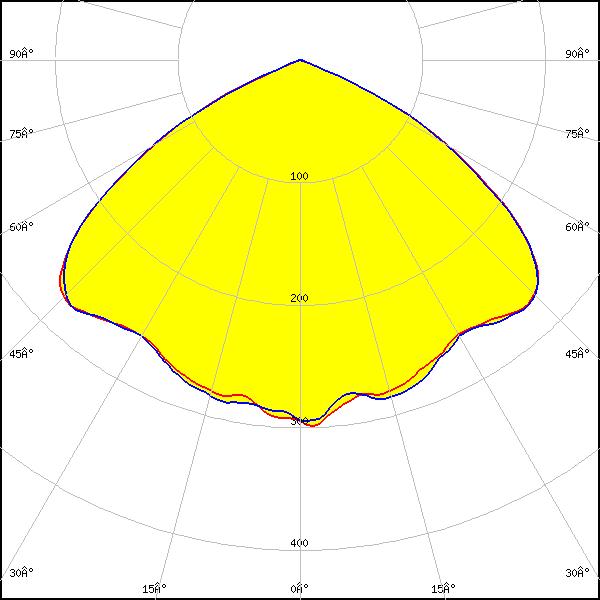

LED:

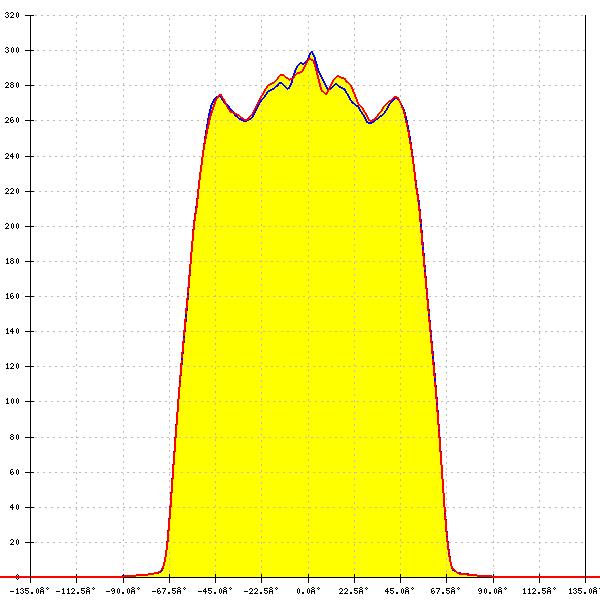

OSCONIQ C 3030
FWHM:
118°
FWTM:
135°
Peak intensity:
0.384 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
116°
FWTM:
134°
Peak intensity:
0.333 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

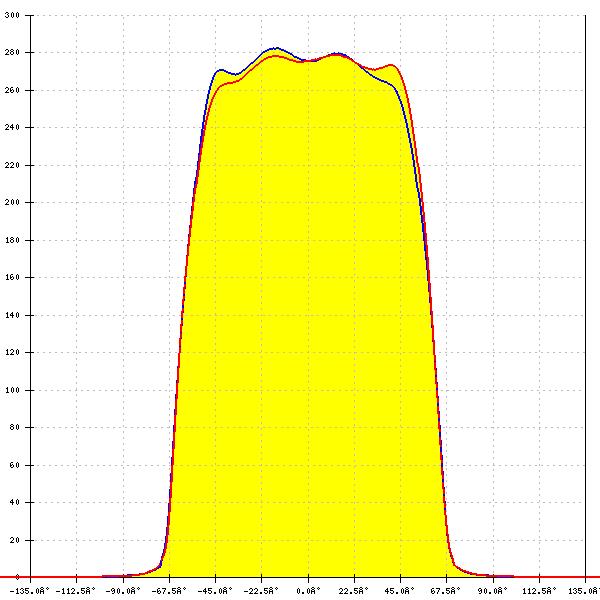

LED:

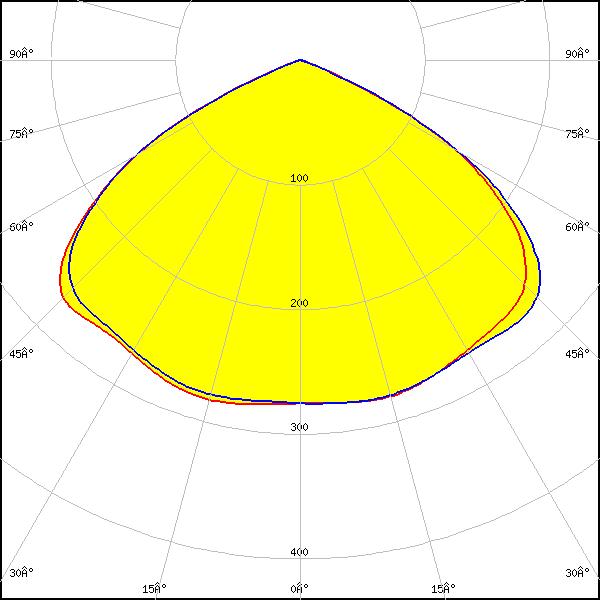

OSCONIQ S 3030 (QSLR31)
FWHM:
121°
FWTM:
136°
Peak intensity:
0.417 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

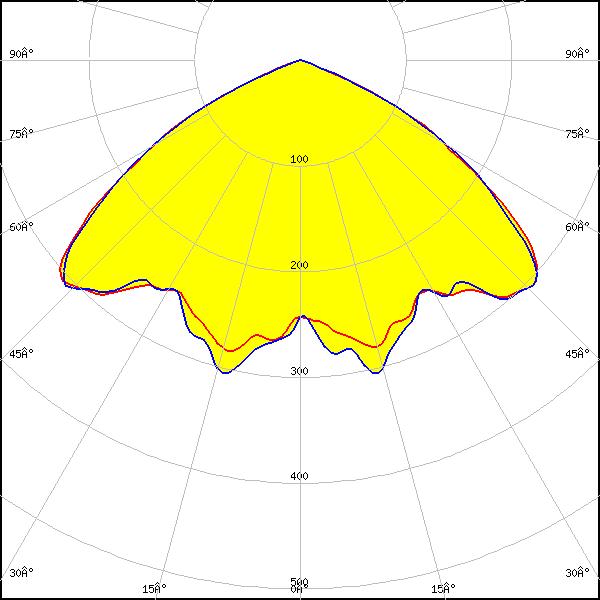

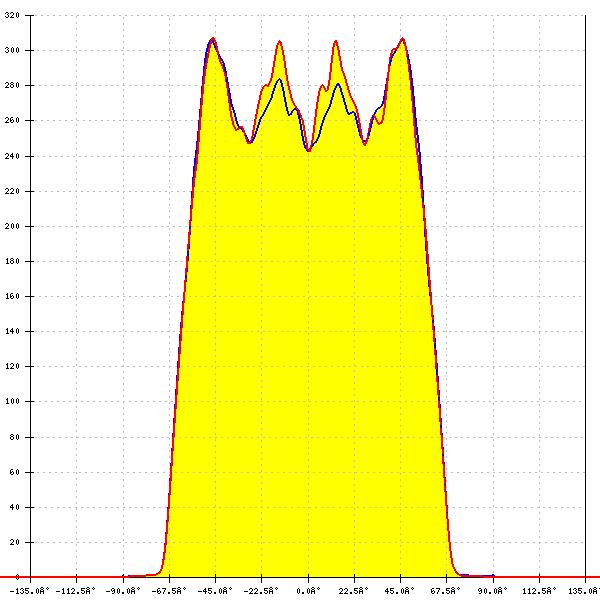

OSLON Pure 1414
FWHM:
121° + 120°
FWTM:
136° + 136°
Peak intensity:
0.437 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

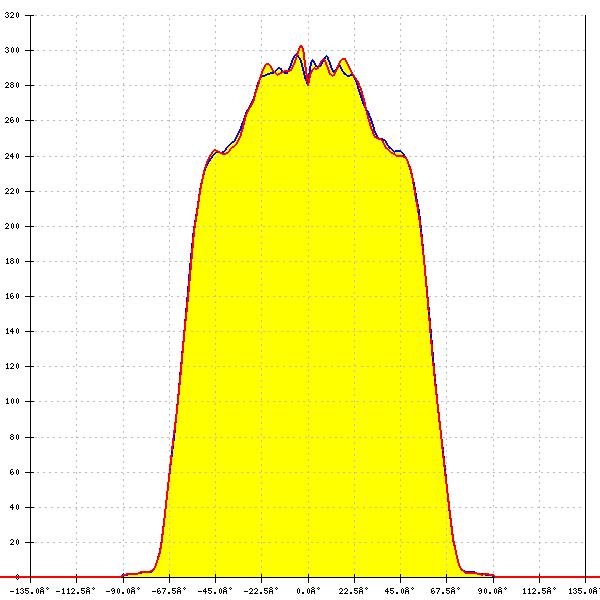

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
116°
FWTM:
140°
Peak intensity:
0.303 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

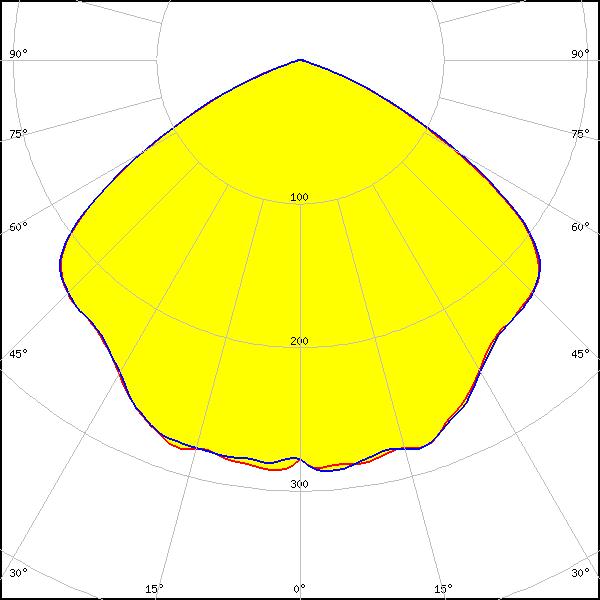

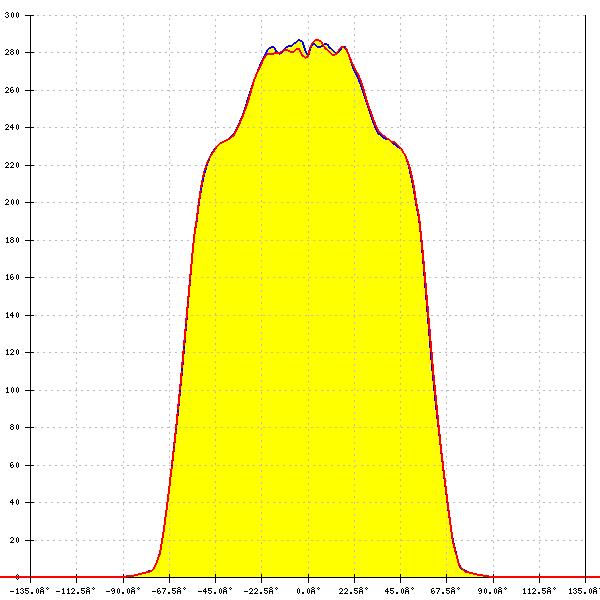

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
118°
FWTM:
140°
Peak intensity:
0.333 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

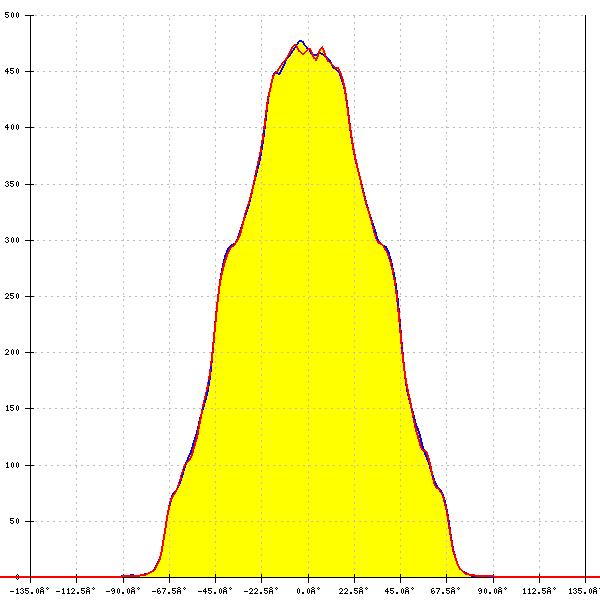

LED:
OSLON SSL 80
FWHM:
88°
FWTM:
138°
Peak intensity:
0.482 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Blue
LED:
OSLON SSL 80
FWHM:
88°
FWTM:
140°
Peak intensity:
0.427 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red

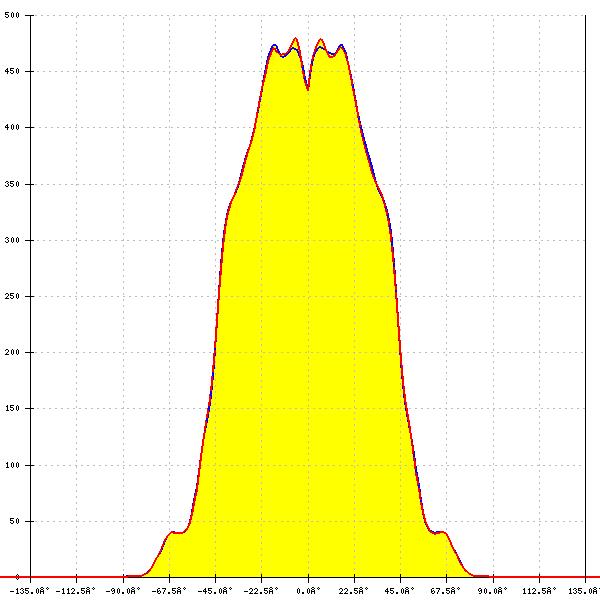

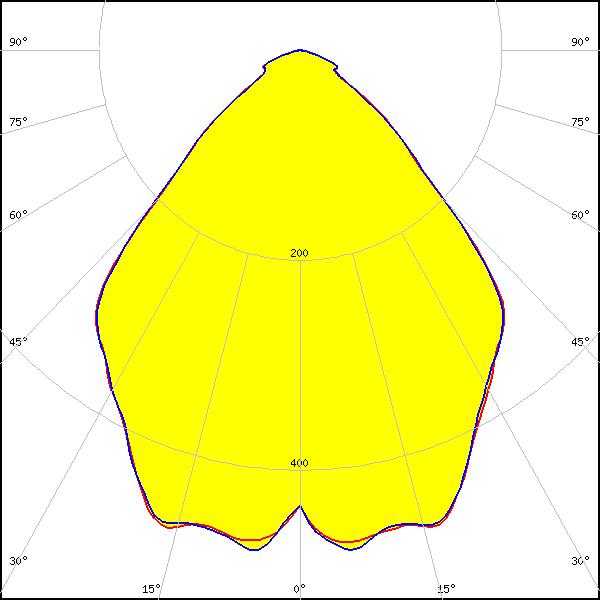

LED:
OSLON SSL 80
FWHM:
88°
FWTM:
115°
Peak intensity:
0.486 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
True Green
LED:
SFH 4715AS
FWHM:
93°
FWTM:
124°
Peak intensity:
0.475 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR

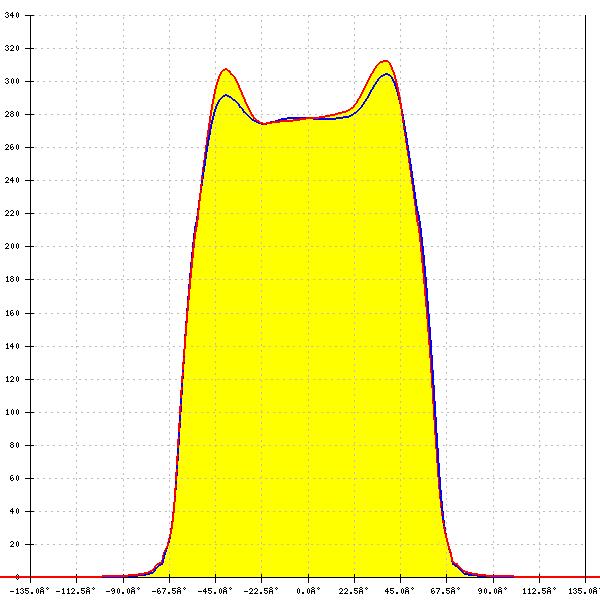

LED:

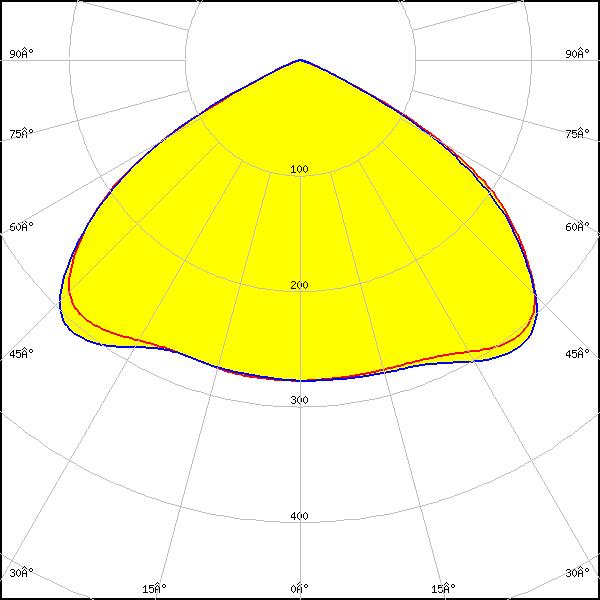

Fortimo FastFlex LED 4x8up PR G5
FWHM:
120°
FWTM:
134°
Peak intensity:
0.443 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

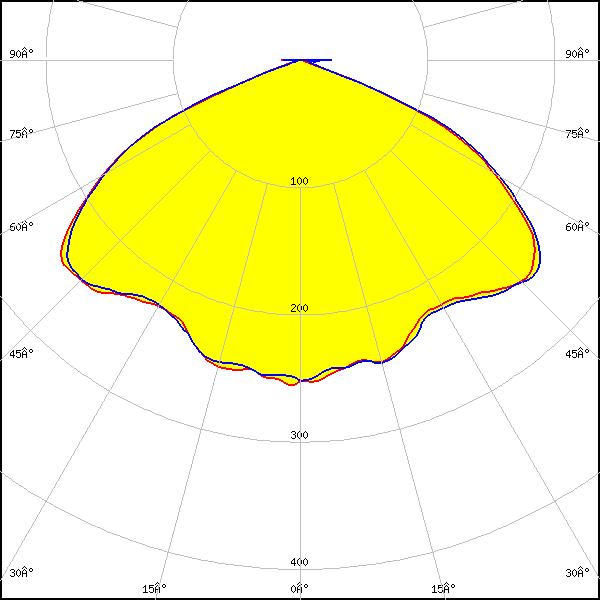

LED:

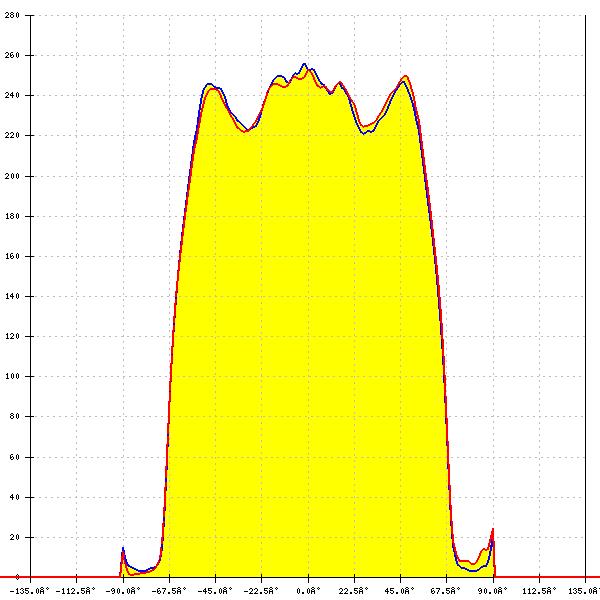

LH181A
FWHM:
130°
FWTM:
138°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

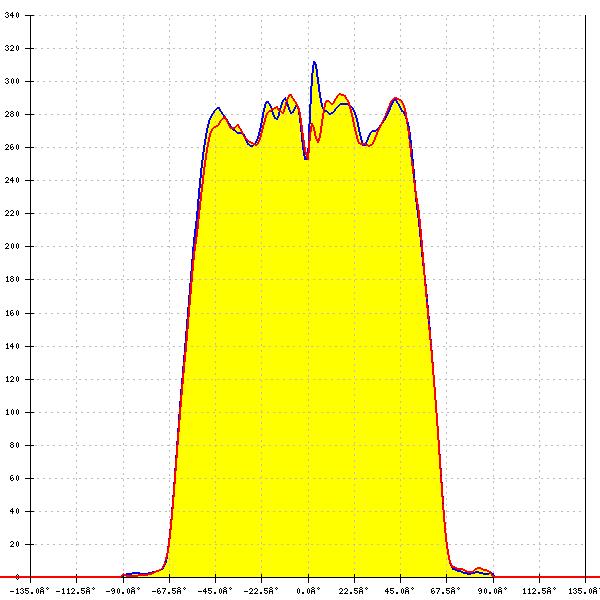

LED:

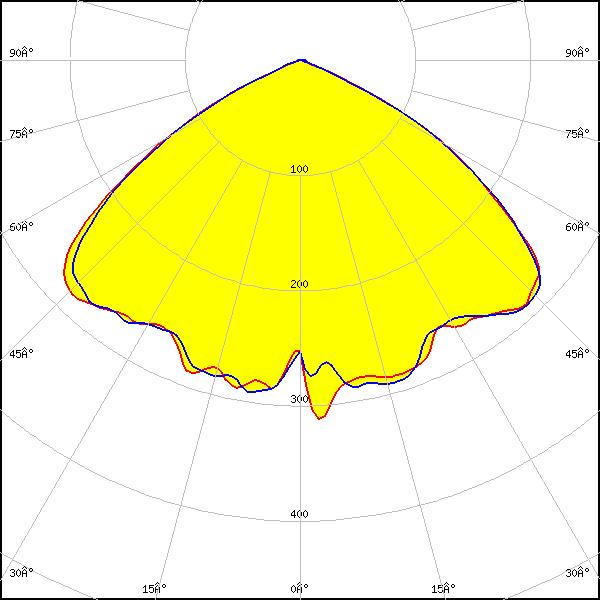

LH181B
FWHM:
128°
FWTM:
132°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

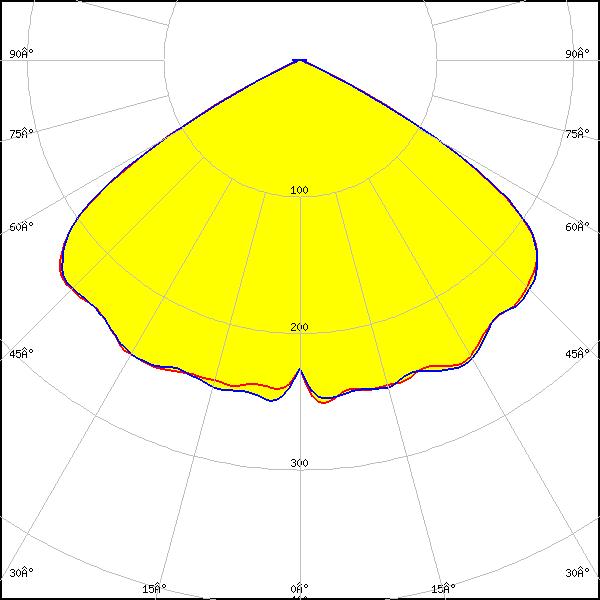

LED:

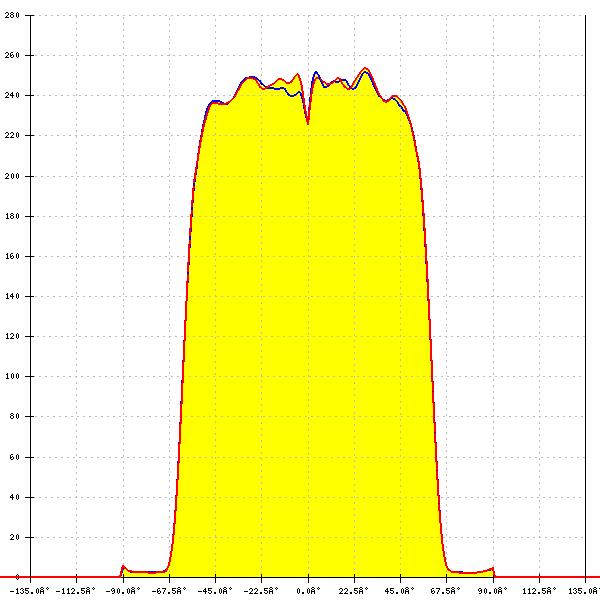

LH351C
FWHM:
118°
FWTM:
130°
Peak intensity:
0.321 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

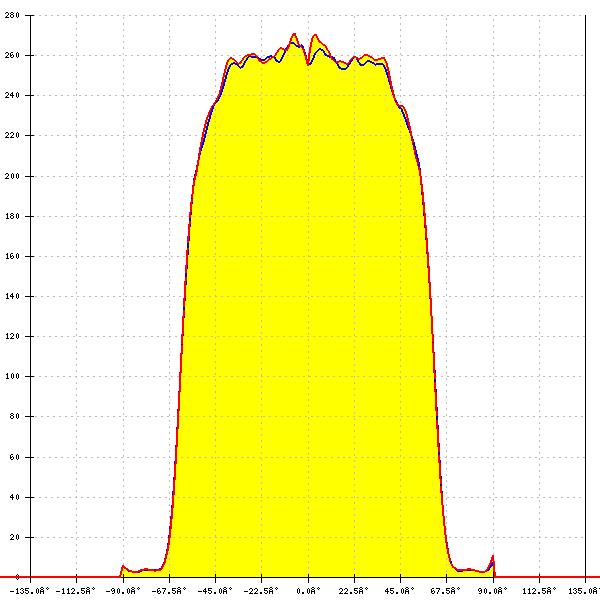

LED:

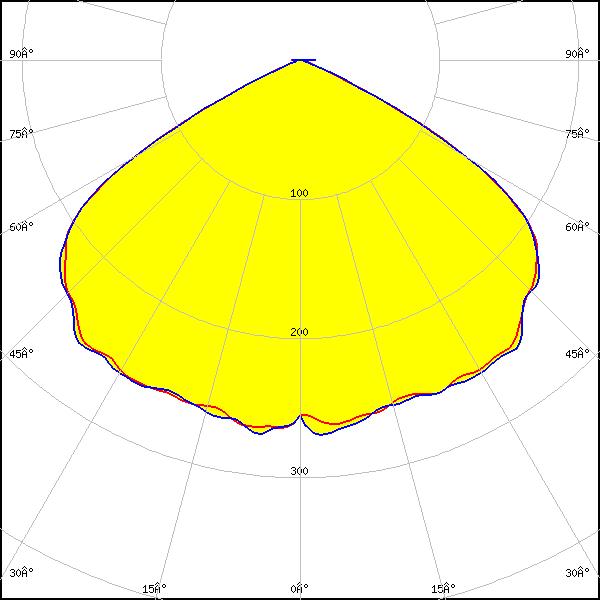

LH351D
FWHM:
120°
FWTM:
134°
Peak intensity:
0.310 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

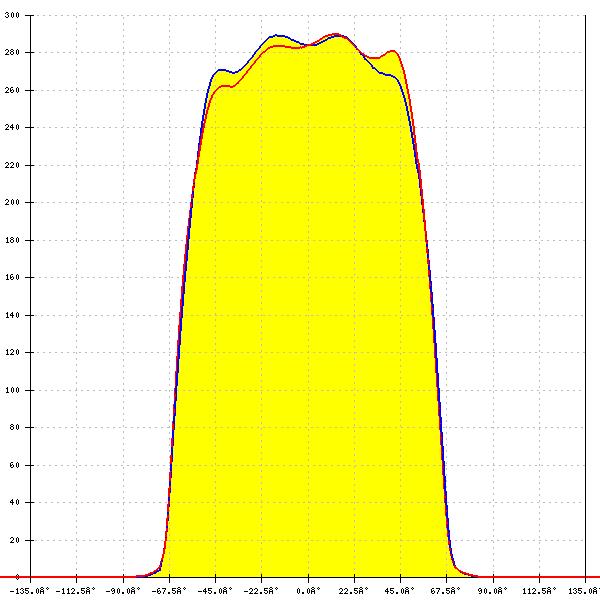

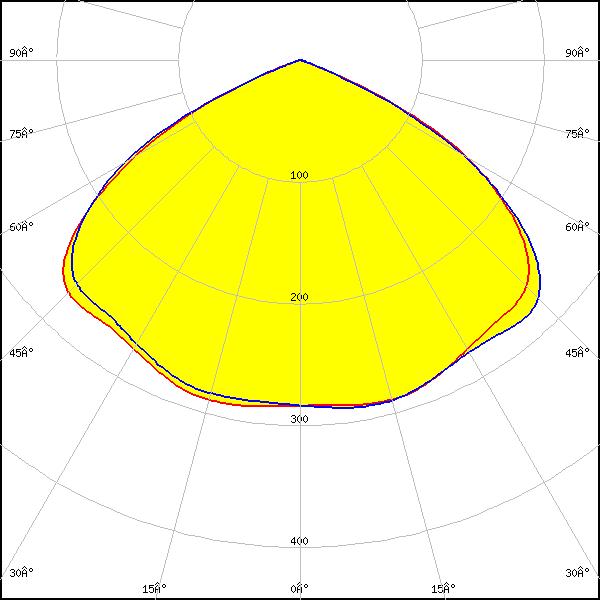

LED:
SEOUL DC 3030C
FWHM: asymmetric
Peak intensity:
0.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

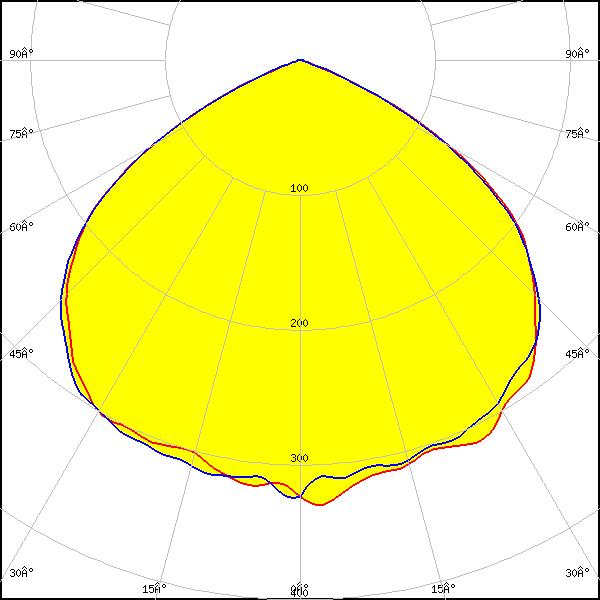

LED:

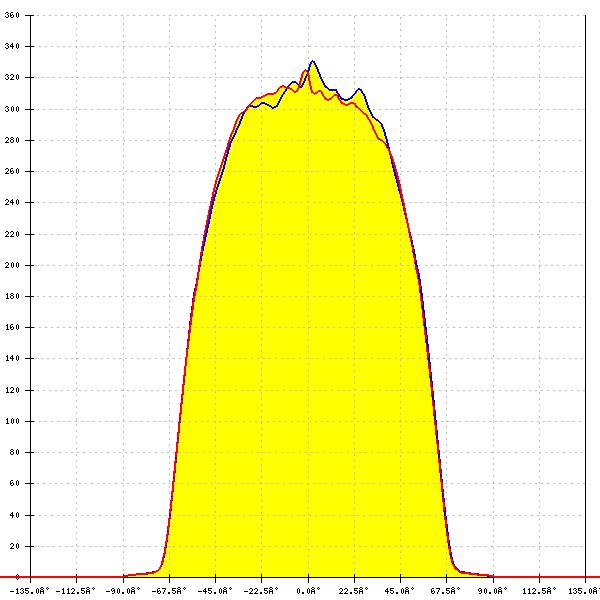

SEOUL DC 5050 6V
FWHM:
113°
FWTM:
136°
Peak intensity:
0.330 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

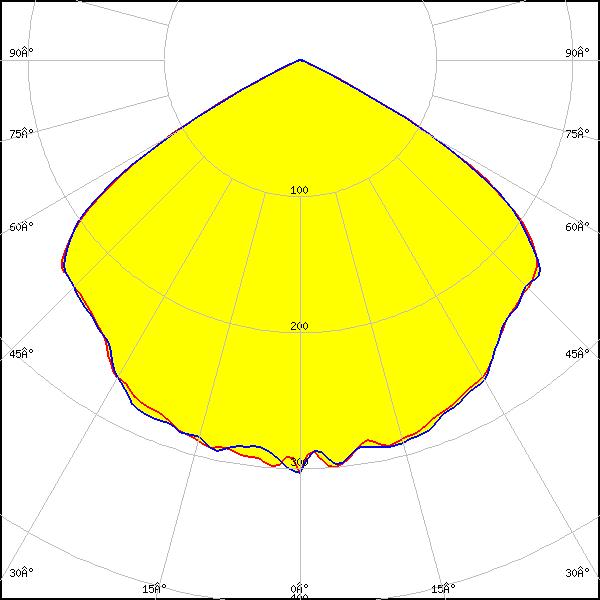

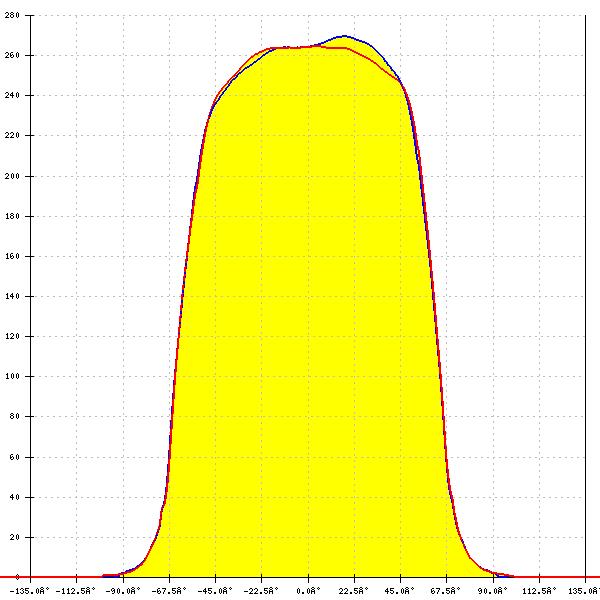

LED:

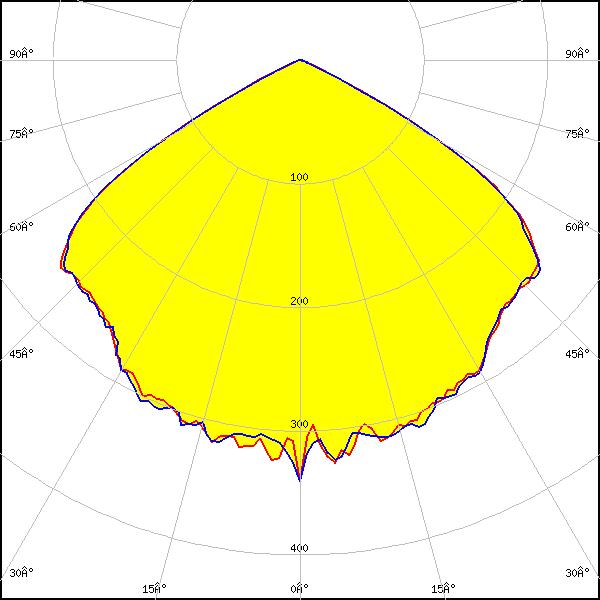

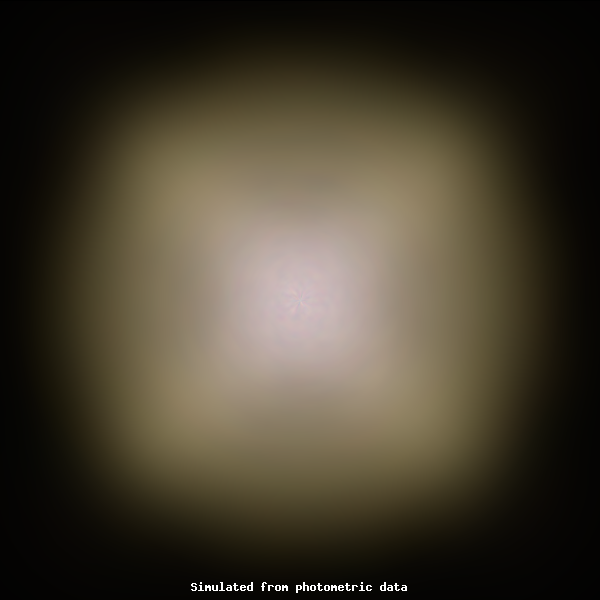

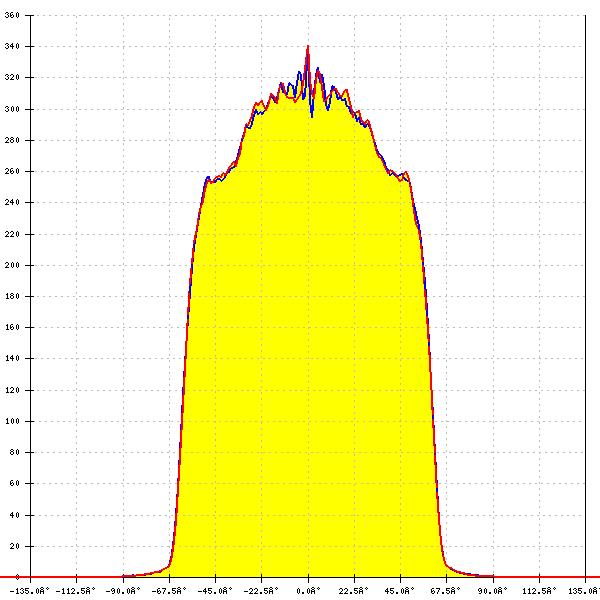

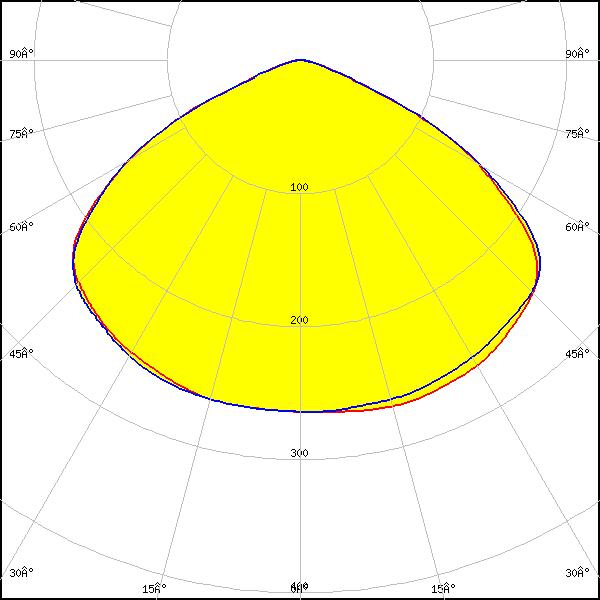

Z5M3
FWHM:
124°
FWTM:
144°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

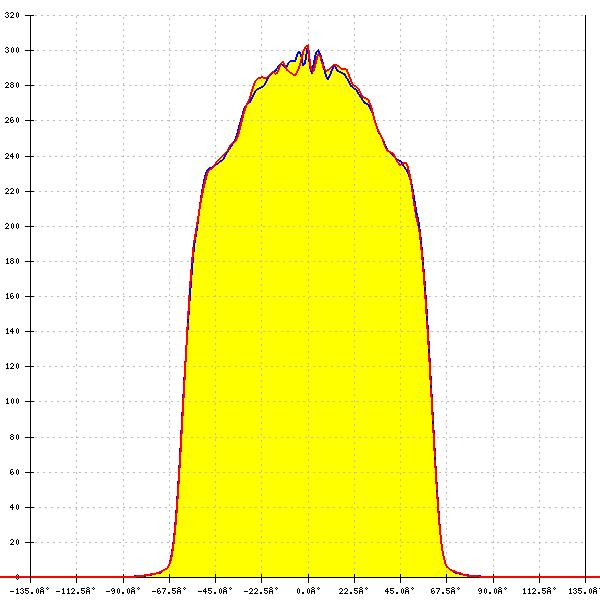

Z5M3-E1
FWHM:
116°
FWTM:
128°
Peak intensity:
0.365 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
116°
FWTM:
128°
Peak intensity:
0.324 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

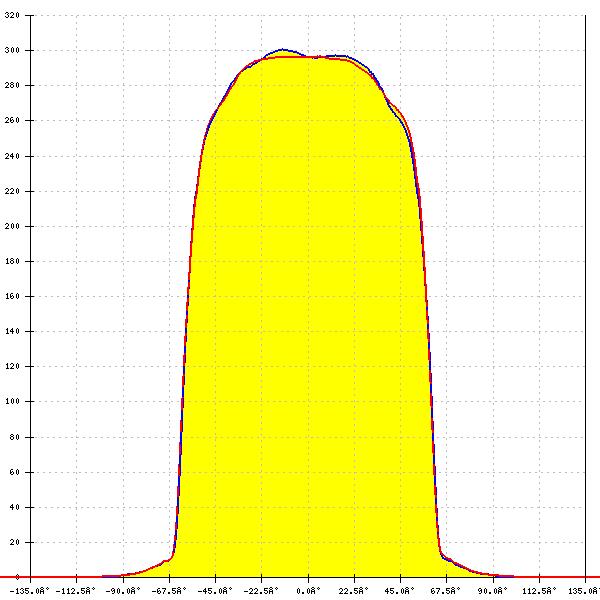

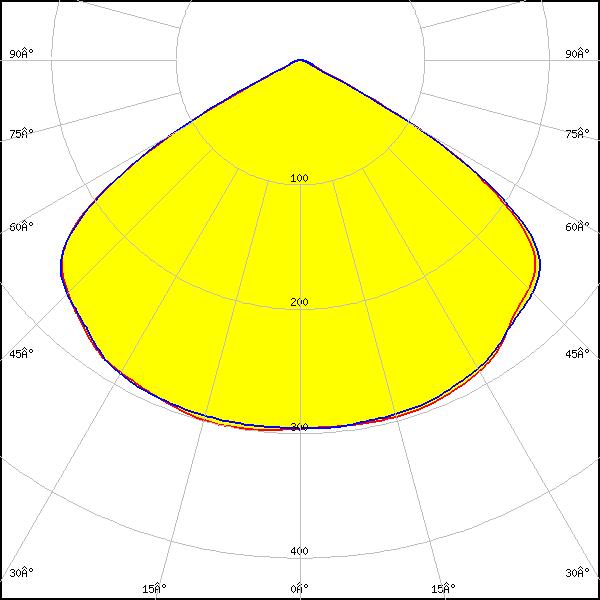

Z5M4
FWHM:
117°
FWTM:
127°
Peak intensity:
0.394 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
118°
FWTM:
130°
Peak intensity:
0.379 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M5
FWHM:
118°
FWTM:
130°
Peak intensity:
0.330 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
