C15983_STRADELLA-8-HV-HB-S
Print
~25° spot beam for industrial applications. Variant with improved creepage distance for high voltage circuit designs.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

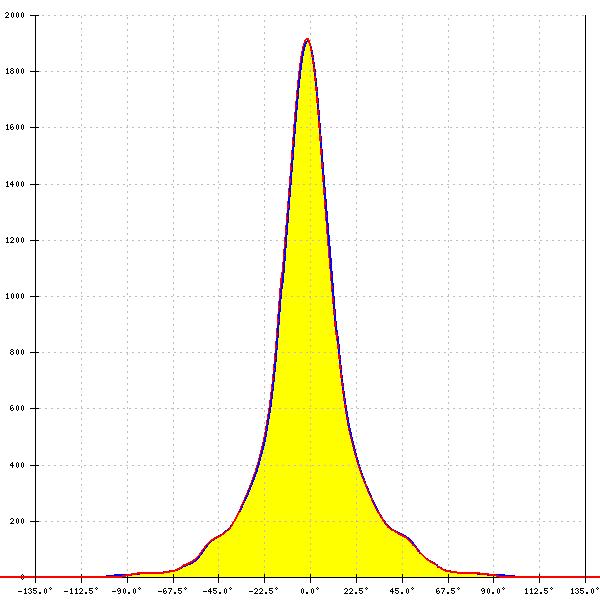

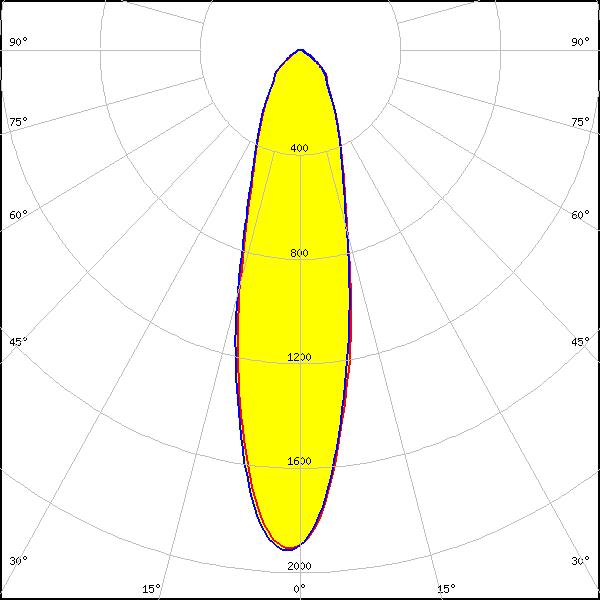

LED:
JB3030 HE B Class
FWHM:
27°
FWTM:
75°
Peak intensity:
1.927 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

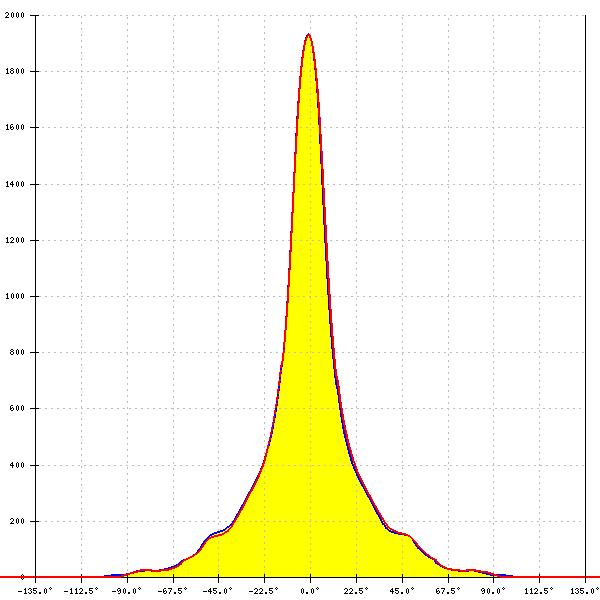

LED:

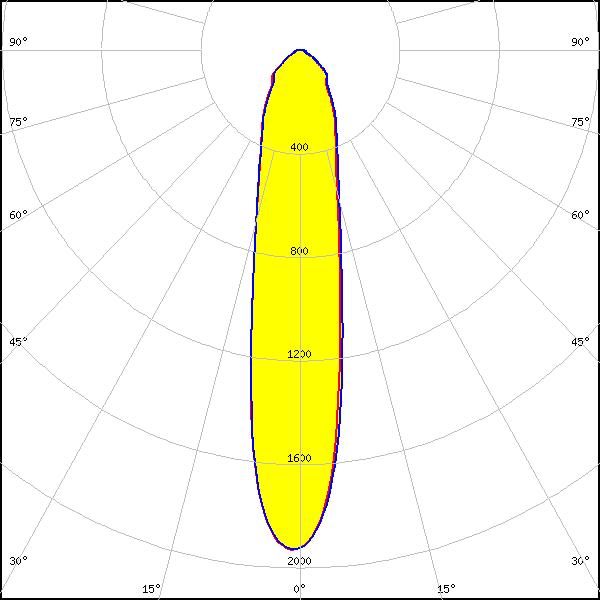

XD16
FWHM:
21°
FWTM:
74°
Peak intensity:
1.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

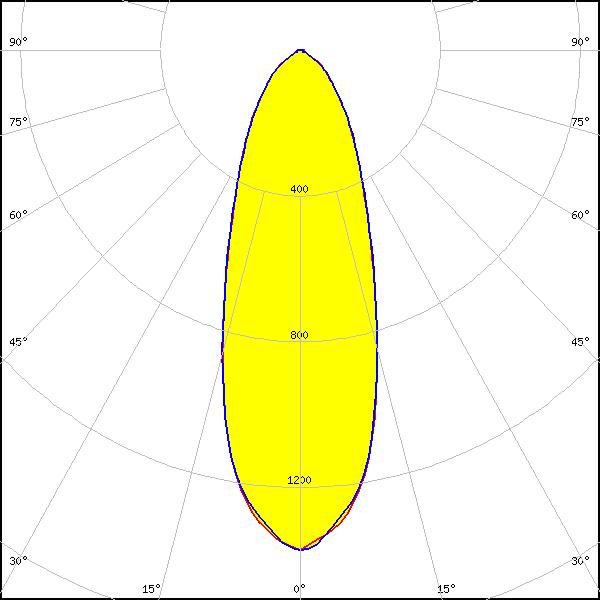

LED:

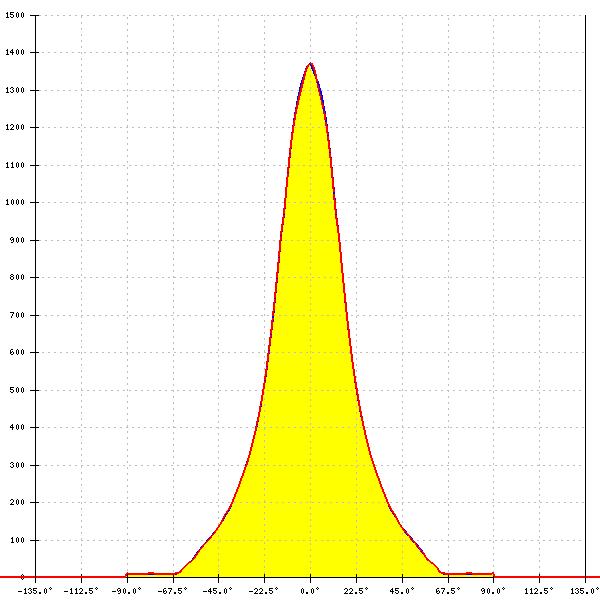

XP-G2 HE
FWHM:
36°
FWTM:
89°
Peak intensity:
1.373 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

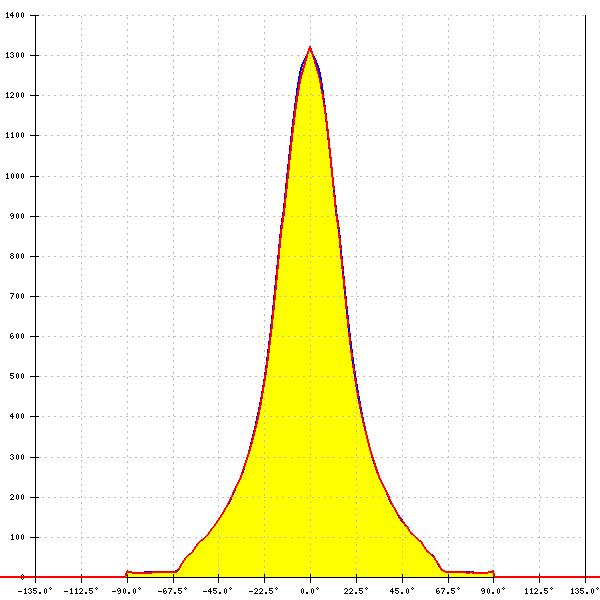

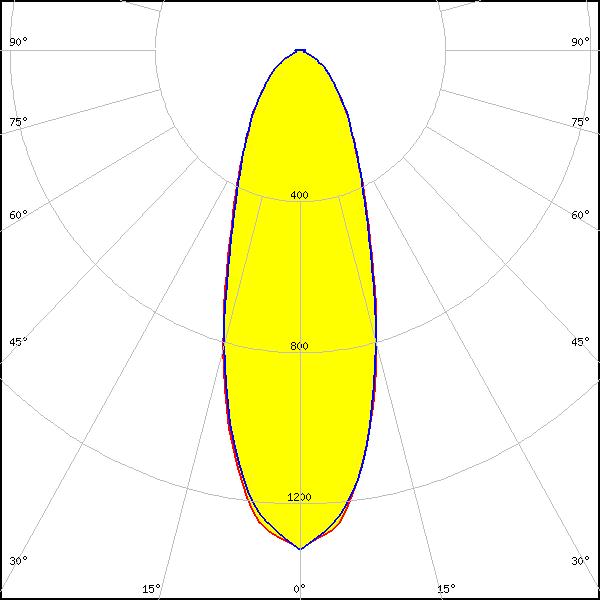

LED:
XP-G3
FWHM:
33°
FWTM:
90°
Peak intensity:
1.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
36°
FWTM:
92°
Peak intensity:
1.323 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

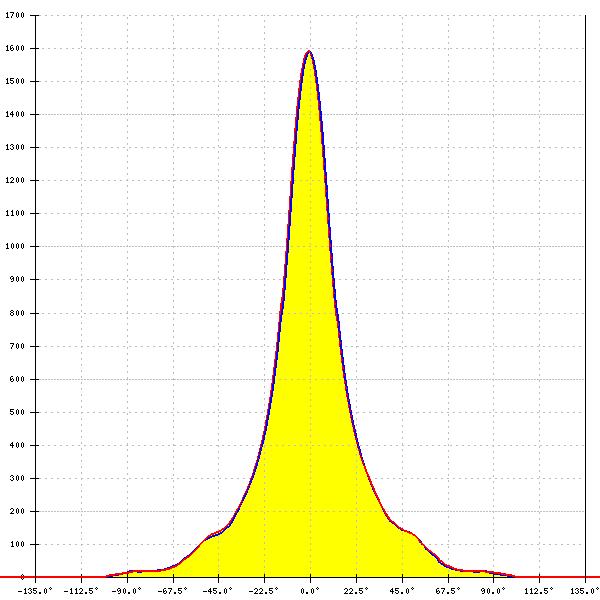

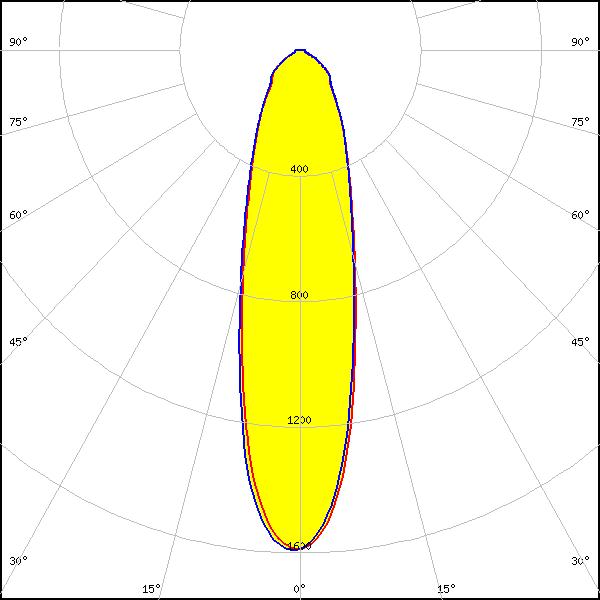

XT-E
FWHM:
27°
FWTM:
81°
Peak intensity:
1.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

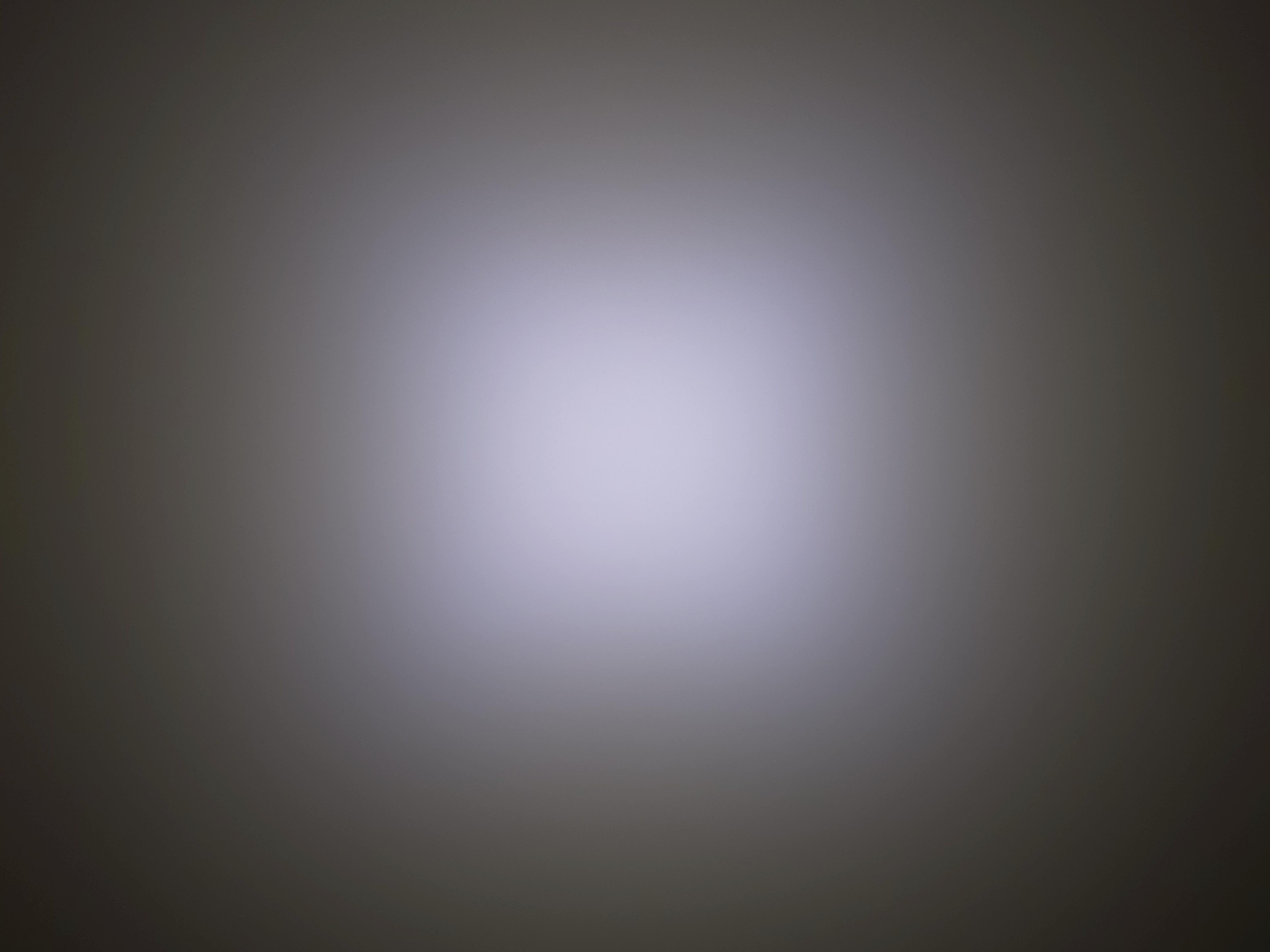

LED:

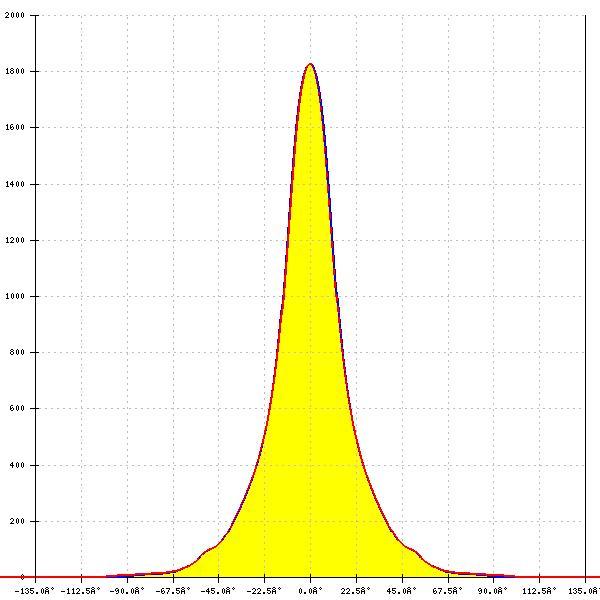

PL-BRICK HP 3x8 Stradella-8
FWHM:
29°
FWTM:
78°
Peak intensity:
1.826 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE
FWHM:
20°
FWTM:
65°
Peak intensity:
2.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

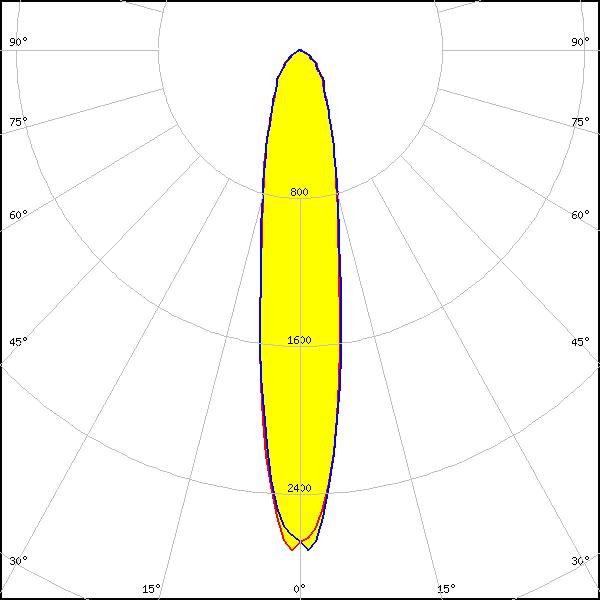

LED:

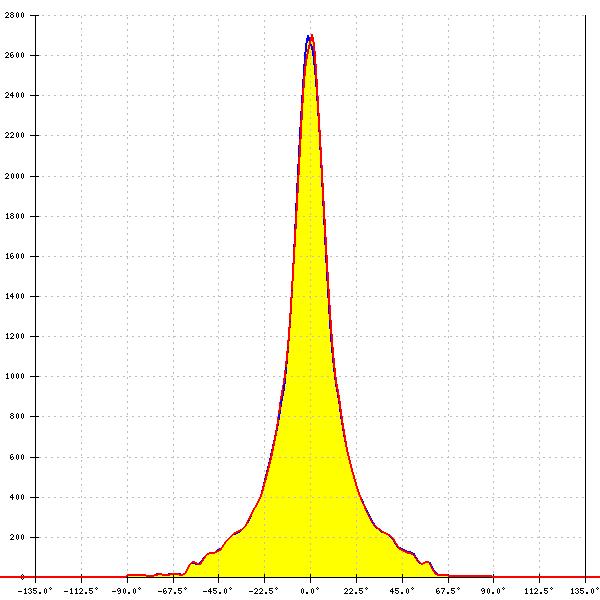

LUXEON CZ
FWHM:
20°
FWTM:
62°
Peak intensity:
2.703 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HR30
FWHM:
26°
FWTM:
72°
Peak intensity:
2.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
28°
FWTM:
80°
Peak intensity:
1.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
23°
FWTM:
75°
Peak intensity:
2.063 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Deep Red

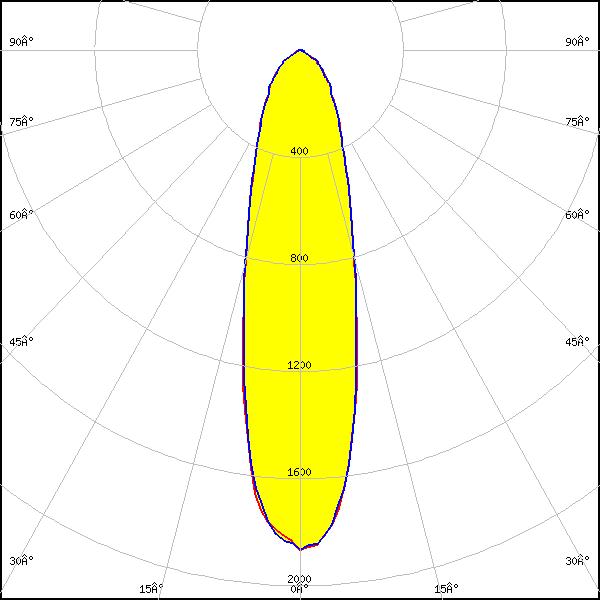

LED:

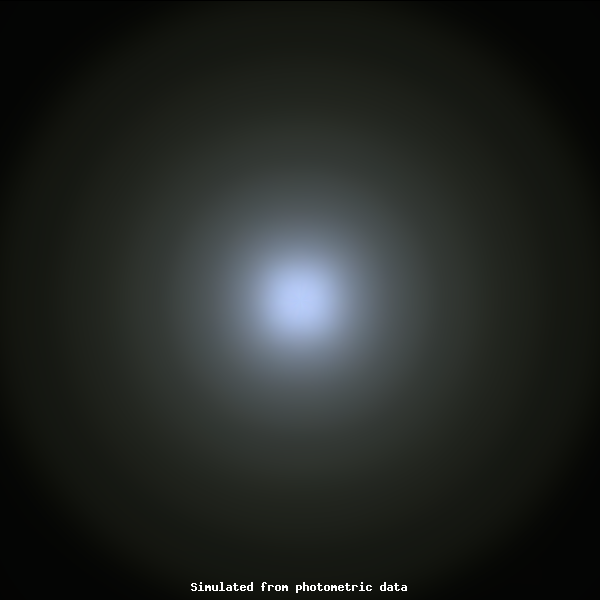

SST-20 Gen2
FWHM:
27° + 28°
FWTM:
80° + 80°
Peak intensity:
1.903 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-20 Gen2
FWHM:
28°
FWTM:
80°
Peak intensity:
1.752 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

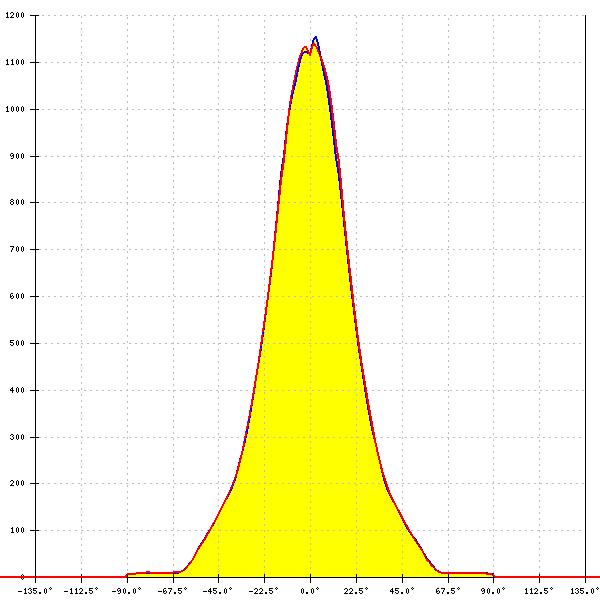

LED:

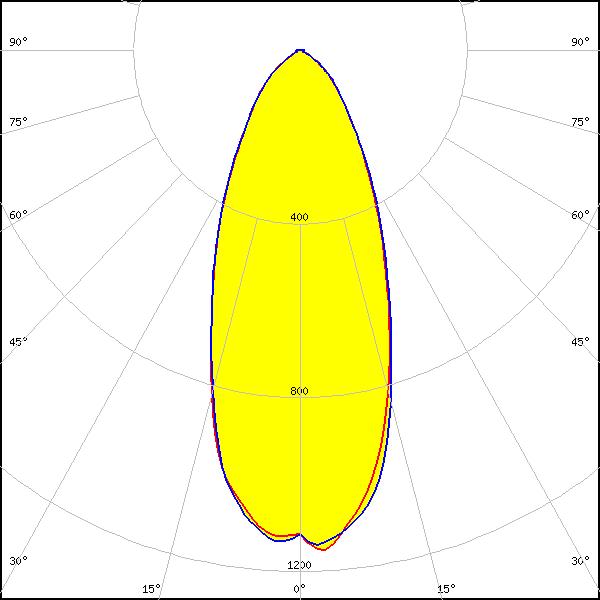

NVSW519A
FWHM:
43°
FWTM:
94°
Peak intensity:
1.153 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

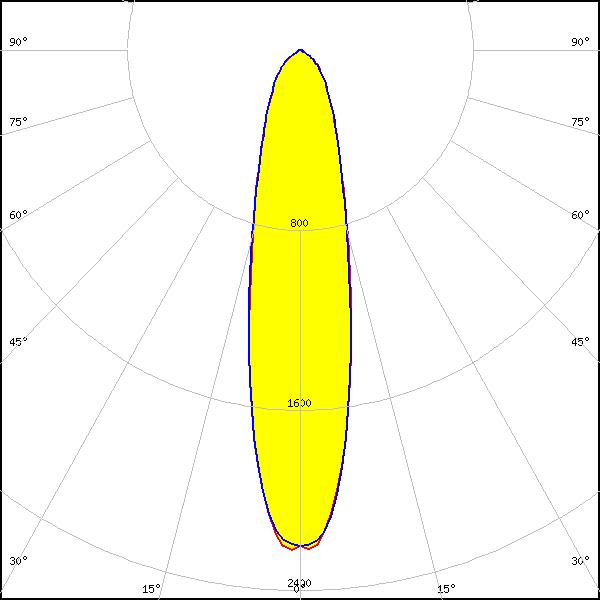

OSCONIQ C 2424 Gen1
FWHM:
24°
FWTM:
70°
Peak intensity:
2.227 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

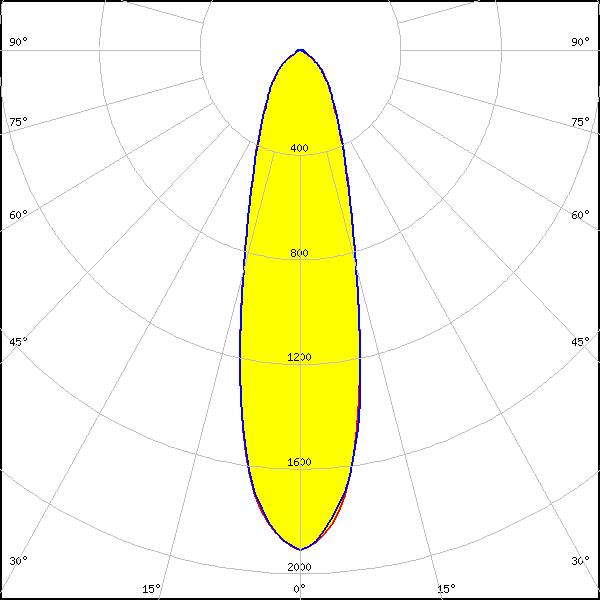

LED:

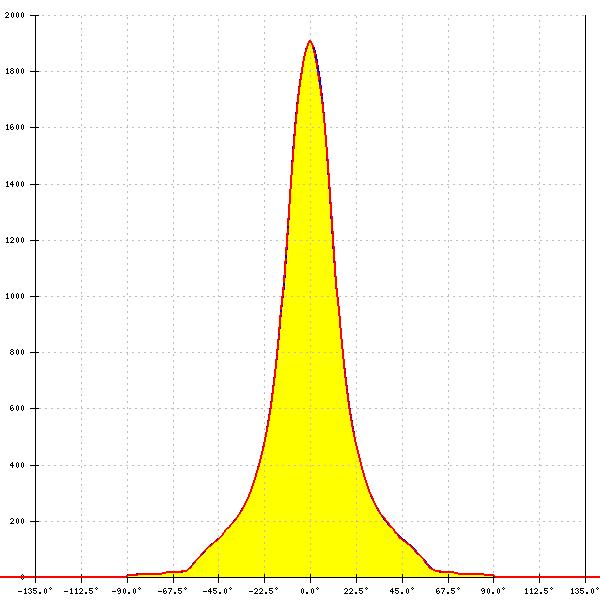

OSCONIQ C 3030
FWHM:
28°
FWTM:
77°
Peak intensity:
1.914 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
28°
FWTM:
77°
Peak intensity:
1.759 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
20°
FWTM:
56°
Peak intensity:
3.153 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

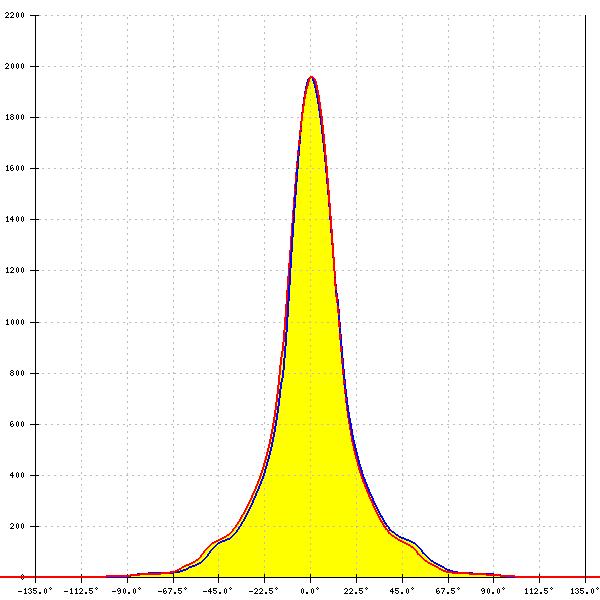

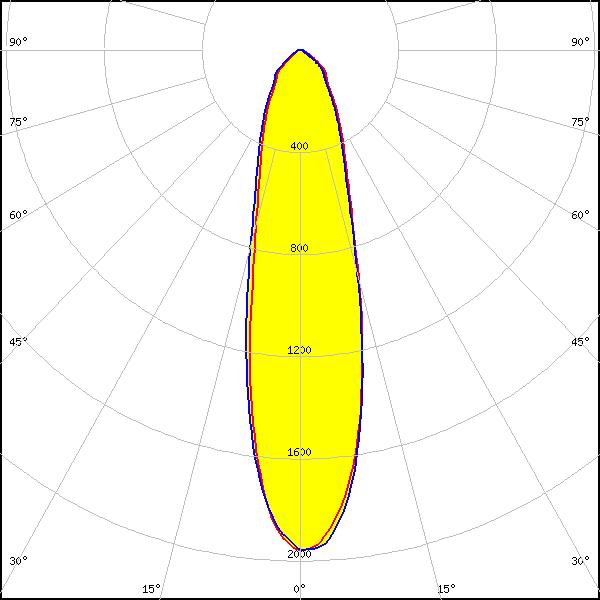

LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
27°
FWTM:
74°
Peak intensity:
1.958 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

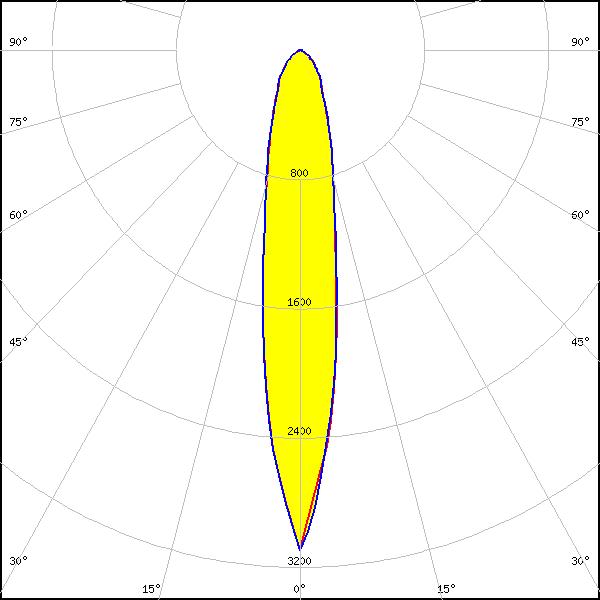

OSLON Pure 1414
FWHM:
18°
FWTM:
58°
Peak intensity:
3.094 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

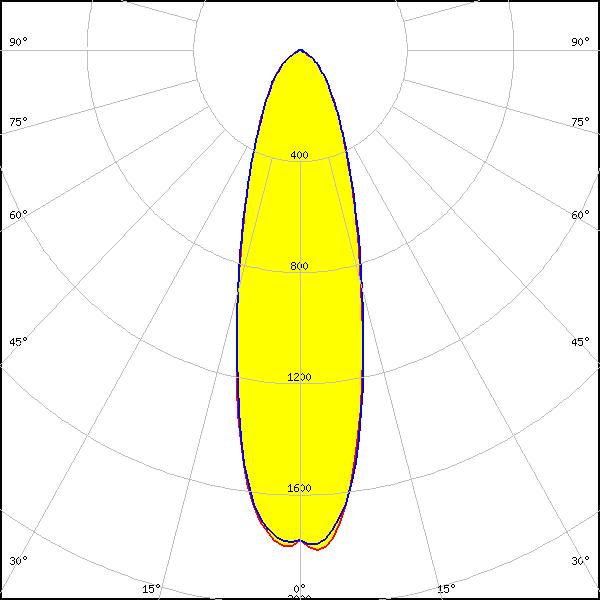

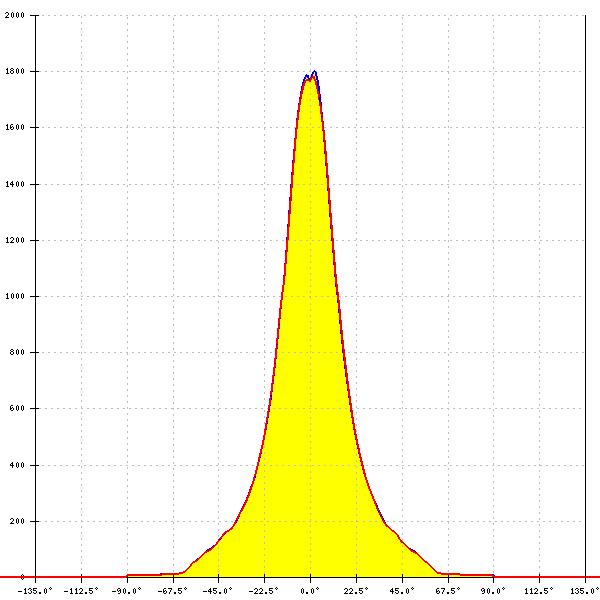

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
30°
FWTM:
76°
Peak intensity:
1.821 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

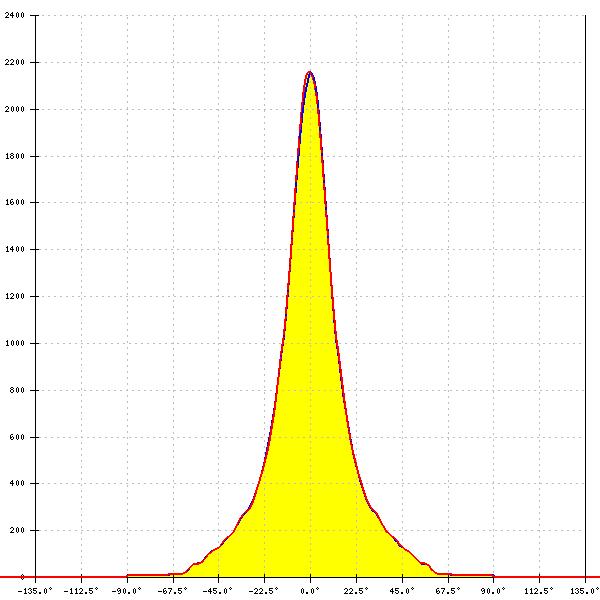

LED:

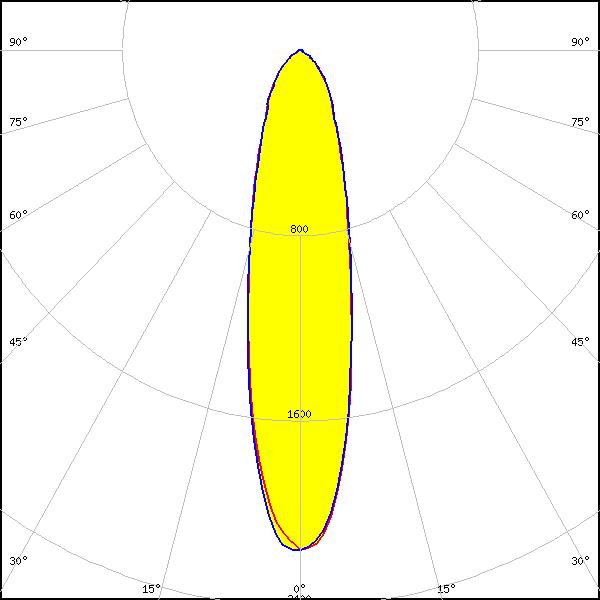

OSLON Square CSSRM2/CSSRM3
FWHM:
25°
FWTM:
72°
Peak intensity:
2.181 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Far Red
LED:

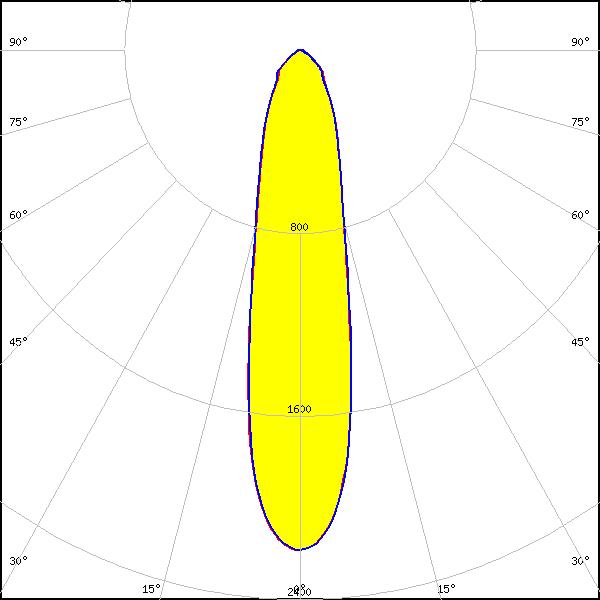

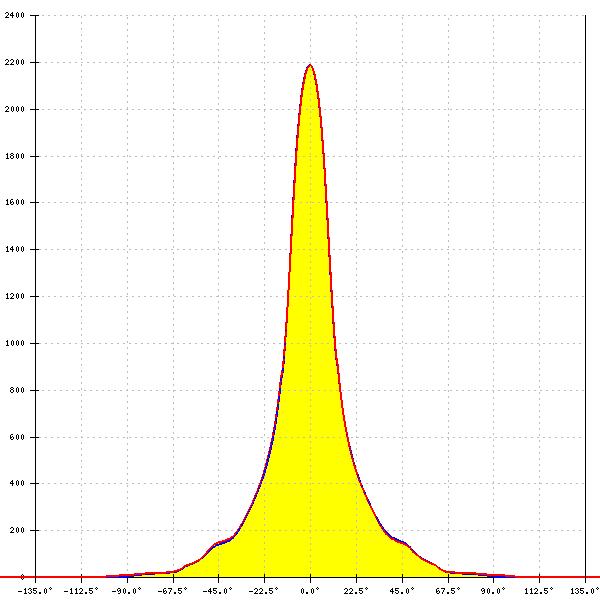

Fortimo FastFlex LED 4x8up PR G5
FWHM:
23°
FWTM:
69°
Peak intensity:
2.186 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

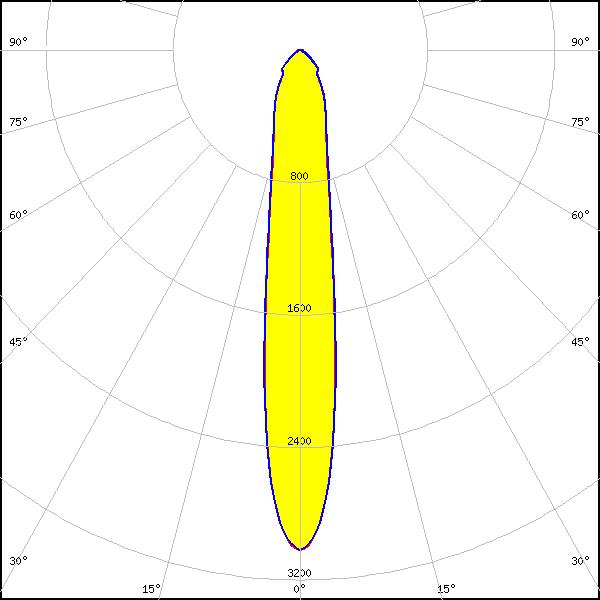

LED:

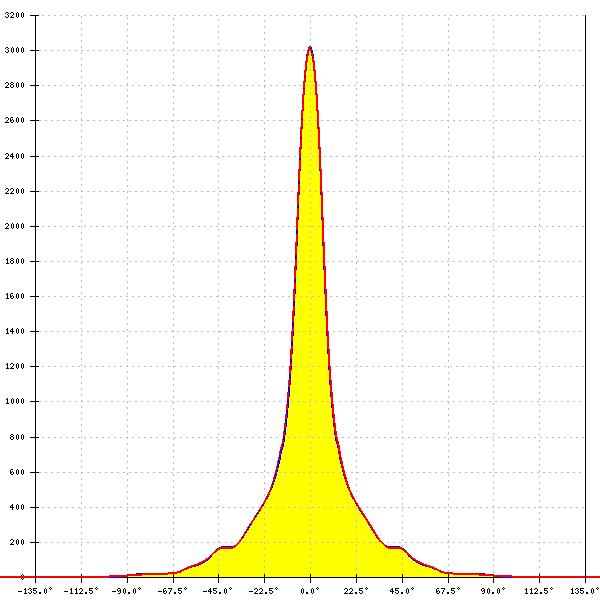

LH151B
FWHM:
17°
FWTM:
58°
Peak intensity:
3.021 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

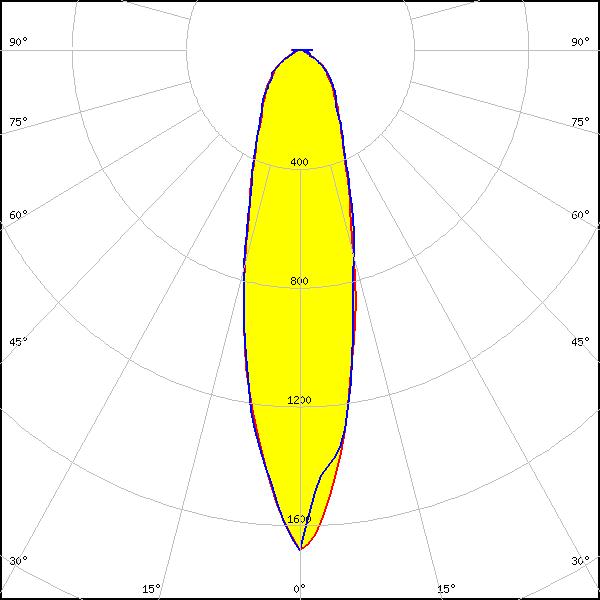

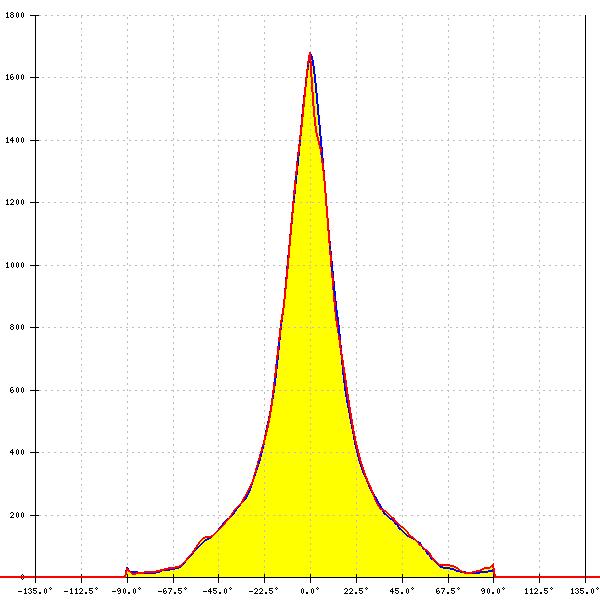

LED:
LH181A
FWHM:
27°
FWTM:
86°
Peak intensity:
1.680 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

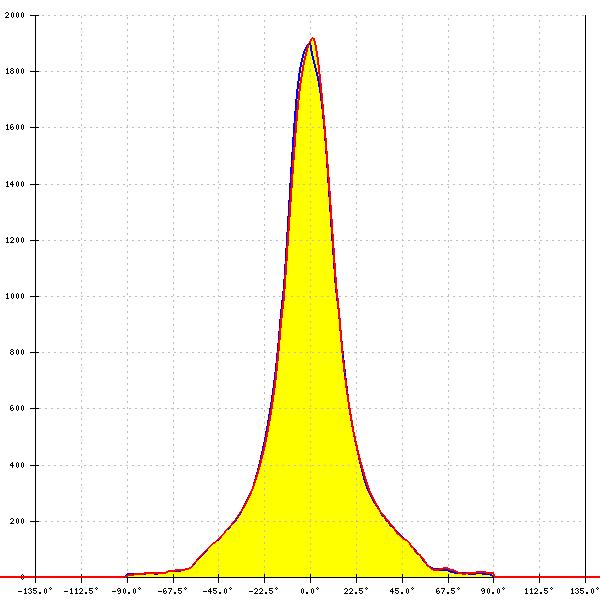

LED:

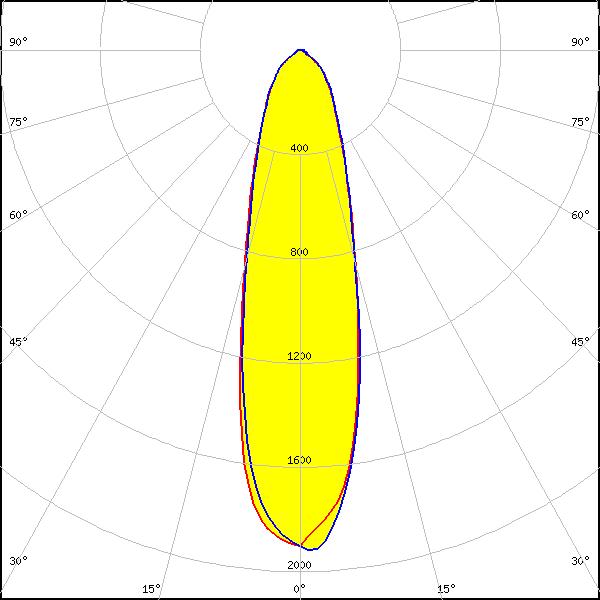

LH181B
FWHM:
28°
FWTM:
78°
Peak intensity:
1.920 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

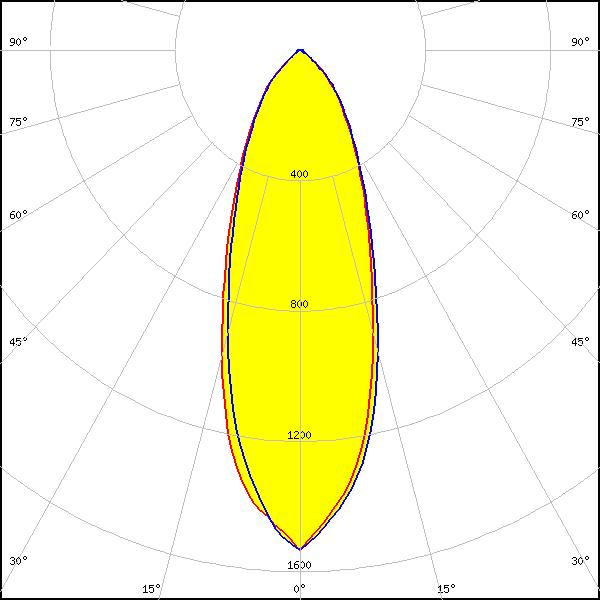

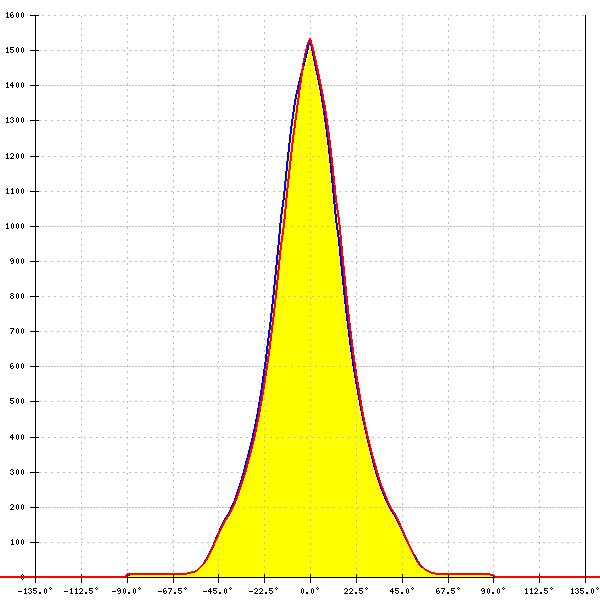

LH351C
FWHM:
36°
FWTM:
87°
Peak intensity:
1.530 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

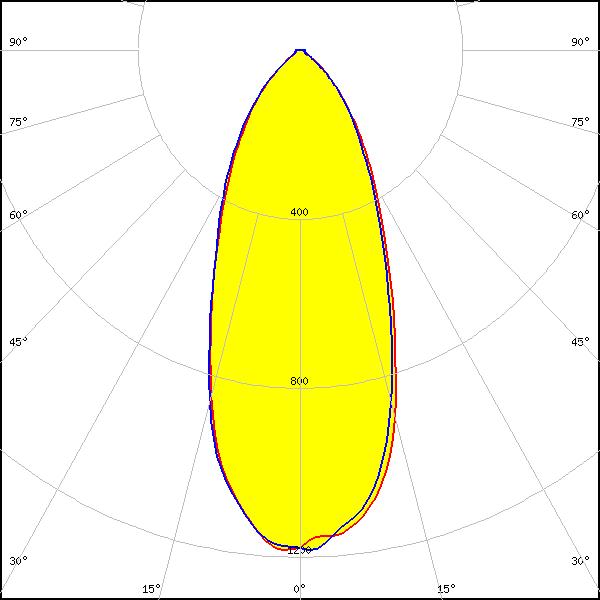

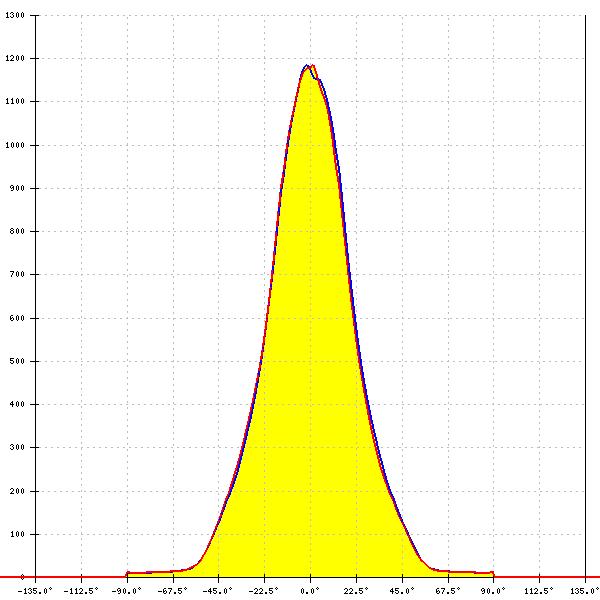

LH351D
FWHM:
44°
FWTM:
93°
Peak intensity:
1.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

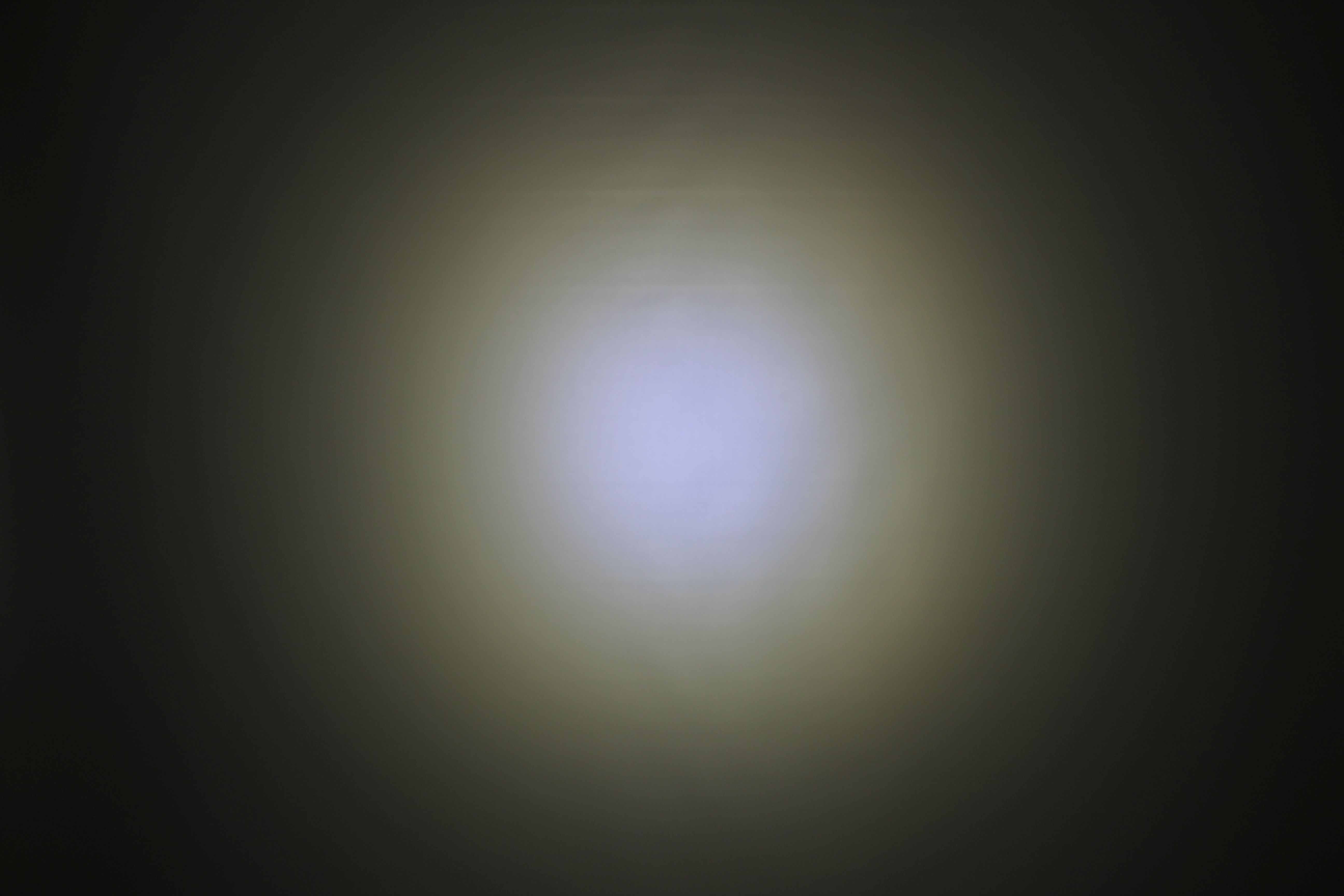

LED:

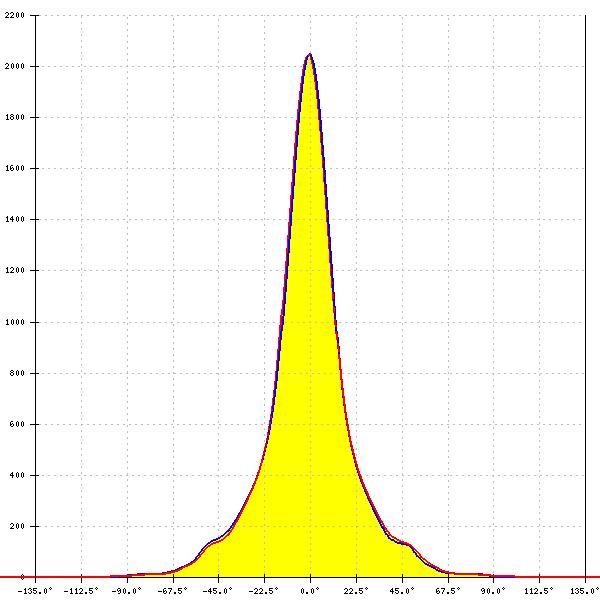

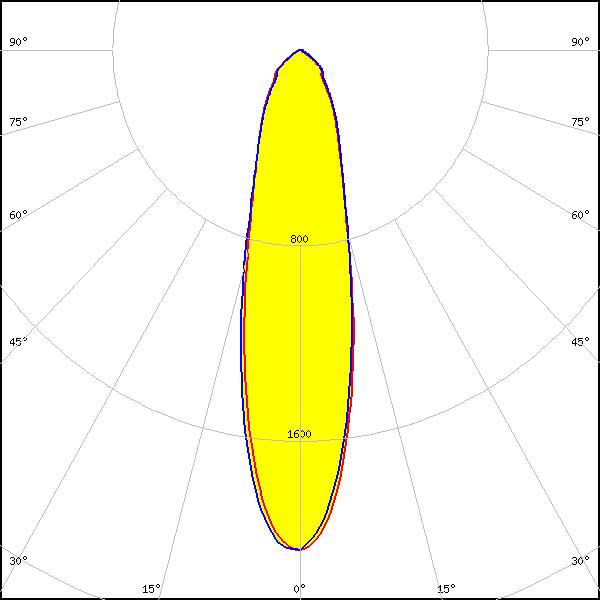

SEOUL DC 3030C
FWHM:
26°
FWTM:
73°
Peak intensity:
2.047 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

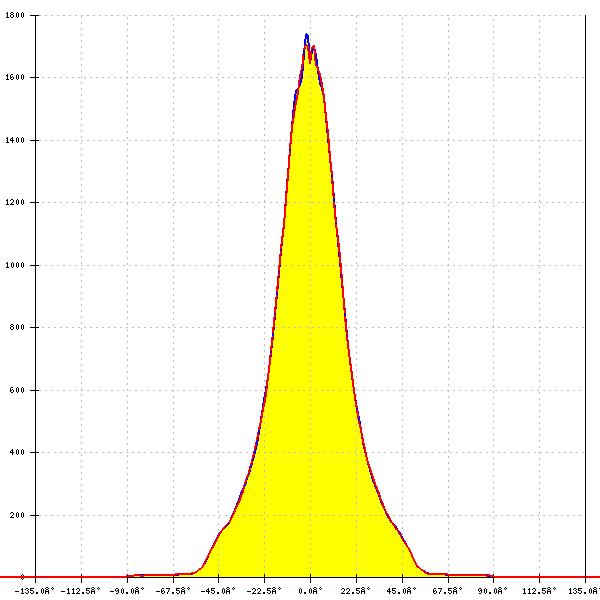

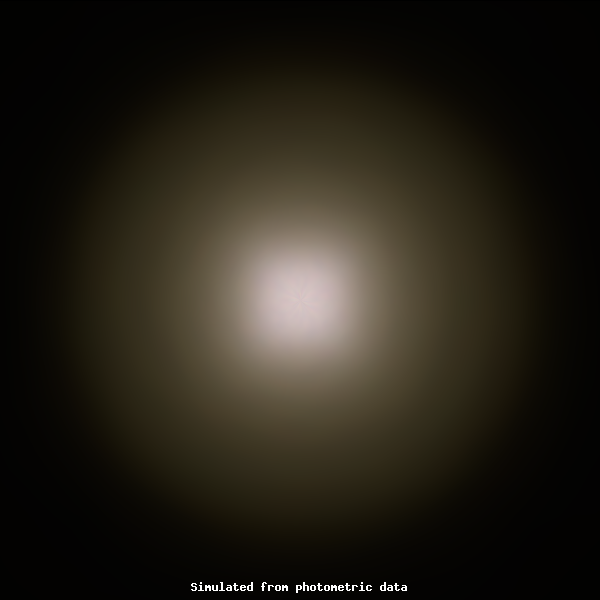

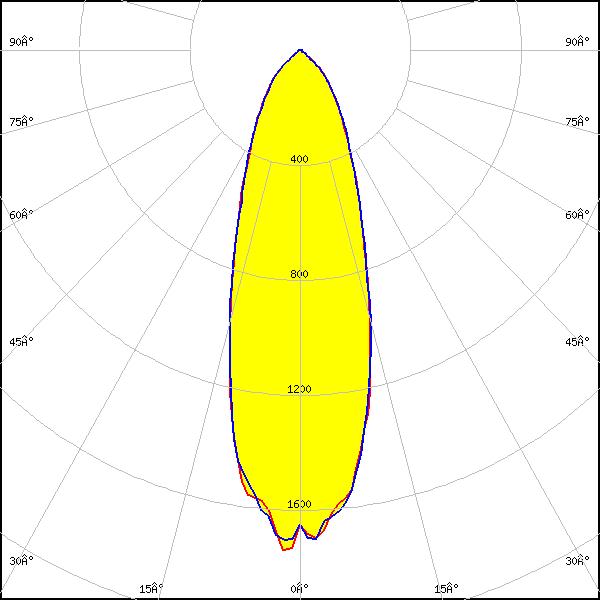

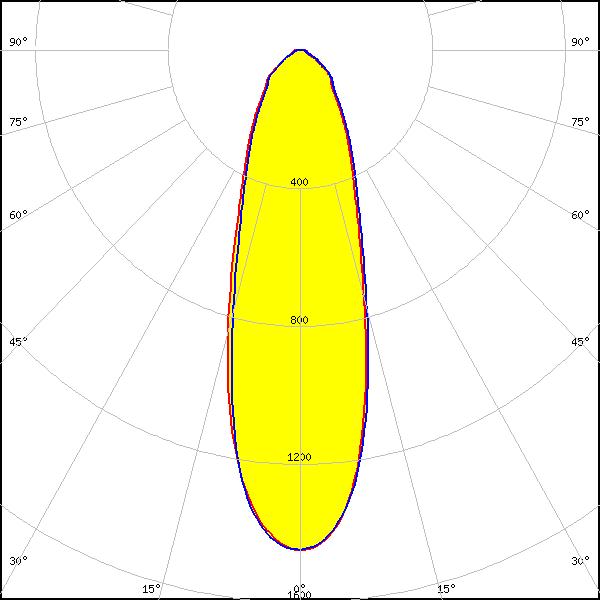

LED:

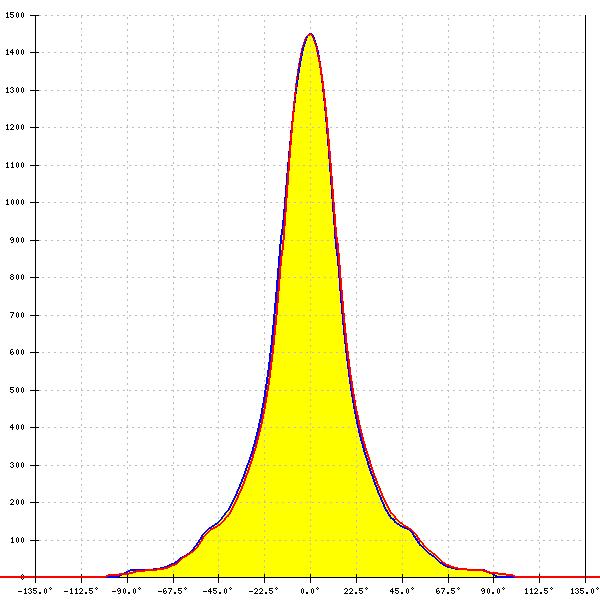

Z5M3
FWHM:
32°
FWTM:
88°
Peak intensity:
1.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
34°
FWTM:
80°
Peak intensity:
1.764 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

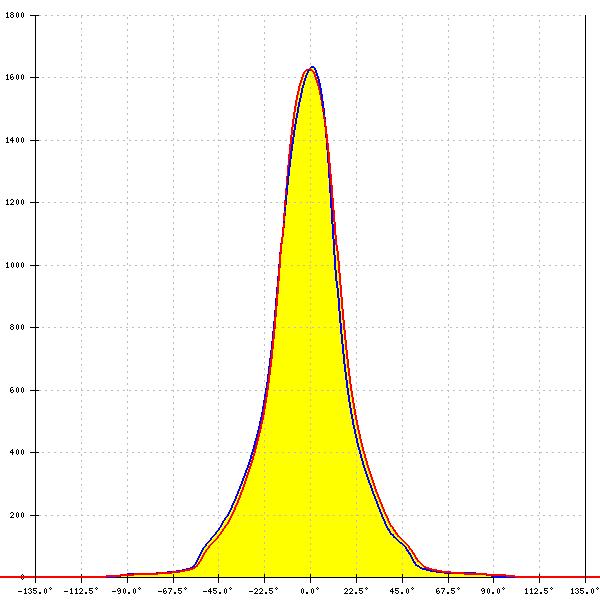

LED:

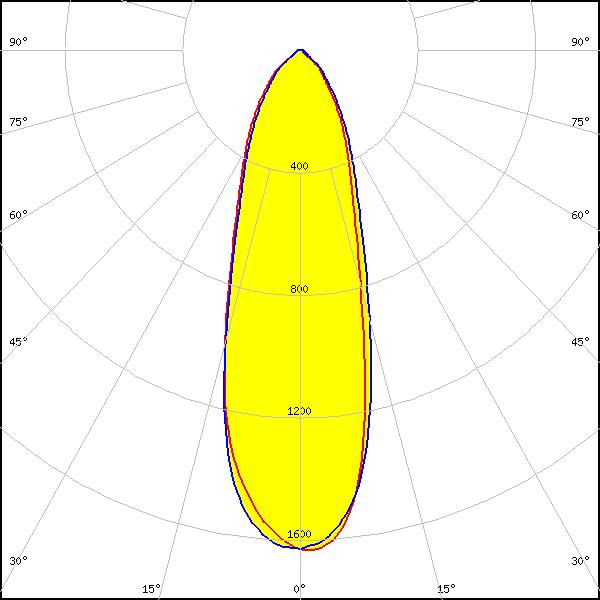

Z5M4
FWHM:
33°
FWTM:
82°
Peak intensity:
1.633 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

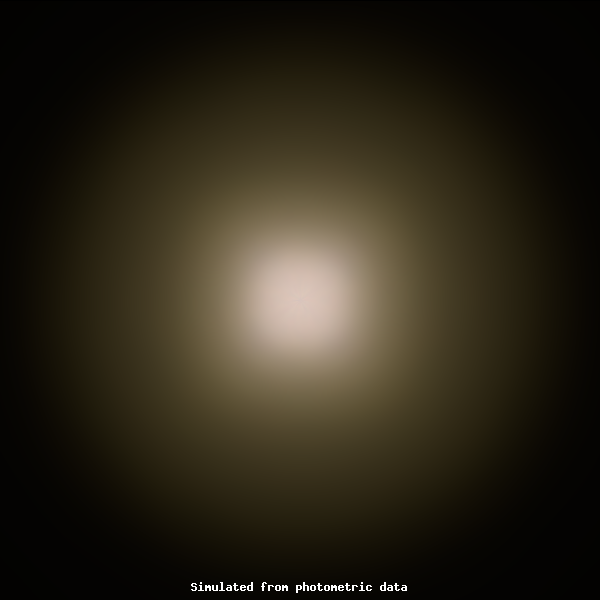

LED:

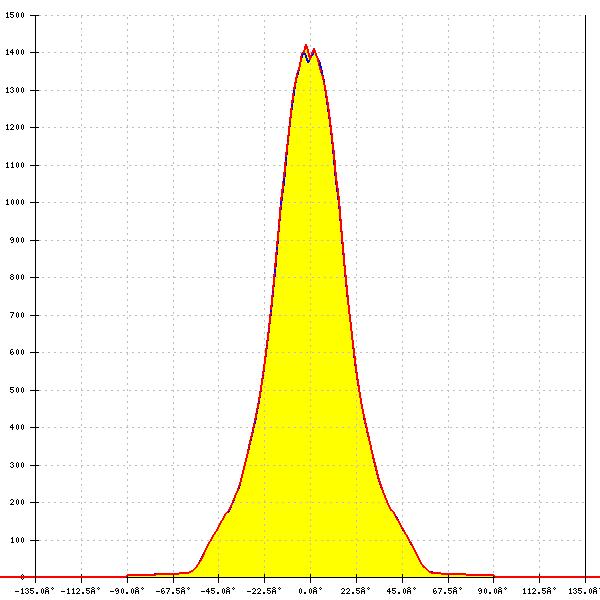

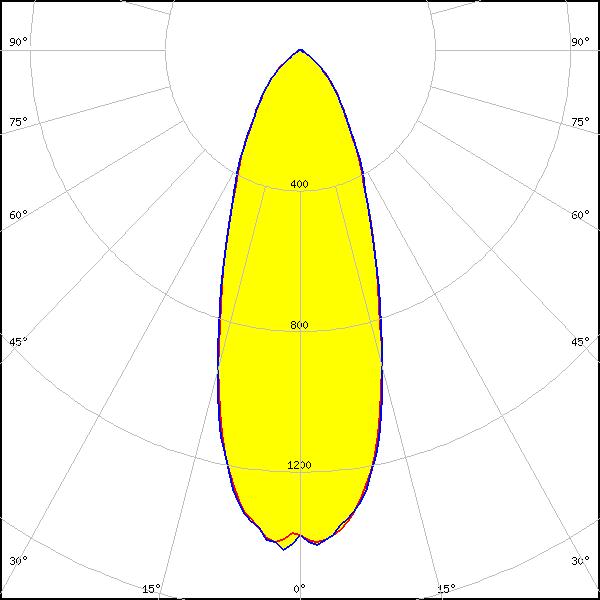

Z5M4-E2
FWHM:
38°
FWTM:
88°
Peak intensity:
1.451 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
23°
FWTM:
81°
Peak intensity:
1.800 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

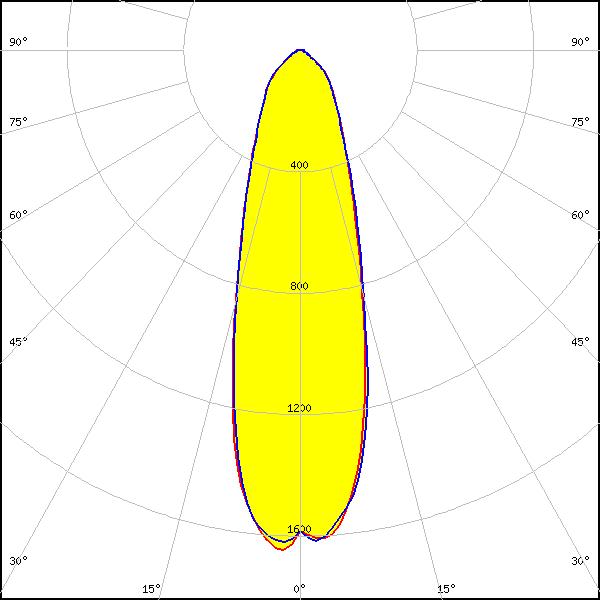

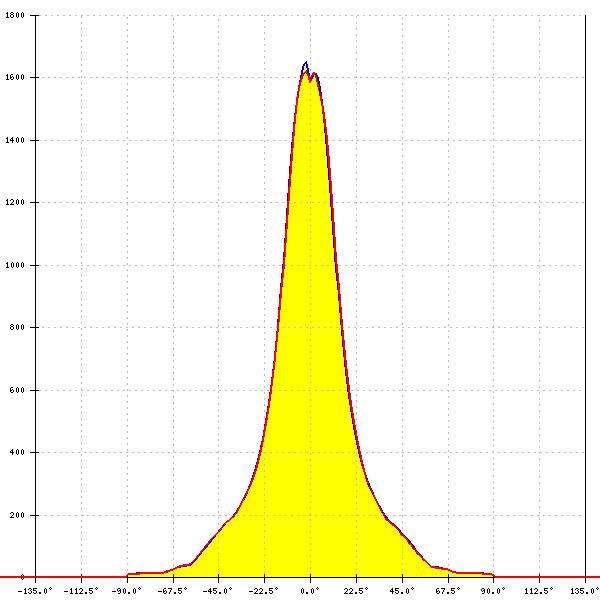

Z8Y22T
FWHM:
31°
FWTM:
82°
Peak intensity:
1.670 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
