C15984_STRADELLA-8-HV-HB-M
Print
~65° medium beam for industrial applications. Variant with improved creepage distance for high voltage circuit designs.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:

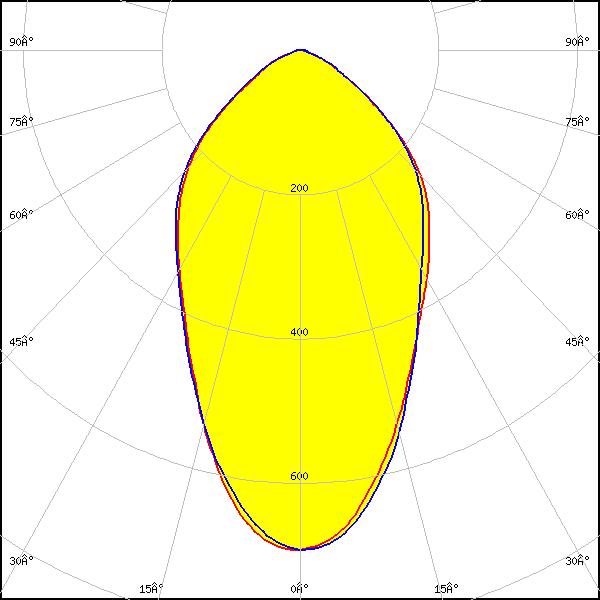

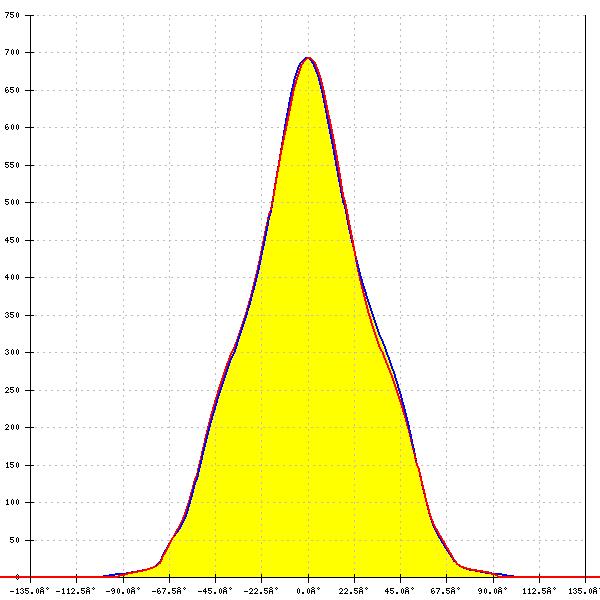

JB3030 HE B Class
FWHM:
62°
FWTM:
123°
Peak intensity:
0.693 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

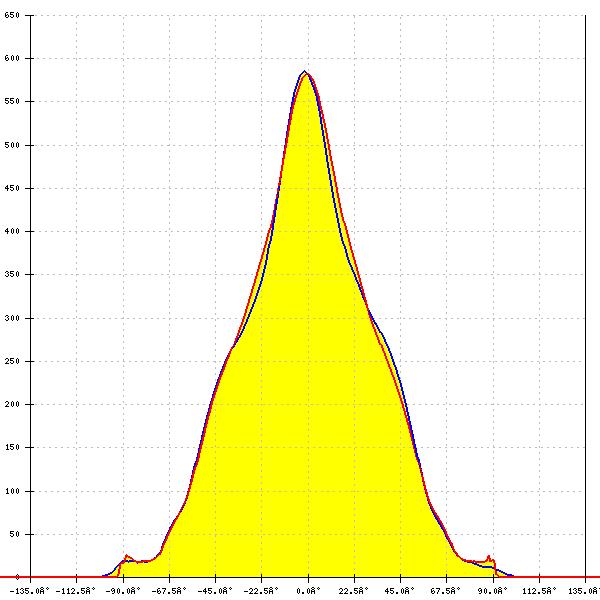

LED:

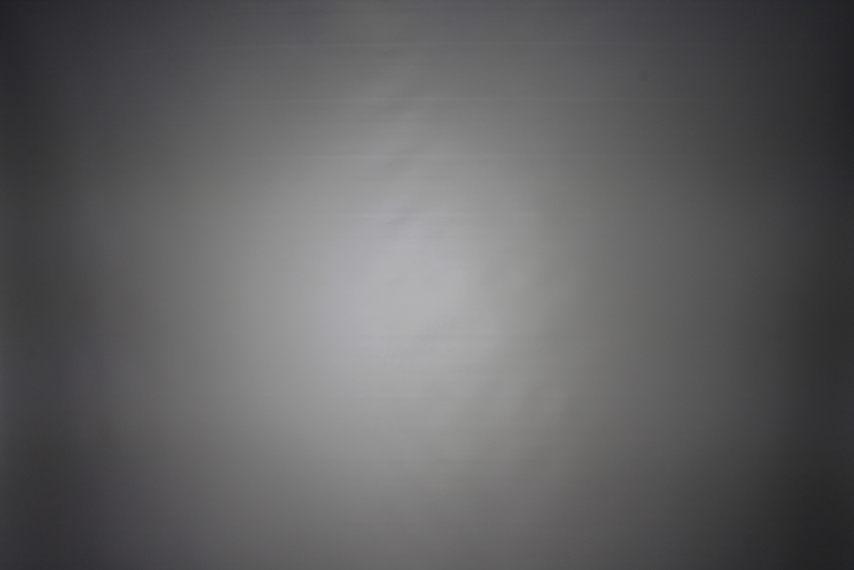

XD16
FWHM:
64°
FWTM:
132°
Peak intensity:
0.580 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

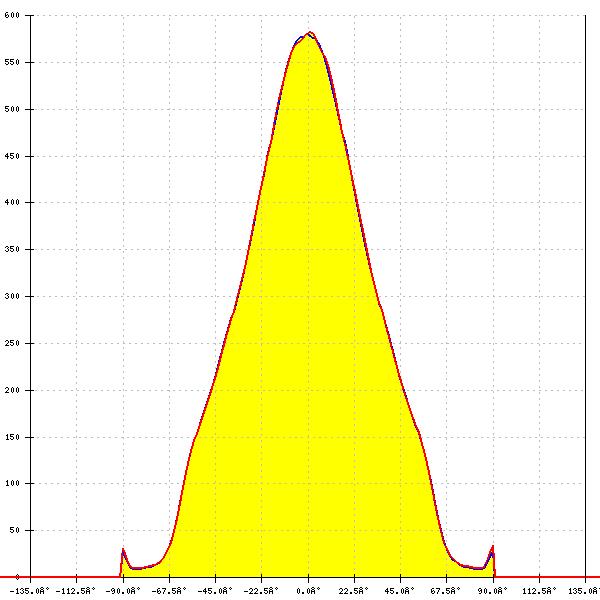

LED:

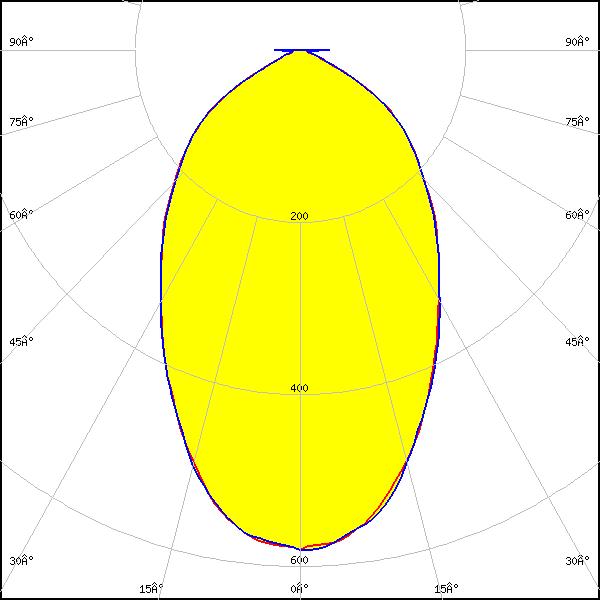

XP-G2 HE
FWHM:
70°
FWTM:
128°
Peak intensity:
0.589 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

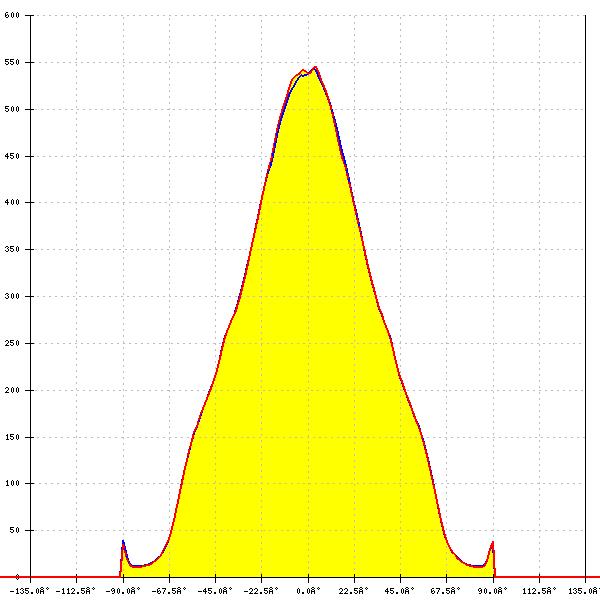

LED:

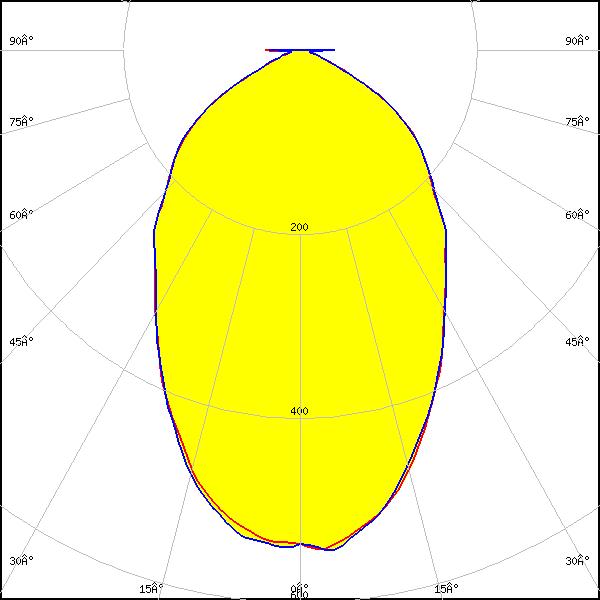

XP-G3
FWHM:
72°
FWTM:
132°
Peak intensity:
0.540 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
74°
FWTM:
132°
Peak intensity:
0.548 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

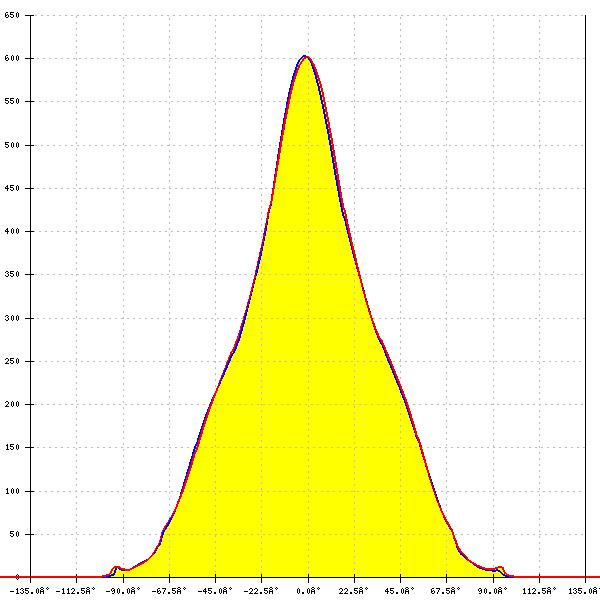

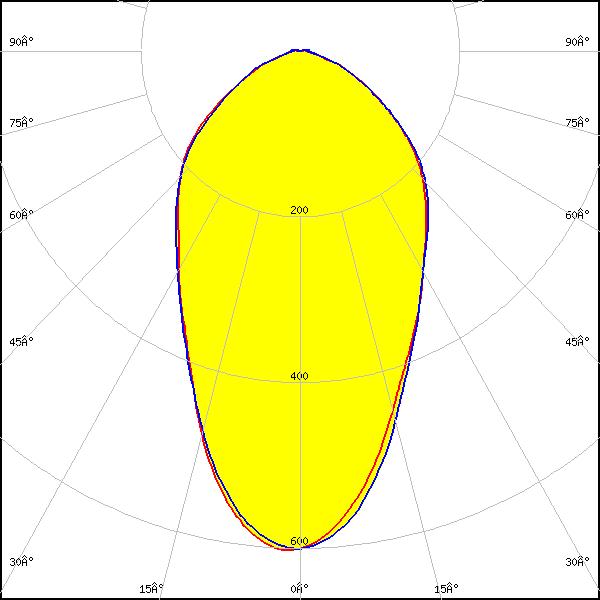

LED:
XT-E
FWHM:
62°
FWTM:
137°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

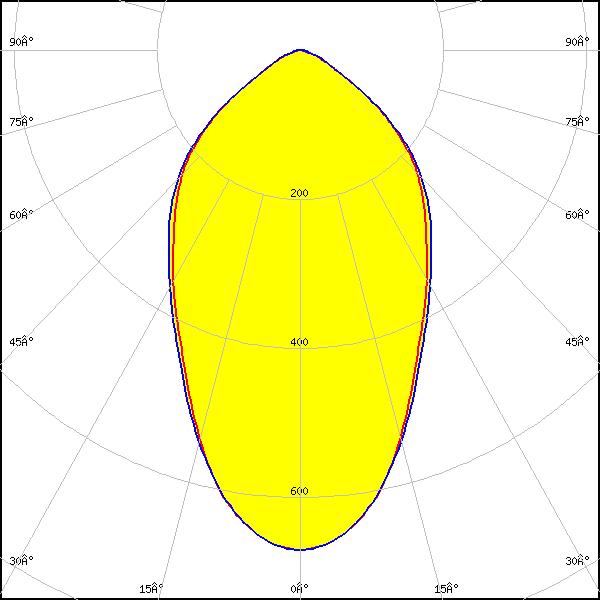

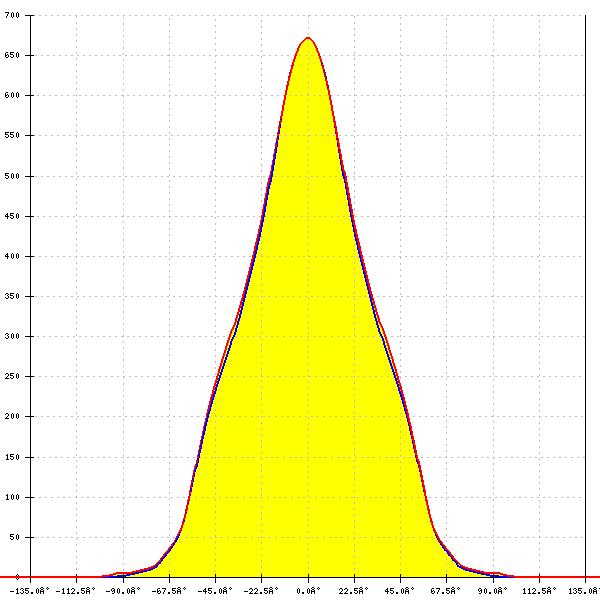

PL-BRICK HP 3x8 Stradella-8
FWHM:
65°
FWTM:
121°
Peak intensity:
0.672 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE
FWHM:
52°
FWTM:
122°
Peak intensity:
0.730 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HR30
FWHM:
54°
FWTM:
121°
Peak intensity:
0.750 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

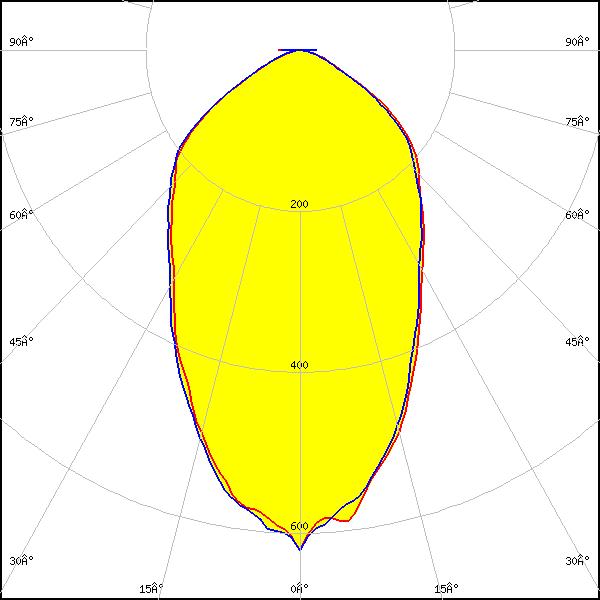

LED:

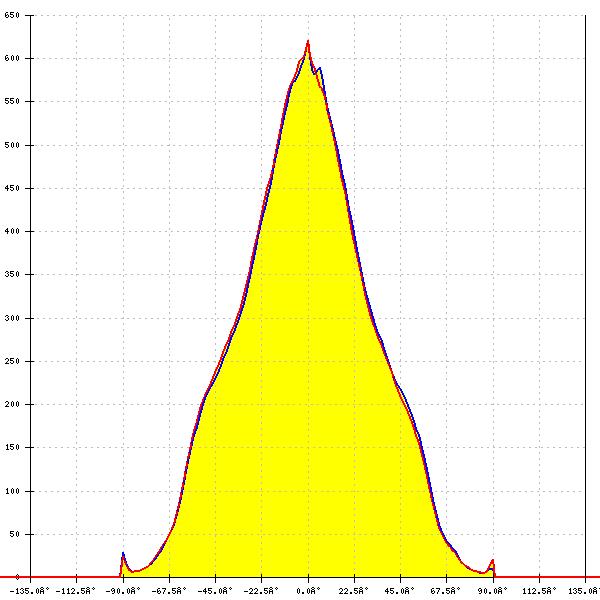

LUXEON TX
FWHM:
61°
FWTM:
128°
Peak intensity:
0.620 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
59°
FWTM:
126°
Peak intensity:
0.651 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
Deep Red

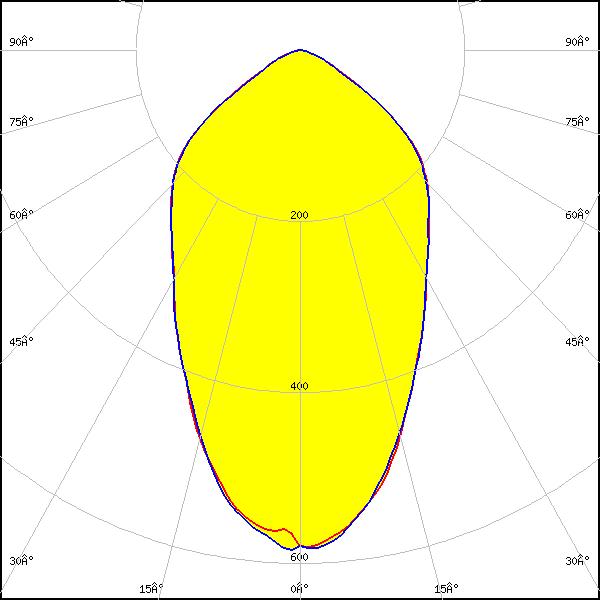

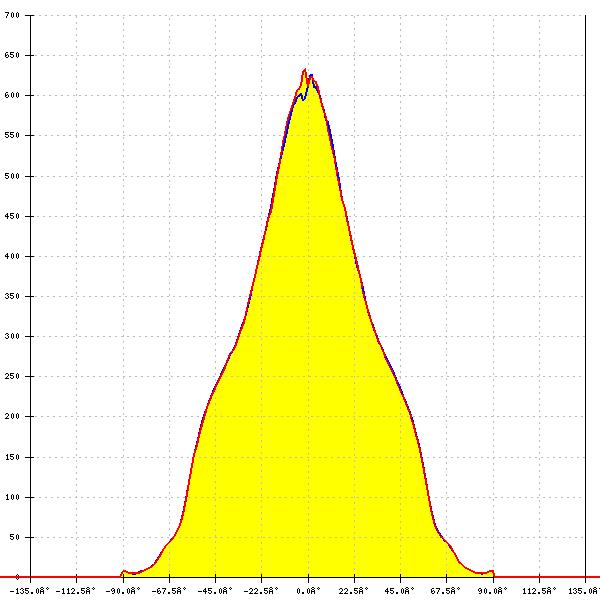

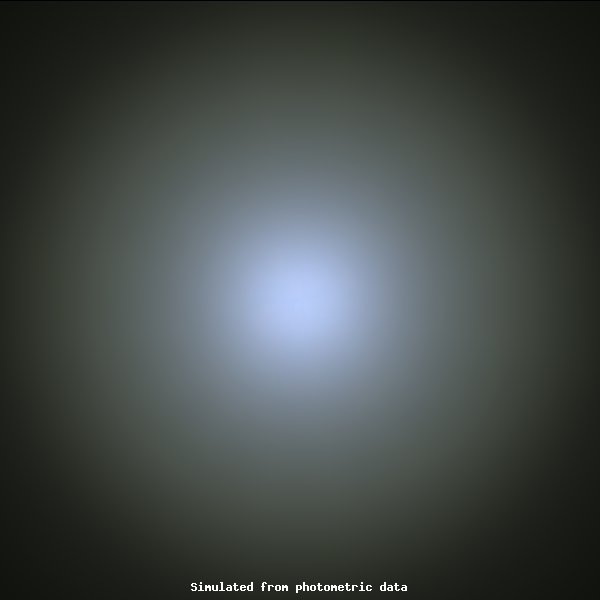

LED:

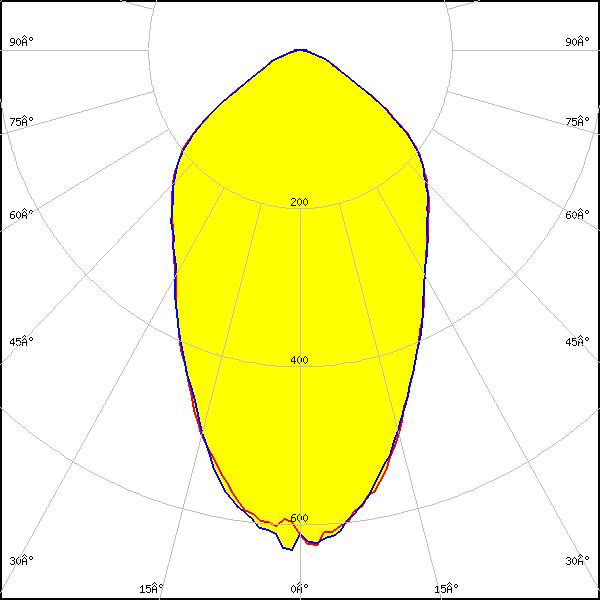

SST-20 Gen2
FWHM:
64° + 63°
FWTM:
126° + 124°
Peak intensity:
0.636 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

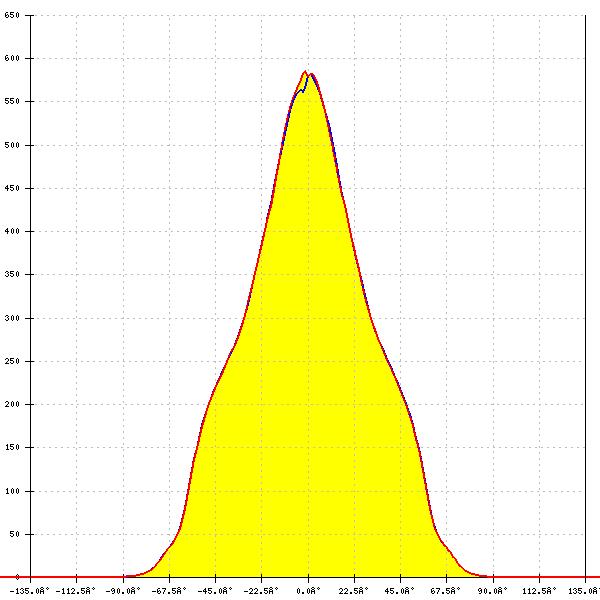

LED:
SST-20 Gen2
FWHM:
64°
FWTM:
124°
Peak intensity:
0.589 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

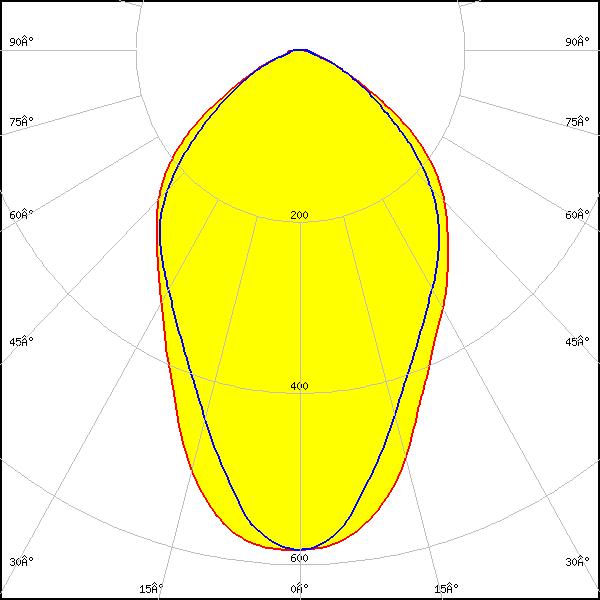

LED:

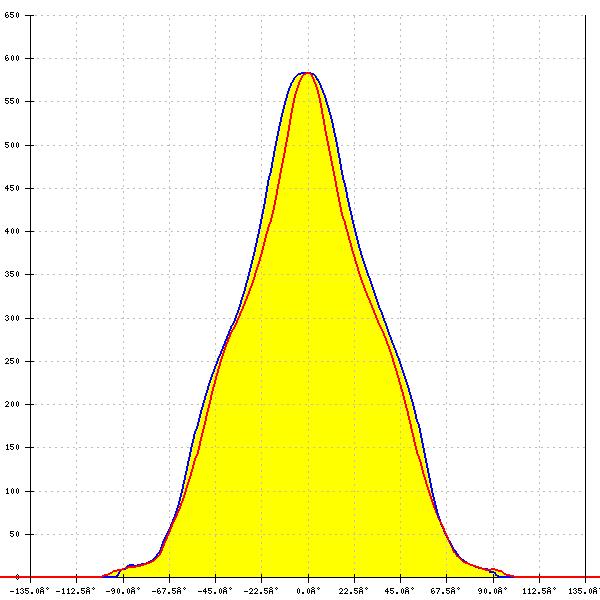

NF2W585AR
FWHM:
73°
FWTM:
132°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

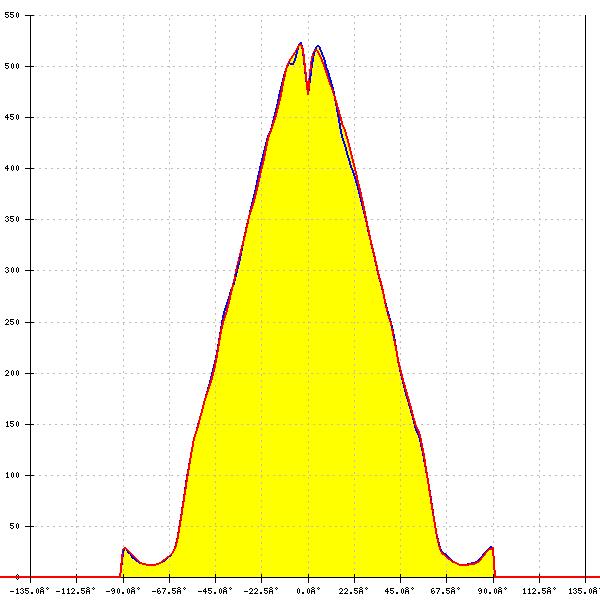

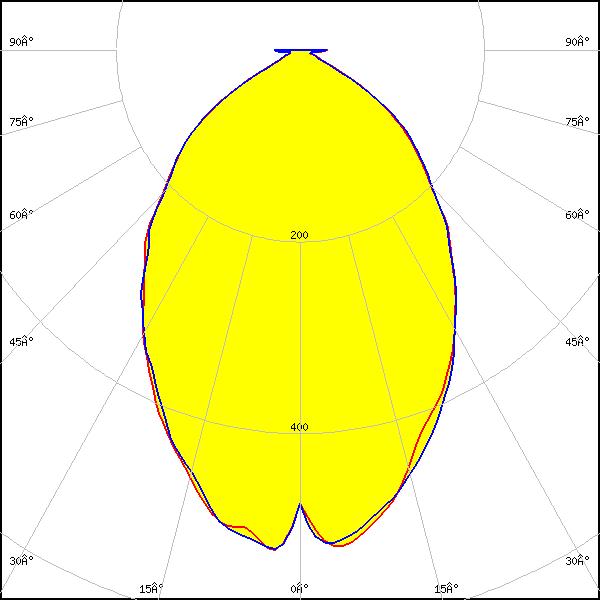

NVSW519A
FWHM:
78°
FWTM:
124°
Peak intensity:
0.527 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

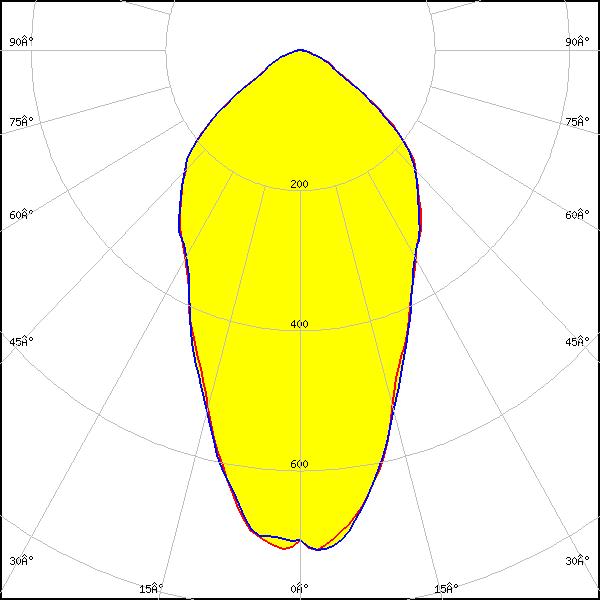

OSCONIQ C 2424 Gen1
FWHM:
57°
FWTM:
119°
Peak intensity:
0.736 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

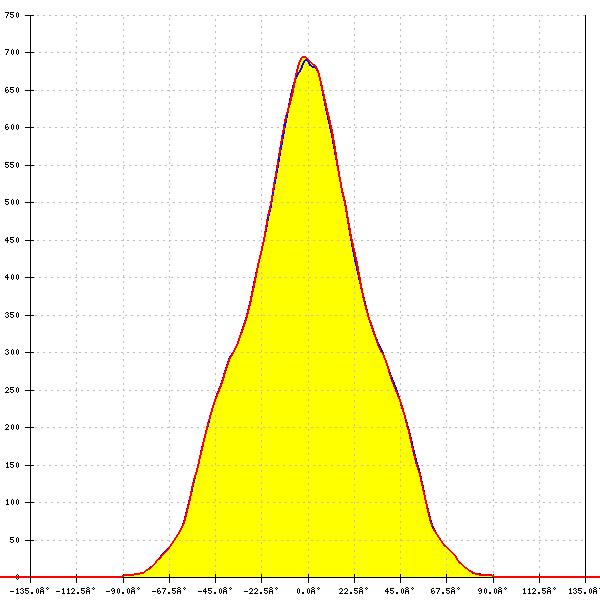

LED:

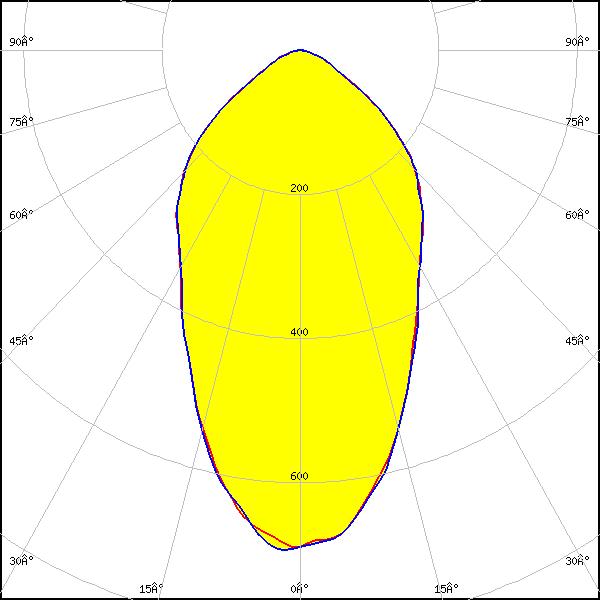

OSCONIQ C 3030
FWHM:
60°
FWTM:
122°
Peak intensity:
0.699 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
60°
FWTM:
120°
Peak intensity:
0.639 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

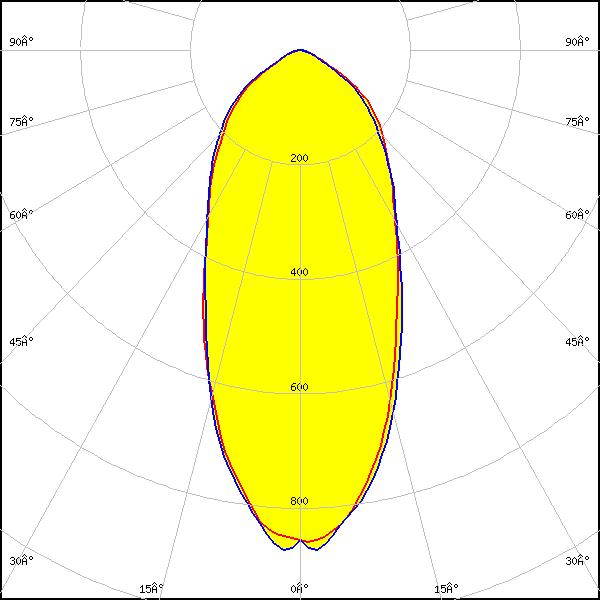

LED:

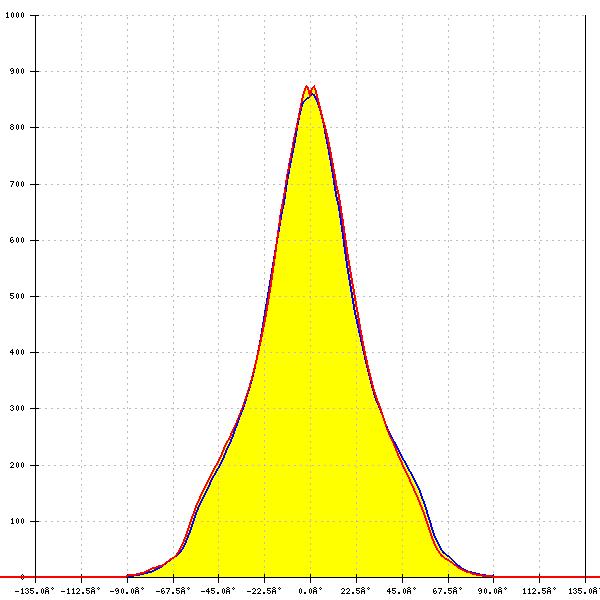

OSCONIQ P 3030
FWHM:
49°
FWTM:
119°
Peak intensity:
0.875 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

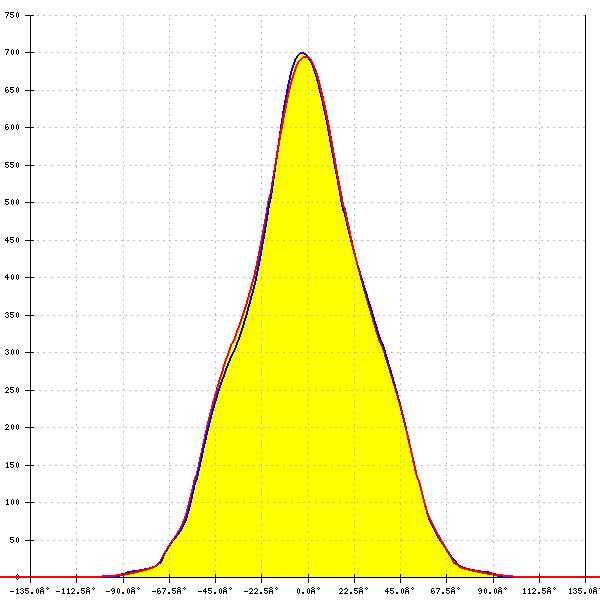

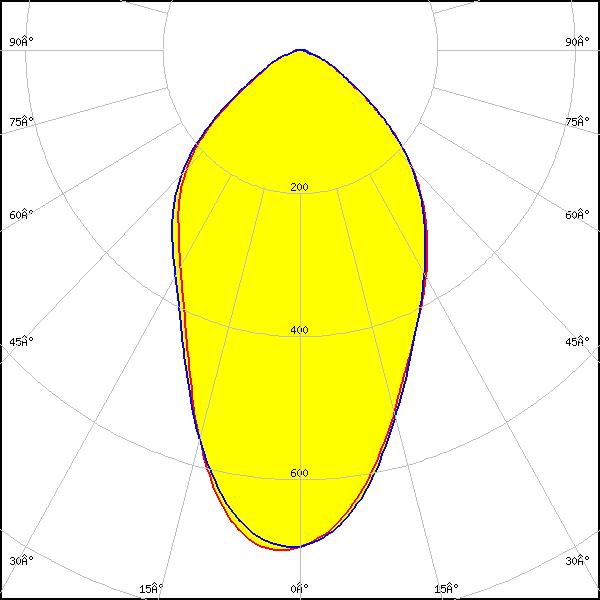

LED:
OSCONIQ S 3030 (QSLR31)
FWHM:
63°
FWTM:
121°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

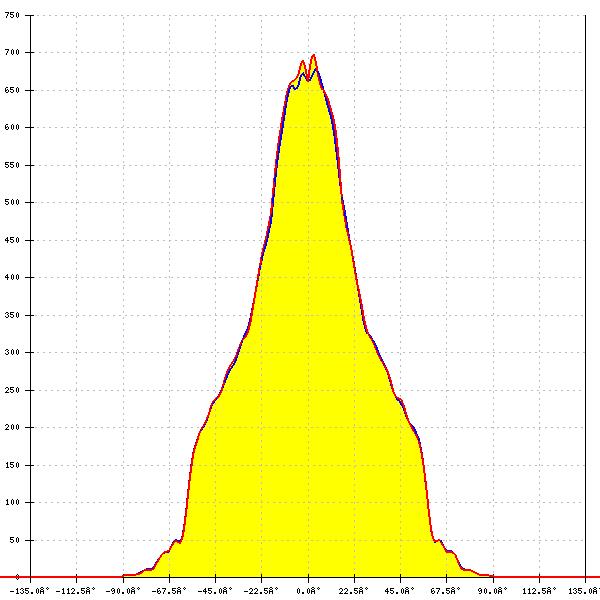

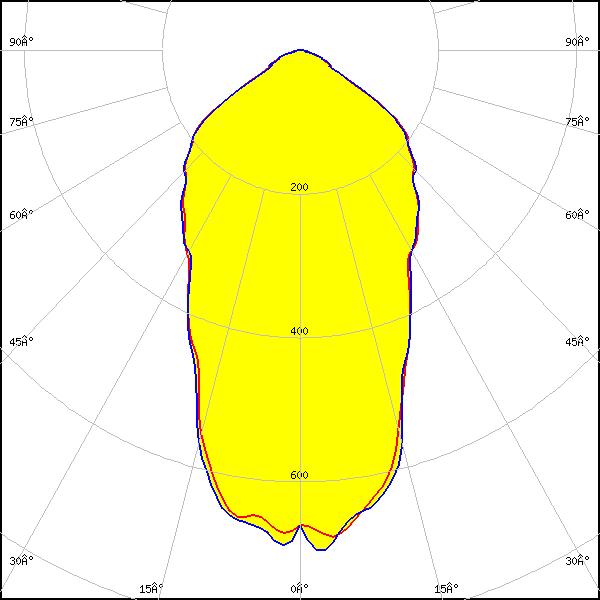

OSLON Pure 1414
FWHM:
55° + 54°
FWTM:
120° + 120°
Peak intensity:
0.730 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

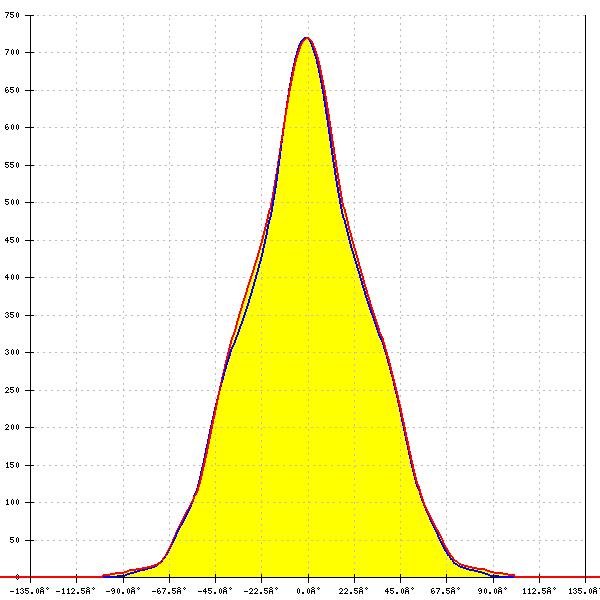

LED:

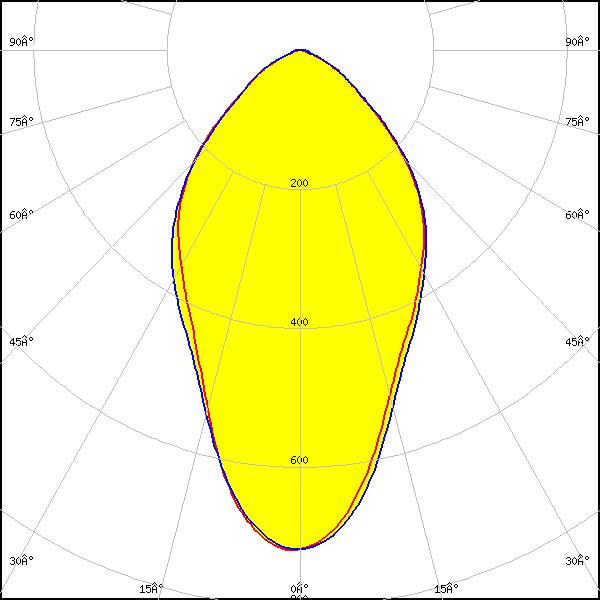

Fortimo FastFlex LED 4x8up PR G5
FWHM:
60°
FWTM:
122°
Peak intensity:
0.720 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

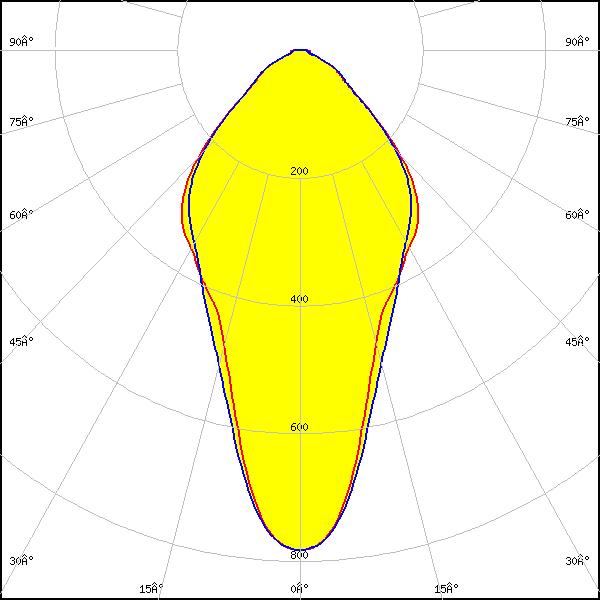

LED:

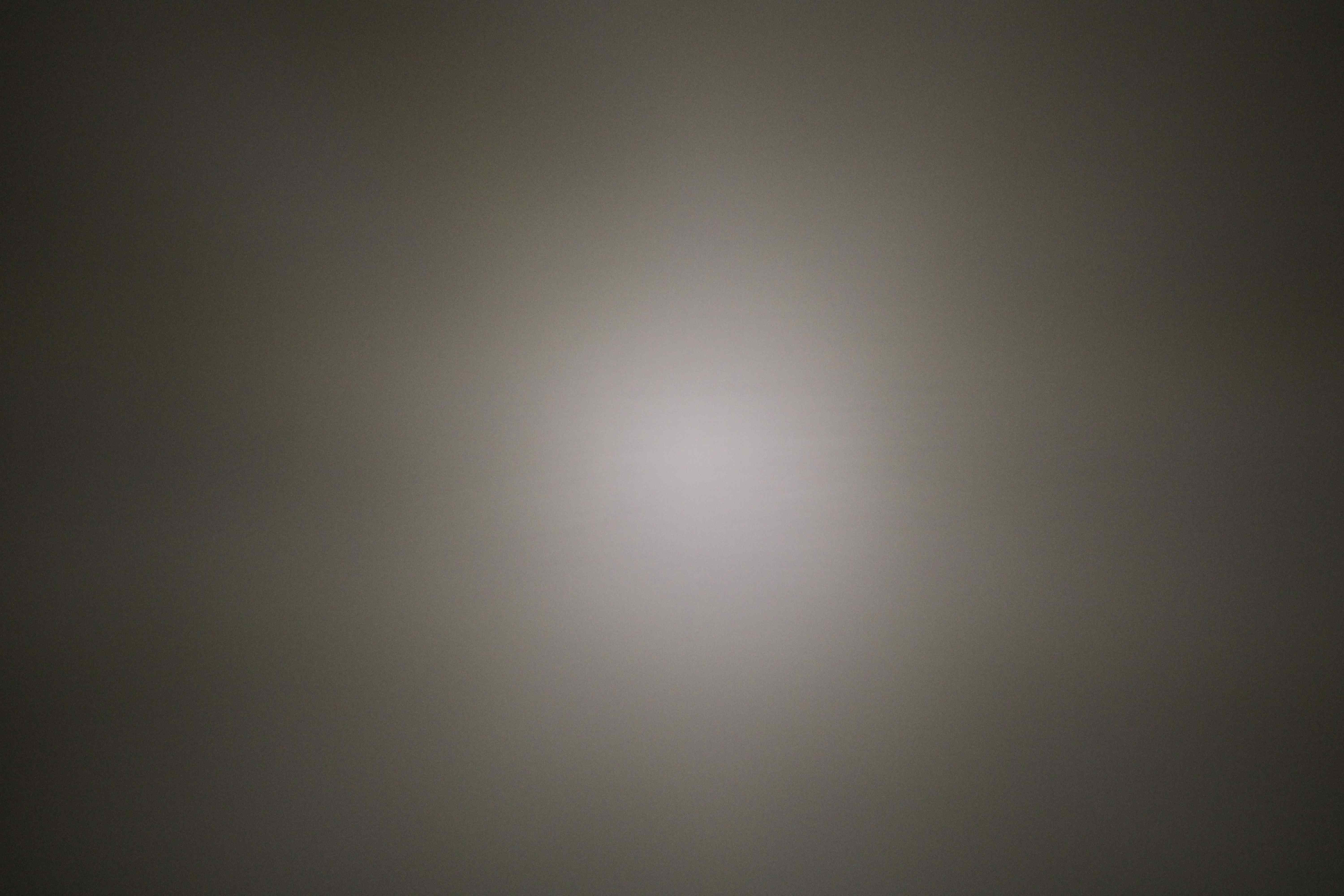

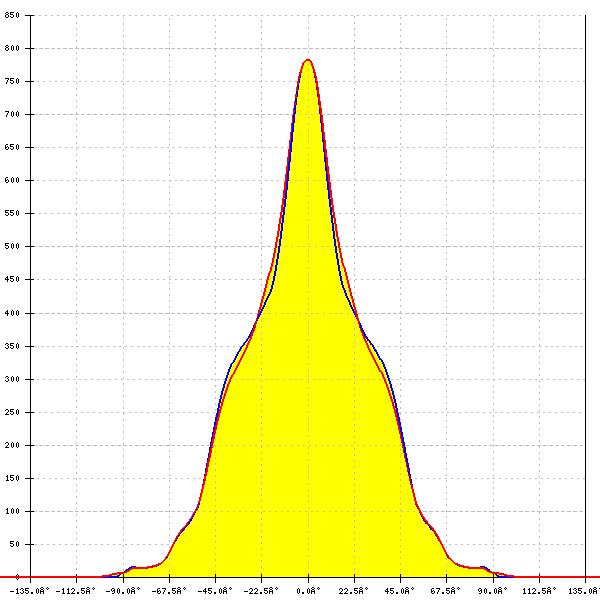

LH151B
FWHM:
49°
FWTM:
118°
Peak intensity:
0.783 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

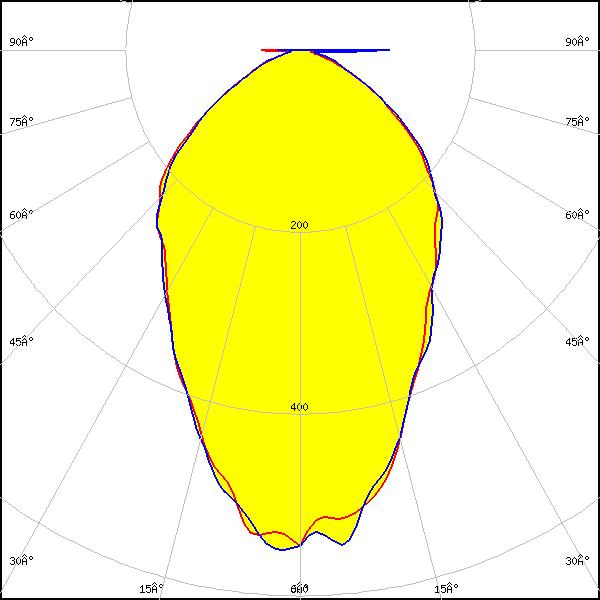

LED:

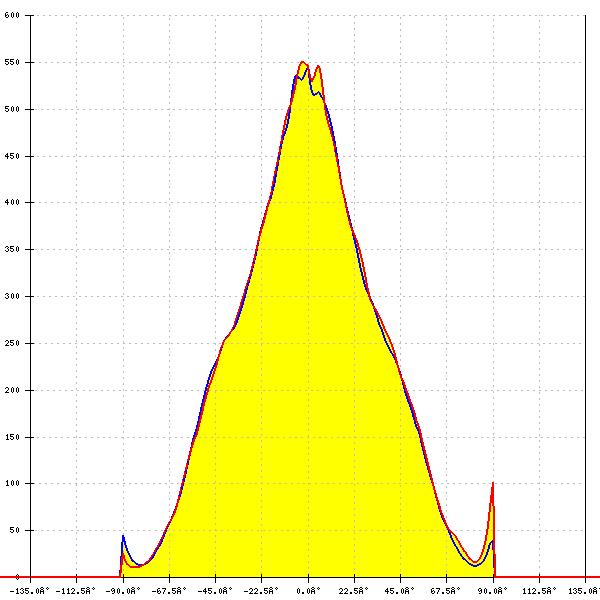

LH181A
FWHM:
67°
FWTM:
135°
Peak intensity:
0.570 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

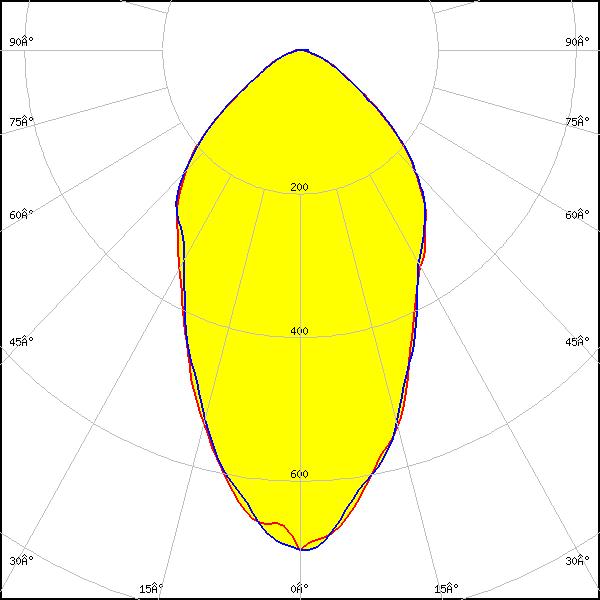

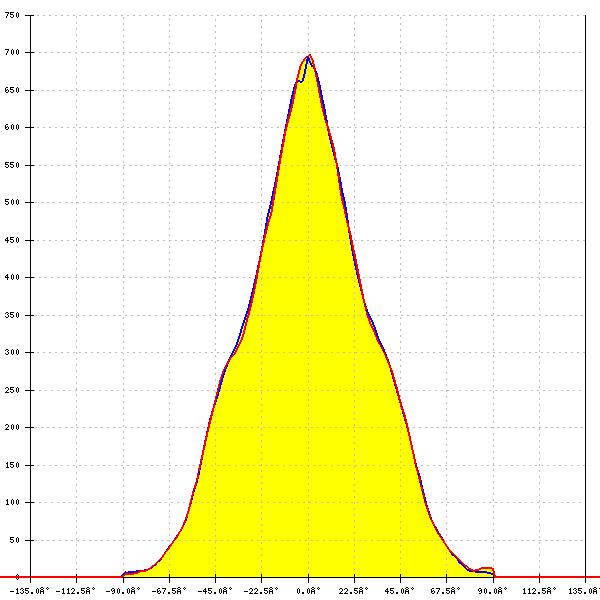

LED:
LH181B
FWHM:
59°
FWTM:
122°
Peak intensity:
0.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

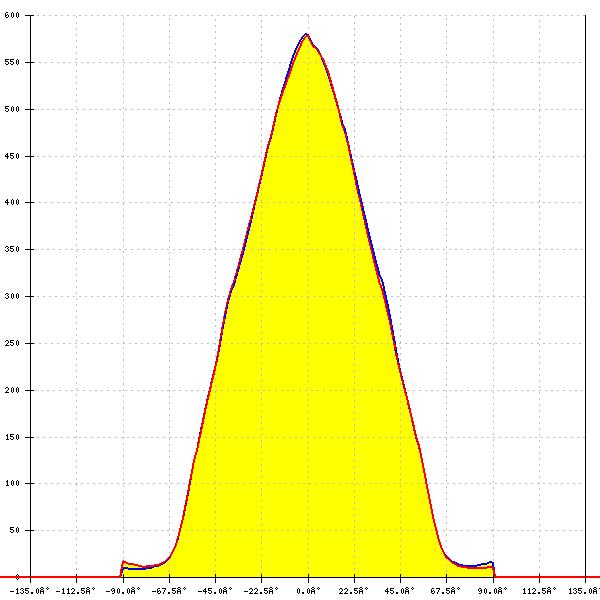

LED:

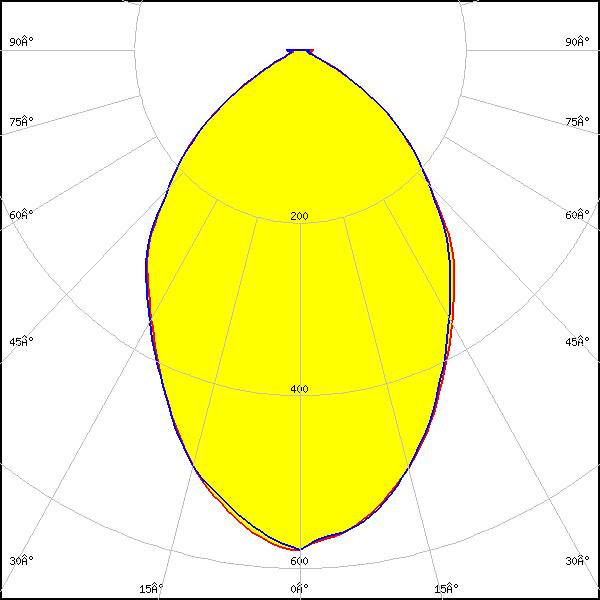

LH351D
FWHM:
79°
FWTM:
124°
Peak intensity:
0.580 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SEOUL DC 3030C
FWHM:
60°
FWTM:
121°
Peak intensity:
0.715 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

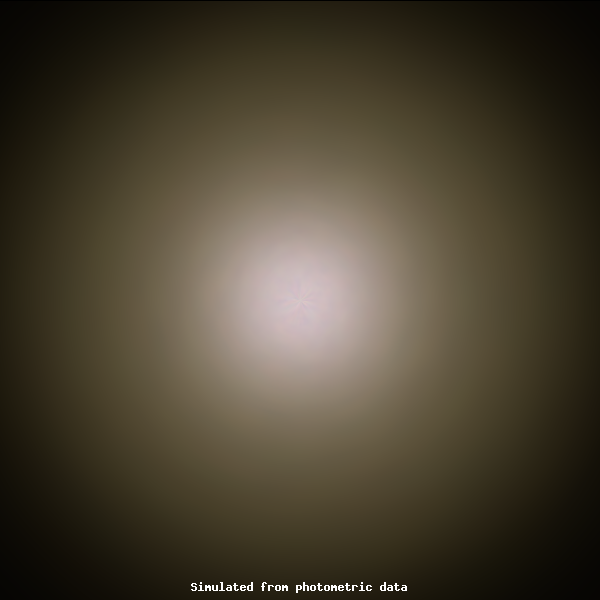

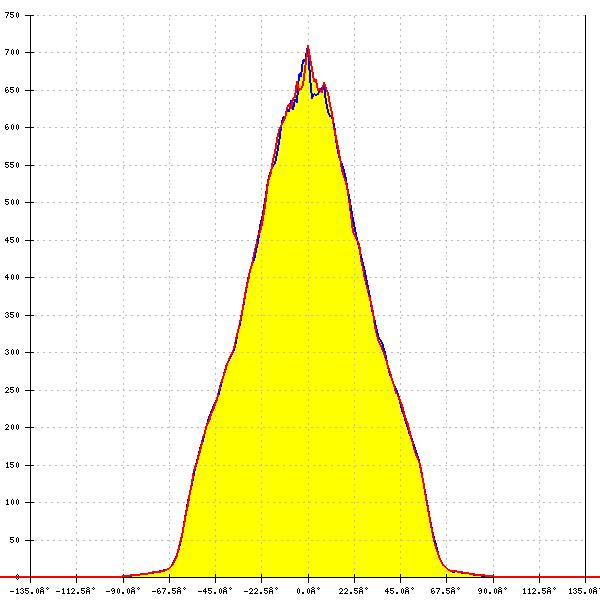

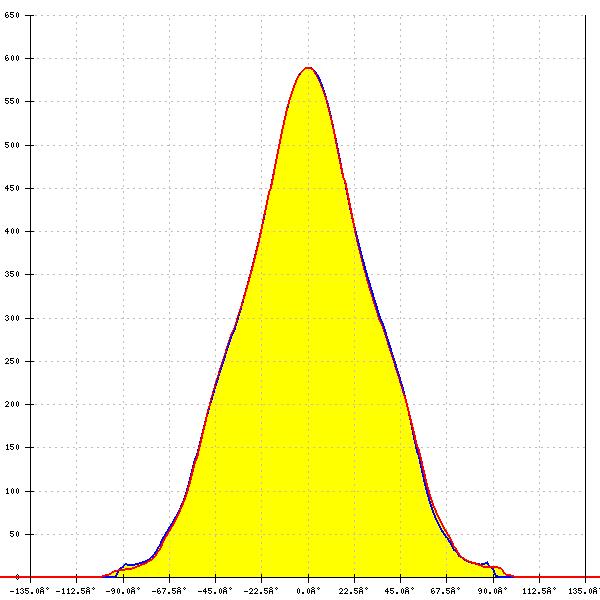

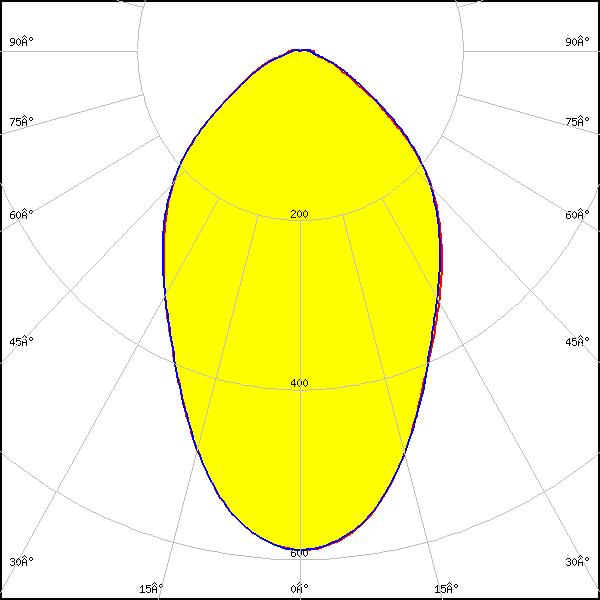

LED:

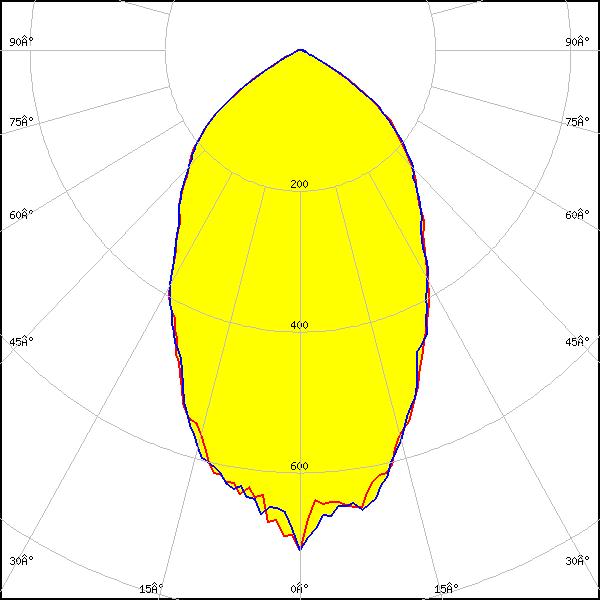

Z5M3
FWHM:
71°
FWTM:
132°
Peak intensity:
0.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
64°
FWTM:
120°
Peak intensity:
0.730 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

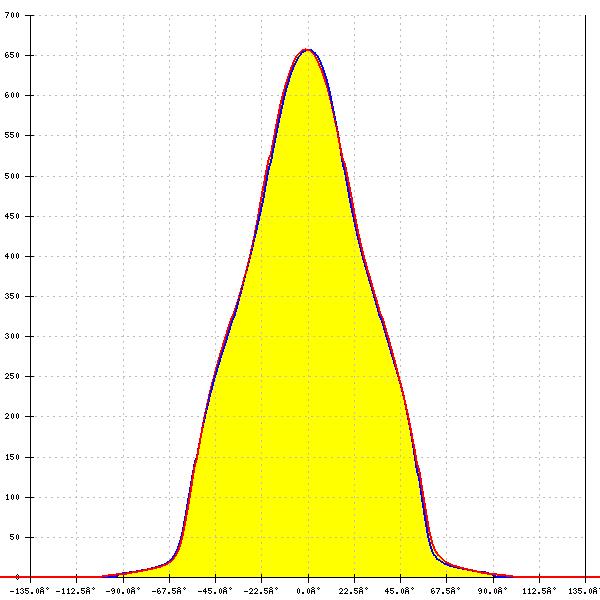

LED:

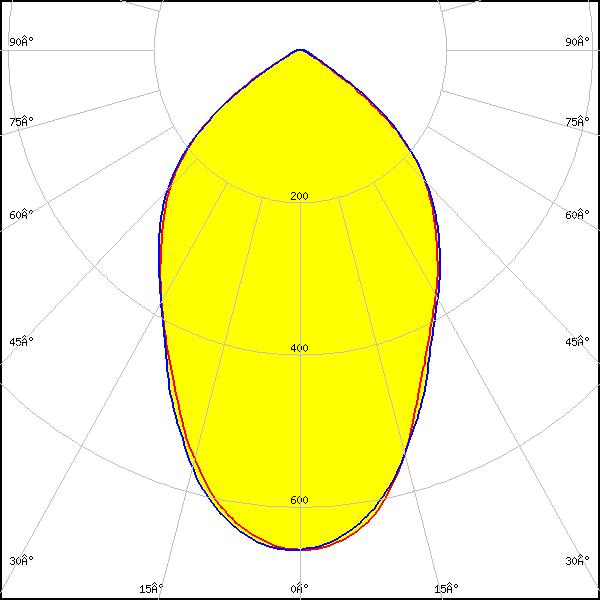

Z5M4
FWHM:
71°
FWTM:
118°
Peak intensity:
0.657 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

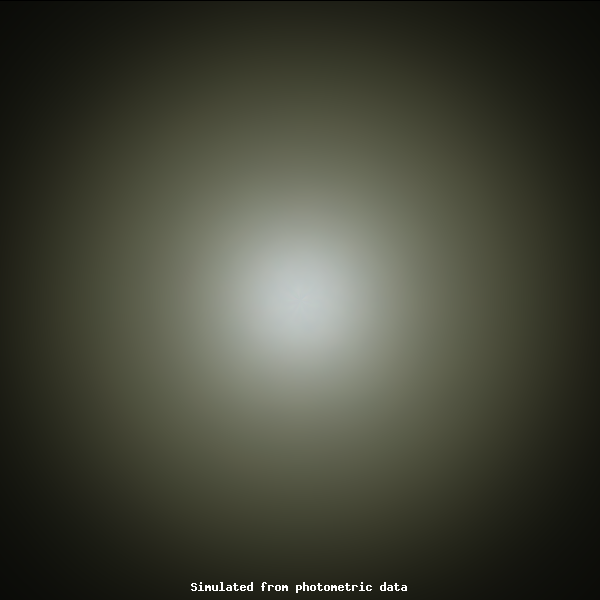

LED:

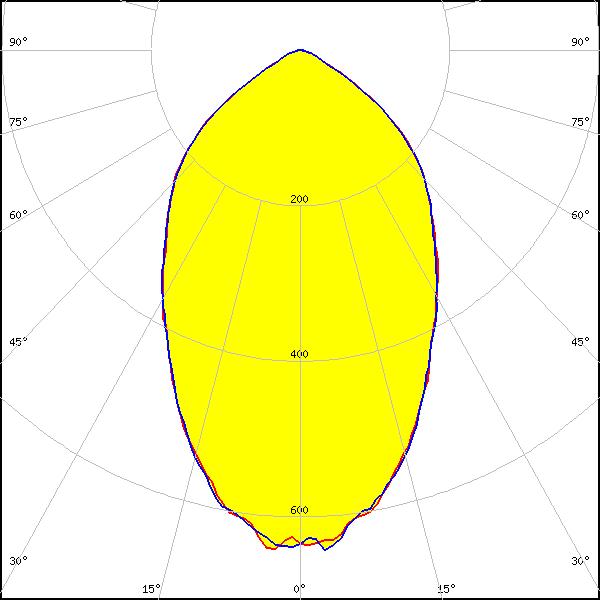

Z5M4-E1
FWHM:
69° + 68°
FWTM:
122° + 122°
Peak intensity:
0.658 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

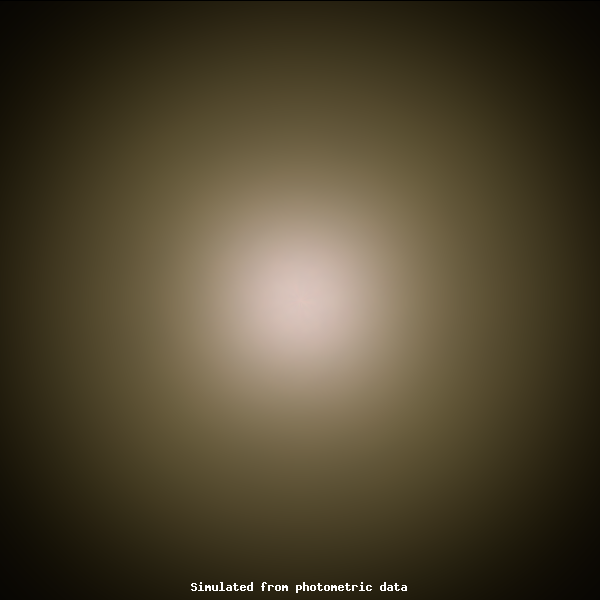

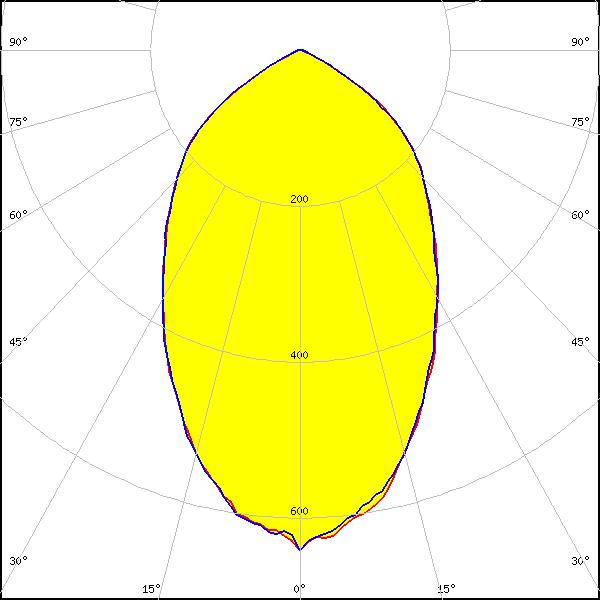

LED:

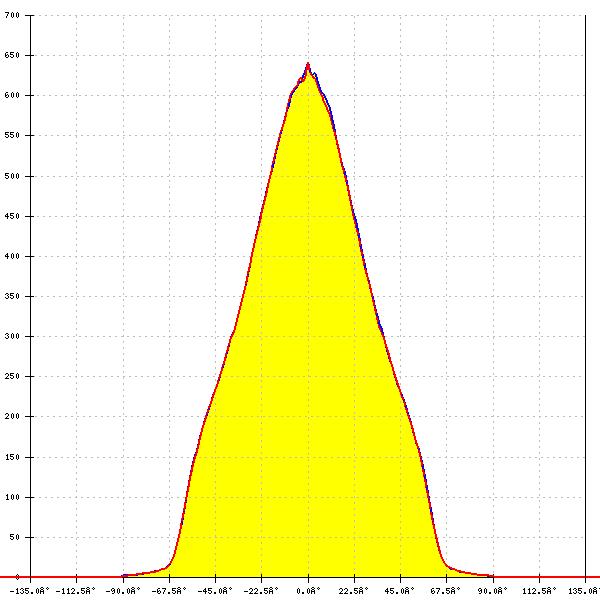

Z5M4-E2
FWHM:
69° + 68°
FWTM:
122° + 122°
Peak intensity:
0.643 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
80°
FWTM:
130°
Peak intensity:
0.510 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y22
FWHM:
81°
FWTM:
131°
Peak intensity:
0.510 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

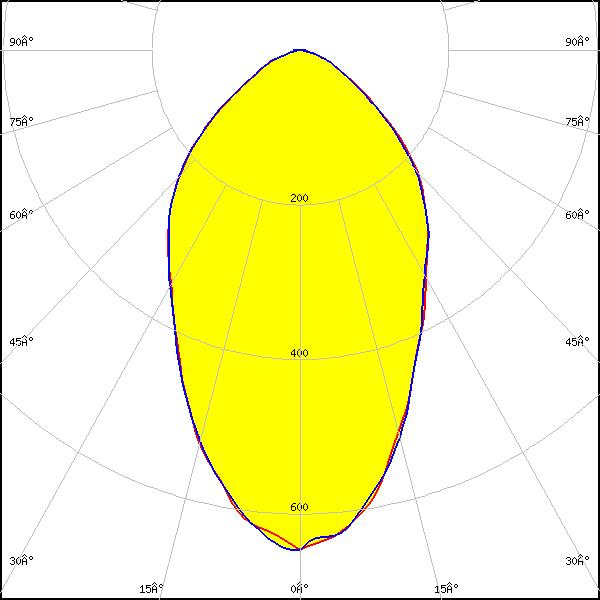

LED:

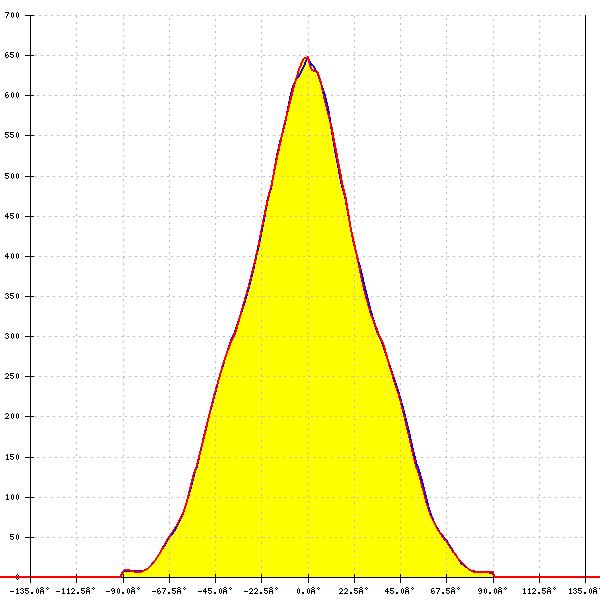

Z8Y22T
FWHM:
64°
FWTM:
125°
Peak intensity:
0.650 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
