C15985_STRADELLA-8-HV-HB-W
Print
~85° wide beam for industrial applications. Variant with improved creepage distance for high voltage circuit designs.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

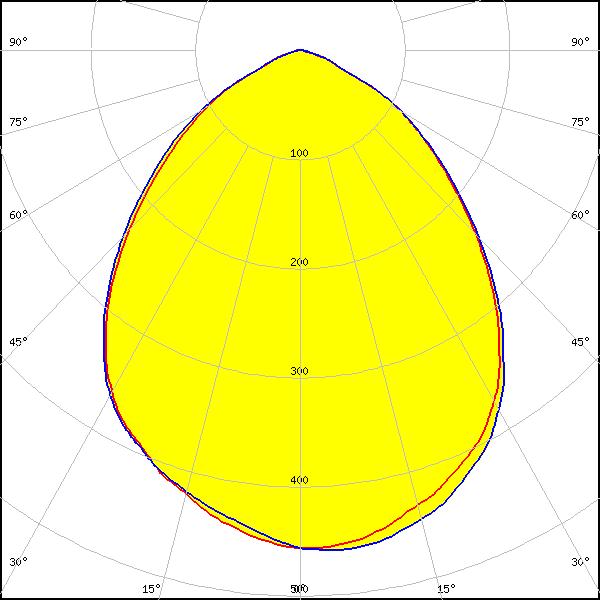

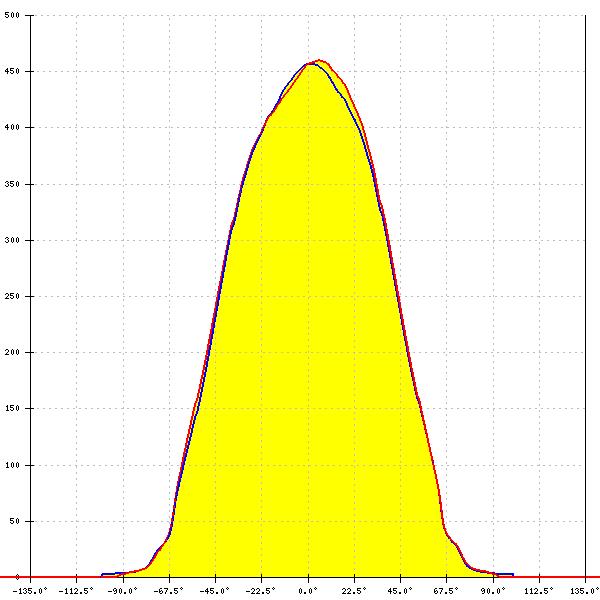

LED:
JB3030 HE B Class
FWHM:
92°
FWTM:
133°
Peak intensity:
0.460 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

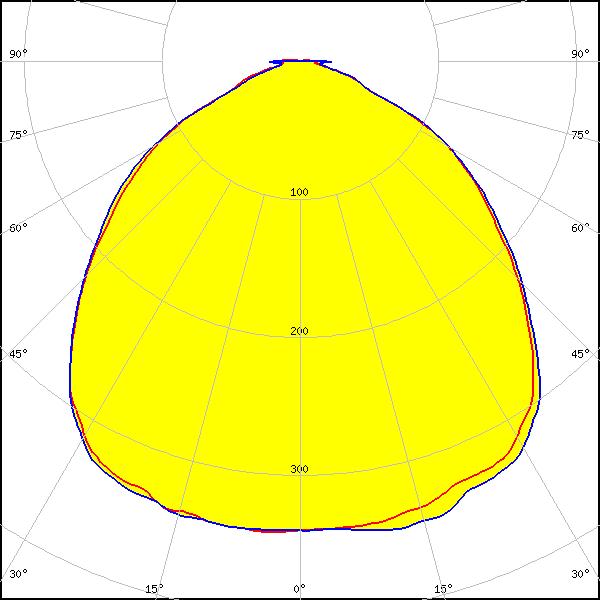

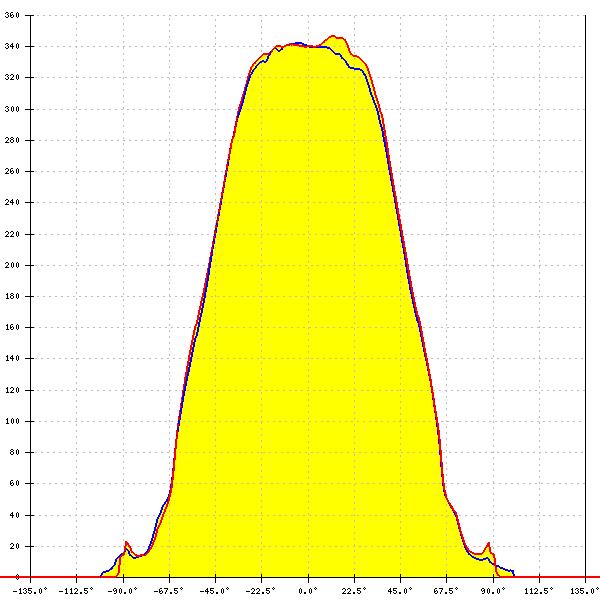

LED:
XD16
FWHM:
104°
FWTM:
146°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

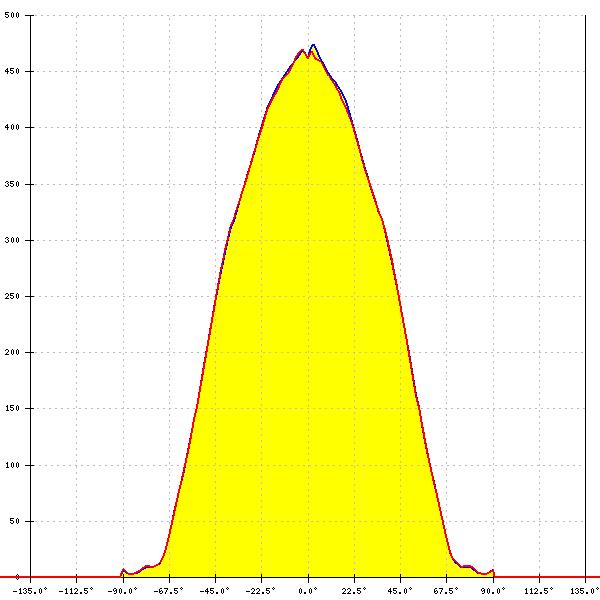

LED:

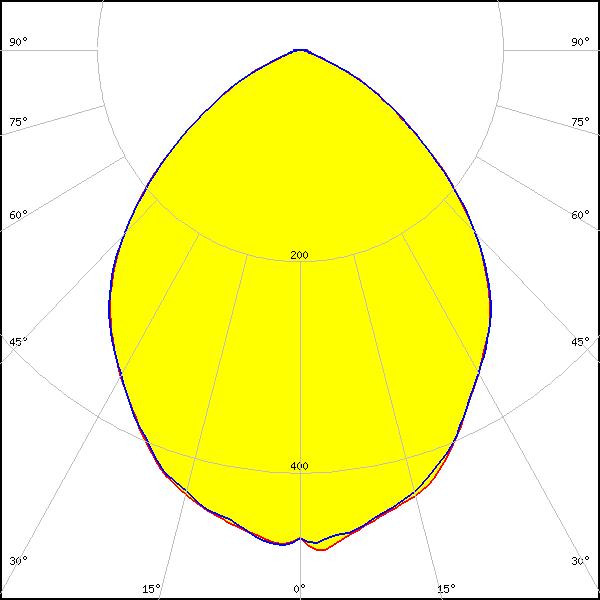

XP-G2 HE
FWHM:
92°
FWTM:
132°
Peak intensity:
0.475 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

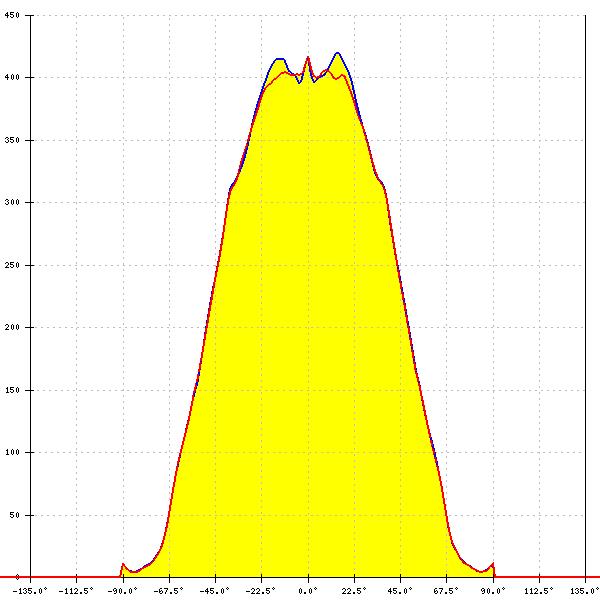

LED:

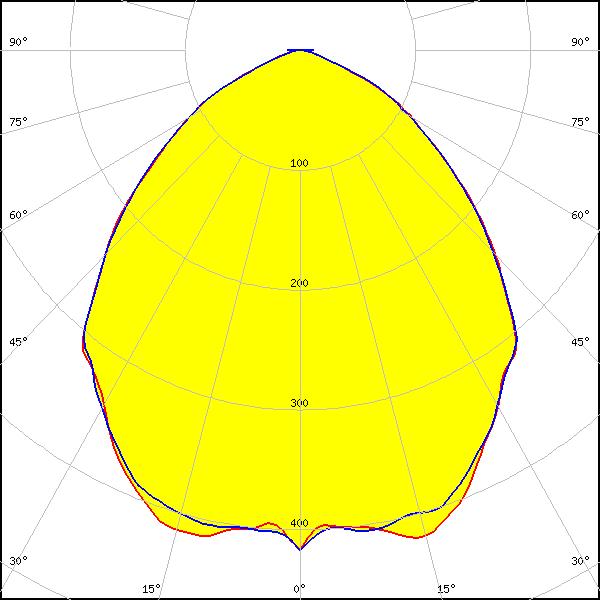

XP-G3
FWHM:
94°
FWTM:
141°
Peak intensity:
0.430 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G3
FWHM:
96°
FWTM:
138°
Peak intensity:
0.419 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

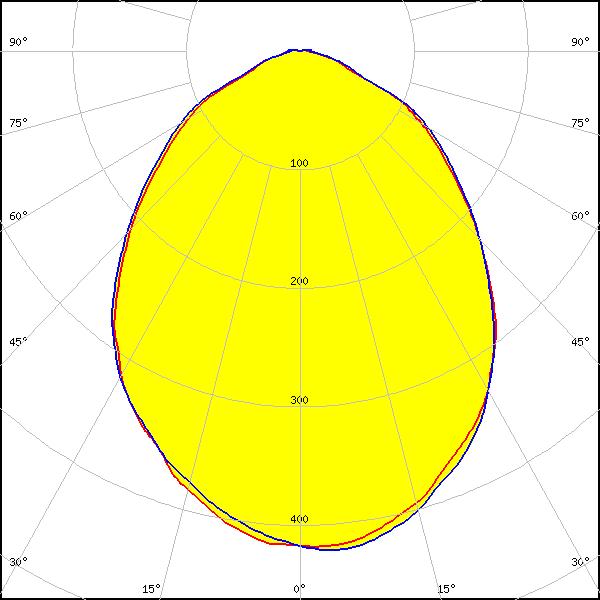

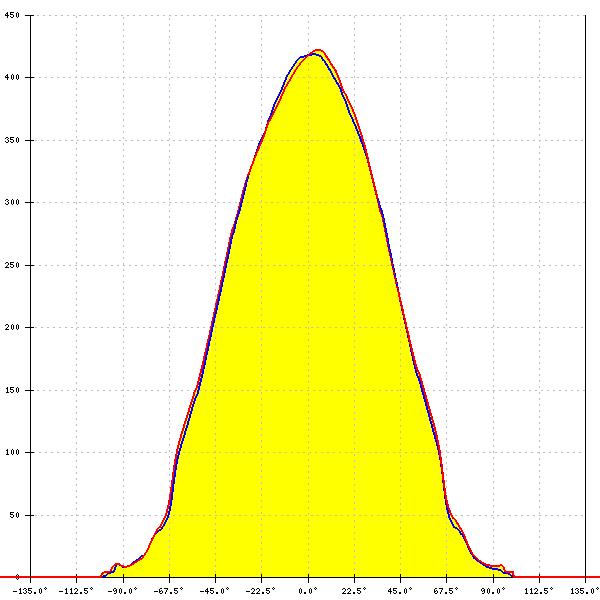

LED:
XT-E
FWHM:
87°
FWTM:
141°
Peak intensity:
0.461 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
92°
FWTM:
141°
Peak intensity:
0.420 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-BRICK HP 3x8 Stradella-8
FWHM:
90°
FWTM:
131°
Peak intensity:
0.484 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 2D (Round LES)
FWHM:
87°
FWTM:
130°
Peak intensity:
0.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3535L HE
FWHM:
80°
FWTM:
131°
Peak intensity:
0.540 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

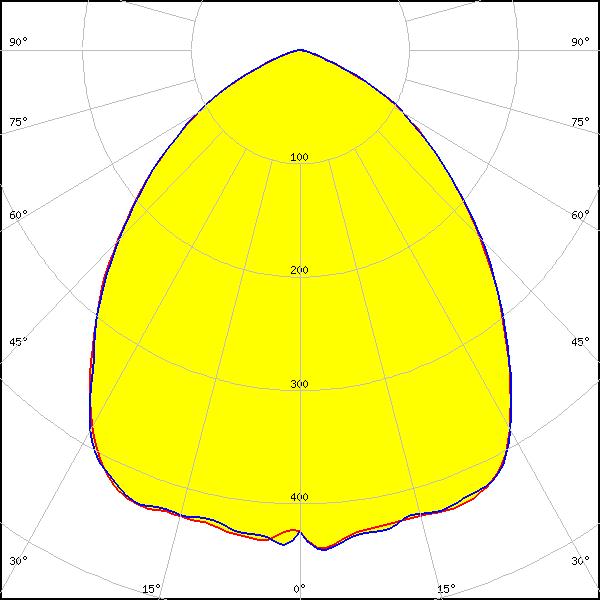

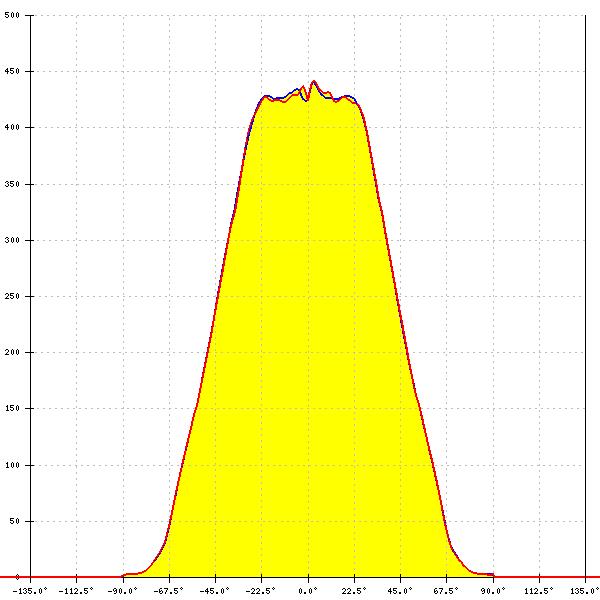

LED:
LUXEON CZ
FWHM:
93°
FWTM:
136°
Peak intensity:
0.445 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

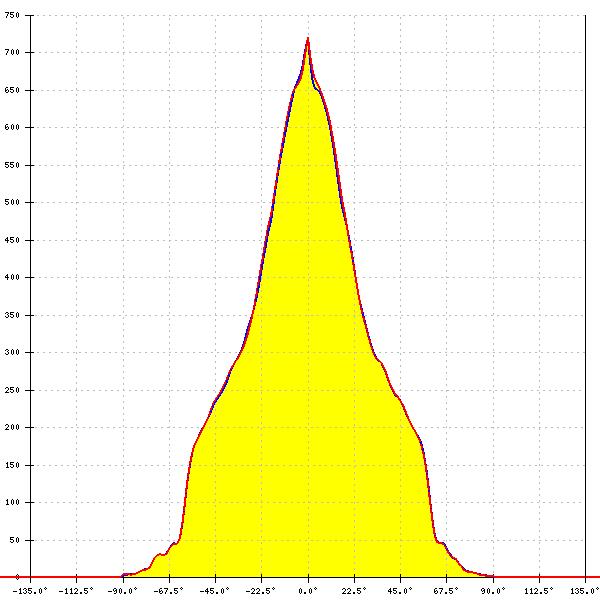

LED:
LUXEON CZ
FWHM:
52°
FWTM:
122°
Peak intensity:
0.721 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON HR30
FWHM:
82°
FWTM:
130°
Peak intensity:
0.530 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON TX
FWHM:
84°
FWTM:
139°
Peak intensity:
0.460 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

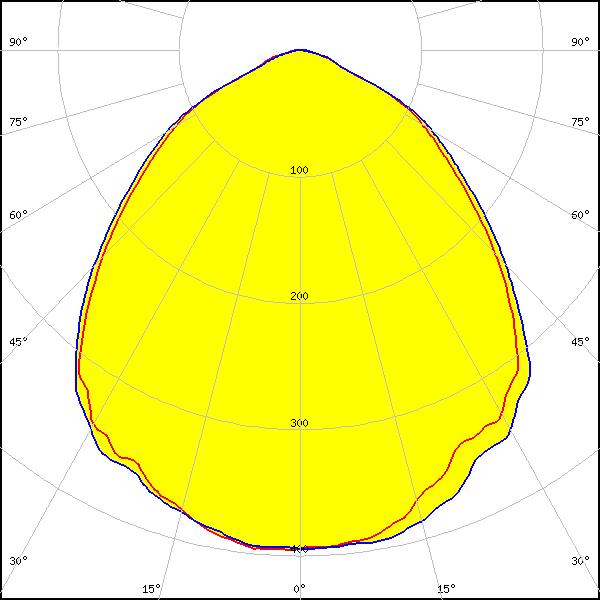

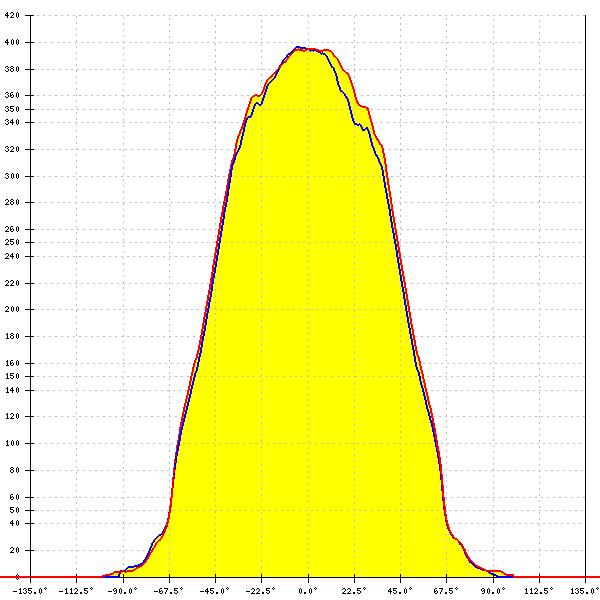

LED:
SST-10-B130
FWHM:
99°
FWTM:
137°
Peak intensity:
0.397 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Deep Red

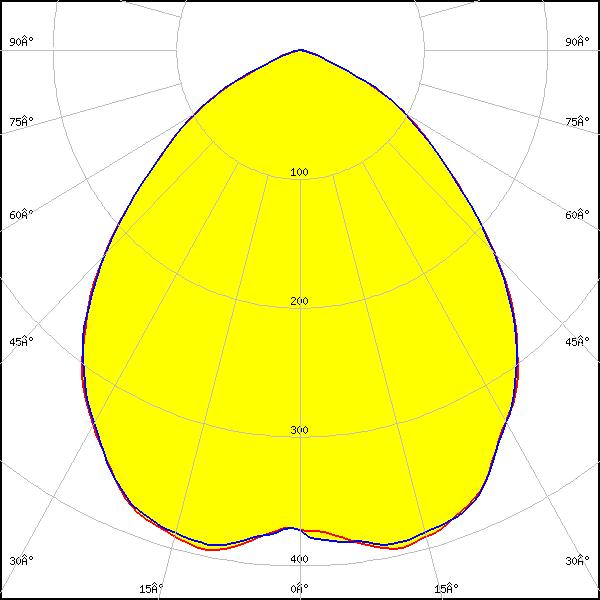

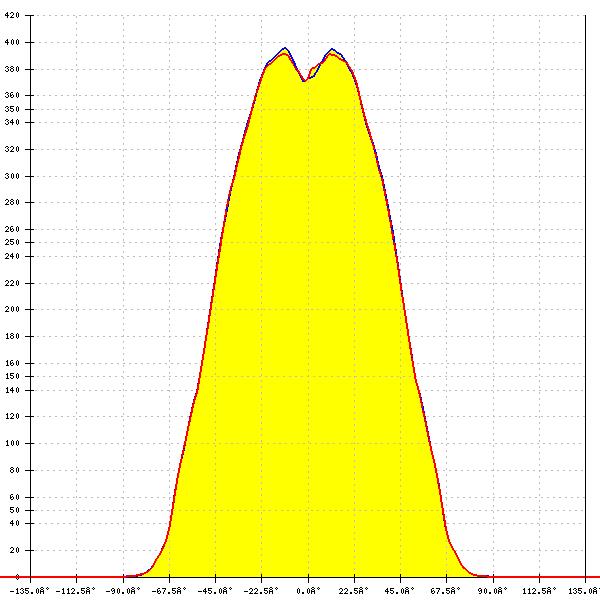

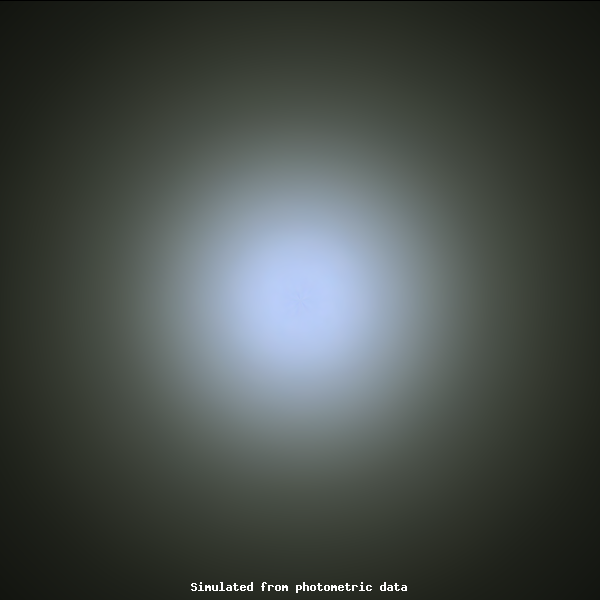

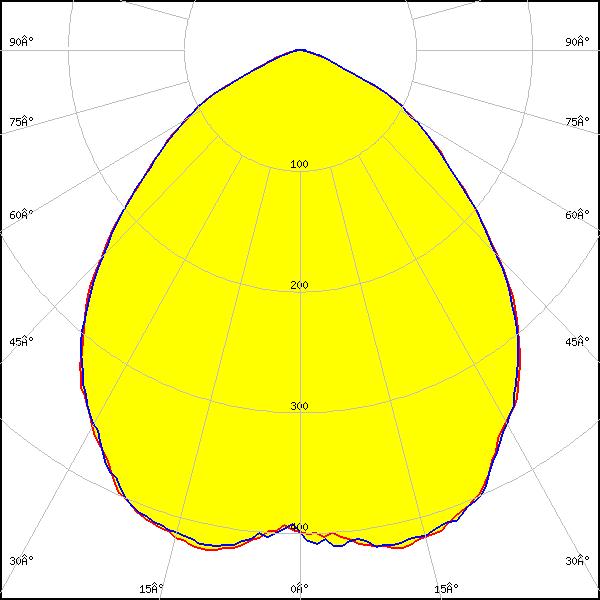

LED:

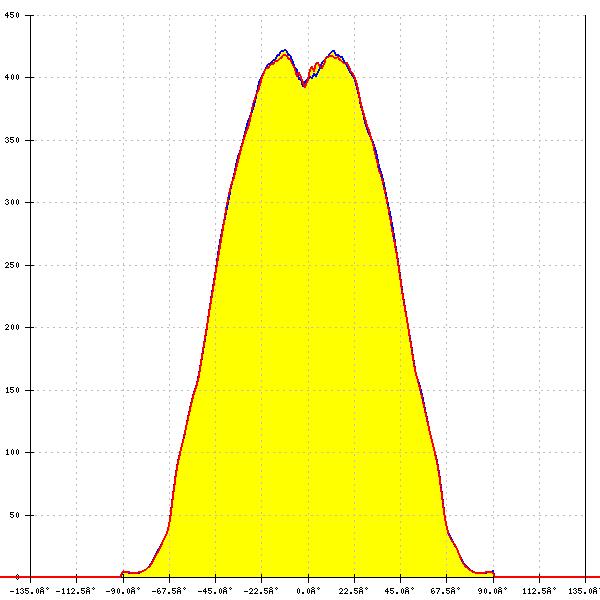

SST-20 Gen2
FWHM:
96°
FWTM:
136°
Peak intensity:
0.428 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-20 Gen2
FWHM:
95° + 96°
FWTM:
134° + 134°
Peak intensity:
0.398 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

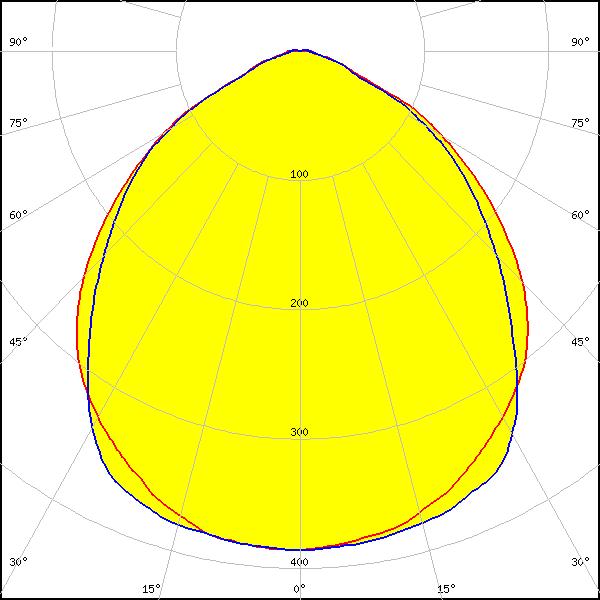

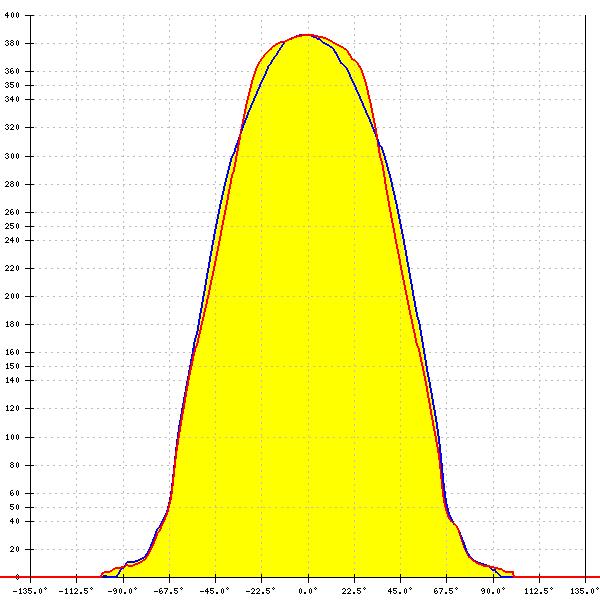

LED:
NF2W585AR
FWHM:
102°
FWTM:
142°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

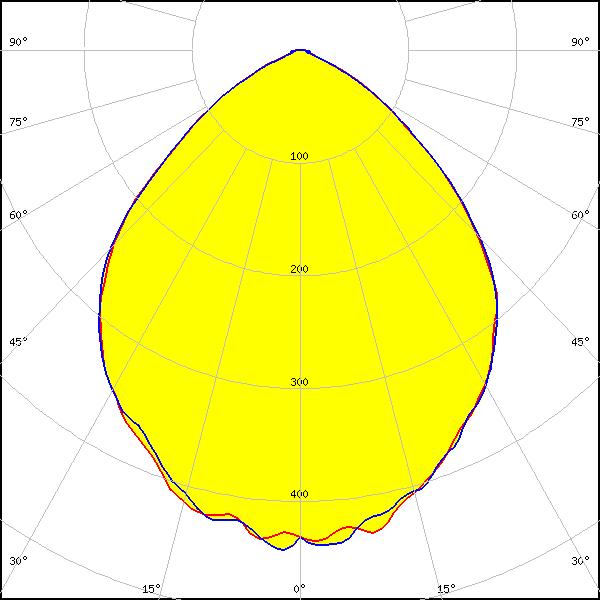

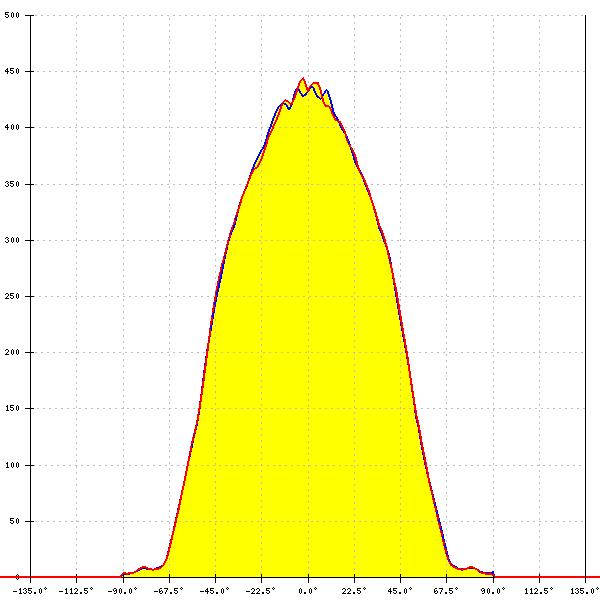

LED:
NVSW519A
FWHM:
93°
FWTM:
130°
Peak intensity:
0.457 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

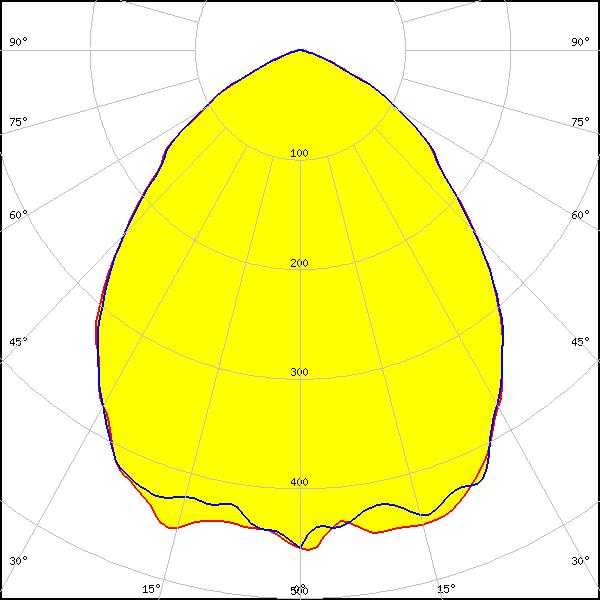

LED:

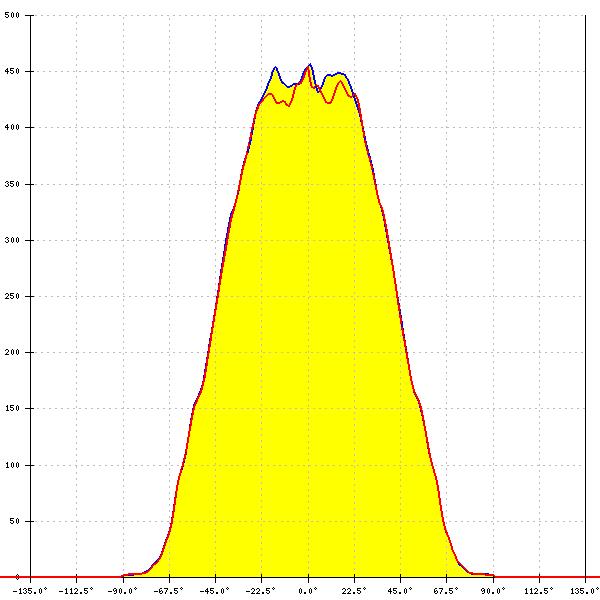

OSCONIQ C 2424 Gen1
FWHM:
92°
FWTM:
134°
Peak intensity:
0.470 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

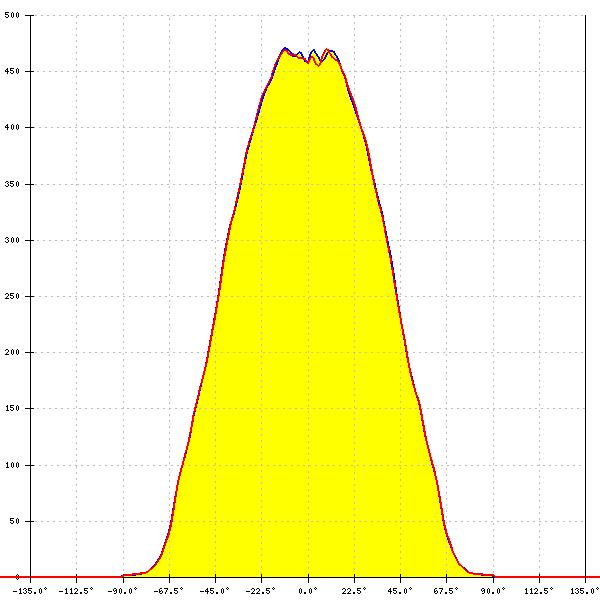

LED:

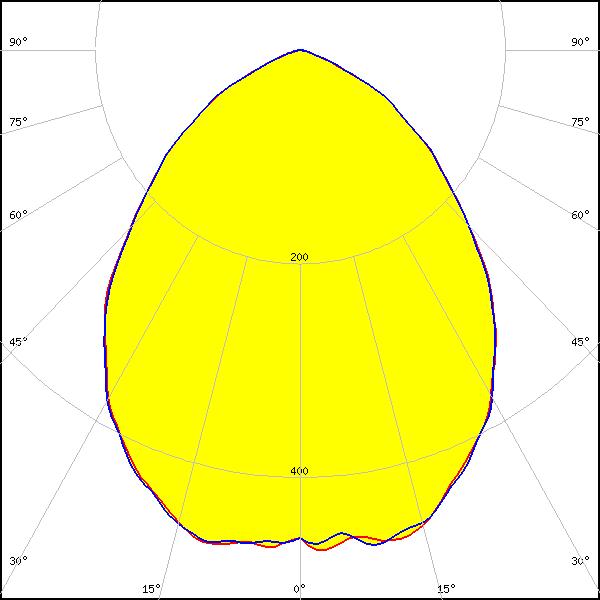

OSCONIQ C 3030
FWHM:
90°
FWTM:
134°
Peak intensity:
0.480 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ C 3030
FWHM:
90°
FWTM:
132°
Peak intensity:
0.437 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
82°
FWTM:
132°
Peak intensity:
0.547 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

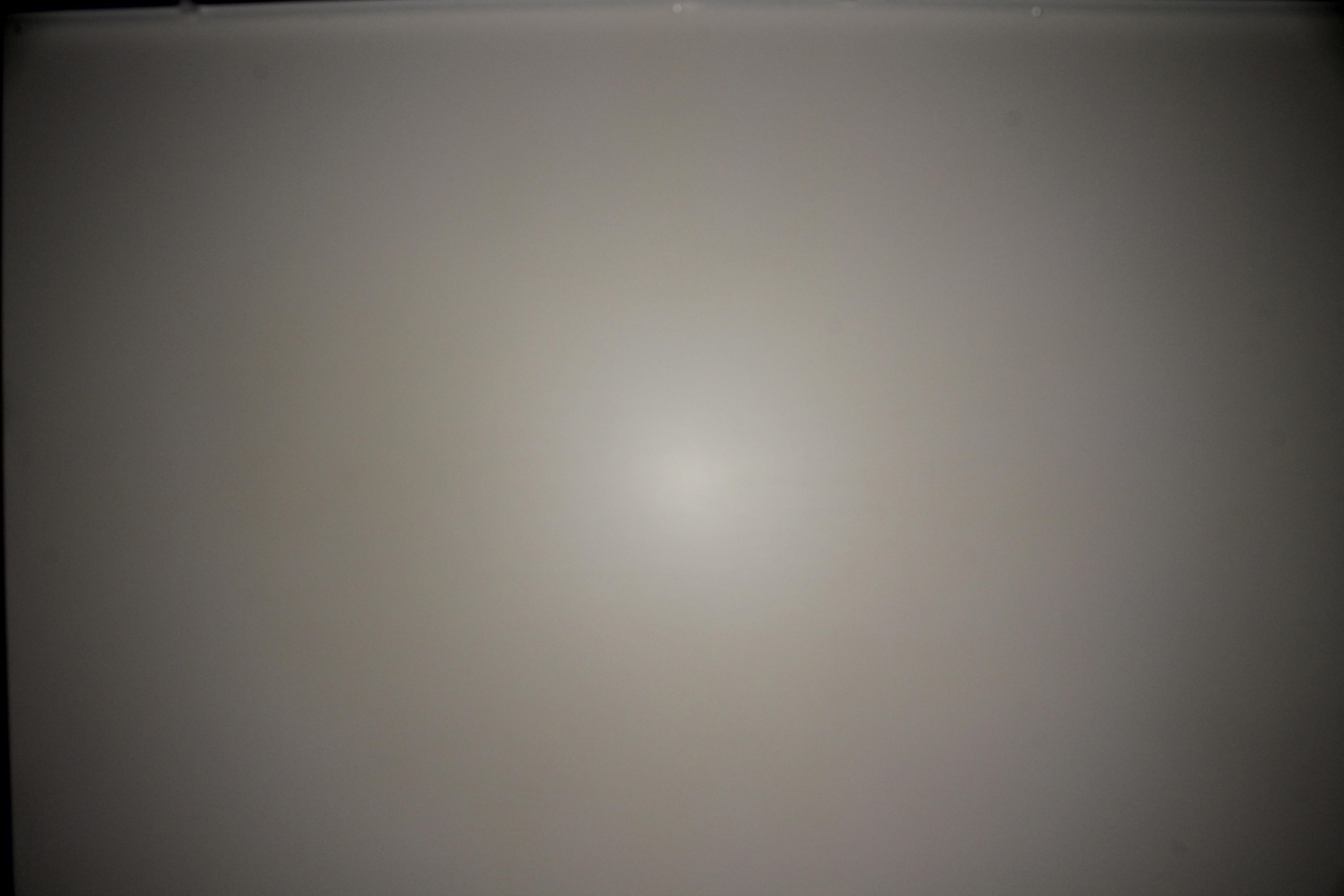

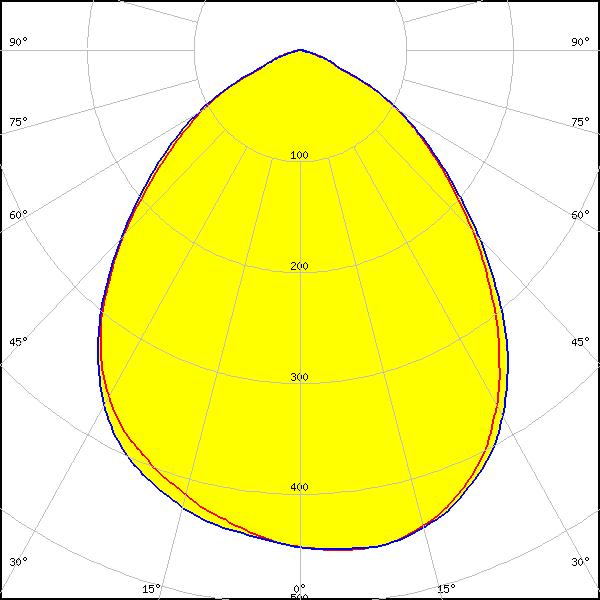

LED:

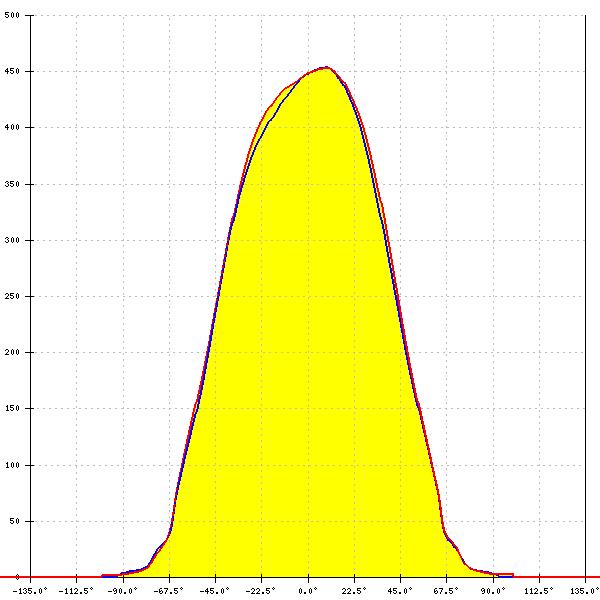

OSCONIQ S 3030 (QSLR31)
FWHM:
92°
FWTM:
132°
Peak intensity:
0.457 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

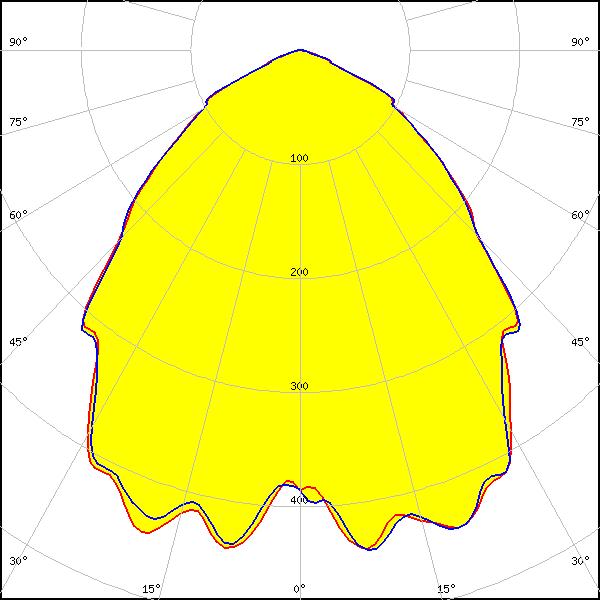

LED:

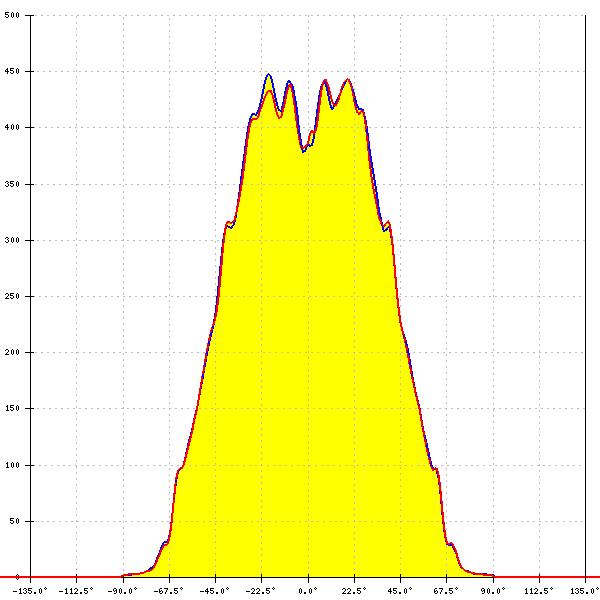

OSLON Pure 1414
FWHM:
92°
FWTM:
133°
Peak intensity:
0.458 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4715AS
FWHM:
71°
FWTM:
109°
Peak intensity:
0.738 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR

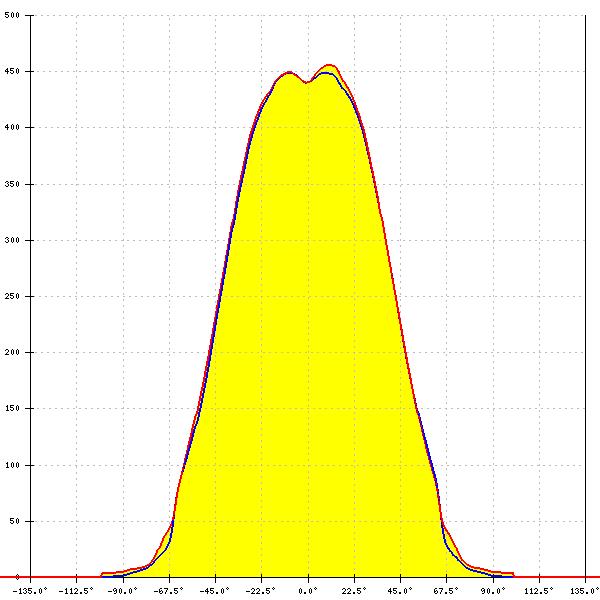

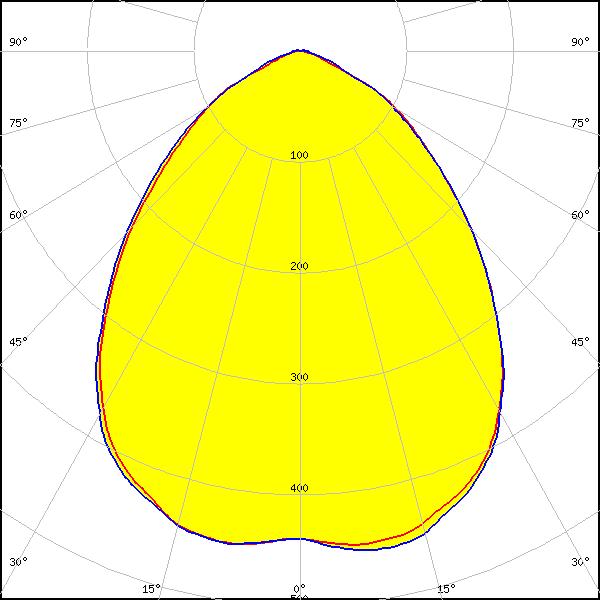

LED:
Fortimo FastFlex LED 4x8up PR G5
FWHM:
90°
FWTM:
131°
Peak intensity:
0.456 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH151B
FWHM:
96°
FWTM:
139°
Peak intensity:
0.401 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

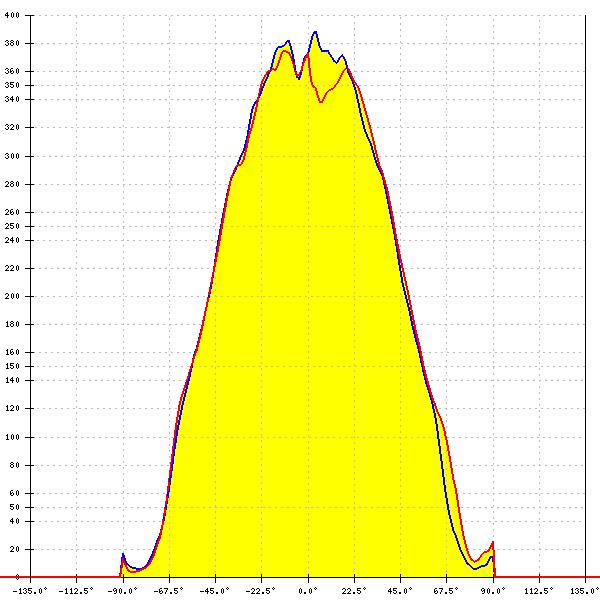

LED:

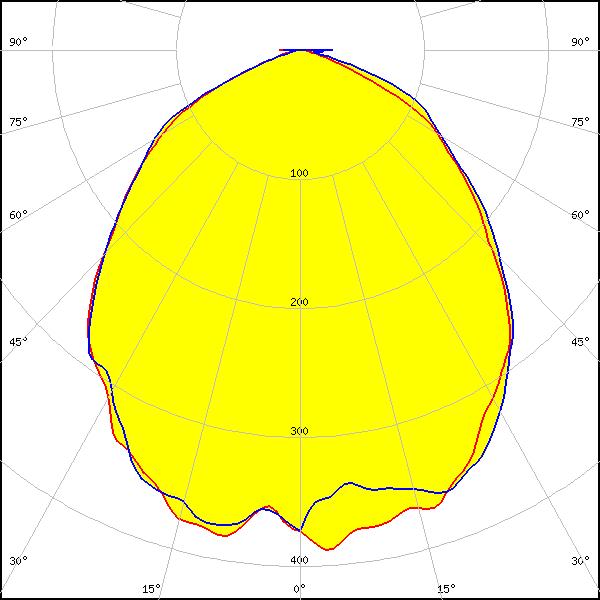

LH181A
FWHM:
97°
FWTM:
143°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

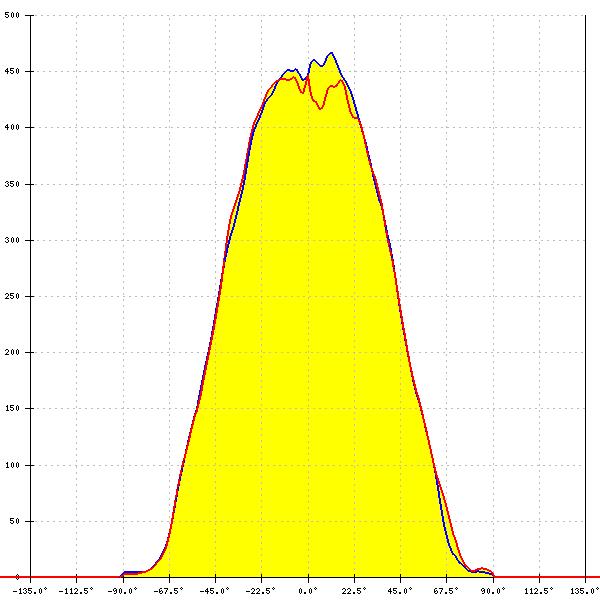

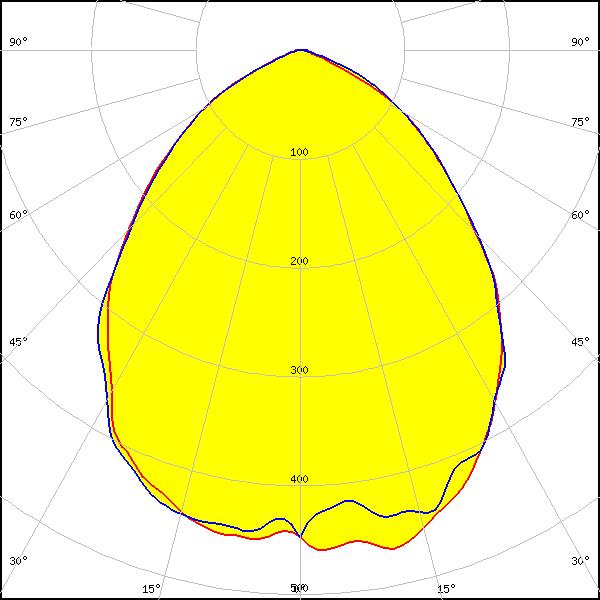

LH181B
FWHM:
89°
FWTM:
135°
Peak intensity:
0.480 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

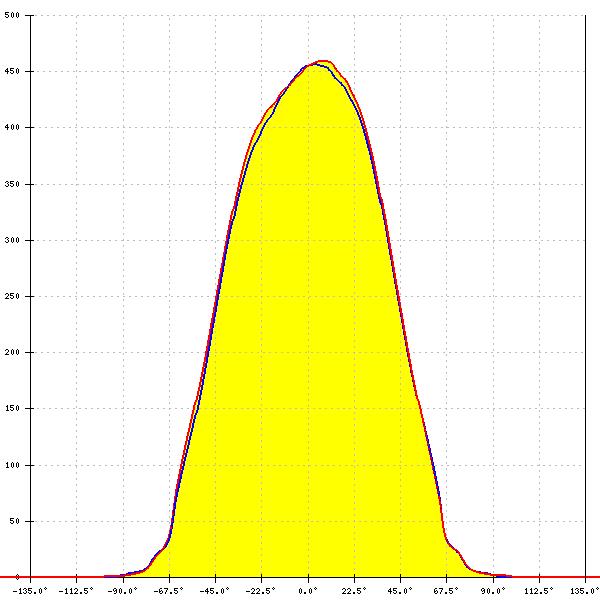

LED:

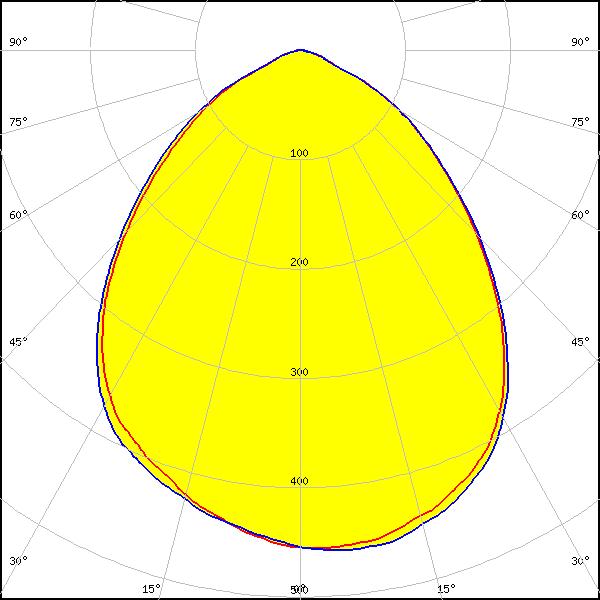

SEOUL DC 3030C
FWHM:
92°
FWTM:
132°
Peak intensity:
0.461 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

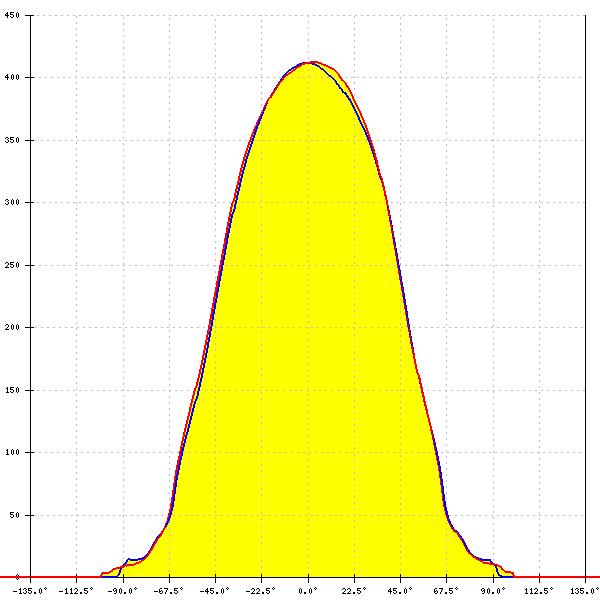

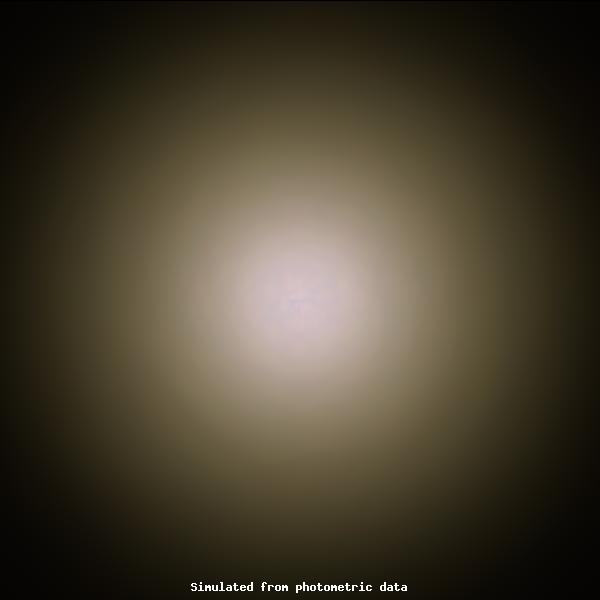

LED:

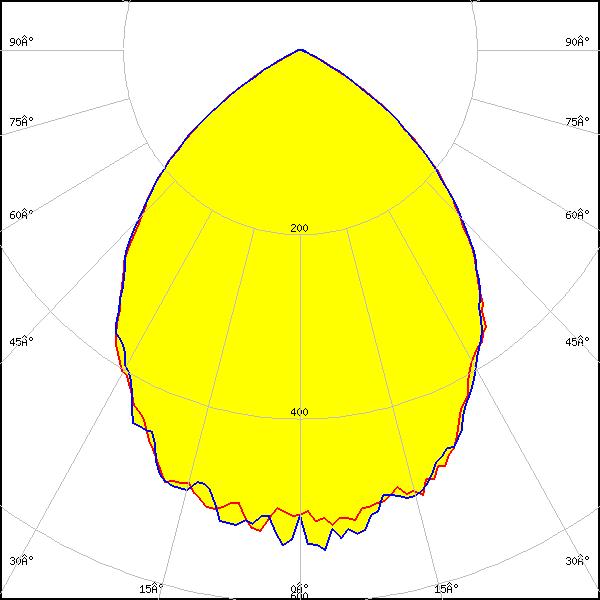

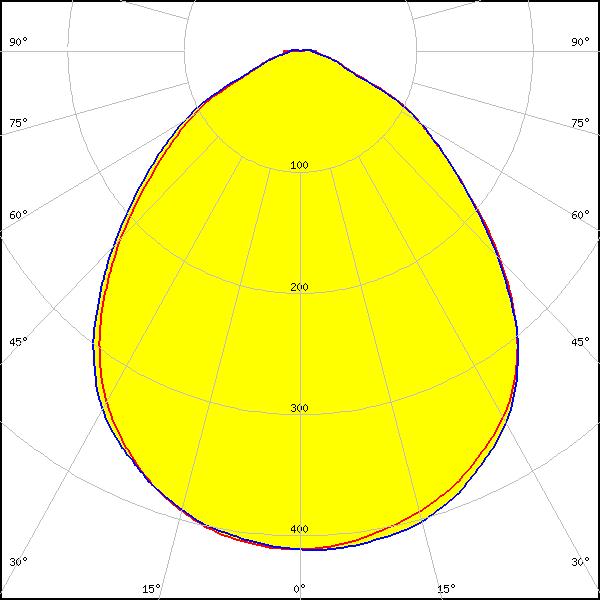

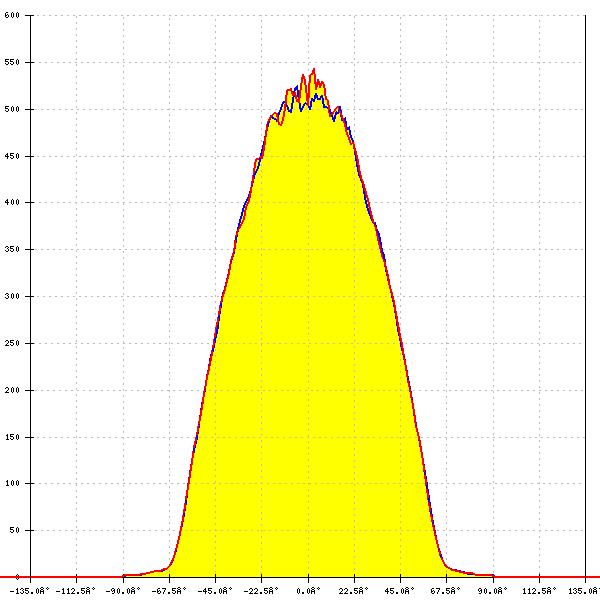

Z5M3
FWHM:
96°
FWTM:
139°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M3-E1
FWHM:
88°
FWTM:
123°
Peak intensity:
0.559 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

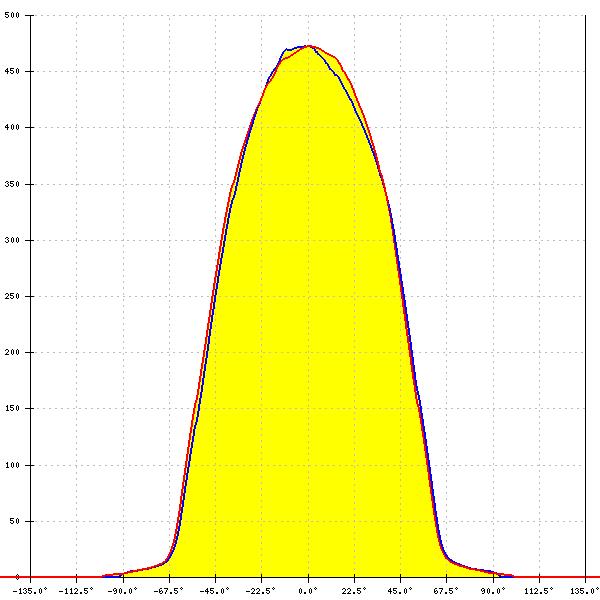

Z5M4
FWHM:
94°
FWTM:
126°
Peak intensity:
0.472 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

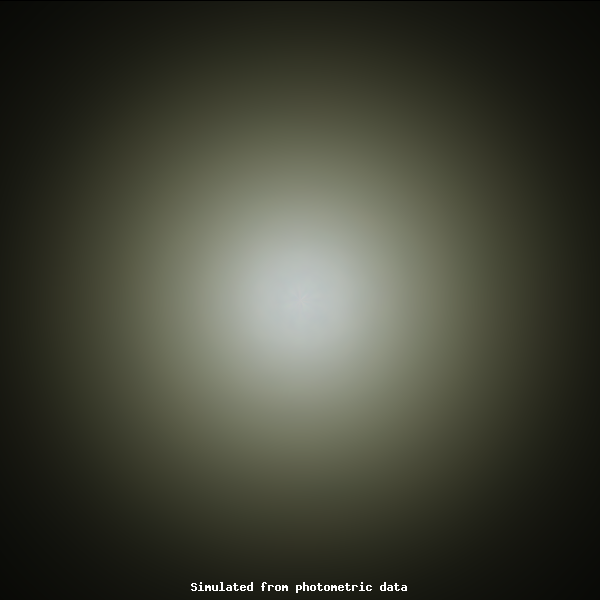

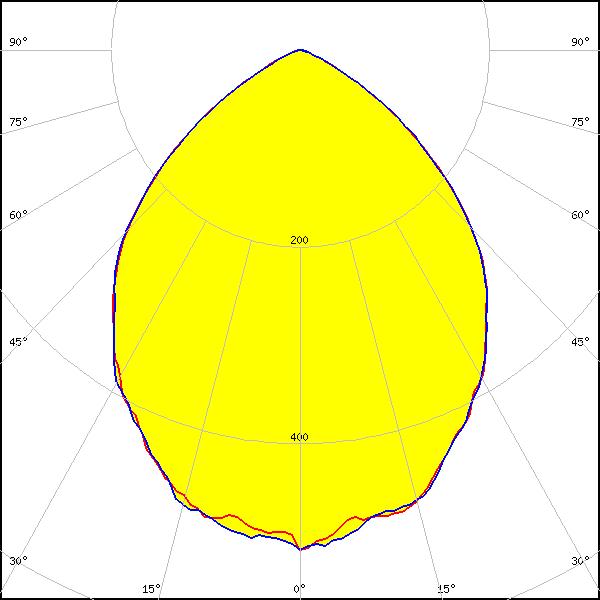

LED:
Z5M4-E1
FWHM:
90°
FWTM:
126°
Peak intensity:
0.530 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

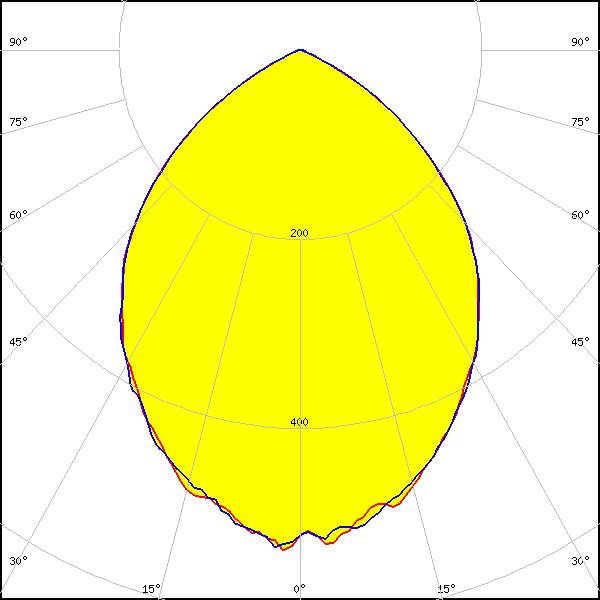

LED:

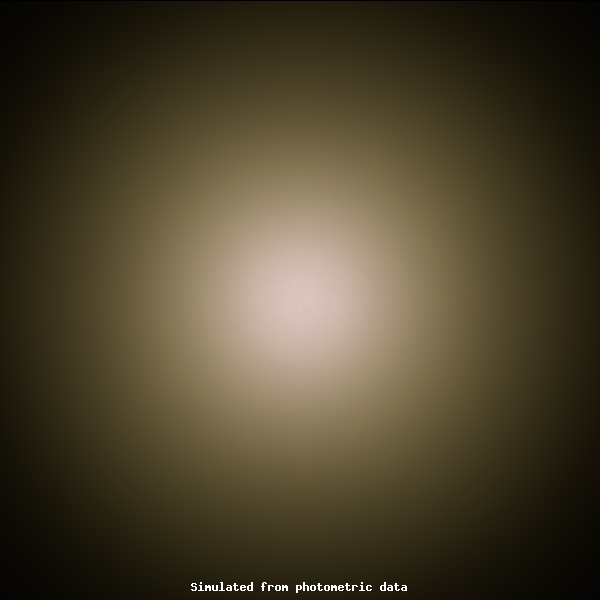

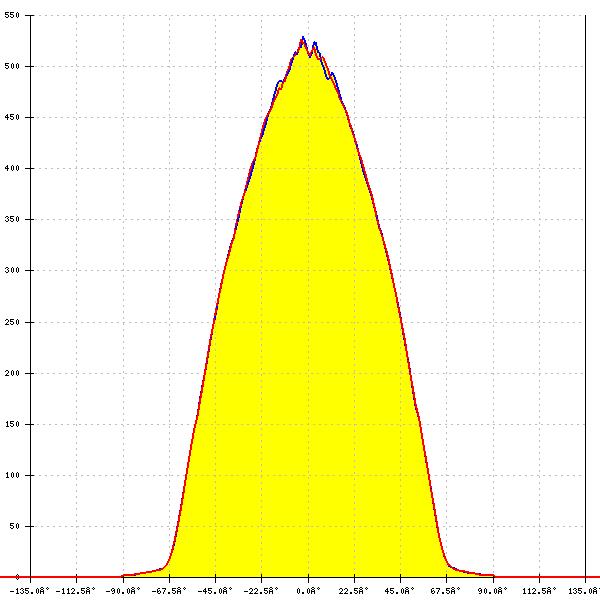

Z5M4-E2
FWHM:
88°
FWTM:
126°
Peak intensity:
0.536 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y19
FWHM:
100°
FWTM:
142°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

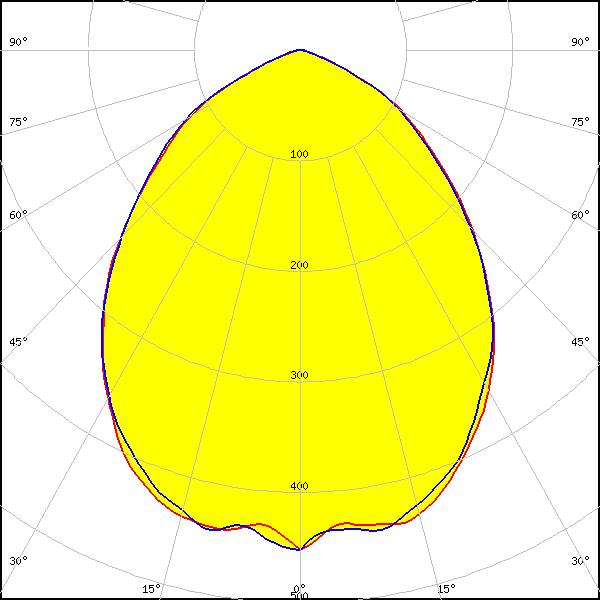

Z8Y22T
FWHM:
90°
FWTM:
137°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
