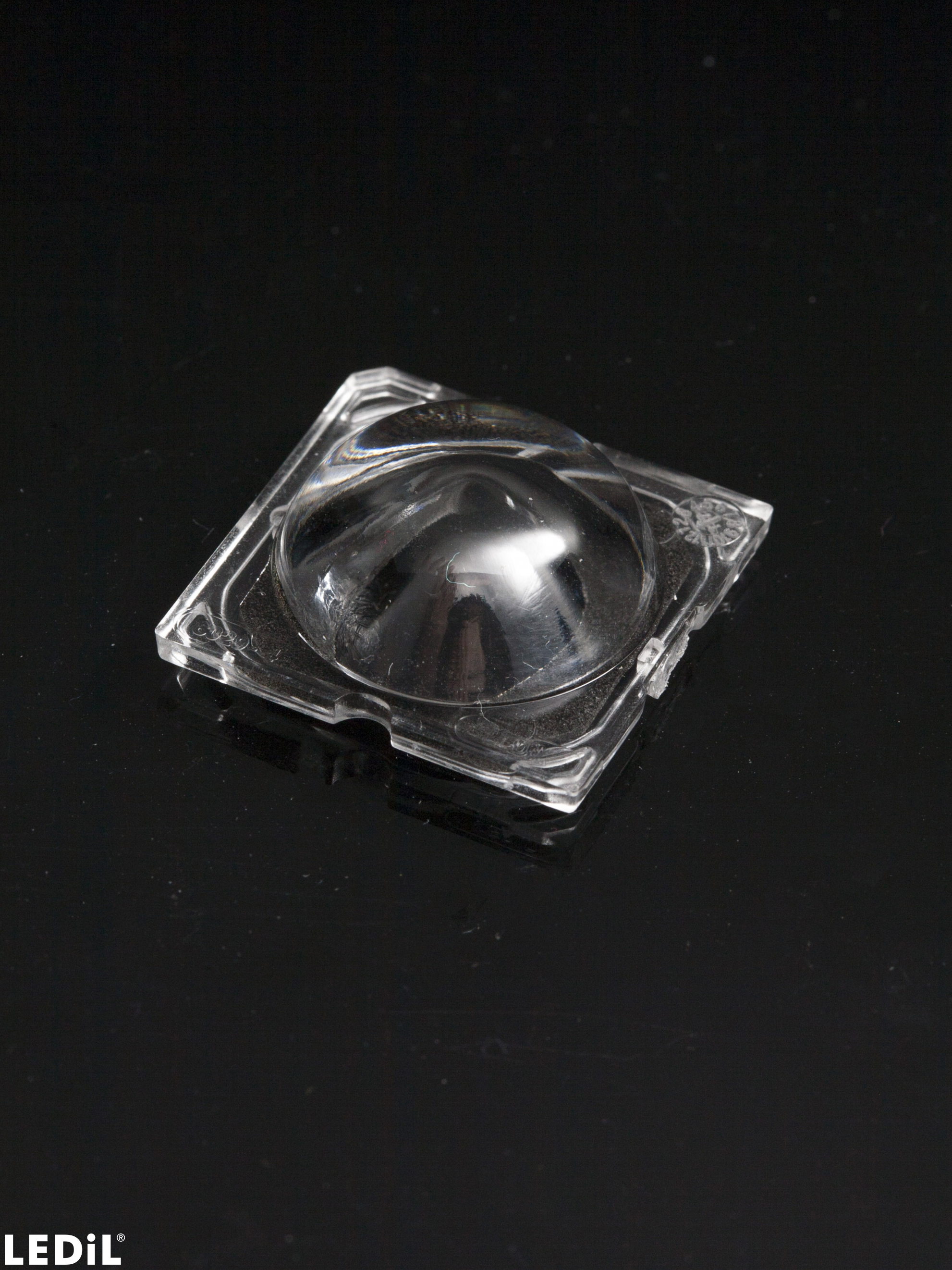

C16029_STRADA-SQ-C

Beam for area and street lighting such as parks and pedestrian walkways. Version with location pins.

Specification

Dimensions:

25 x 25 mm
Height:

9.74 mm
Fastening:

glue, pin, screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

PMMA
Request material files from Tech Support

Ordering information

Quantity in box:

2058 pcs
Box size:

480 x 280 x 300 mm
Box weight:

7.8 kg
MPQ:

98 pcs
MOQ:

294 pcs
MOQ size:

480 x 280 x 60 mm
MOQ weight:

1.6 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: C16029_STRADA-SQ-C

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

C16029_STRADA-SQ-C

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

PRODUCT NEWS - STRADA-SQ

Application guide

Guide for Street lighting optics

News

PRODUCT NEWS - STRADA-SQ

Application area

Industrial Lighting

Application guide

Guide for Urban lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

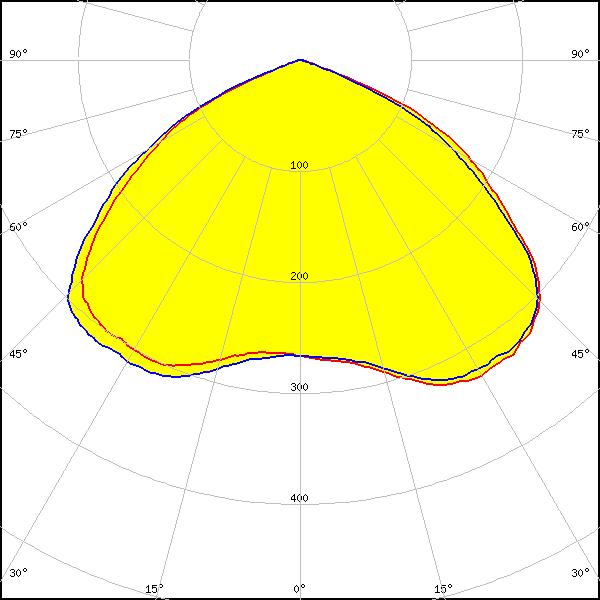

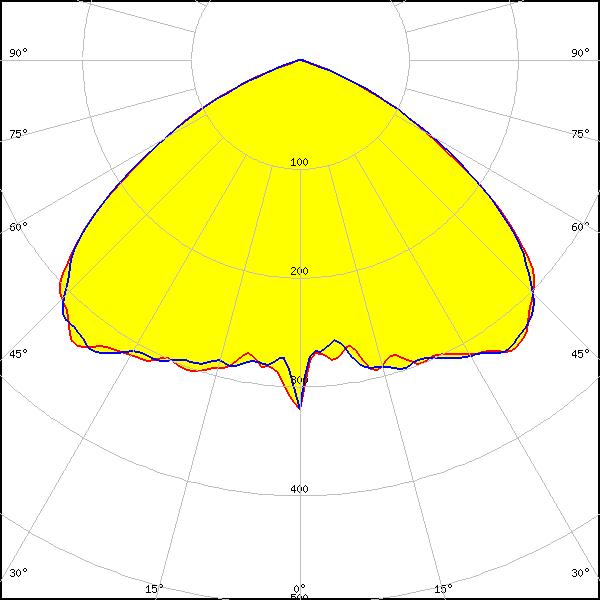

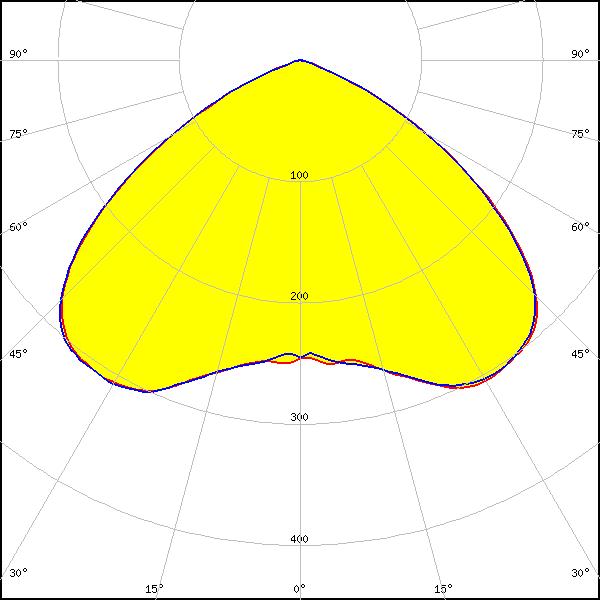

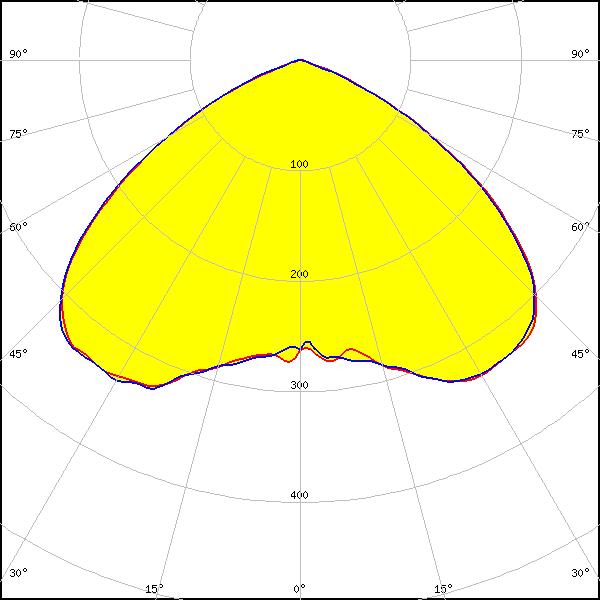

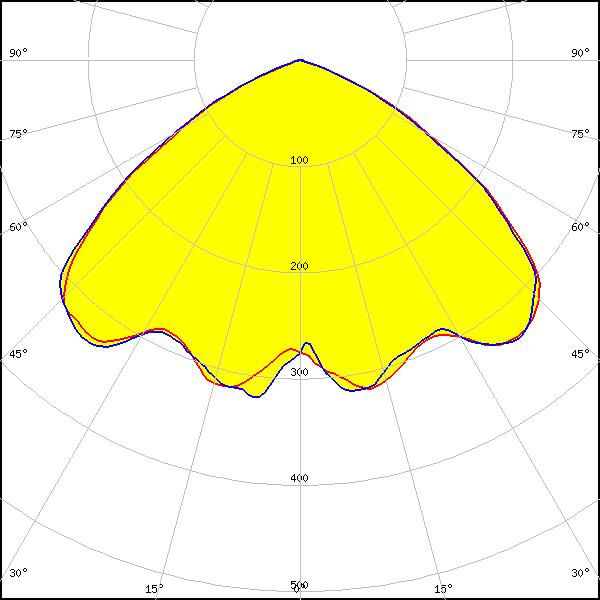

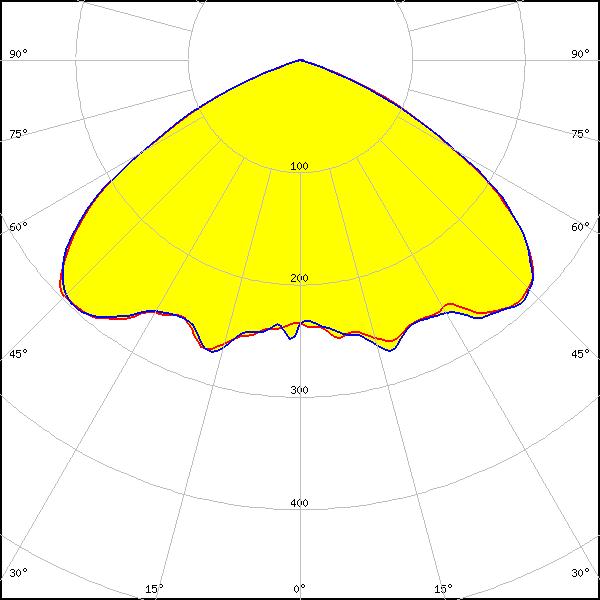

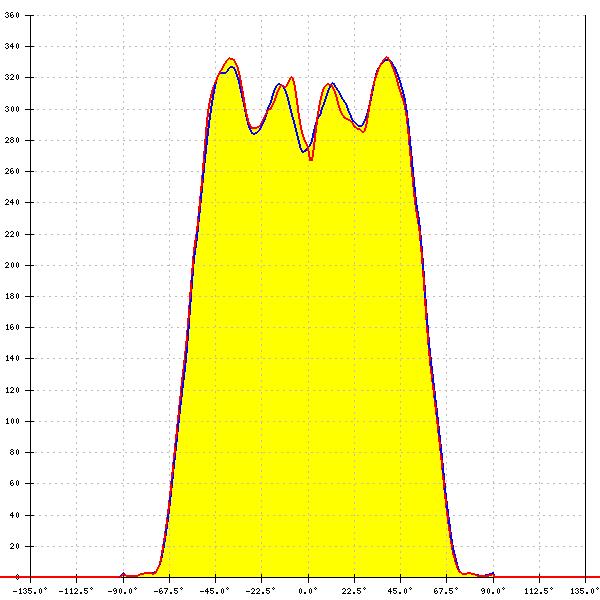

Optical results

LED: J Series 2835

FWHM: 116°

FWTM: 138°

Peak intensity: 0.336 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

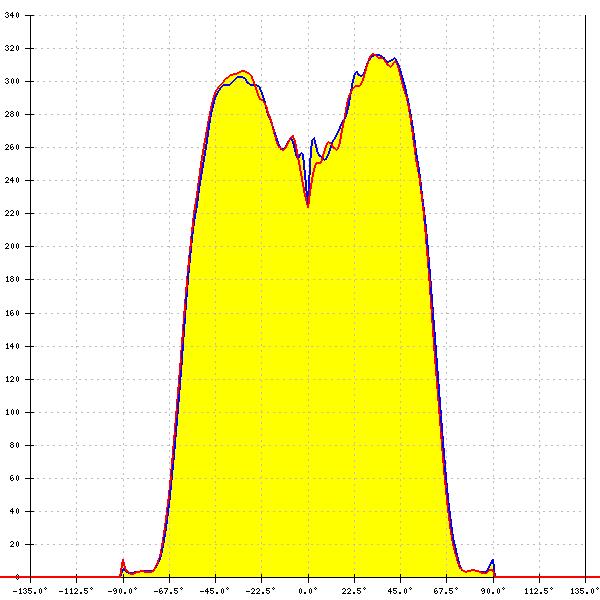

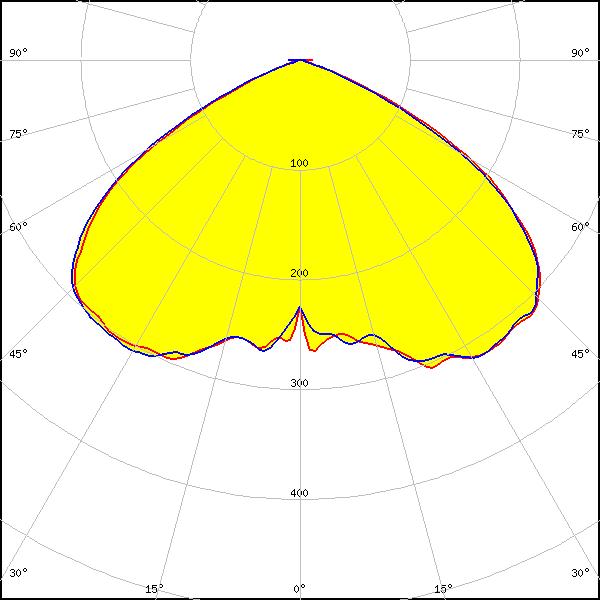

LED: XHP70

FWHM: 120°

FWTM: 139°

Peak intensity: 0.343 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

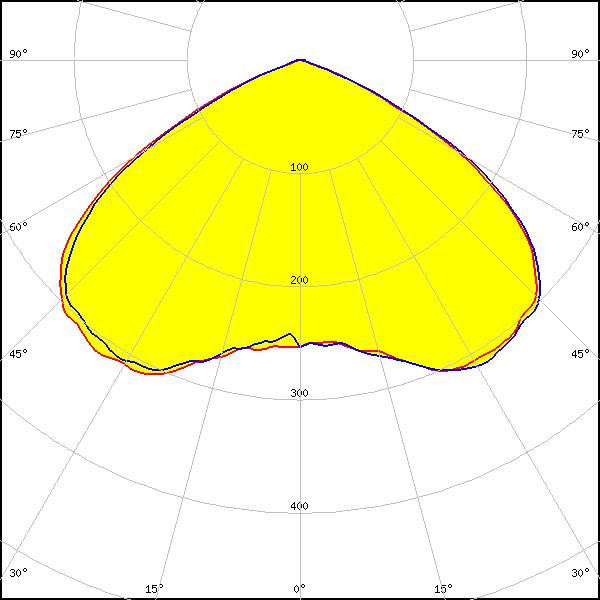

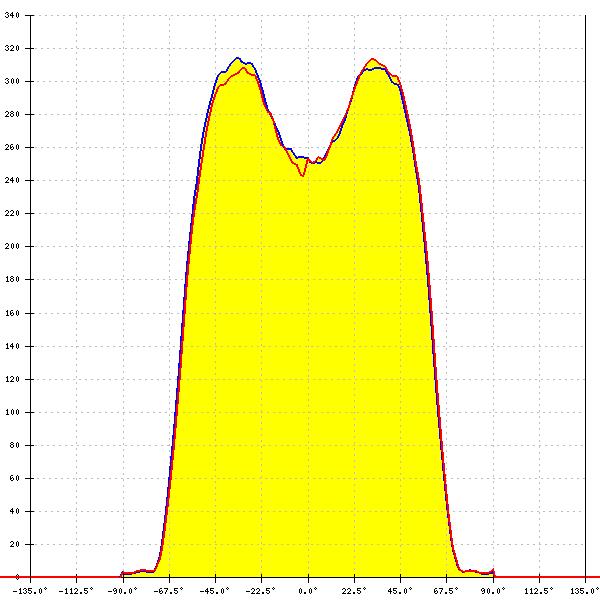

LED: XHP70.3 HD

FWHM: 121° + 120°

FWTM: 139° + 138°

Peak intensity: 0.325 cd/lm

Efficiency: 95 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

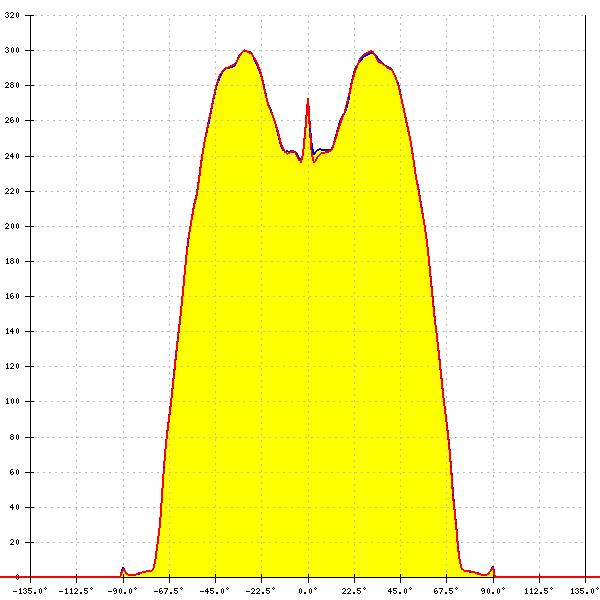

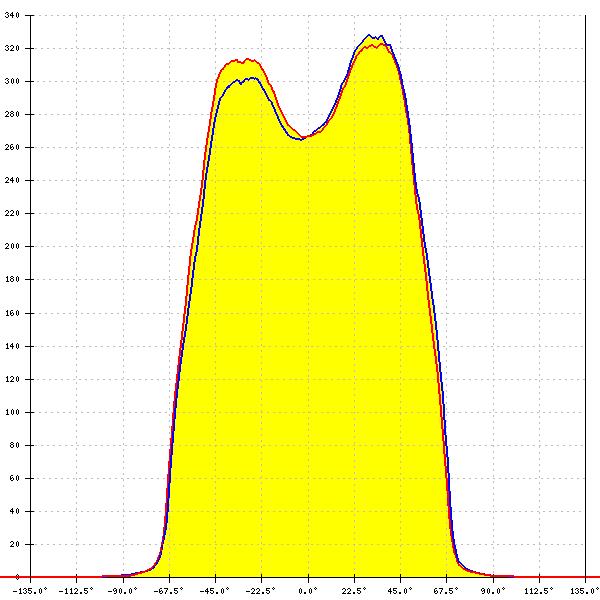

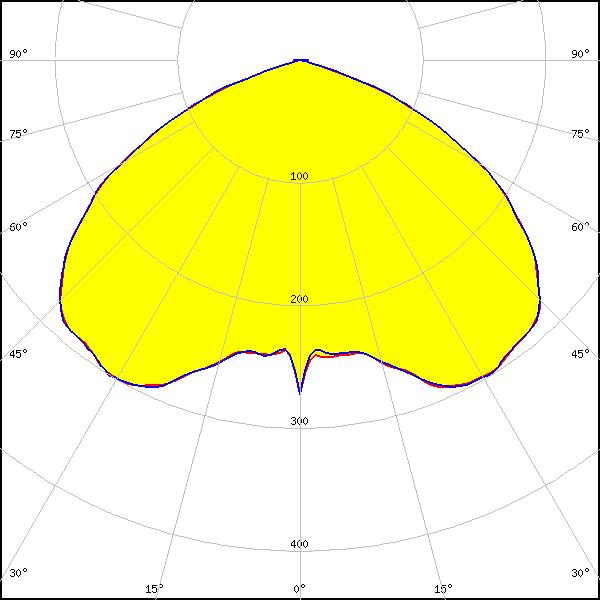

LED: XP-E2

FWHM: 124°

FWTM: 144°

Peak intensity: 0.334 cd/lm

Efficiency: 96 %

LEDs/each optic: 4

Light colour/type: Red

Datasheet

Light distribution files

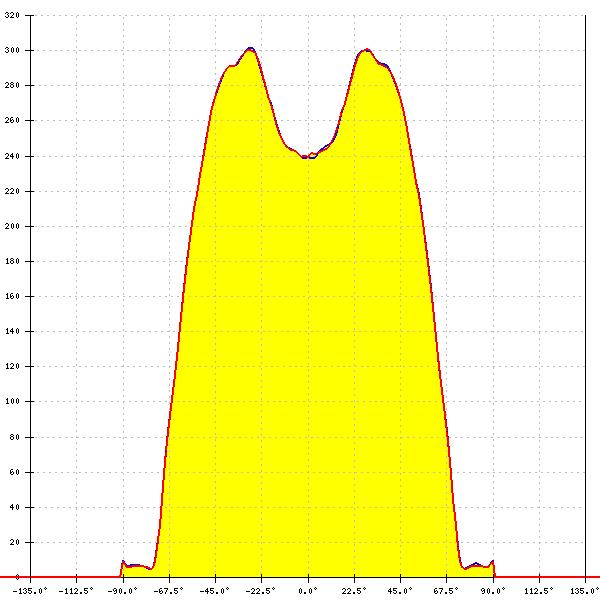

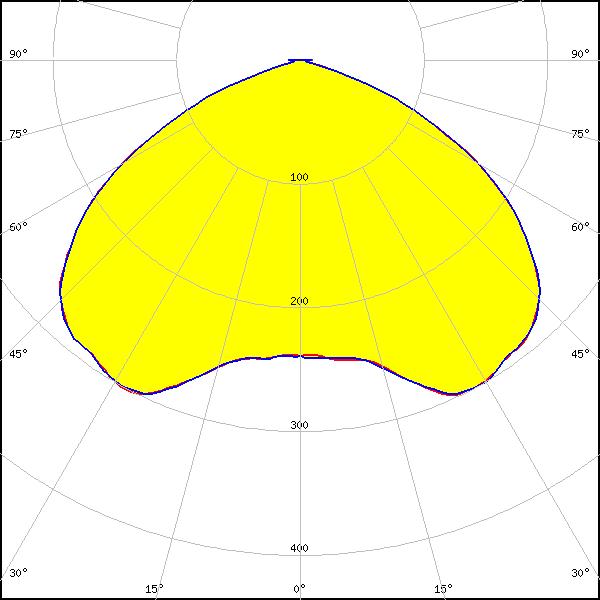

LED: XP-G3

FWHM: 122°

FWTM: 144°

Peak intensity: 0.315 cd/lm

Efficiency: 96 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

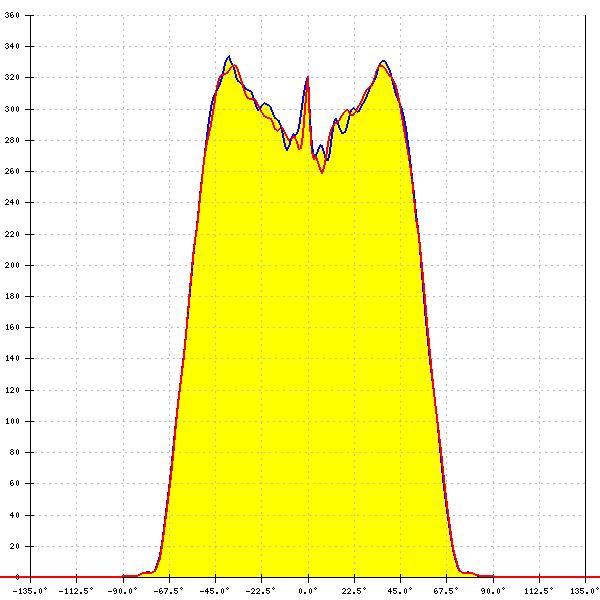

LED: LUXEON 5050 Round LES

FWHM: 107°

FWTM: 133°

Peak intensity: 0.340 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

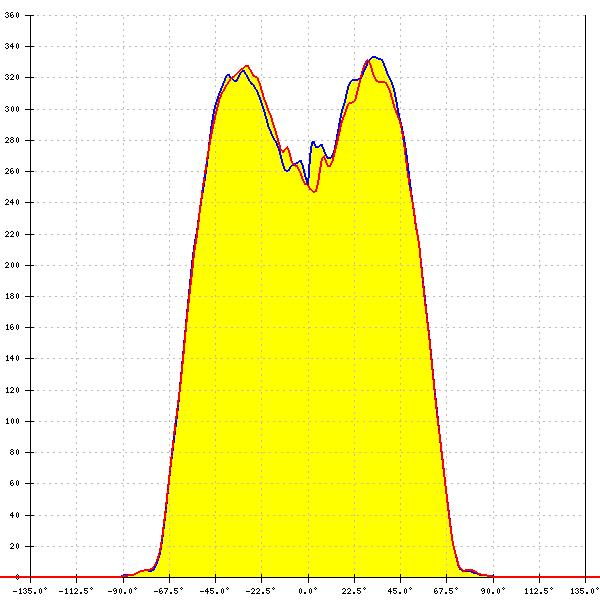

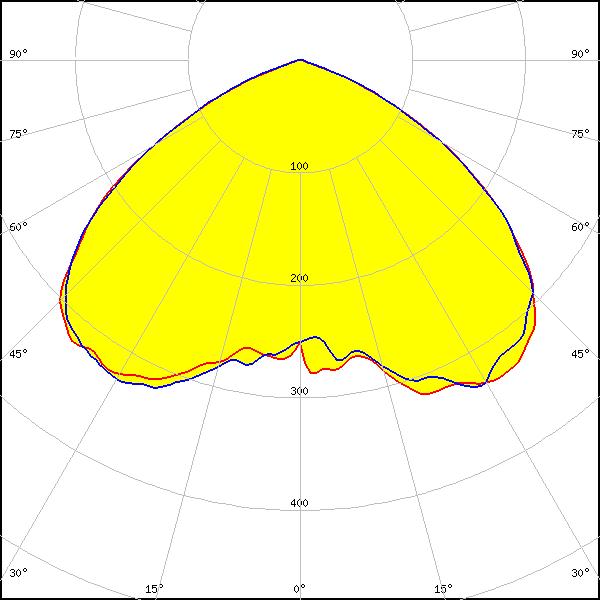

LED: LUXEON 7070

FWHM: 117°

FWTM: 140°

Peak intensity: 0.338 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON M/MX

FWHM: 125°

FWTM: 140°

Peak intensity: 0.340 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

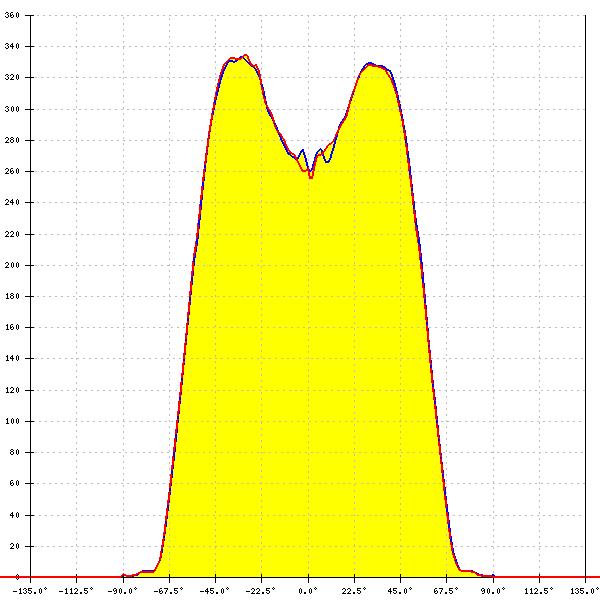

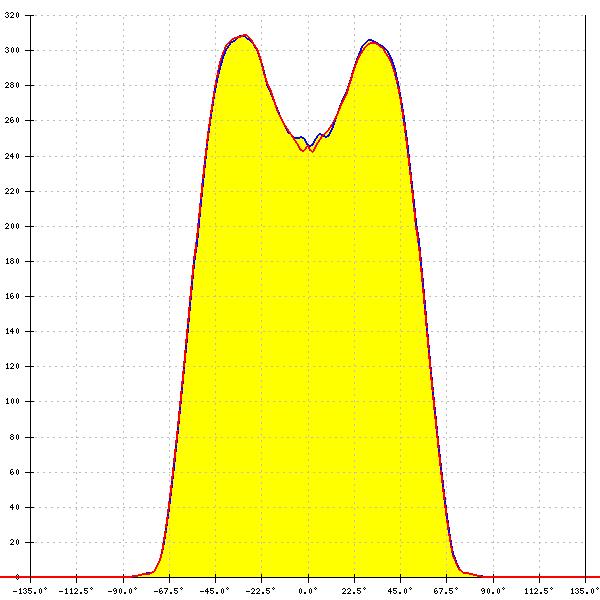

LED: MP 7070

FWHM: 116°

FWTM: 138°

Peak intensity: 0.337 cd/lm

Efficiency: 96 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: MP 7070

FWHM: 114°

FWTM: 137°

Peak intensity: 0.310 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

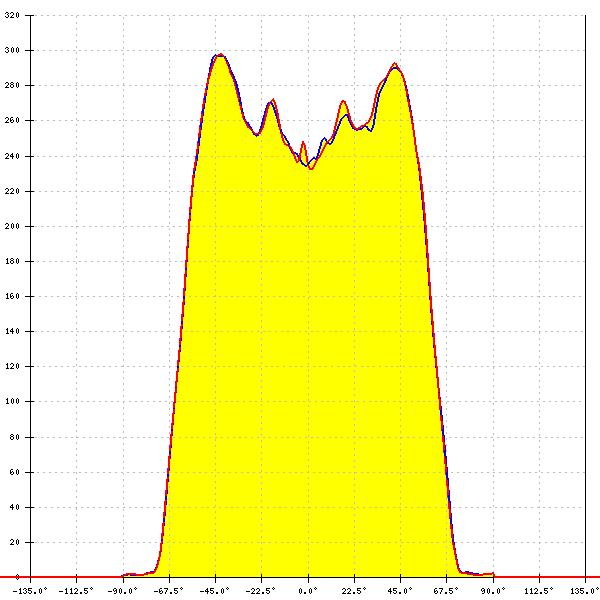

LED: NVSW519A
