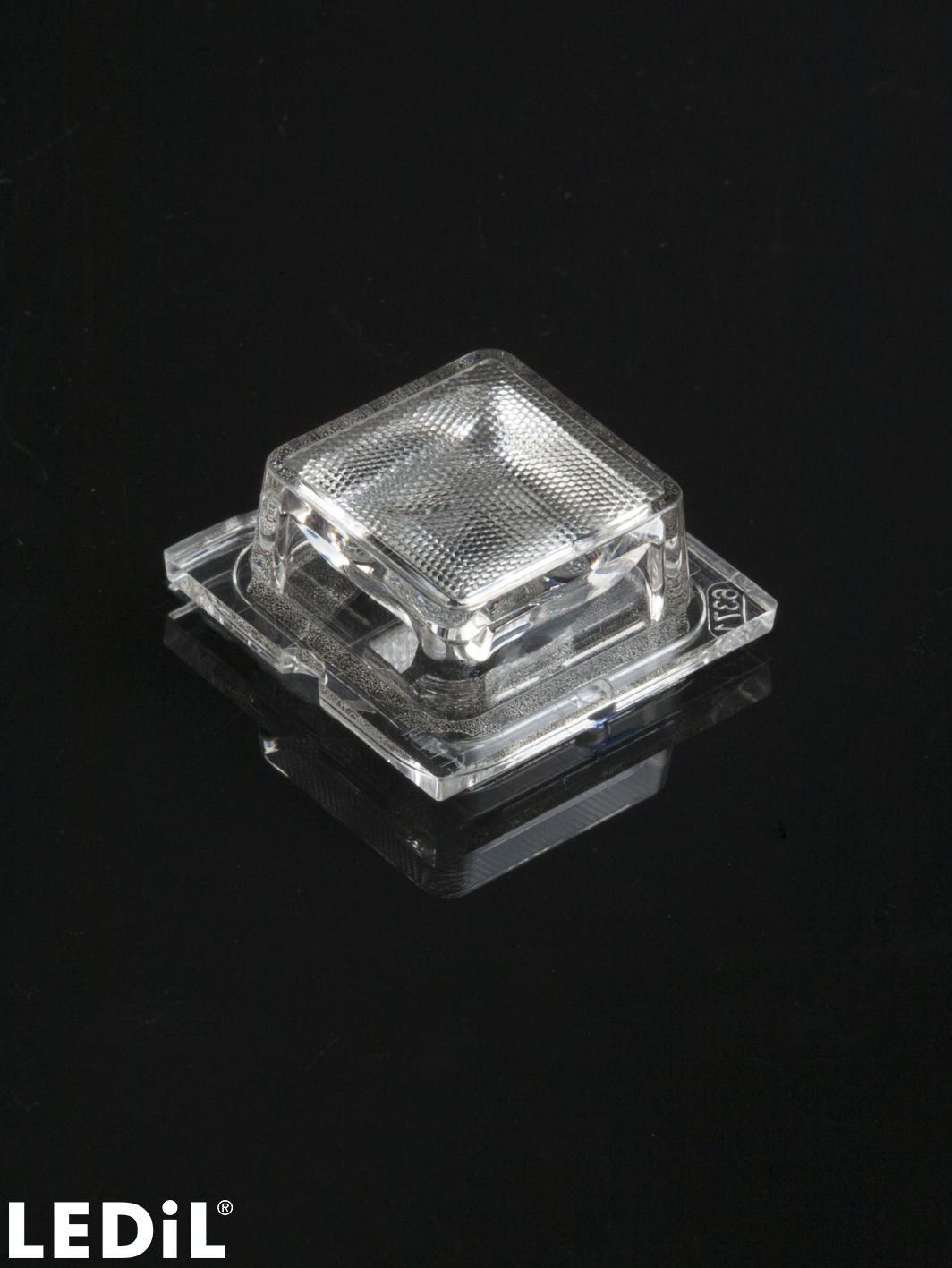

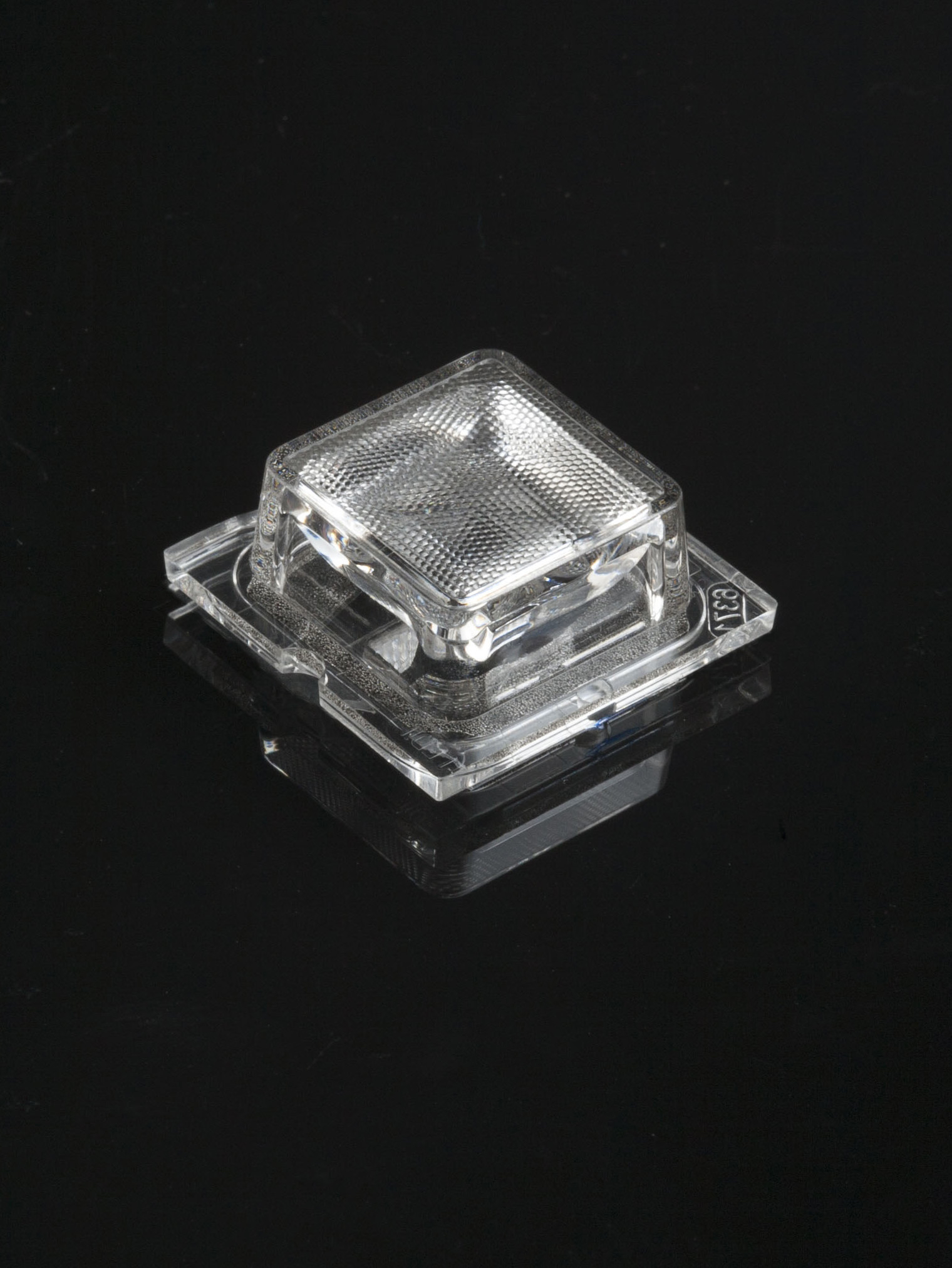

C16371_HB-SQ-WWW

Print

~90° beam

Specification
  • Dimensions:
    25 x  25 mm
  • Height:
    9.8 mm
  • Fastening:
    glue, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
  • PMMA
Packing information
  • Quantity in box:
    2058 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.6 kg
  • MPQ:
    98 pcs
  • MOQ:
    294 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    1.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
     Subscribe to LEDiL Newsletters
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






Typical Applications

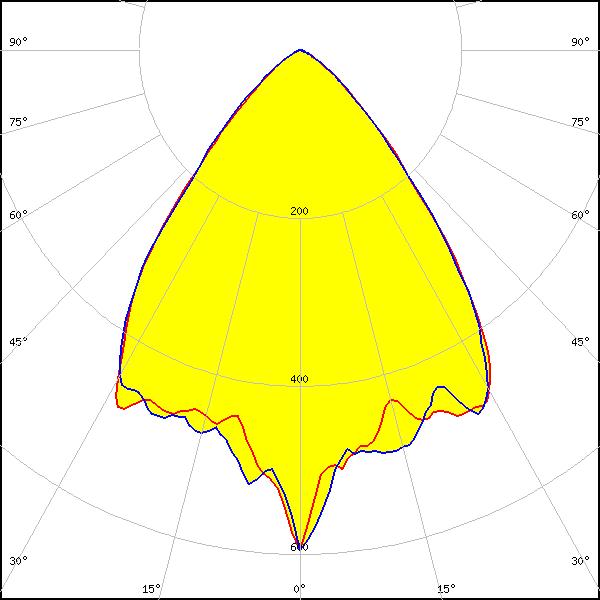

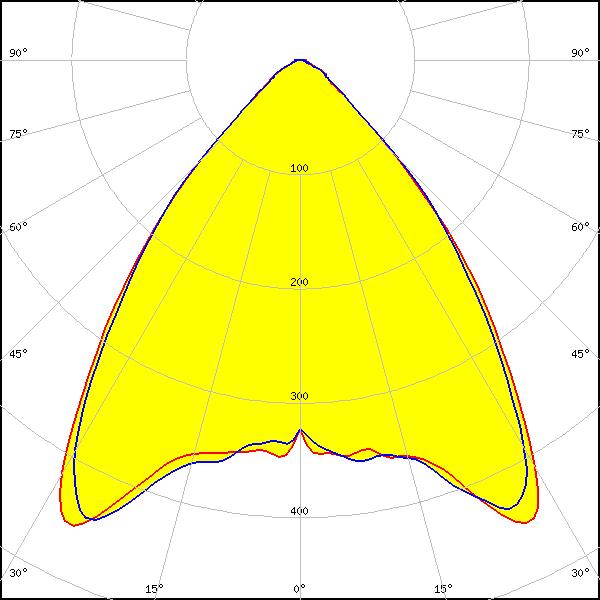

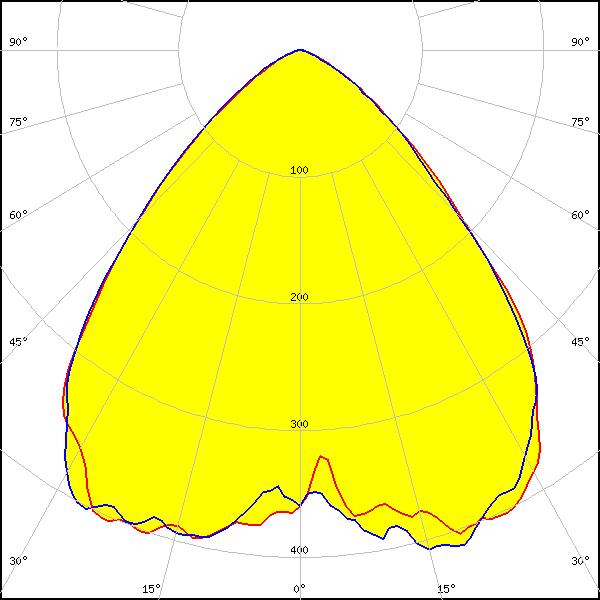

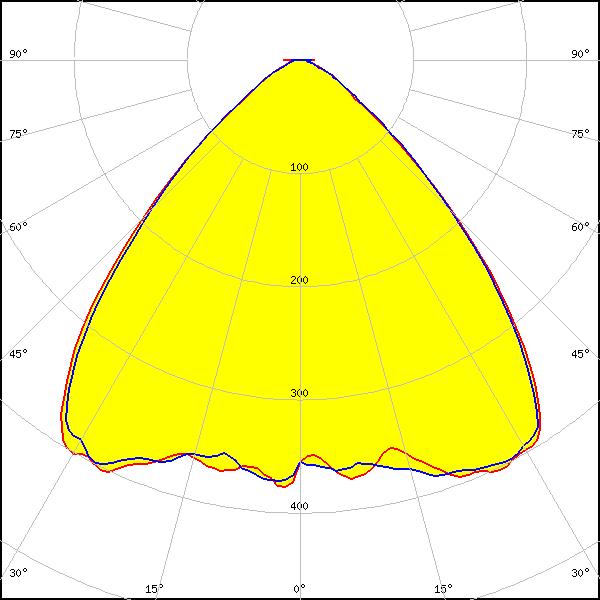

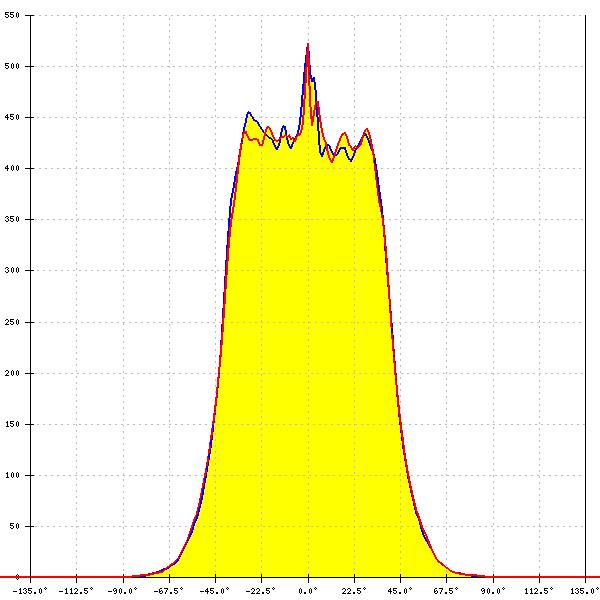

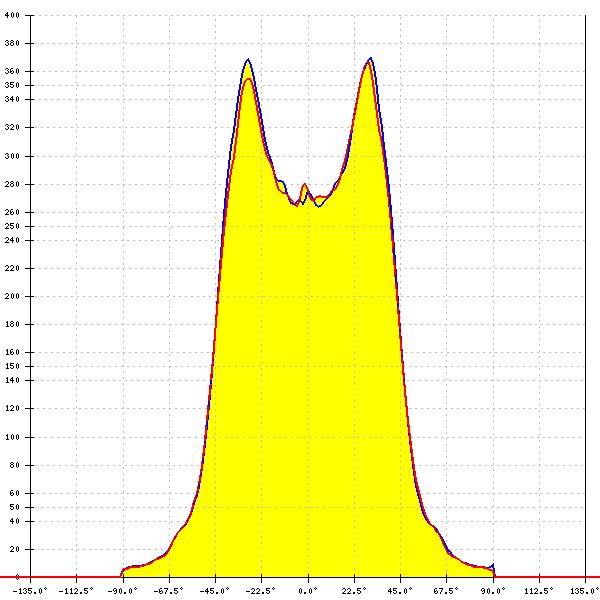

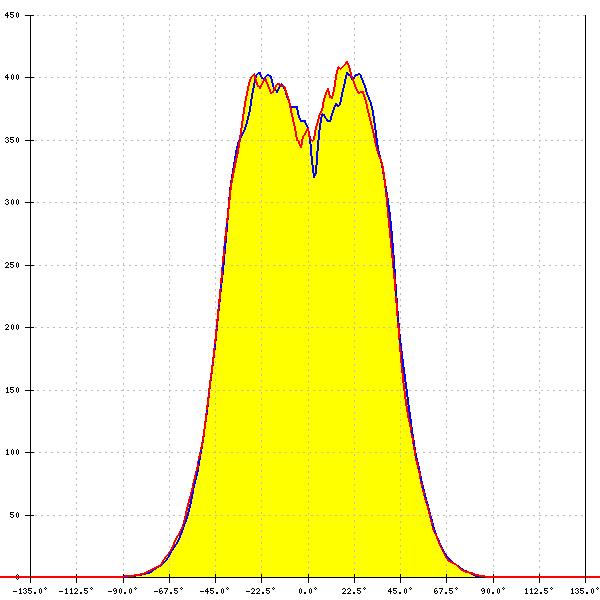

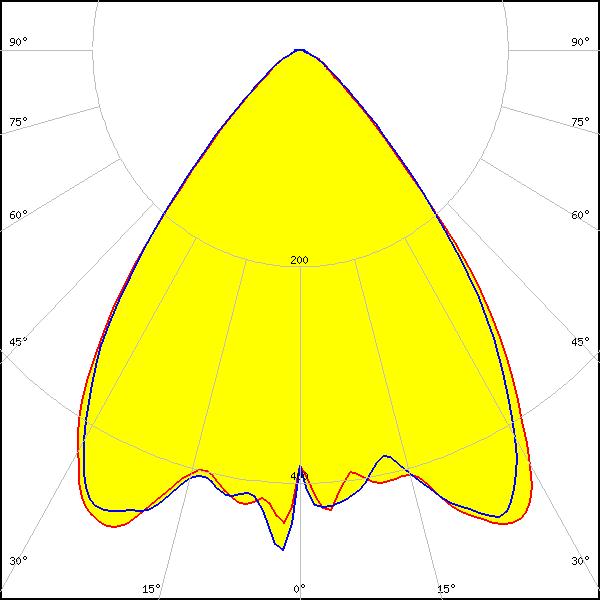

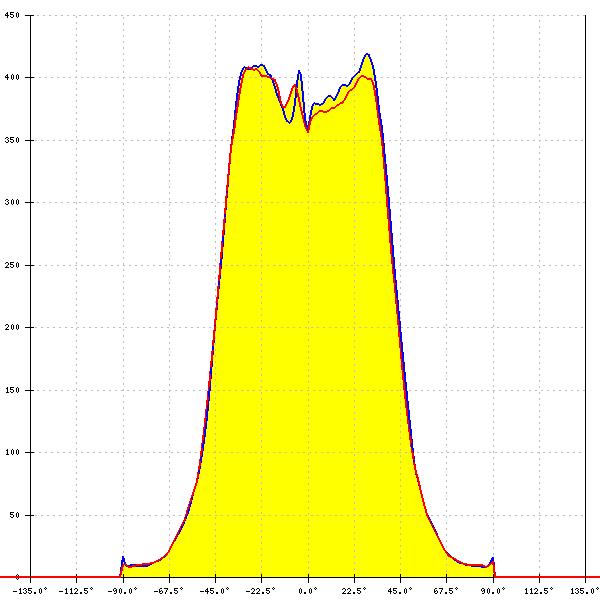

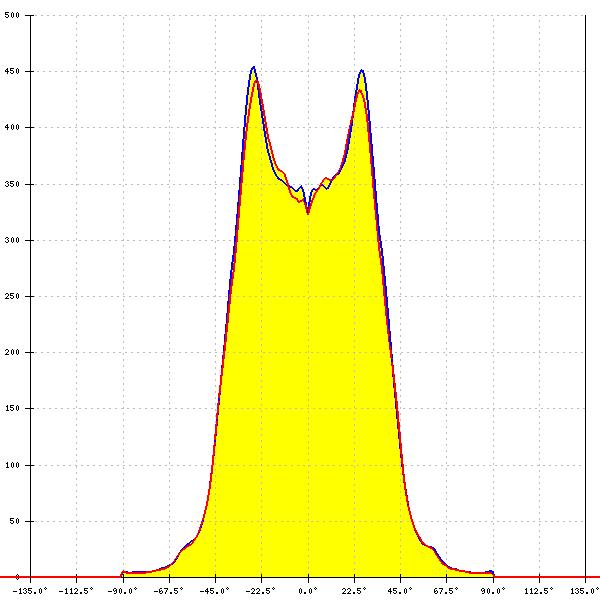

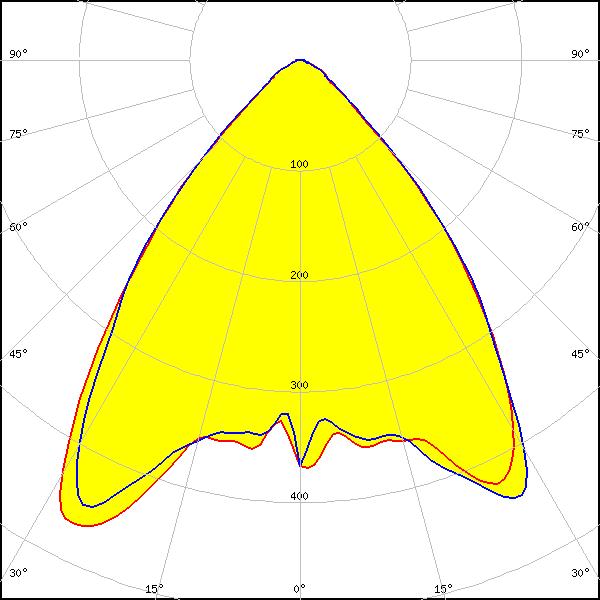

Optical results

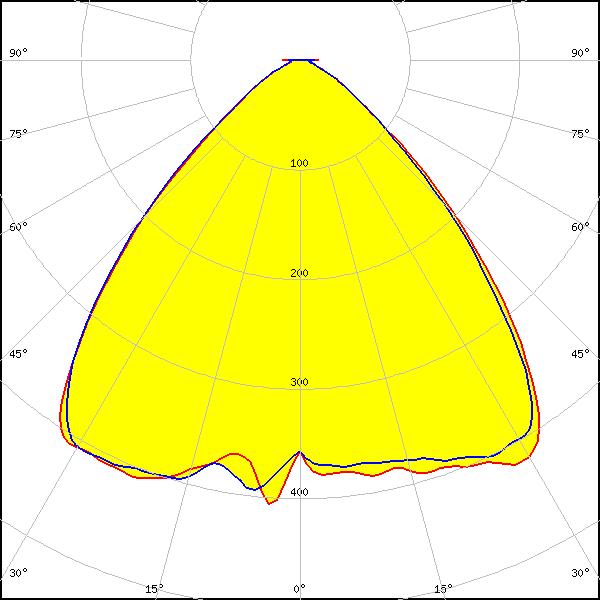

LED: XHP50.2
FWHM: 90°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

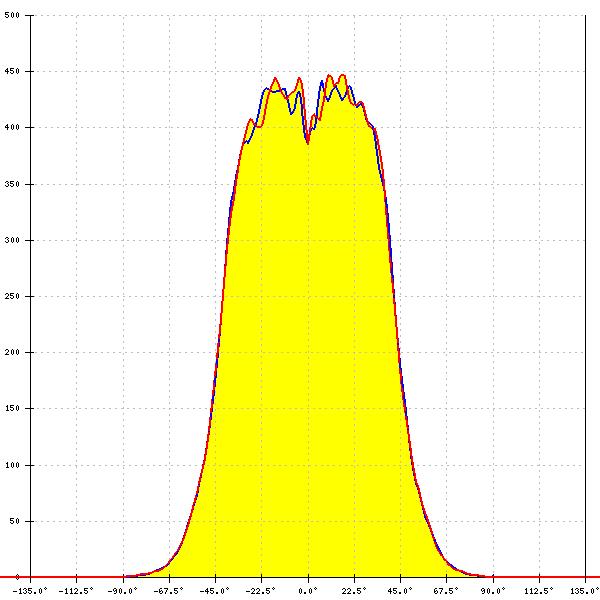

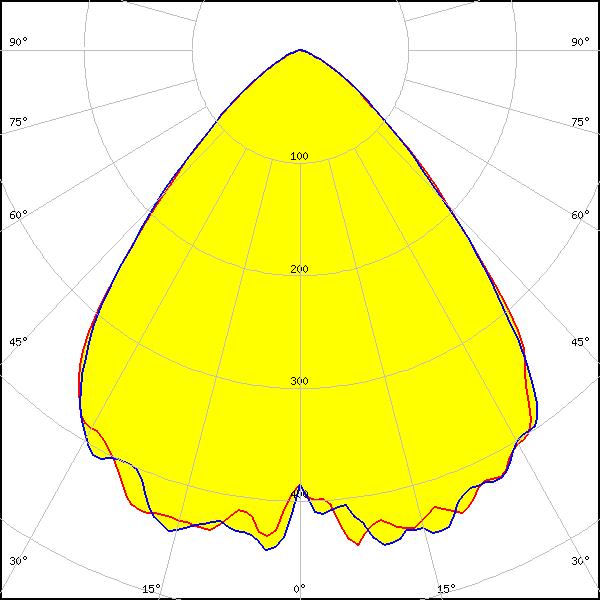

LED: XHP70
FWHM: 84°
Peak intensity: 0.5 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White
LED: XHP70.2
FWHM: 86°
Peak intensity: 0.4 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: H70E0
LEDs/each optic: 1
Light colour: White

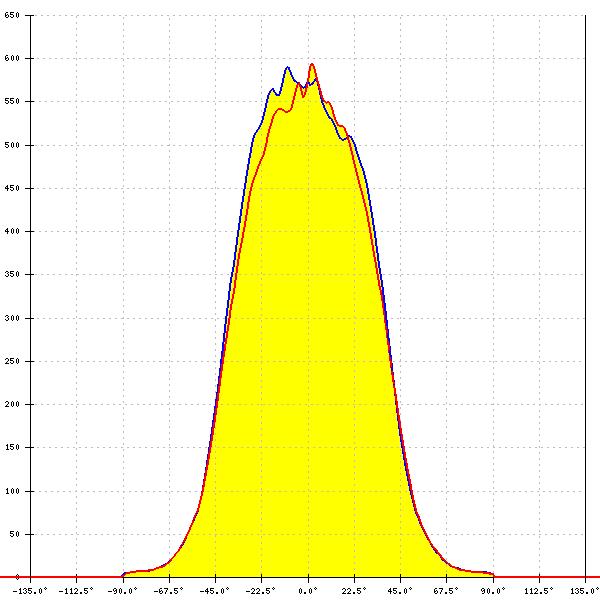

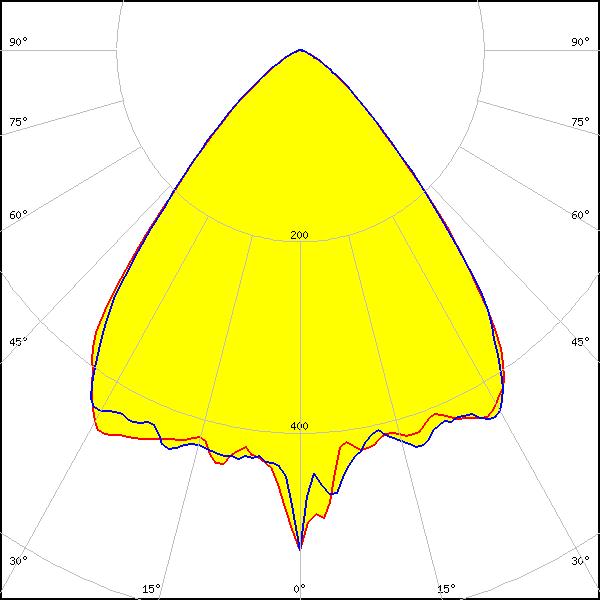

LED: LUXEON M/MX
FWHM: 80°
Peak intensity: 0.5 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

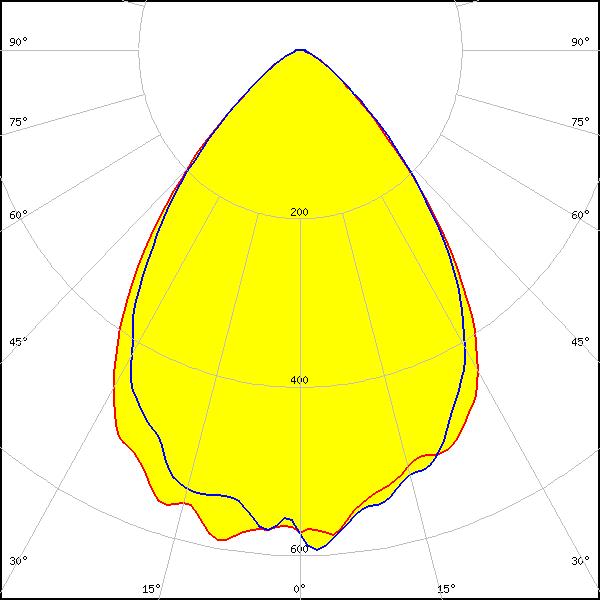

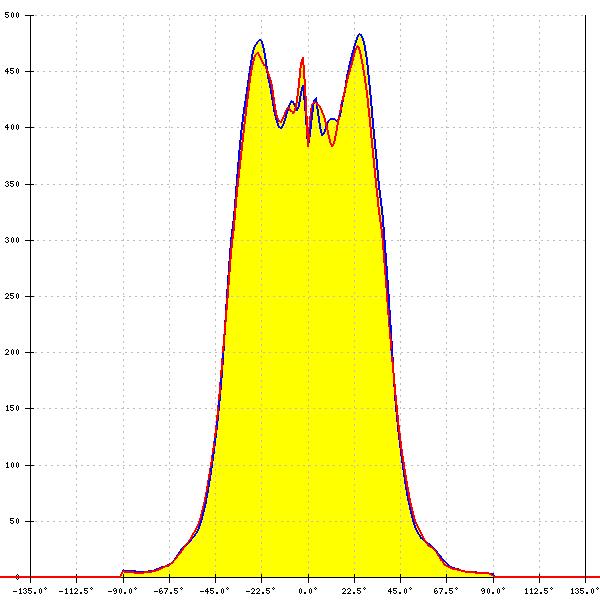

LED: LUXEON MZ
FWHM: 79°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON MZ
LEDs/each optic: 1
Light colour: White

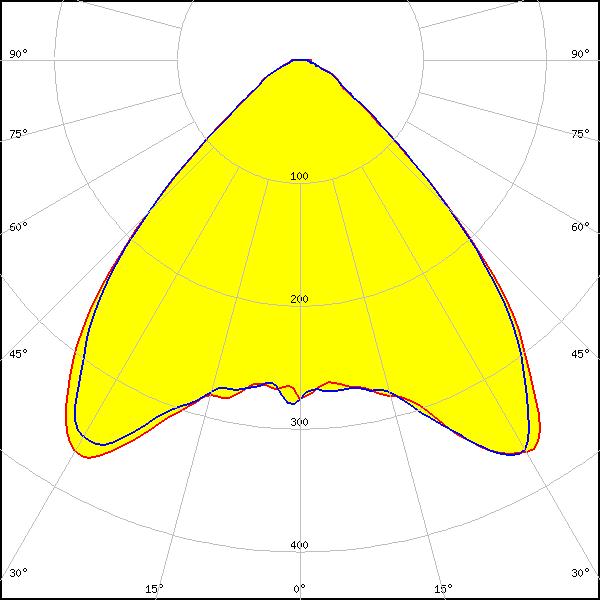

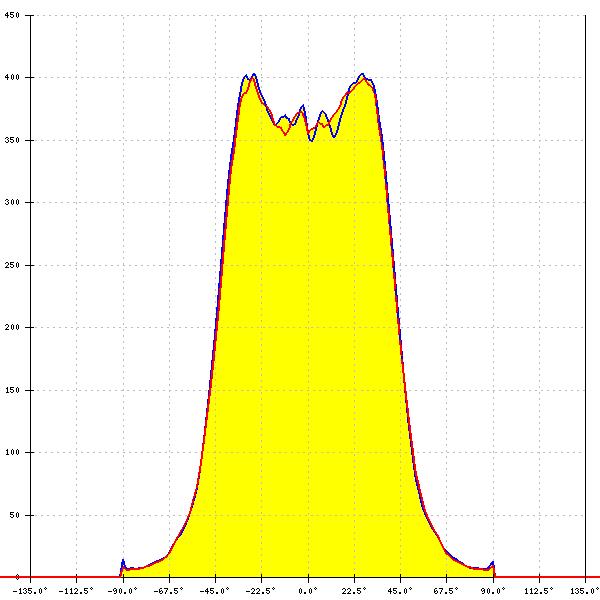

LED: NV4x144A
FWHM: 89°
Peak intensity: 0.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: NV4x144A
LEDs/each optic: 1
Light colour: White

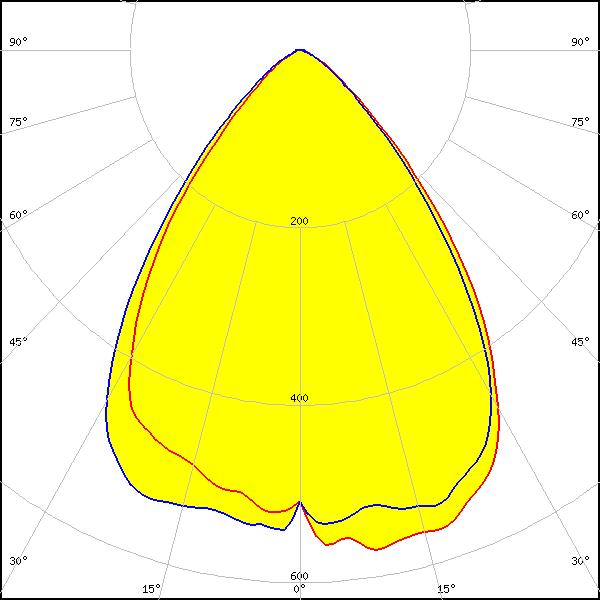

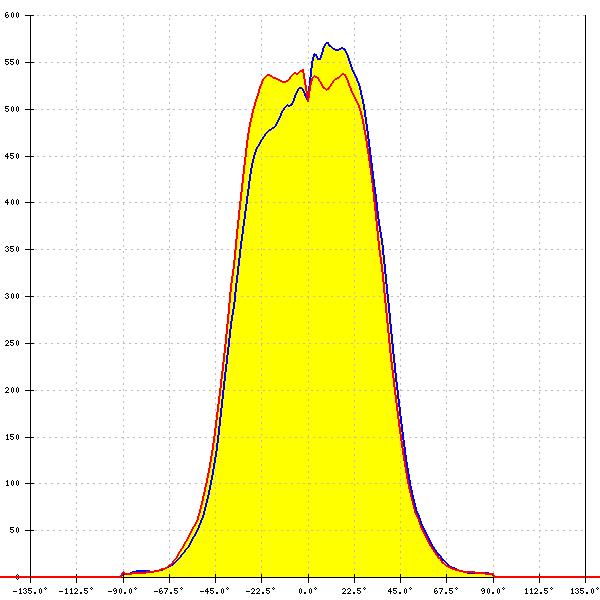

LED: Duris S10
FWHM: 77°
Peak intensity: 0.6 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White
LED: Duris S10
LEDs/each optic: 1
Light colour: White

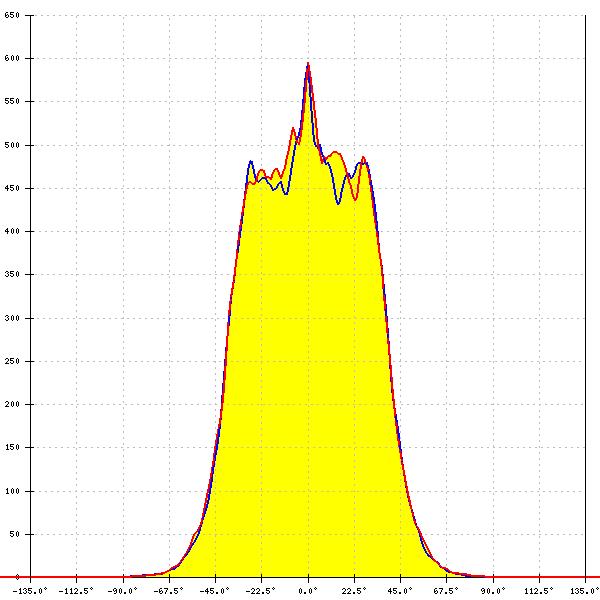

LED: OSCONIQ P 7070
FWHM: 76°
Peak intensity: 0.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
