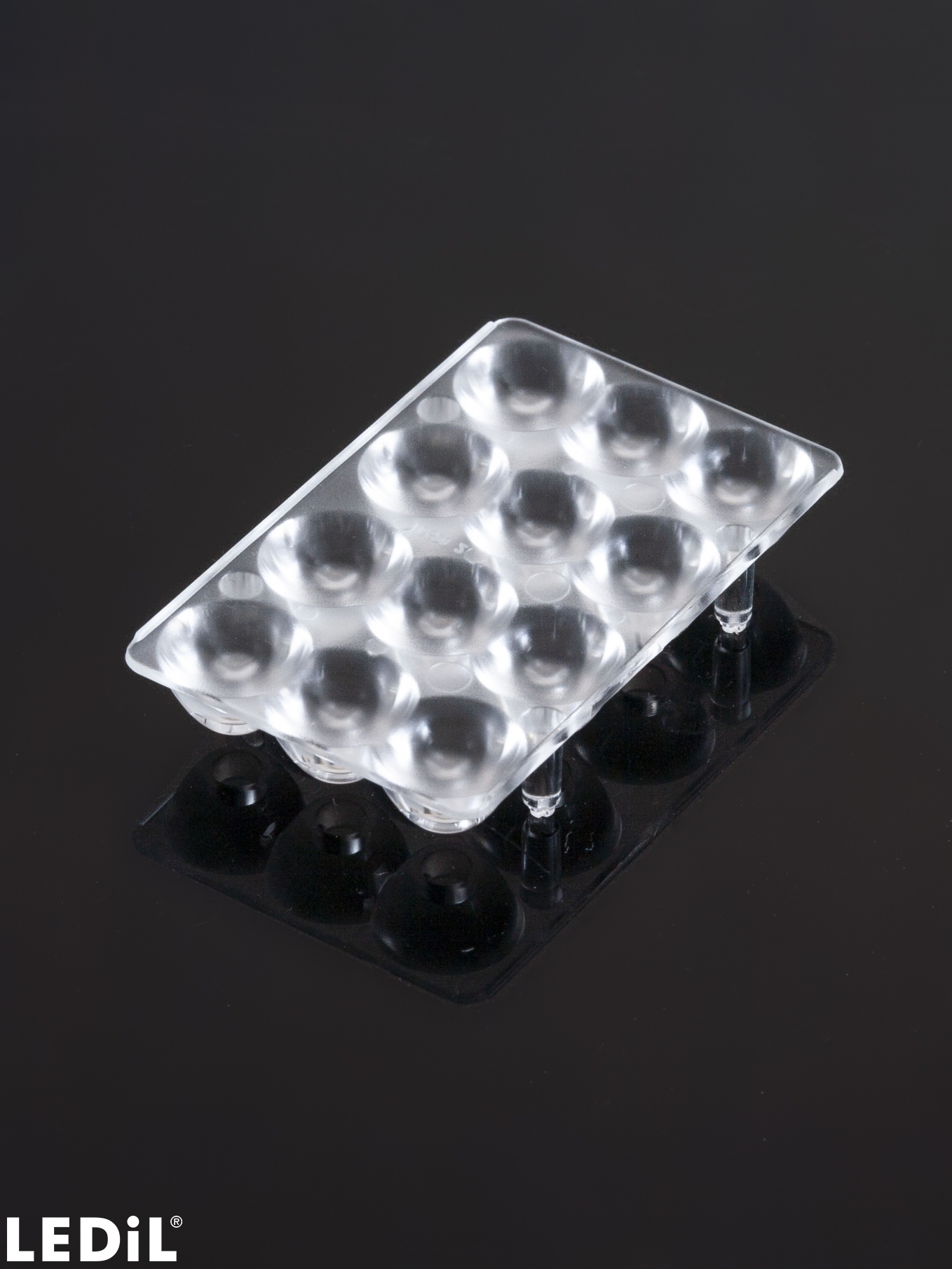

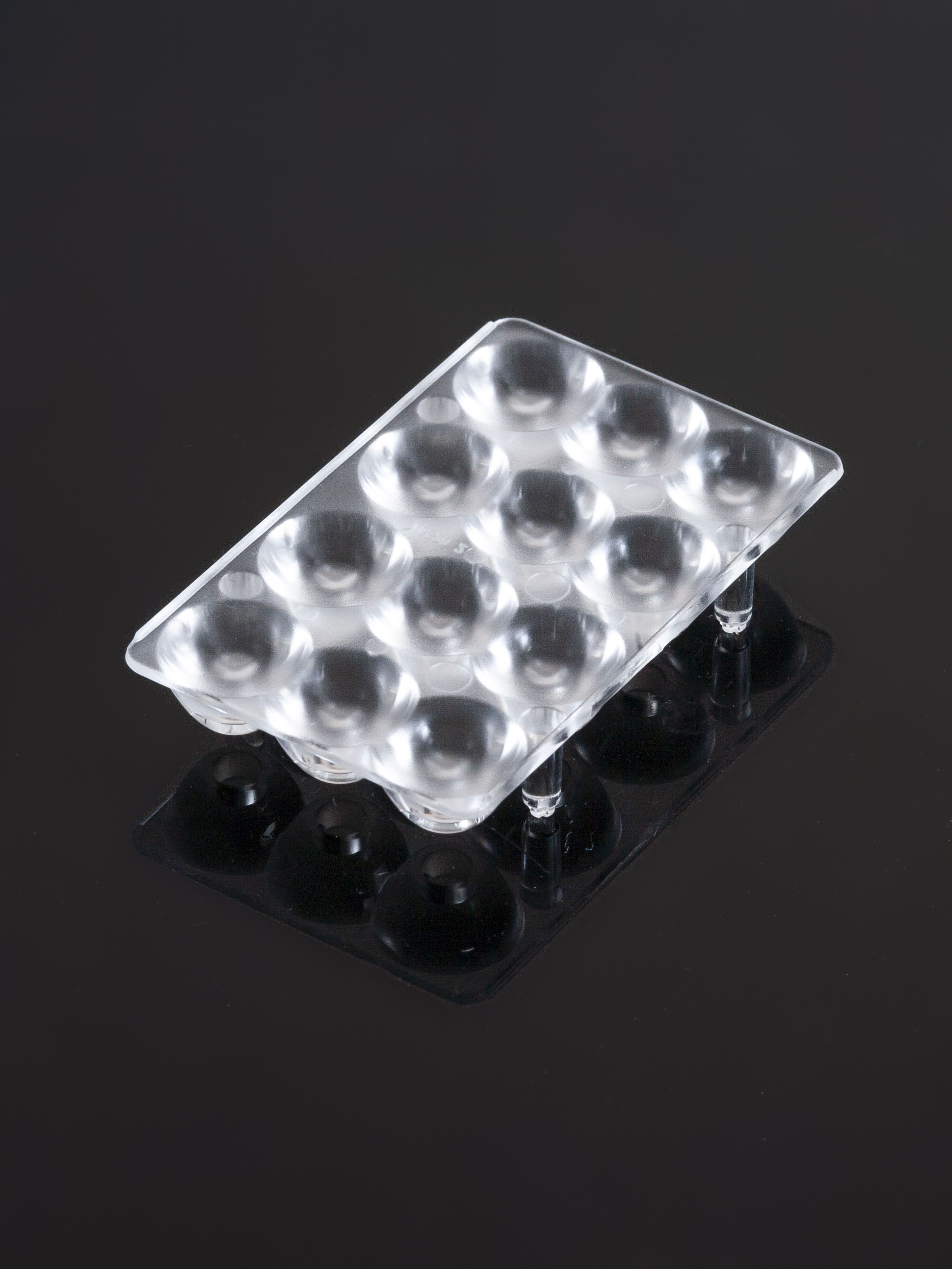

C16520_PETUNIA2

Print

~25° beam with more space for 3535 HP LEDs

Specification
  • Dimensions:
    30 x  47 mm
  • Height:
    7.4 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    1000 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.9 kg
  • MPQ:
    40 pcs
  • MOQ:
    40 pcs
  • MOQ size:
    480 x 280 x 40 mm
  • MOQ weight:
    0.6 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C16520_PETUNIA2

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

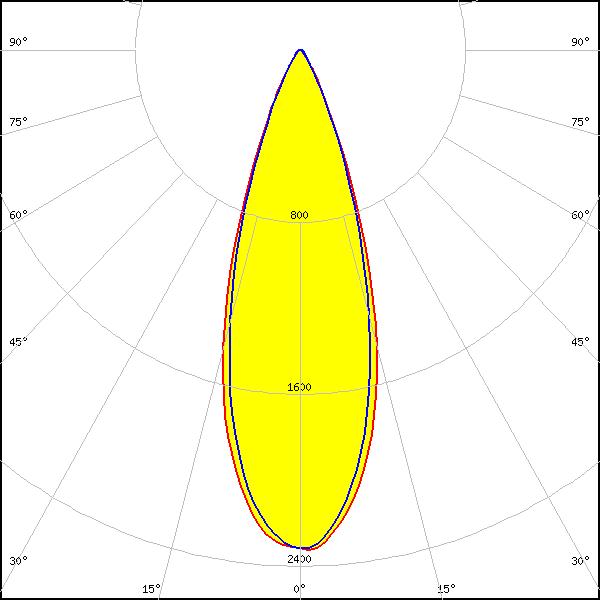

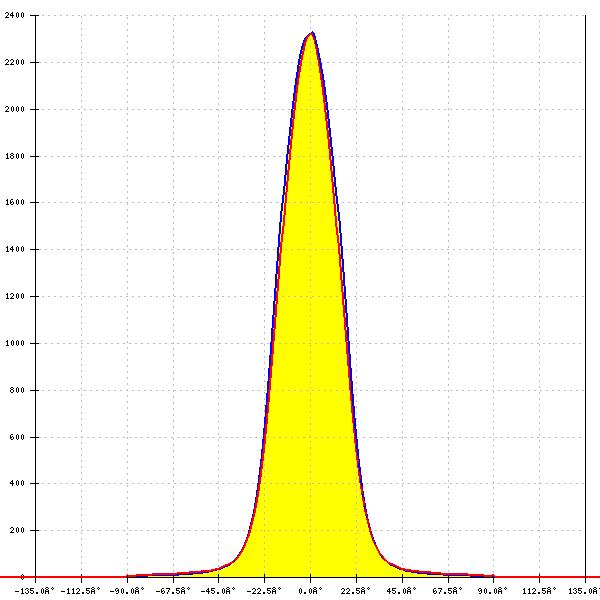

Optical results

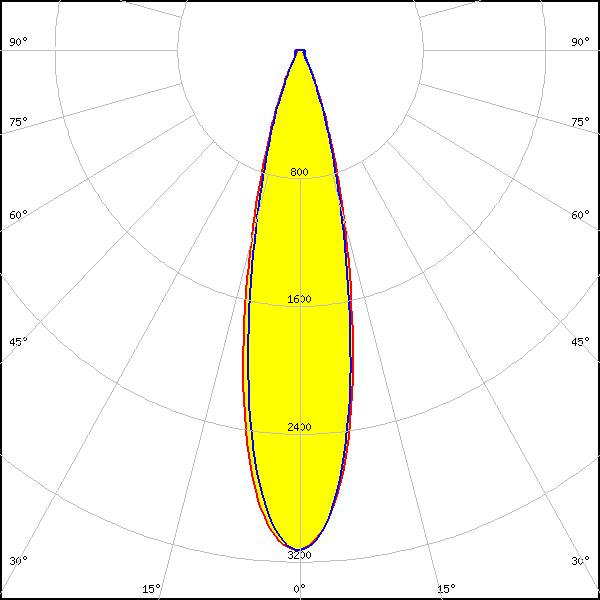

LED: XB-D White
FWHM: 25°
FWTM: 48°
Peak intensity: 3.1 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

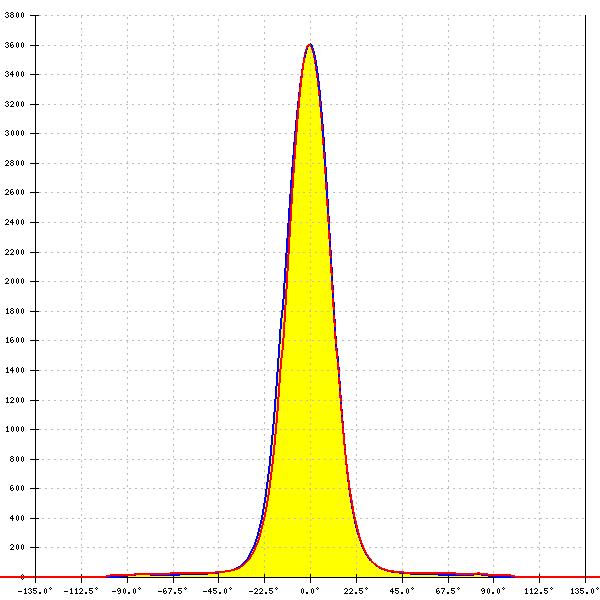

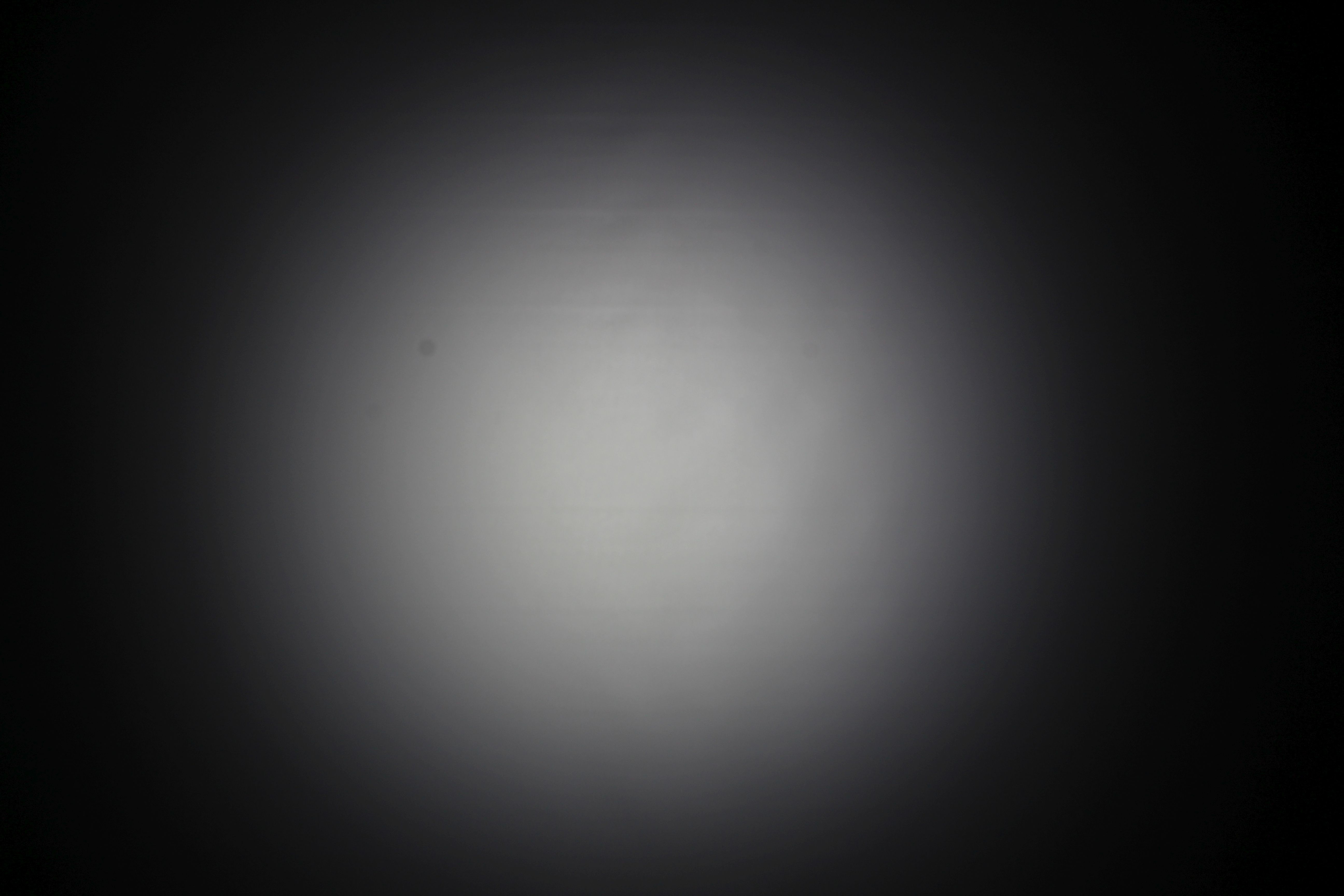

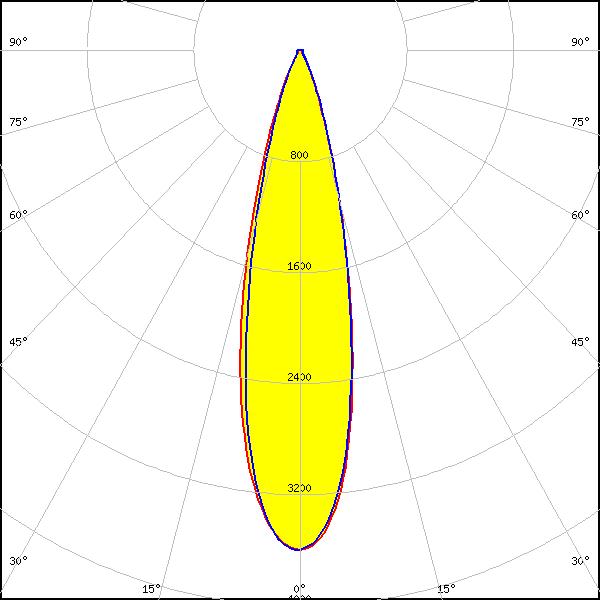

LED: XP-E
FWHM: 25°
FWTM: 46°
Peak intensity: 3.6 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

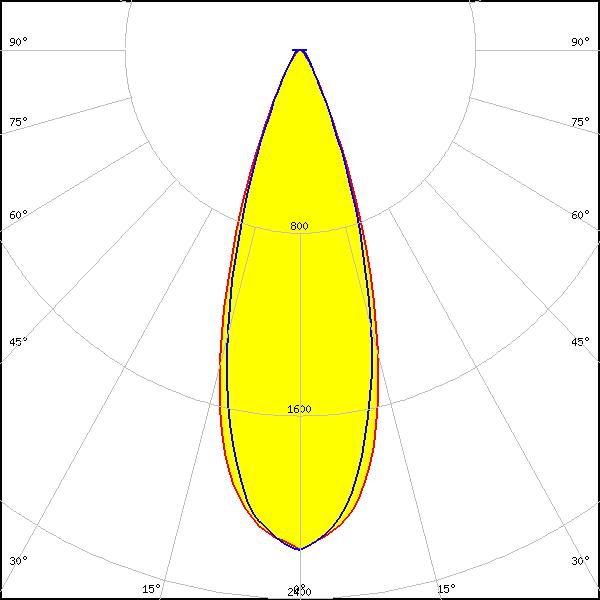

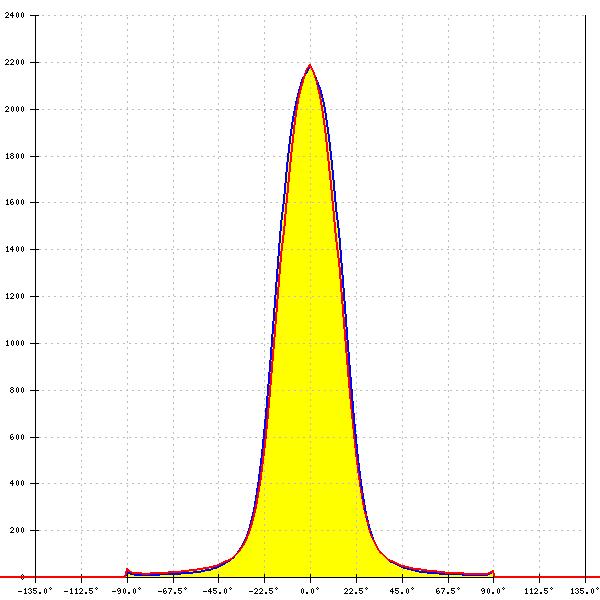

LED: XP-G3
FWHM: 34°
FWTM: 58°
Peak intensity: 2.2 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

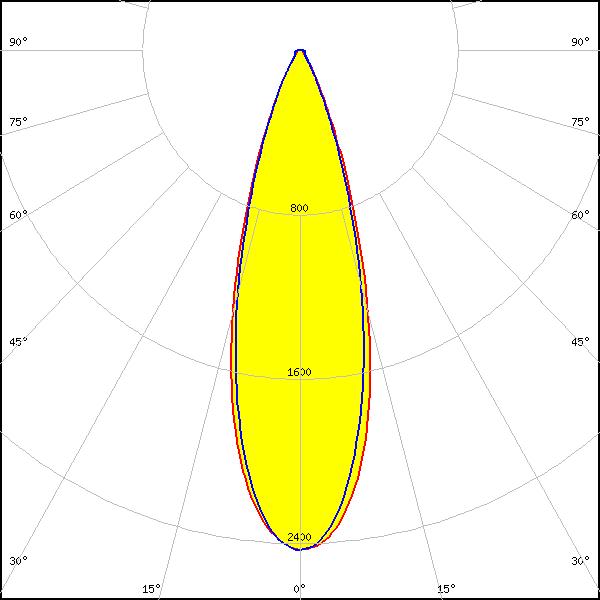

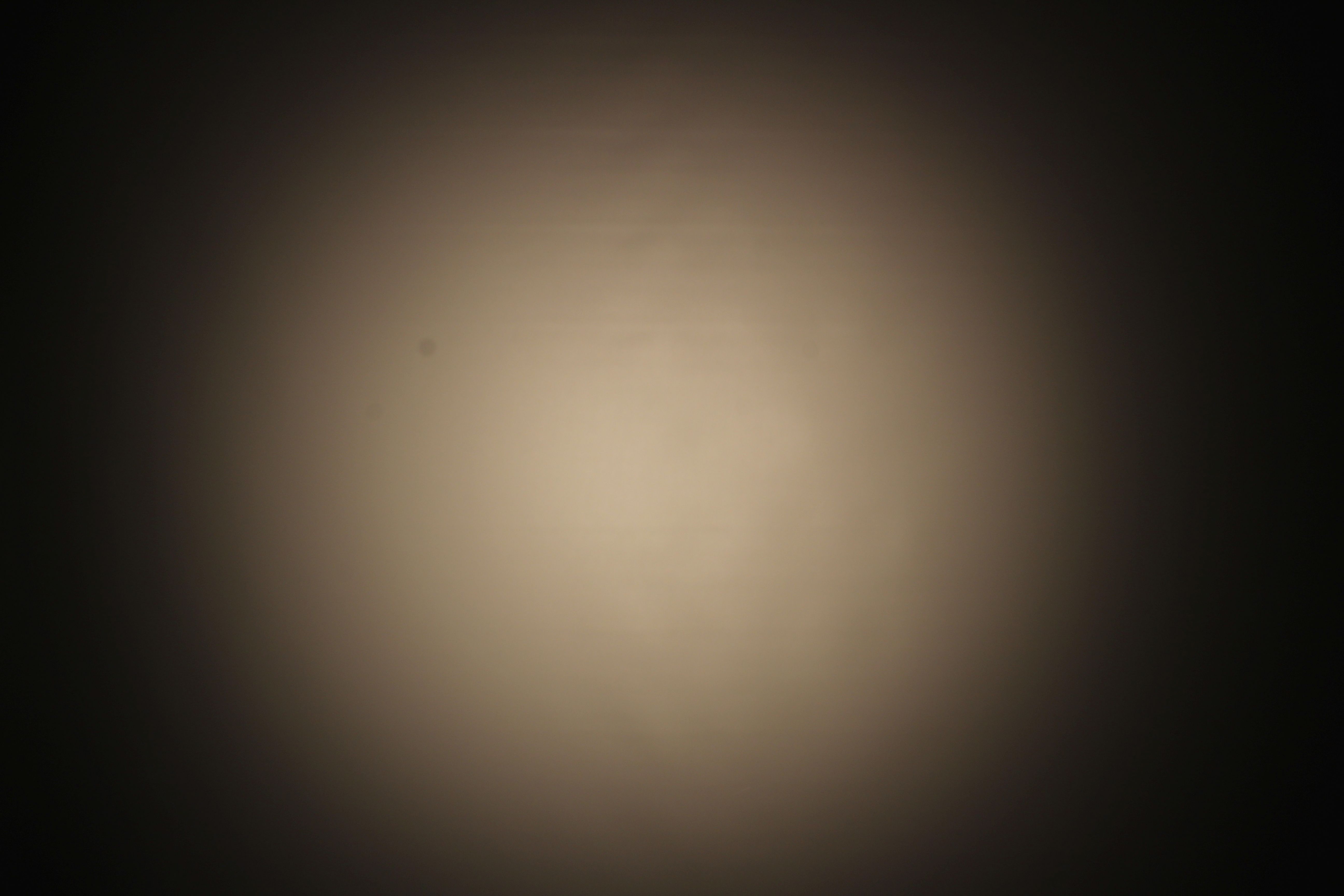

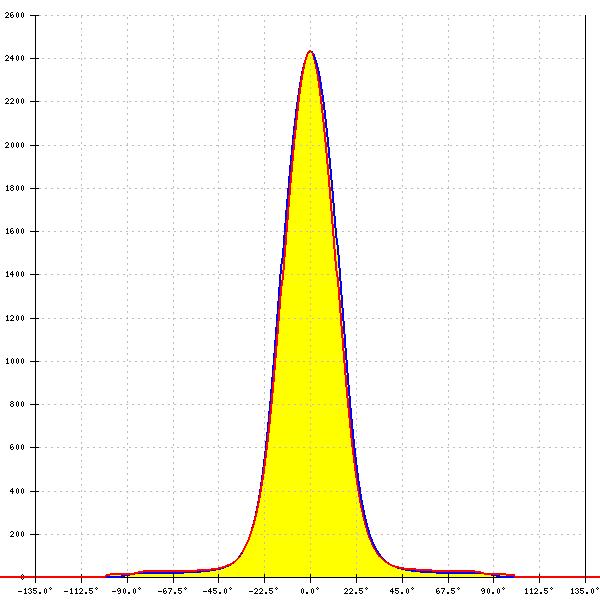

LED: LUXEON A
FWHM: 31°
FWTM: 55°
Peak intensity: 2.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

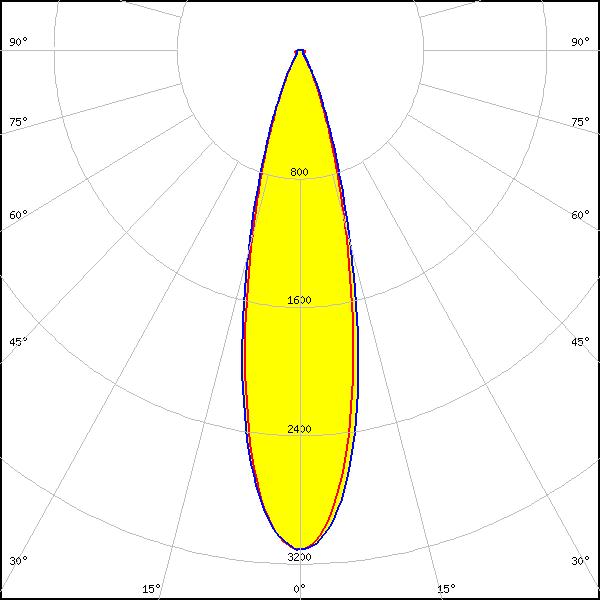

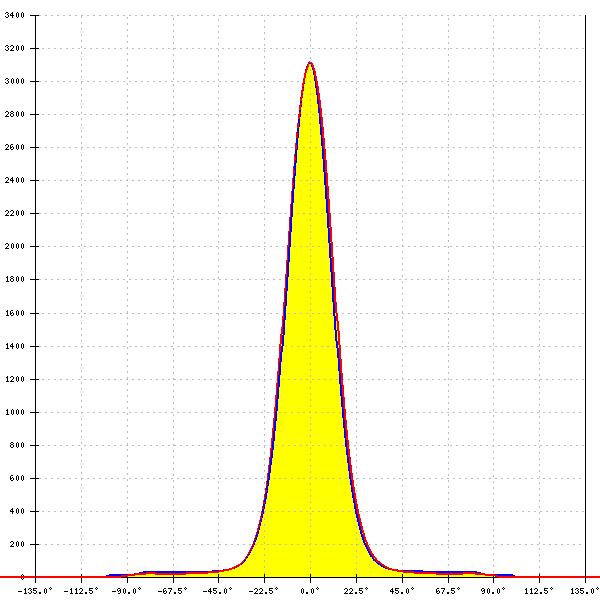

LED: LUXEON Rebel
FWHM: 26°
FWTM: 49°
Peak intensity: 3.1 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

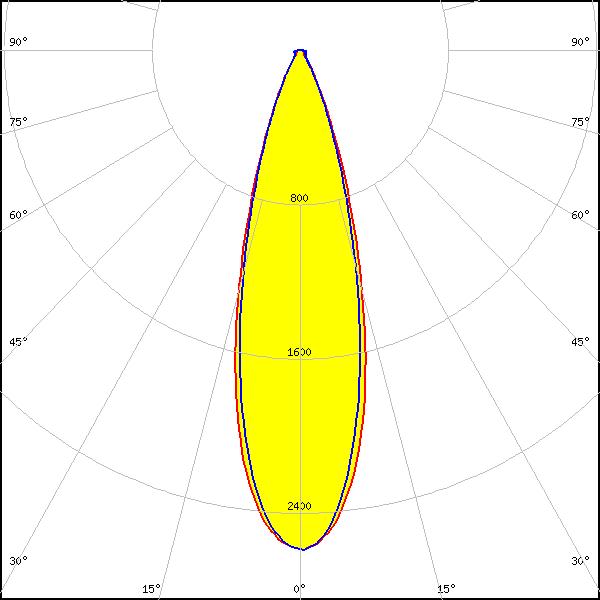

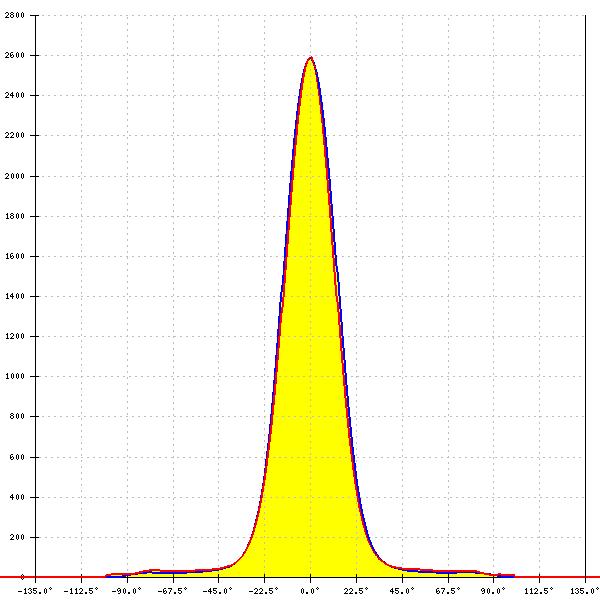

LED: LUXEON Rebel ES
FWHM: 29°
FWTM: 54°
Peak intensity: 2.6 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

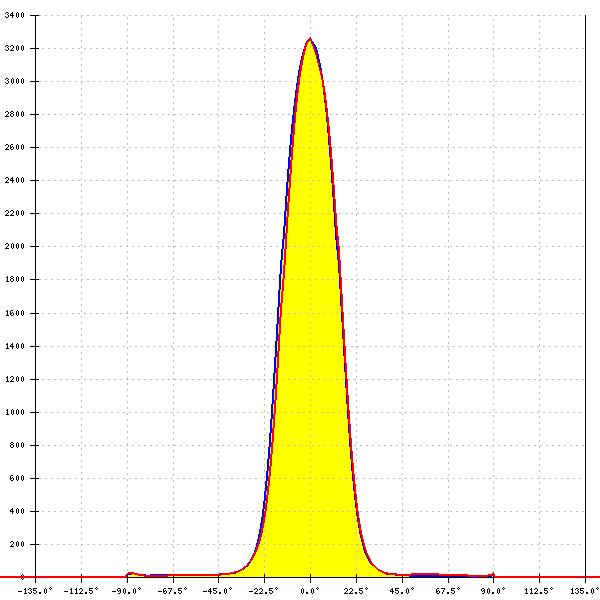

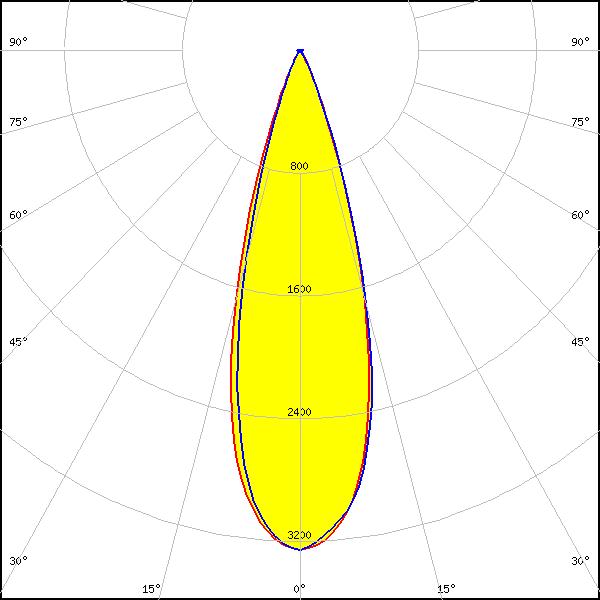

LED: SST-10-B130
FWHM: 30°
FWTM: 48°
Peak intensity: 3.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: Red

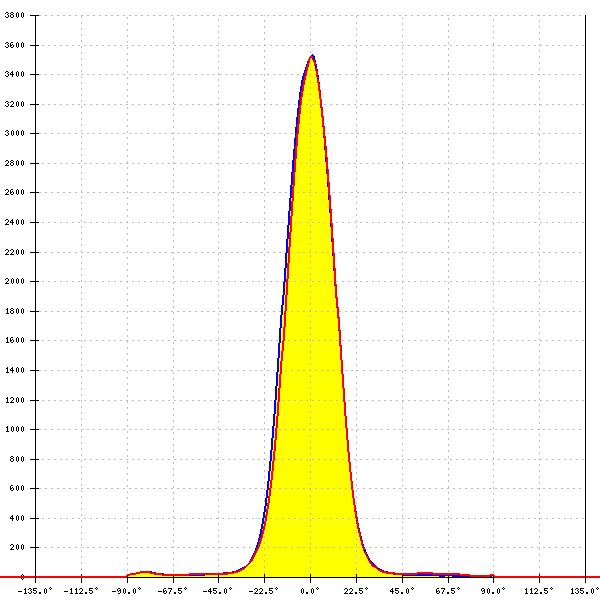

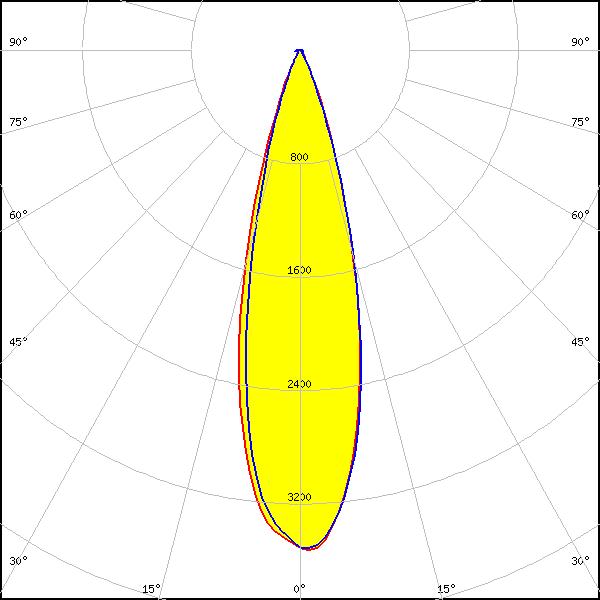

LED: SST-20
FWHM: 27°
FWTM: 46°
Peak intensity: 3.5 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

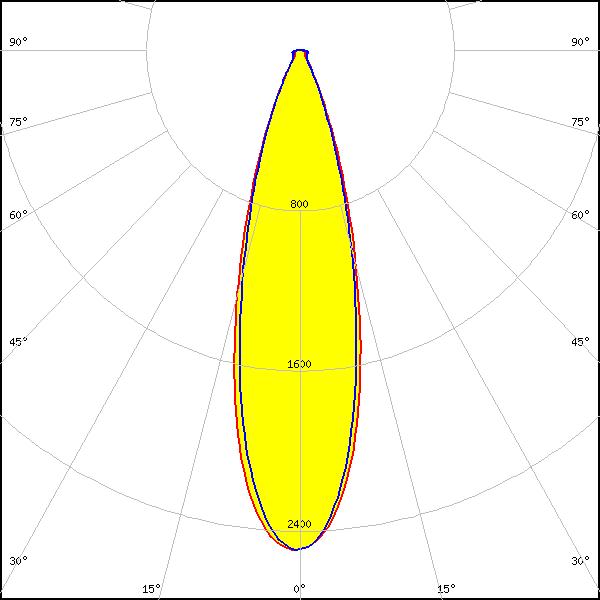

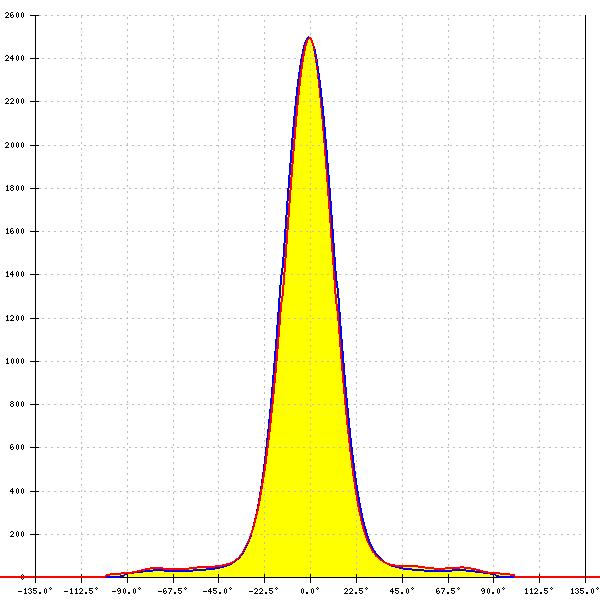

LED: NVSxx19A
FWHM: 28°
FWTM: 53°
Peak intensity: 2.5 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

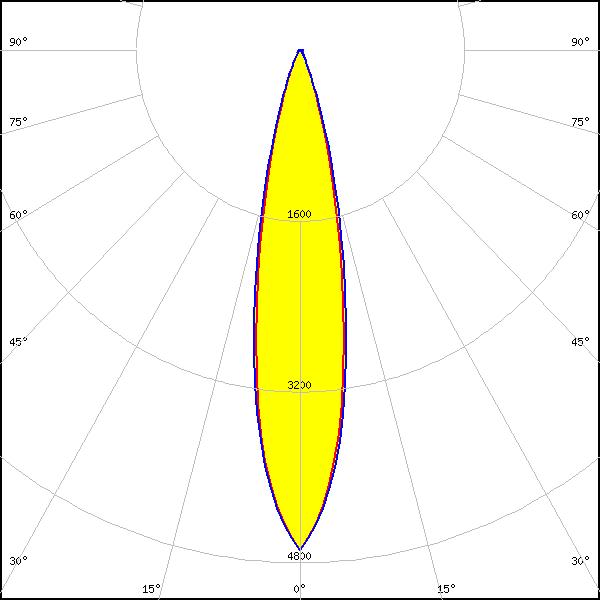

LED: OSCONIQ P 3030
FWHM: 20°
FWTM: 40°
Peak intensity: 4.7 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

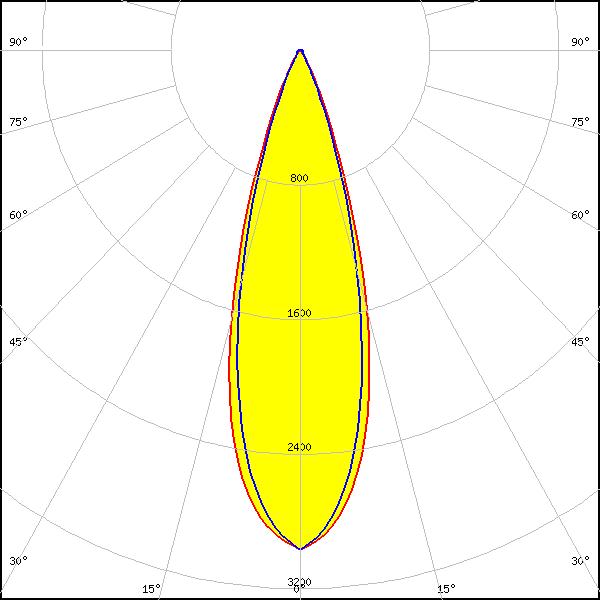

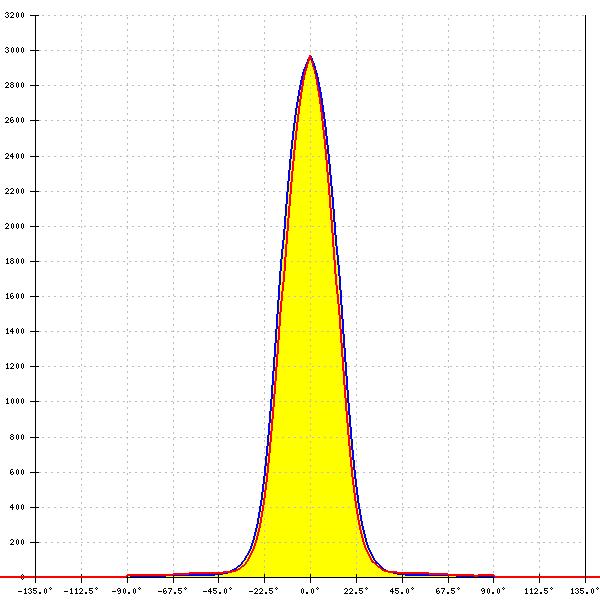

LED: OSLON Square CSSRM2/CSSRM3
FWHM: 30°
FWTM: 50°
Peak intensity: 3.0 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

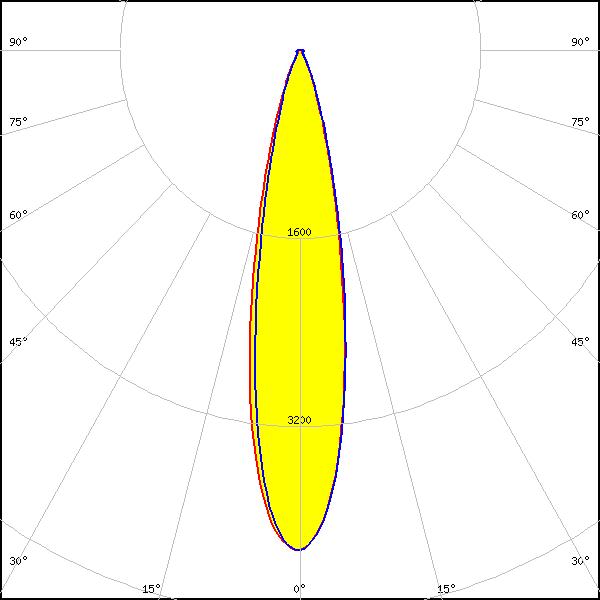

LED: OSLON SSL 150
FWHM: 22°
FWTM: 43°
Peak intensity: 4.3 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

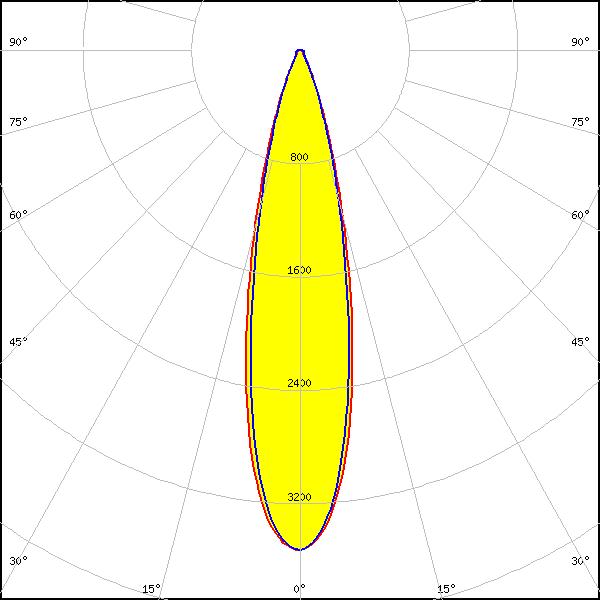

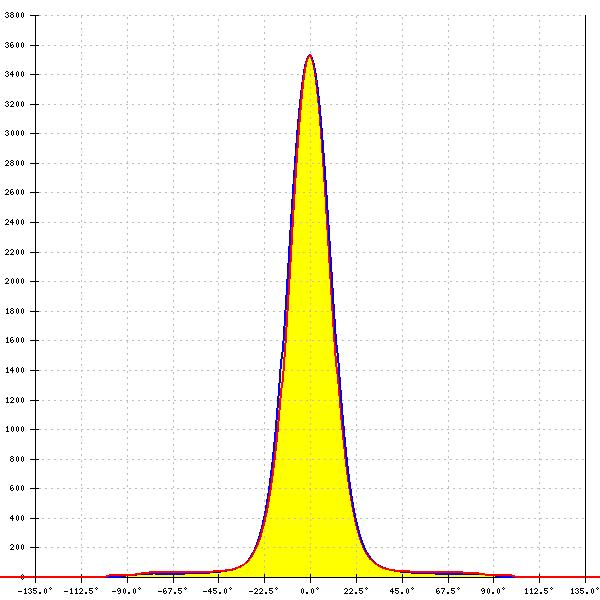

LED: OSLON SSL 80
FWHM: 24°
FWTM: 46°
Peak intensity: 3.5 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
