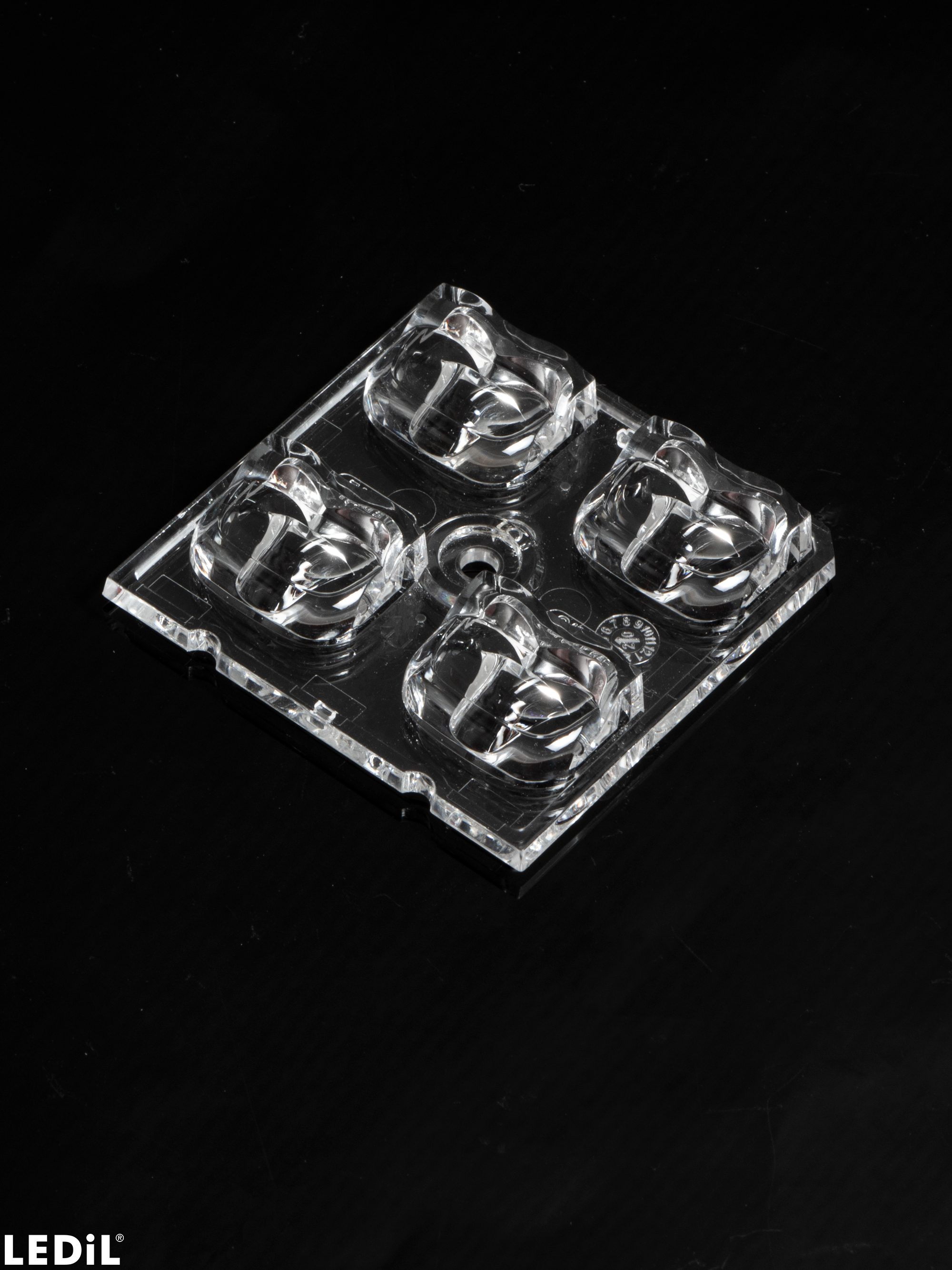

C17141_STRADA-2X2-5050-T2-M

Print

IESNA Type II (medium) beam with excellent illuminance uniformity and cutoff. Variant optimized for flat 5050 size LED packages.

Specification
  • Dimensions:
    50 x  50 mm
  • Height:
    7.20 mm
  • Fastening:
    screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    800 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.8 kg
  • MPQ:
    160 pcs
  • MOQ:
    160 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.8 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C17141_STRADA-2X2-5050-T2-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

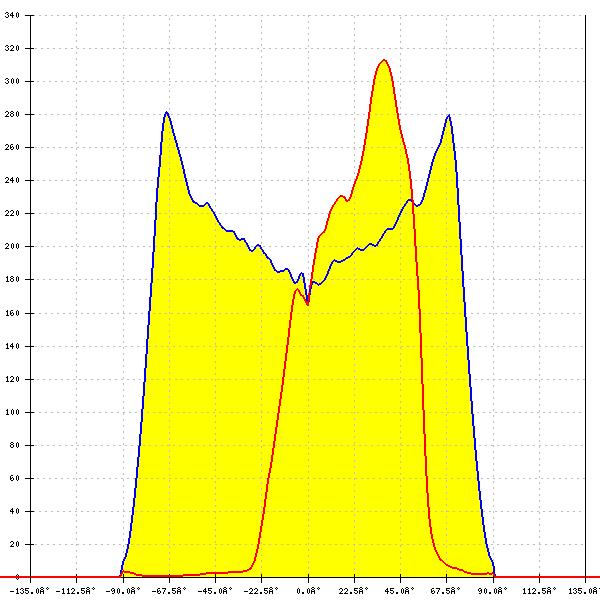

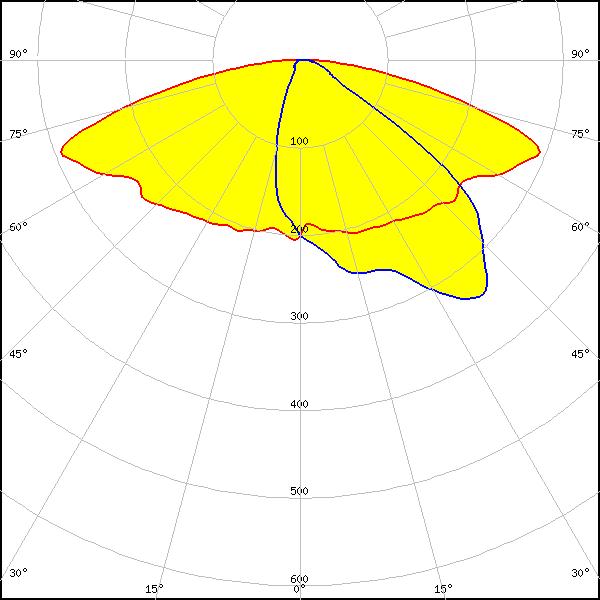

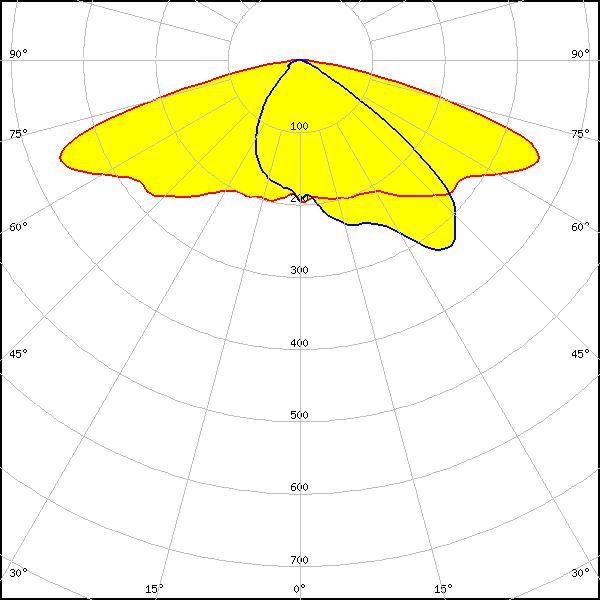

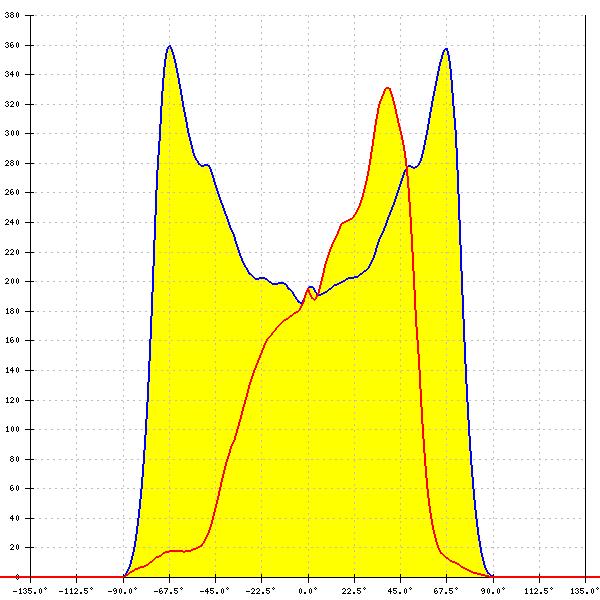

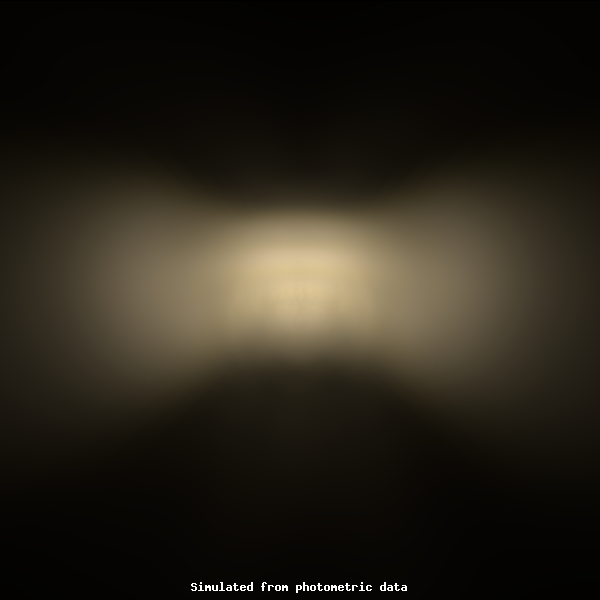

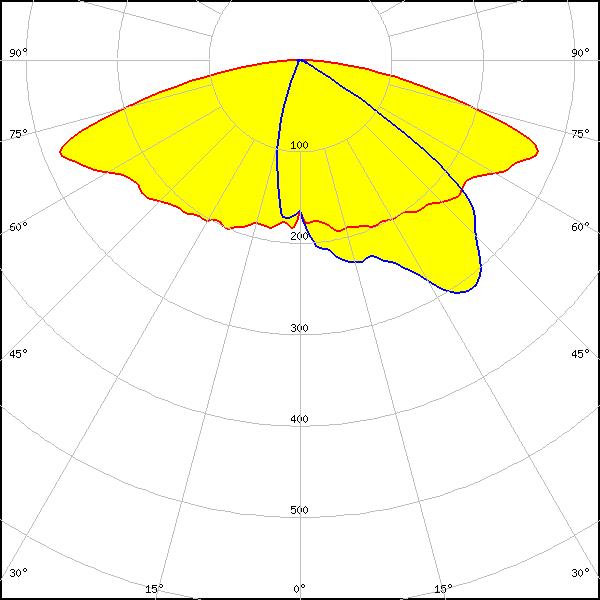

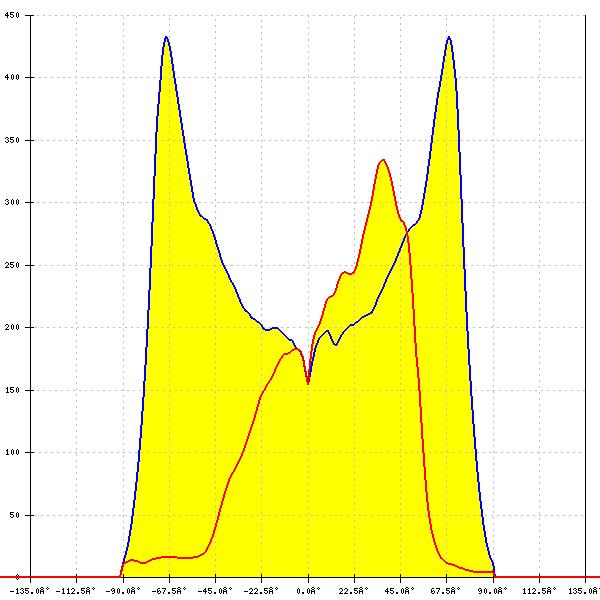

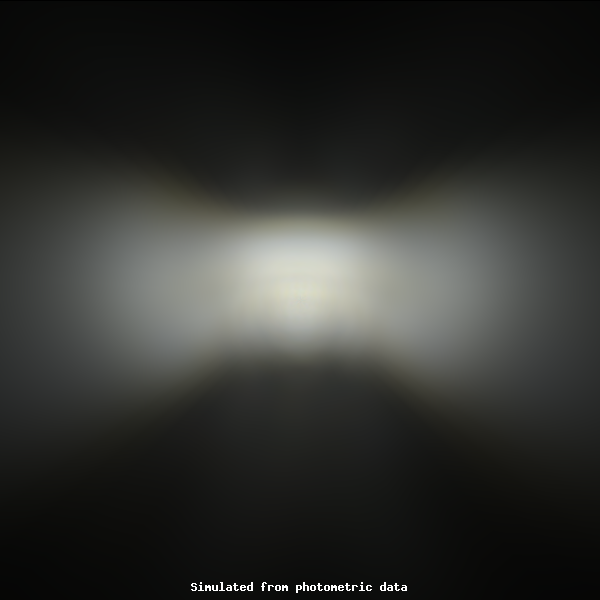

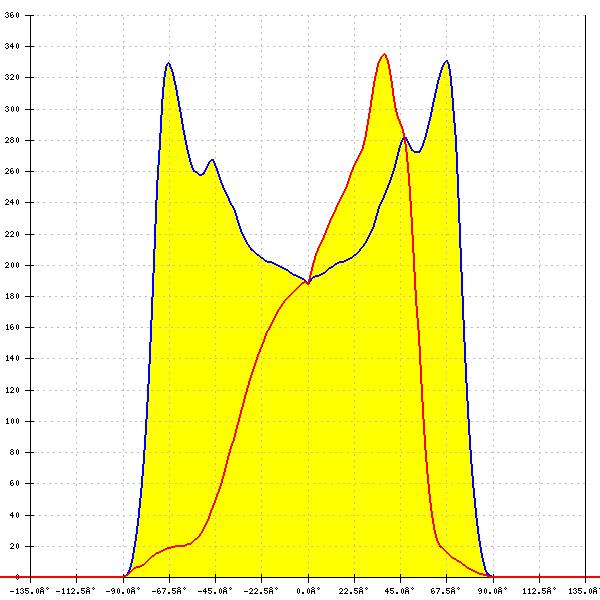

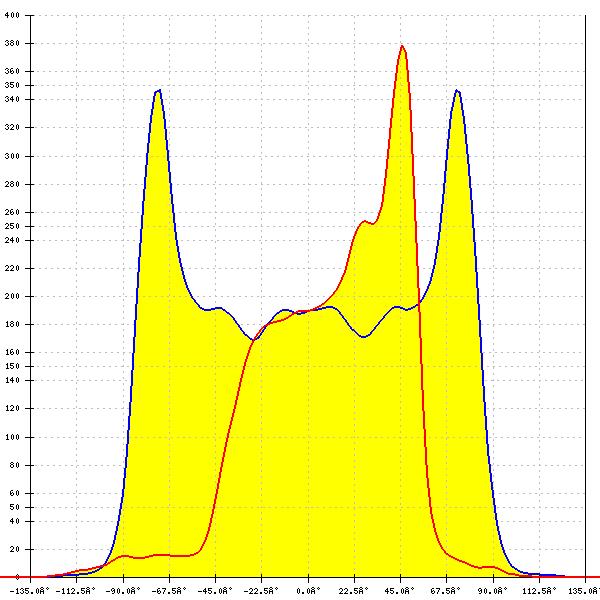

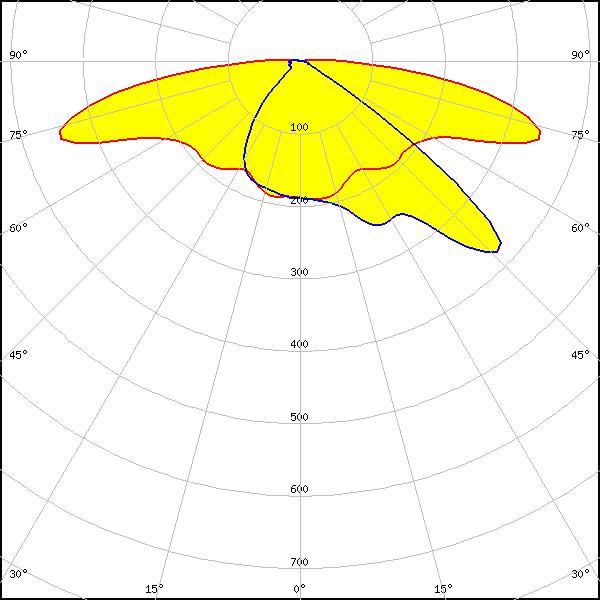

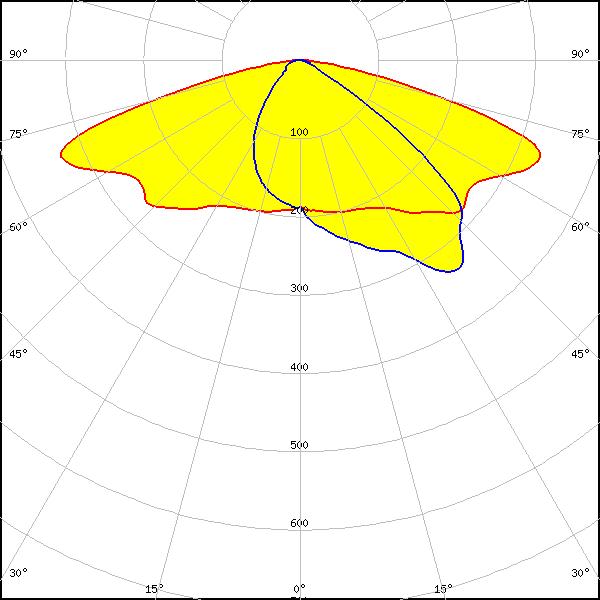

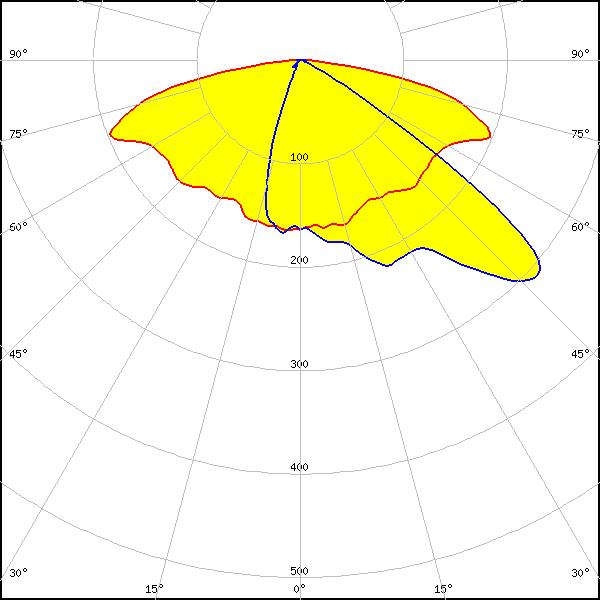

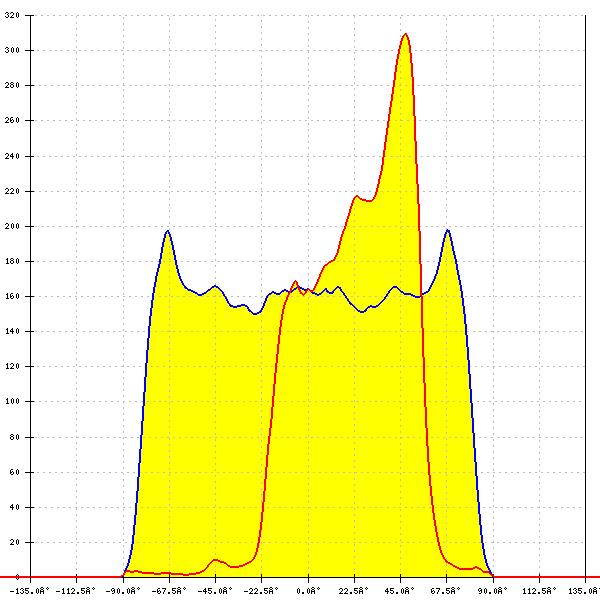

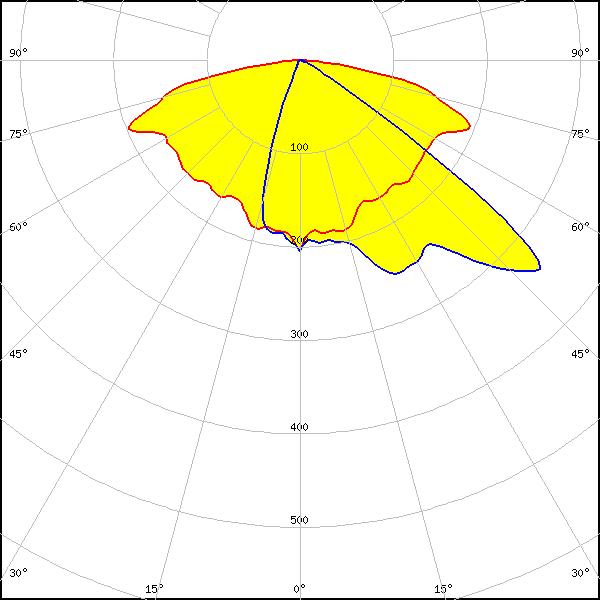

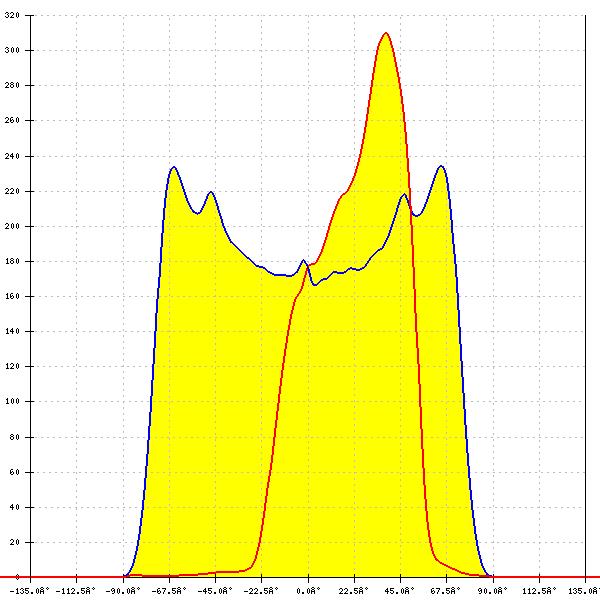

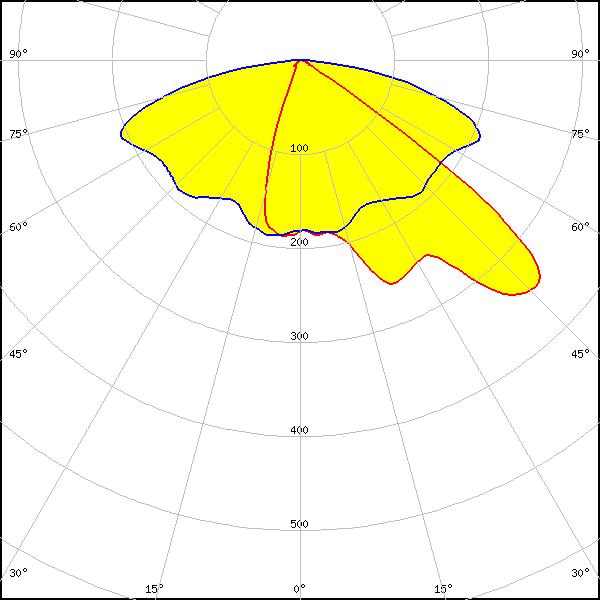

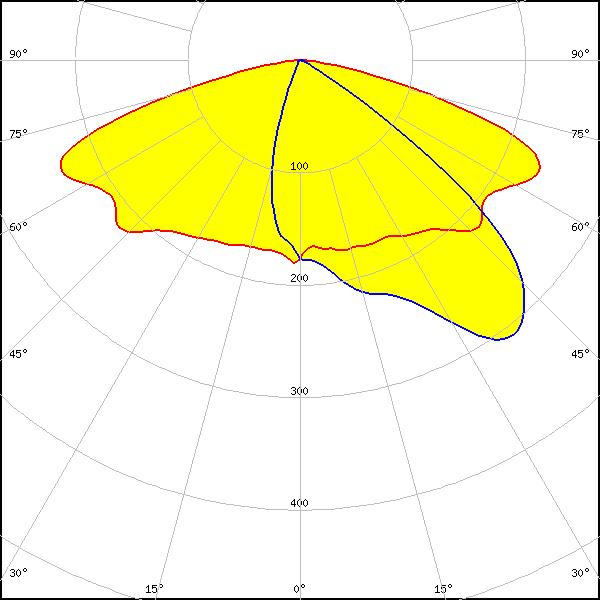

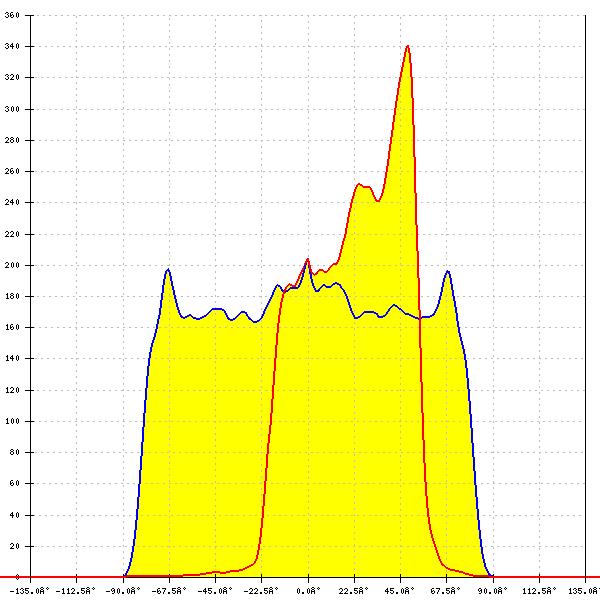

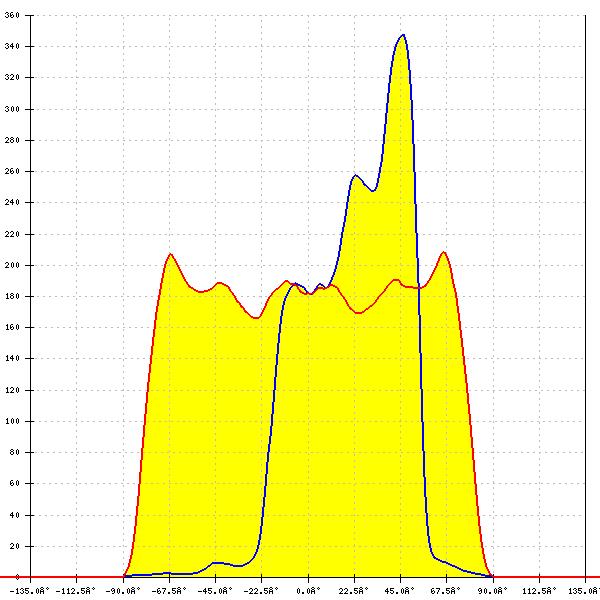

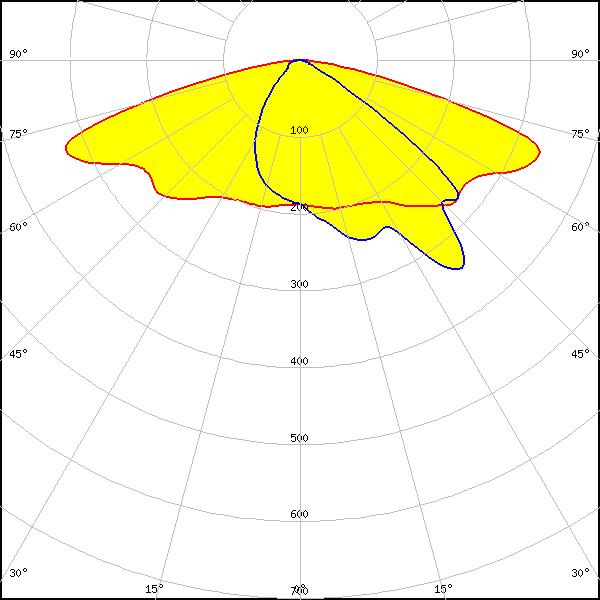

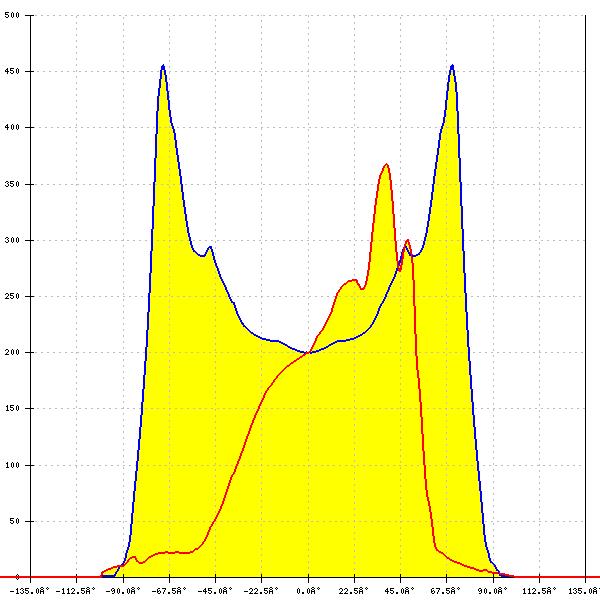

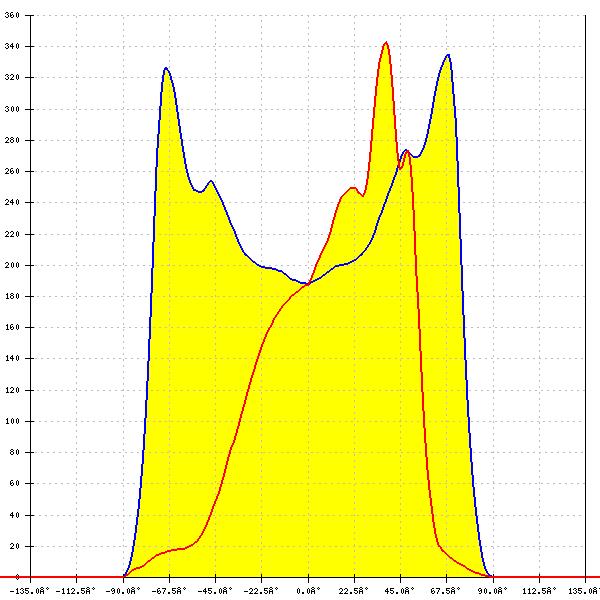

Optical results

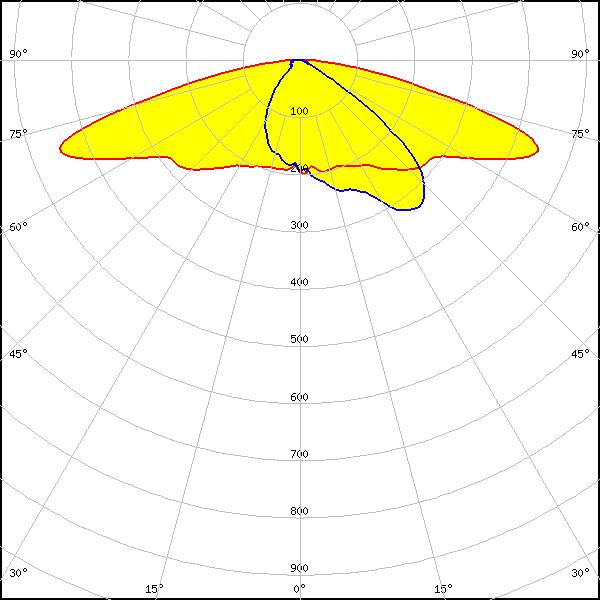

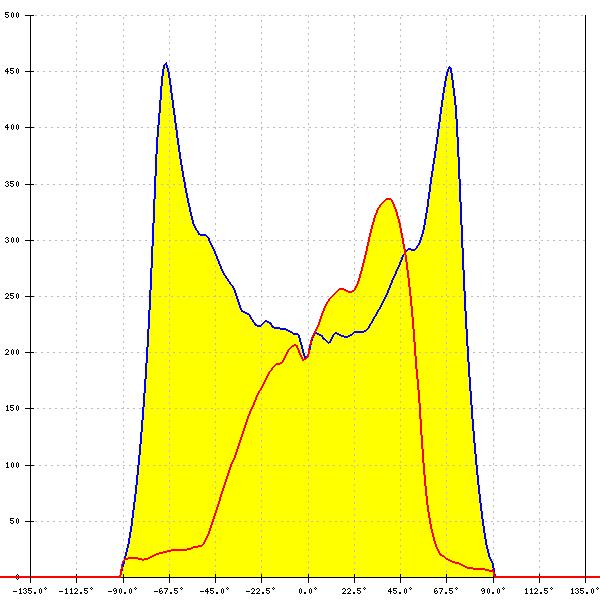

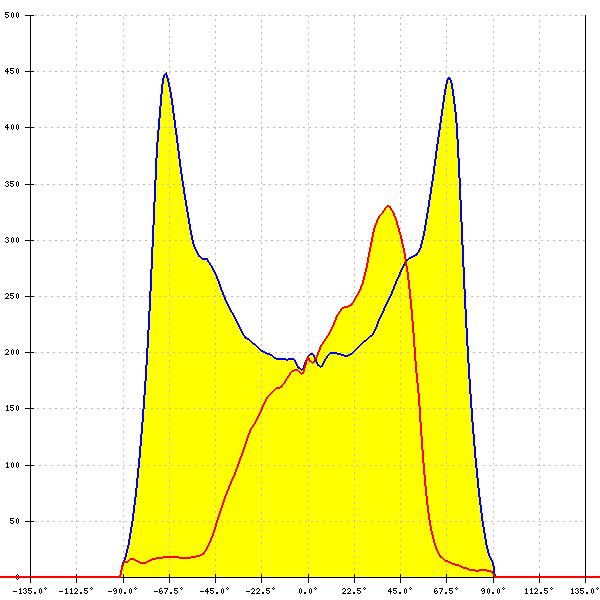

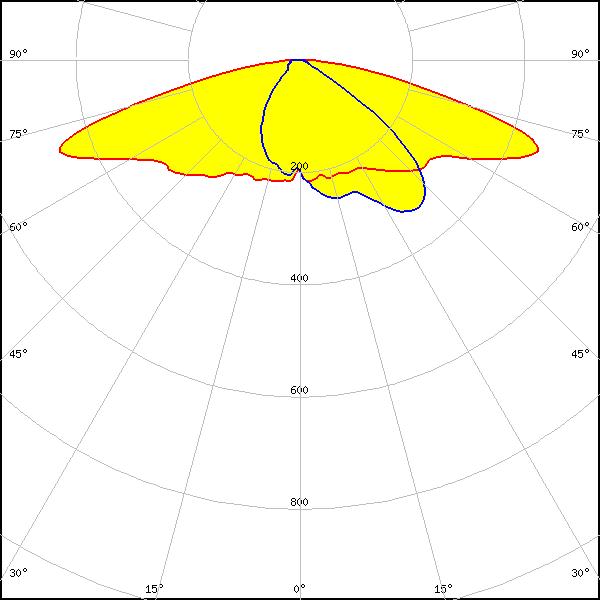

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.471 cd/lm
Efficiency: 97 %
LEDs/each optic: 1
Light colour: White

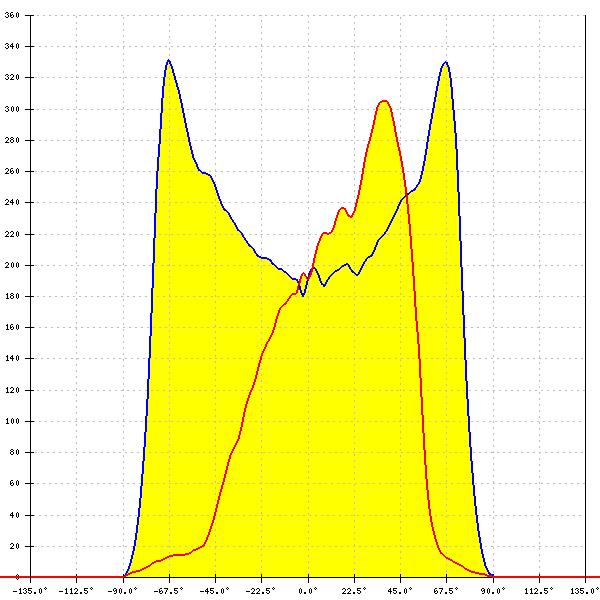

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

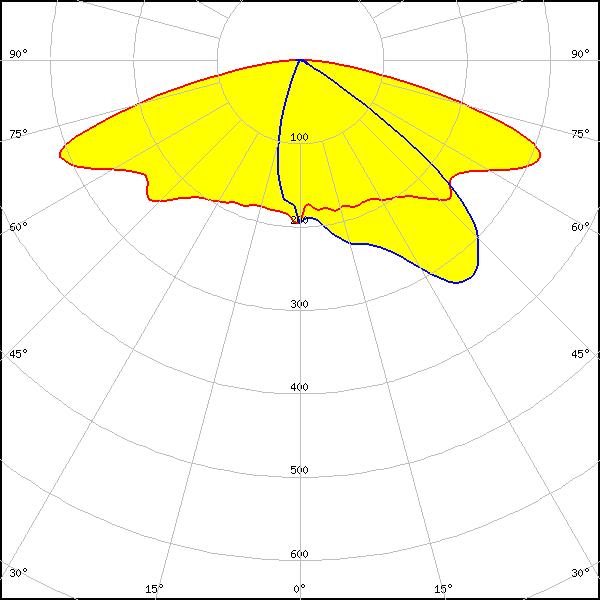

LED: J Series 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.366 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

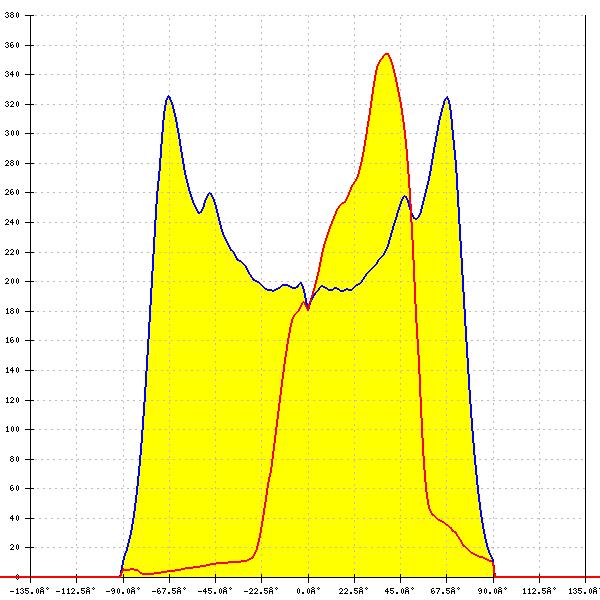

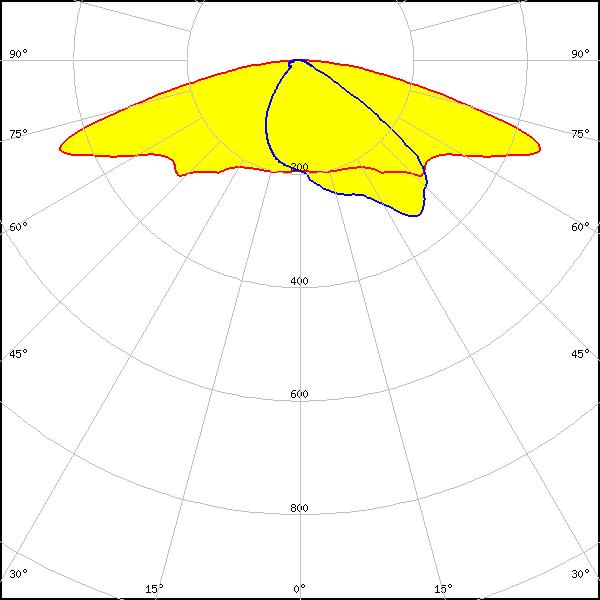

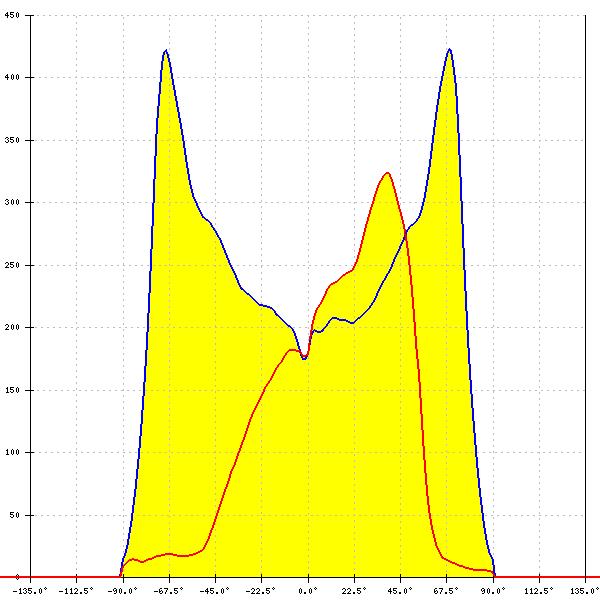

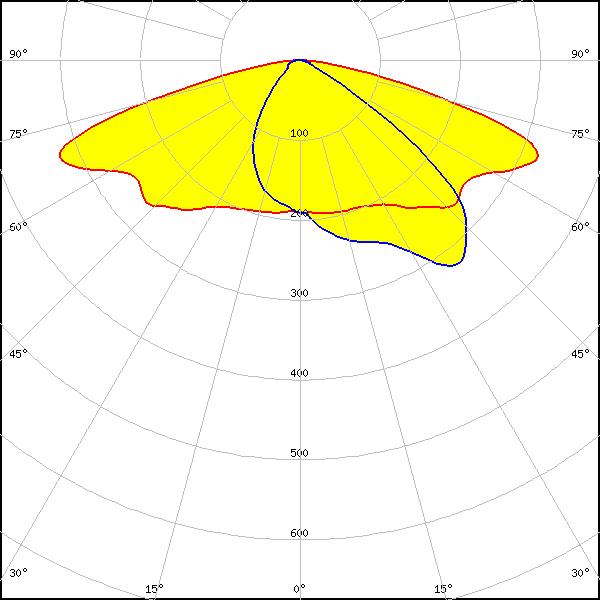

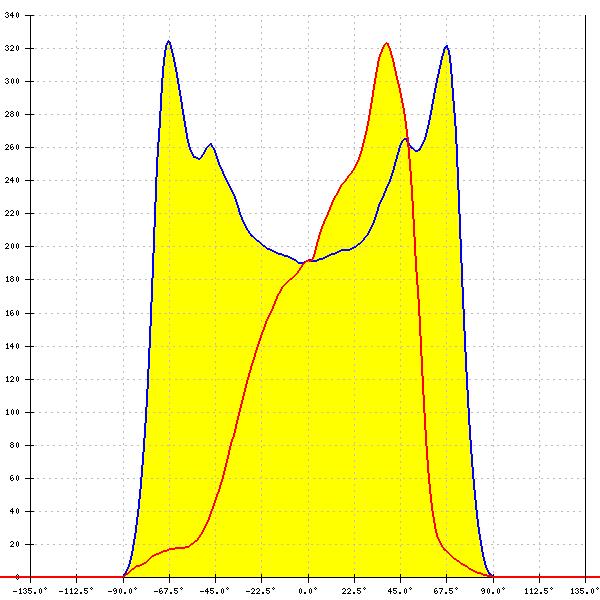

LED: J Series 5050 Square LES 6V
FWHM: asymmetric
Peak intensity: 0.438 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

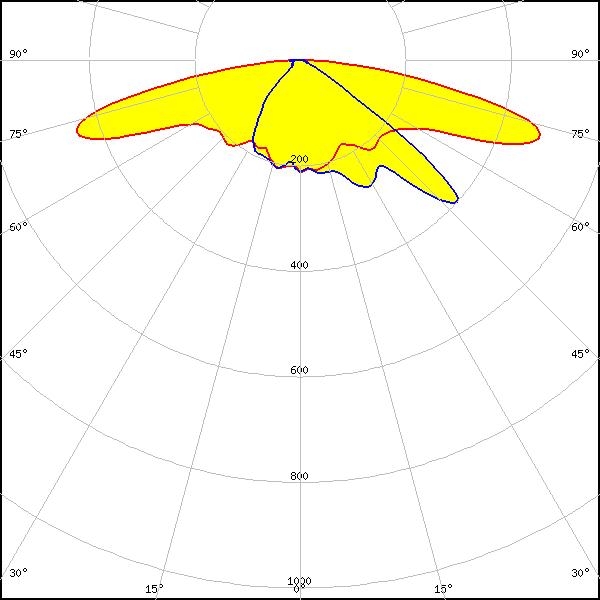

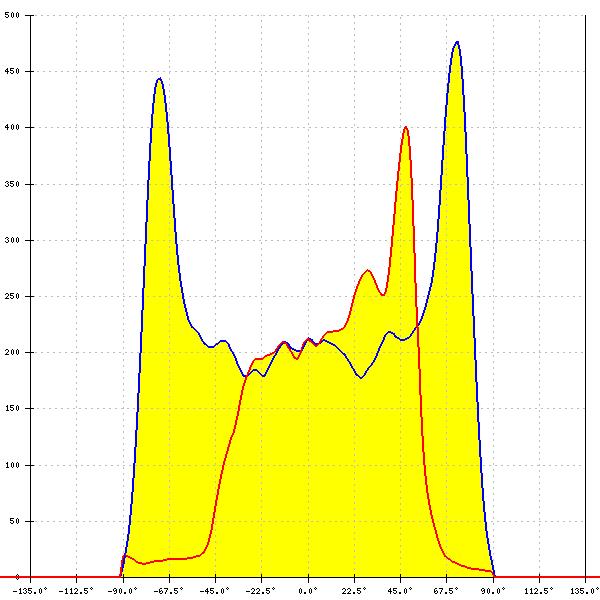

LED: XP-G2
FWHM: asymmetric
Peak intensity: 0.510 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

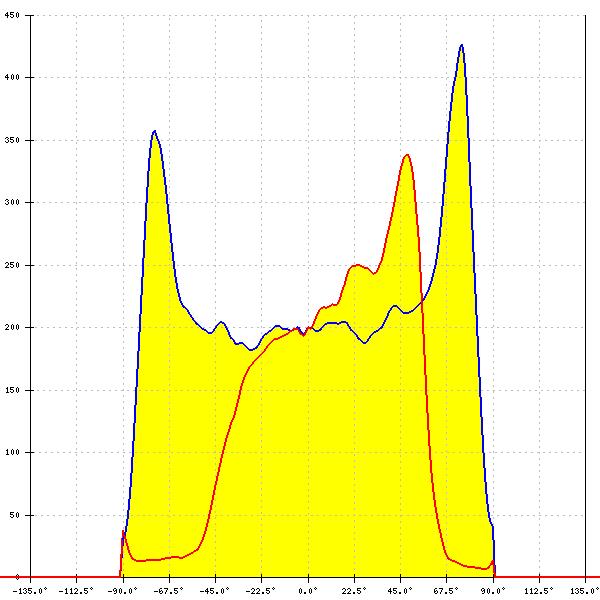

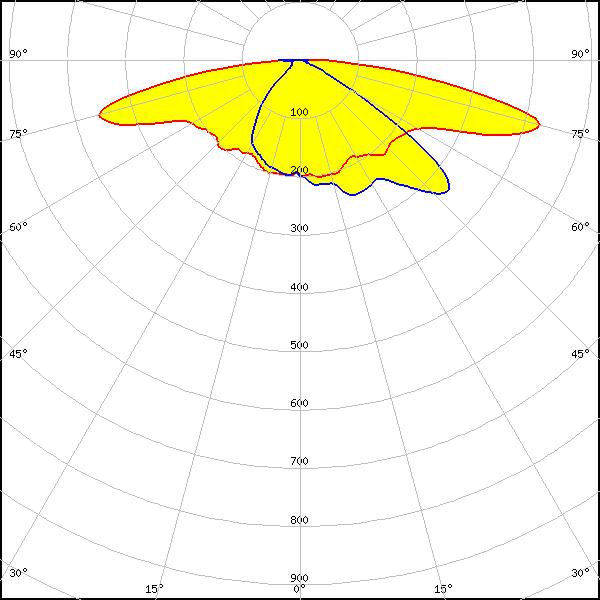

LED: XP-G2 HE
FWHM: asymmetric
Peak intensity: 0.480 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

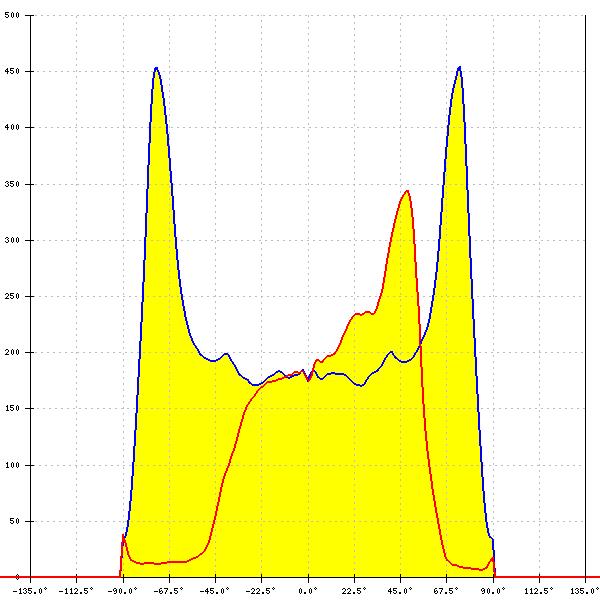

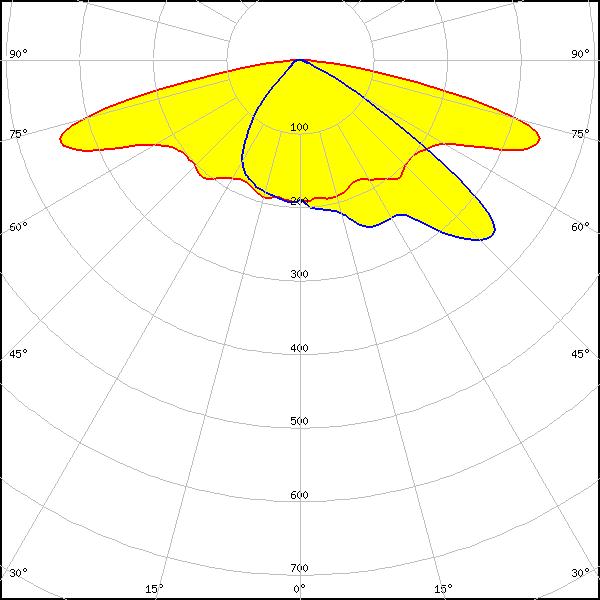

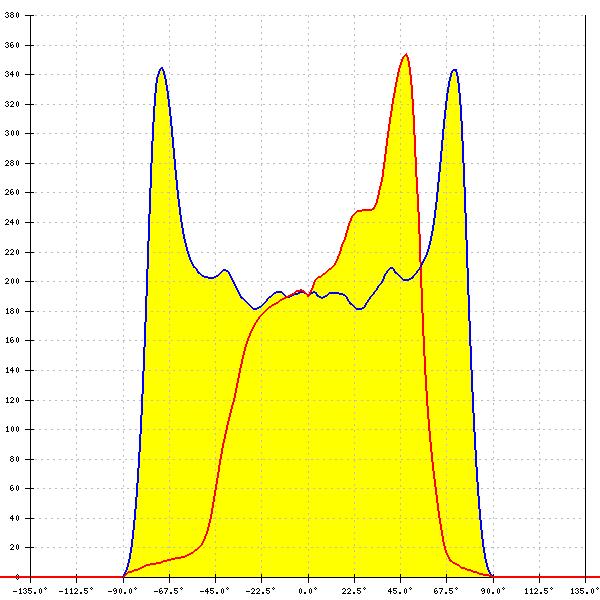

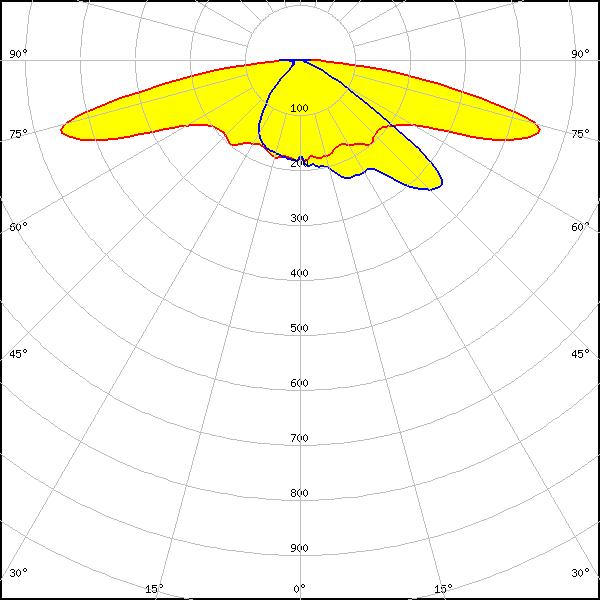

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.541 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.359 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

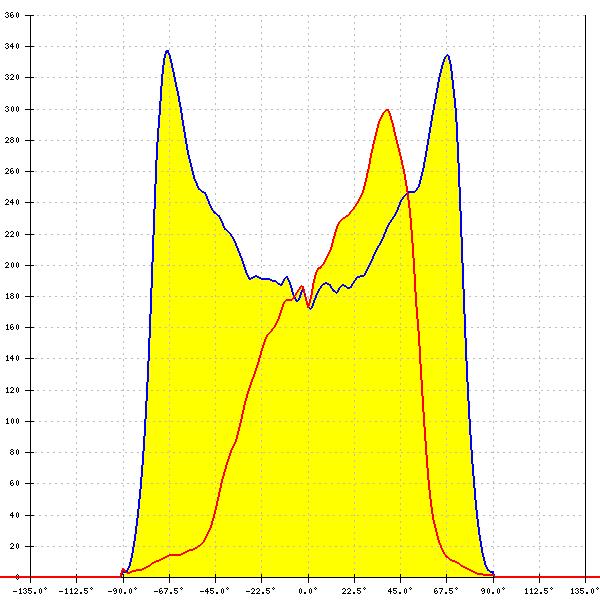

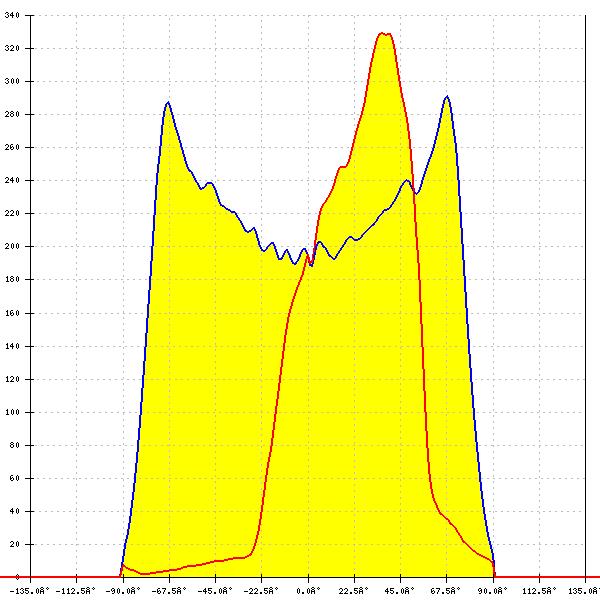

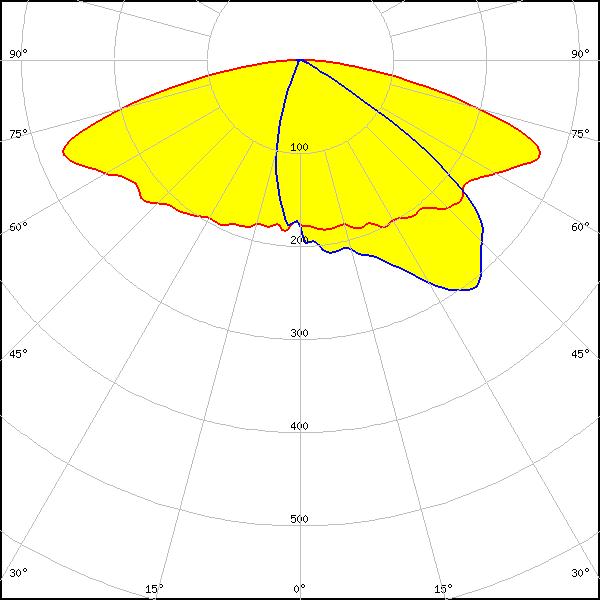

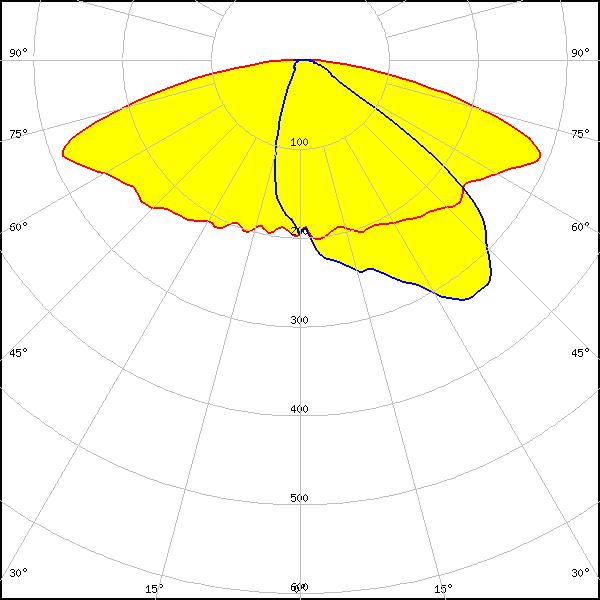

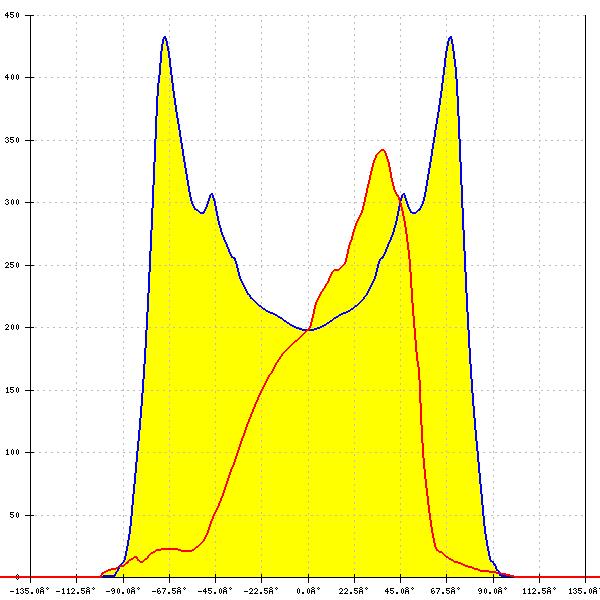

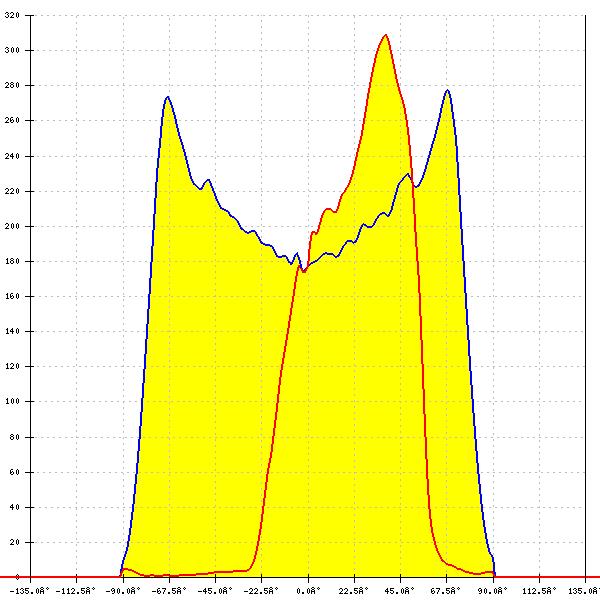

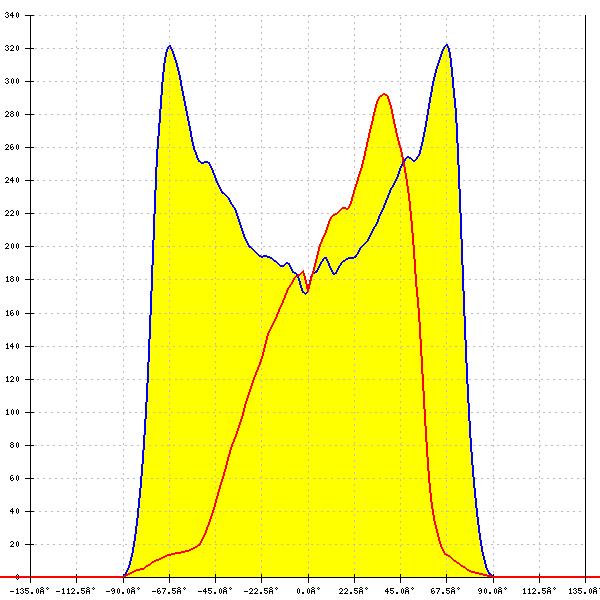

LED: LUXEON 5050 HE
FWHM: asymmetric
Peak intensity: 0.347 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.351 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White

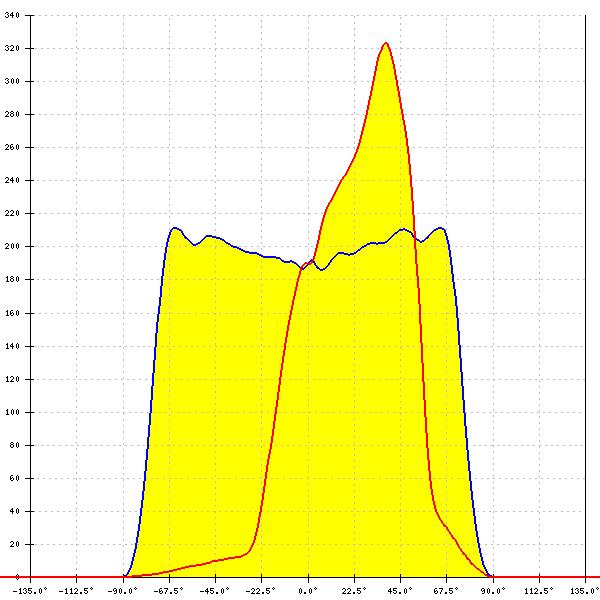

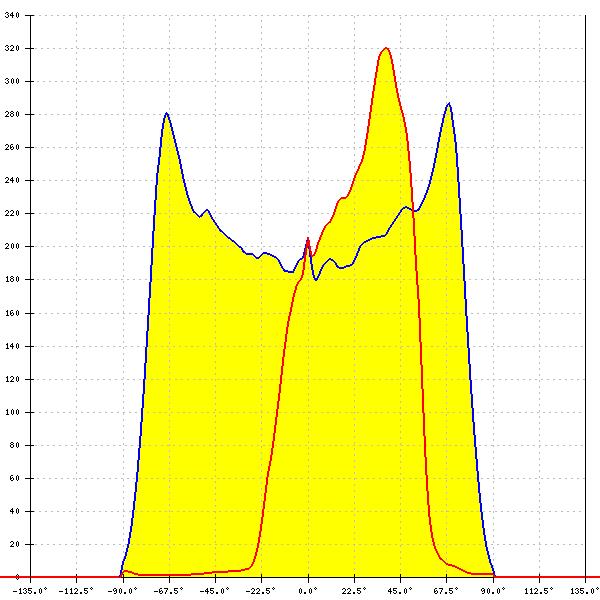

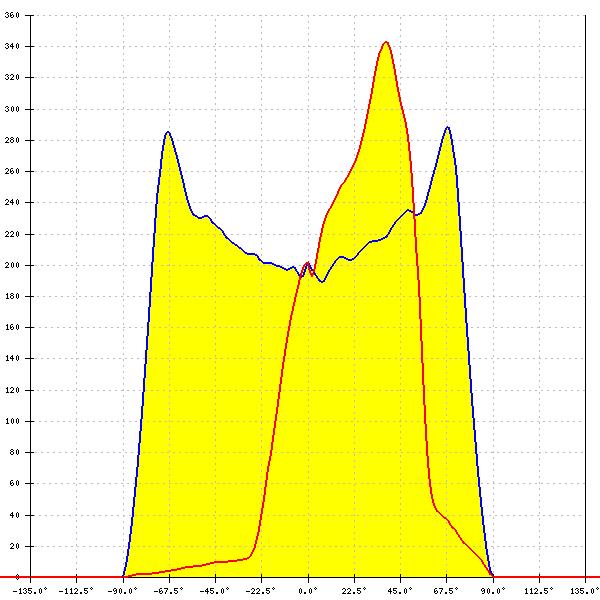

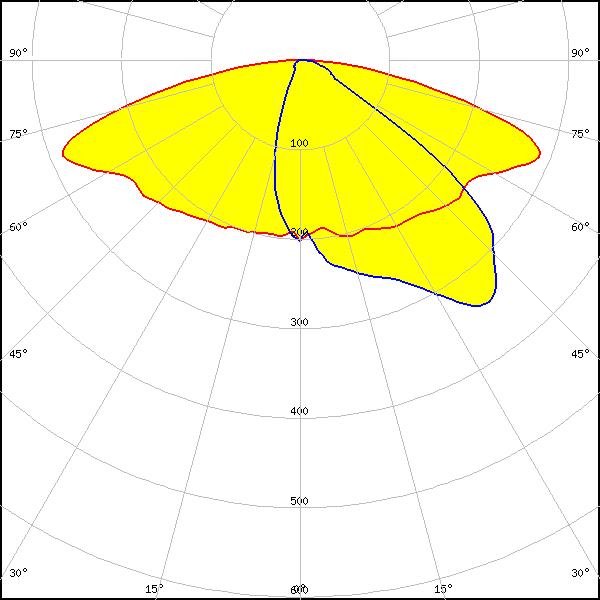

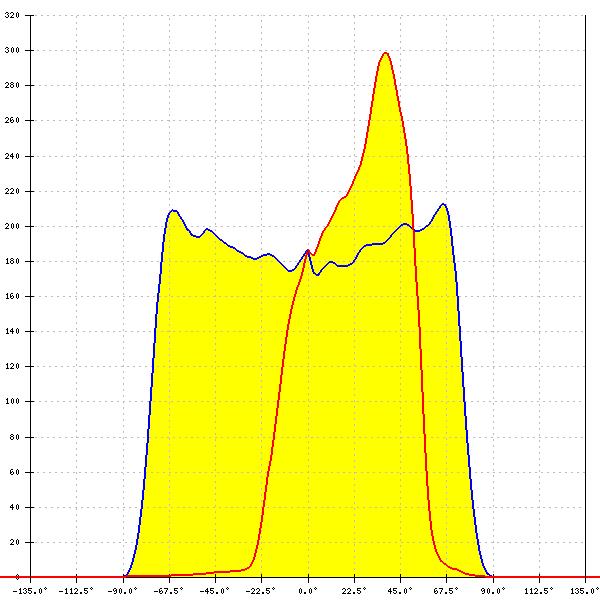

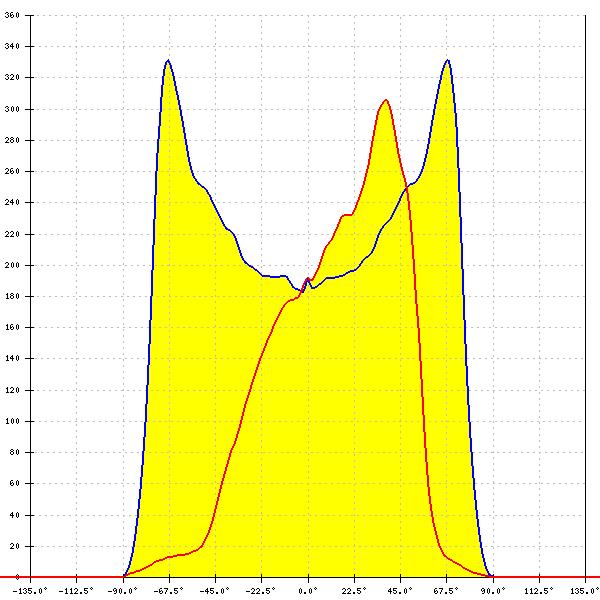

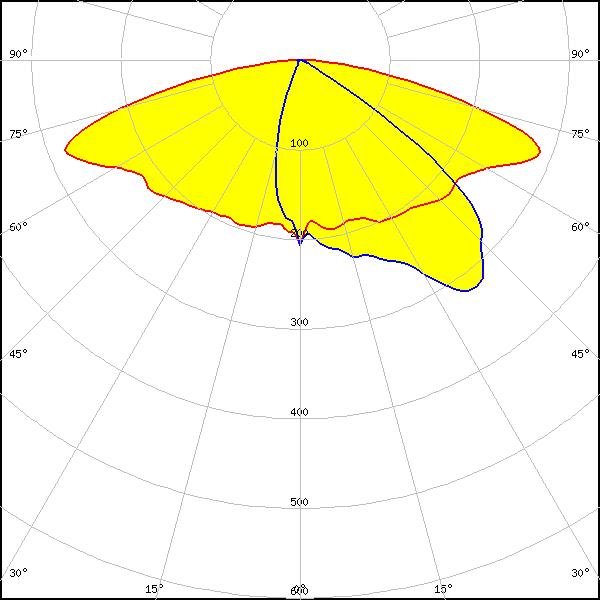

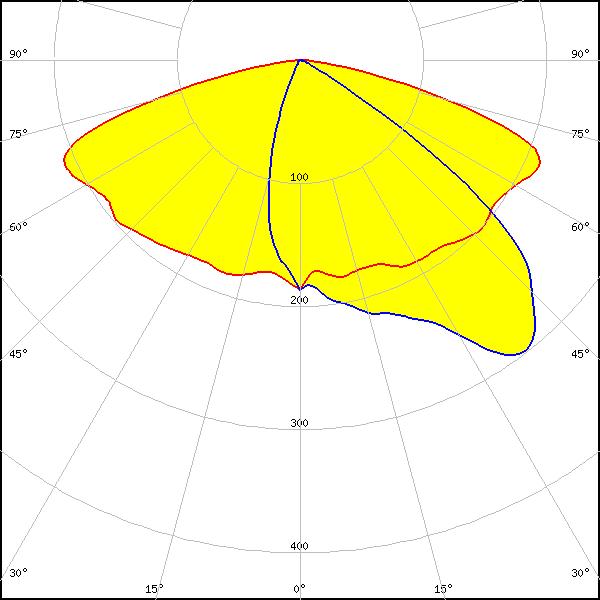

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.341 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.341 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.309 cd/lm
Efficiency: 58 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON 5050 Square LES
Required components:
FWHM: asymmetric
Peak intensity: 0.365 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour: White

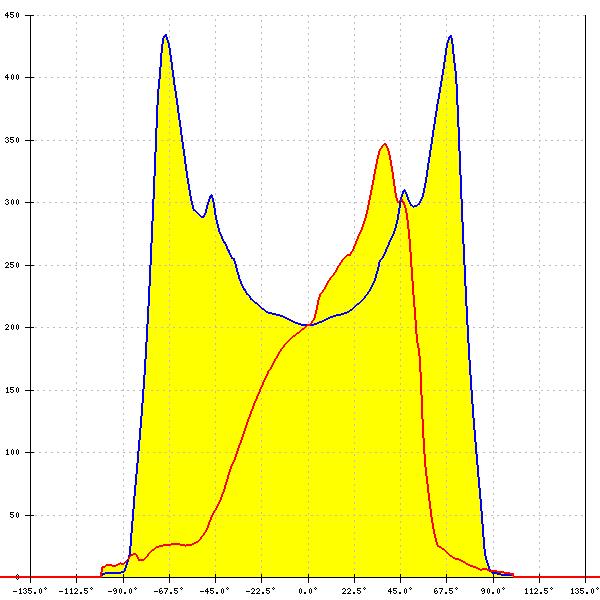

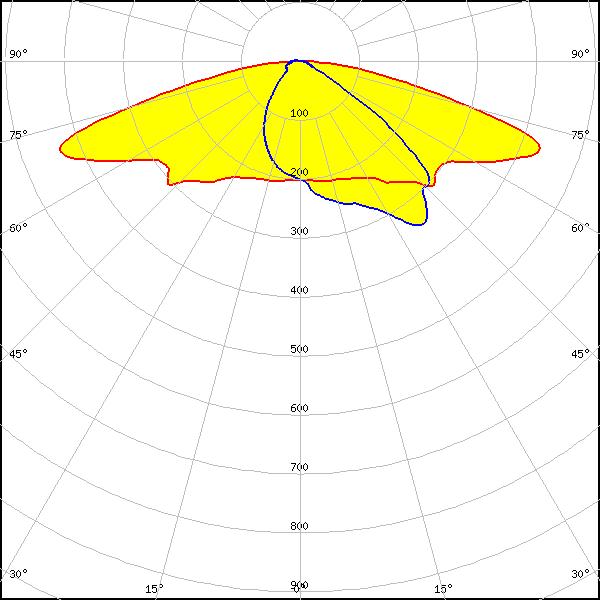

LED: LUXEON XR-5050 SQR (L213-xxxx016MRH001)
FWHM: asymmetric
Peak intensity: 0.460 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour: White

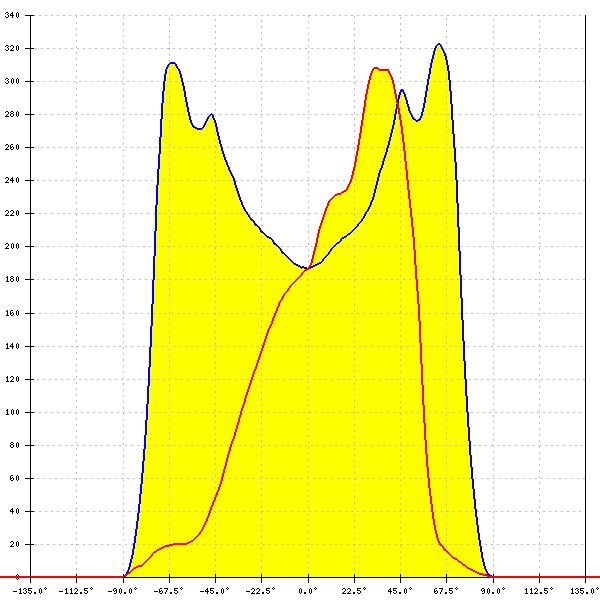

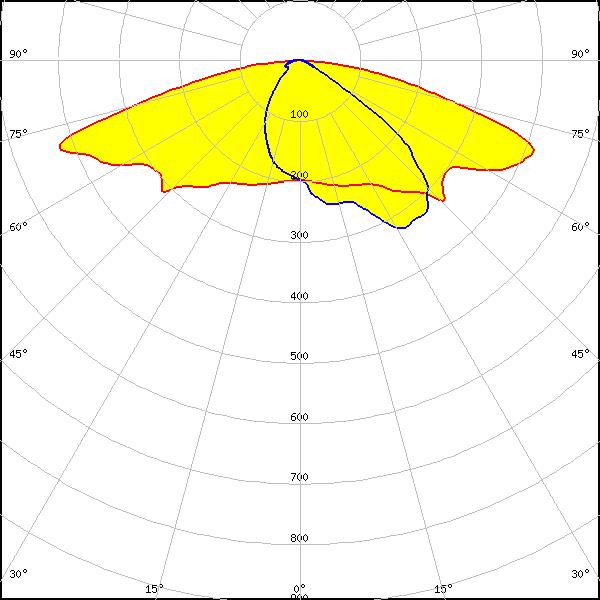

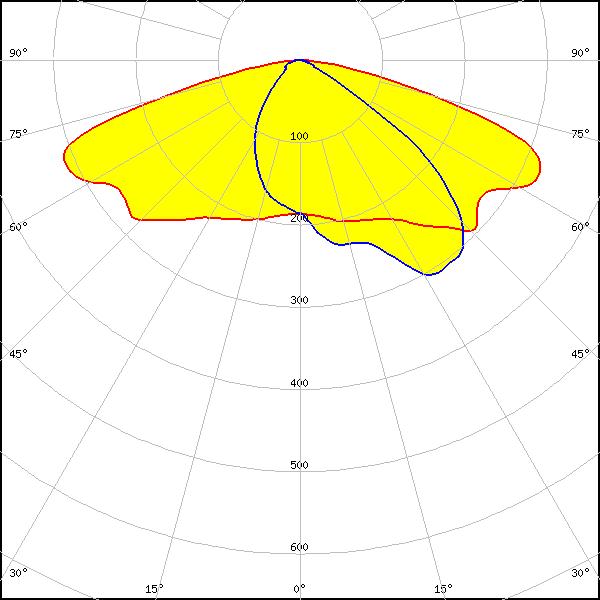

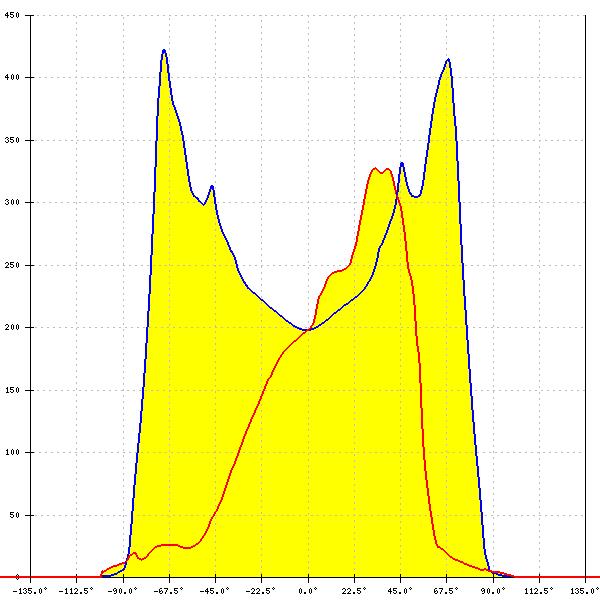

LED: RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity: 0.347 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: RecLED 173x50mm 2900lm 740 2x6 5050 Opt G1
FWHM: asymmetric
Peak intensity: 0.451 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

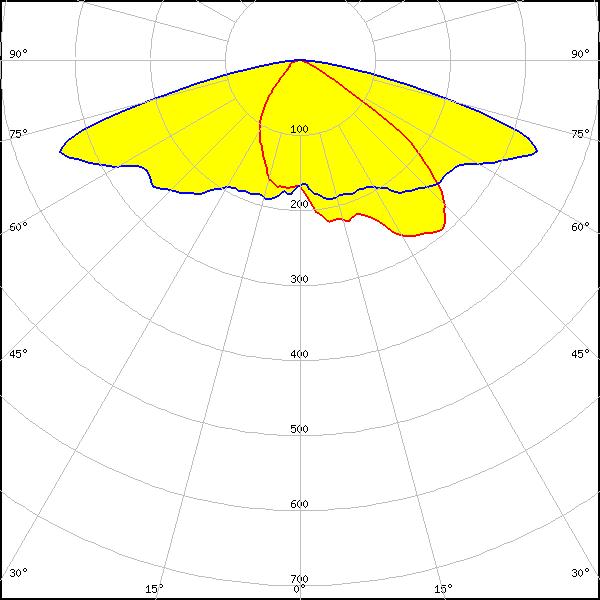

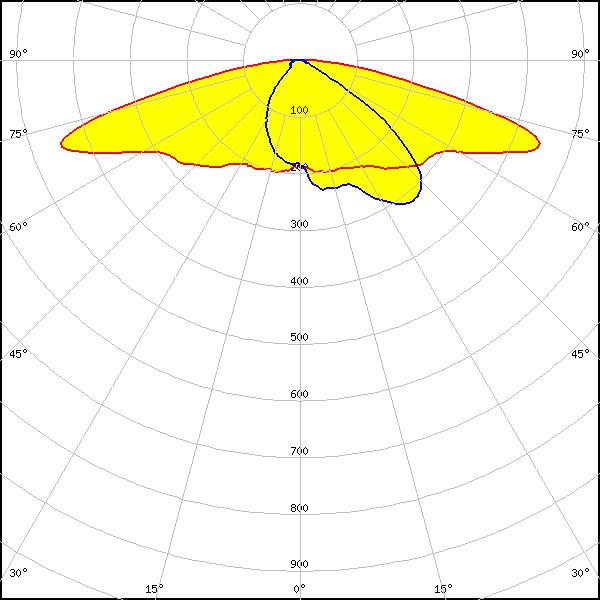

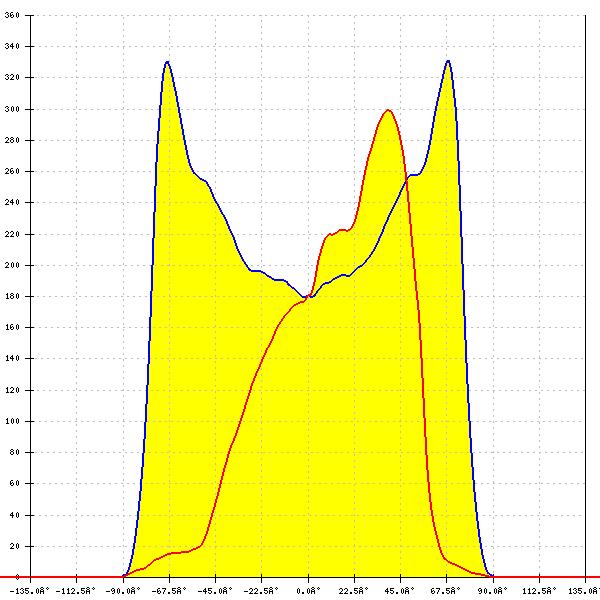

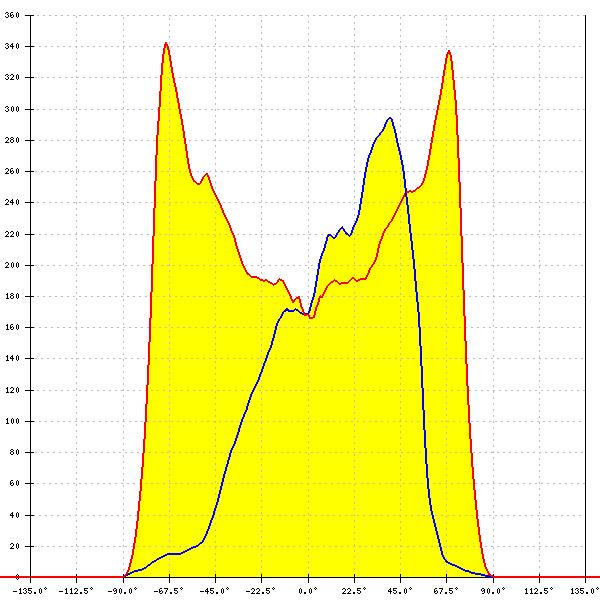

LED: NFMW48xA
FWHM: asymmetric
Peak intensity: 0.357 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

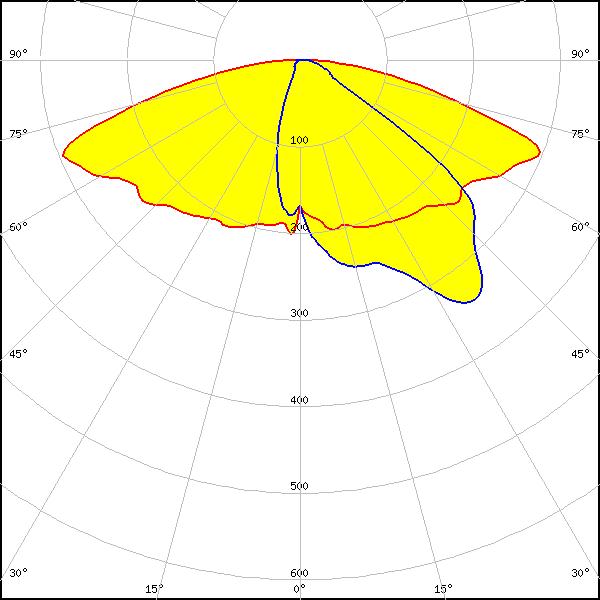

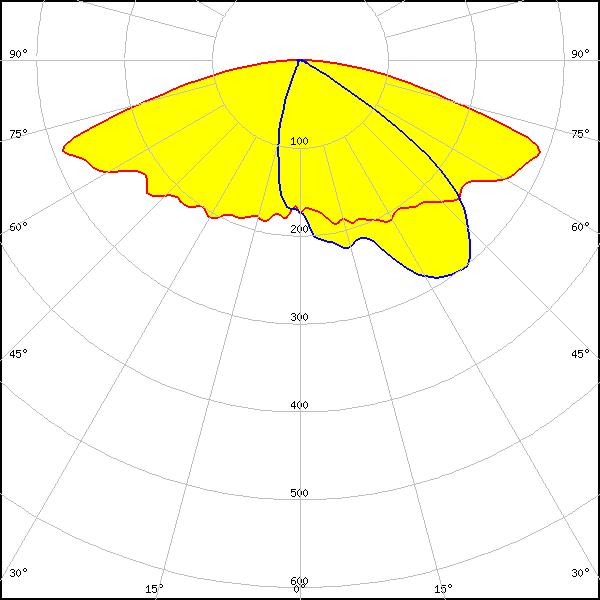

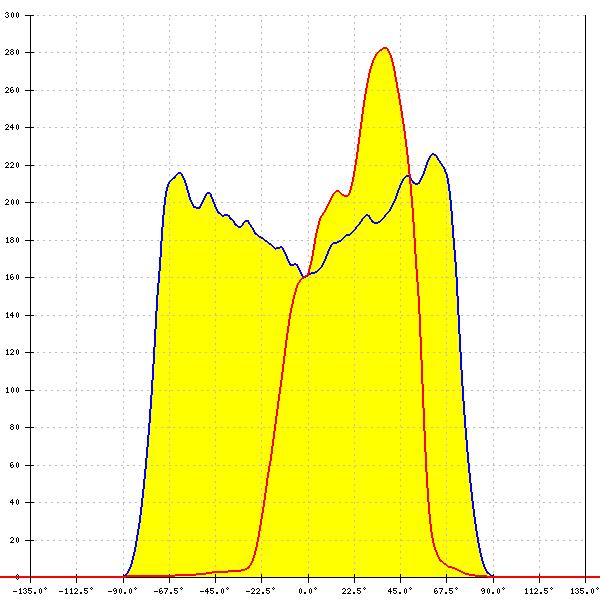

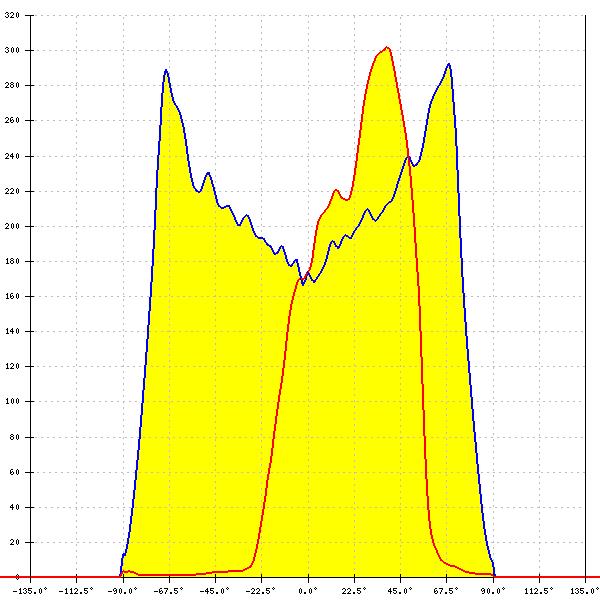

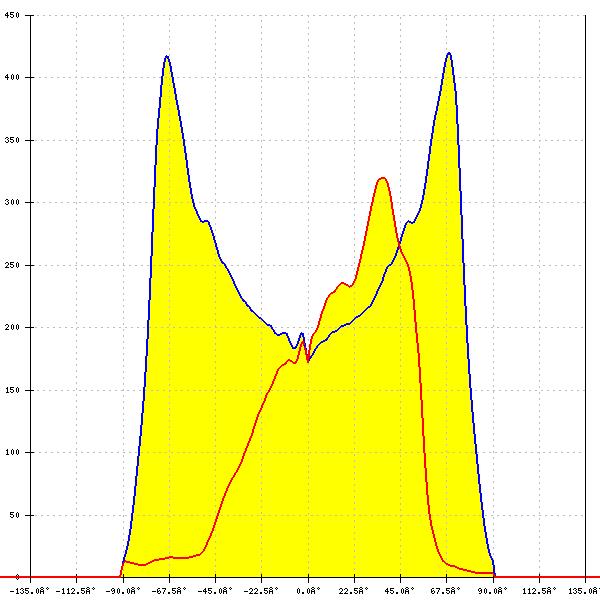

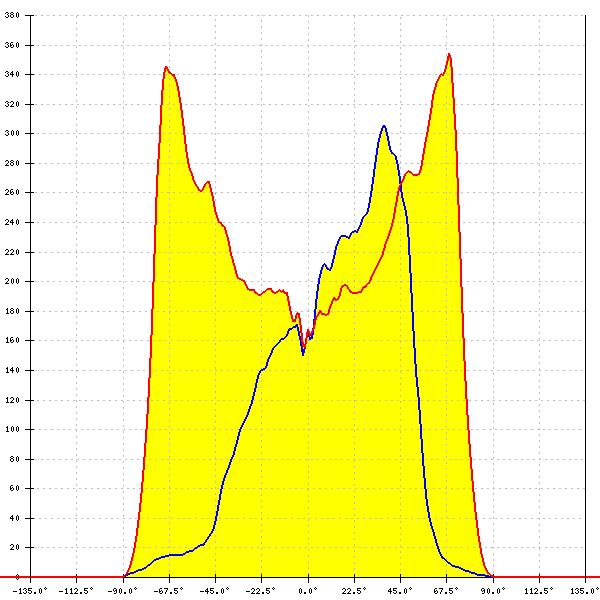

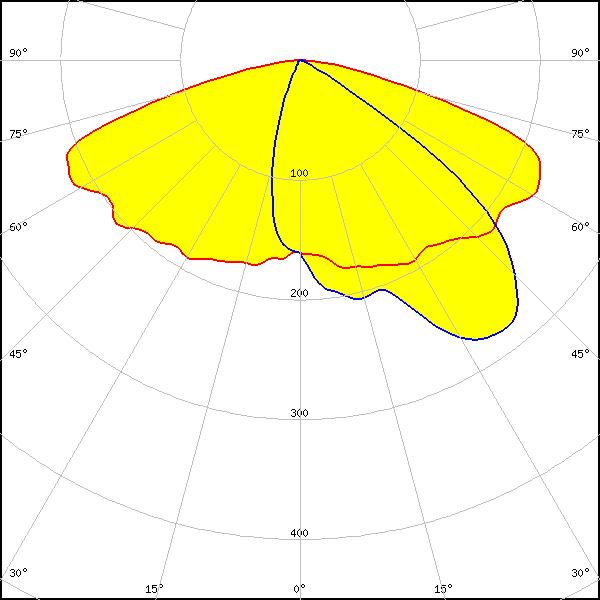

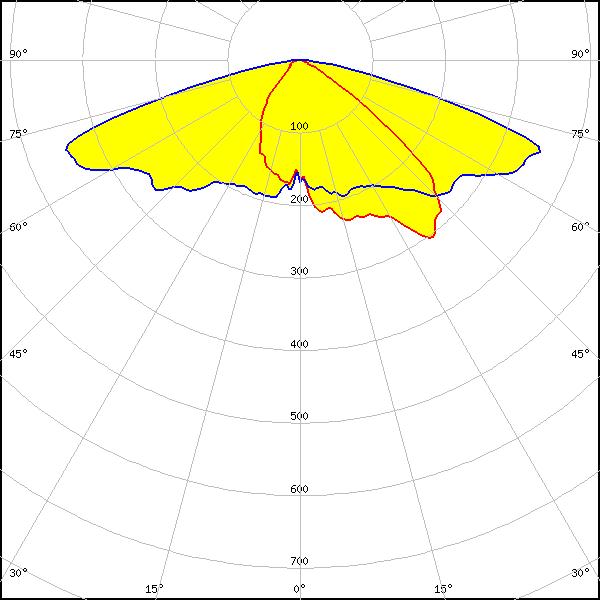

LED: Duris S8
Required components:
FWHM: asymmetric
Peak intensity: 0.349 cd/lm
Efficiency: 67 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
Required components:
FWHM: asymmetric
Peak intensity: 0.313 cd/lm
Efficiency: 59 %
LEDs/each optic: 1
Light colour: White
LED: Duris S8
FWHM: asymmetric
Peak intensity: 0.375 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

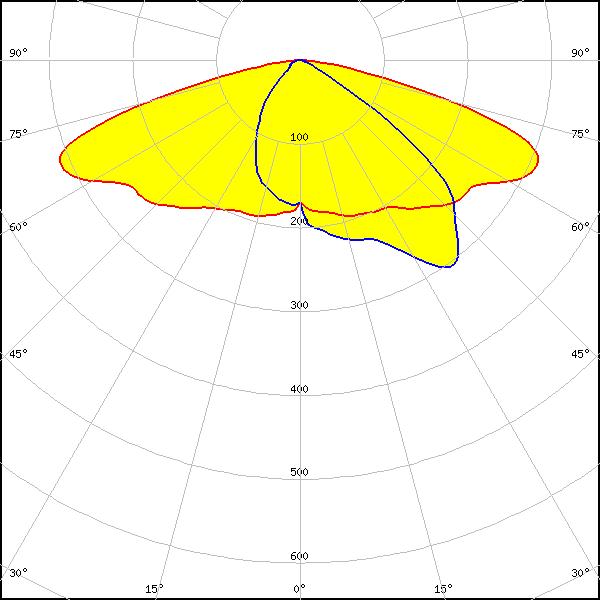

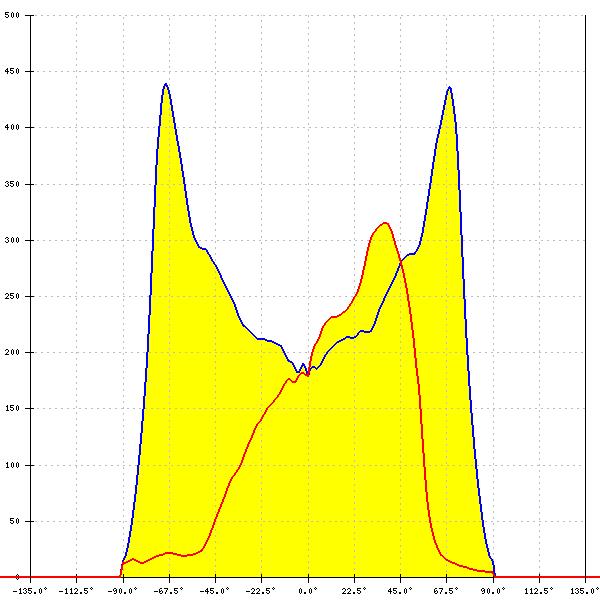

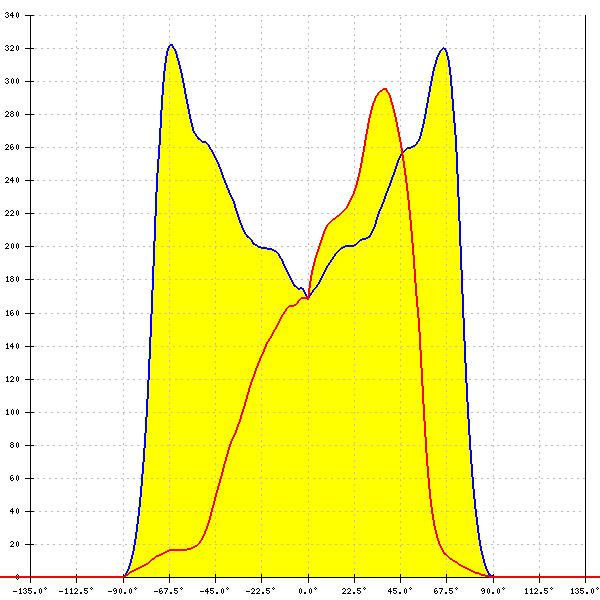

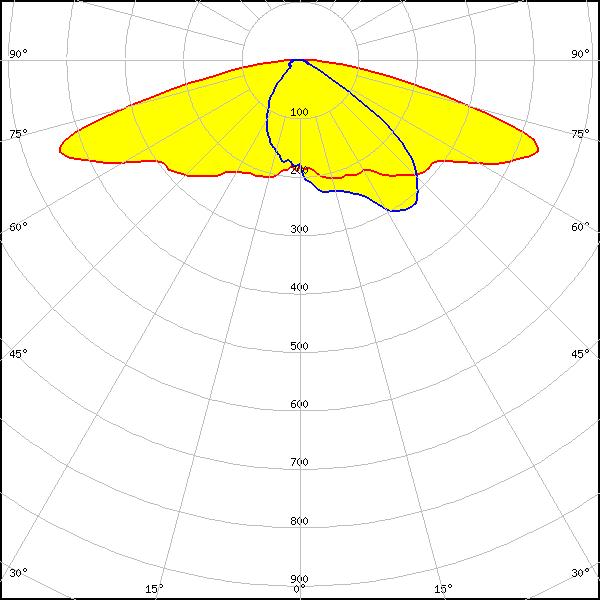

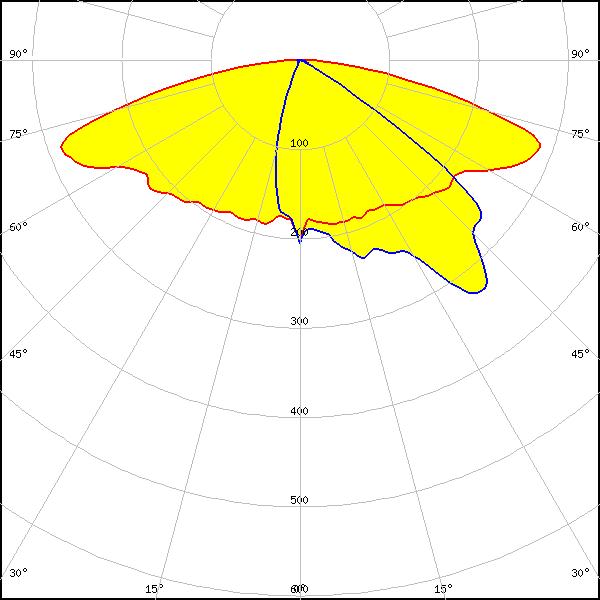

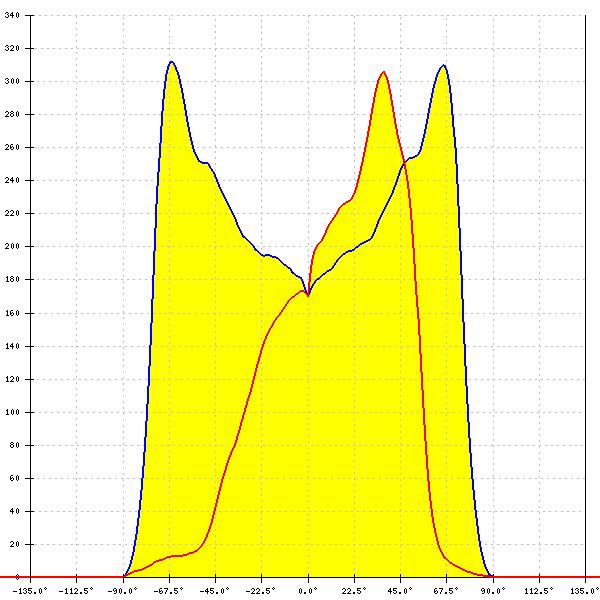

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.451 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

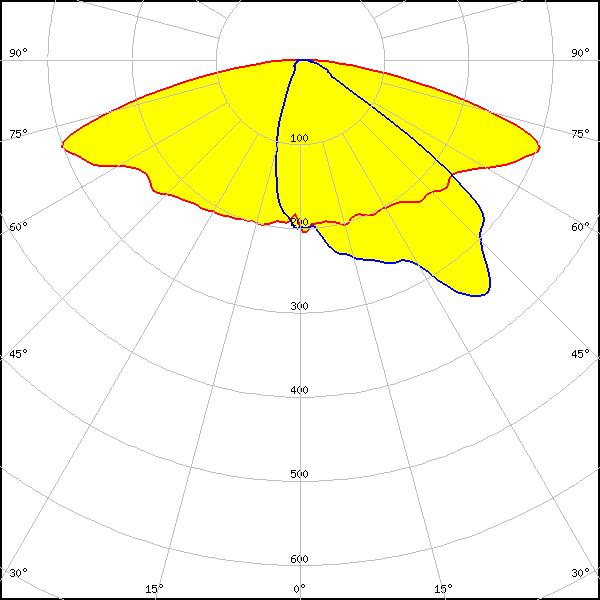

LED: OSCONIQ S 5050
FWHM: asymmetric
Peak intensity: 0.327 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

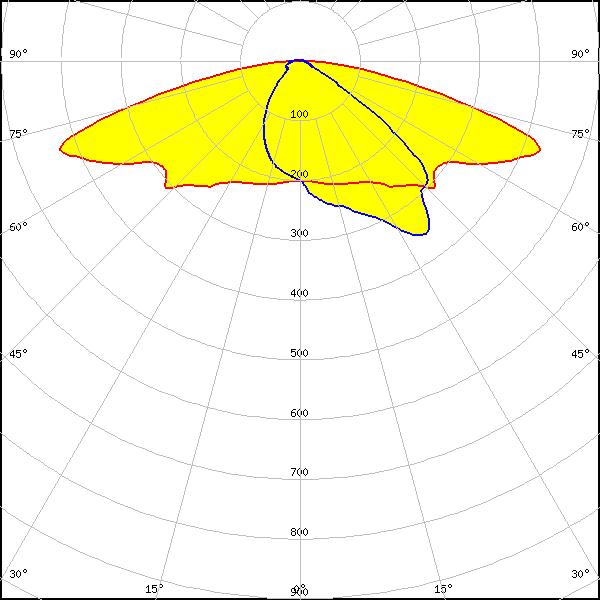

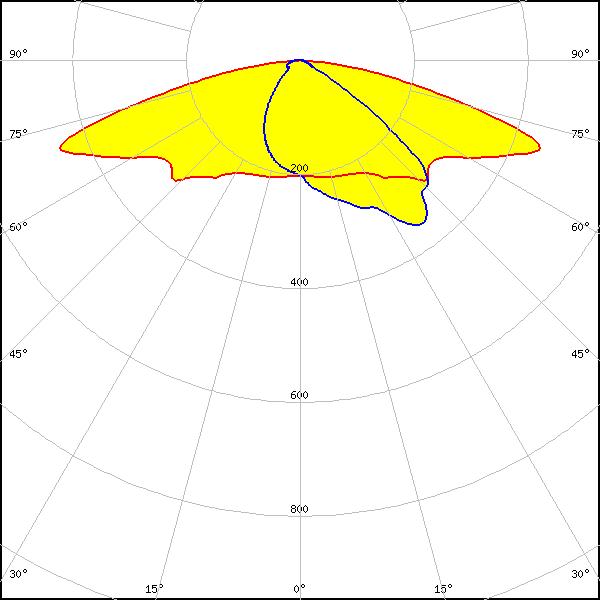

LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.356 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
LED: Fortimo FastFlex LED 2x8 DA HE
FWHM: asymmetric
Peak intensity: 0.442 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

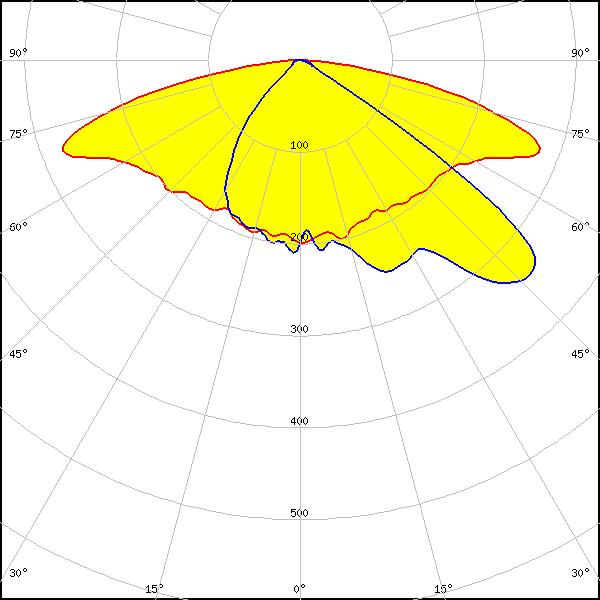

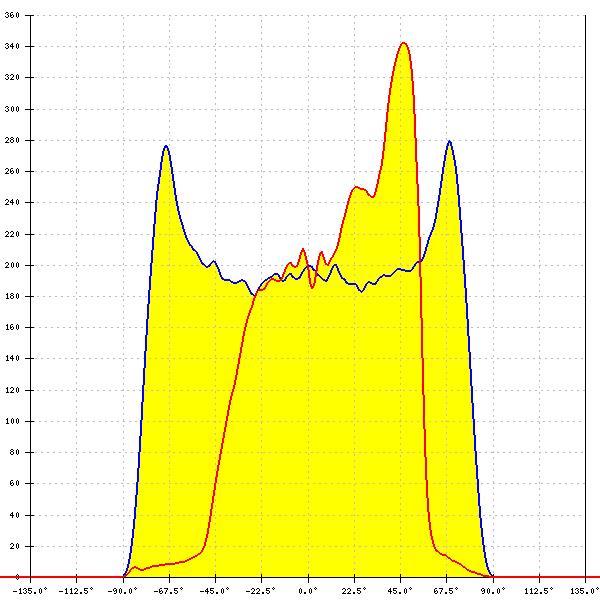

LED: LH351C
FWHM: asymmetric
Peak intensity: 0.348 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour: White

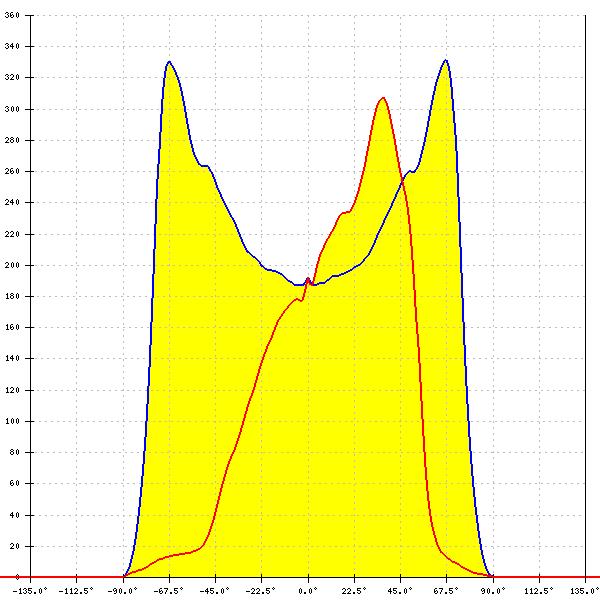

LED: LH502C
FWHM: asymmetric
Peak intensity: 0.342 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour: White

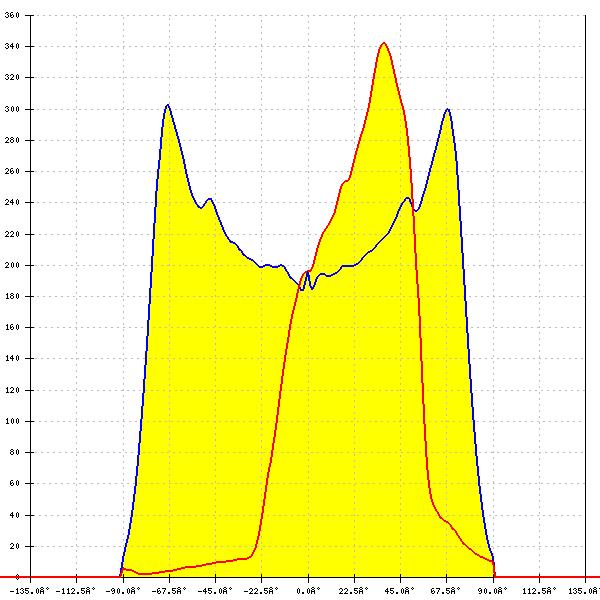

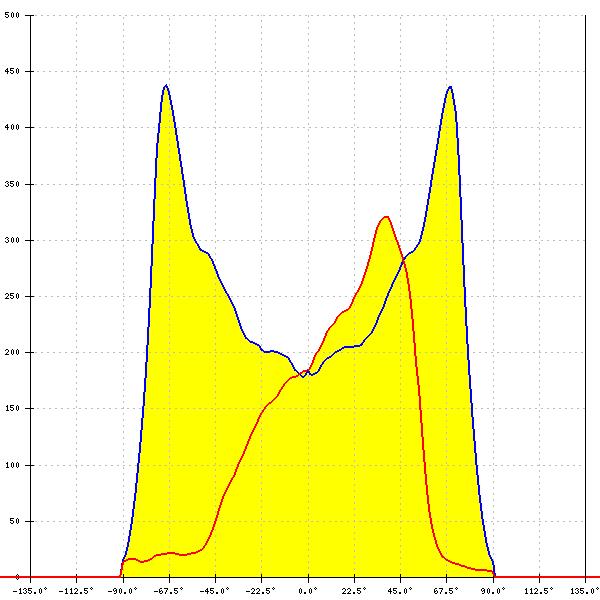

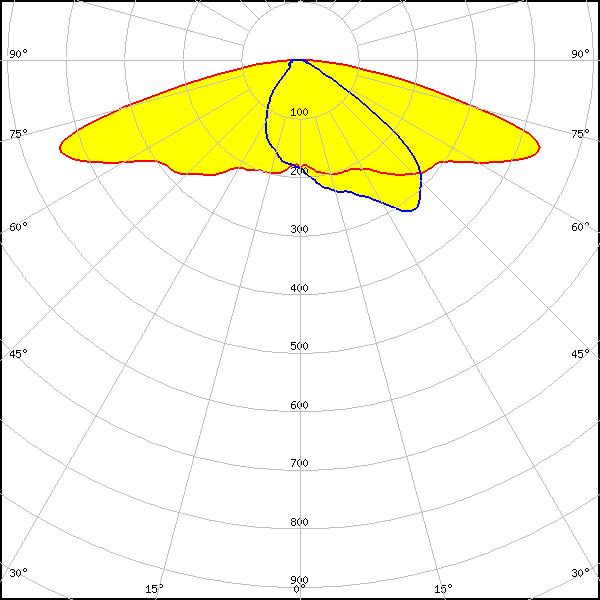

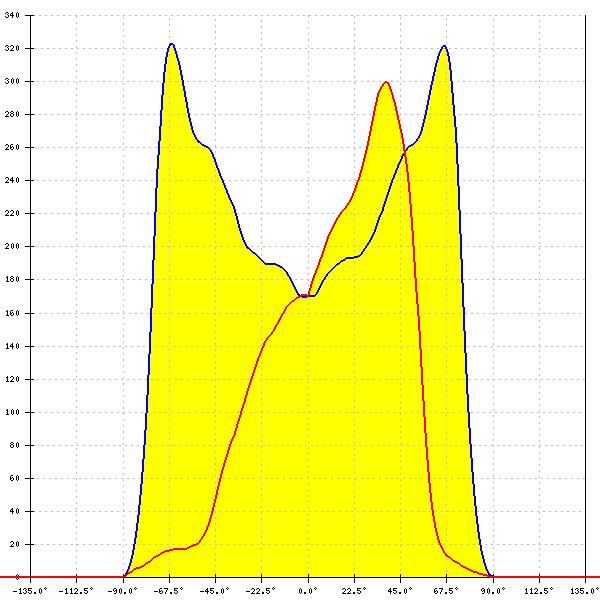

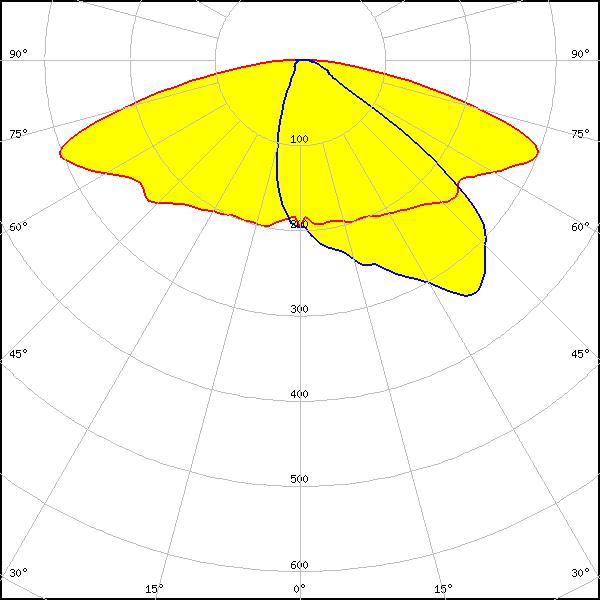

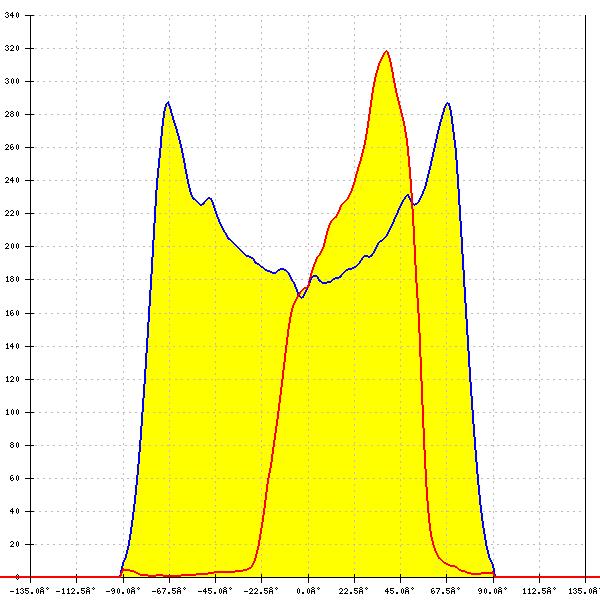

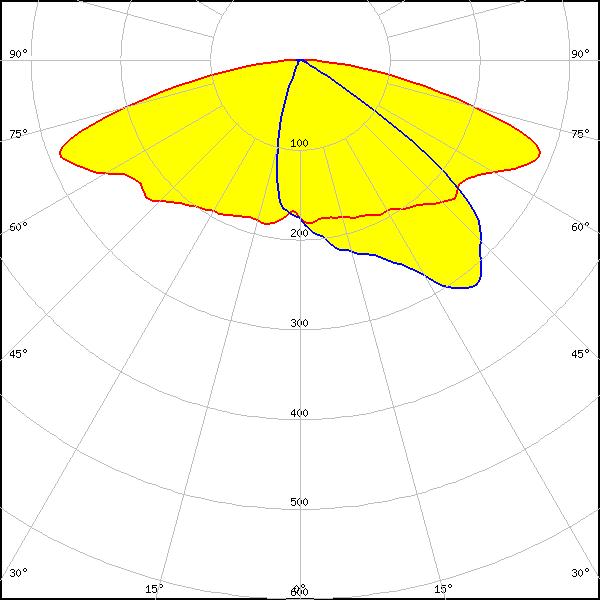

LED: LH502D
FWHM: asymmetric
Peak intensity: 0.452 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: LH502D
FWHM: asymmetric
Peak intensity: 0.328 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour: White

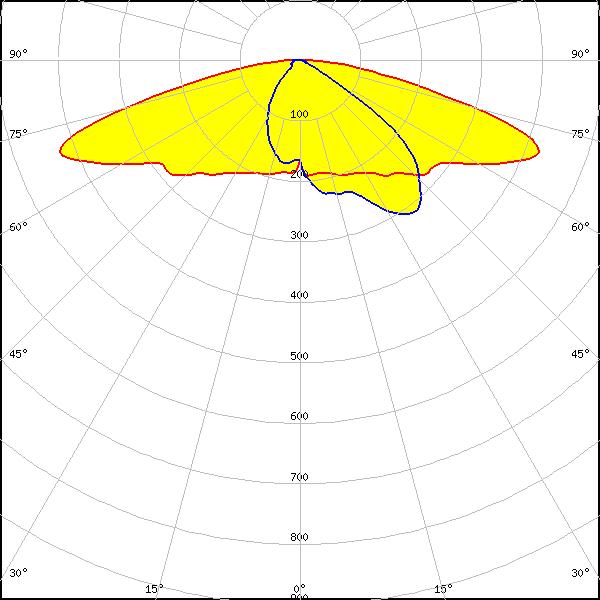

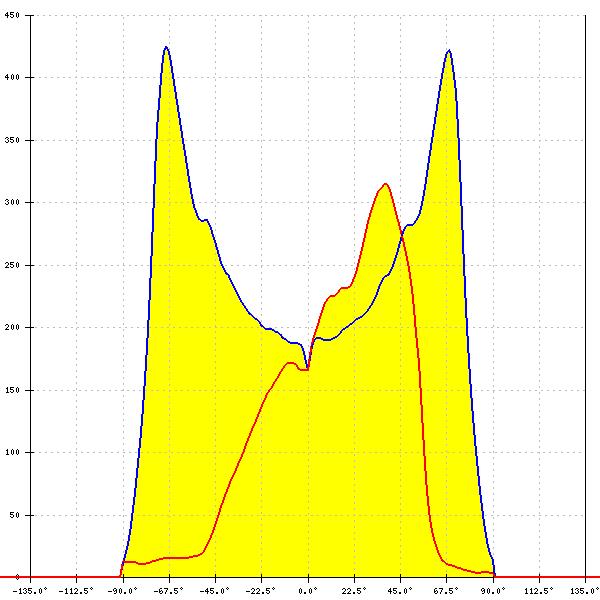

LED: MJT 5050
FWHM: asymmetric
Peak intensity: 0.440 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour: White

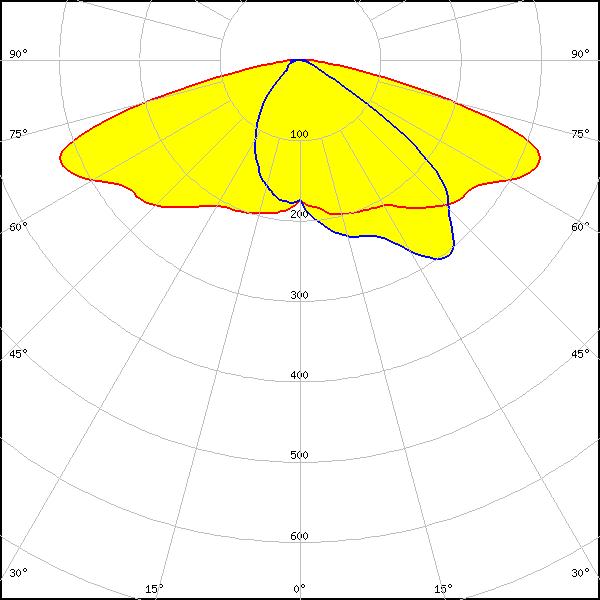

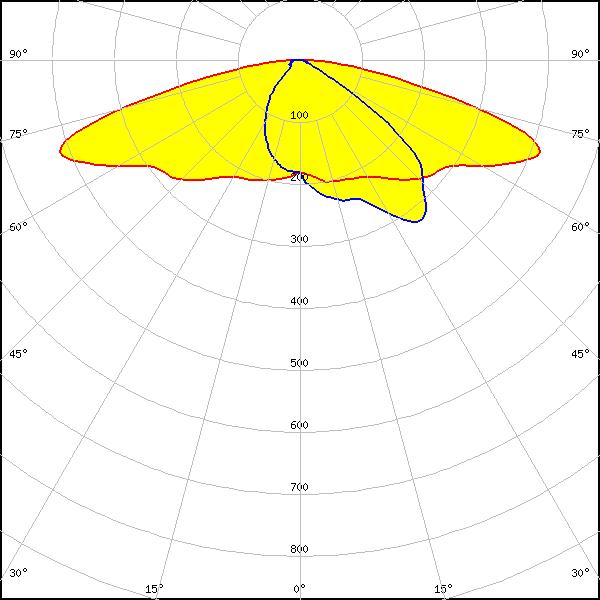

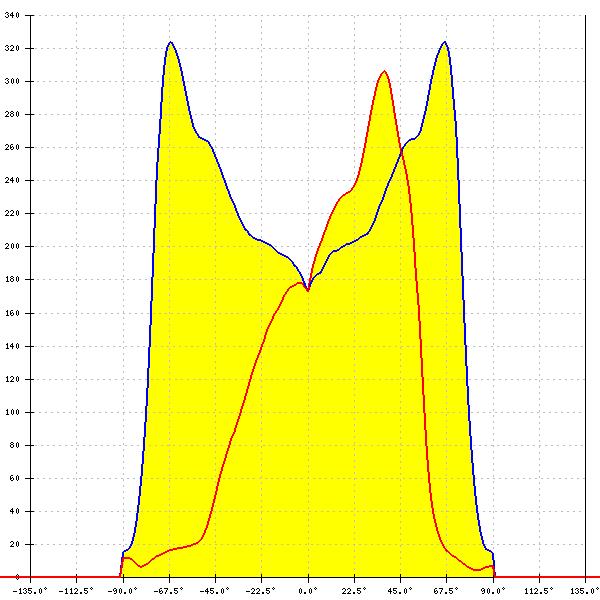

LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.427 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: SEOUL DC 5050 6V
FWHM: asymmetric
Peak intensity: 0.332 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White
