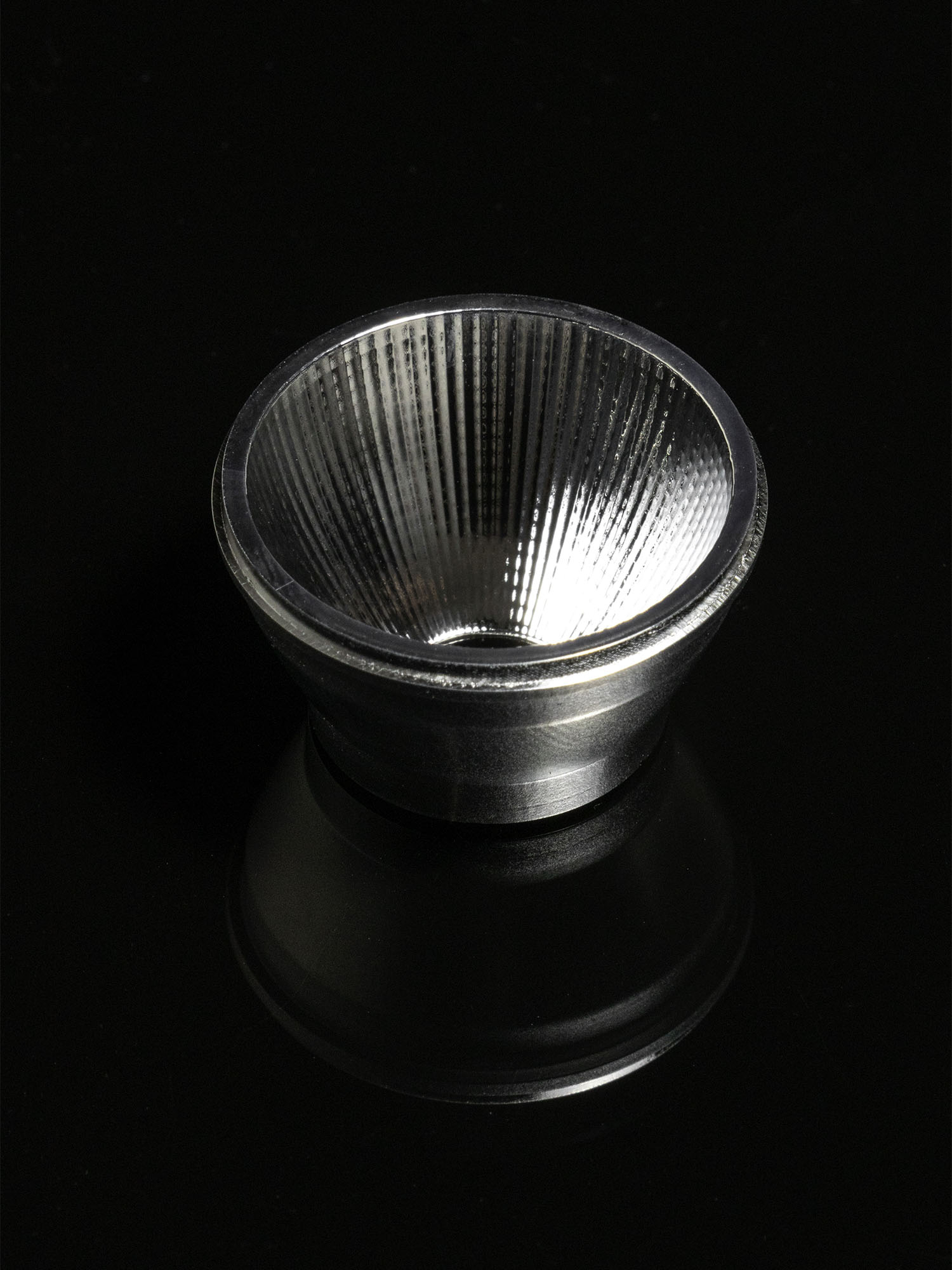

C17247_ELLA-30-M

Print

~28° wide beam

Specification
  • Dimensions:
    30 mm
  • Height:
    17.20 mm
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    1320 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.4 kg
  • MPQ:
    88 pcs
  • MOQ:
    264 pcs
  • MOQ size:
    480 x 280 x 80 mm
  • MOQ weight:
    1.1 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17247_ELLA-30-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

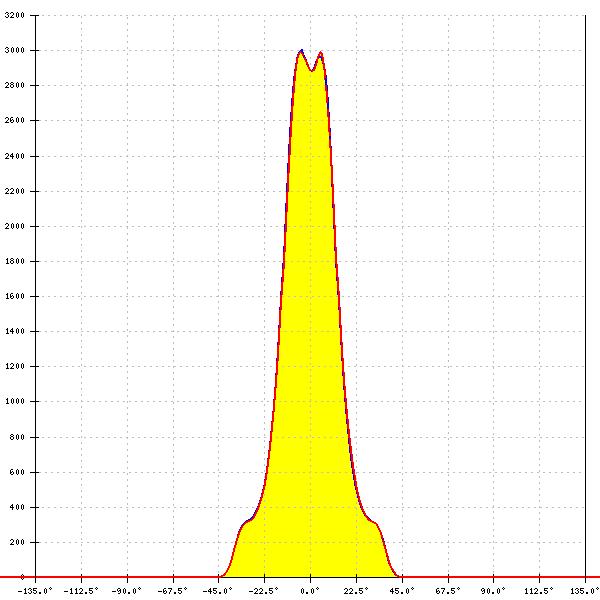

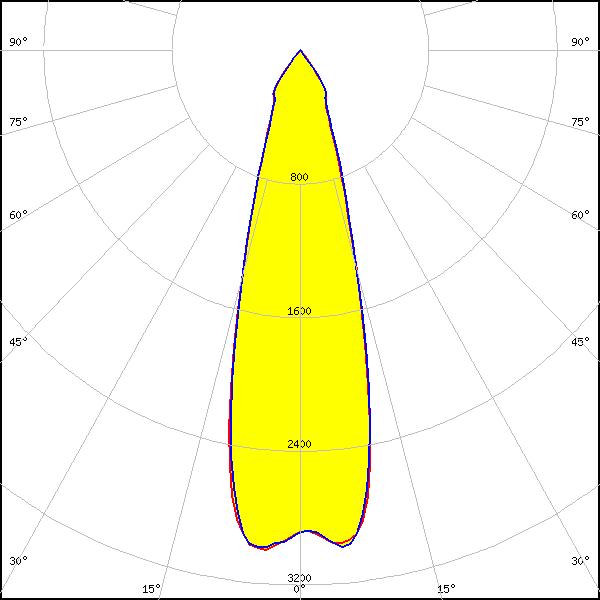

LED: V4 HD Gen 7
LES size: 5.2 mm
FWHM: 28°
FWTM: 63°
Peak intensity: 2.800 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

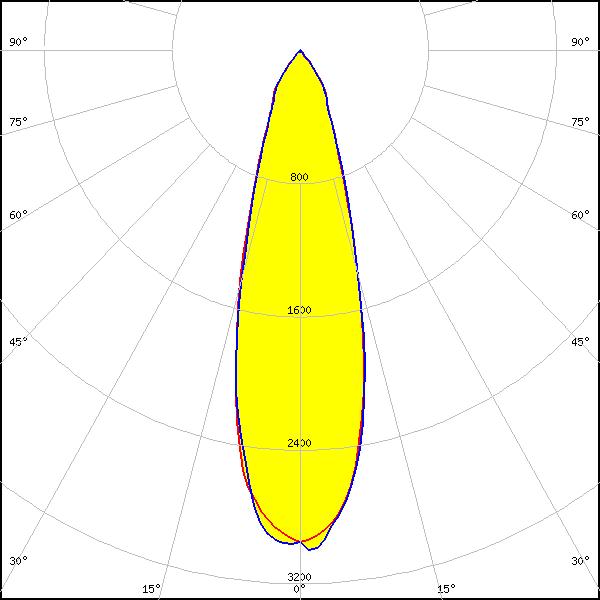

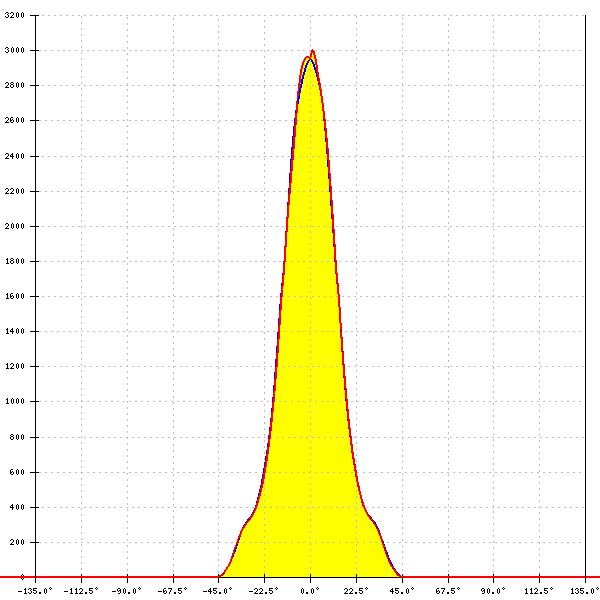

LED: V6 HD Gen 7
LES size: 7.0 mm
FWHM: 28°
FWTM: 64°
Peak intensity: 2.800 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

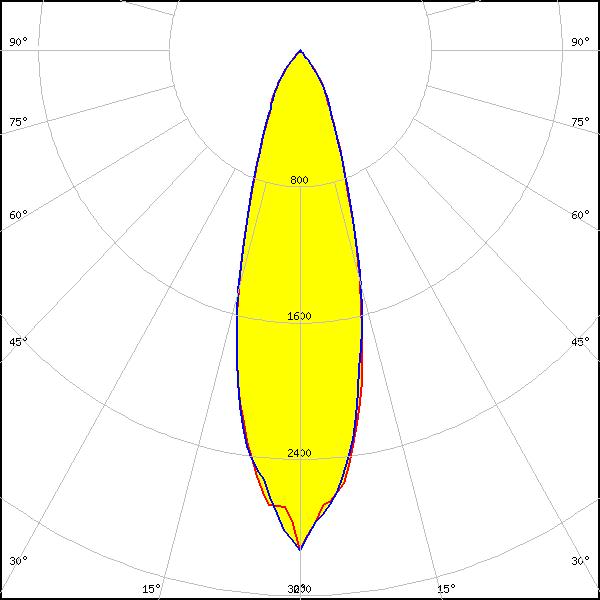

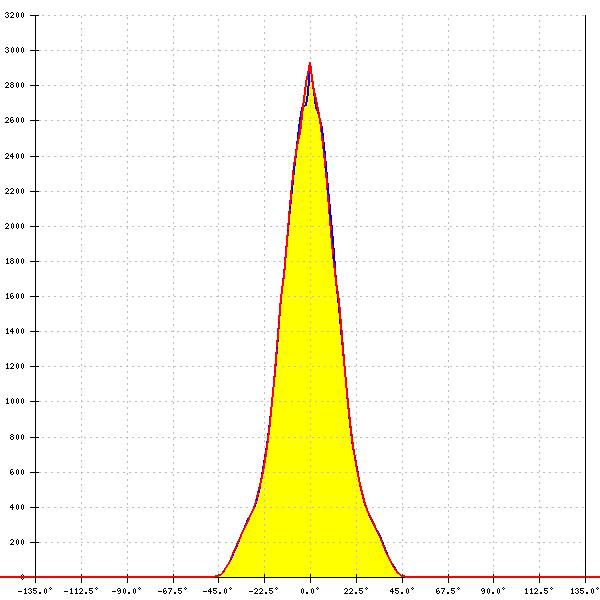

LED: V8 Gen7
LES size: 8.1 mm
FWHM: 29°
FWTM: 62°
Peak intensity: 2.760 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

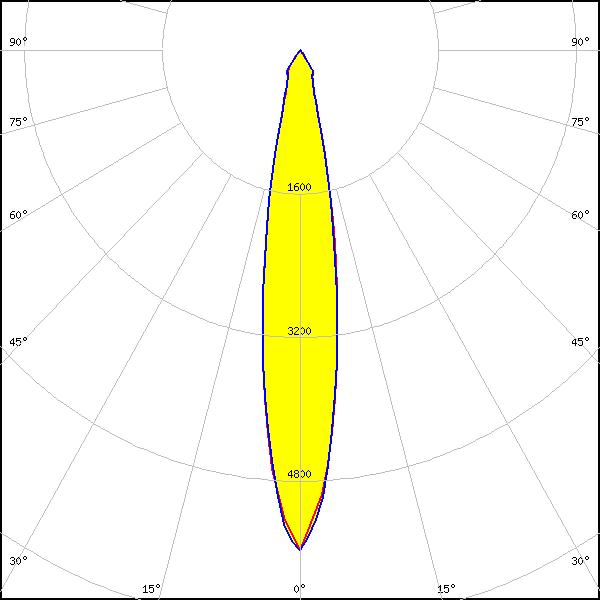

LED: CLU7A2/7A3
LES size: 4.2 mm
FWHM: 18°
FWTM: 36°
Peak intensity: 5.571 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

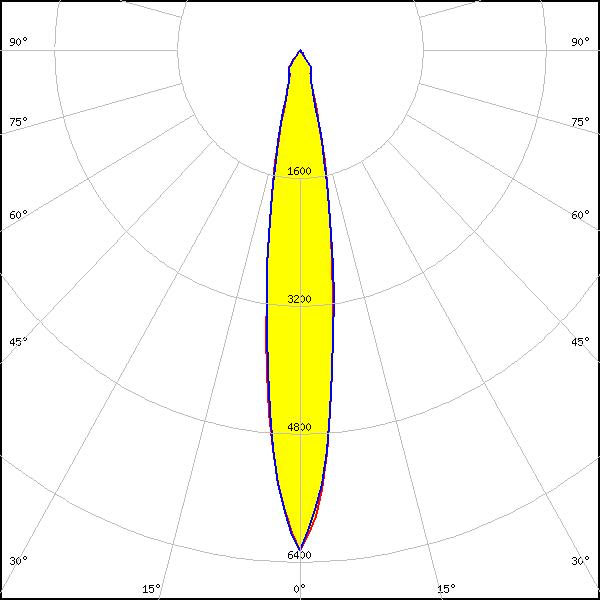

LED: CLU7B2
LES size: 3.3 mm
FWHM: 16°
FWTM: 34°
Peak intensity: 6.255 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

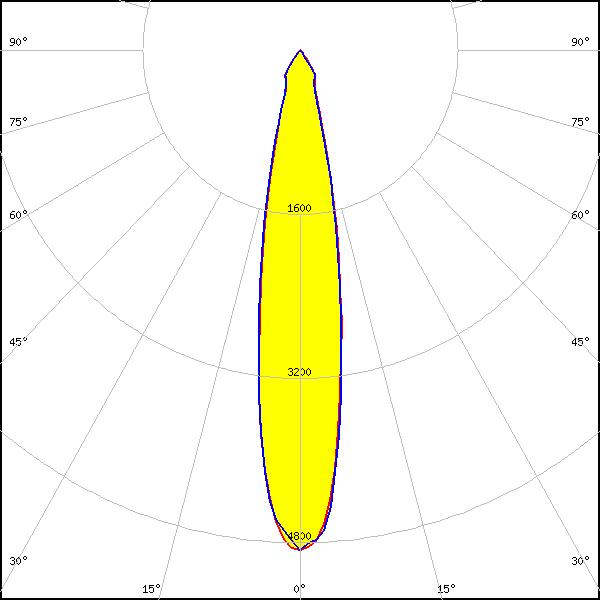

LED: CMA1303
LES size: 4.5 mm
FWHM: 20°
FWTM: 40°
Peak intensity: 4.969 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

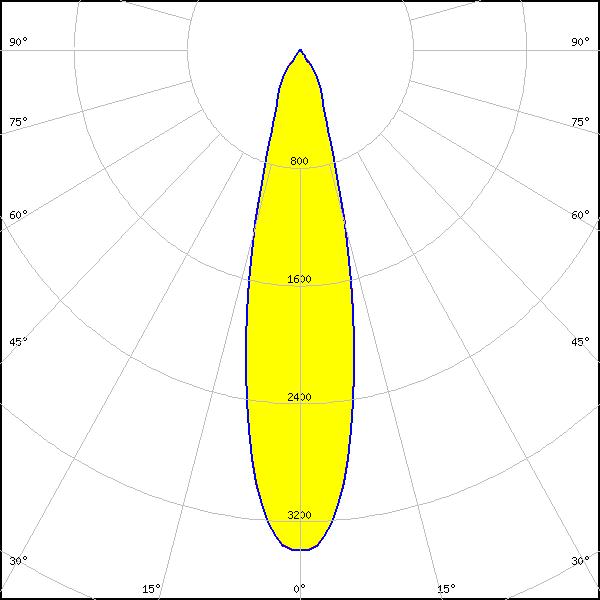

LED: CXA/B 13xx
LES size: 6.0 mm
FWHM: 26°
FWTM: 54°
Peak intensity: 3.436 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

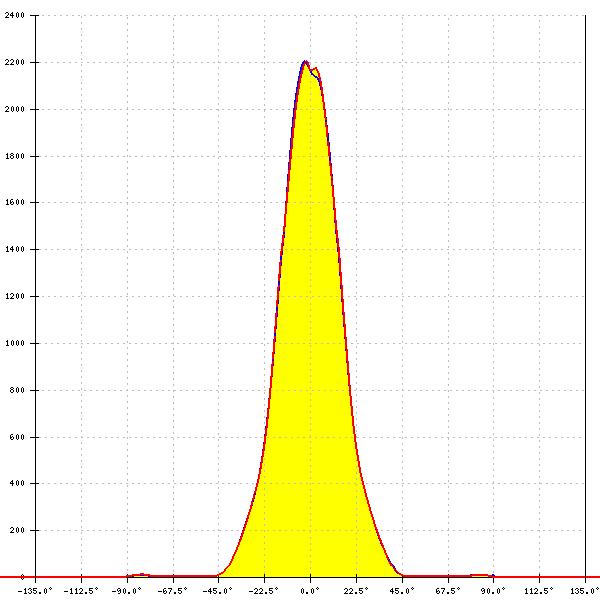

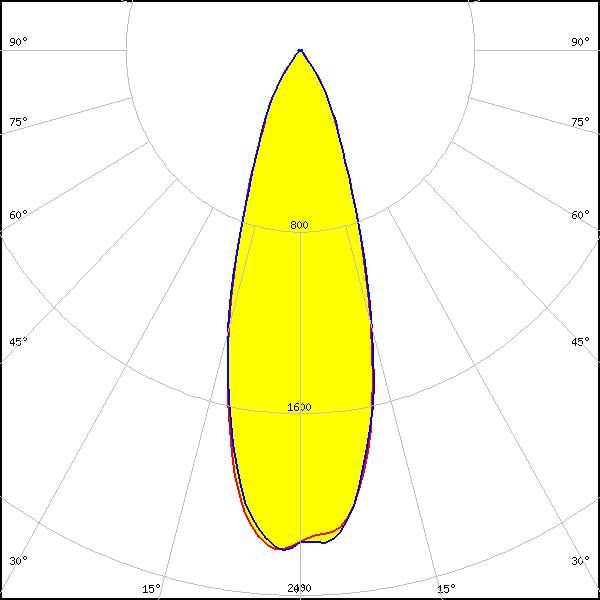

LED: CXA/B 15xx
LES size: 8.9 mm
FWHM: 33°
FWTM: 64°
Peak intensity: 2.245 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

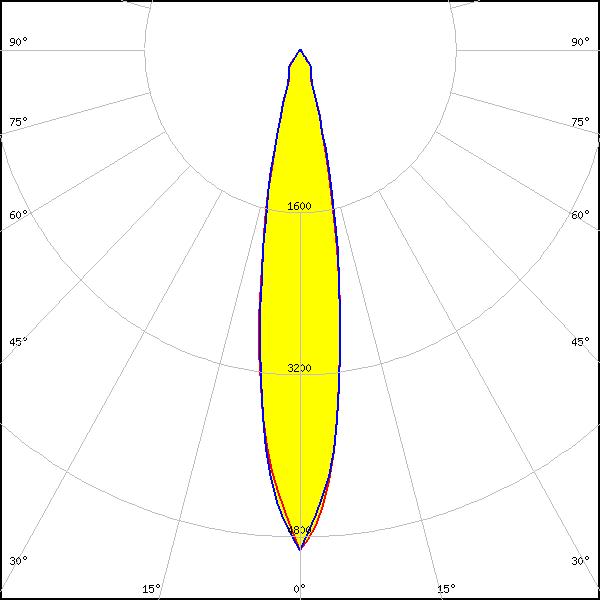

LED: XHP35.2 HD
LES size: 0.0 mm
FWHM: 19°
FWTM: 38°
Peak intensity: 4.933 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour/type: White

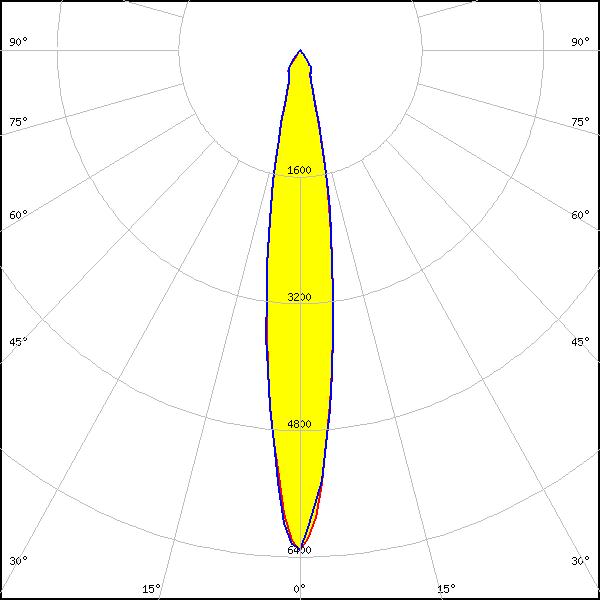

LED: CXM-3
LES size: 3.5 mm
FWHM: 16°
FWTM: 34°
Peak intensity: 6.315 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

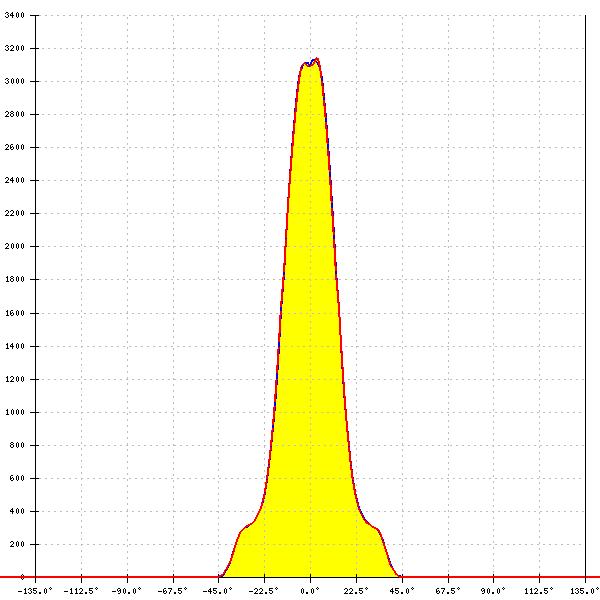

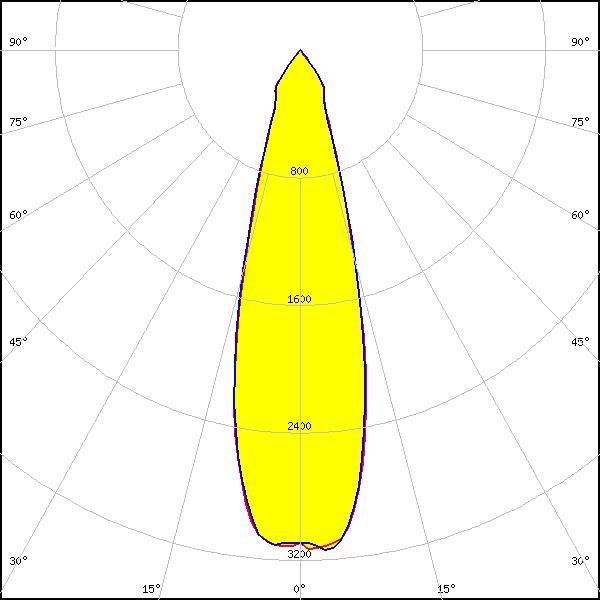

LED: NFMW48xA
LES size: 0.0 mm
FWHM: 29°
FWTM: 59°
Peak intensity: 3.000 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White
LED: SLE SNC8 LES06
LES size: 6.0 mm
FWHM: 24°
FWTM: 54°
Peak intensity: 3.393 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

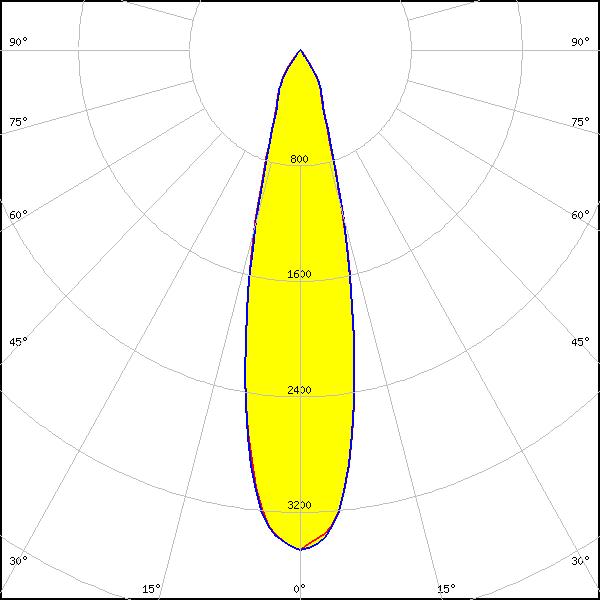

LED: XOB 6 mm
LES size: 6.0 mm
FWHM: 24°
FWTM: 53°
Peak intensity: 3.482 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

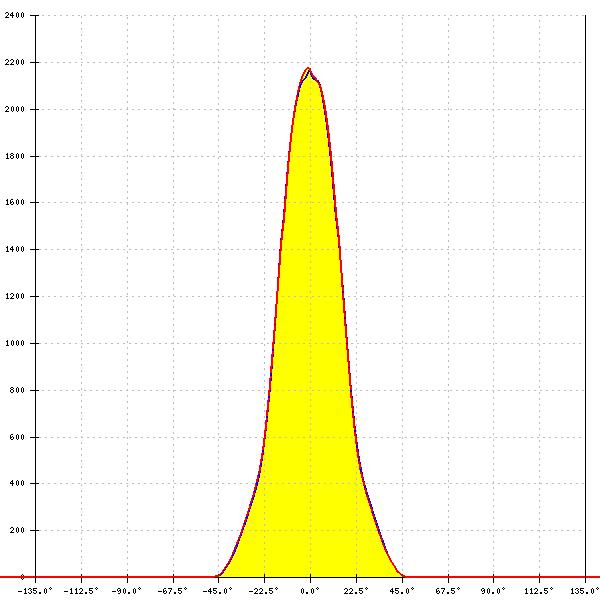

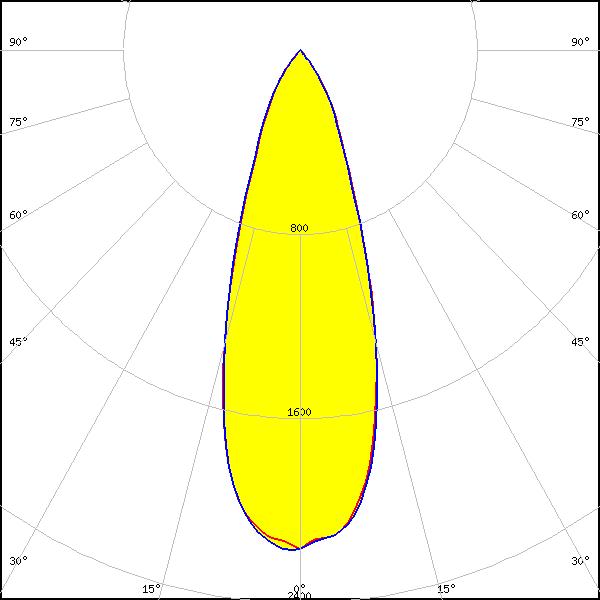

LED: XOB 9.8 mm
LES size: 9.8 mm
FWHM: 34°
FWTM: 66°
Peak intensity: 2.174 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
