C17264_STRADELLA-HB-S-PC

Print

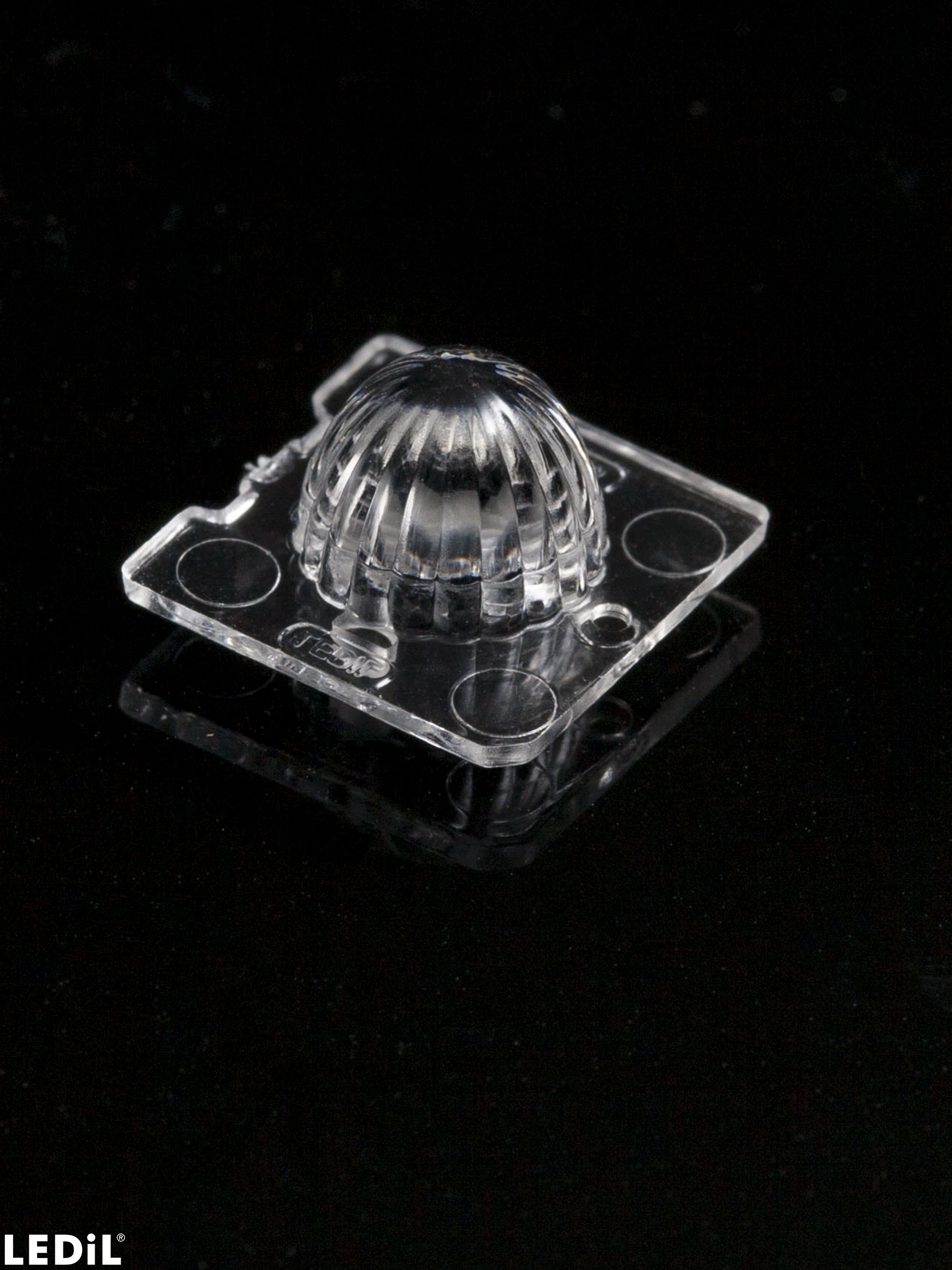

~25° spot beam for industrial applications. Variant made from PC.

Specification
  • Dimensions:
    14 x  14 mm
  • Height:
    7.50 mm
  • Fastening:
    pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    16000 pcs
  • Box size:
    480 x 250 x 390 mm
  • Box weight:
    10.3 kg
  • MPQ:
    1000 pcs
  • MOQ:
    1000 pcs
  • MOQ size:
    320 x 230 x 70 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C17264_STRADELLA-HB-S-PC

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

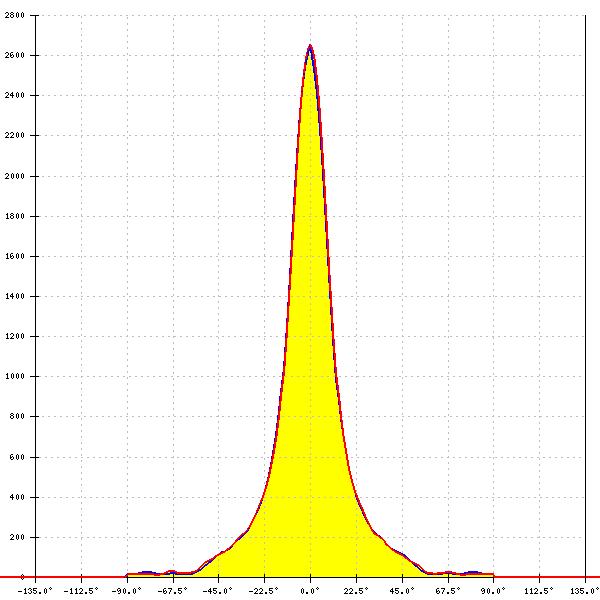

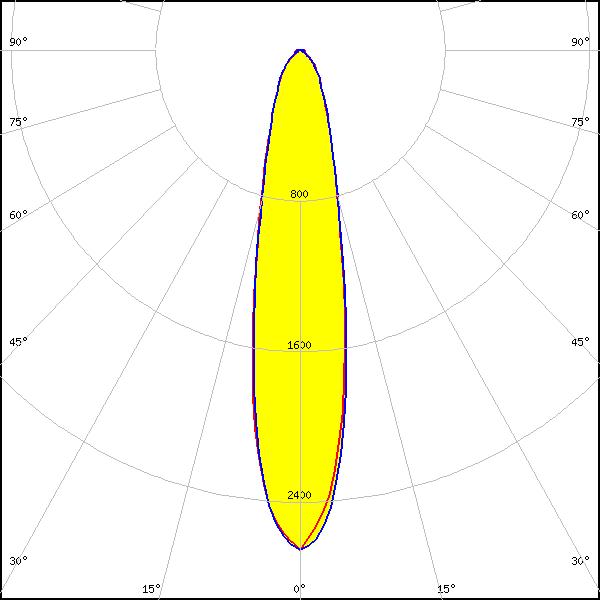

Optical results

LED: OSCONIQ C 2424
FWHM: 22°
FWTM: 58°
Peak intensity: 2.656 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
