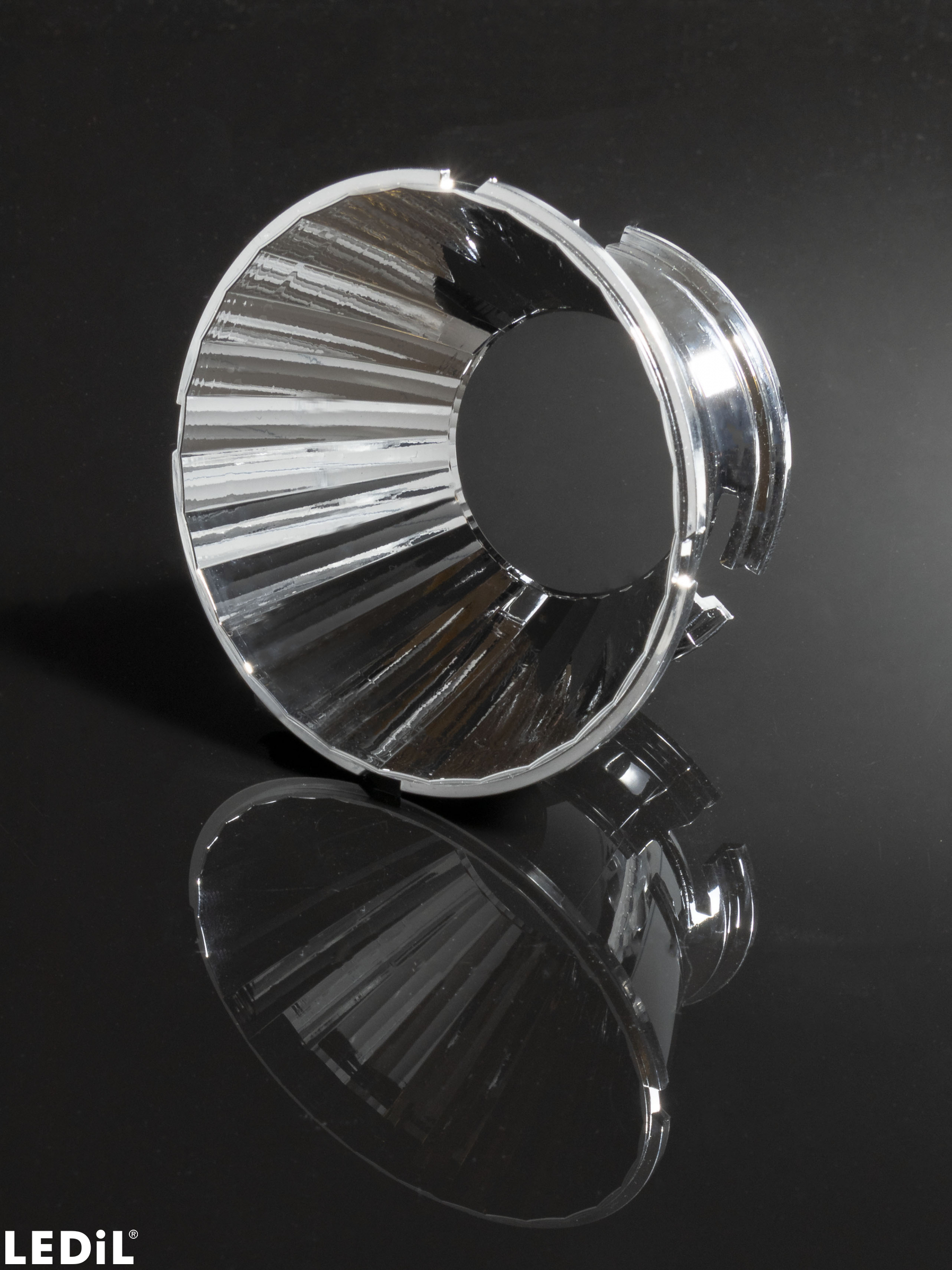

C17542_LENINA-S-HMDS

~19° spot beam

Dimensions:

74 mm
Height:

40.00 mm
Fastening:

socket
Colour:

metal
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Quantity in box:

60 pcs
Box size:

476 x 273 x 197 mm
Box weight:

2.0 kg
MPQ:

60 pcs
MOQ:

120 pcs
MOQ size:

480 x 280 x 200 mm
MOQ weight:

2.0 kg

Family datasheet
Product datasheet
2D mechanical drawing
Request a 3D mechanical model

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

ORDER ONLINE

LED: VERO18

LES size: 18.6 mm

Required components:

C13868_LENA-STD-BASE-VERO13-18

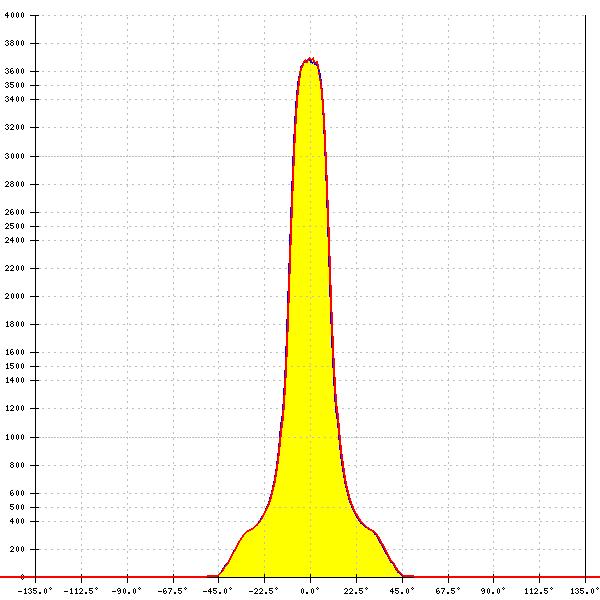

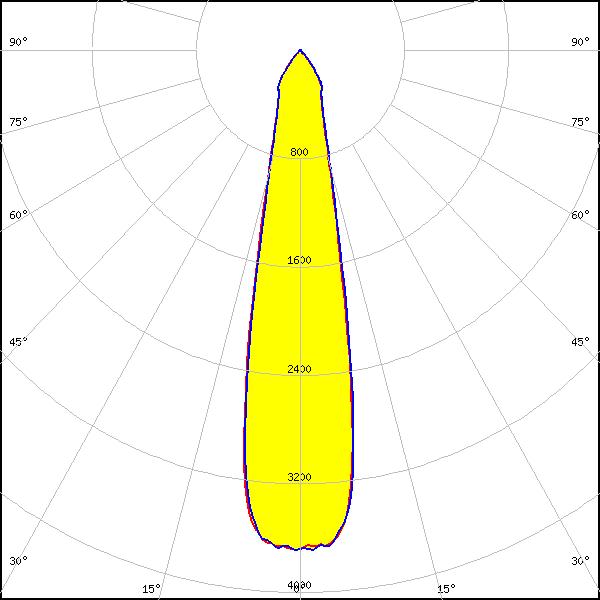

FWHM: 22°

FWTM: 53°

Peak intensity: 3.692 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files

LED: CLL03x/CLU03x

LES size: 14.5 mm

Required components:

C12691_LENA-STD-BASE-CLL030

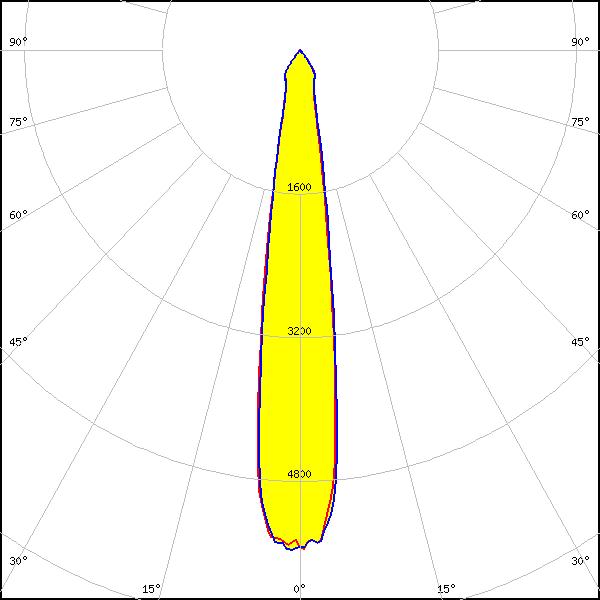

FWHM: 17°

FWTM: 36°

Peak intensity: 5.587 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

DATASHEET Light distribution files
