C19820_STRADA-2X2-5050-VSM
Print

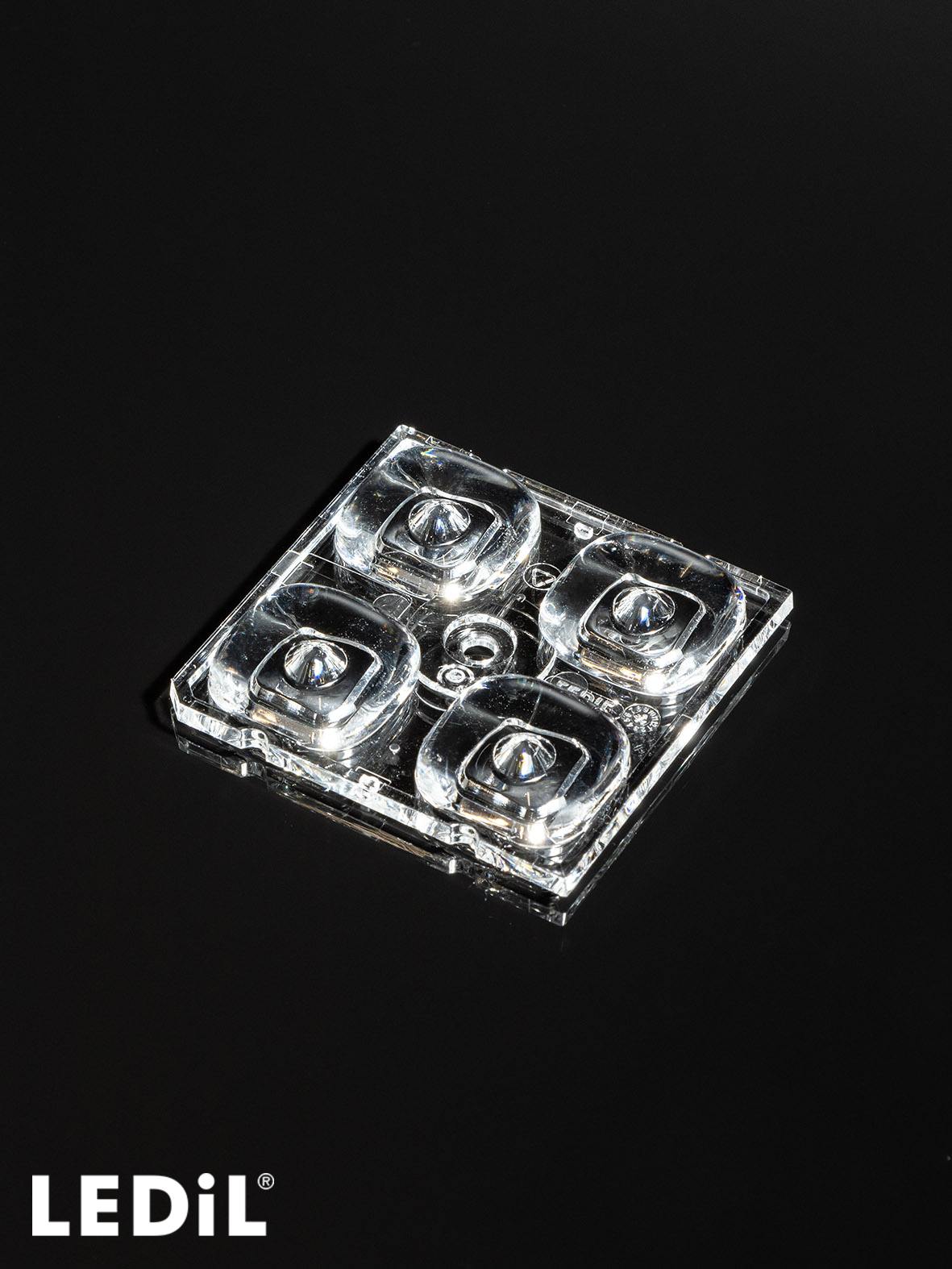

IESNA Type V (square) beam for wide areas lighting such as car parks.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

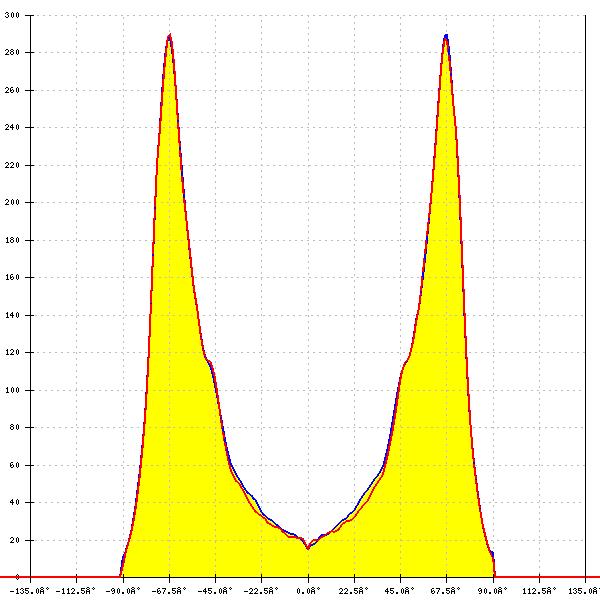

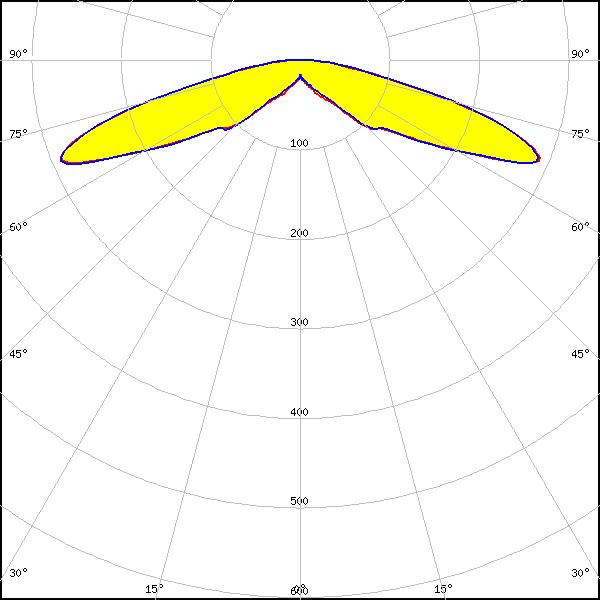

LED:
Bridgelux SMD 5050 (322-06DEF)
FWHM:
152°
FWTM:
170°
Peak intensity:
0.432 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Bridgelux SMD 5050 (322-06DEF)
FWHM:
151° + 152°
FWTM:
170° + 170°
Peak intensity:
0.464 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Bridgelux SMD 5050 (322-06DEF)
FWHM:
149° + 150°
FWTM:
162° + 164°
Peak intensity:
0.297 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-BRICK HP 2x2 UHE
FWHM:
153°
FWTM:
170°
Peak intensity:
0.462 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PL-BRICK HP 2x2 UHE
FWHM:
150°
FWTM:
164°
Peak intensity:
0.282 cd/lm
Efficiency:
66 %
LEDs/each optic:
1
Light colour/type:
White

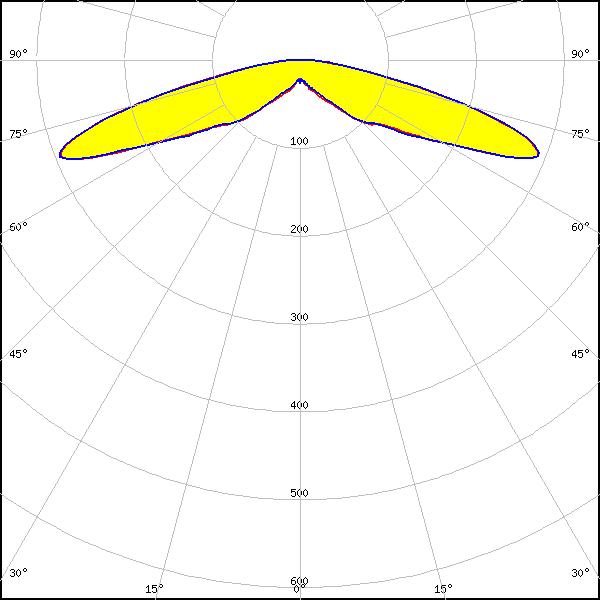

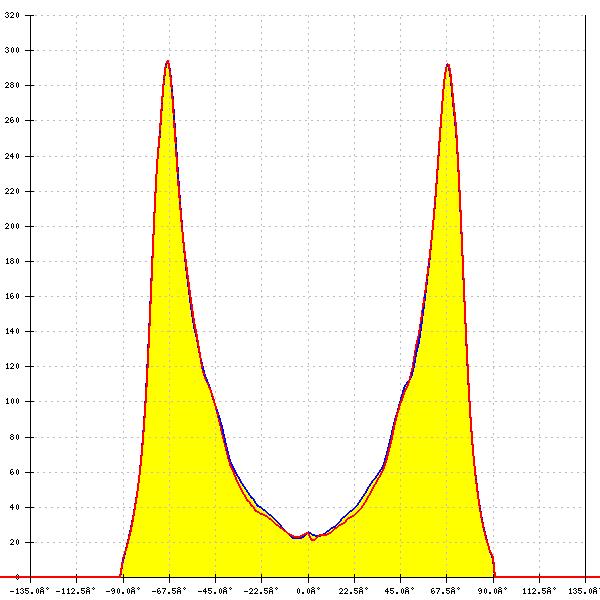

LED:

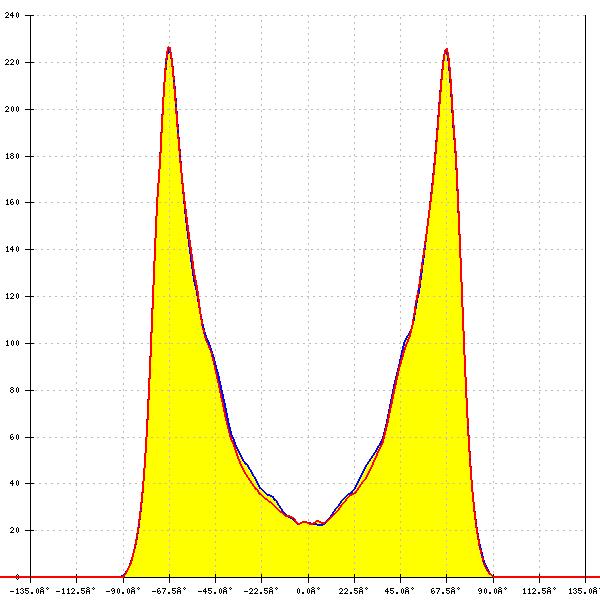

LUXEON 5050 HE
FWHM:
154°
FWTM:
172°
Peak intensity:
0.444 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

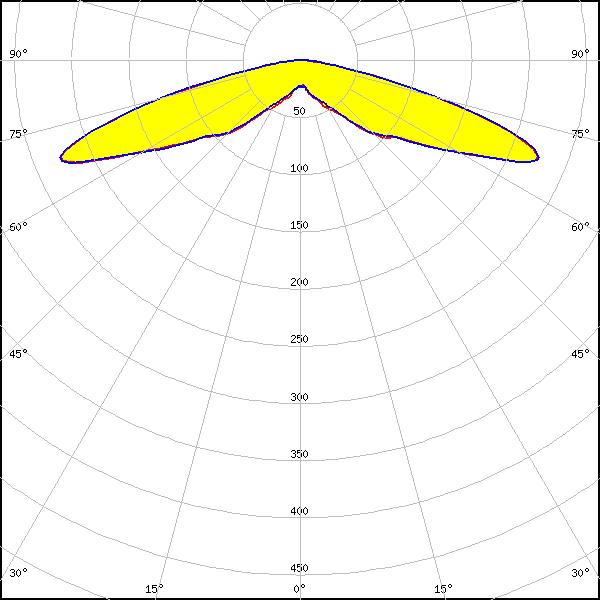

LED:
LUXEON 5050 HE
FWHM:
150°
FWTM:
164°
Peak intensity:
0.290 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

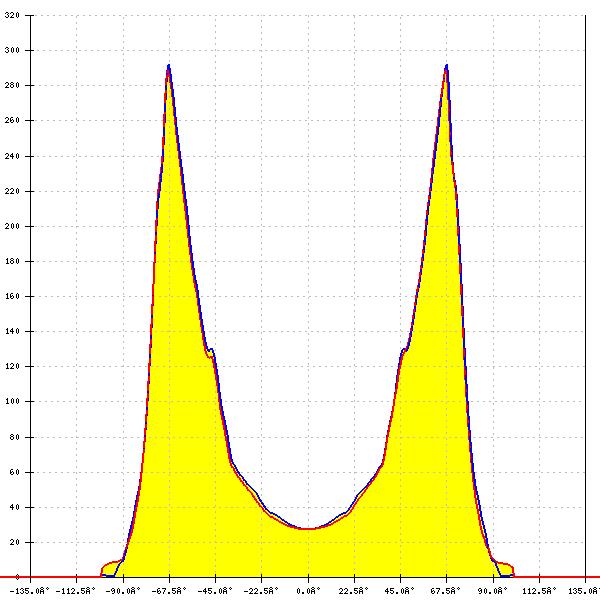

LED:

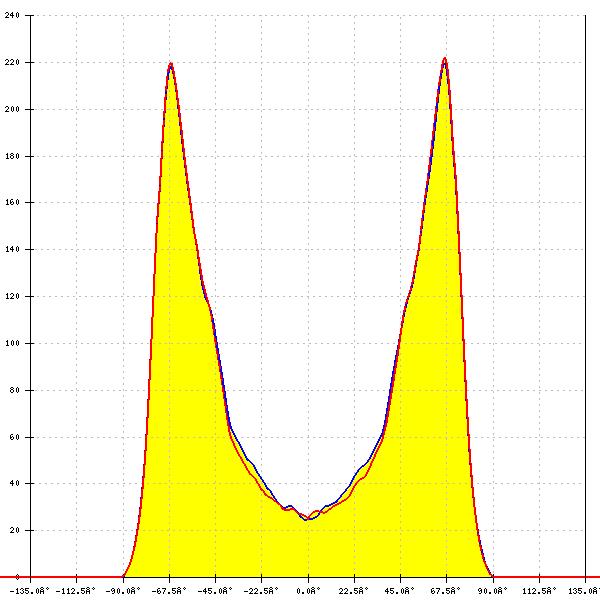

LUXEON 5050 HE Plus
FWHM:
150°
FWTM:
165°
Peak intensity:
0.268 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White

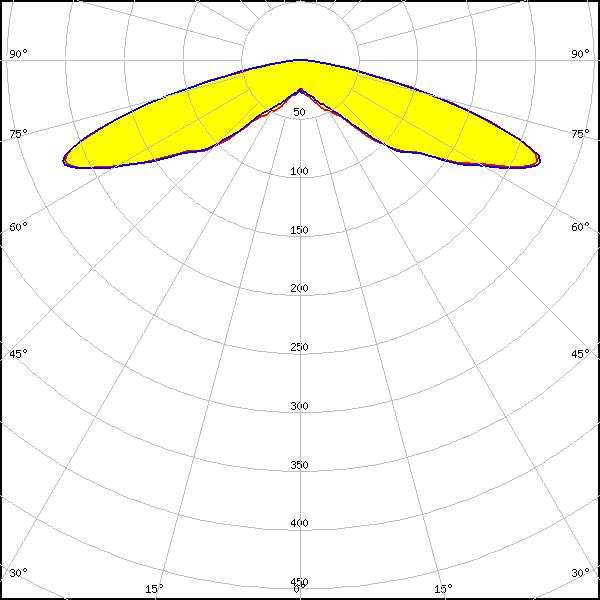

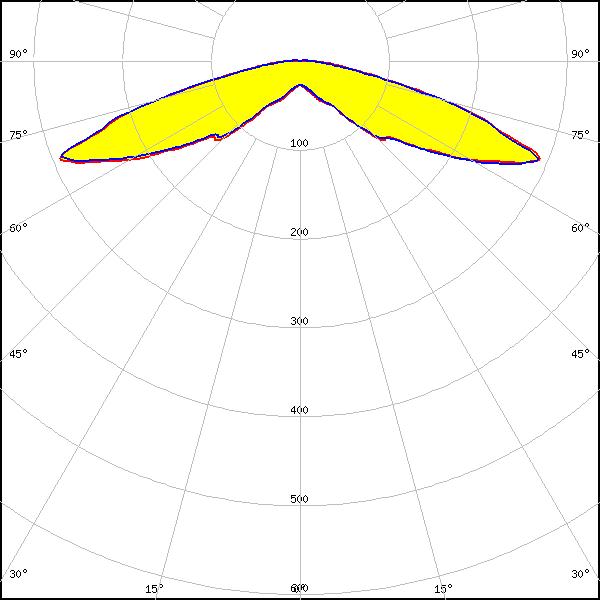

LED:
LUXEON 5050 HE Plus
FWHM:
151°
FWTM:
171°
Peak intensity:
0.445 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE Plus FC
FWHM:
152°
FWTM:
171°
Peak intensity:
0.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 5050 HE Plus FC
FWHM:
150°
FWTM:
164°
Peak intensity:
0.305 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

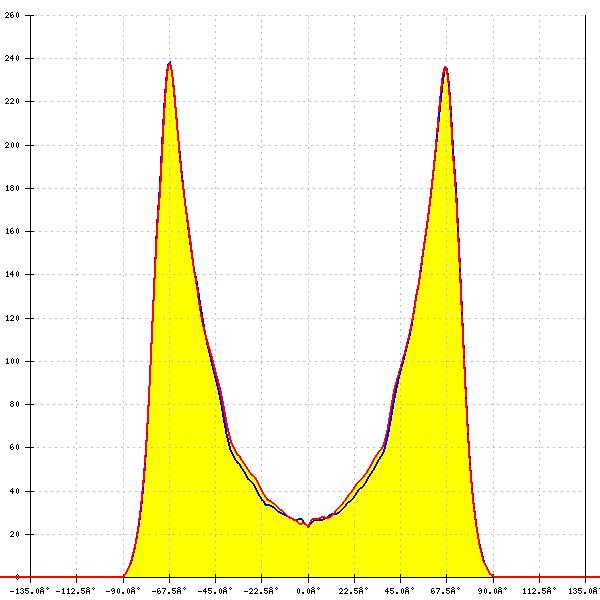

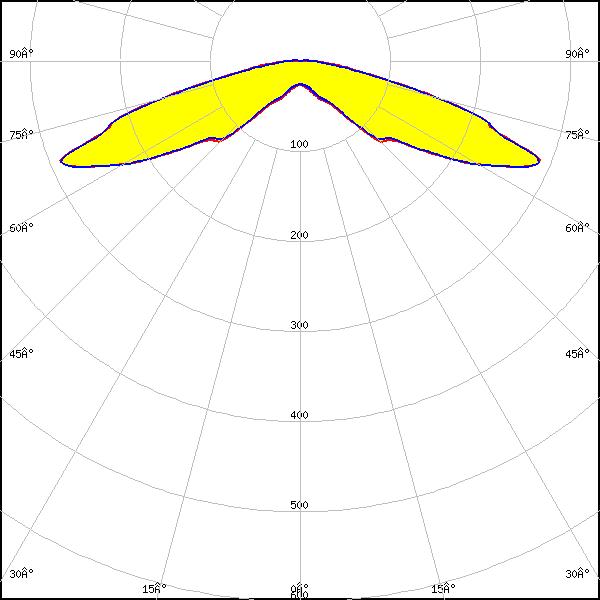

LED:

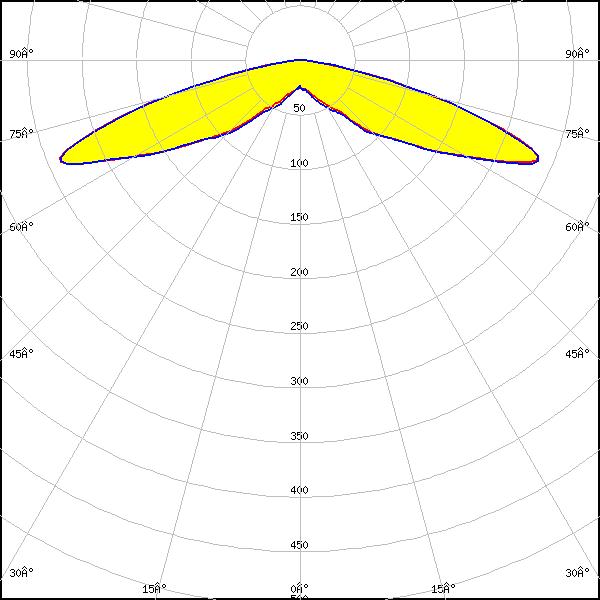

LUXEON 5050 Square LES
FWHM:
150°
FWTM:
164°
Peak intensity:
0.290 cd/lm
Efficiency:
69 %
LEDs/each optic:
1
Light colour/type:
White
LED:

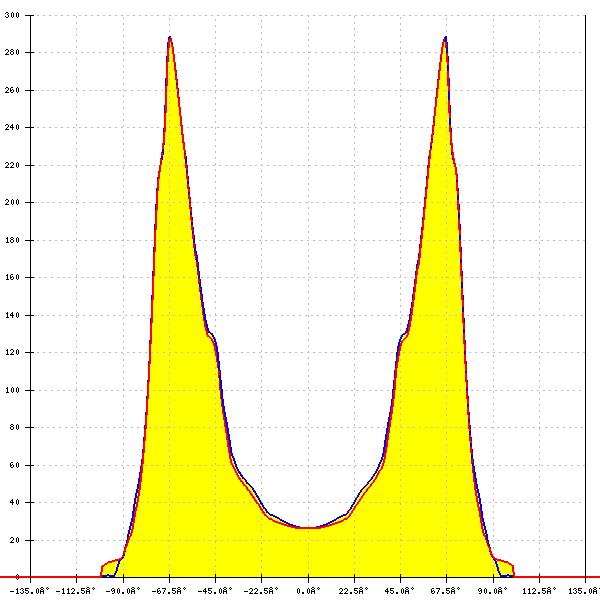

LUXEON 5050 Square LES
FWHM:
151°
FWTM:
171°
Peak intensity:
0.443 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

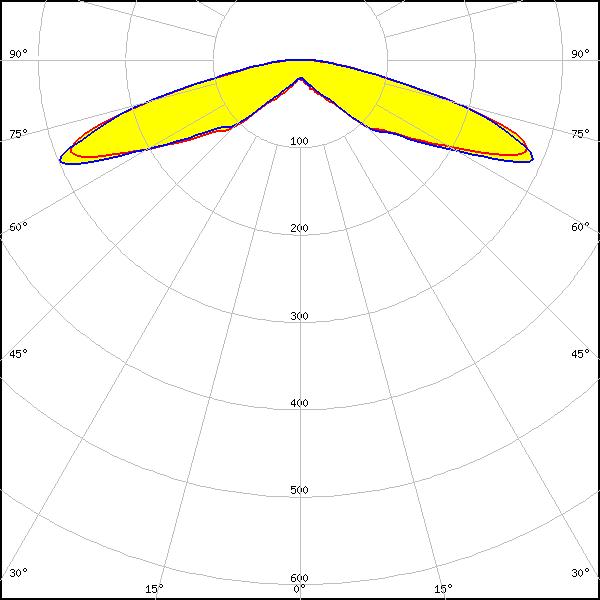

LED:

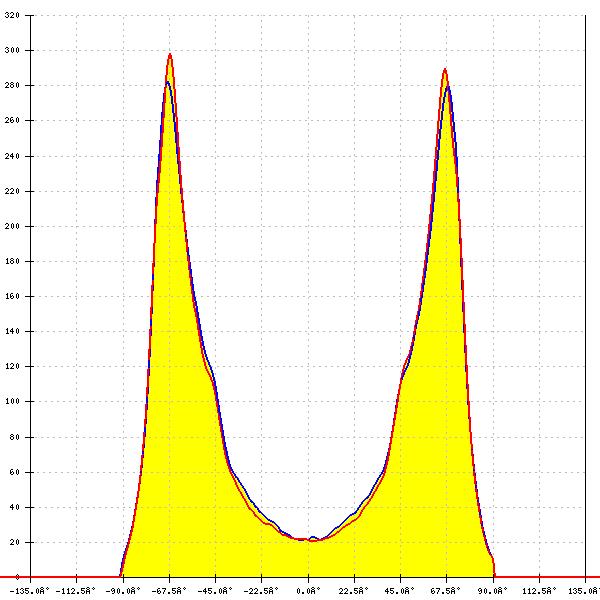

MP-5050-240E_810E
FWHM:
152°
FWTM:
170°
Peak intensity:
0.428 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

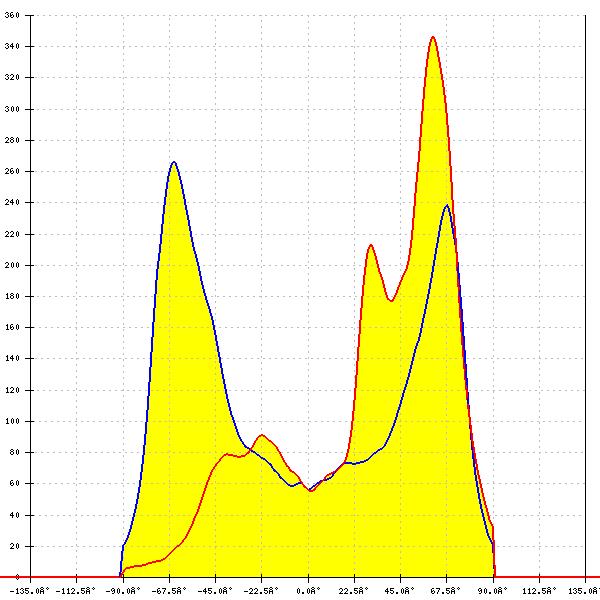

LED:
MP-5050-240E_810E
Required components:
FWHM: asymmetric
Peak intensity:
0.393 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

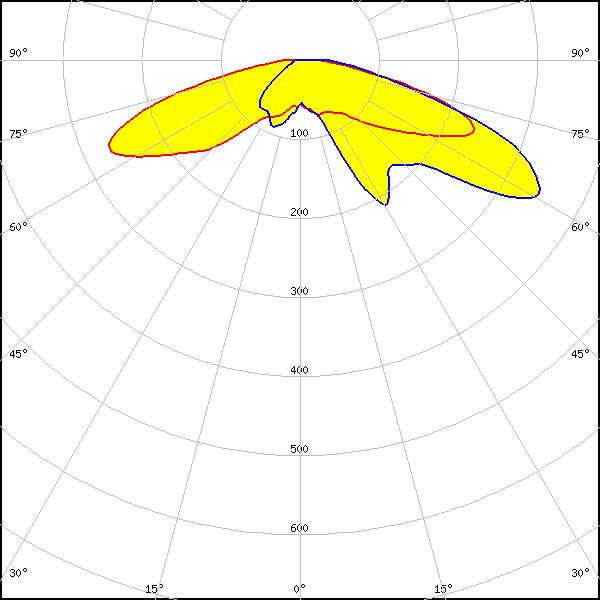

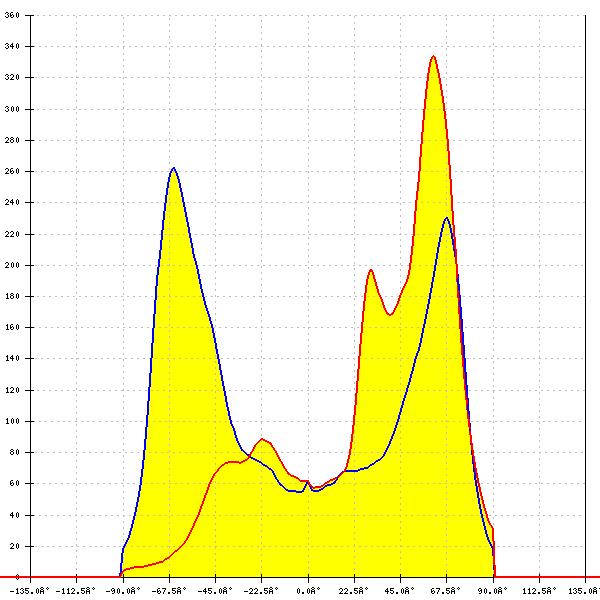

LED:
MP-5050-240E_810E
Required components:
FWHM: asymmetric
Peak intensity:
0.383 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White

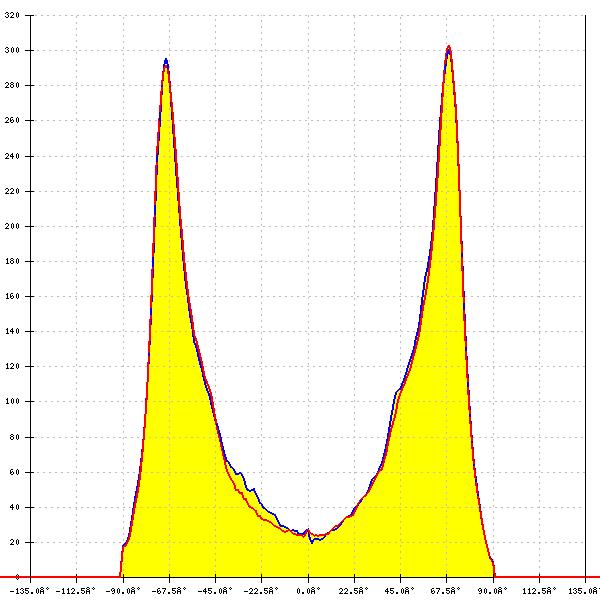

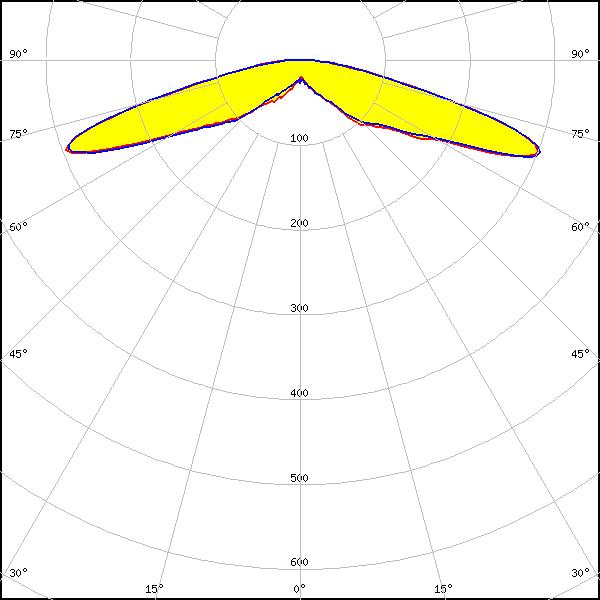

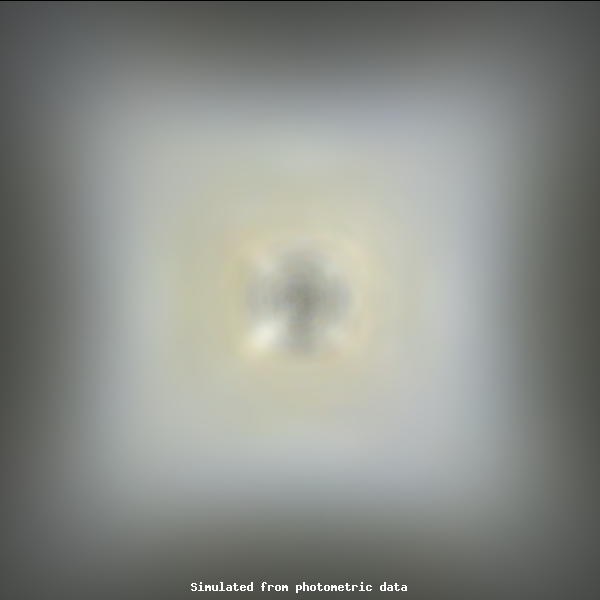

LED:
NFMW486AM-V2
FWHM:
152°
FWTM:
171°
Peak intensity:
0.444 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

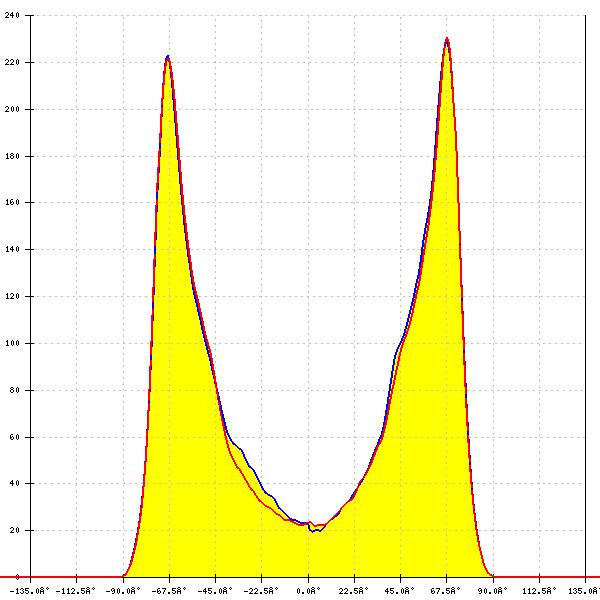

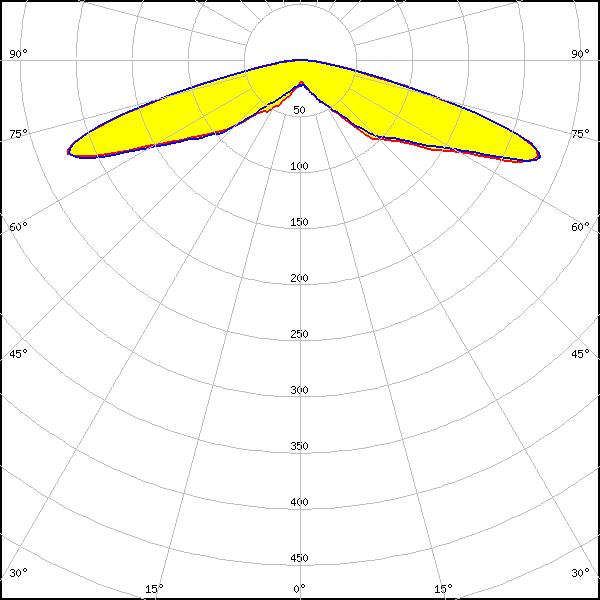

LED:
NFMW486AM-V2
FWHM:
150°
FWTM:
164°
Peak intensity:
0.279 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White

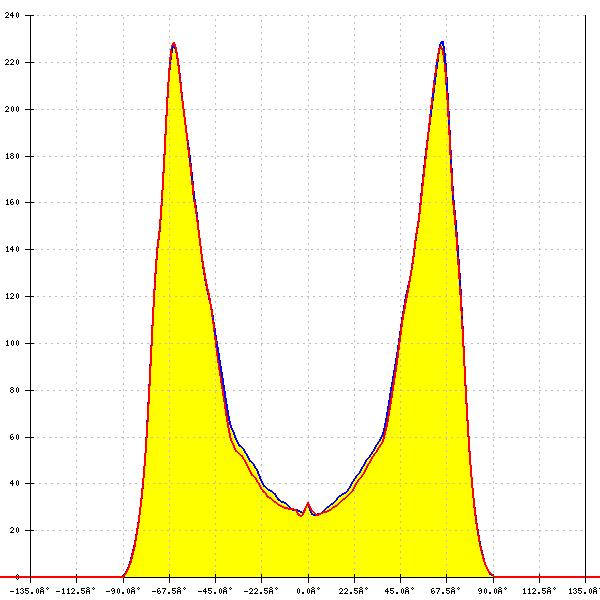

LED:

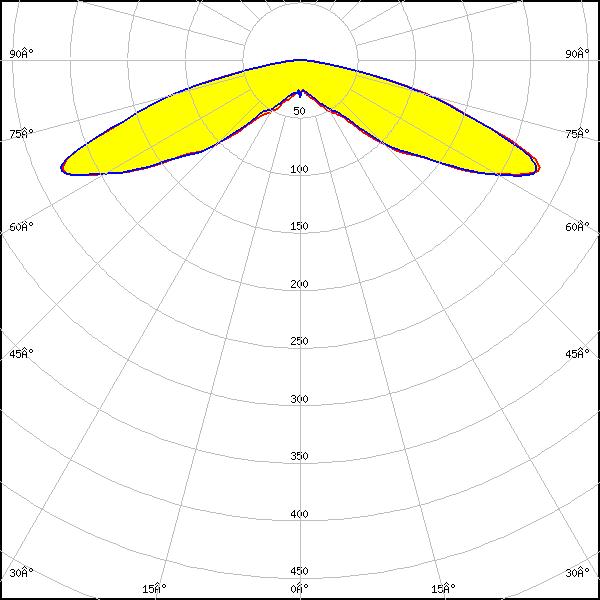

Duris S8
FWHM:
150°
FWTM:
164°
Peak intensity:
0.271 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM:
152°
FWTM:
170°
Peak intensity:
0.502 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR35)
FWHM:
150°
FWTM:
164°
Peak intensity:
0.305 cd/lm
Efficiency:
67 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR37)
FWHM:
152°
FWTM:
170°
Peak intensity:
0.469 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ S 5050 (Q9LR37)
FWHM:
150°
FWTM:
163°
Peak intensity:
0.296 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

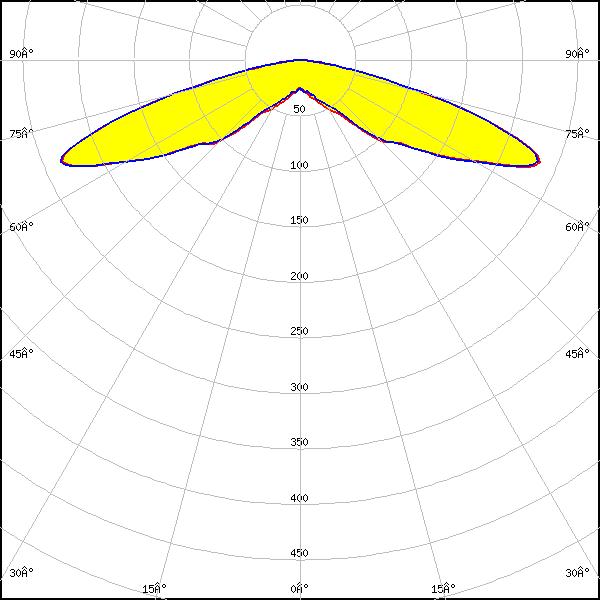

LED:

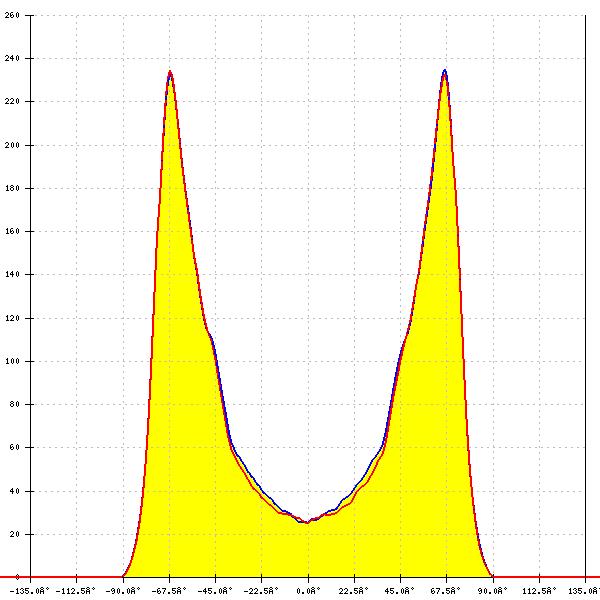

LH502D
FWHM:
150°
FWTM:
164°
Peak intensity:
0.290 cd/lm
Efficiency:
70 %
LEDs/each optic:
1
Light colour/type:
White

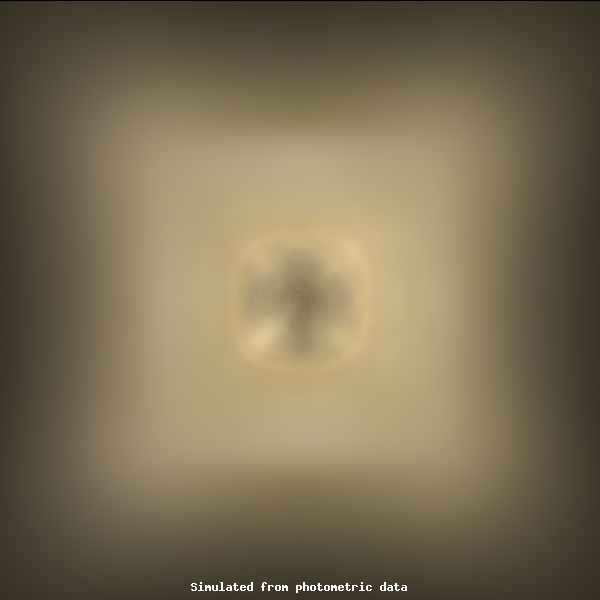

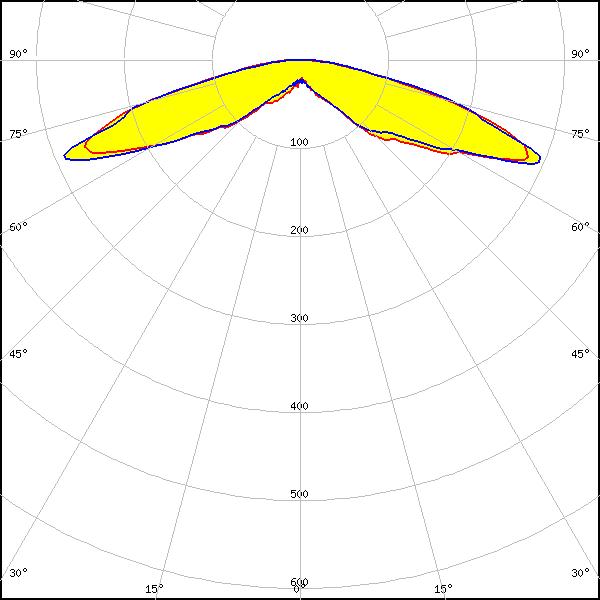

LED:

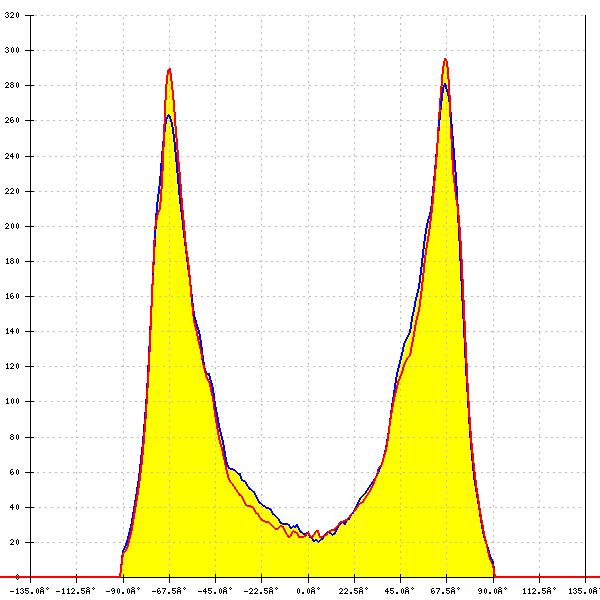

Seoul 5050 G-Series
FWHM:
152°
FWTM:
171°
Peak intensity:
0.445 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

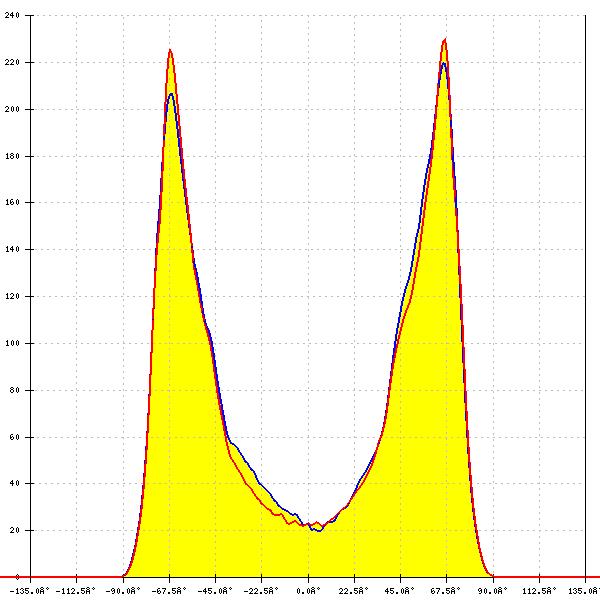

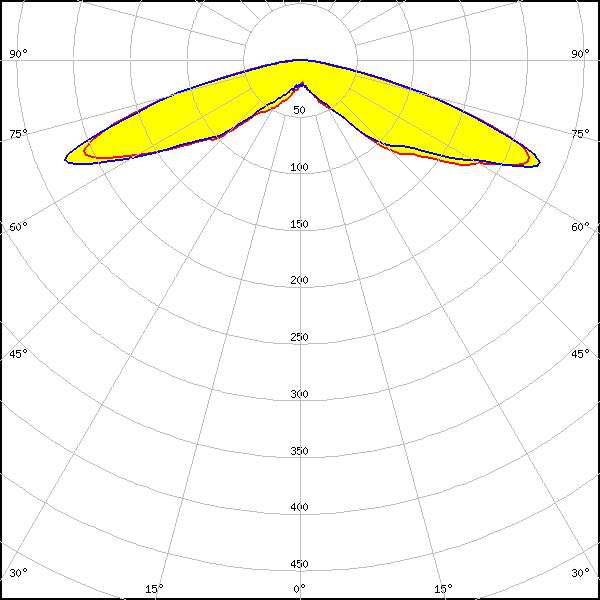

LED:
Seoul 5050 G-Series
FWHM:
150°
FWTM:
164°
Peak intensity:
0.283 cd/lm
Efficiency:
68 %
LEDs/each optic:
1
Light colour/type:
White

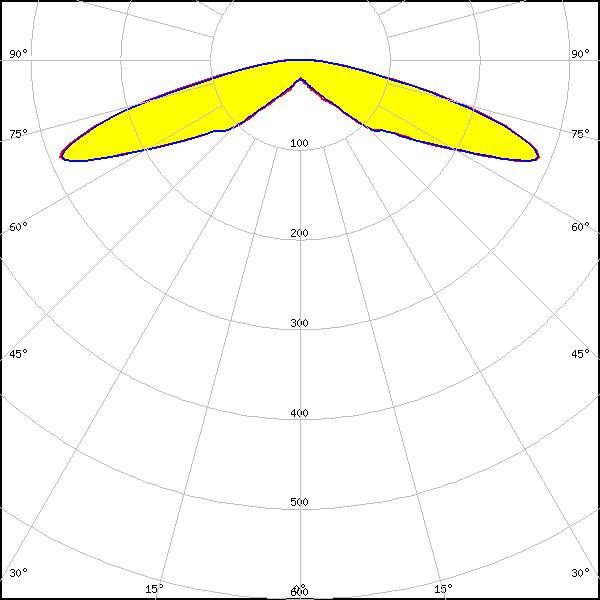

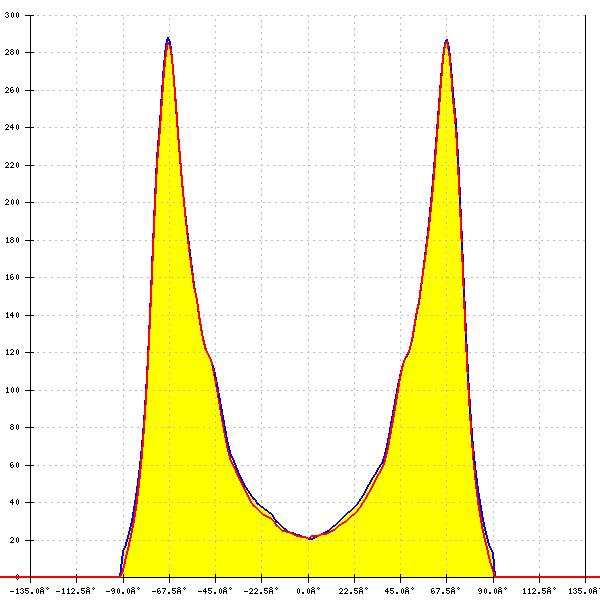

LED:
RLE 2x8 6000lm HP HE EXC3 OTD
FWHM: asymmetric
Peak intensity:
0.425 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
RLE 2x8 6000lm HP HE EXC3 OTD
FWHM:
150°
FWTM:
164°
Peak intensity:
0.288 cd/lm
Efficiency:
71 %
LEDs/each optic:
1
Light colour/type:
White
