    CA11174_TINA2-M

    Print

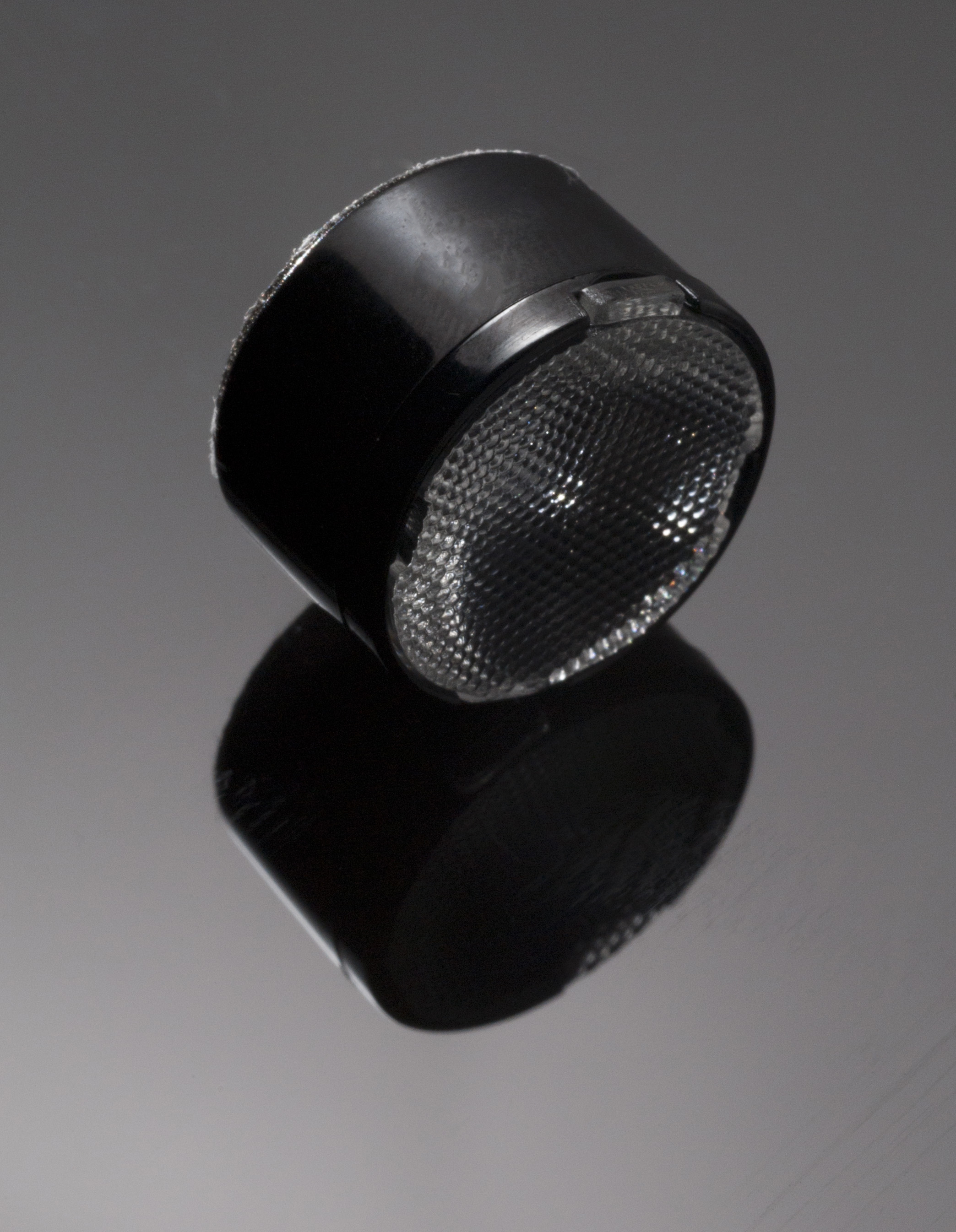

    ~30° medium beam optimized for Nichia NS6x83. Assembly with holder and installation tape.

    Specification
    • Dimensions:
      16 mm
    • Height:
      11.00 mm
    • Fastening:
      tape
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      4140 pcs
    • Box size:
      451 x 241 x 298 mm
    • Box weight:
      8.4 kg
    • MPQ:
      230 pcs
    • MOQ:
      230 pcs
    • MOQ size:
      460 x 250 x 40 mm
    • MOQ weight:
      0.8 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA11174_TINA2-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Case story

    Football pitch

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    TriBeCa apartment building

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

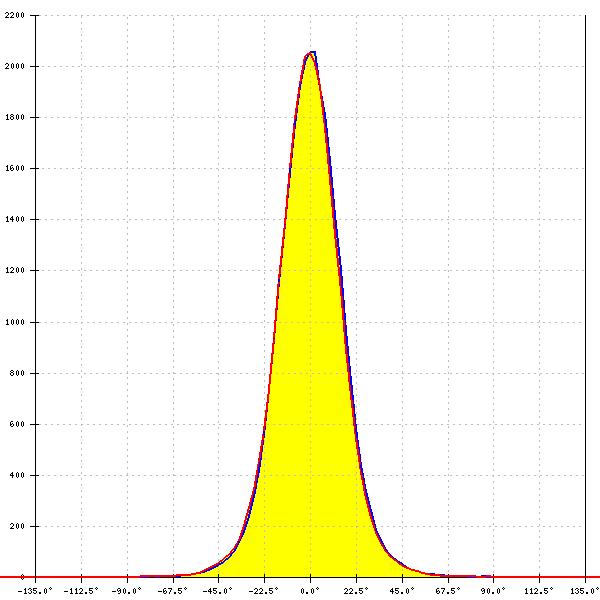

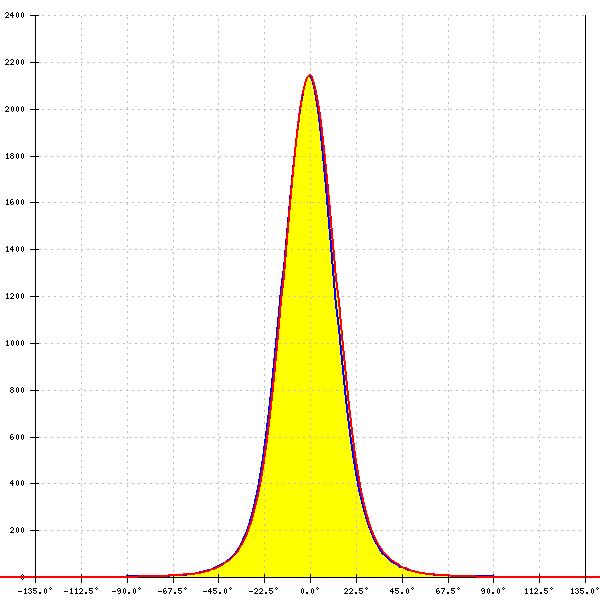

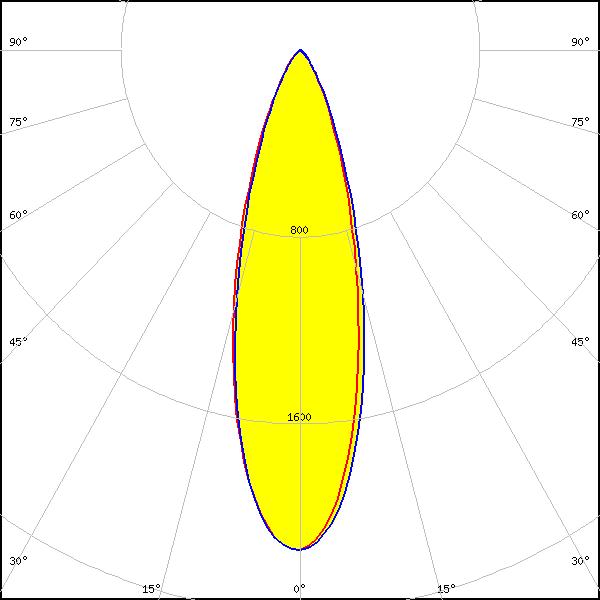

    Optical results

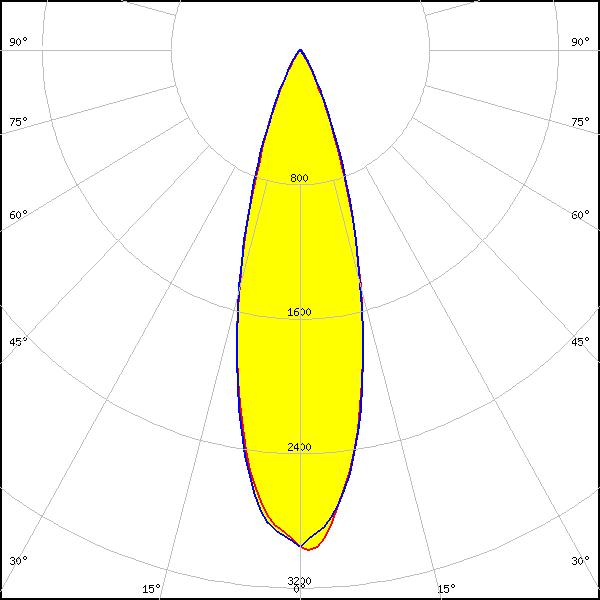

    LED: MX-6
    FWHM: 30°
    FWTM: 60°
    Peak intensity: 2.200 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

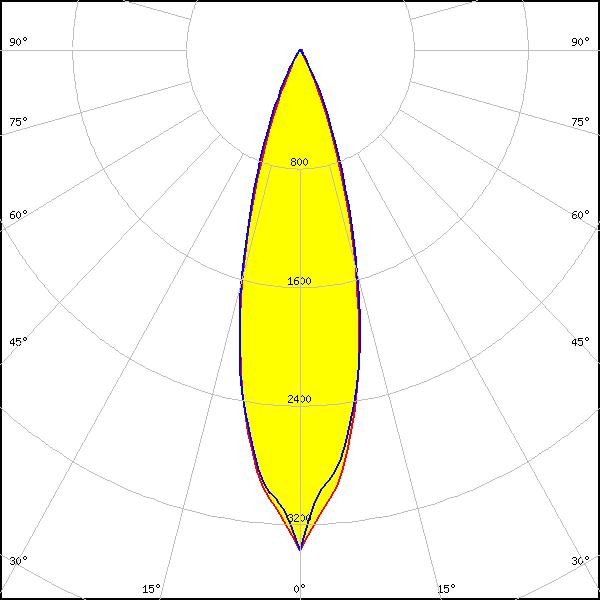

    LED: XP-E2
    FWHM: 28°
    FWTM: 51°
    Peak intensity: 3.374 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White

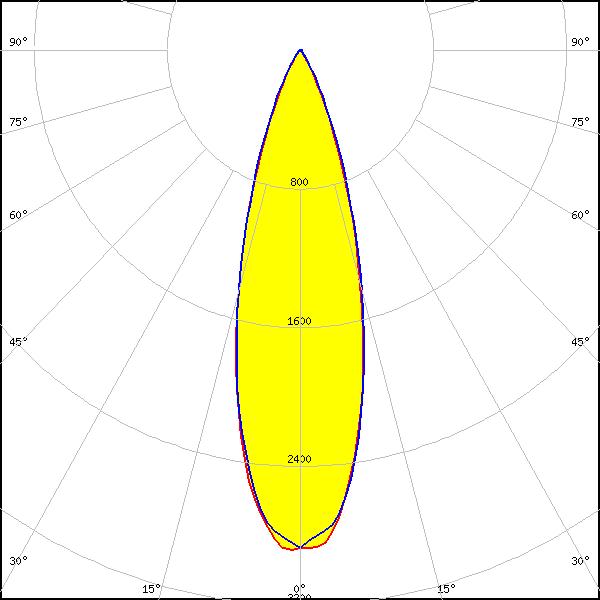

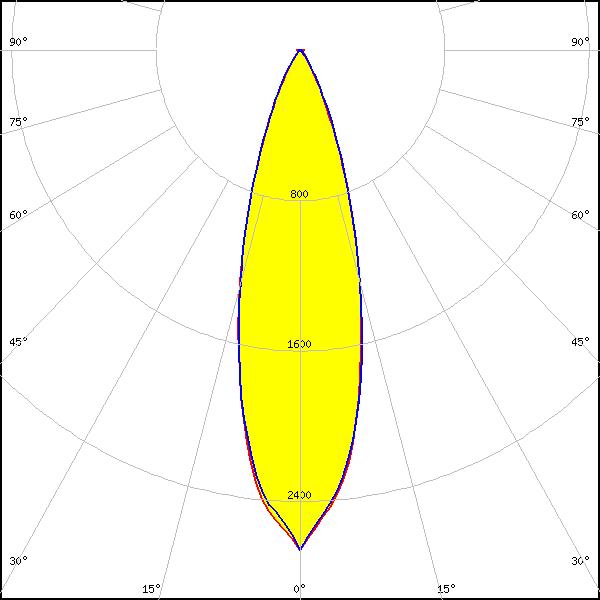

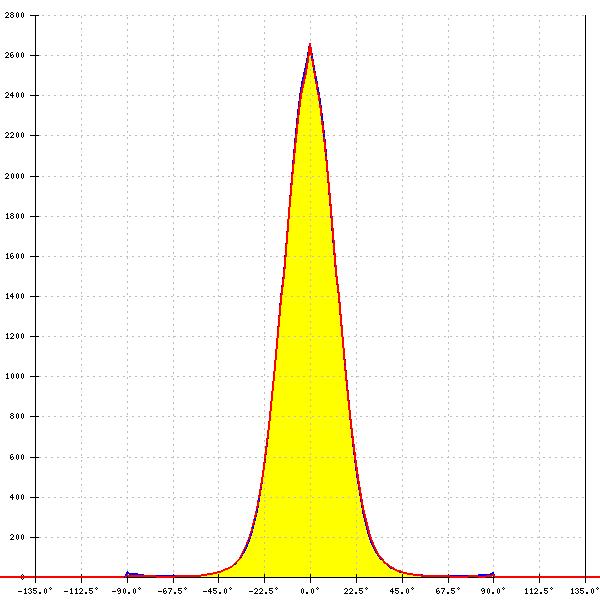

    LED: XP-G3
    FWHM: 30°
    FWTM: 56°
    Peak intensity: 2.661 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-G4
    FWHM: 30°
    FWTM: 53°
    Peak intensity: 2.976 cd/lm
    Efficiency: 90 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XP-L HI
    FWHM: 30°
    FWTM: 54°
    Peak intensity: 2.893 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

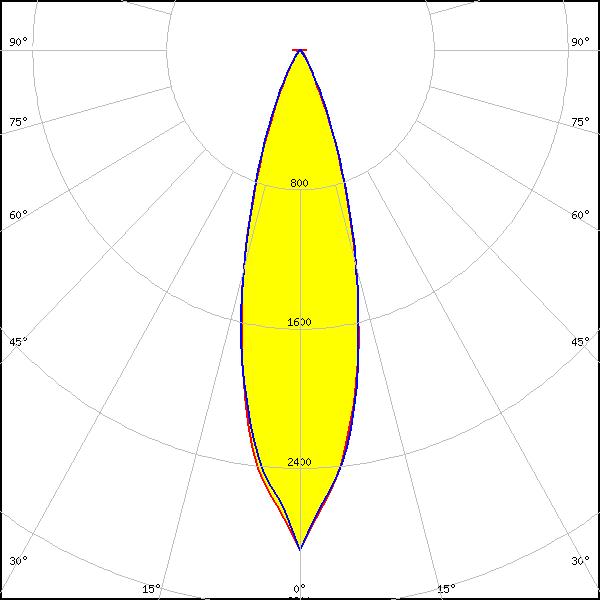

    LED: XT-E
    FWHM: 28°
    FWTM: 52°
    Peak intensity: 2.870 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

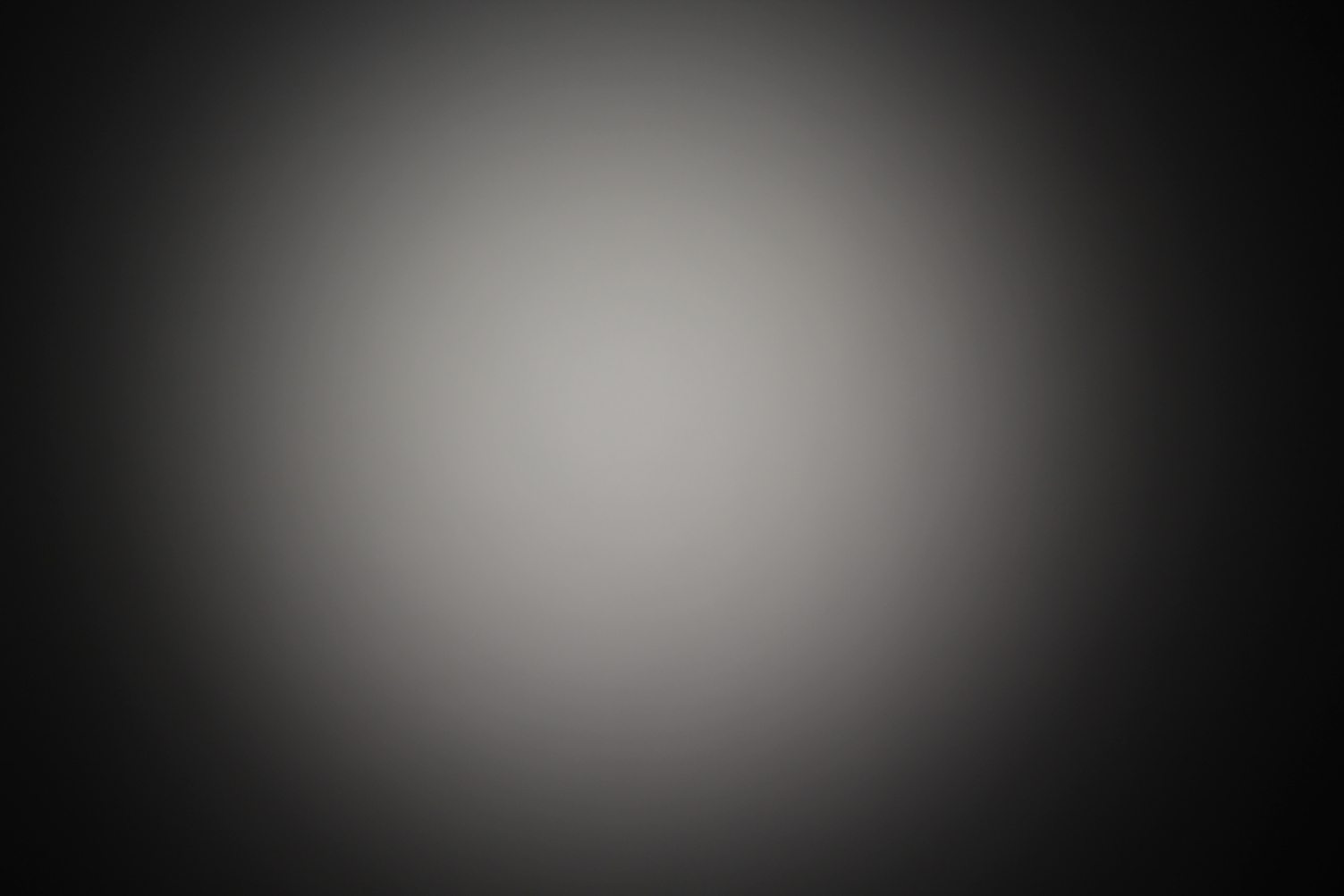

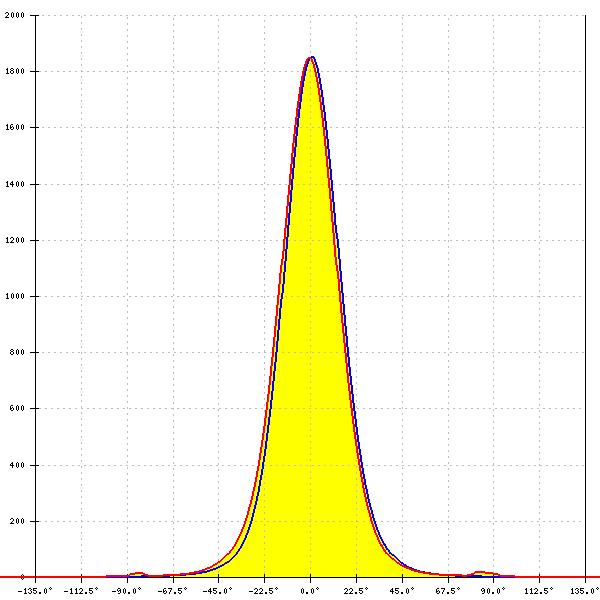

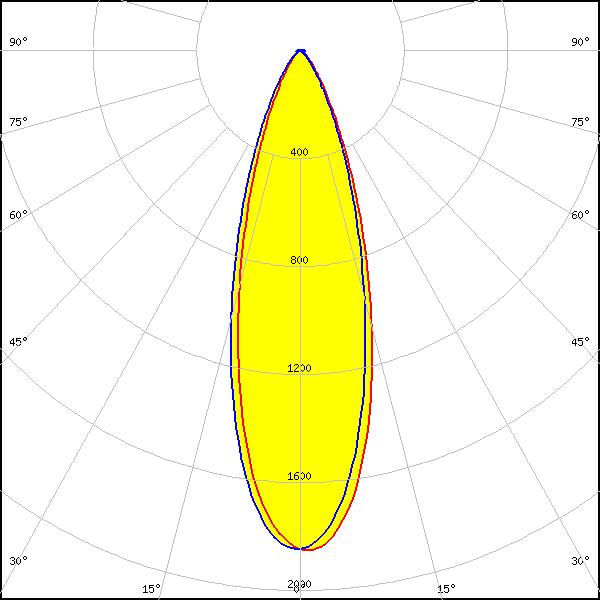

    LED: LUXEON V
    FWHM: 32°
    FWTM: 63°
    Peak intensity: 1.900 cd/lm
    Efficiency: 75 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS3x83
    FWHM: 32°
    FWTM: 60°
    Peak intensity: 2.200 cd/lm
    LEDs/each optic: 1
    Light colour/type: White
    LED: NS6x83
    FWHM: 30°
    FWTM: 60°
    Peak intensity: 2.300 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

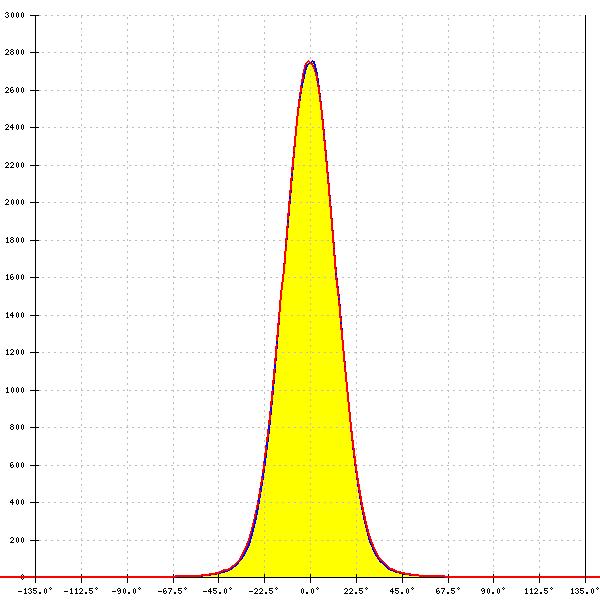

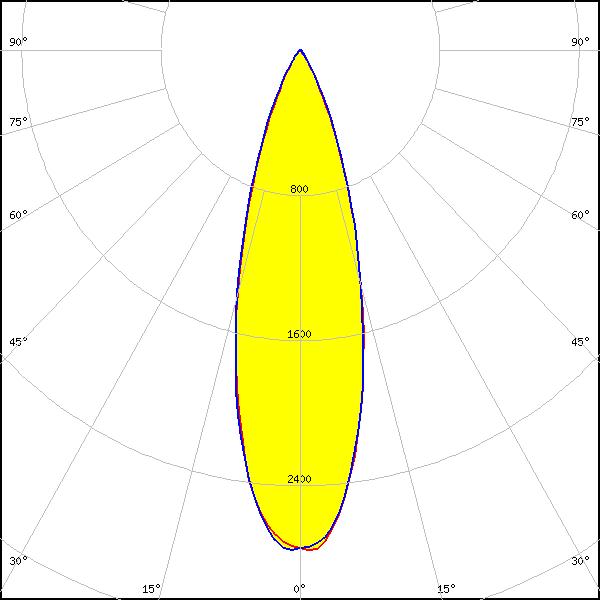

    LED: NVSW219F
    FWHM: 30°
    FWTM: 55°
    Peak intensity: 2.767 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

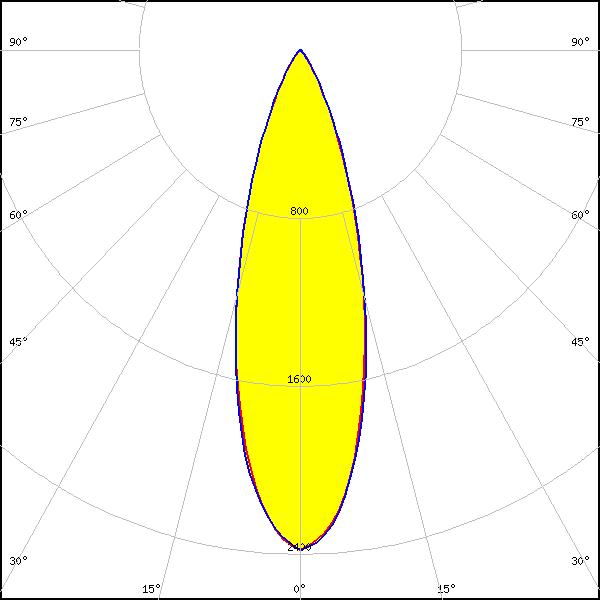

    LED: NVSW519A
    FWHM: 30°
    FWTM: 58°
    Peak intensity: 2.392 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OLP-x5050F6L
    FWHM: 34°
    FWTM: 64°
    Peak intensity: 2.100 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

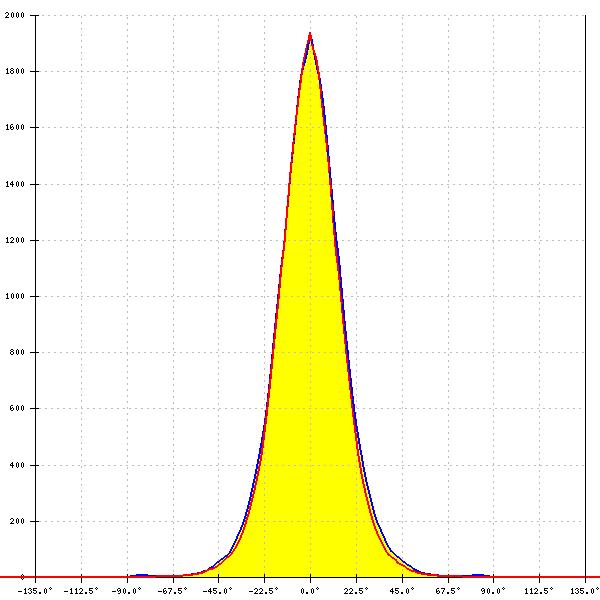

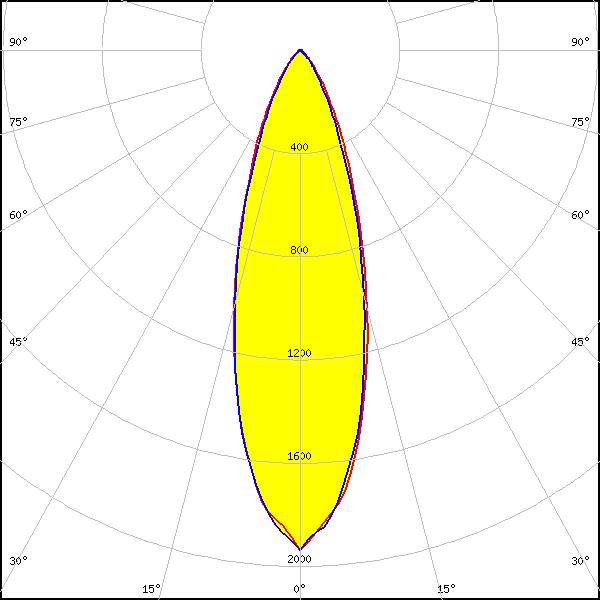

    LED: Duris S8
    FWHM: 31°
    FWTM: 65°
    Peak intensity: 1.940 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

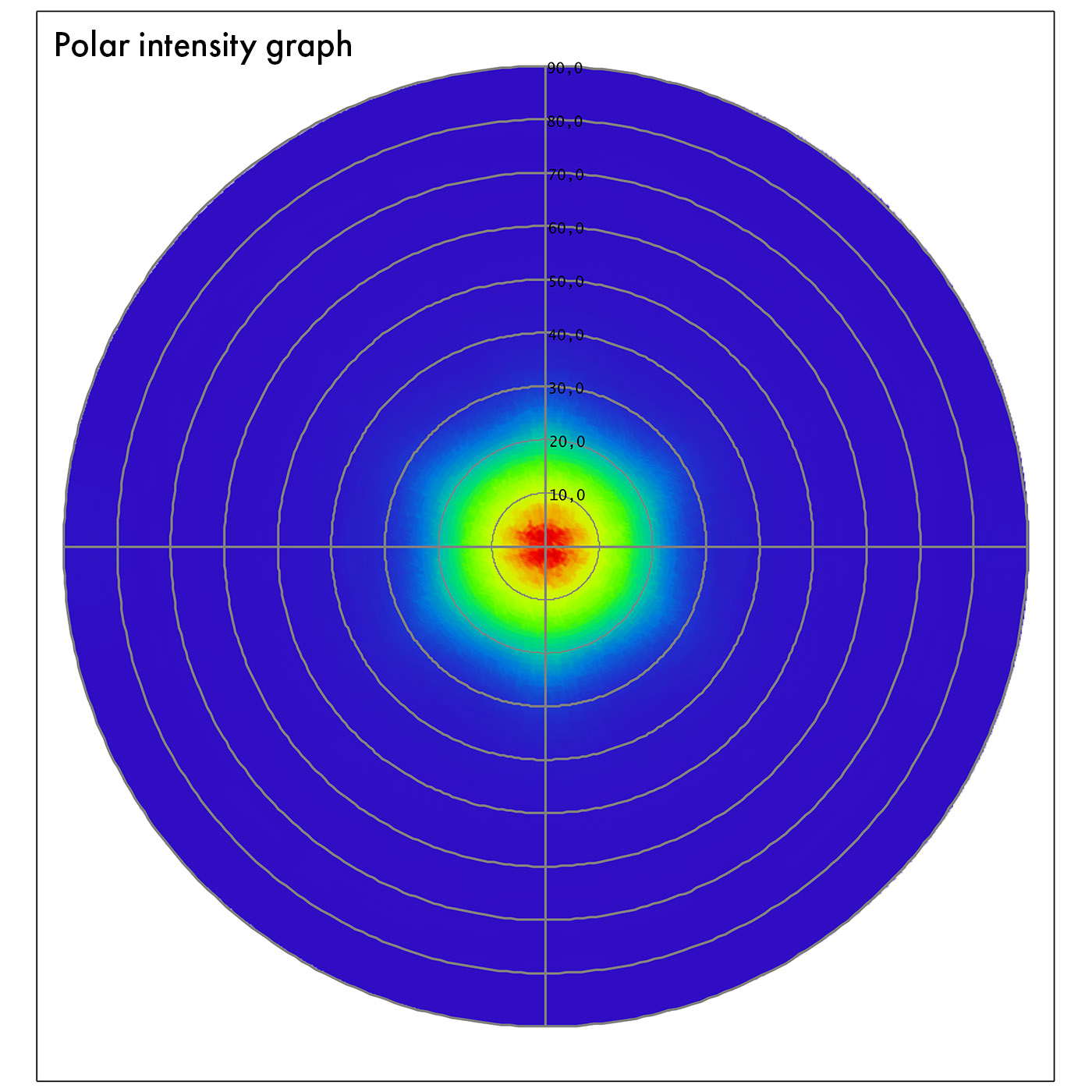

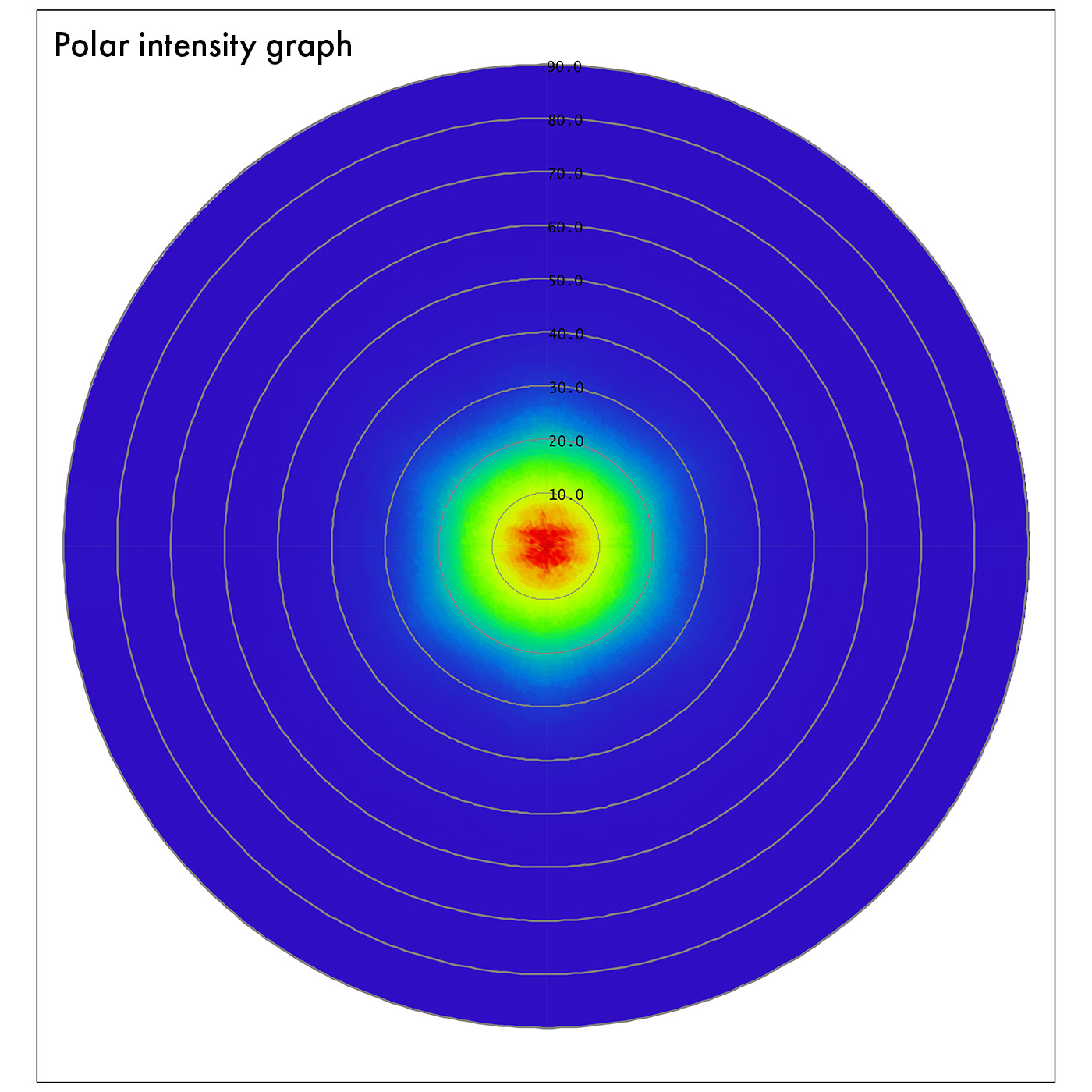

    LED: SFH 4715AS
    FWHM: 29°
    FWTM: 50°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR

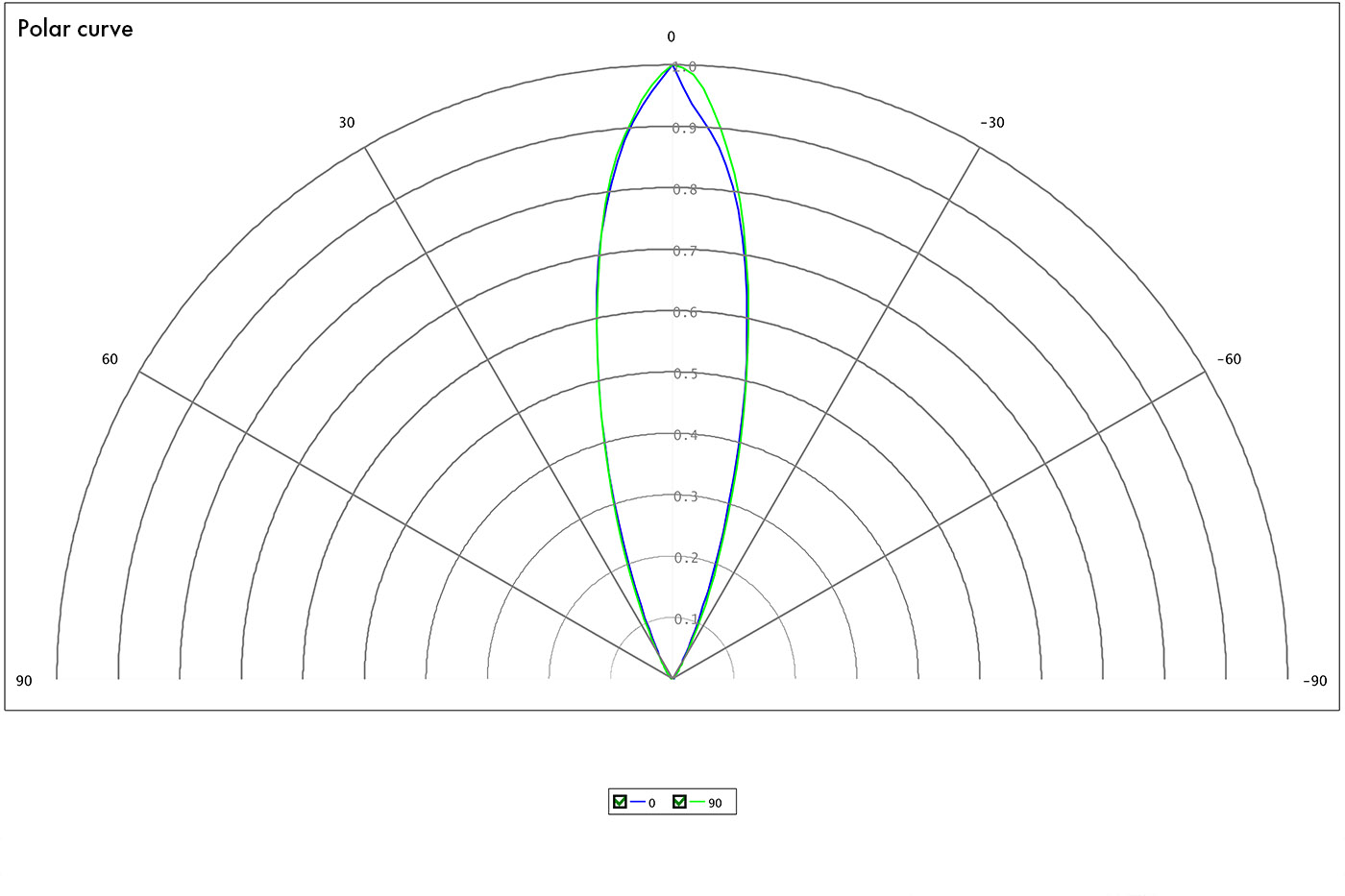

    LED: SFH 4725AS
    FWHM: 28°
    FWTM: 51°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: IR

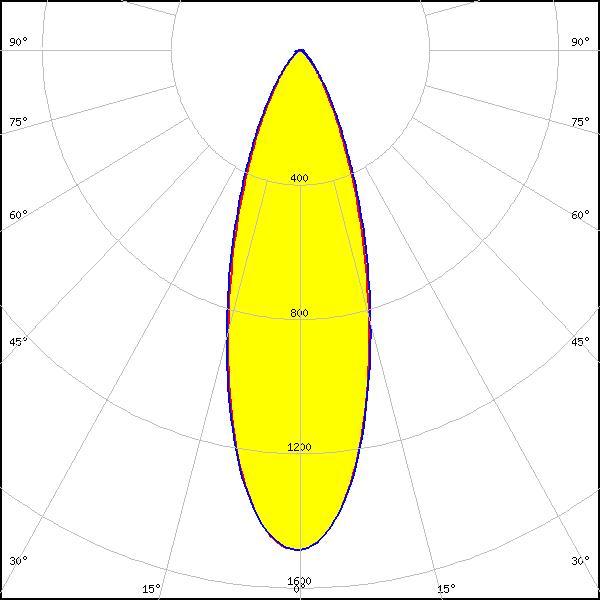

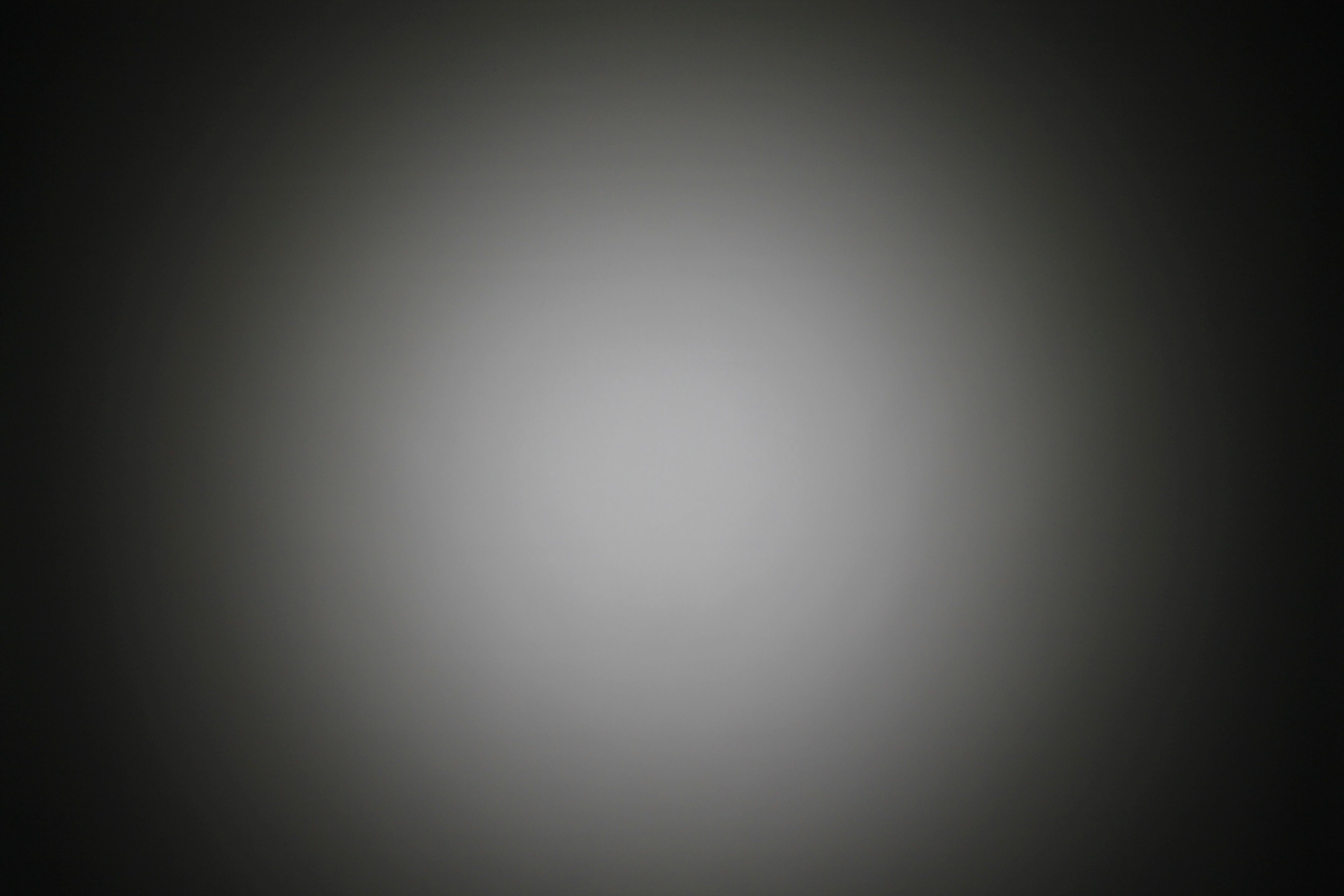

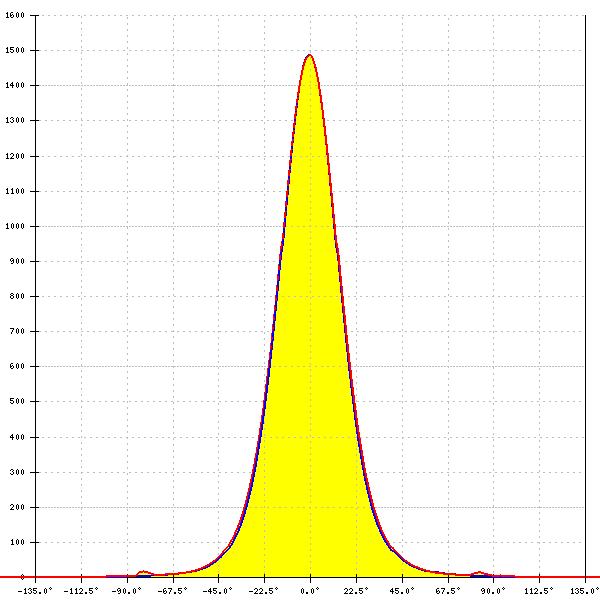

    LED: LH508A
