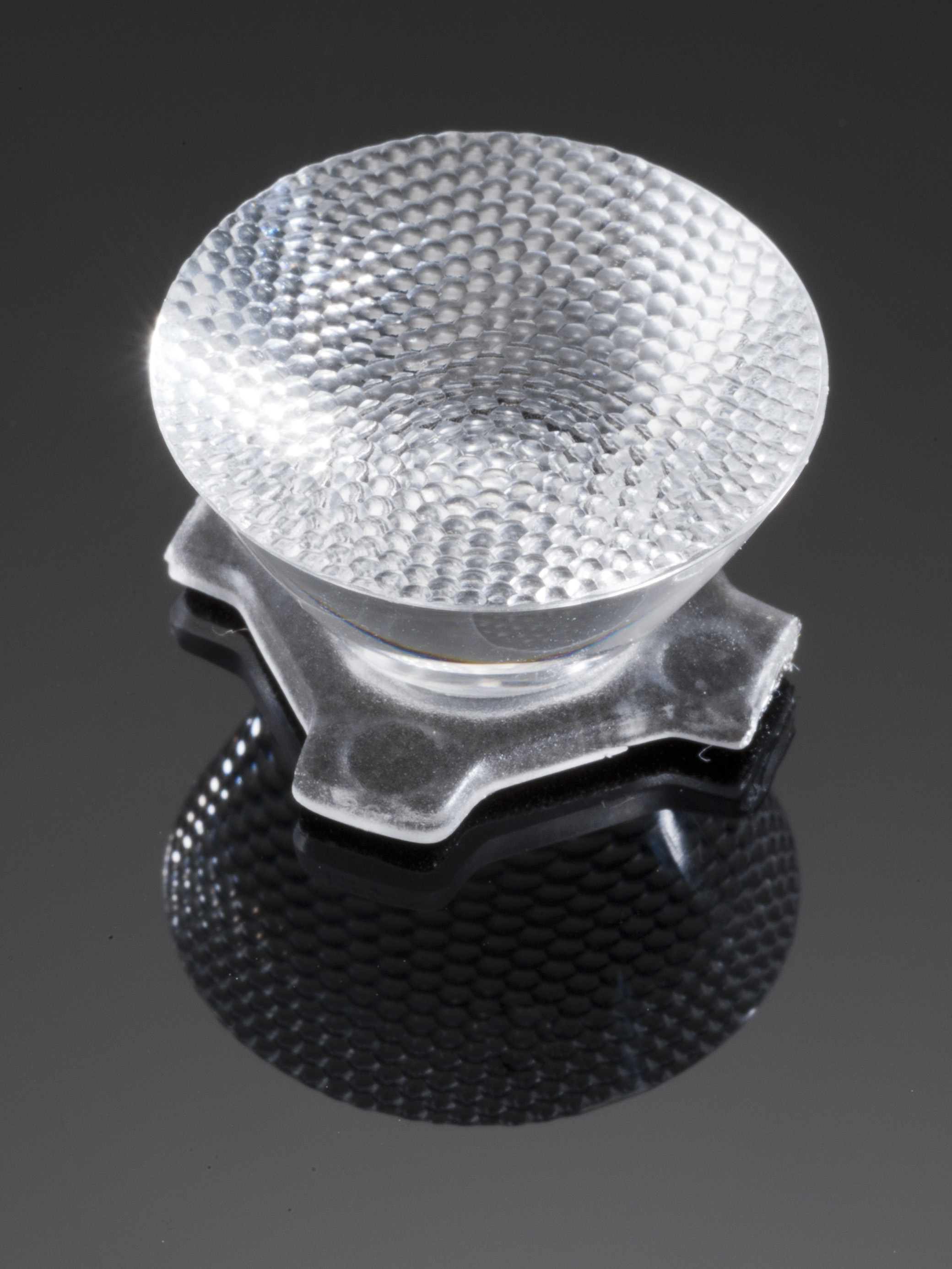

CA11265_HEIDI-M
Print
~25° medium beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

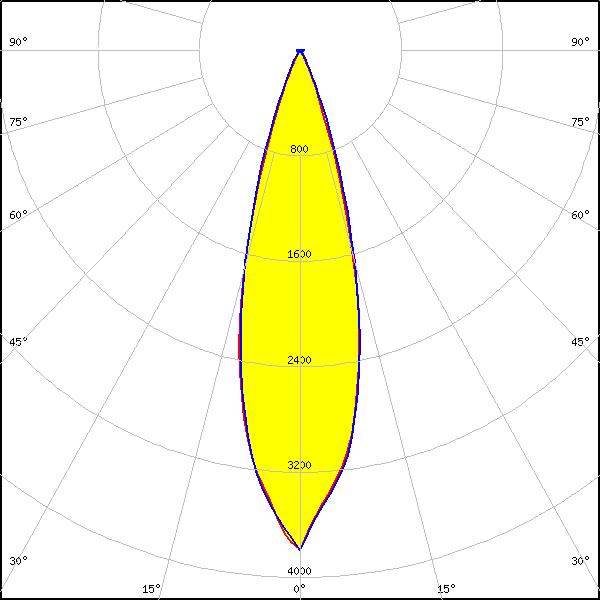

LED:
XB-D
FWHM:
28°
FWTM:
46°
Peak intensity:
3.794 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-D
FWHM:
29°
FWTM:
-
Peak intensity:
2.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-H
FWHM:
27°
FWTM:
48°
Peak intensity:
3.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

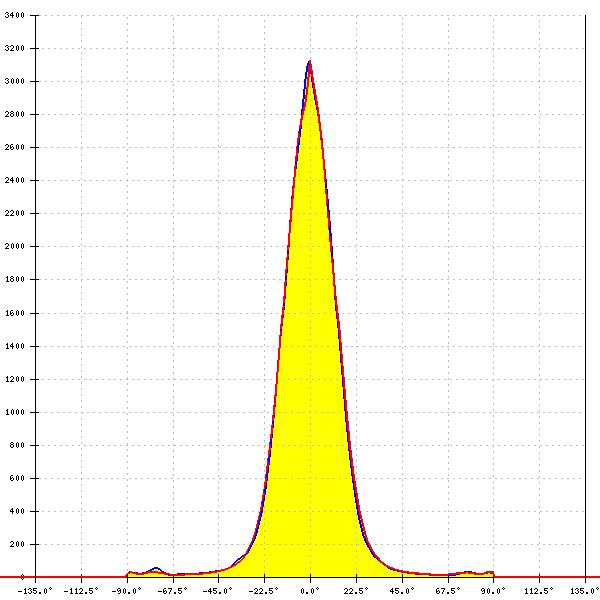

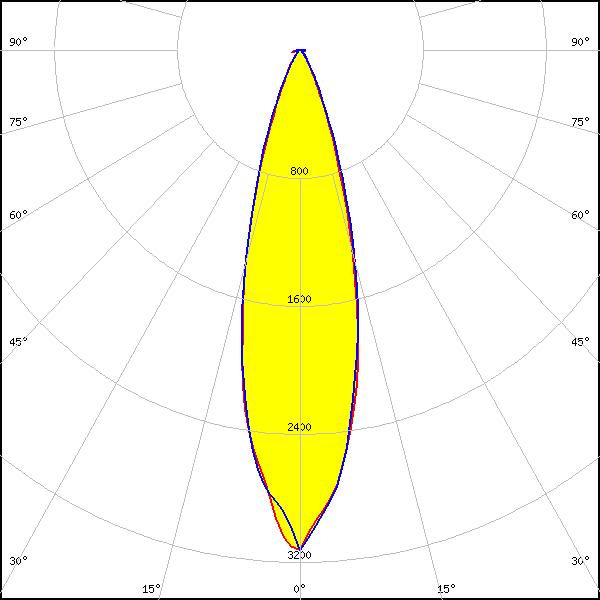

LED:
XHP35.2 HI
FWHM:
28°
FWTM:
52°
Peak intensity:
3.125 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-E
FWHM:
28°
FWTM:
46°
Peak intensity:
2.860 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

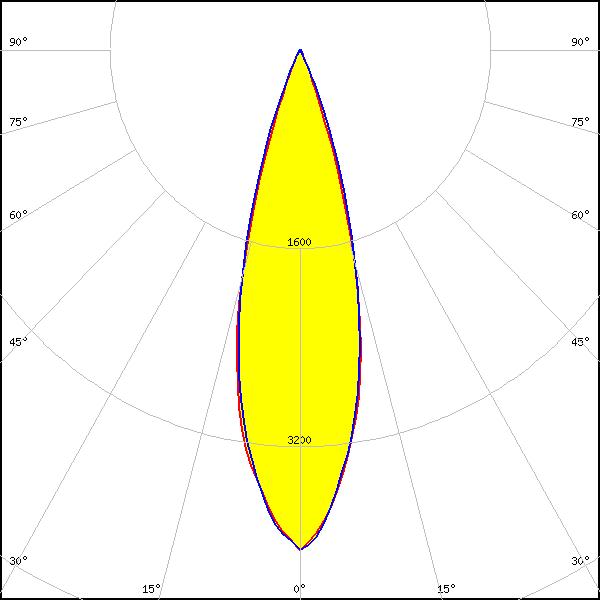

LED:
XP-E2
FWHM:
28°
FWTM:
46°
Peak intensity:
4.037 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

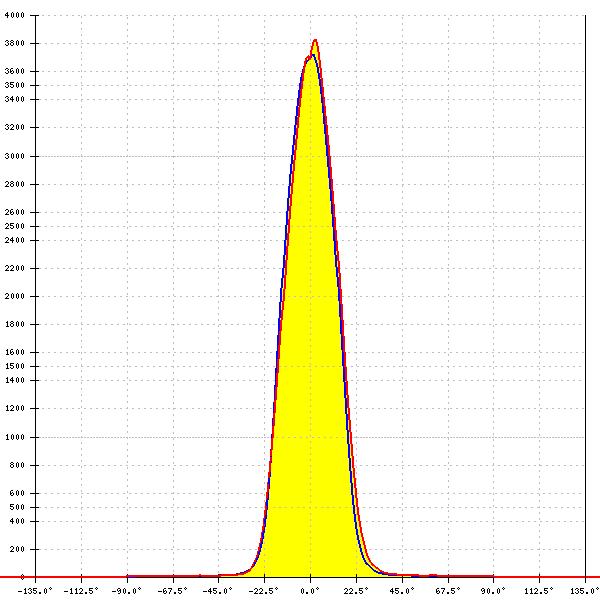

LED:

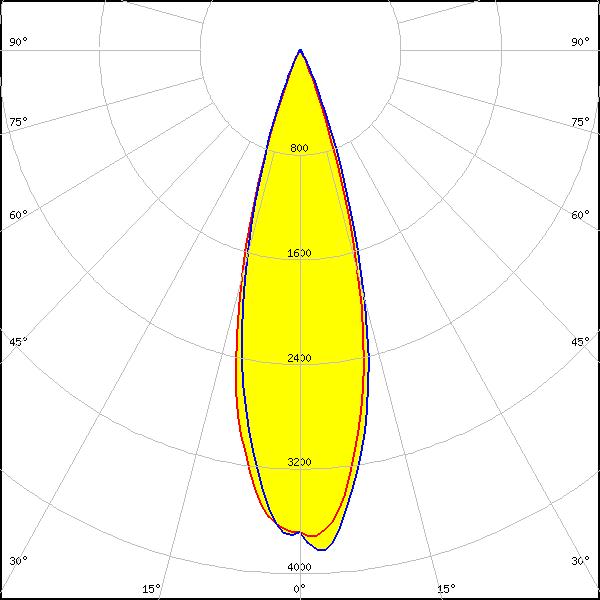

XP-E2
FWHM:
29°
FWTM:
46°
Peak intensity:
3.838 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Green
LED:
XP-G
FWHM:
28°
FWTM:
46°
Peak intensity:
3.300 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

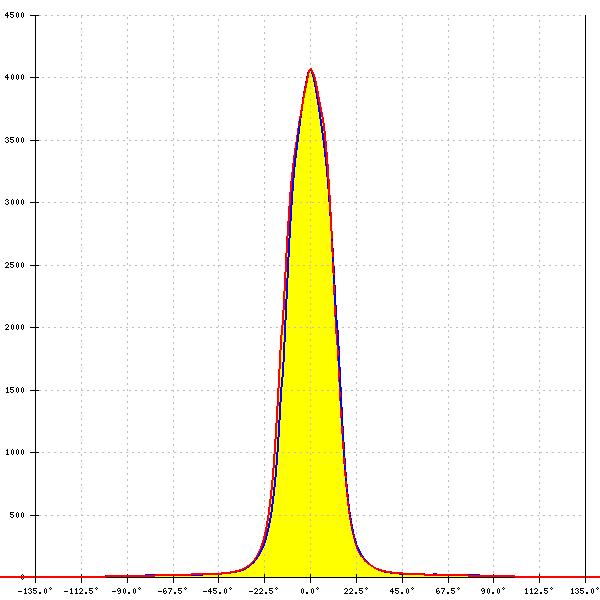

LED:

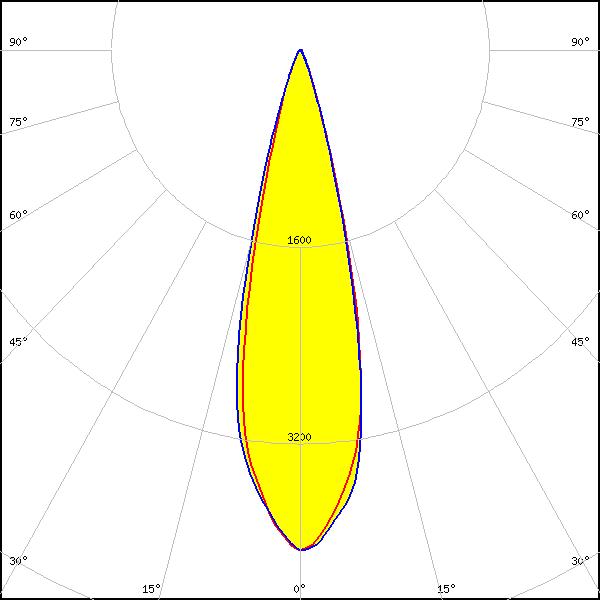

XQ-E HD
FWHM:
26°
FWTM:
41°
Peak intensity:
4.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

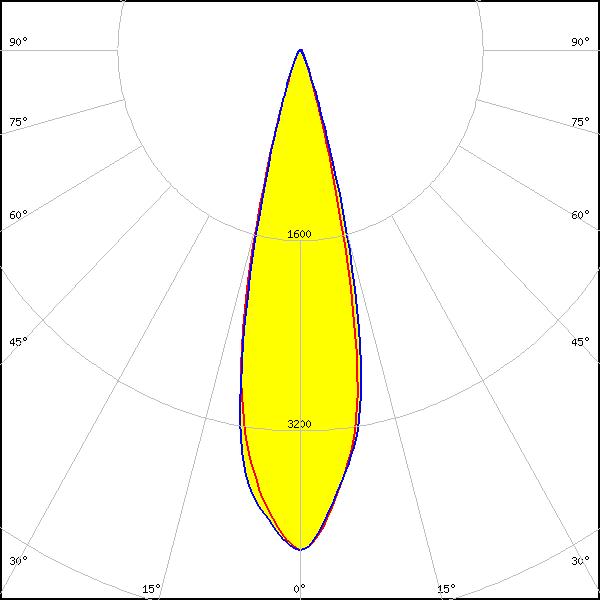

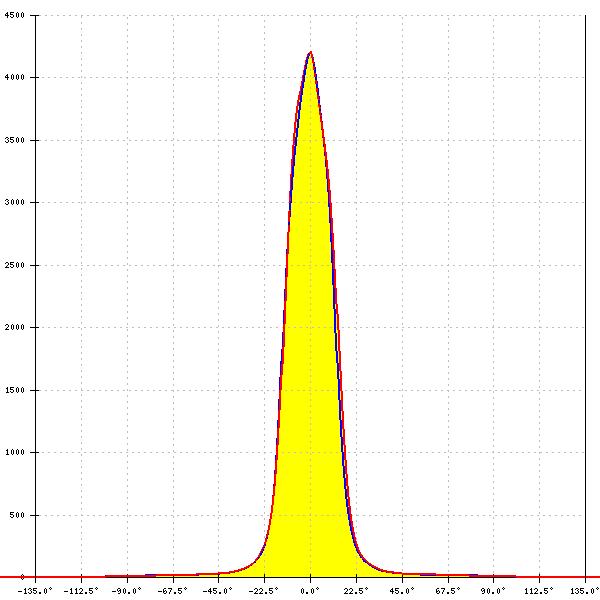

LED:
XQ-E HI
FWHM:
25°
FWTM:
40°
Peak intensity:
4.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

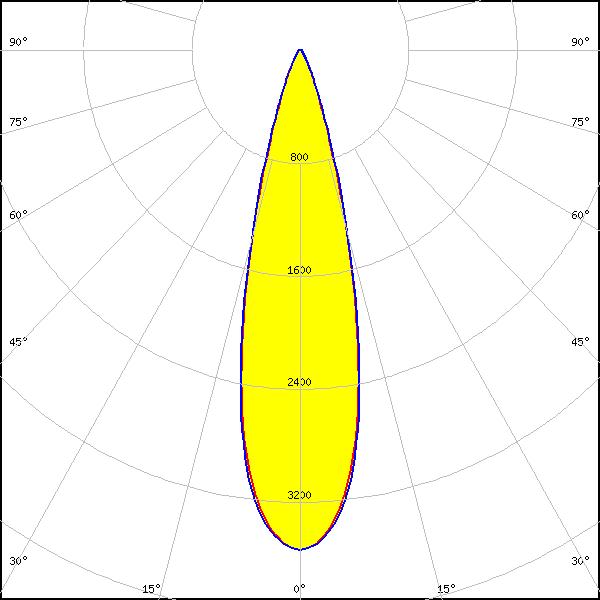

LED:

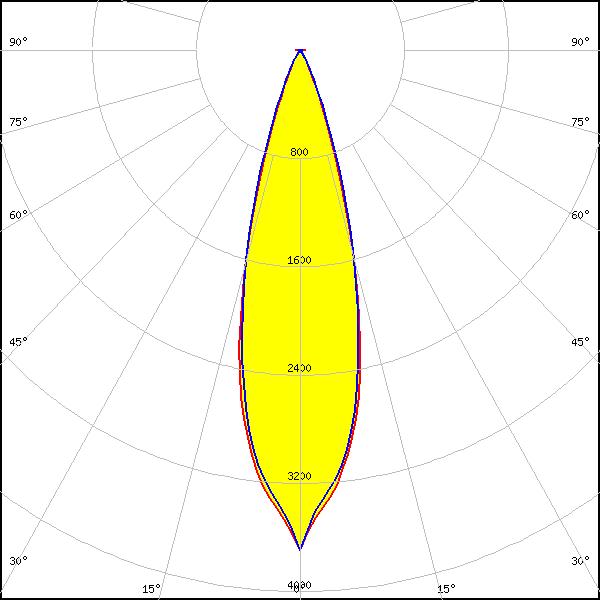

XT-E
FWHM:
28°
FWTM:
48°
Peak intensity:
3.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XT-E
FWHM:
27°
FWTM:
46°
Peak intensity:
3.547 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

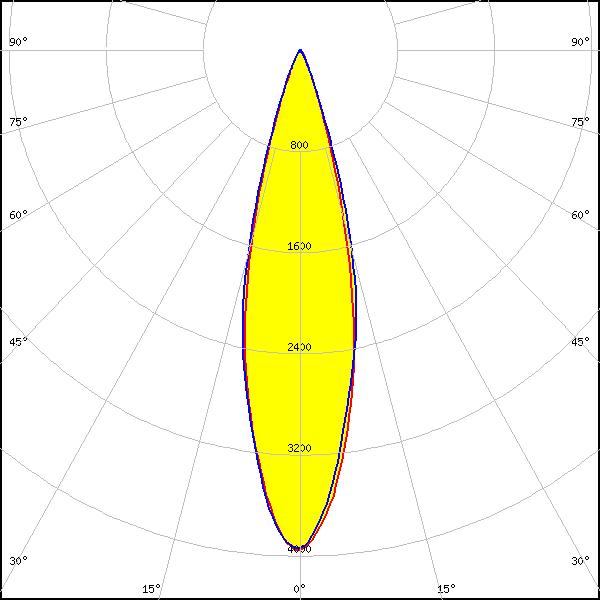

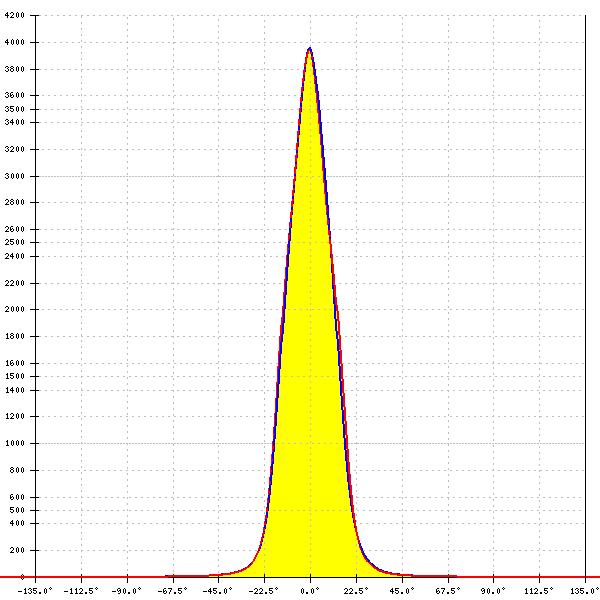

LUXEON C
FWHM:
26°
FWTM:
44°
Peak intensity:
3.950 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

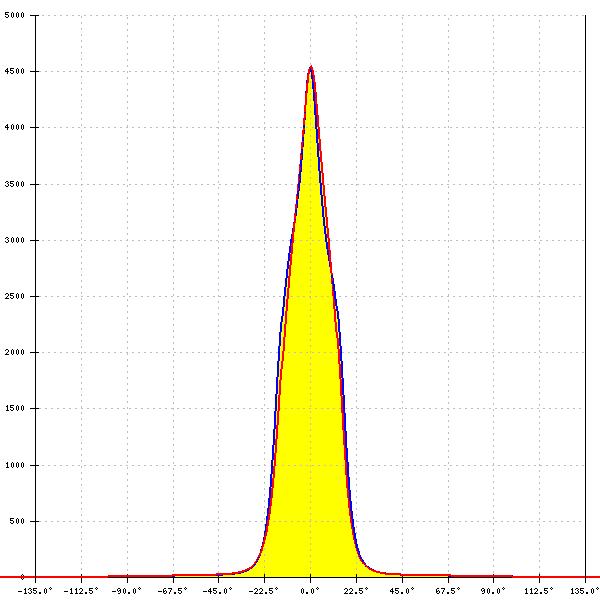

LED:

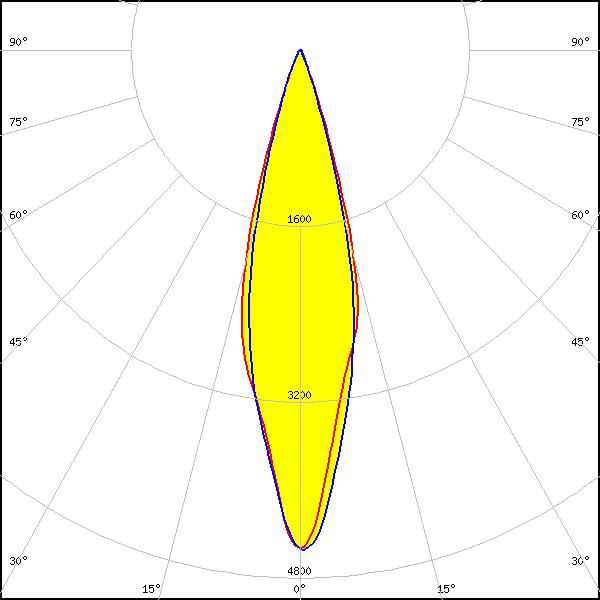

LUXEON CZ
FWHM:
26°
FWTM:
42°
Peak intensity:
4.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

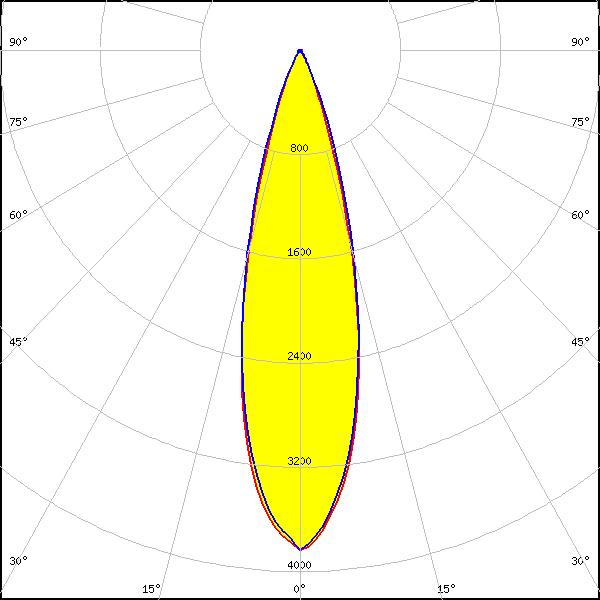

LUXEON HL2Z
FWHM:
28°
FWTM:
48°
Peak intensity:
3.837 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

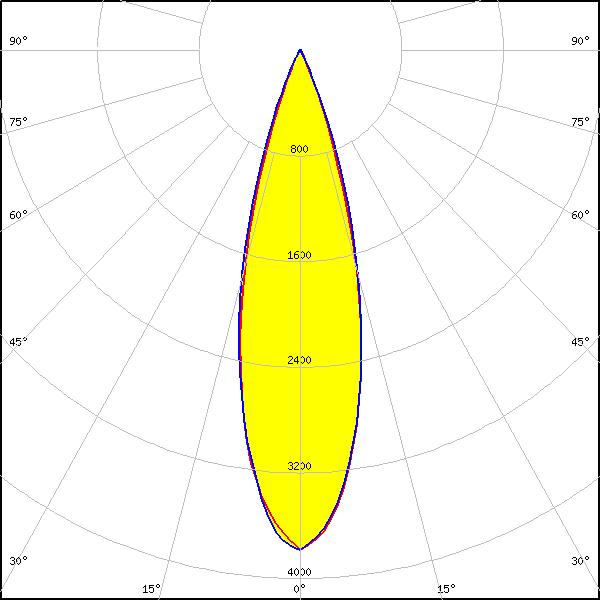

LED:
LUXEON SunPlus 20 Line (120 deg)
FWHM:
28°
FWTM:
47°
Peak intensity:
3.787 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

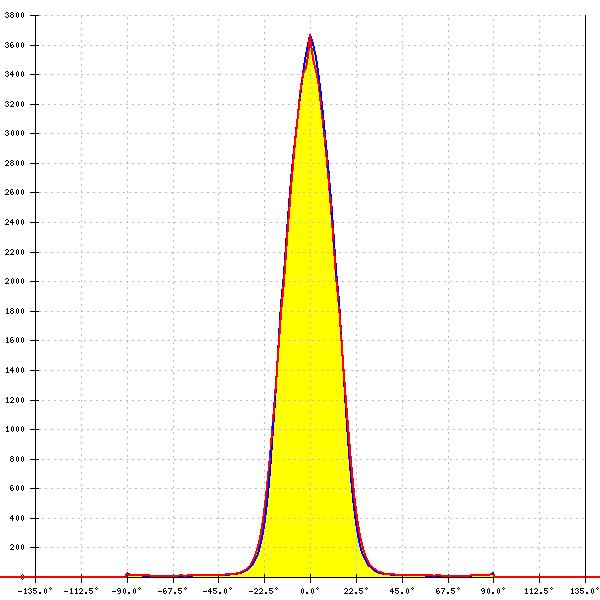

LUXEON SunPlus 20 Line (150 deg)
FWHM:
28°
FWTM:
45°
Peak intensity:
3.670 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

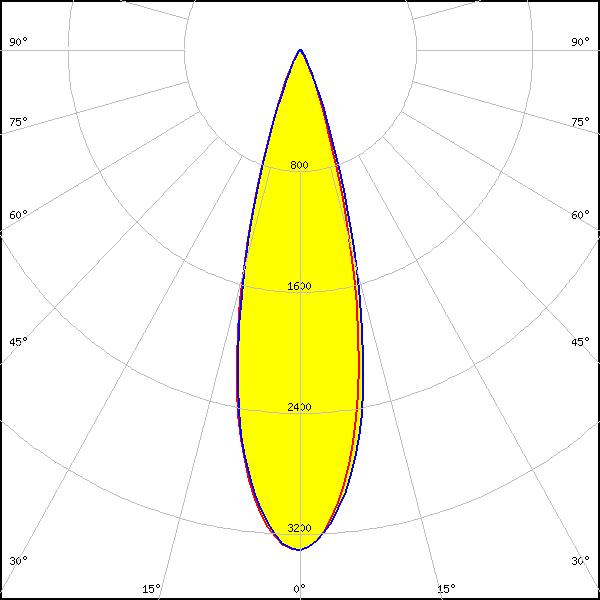

LED:
LUXEON T
FWHM:
28°
FWTM:
47°
Peak intensity:
3.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

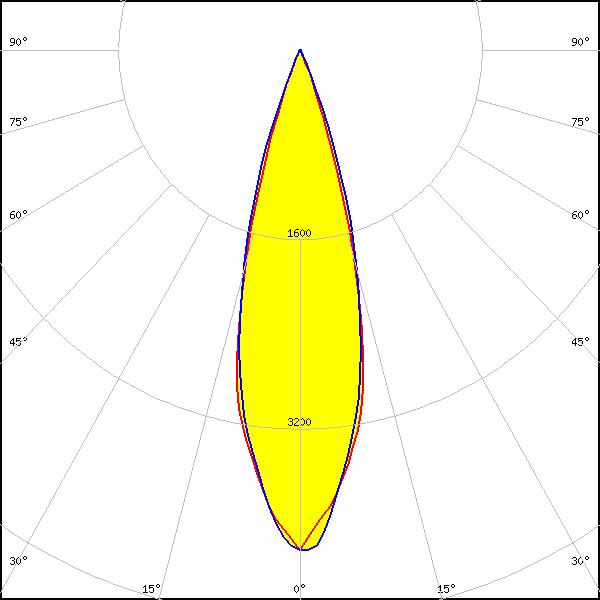

LED:
LUXEON Z
FWHM:
28°
FWTM:
44°
Peak intensity:
4.227 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

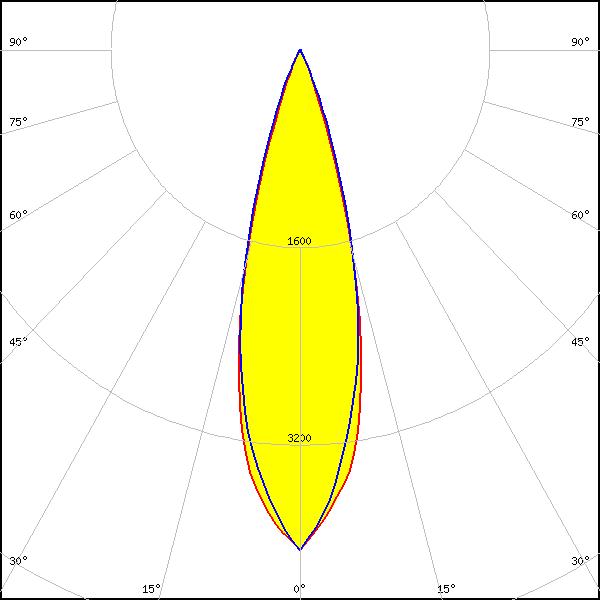

LED:

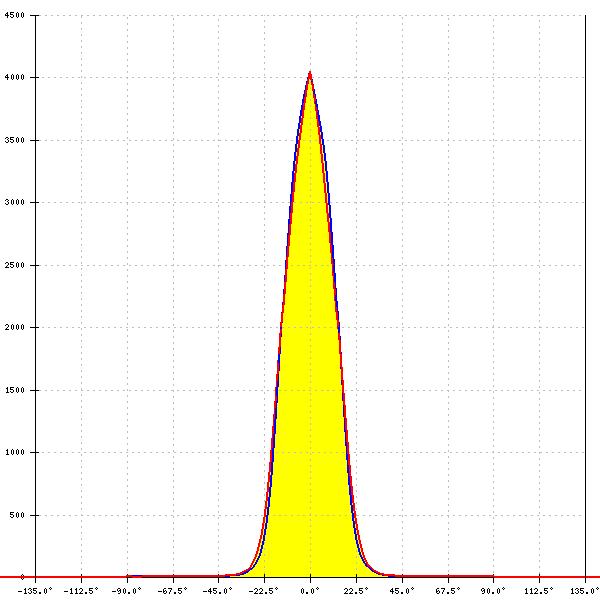

LUXEON Z ES
FWHM:
28°
FWTM:
45°
Peak intensity:
4.050 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

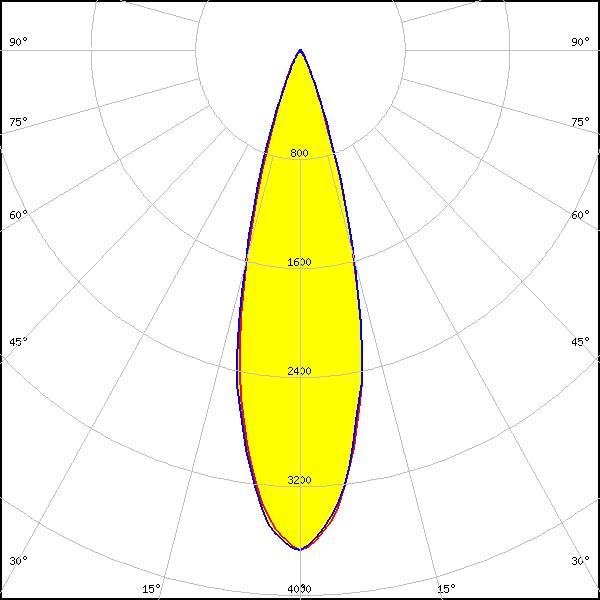

LED:
NCSxx19B
FWHM:
29°
FWTM:
47°
Peak intensity:
3.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

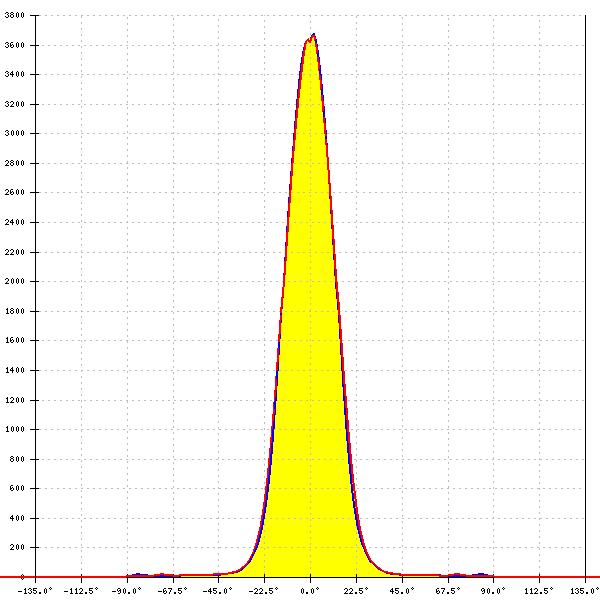

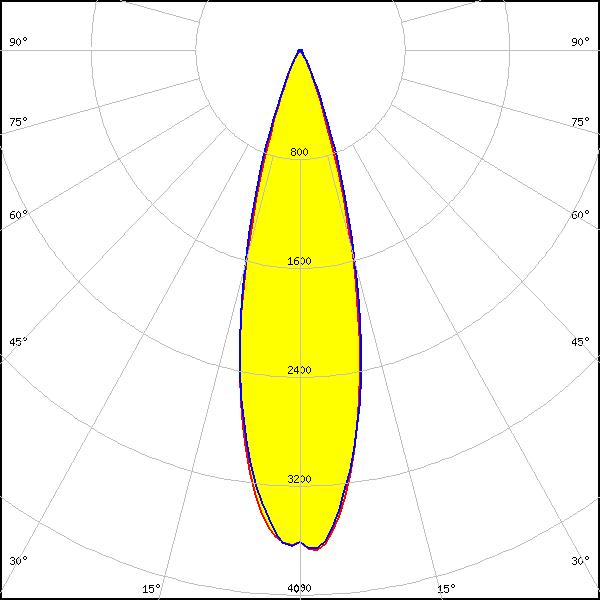

LED:
NVSxE21A
FWHM:
28°
FWTM:
47°
Peak intensity:
3.713 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
28°
FWTM:
49°
Peak intensity:
3.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

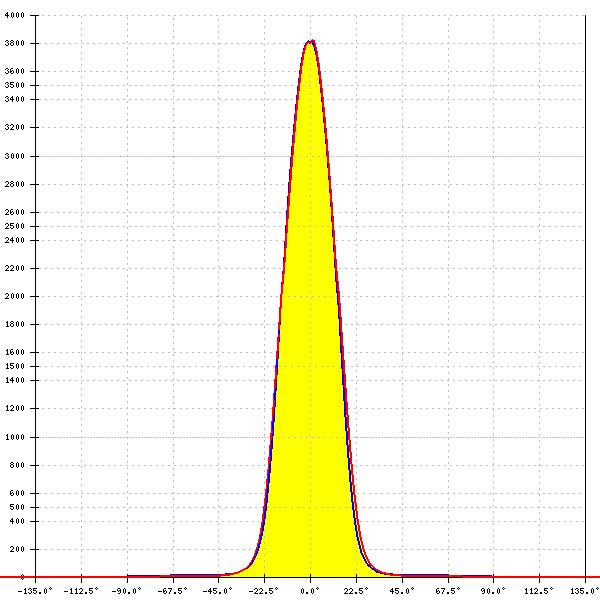

LED:

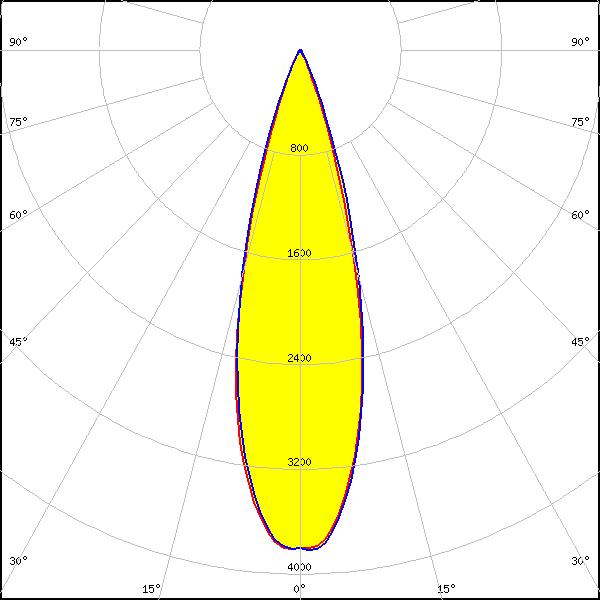

OSCONIQ P 3030
FWHM:
28°
FWTM:
46°
Peak intensity:
3.841 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

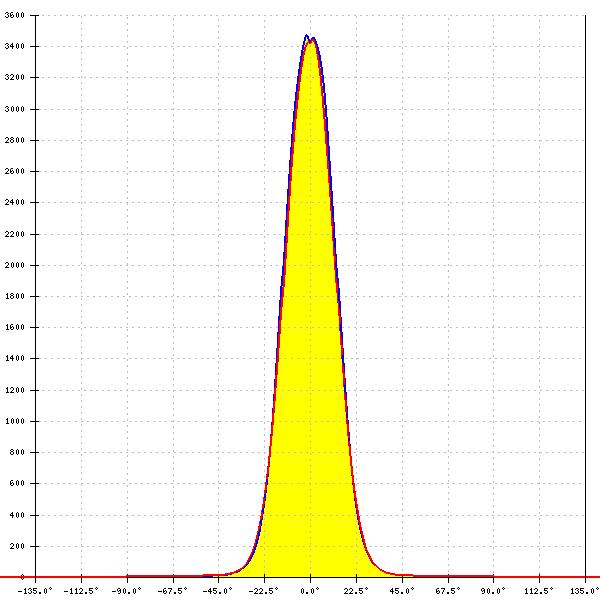

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
28°
FWTM:
48°
Peak intensity:
3.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
29°
FWTM:
-
Peak intensity:
3.200 cd/lm
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
26°
FWTM:
44°
Peak intensity:
3.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

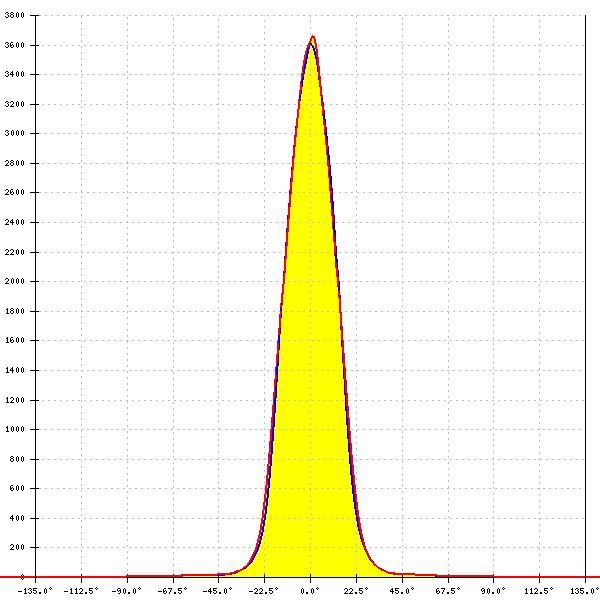

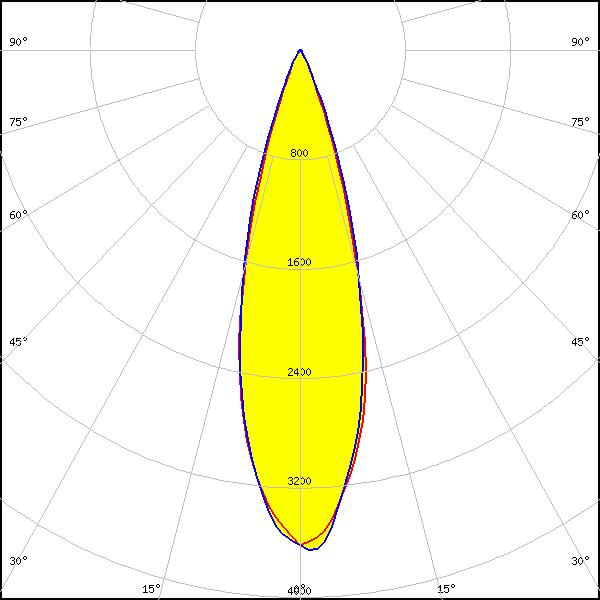

LED:
OSLON SSL 80
FWHM:
29°
FWTM:
47°
Peak intensity:
3.696 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
28°
FWTM:
46°
Peak intensity:
3.130 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

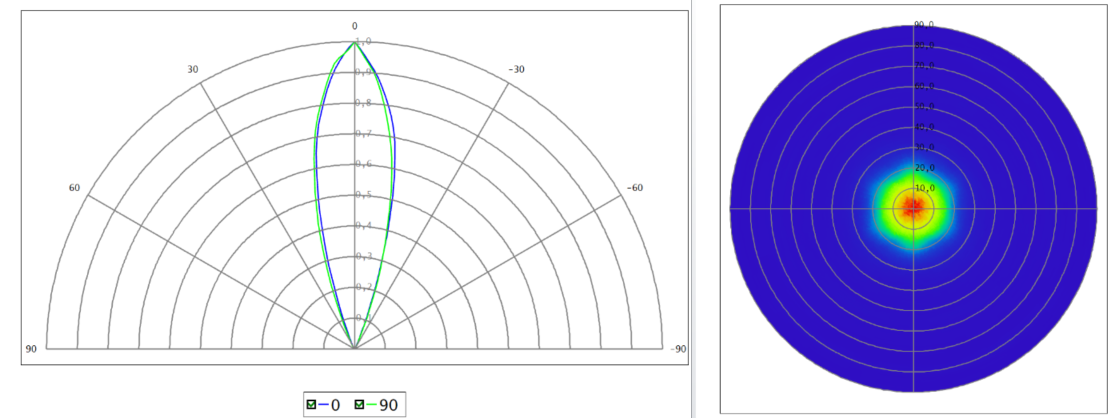

LED:
SFH 4170S
FWHM:
28°
FWTM:
44°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
IR

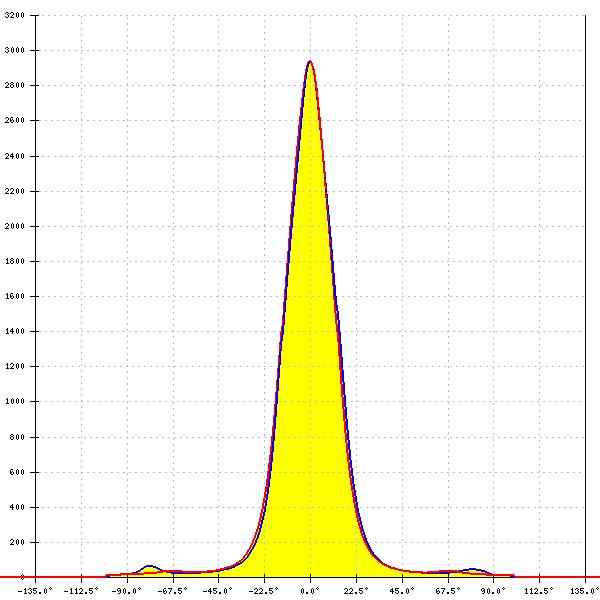

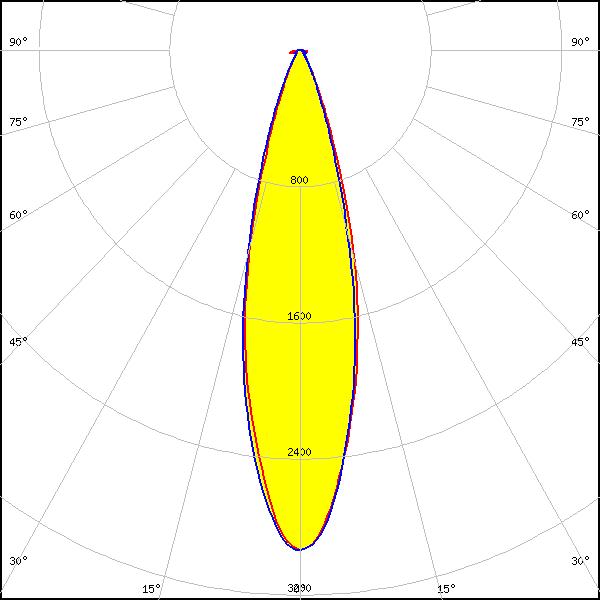

LED:
LH181A
FWHM:
27°
FWTM:
49°
Peak intensity:
2.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

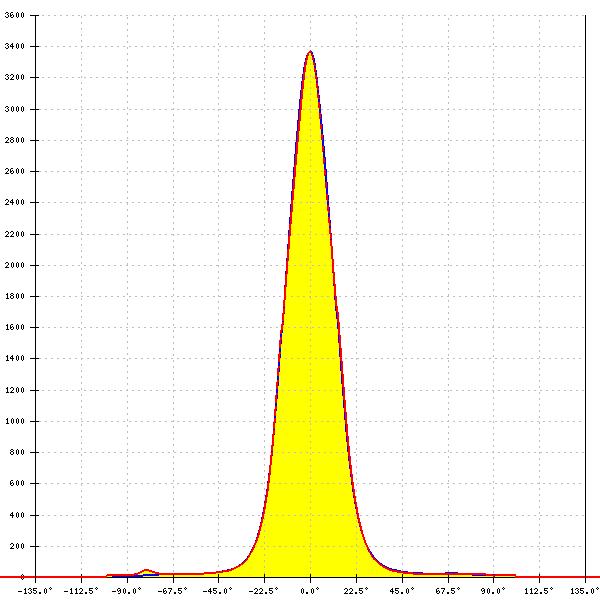

LED:
LH181B
FWHM:
27°
FWTM:
49°
Peak intensity:
3.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5
FWHM:
28°
FWTM:
42°
Peak intensity:
3.670 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

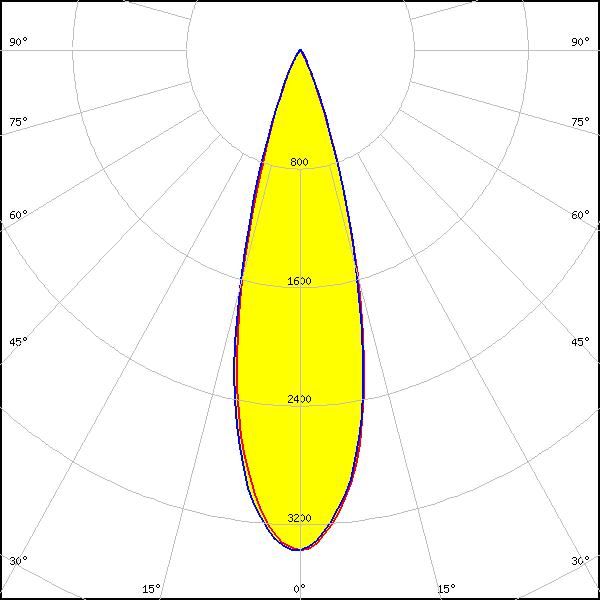

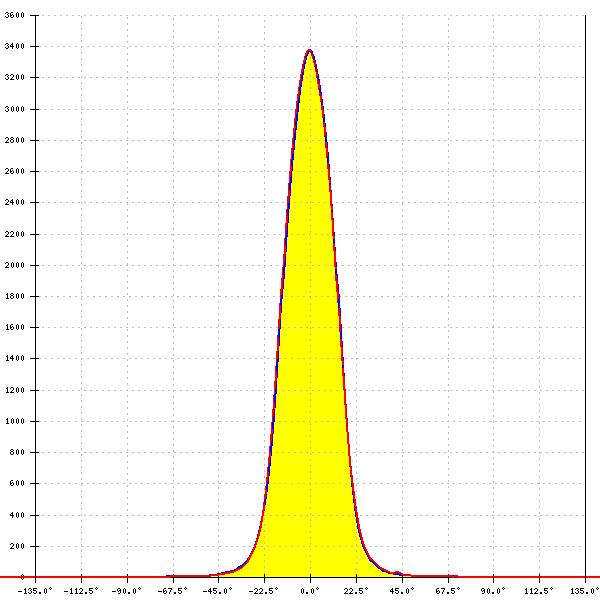

Z5M1/Z5M2
FWHM:
29°
FWTM:
48°
Peak intensity:
3.400 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
LEDs/each optic:
1
Light colour/type:
White
