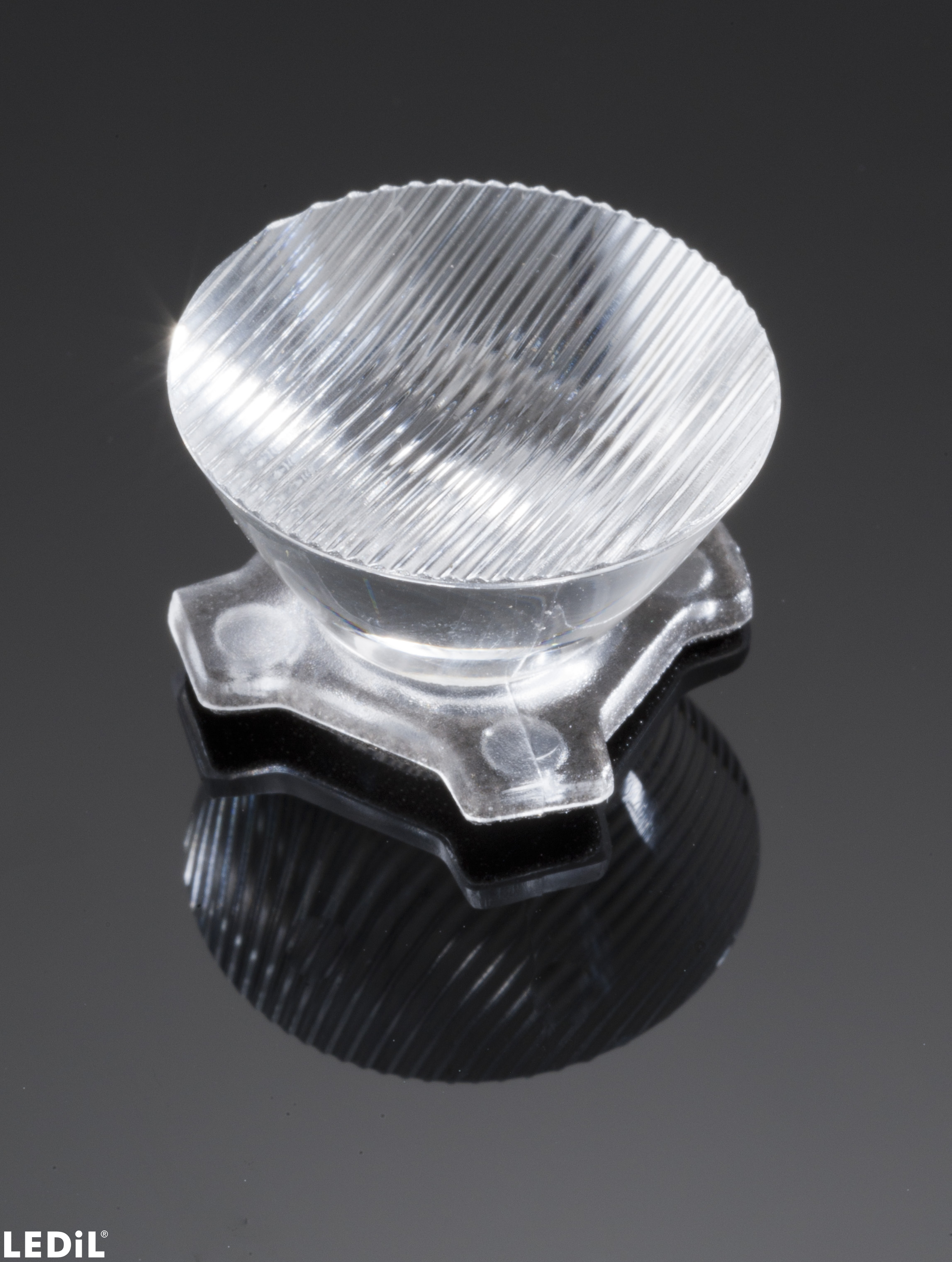

CA11266_HEIDI-O
Print
~50° x 11° oval beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

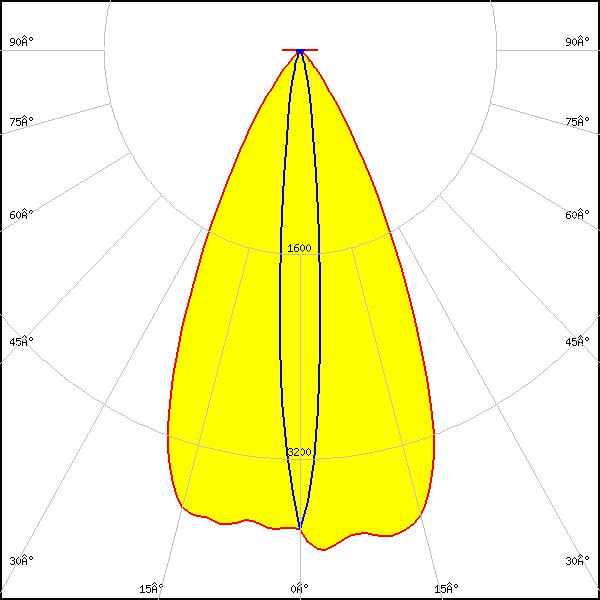

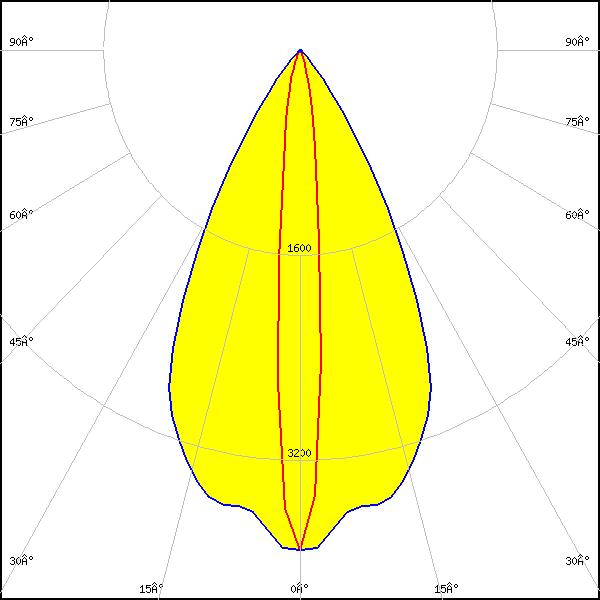

LED:

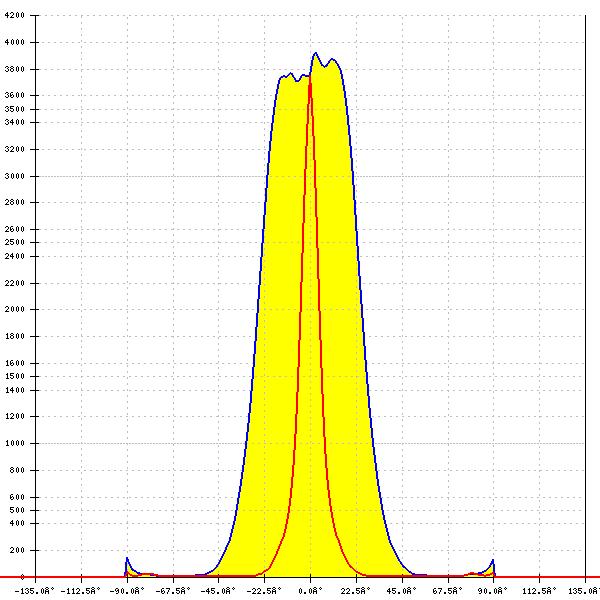

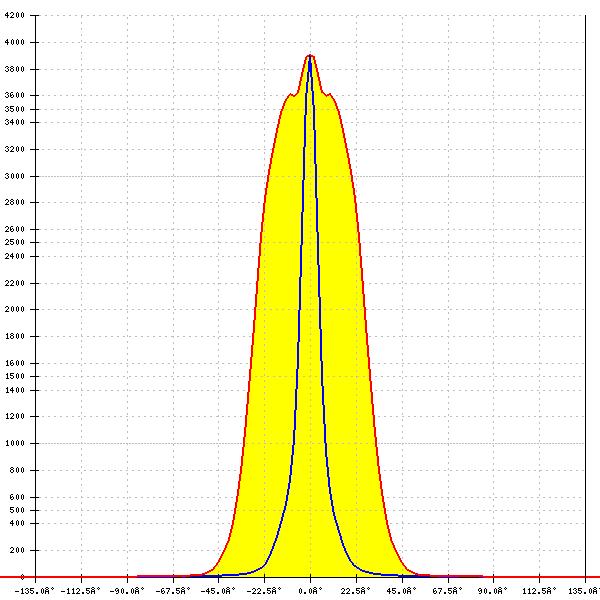

XB-D
FWHM:
52° + 10°
FWTM:
75° + 24°
Peak intensity:
3.918 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XB-D
FWHM:
54° + 10°
FWTM:
77° + 27°
Peak intensity:
3.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

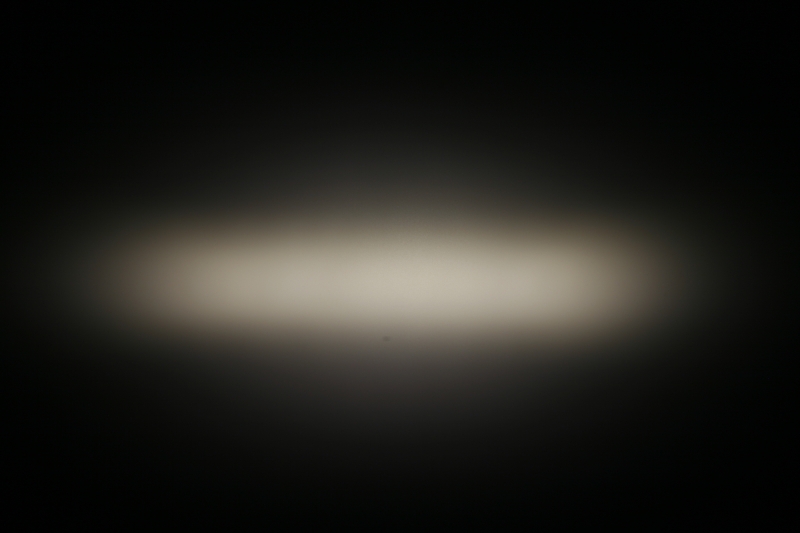

LED:
XB-H
FWHM:
53° + 11°
FWTM:
78° + 34°
Peak intensity:
3.300 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

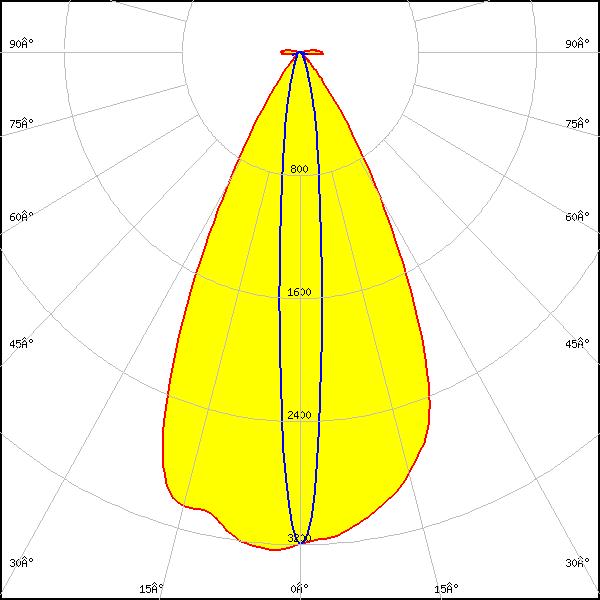

LED:
XD16
FWHM:
52° + 10°
FWTM:
75° + 30°
Peak intensity:
3.200 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

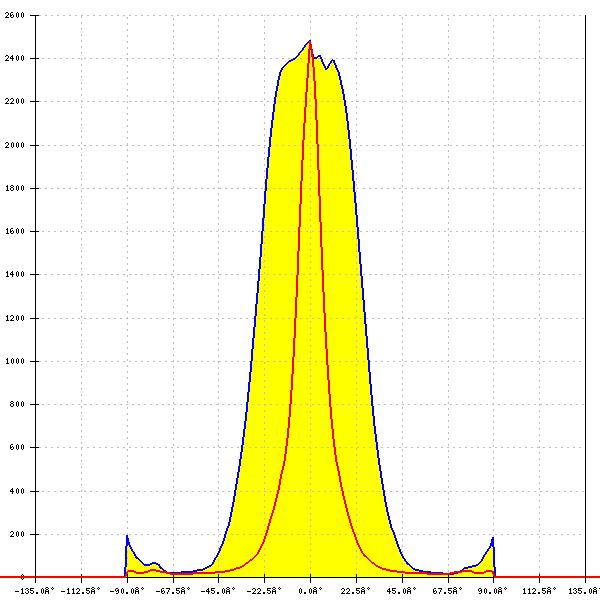

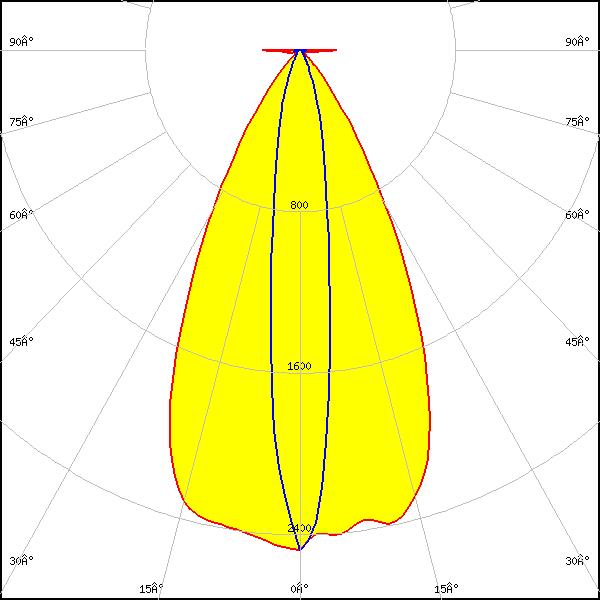

LED:
XHP35.2 HI
FWHM:
53° + 14°
FWTM:
80° + 40°
Peak intensity:
2.482 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

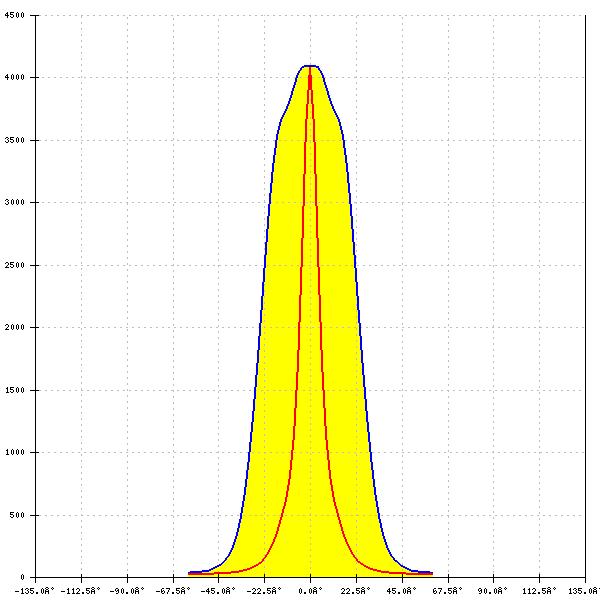

LED:
XP-E
FWHM:
48° + 10°
FWTM:
70° + 30°
Peak intensity:
4.100 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

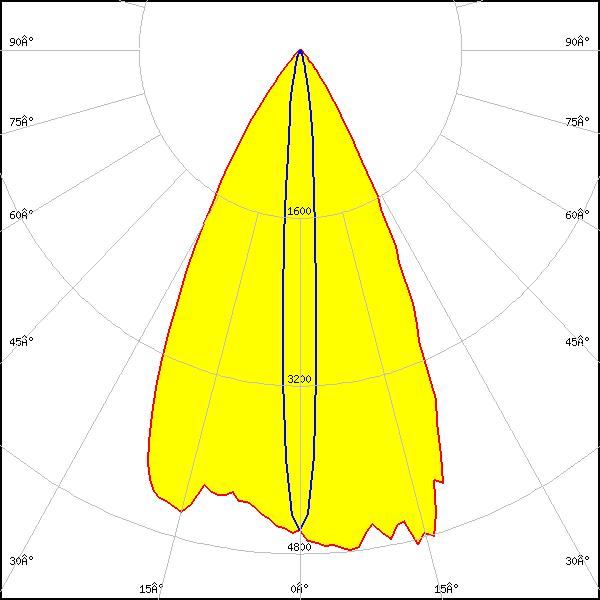

LED:
XP-E2
FWHM:
54° + 9°
FWTM:
75° + 23°
Peak intensity:
4.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

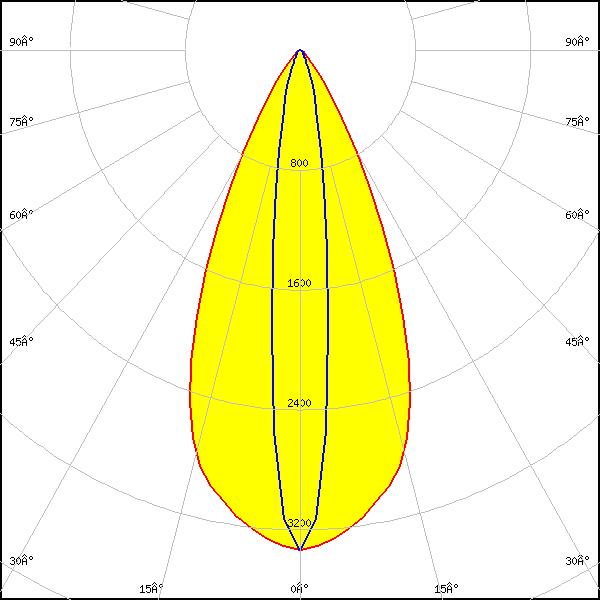

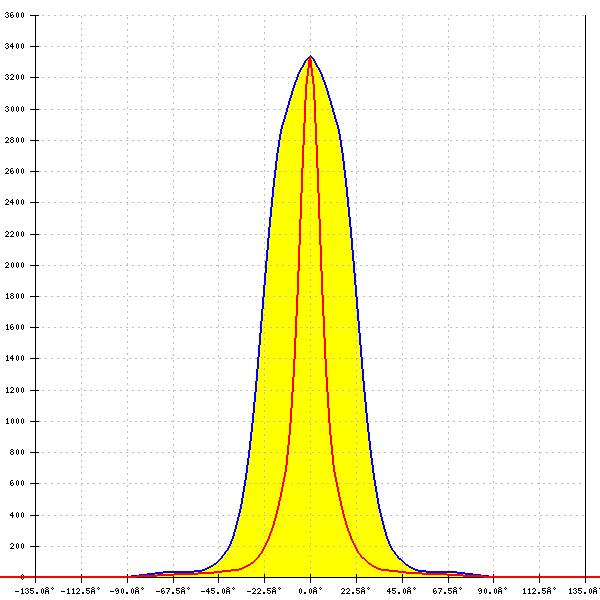

LED:
XP-G
FWHM:
47° + 14°
FWTM:
72° + 36°
Peak intensity:
3.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

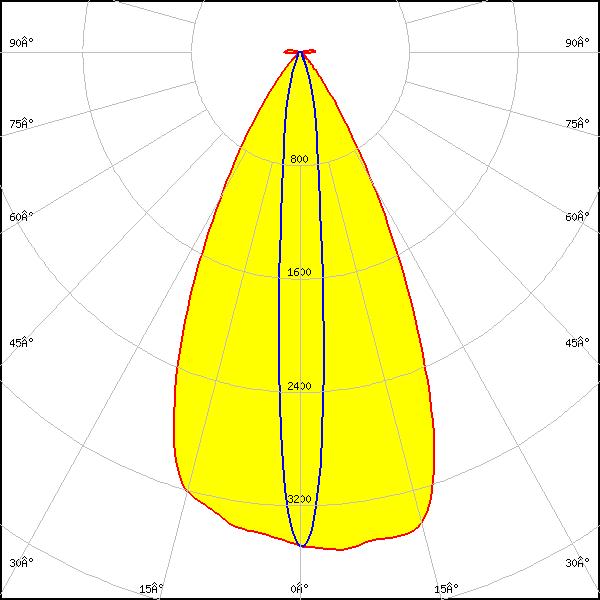

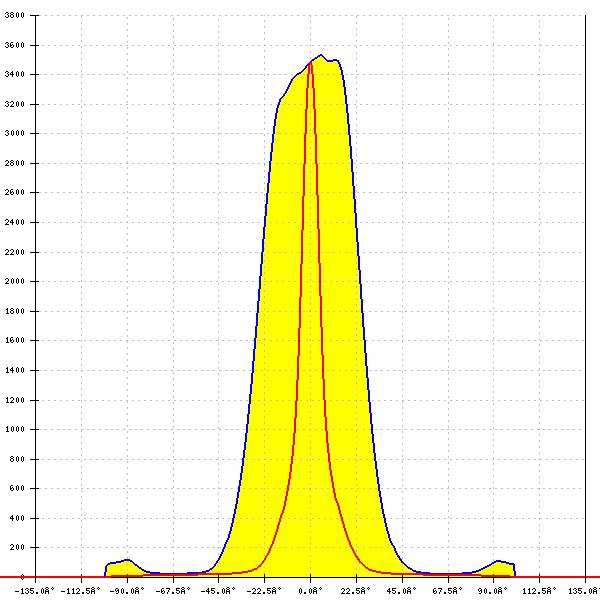

LED:
XP-G2
FWHM:
52° + 11°
FWTM:
76° + 32°
Peak intensity:
3.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

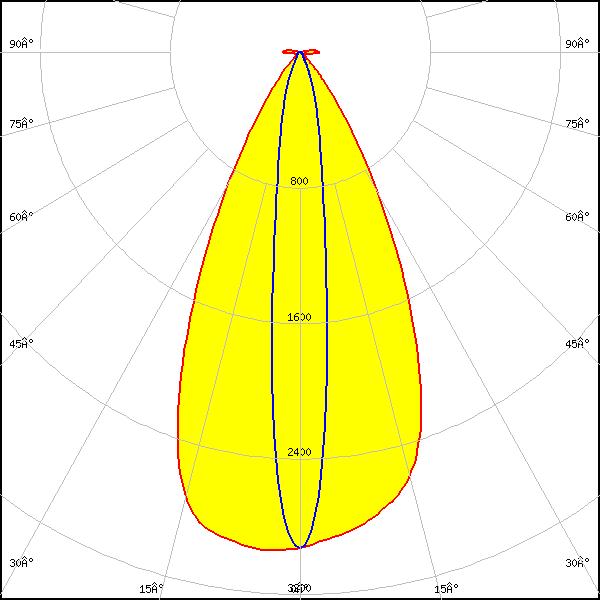

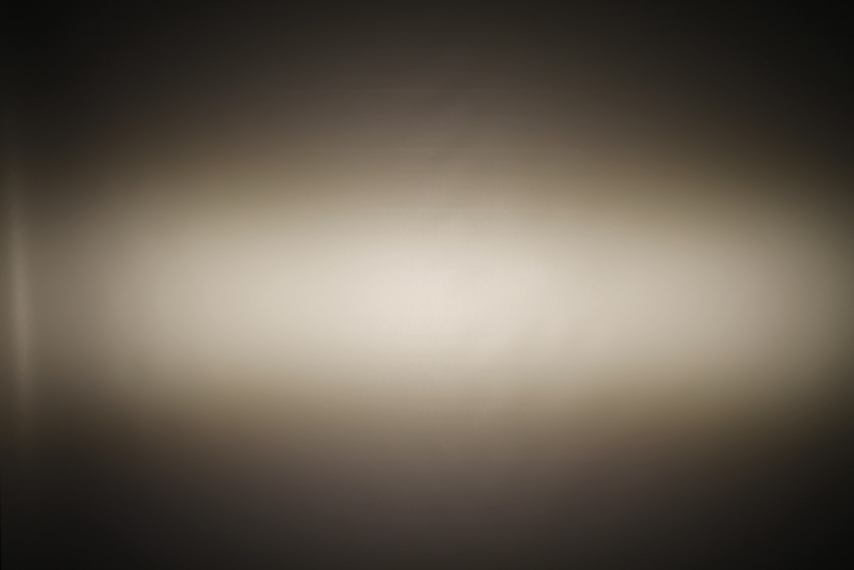

LED:

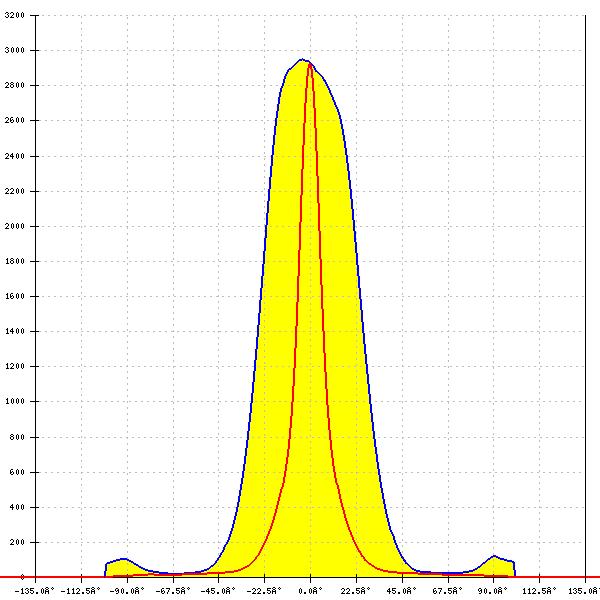

XP-G3
FWHM:
51° + 13°
FWTM:
77° + 37°
Peak intensity:
3.000 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

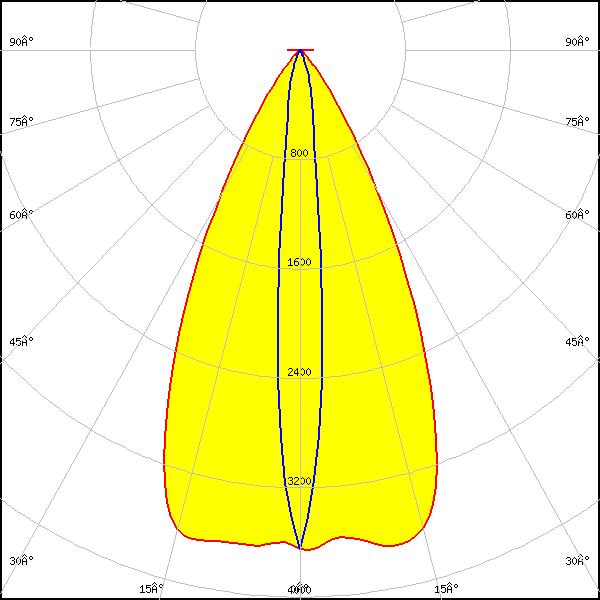

LED:
XP-G4
FWHM:
52° + 10°
FWTM:
76° + 28°
Peak intensity:
3.696 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

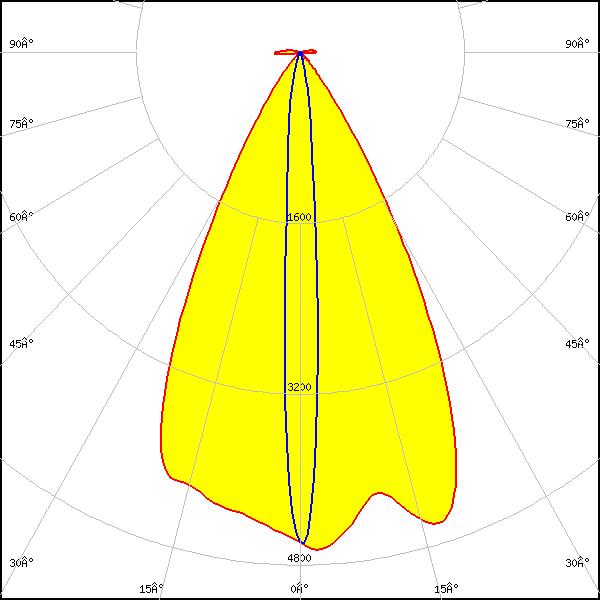

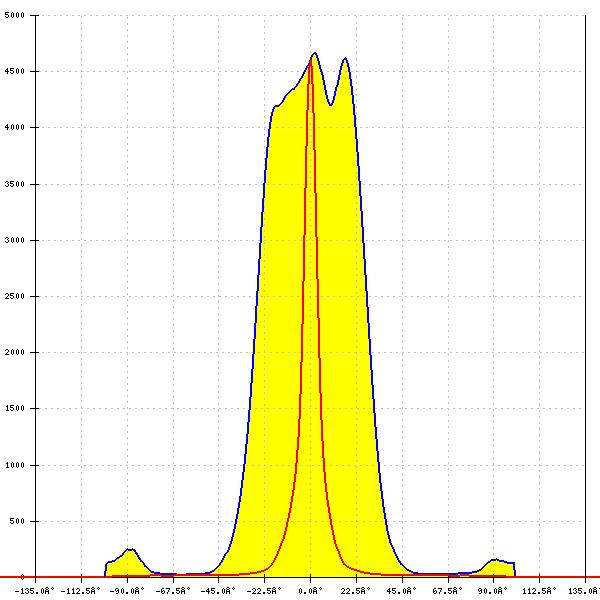

LED:
XQ-E HD
FWHM:
55° + 8°
FWTM:
75° + 22°
Peak intensity:
4.700 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

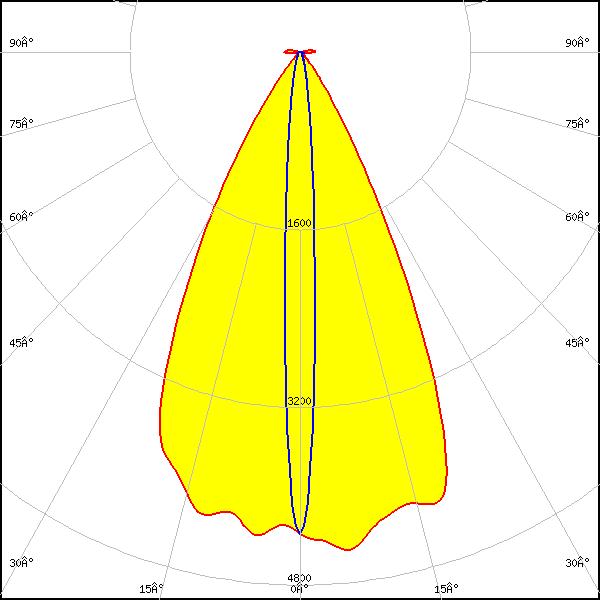

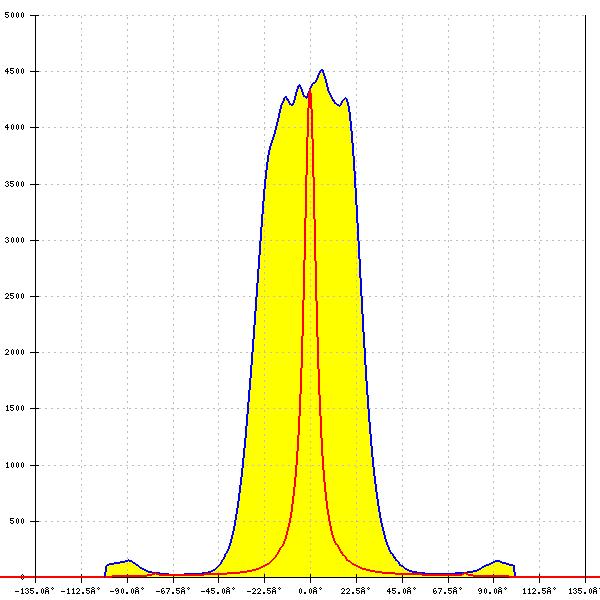

LED:
XQ-E HI
FWHM:
53° + 7°
FWTM:
73° + 21°
Peak intensity:
4.500 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

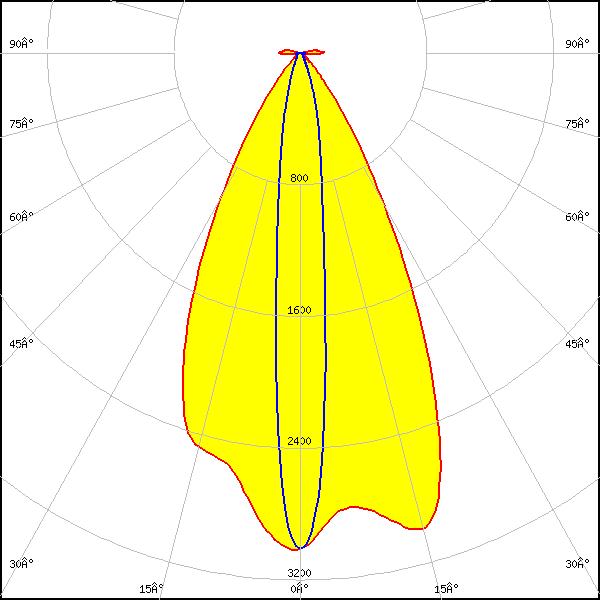

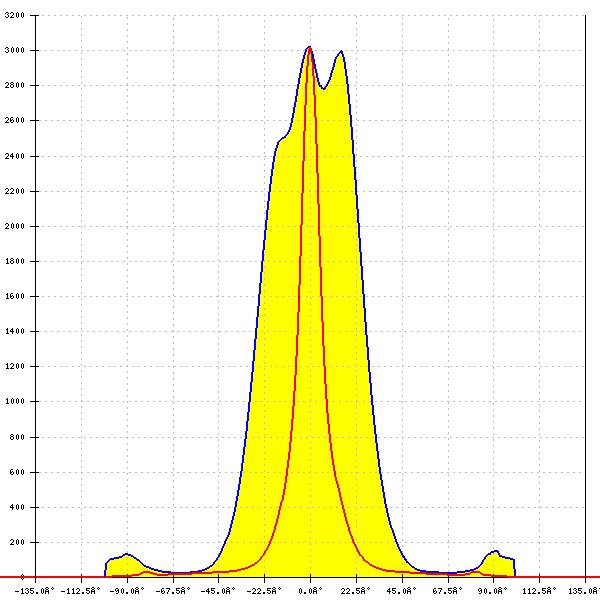

LED:
XT-E
FWHM:
52° + 12°
FWTM:
78° + 35°
Peak intensity:
3.025 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON 3030 HV
FWHM:
55° + 11°
FWTM:
78° + 28°
Peak intensity:
3.660 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

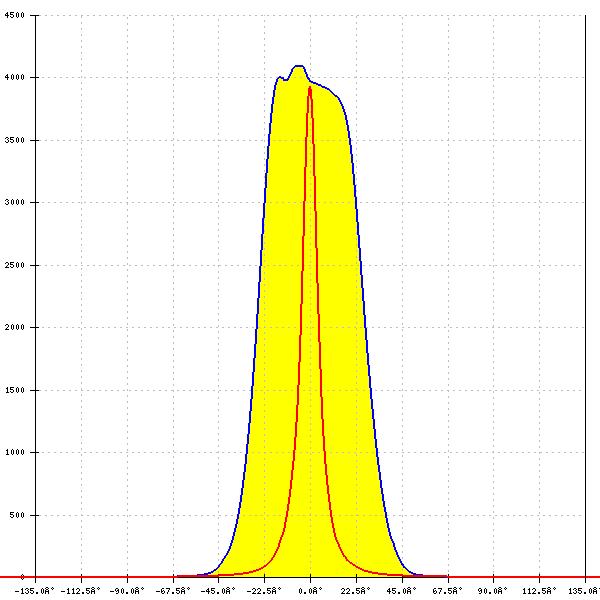

LED:

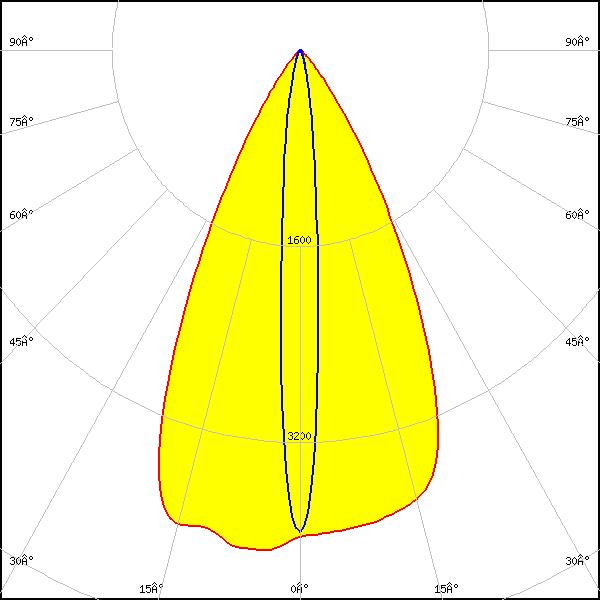

LUXEON C
FWHM:
53° + 9°
FWTM:
75° + 25°
Peak intensity:
4.100 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

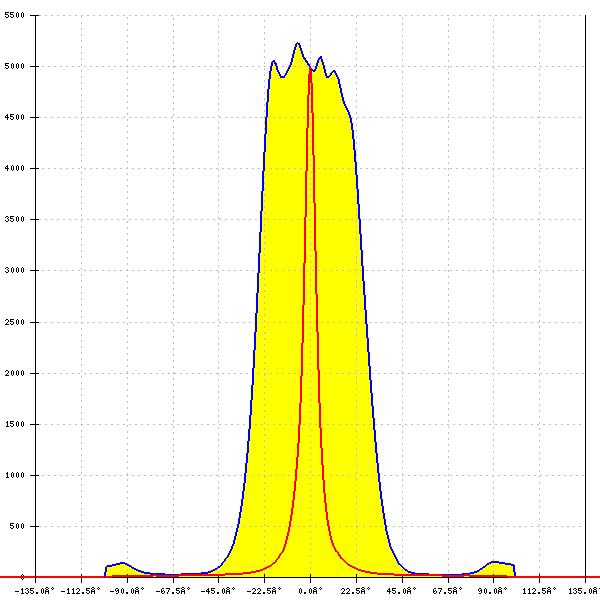

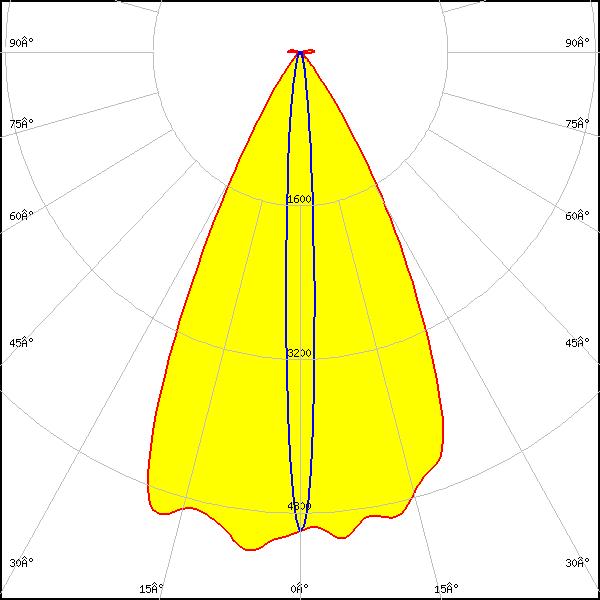

LUXEON CZ
FWHM:
53° + 7°
FWTM:
72° + 20°
Peak intensity:
5.200 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

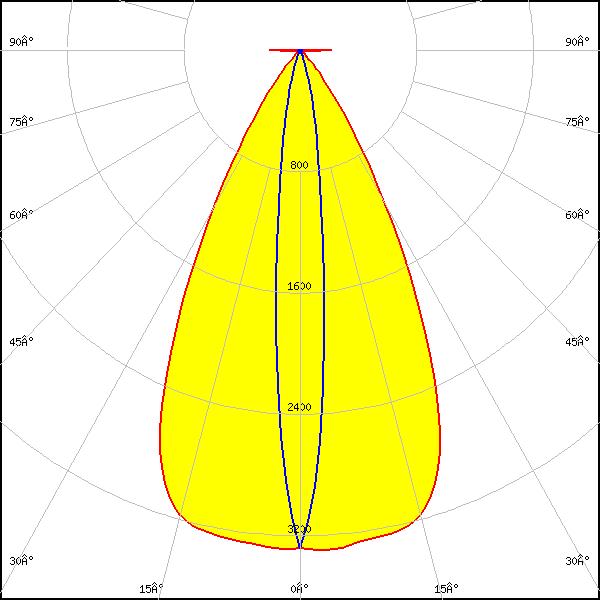

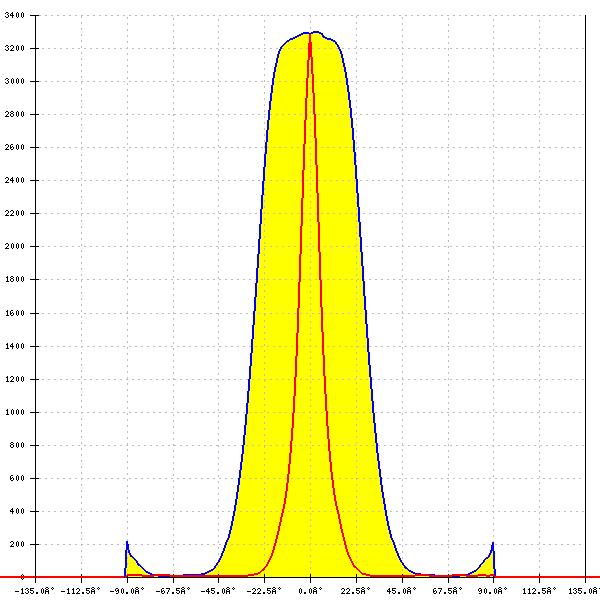

LUXEON HL2Z
FWHM:
54° + 12°
FWTM:
76° + 29°
Peak intensity:
3.300 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

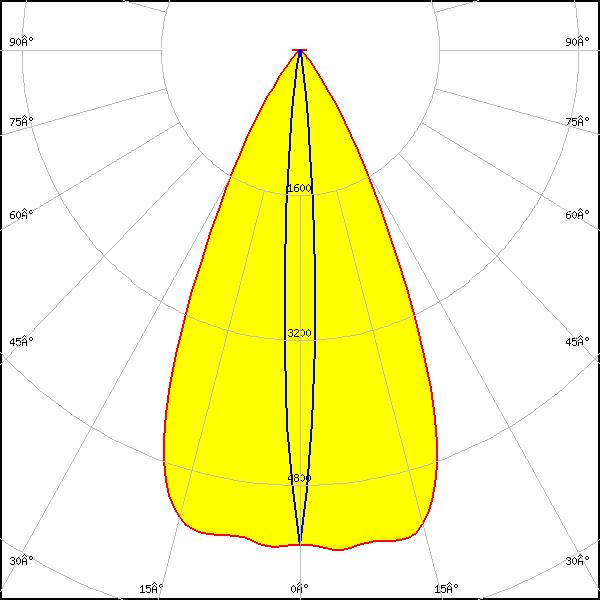

LED:

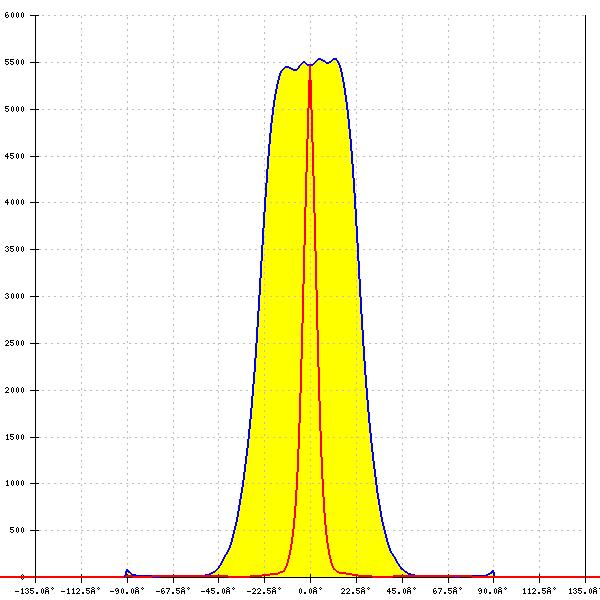

LUXEON Rubix
FWHM:
50° + 8°
FWTM:
73° + 16°
Peak intensity:
5.535 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Red

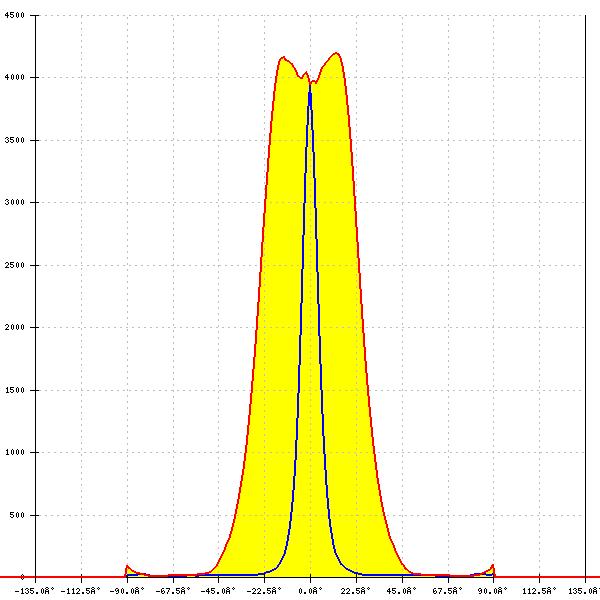

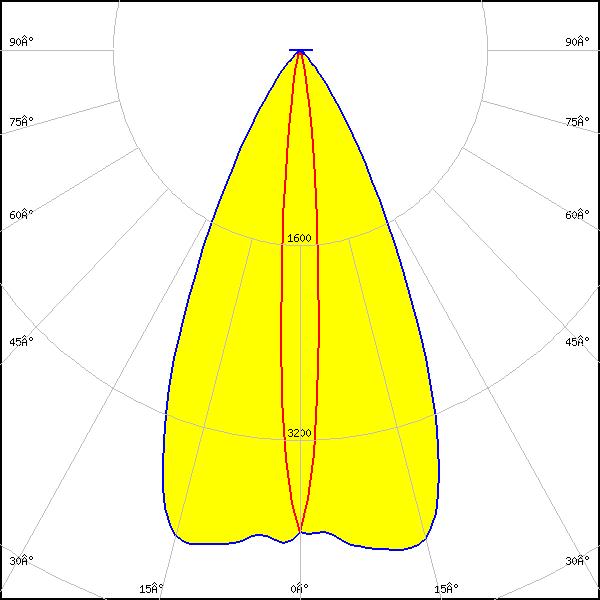

LED:
LUXEON SunPlus 20 Line (150 deg)
FWHM:
52° + 10°
FWTM:
76° + 20°
Peak intensity:
4.198 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

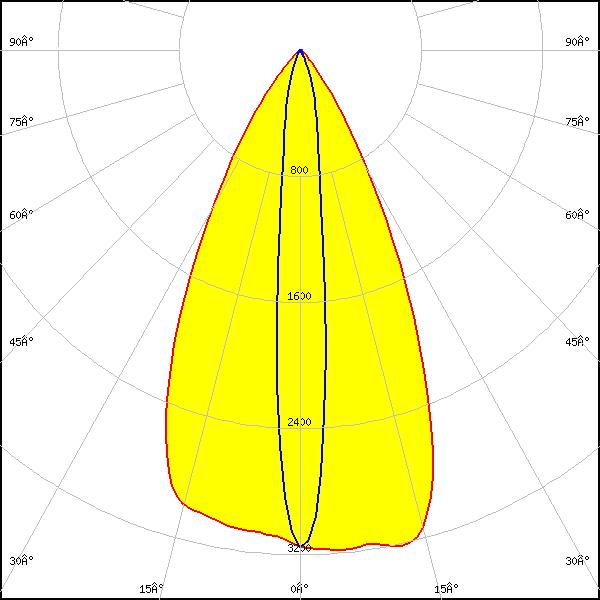

LED:

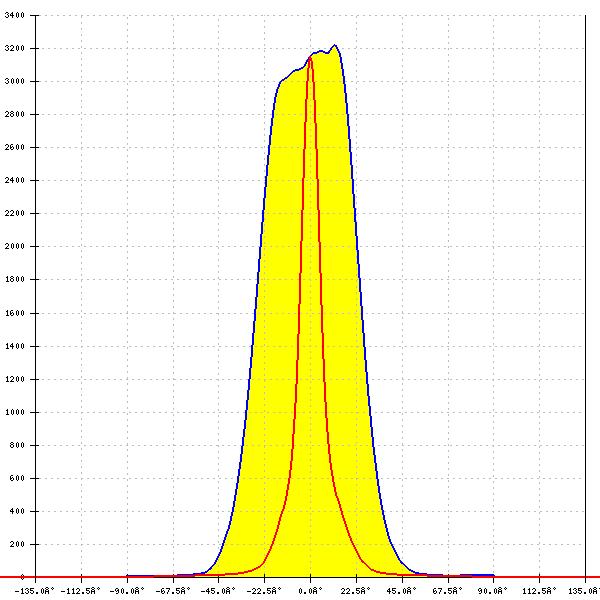

LUXEON T
FWHM:
52° + 12°
FWTM:
76° + 33°
Peak intensity:
3.200 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White

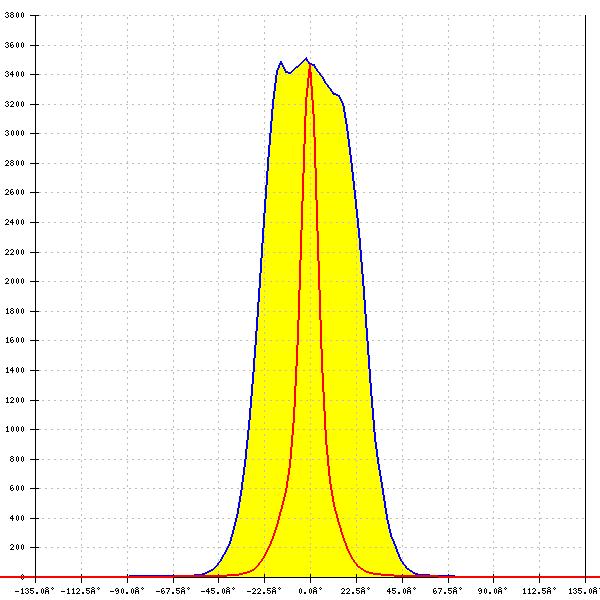

LED:
LUXEON TX
FWHM:
54° + 12°
FWTM:
77° + 31°
Peak intensity:
3.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

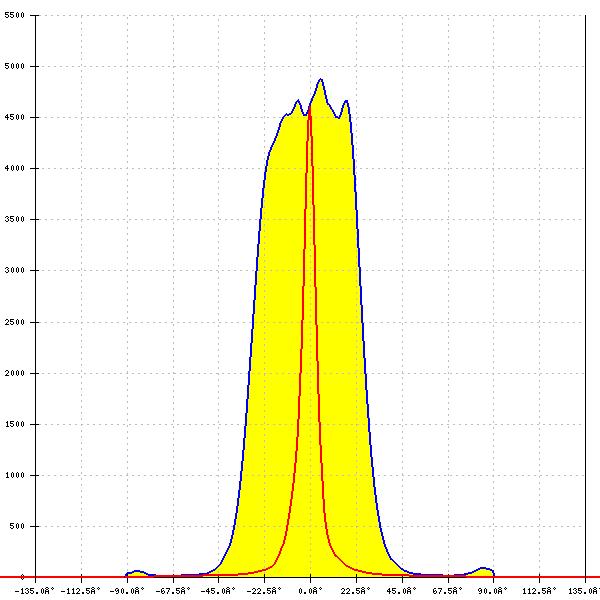

LUXEON Z
FWHM:
55° + 8°
FWTM:
73° + 20°
Peak intensity:
4.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

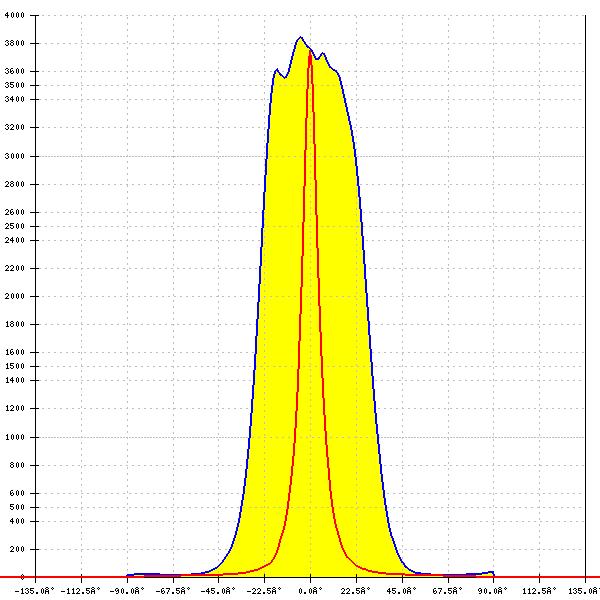

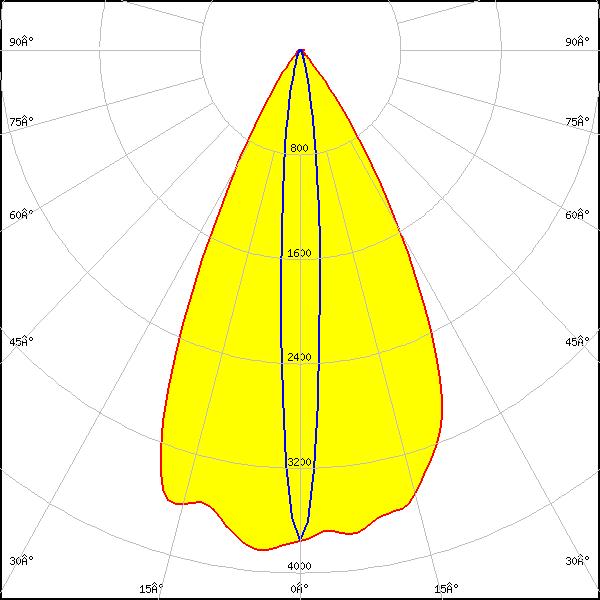

LED:
LUXEON Z ES
FWHM:
54° + 10°
FWTM:
74° + 25°
Peak intensity:
3.800 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

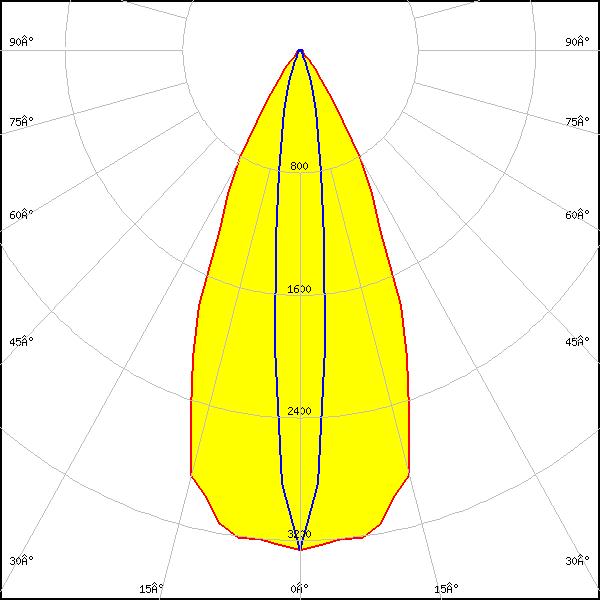

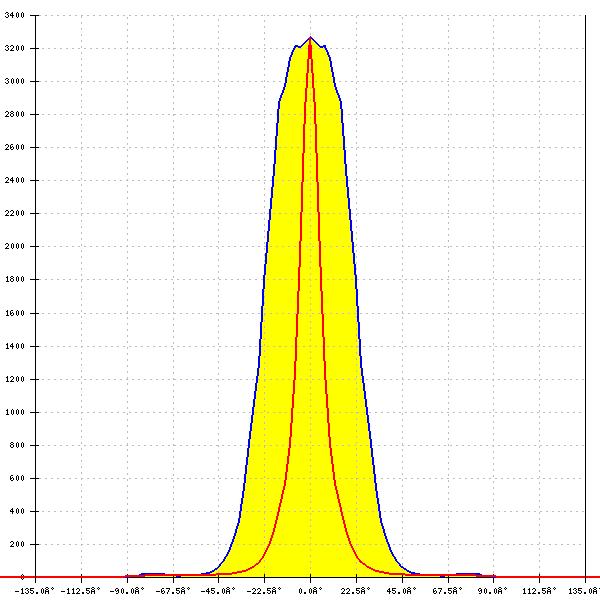

LED:
NCSxx19A
FWHM:
46° + 12°
FWTM:
70° + 34°
Peak intensity:
3.300 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

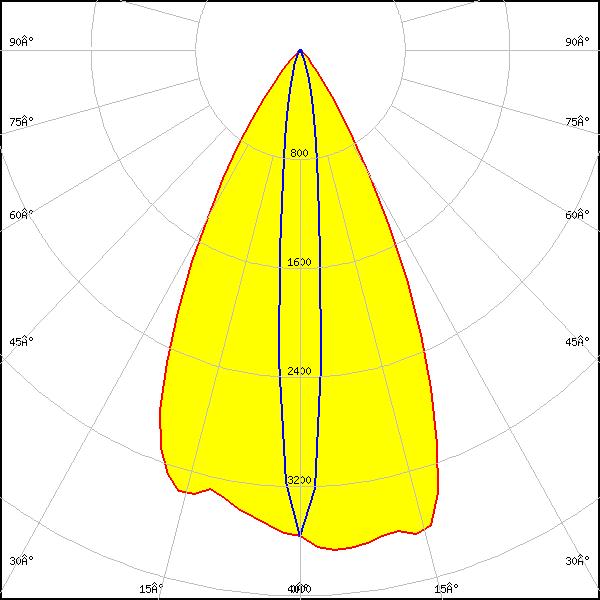

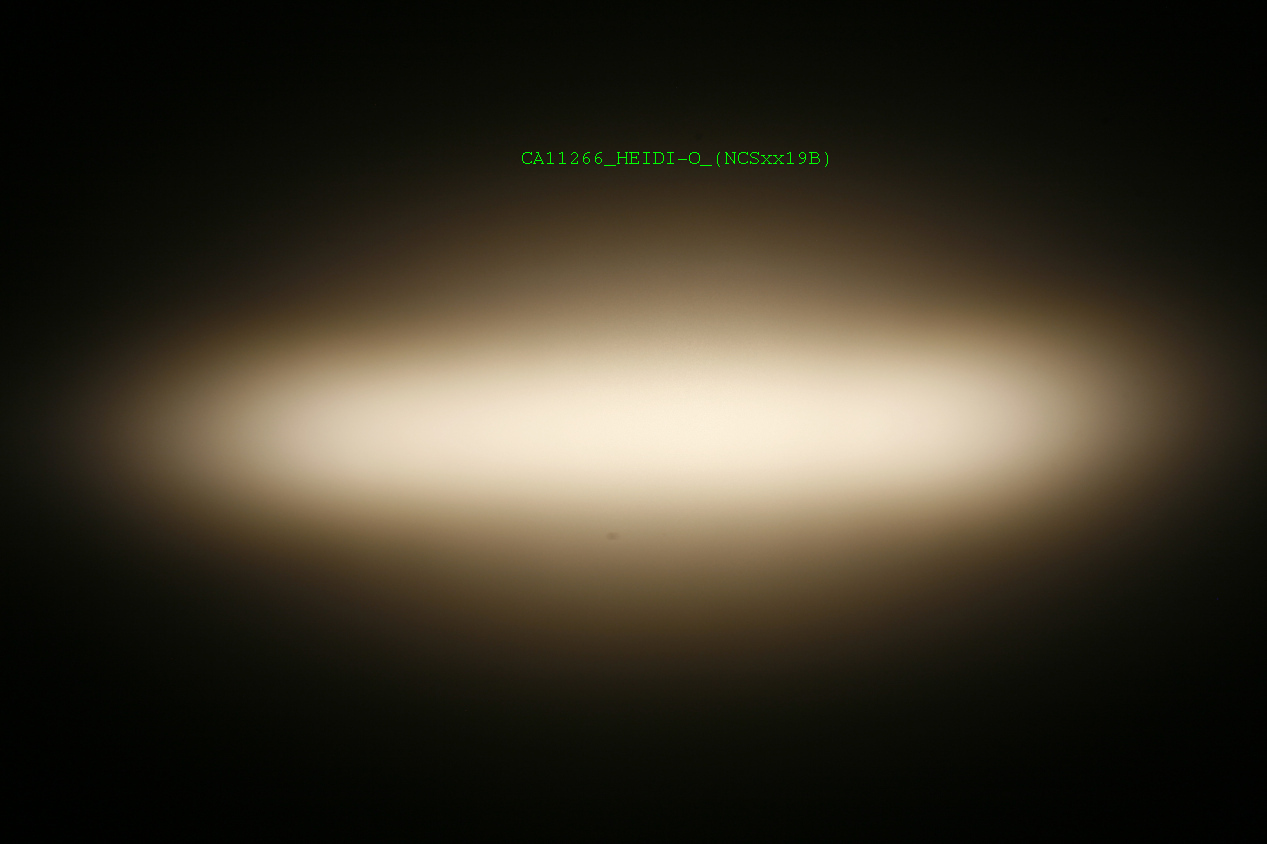

LED:

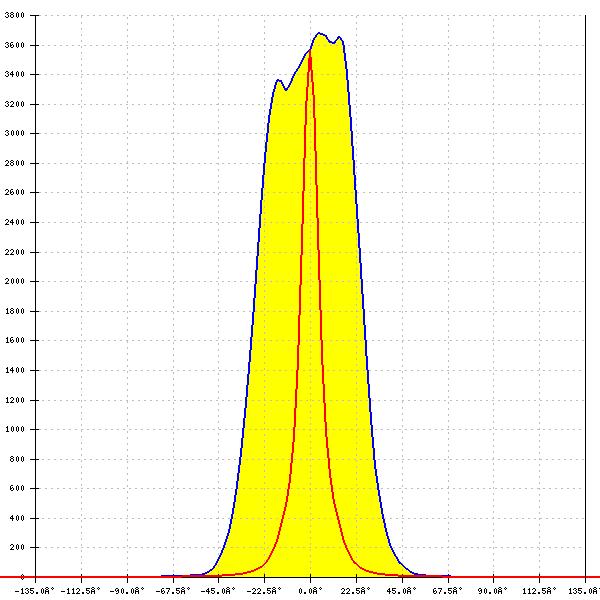

NCSxx19B
FWHM:
55° + 11°
FWTM:
77° + 29°
Peak intensity:
3.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

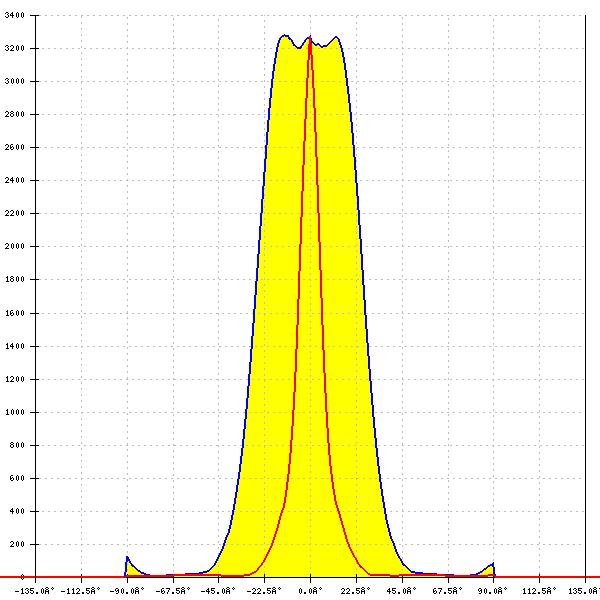

LED:

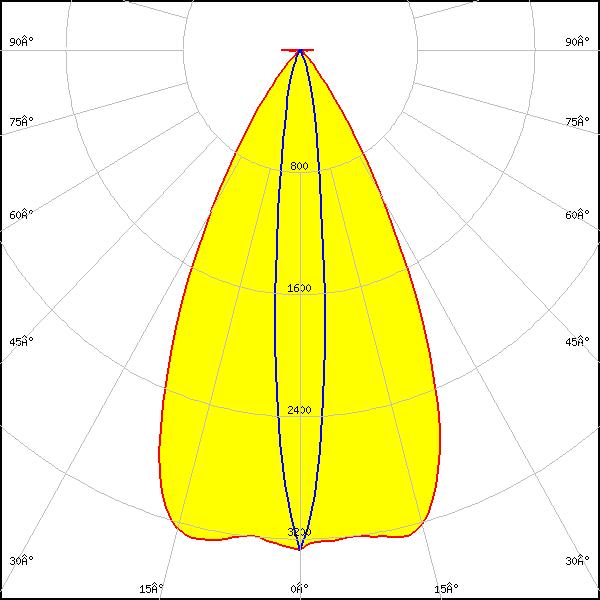

NF2x757G
FWHM:
54° + 12°
FWTM:
78° + 29°
Peak intensity:
3.280 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

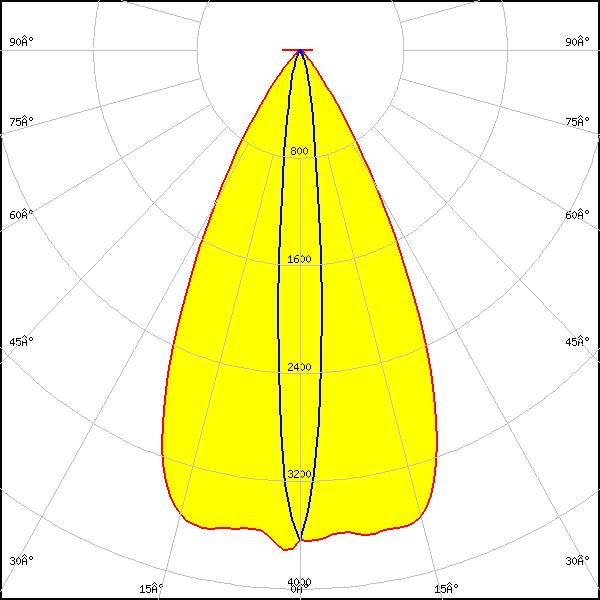

LED:
NFSx757G
FWHM:
54° + 10°
FWTM:
78° + 28°
Peak intensity:
3.720 cd/lm
LEDs/each optic:
1
Light colour/type:
White

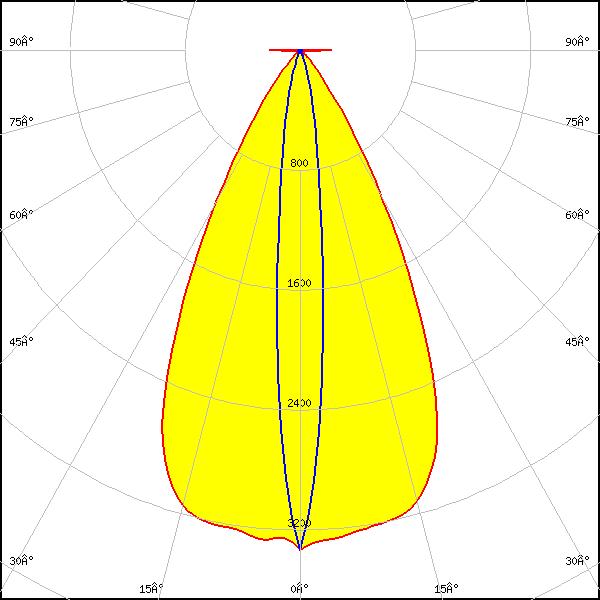

LED:
NVSxE21A
FWHM:
54° + 11°
FWTM:
76° + 28°
Peak intensity:
3.337 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

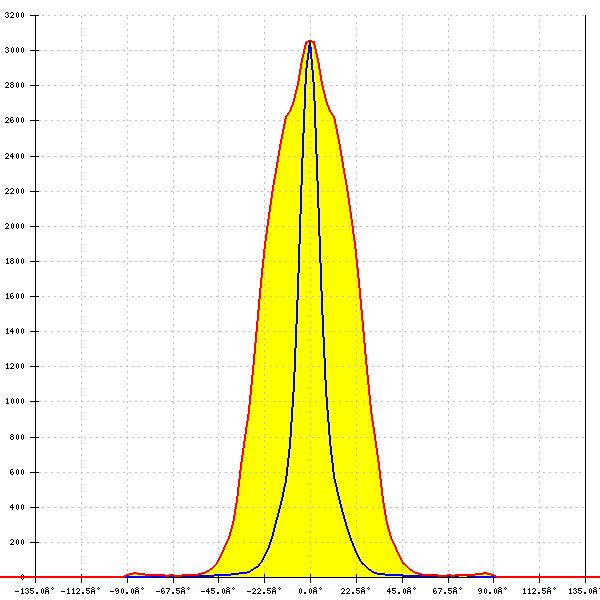

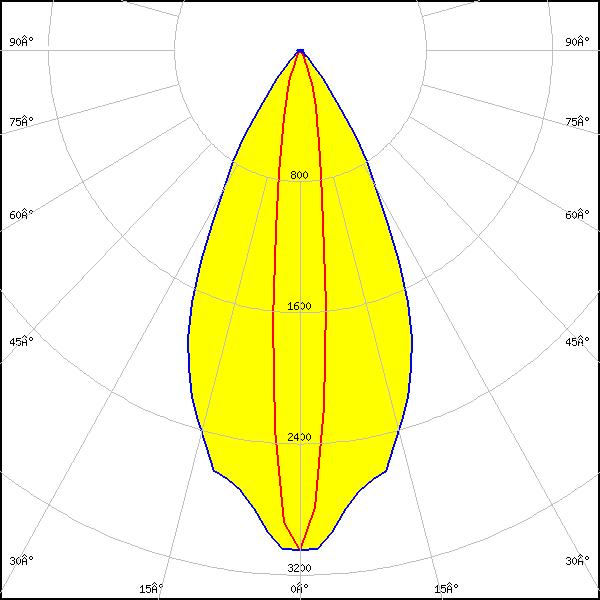

NVSxx19A
FWHM:
50° + 12°
FWTM:
76° + 35°
Peak intensity:
3.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

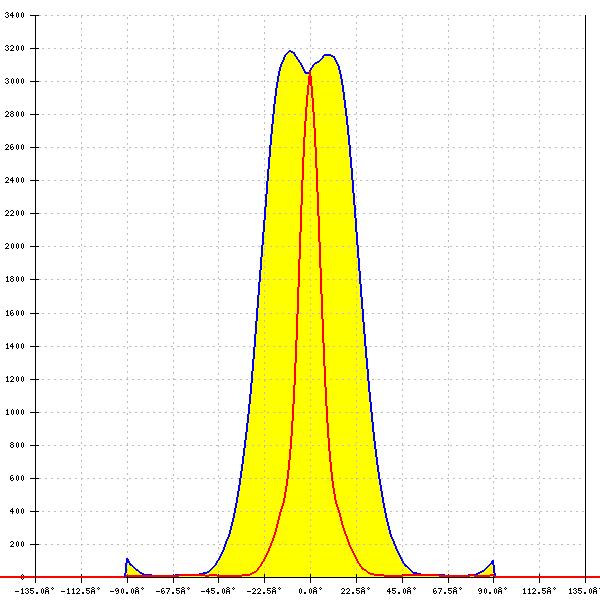

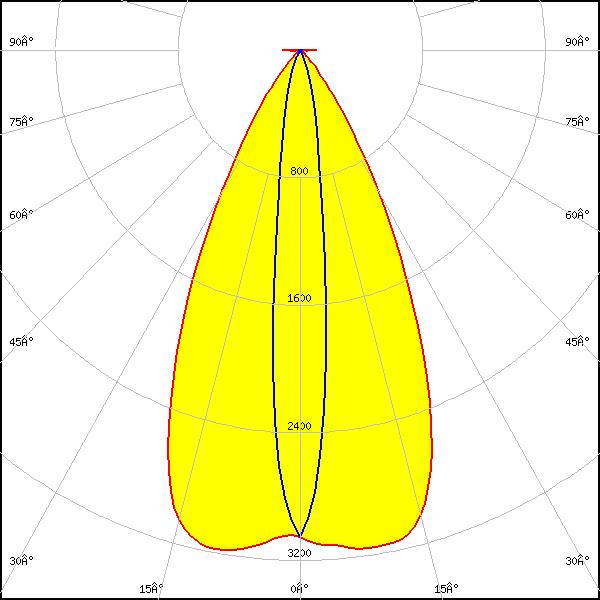

LED:

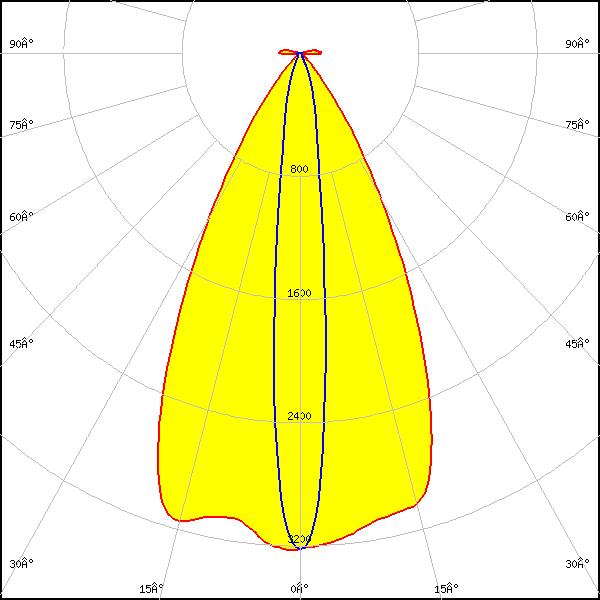

NVSxx19B/NVSxx19C
FWHM:
52° + 12°
FWTM:
78° + 32°
Peak intensity:
3.181 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
48° + 15°
FWTM:
74° + 36°
Peak intensity:
2.700 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
54° + 12°
FWTM:
78° + 33°
Peak intensity:
3.229 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

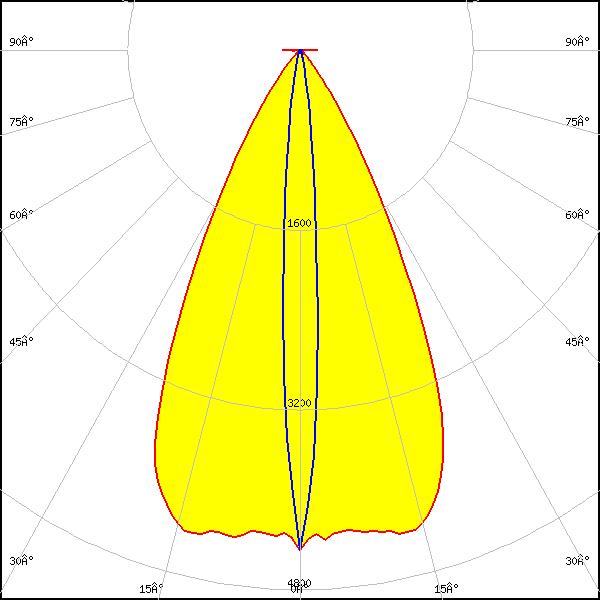

LED:

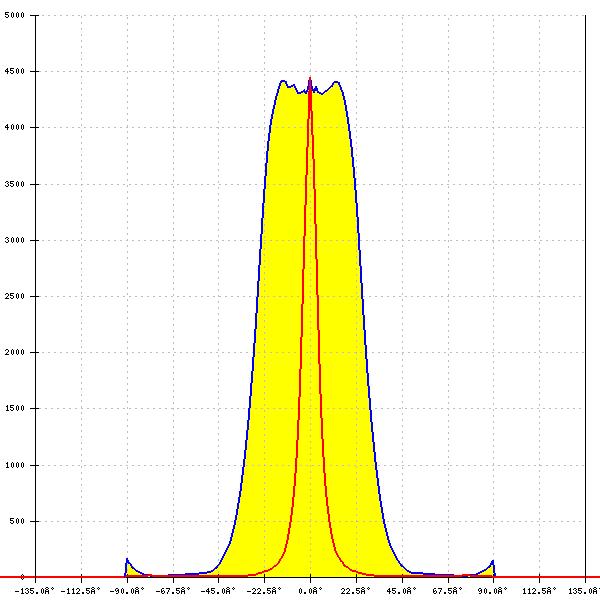

OSCONIQ P 3030
FWHM:
53° + 8°
FWTM:
75° + 20°
Peak intensity:
4.450 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Black Flat (LUW HWQP)
FWHM:
50° + 8°
FWTM:
72° + 19°
Peak intensity:
4.990 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

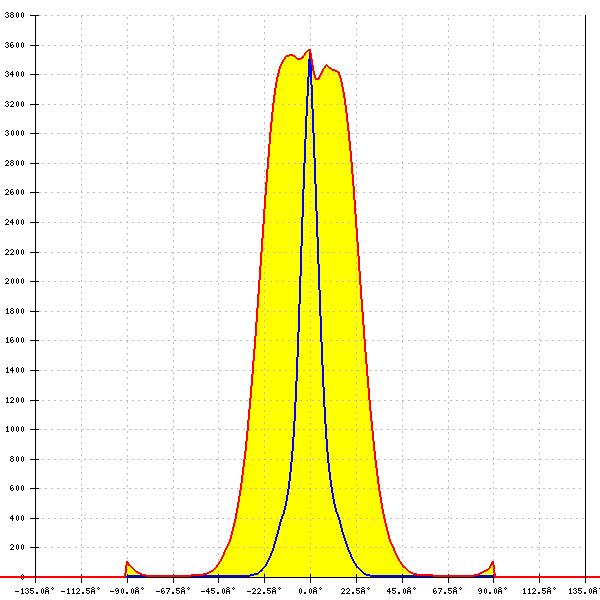

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
52° + 13°
FWTM:
80° + 32°
Peak intensity:
3.670 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

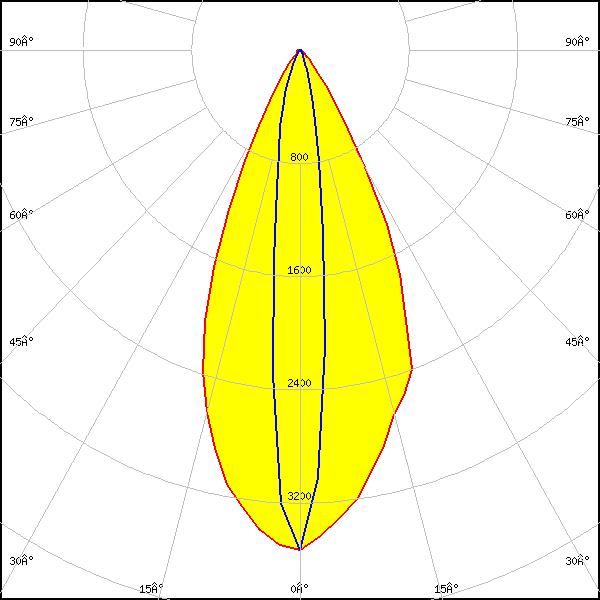

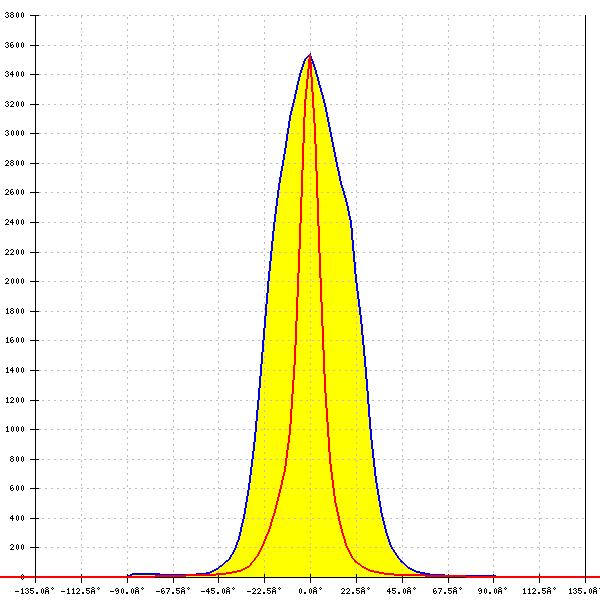

OSLON Square EC
FWHM:
48° + 12°
FWTM:
74° + 30°
Peak intensity:
3.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

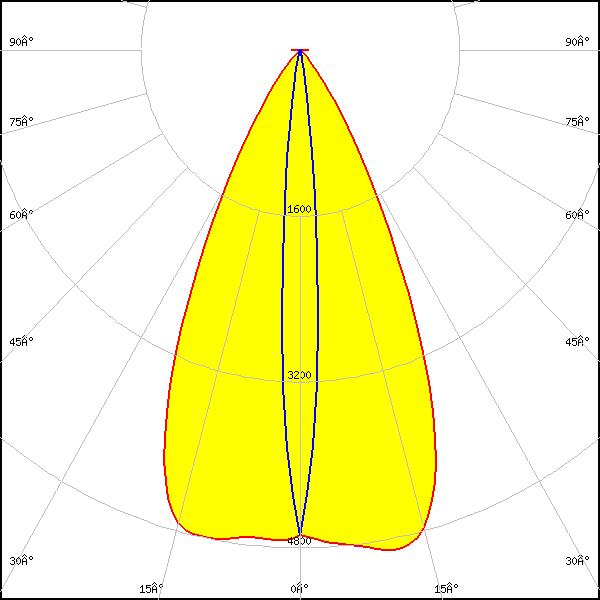

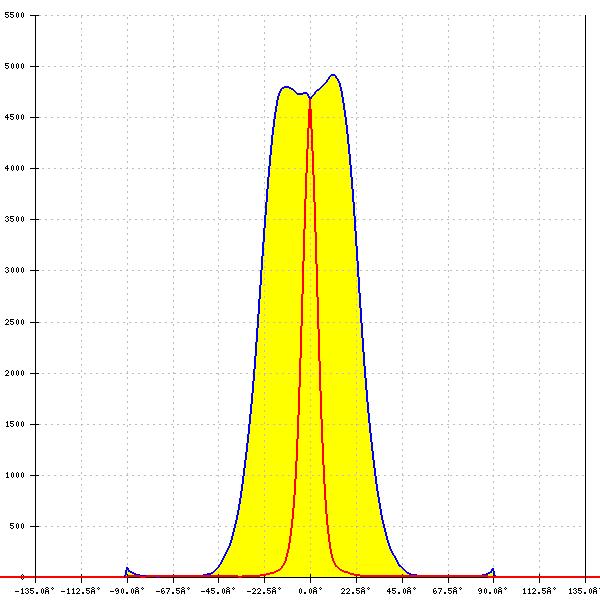

LED:
OSLON SSL 150
FWHM:
51° + 8°
FWTM:
74° + 18°
Peak intensity:
4.916 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Red

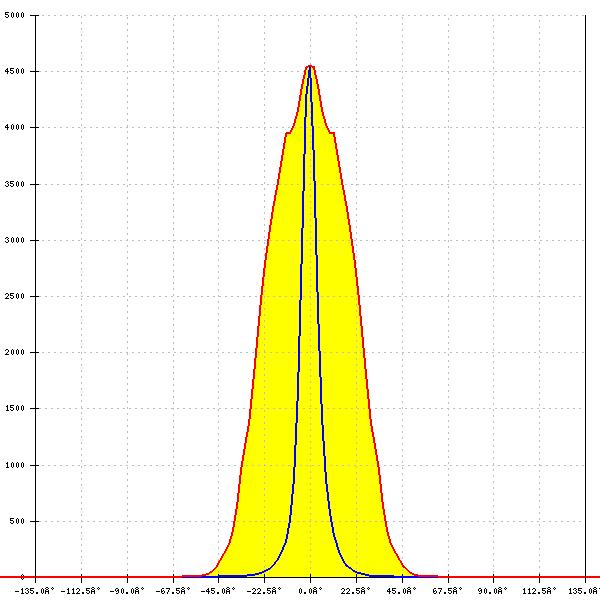

LED:
OSLON SSL 150
FWHM:
50° + 8°
FWTM:
75° + 22°
Peak intensity:
4.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

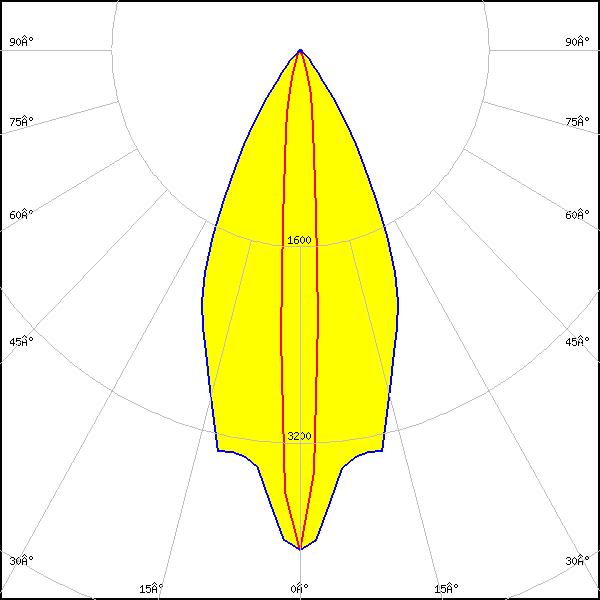

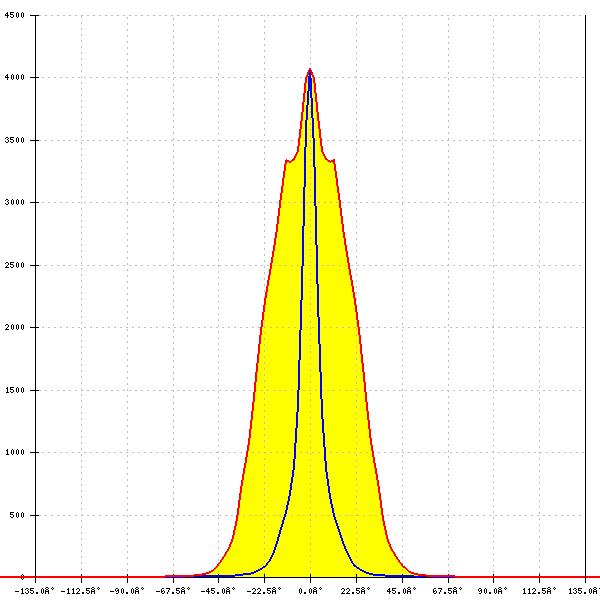

LED:
OSLON SSL 80
FWHM:
47° + 8°
FWTM:
73° + 27°
Peak intensity:
4.100 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

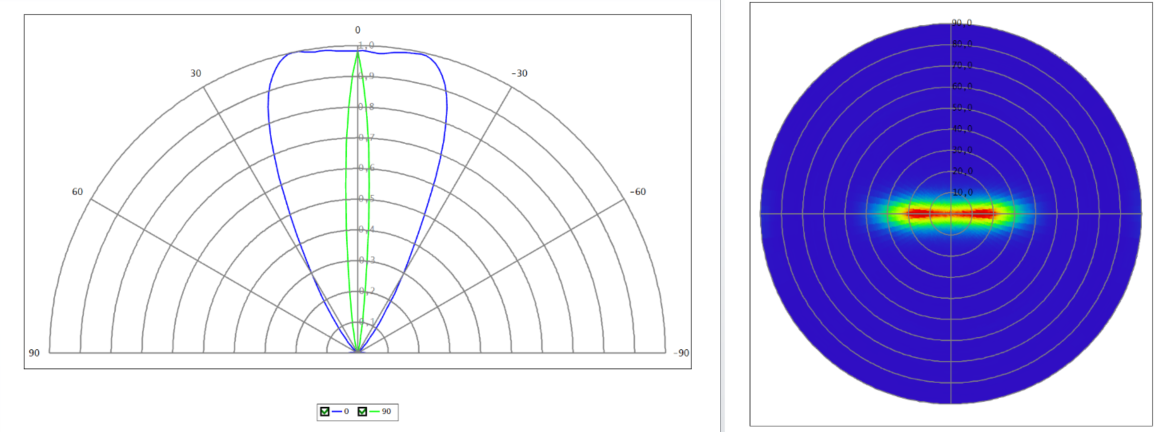

LED:
SFH 4716S
FWHM:
52° + 9°
FWTM:
74° + 19°
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
IR

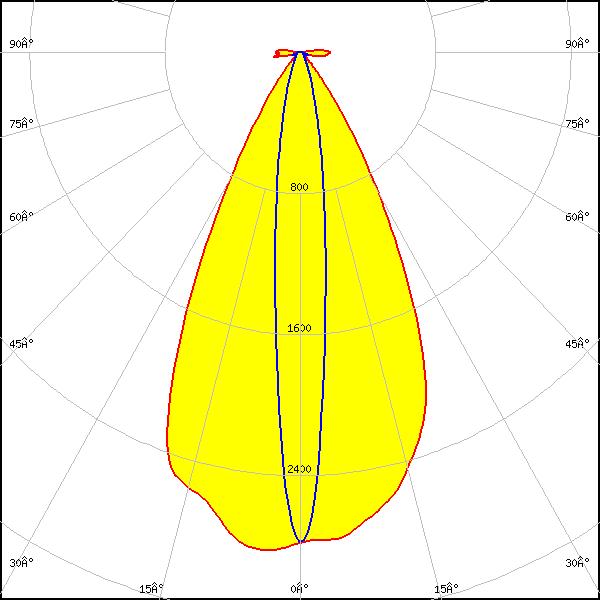

LED:

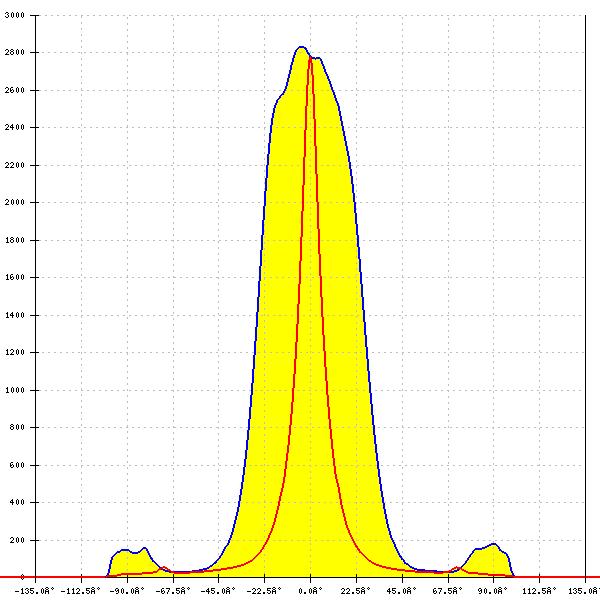

LH181A
FWHM:
52° + 12°
FWTM:
76° + 36°
Peak intensity:
2.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

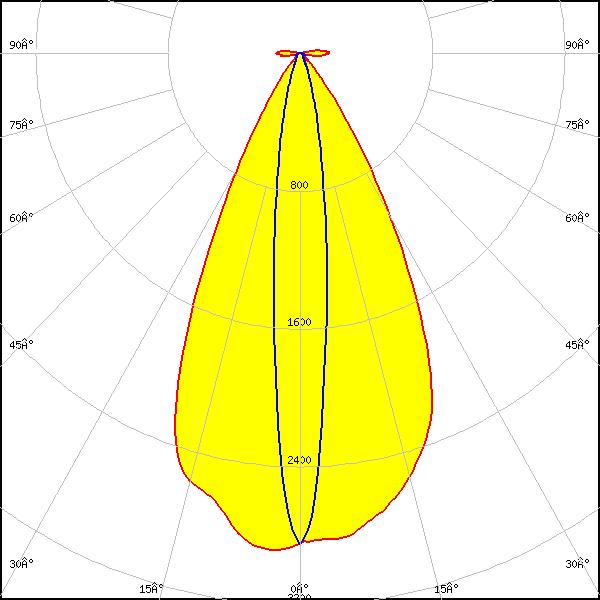

LED:

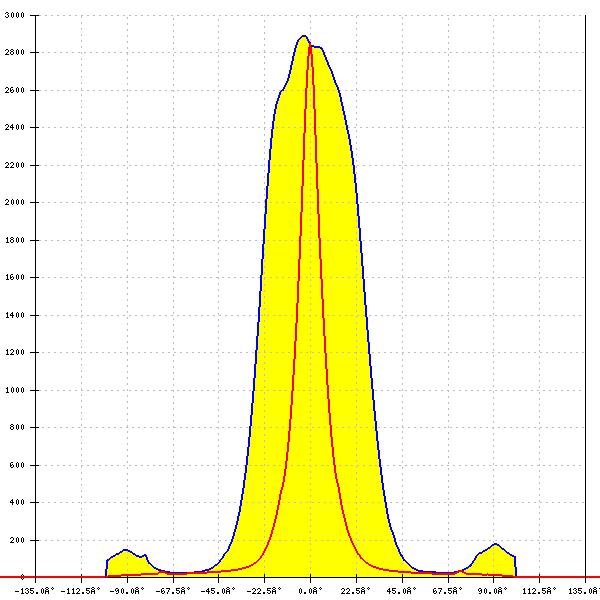

LH181B
FWHM:
53° + 13°
FWTM:
75° + 35°
Peak intensity:
2.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

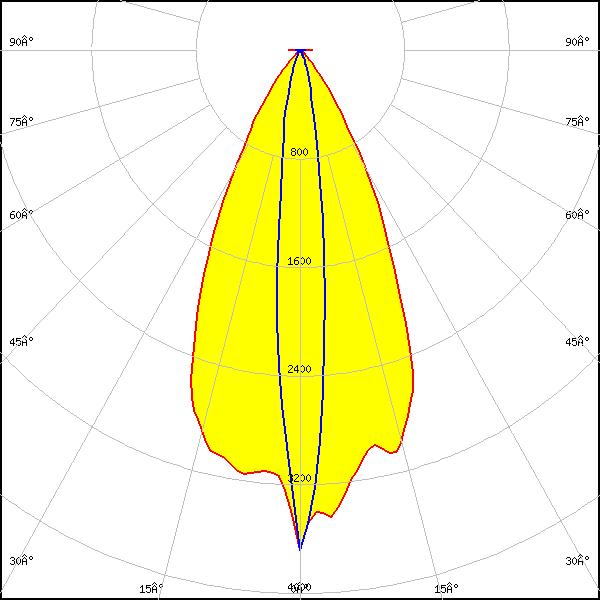

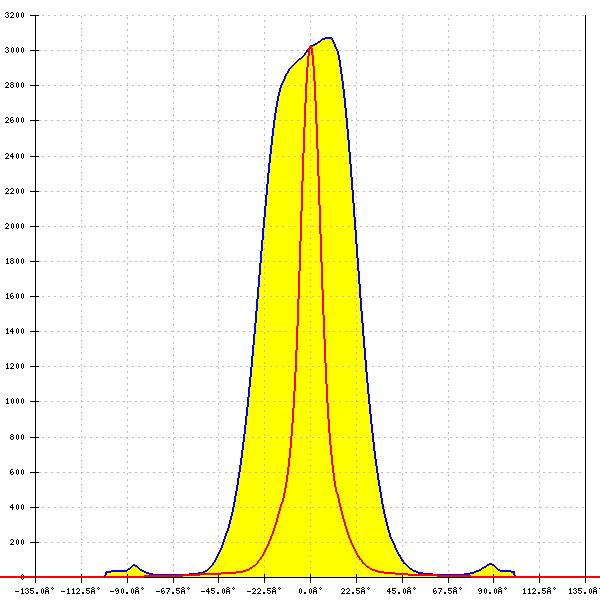

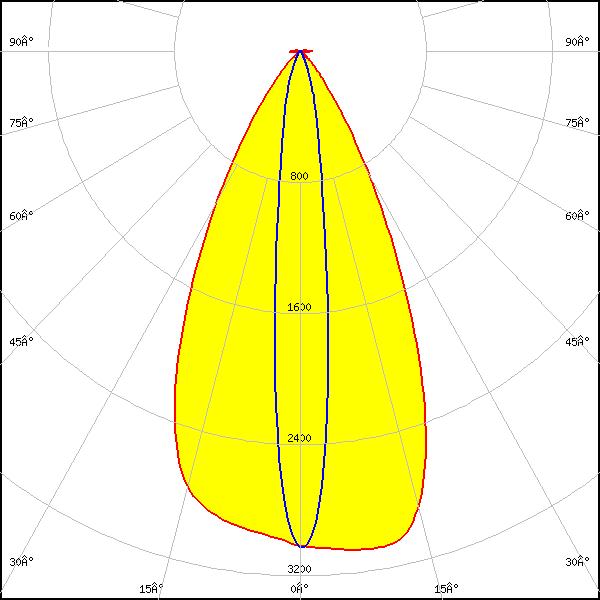

LED:

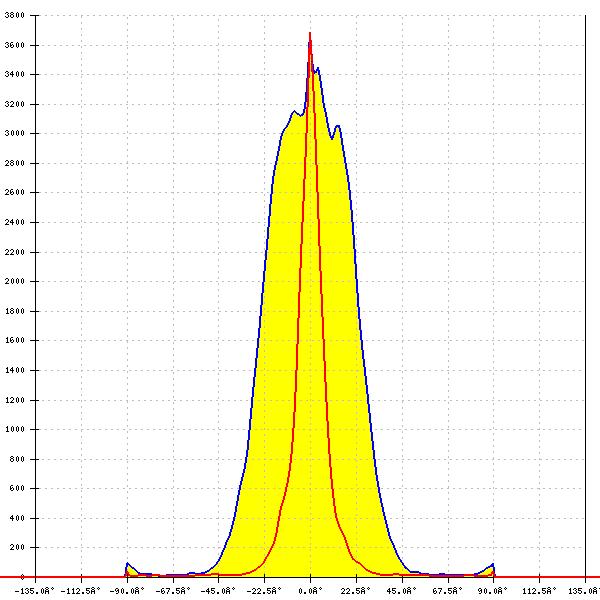

LH351B
FWHM:
48° + 11°
FWTM:
76° + 29°
Peak intensity:
3.683 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LH351B
FWHM:
51° + 13°
FWTM:
77° + 34°
Peak intensity:
3.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

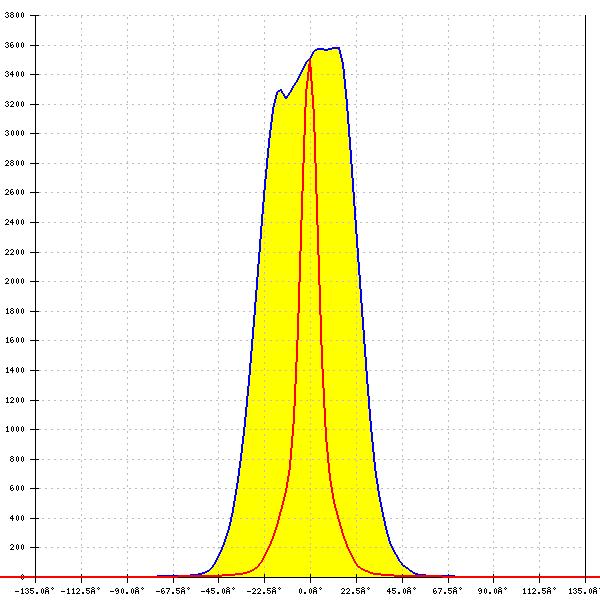

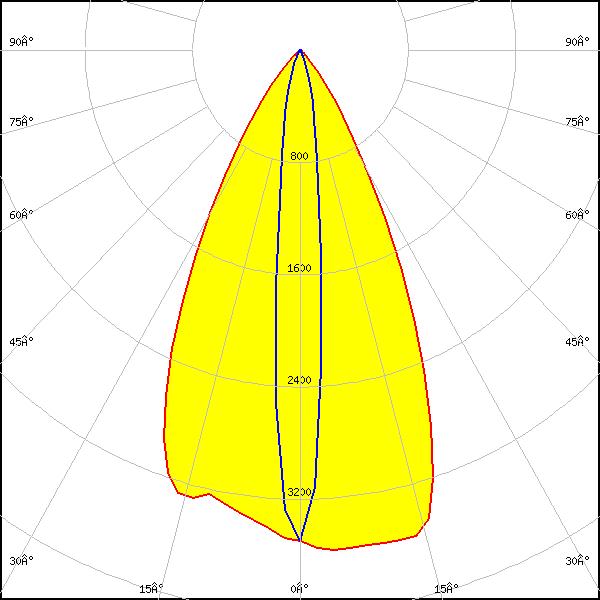

LED:
LH351Z
FWHM:
54° + 12°
FWTM:
78° + 32°
Peak intensity:
3.600 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

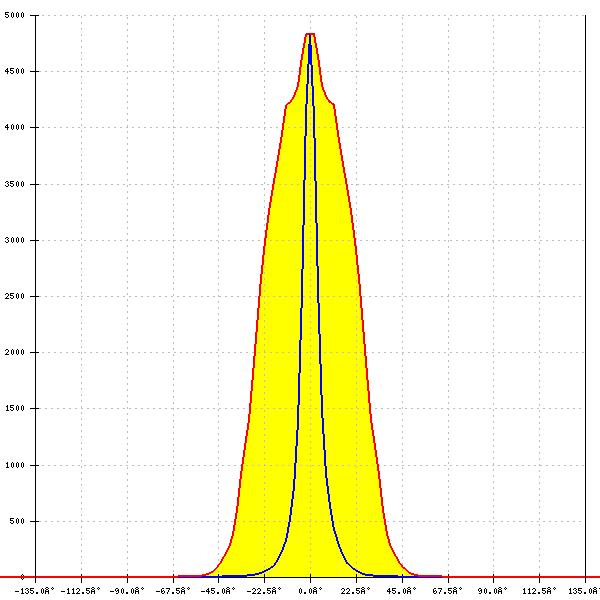

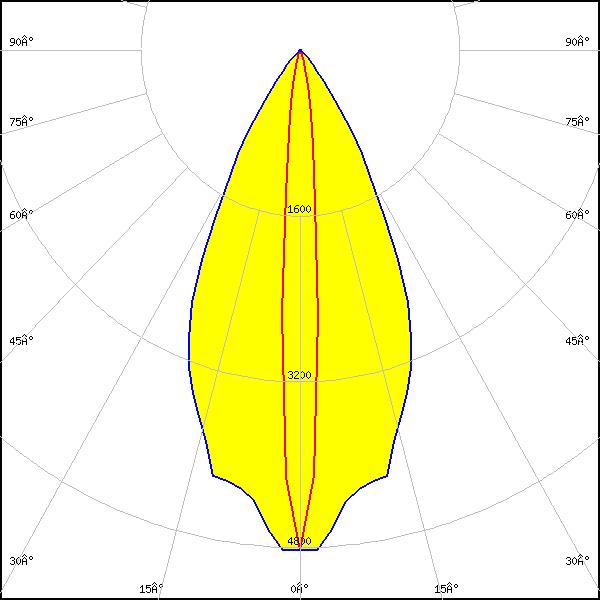

LED:
Z5
FWHM:
50° + 9°
FWTM:
74° + 23°
Peak intensity:
4.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M1/Z5M2
FWHM:
53° + 11°
FWTM:
77° + 32°
Peak intensity:
3.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

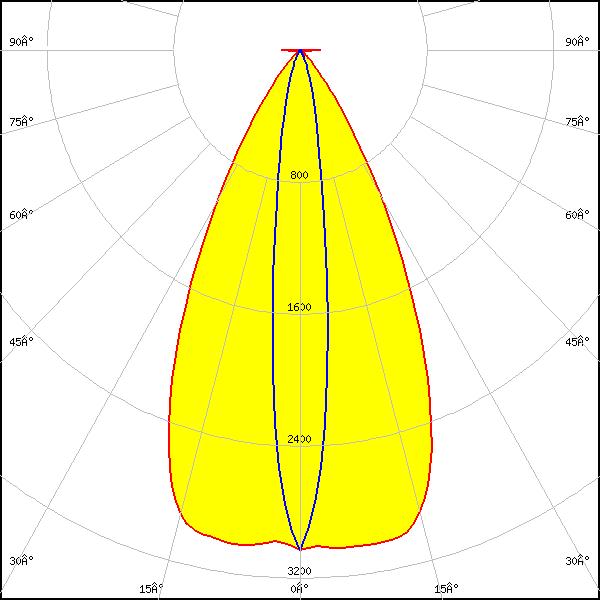

LED:
Z5M3
FWHM:
52° + 13°
FWTM:
78° + 34°
Peak intensity:
3.032 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

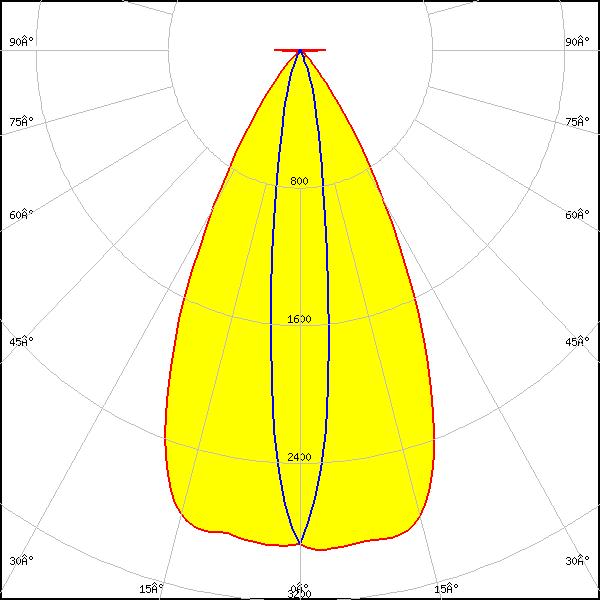

LED:
Z5M4
FWHM:
54° + 14°
FWTM:
78° + 34°
Peak intensity:
2.911 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

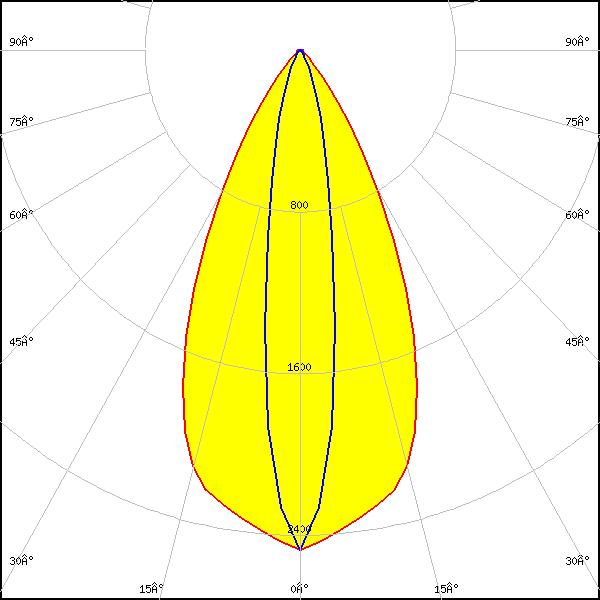

LED:

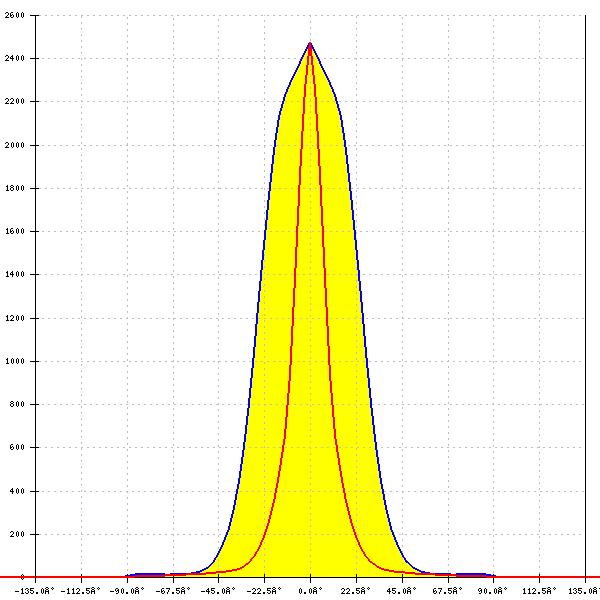

Double Dome (GM2BB)
FWHM:
50° + 16°
FWTM:
79° + 40°
Peak intensity:
2.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
