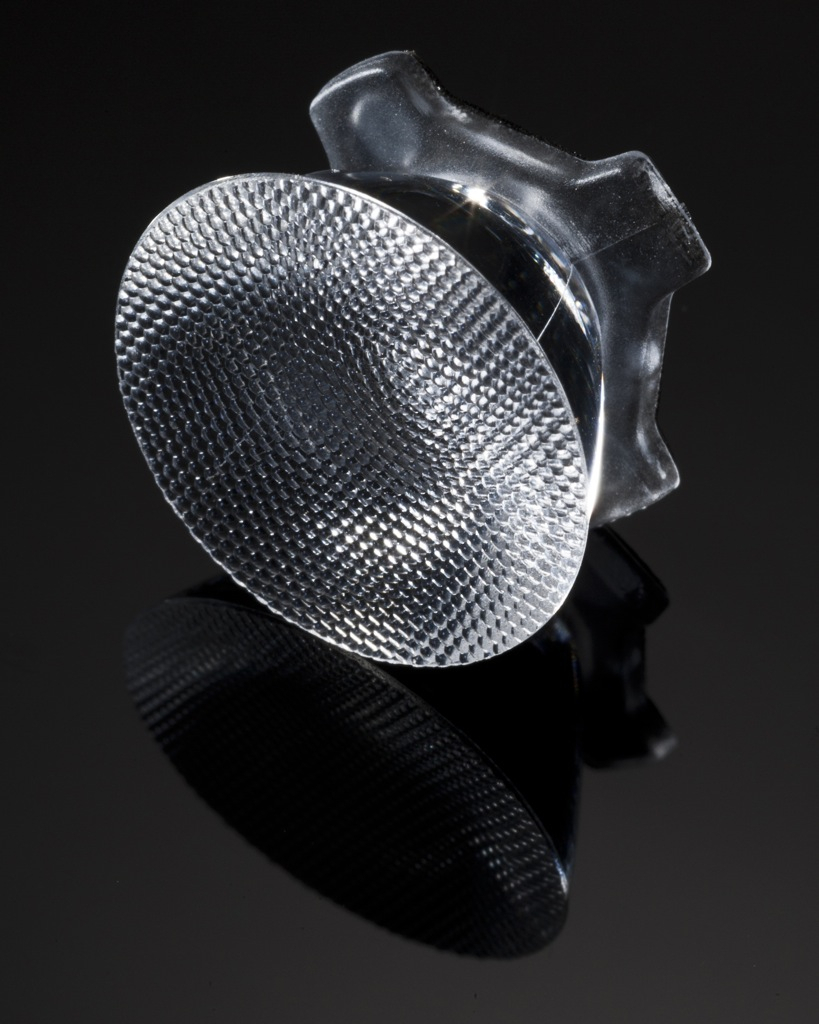

CA11268_HEIDI-W
Print
~32° wide beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
XB-D
FWHM:
30°
FWTM:
-
Peak intensity:
2.560 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

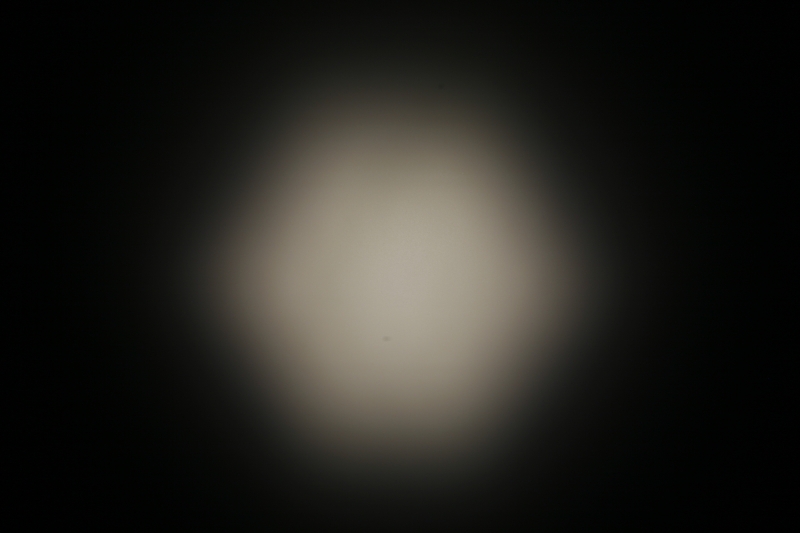

XB-H
FWHM:
33°
FWTM:
54°
Peak intensity:
2.300 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

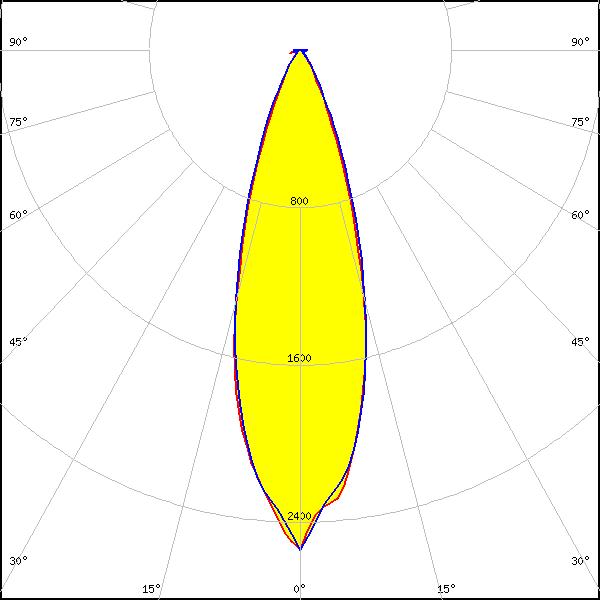

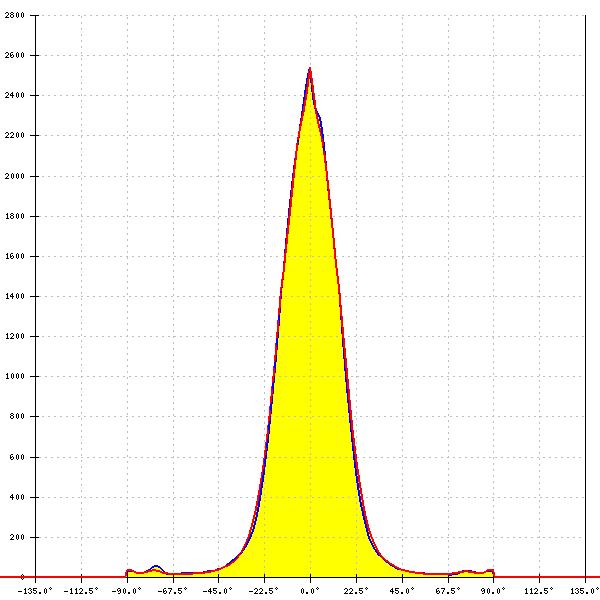

XHP35.2 HI
FWHM:
31°
FWTM:
57°
Peak intensity:
2.542 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

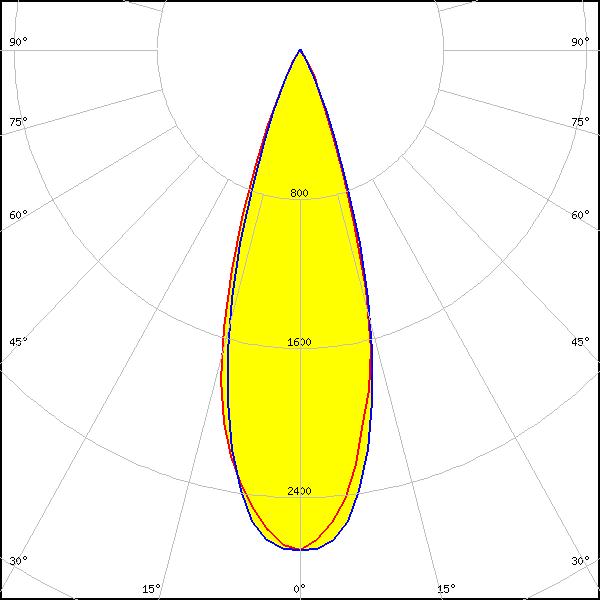

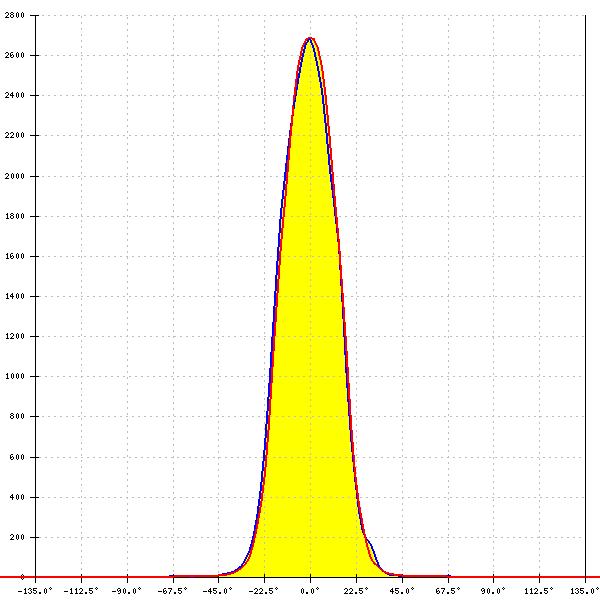

XP-E
FWHM:
32°
FWTM:
50°
Peak intensity:
2.680 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

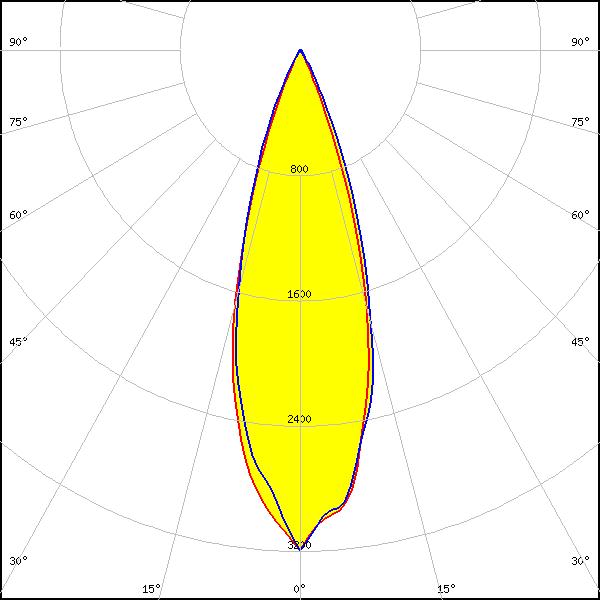

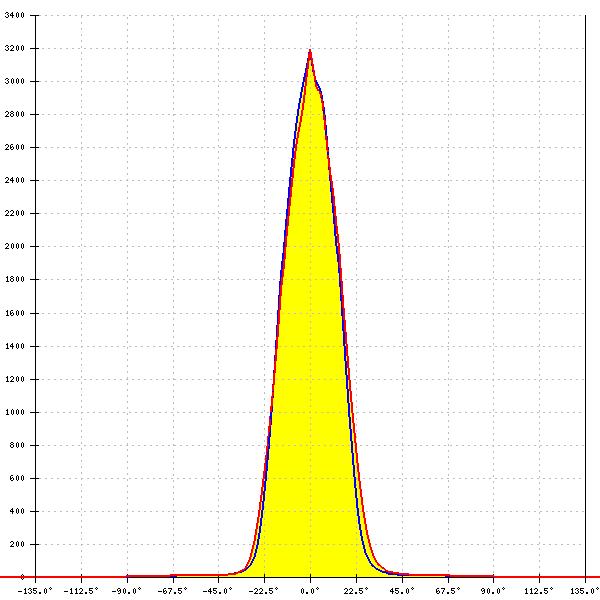

LED:
XP-E2
FWHM:
31°
FWTM:
51°
Peak intensity:
3.194 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Green

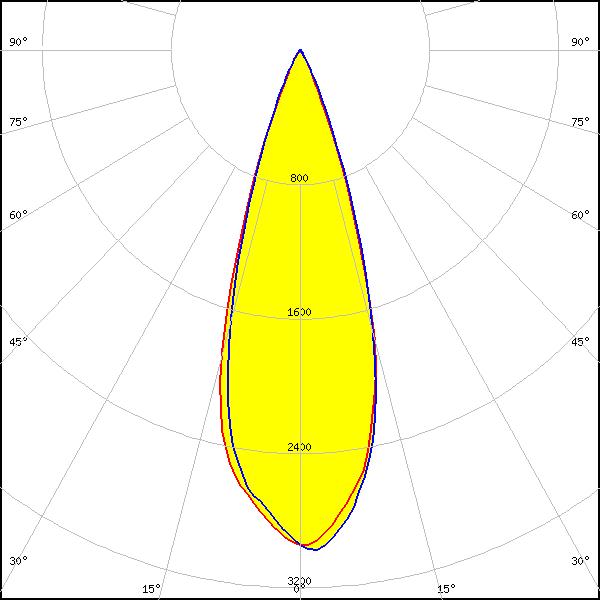

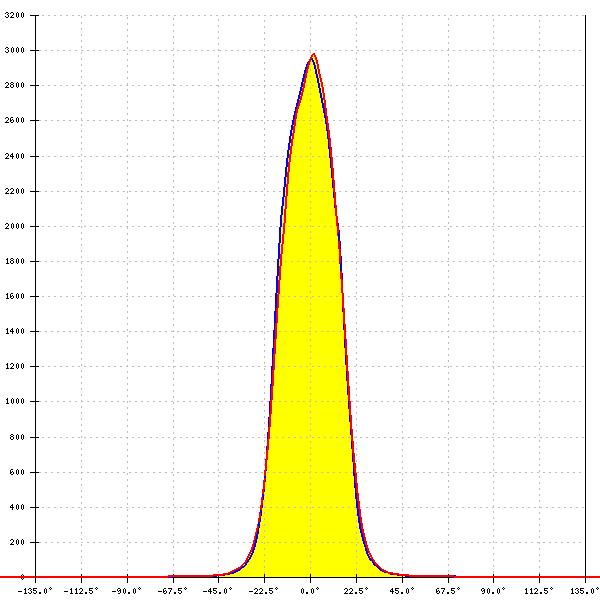

LED:
XP-E2
FWHM:
33°
FWTM:
49°
Peak intensity:
2.950 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

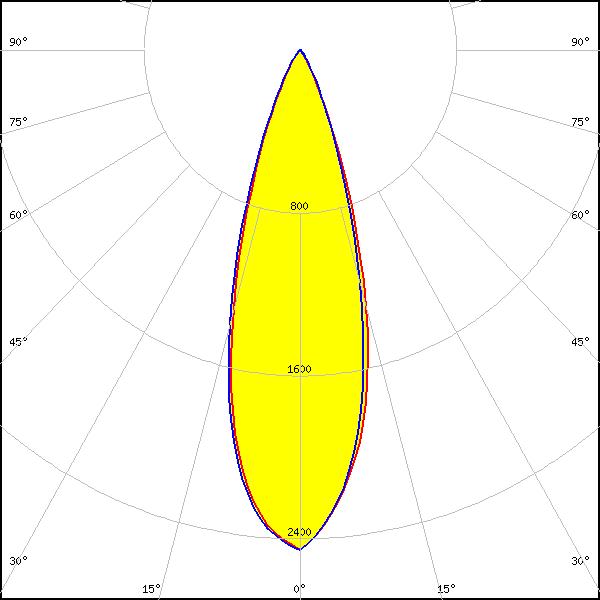

LED:

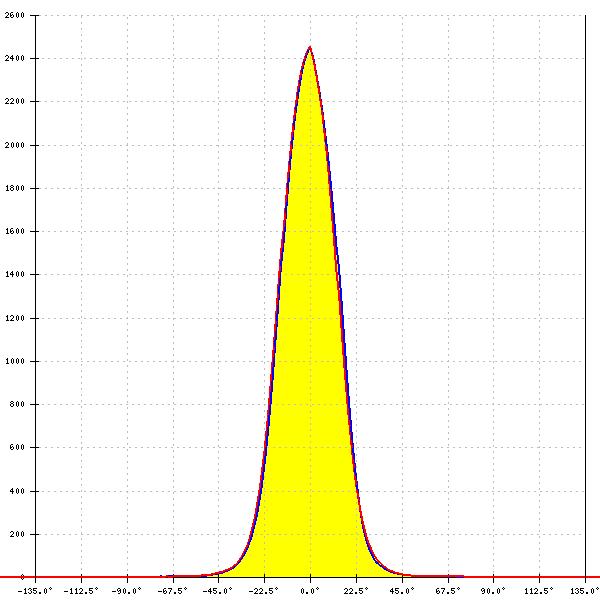

XP-G
FWHM:
31°
FWTM:
52°
Peak intensity:
2.460 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

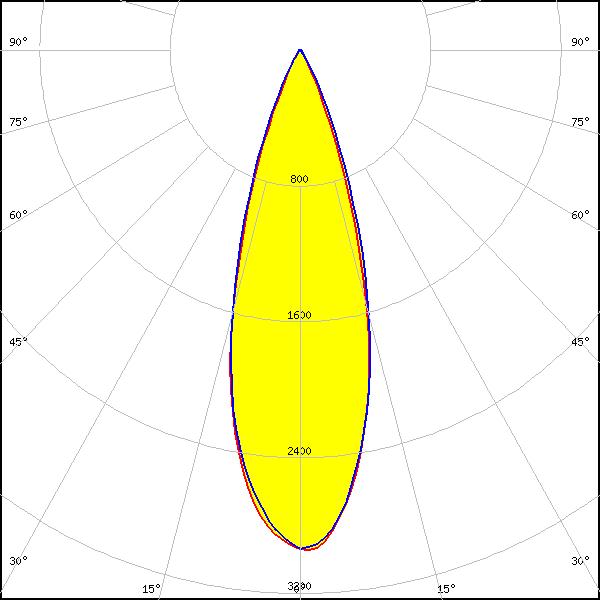

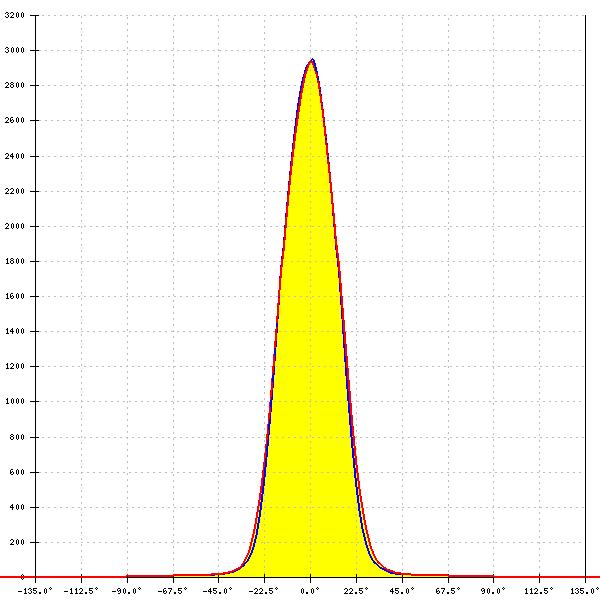

XP-G2
FWHM:
32°
FWTM:
53°
Peak intensity:
2.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

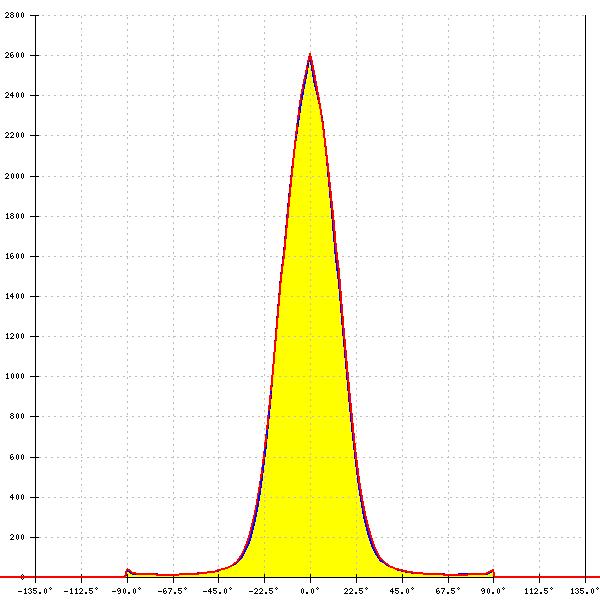

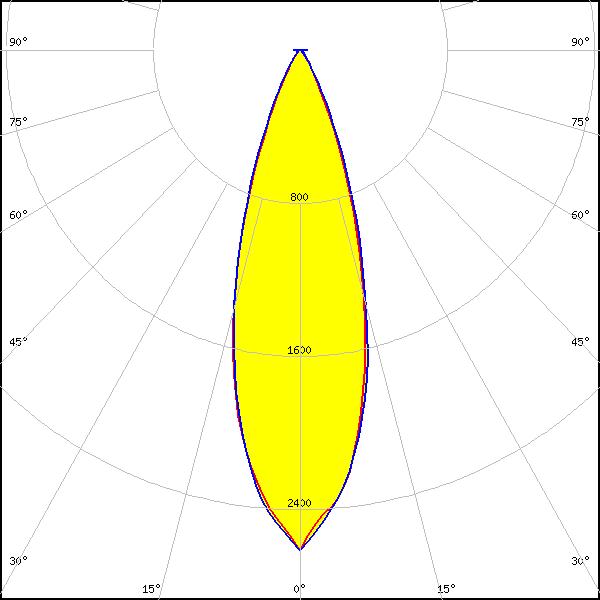

XP-G3
FWHM:
31°
FWTM:
56°
Peak intensity:
2.610 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

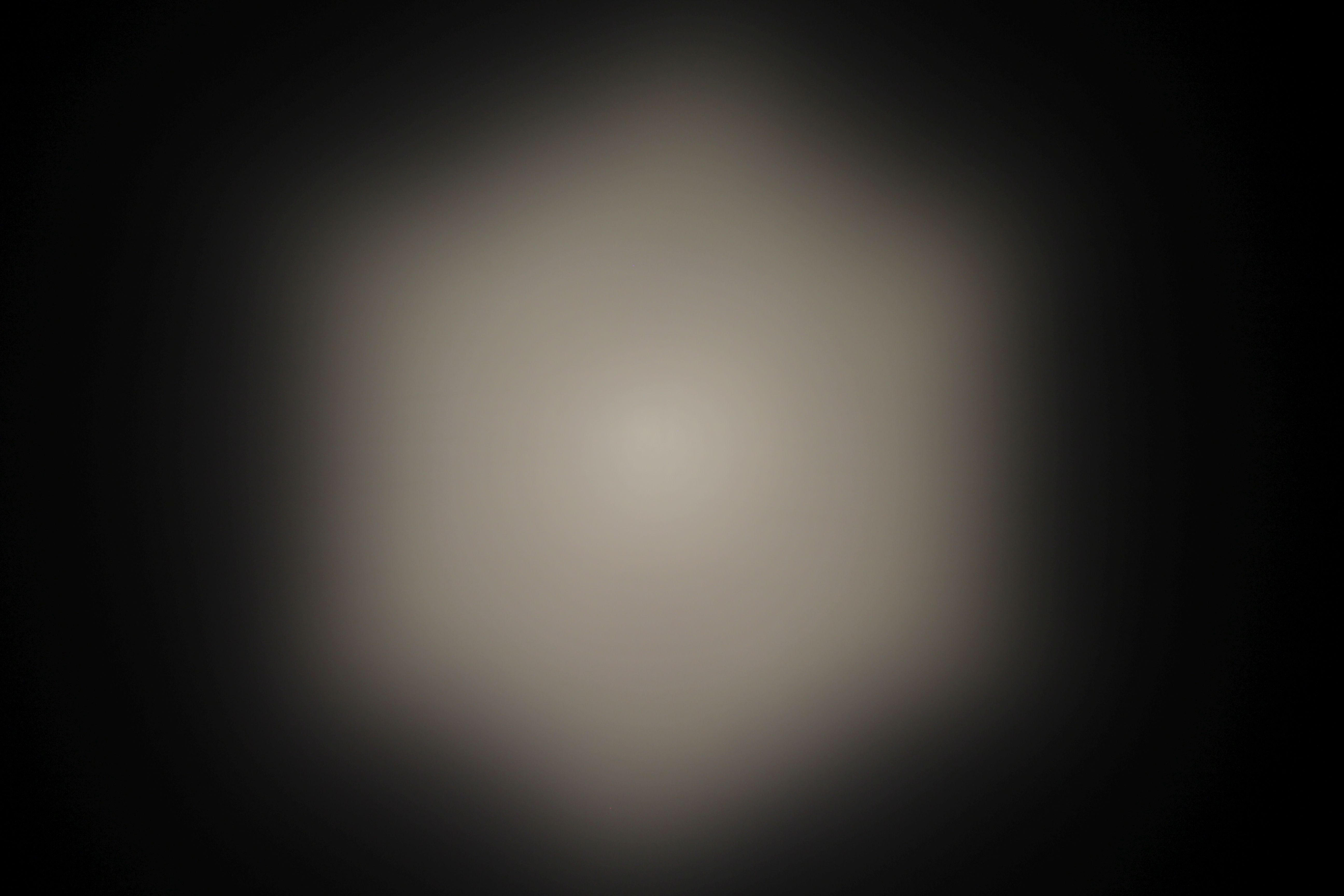

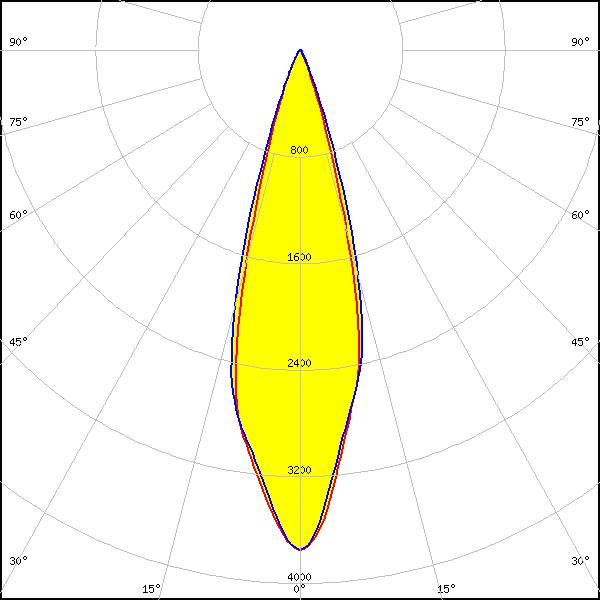

LED:

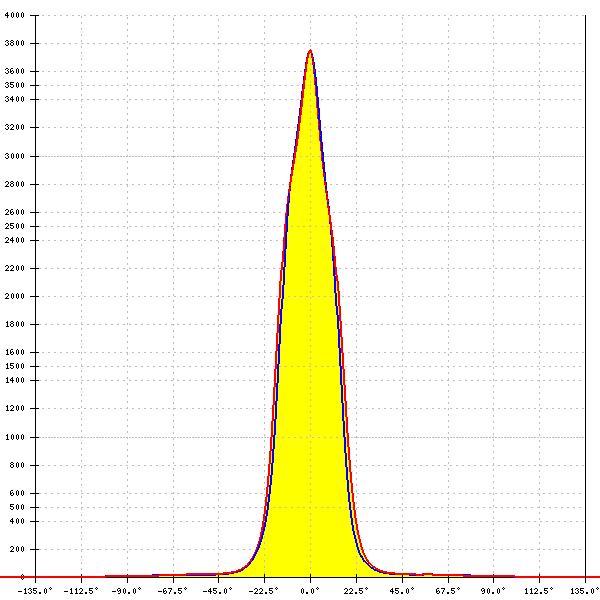

XQ-E HD
FWHM:
29°
FWTM:
44°
Peak intensity:
3.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

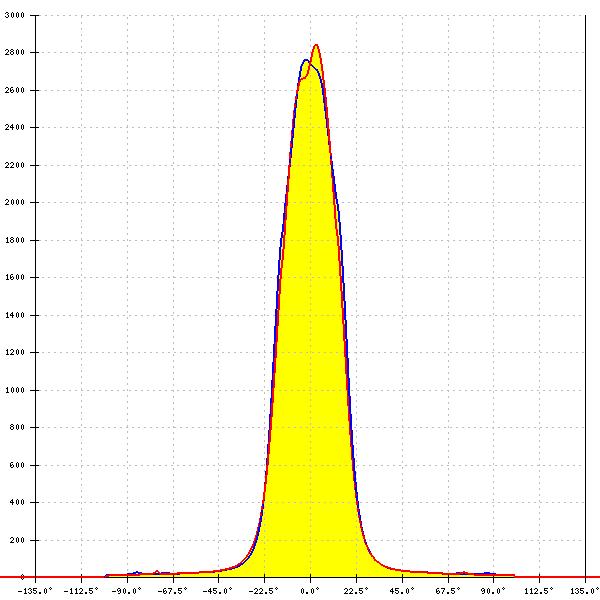

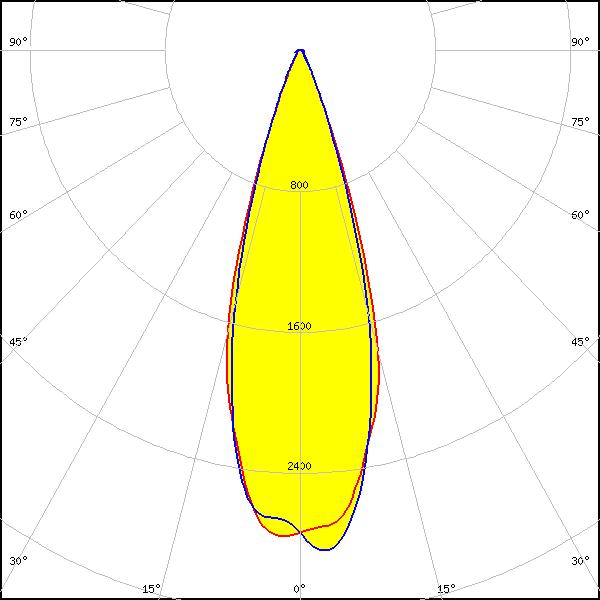

XQ-E HI
FWHM:
34°
FWTM:
50°
Peak intensity:
2.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

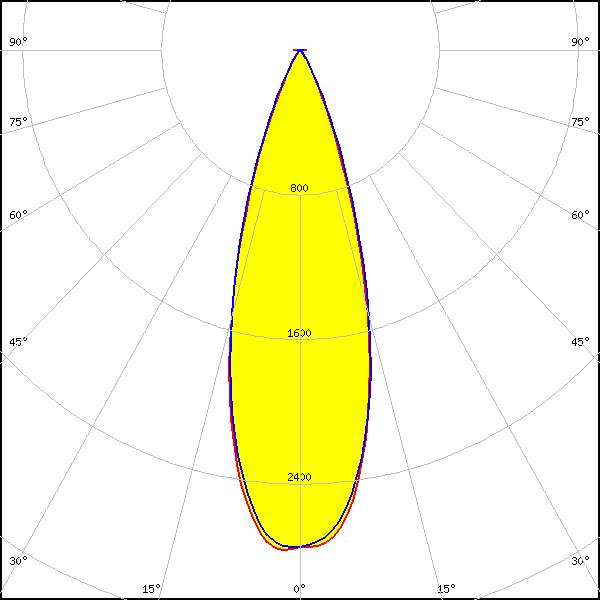

LED:

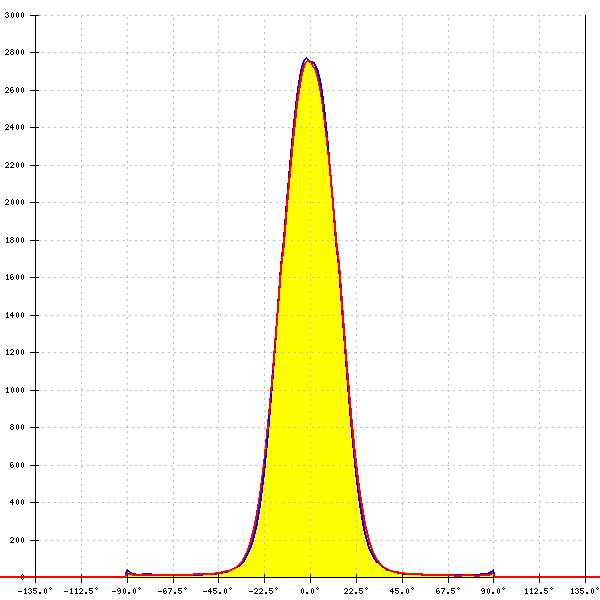

XT-E
FWHM:
32°
FWTM:
54°
Peak intensity:
2.770 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

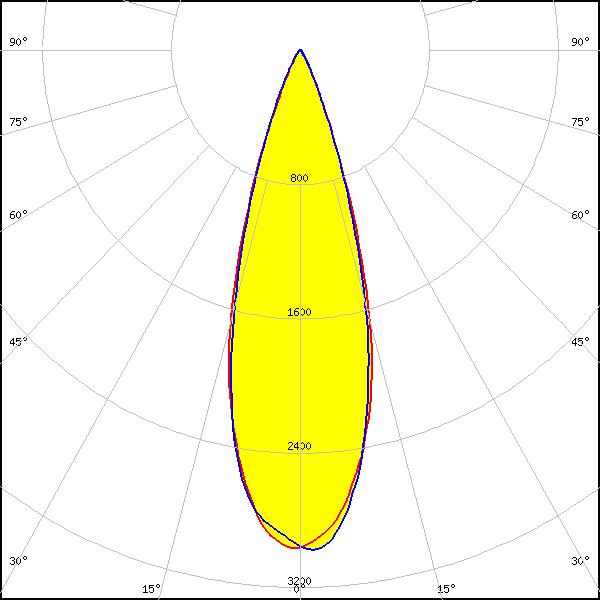

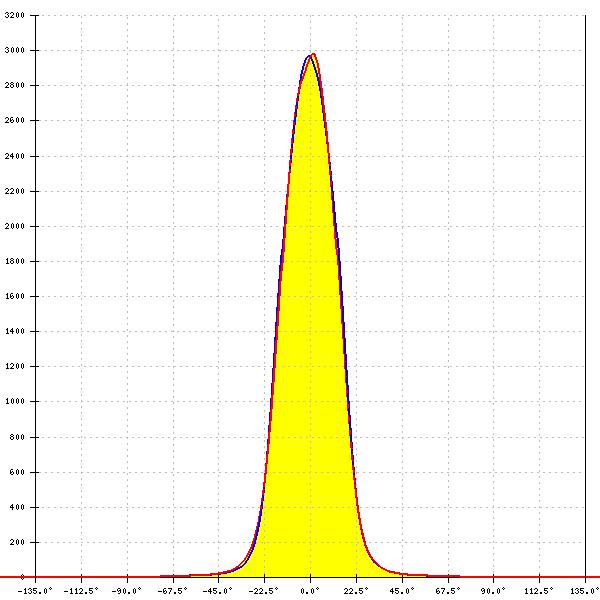

LUXEON C
FWHM:
31°
FWTM:
49°
Peak intensity:
3.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

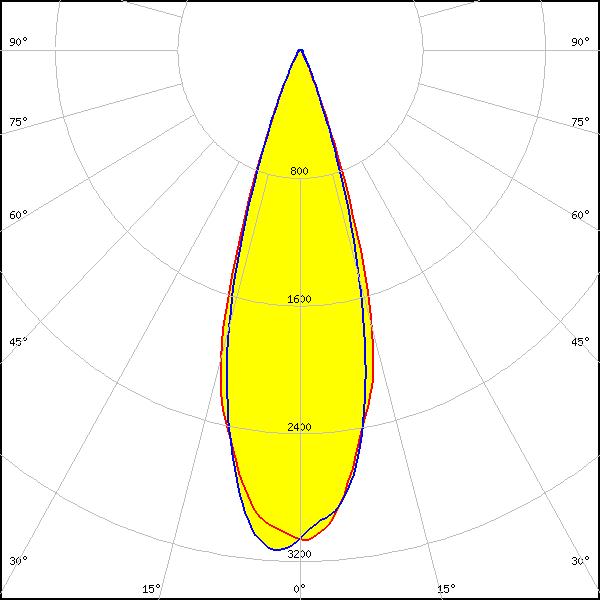

LED:

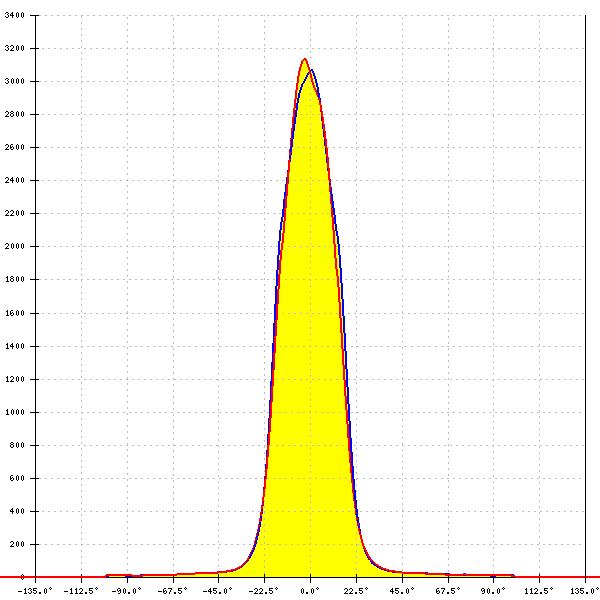

LUXEON CZ
FWHM:
34°
FWTM:
49°
Peak intensity:
3.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

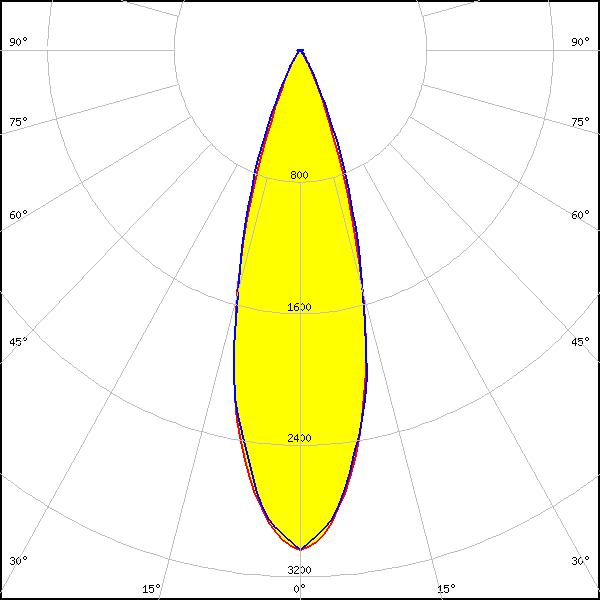

LED:

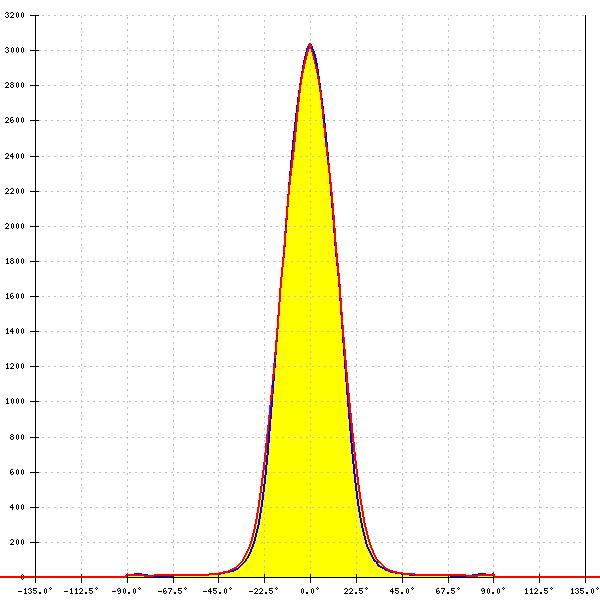

LUXEON HL2Z
FWHM:
30°
FWTM:
52°
Peak intensity:
3.039 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

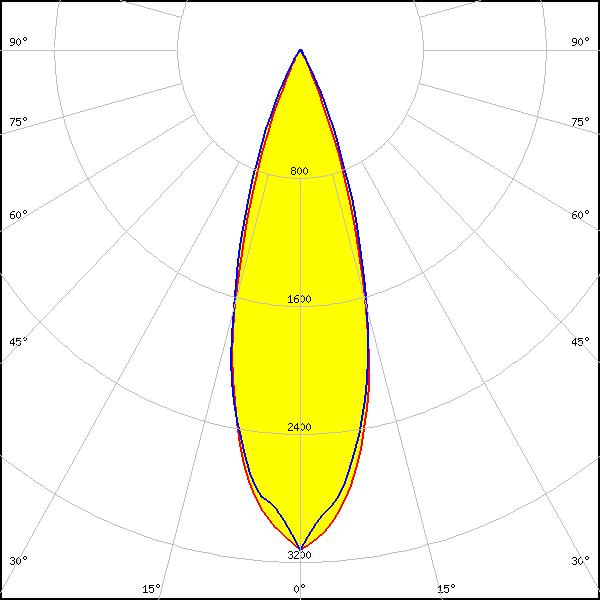

LUXEON SunPlus 20 Line (120 deg)
FWHM:
31°
FWTM:
52°
Peak intensity:
3.126 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

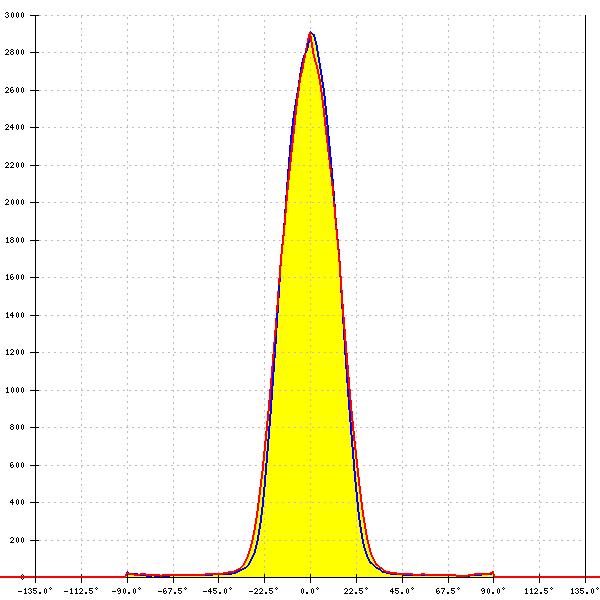

LED:

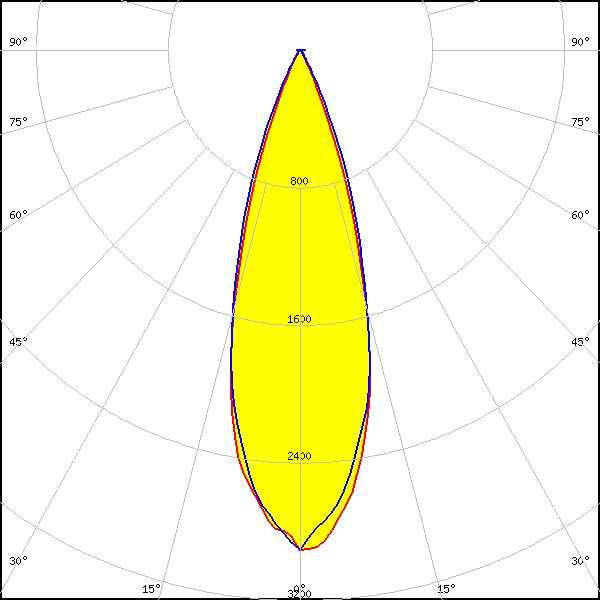

LUXEON SunPlus 20 Line (150 deg)
FWHM:
31°
FWTM:
51°
Peak intensity:
2.921 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

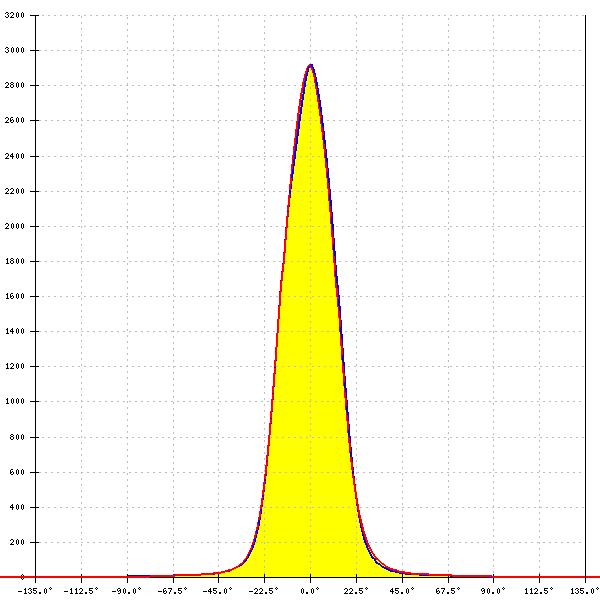

LED:

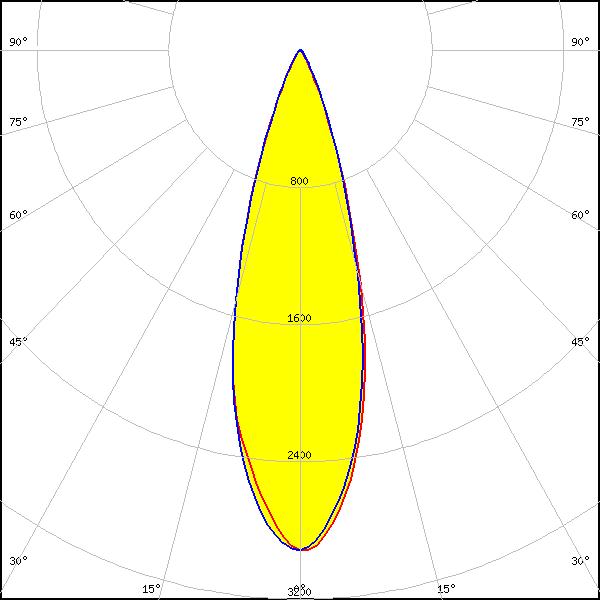

LUXEON T
FWHM:
31°
FWTM:
51°
Peak intensity:
2.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

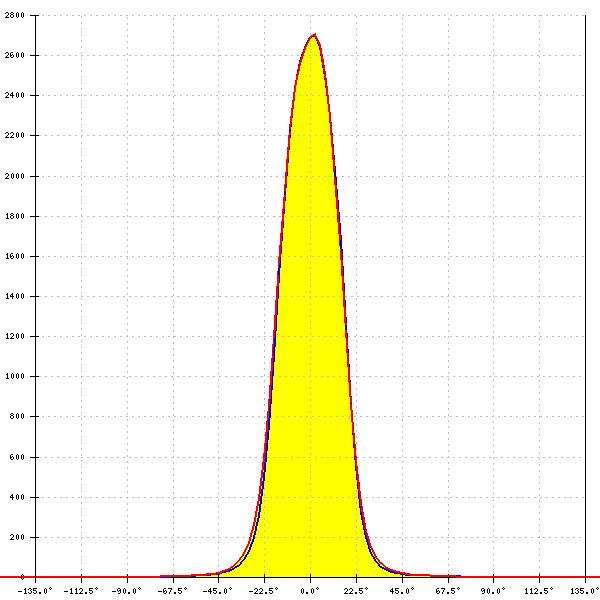

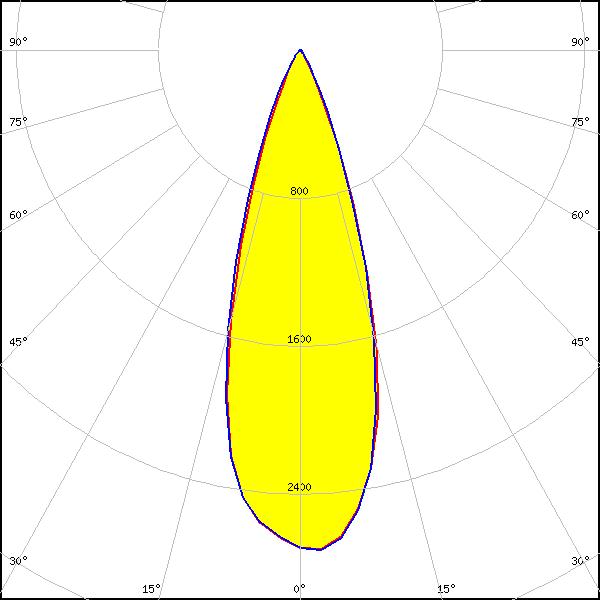

LED:
LUXEON TX
FWHM:
33°
FWTM:
52°
Peak intensity:
2.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

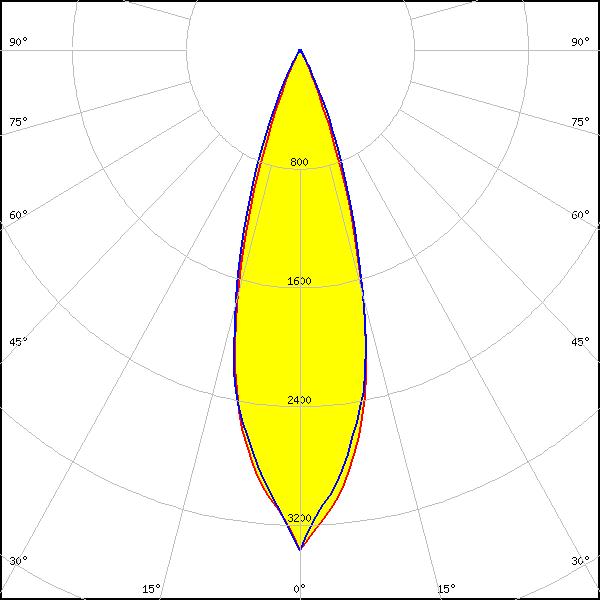

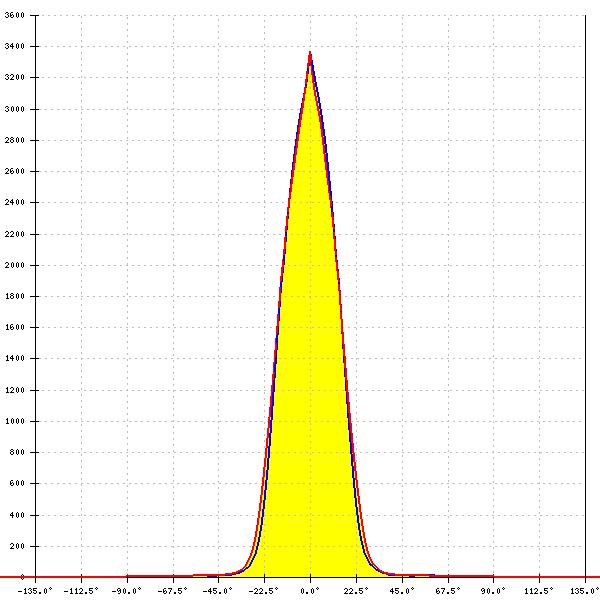

LUXEON Z ES
FWHM:
30°
FWTM:
50°
Peak intensity:
3.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

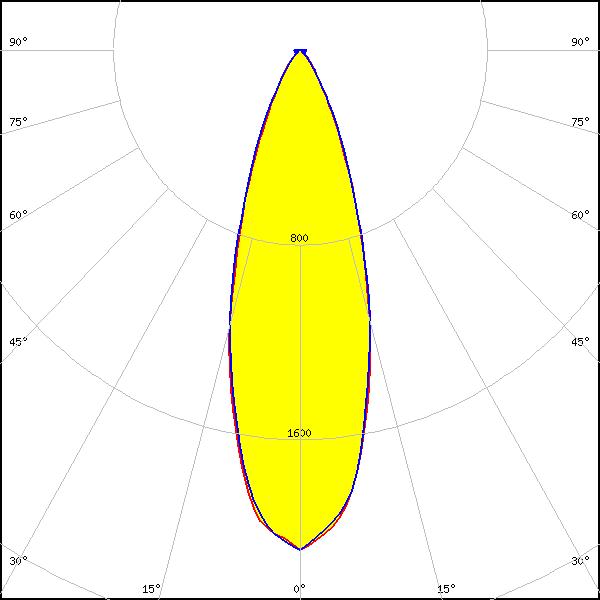

LED:

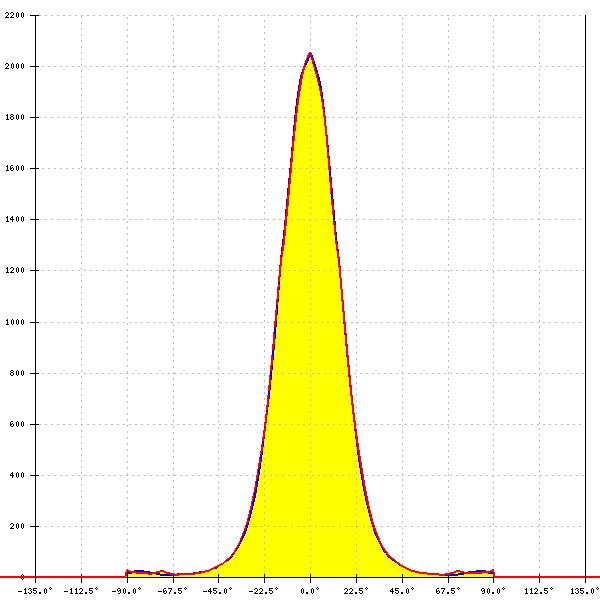

NCSxE17A
FWHM:
32°
FWTM:
62°
Peak intensity:
2.058 cd/lm
Efficiency:
87 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NCSxx19A
FWHM:
32°
FWTM:
51°
Peak intensity:
2.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

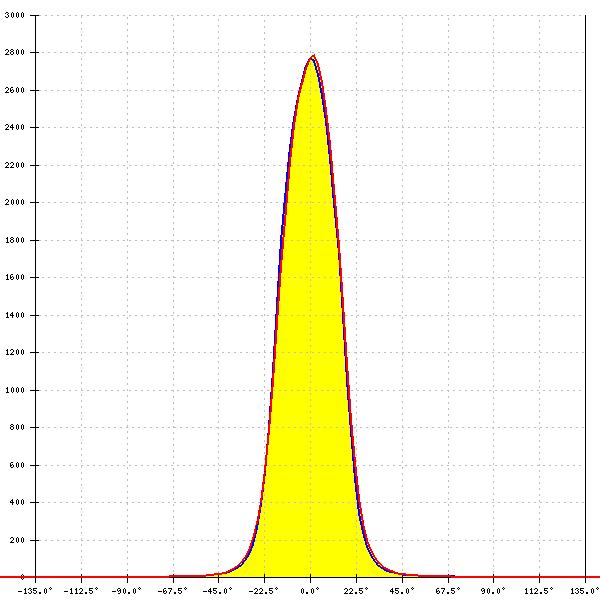

LED:

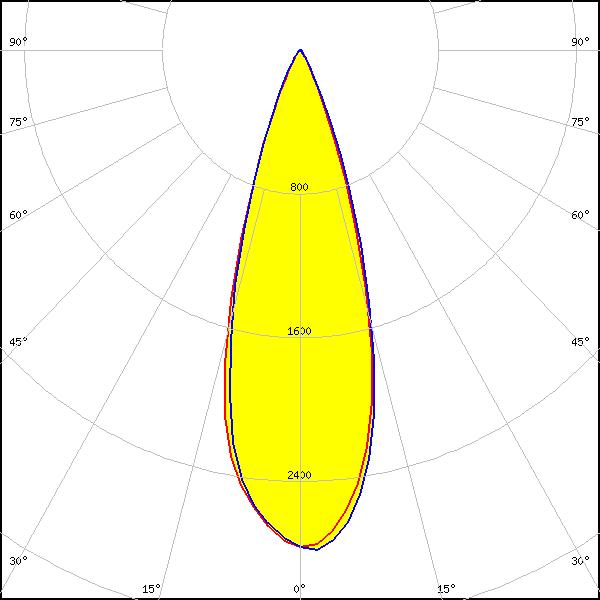

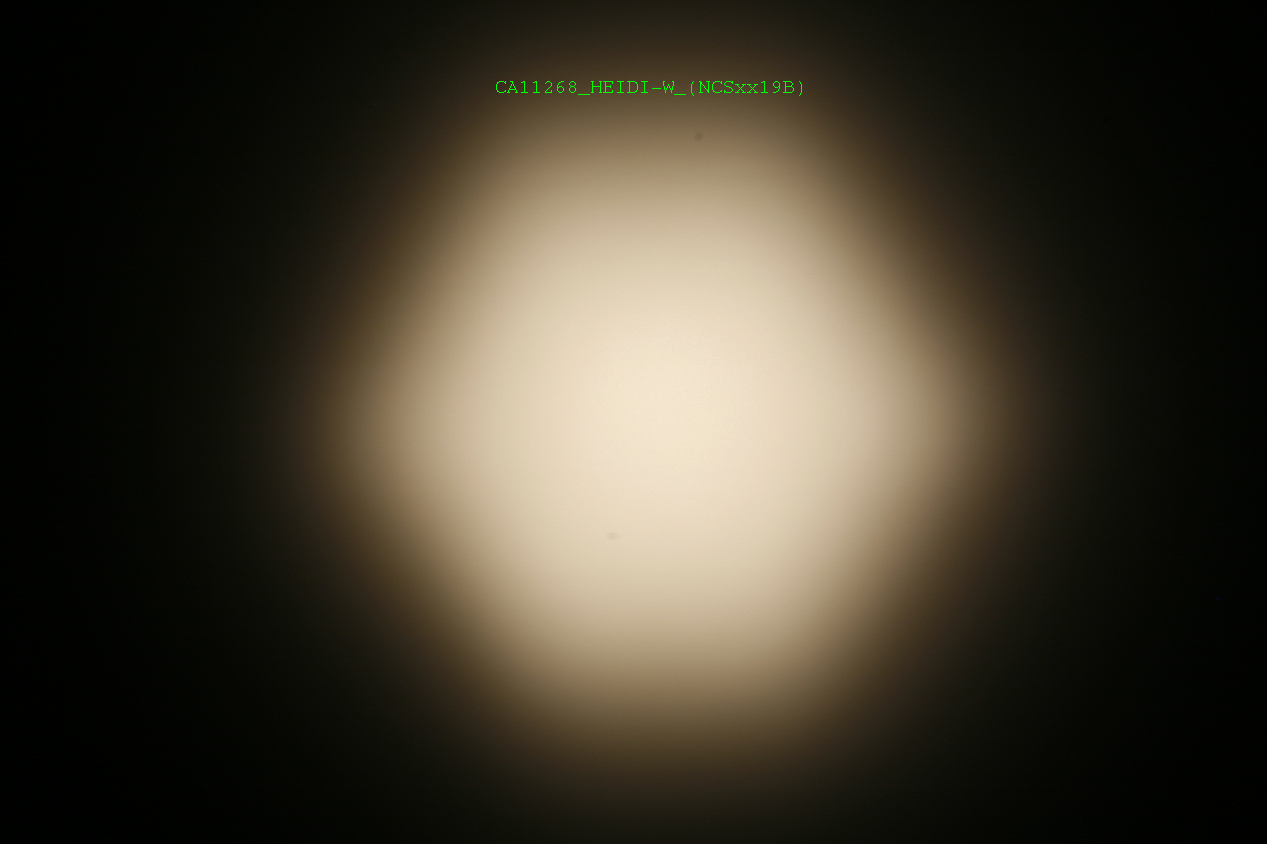

NCSxx19B
FWHM:
33°
FWTM:
52°
Peak intensity:
2.800 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
32°
FWTM:
54°
Peak intensity:
2.250 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

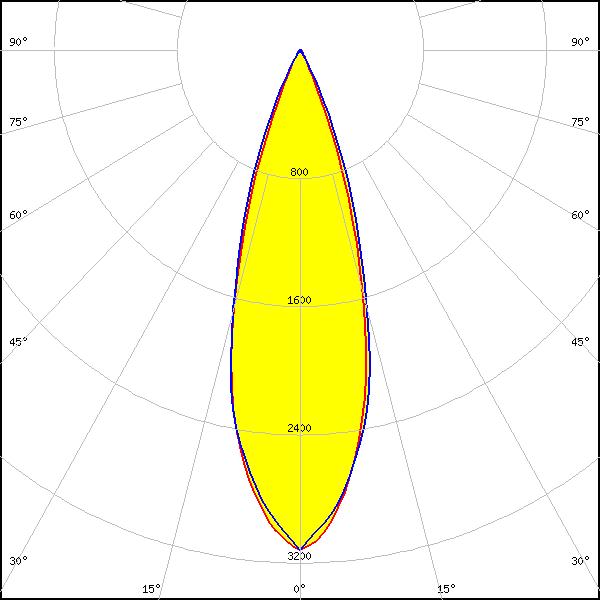

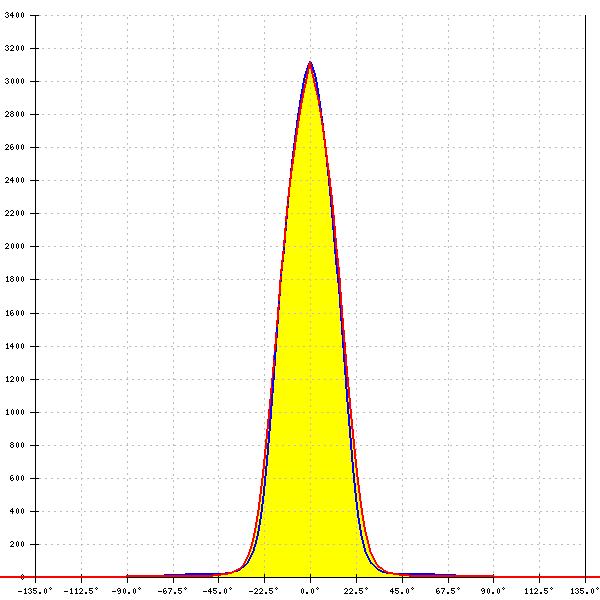

LED:
OSCONIQ P 3030
FWHM:
32°
FWTM:
51°
Peak intensity:
3.121 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

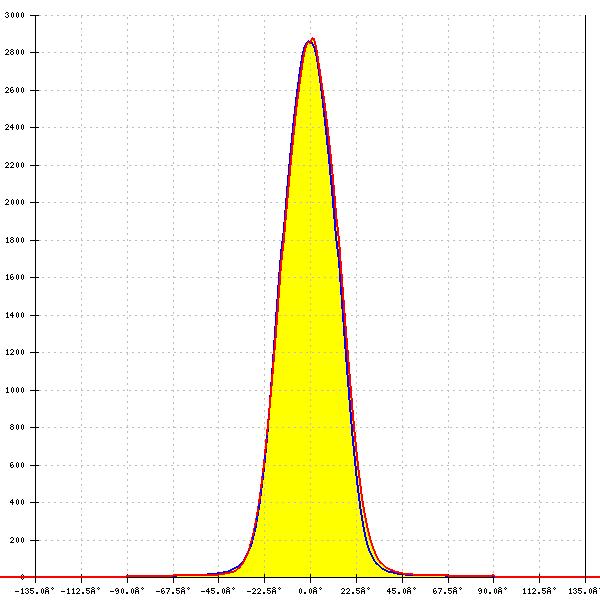

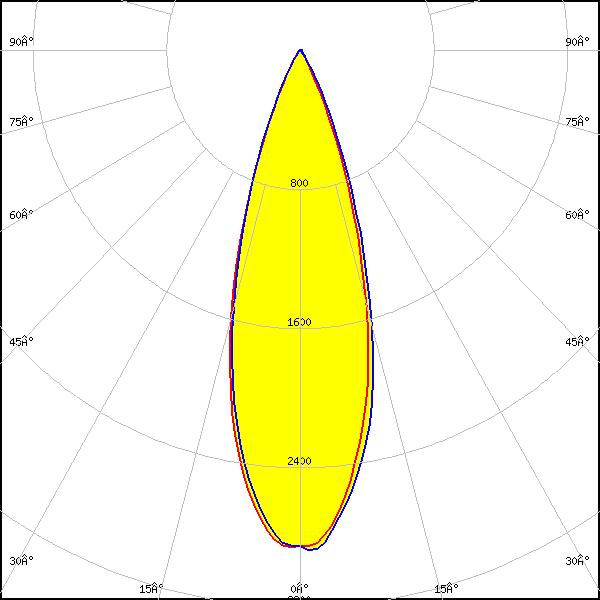

OSLON Square CSSRM2/CSSRM3
FWHM:
32°
FWTM:
54°
Peak intensity:
3.000 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

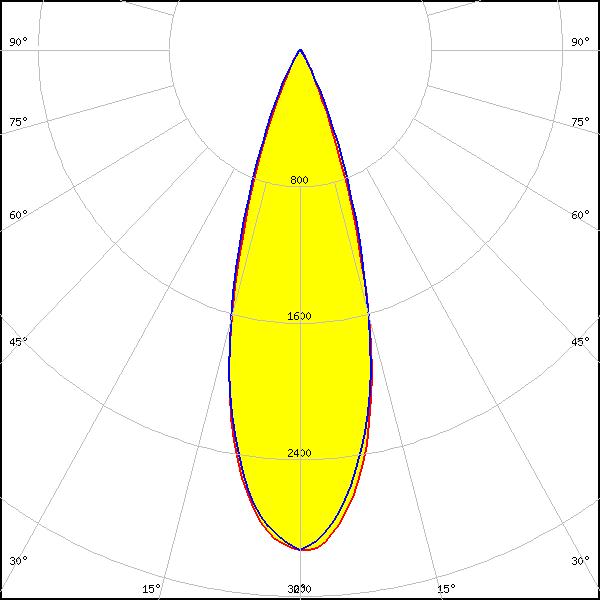

LED:

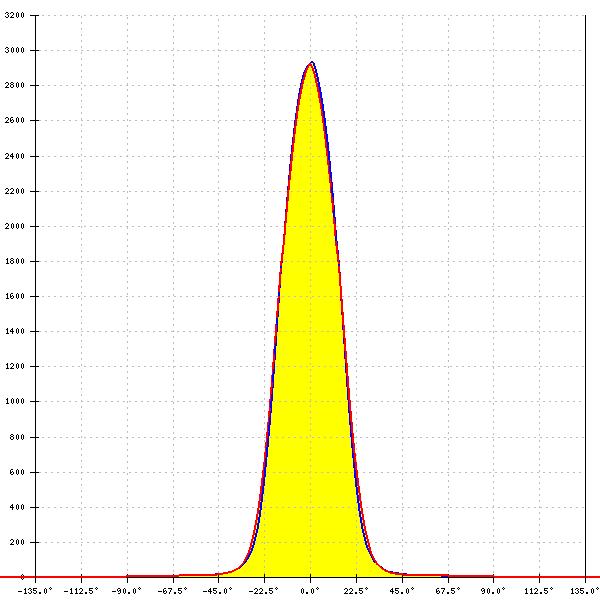

OSLON Square EC
FWHM:
32°
FWTM:
52°
Peak intensity:
2.940 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

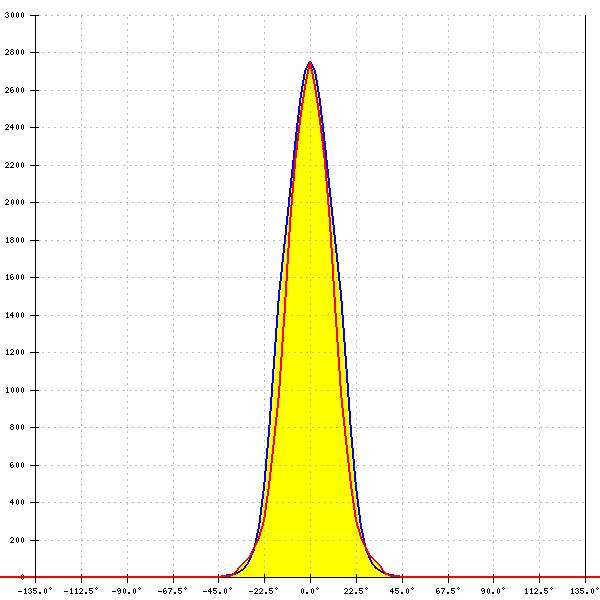

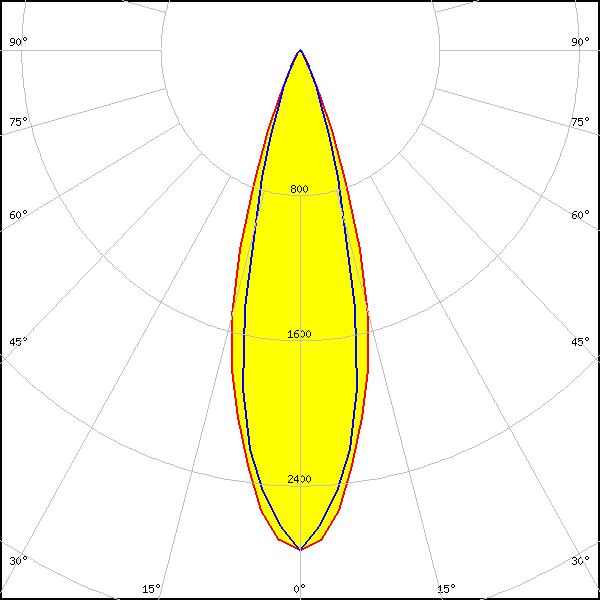

OSLON SSL 150
FWHM:
32°
FWTM:
50°
Peak intensity:
2.750 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
32°
FWTM:
50°
Peak intensity:
2.650 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

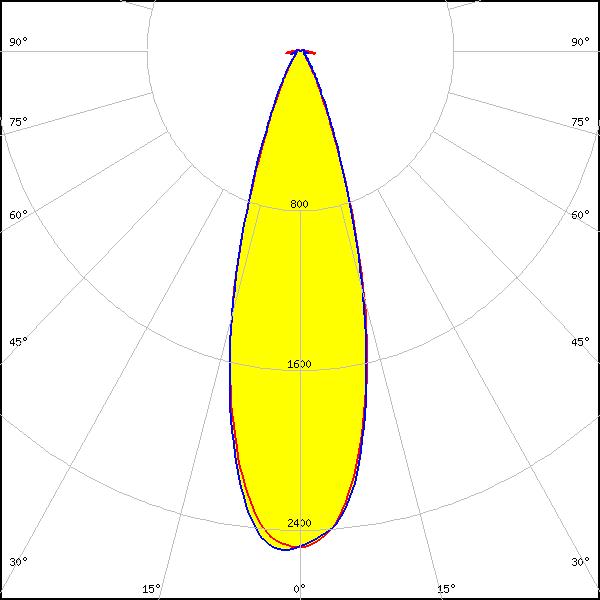

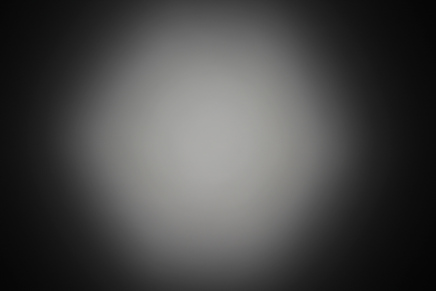

LED:

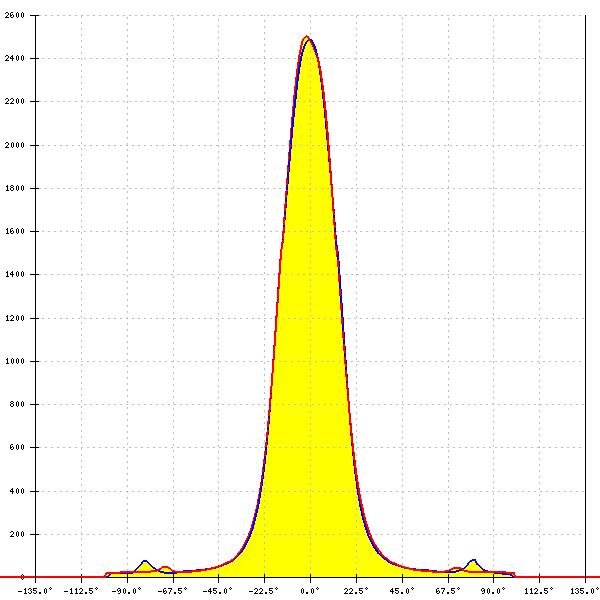

LH181A
FWHM:
31°
FWTM:
55°
Peak intensity:
2.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

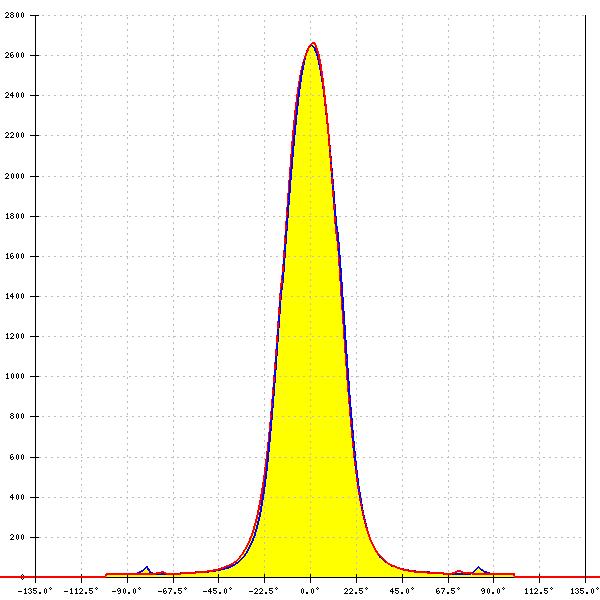

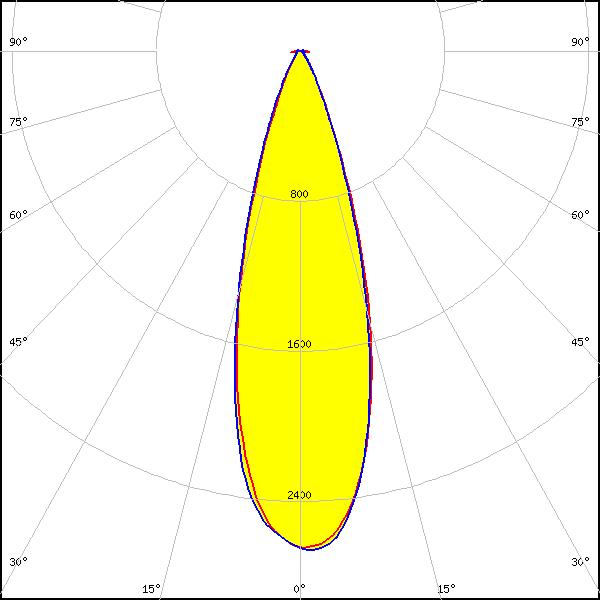

LH181B
FWHM:
31°
FWTM:
53°
Peak intensity:
2.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

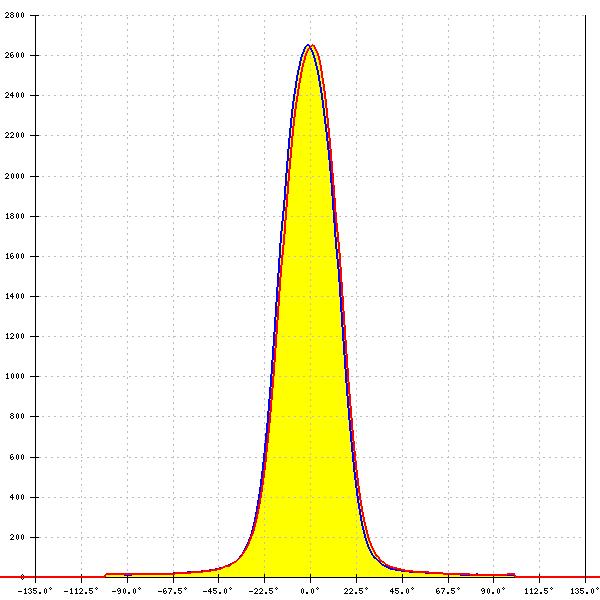

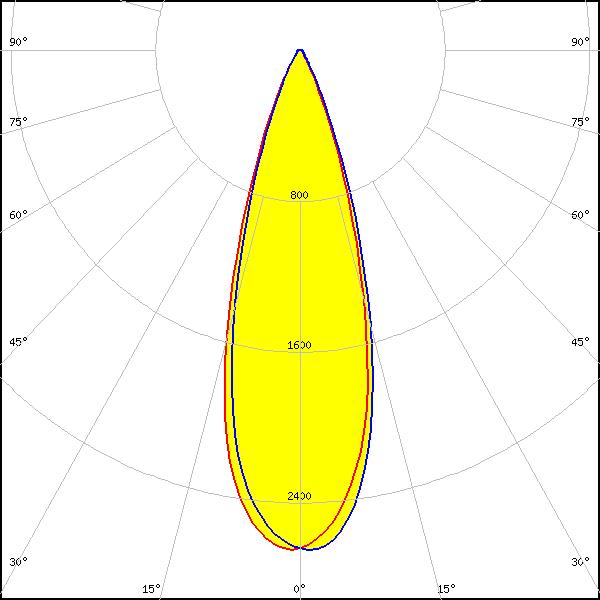

LH351B
FWHM:
32°
FWTM:
53°
Peak intensity:
2.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

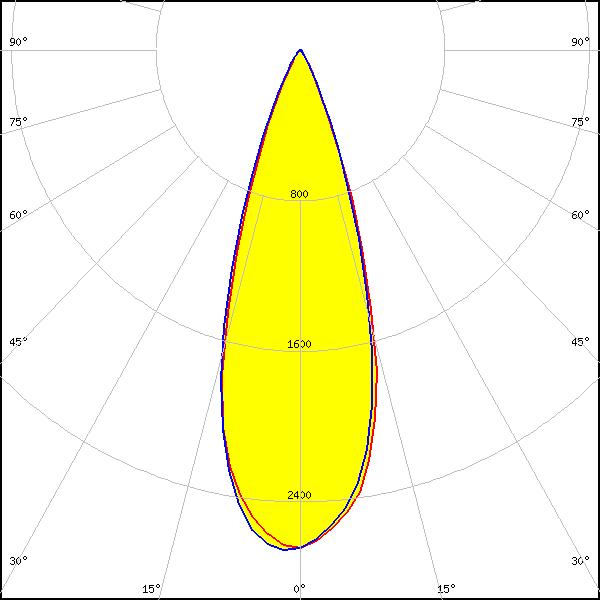

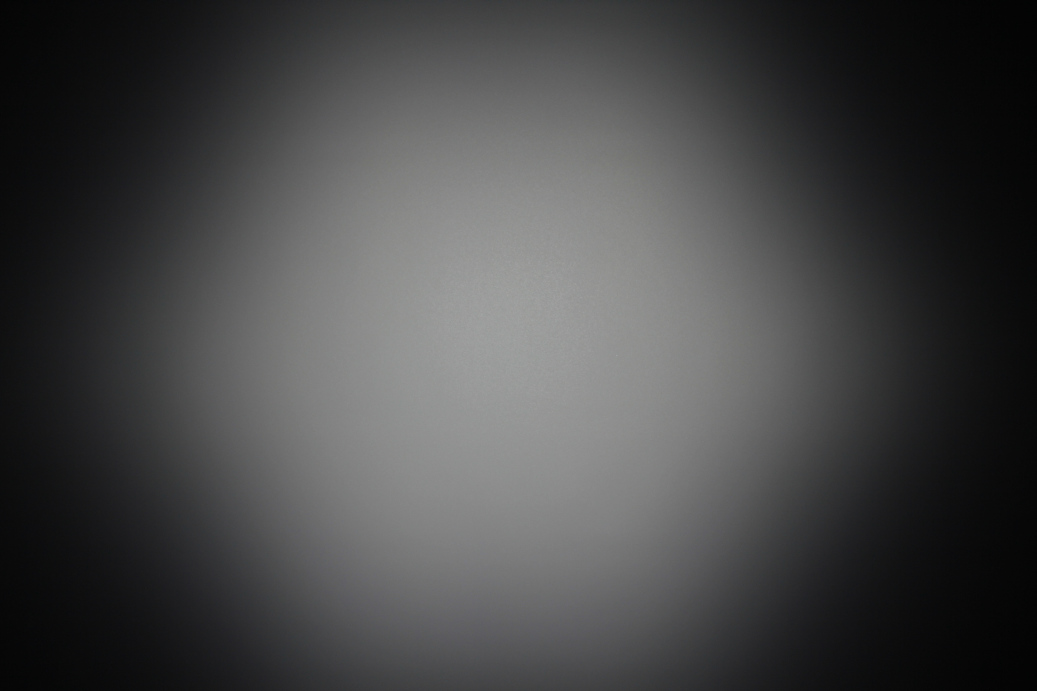

LED:

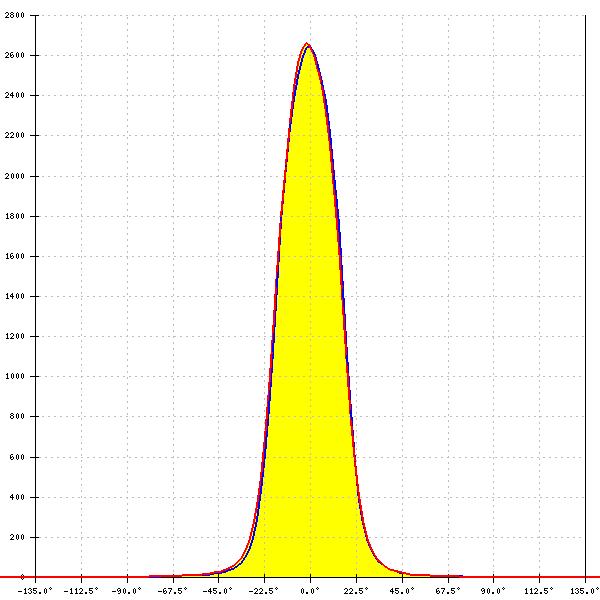

LH351Z
FWHM:
34°
FWTM:
54°
Peak intensity:
2.700 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

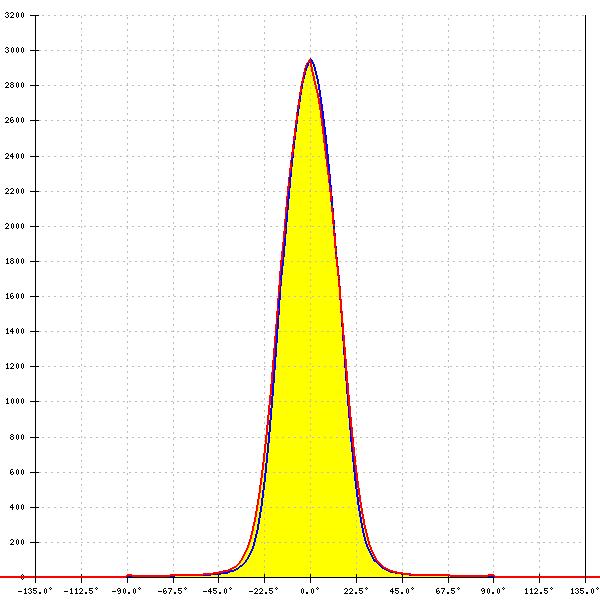

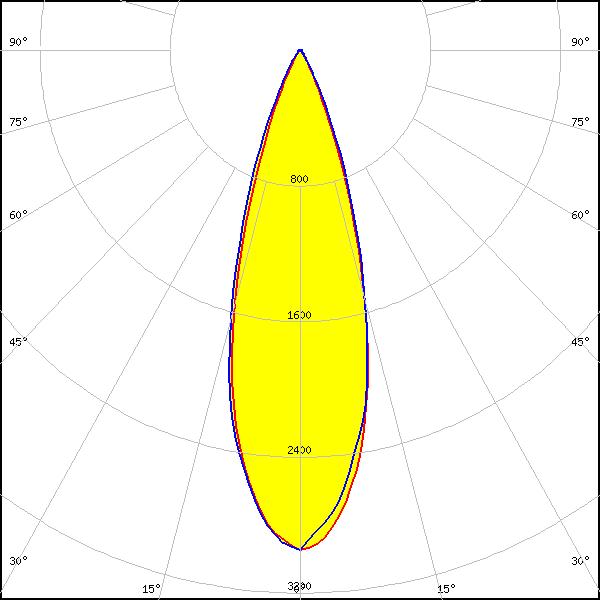

LM28xB Series
FWHM:
31°
FWTM:
53°
Peak intensity:
2.690 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

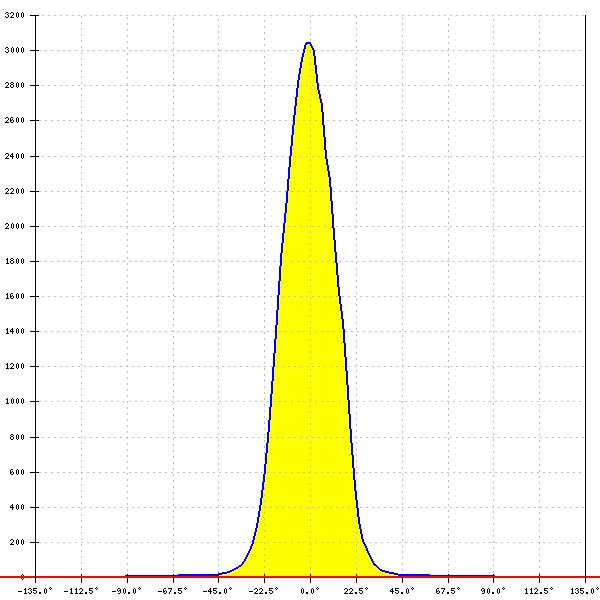

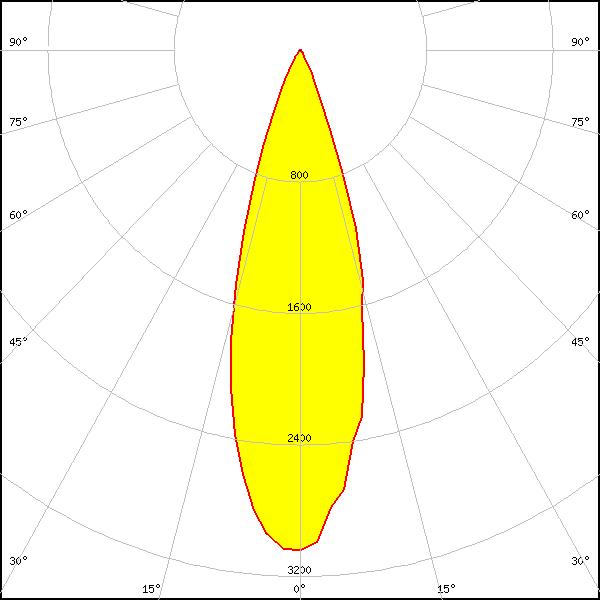

Z5
FWHM:
32°
FWTM:
51°
Peak intensity:
3.040 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

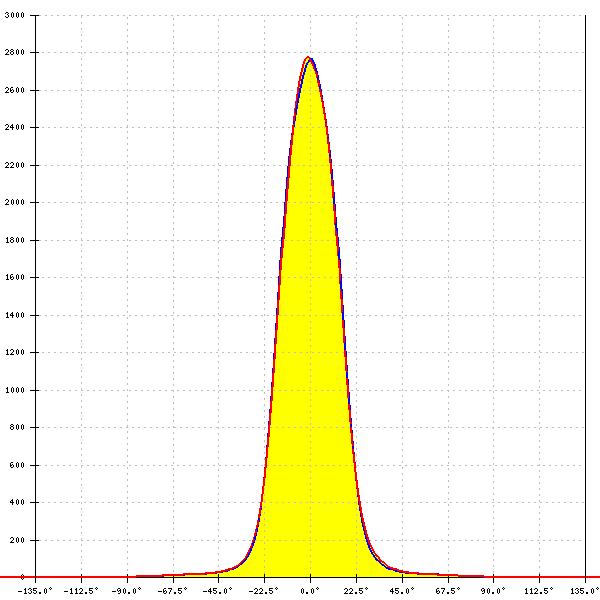

LED:

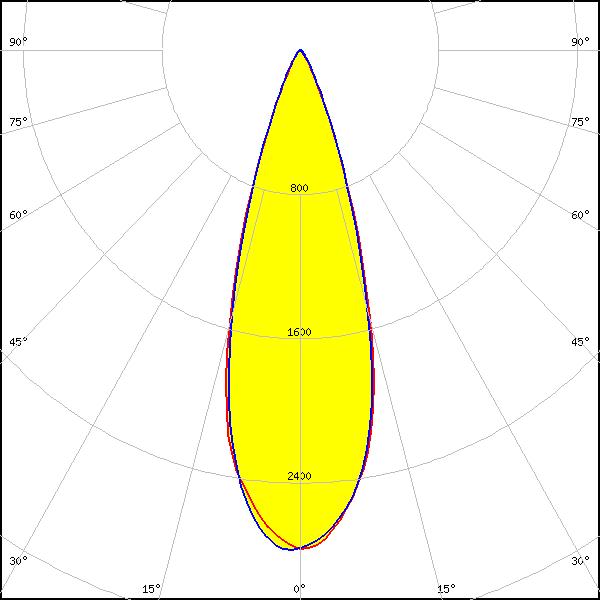

Z5M1/Z5M2
FWHM:
32°
FWTM:
51°
Peak intensity:
2.800 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

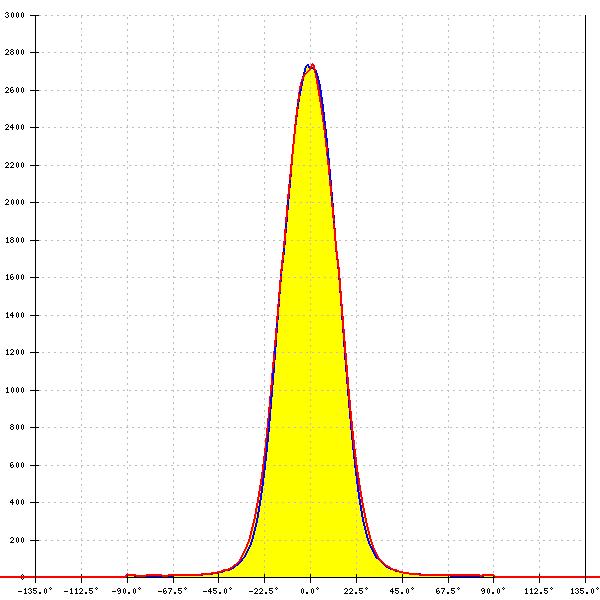

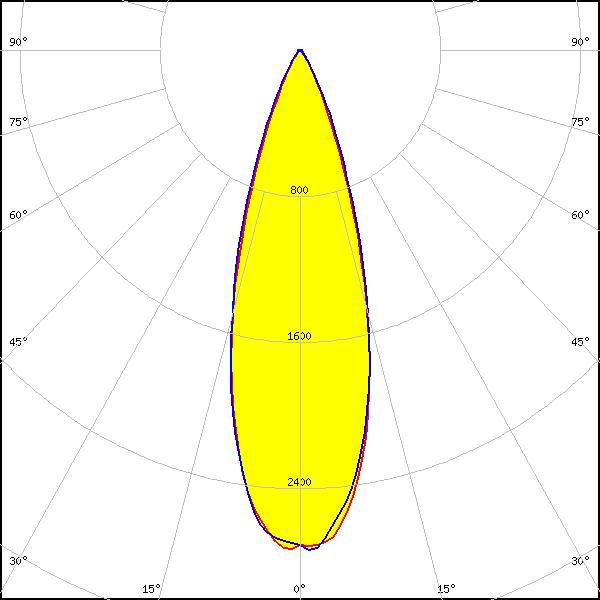

Z8Y22P
FWHM:
32°
FWTM:
55°
Peak intensity:
2.739 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Double Dome (GM2BB)
LEDs/each optic:
1
Light colour/type:
White
