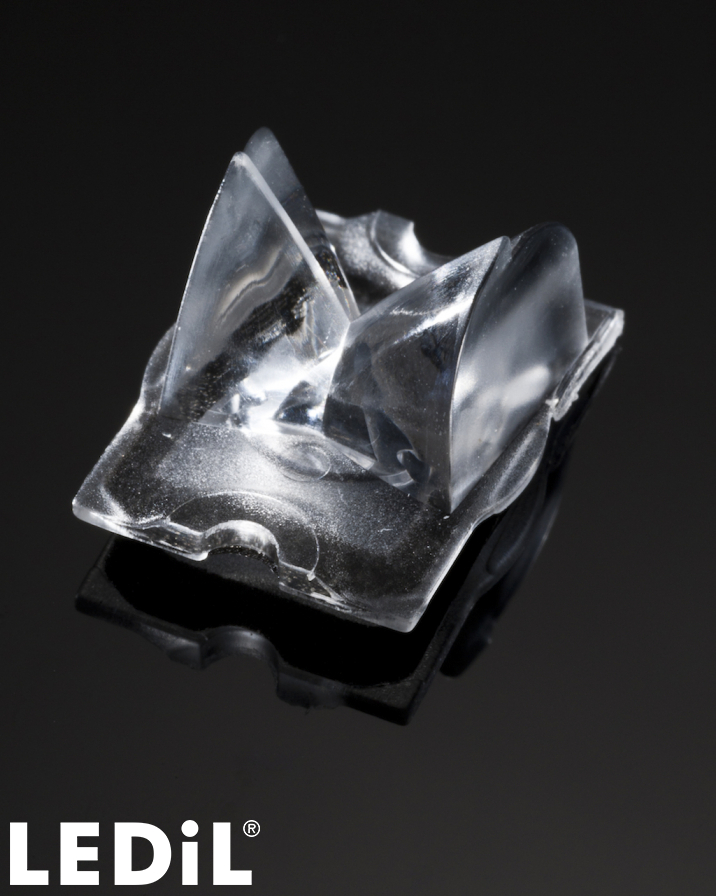

CA11426_STRADA-T-DW

Print

Soft wide beam with good illuminance uniformity optimized for CREE XP-G and XP-E. Assembly with installation tape.

Specification
  • Dimensions:
    20 x  16 mm
  • Height:
    11.00 mm
  • Fastening:
    tape, pin, screw
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    2880 pcs
  • Box size:
    451 x 254 x 197 mm
  • Box weight:
    4.0 kg
  • MPQ:
    240 pcs
  • MOQ:
    240 pcs
  • MOQ size:
    480 x 280 x 30 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA11426_STRADA-T-DW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

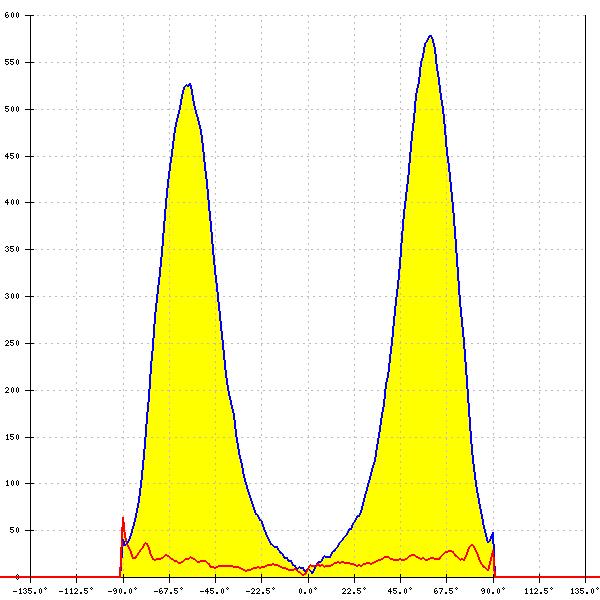

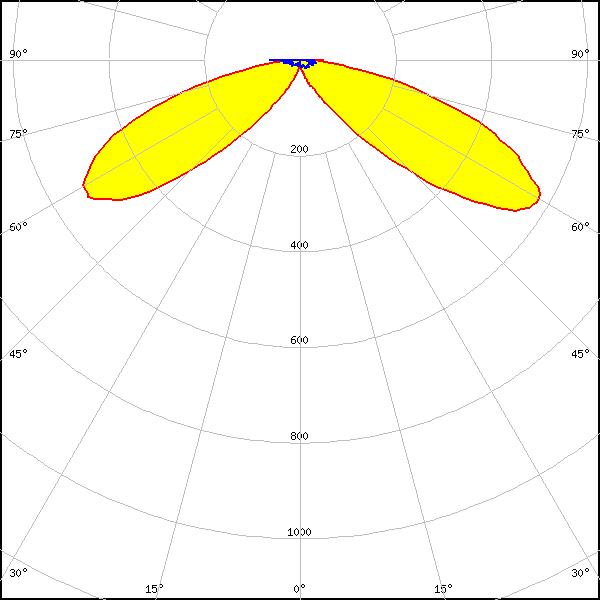

LED: XB-D
FWHM: asymmetric
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White
LED: XP-E
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON A
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Rebel
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON Rebel ES
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: NCSxx19A
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: NVSxx19A
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

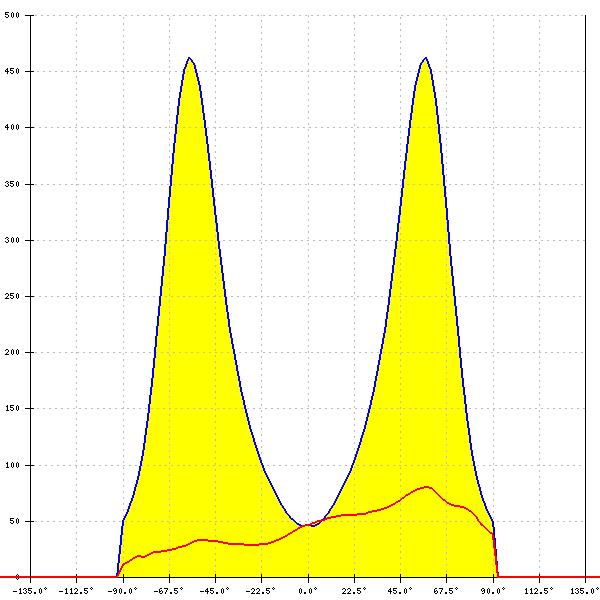

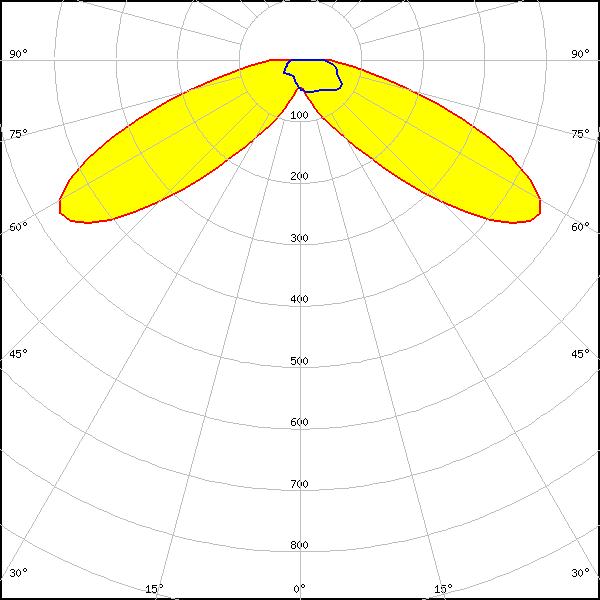

LED: OSLON Square PC
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: OSLON SSL 150
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: OSLON SSL 80
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Z5
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
LED: Double Dome (GM2BB)
FWHM: asymmetric
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
