CA11484_LXP2-O-90
Print

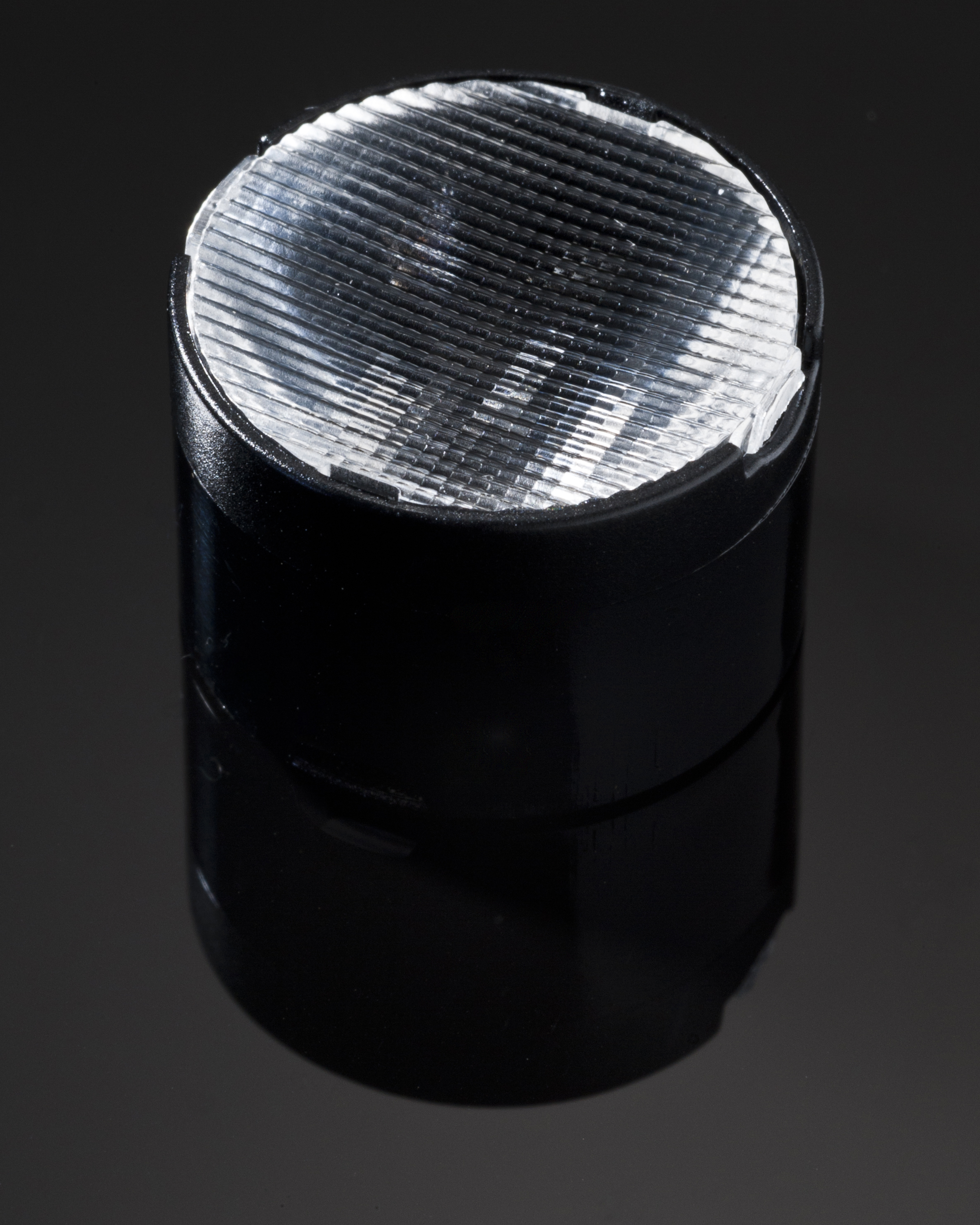

~10° x 40° oval beam optimized for CREE XP-E. 14.7 mm high assembly with installation tape. Variant with beam direction rotated 90°.
Component Materials
- LXP2-O-90Single lensPMMA
- LXP2-LH1-TAPE-BLKHolderPC
- HEIDI-TAPETapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

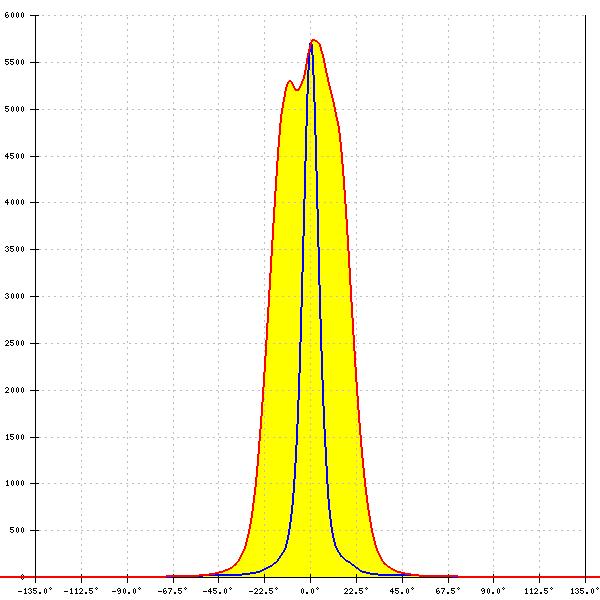

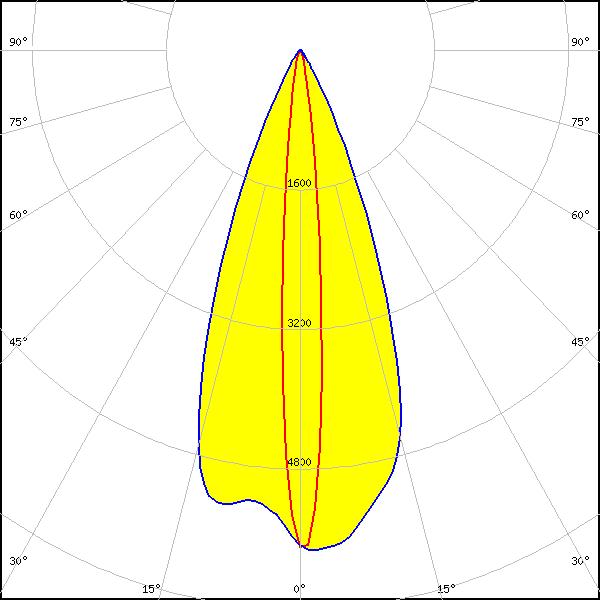

LED:
XP-E
FWHM:
9° + 41°
FWTM:
20° + 61°
Peak intensity:
5.800 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

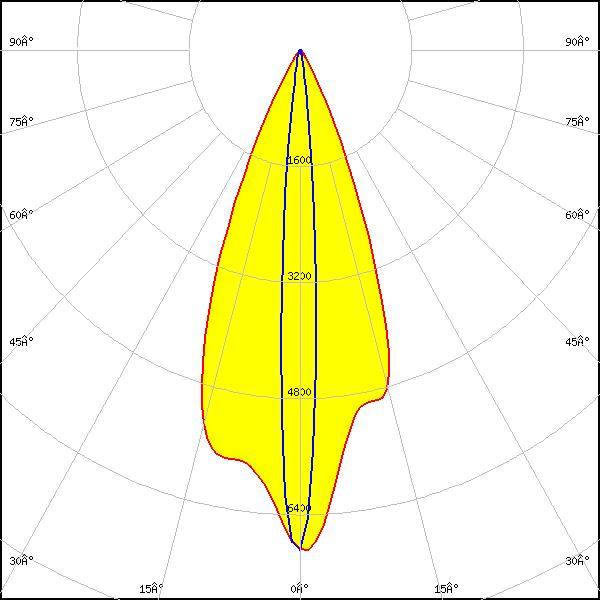

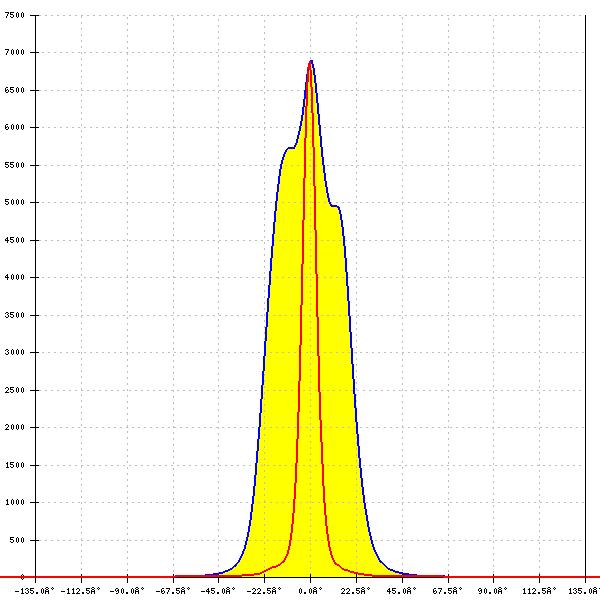

LED:
XP-E2
FWHM:
10° + 42°
FWTM:
20° + 60°
Peak intensity:
6.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

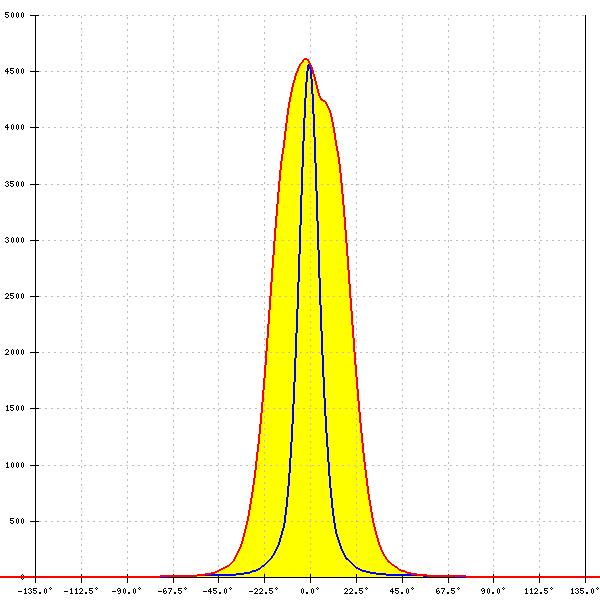

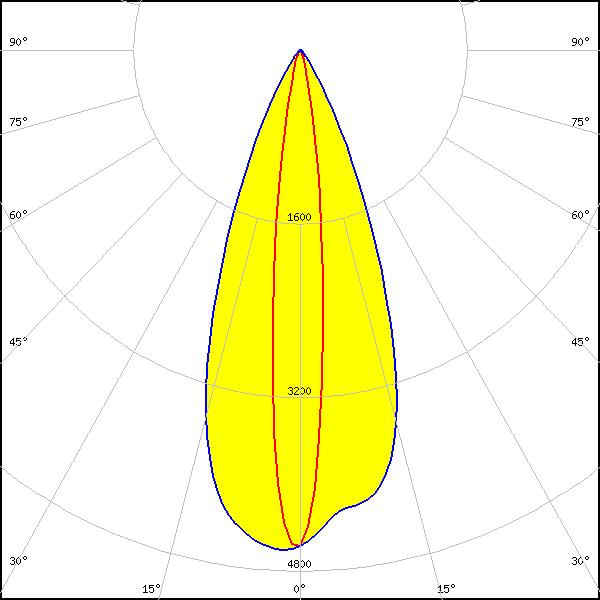

LED:
XP-G
FWHM:
12° + 40°
FWTM:
25° + 63°
Peak intensity:
4.600 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

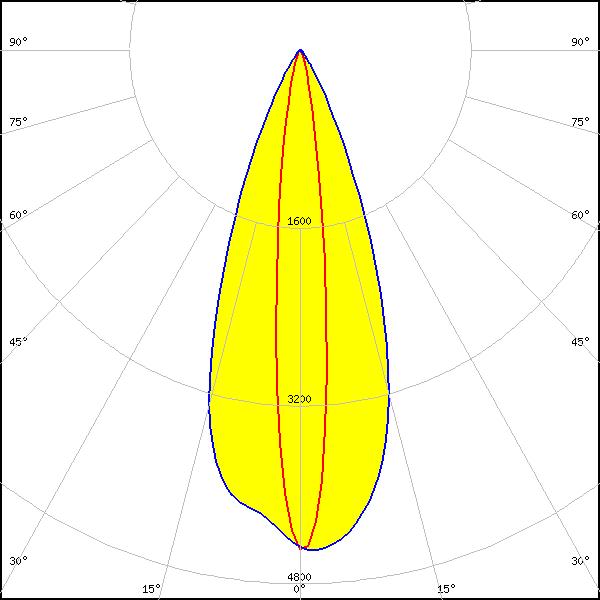

LED:
XP-G2
FWHM:
12° + 40°
FWTM:
27° + 62°
Peak intensity:
4.400 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

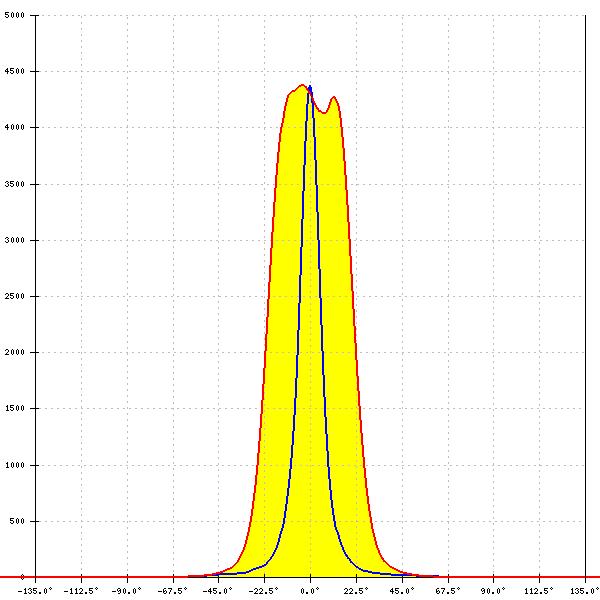

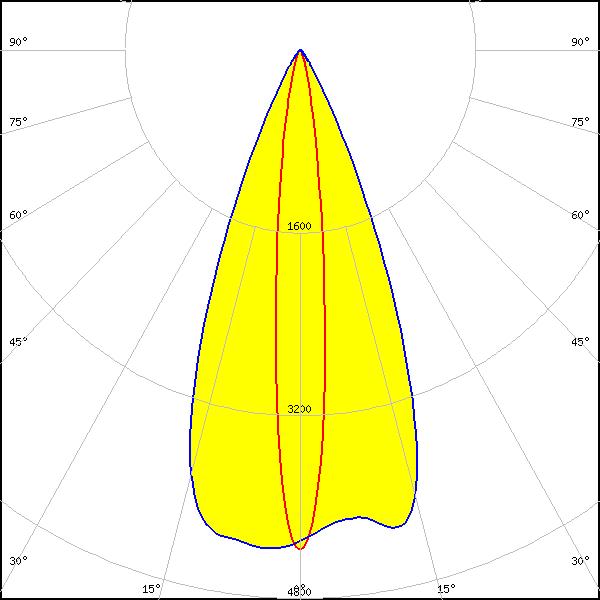

LED:
XP-L HI
FWHM:
12° + 43°
FWTM:
27° + 61°
Peak intensity:
4.400 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

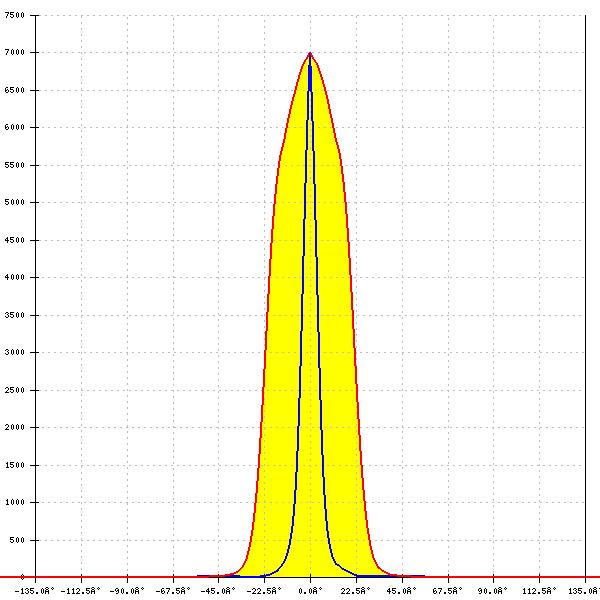

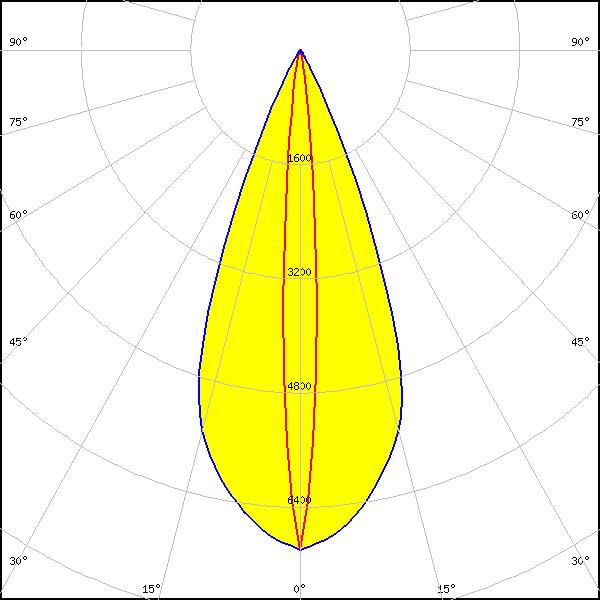

LED:
XP-P
FWHM:
8° + 42°
FWTM:
17° + 56°
Peak intensity:
7.005 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

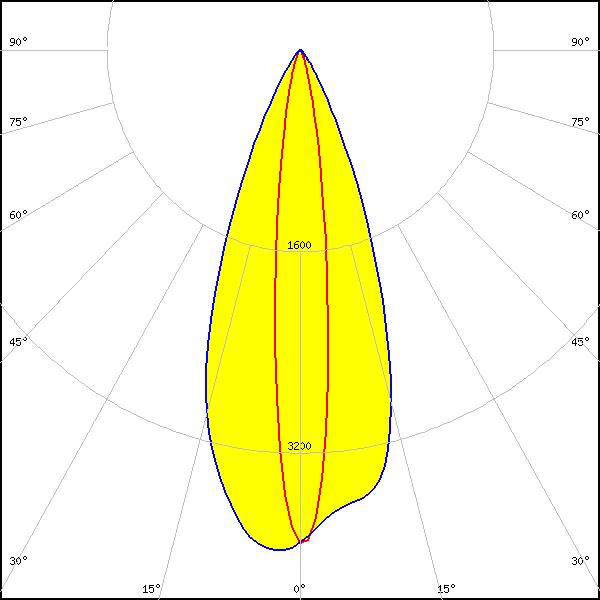

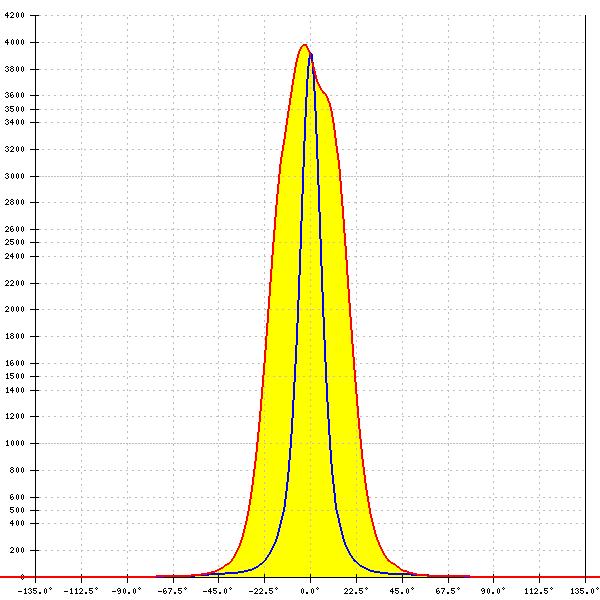

LED:
XT-E
FWHM:
13° + 41°
FWTM:
30° + 63°
Peak intensity:
4.050 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

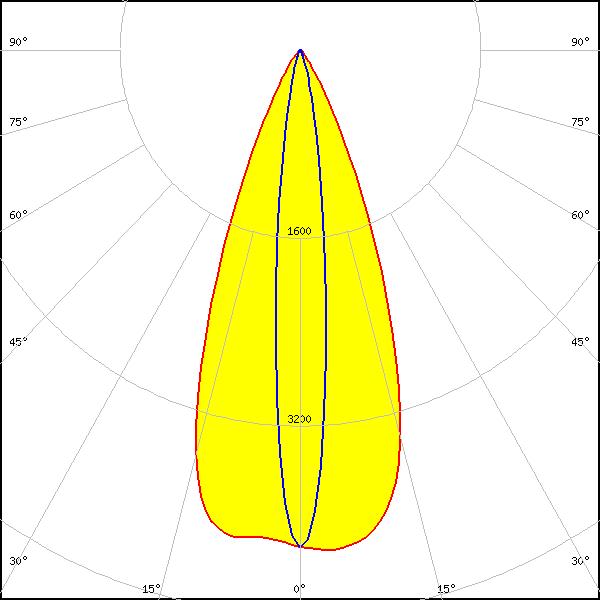

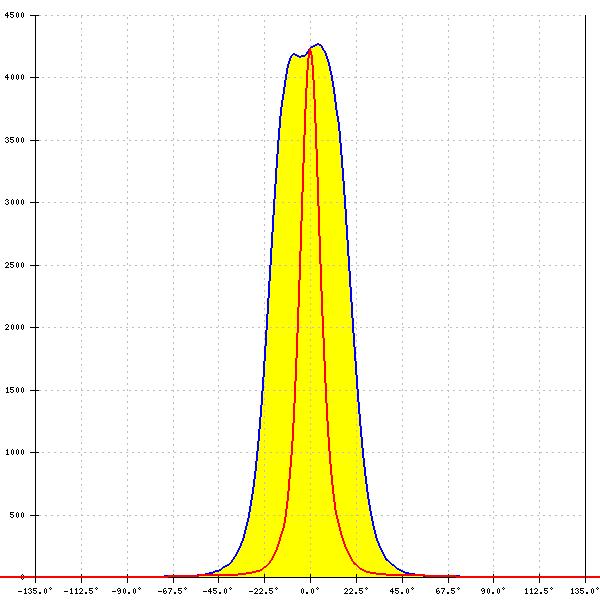

LED:
LUXEON Q
FWHM:
12° + 41°
FWTM:
62° + 27°
Peak intensity:
4.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

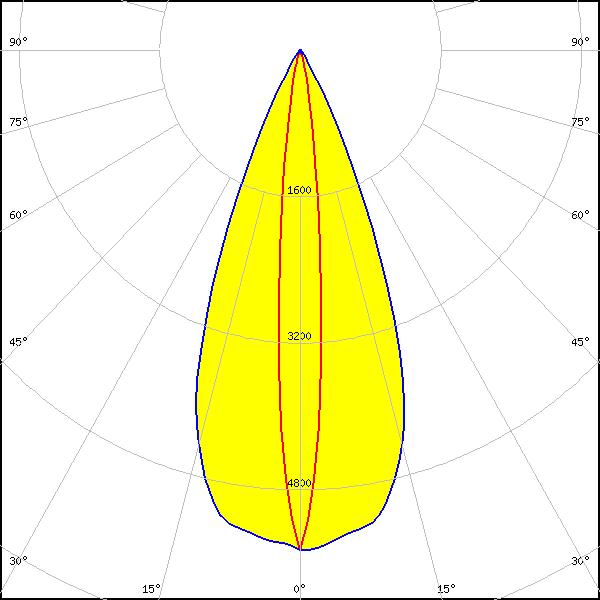

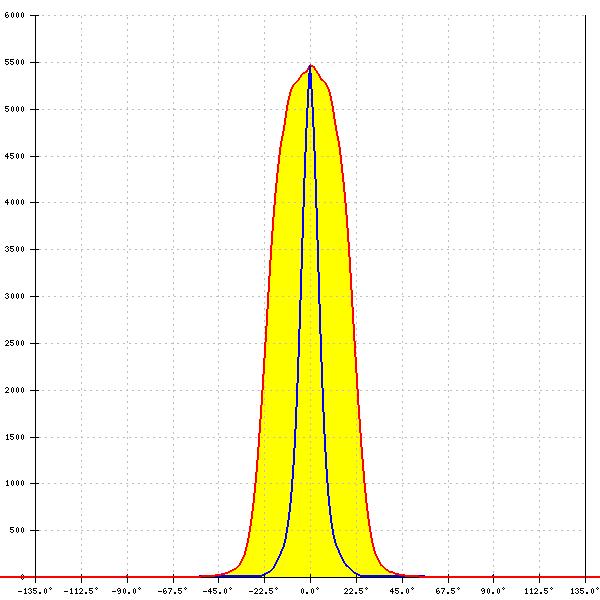

LED:
NCSxx19B
FWHM:
10° + 42°
FWTM:
22° + 58°
Peak intensity:
5.463 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Red

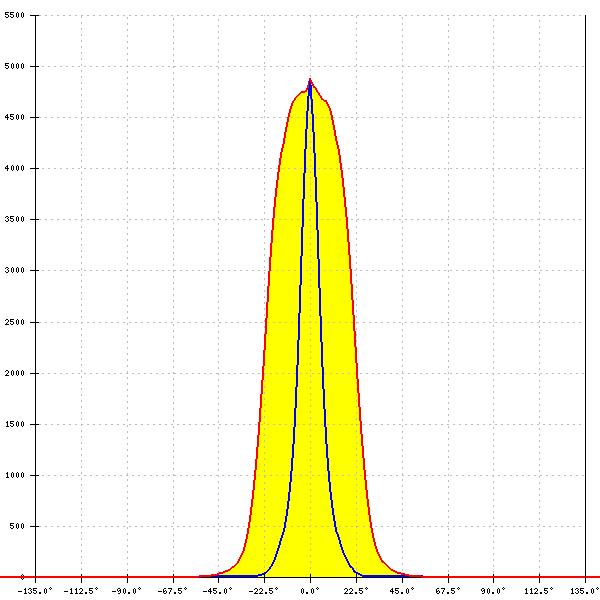

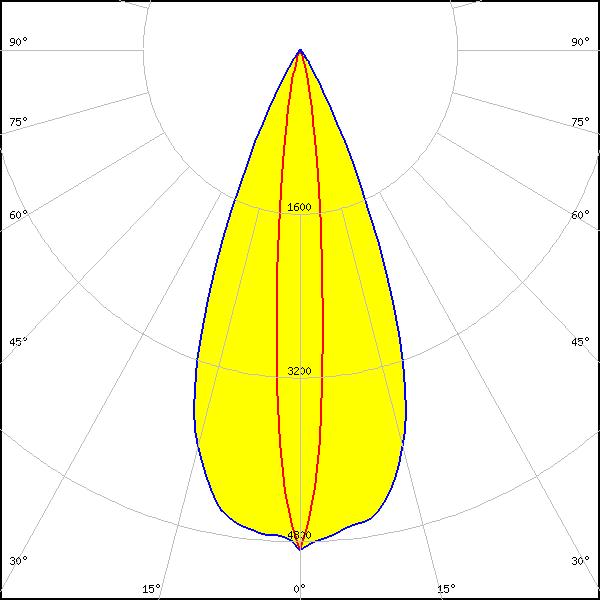

LED:
NCSxx19B
FWHM:
11° + 44°
FWTM:
26° + 60°
Peak intensity:
4.884 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Green

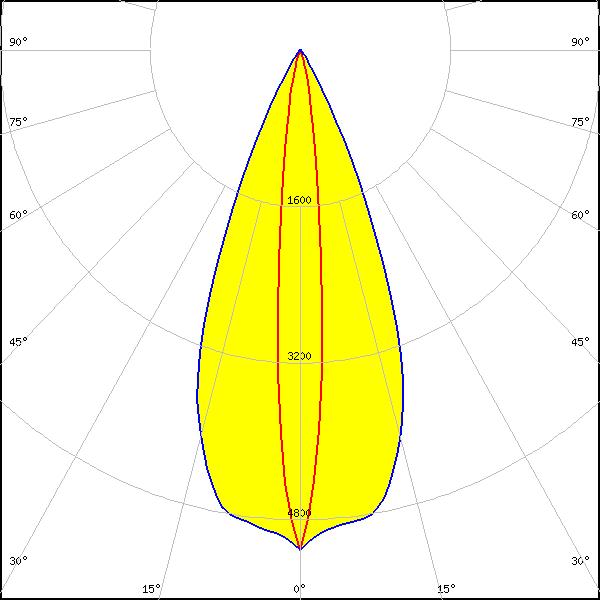

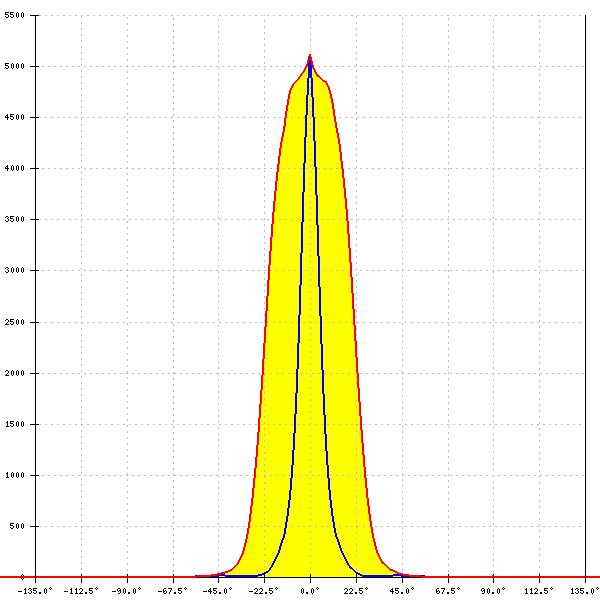

LED:
NCSxx19B
FWHM:
10° + 42°
FWTM:
24° + 60°
Peak intensity:
5.115 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
Blue

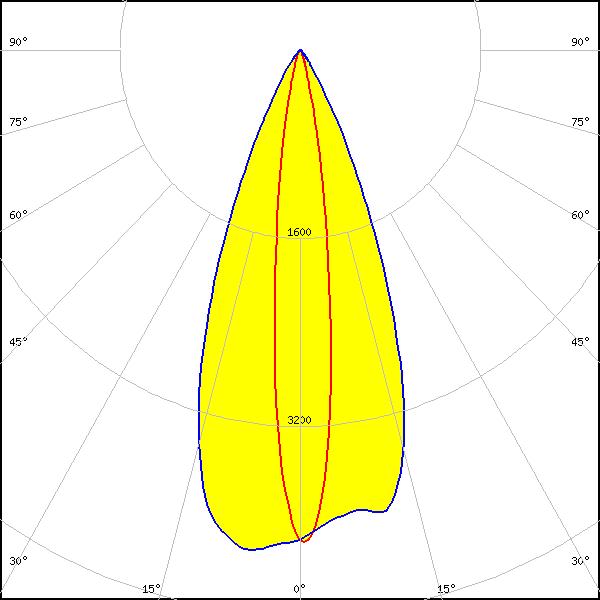

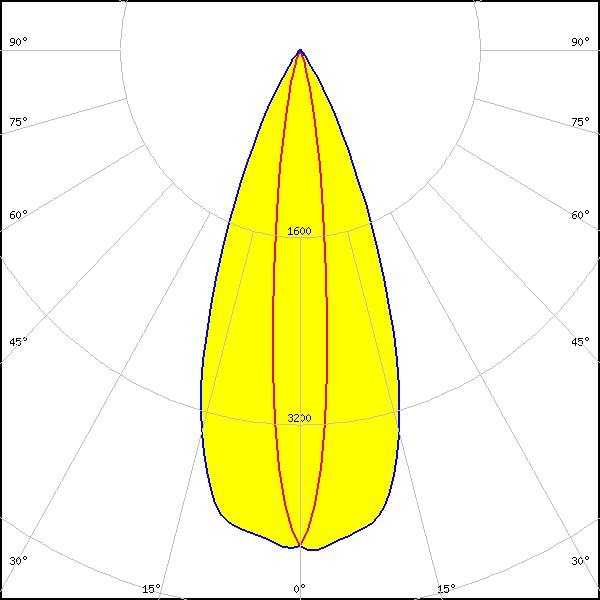

LED:
NVSW219D
FWHM:
13° + 42°
FWTM:
28° + 62°
Peak intensity:
4.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

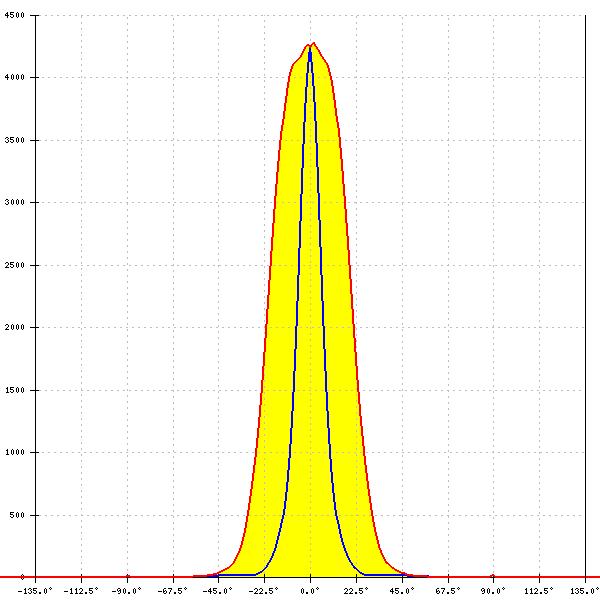

LED:
NVSxx19B/NVSxx19C
FWHM:
12° + 42°
FWTM:
28° + 62°
Peak intensity:
4.275 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

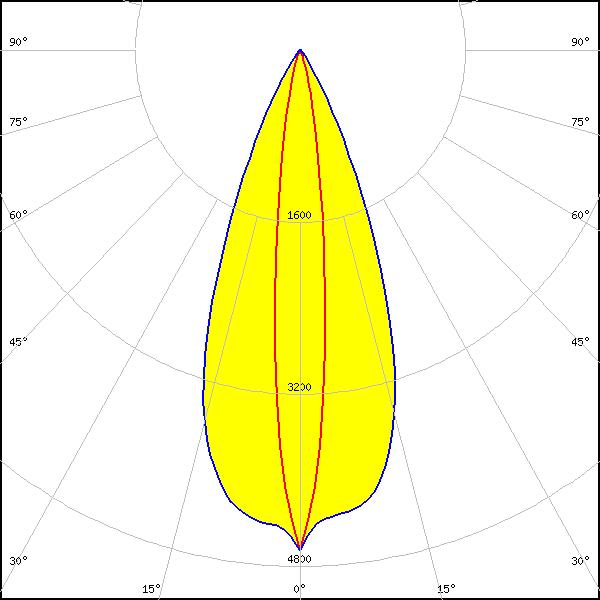

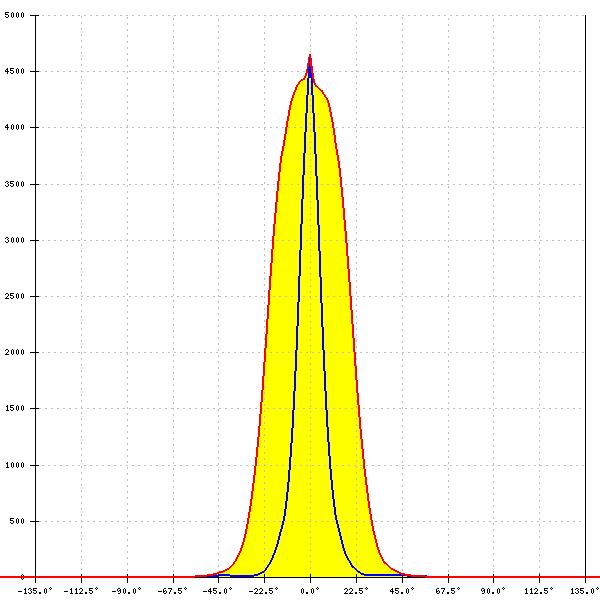

LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
12° + 41°
FWTM:
28° + 62°
Peak intensity:
4.652 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

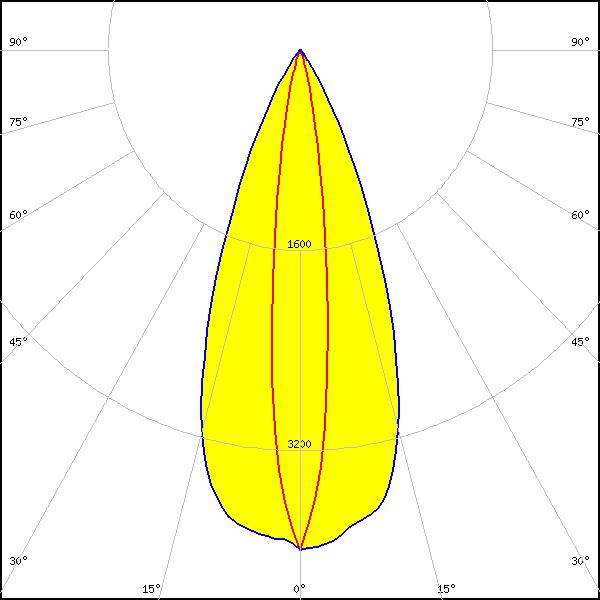

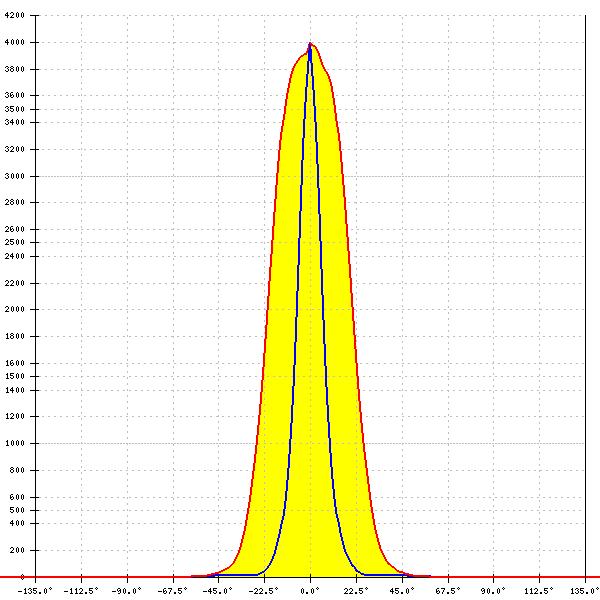

LED:
LH351C
FWHM:
14° + 42°
FWTM:
28° + 64°
Peak intensity:
4.001 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

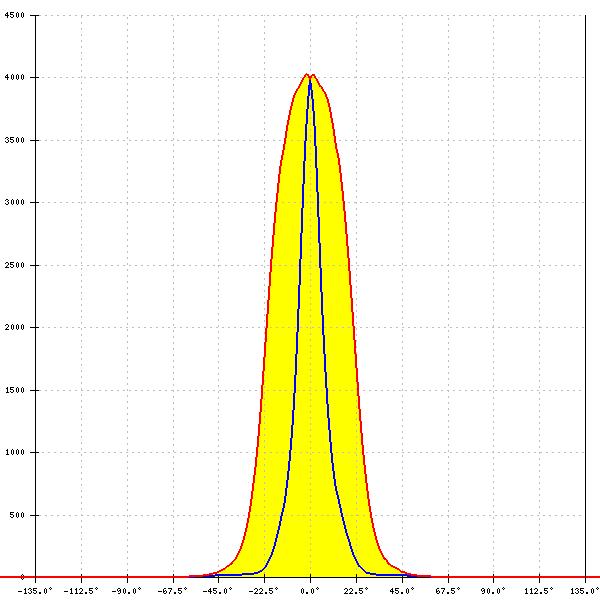

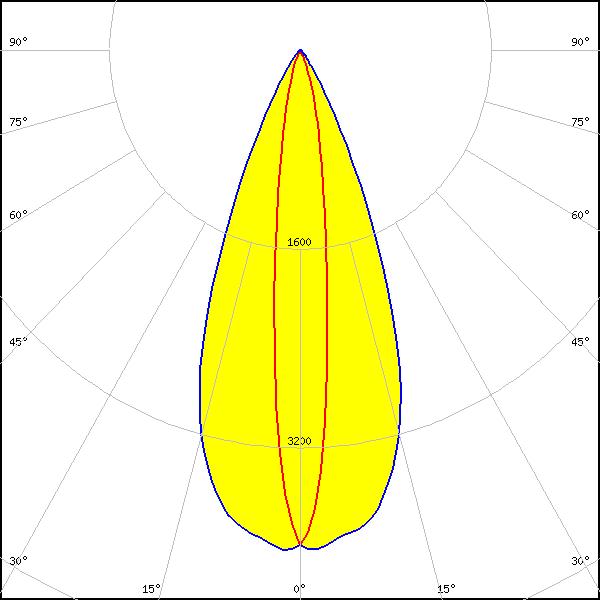

LED:
LM302D
FWHM:
13° + 42°
FWTM:
32° + 62°
Peak intensity:
4.040 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

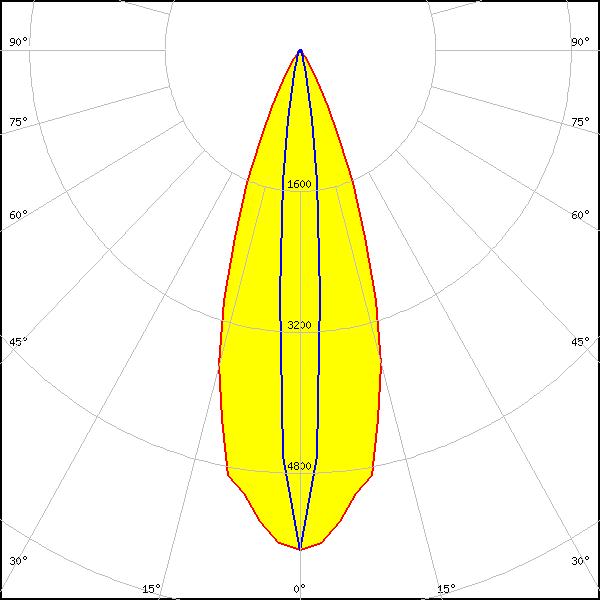

LED:
Z5
FWHM:
10° + 36°
FWTM:
24° + 58°
Peak intensity:
5.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

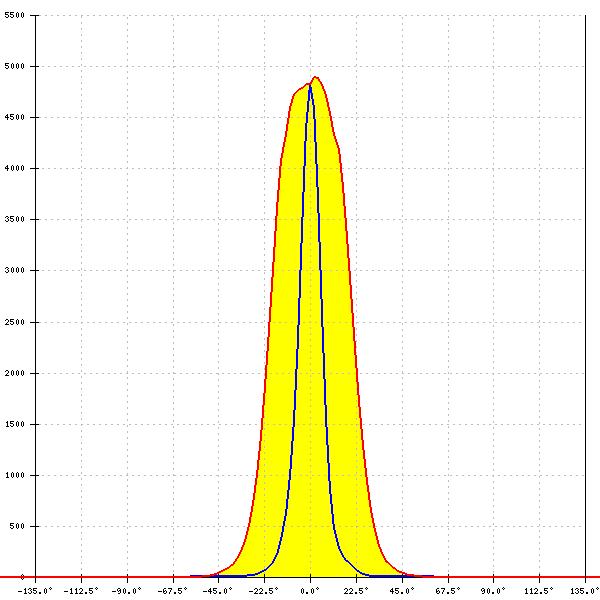

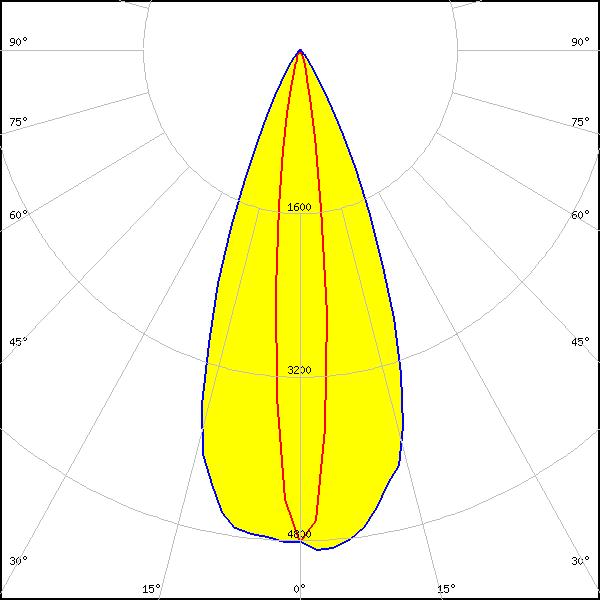

LED:
Z5M1/Z5M2
FWHM:
13° + 42°
FWTM:
26° + 63°
Peak intensity:
4.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

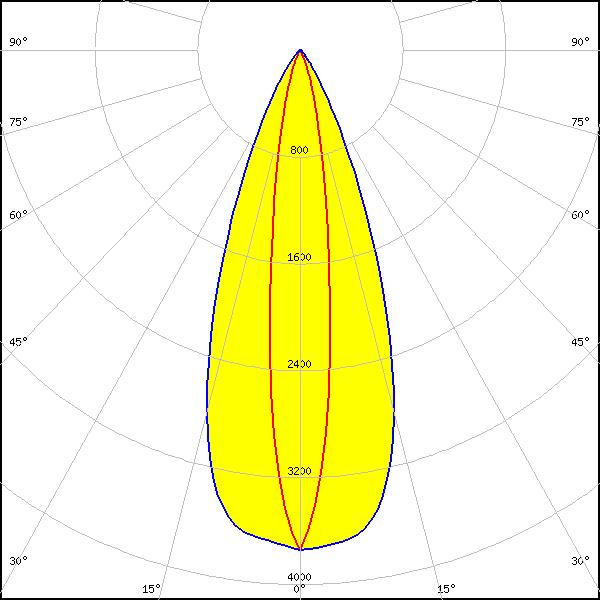

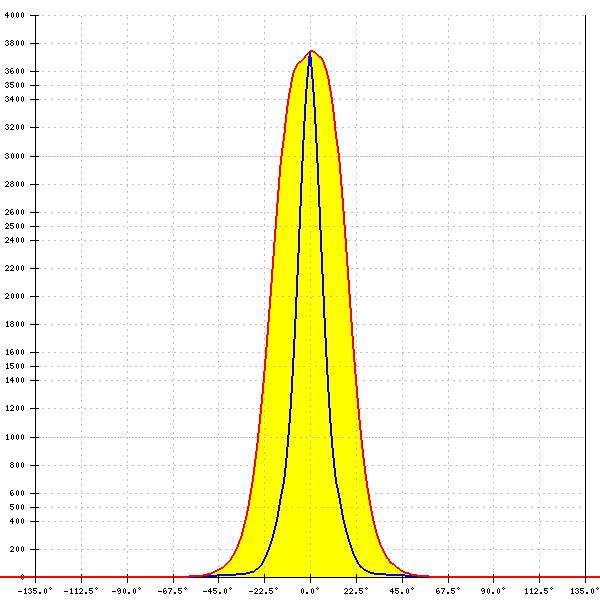

LED:
Z8Y22P
FWHM:
40° + 14°
FWTM:
64° + 34°
Peak intensity:
3.750 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
