    CA11848_TINA2-M

    Print

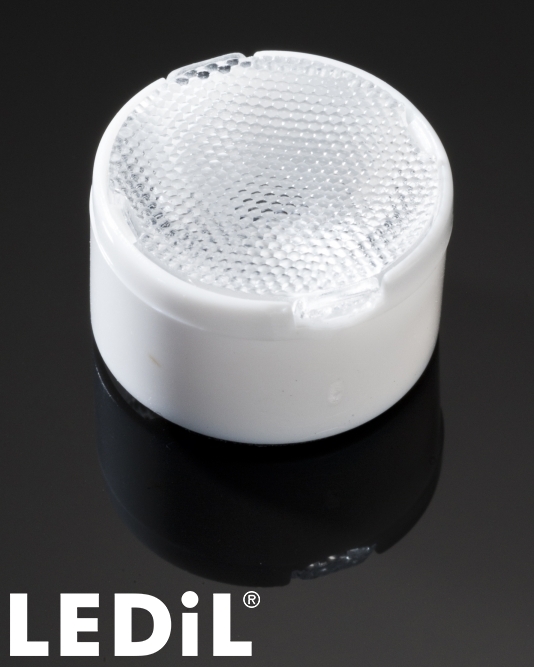

    ~30° medium beam optimized for Osram Golden Dragon+. Assembly with holder and installation tape.

    Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

    Specification
    • Dimensions:
      16 mm
    • Height:
      10.10 mm
    • Fastening:
      tape
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      4140 pcs
    • Box size:
      451 x 241 x 298 mm
    • Box weight:
      8.3 kg
    • MPQ:
      4140 pcs
    • MOQ:
      12420 pcs
    • MOQ size:
      450 x 290 x 240 mm
    • MOQ weight:
      8.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA11848_TINA2-M
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
    WHERE TO BUY

    Related Content

    User and installation guide

    General guide to LEDiL optics

    PCN

    Product change notification NR189 - EOL Notice and Change of Product status

    Case story

    Football pitch

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    TriBeCa apartment building

    Application area

    Indoor Architectural Lighting

    Application area

    Office Lighting

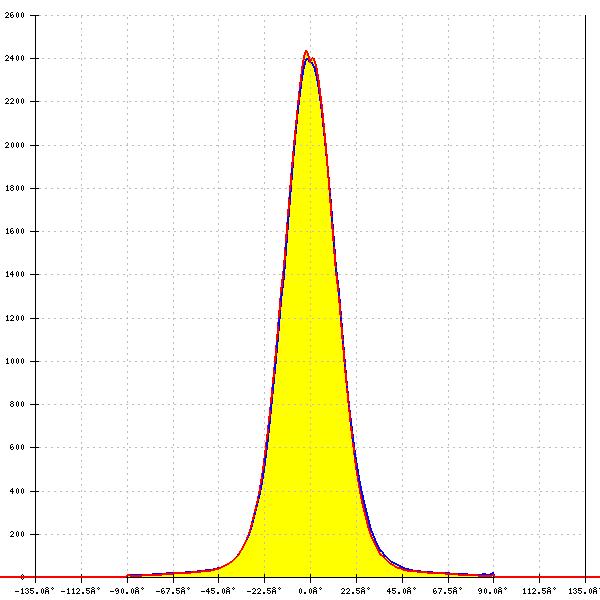

    Optical results

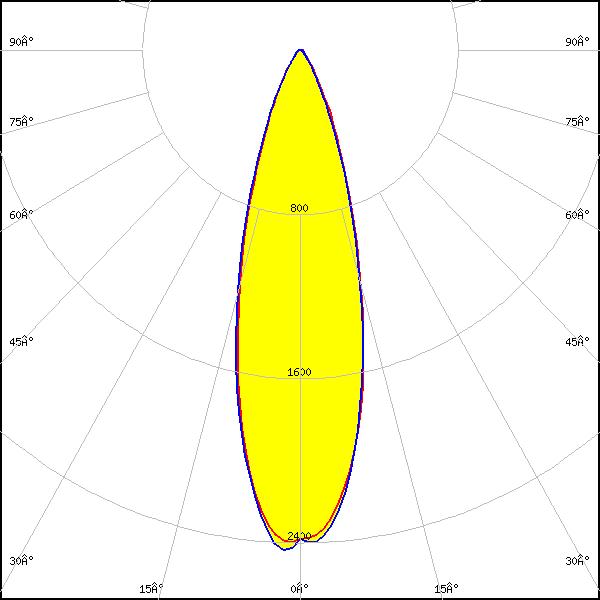

    LED: XP-G2 HE
    FWHM: 30°
    FWTM: 58°
    Peak intensity: 2.451 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

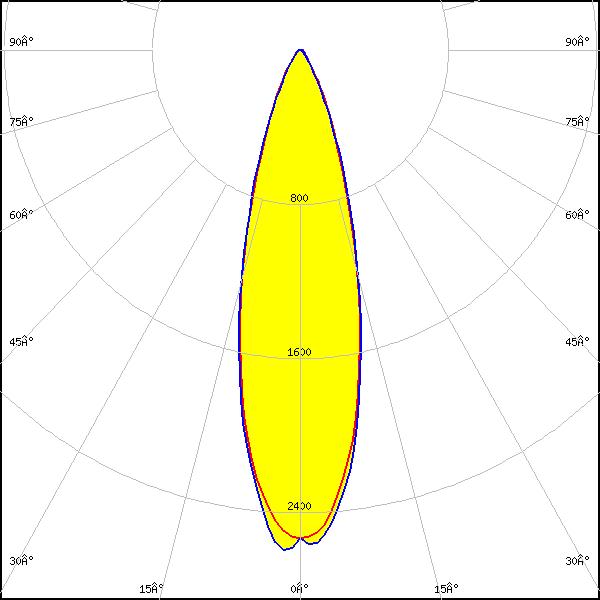

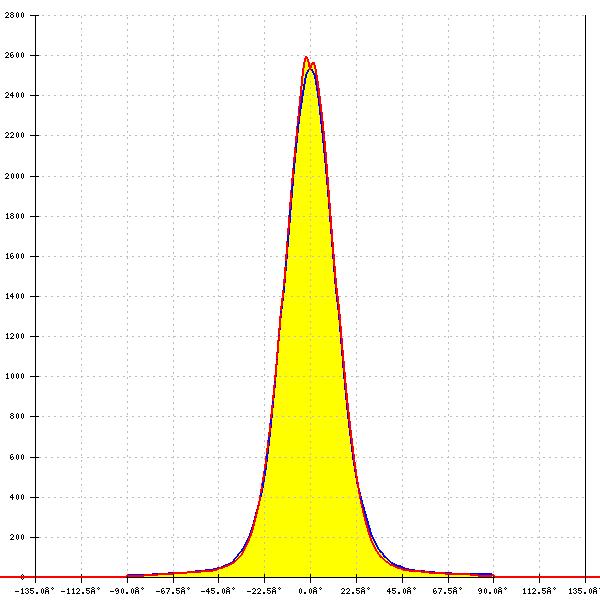

    LED: XP-L HI
    FWHM: 28°
    FWTM: 57°
    Peak intensity: 2.596 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

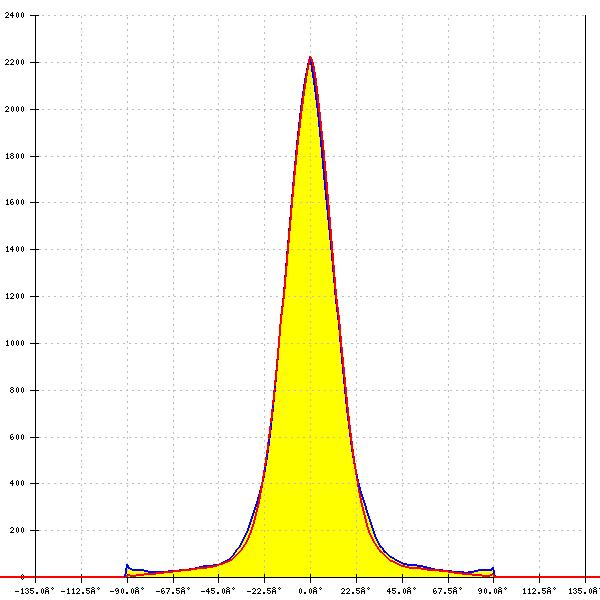

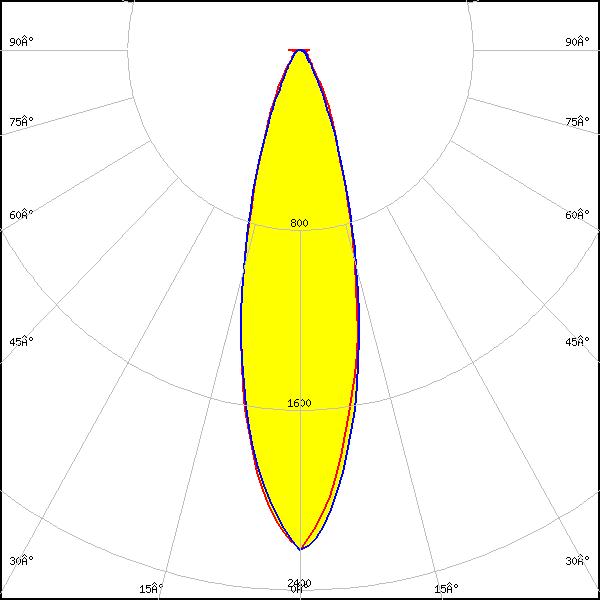

    LED: XT-E
    FWHM: 28°
    FWTM: 60°
    Peak intensity: 2.223 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

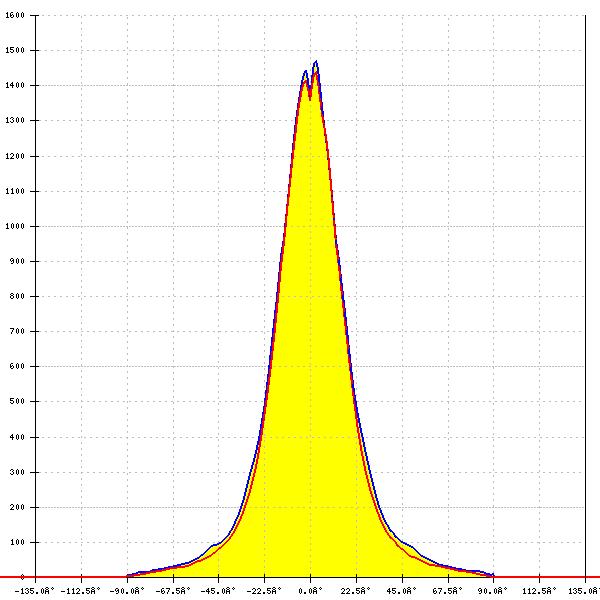

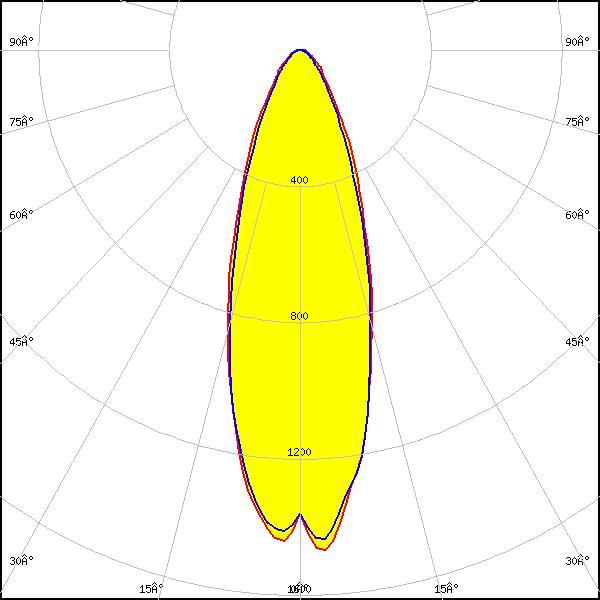

    LED: LUXEON 5050 Square LES
    FWHM: 34°
    FWTM: 74°
    Peak intensity: 1.496 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

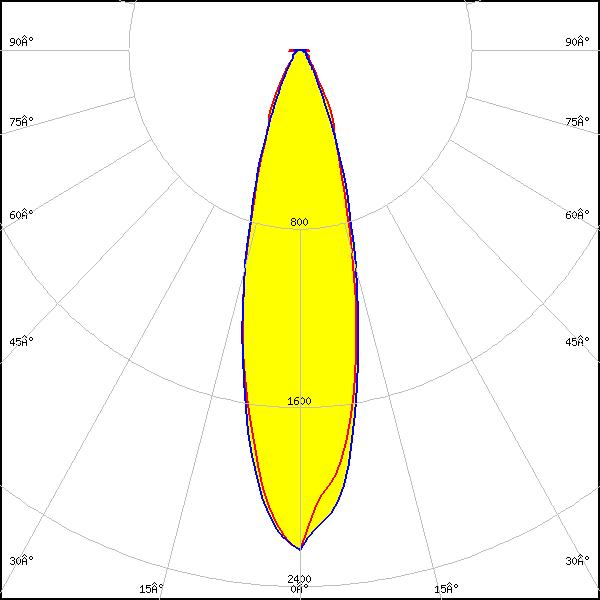

    LED: LUXEON IR Domed 150 (L1I0-0xxx150000000)
    FWHM: 27°
    FWTM: 60°
    Peak intensity: 2.290 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White

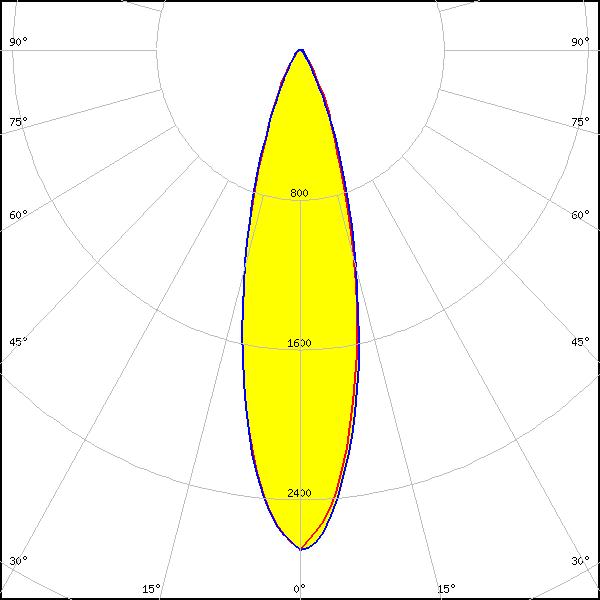

    LED: NVSW219C-V2
    FWHM: 28°
    FWTM: 56°
    Peak intensity: 2.671 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

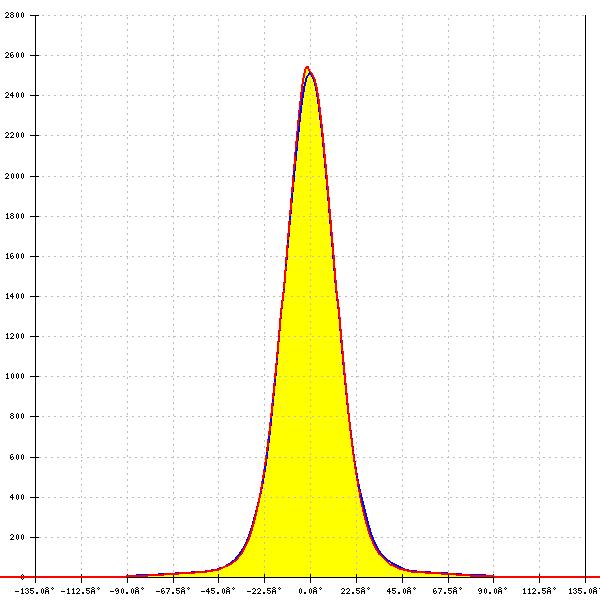

    LED: NVSW219F
    FWHM: 28°
    FWTM: 57°
    Peak intensity: 2.541 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSW519A
    FWHM: 30°
    FWTM: 59°
    Peak intensity: 2.261 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Golden Dragon+
    FWHM: 24°
    FWTM: 46°
    Peak intensity: 3.390 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

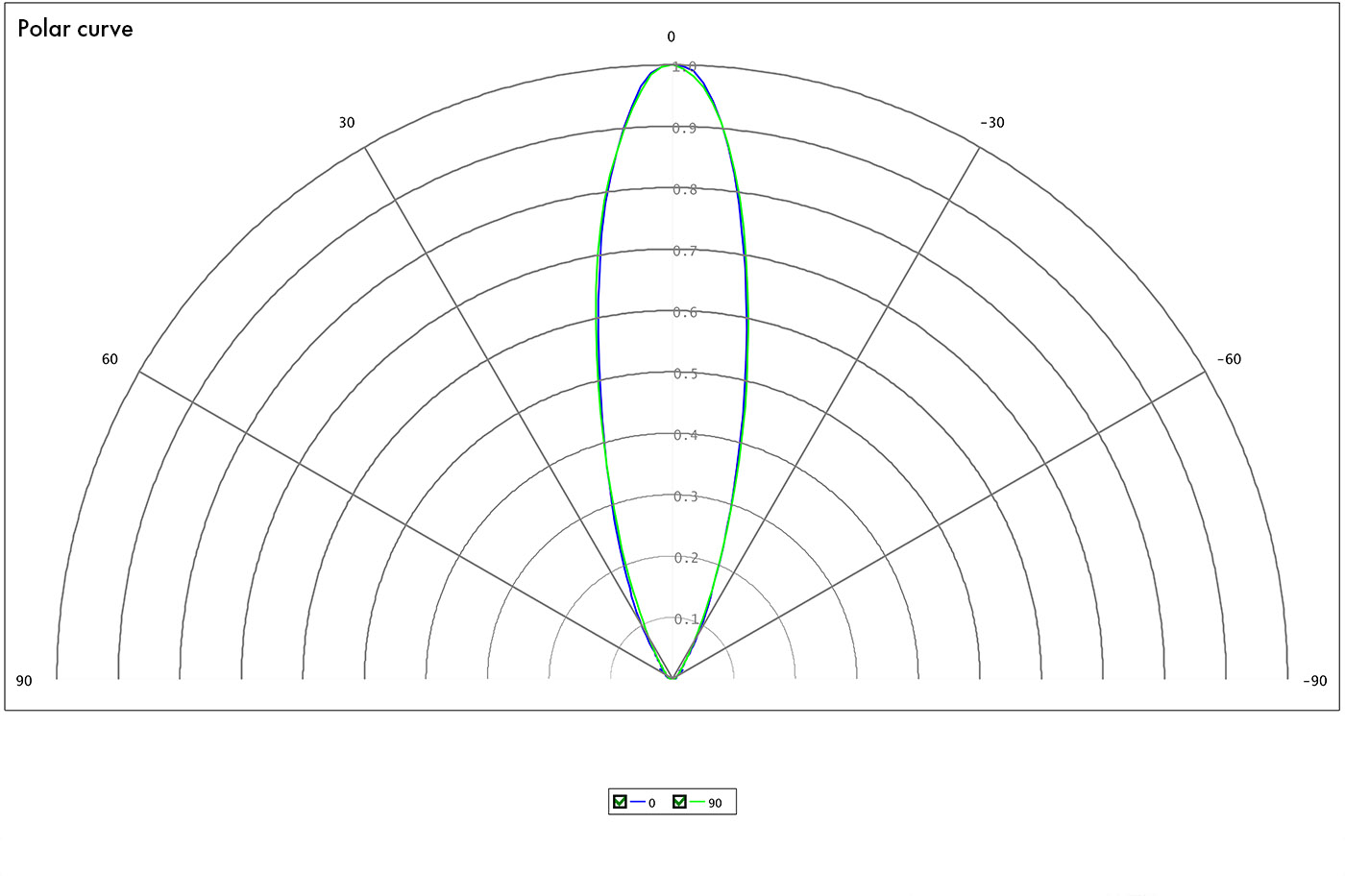

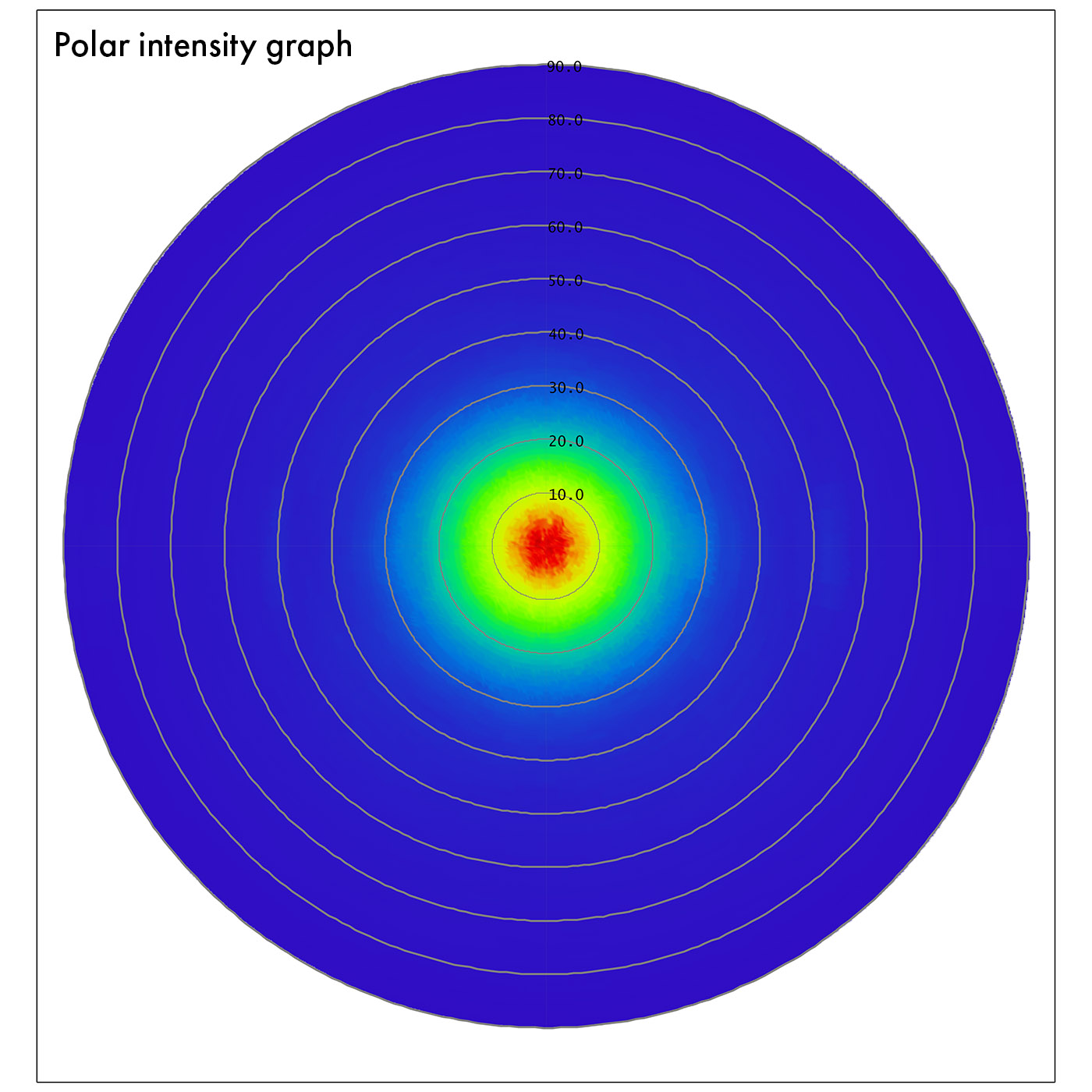

    LED: SFH 4725AS
    FWHM: 28°
    FWTM: 58°
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: IR
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
