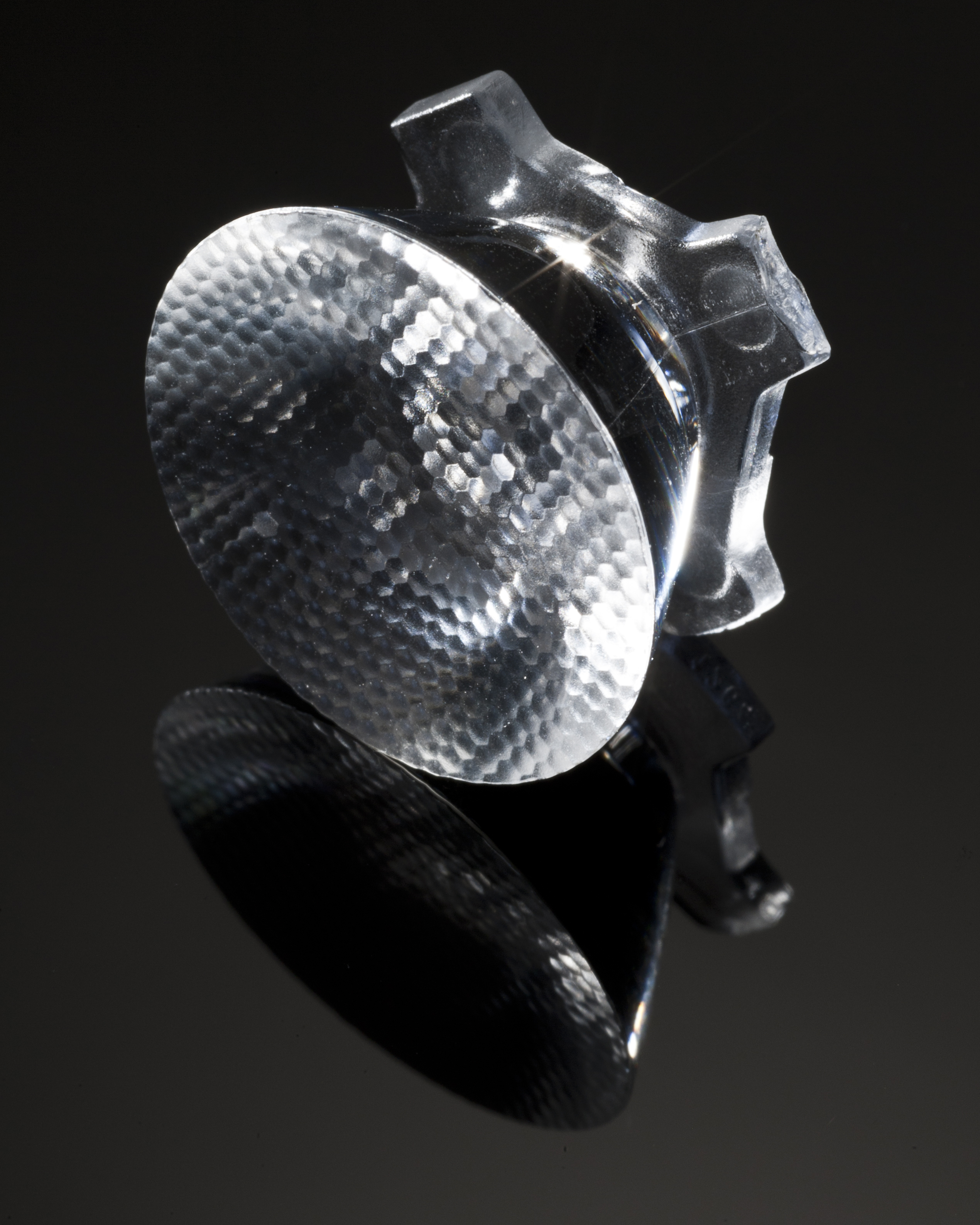

CA12242_HEIDI-SS
Print
~15° smooth spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

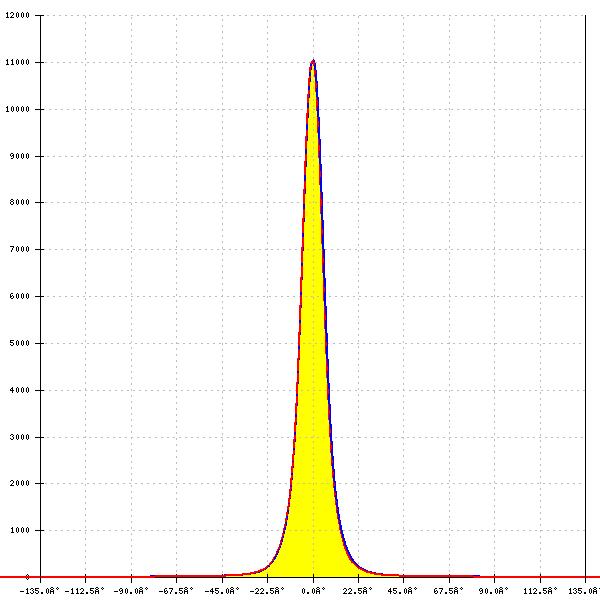

LED:

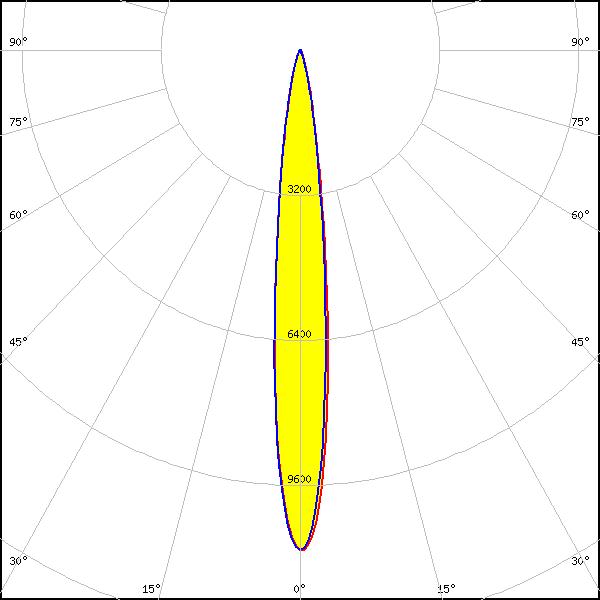

XQ-E HD
FWHM:
12°
FWTM:
27°
Peak intensity:
11.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

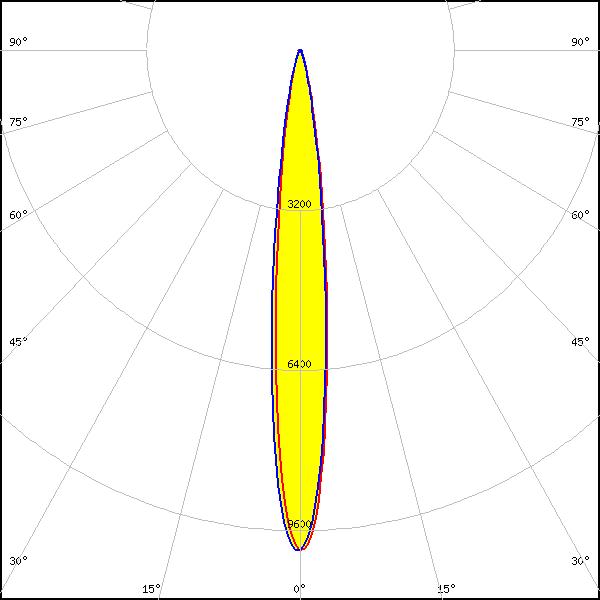

LED:
XQ-E HI
FWHM:
12°
FWTM:
28°
Peak intensity:
10.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

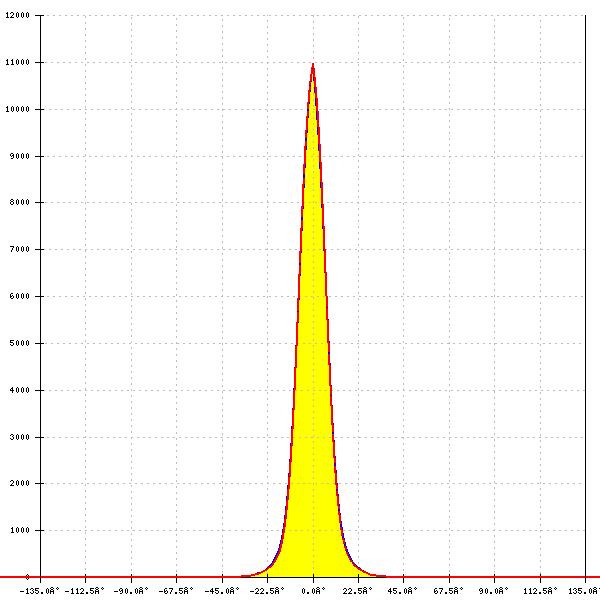

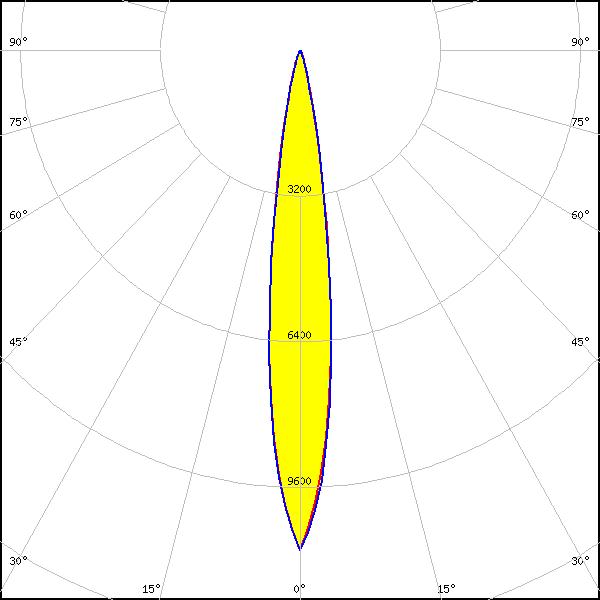

LED:
LUXEON 3030 HE Plus
FWHM:
14°
FWTM:
28°
Peak intensity:
10.983 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

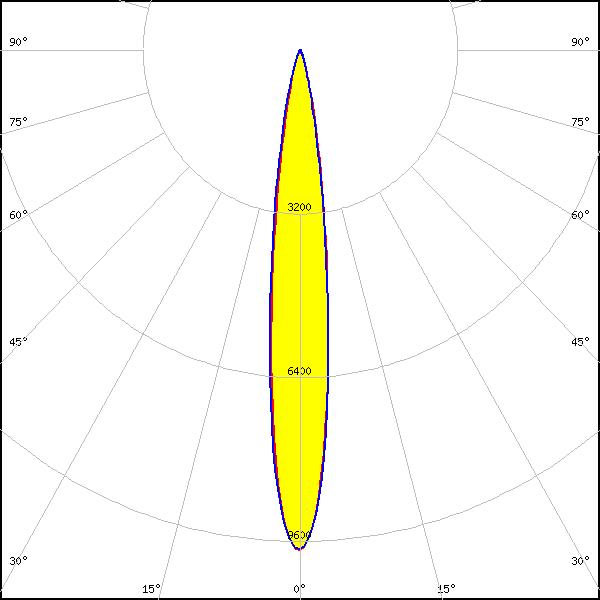

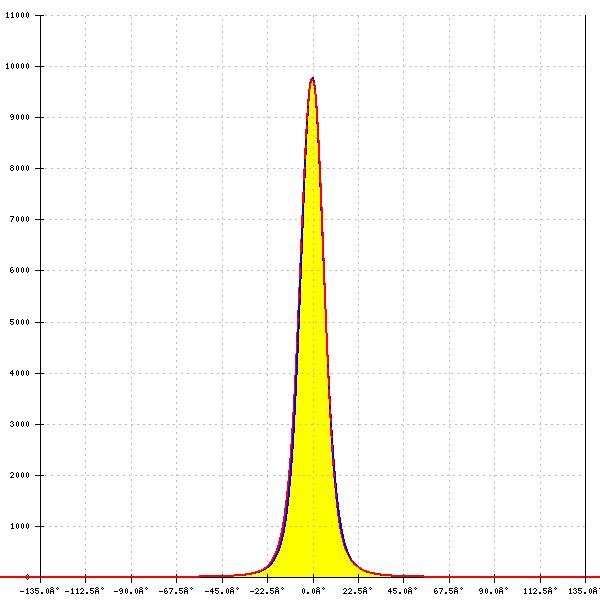

LED:
LUXEON C
FWHM:
13°
FWTM:
28°
Peak intensity:
9.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

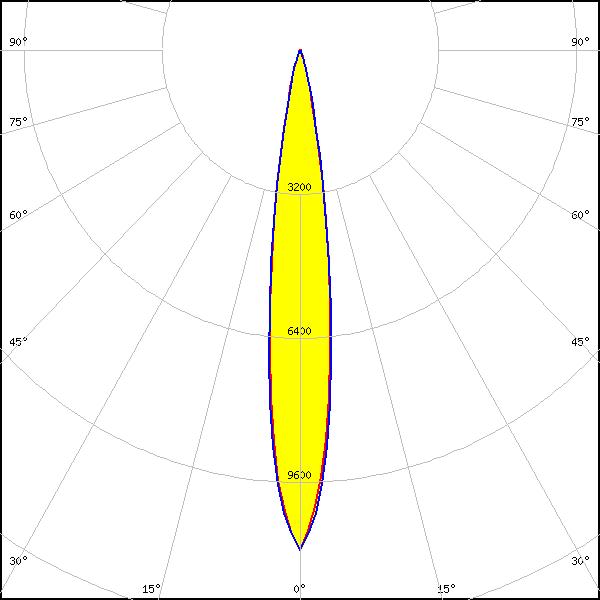

LED:
LUXEON HL2Z
FWHM:
14°
FWTM:
28°
Peak intensity:
11.113 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

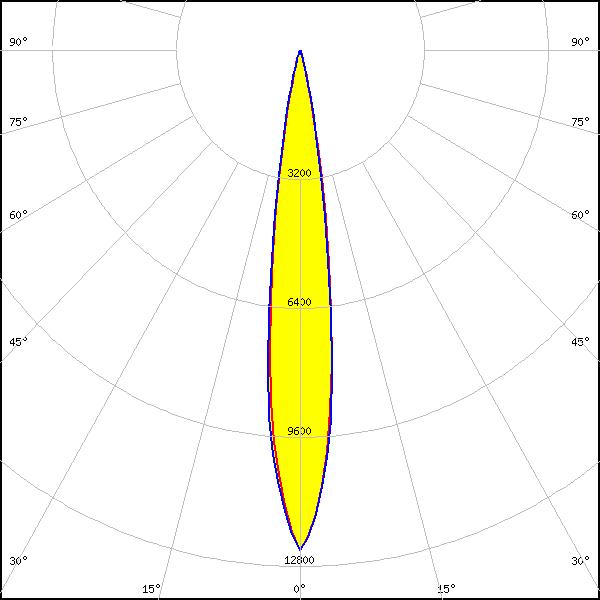

LED:

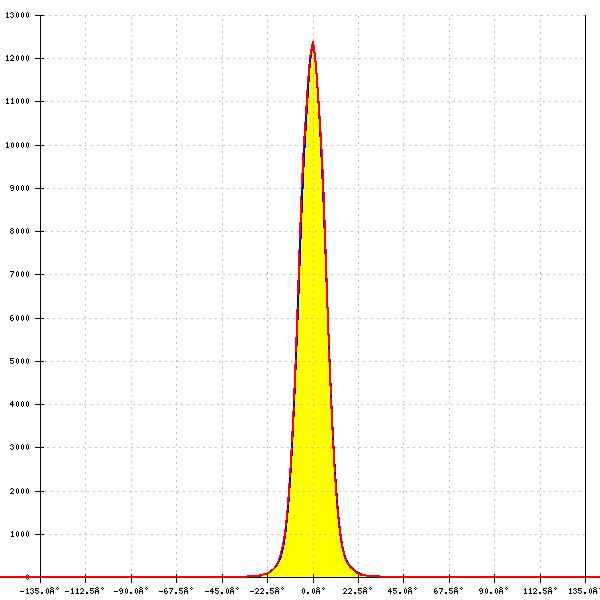

LUXEON SunPlus 20 Line (120 deg)
FWHM:
14°
FWTM:
26°
Peak intensity:
12.403 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

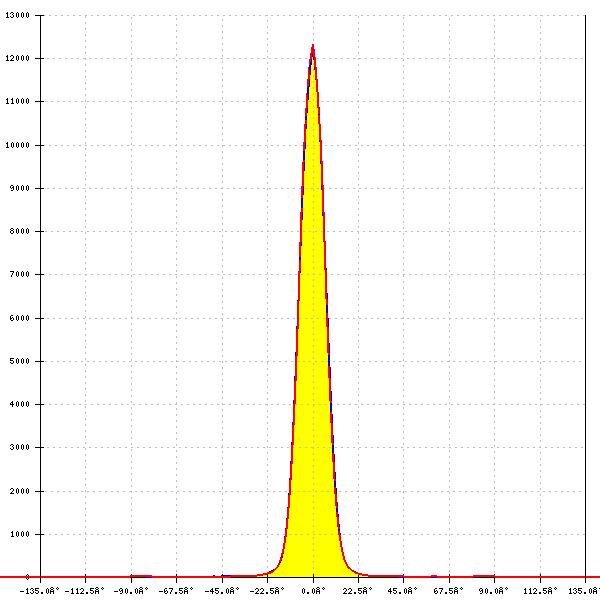

LED:

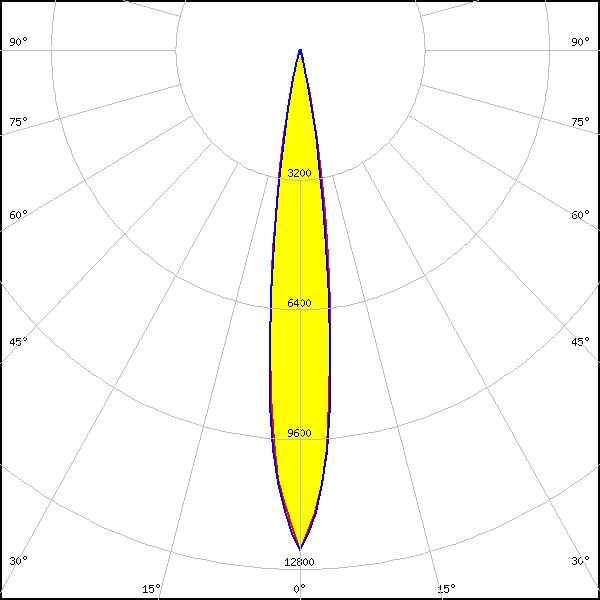

LUXEON SunPlus 20 Line (150 deg)
FWHM:
14°
FWTM:
26°
Peak intensity:
12.333 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

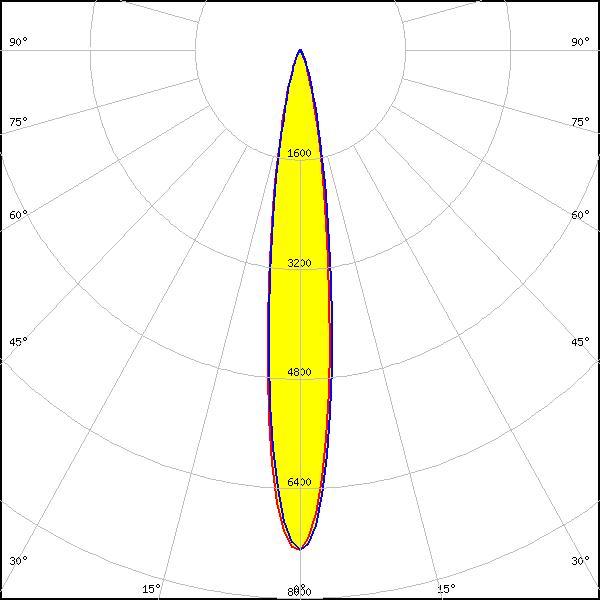

LUXEON T
FWHM:
15°
FWTM:
33°
Peak intensity:
7.300 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

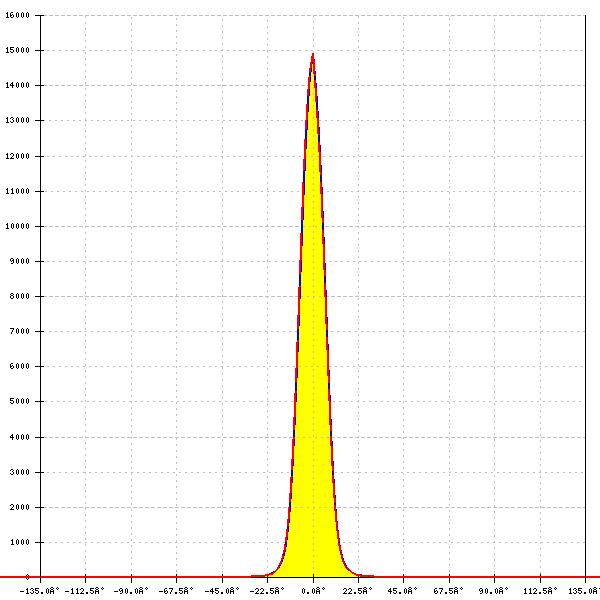

LED:

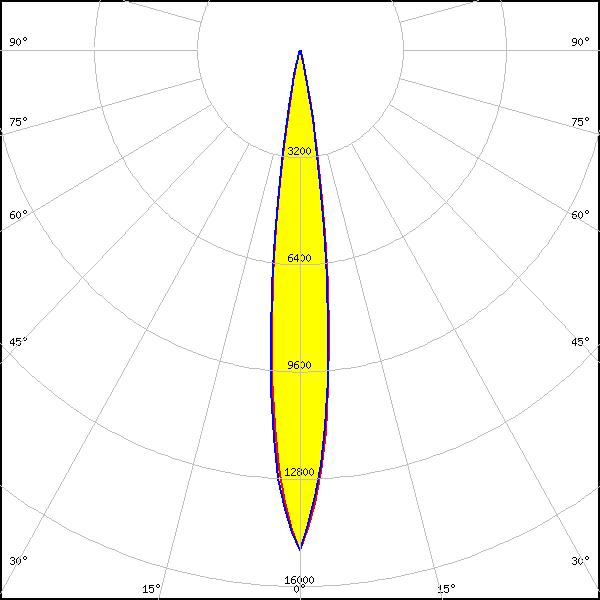

LUXEON Z ES
FWHM:
13°
FWTM:
24°
Peak intensity:
14.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

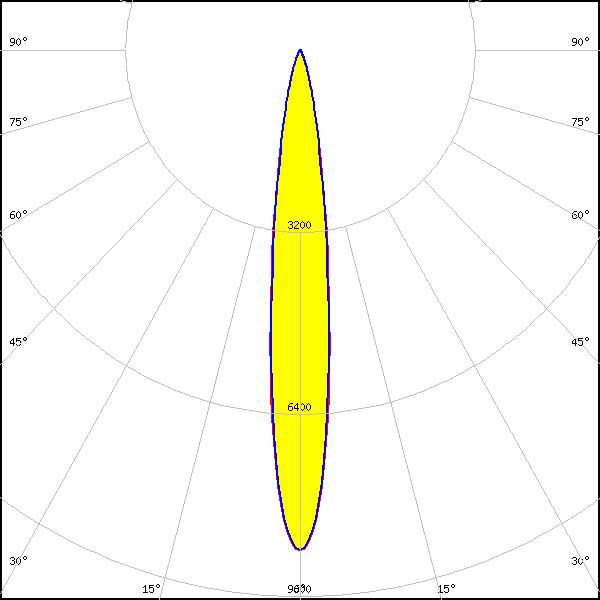

LED:
NCSxx19A
FWHM:
14°
FWTM:
31°
Peak intensity:
8.794 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

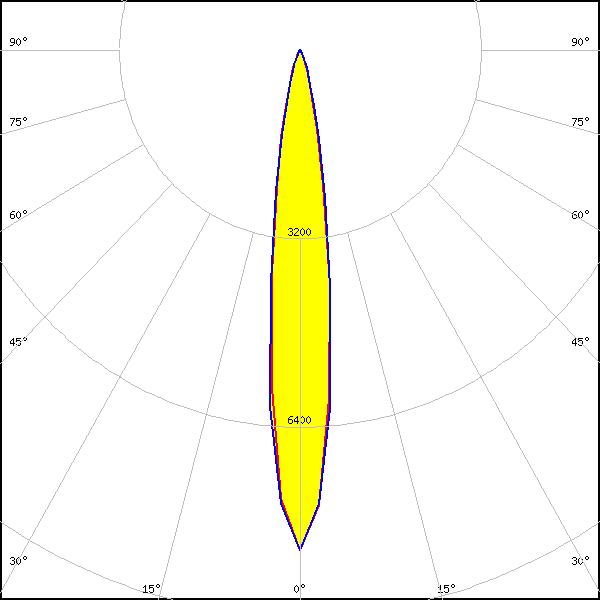

LED:
NCSxx19B
FWHM:
15°
FWTM:
32°
Peak intensity:
8.500 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

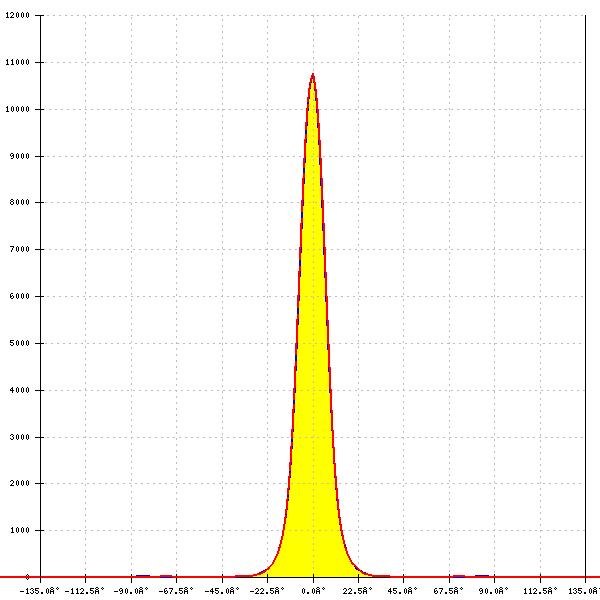

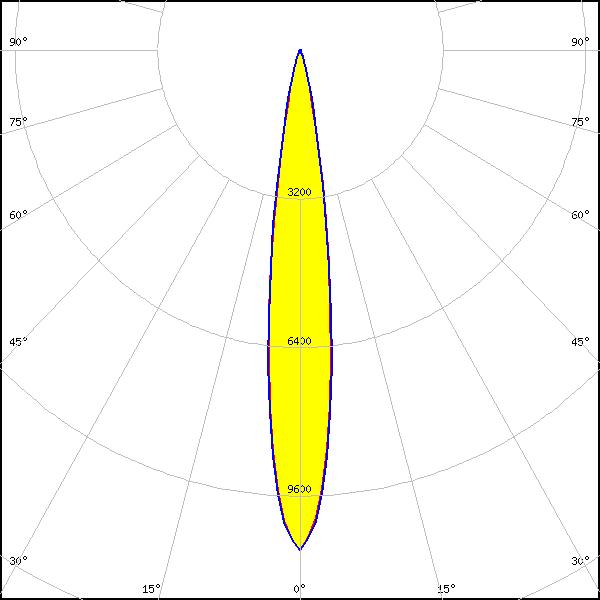

NVSxE21A
FWHM:
14°
FWTM:
28°
Peak intensity:
10.769 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

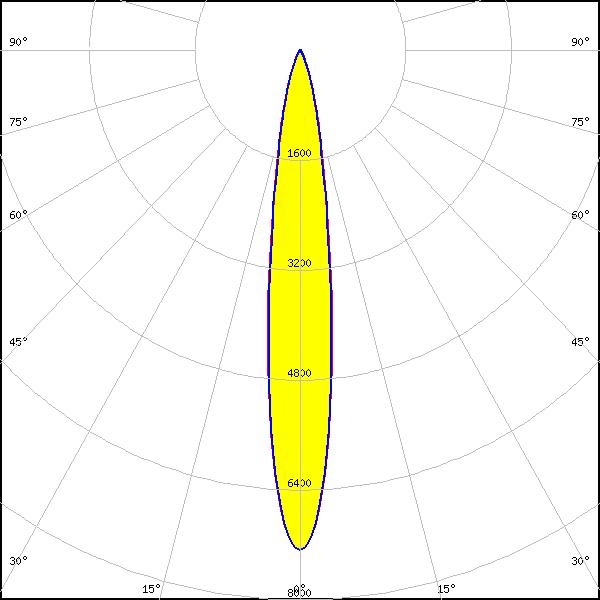

LED:
NVSxx19A
FWHM:
15°
FWTM:
34°
Peak intensity:
7.280 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
18°
FWTM:
38°
Peak intensity:
6.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

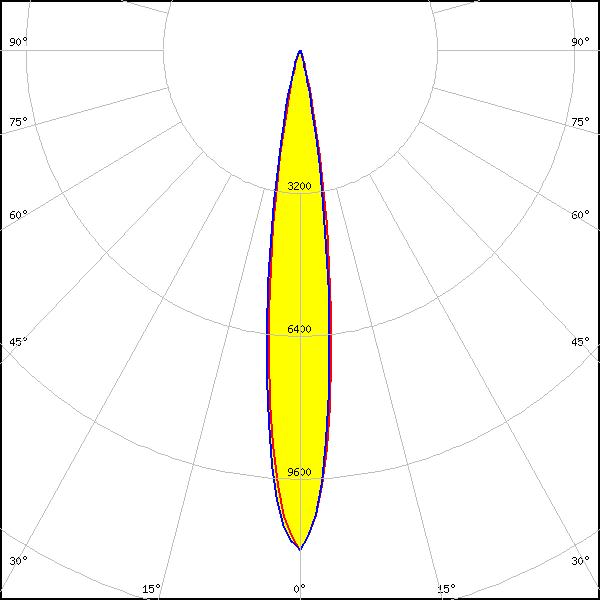

OSCONIQ S 3030 (QSLR31)
FWHM:
15°
FWTM:
28°
Peak intensity:
11.198 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

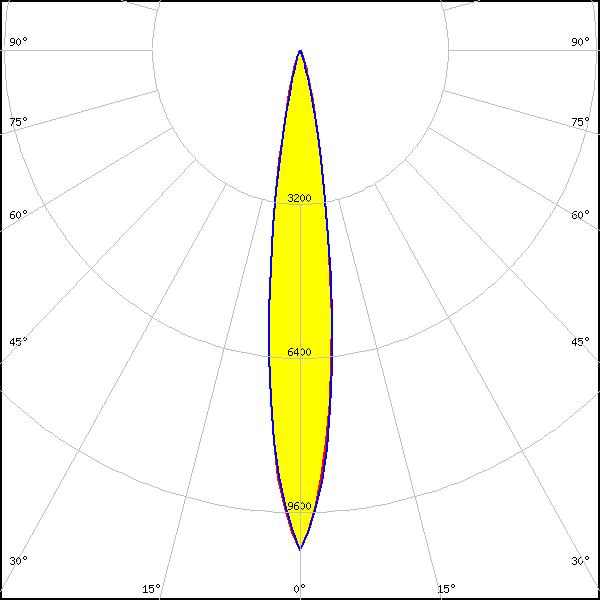

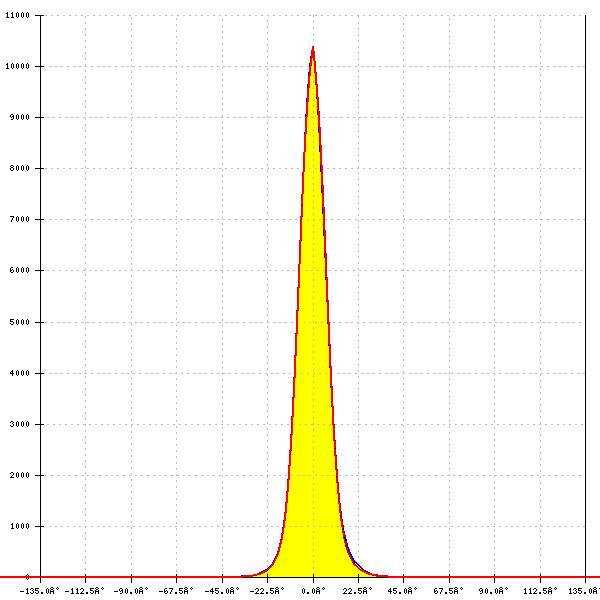

LED:

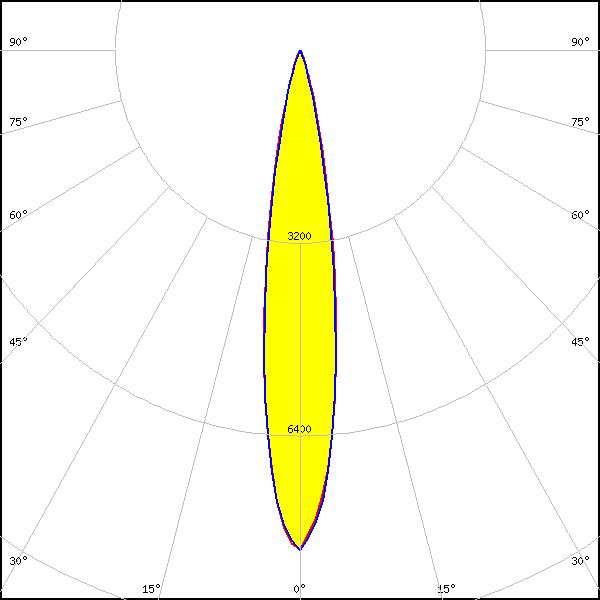

OSLON Square CSSRM2/CSSRM3
FWHM:
15°
FWTM:
29°
Peak intensity:
10.385 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
17°
FWTM:
33°
Peak intensity:
8.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

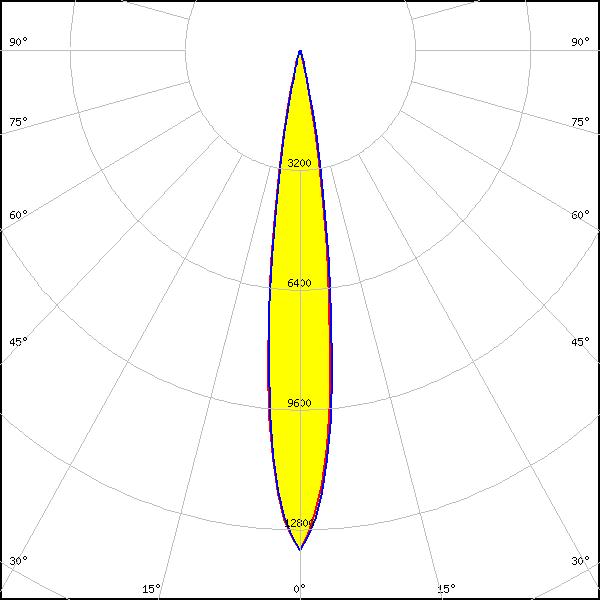

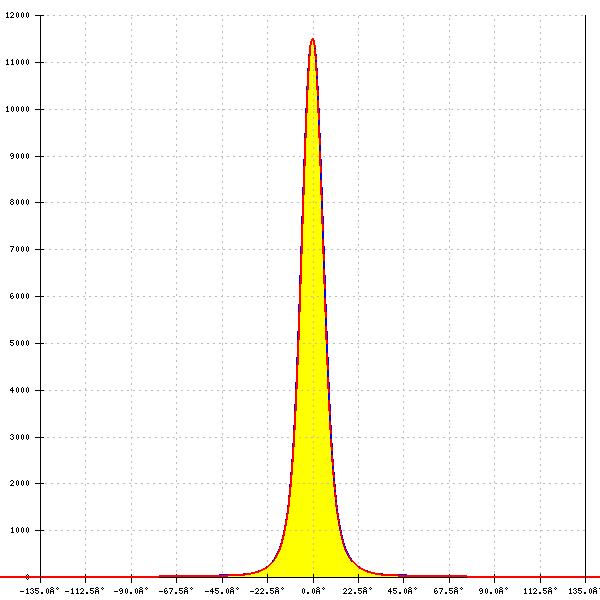

LED:

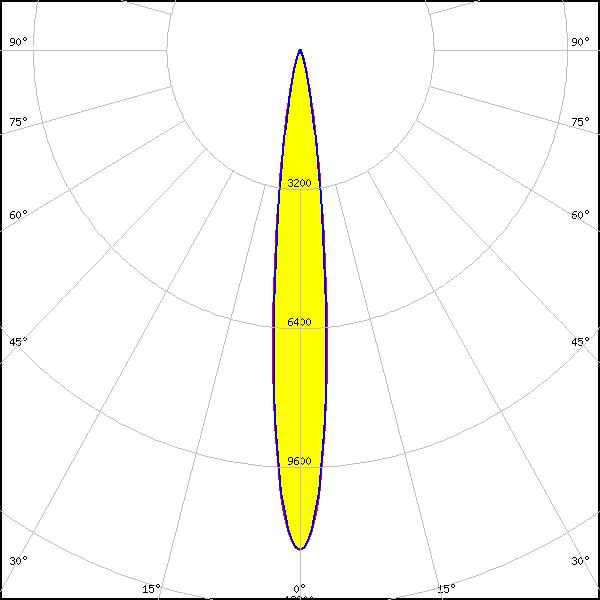

OSLON SSL 150
FWHM:
14°
FWTM:
25°
Peak intensity:
13.347 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
13°
FWTM:
26°
Peak intensity:
11.502 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

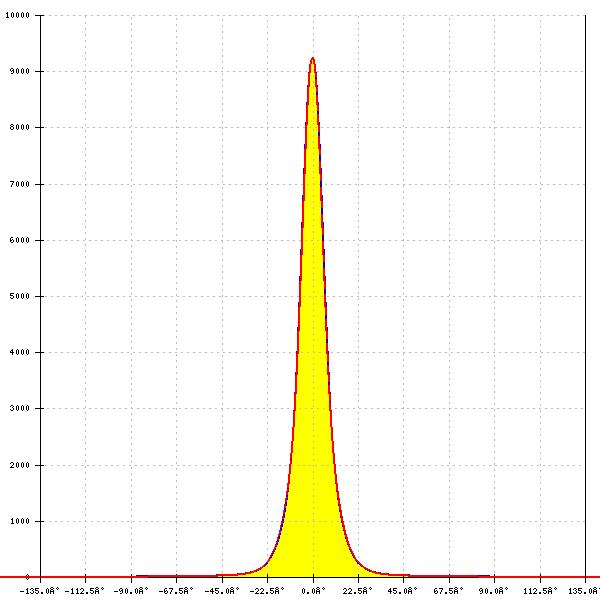

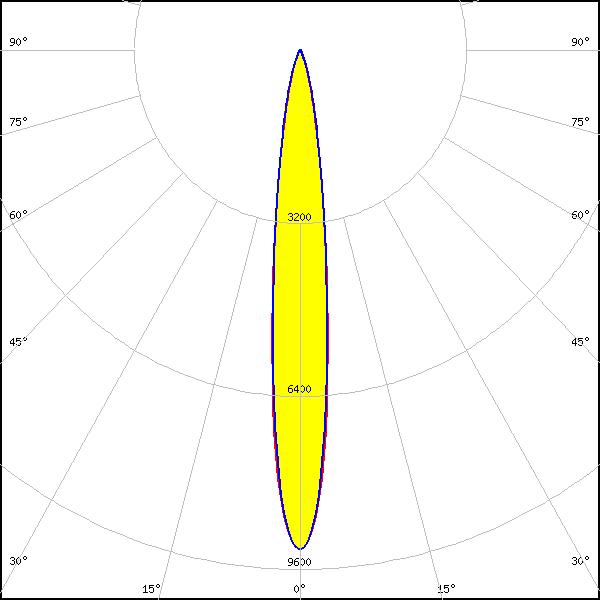

LED:
OSLON SSL 80
FWHM:
13°
FWTM:
30°
Peak intensity:
9.250 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

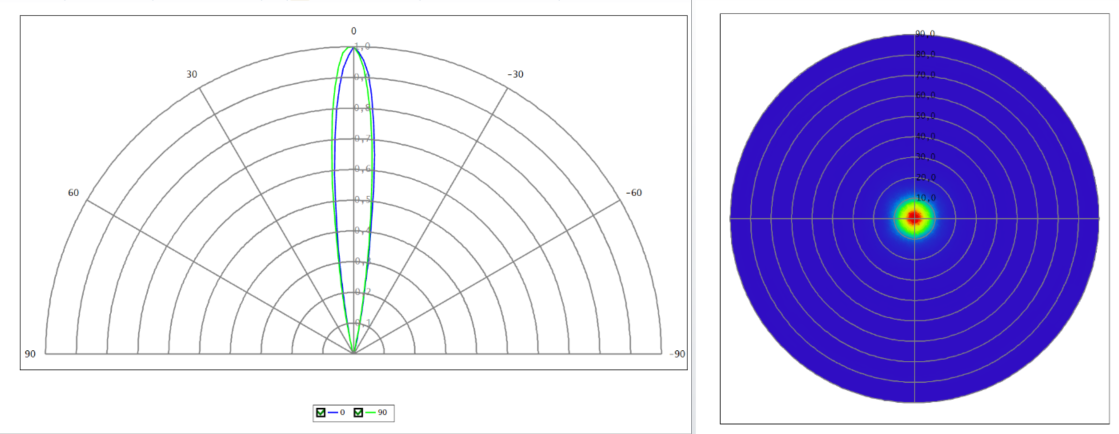

LED:
SFH 4170S
FWHM:
15°
FWTM:
23°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4170S
FWHM:
14°
FWTM:
24°
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
IR
LED:

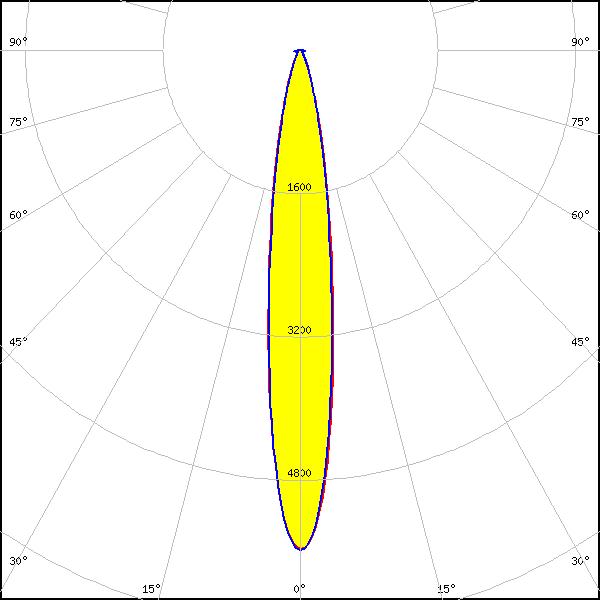

LH181A
FWHM:
15°
FWTM:
36°
Peak intensity:
5.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

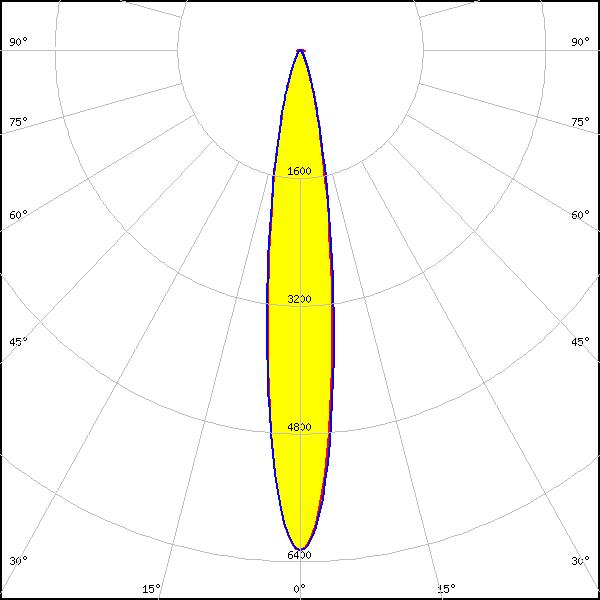

LED:
LH181B
FWHM:
15°
FWTM:
36°
Peak intensity:
6.300 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

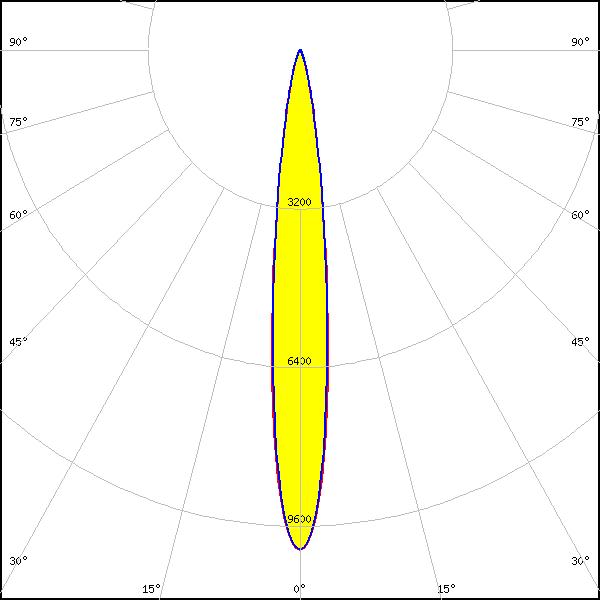

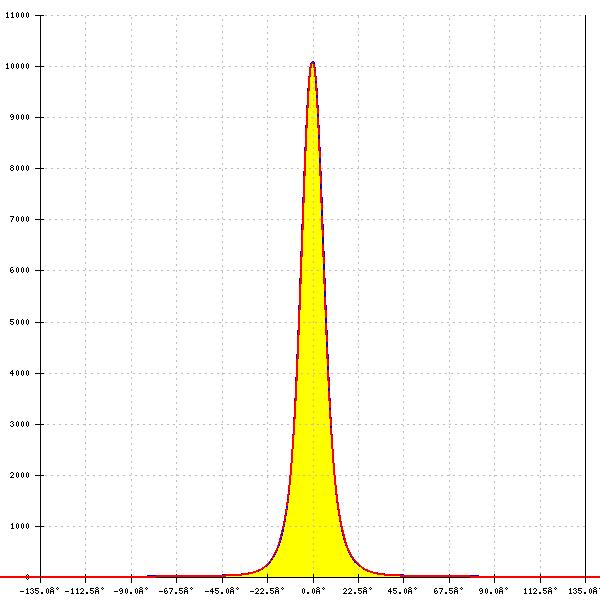

LED:
Z5
FWHM:
13°
FWTM:
28°
Peak intensity:
10.085 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

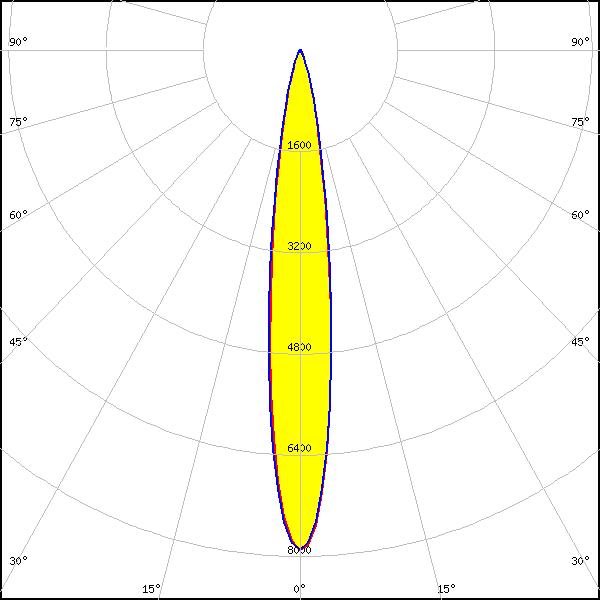

LED:
Z5M1/Z5M2
FWHM:
14°
FWTM:
32°
Peak intensity:
7.900 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
