CA12376_TINA2-SS
Print
~20° smooth spot beam. Assembly with holder, installation tape and location pins.
Component Materials
- TINA2-SSSingle lensPMMA
- TINA2-HLD-BLKHolderPC
- TINA-TAPE3TapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

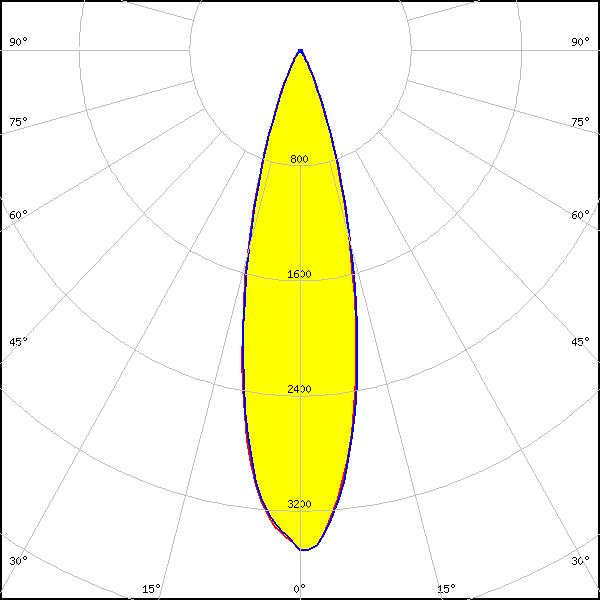

LED:
XB-D
FWHM:
26°
FWTM:
49°
Peak intensity:
3.473 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

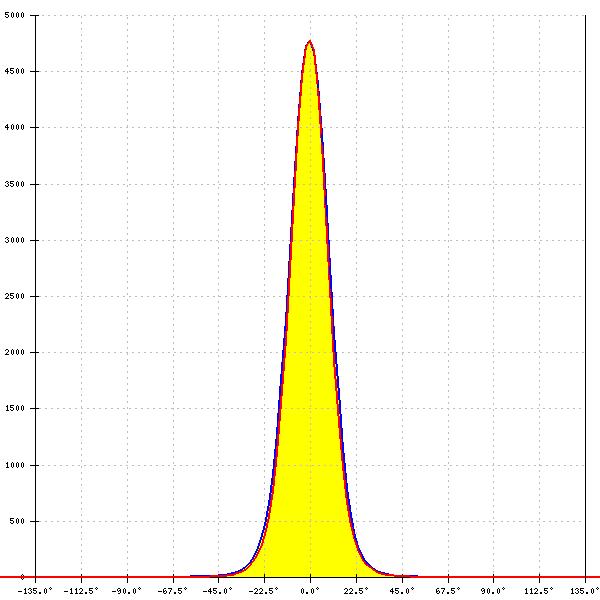

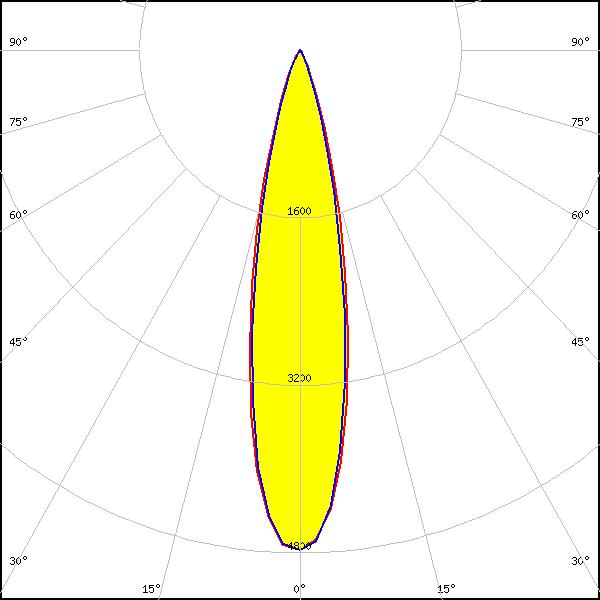

LED:
XB-H
FWHM:
22°
FWTM:
41°
Peak intensity:
4.800 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

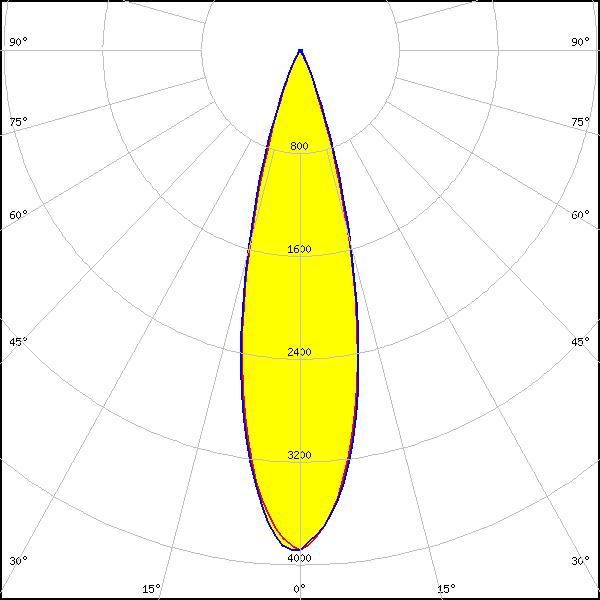

LED:
XE-G
FWHM:
27°
FWTM:
46°
Peak intensity:
3.896 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

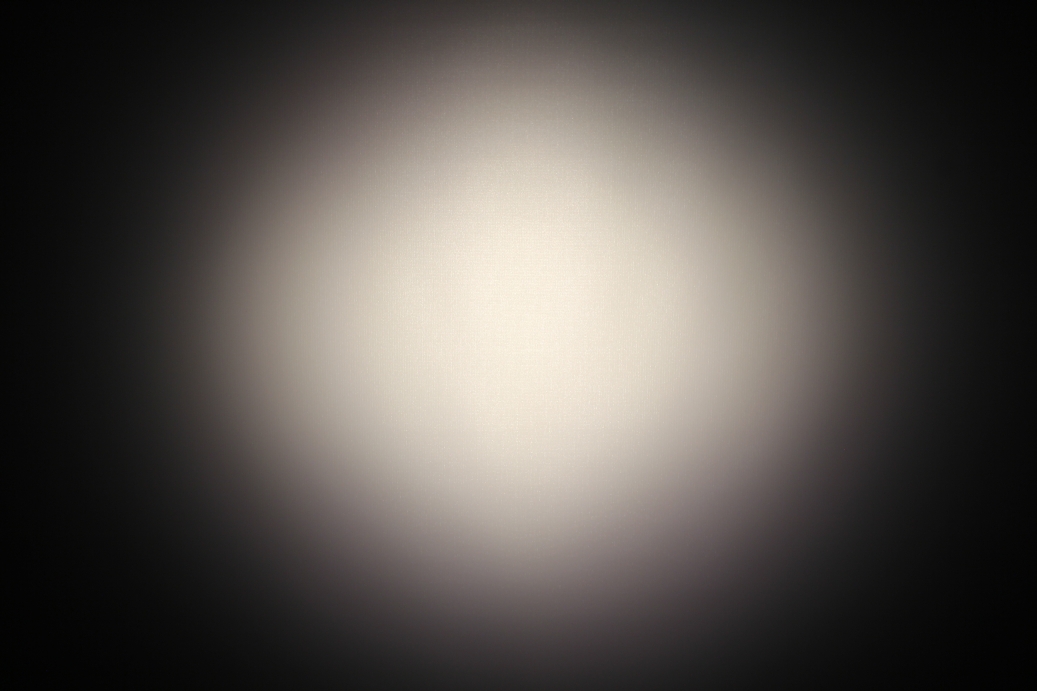

LED:
XQ-E HD
FWHM:
22°
FWTM:
39°
Peak intensity:
6.200 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

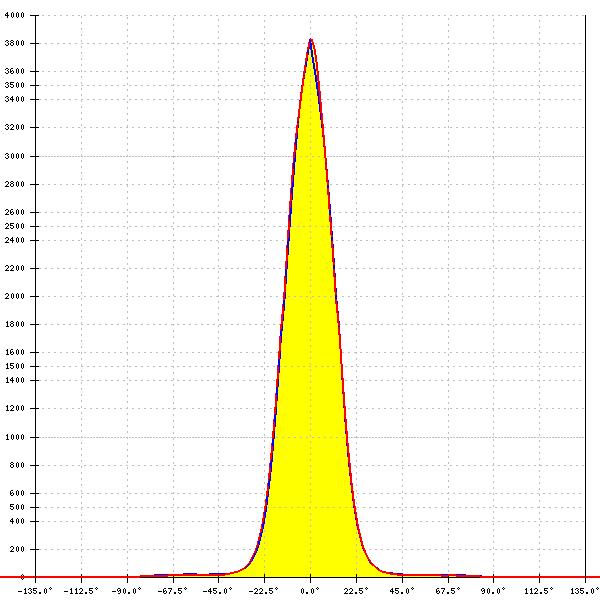

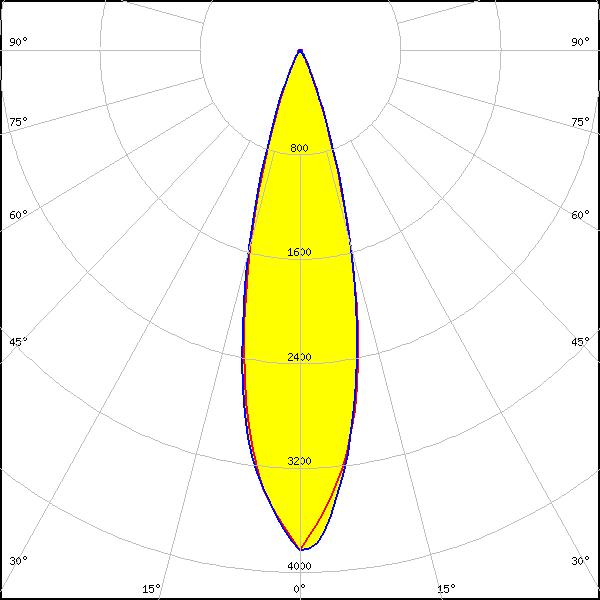

LED:
LUXEON C
FWHM:
26°
FWTM:
45°
Peak intensity:
3.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

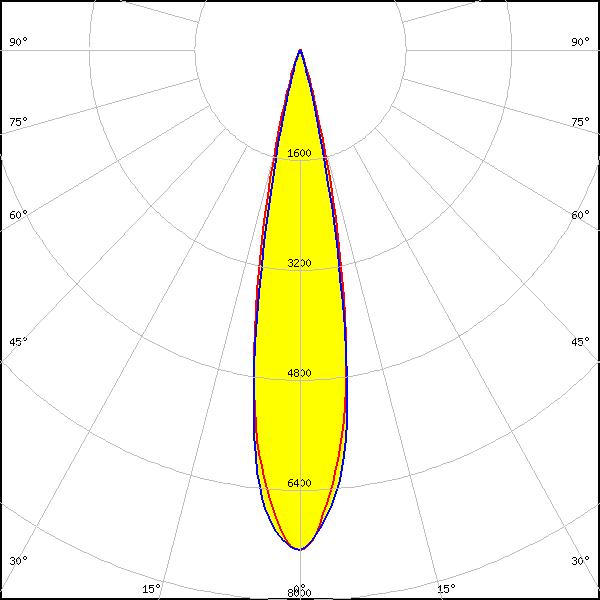

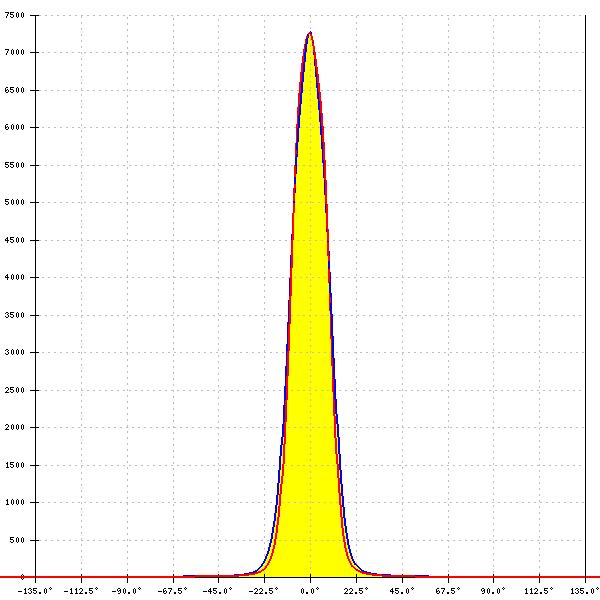

LED:
LUXEON CZ
FWHM:
20°
FWTM:
33°
Peak intensity:
7.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Compact
FWHM:
26°
FWTM:
44°
Peak intensity:
0.000 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

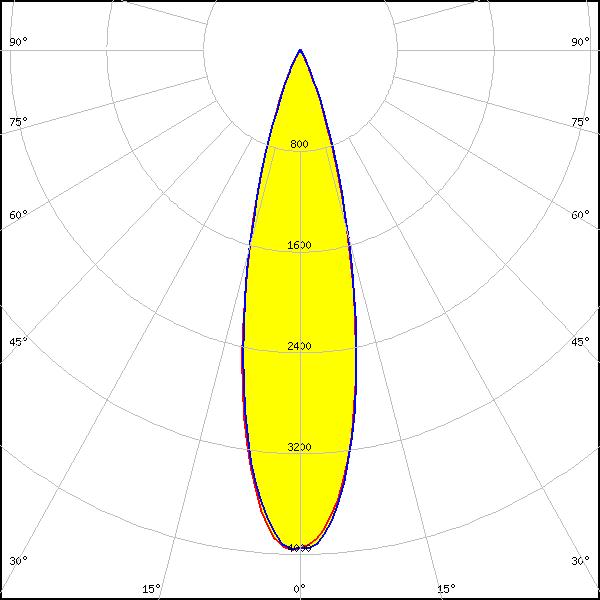

LED:
LUXEON Rubix
FWHM:
26°
FWTM:
46°
Peak intensity:
3.968 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

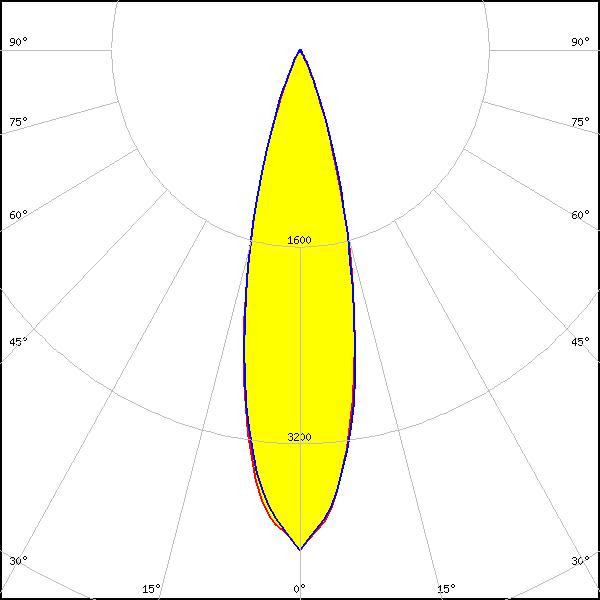

LED:
LUXEON Rubix
FWHM:
26°
FWTM:
46°
Peak intensity:
4.070 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Blue

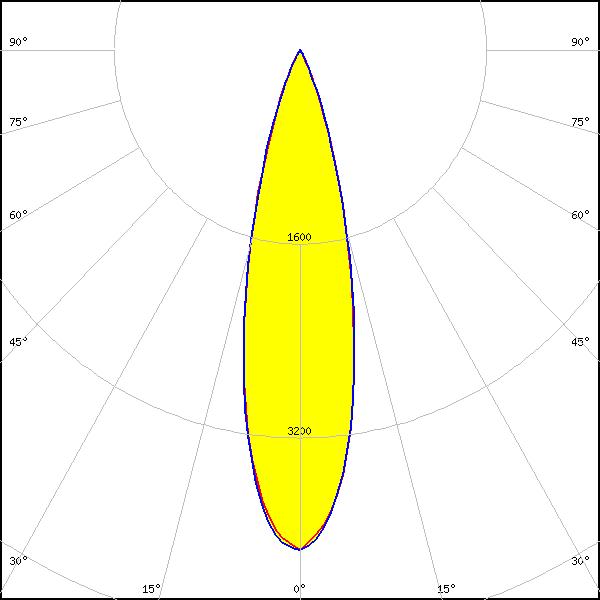

LED:
LUXEON Rubix
FWHM:
26°
FWTM:
45°
Peak intensity:
4.129 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
Red

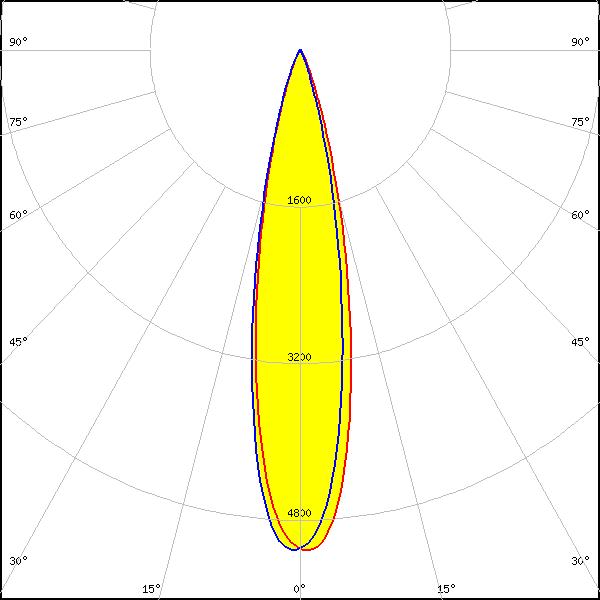

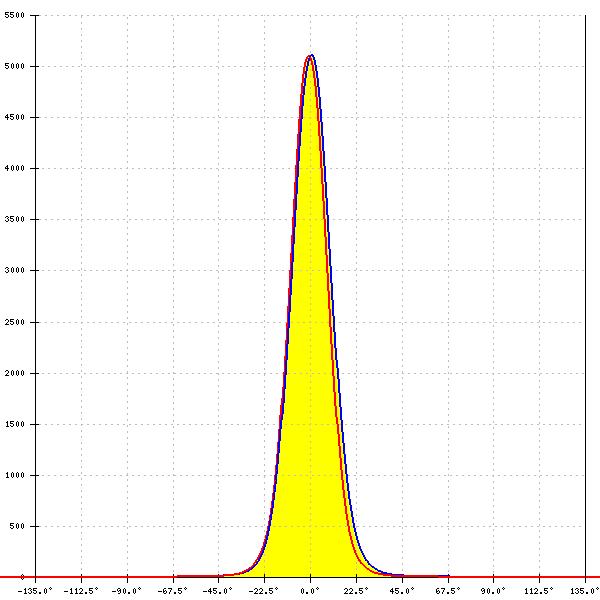

LED:
LUXEON TX
FWHM:
22°
FWTM:
40°
Peak intensity:
5.120 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z ES
FWHM:
21°
FWTM:
37°
Peak intensity:
6.900 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

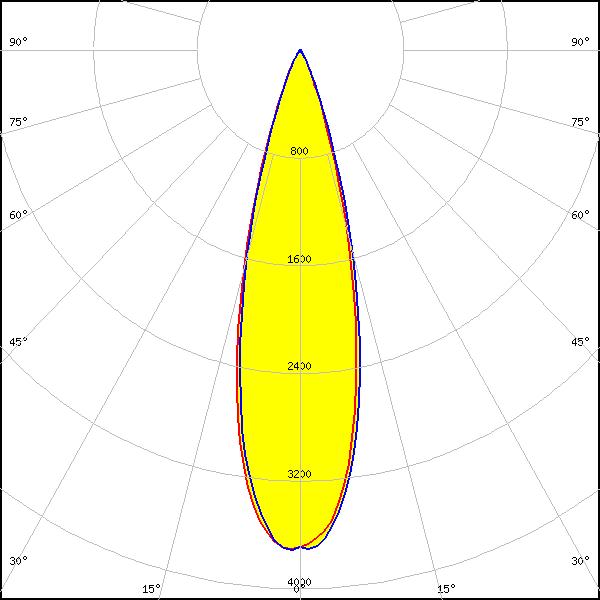

LED:
NFSx757G
FWHM:
27°
FWTM:
47°
Peak intensity:
3.740 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

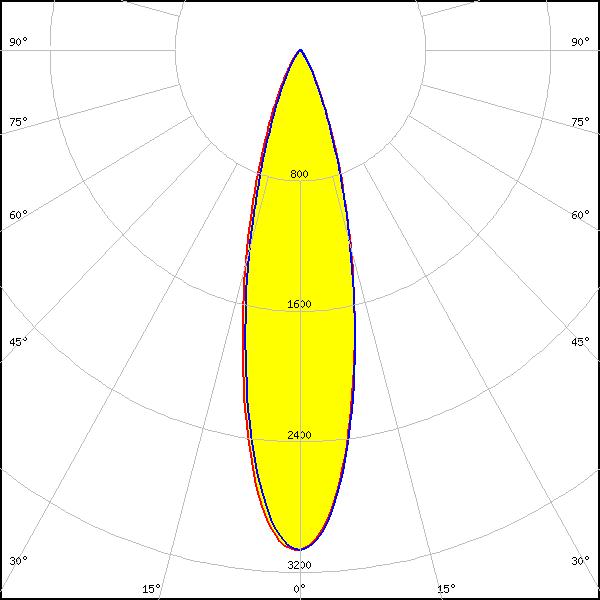

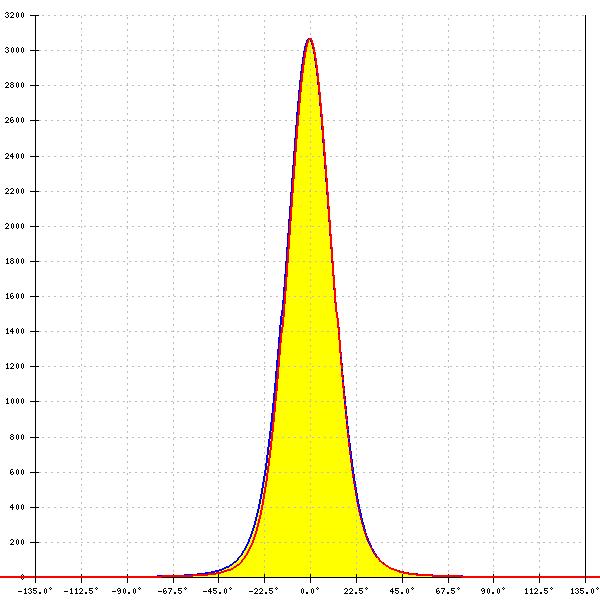

LED:
NWSx229A
FWHM:
26°
FWTM:
52°
Peak intensity:
3.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

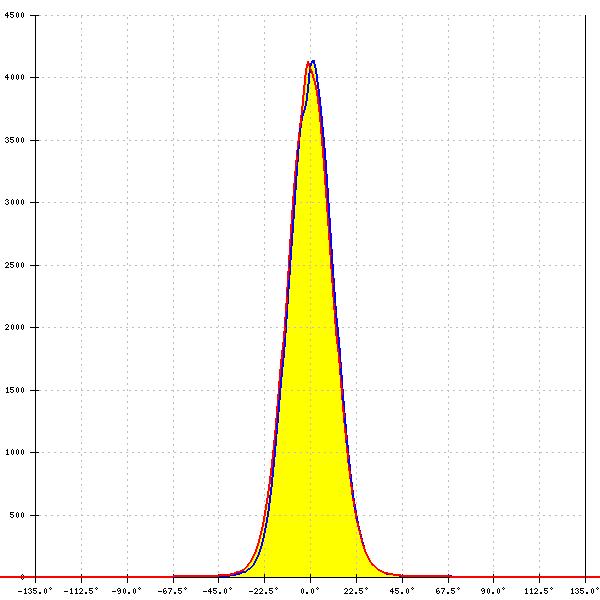

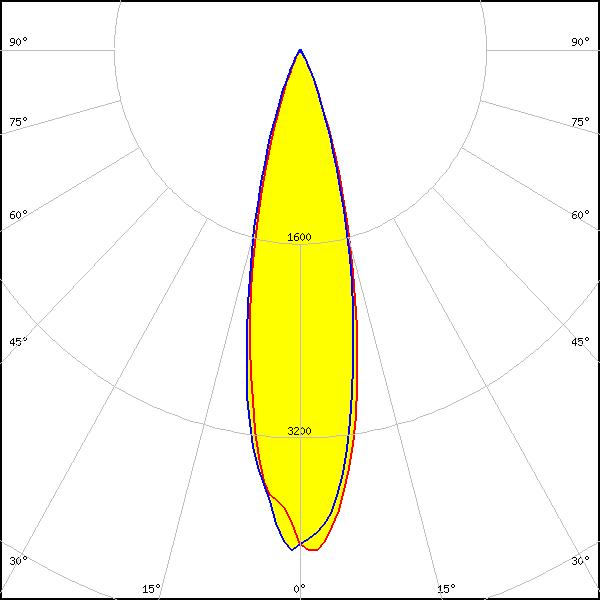

LED:
DURIS S5 (2 chip)
FWHM:
25°
FWTM:
46°
Peak intensity:
4.130 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3030
FWHM:
24°
FWTM:
45°
Peak intensity:
4.420 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Blue

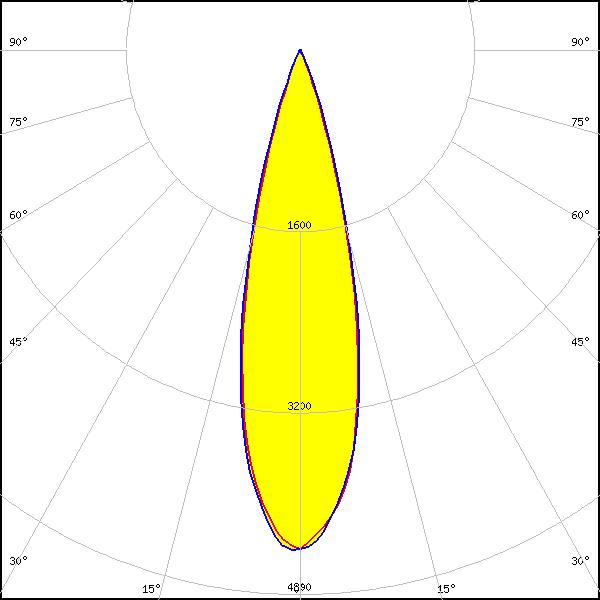

LED:
OSLON Pure 1414
FWHM:
26°
FWTM:
42°
Peak intensity:
4.421 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

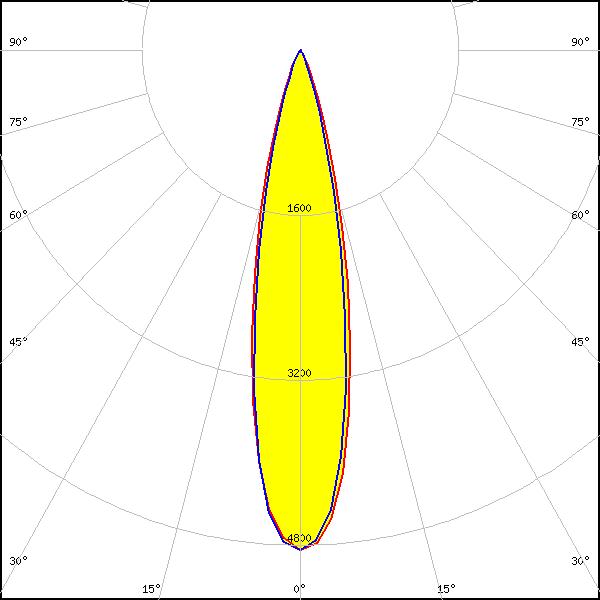

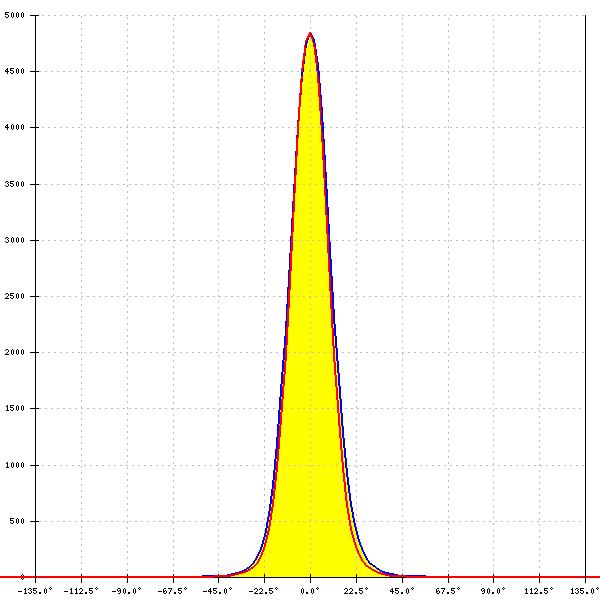

LED:
OSLON Square EC
FWHM:
23°
FWTM:
40°
Peak intensity:
4.100 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

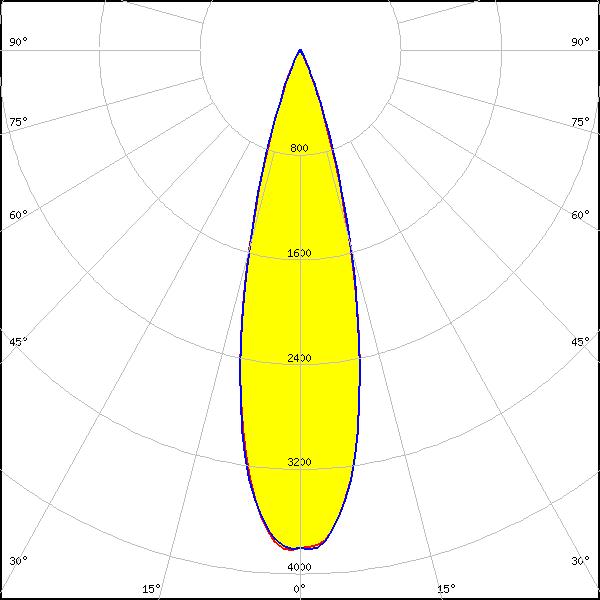

LED:
OSLON Square Flat
FWHM:
27°
FWTM:
45°
Peak intensity:
3.850 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

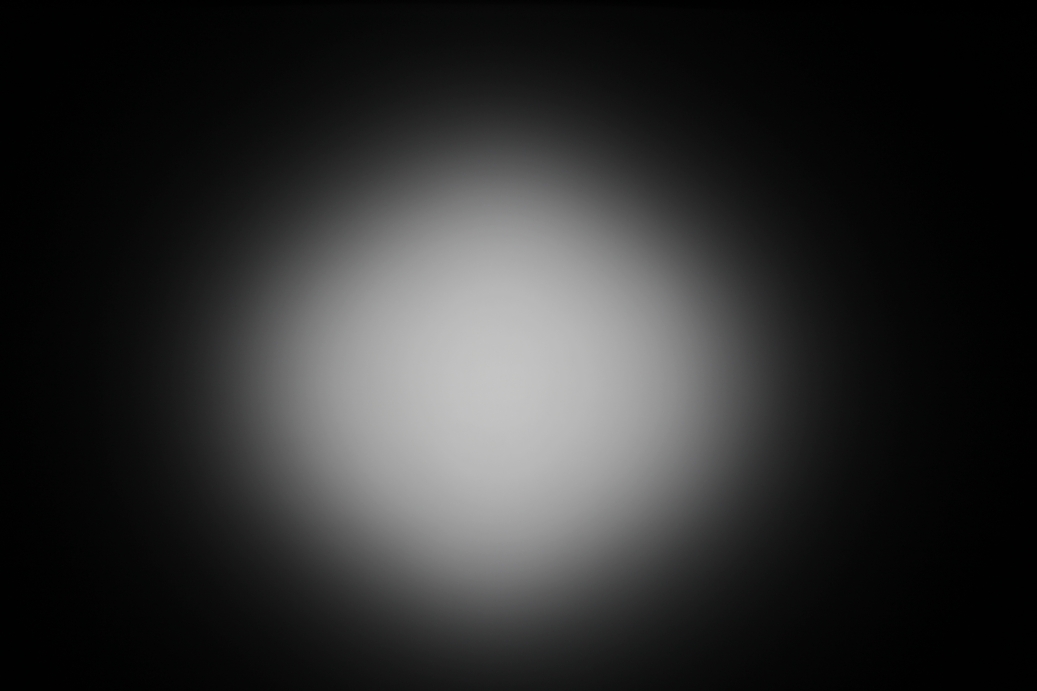

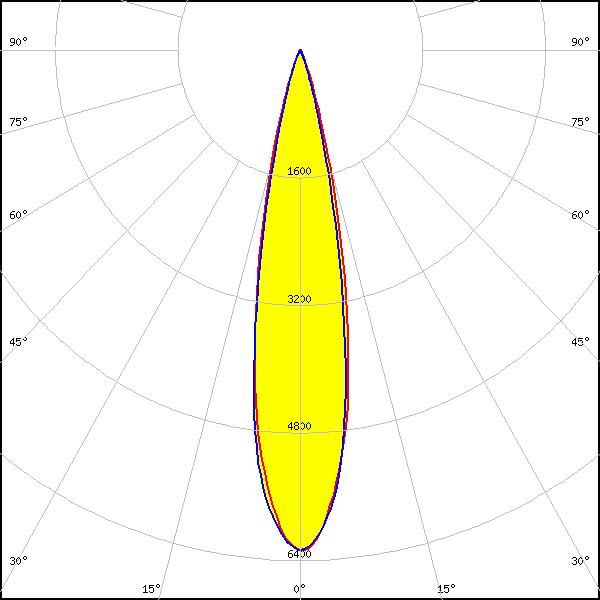

LED:
OSLON SSL 150
FWHM:
22°
FWTM:
37°
Peak intensity:
6.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

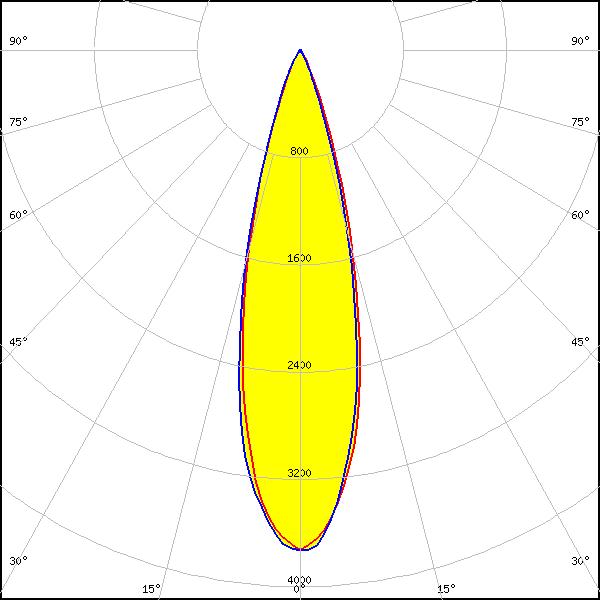

LED:
OSLON SSL 80
FWHM:
27°
FWTM:
46°
Peak intensity:
3.735 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4725S
FWHM:
20°
FWTM:
39°
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4770S
FWHM:
24°
FWTM:
44°
Peak intensity:
4.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

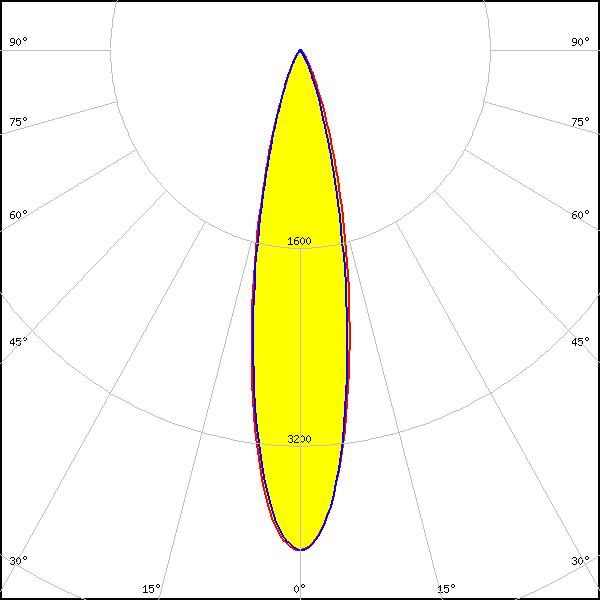

LED:
Z5M3
FWHM:
23°
FWTM:
45°
Peak intensity:
4.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
