CA12379_TINA2-O

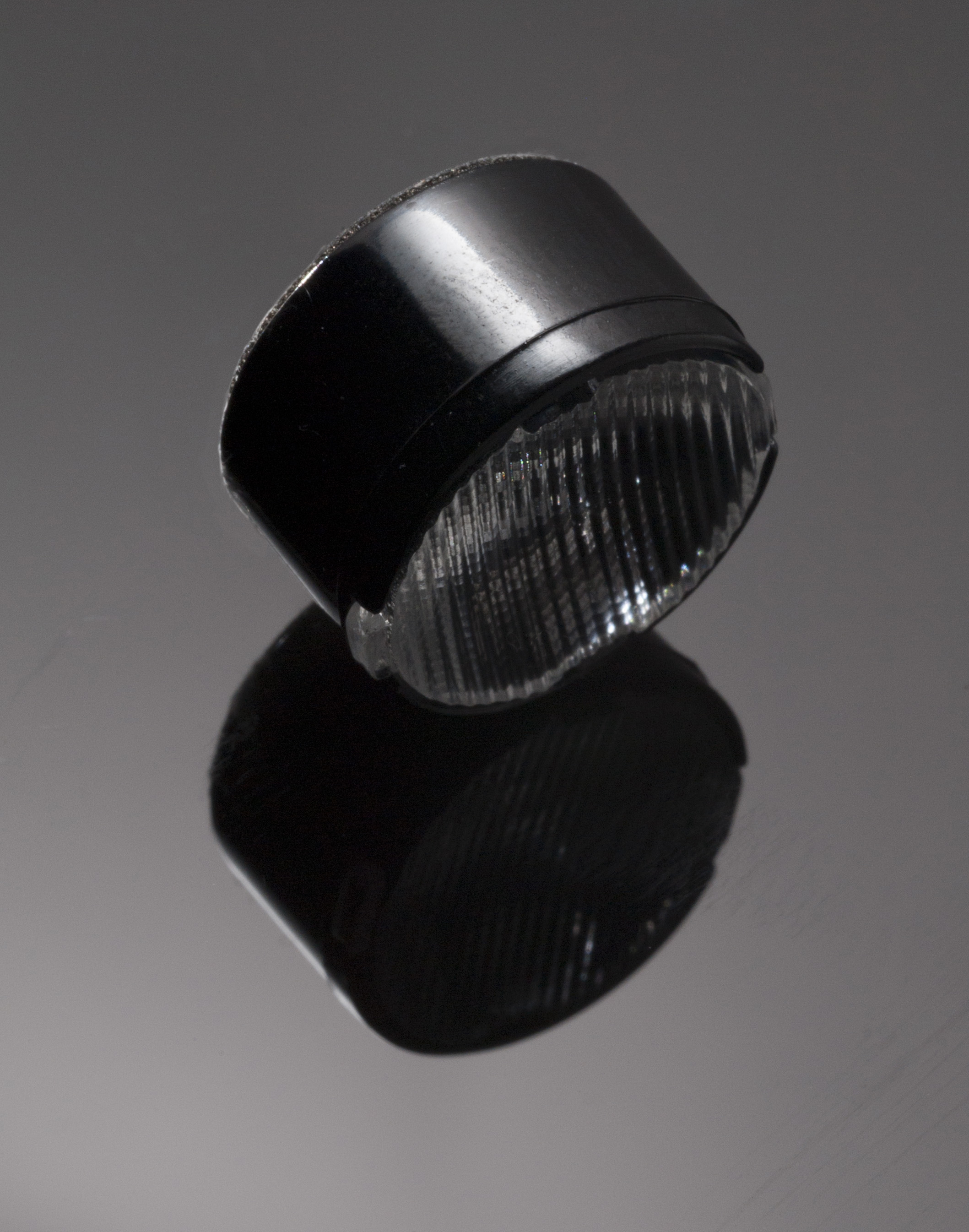

Print~35° + 15° oval beam. Assembly with holder, installation tape and location pins.
Specification
-
Dimensions:16 mm
-
Height:9.50 mm
-
Fastening:tape, pin
-
Colour:black
-
RoHS and REACH compliant:Yes
Materials
- TINA2-XP-O, Single lens, PMMA
- TINA2-HLD-BLK, Holder, PC
- TINA-TAPE3, Tape, Acrylic foam tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:4140 pcs
-
Box size:451 x 241 x 298 mm
-
Box weight:8.5 kg
-
MPQ:230 pcs
-
MOQ:230 pcs
-
MOQ size:470 x 240 x 30 mm
-
MOQ weight:0.8 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

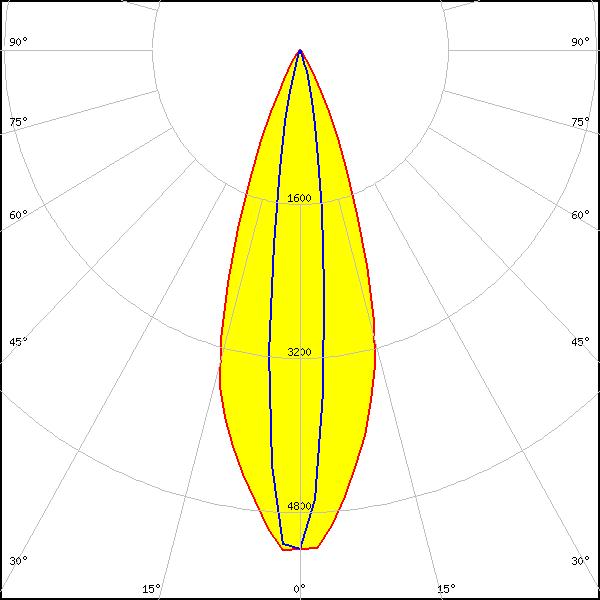

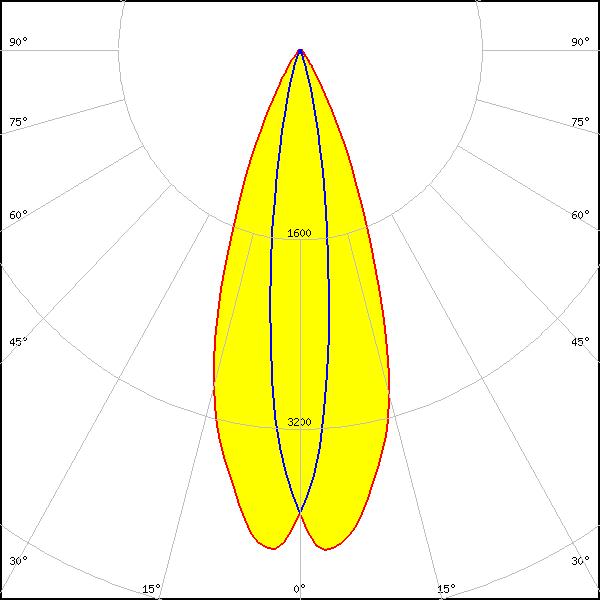

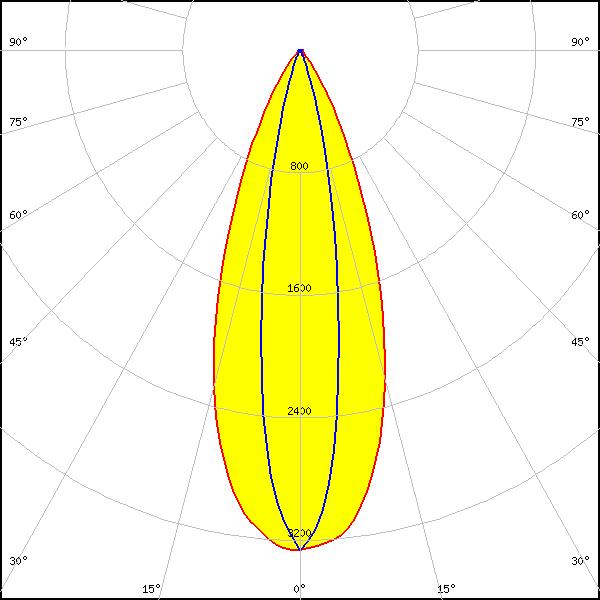

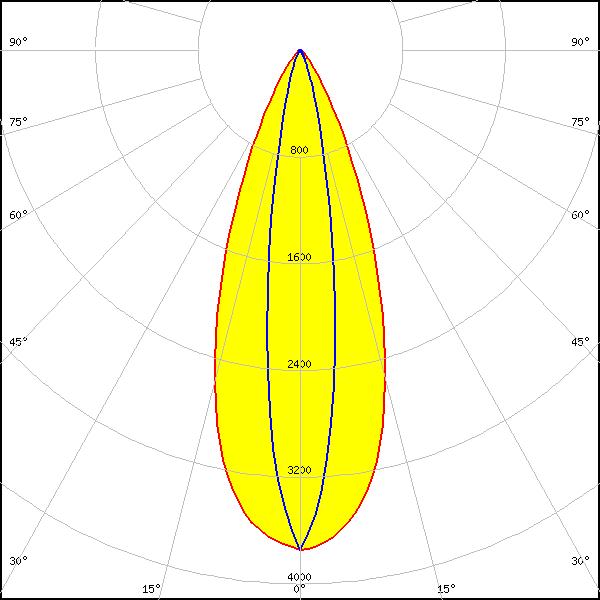

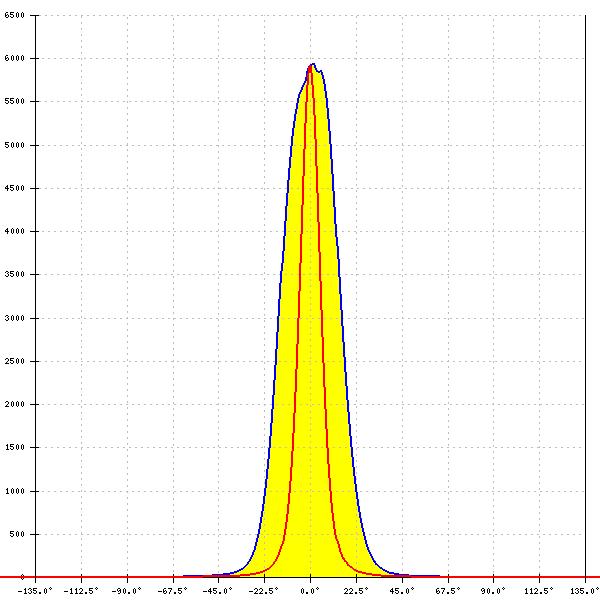

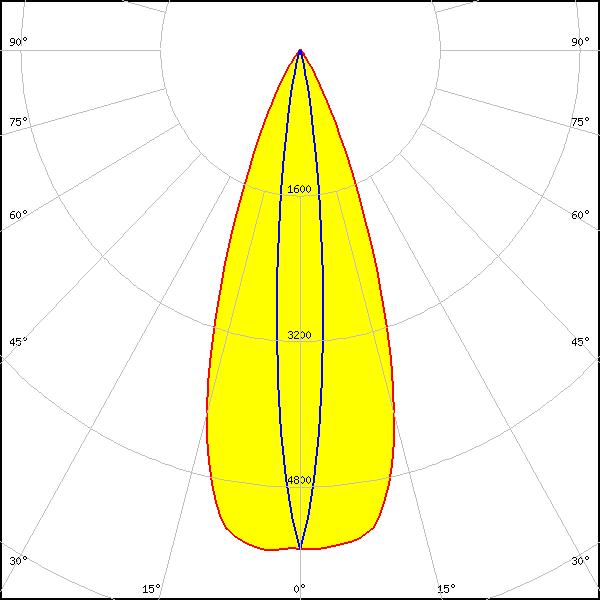

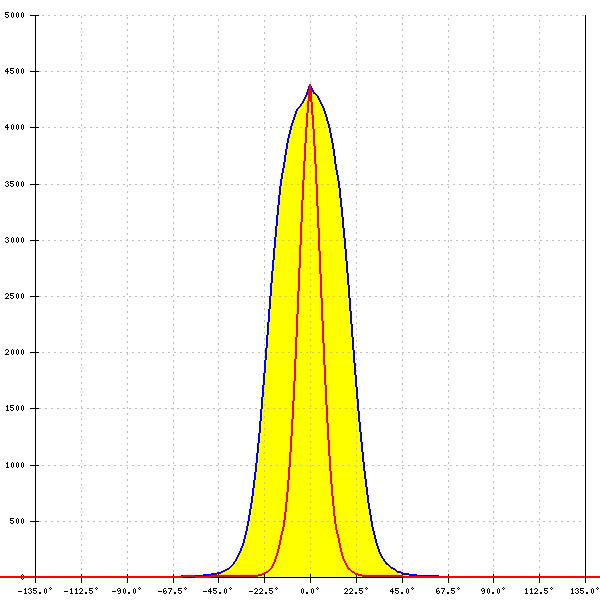

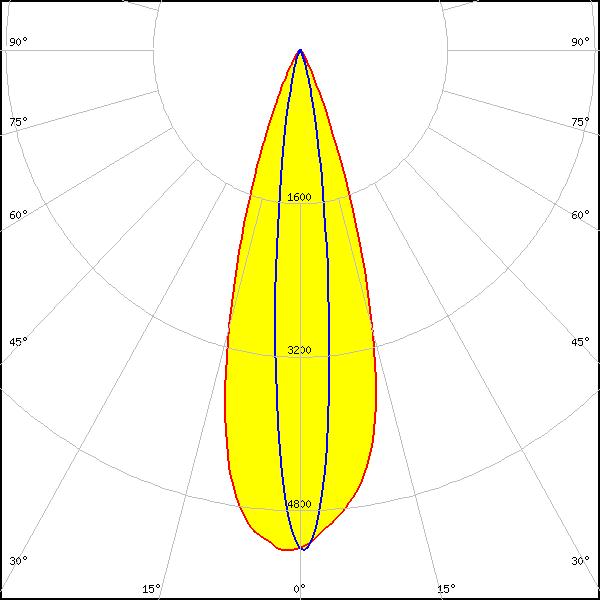

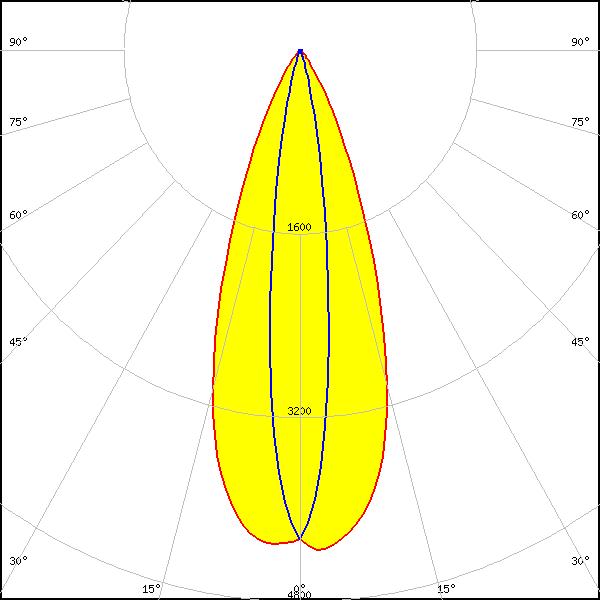

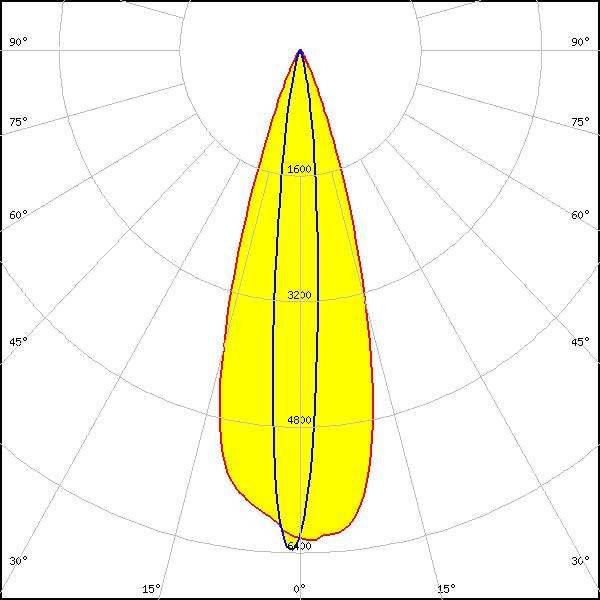

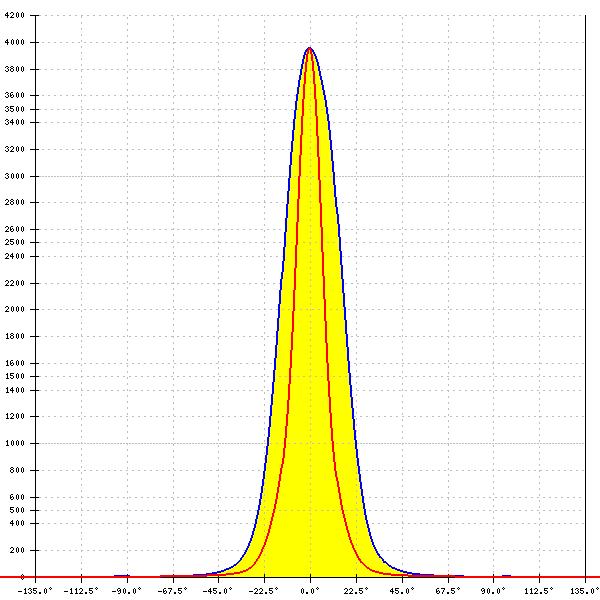

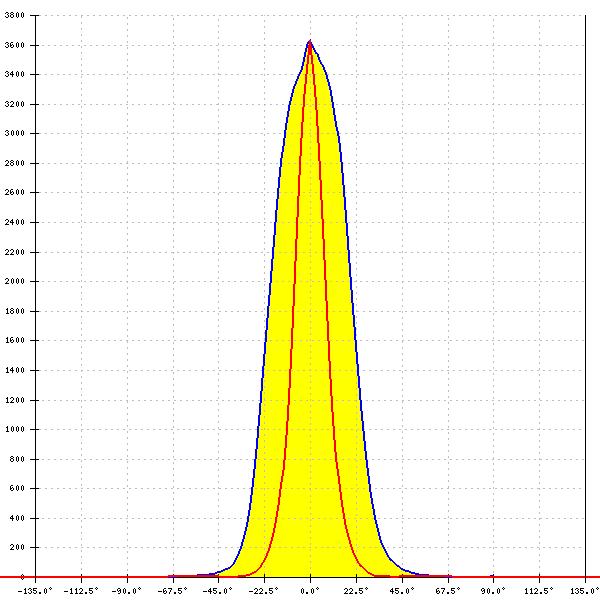

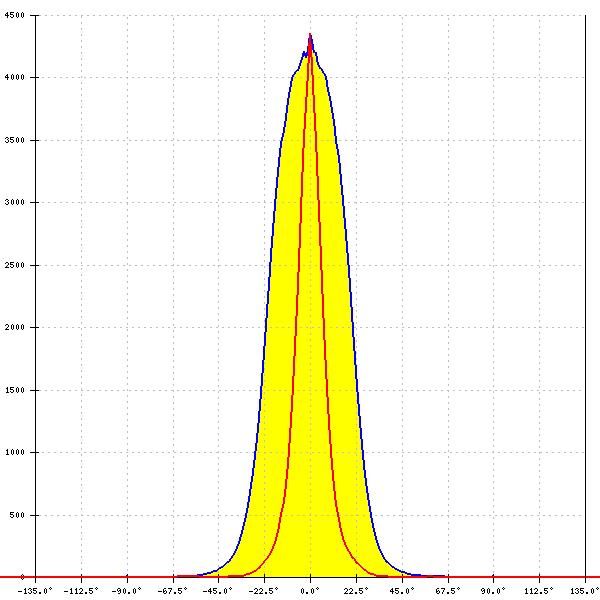

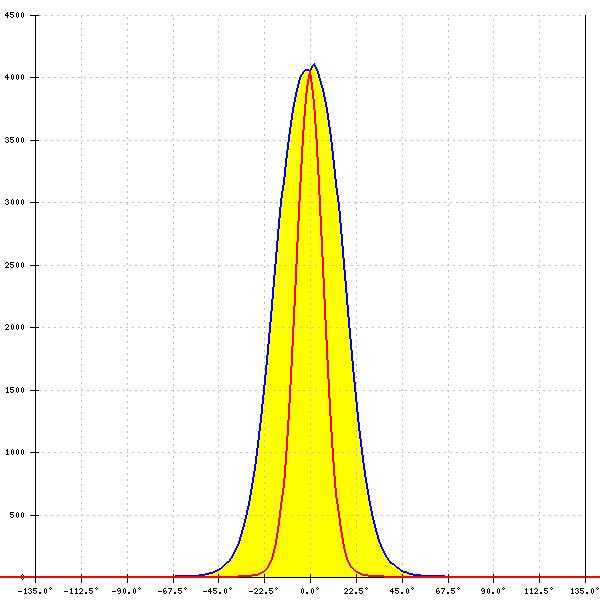

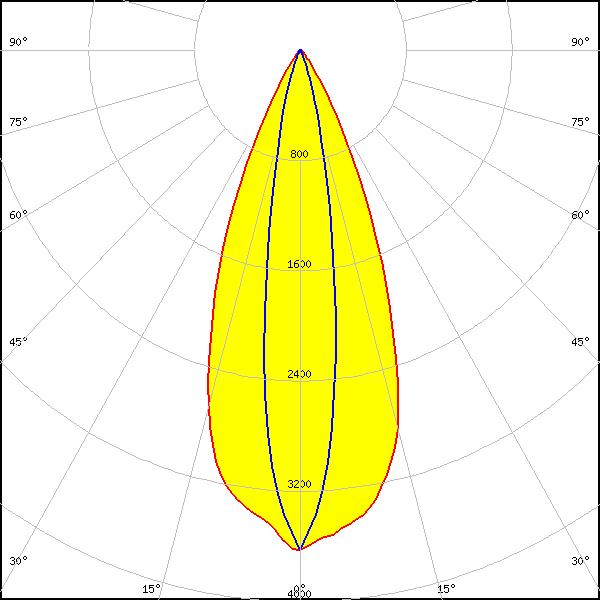

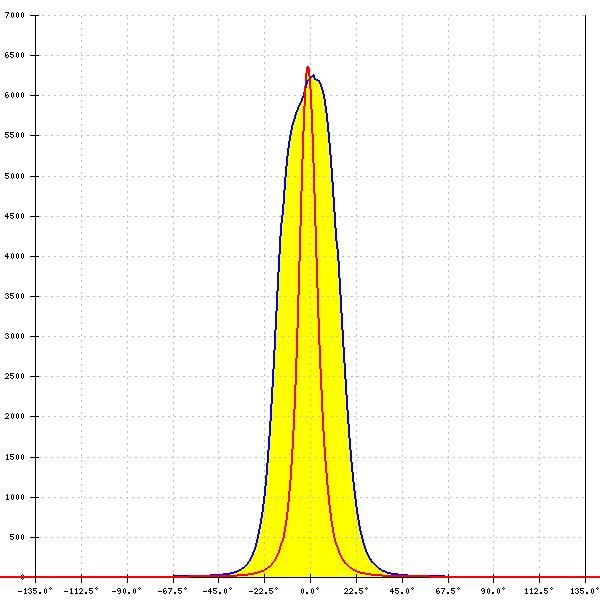

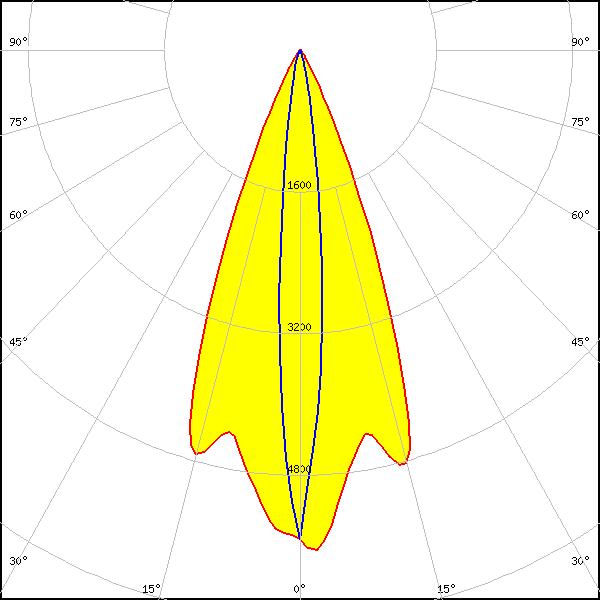

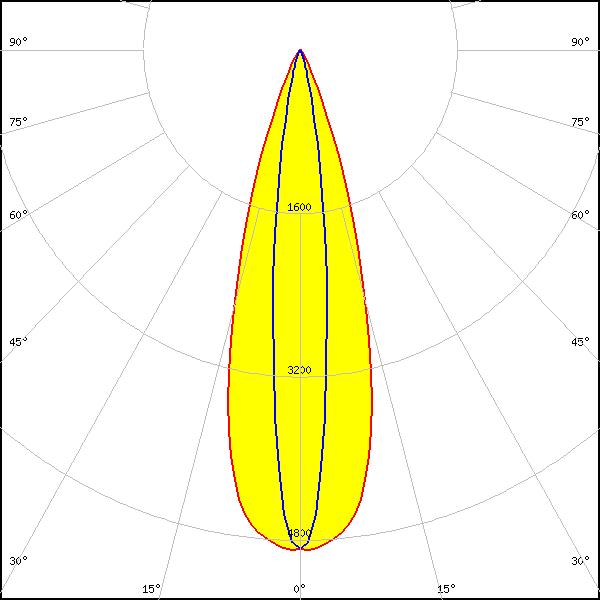

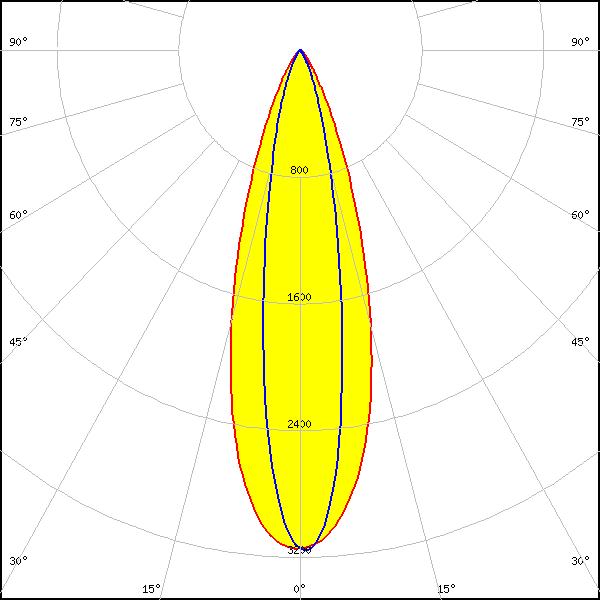

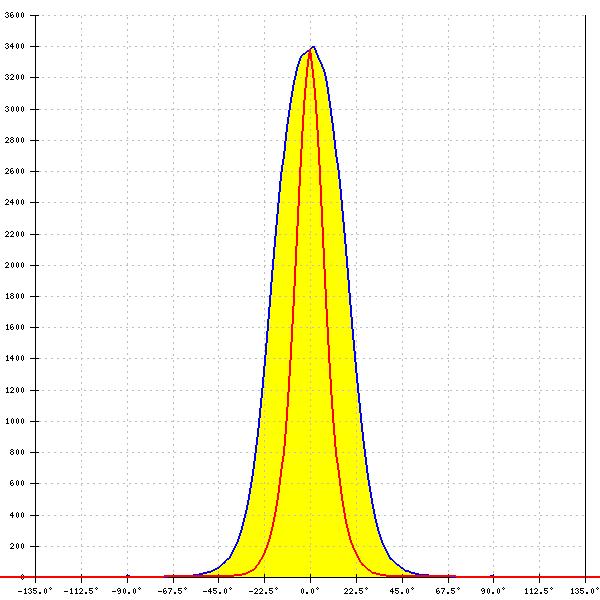

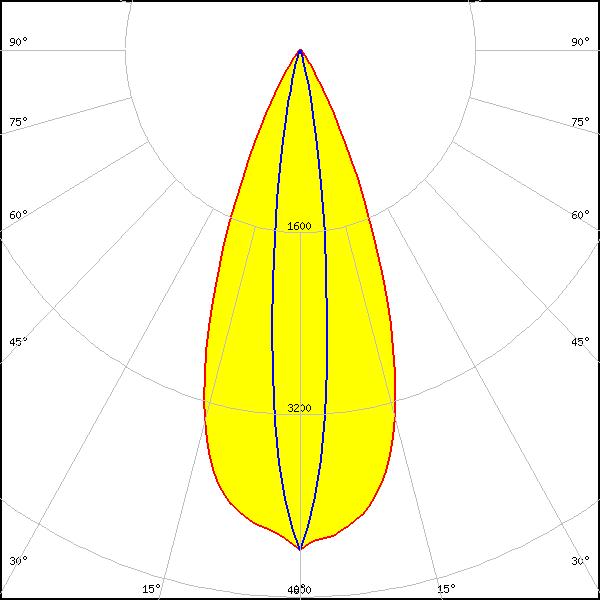

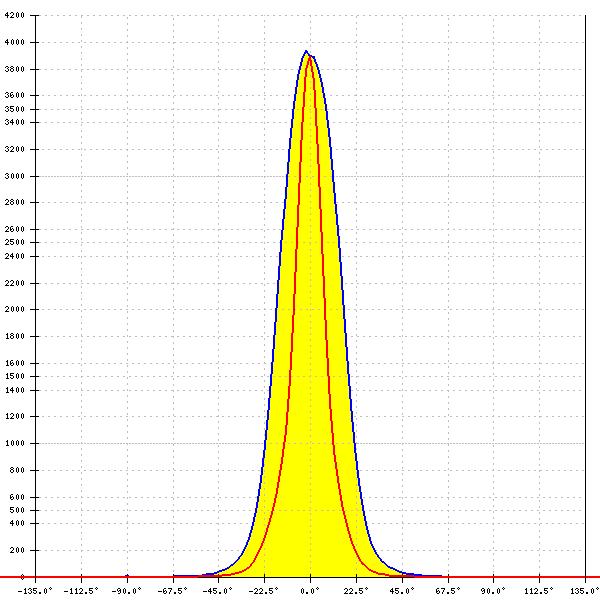

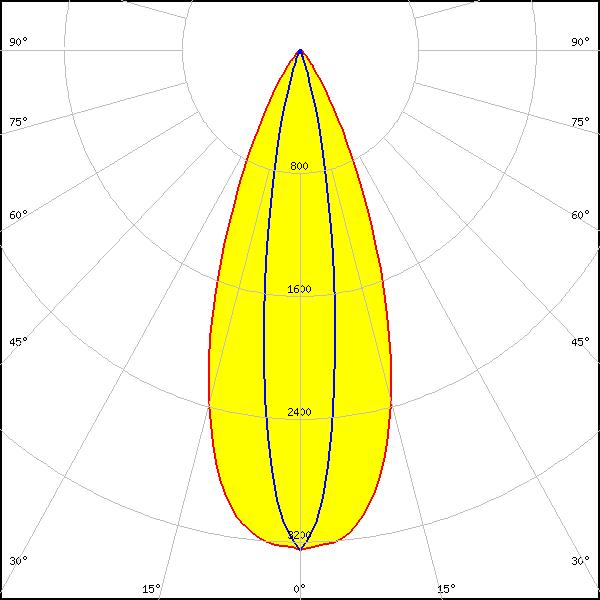

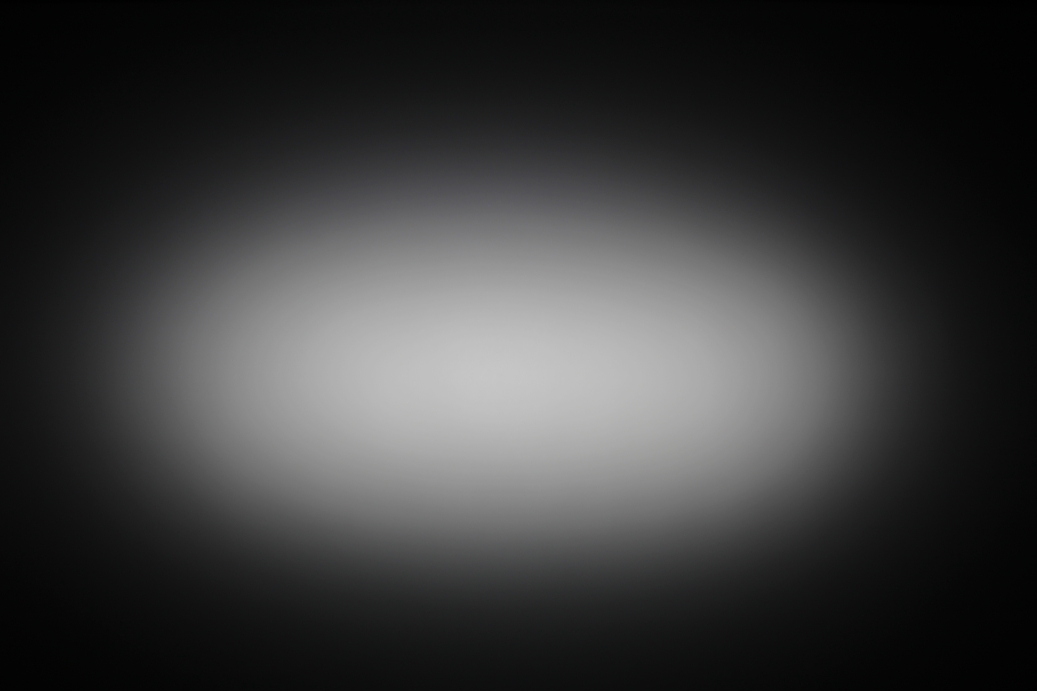

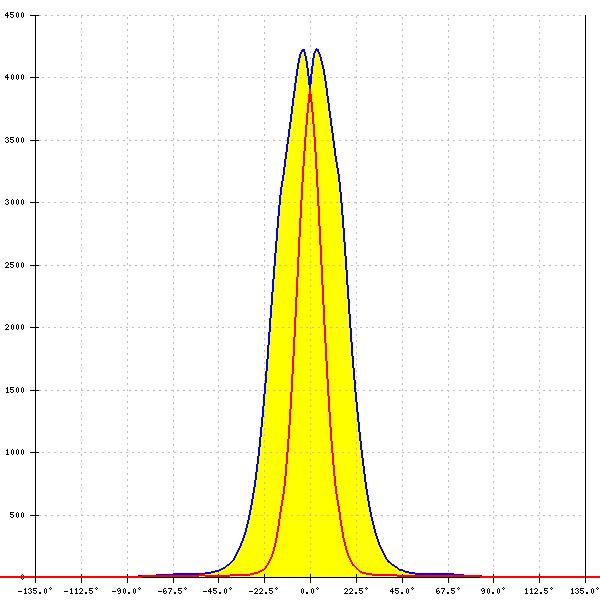

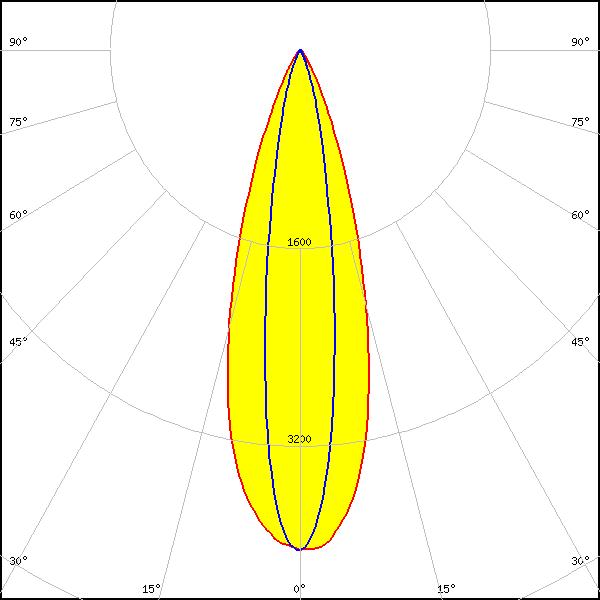

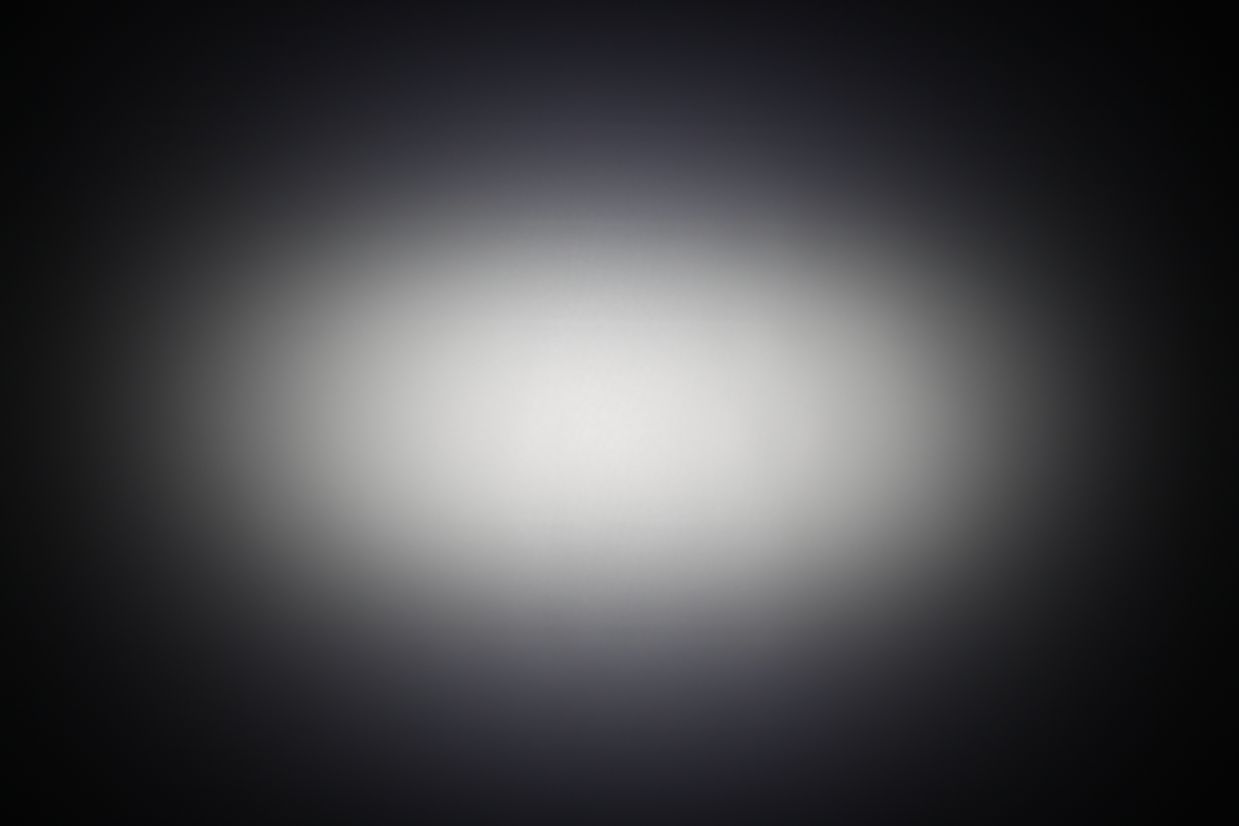

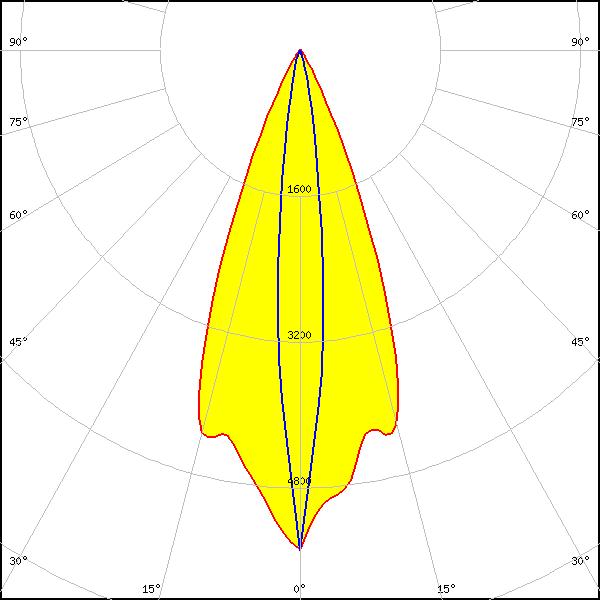

Optical results
LED:
XB-D
FWHM:
39° + 18°
FWTM:
67° + 36°
Peak intensity:
3.277 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

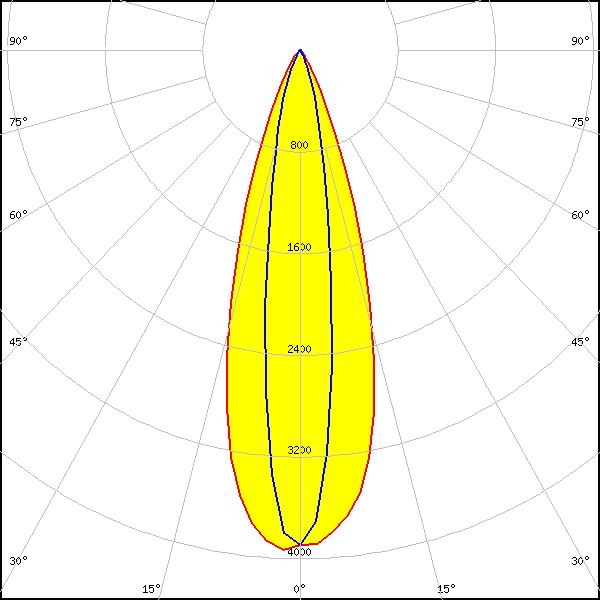

XB-H
FWHM:
34° + 17°
FWTM:
57° + 39°
Peak intensity:
3.900 cd/lm
Efficiency:
84 %
LEDs/each optic:

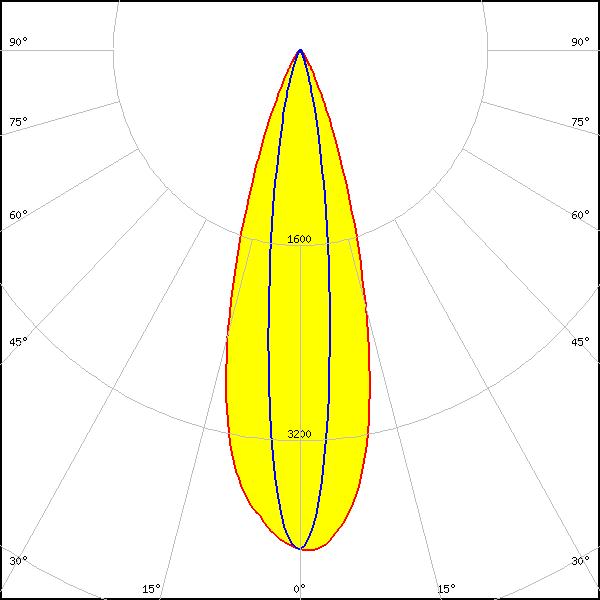

1
Light colour/type:
White
LED:
XD16
FWHM:
32° + 15°
FWTM:
54° + 32°
Peak intensity:
4.100 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White
LED:

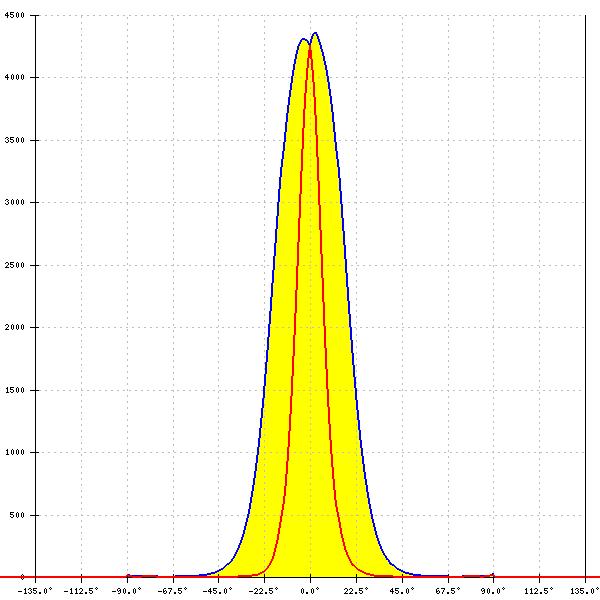

XE-G
FWHM:
38° + 14°
FWTM:
62° + 28°
Peak intensity:
4.361 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

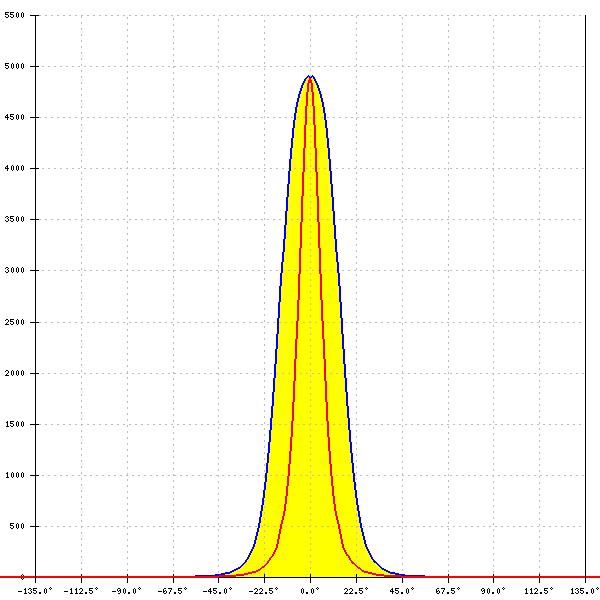

XQ-E HI
FWHM:
33° + 13°
FWTM:
51° + 28°
Peak intensity:
5.000 cd/lm
Efficiency:
80 %
LEDs/each optic:
1
Light colour/type:
White

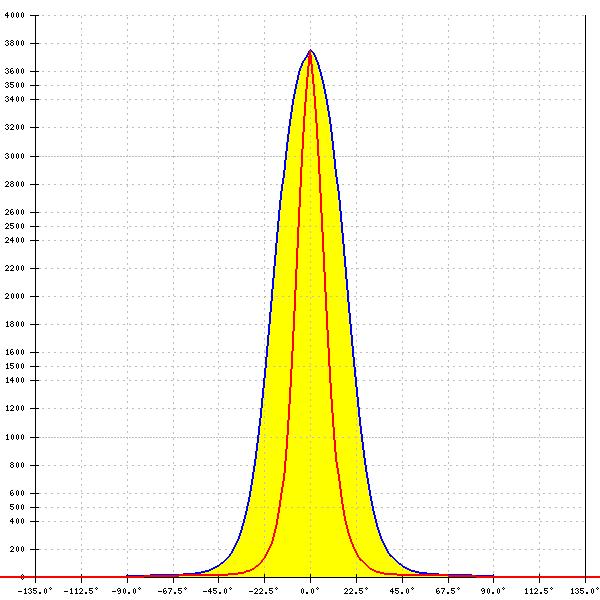

LED:
LUXEON 2835 Line
FWHM:
38° + 16°
FWTM:
66° + 34°
Peak intensity:
3.749 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON C
FWHM:
14° + 37°
FWTM:
30° + 60°
Peak intensity:
4.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON CZ
FWHM:
32° + 10°
FWTM:
49° + 23°
Peak intensity:
6.400 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Compact
FWHM:
37° + 13°
FWTM:
60° + 27°
Peak intensity:
0.000 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

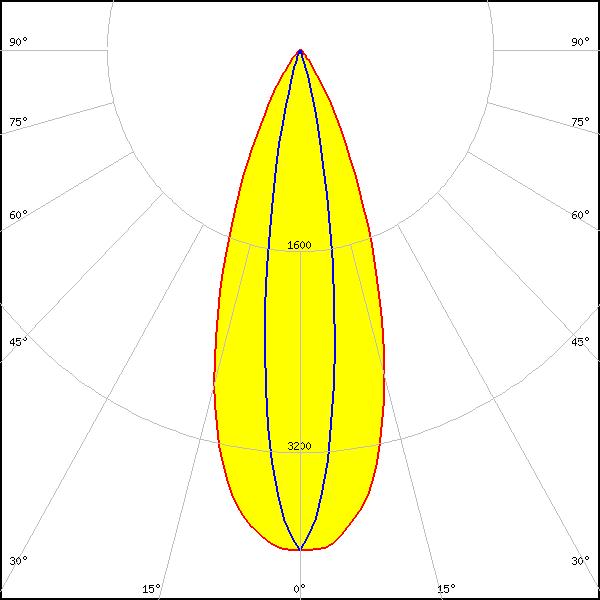

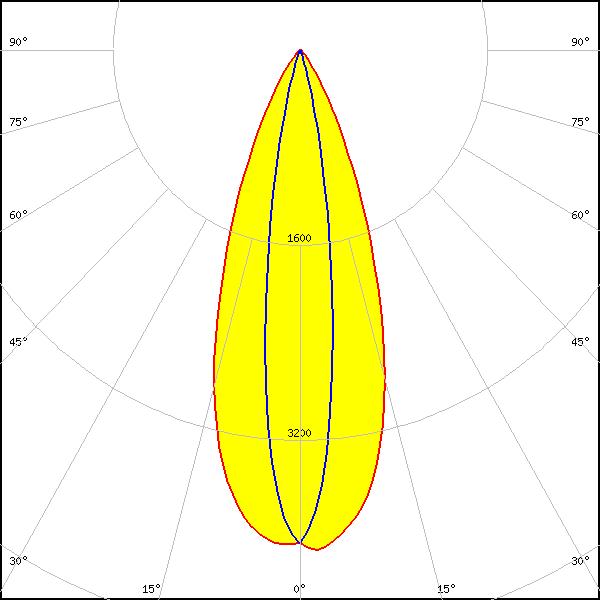

LUXEON Rubix
FWHM:
38° + 16°
FWTM:
65° + 30°
Peak intensity:
4.109 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Red
LED:
LUXEON Rubix
FWHM:
38° + 16°
FWTM:
66° + 30°
Peak intensity:
4.023 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Blue
LED:

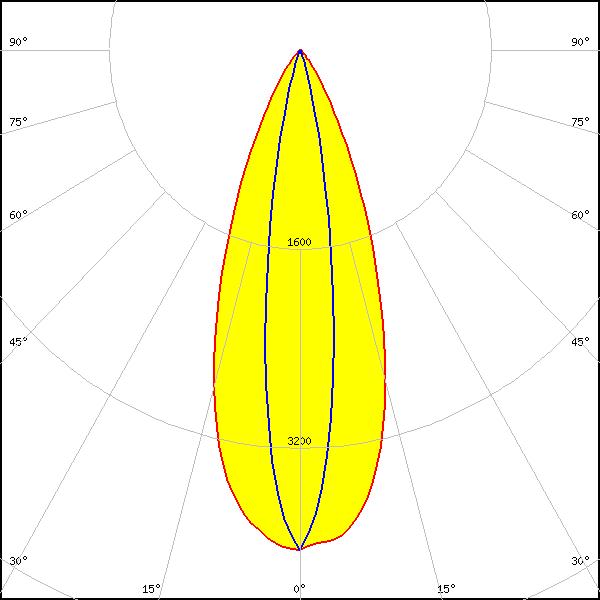

LUXEON Rubix
FWHM:
38° + 16°
FWTM:
65° + 31°
Peak intensity:
3.978 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

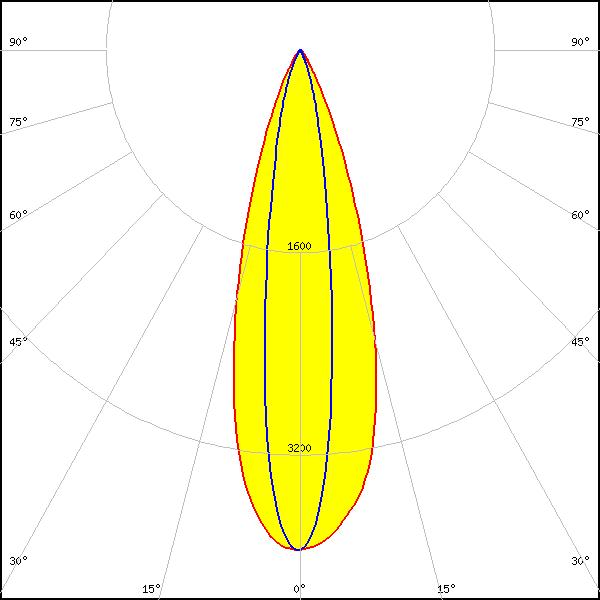

LUXEON TX
FWHM:
32° + 16°
FWTM:
55° + 37°
Peak intensity:
3.960 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Z ES
FWHM:
36° + 13°
FWTM:
56° + 28°
Peak intensity:
5.300 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NCSxE17A
FWHM:
42° + 13°
FWTM:
62° + 26°
Peak intensity:
4.390 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

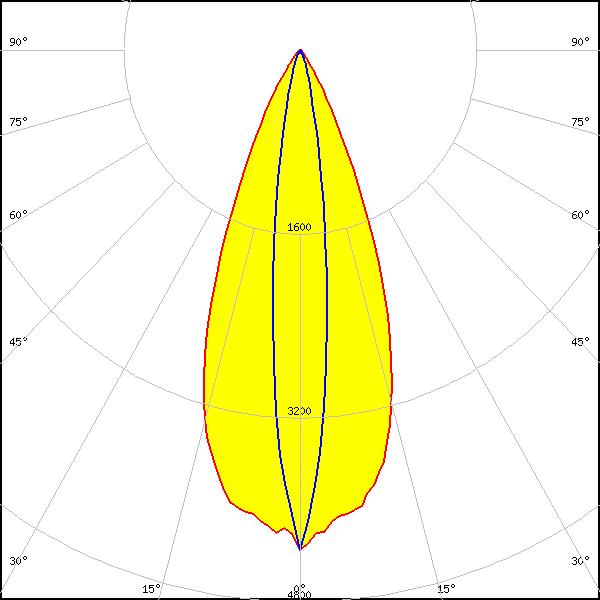

NFSx757G
FWHM:
41° + 13°
FWTM:
63° + 29°
Peak intensity:
4.350 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

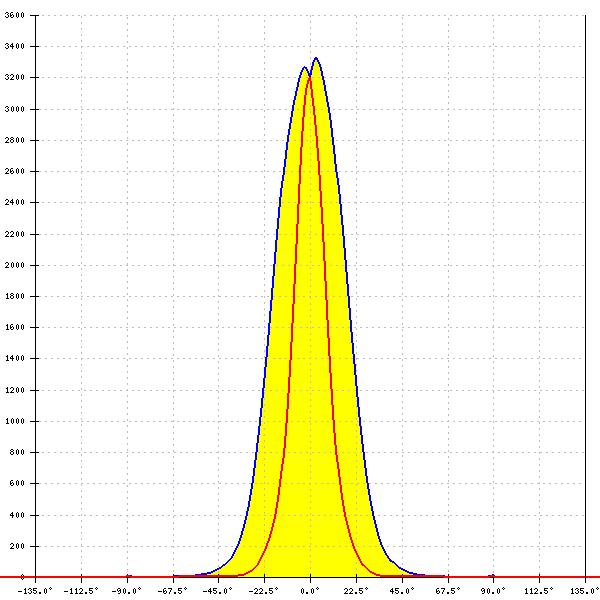

LED:

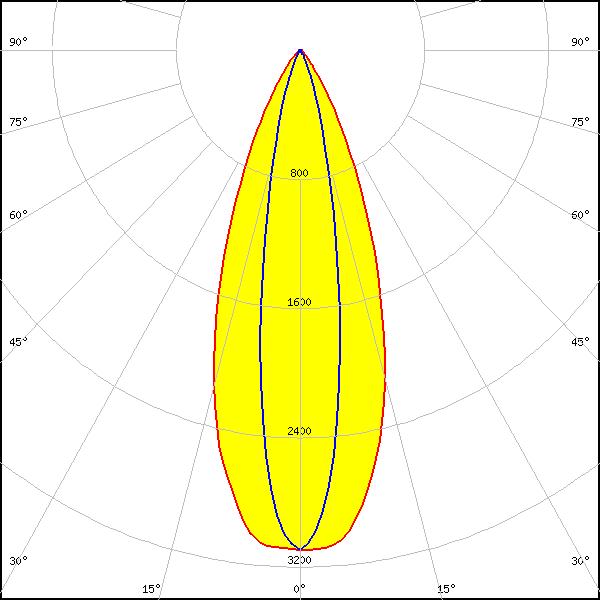

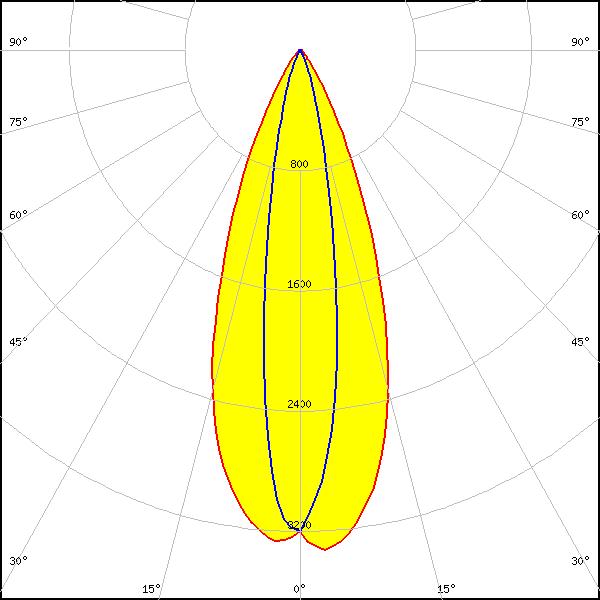

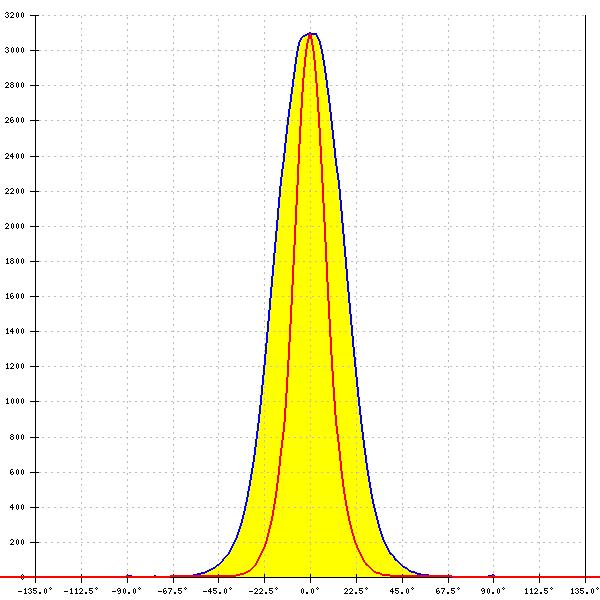

NVSxx19B/NVSxx19C
FWHM:
39° + 18°
FWTM:
68° + 39°
Peak intensity:
3.124 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
39° + 17°
FWTM:
66° + 36°
Peak intensity:
3.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:

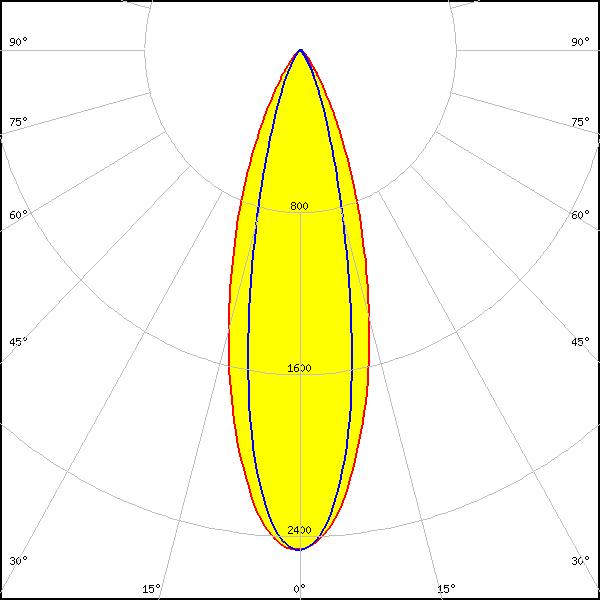

NWSx229A
FWHM:
33° + 24°
FWTM:
65° + 49°
Peak intensity:
2.500 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Duris S5 (2 chip)
FWHM:
41° + 17°
FWTM:
64° + 34°
Peak intensity:
3.630 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

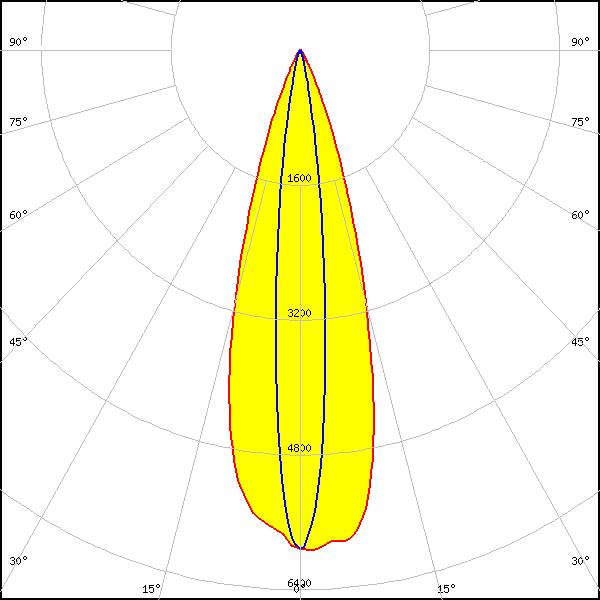

OSLON Black Flat (LUW HWQP)
FWHM:
31° + 12°
FWTM:
50° + 24°
Peak intensity:
6.200 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Black Flat (LUW HWQP)
FWHM:
31° + 12°
FWTM:
50° + 24°
Peak intensity:
6.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

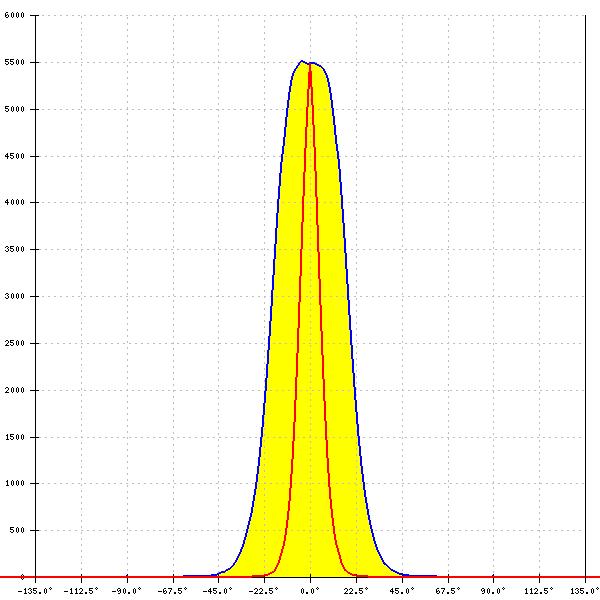

OSLON Pure 1414
FWHM:
38° + 12°
FWTM:
60° + 24°
Peak intensity:
5.509 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square CSSRM2/CSSRM3
FWHM:
32° + 16°
FWTM:
55° + 36°
Peak intensity:
4.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

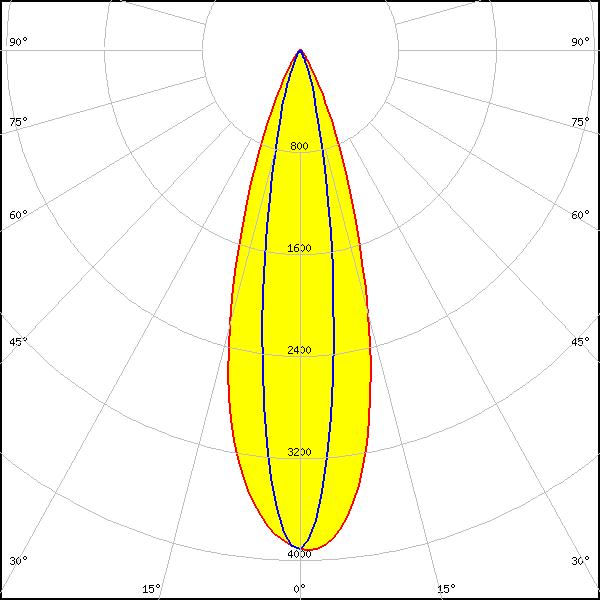

OSLON Square EC
FWHM:
33° + 17°
FWTM:
57° + 37°
Peak intensity:
3.920 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square Flat
FWHM:
31° + 12°
FWTM:
50° + 24°
Peak intensity:
5.900 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square PC
FWHM:
33° + 13°
FWTM:
56° + 34°
Peak intensity:
3.750 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

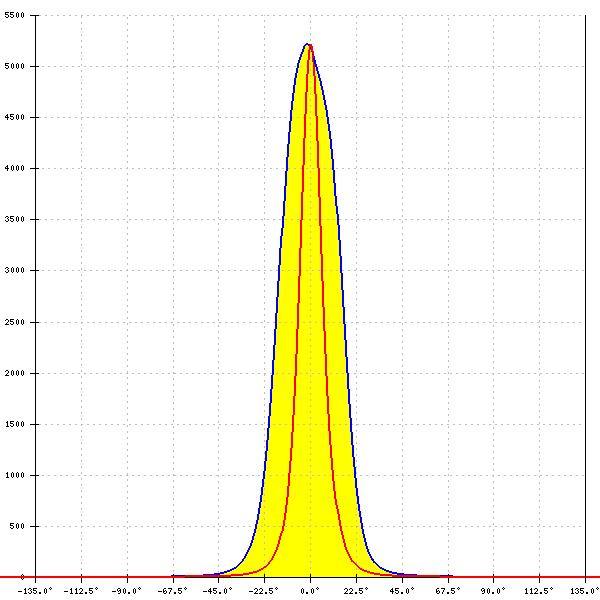

OSLON SSL 150
FWHM:
33° + 13°
FWTM:
52° + 28°
Peak intensity:
5.200 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
38° + 13°
FWTM:
59° + 30°
Peak intensity:
3.700 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 80
FWHM:
35° + 12°
FWTM:
56° + 30°
Peak intensity:
3.800 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SFH 4170S
FWHM:
30° + 10°
FWTM:
50° + 26°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4180S
FWHM:
31° + 10°
FWTM:
50° + 27°
LEDs/each optic:
1
Light colour/type:
IR
LED:
SFH 4770S
FWHM:
41° + 16°
FWTM:
63° + 33°
Peak intensity:
3.500 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

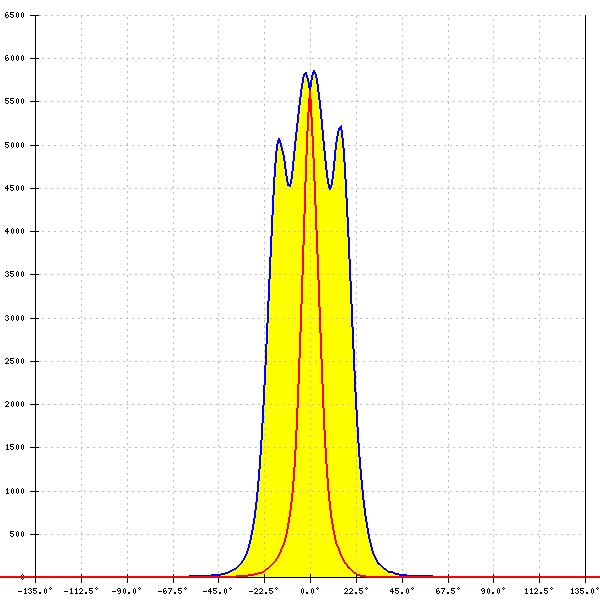

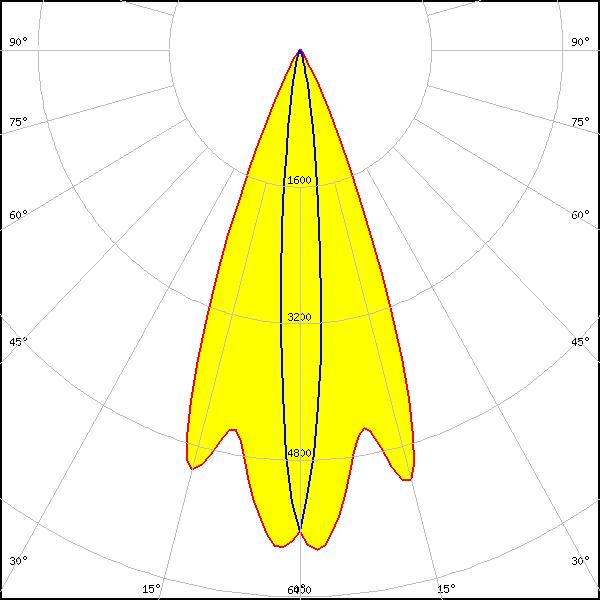

Synios P2720 1 mm
FWHM:
41° + 11°
FWTM:
57° + 23°
Peak intensity:
5.480 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

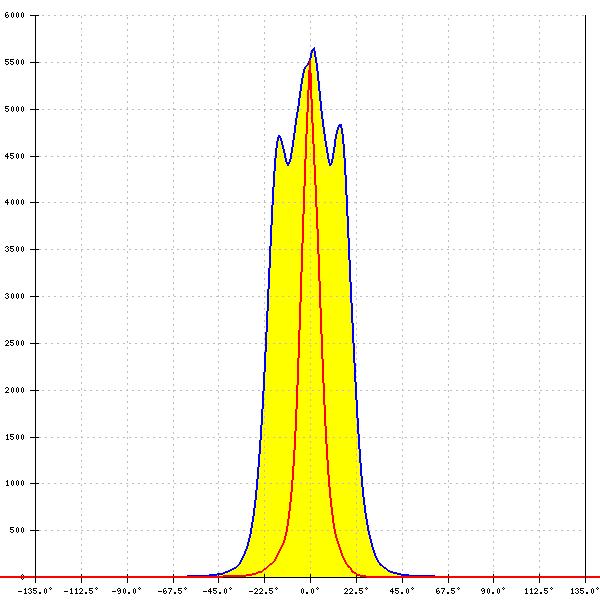

Synios P2720 1/2 mm
FWHM:
41° + 10°
FWTM:
56° + 23°
Peak intensity:
5.650 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Synios P2720 1/4 mm
FWHM:
41° + 9°
FWTM:
56° + 22°
Peak intensity:
5.970 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

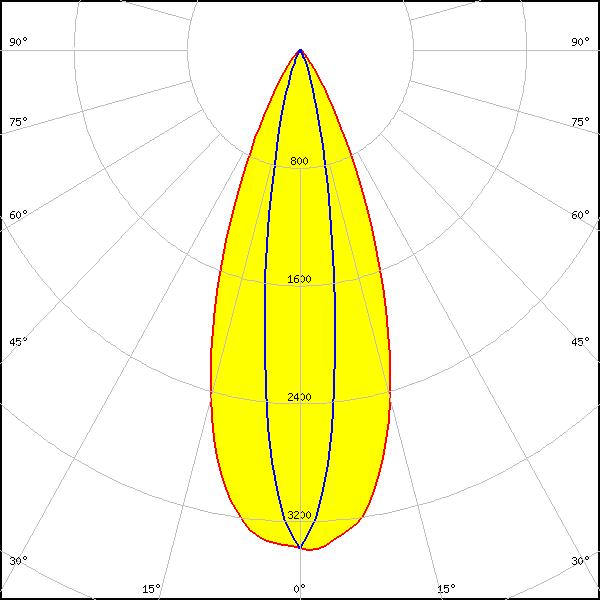

LM302D
FWHM:
40° + 16°
FWTM:
66° + 36°
Peak intensity:
3.407 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:

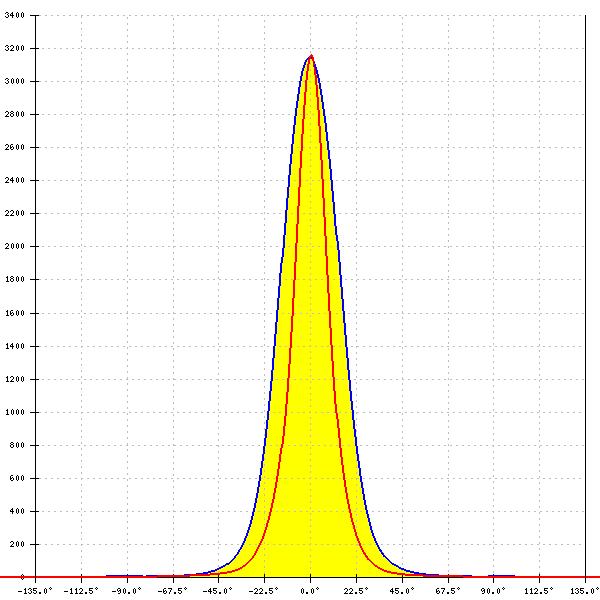

Z5M3
FWHM:
33° + 19°
FWTM:
59° + 42°
Peak intensity:
3.200 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z8Y15
FWHM:
40° + 17°
FWTM:
66° + 32°
Peak intensity:
3.253 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
