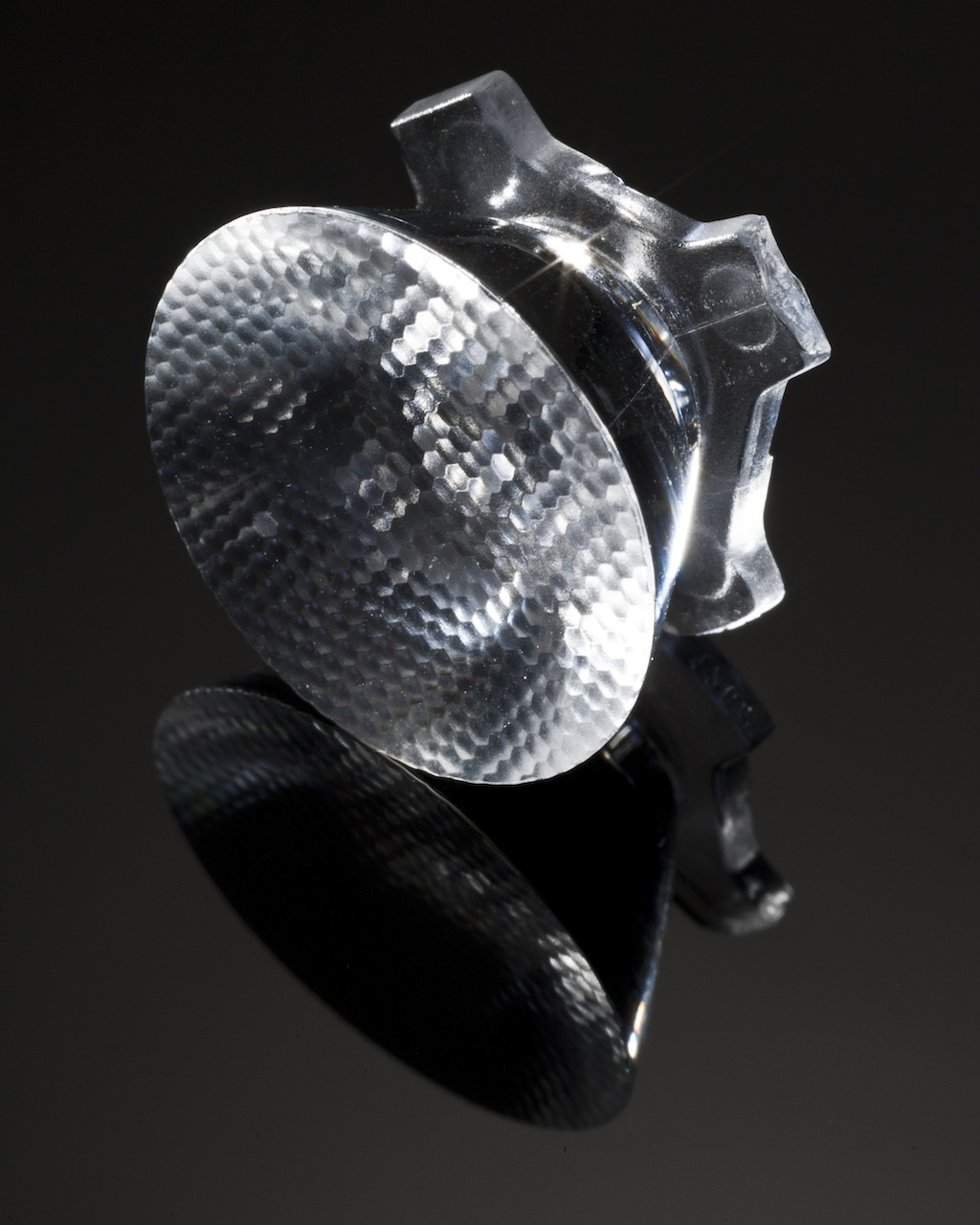

CA12443_HEIDI-SS
Print
~15° smooth spot beam optimized for LUXEON Rebel ES
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

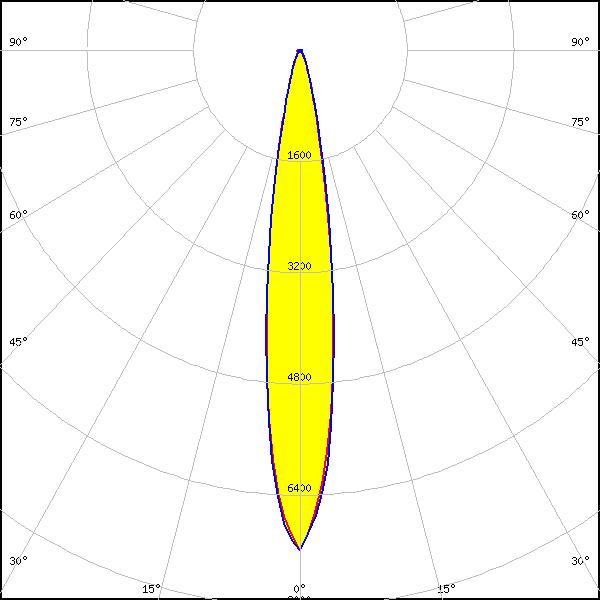

LED:

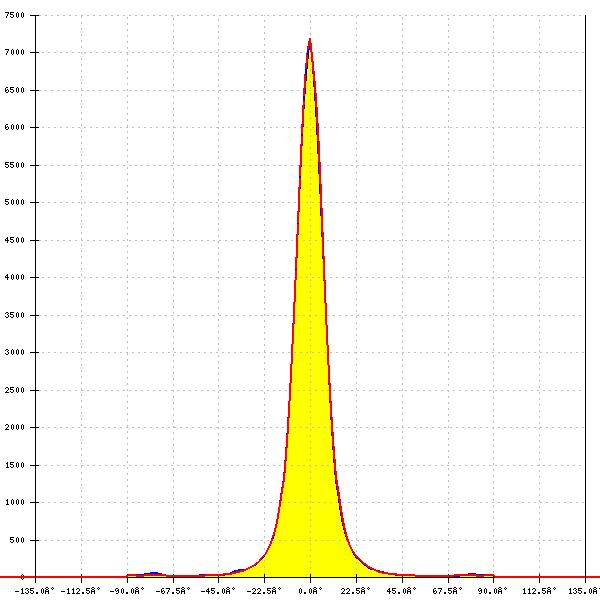

XHP35.2 HI
FWHM:
16°
FWTM:
32°
Peak intensity:
7.194 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G2
FWHM:
15°
FWTM:
28°
Peak intensity:
11.051 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

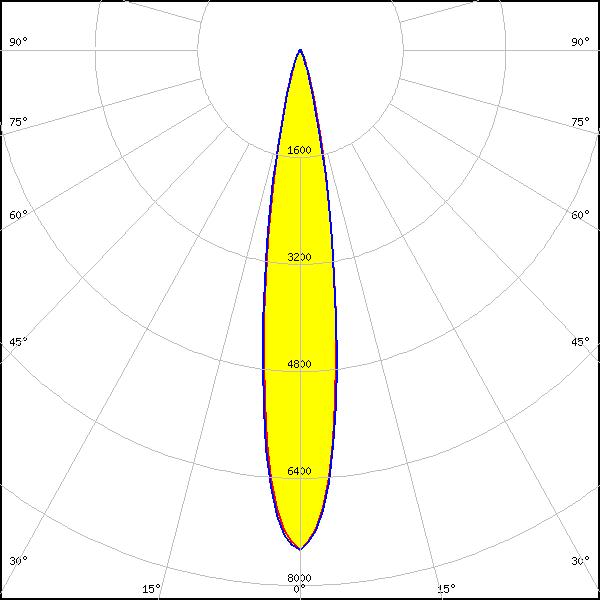

LED:
XP-G2 HE
FWHM:
17°
FWTM:
34°
Peak intensity:
7.478 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

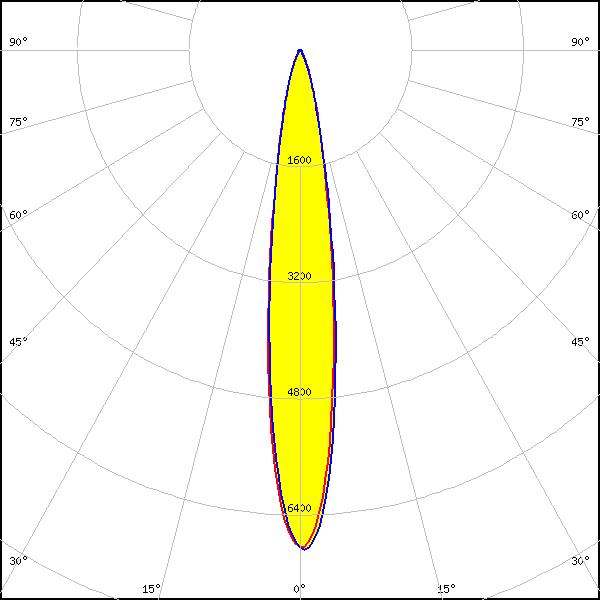

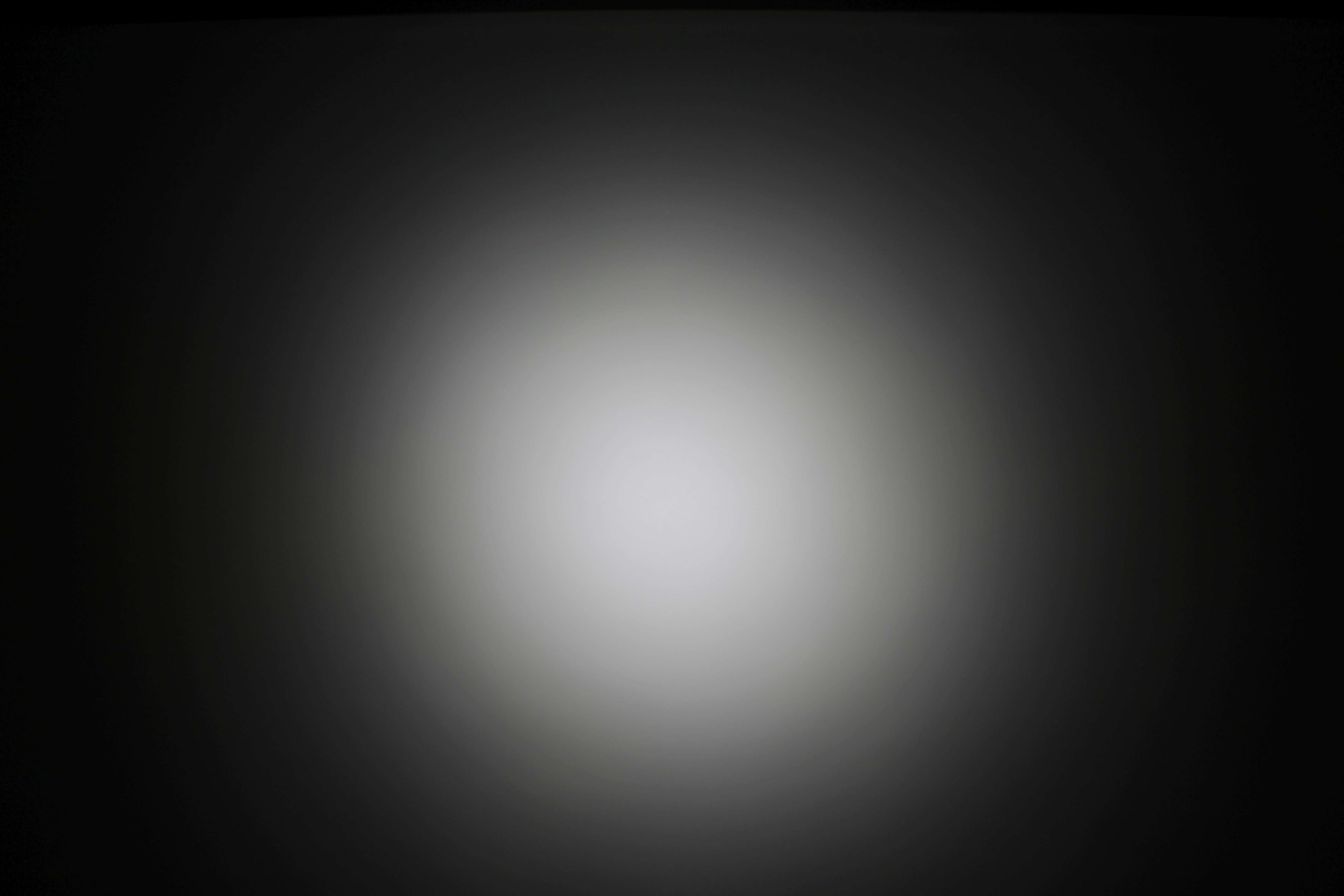

LED:
XP-G3
FWHM:
16°
FWTM:
35°
Peak intensity:
6.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

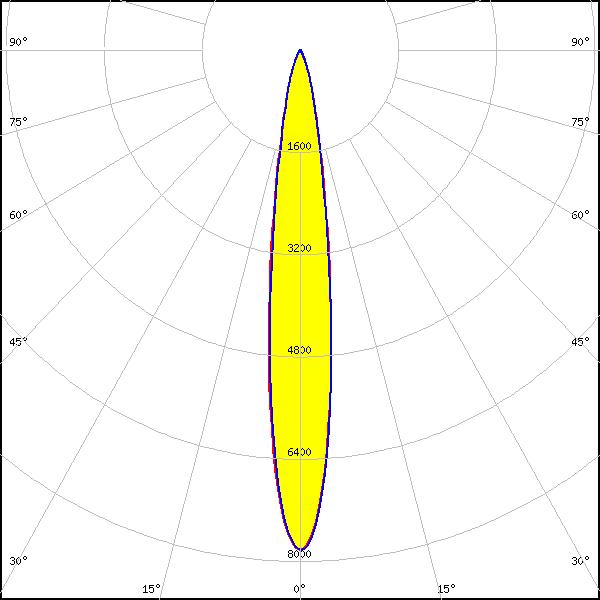

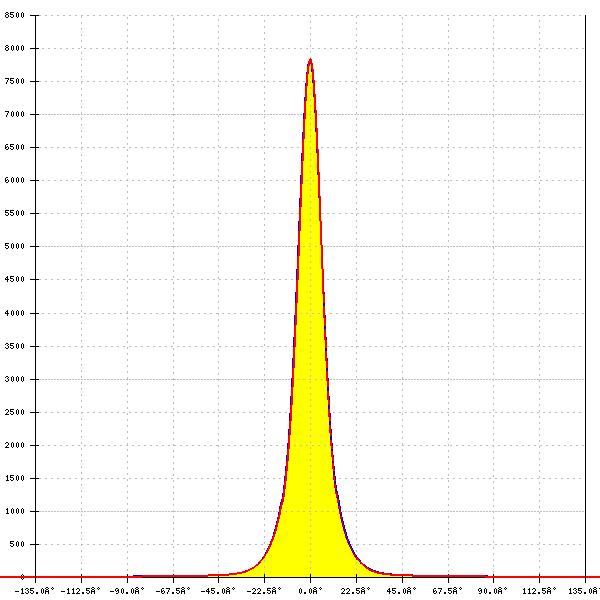

LED:
XP-G4
FWHM:
15°
FWTM:
32°
Peak intensity:
7.832 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

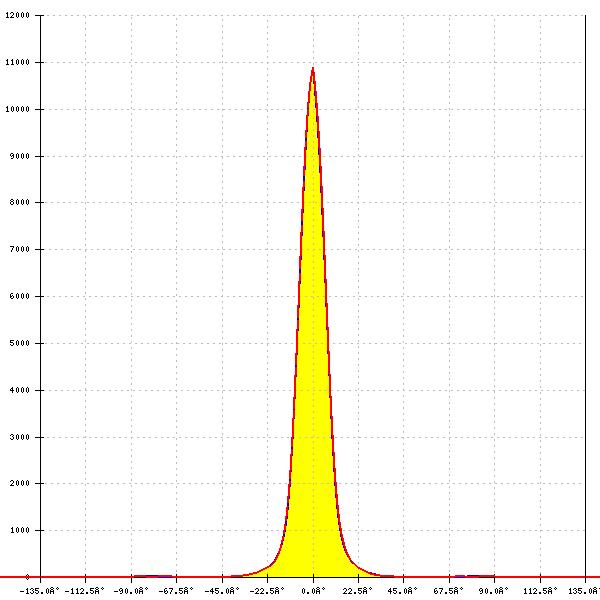

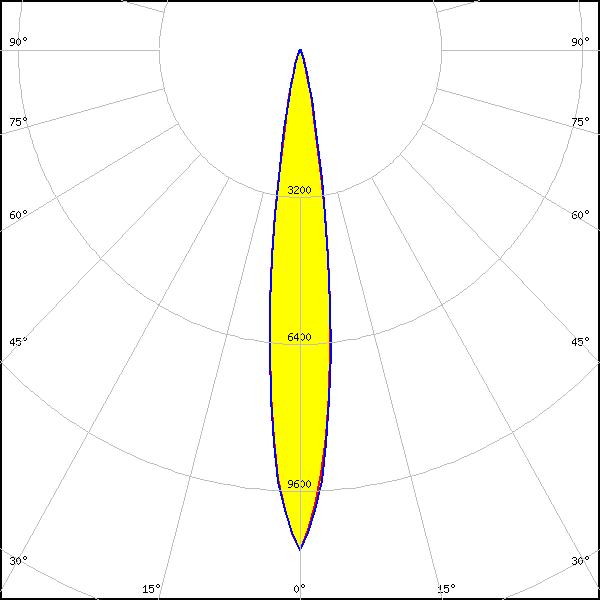

LED:
LUXEON HL2Z
FWHM:
14°
FWTM:
27°
Peak intensity:
10.887 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

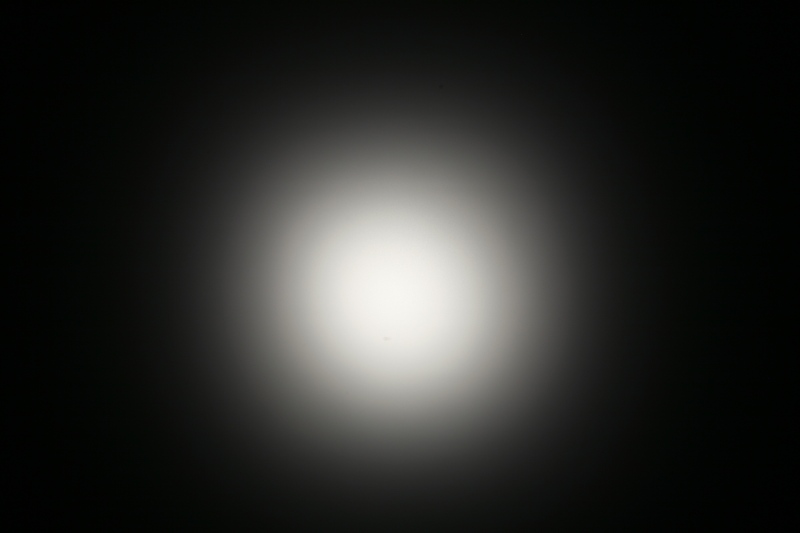

LED:
LUXEON R
FWHM:
16°
FWTM:
36°
Peak intensity:
6.260 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

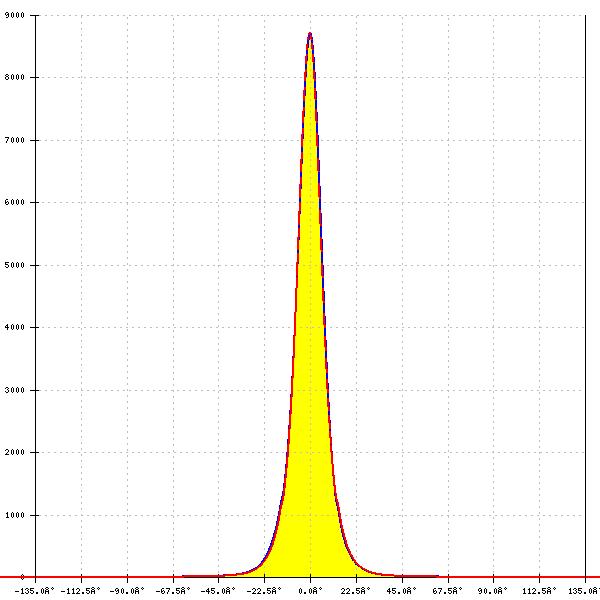

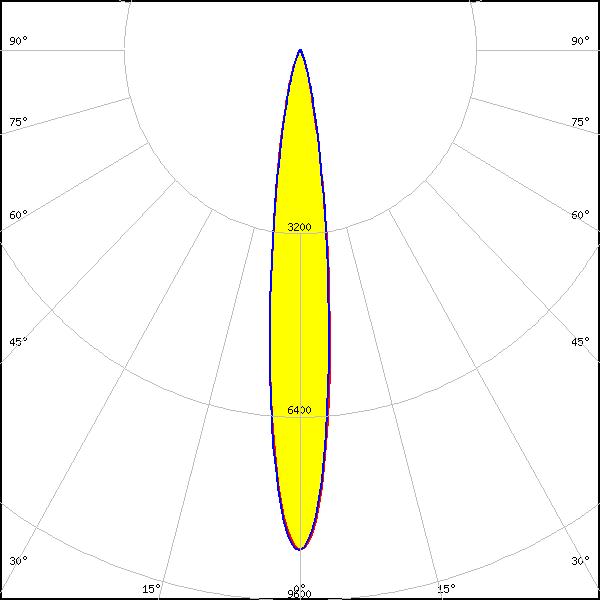

LED:
LUXEON Rebel
FWHM:
14°
FWTM:
31°
Peak intensity:
8.700 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
14°
FWTM:
34°
Peak intensity:
6.300 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

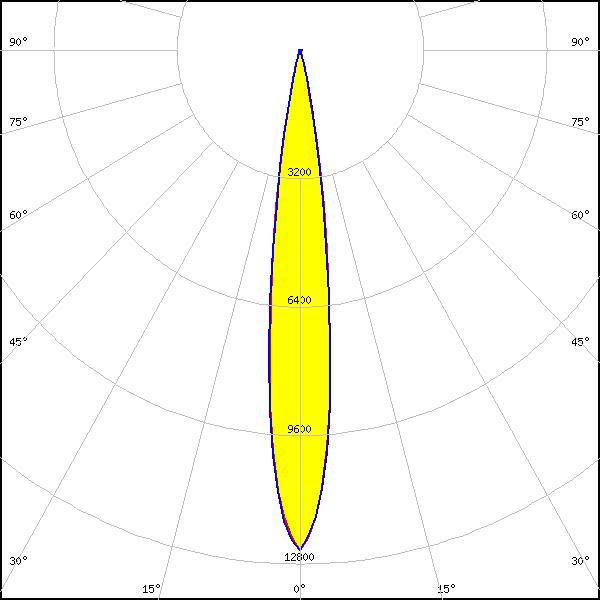

LED:
LUXEON SunPlus 20 Line (150 deg)
FWHM:
14°
FWTM:
25°
Peak intensity:
12.460 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

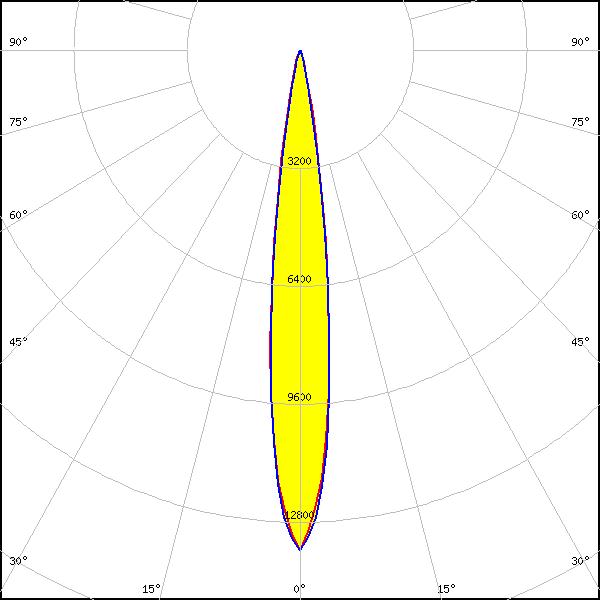

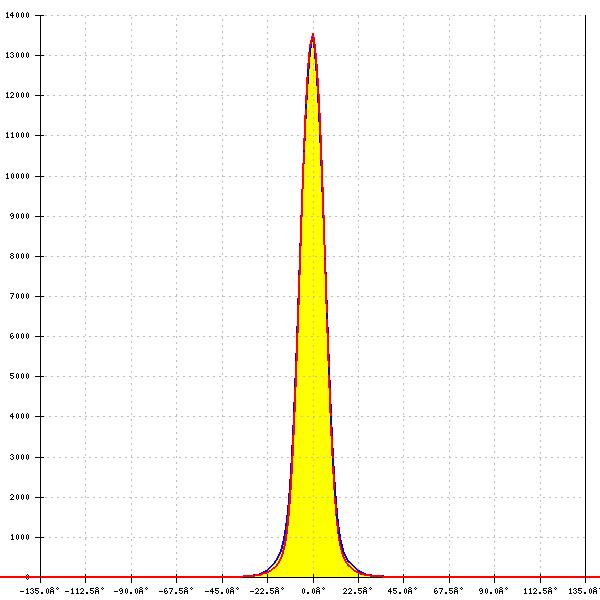

LUXEON SunPlus 35 Line
FWHM:
14°
FWTM:
25°
Peak intensity:
13.560 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

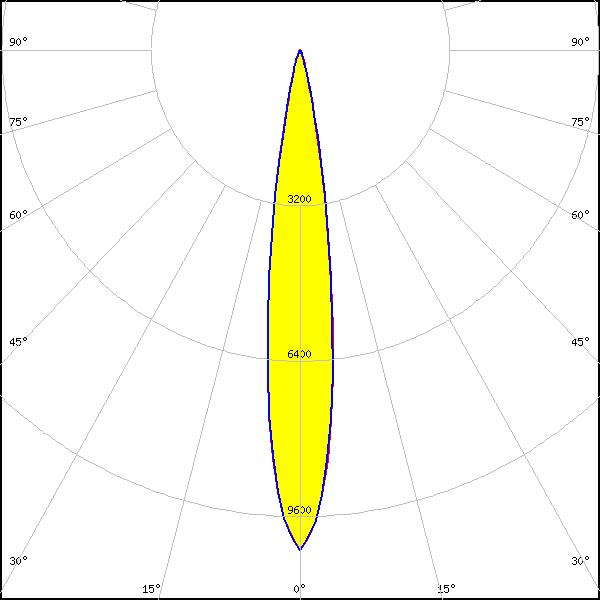

LED:
LUXEON TX
FWHM:
16°
FWTM:
28°
Peak intensity:
10.296 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

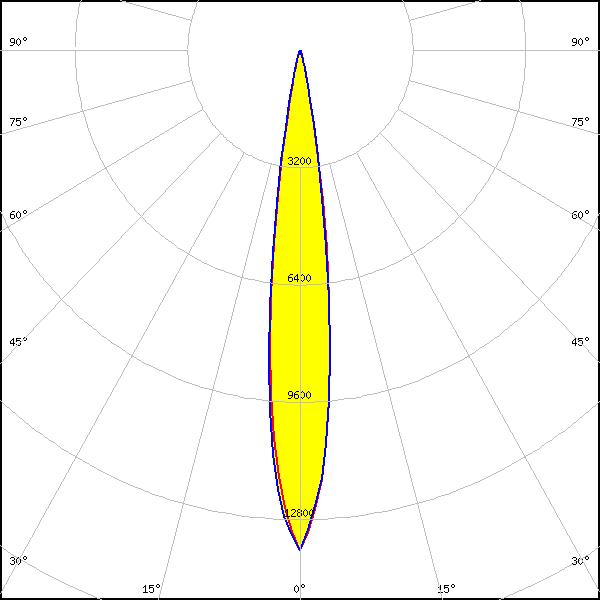

LED:
LUXEON Z ES
FWHM:
14°
FWTM:
24°
Peak intensity:
13.640 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
SST-10-B130
FWHM:
13°
FWTM:
27°
Peak intensity:
10.761 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Blue

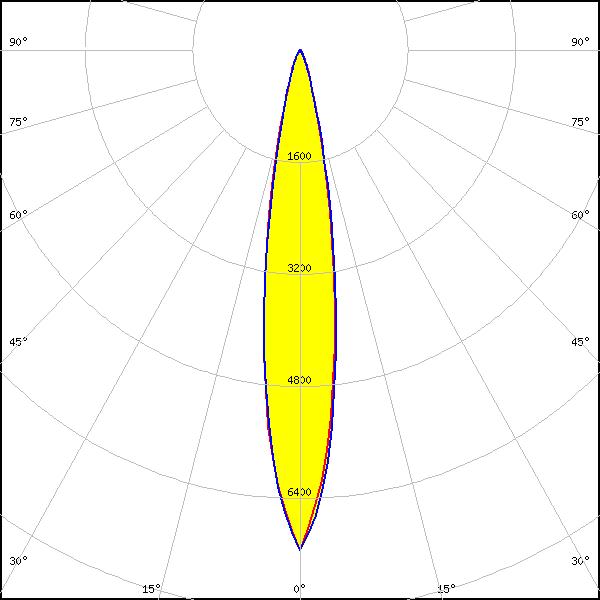

LED:
NV4WB35AM
FWHM:
17°
FWTM:
34°
Peak intensity:
7.142 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

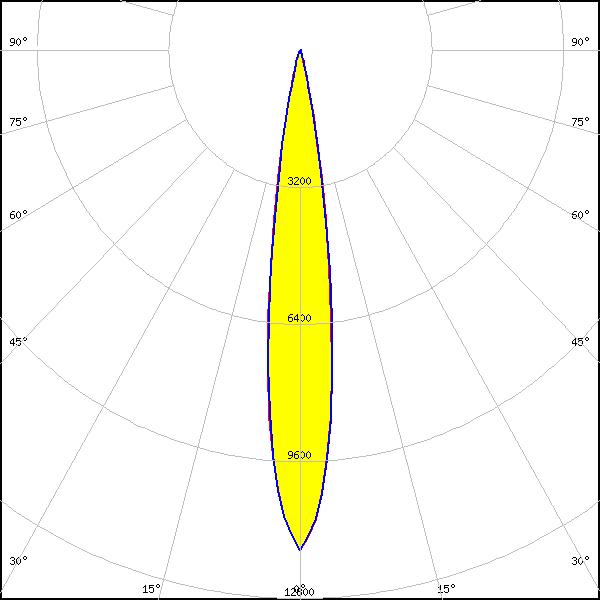

LED:

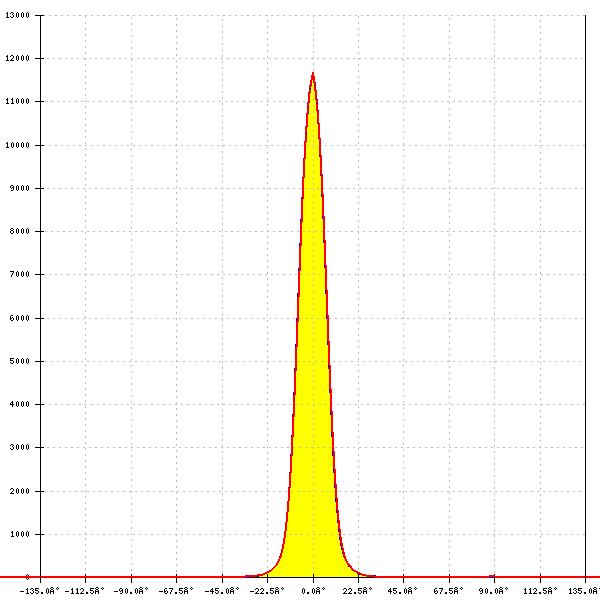

NVSW219C-V2
FWHM:
14°
FWTM:
26°
Peak intensity:
11.676 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

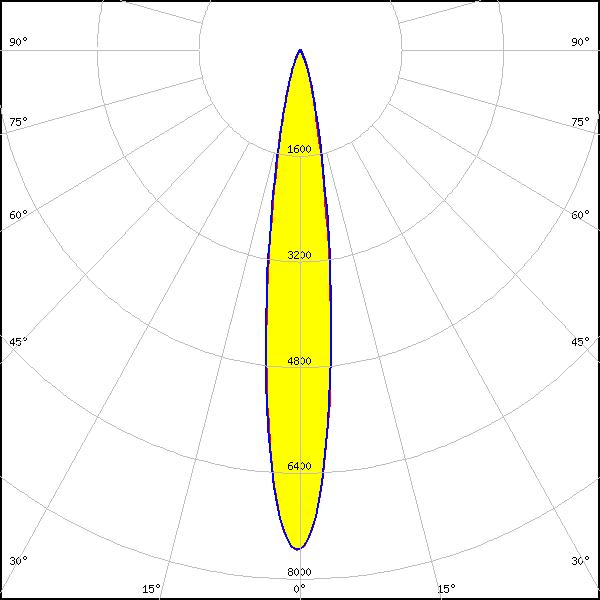

LED:
NVSW219D
FWHM:
15°
FWTM:
33°
Peak intensity:
7.600 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

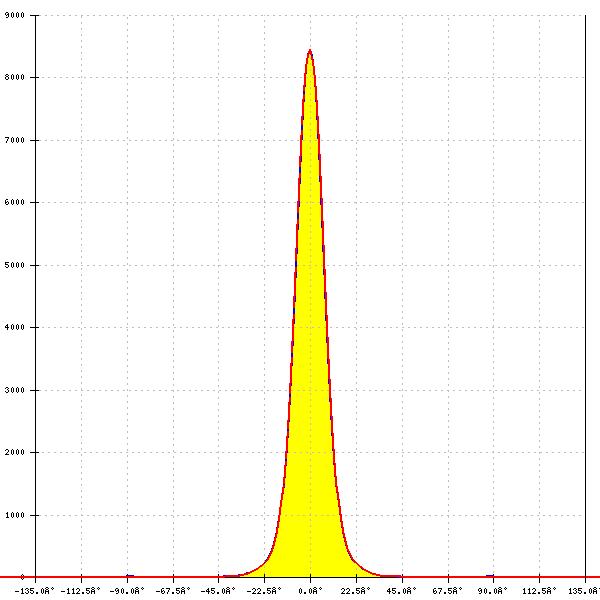

LED:

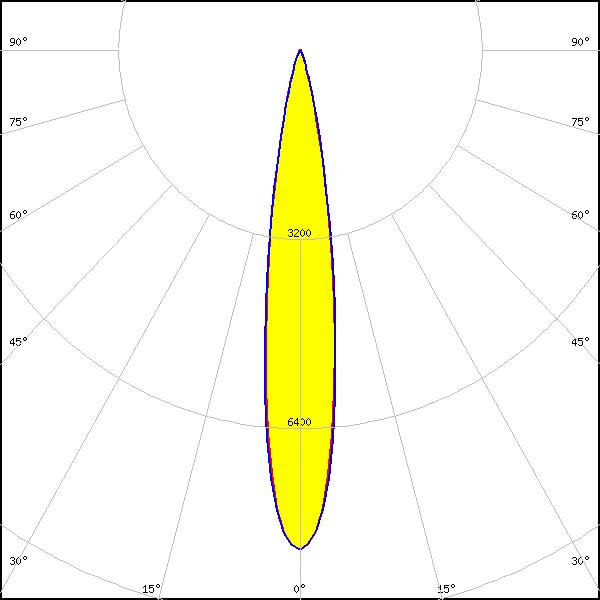

NVSW219GL
FWHM:
16°
FWTM:
31°
Peak intensity:
8.456 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

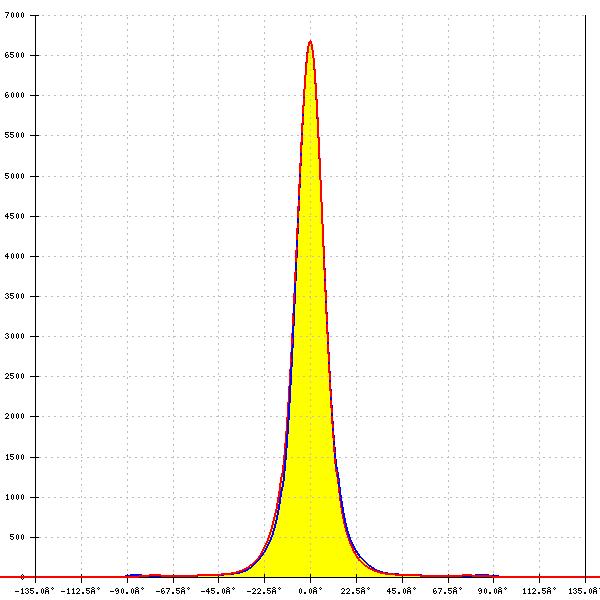

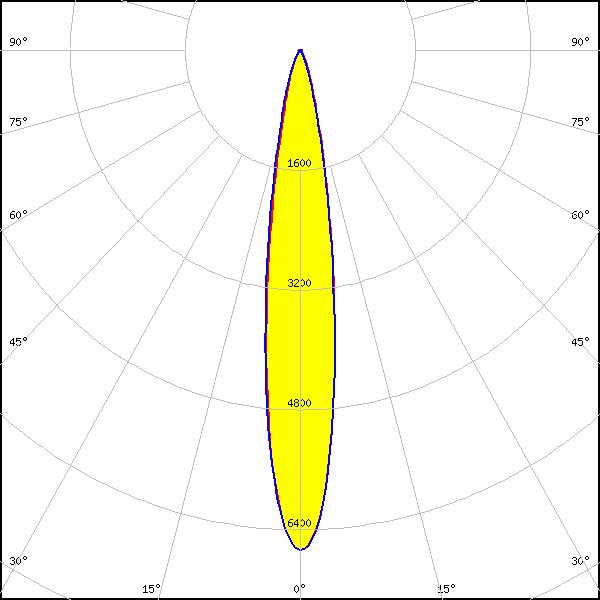

LED:

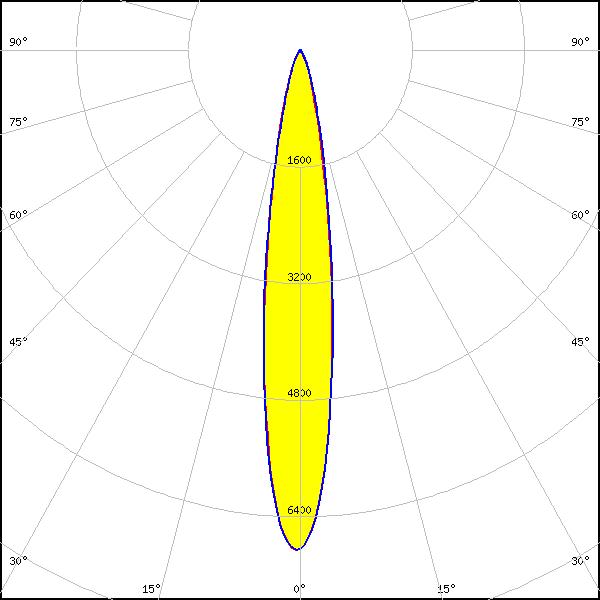

NVSW319B
FWHM:
16°
FWTM:
35°
Peak intensity:
6.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
16°
FWTM:
34°
Peak intensity:
6.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

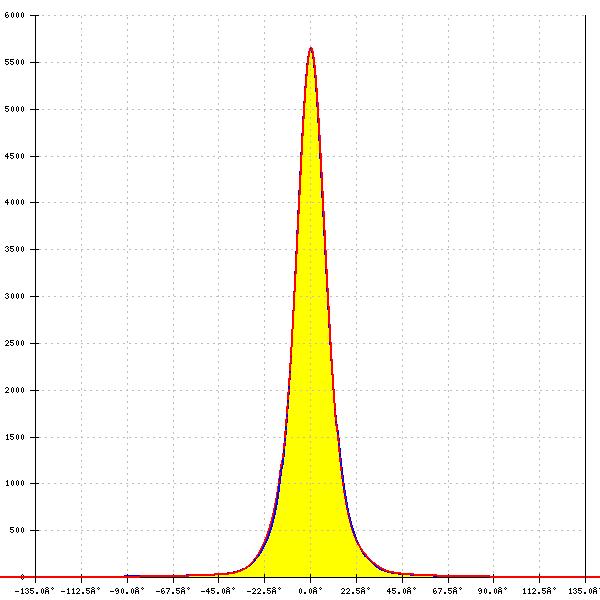

LED:
NVSW519A
FWHM:
18°
FWTM:
39°
Peak intensity:
5.662 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

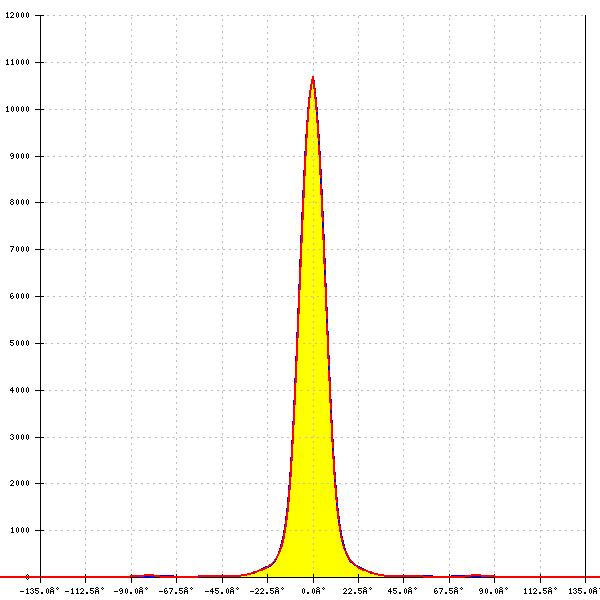

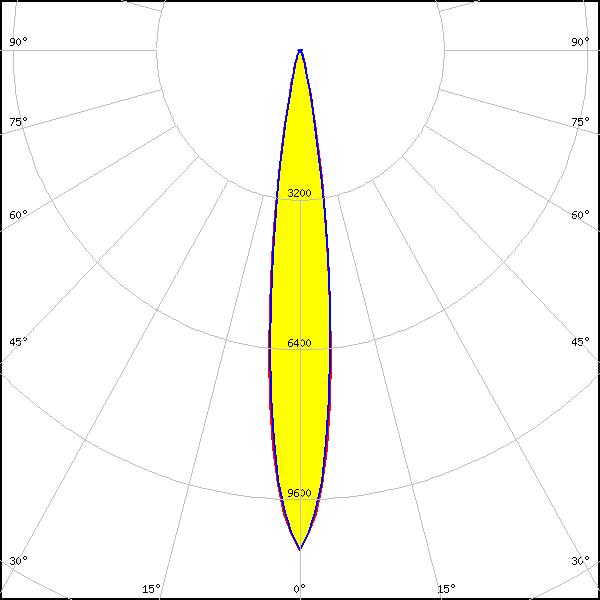

LED:
NVSxE21A
FWHM:
14°
FWTM:
27°
Peak intensity:
11.164 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

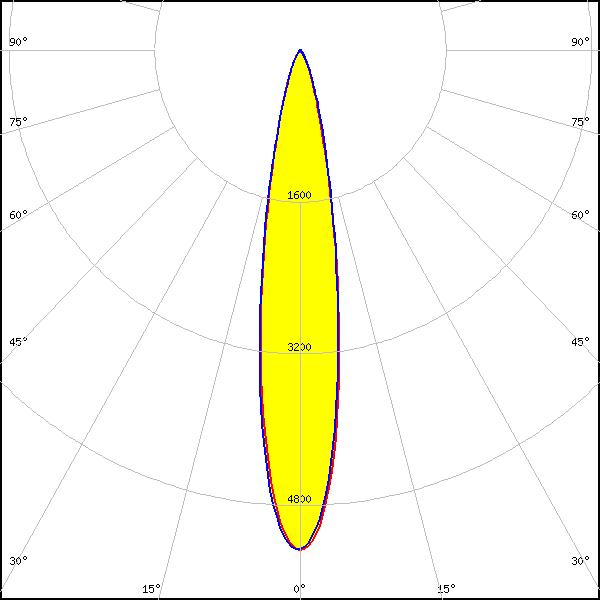

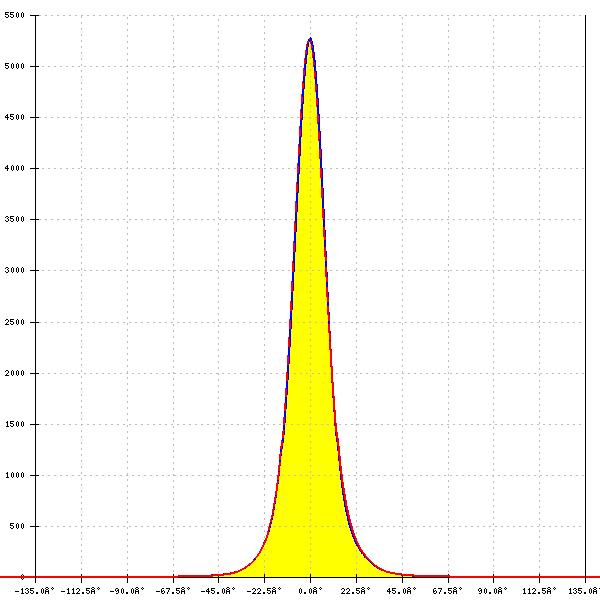

LED:
NWSx229A
FWHM:
18°
FWTM:
39°
Peak intensity:
5.300 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

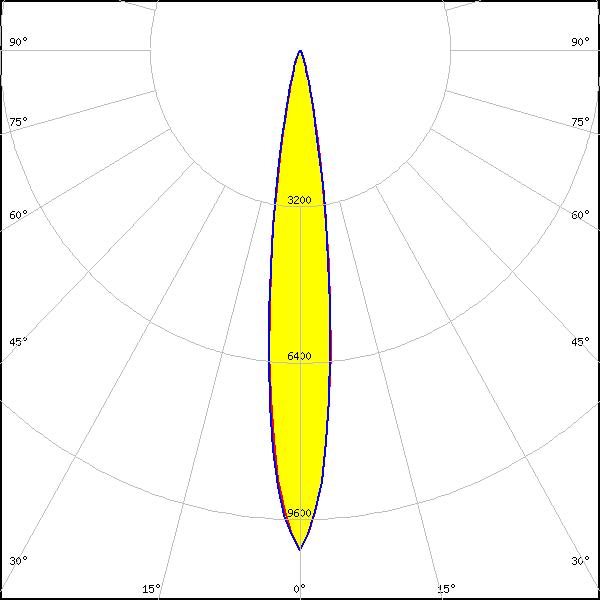

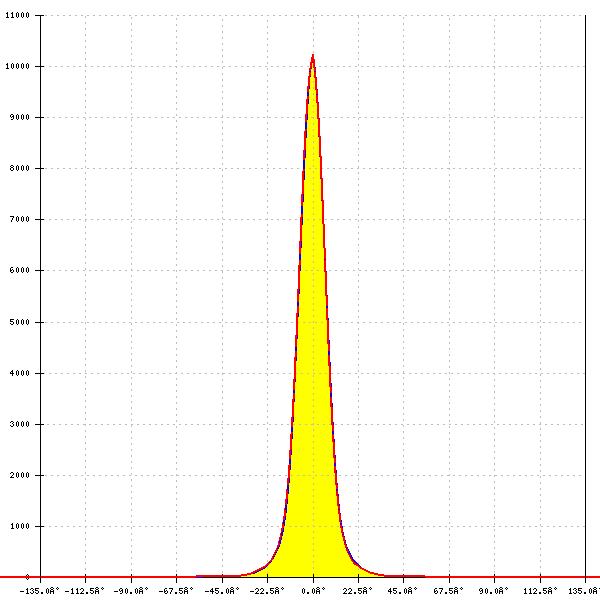

LED:
OSCONIQ P 3737 Flat
FWHM:
14°
FWTM:
29°
Peak intensity:
10.229 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

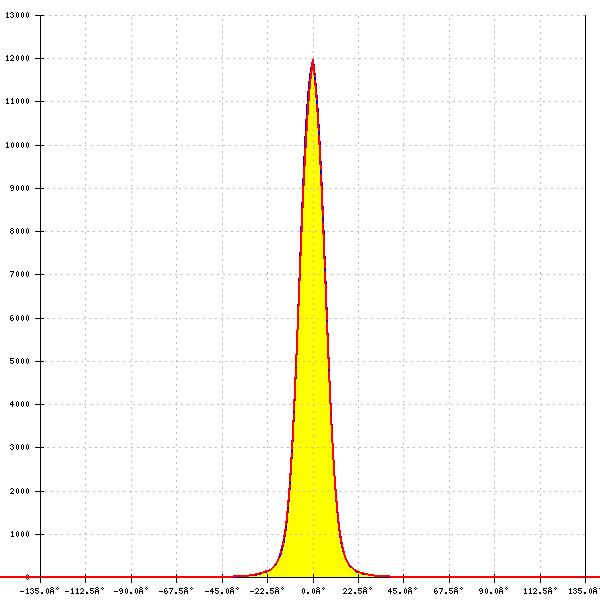

LED:
OSLON Black
FWHM:
14°
FWTM:
26°
Peak intensity:
12.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

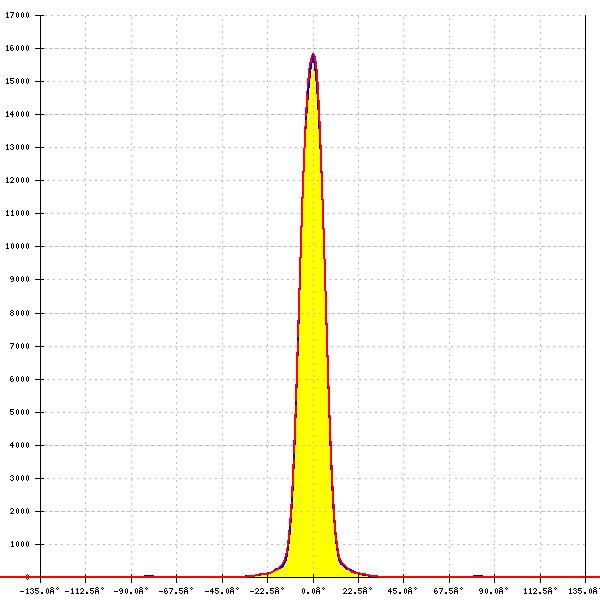

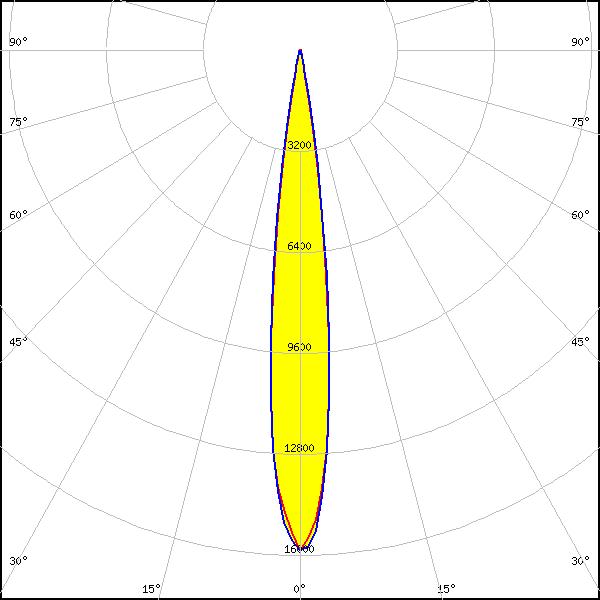

LED:
OSLON Black Flat (LUW HWQP)
FWHM:
13°
FWTM:
22°
Peak intensity:
15.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

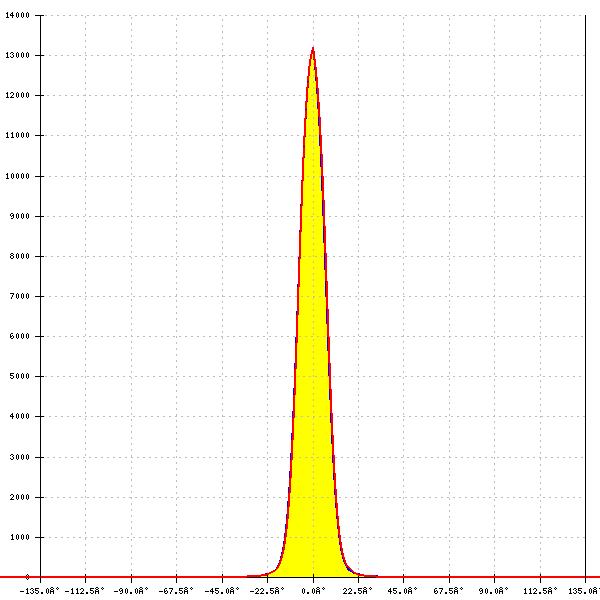

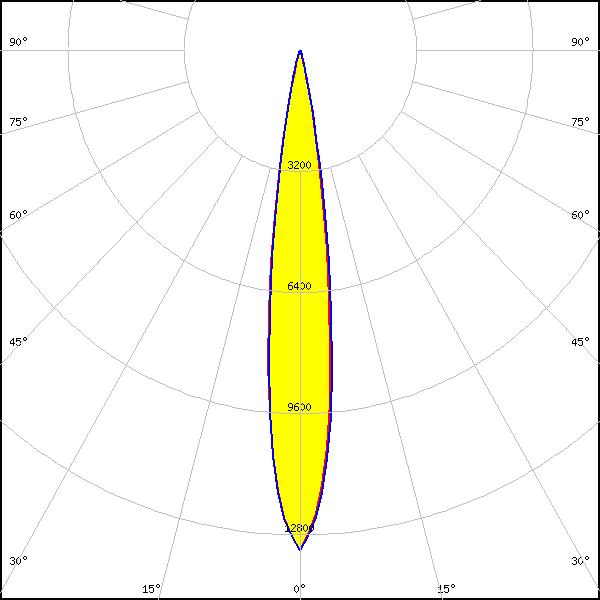

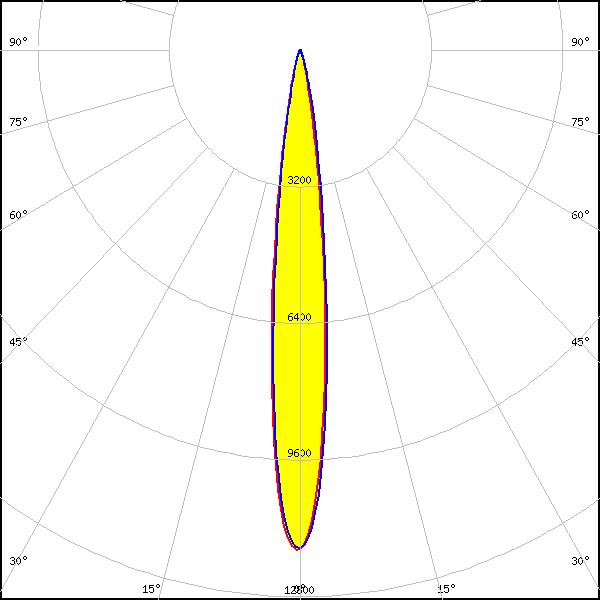

LED:
OSLON SSL 150
FWHM:
14°
FWTM:
26°
Peak intensity:
13.212 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

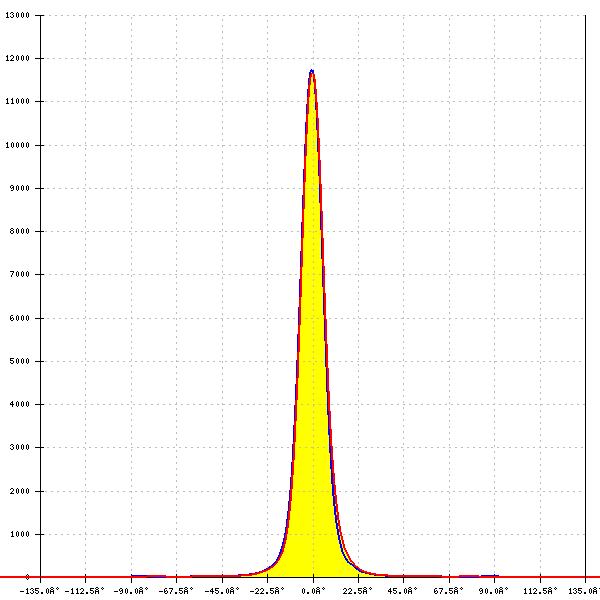

LED:
OSLON SSL 150
FWHM:
12°
FWTM:
25°
Peak intensity:
11.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

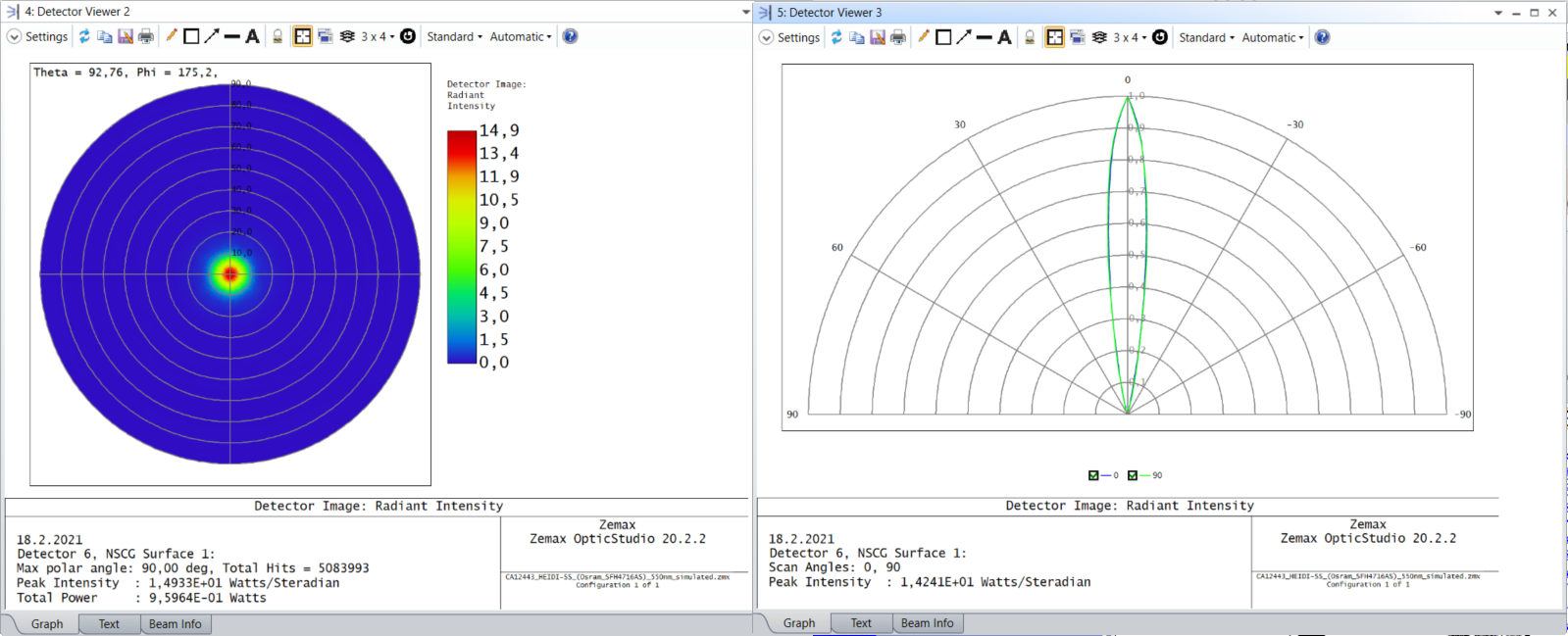

LED:
SFH 4716AS
FWHM:
14°
FWTM:
24°
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
IR

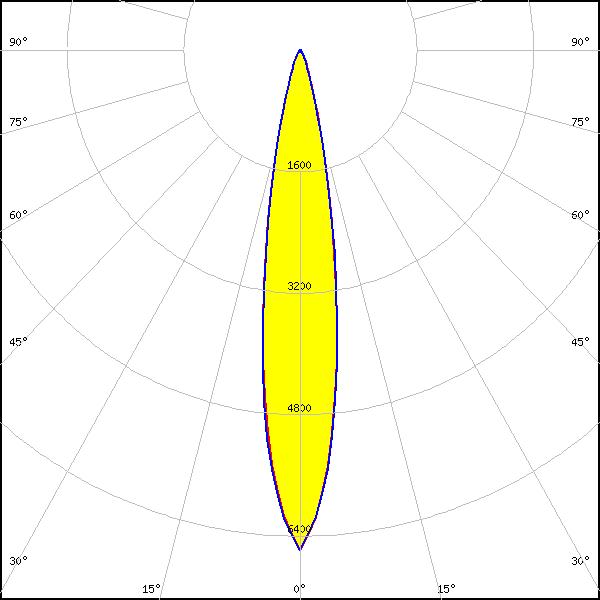

LED:
LH351D
FWHM:
18°
FWTM:
34°
Peak intensity:
6.589 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

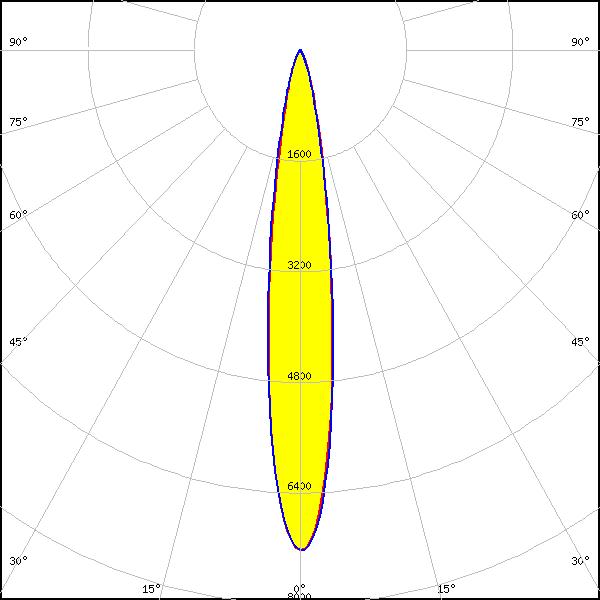

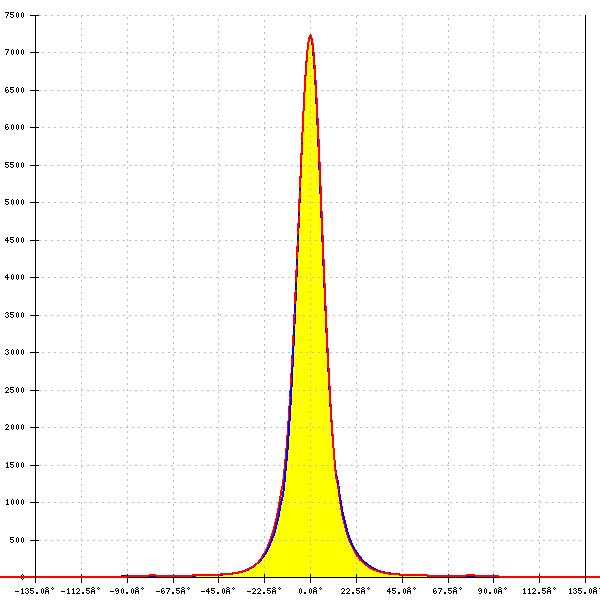

LED:
Z5M3
FWHM:
15°
FWTM:
33°
Peak intensity:
7.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

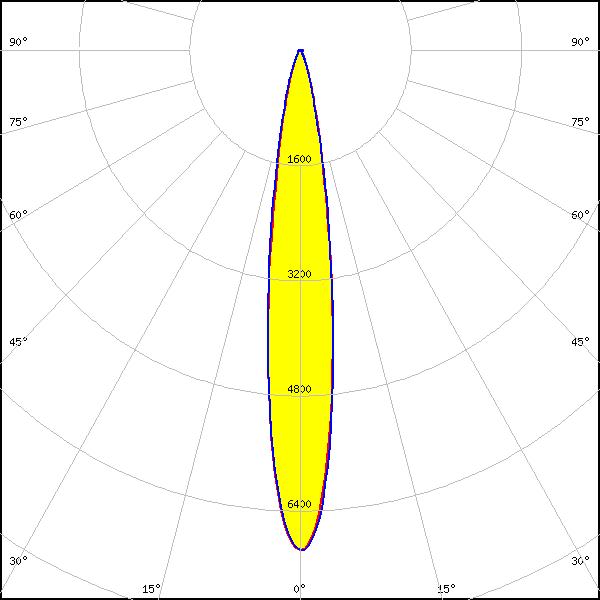

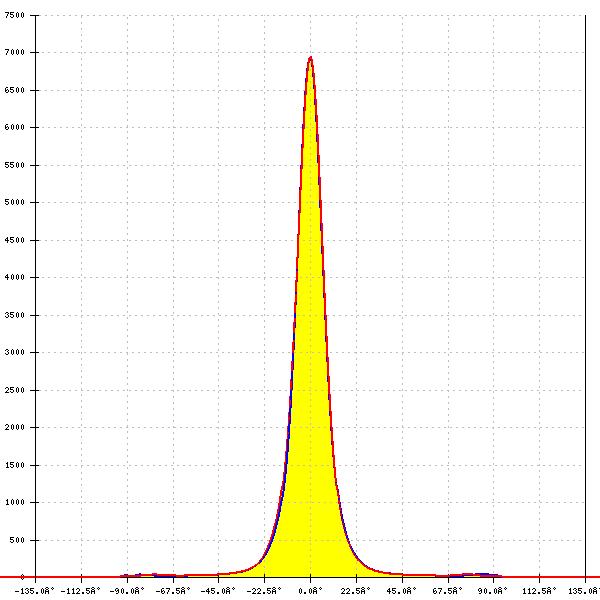

LED:
Z8Y22P
FWHM:
15°
FWTM:
33°
Peak intensity:
6.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
