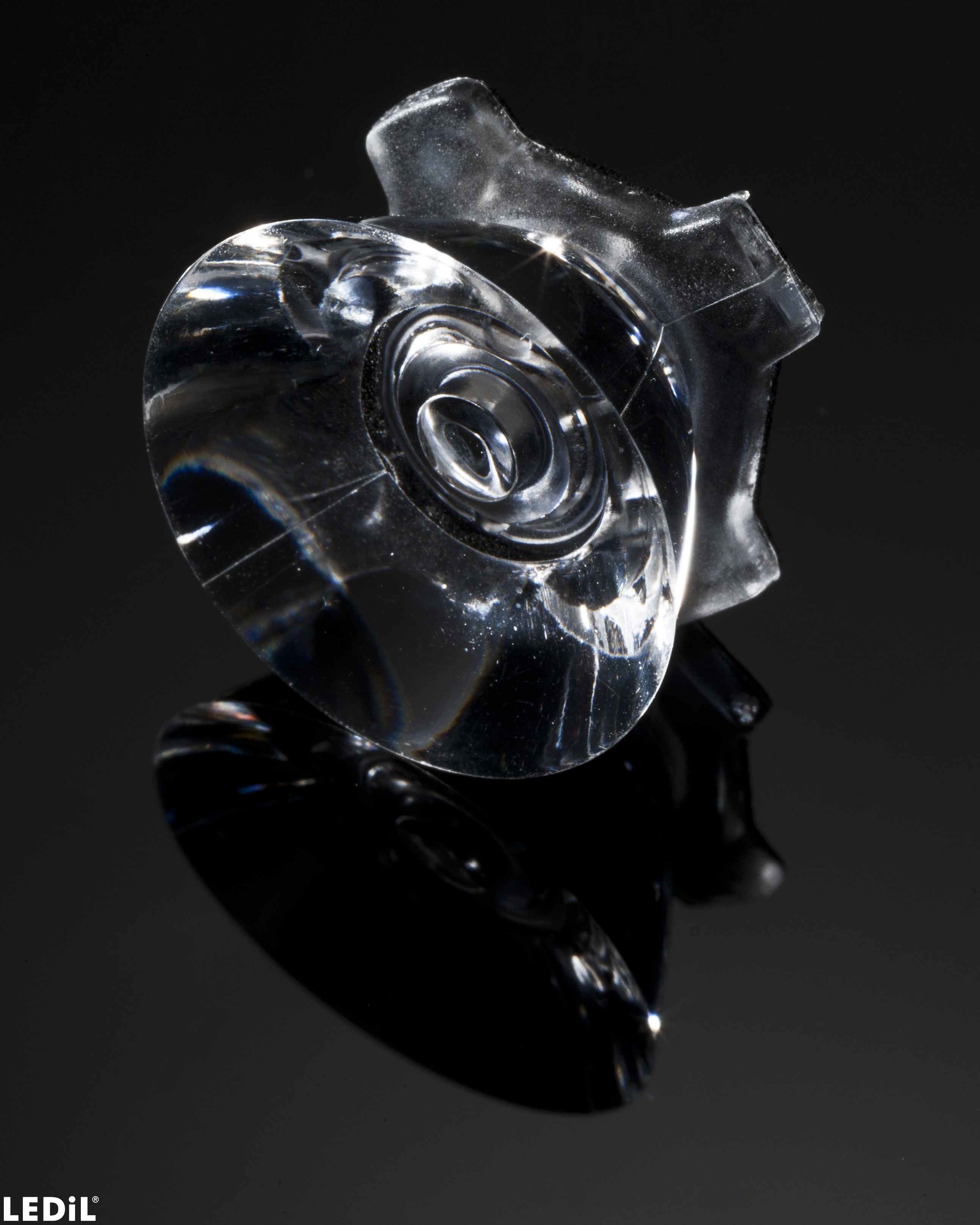

CA12537_HEIDI-RS
Print
~8° spot beam
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

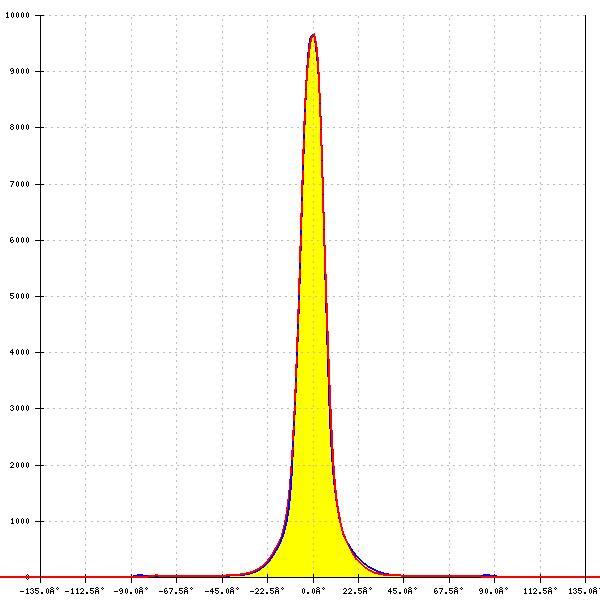

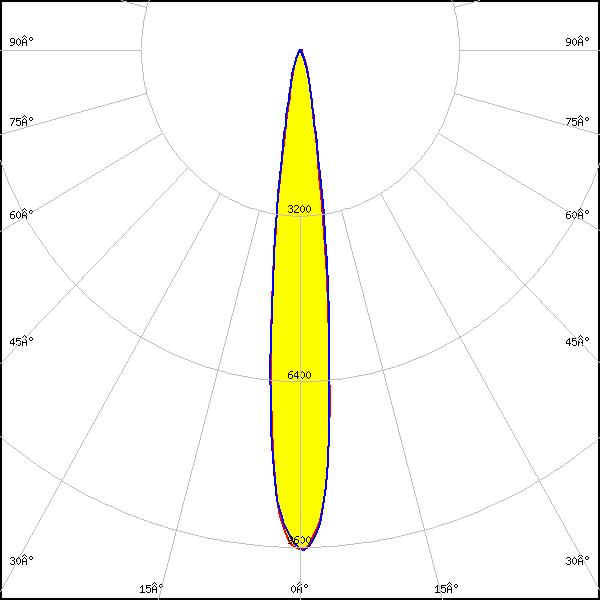

Optical results
LED:

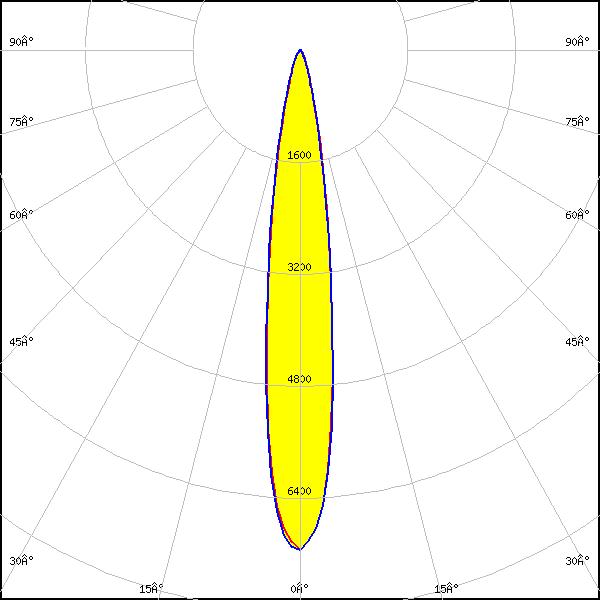

XHP35 HD
FWHM:
16°
FWTM:
32°
Peak intensity:
7.169 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

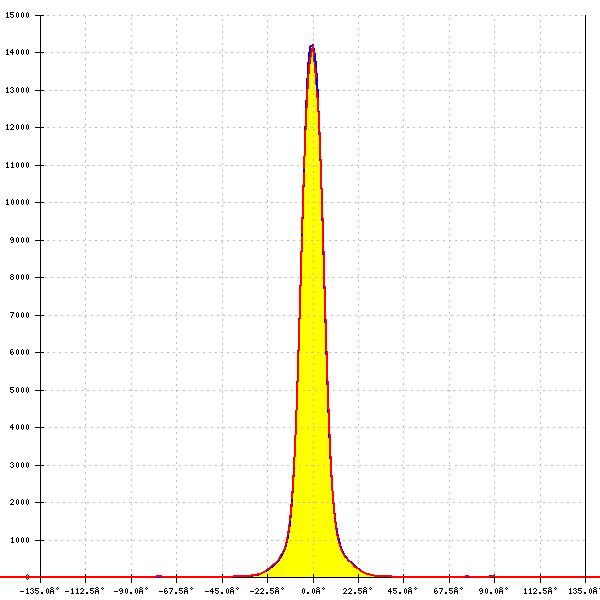

LED:
XHP35 HI
FWHM:
12°
FWTM:
22°
Peak intensity:
14.200 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

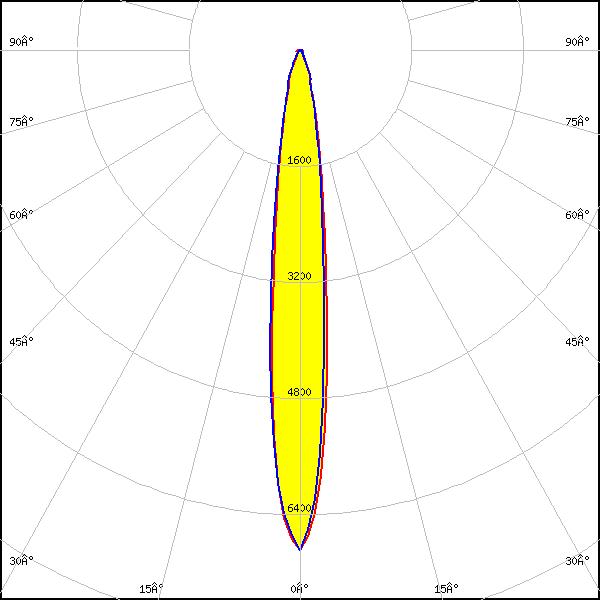

LED:
XHP35.2 HI
FWHM:
13°
FWTM:
32°
Peak intensity:
6.891 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

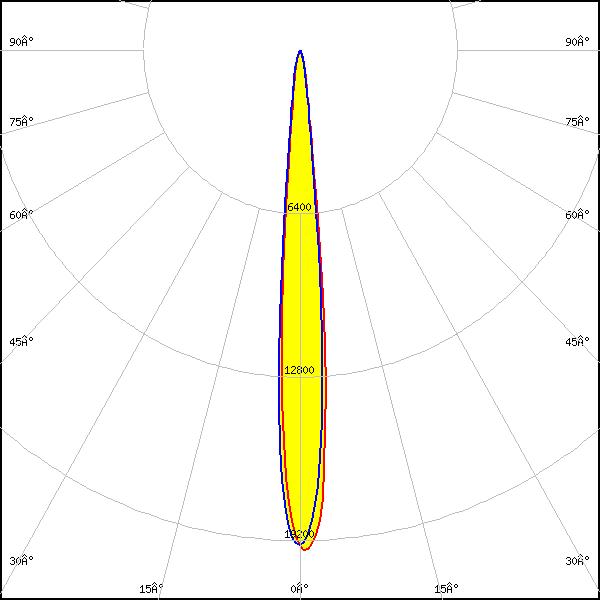

LED:

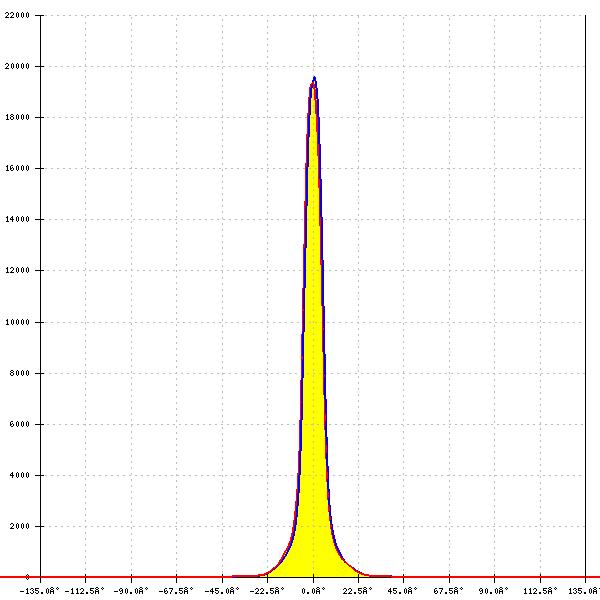

XP-G2
FWHM:
10°
FWTM:
18°
Peak intensity:
20.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

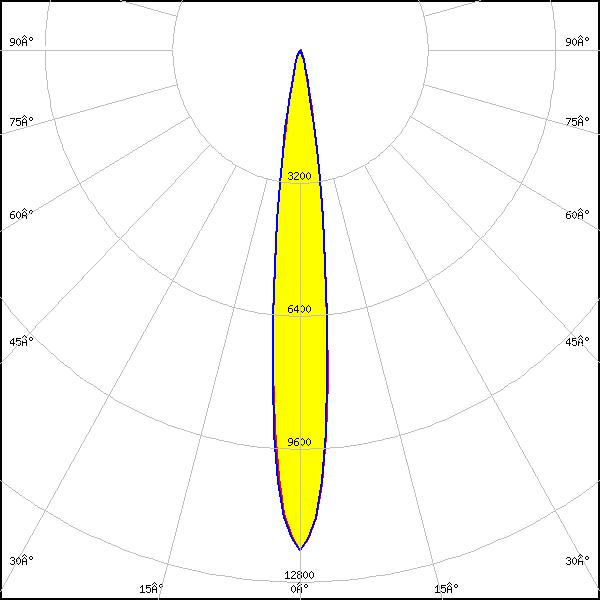

LED:
XP-G2 HE
FWHM:
12°
FWTM:
26°
Peak intensity:
12.039 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

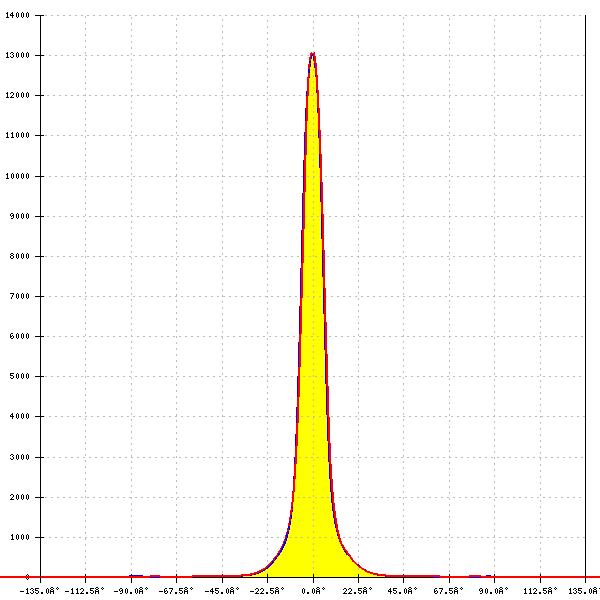

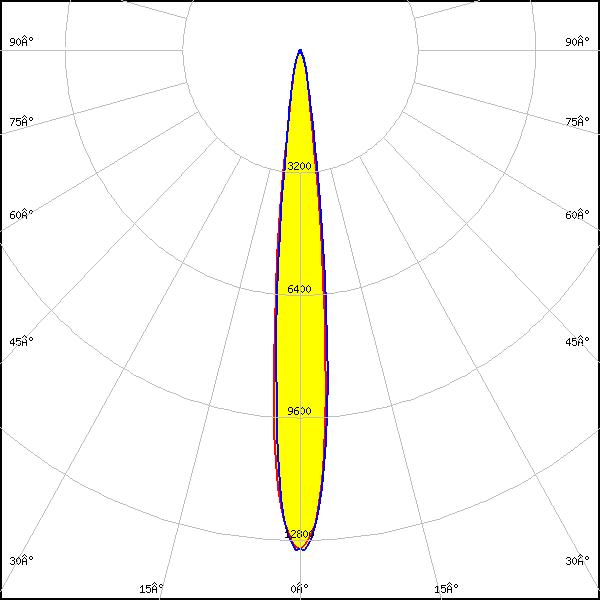

XP-G3
FWHM:
12°
FWTM:
23°
Peak intensity:
13.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

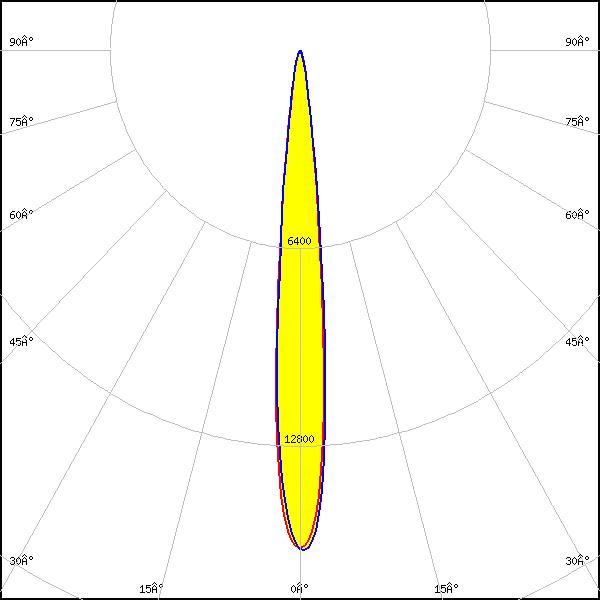

XP-G4
FWHM:
11°
FWTM:
21°
Peak intensity:
16.211 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

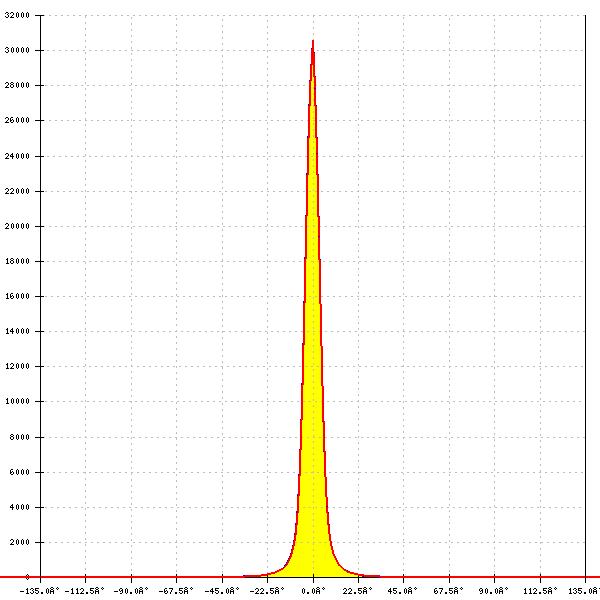

LED:

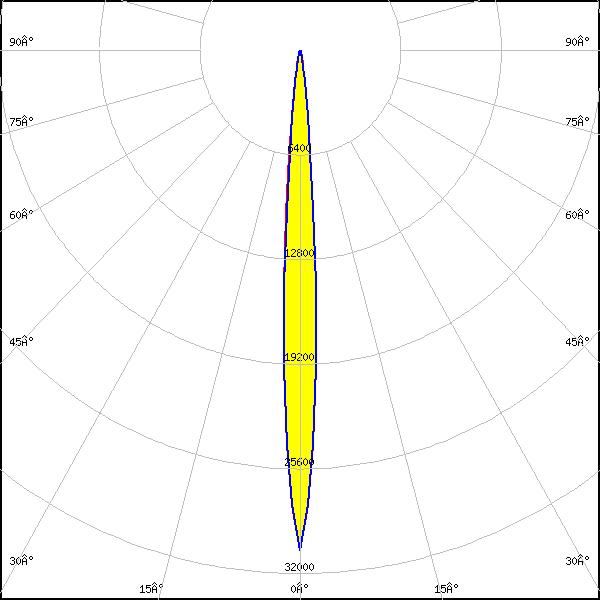

XP-G4 HI
FWHM:
8°
FWTM:
16°
Peak intensity:
30.582 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-GR
FWHM:
6°
FWTM:
14°
Peak intensity:
47.503 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

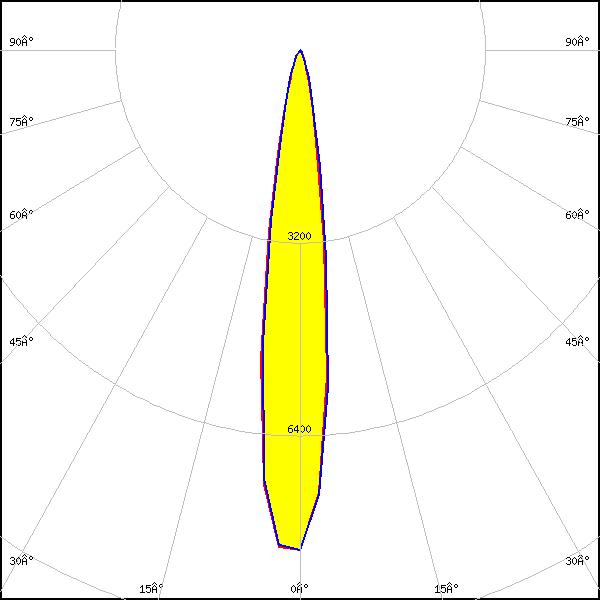

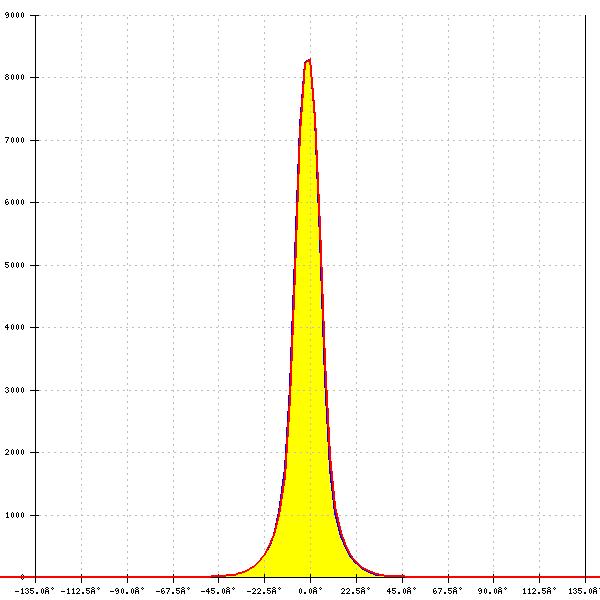

LED:
XP-L HD
FWHM:
15°
FWTM:
29°
Peak intensity:
8.300 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

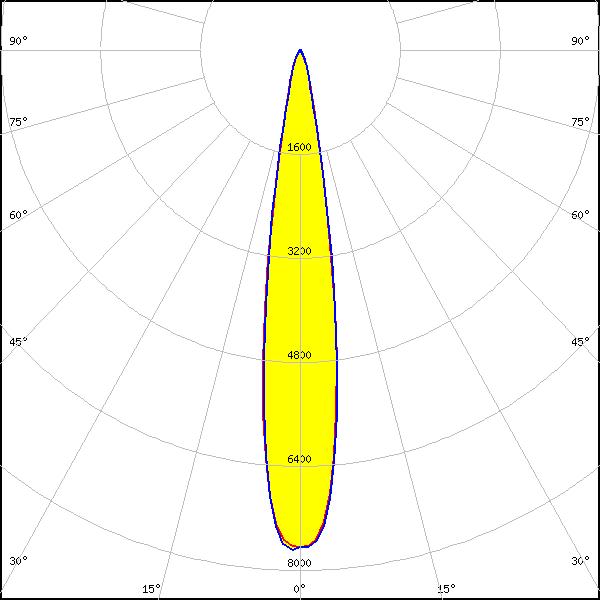

LED:
XP-L2
FWHM:
16°
FWTM:
30°
Peak intensity:
7.715 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

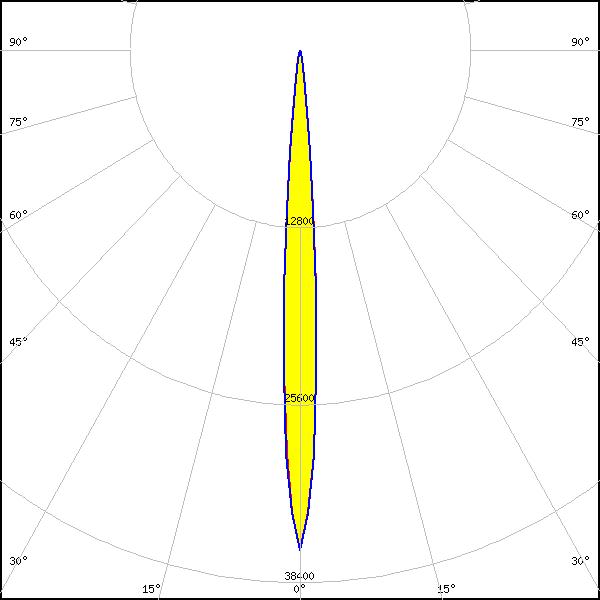

LED:

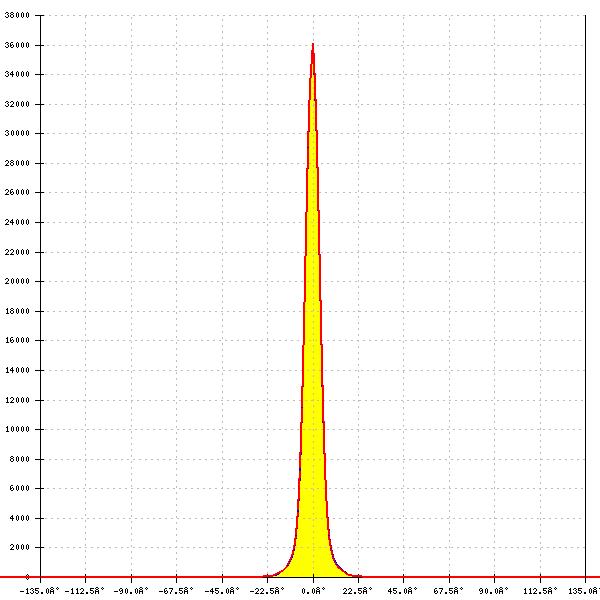

XP-LR
FWHM:
8°
FWTM:
16°
Peak intensity:
36.086 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

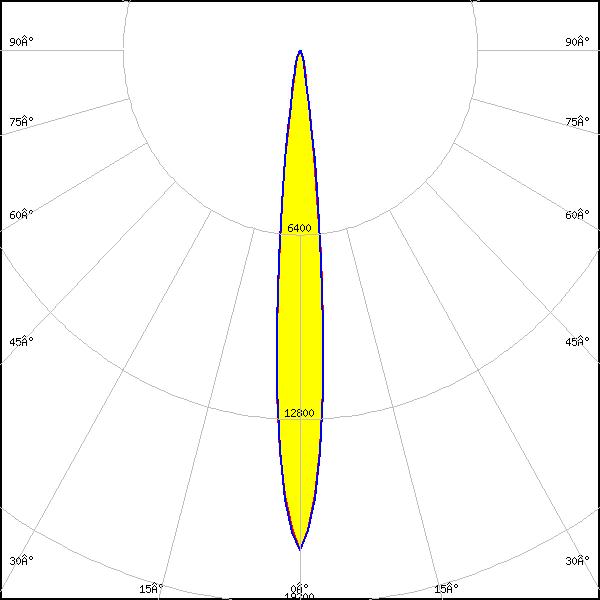

LED:
LUXEON A
FWHM:
11°
FWTM:
20°
Peak intensity:
15.600 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

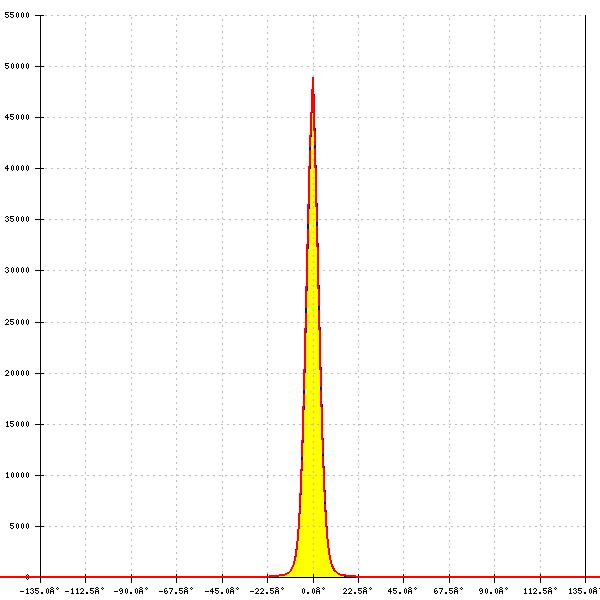

LUXEON CZ
FWHM:
6°
FWTM:
14°
Peak intensity:
48.930 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

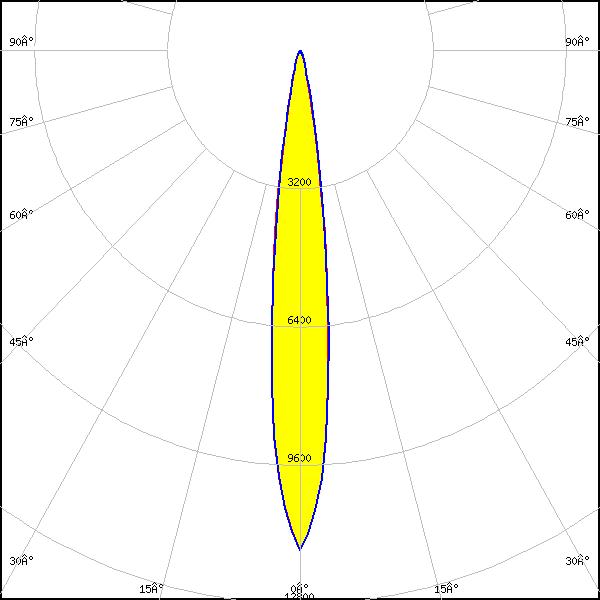

LED:
LUXEON HL2X
FWHM:
14°
FWTM:
26°
Peak intensity:
11.567 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

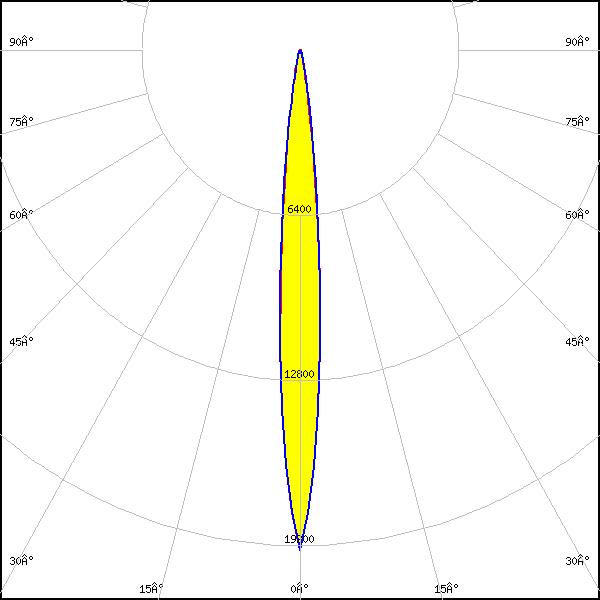

LED:
LUXEON HL2Z
FWHM:
10°
FWTM:
20°
Peak intensity:
19.387 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

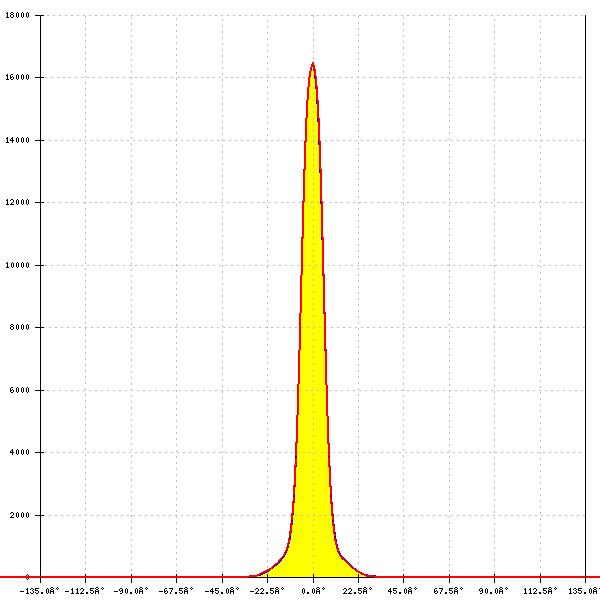

LED:
LUXEON HL4Z
FWHM:
12°
FWTM:
20°
Peak intensity:
16.498 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Domed 150 (L1I0-0xxx150000000)
FWHM:
11°
FWTM:
22°
Peak intensity:
0.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON IR Domed 90 (L1I0-0xxx090000000)
FWHM:
11°
FWTM:
23°
Peak intensity:
0.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

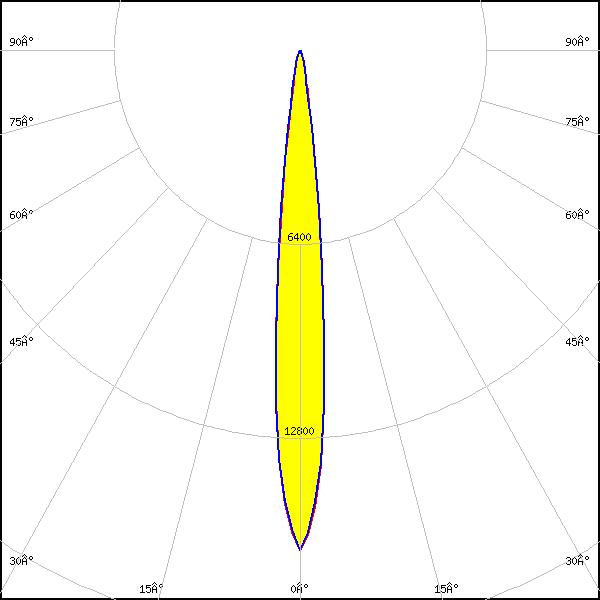

LED:

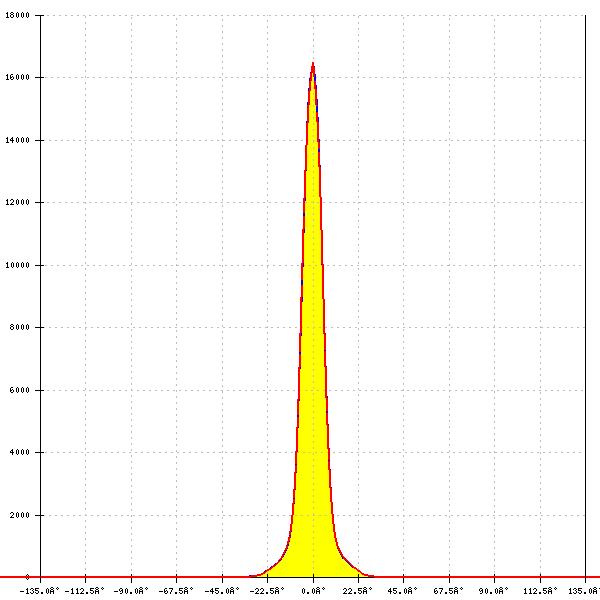

LUXEON R
FWHM:
11°
FWTM:
20°
Peak intensity:
16.500 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel
FWHM:
8°
FWTM:
17°
Peak intensity:
26.000 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON Rebel ES
FWHM:
11°
FWTM:
20°
Peak intensity:
15.100 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

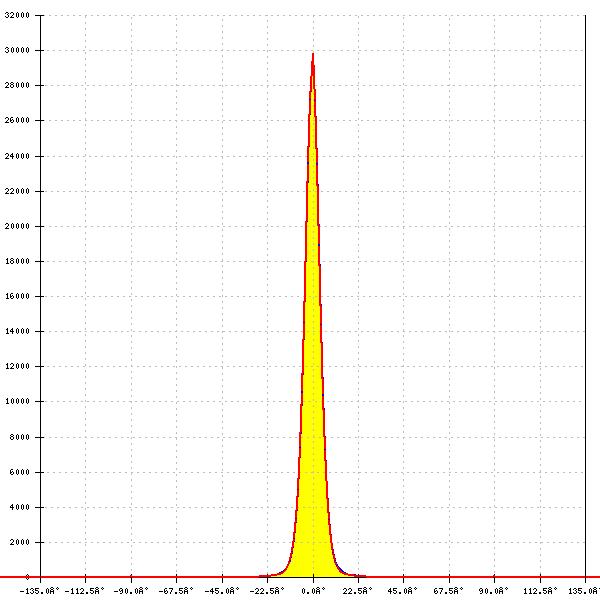

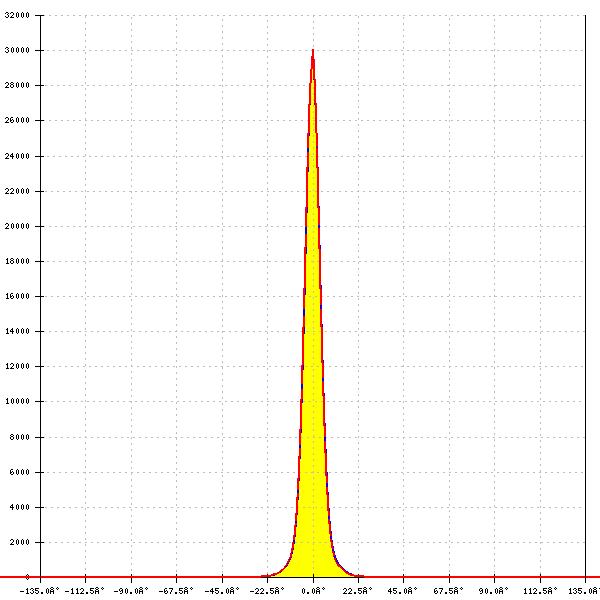

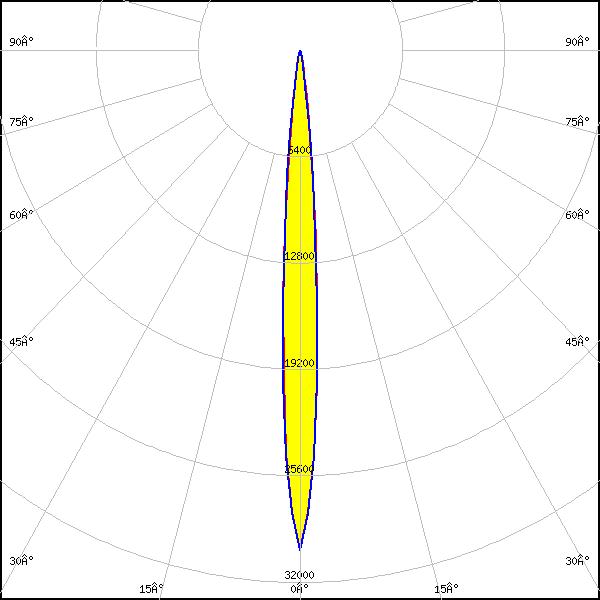

LED:
LUXEON SunPlus 20 Line (120 deg)
FWHM:
8°
FWTM:
16°
Peak intensity:
30.083 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

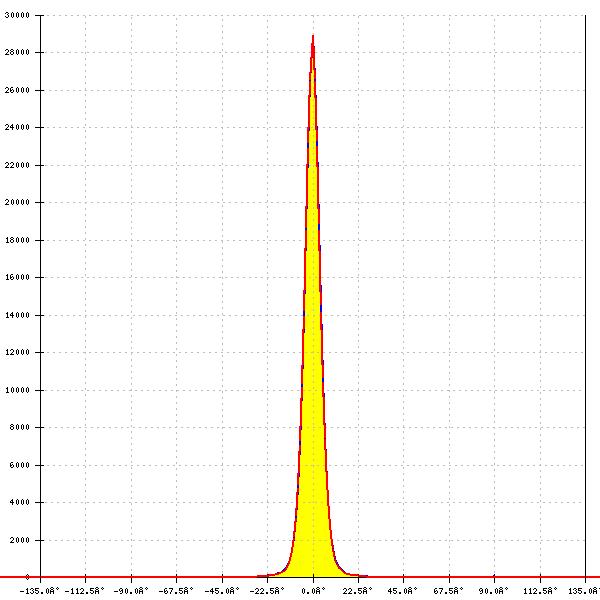

LUXEON SunPlus 20 Line (150 deg)
FWHM:
8°
FWTM:
17°
Peak intensity:
29.820 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON SunPlus 20 Line (150 deg)
FWHM:
8°
FWTM:
16°
Peak intensity:
28.925 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

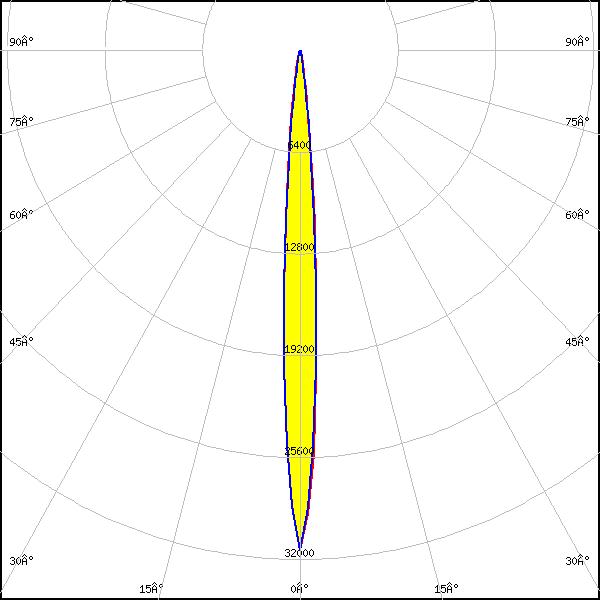

LED:
LUXEON SunPlus 35 Line
FWHM:
8°
FWTM:
17°
Peak intensity:
31.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

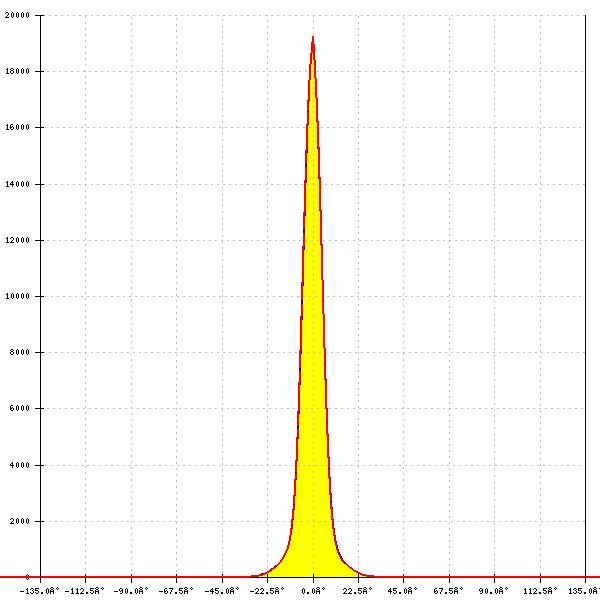

LUXEON TX
FWHM:
10°
FWTM:
20°
Peak intensity:
19.262 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

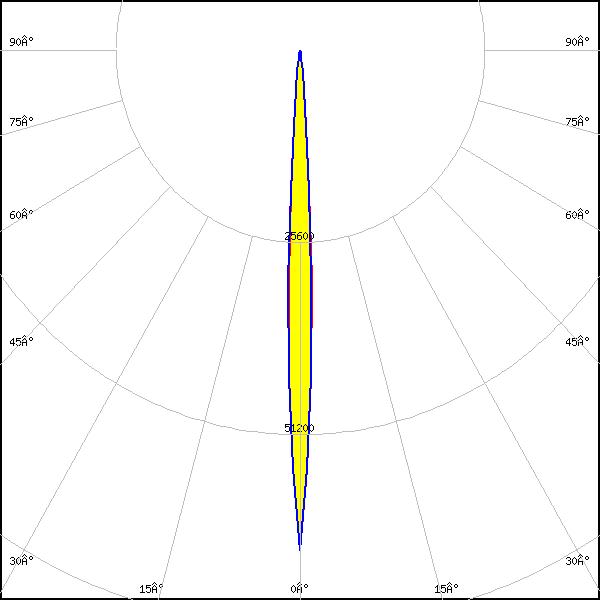

LED:

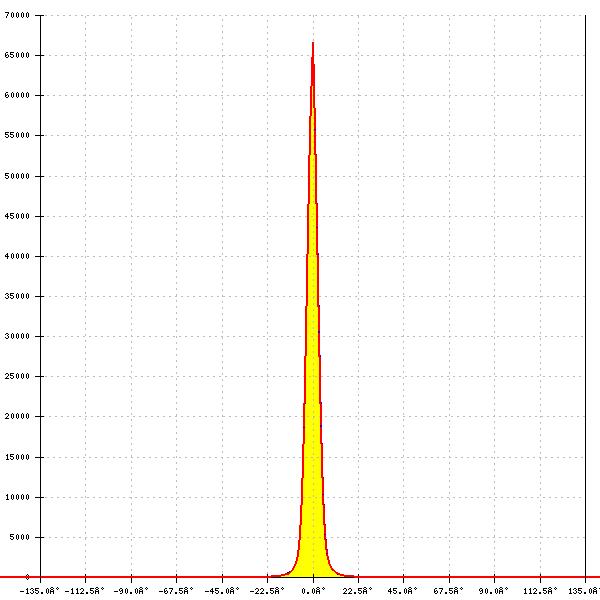

SFT-12R-W-A
FWHM:
6°
FWTM:
12°
Peak intensity:
66.605 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

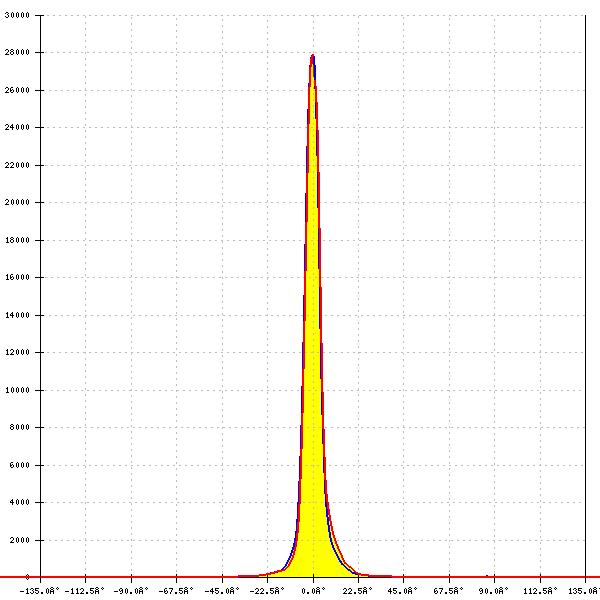

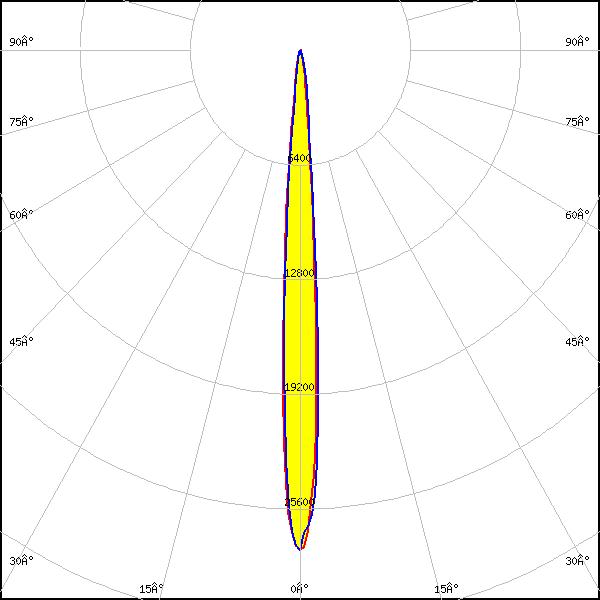

LED:
SST-10-B130
FWHM:
8°
FWTM:
16°
Peak intensity:
27.914 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
Blue

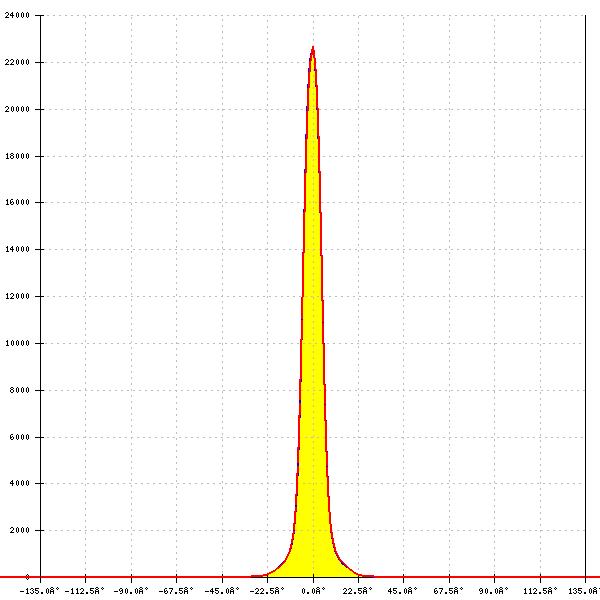

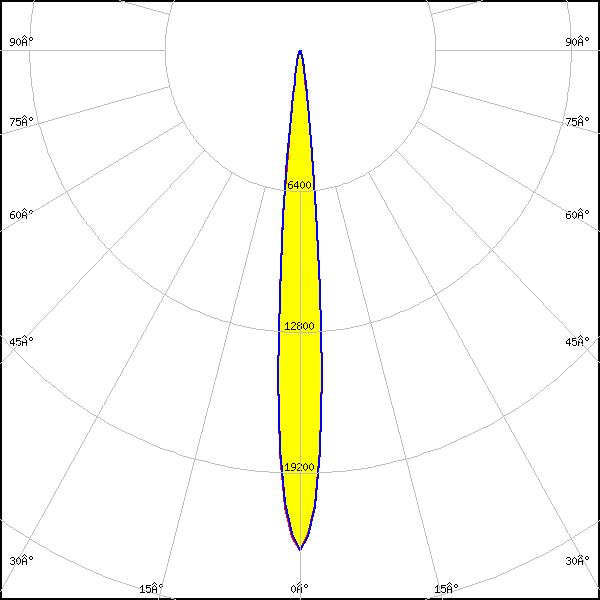

LED:
SST-20 Gen2
FWHM:
10°
FWTM:
18°
Peak intensity:
22.694 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

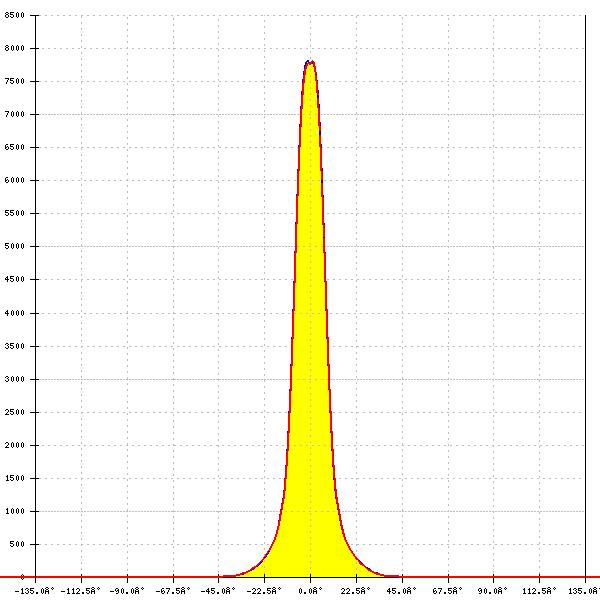

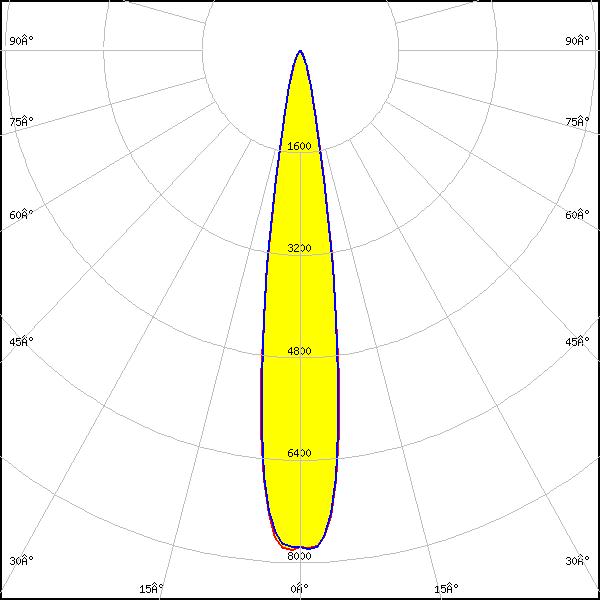

NV4WB35AM
FWHM:
16°
FWTM:
30°
Peak intensity:
7.959 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

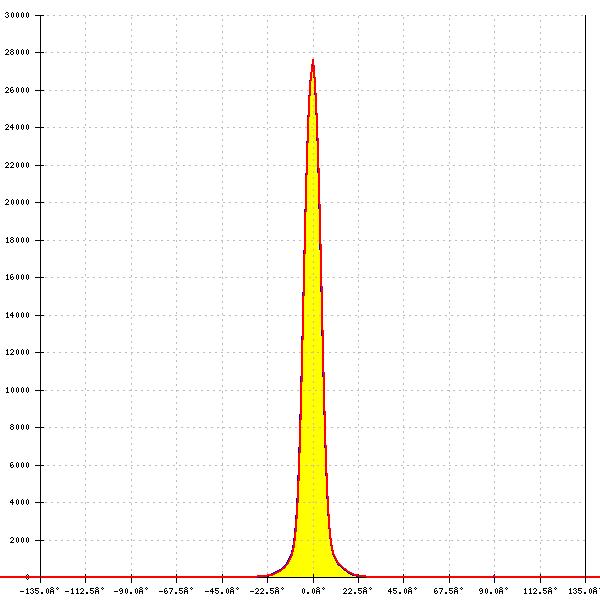

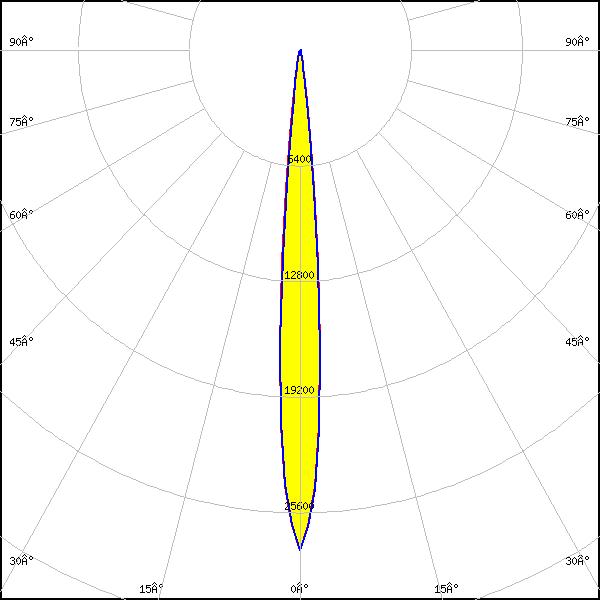

LED:
NVSW219C-V2
FWHM:
9°
FWTM:
16°
Peak intensity:
27.675 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

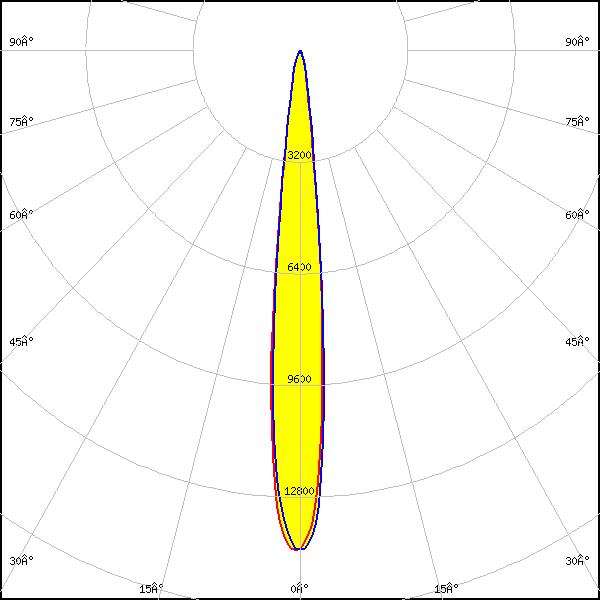

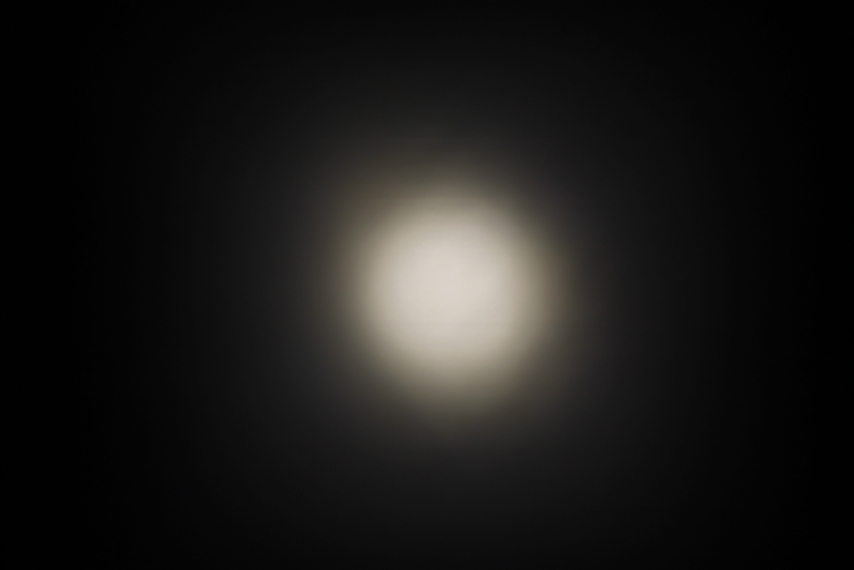

LED:
NVSW219D
FWHM:
11°
FWTM:
21°
Peak intensity:
14.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

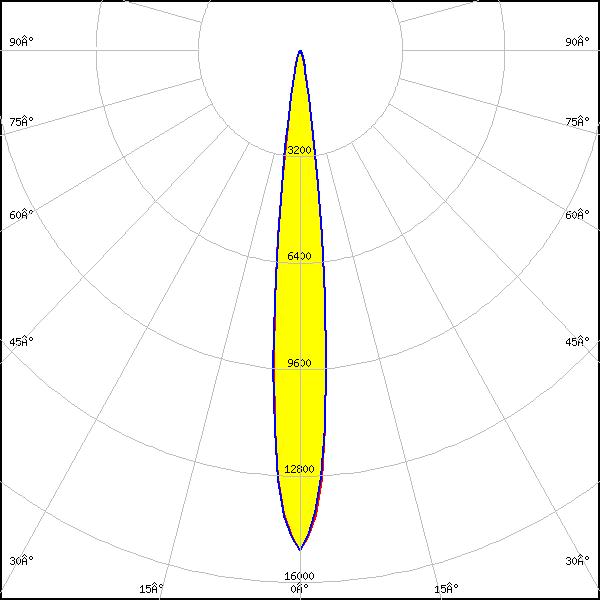

NVSW219F
FWHM:
12°
FWTM:
22°
Peak intensity:
15.032 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

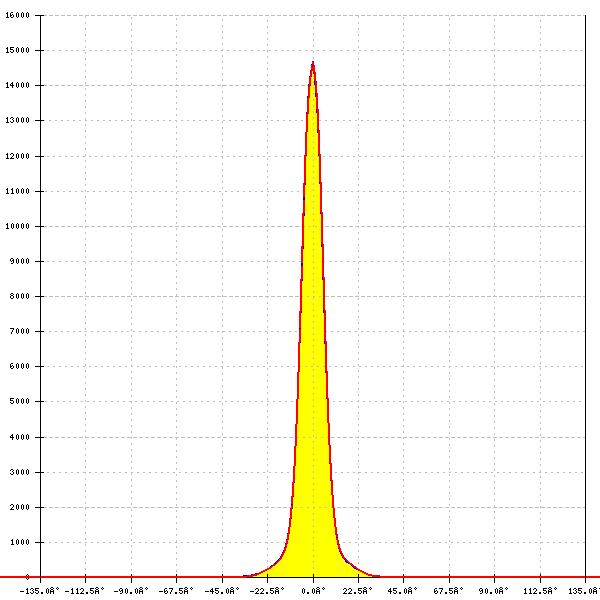

LED:
NVSW219GL
FWHM:
12°
FWTM:
22°
Peak intensity:
14.686 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

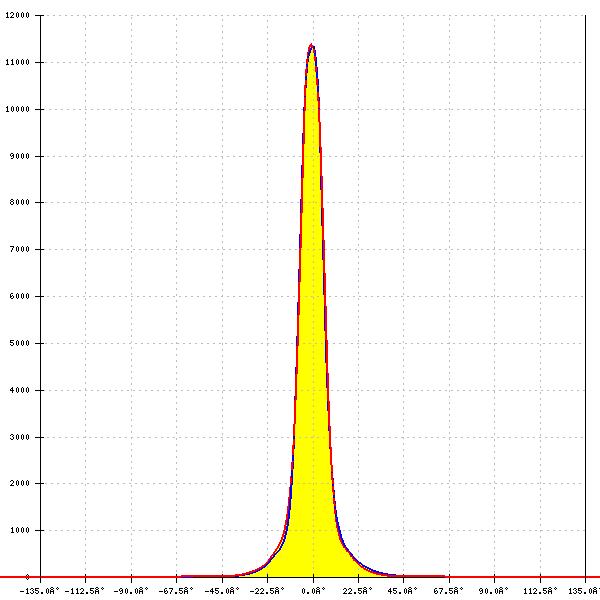

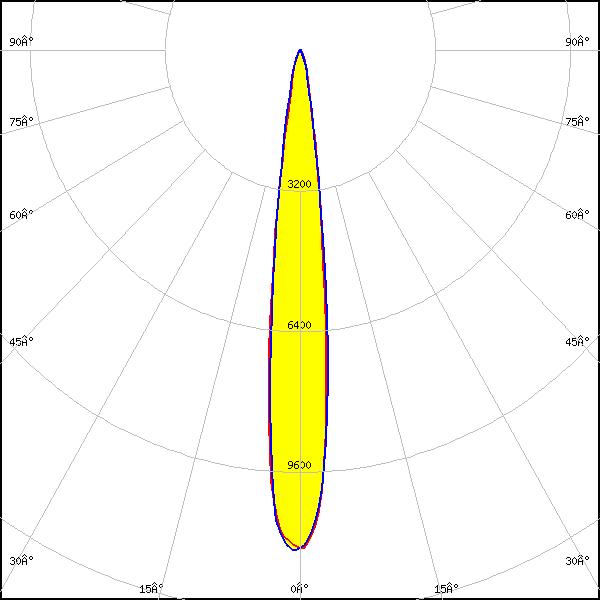

LED:
NVSW319B
FWHM:
13°
FWTM:
25°
Peak intensity:
11.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
13°
FWTM:
27°
Peak intensity:
9.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

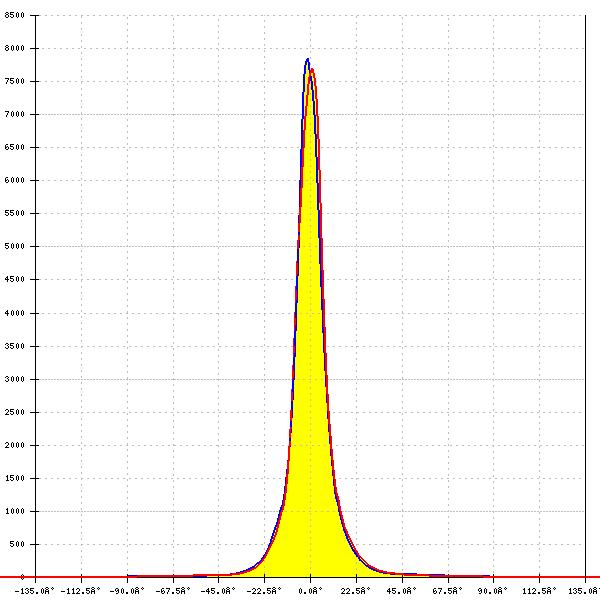

LED:

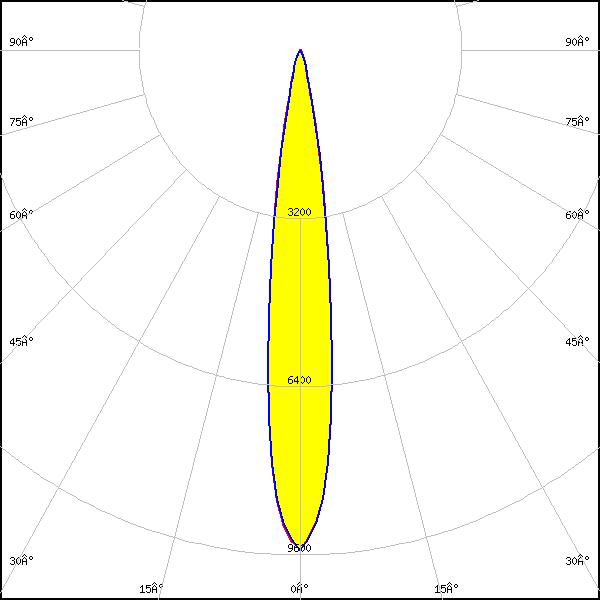

NVSW519A
FWHM:
14°
FWTM:
28°
Peak intensity:
9.514 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW519A
FWHM:
14°
FWTM:
33°
Peak intensity:
8.004 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

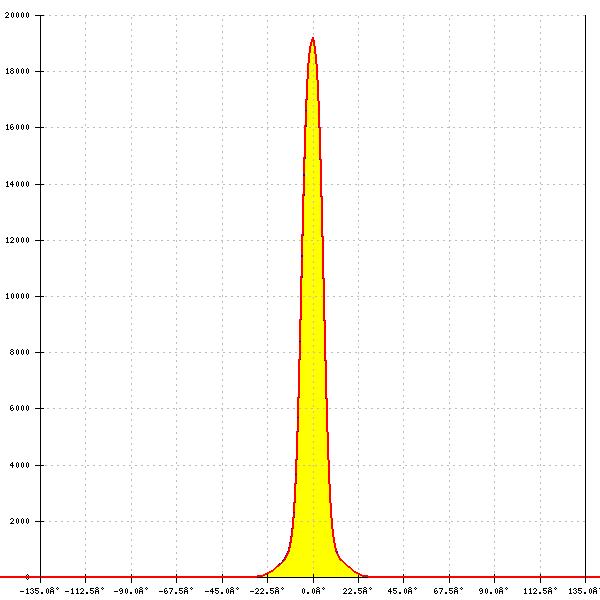

LED:
NVSW719AC
FWHM:
12°
FWTM:
20°
Peak intensity:
19.203 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

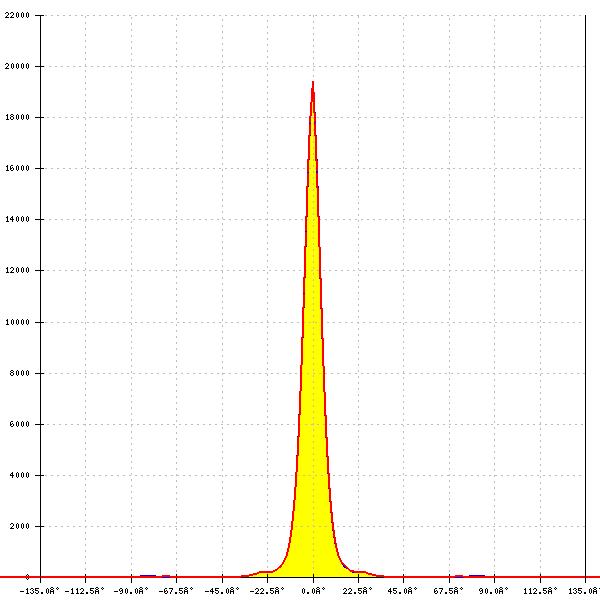

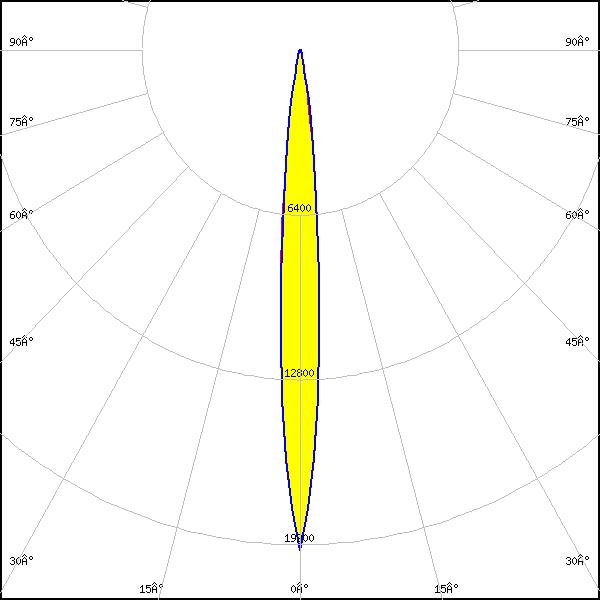

LED:
NVSxE21A
FWHM:
10°
FWTM:
20°
Peak intensity:
19.423 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19B/NVSxx19C
FWHM:
12°
FWTM:
22°
Peak intensity:
15.043 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NWSx229A
FWHM:
16°
FWTM:
32°
Peak intensity:
7.000 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White
LED:

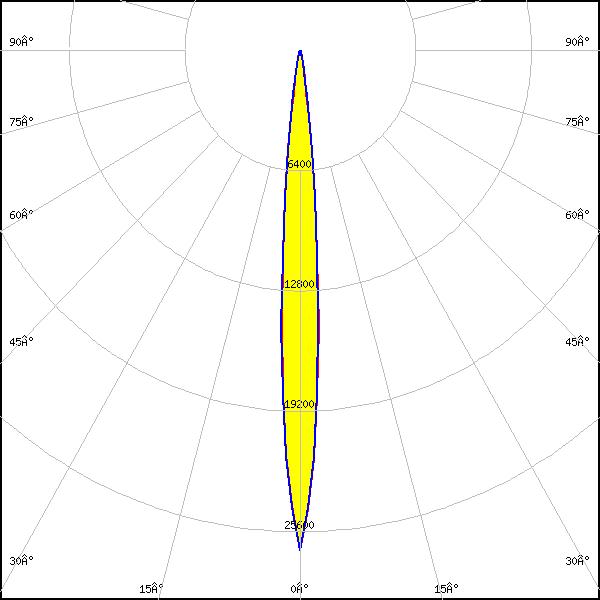

OSCONIQ C 2424 Gen1
FWHM:
8°
FWTM:
18°
Peak intensity:
26.600 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

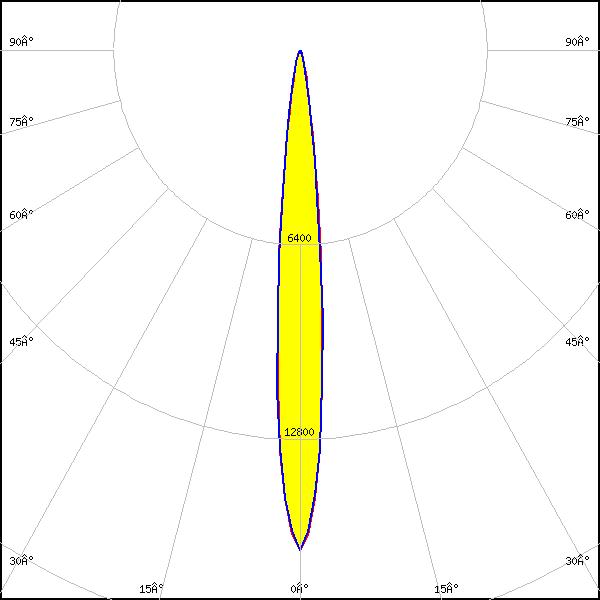

OSCONIQ P 3737 Flat
FWHM:
10°
FWTM:
22°
Peak intensity:
16.497 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Black
FWHM:
11°
FWTM:
22°
Peak intensity:
16.800 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

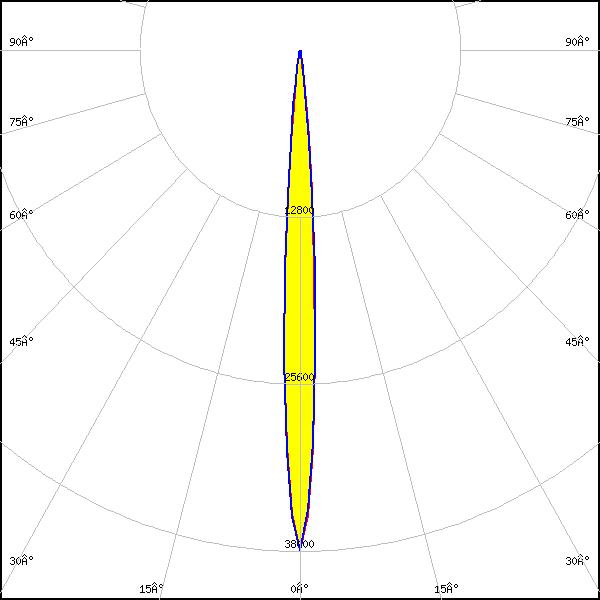

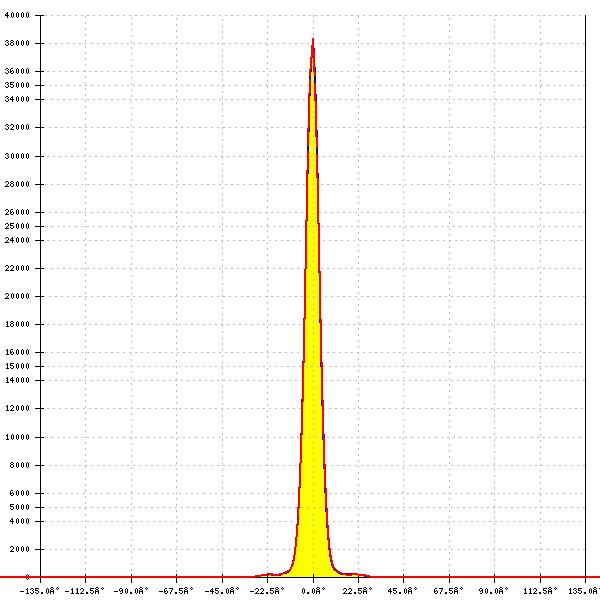

OSLON Black Flat (LUW HWQP)
FWHM:
7°
FWTM:
15°
Peak intensity:
38.300 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

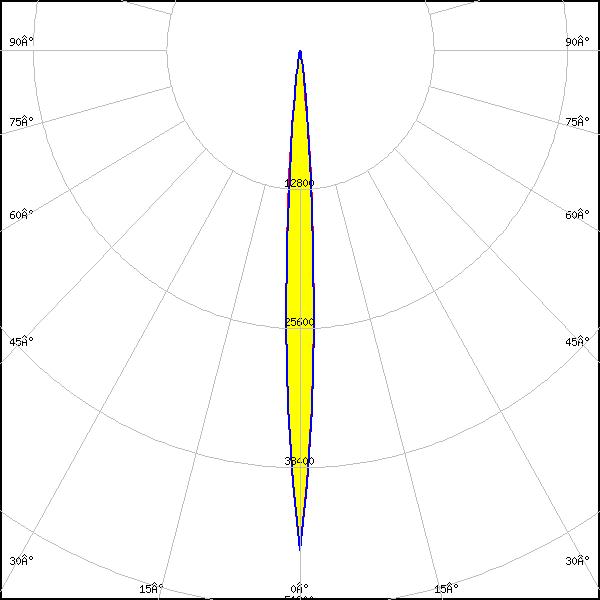

OSLON Pure 1414
FWHM:
6°
FWTM:
14°
Peak intensity:
46.014 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

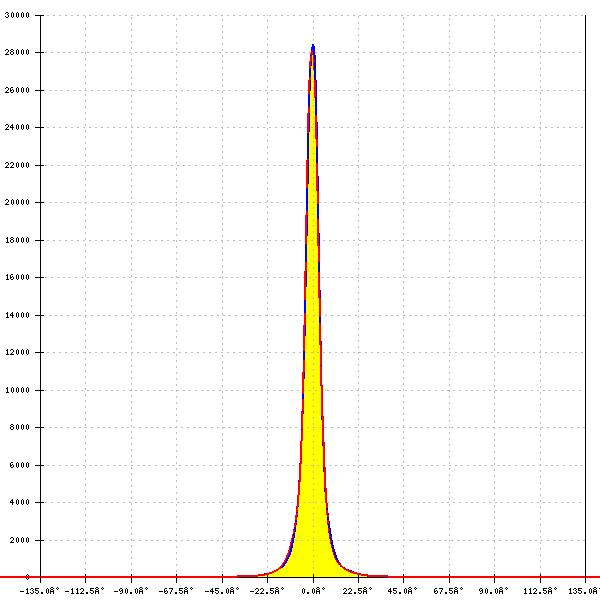

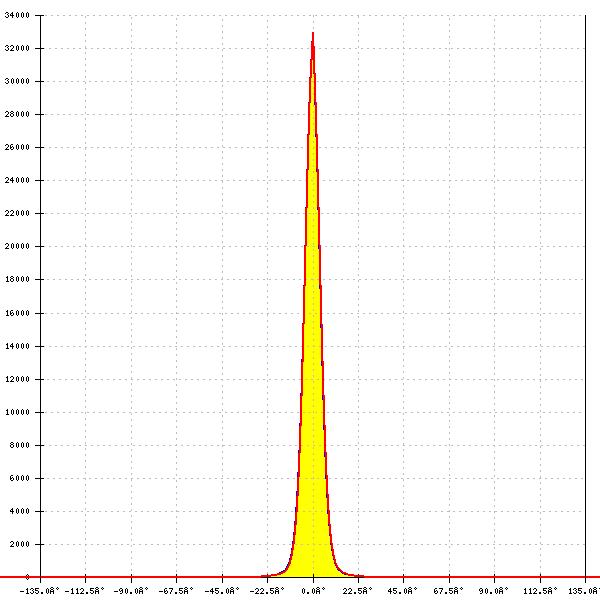

LED:

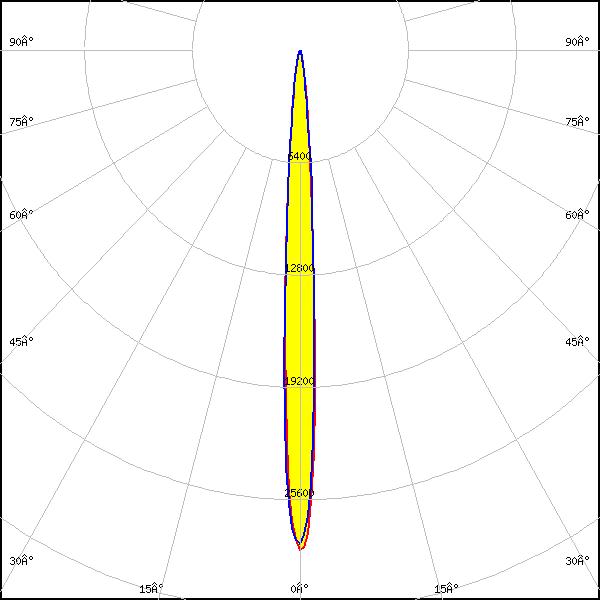

OSLON SSL 150
FWHM:
8°
FWTM:
16°
Peak intensity:
32.968 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON SSL 150
FWHM:
7°
FWTM:
16°
Peak intensity:
28.500 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
PLPVEC2 850A
FWHM:
6°
FWTM:
16°
LEDs/each optic:
1
Light colour/type:
IR

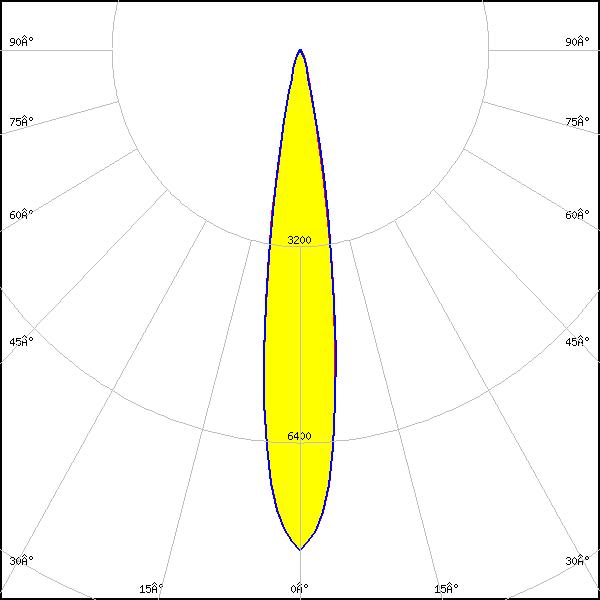

LED:
LH351D
FWHM:
16°
FWTM:
29°
Peak intensity:
8.152 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

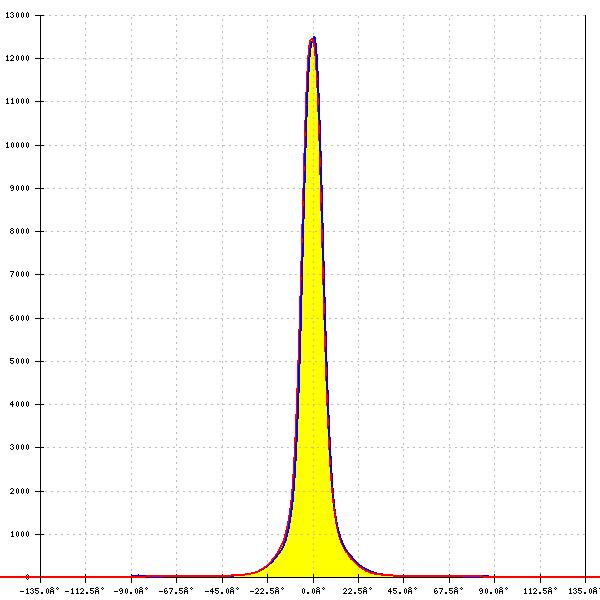

LED:

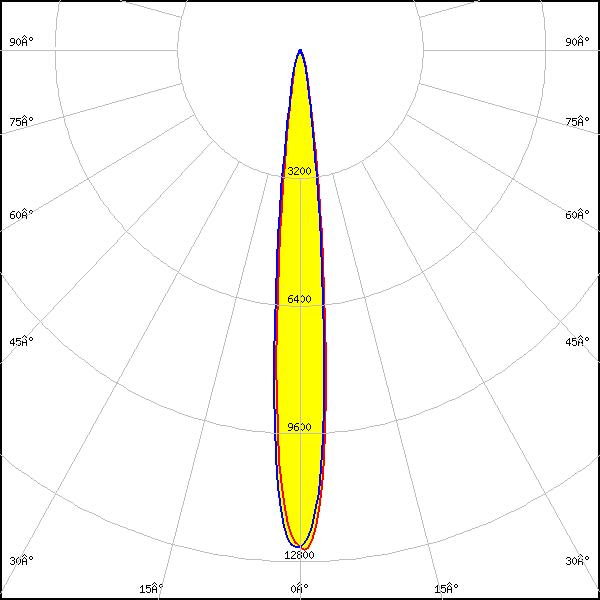

Z5M3
FWHM:
11°
FWTM:
23°
Peak intensity:
12.500 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

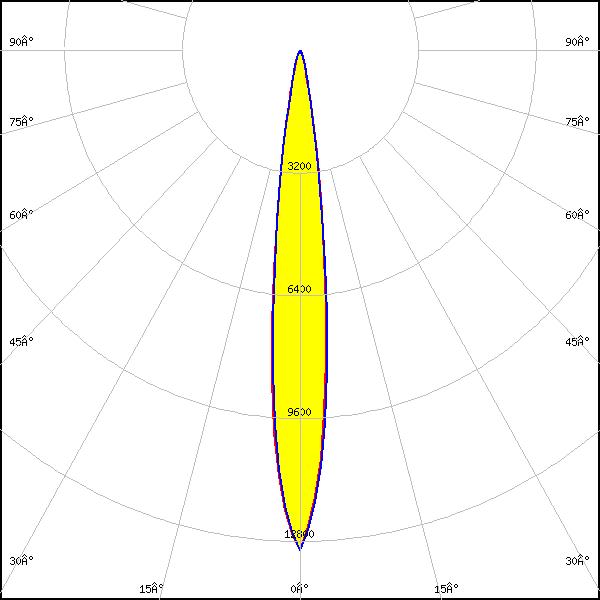

LED:
Z5M4
FWHM:
12°
FWTM:
25°
Peak intensity:
13.036 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

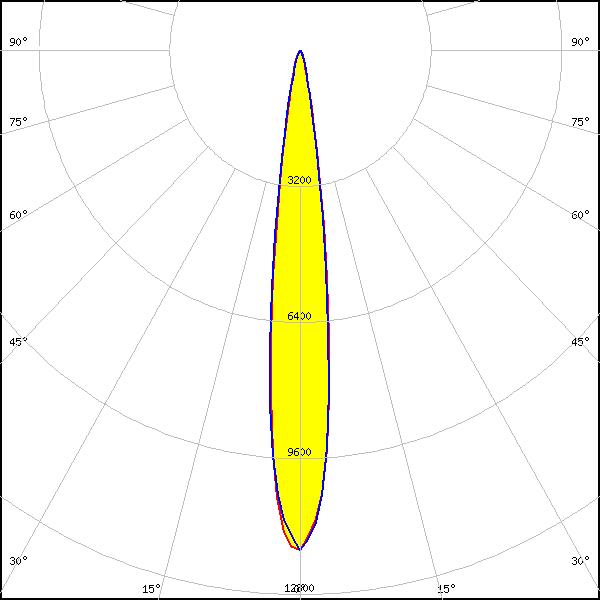

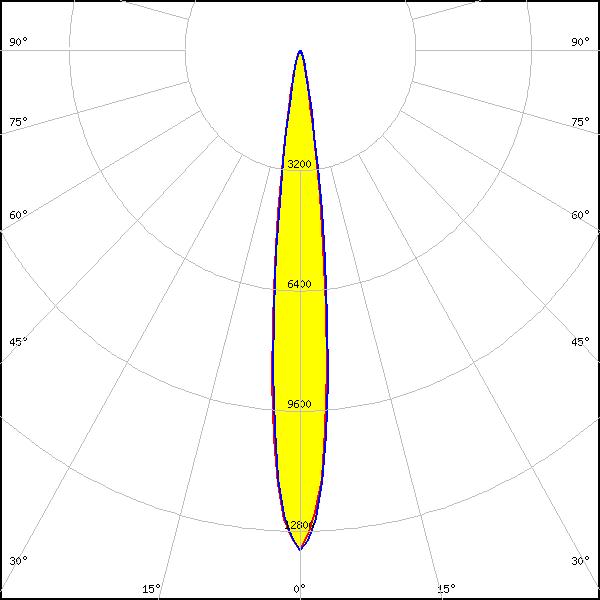

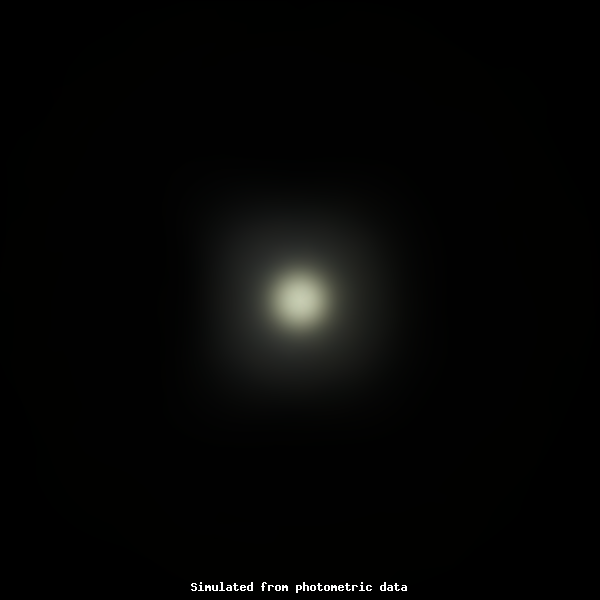

LED:
Z5M4-E1
FWHM:
12°
FWTM:
24°
Peak intensity:
13.302 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White
LED:

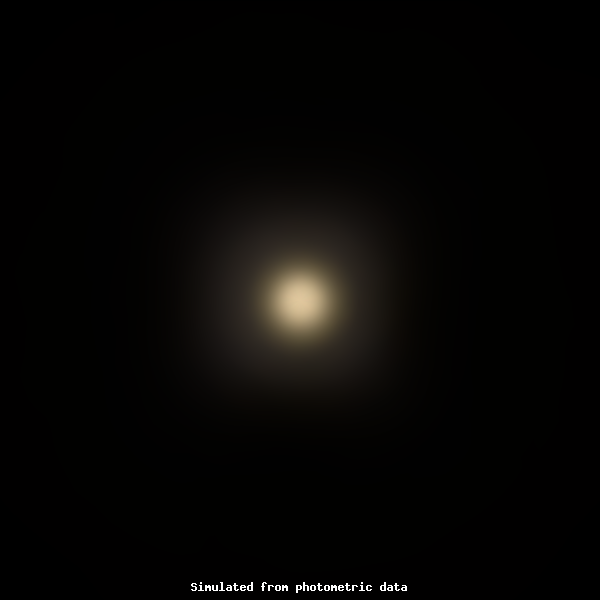

Z5M4-E2
FWHM:
14°
FWTM:
26°
Peak intensity:
11.761 cd/lm
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
White

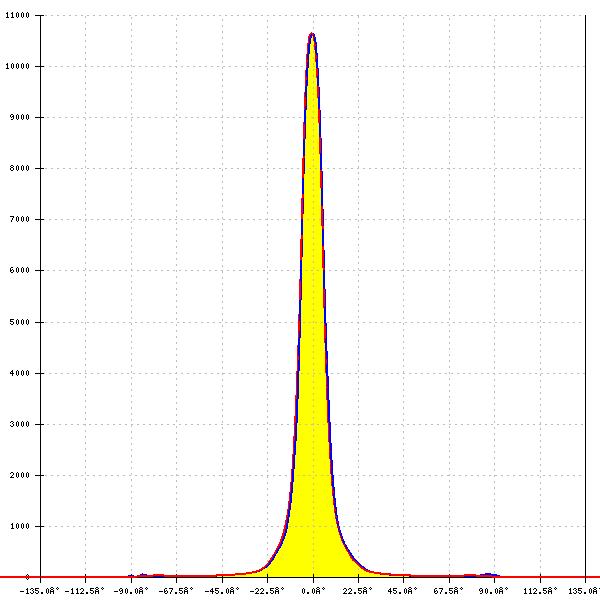

LED:

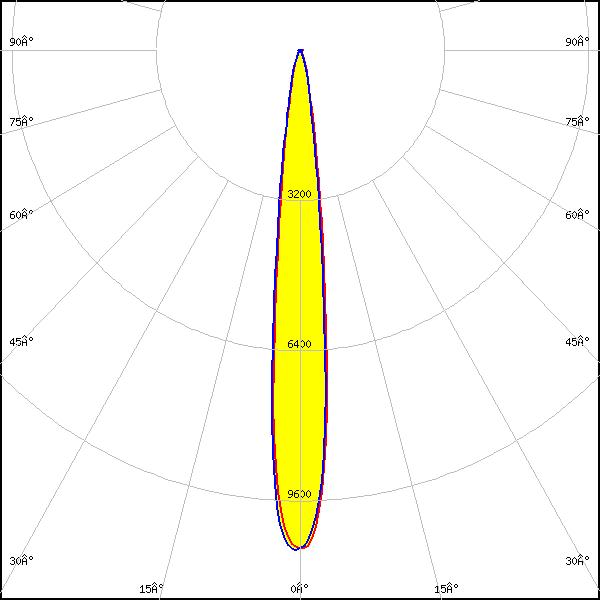

Z8Y22P
FWHM:
12°
FWTM:
25°
Peak intensity:
10.700 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MGN1108MS
FWHM:
8°
FWTM:
14°
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
IR
LED:
MJN1108MS
FWHM:
8°
FWTM:
14°
Efficiency:
97 %
LEDs/each optic:
1
Light colour/type:
IR
