CA12787_STRADA-K
Print

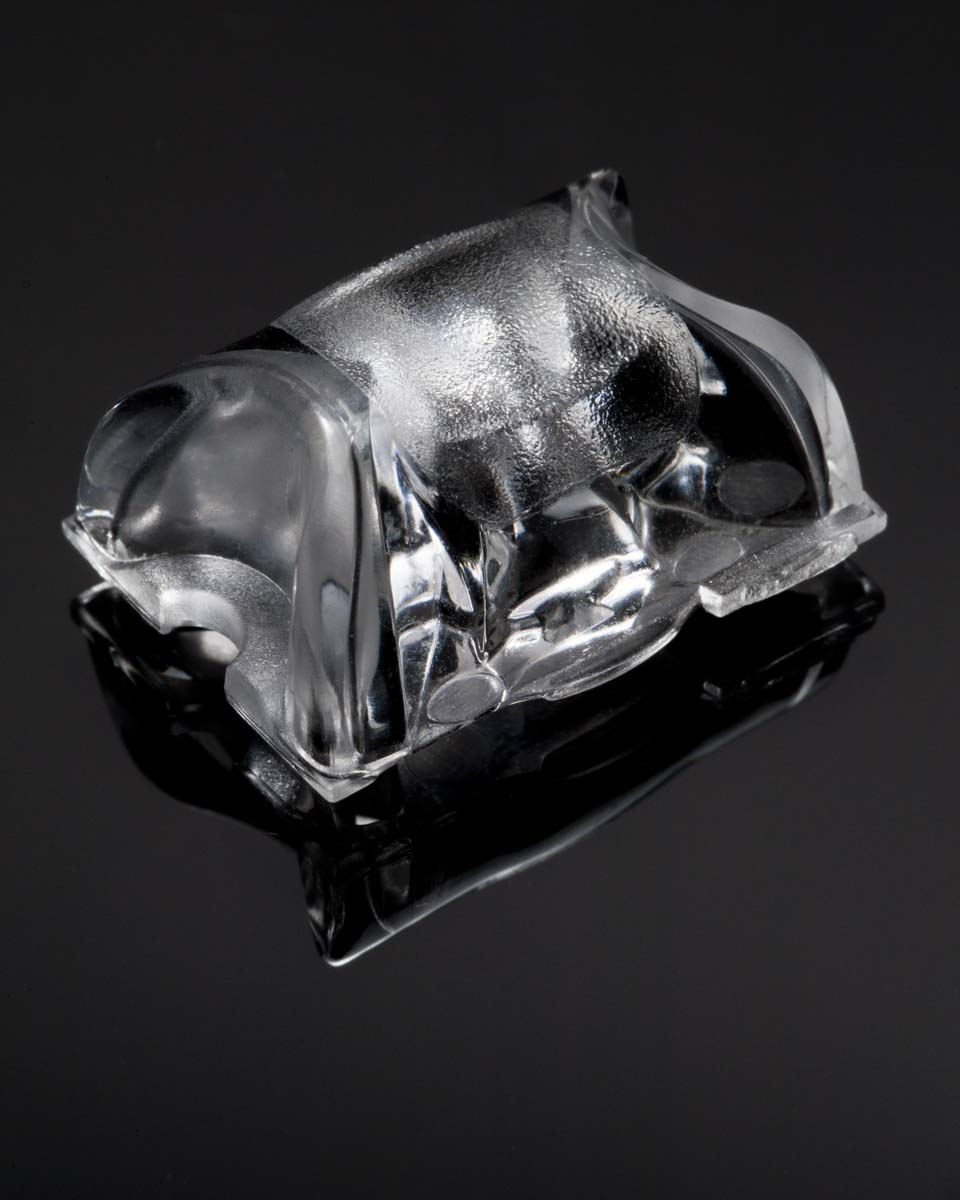

Asymmertric beam for catenary lighting. Symmetric IESNA Type I (medium) beam for narrow roads and paths with long pole distance and tilted armature. Assembly with installation tape.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

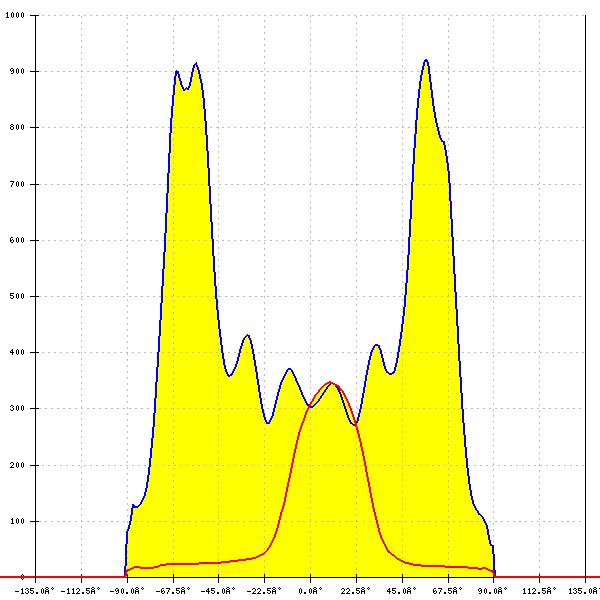

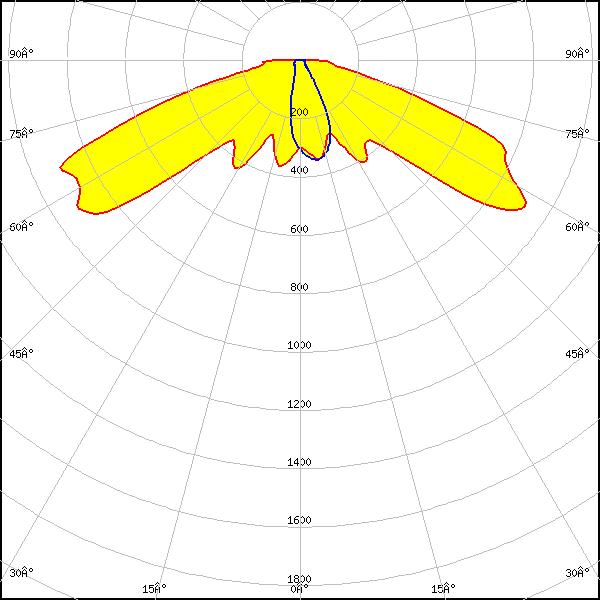

LED:
XB-D
FWHM: asymmetric
Peak intensity:
1.180 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

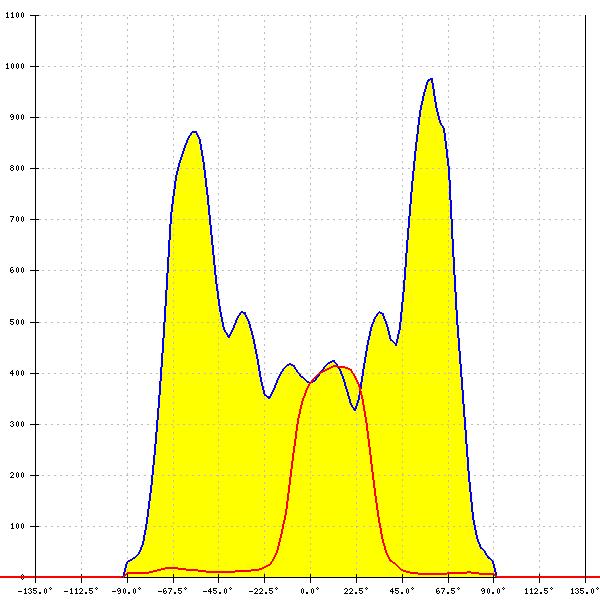

LED:

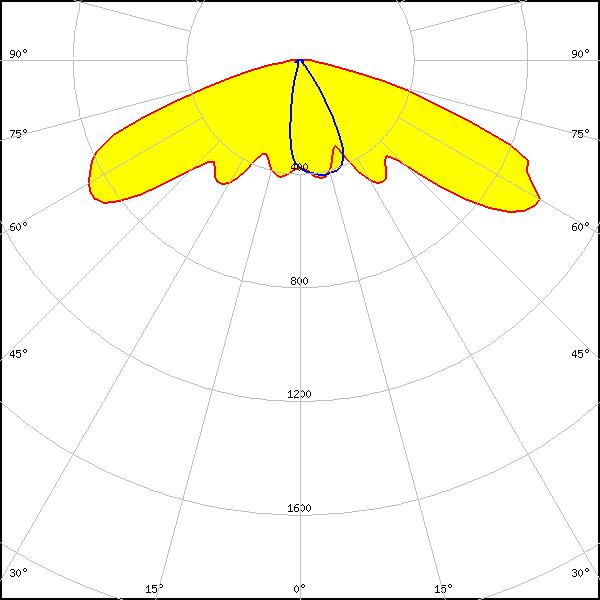

XP-E2
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

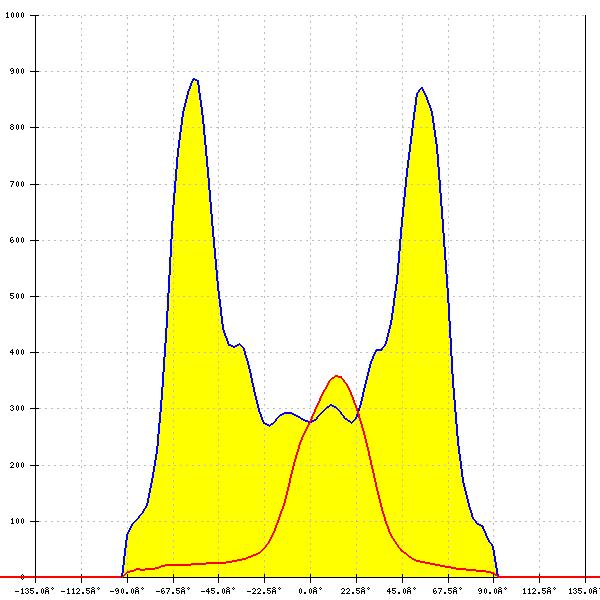

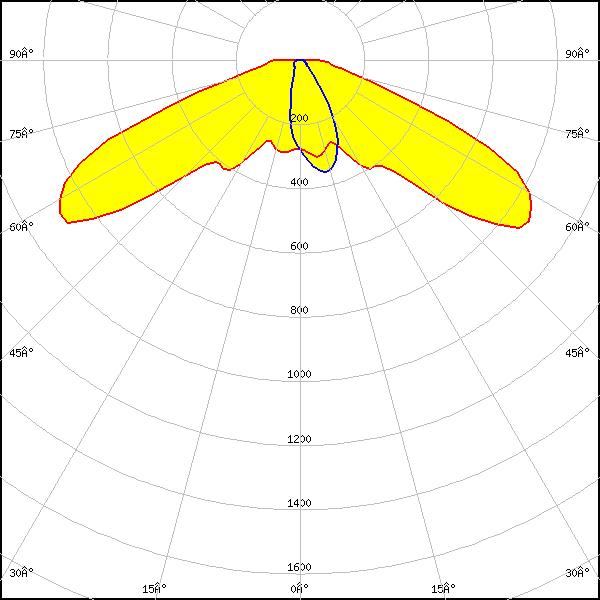

LED:
XP-G
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

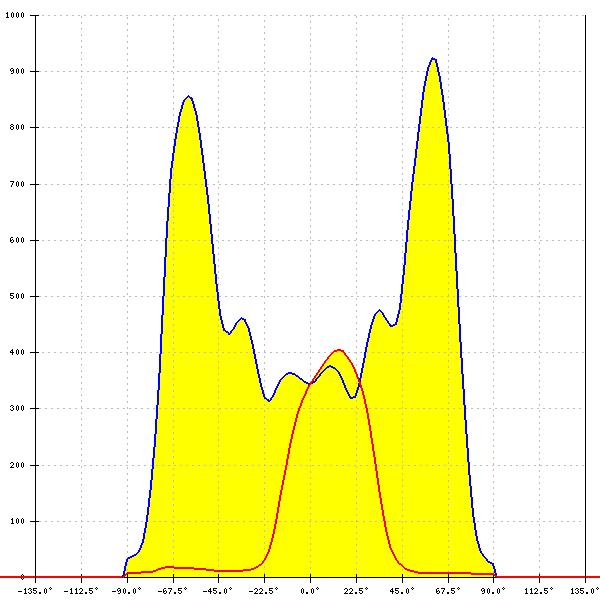

LED:

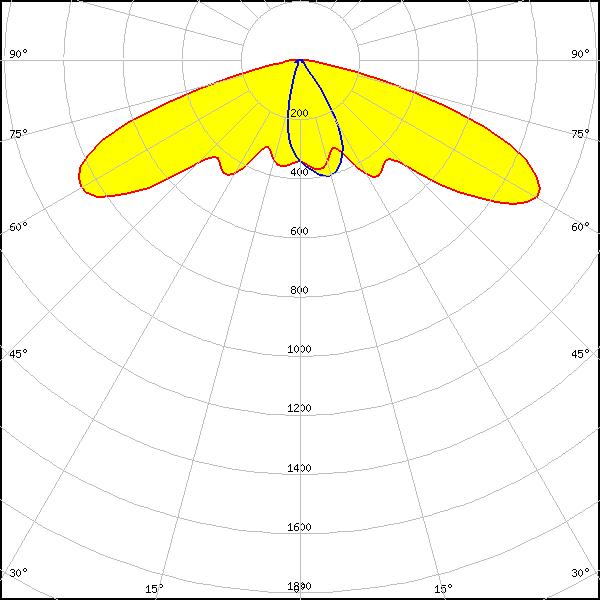

XP-G2
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

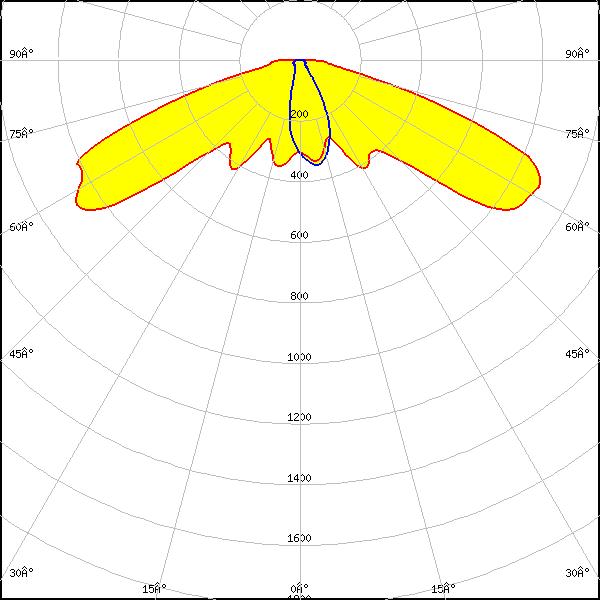

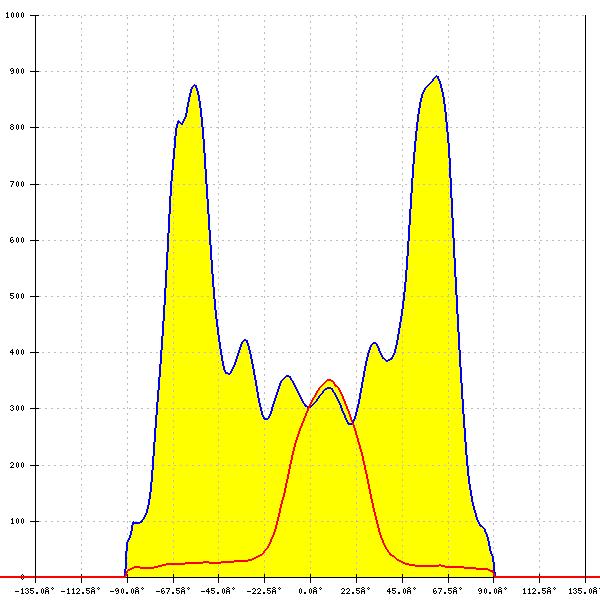

XT-E
FWHM: asymmetric
Peak intensity:
1.160 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

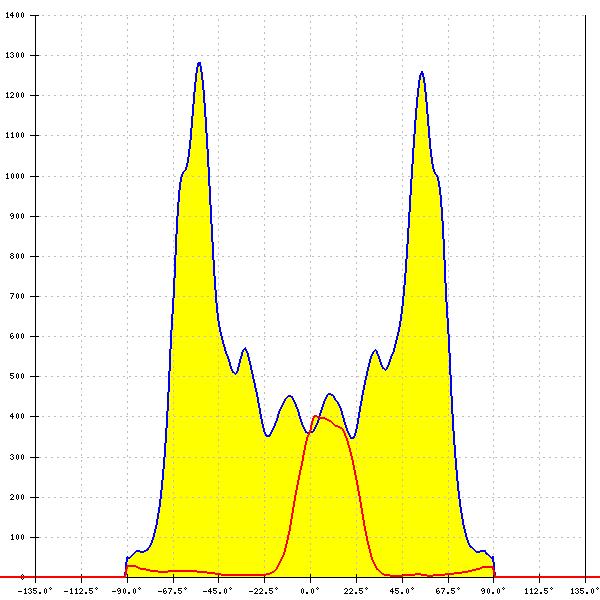

LED:

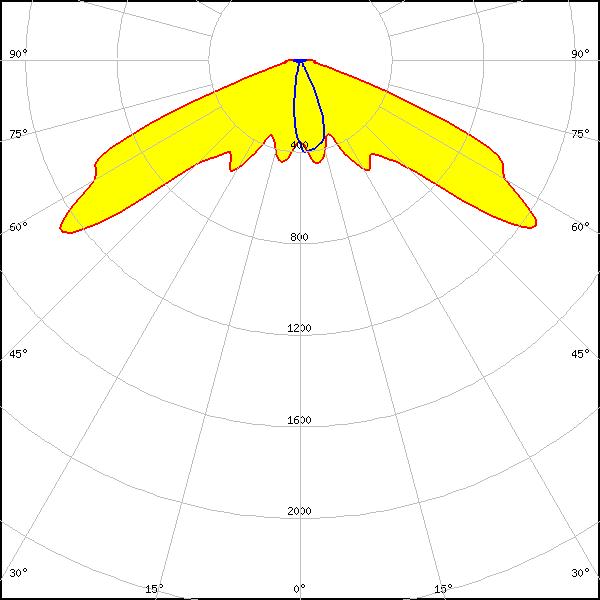

LUXEON HL1Z (White)
FWHM: asymmetric
Peak intensity:
1.492 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

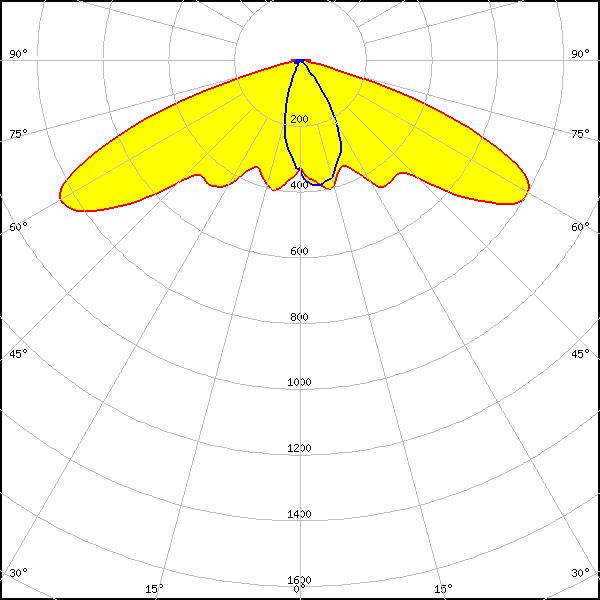

LED:

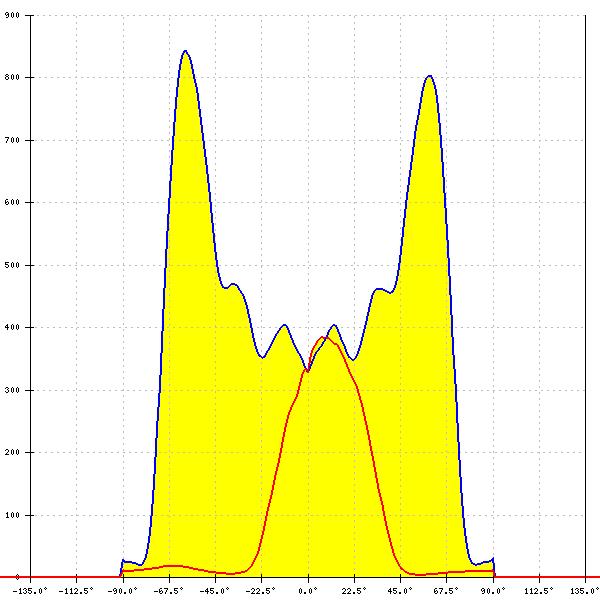

LUXEON HL2X
FWHM: asymmetric
Peak intensity:
0.888 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:

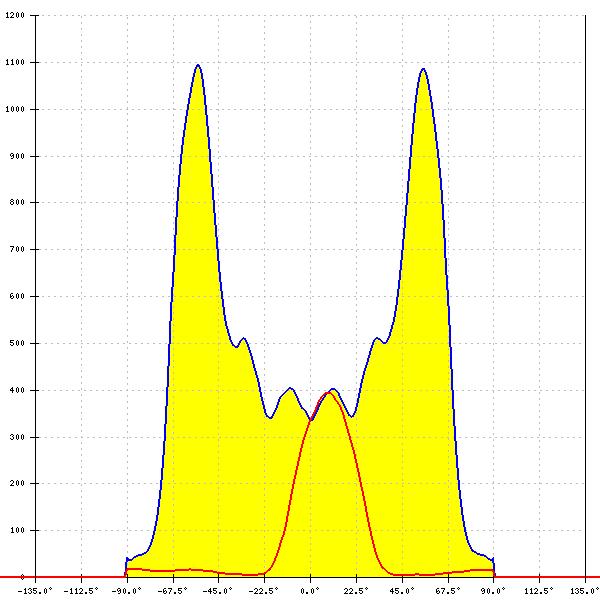

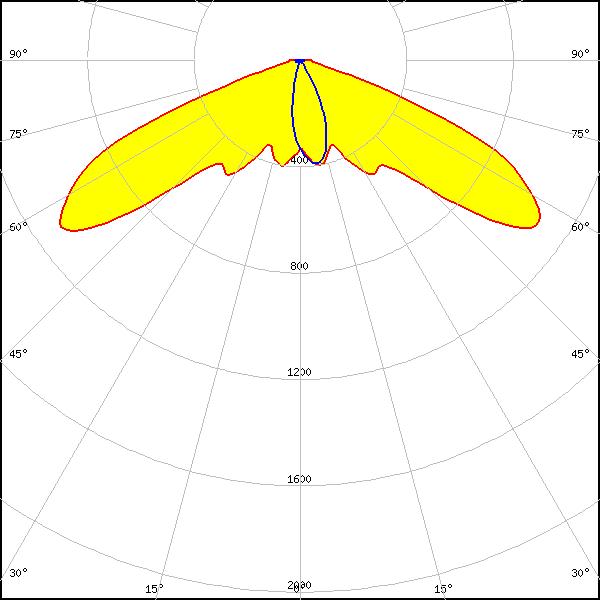

LUXEON HL2Z
FWHM: asymmetric
Peak intensity:
1.204 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

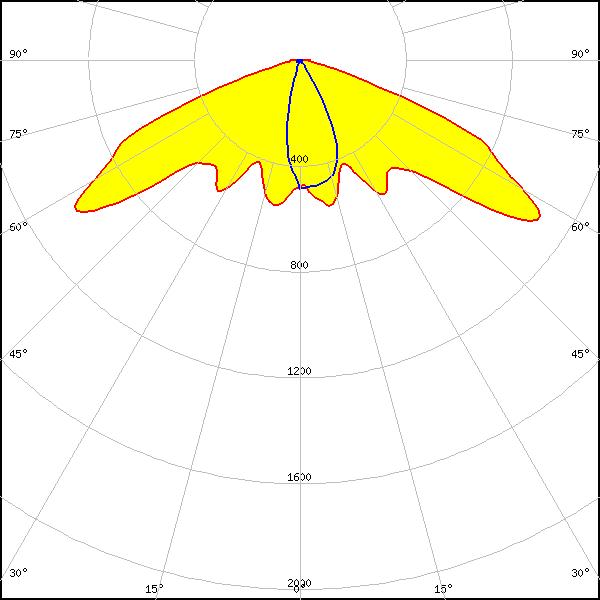

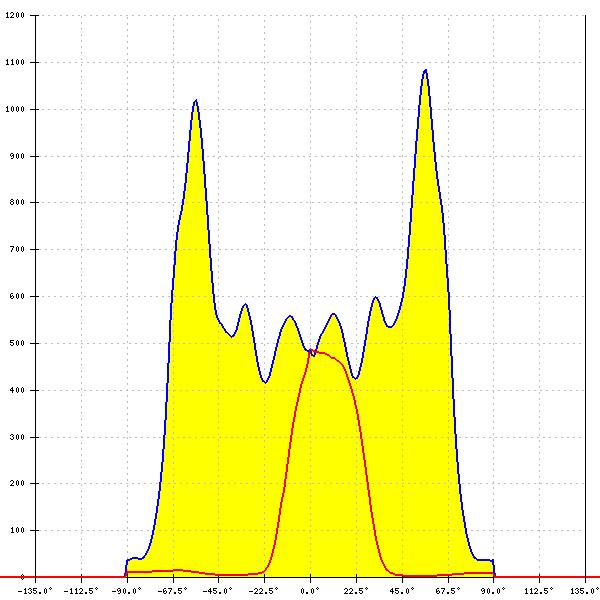

LUXEON Rebel Plus
FWHM: asymmetric
Peak intensity:
1.201 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

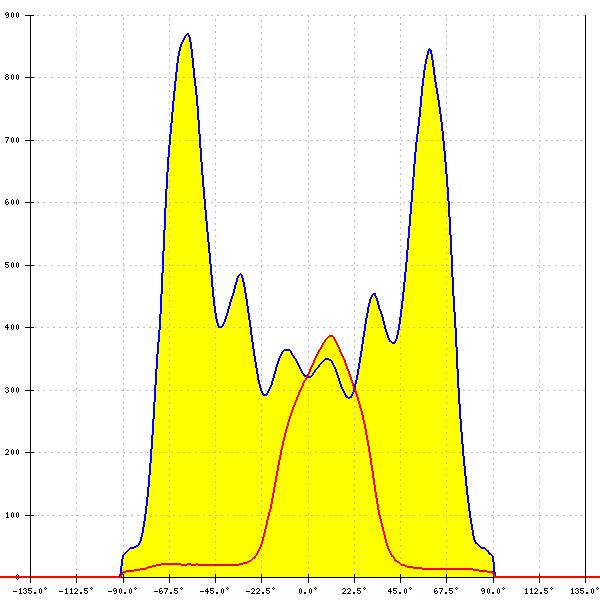

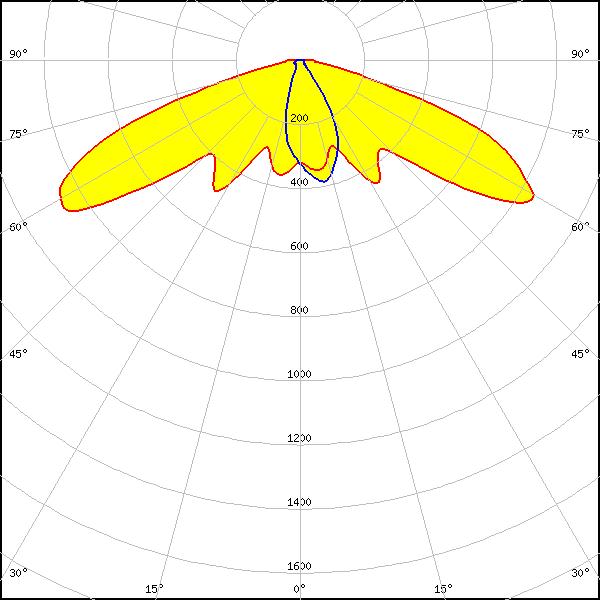

LUXEON T
FWHM: asymmetric
Peak intensity:
1.000 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

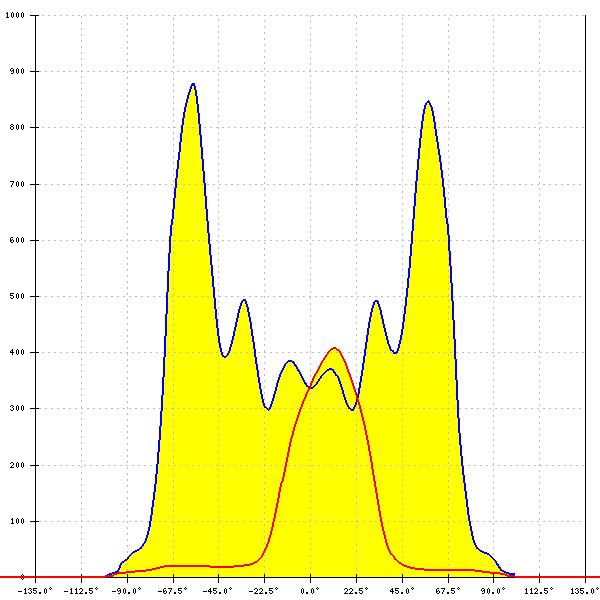

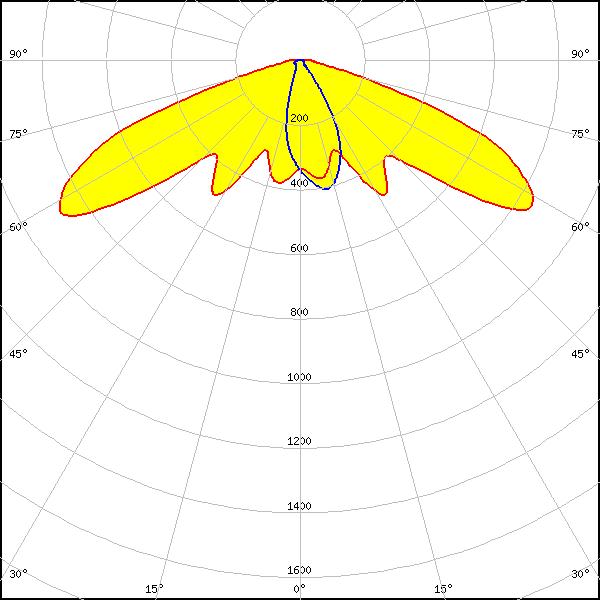

LUXEON TX
FWHM: asymmetric
Peak intensity:
1.050 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

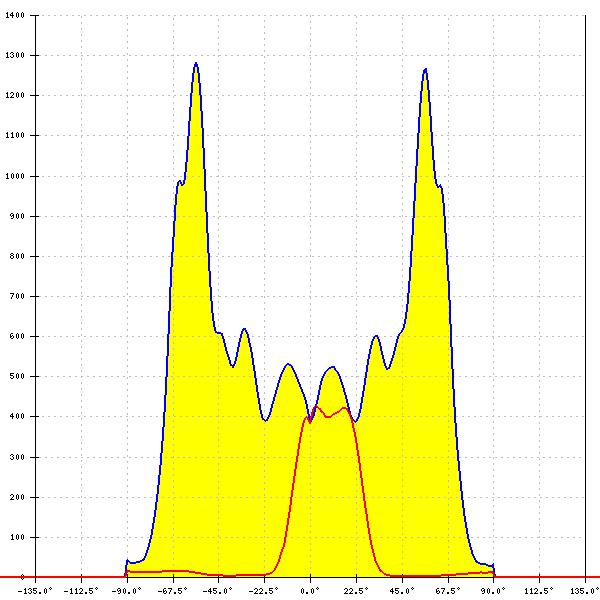

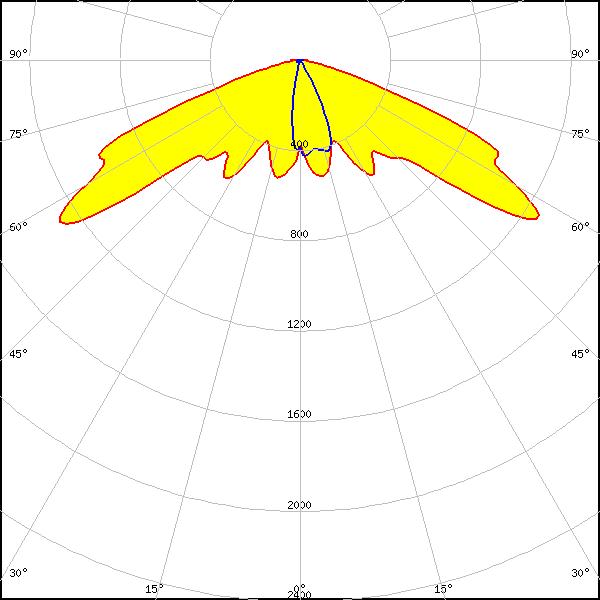

LUXEON Z
FWHM: asymmetric
Peak intensity:
1.547 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

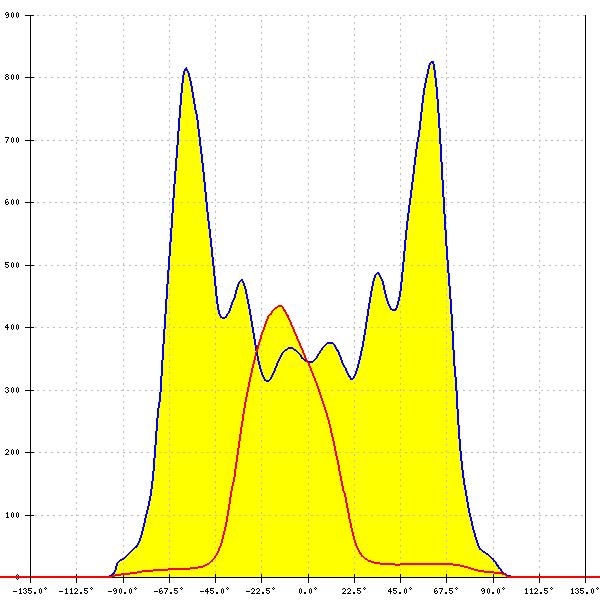

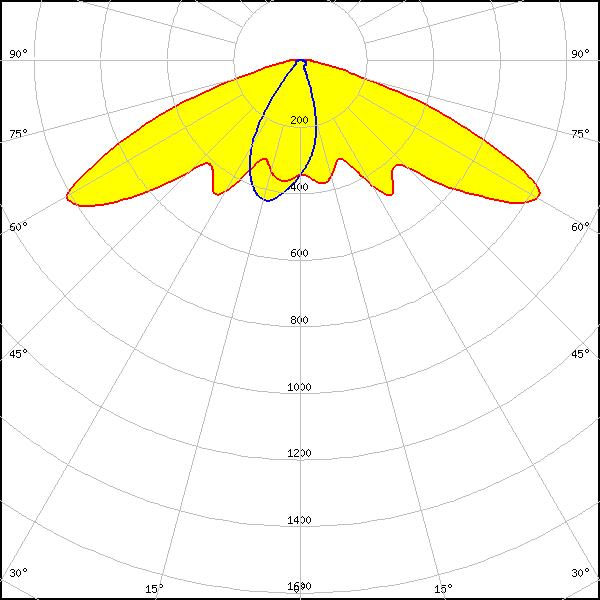

NVSW219D
FWHM: asymmetric
Peak intensity:
0.850 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

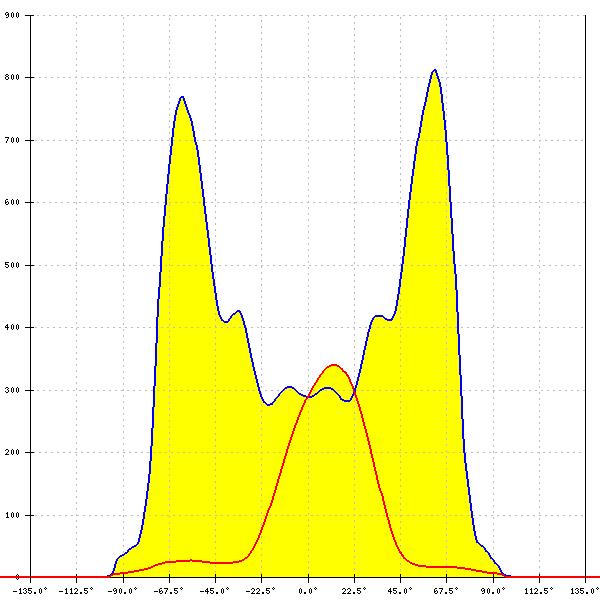

NVSW319B
FWHM: asymmetric
Peak intensity:
0.900 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

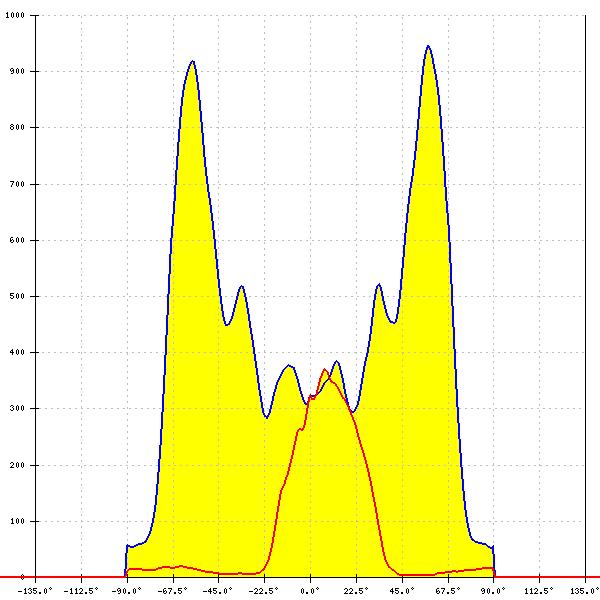

LED:
NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
1.007 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

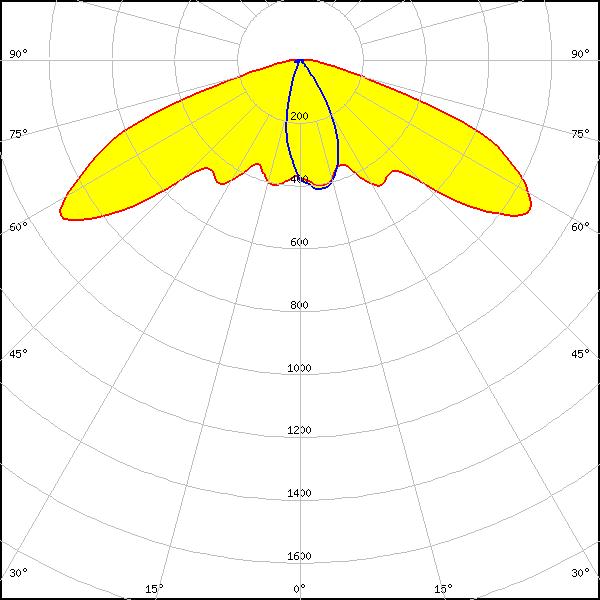

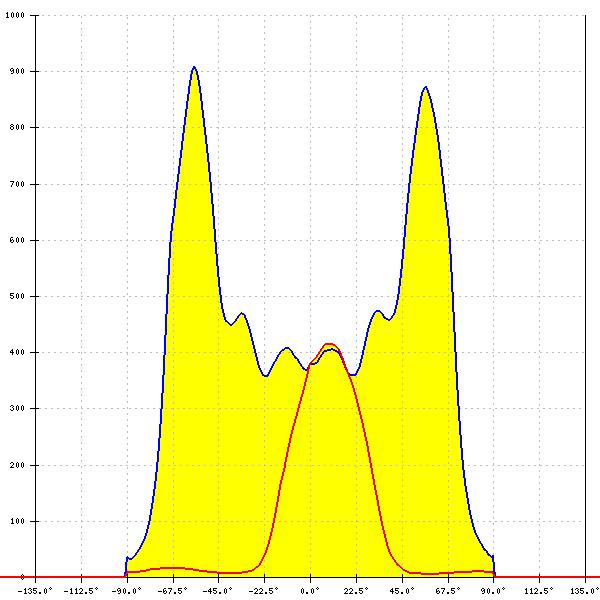

OSCONIQ P 3737 (2W version)
FWHM: asymmetric
Peak intensity:
0.990 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

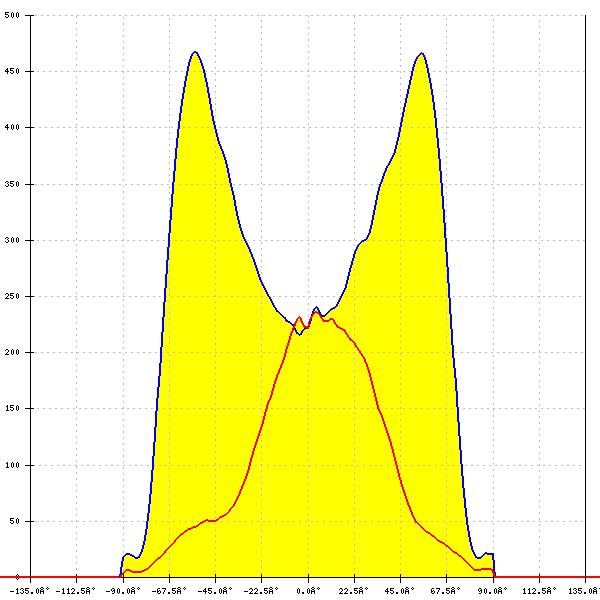

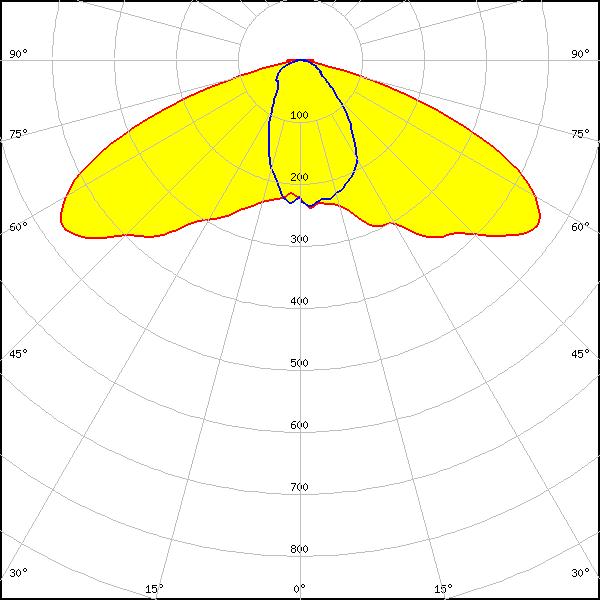

OSCONIQ S 5050 (Q9LR33)
FWHM: asymmetric
Peak intensity:
0.470 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White
LED:

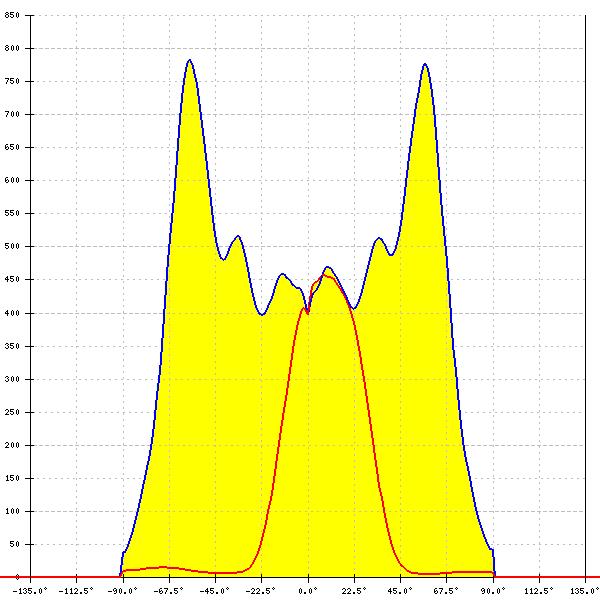

OSLON Square PC
FWHM: asymmetric
Peak intensity:
0.840 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

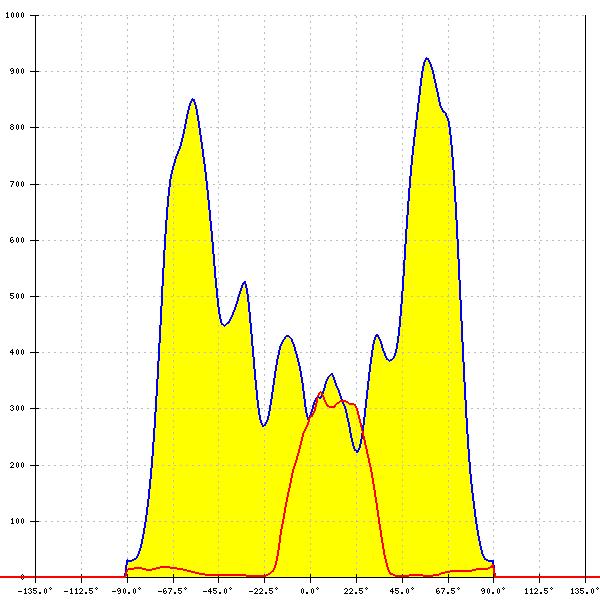

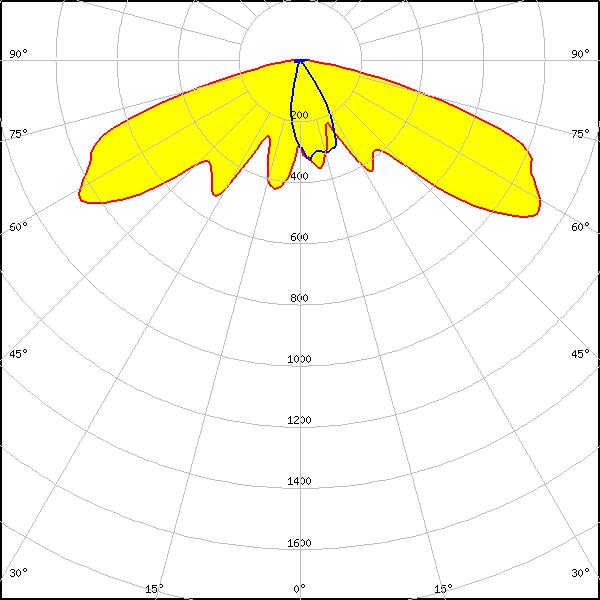

LH351A
FWHM: asymmetric
Peak intensity:
0.990 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

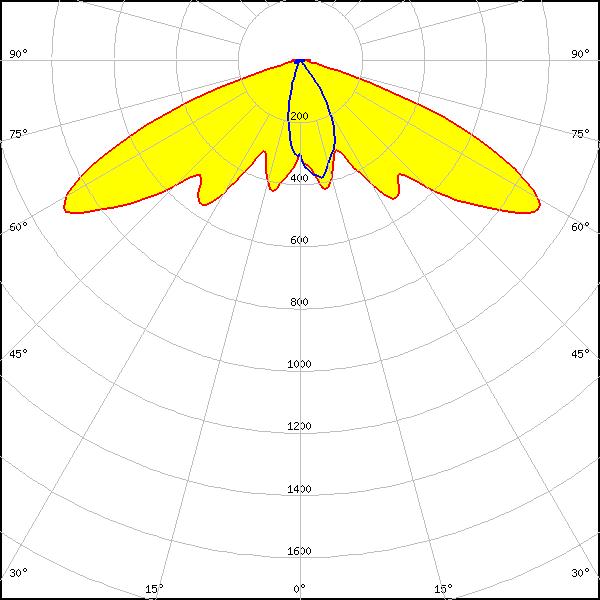

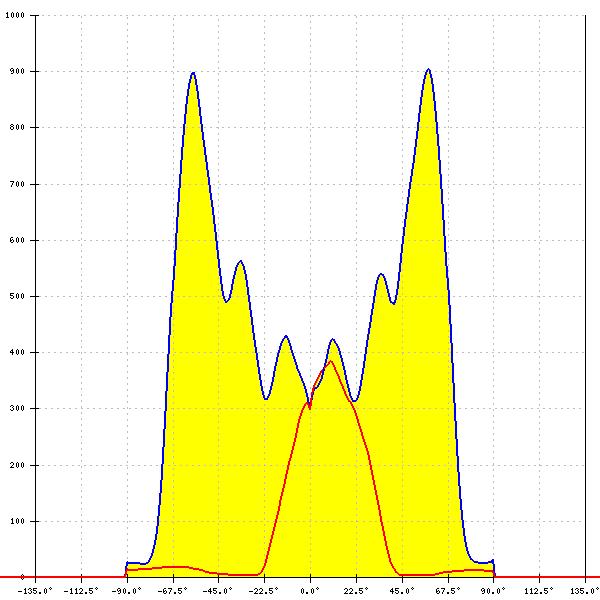

LH351B
FWHM: asymmetric
Peak intensity:
0.950 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

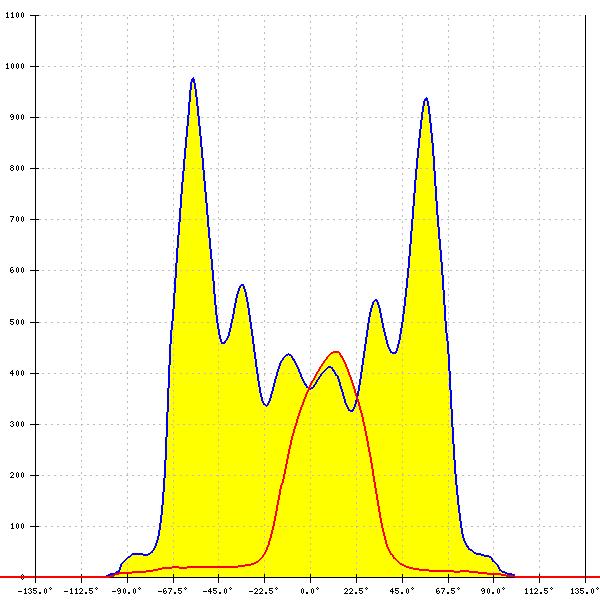

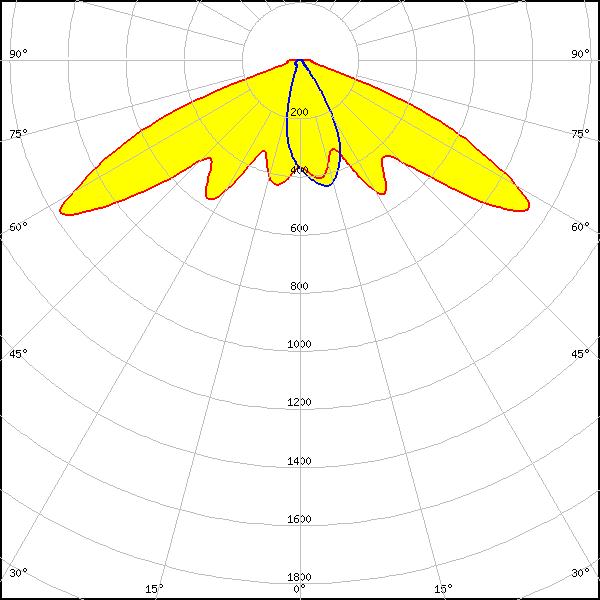

LH351Z
FWHM: asymmetric
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

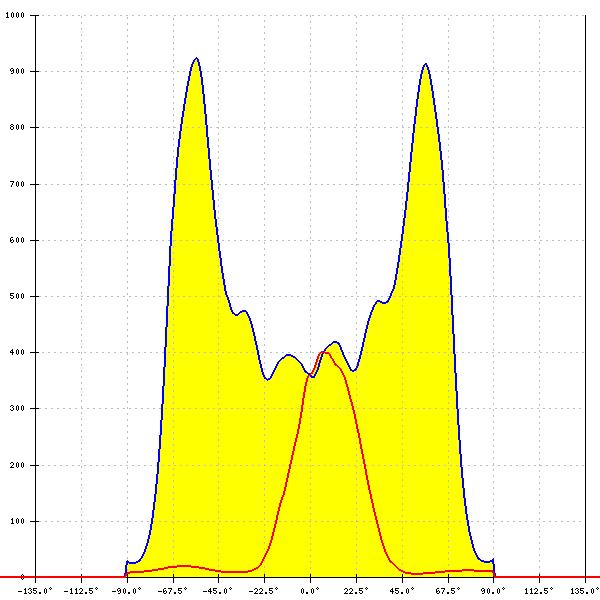

LM301B
FWHM: asymmetric
Peak intensity:
1.005 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White
LED:

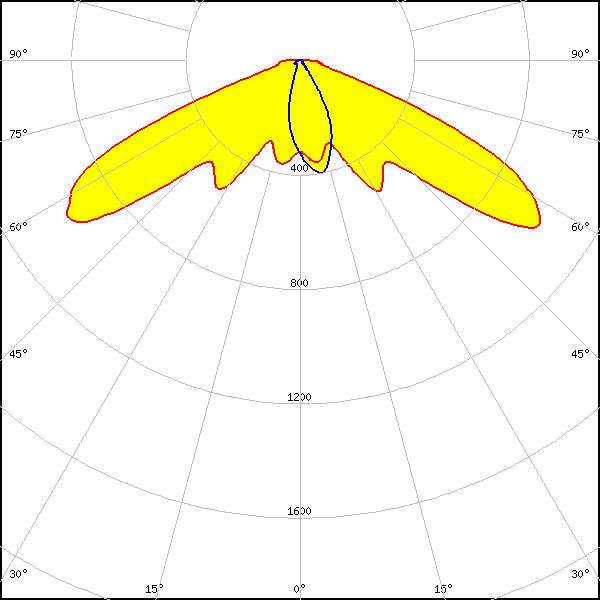

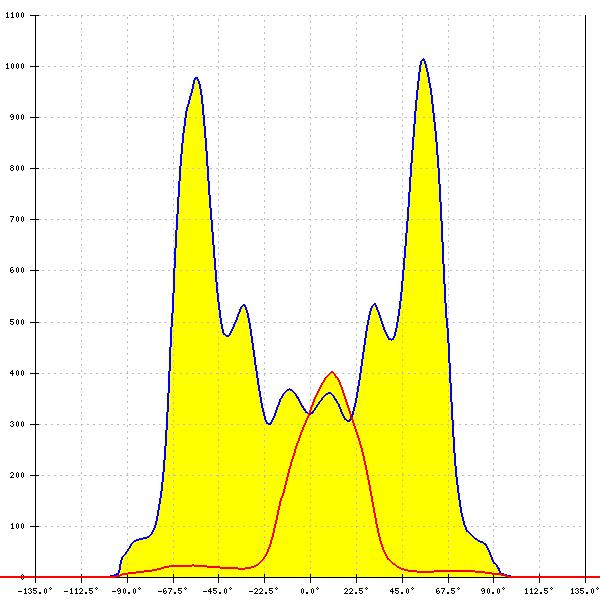

TL1L4
FWHM: asymmetric
Peak intensity:
1.170 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
