CA12815_HEIDI-O-90
Print

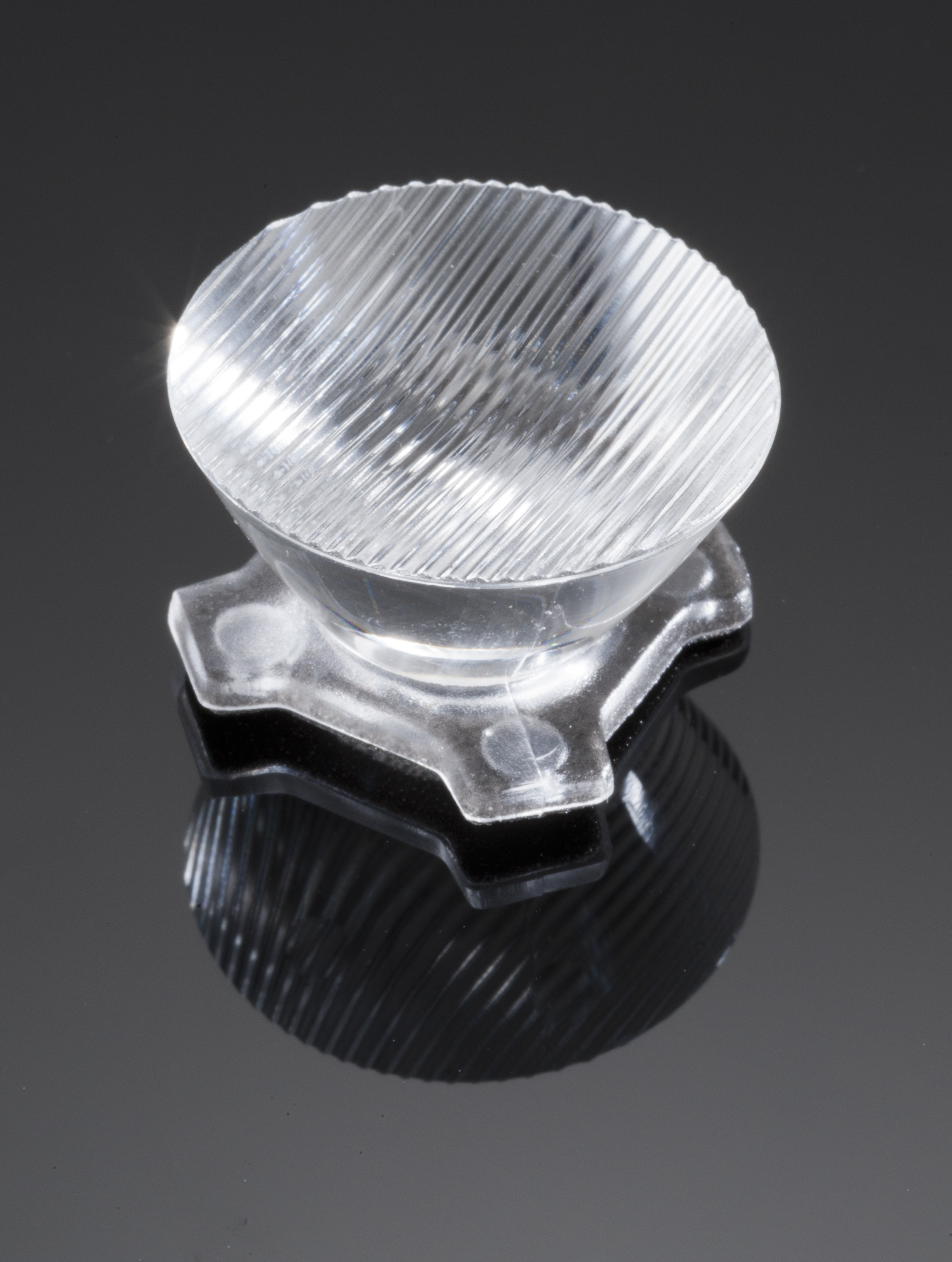

~13° x 45° oval beam optimized for Luxeon Rebel. Variant with beam direction rotated 90°.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results
LED:
XHP35 HD
FWHM:
17° + 38°
FWTM:
44° + 68°
Peak intensity:
3.230 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White
LED:

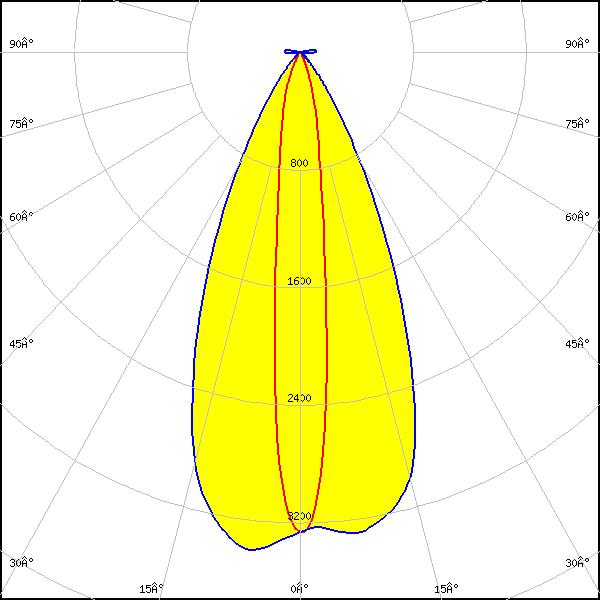

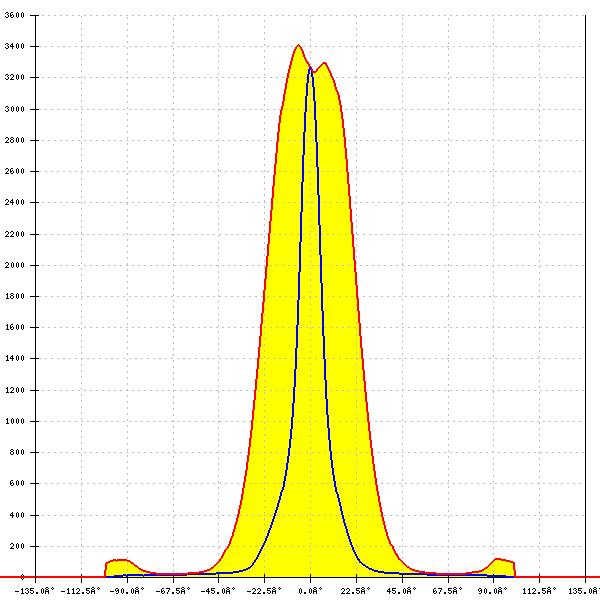

XHP35 HI
FWHM:
13° + 47°
FWTM:
36° + 73°
Peak intensity:
3.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

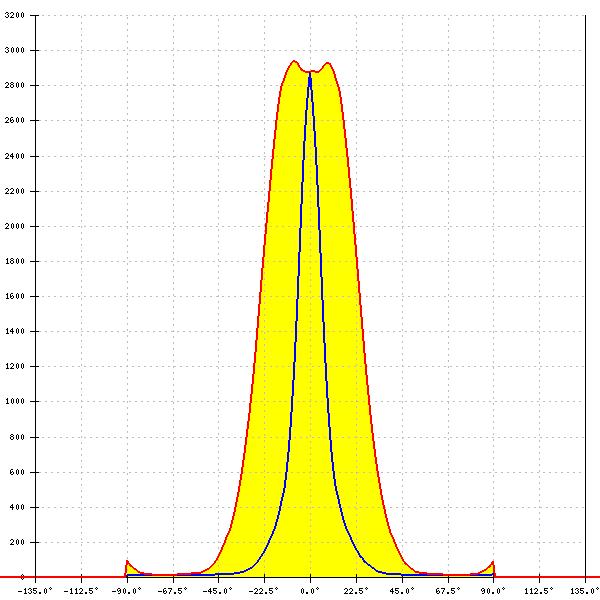

LED:
XP-G2 HE
FWHM:
14° + 50°
FWTM:
34° + 78°
Peak intensity:
2.938 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

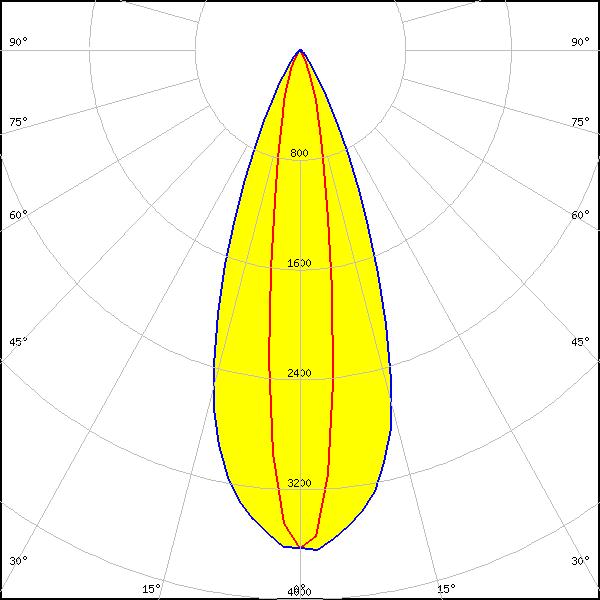

LED:

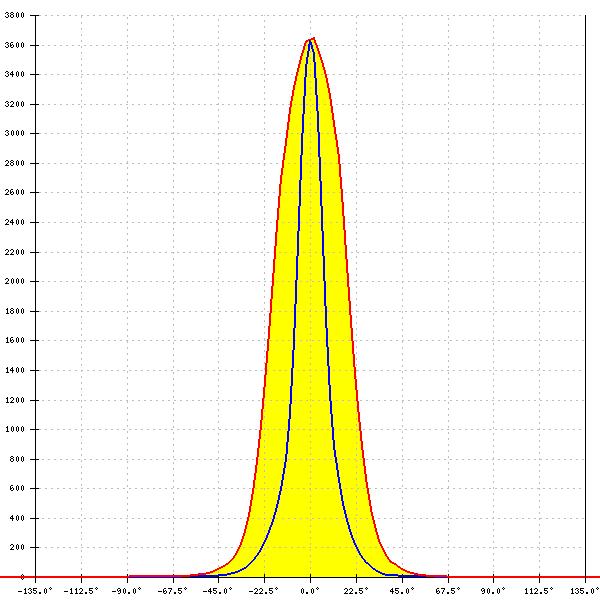

XP-L HD
FWHM:
16° + 40°
FWTM:
38° + 63°
Peak intensity:
3.600 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

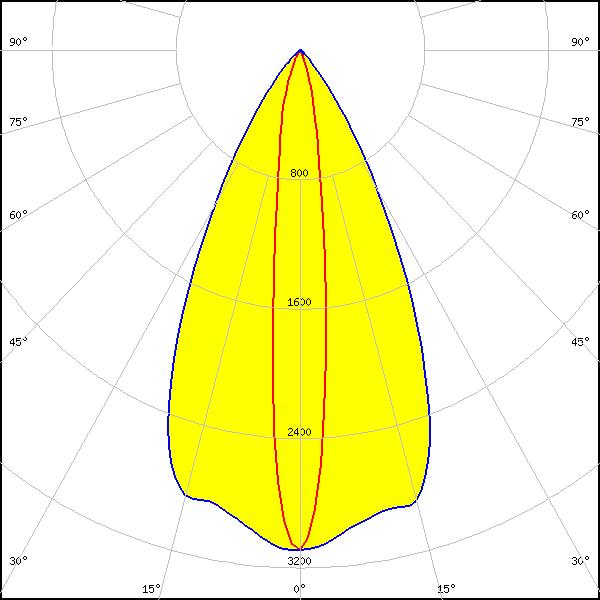

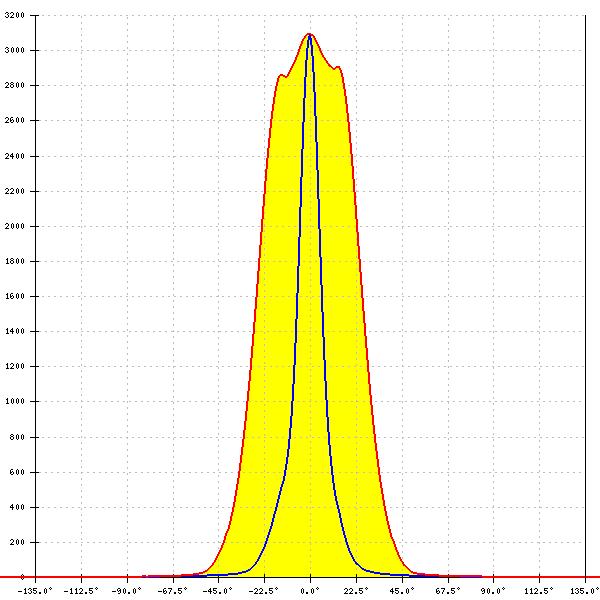

LED:
LUXEON A
FWHM:
14° + 54°
FWTM:
34° + 79°
Peak intensity:
3.090 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

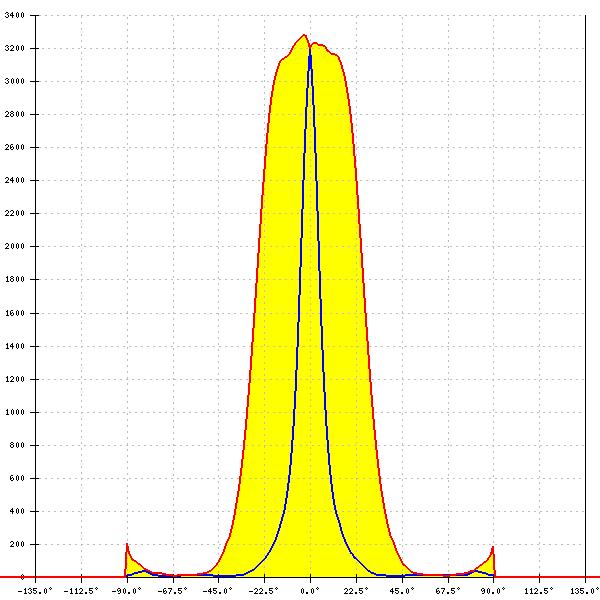

LED:

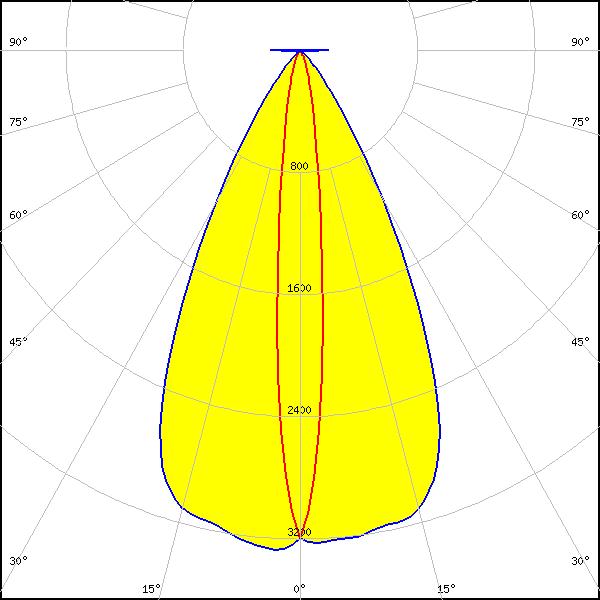

LUXEON HL2Z
FWHM:
12° + 54°
FWTM:
28° + 76°
Peak intensity:
3.279 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

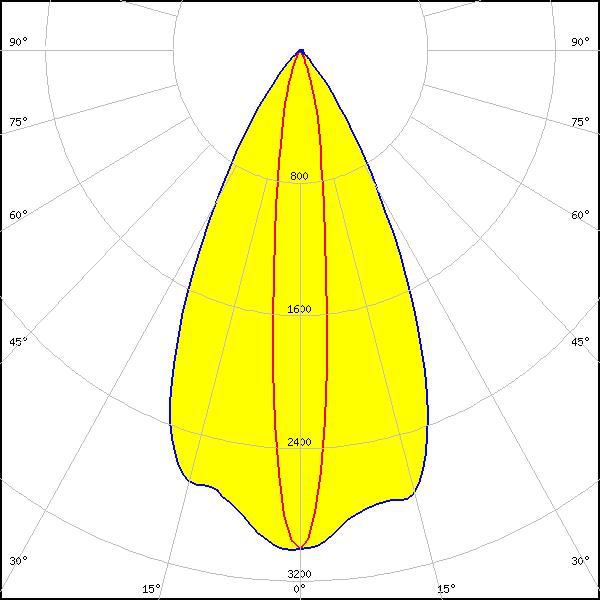

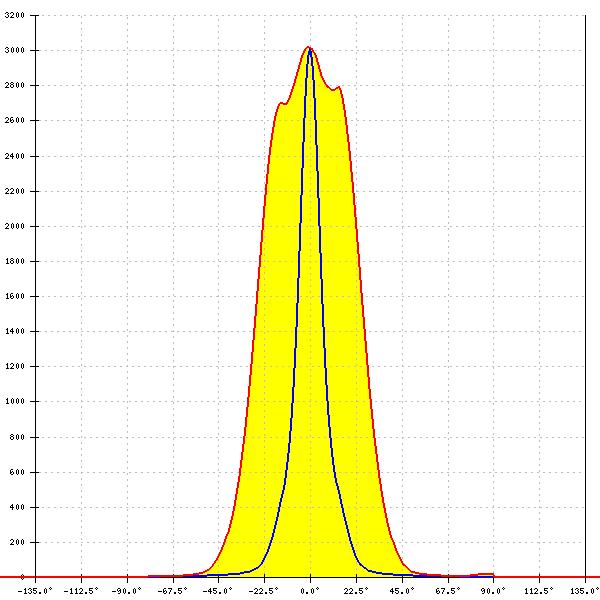

LUXEON R
FWHM:
13° + 54°
FWTM:
35° + 78°
Peak intensity:
3.010 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

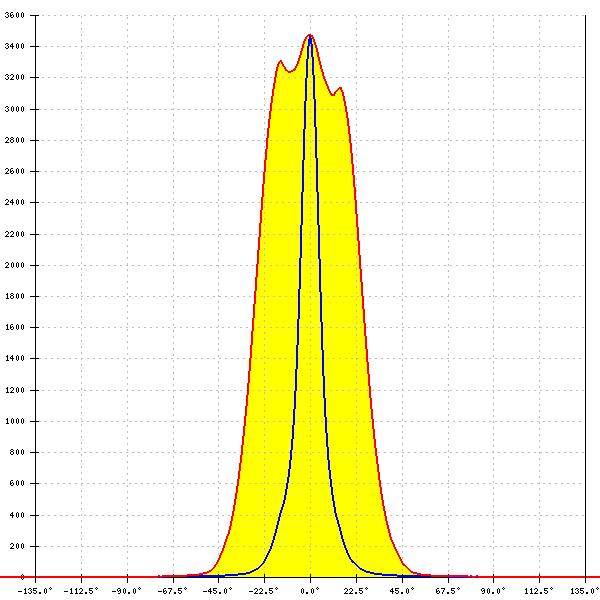

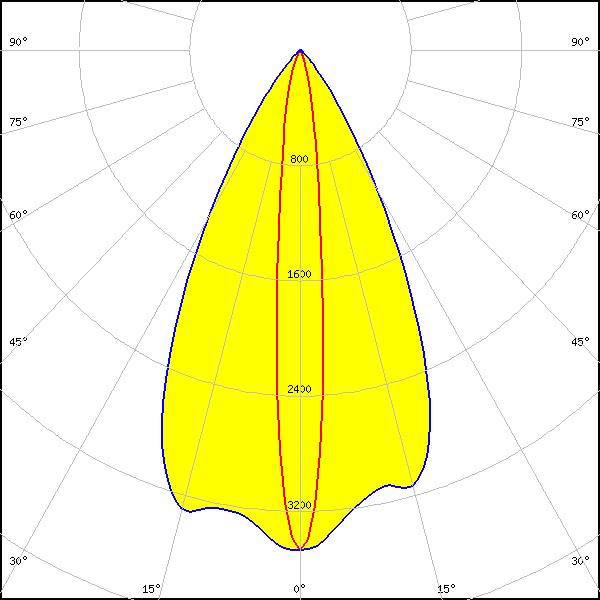

LUXEON Rebel
FWHM:
12° + 54°
FWTM:
30° + 78°
Peak intensity:
3.470 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White

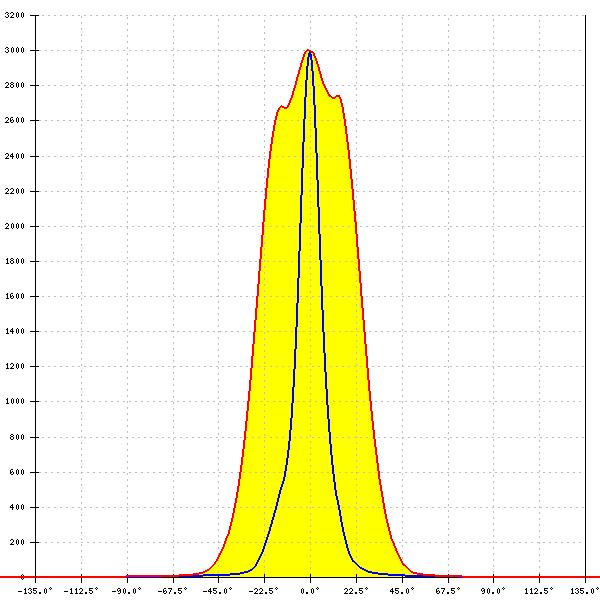

LED:

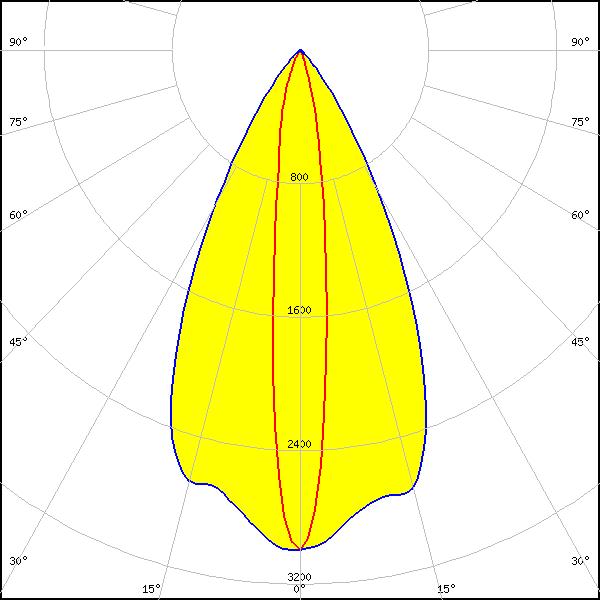

LUXEON Rebel ES
FWHM:
13° + 53°
FWTM:
35° + 79°
Peak intensity:
3.000 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

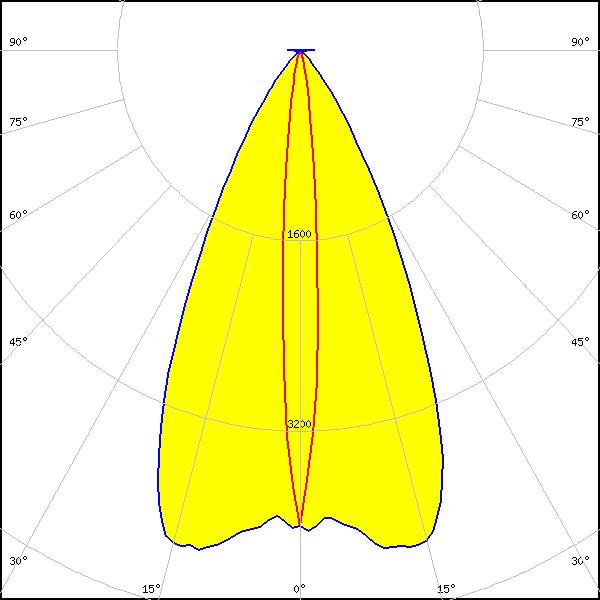

LUXEON SunPlus 20 Line (150 deg)
FWHM:
9° + 52°
FWTM:
20° + 76°
Peak intensity:
4.298 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

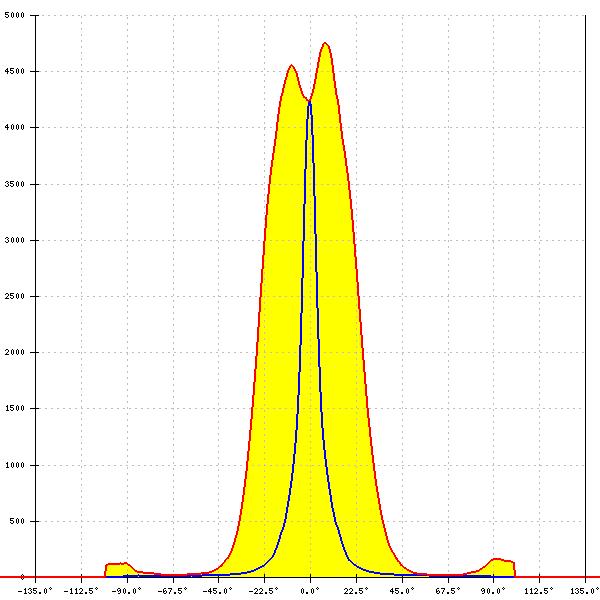

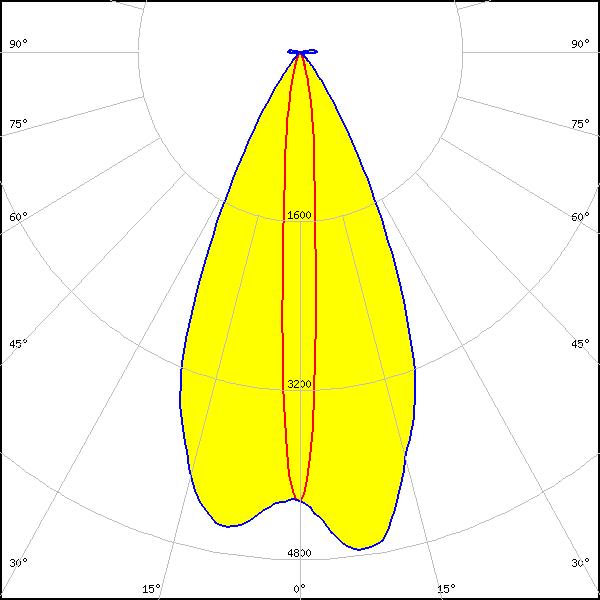

LED:
SST-10-B130
FWHM:
9° + 49°
FWTM:
27° + 71°
Peak intensity:
4.748 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
Blue
LED:

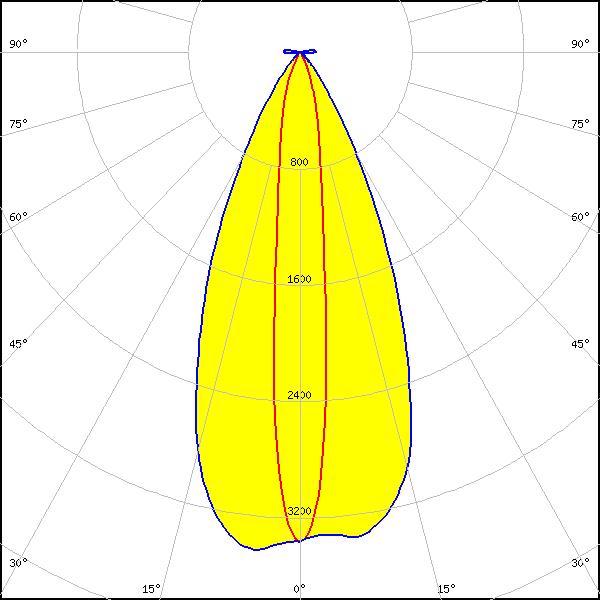

NVSW219D
FWHM:
12° + 46°
FWTM:
37° + 73°
Peak intensity:
3.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

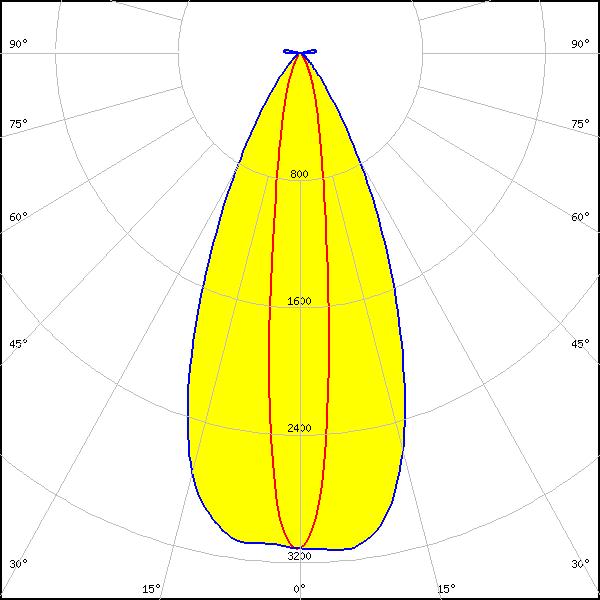

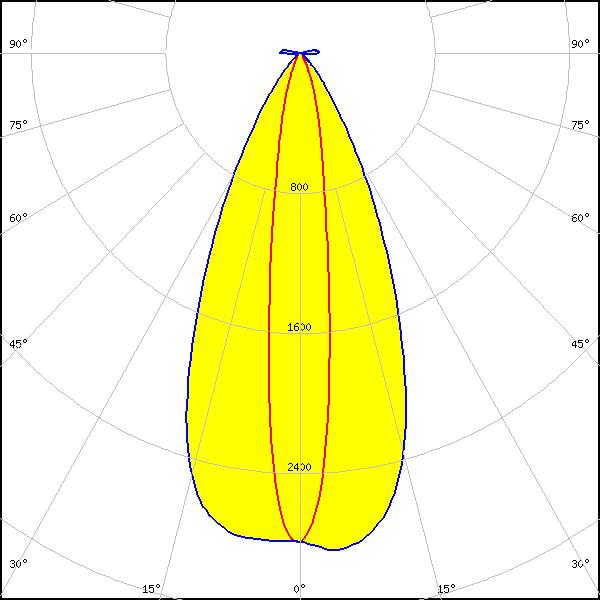

NVSW319B
FWHM:
14° + 47°
FWTM:
37° + 74°
Peak intensity:
3.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW3x9A
FWHM:
15° + 47°
FWTM:
38° + 75°
Peak intensity:
2.800 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

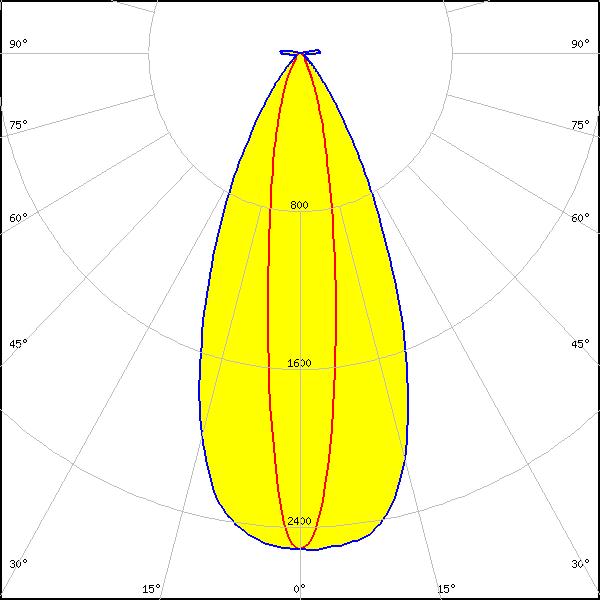

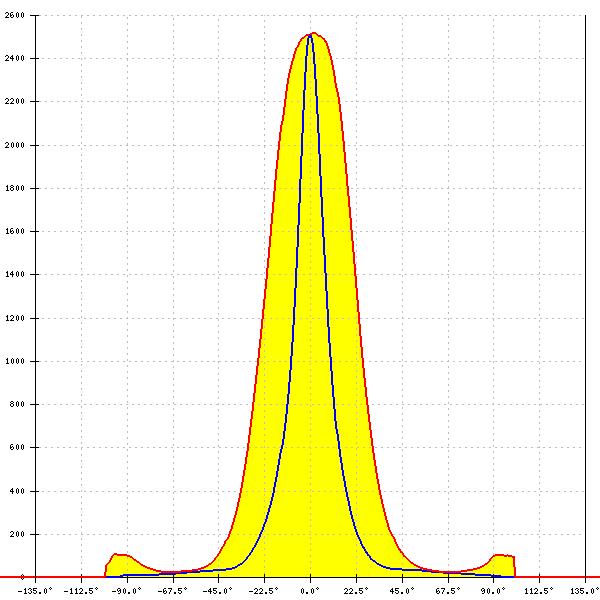

LED:
NVSW519A
FWHM:
16° + 46°
FWTM:
44° + 76°
Peak intensity:
2.518 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

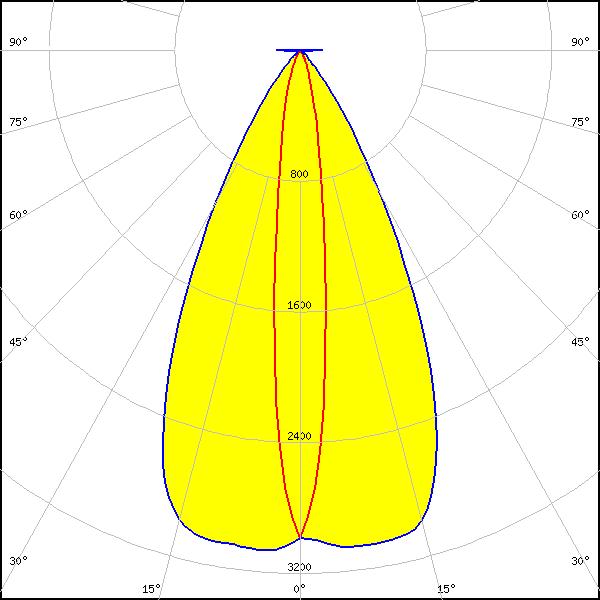

OSCONIQ P 3737 Flat
FWHM:
12° + 54°
FWTM:
32° + 78°
Peak intensity:
3.068 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

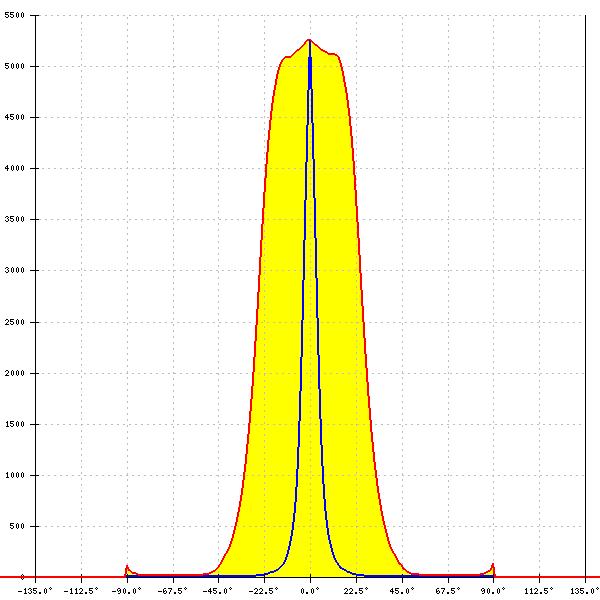

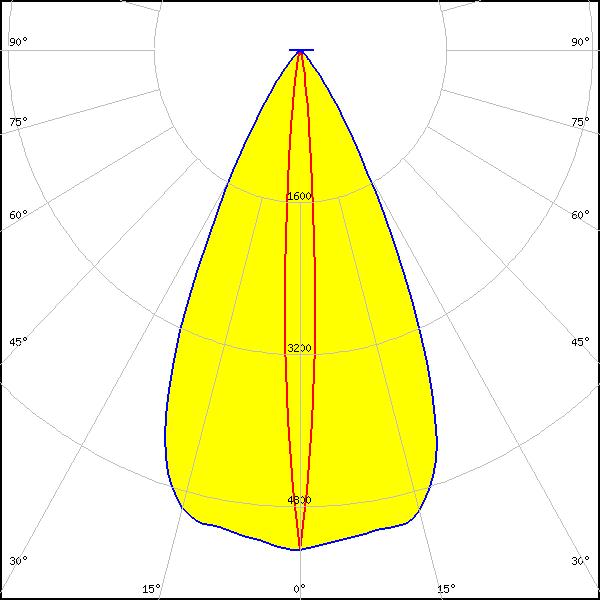

LED:
OSLON Pure 1414
FWHM:
8° + 52°
FWTM:
16° + 73°
Peak intensity:
5.257 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

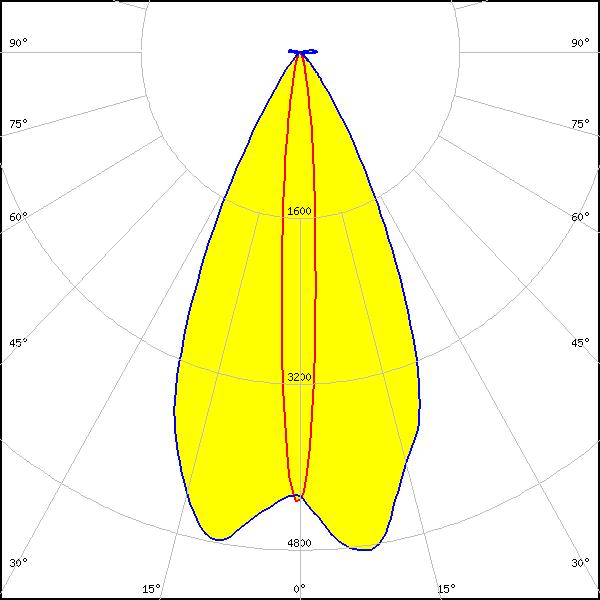

LED:

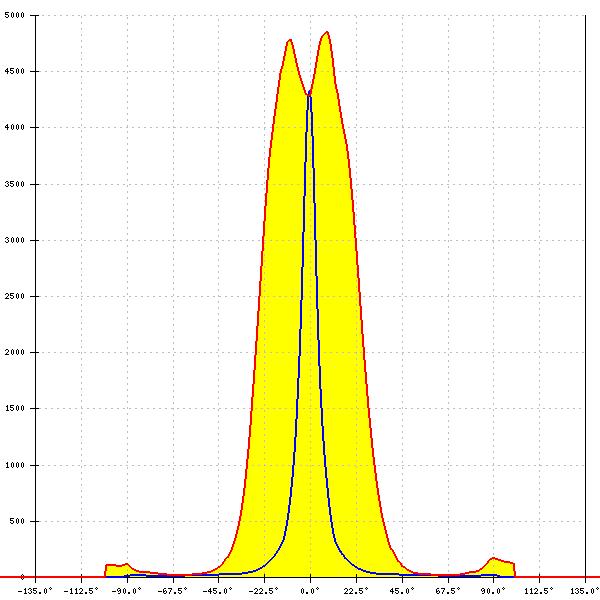

OSLON SSL 150
FWHM:
9° + 50°
FWTM:
23° + 71°
Peak intensity:
4.850 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

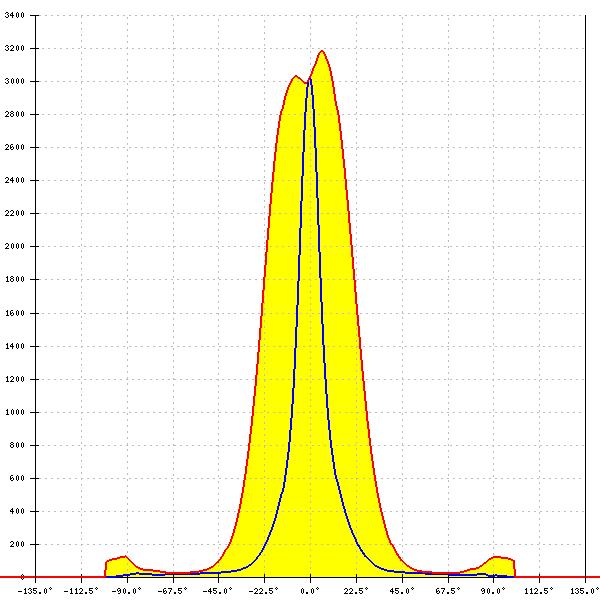

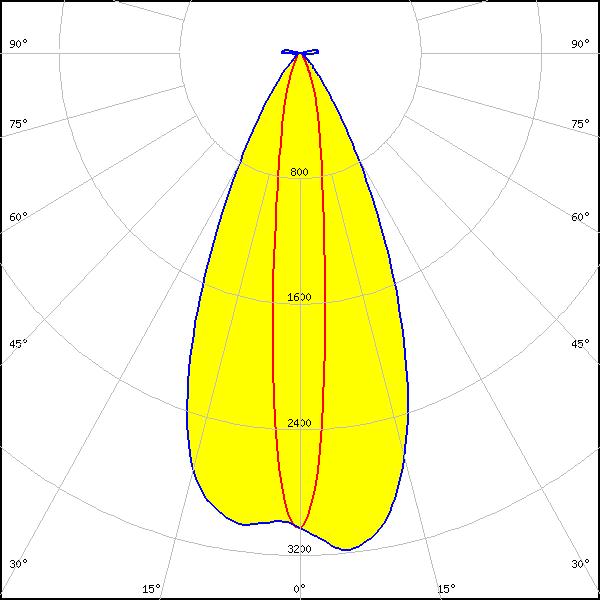

LED:
Z5M3
FWHM:
13° + 47°
FWTM:
38° + 73°
Peak intensity:
3.200 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

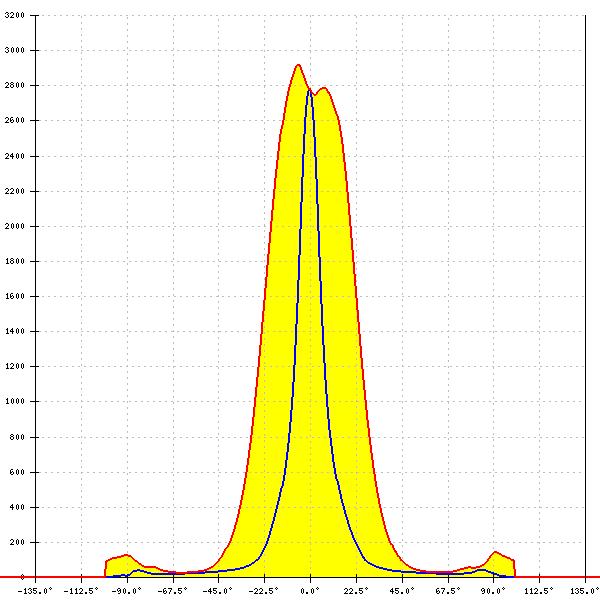

LED:

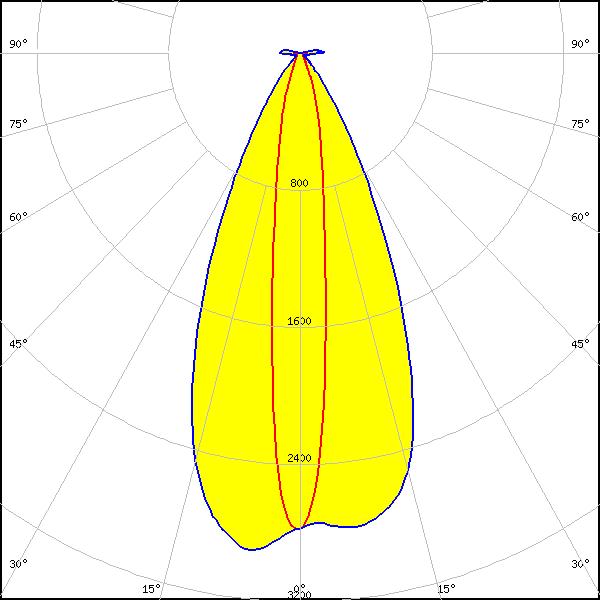

Z8Y22P
FWHM:
13° + 47°
FWTM:
38° + 74°
Peak intensity:
2.900 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
