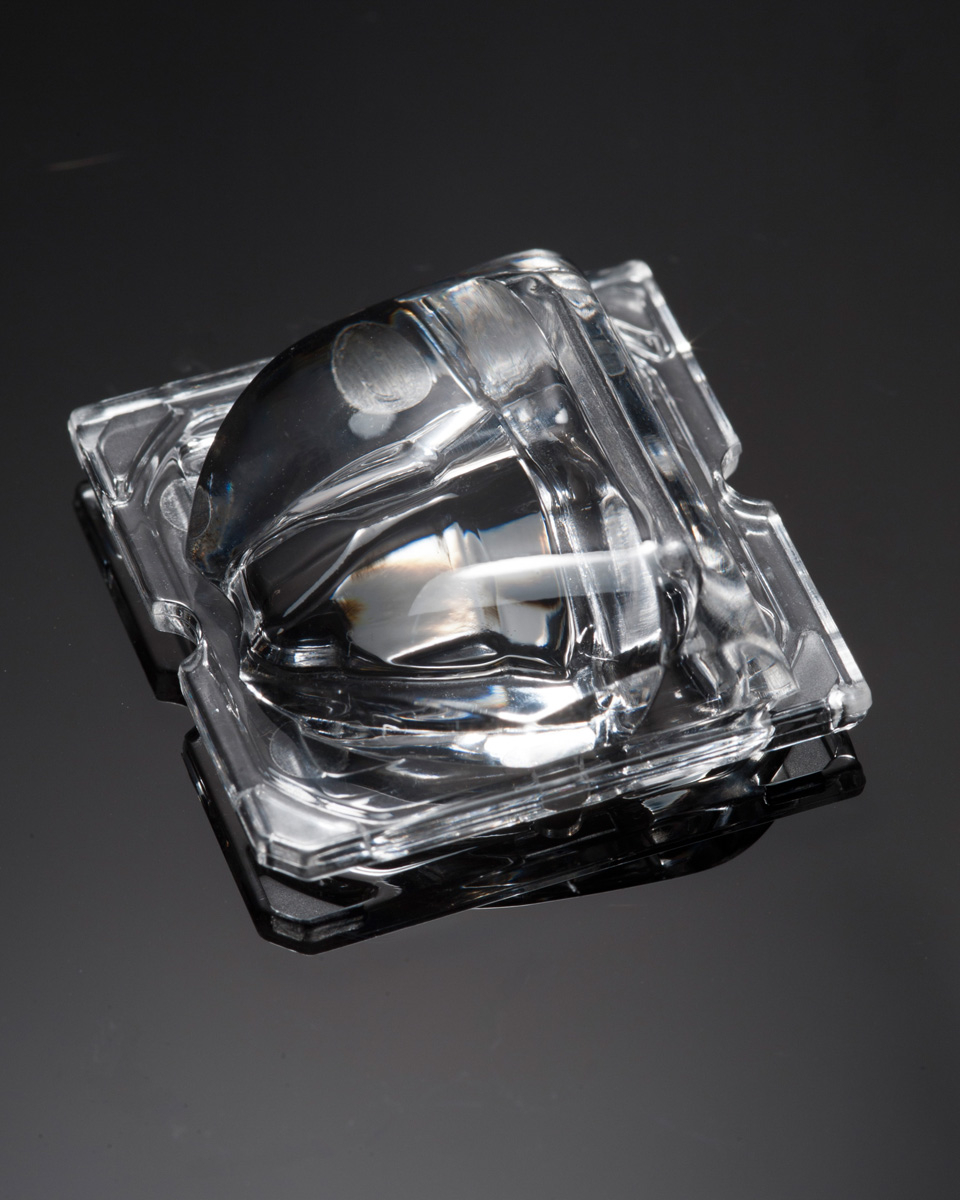

CA12889_STRADA-SQ-T-DWC
PrintUniversal road lighting beam with excellent mixed illuminance and luminance uniformity. Typically IESNA Type III Medium. Version with location pins. Assembly with installation tape.
Specification
-
Dimensions:25 x 25 mm
-
Height:8.15 mm
-
Fastening:tape, pin, screw
-
Colour:clear
-
RoHS and REACH compliant:Yes
Materials
- STRADA-SQ-T-DWC, Single lens, PMMA
- ROSE-TAPE, Tape, Acrylic foam tape
- Request material files from Tech Support
Ordering information
-
Quantity in box:2058 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:7.6 kg
-
MPQ:98 pcs
-
MOQ:294 pcs
-
MOQ size:480 x 280 x 60 mm
-
MOQ weight:1.4 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content

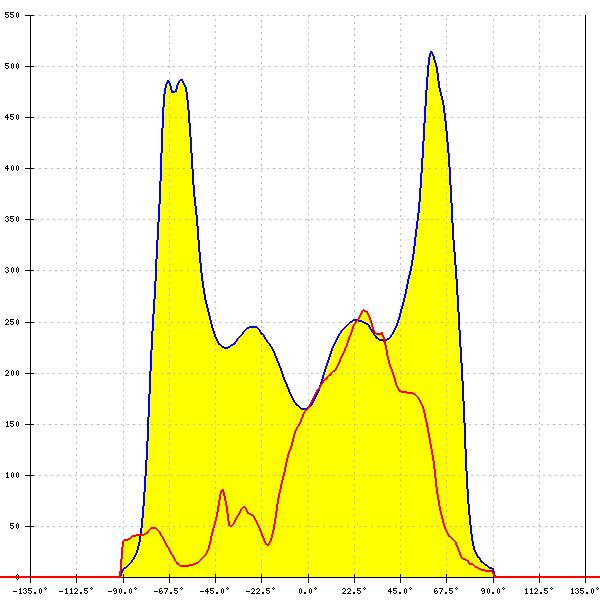

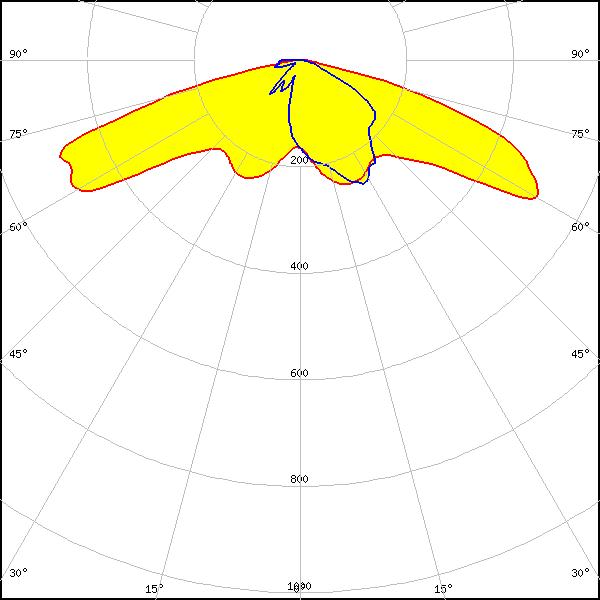

Optical results

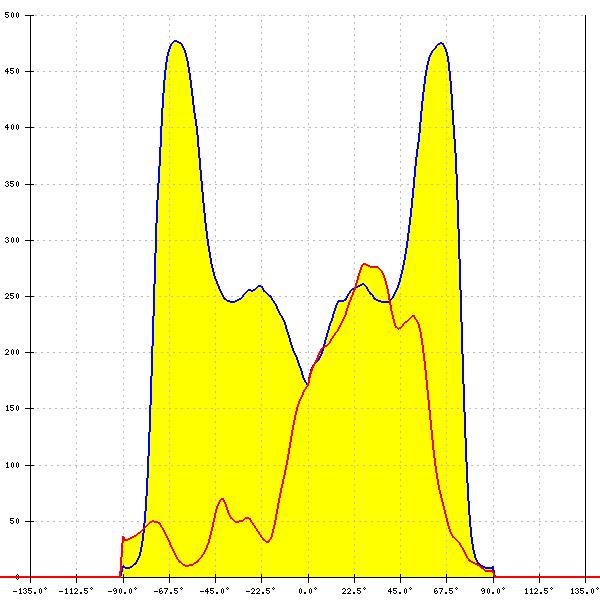

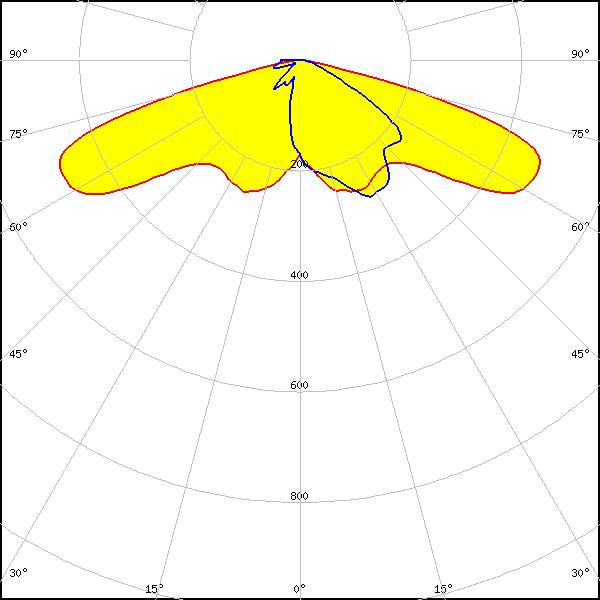

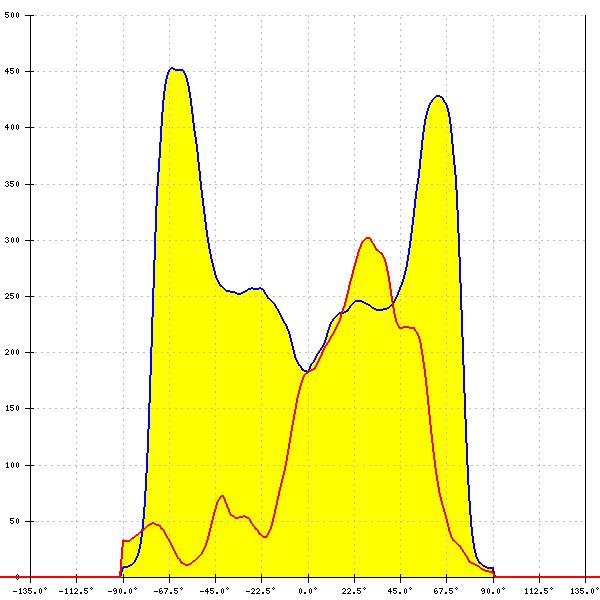

LED:
J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.577 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.534 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

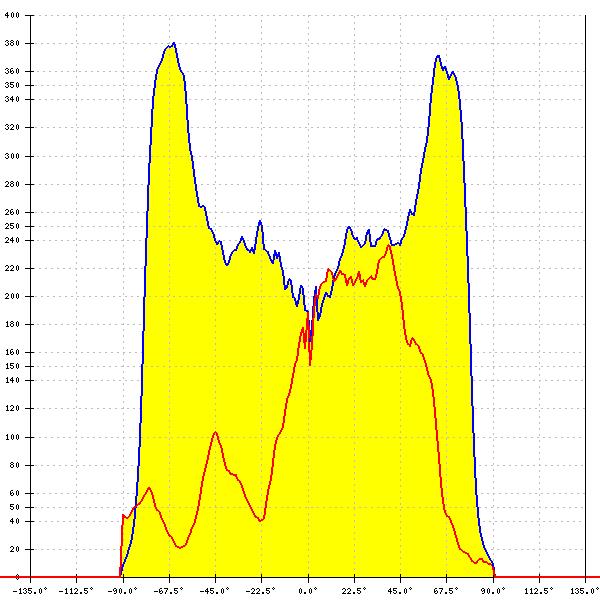

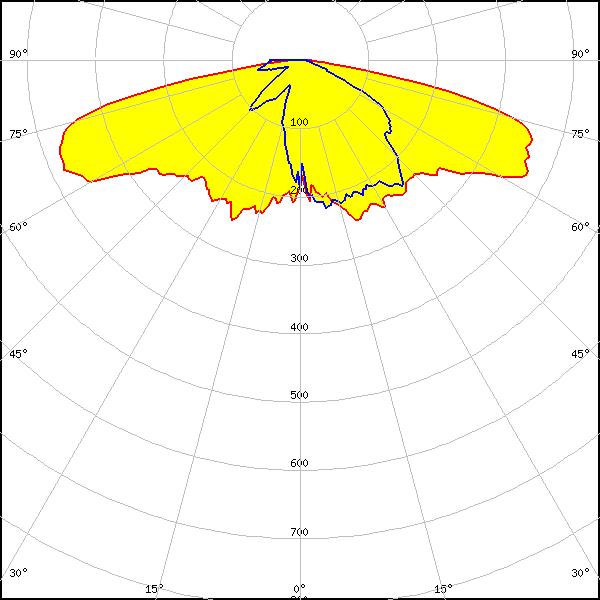

MHB-A/B
FWHM: asymmetric
Peak intensity:
0.440 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

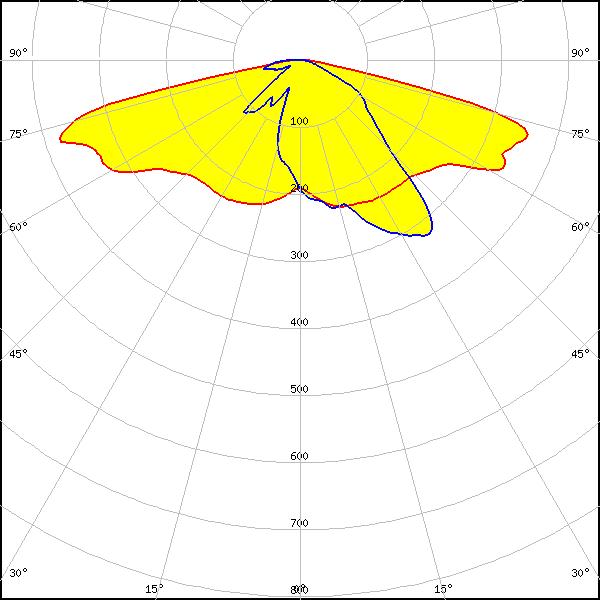

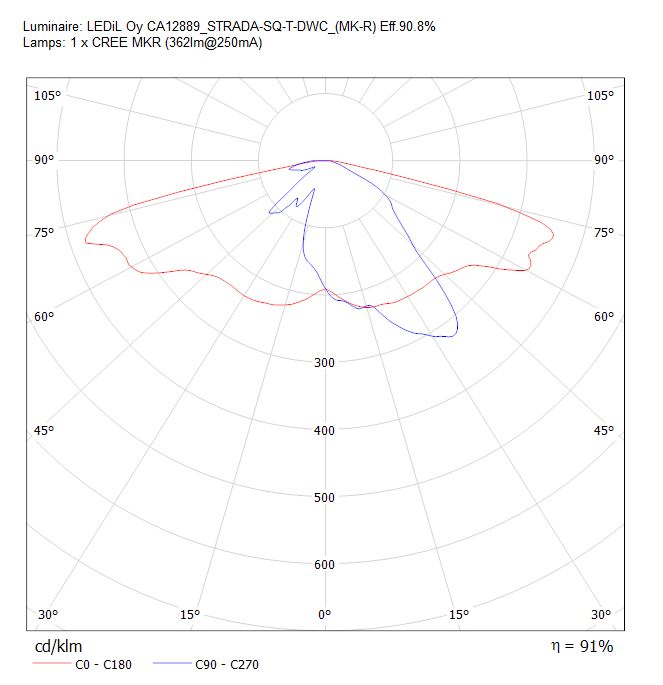

LED:

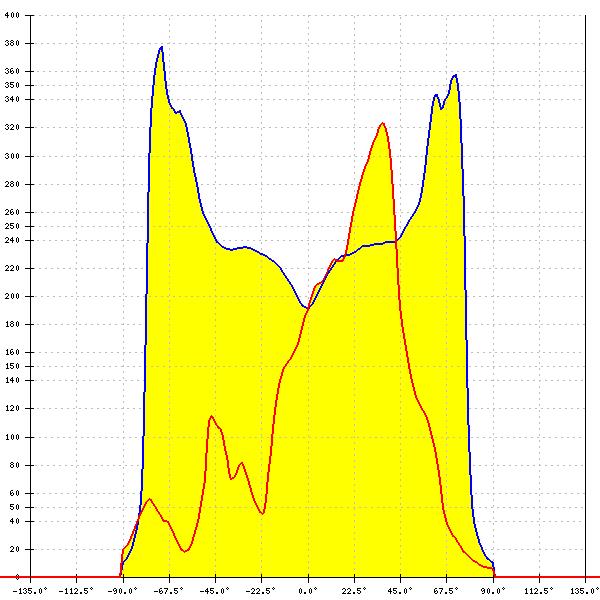

MK-R
FWHM: asymmetric
Peak intensity:
0.450 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

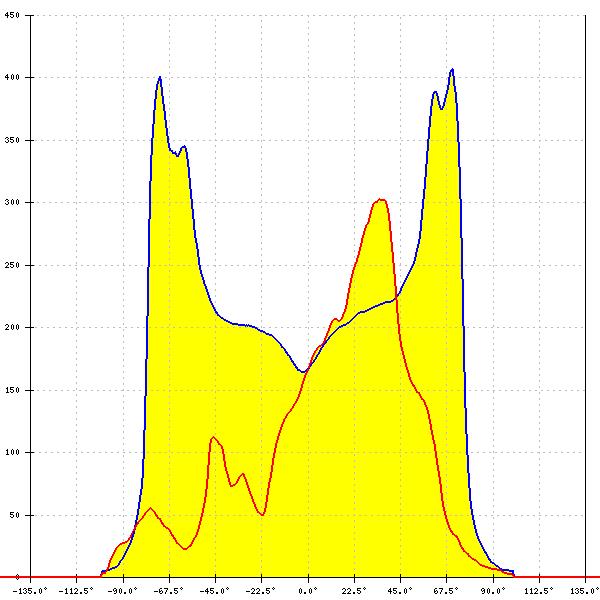

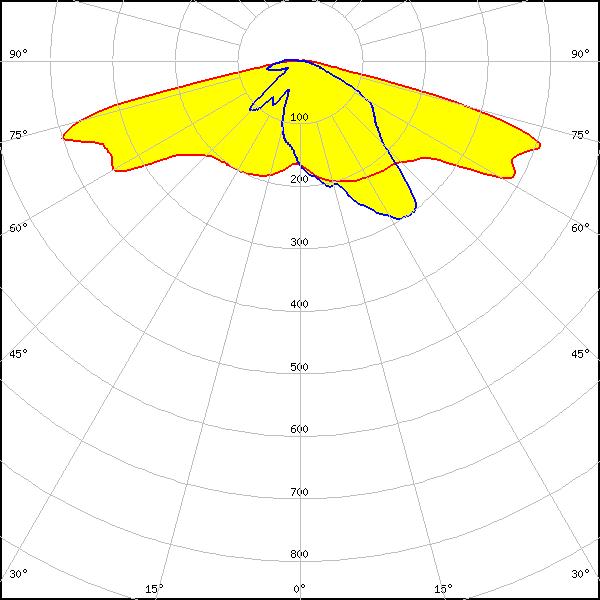

LED:

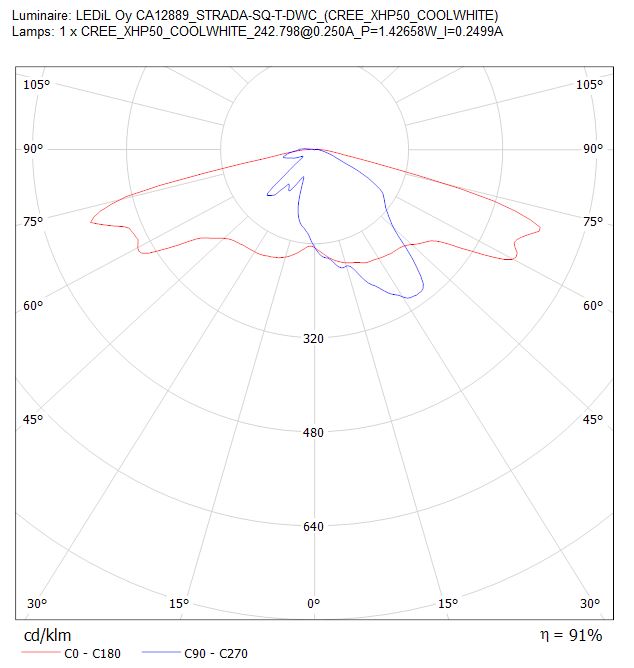

XHP50
FWHM: asymmetric
Peak intensity:
0.500 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

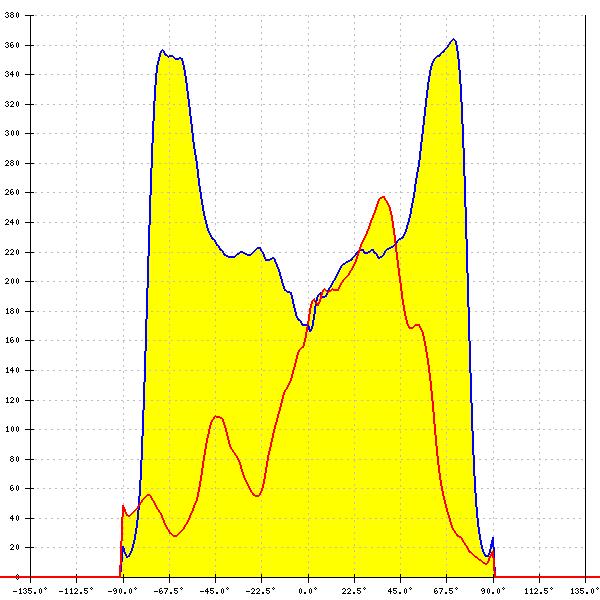

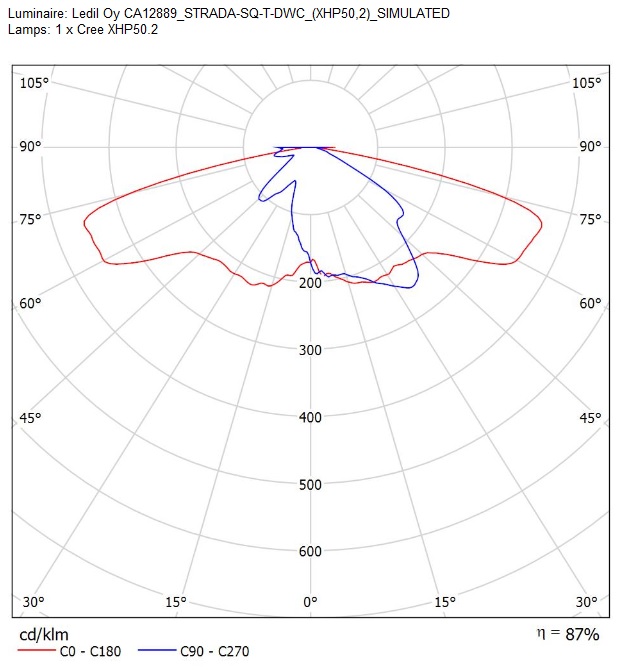

LED:

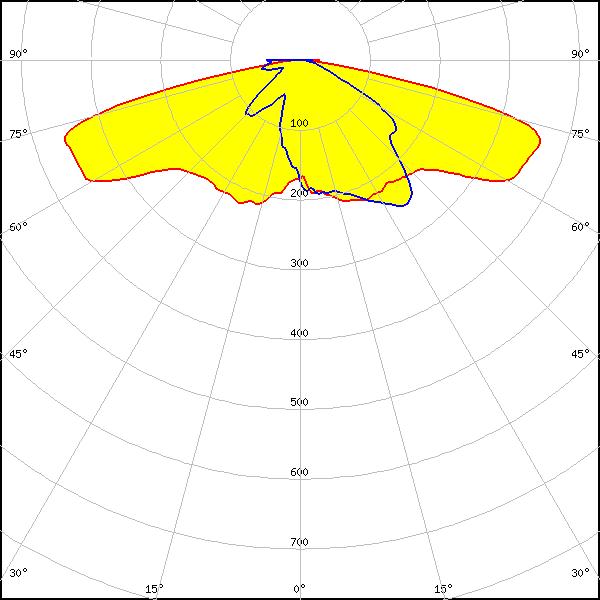

XHP50.2
FWHM: asymmetric
Peak intensity:
0.420 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

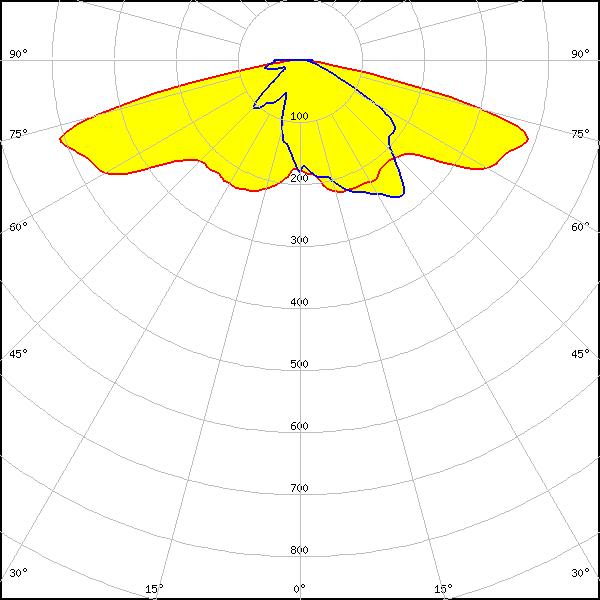

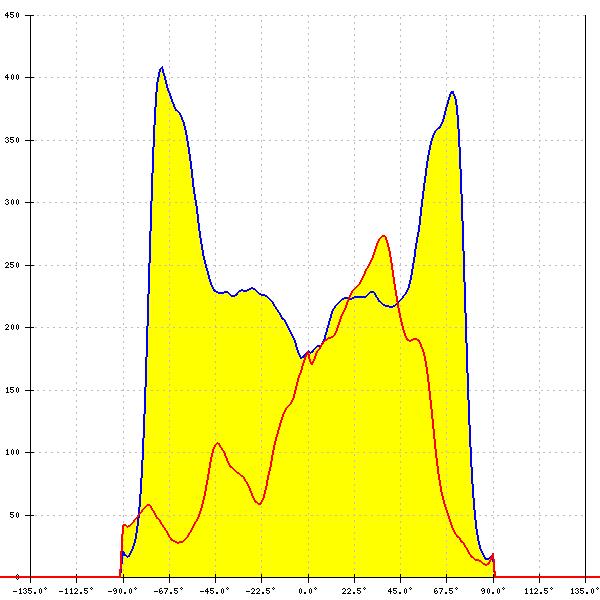

LED:
XHP50.3 HD
FWHM: asymmetric
Peak intensity:
0.477 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:

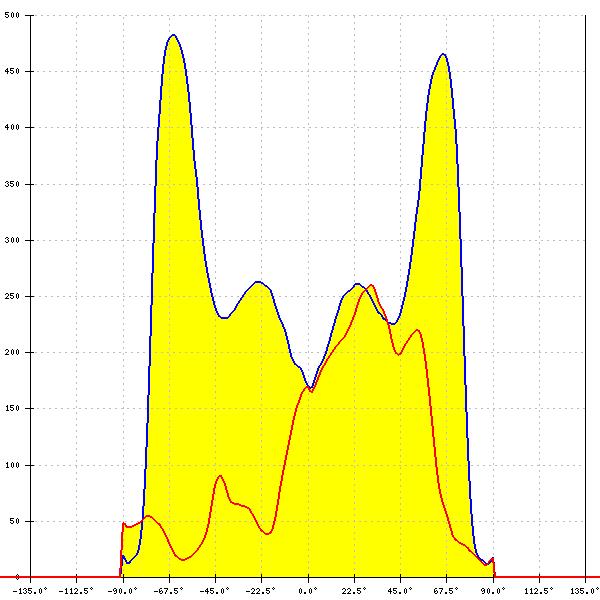

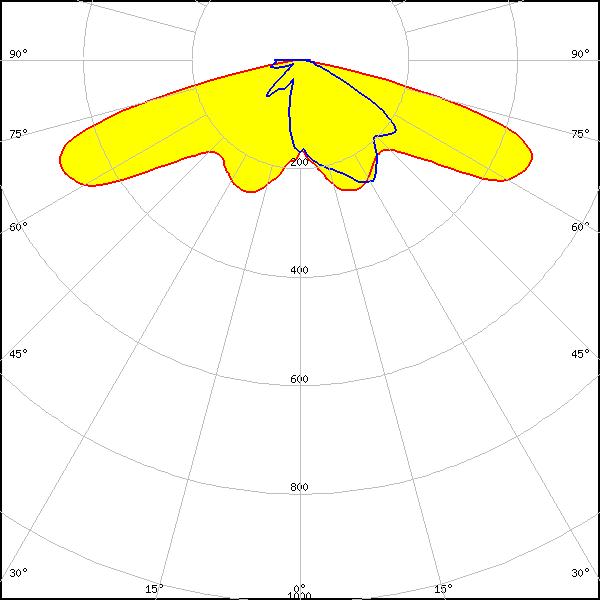

XHP50.3 HI
FWHM: asymmetric
Peak intensity:
0.585 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

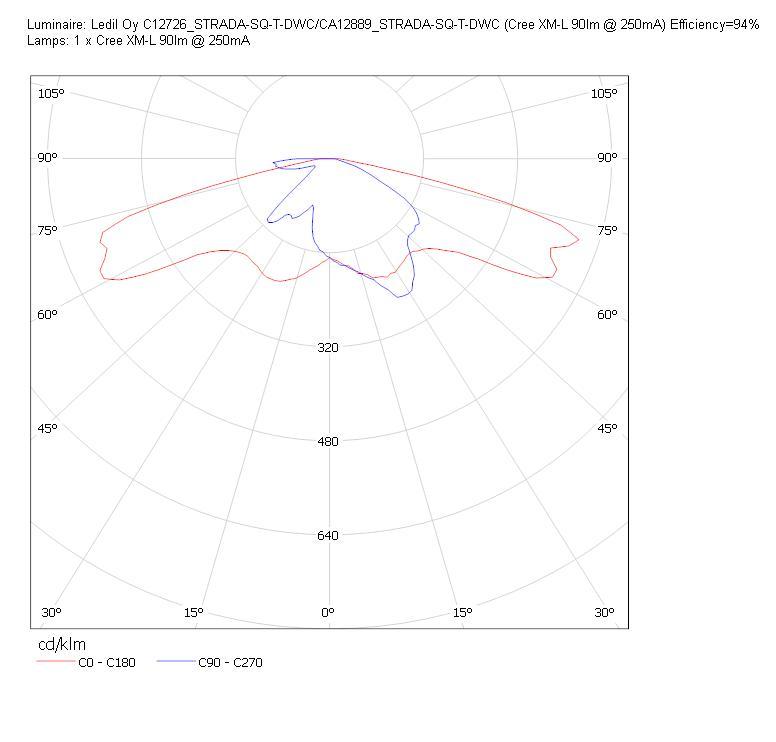

LED:
XM-L
FWHM: asymmetric
LEDs/each optic:
1
Light colour/type:
White

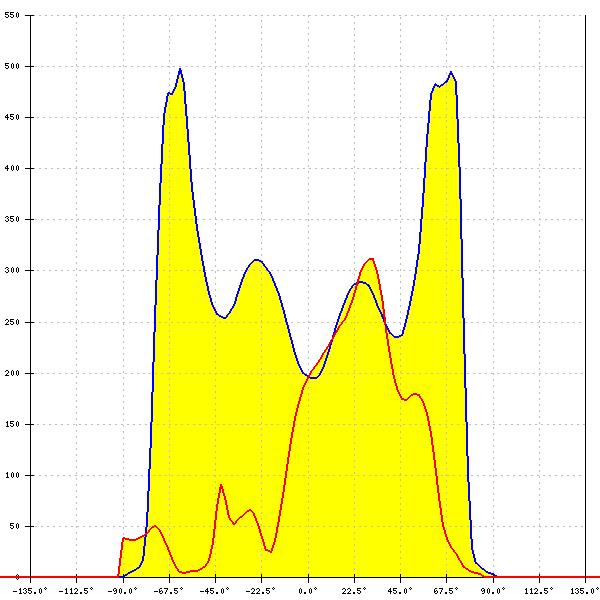

LED:

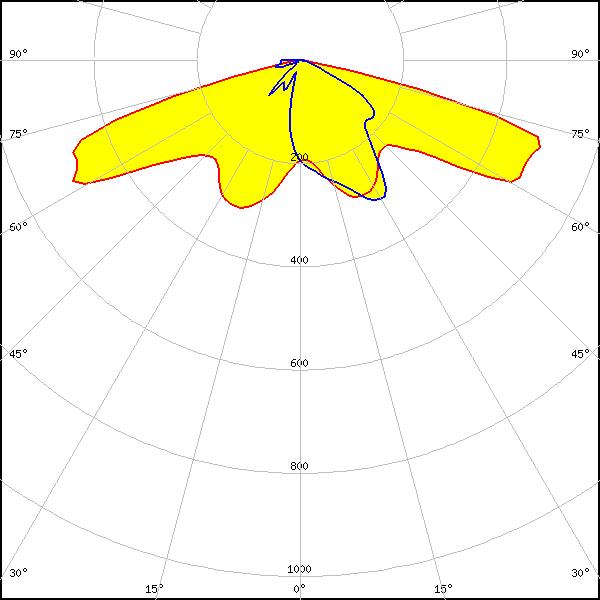

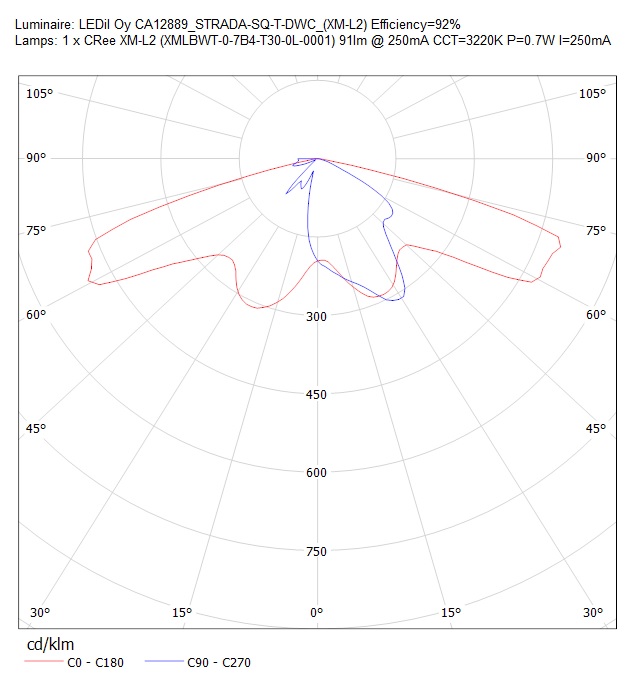

XM-L2
FWHM: asymmetric
Peak intensity:
0.700 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

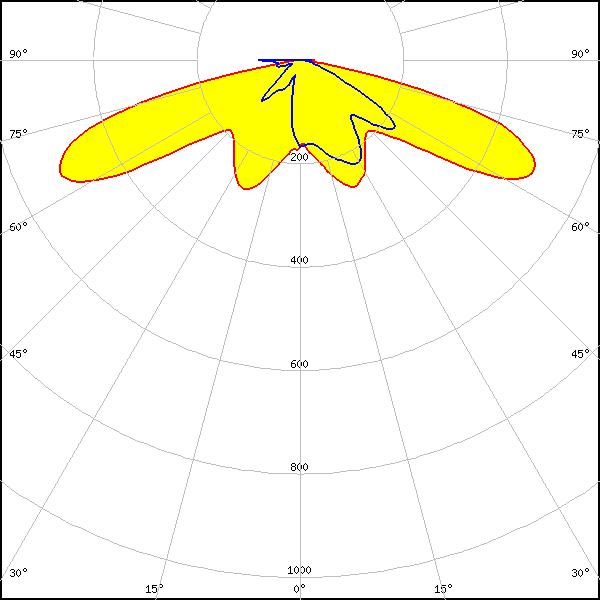

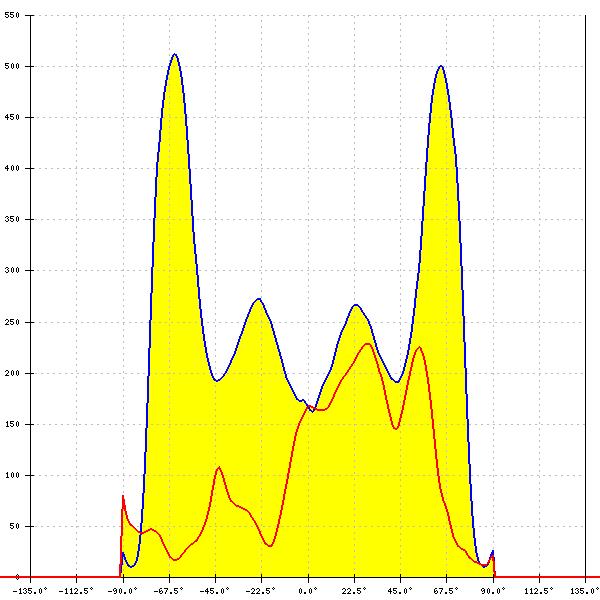

XP-G3
FWHM: asymmetric
Peak intensity:
0.660 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

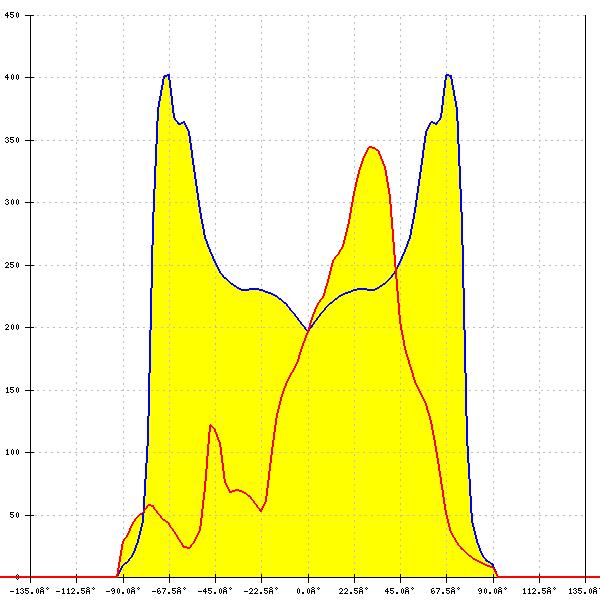

LED:

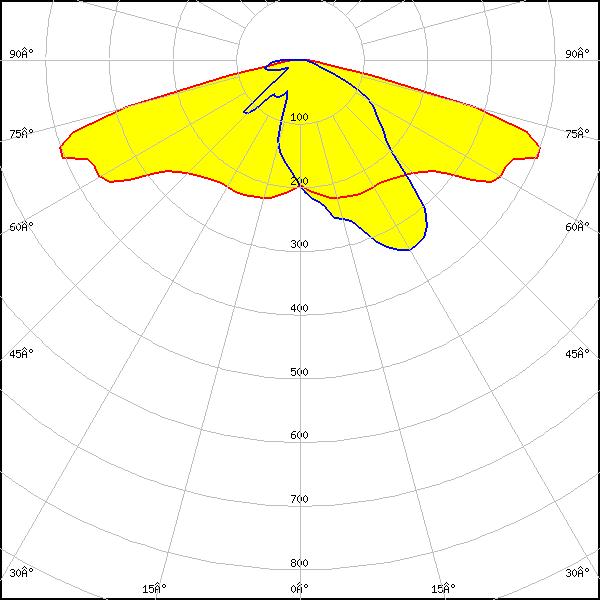

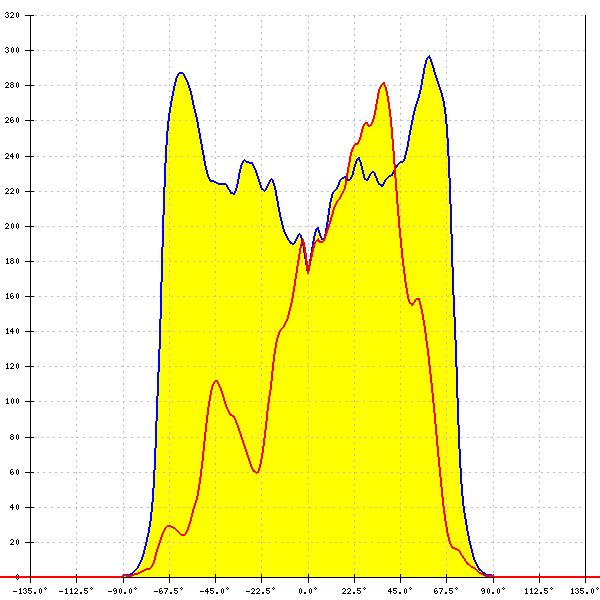

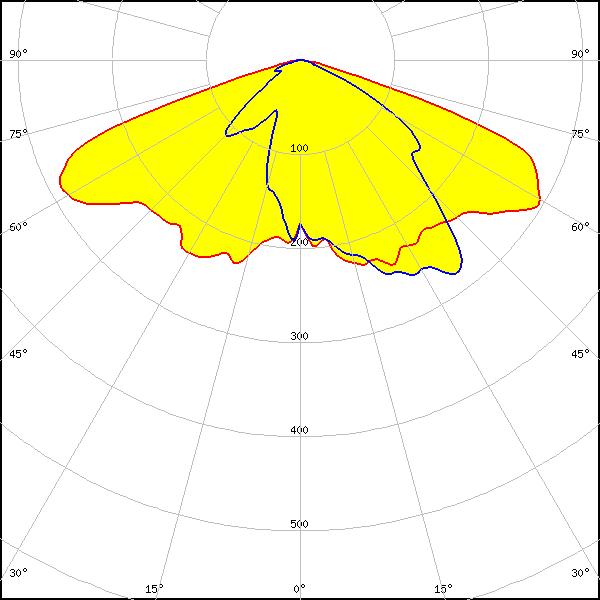

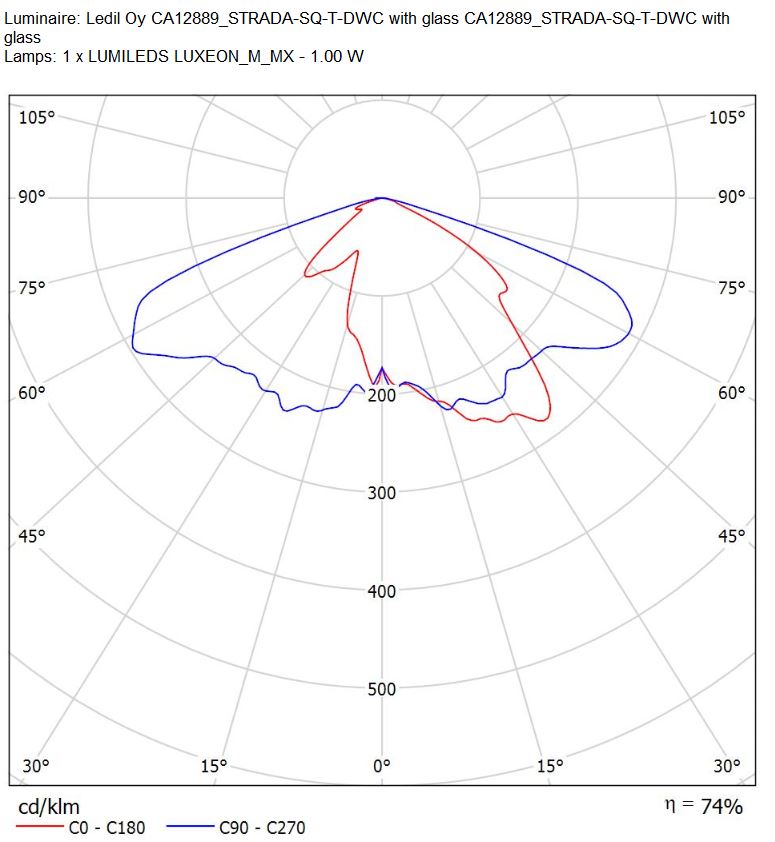

LUXEON M/MX
FWHM: asymmetric
Peak intensity:
0.340 cd/lm
Efficiency:
74 %
LEDs/each optic:
1
Light colour/type:
White

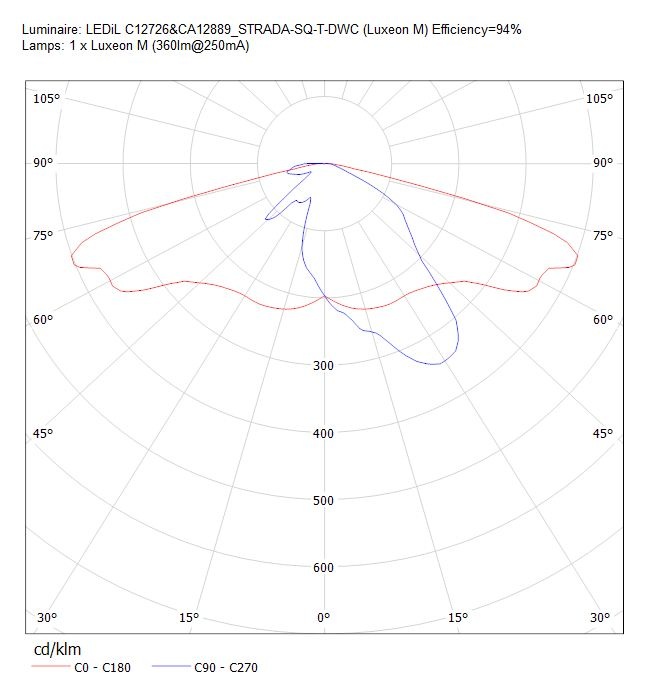

LED:
LUXEON M/MX
FWHM: asymmetric
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

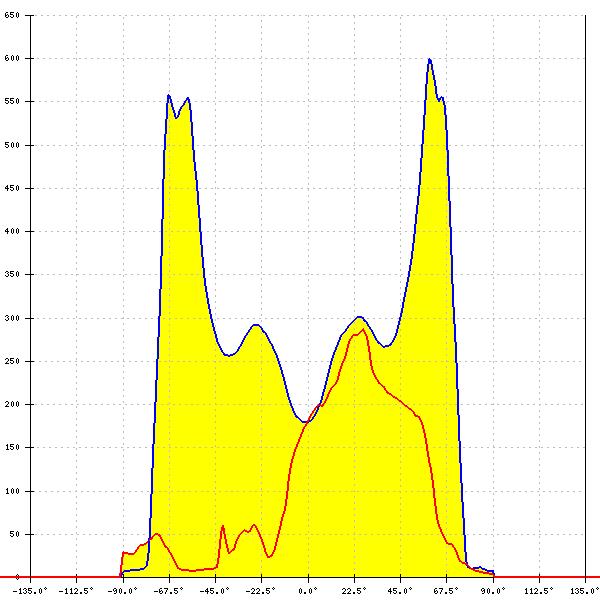

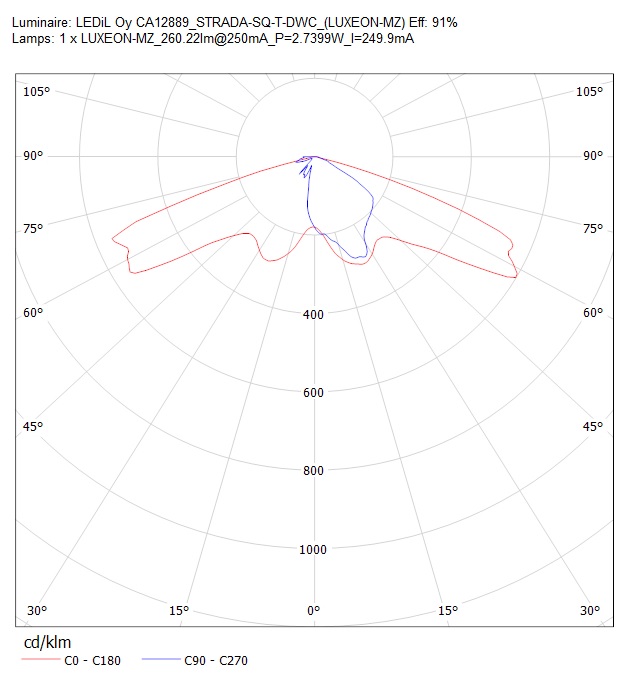

LED:

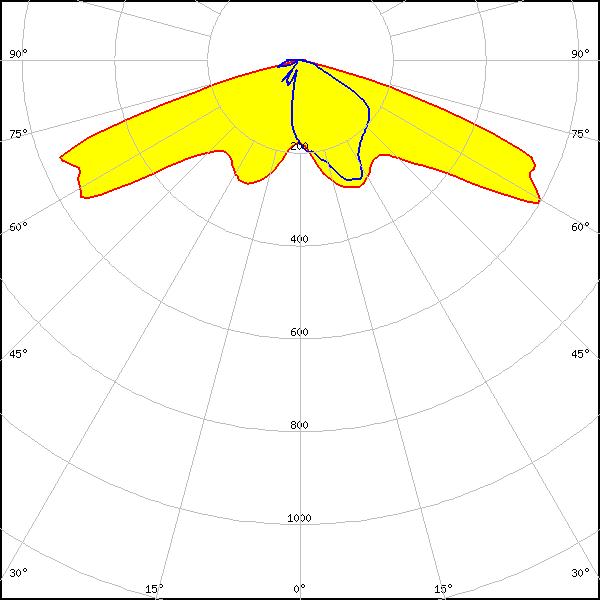

LUXEON MZ
FWHM: asymmetric
Peak intensity:
0.700 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

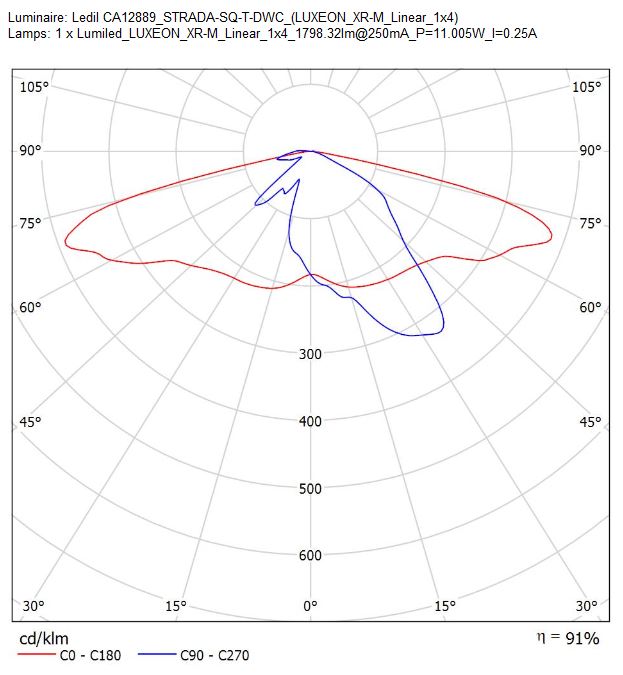

LED:

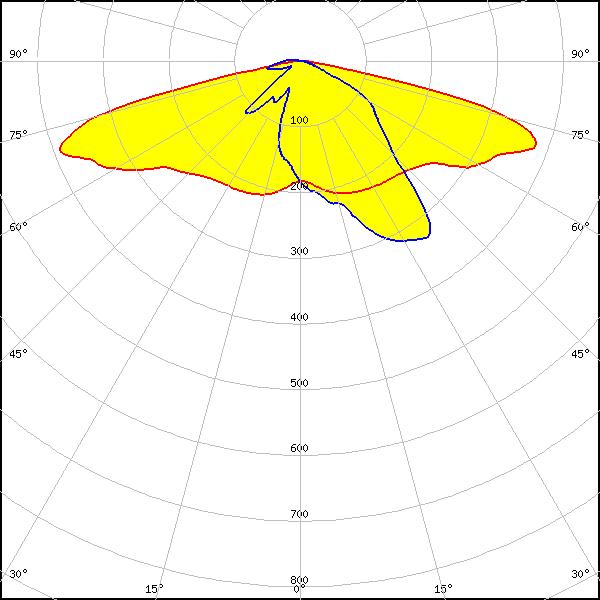

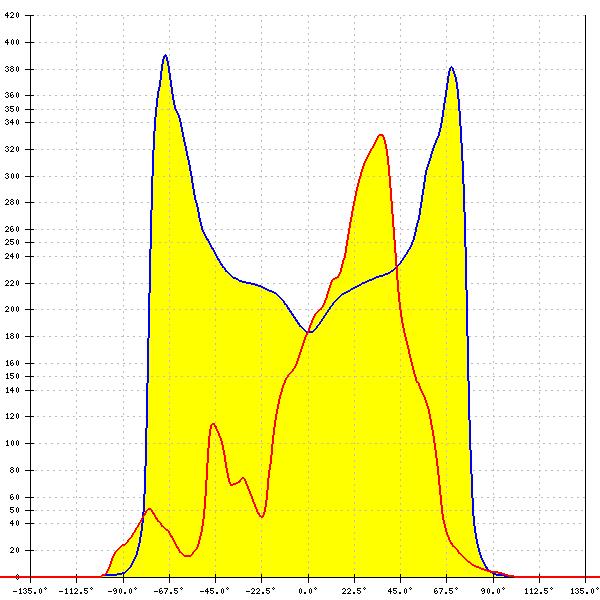

LUXEON XR-M Linear (L2M0-xxxx003MC3300)
FWHM: asymmetric
Peak intensity:
0.460 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

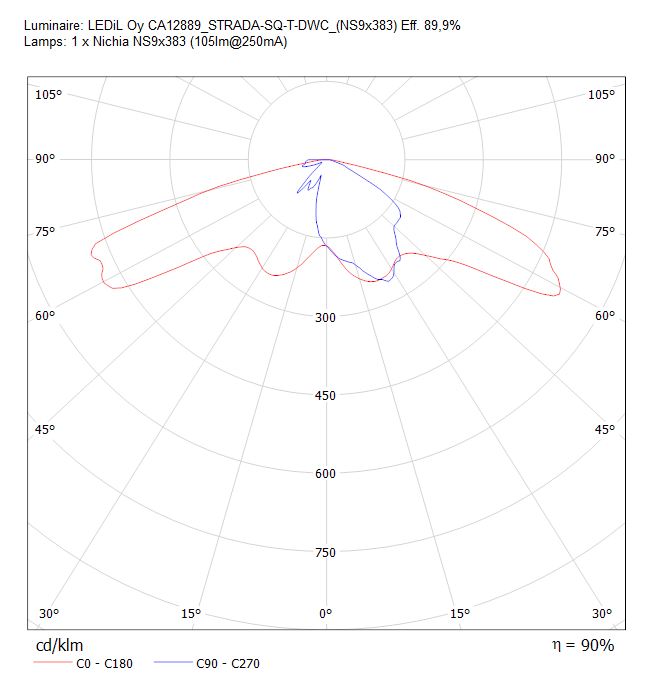

LED:
NS9x383
FWHM: asymmetric
Peak intensity:
0.660 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

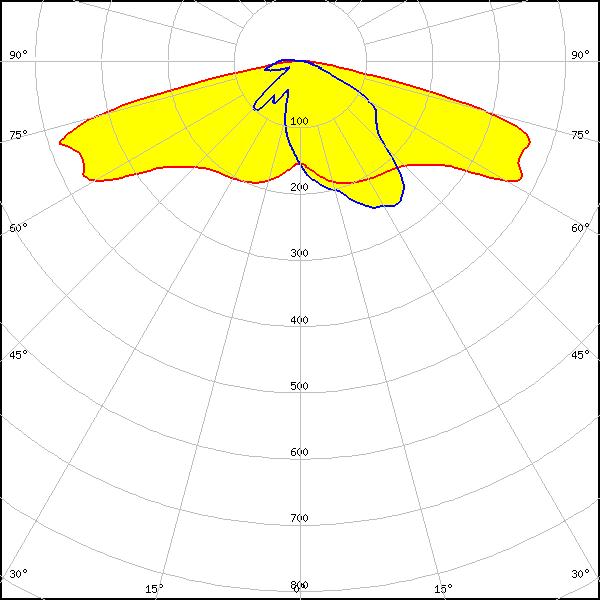

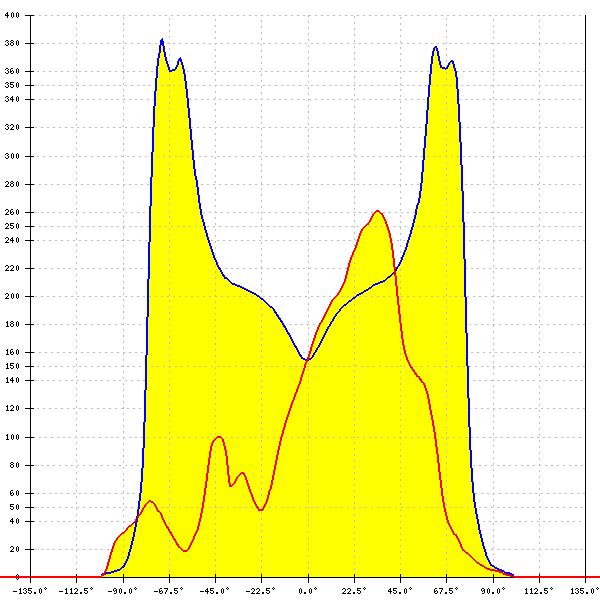

LED:

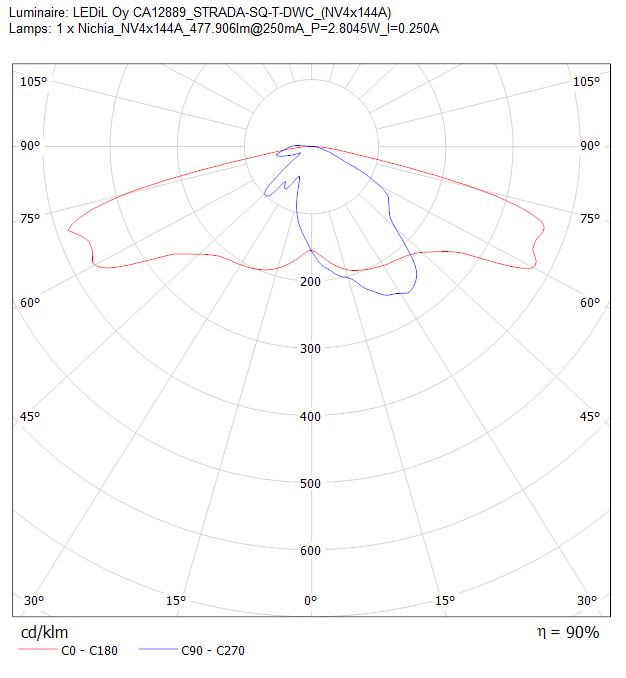

NV4x144A
FWHM: asymmetric
Peak intensity:
0.470 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

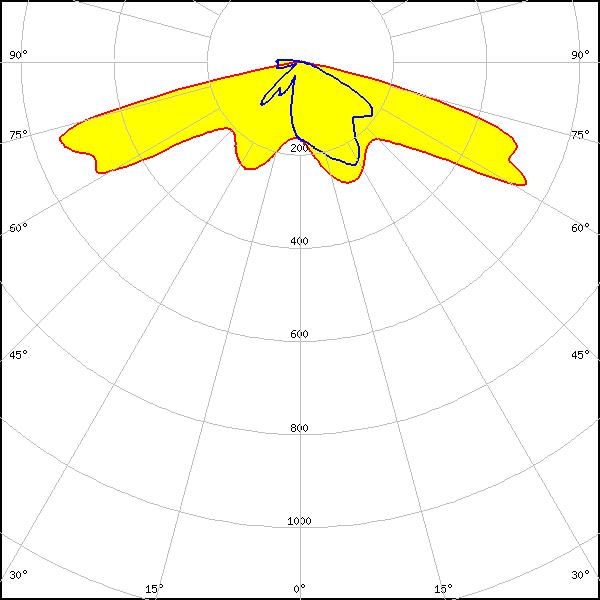

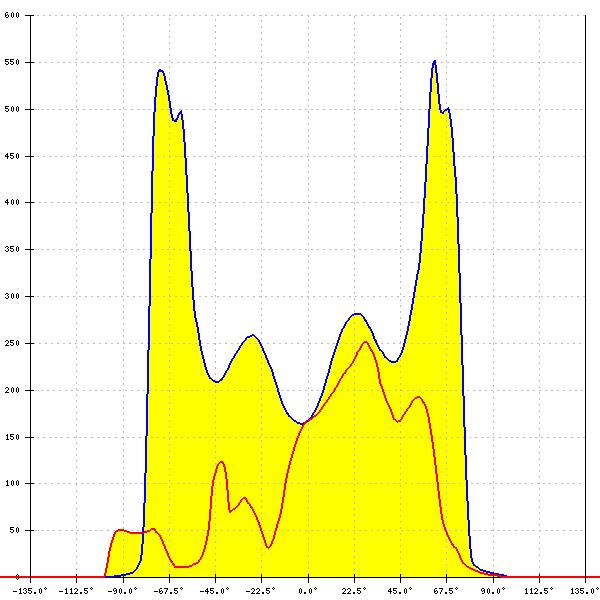

LED:
NVSW319B
FWHM: asymmetric
Peak intensity:
0.835 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

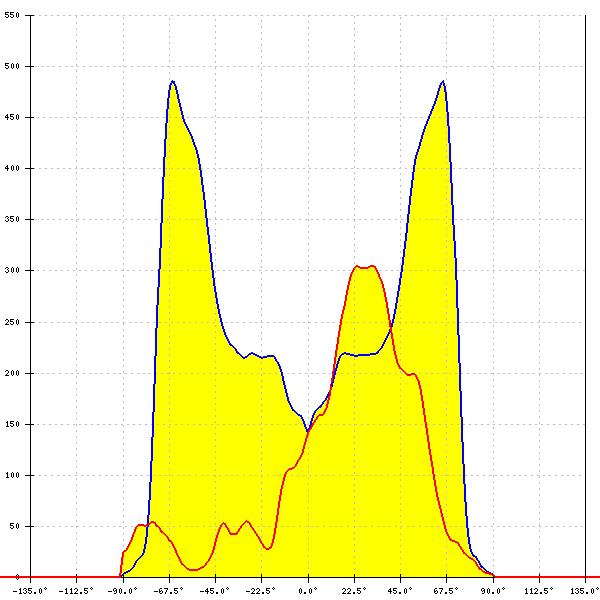

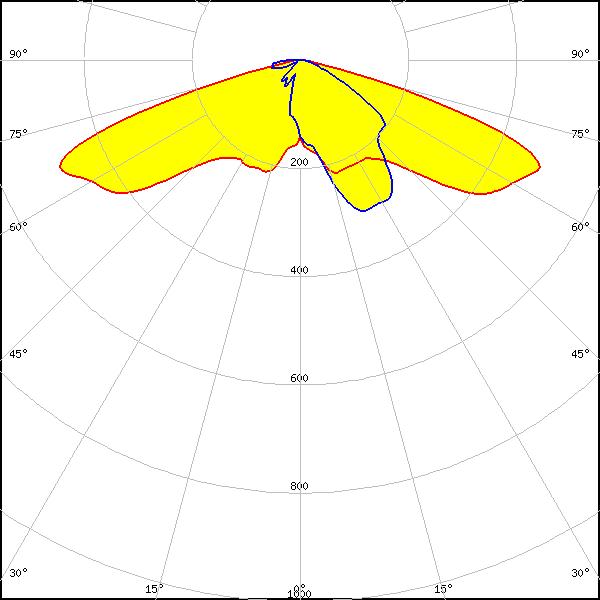

LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.559 cd/lm
Efficiency:
90 %
LEDs/each optic:
4
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.451 cd/lm
Efficiency:
77 %
LEDs/each optic:
4
Light colour/type:
White

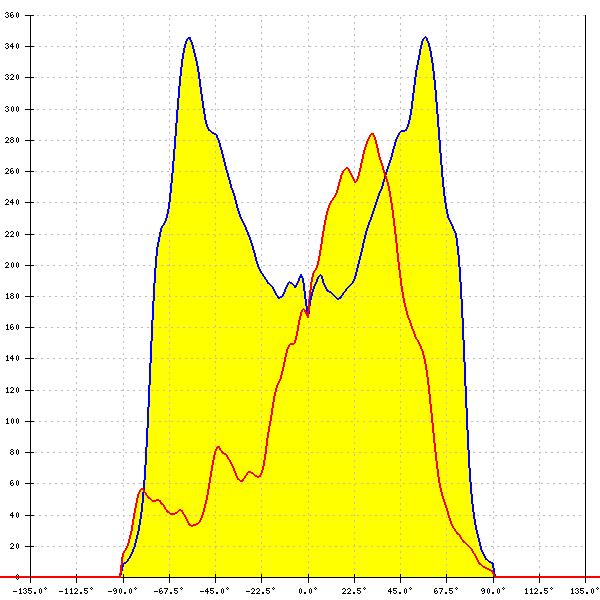

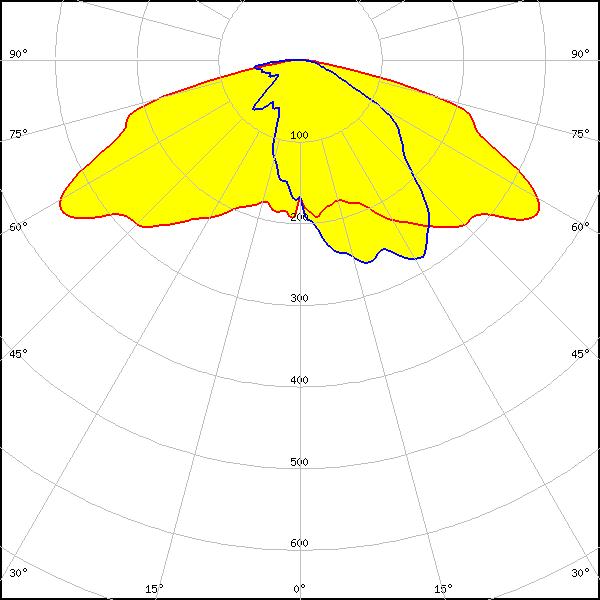

LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.428 cd/lm
Efficiency:
90 %
LEDs/each optic:
9
Light colour/type:
White
LED:
NVSxE21A
FWHM: asymmetric
Peak intensity:
0.373 cd/lm
Efficiency:
77 %
LEDs/each optic:
9
Light colour/type:
White
LED:

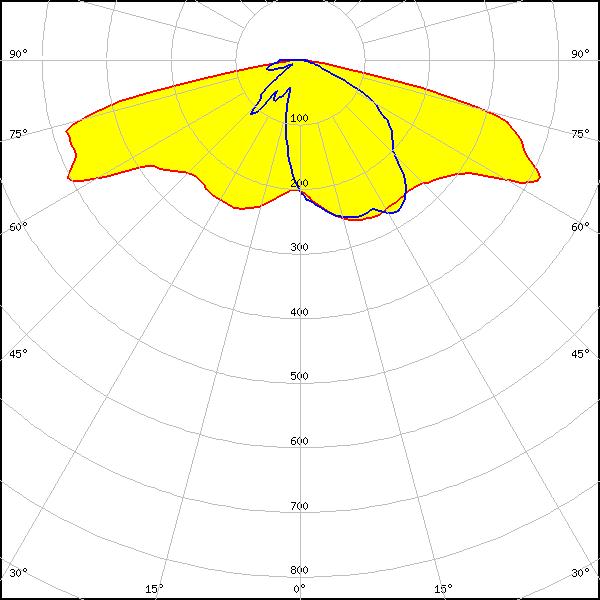

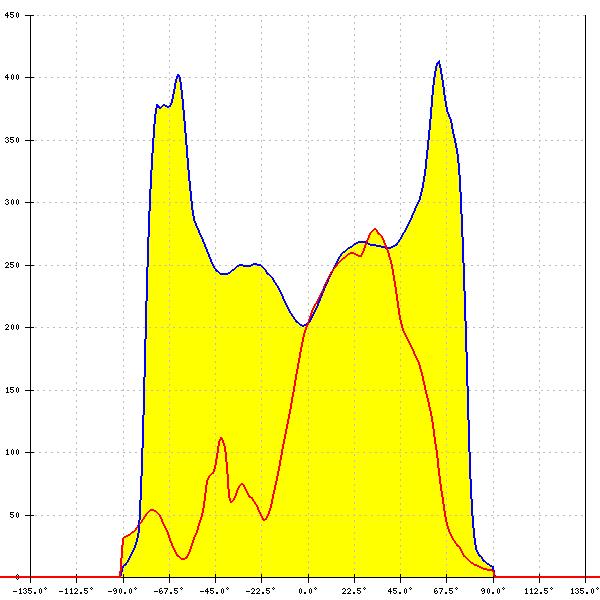

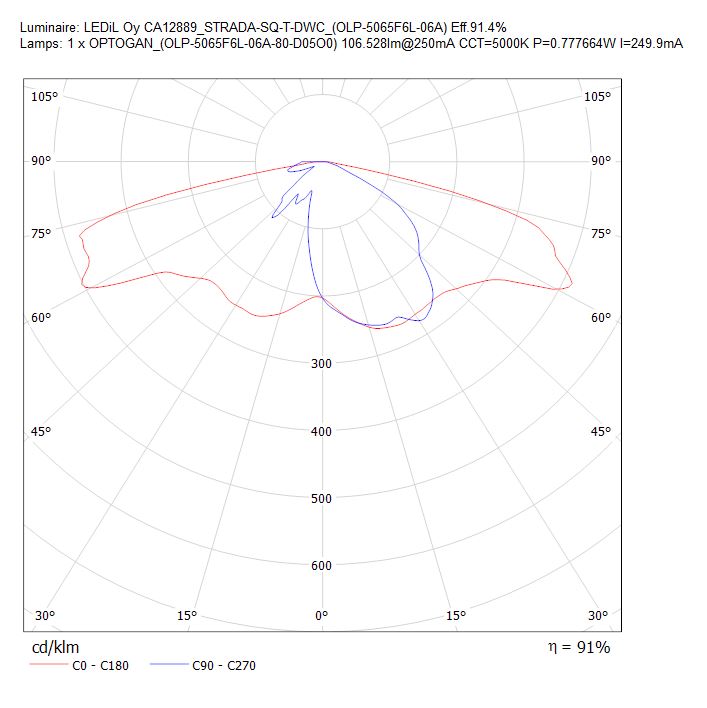

OLP-5065F6L-06A
FWHM: asymmetric
Peak intensity:
0.530 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

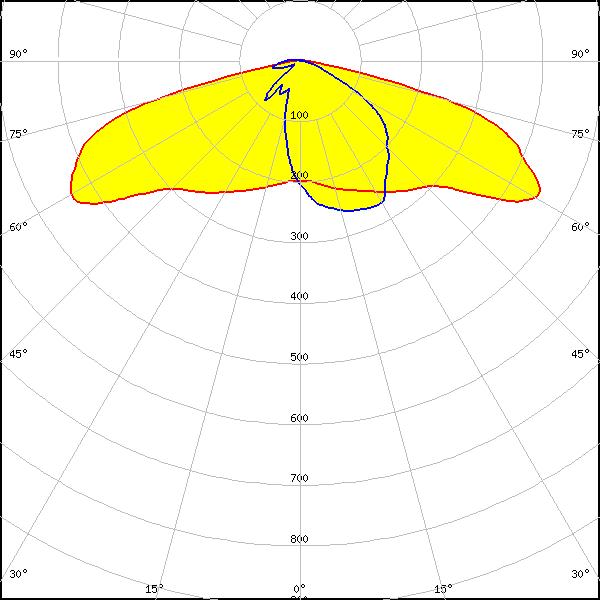

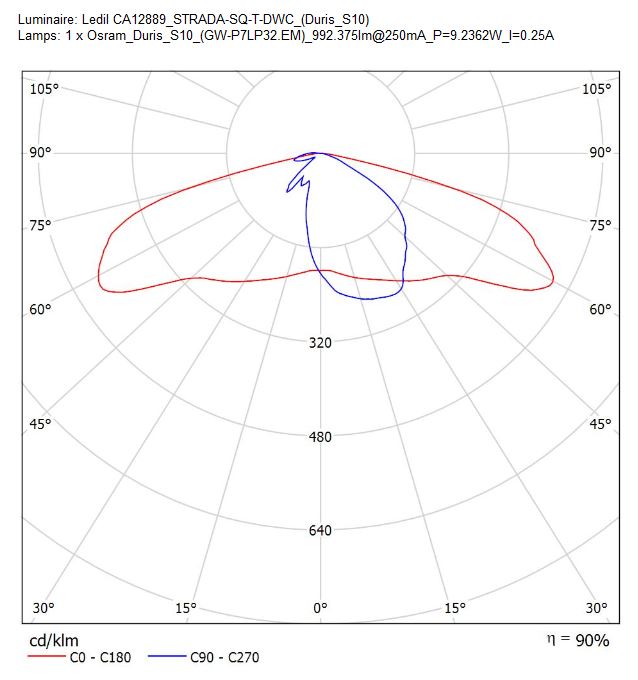

LED:

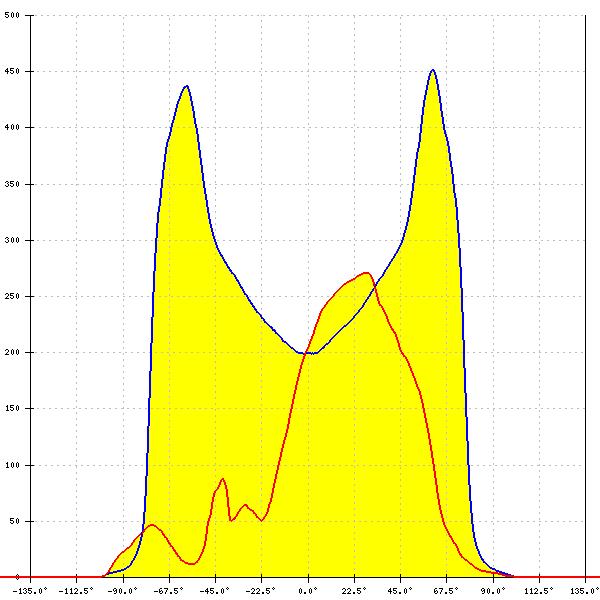

Duris S10
FWHM: asymmetric
Peak intensity:
0.490 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

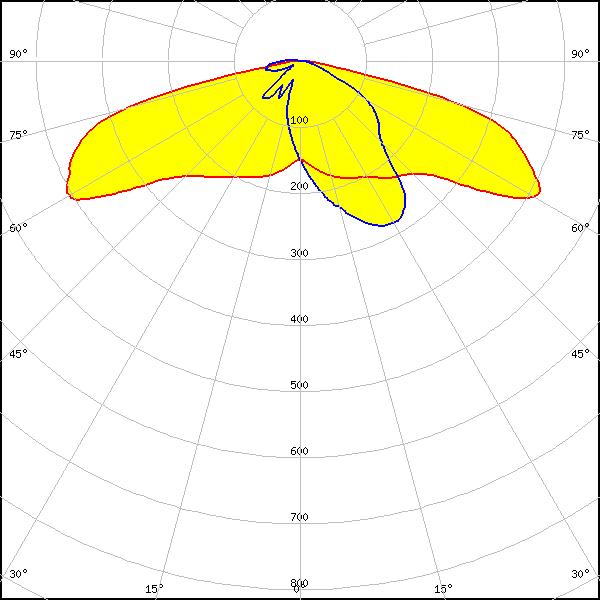

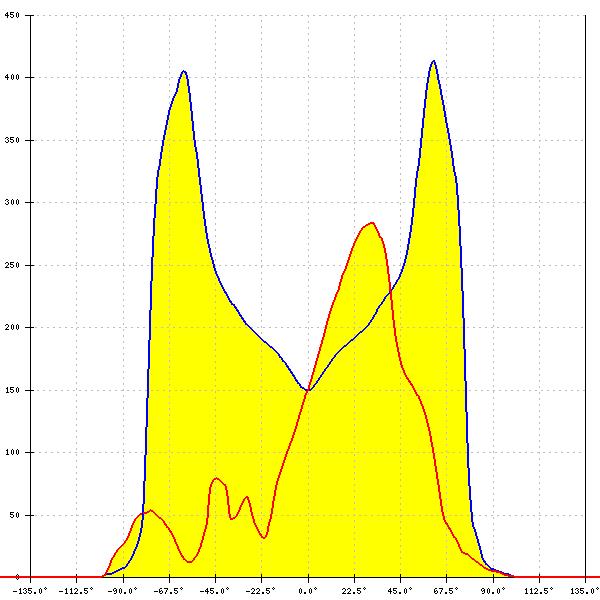

LED:
Z8Y50P
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White
