CA13058_FLARE-MINI-AD-PIN
Print
~100° x 20° oval beam. Assembly with location pins and installation tape.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

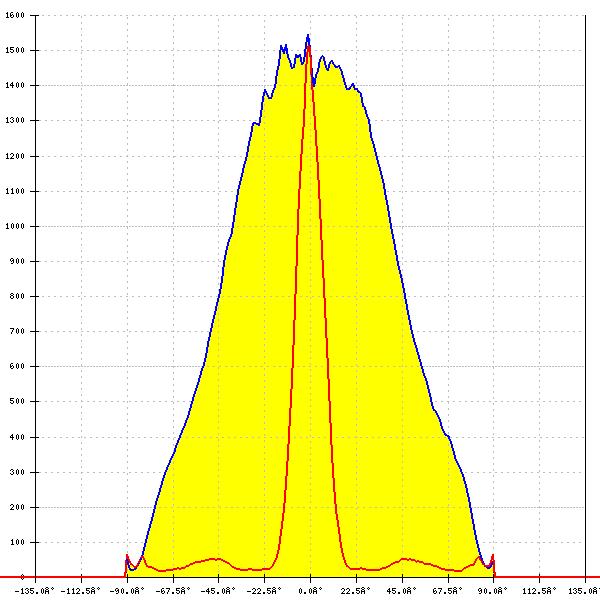

LED:

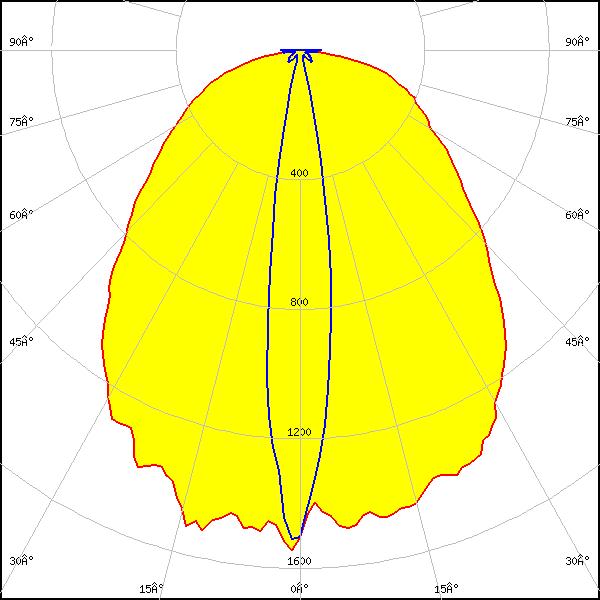

XB-D
FWHM:
100° + 16°
FWTM:
160° + 31°
Peak intensity:
1.200 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

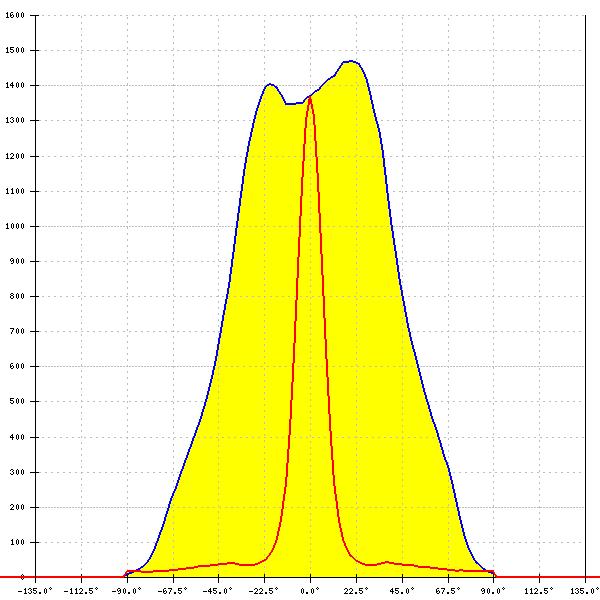

LED:

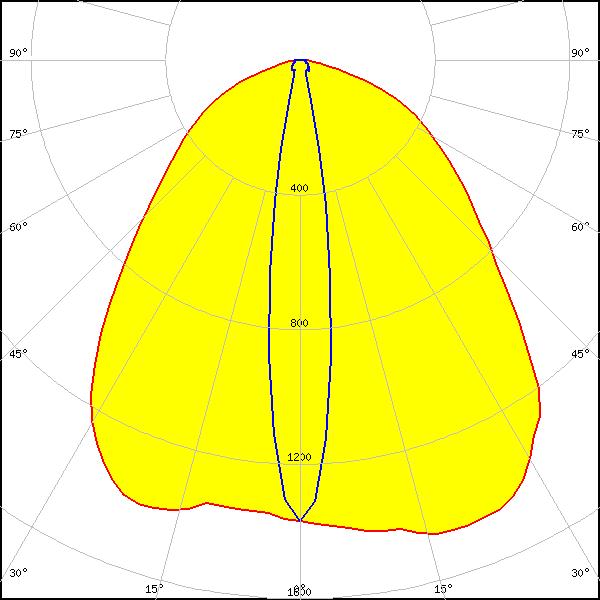

XP-E2
FWHM:
90° + 16°
FWTM:
150° + 30°
Peak intensity:
1.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-G
FWHM:
100° + 20°
FWTM:
156° + 34°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

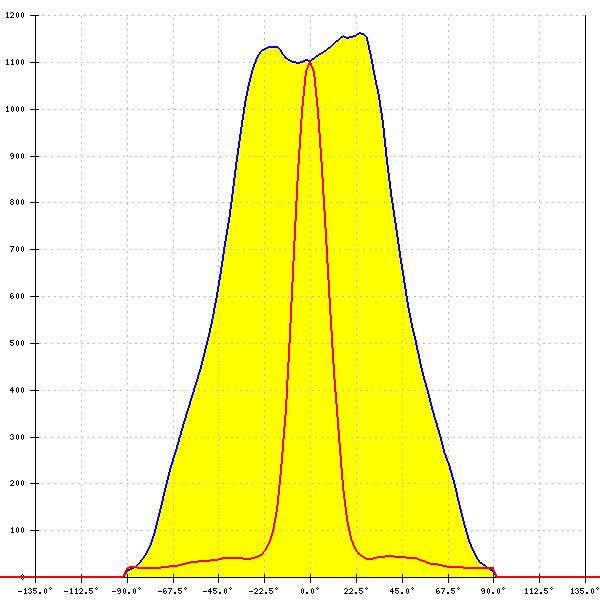

LED:
XP-G2
FWHM:
95° + 21°
FWTM:
151° + 37°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

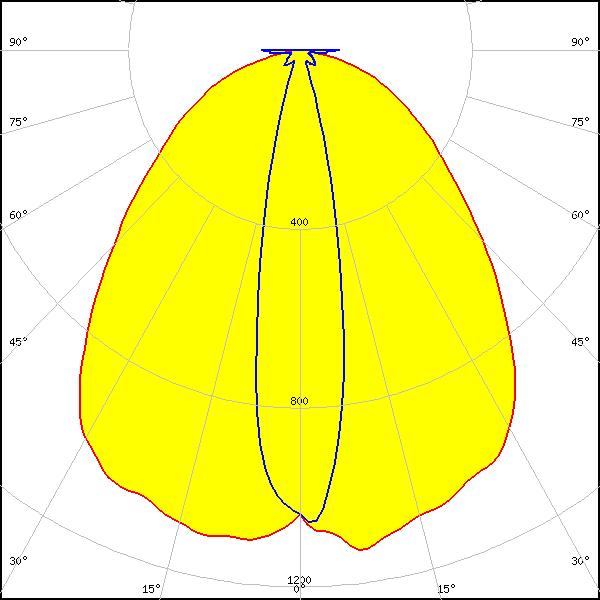

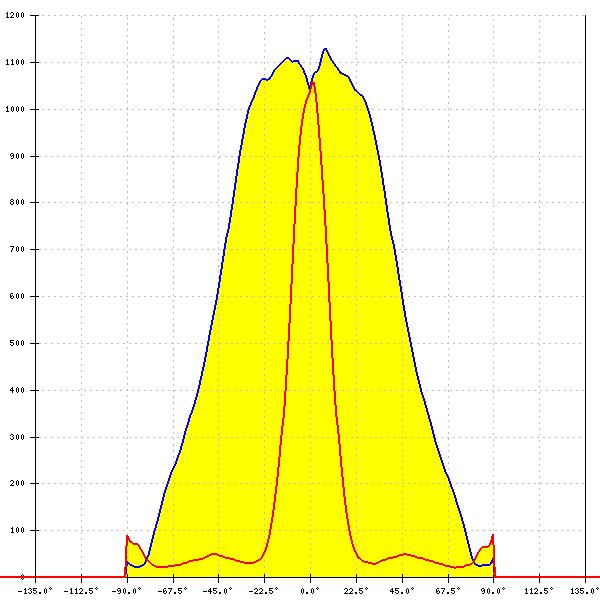

XP-G3
FWHM:
93° + 20°
FWTM:
151° + 37°
Peak intensity:
1.130 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

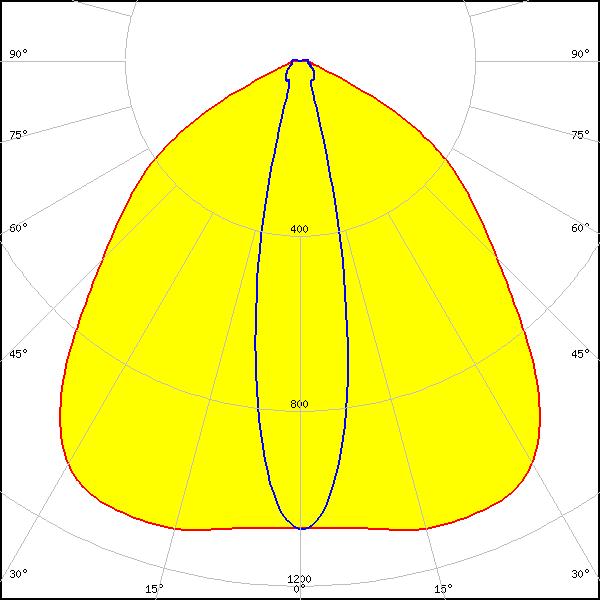

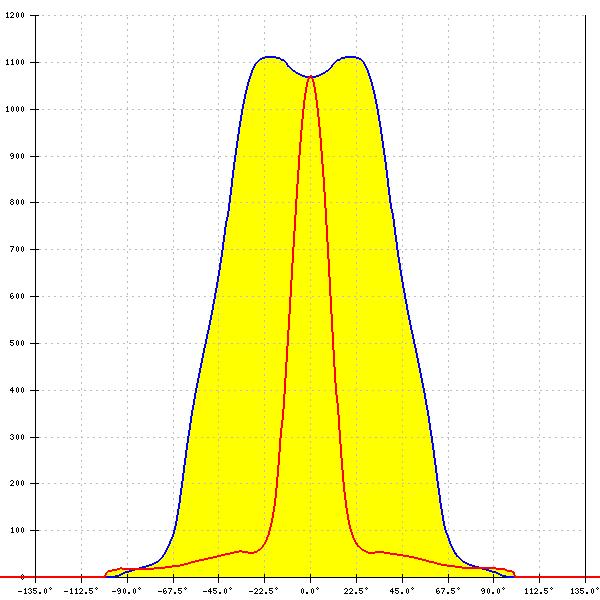

LED:
XP-G4
FWHM:
97° + 22°
FWTM:
133° + 39°
Peak intensity:
1.118 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

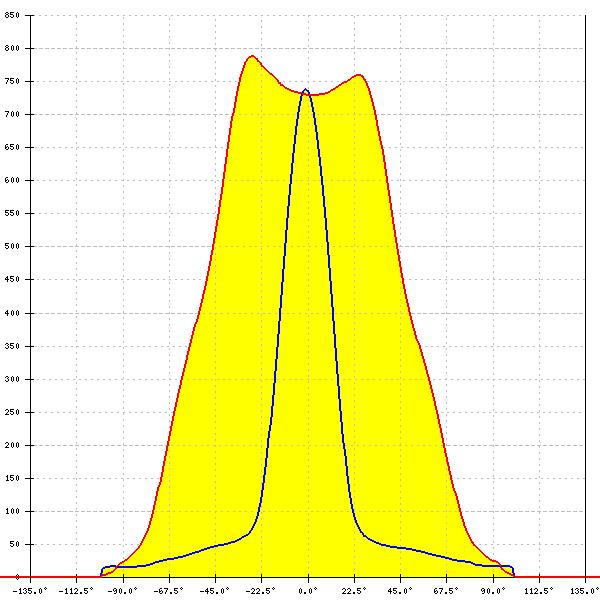

LED:

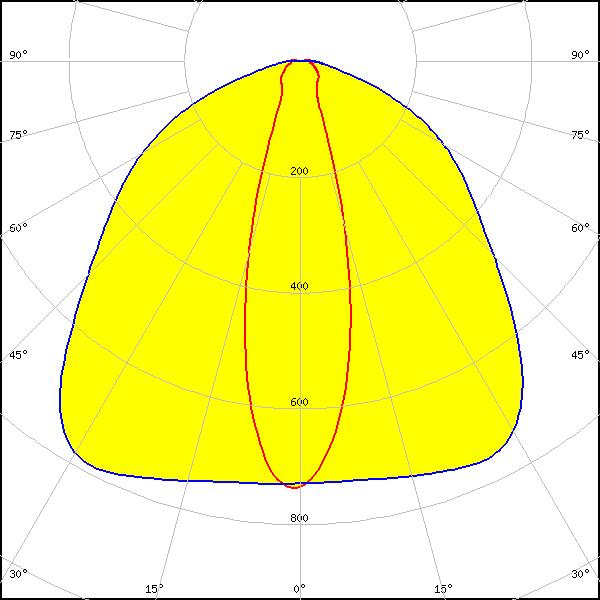

XP-L HD
FWHM:
108° + 27°
FWTM:
154° + 51°
Peak intensity:
0.780 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XP-L2
FWHM:
102° + 29°
FWTM:
154° + 54°
Peak intensity:
0.770 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

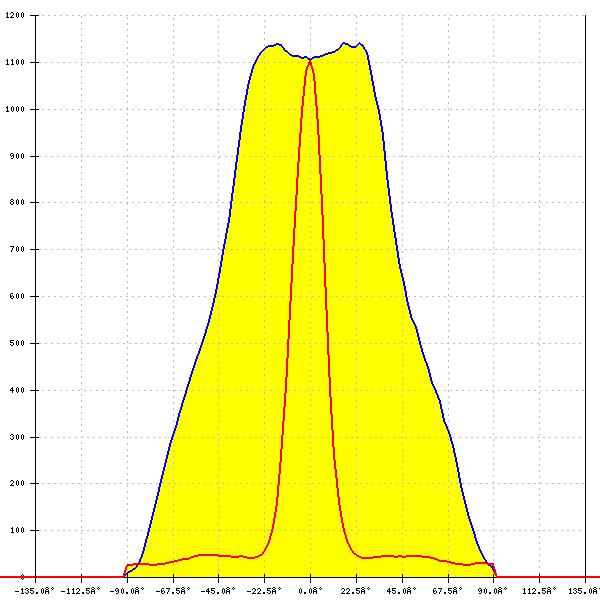

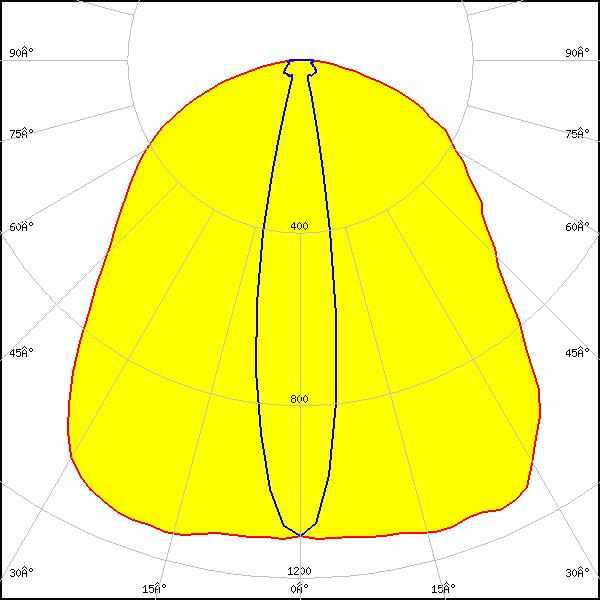

LED:
XT-E
FWHM:
104° + 19°
FWTM:
164° + 36°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON A
FWHM:
92° + 20°
FWTM:
148° + 36°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

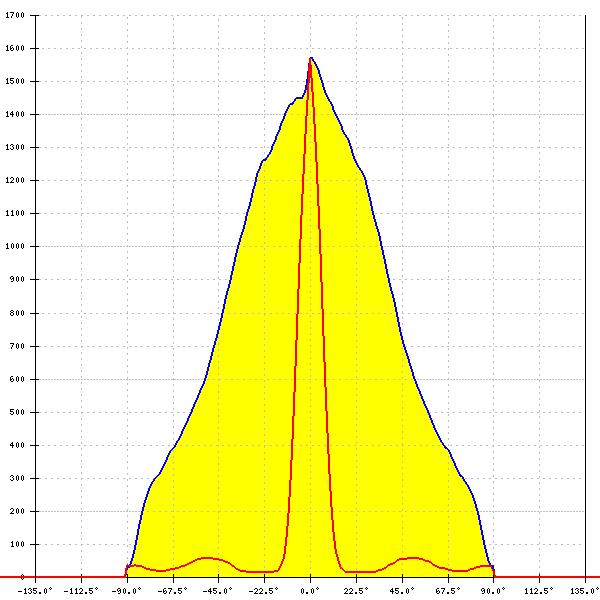

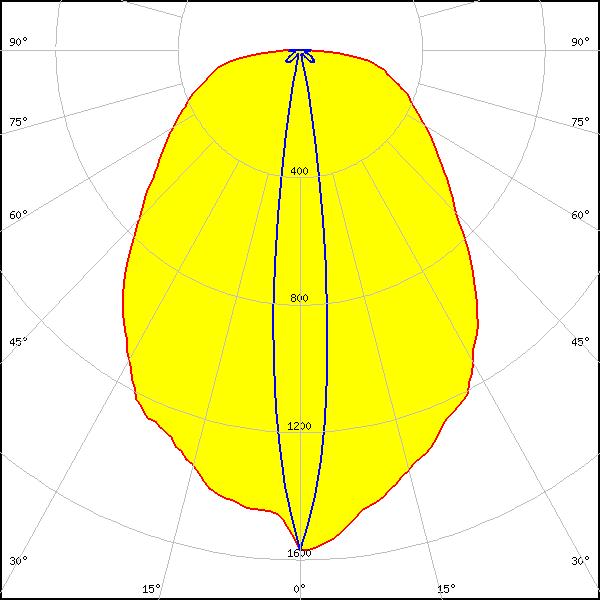

LED:
LUXEON C
FWHM:
13° + 86°
FWTM:
23° + 167°
Peak intensity:
1.570 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

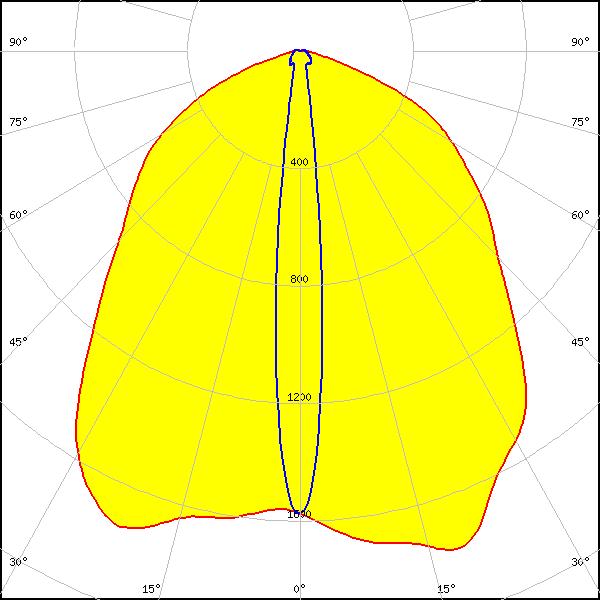

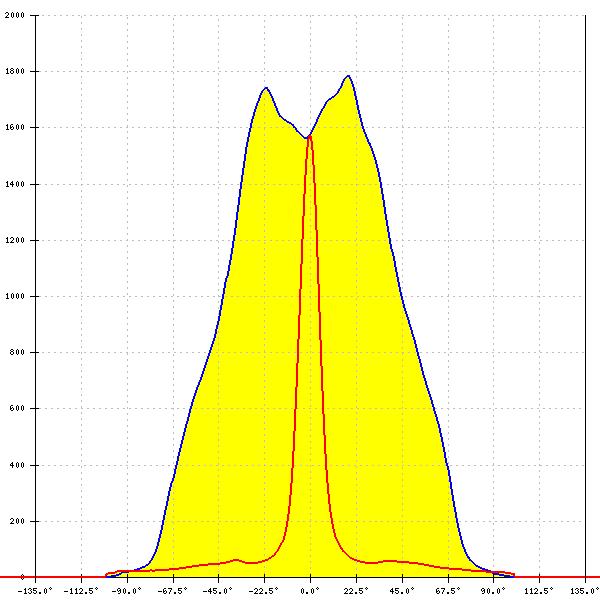

LED:
LUXEON CZ
FWHM:
102° + 12°
FWTM:
146° + 25°
Peak intensity:
1.800 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

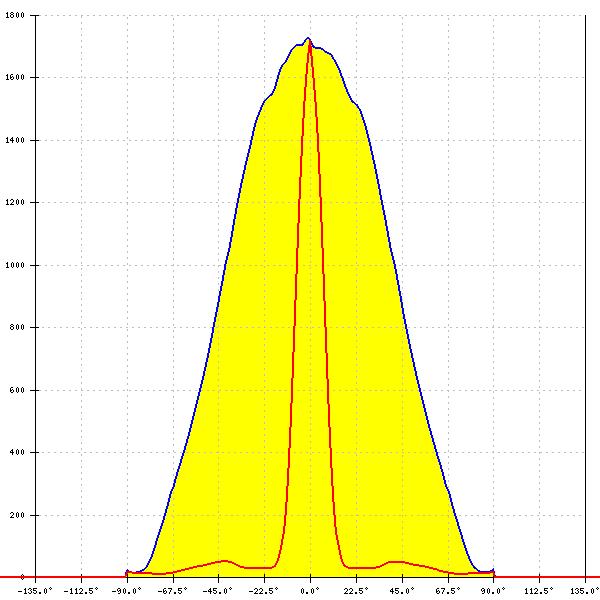

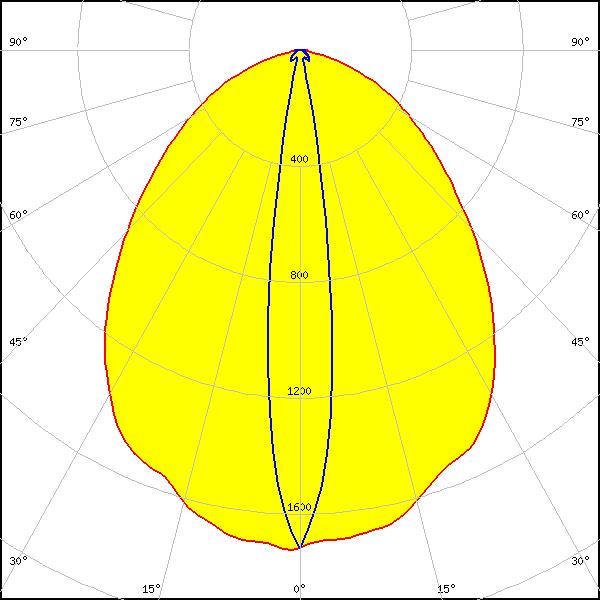

LUXEON Z ES
FWHM:
90° + 14°
FWTM:
144° + 26°
Peak intensity:
1.725 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

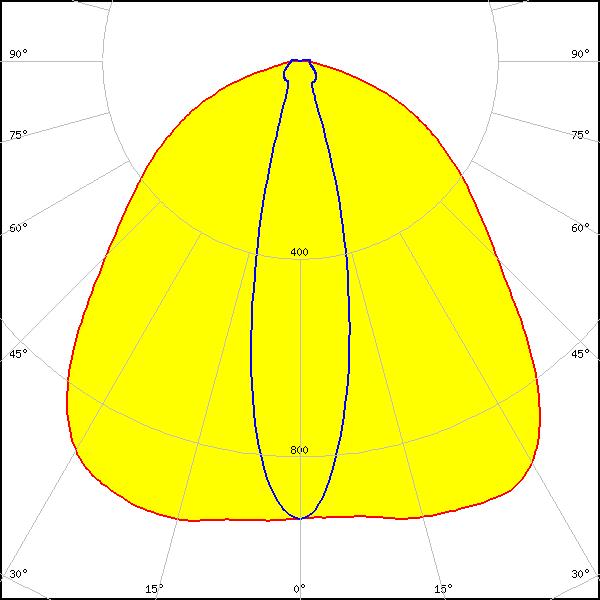

LED:

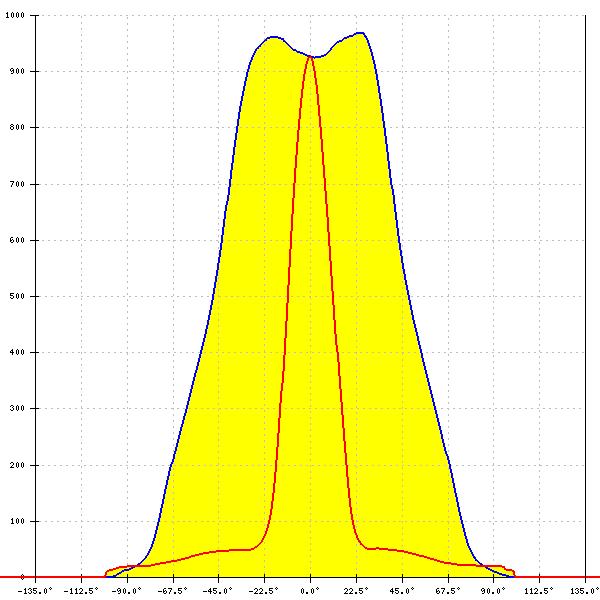

NVSW219F
FWHM:
100° + 24°
FWTM:
149° + 42°
Peak intensity:
0.970 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSxx19A
FWHM:
100° + 20°
FWTM:
147° + 34°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

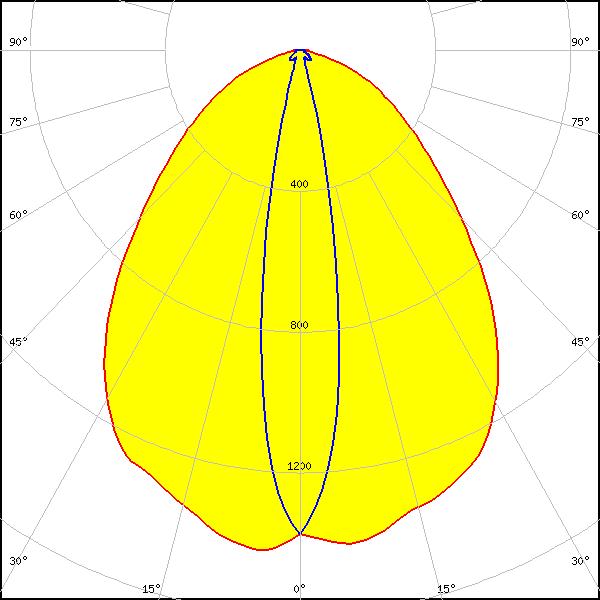

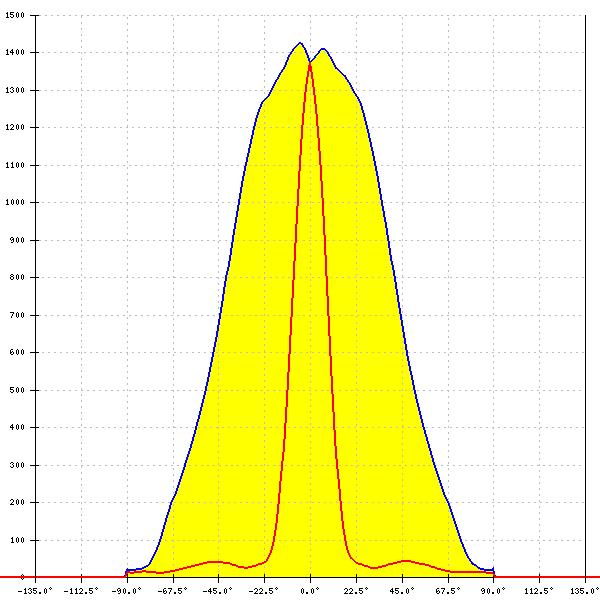

OSLON Square CSSRM2/CSSRM3
FWHM:
88° + 18°
FWTM:
142° + 32°
Peak intensity:
1.428 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSLON Square EC
FWHM:
92° + 21°
FWTM:
148° + 36°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

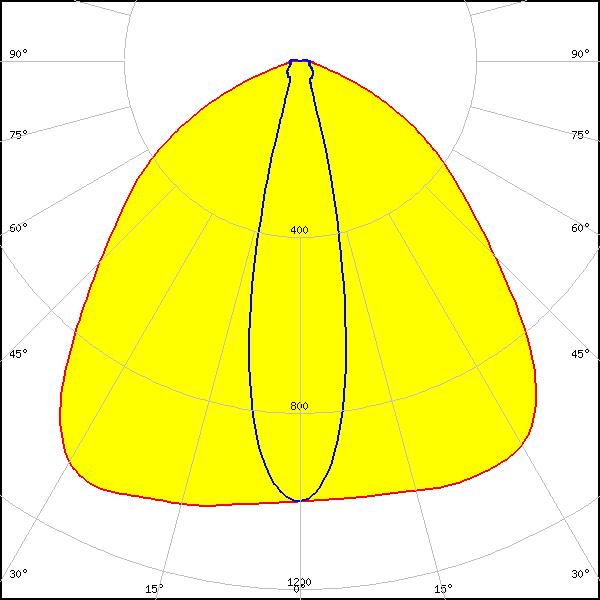

LED:

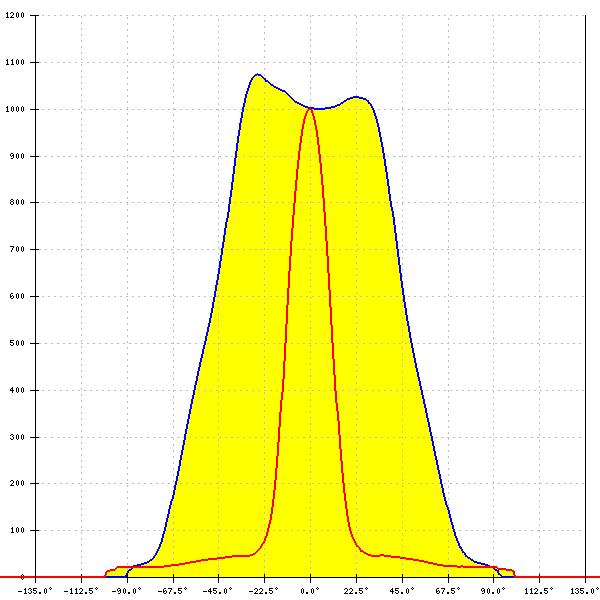

LH351B
FWHM:
101° + 24°
FWTM:
142° + 40°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

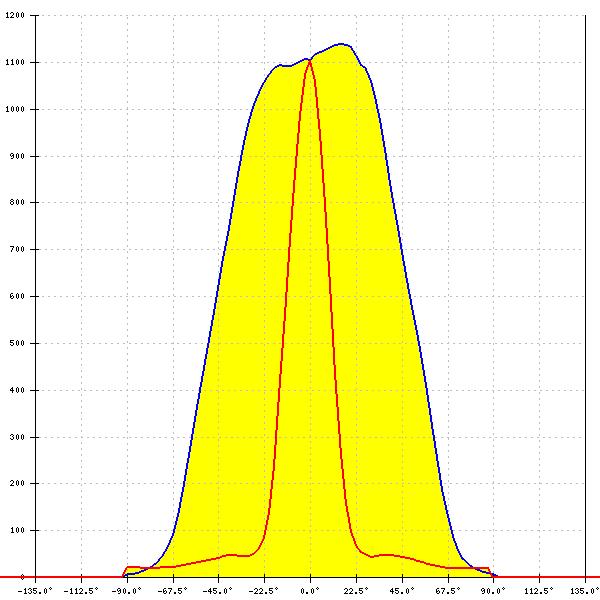

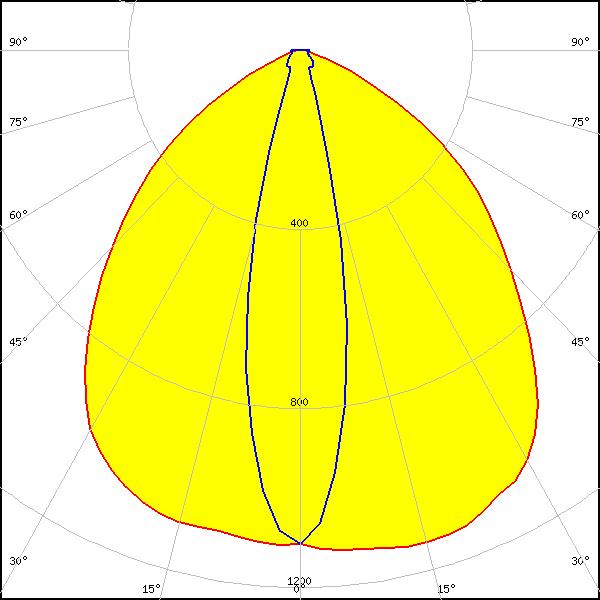

LED:
LH351Z
FWHM:
99° + 24°
FWTM:
135° + 41°
Peak intensity:
1.100 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M1/Z5M2
FWHM:
99° + 22°
FWTM:
147° + 38°
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

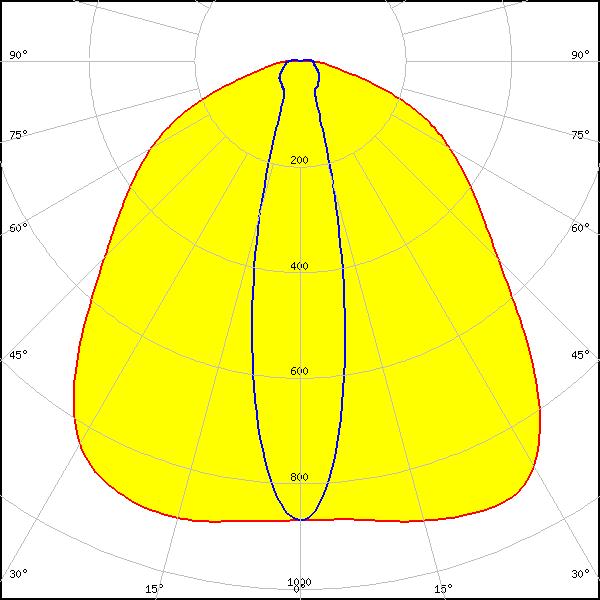

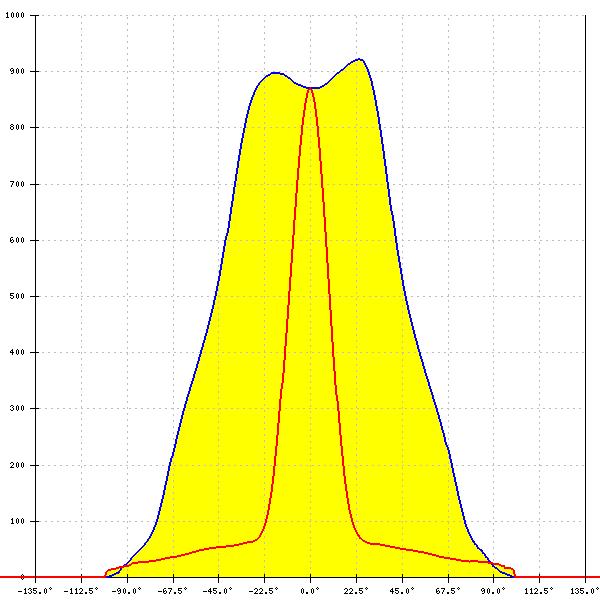

LED:
Z5M3
FWHM:
102° + 23°
FWTM:
154° + 45°
Peak intensity:
0.920 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

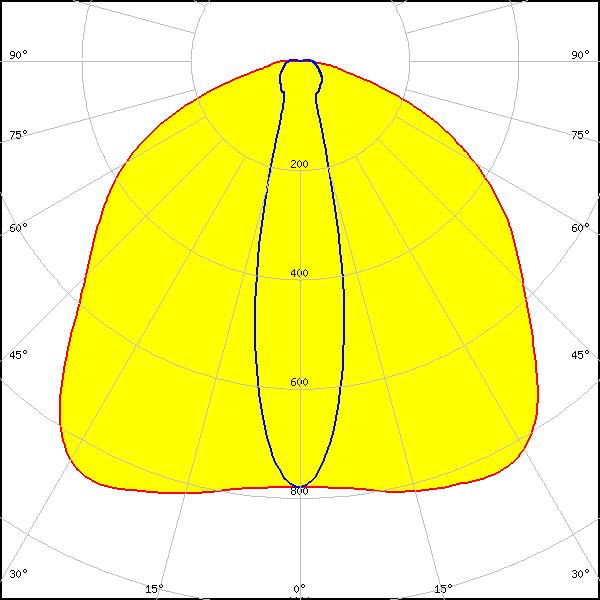

LED:

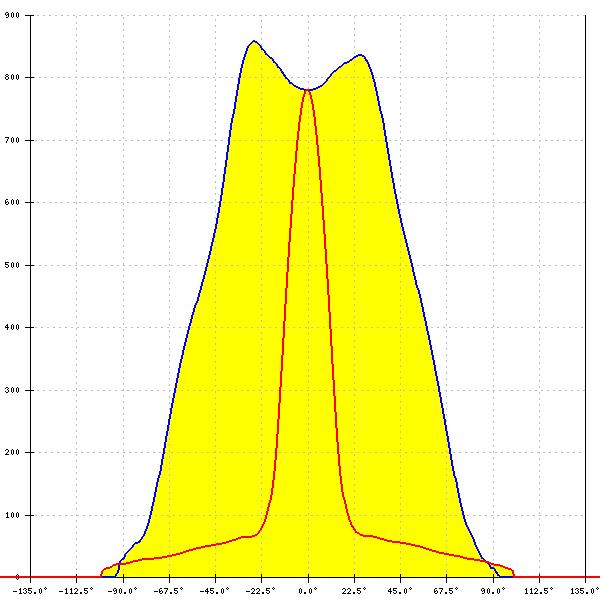

Z8Y22P
FWHM:
117° + 23°
FWTM:
156° + 45°
Peak intensity:
0.860 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
