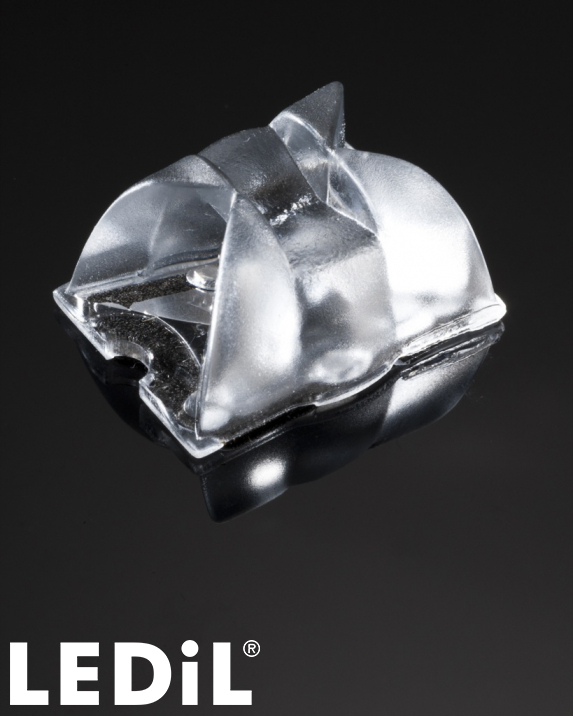

CA13474_STRADA-A2
Print
Symmetric IESNA Type I (medium) beam for narrow roads and paths with long pole distance and tilted armature. Optimized for CREE XT-E. Assembly with installation tape.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

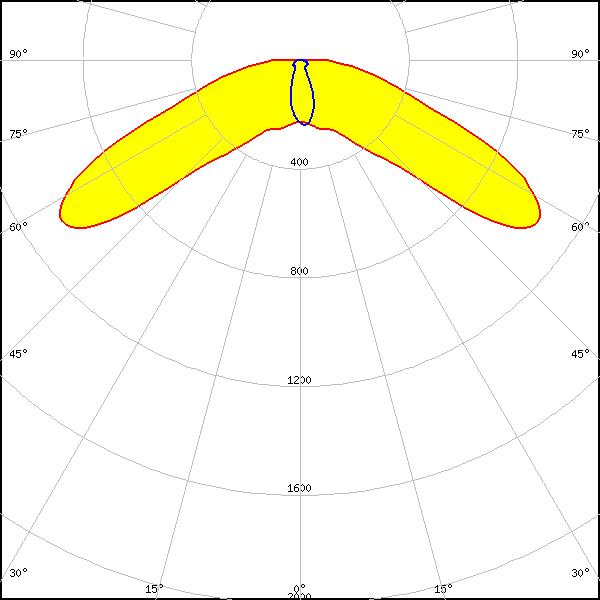

LED:
XP-G2
FWHM:
141° + 41°
FWTM:
0° + 0°
Peak intensity:
0.930 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

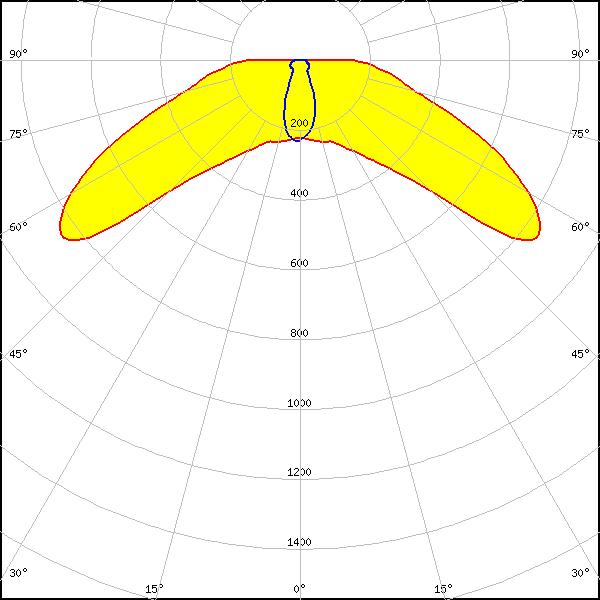

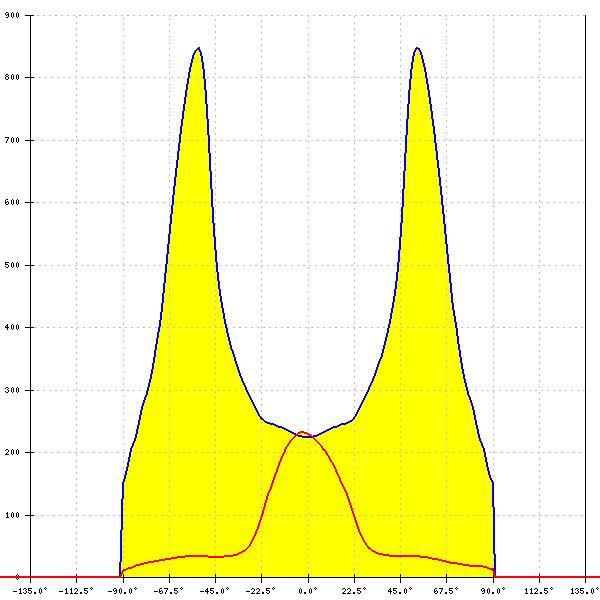

LED:
XT-E
FWHM:
141° + 41°
FWTM:
0° + 0°
Peak intensity:
0.930 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

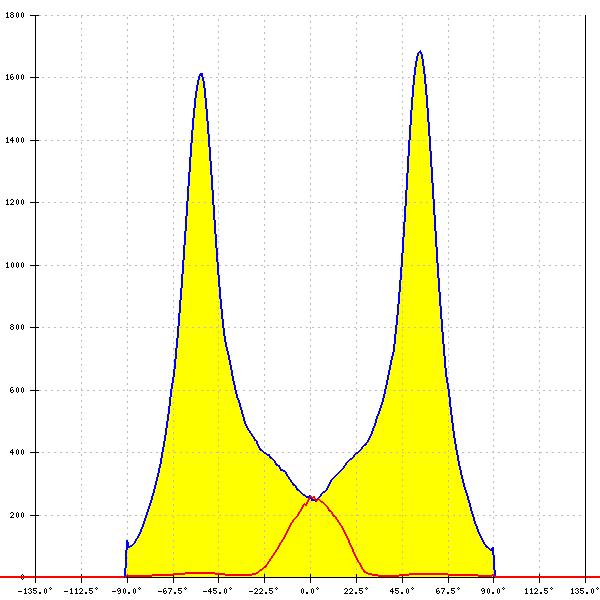

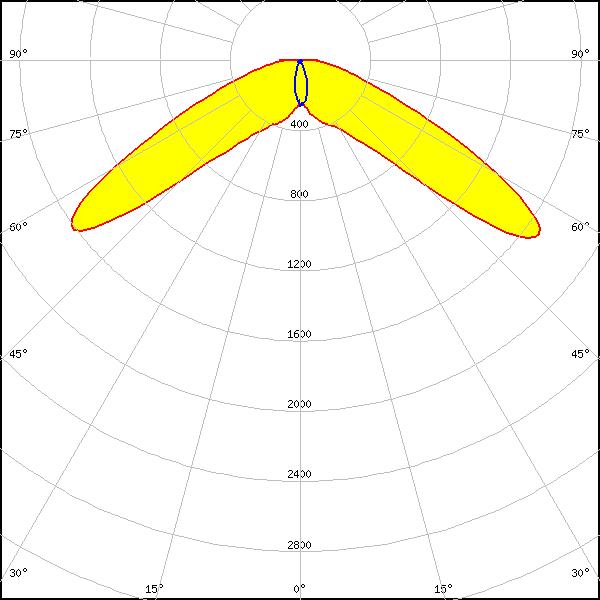

LED:
LUXEON Rebel Plus
FWHM:
129° + 31°
FWTM:
163° + 49°
Peak intensity:
1.729 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

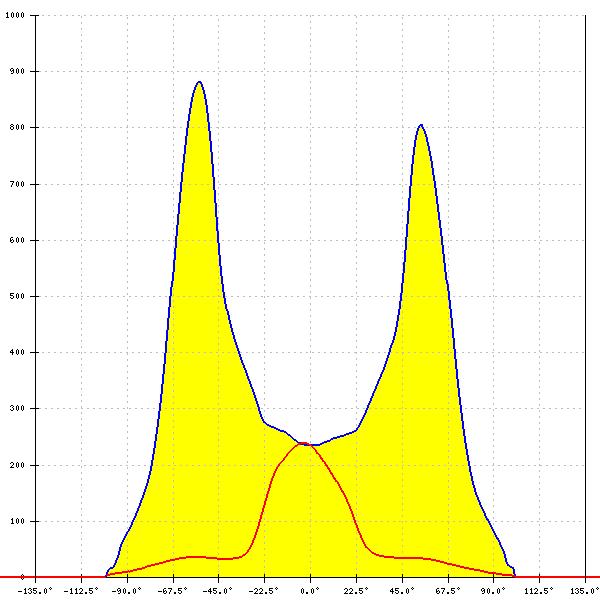

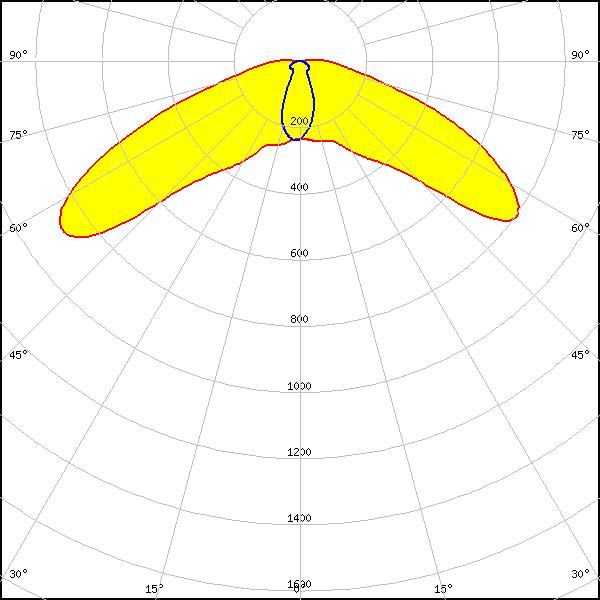

LED:
NVSW219D
FWHM:
140° + 43°
FWTM:
178° + 142°
Peak intensity:
0.880 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

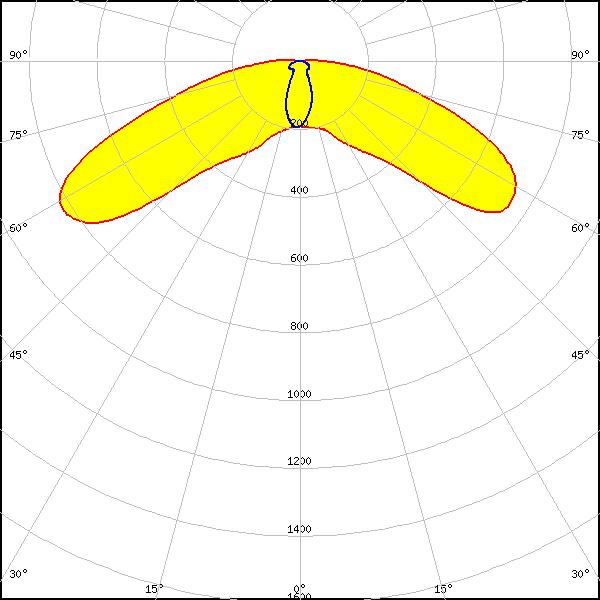

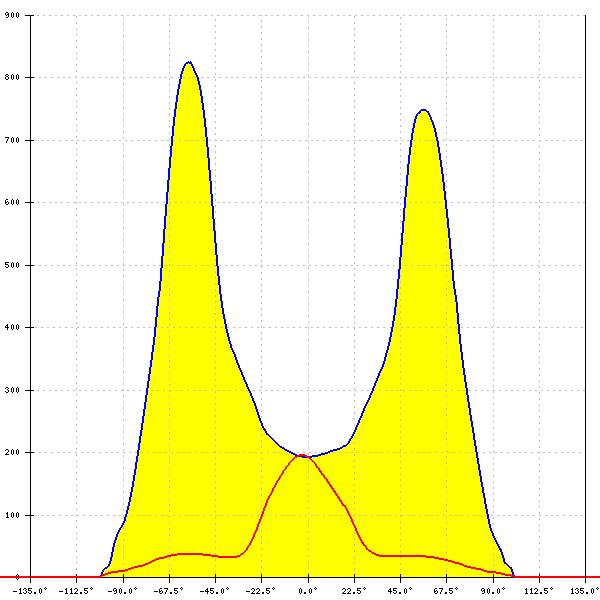

LED:
NVSW319B
FWHM:
146° + 43°
FWTM:
179° + 155°
Peak intensity:
0.820 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 3737 (3W version)
FWHM:
134° + 38°
FWTM:
62° + 37°
Peak intensity:
1.080 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

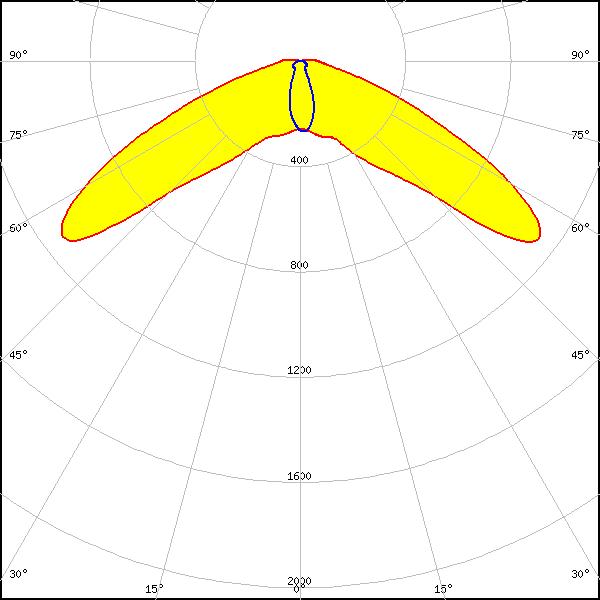

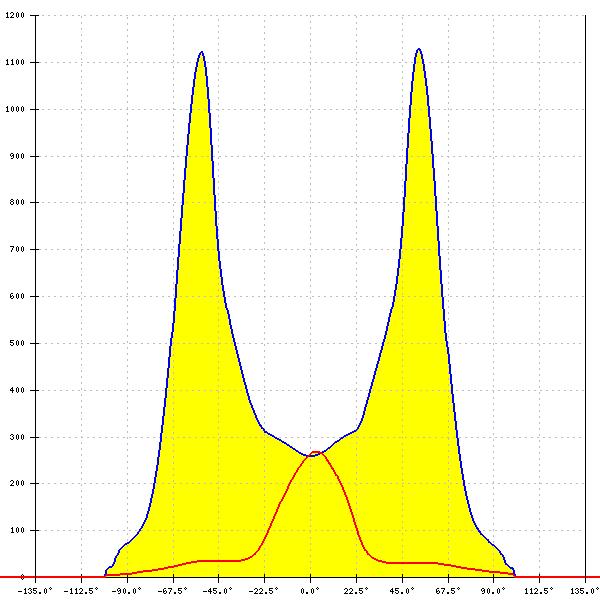

LED:
LH351Z
FWHM:
133° + 38°
FWTM:
0° + 0°
Peak intensity:
1.100 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
