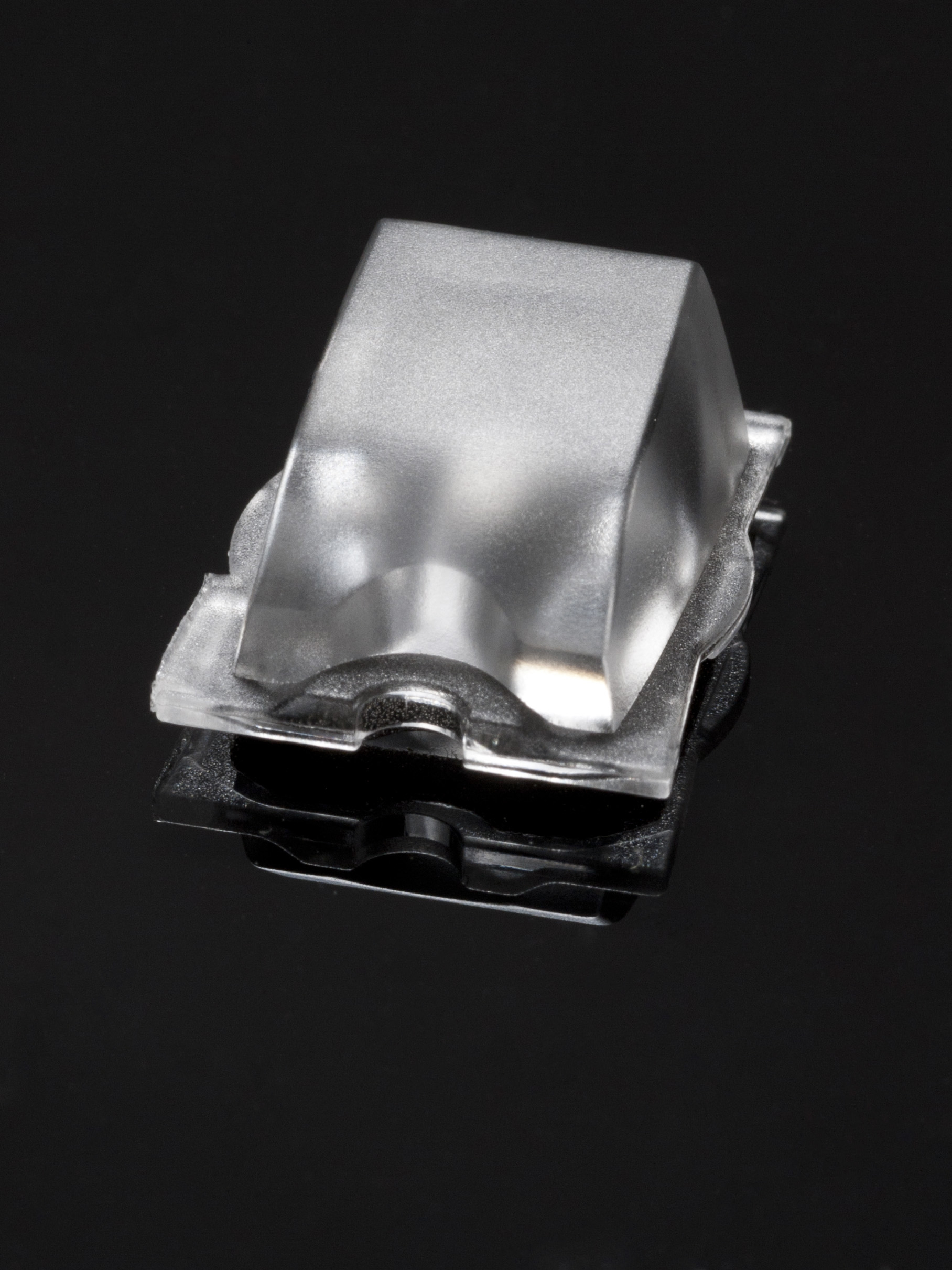

CA13493_STRADA-T-DN

Beam for area lighting with shorter illumination distances. Optimized for CREE XT-E and XP-G2. Assembly with installation tape.

Specification

Dimensions:

20 x 16 mm
Height:

9.20 mm
Fastening:

pin, tape, screw
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

STRADA-T-DN
Single lens
PMMA
VOSU-WU-M-365-TAPE
Tape
Acryl tape
Request material files from Tech Support

Ordering information

Quantity in box:

3360 pcs
Box weight:

5.4 kg
MPQ:

240 pcs
MOQ weight:

0.0 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: CA13493_STRADA-T-DN

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CA13493_STRADA-T-DN

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

Application example

Wall pack lighting with STRADA-T-DN and -DW

Application guide

Guide for Urban lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

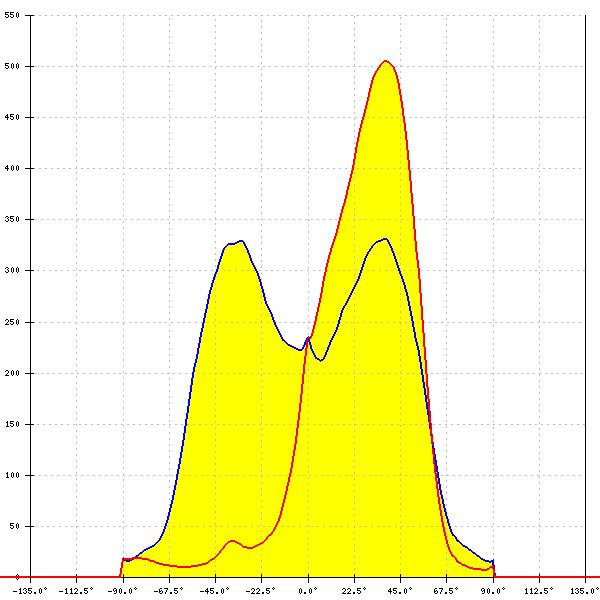

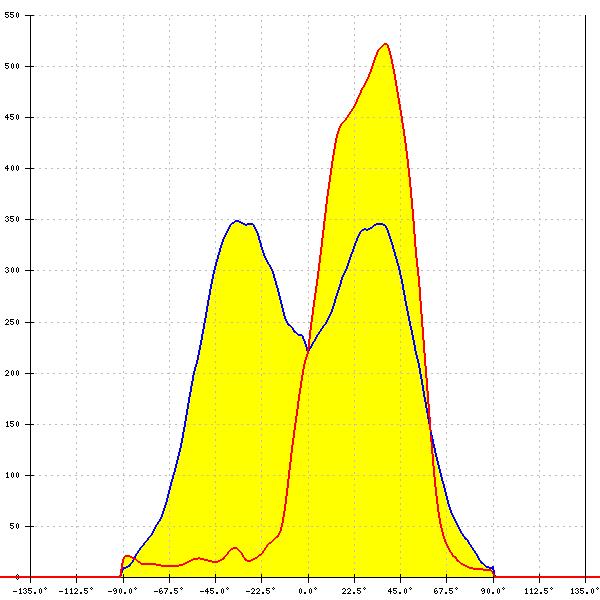

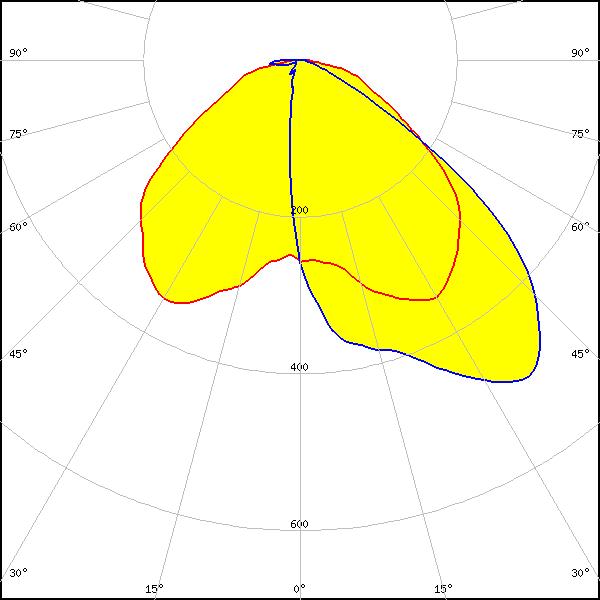

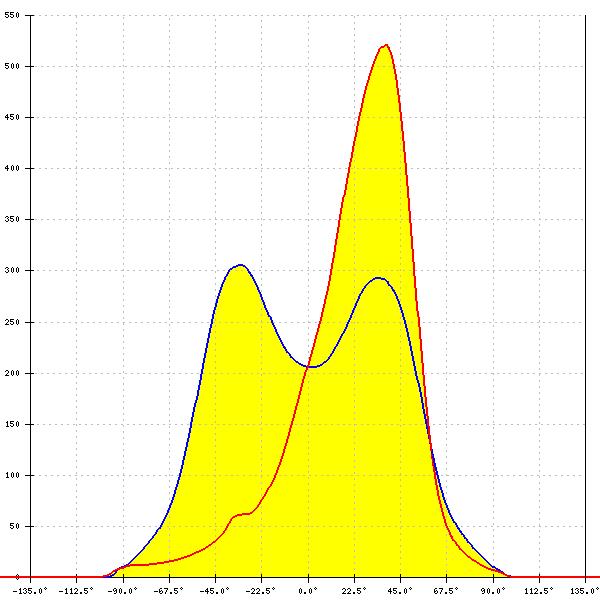

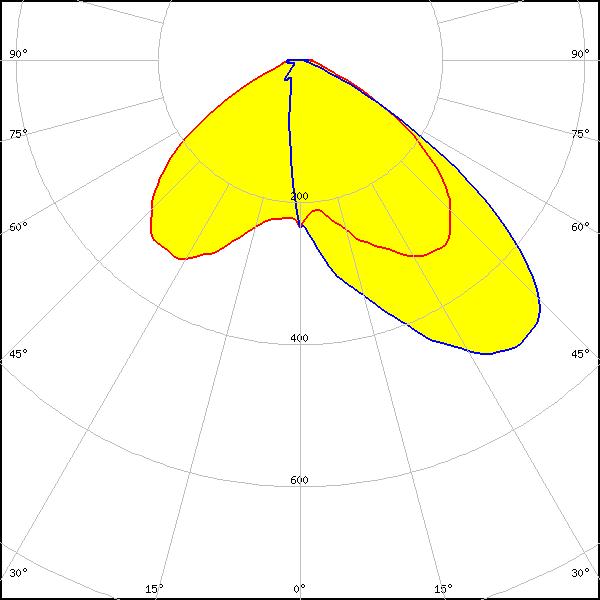

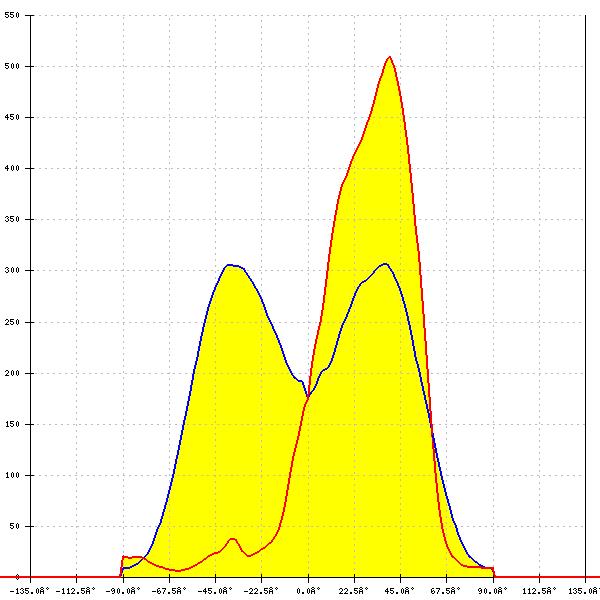

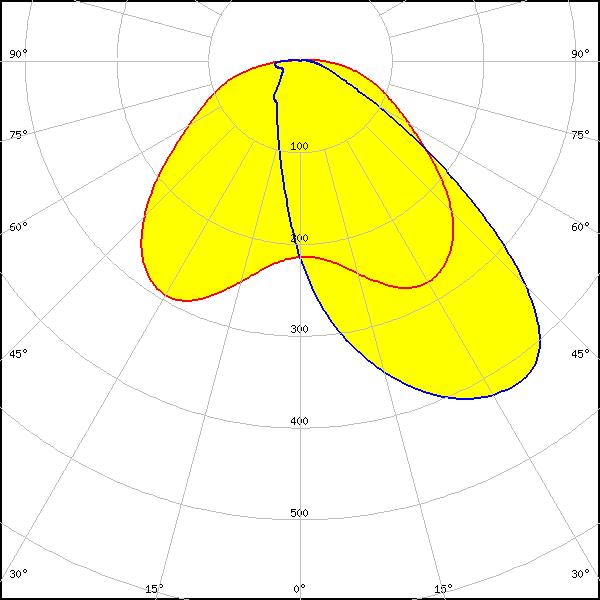

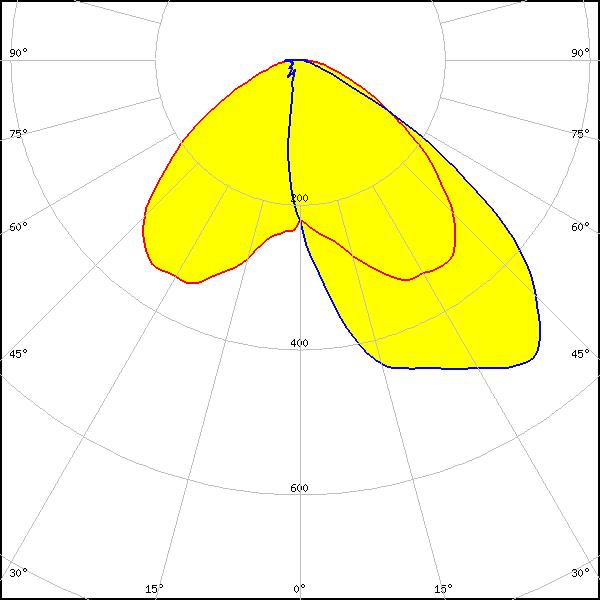

Optical results

LED: XP-G2

FWHM: asymmetric

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XP-G3

FWHM: asymmetric

Peak intensity: 0.537 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

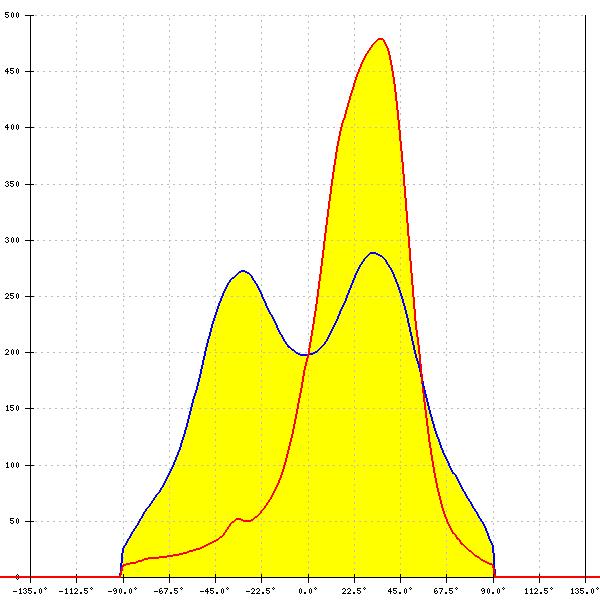

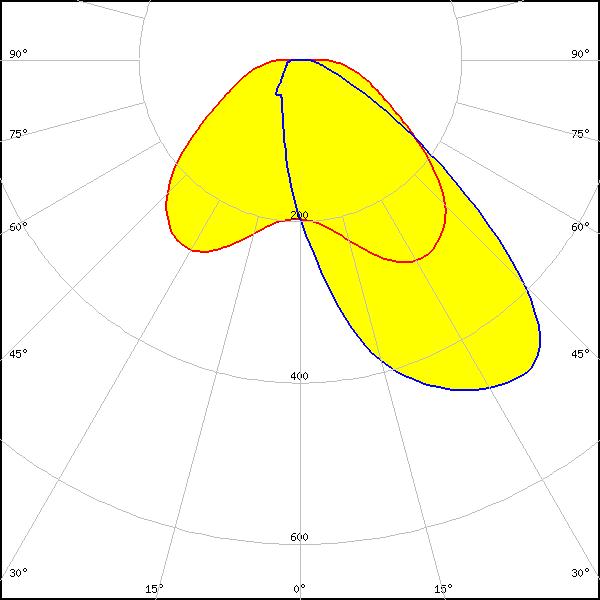

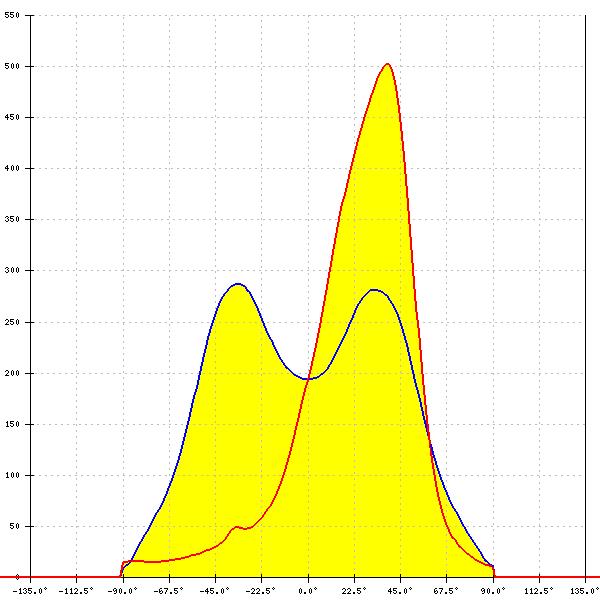

LED: XT-E

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

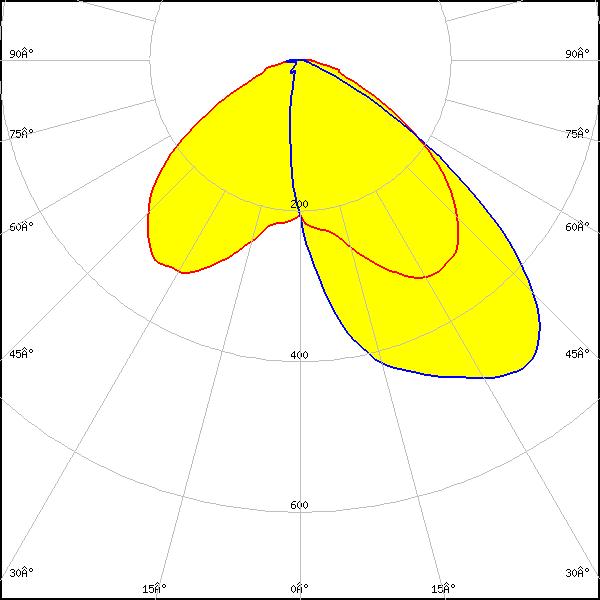

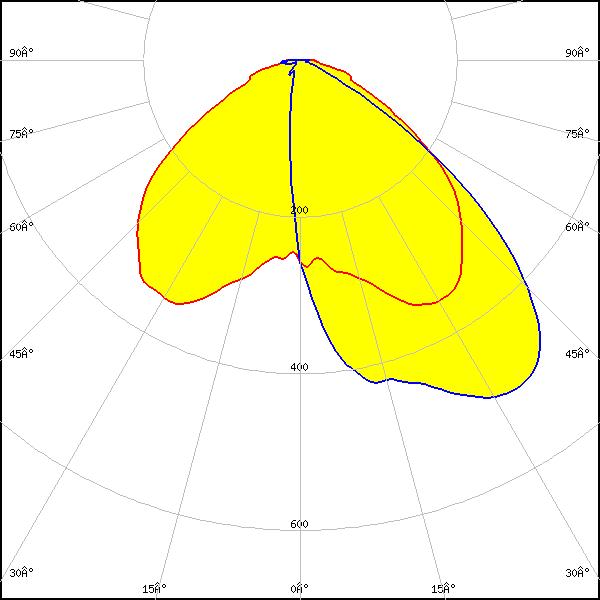

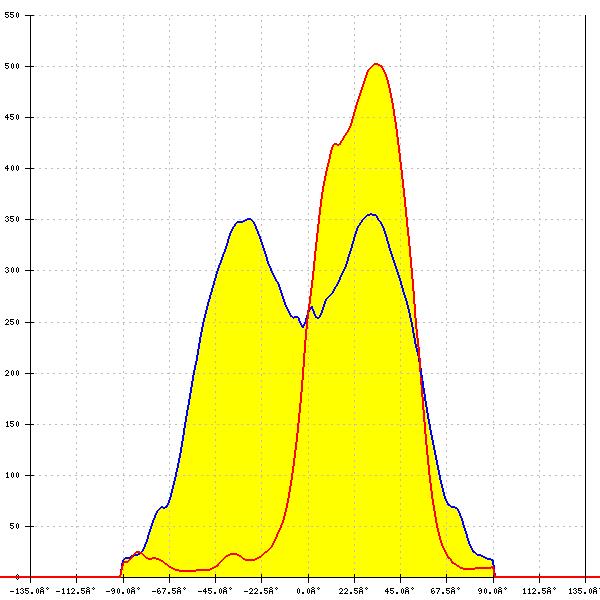

LED: LUXEON HL2Z

FWHM: asymmetric

Peak intensity: 0.524 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

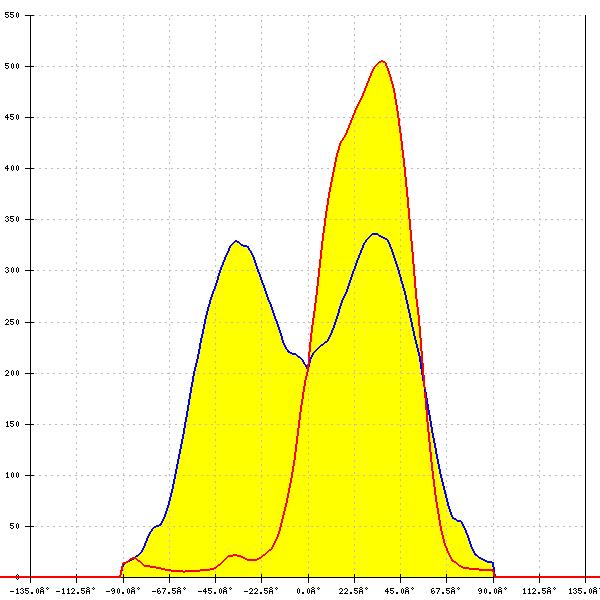

LED: LUXEON HL4Z

FWHM: asymmetric

Peak intensity: 0.535 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

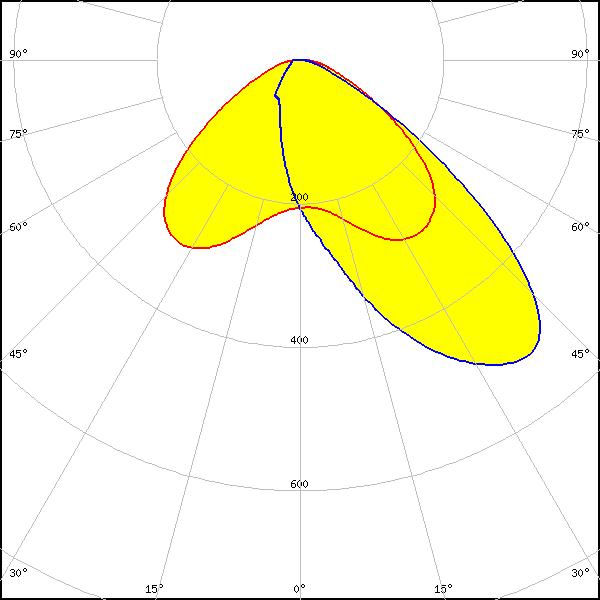

LED: NVSW219D

FWHM: asymmetric

Peak intensity: 0.540 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

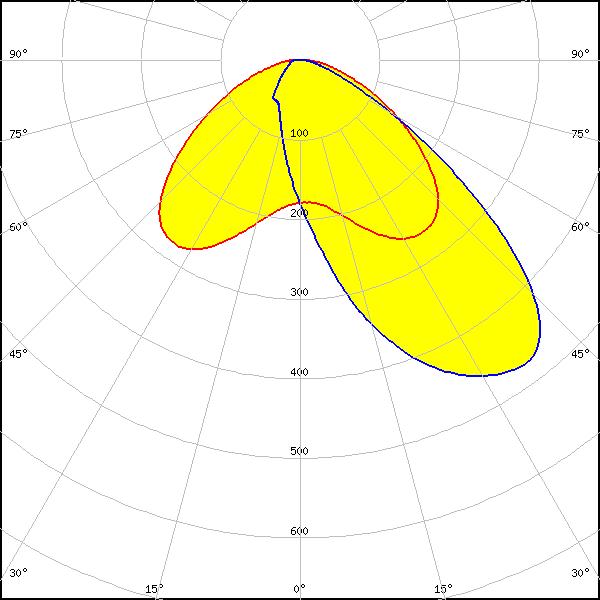

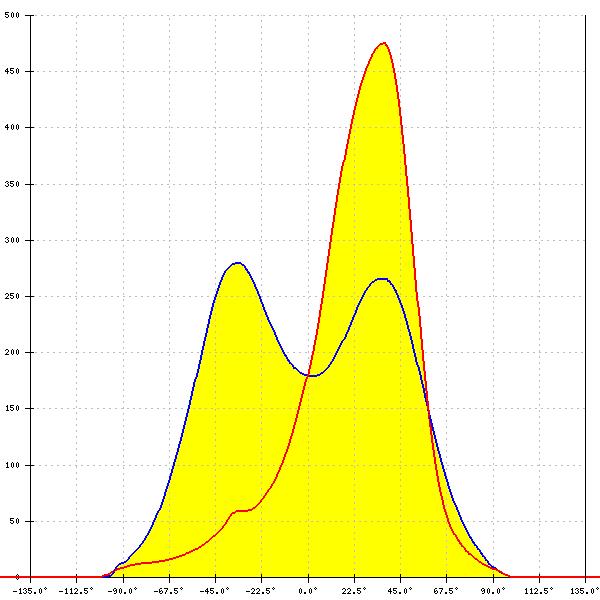

LED: NVSW319B

FWHM: asymmetric

Peak intensity: 0.510 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

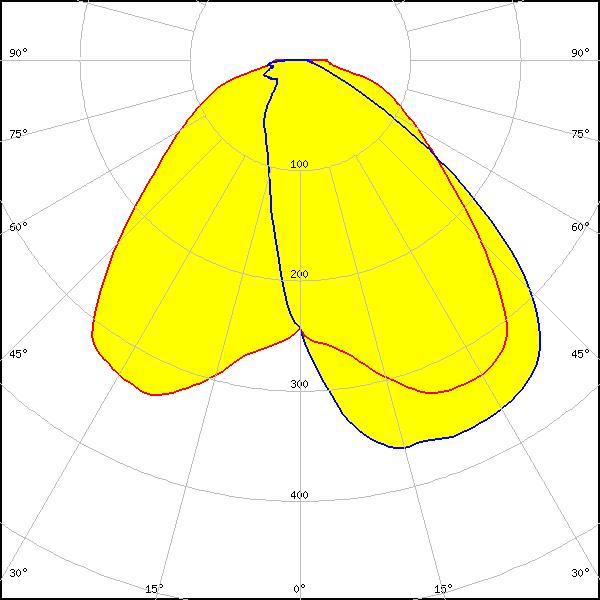

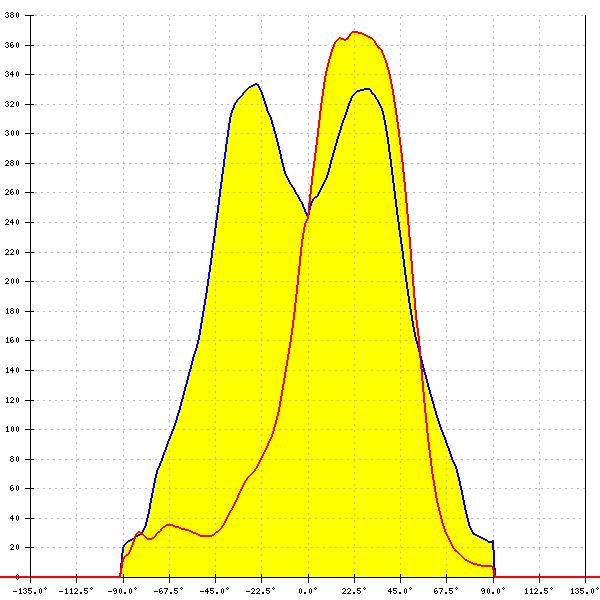

LED: NVSxE21A

FWHM: asymmetric

Peak intensity: 0.440 cd/lm

Efficiency: 86 %

LEDs/each optic: 4

Light colour/type: White

Datasheet

Light distribution files

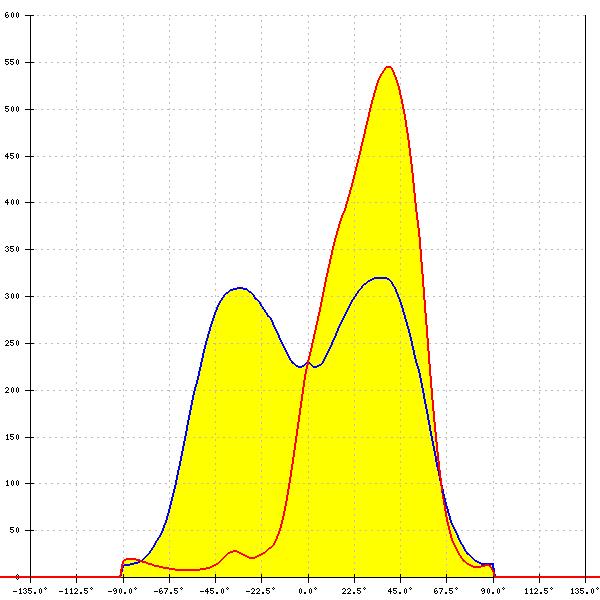

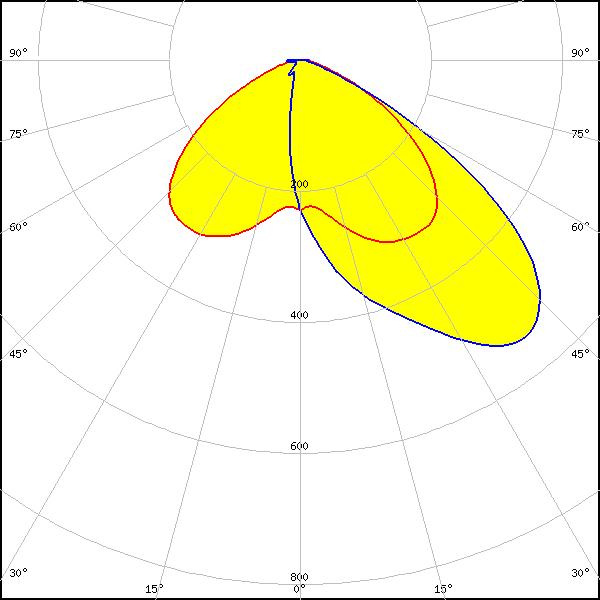

LED: NVSxx19B/NVSxx19C

FWHM: asymmetric

Peak intensity: 0.550 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 3737 (3W) PUSTA1

FWHM: asymmetric

Peak intensity: 0.570 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LH351B

FWHM: asymmetric

Peak intensity: 0.540 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

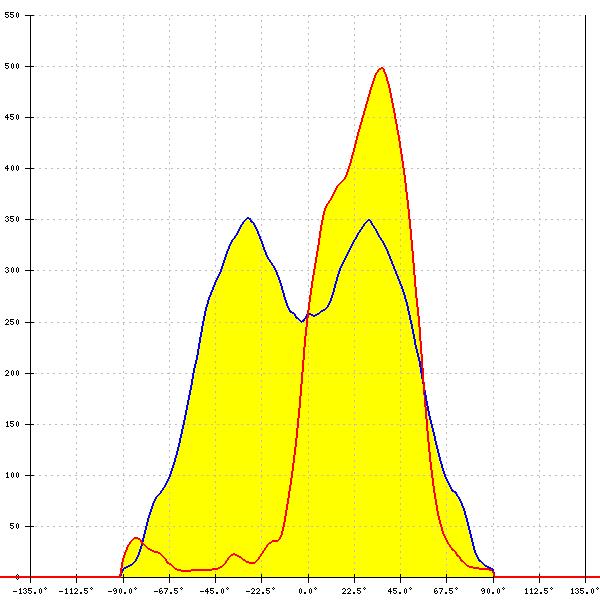

LED: Z8Y19

FWHM: asymmetric

Peak intensity: 0.523 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

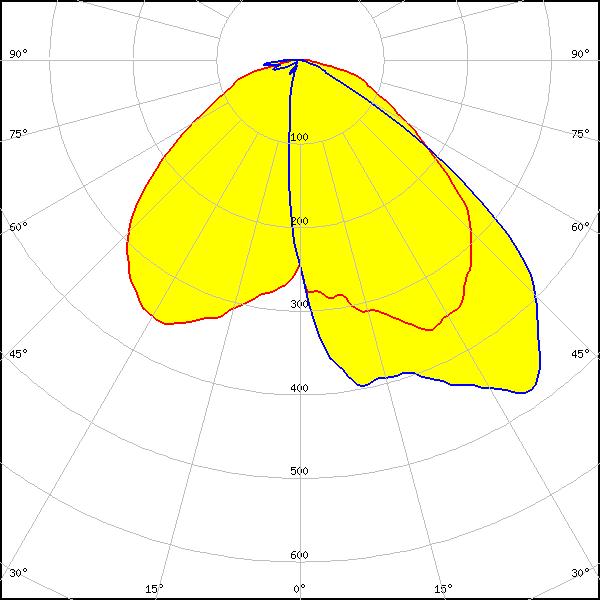

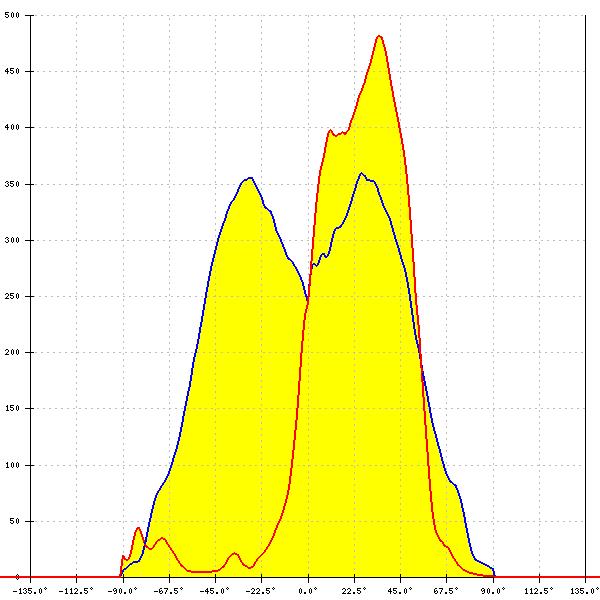

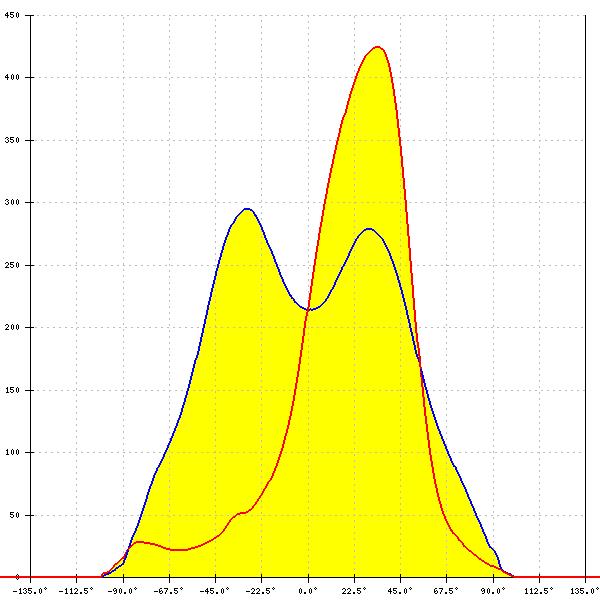

LED: Z8Y22

FWHM: asymmetric

Peak intensity: 0.515 cd/lm

Efficiency: 88 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: Z8Y22P

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
