    CA13892_MINNIE-XW

    Print

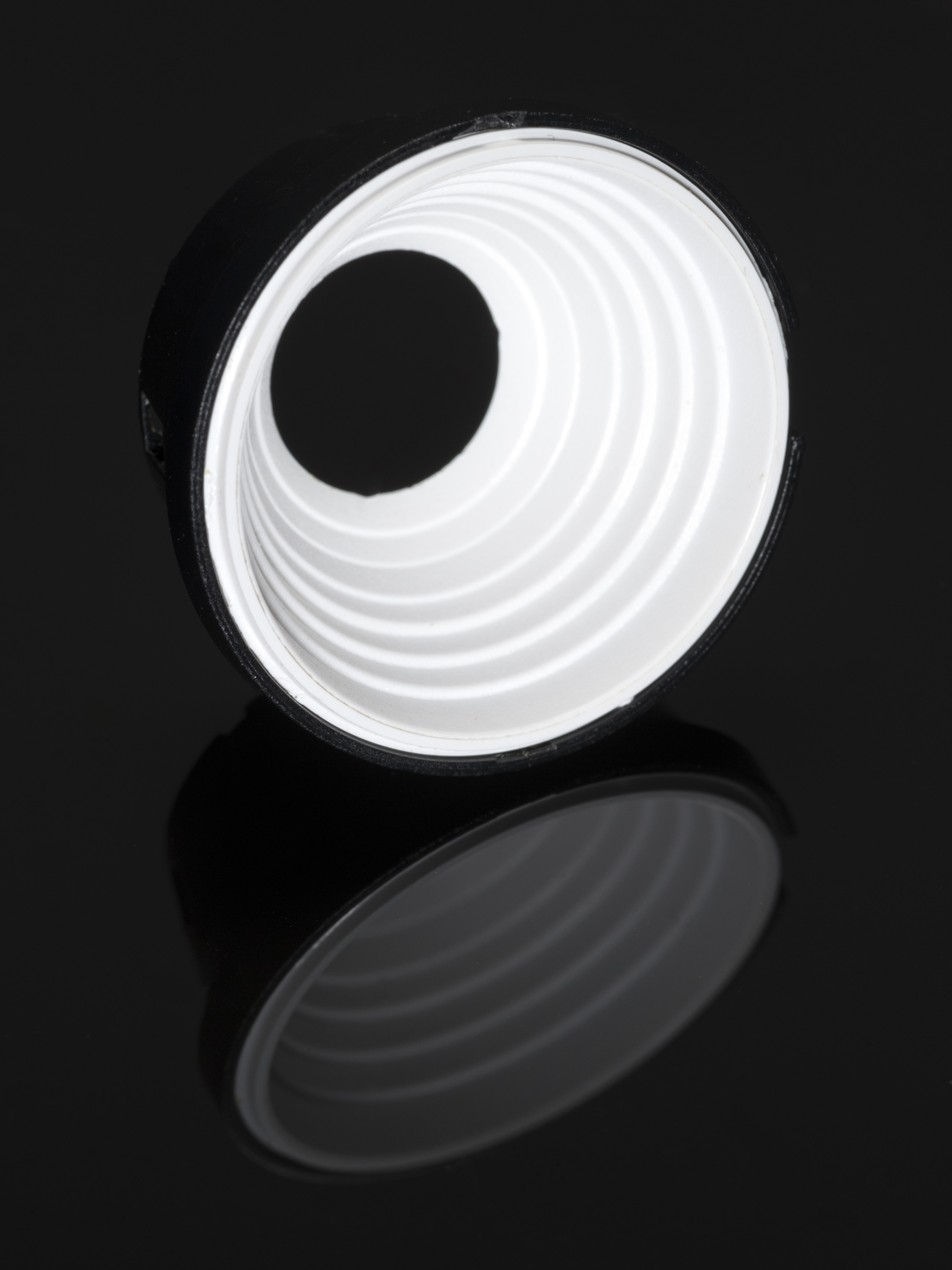

    ~90° extra wide beam optimized for LUXEON M/MX. Assembly with holder and installation tape.

    Specification
    • Dimensions:
      35 mm
    • Height:
      15.80 mm
    • Fastening:
      tape
    • Colour:
      black
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      840 pcs
    • Box size:
      476 x 273 x 292 mm
    • Box weight:
      6.4 kg
    • MPQ:
      60 pcs
    • MOQ:
      120 pcs
    • MOQ size:
      480 x 280 x 40 mm
    • MOQ weight:
      1.1 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CA13892_MINNIE-XW
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    News

    PRODUCT NEWS - MINNIE FOR CREE MT-G LED

    Application area

    Indoor Architectural Lighting

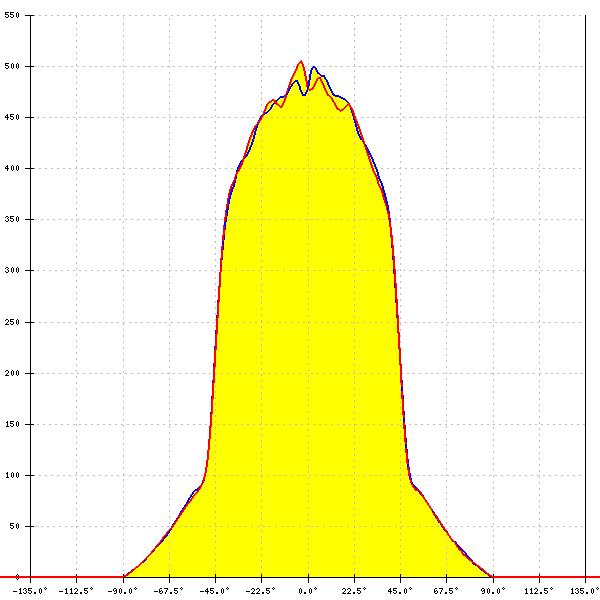

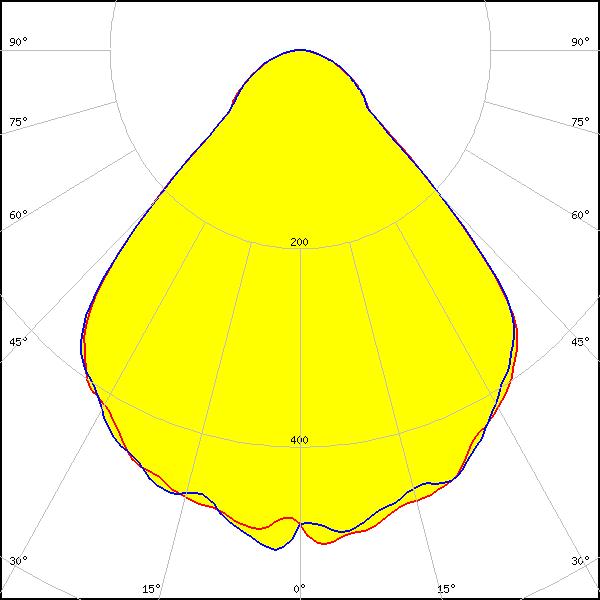

    Optical results

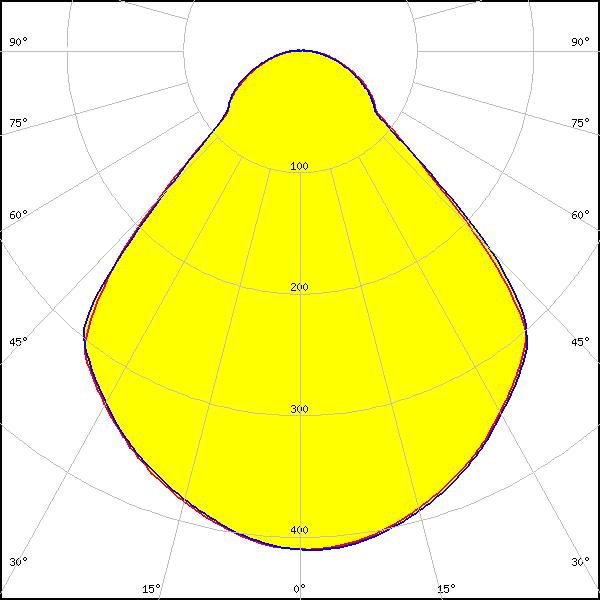

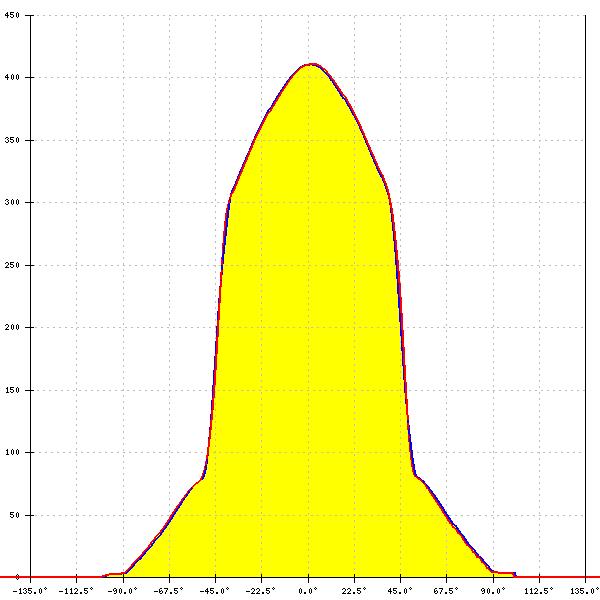

    LED: MHD-E/G
    FWHM: 89°
    FWTM: 140°
    Peak intensity: 0.410 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

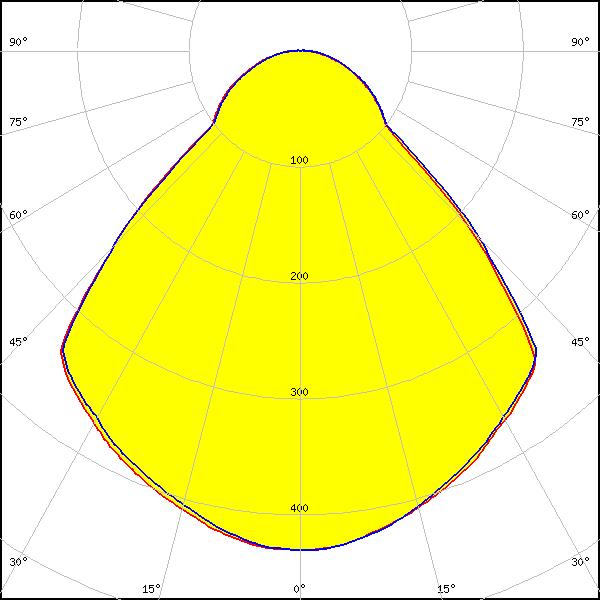

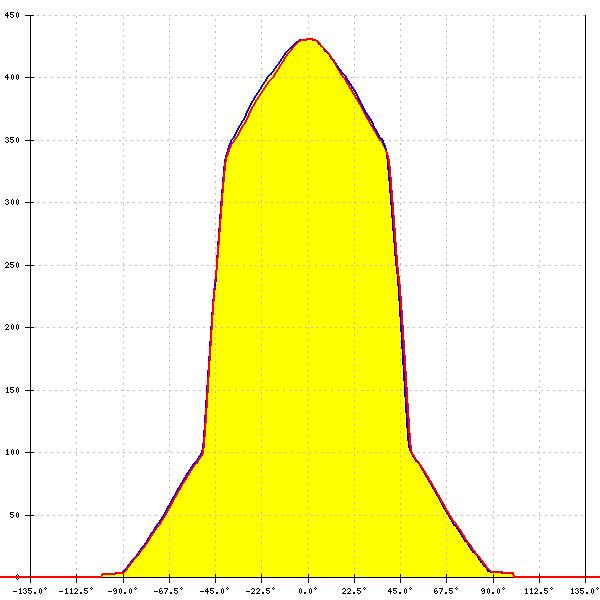

    LED: XHP70
    FWHM: 91°
    FWTM: 144°
    Peak intensity: 0.430 cd/lm
    Efficiency: 93 %
    LEDs/each optic: 1
    Light colour/type: White

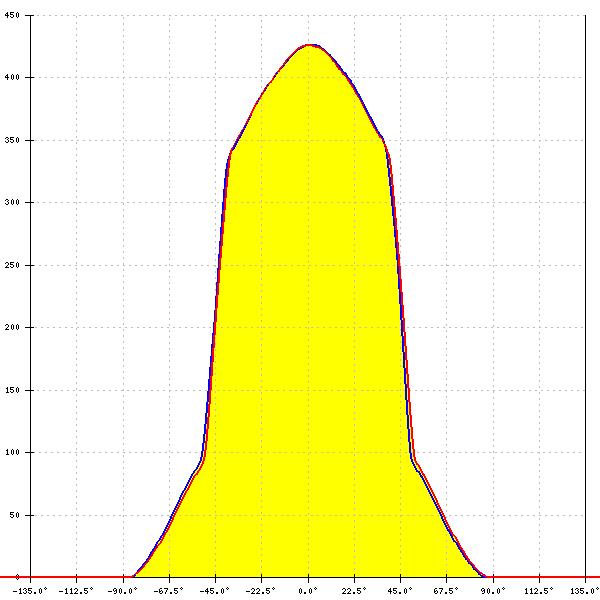

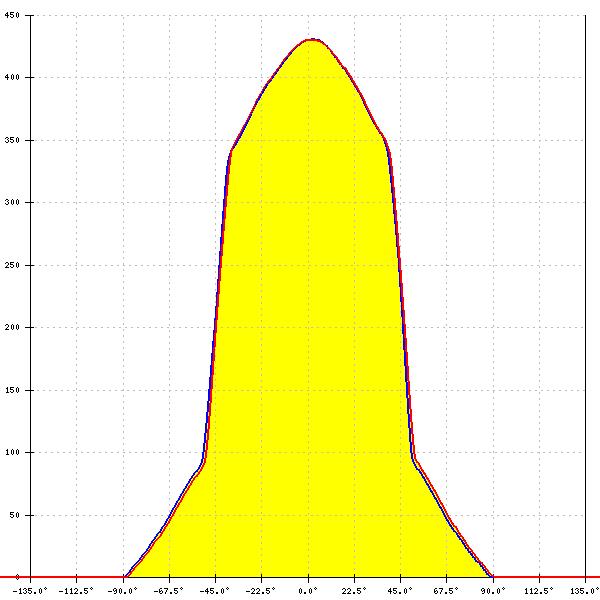

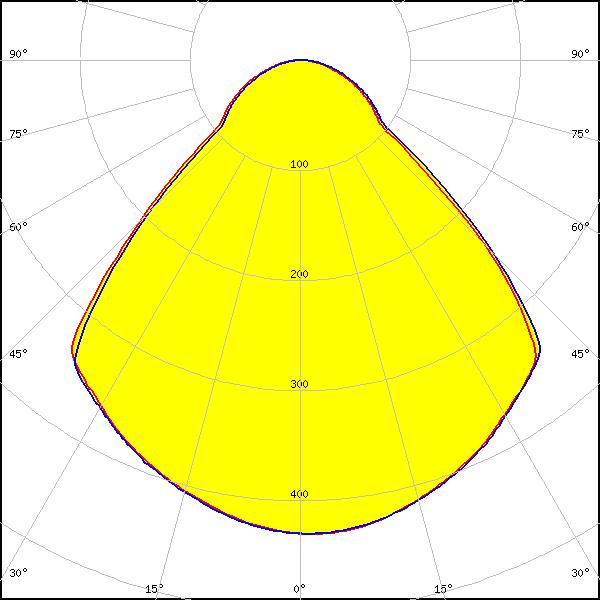

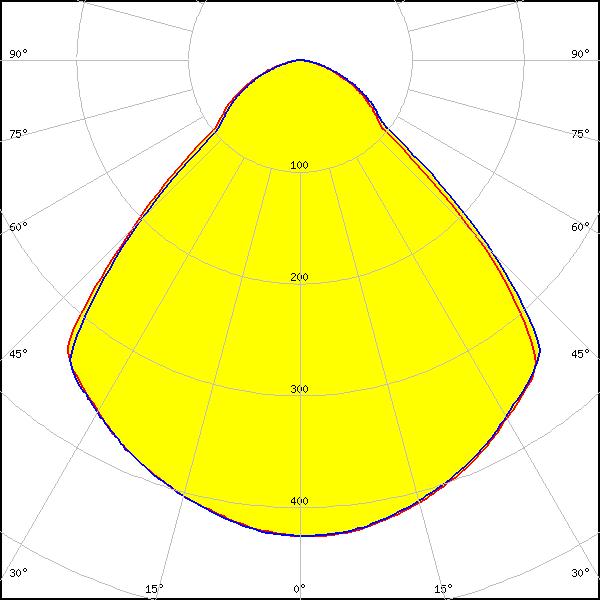

    LED: XHP70.2
    FWHM: 90°
    FWTM: 139°
    Peak intensity: 0.430 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: XHP70.2
    FWHM: 90°
    FWTM: 135°
    Peak intensity: 0.430 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

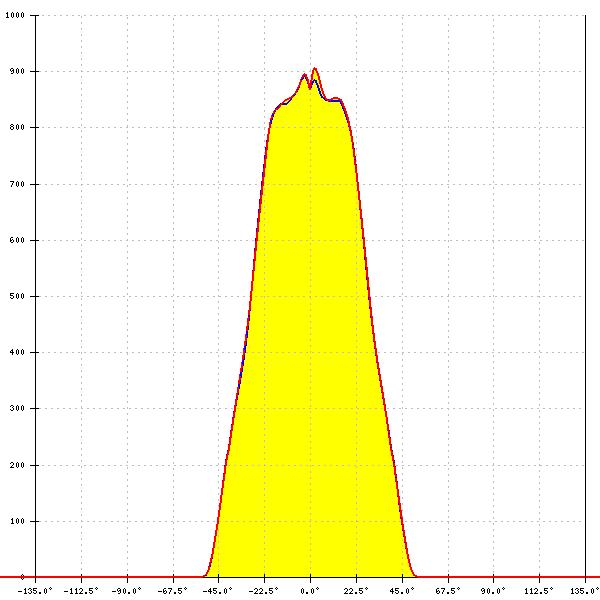

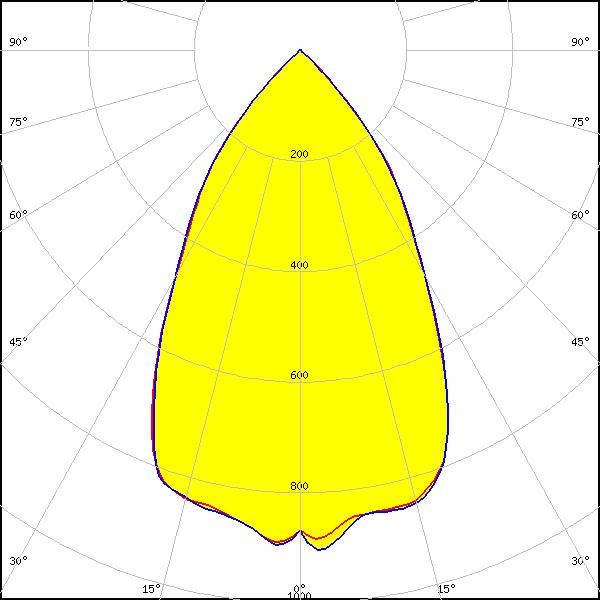

    LED: LUXEON 7070
    FWHM: 62°
    FWTM: 91°
    Peak intensity: 0.908 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

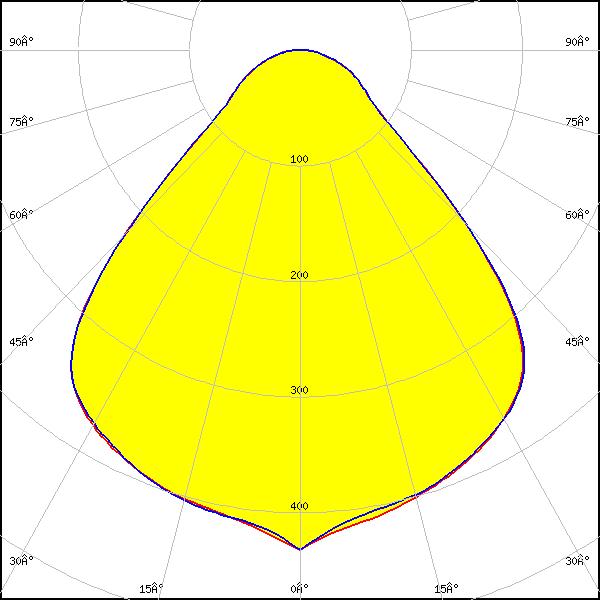

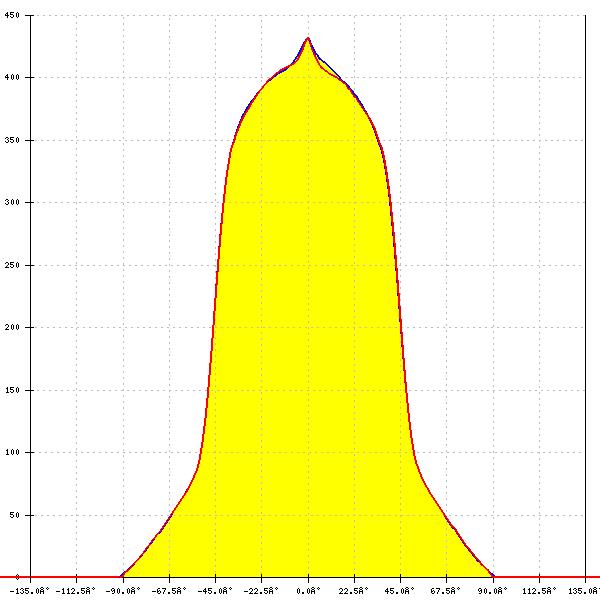

    LED: LUXEON M/MX
    FWHM: 90°
    FWTM: 133°
    Peak intensity: 0.500 cd/lm
    Efficiency: 92 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: OSCONIQ P 7070
    FWHM: 130°
    FWTM: 94°
    LEDs/each optic: 1
    Light colour/type: White
