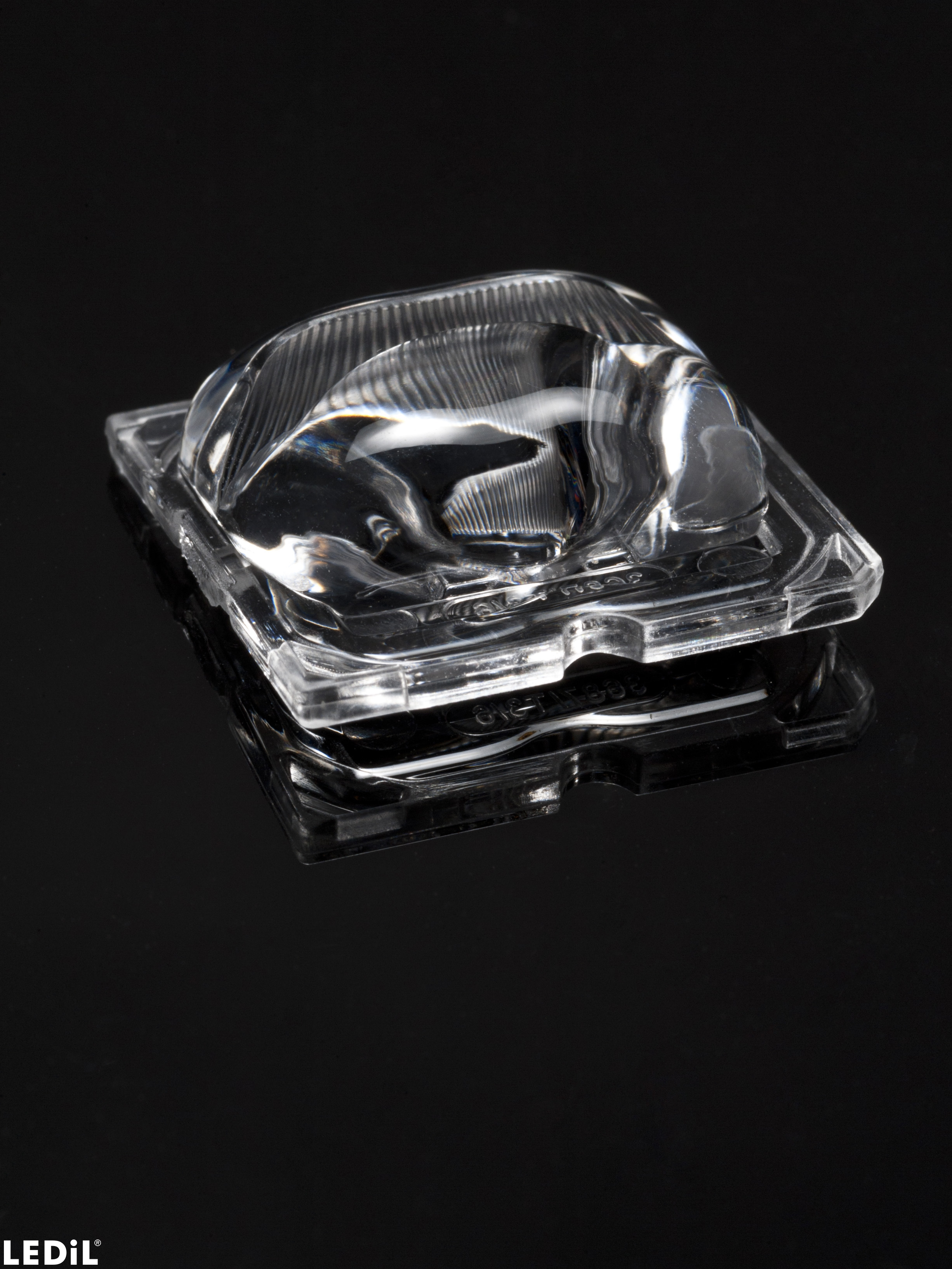

CA14026_STRADA-SQ-ME
Print
Beam with excellent longitudinal luminance uniformity fulfilling EN13201 M-class requirements where road width is equal to or less than the pole height. Version with location pins and installation tap
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content

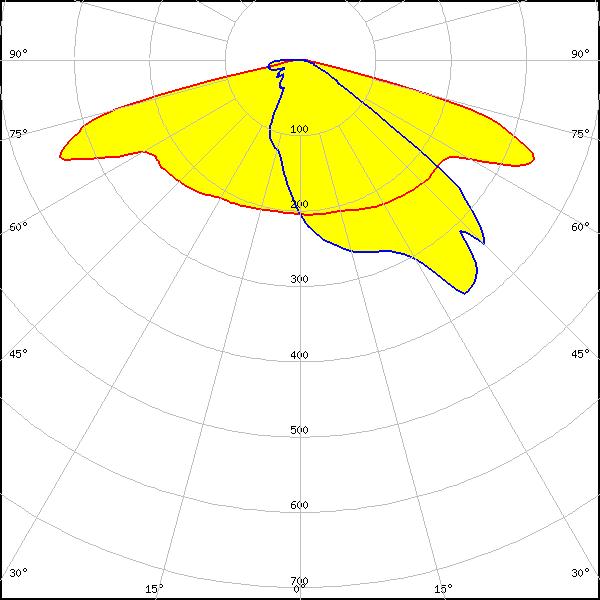

Optical results
LED:

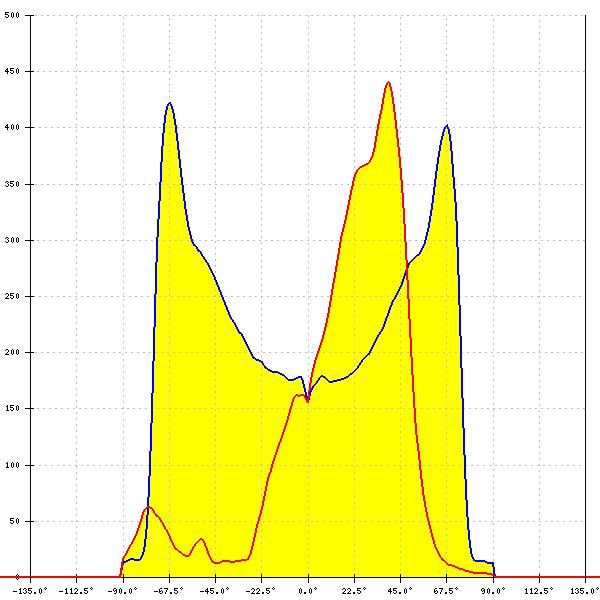

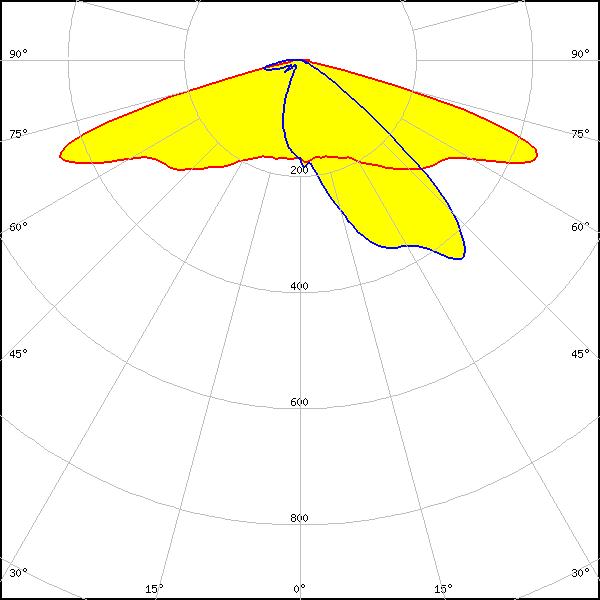

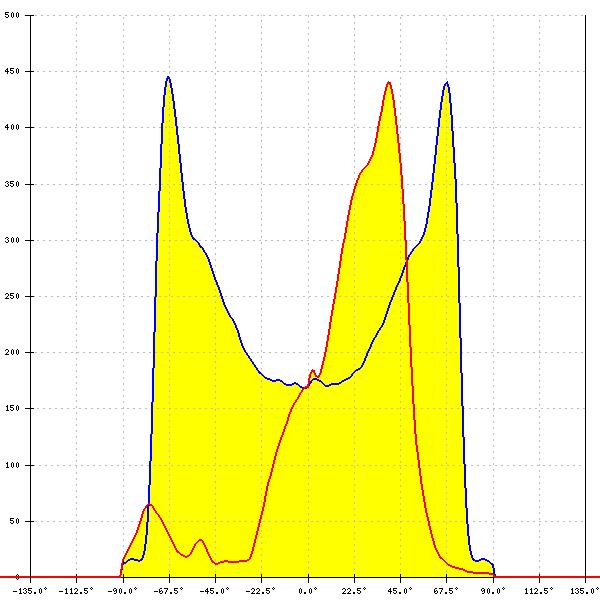

J Series 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.718 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 5050B 6V K Class
FWHM: asymmetric
Peak intensity:
0.688 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

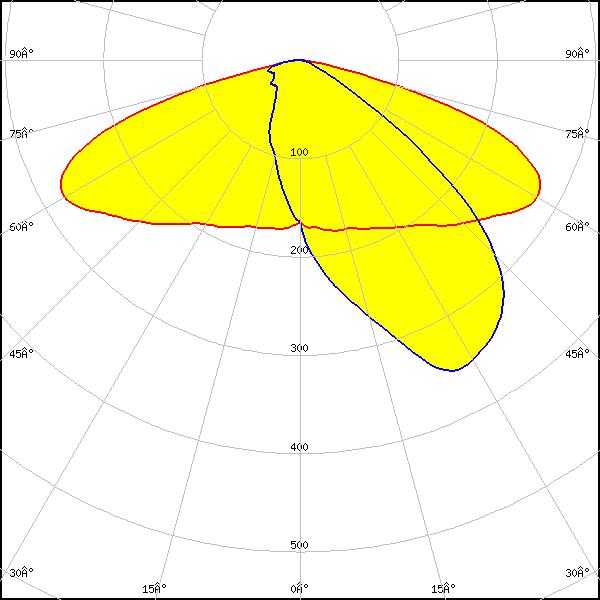

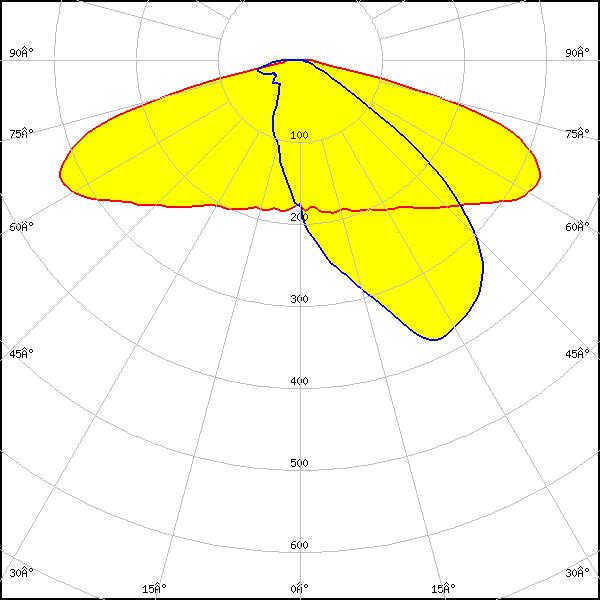

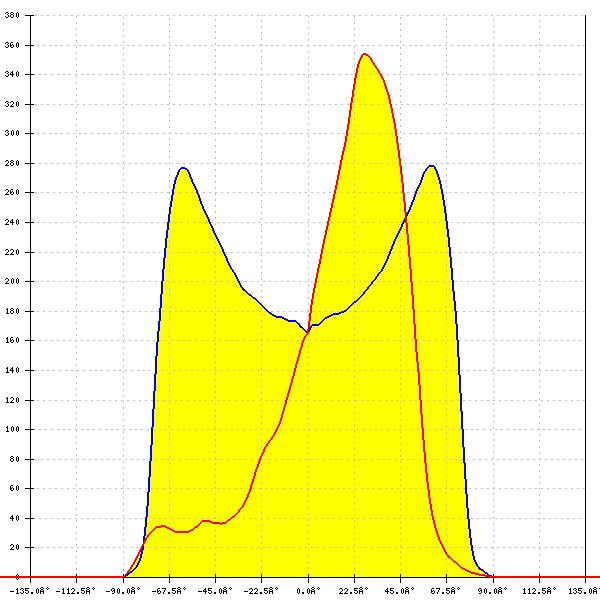

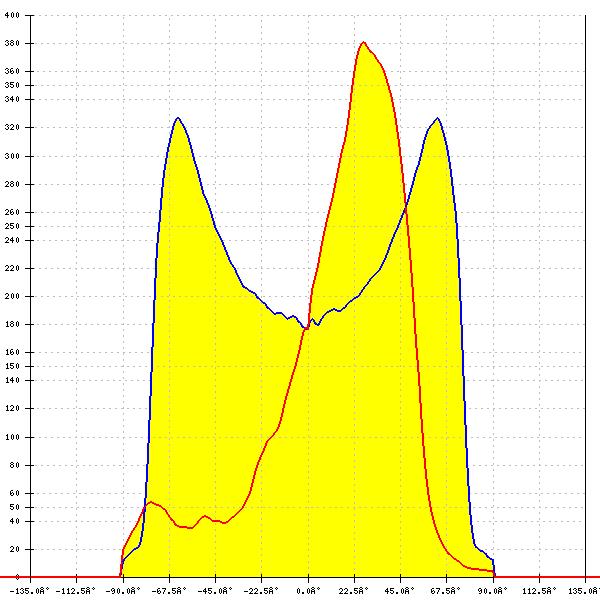

J Series 7070B K Class
FWHM: asymmetric
Peak intensity:
0.512 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
J Series 7070B K Class
FWHM: asymmetric
Peak intensity:
0.404 cd/lm
Efficiency:
81 %
LEDs/each optic:
1
Light colour/type:
White
LED:

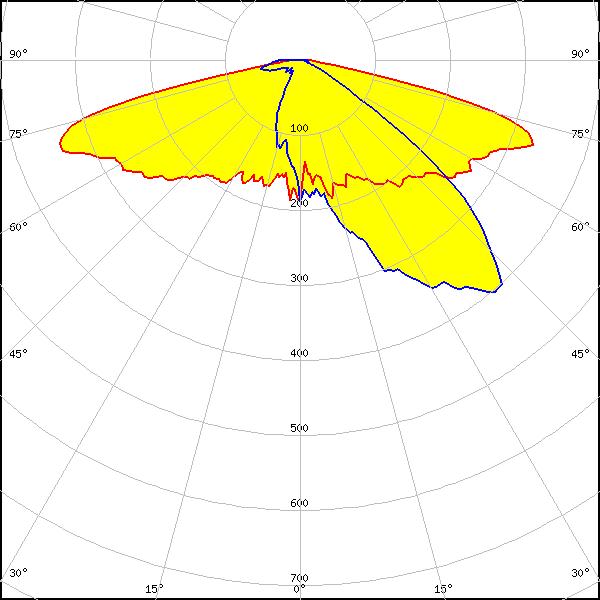

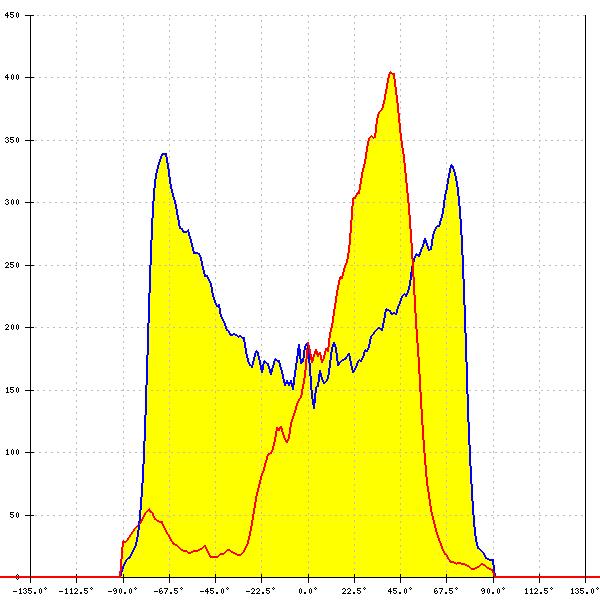

MHB-A/B
FWHM: asymmetric
LEDs/each optic:
1
Light colour/type:
White
LED:

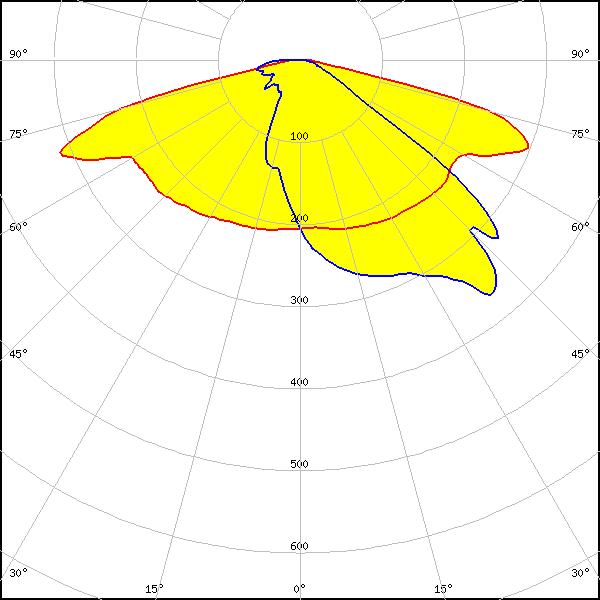

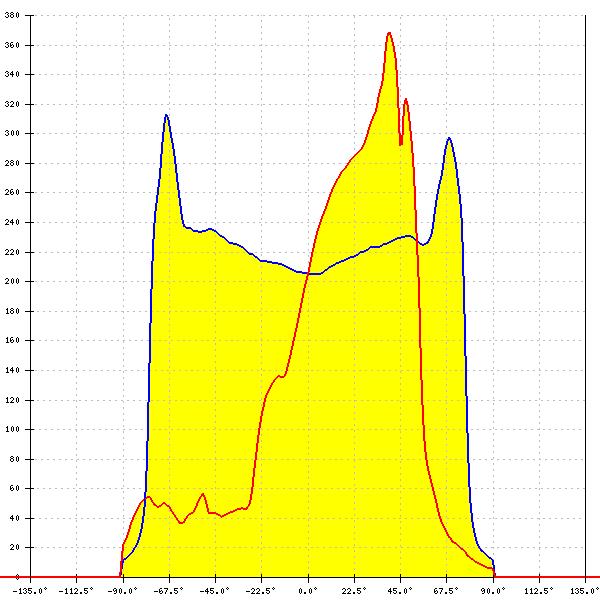

MK-R
FWHM: asymmetric
Peak intensity:
0.640 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

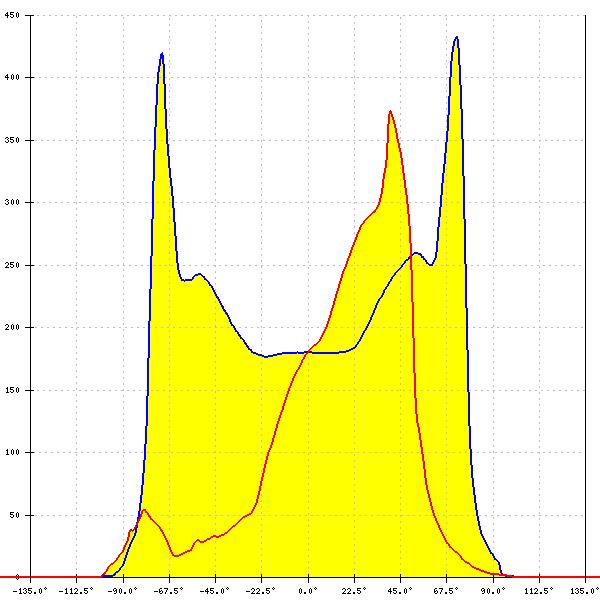

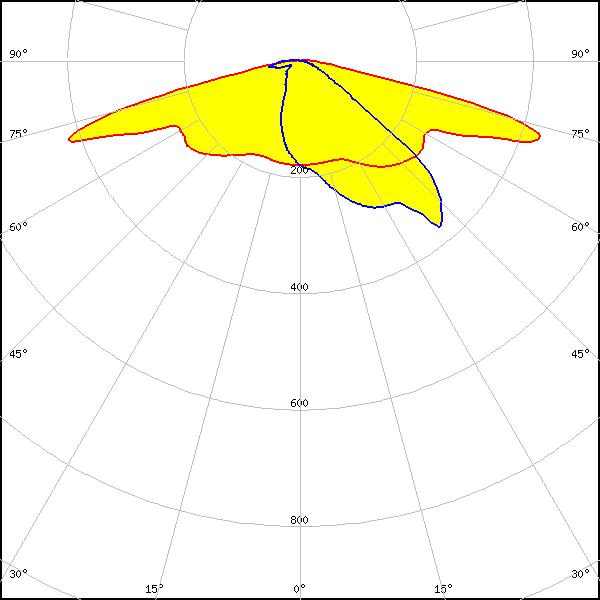

XHP35 HD
FWHM: asymmetric
Peak intensity:
0.850 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

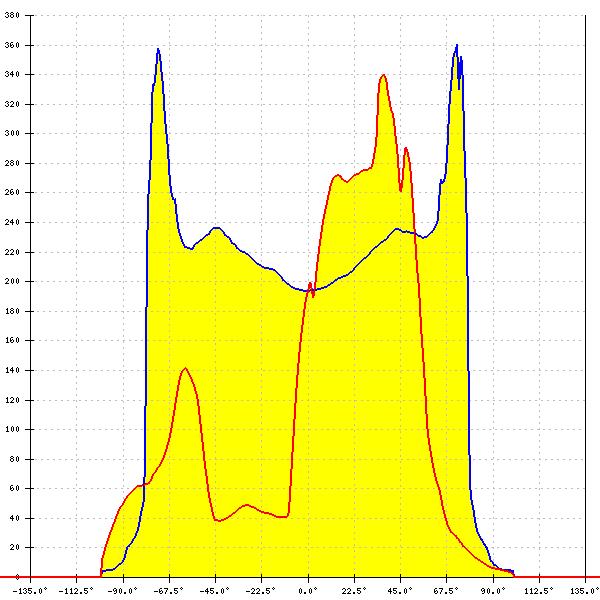

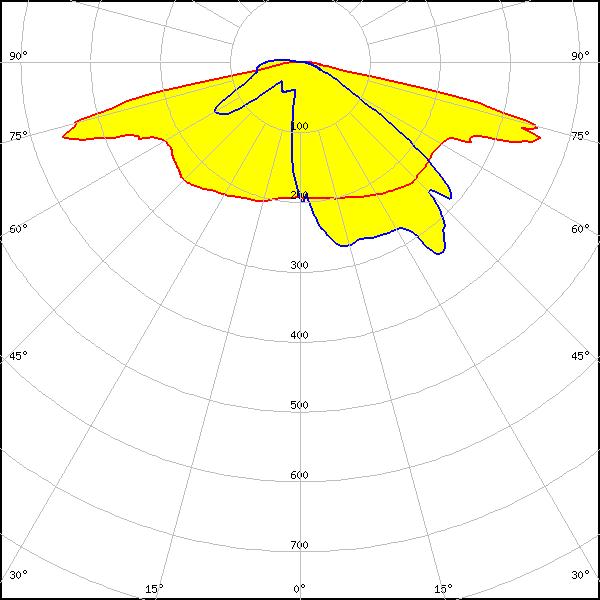

XHP50
FWHM: asymmetric
Peak intensity:
0.580 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

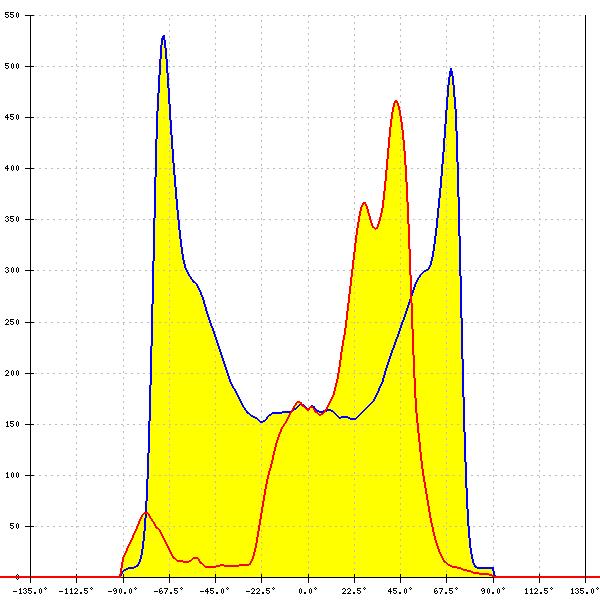

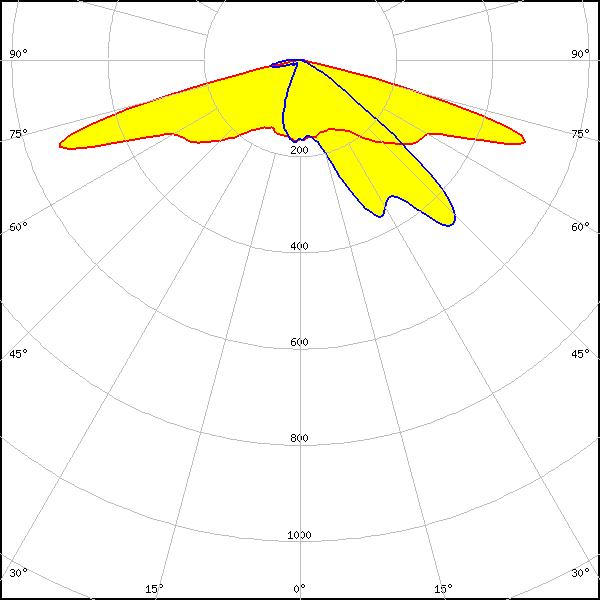

XM-L2
FWHM: asymmetric
Peak intensity:
0.791 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

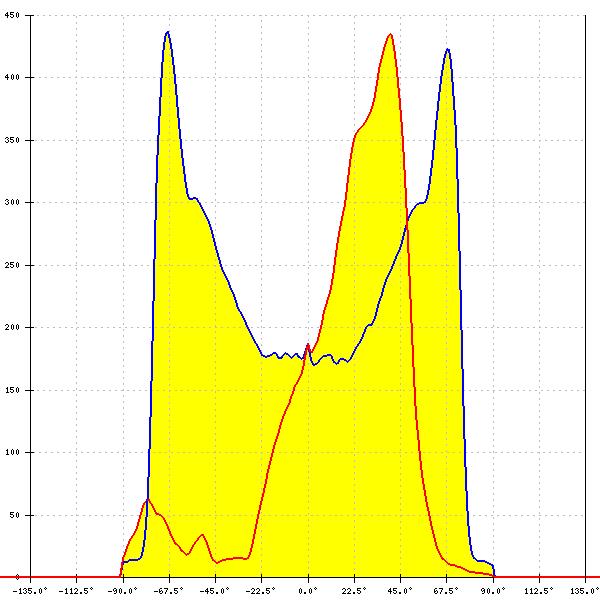

LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity:
0.750 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:

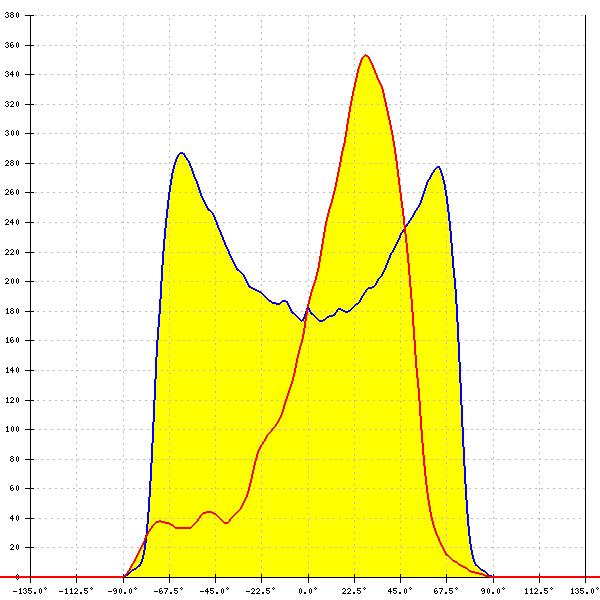

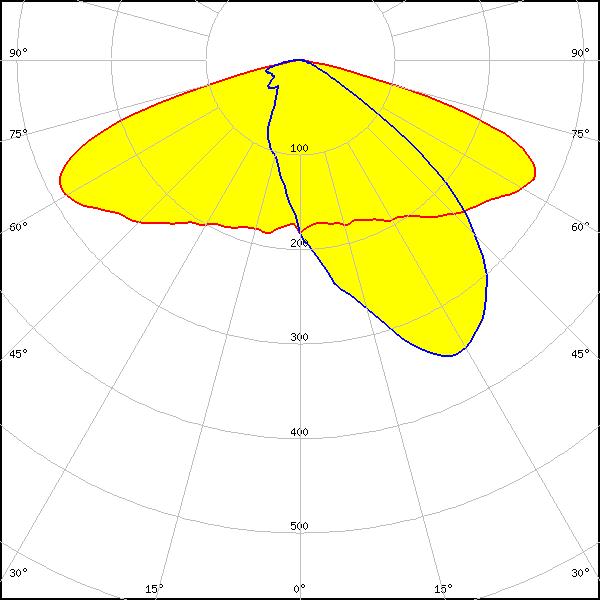

LUXEON 7070
FWHM: asymmetric
Peak intensity:
0.448 cd/lm
Efficiency:
82 %
LEDs/each optic:
1
Light colour/type:
White
LED:

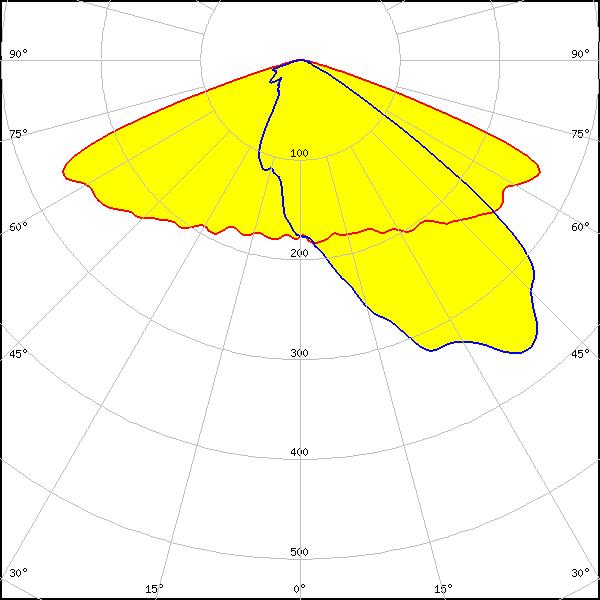

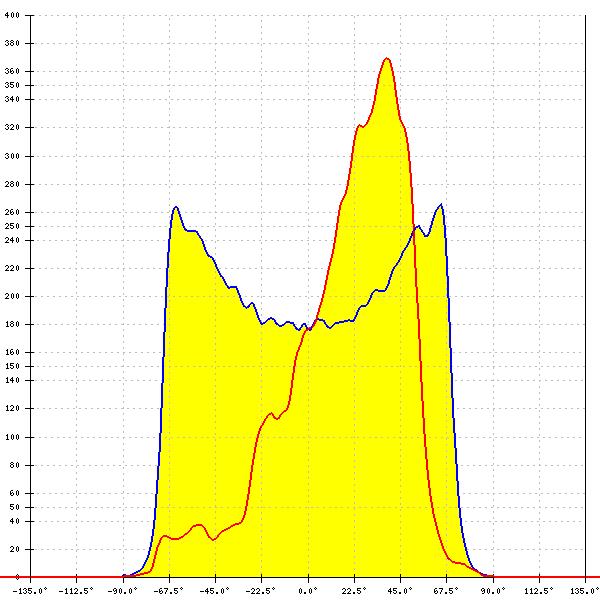

LUXEON M/MX
FWHM: asymmetric
Peak intensity:
0.450 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
LUXEON M/MX
FWHM: asymmetric
Peak intensity:
0.670 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

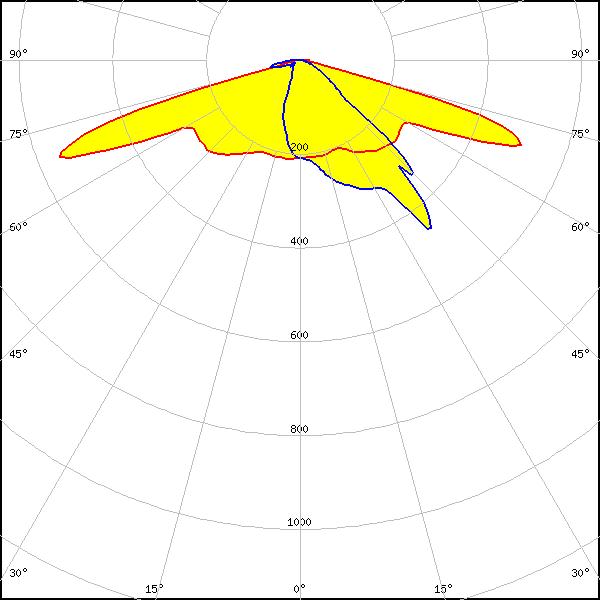

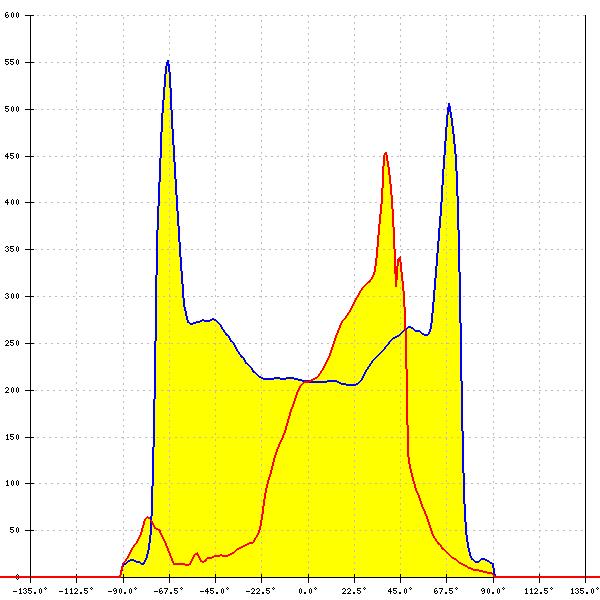

LUXEON MZ
FWHM: asymmetric
Peak intensity:
0.960 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

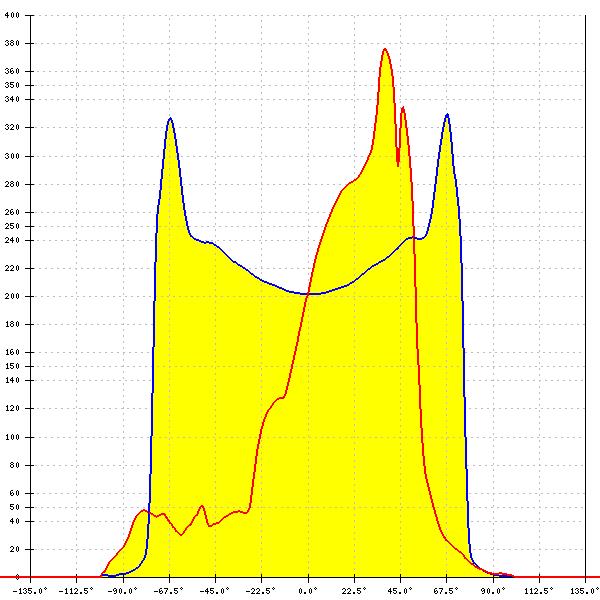

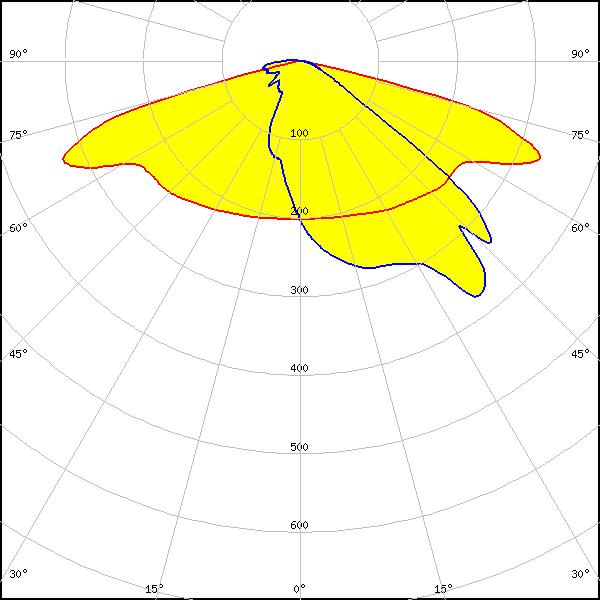

LUXEON XR-M Linear (L2M0-xxxx003MC3300)
FWHM: asymmetric
Peak intensity:
0.670 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:

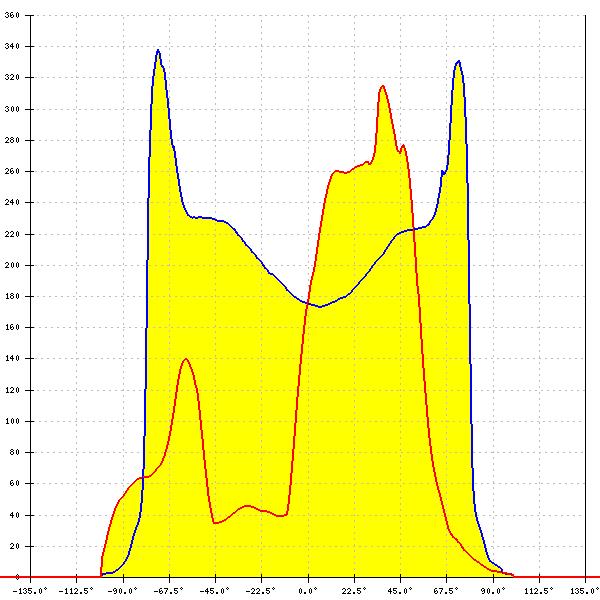

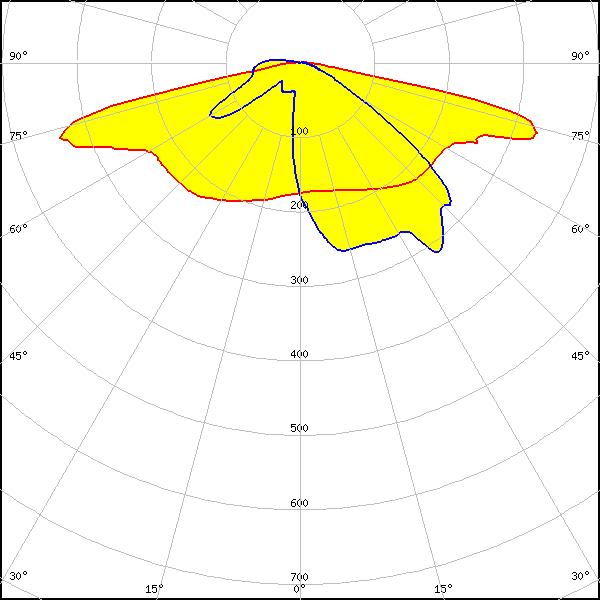

NV4x144A
FWHM: asymmetric
Peak intensity:
0.540 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

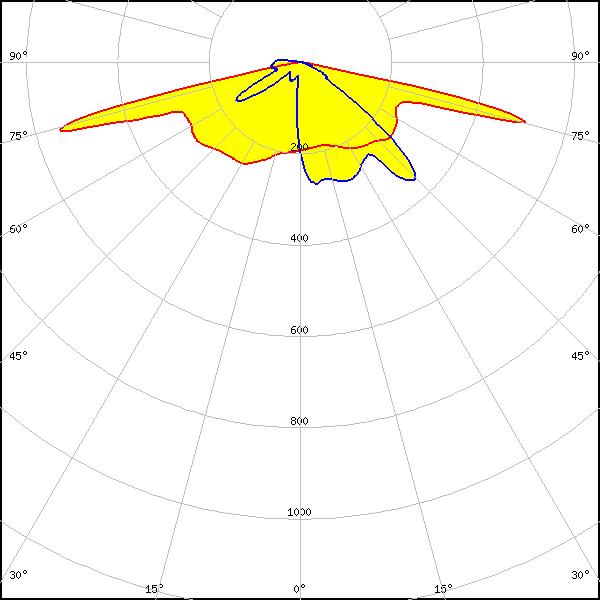

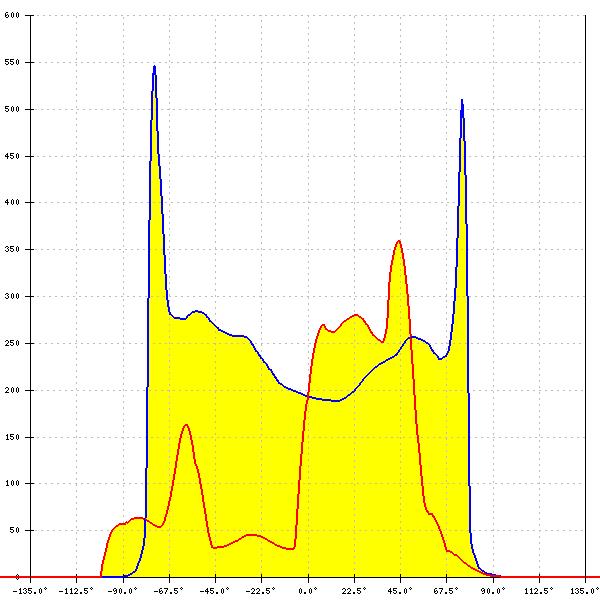

NVSW319B
FWHM: asymmetric
Peak intensity:
0.930 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
LED:

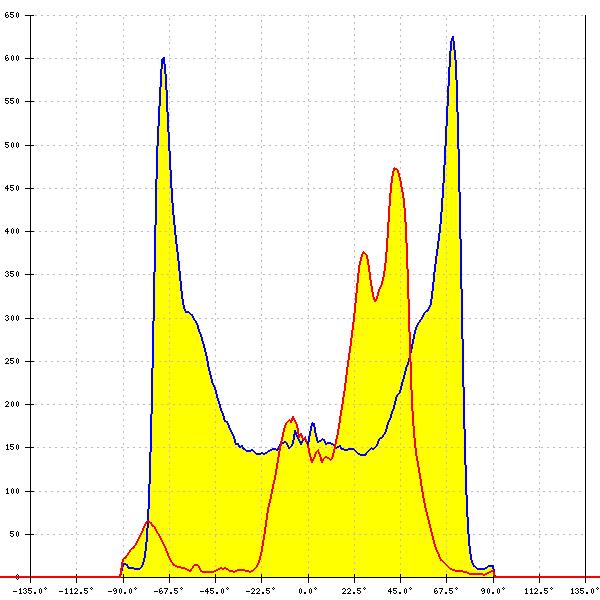

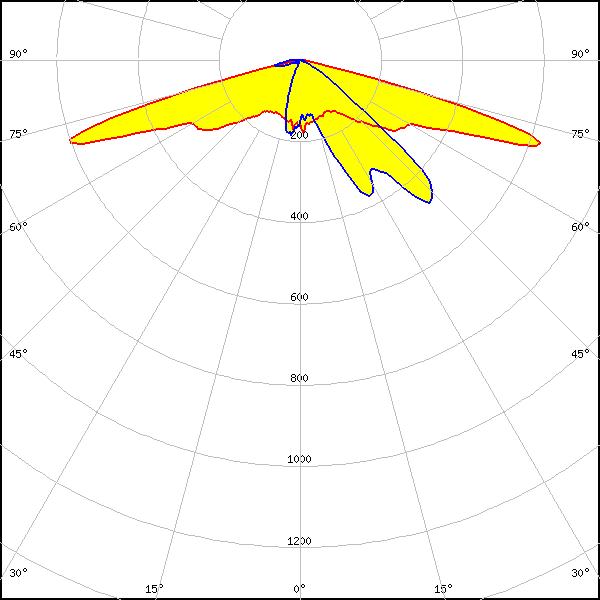

NVSxx19B/NVSxx19C
FWHM: asymmetric
Peak intensity:
0.980 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White
LED:

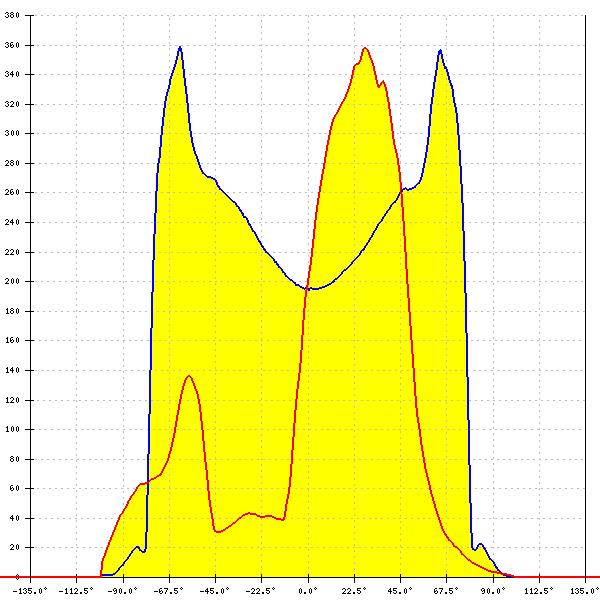

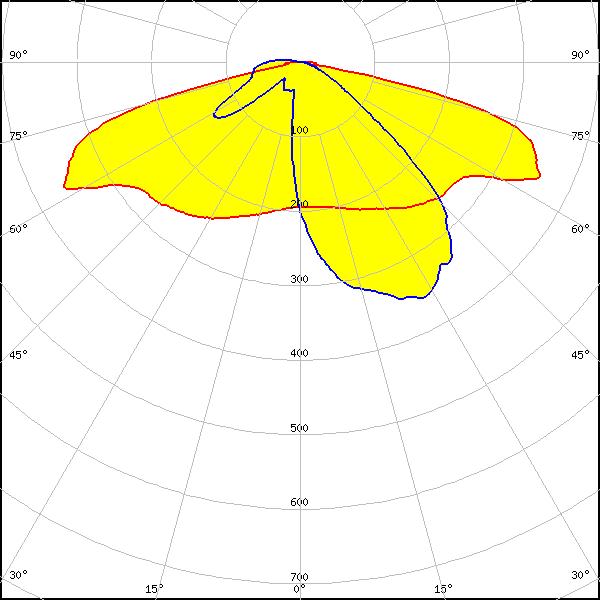

Duris S10
FWHM: asymmetric
Peak intensity:
0.510 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:

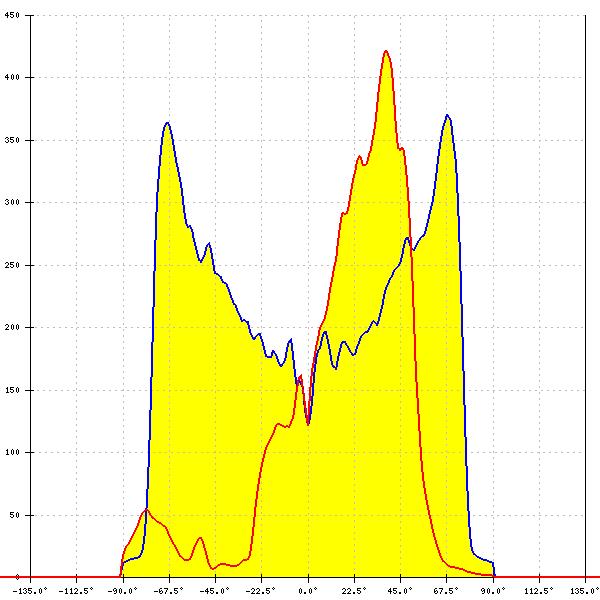

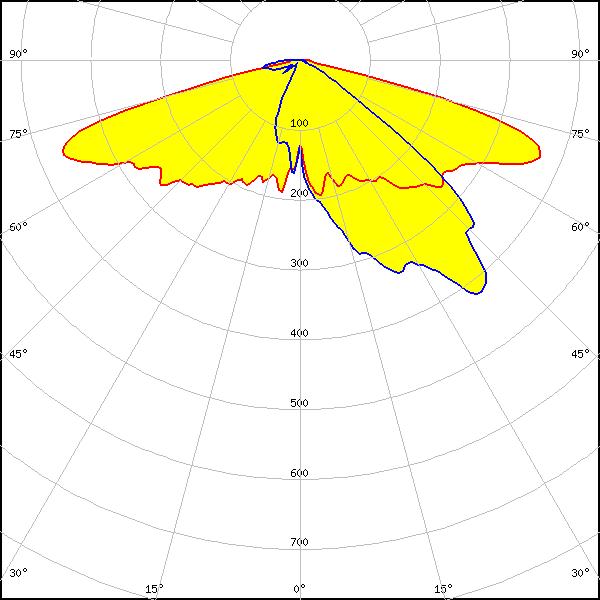

OSCONIQ P 7070
FWHM: asymmetric
Peak intensity:
0.647 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White
