CA14219_STRADA-SQ-CY
Print

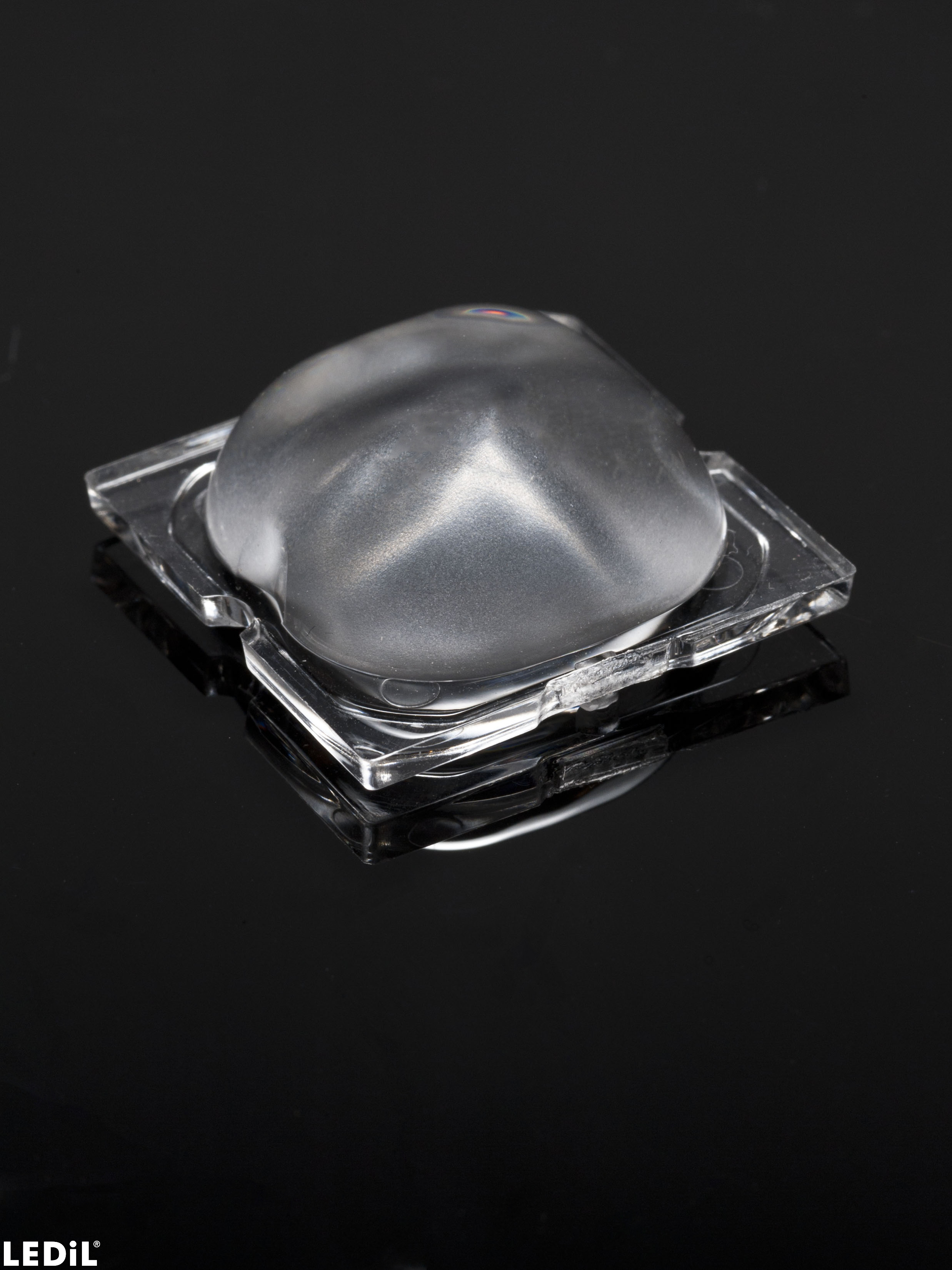

Beam for canopy lighting with batwing light distribution. Suitable for symmetrical tunnel lighting. Version with location pins. Assembly with installation tape.
CONTACT US REQUEST SAMPLESWHERE TO BUY
ORDER ONLINE
Related Content
Optical results

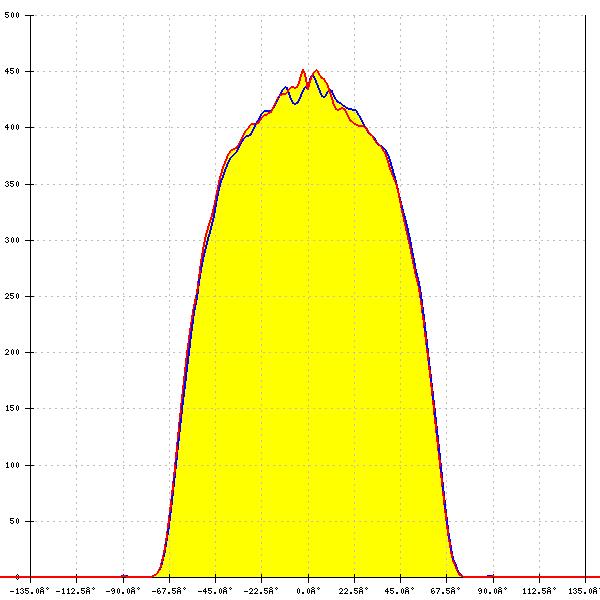

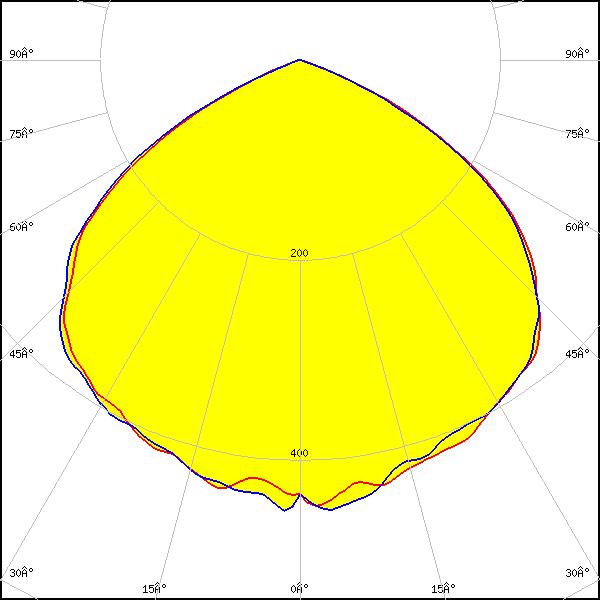

LED:
J Series 2835
FWHM:
113°
FWTM:
136°
Peak intensity:
0.464 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White

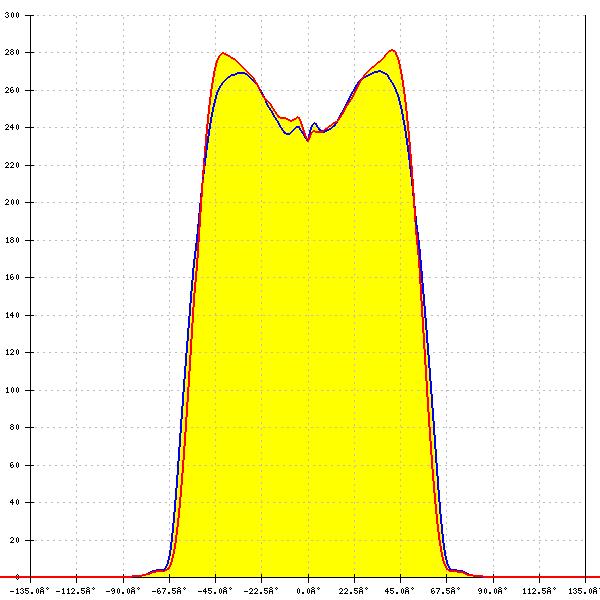

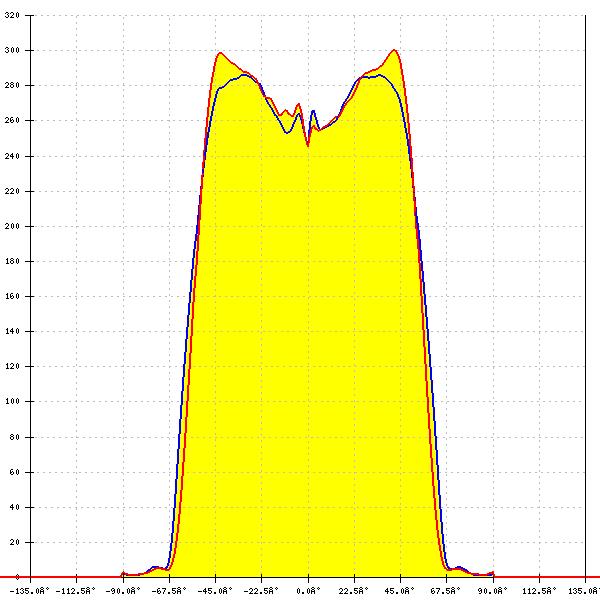

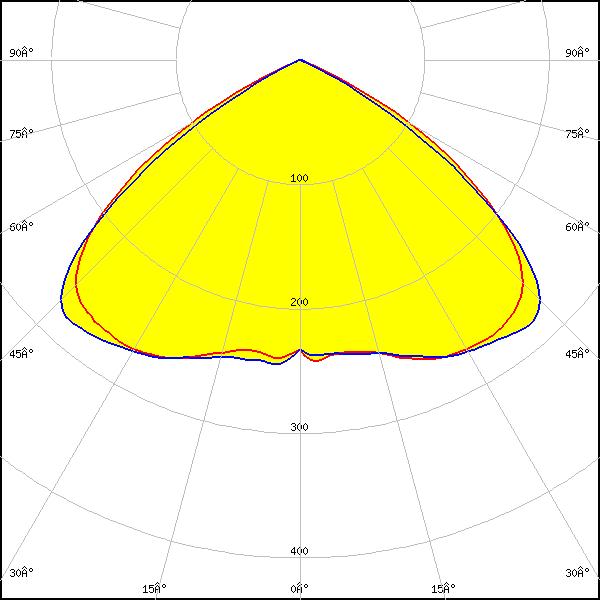

LED:
J Series 7070B K Class
FWHM:
116° + 112°
FWTM:
131° + 126°
Peak intensity:
0.406 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

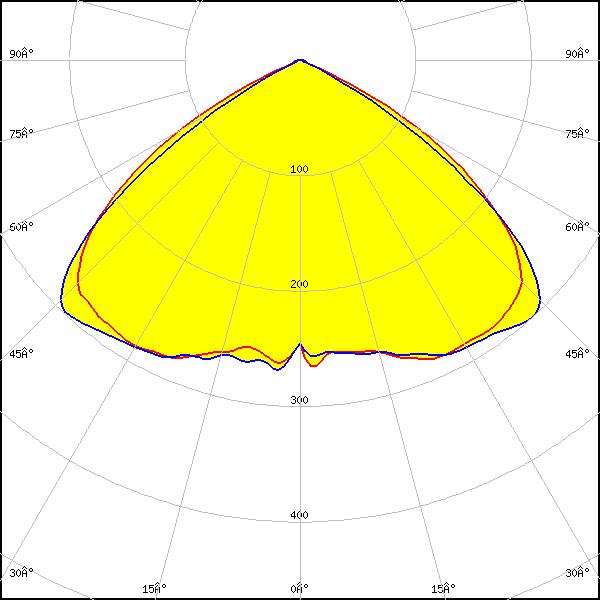

LED:
J Series 7070B K Class
FWHM:
116° + 111°
FWTM:
130° + 126°
Peak intensity:
0.362 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

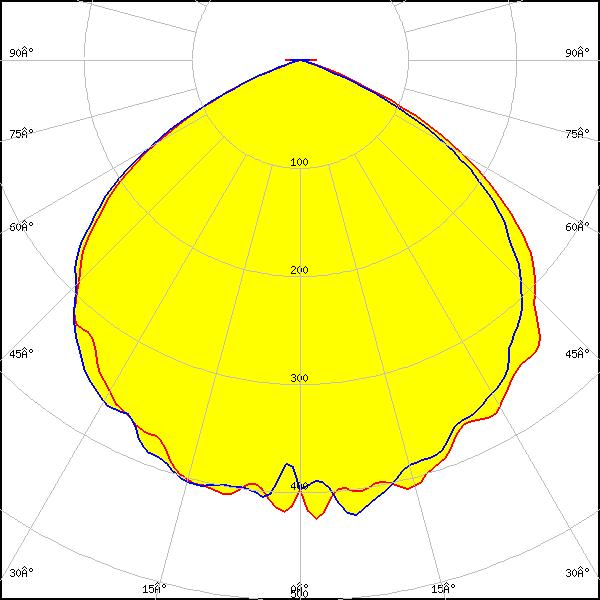

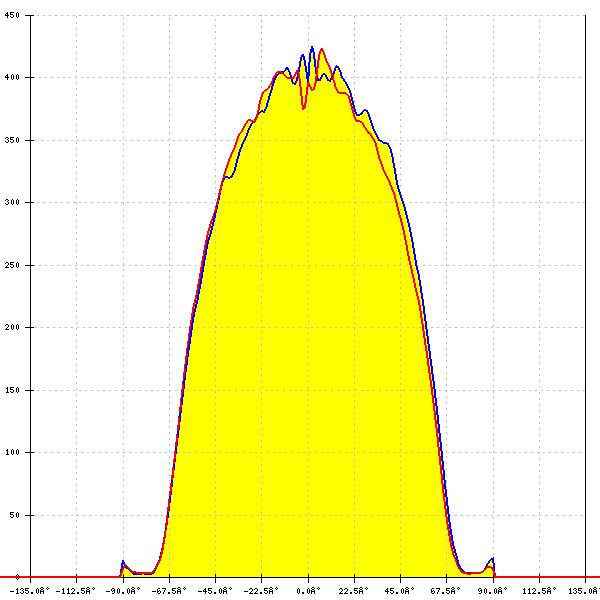

LED:
MHB-A/B
FWHM:
112°
FWTM:
138°
Peak intensity:
0.426 cd/lm
Efficiency:
98 %
LEDs/each optic:
1
Light colour/type:
White
LED:
MK-R
FWHM:
118° + 115°
FWTM:
274° + 274°
Peak intensity:
0.370 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

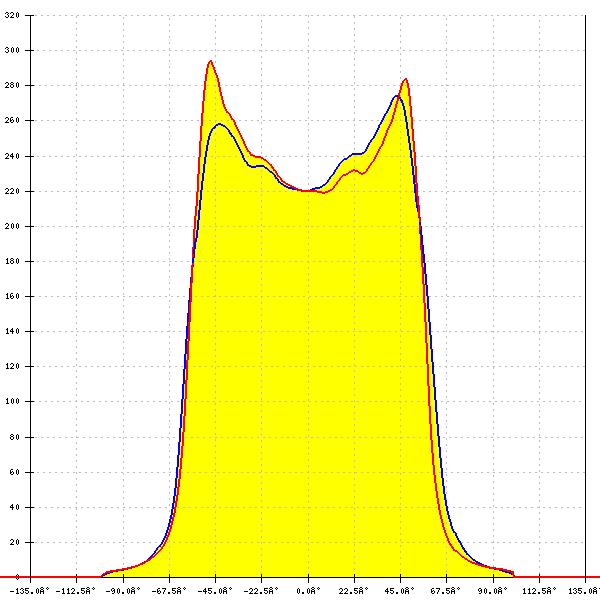

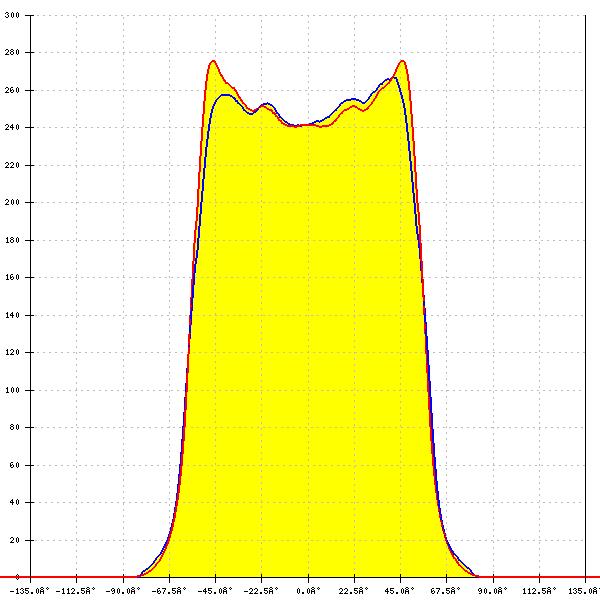

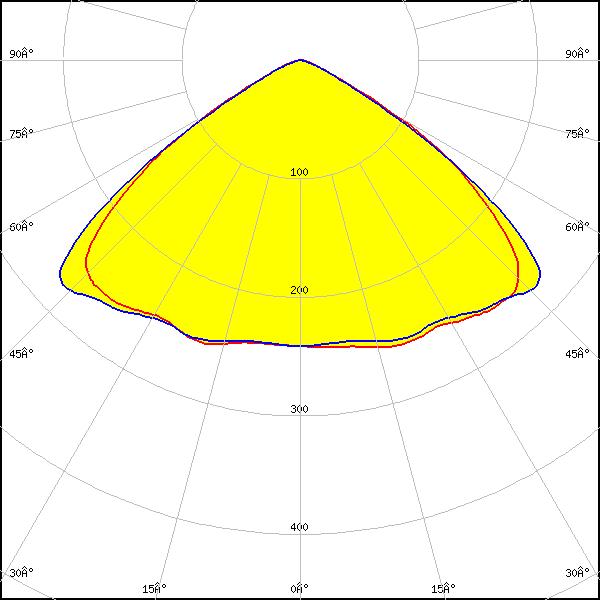

LED:
XHP50
FWHM:
122° + 118°
FWTM:
0° + 0°
Peak intensity:
0.410 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

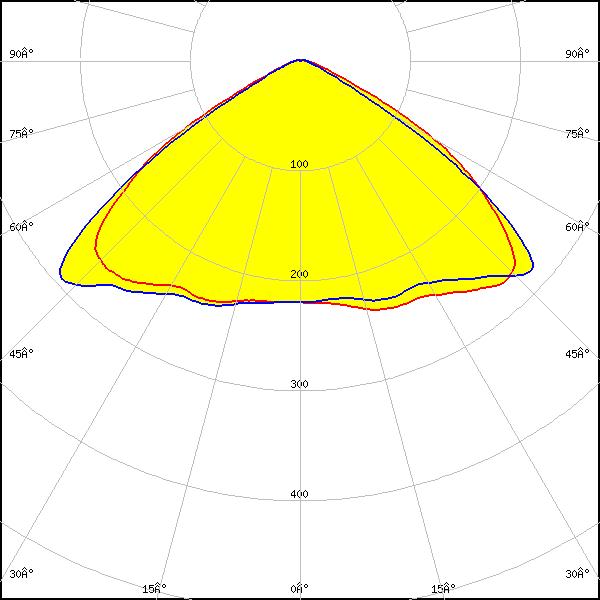

LED:
XHP50
FWHM:
115° + 113°
FWTM:
132° + 131°
Peak intensity:
0.405 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

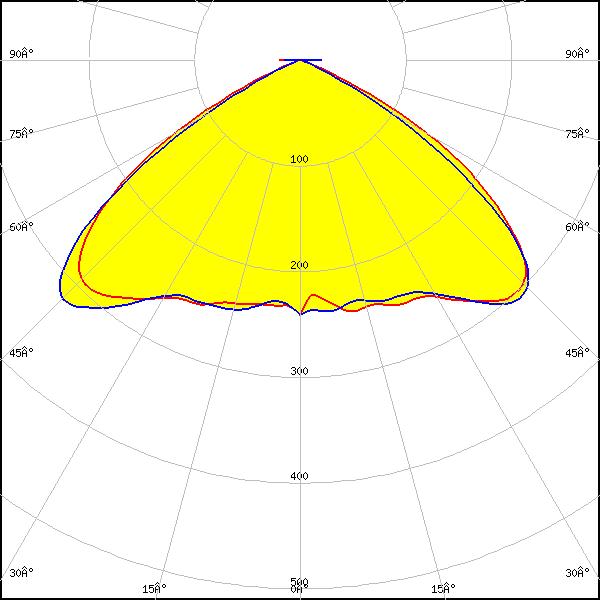

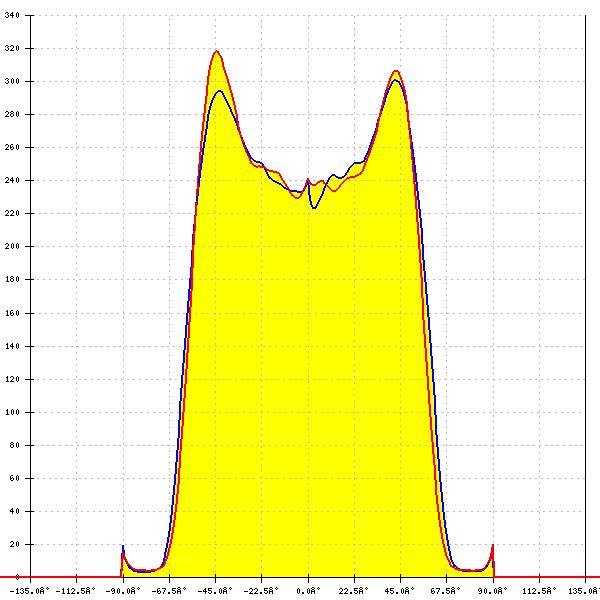

LED:
XHP50.2
FWHM:
101° + 107°
FWTM:
122° + 125°
Peak intensity:
0.390 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

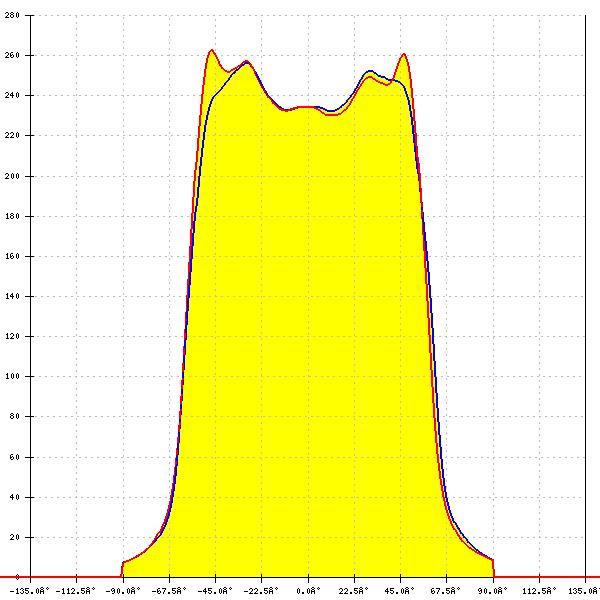

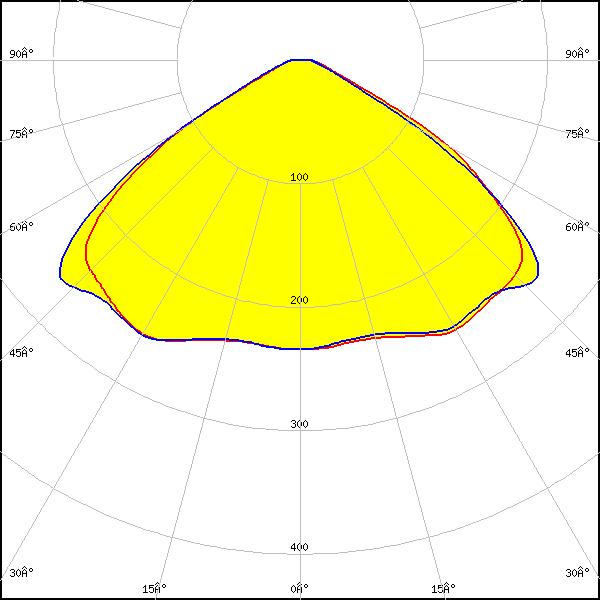

LED:
XHP70
FWHM:
121° + 119°
FWTM:
144° + 143°
Peak intensity:
0.350 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White
LED:
XM-L
FWHM:
122° + 116°
FWTM:
270° + 270°
Peak intensity:
0.440 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

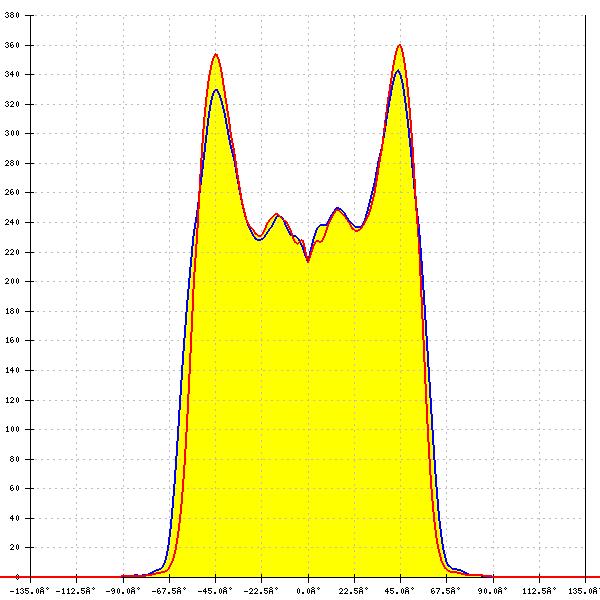

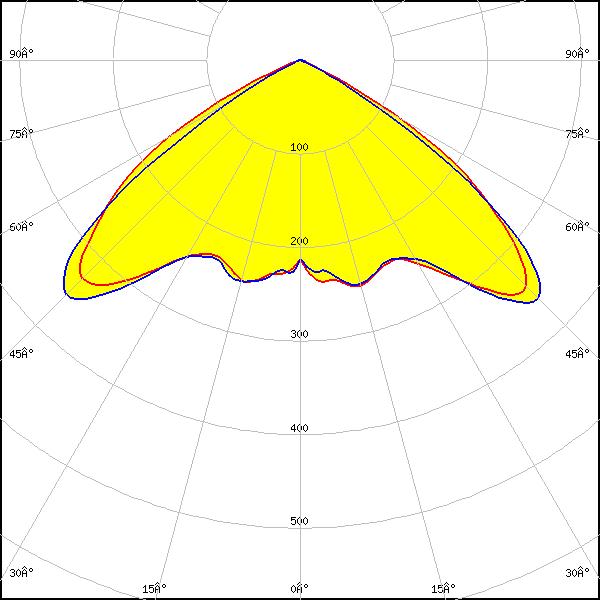

LED:
XM-L2
FWHM:
114°
FWTM:
128°
Peak intensity:
0.460 cd/lm
Efficiency:
96 %
LEDs/each optic:
1
Light colour/type:
White

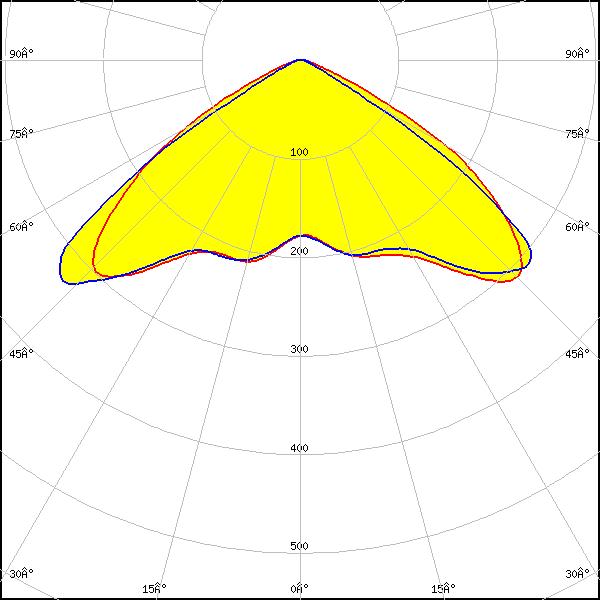

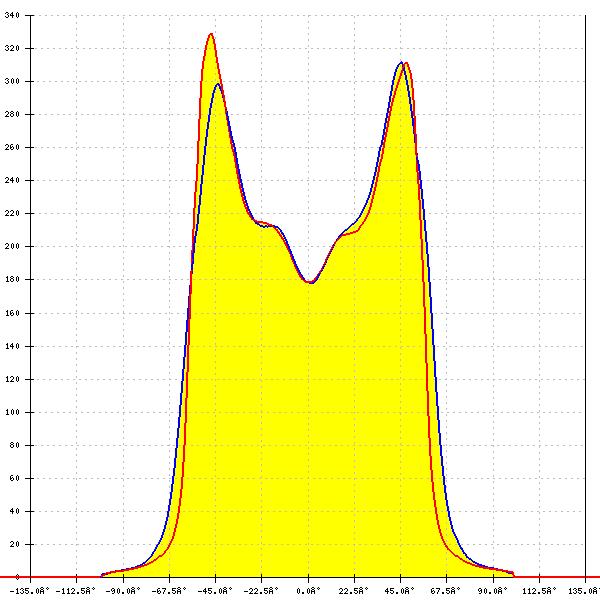

LED:
XP-L HD
FWHM:
118° + 127°
FWTM:
136° + 148°
Peak intensity:
0.400 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

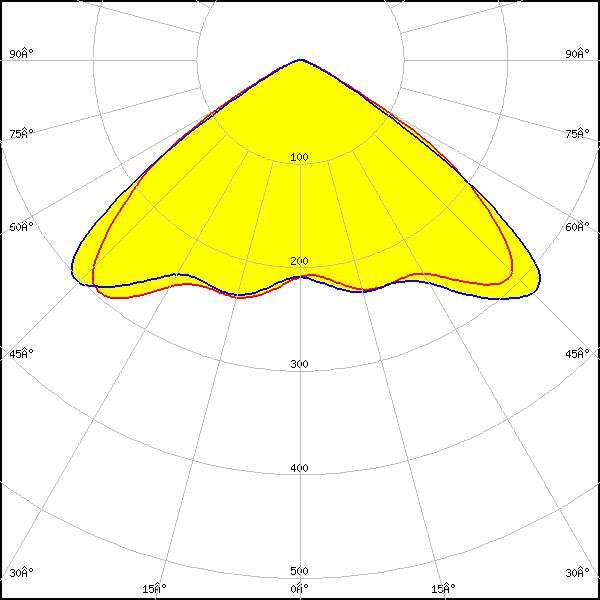

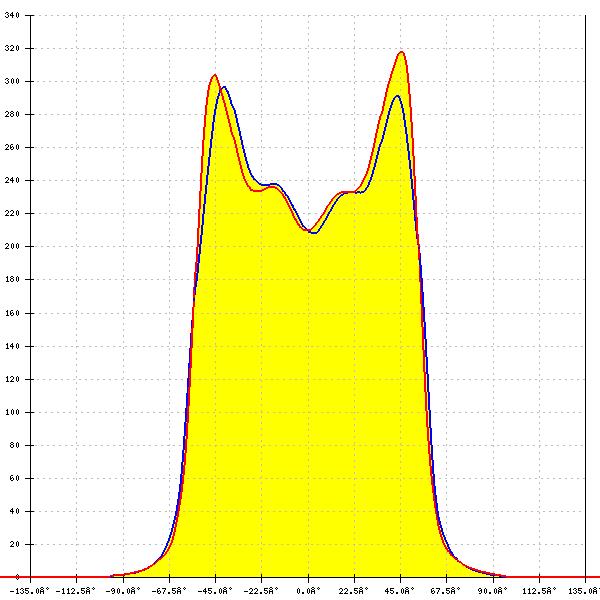

LED:
XP-L2
FWHM:
118° + 115°
FWTM:
136° + 133°
Peak intensity:
0.400 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White

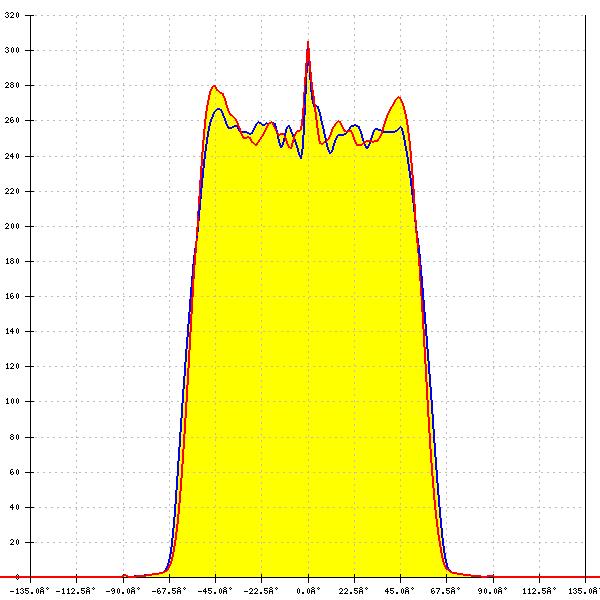

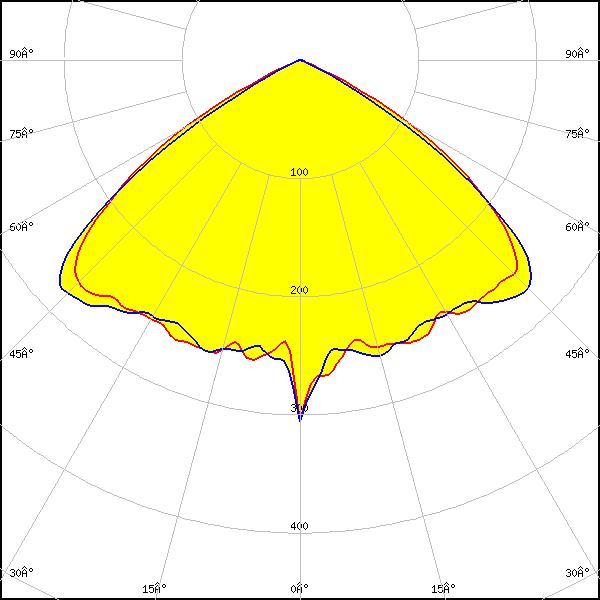

LED:
LUXEON M/MX
FWHM:
97° + 106°
FWTM:
118° + 123°
Peak intensity:
0.380 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

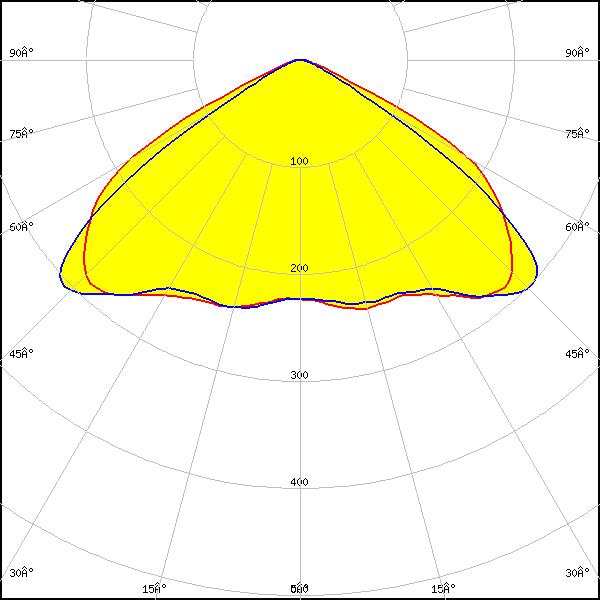

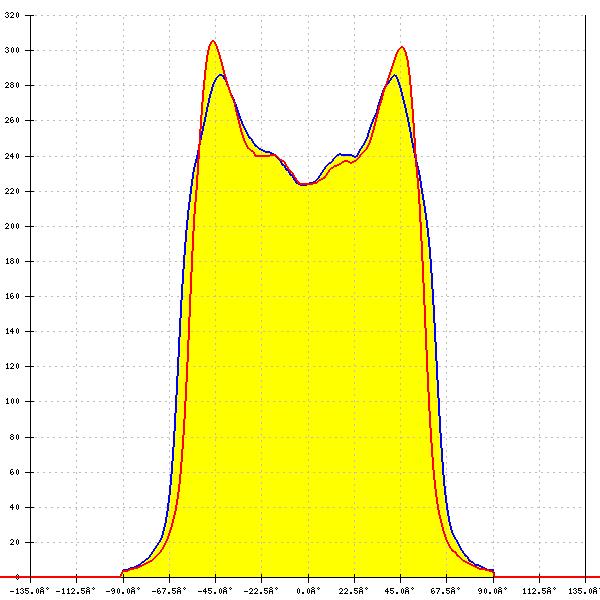

LED:
LUXEON MZ
FWHM:
127° + 118°
FWTM:
144° + 137°
Peak intensity:
0.340 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

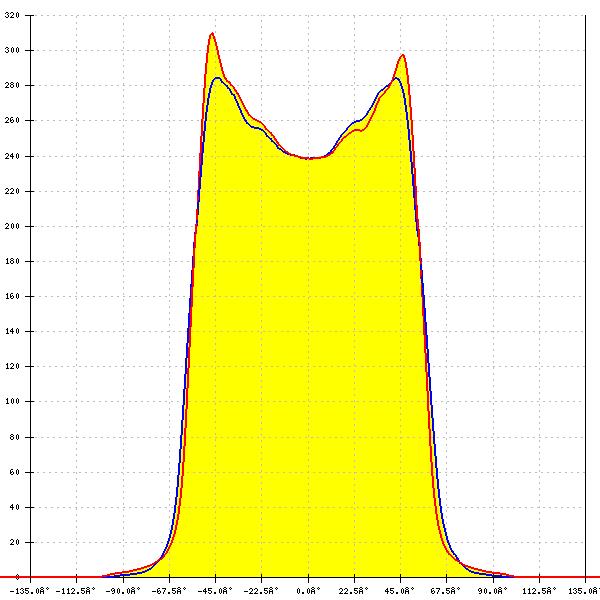

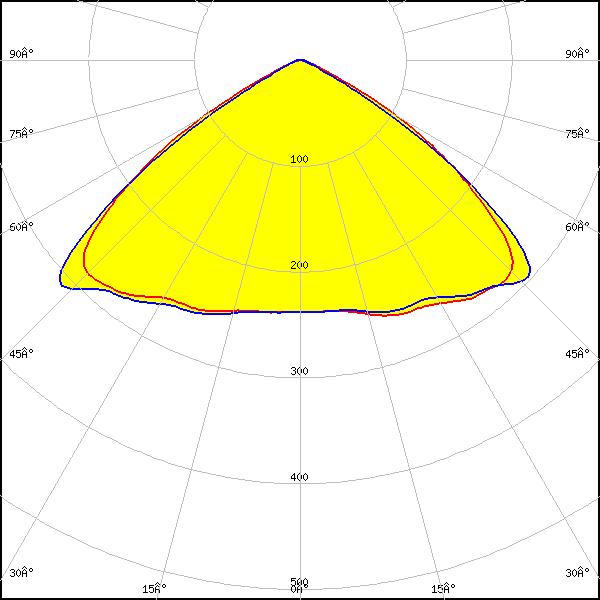

LED:
LUXEON XR-M Linear (L2M0-xxxx003MC3300)
FWHM:
118° + 115°
FWTM:
135° + 130°
Peak intensity:
0.430 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

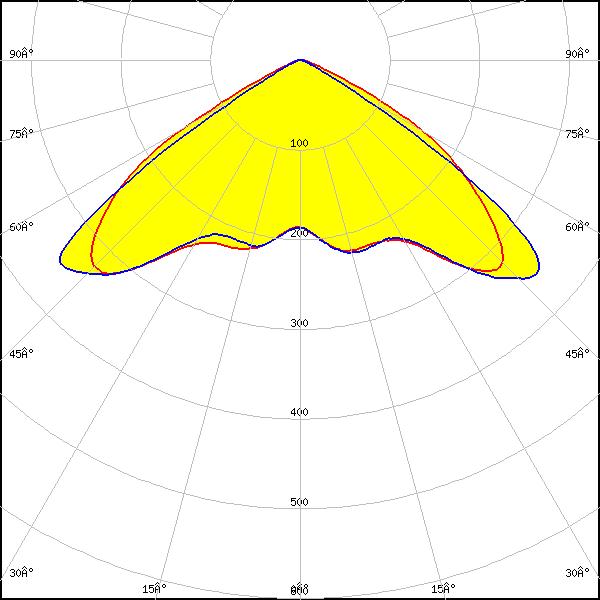

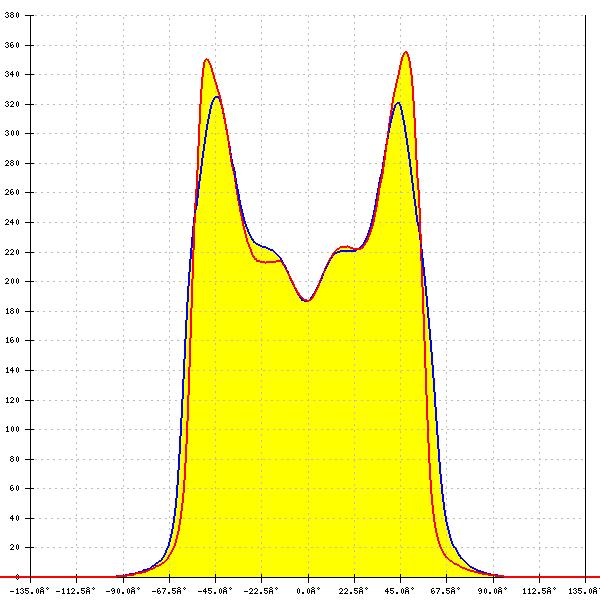

LED:
NVSW319B
FWHM:
125° + 117°
FWTM:
141° + 131°
Peak intensity:
0.450 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

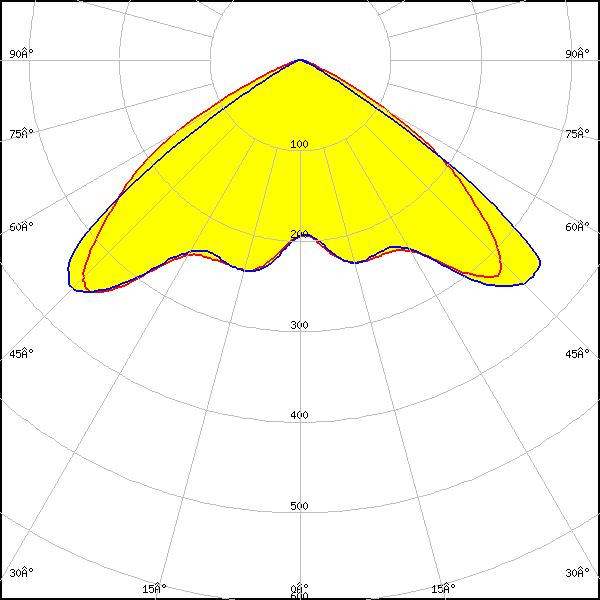

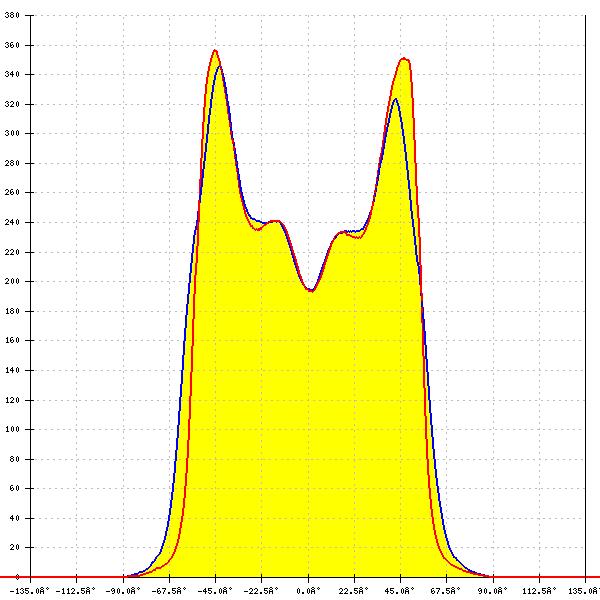

LED:
NVSxx19B/NVSxx19C
FWHM:
124° + 115°
FWTM:
141° + 128°
Peak intensity:
0.470 cd/lm
Efficiency:
94 %
LEDs/each optic:
1
Light colour/type:
White

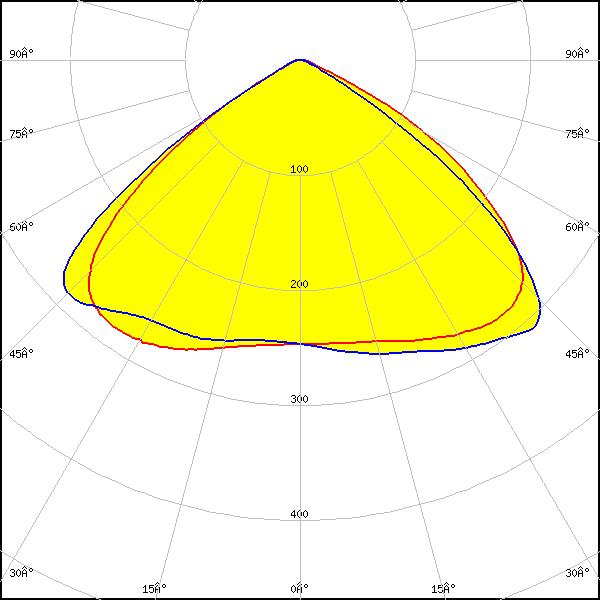

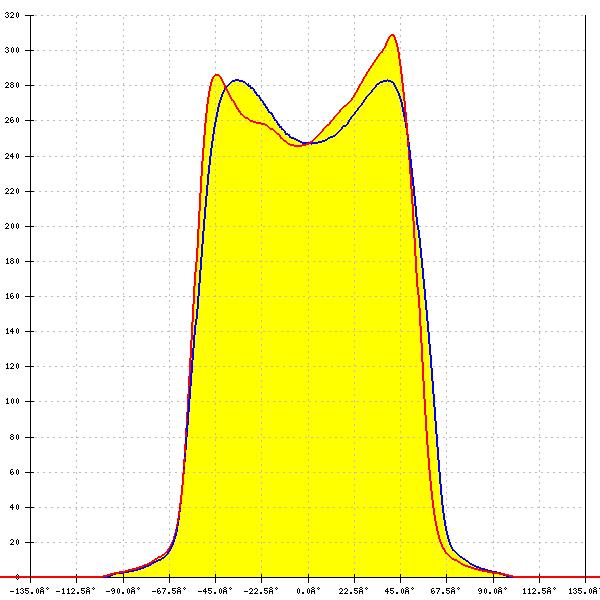

LED:
Duris S10
FWHM:
116° + 113°
FWTM:
132° + 128°
Peak intensity:
0.400 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White

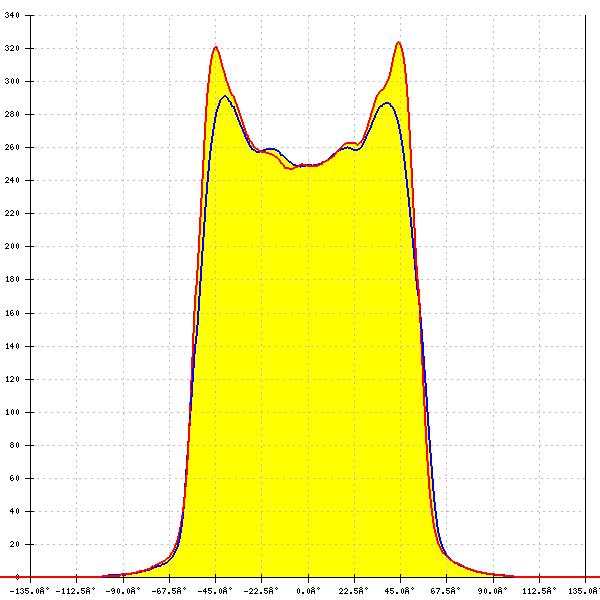

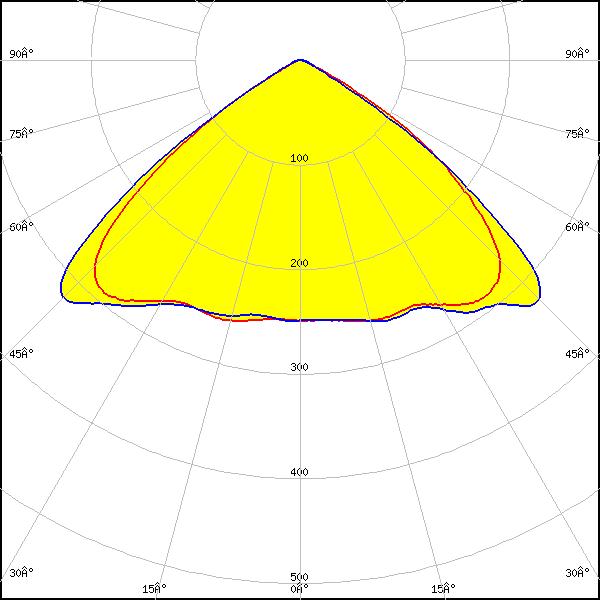

LED:
Duris S8
FWHM:
112°
FWTM:
126°
Peak intensity:
0.440 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
LED:
OSCONIQ P 7070
FWHM:
115°
FWTM:
130°
Peak intensity:
0.460 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

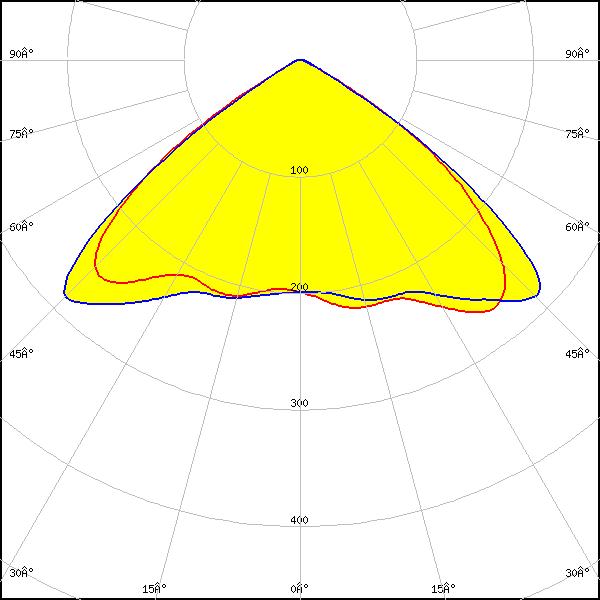

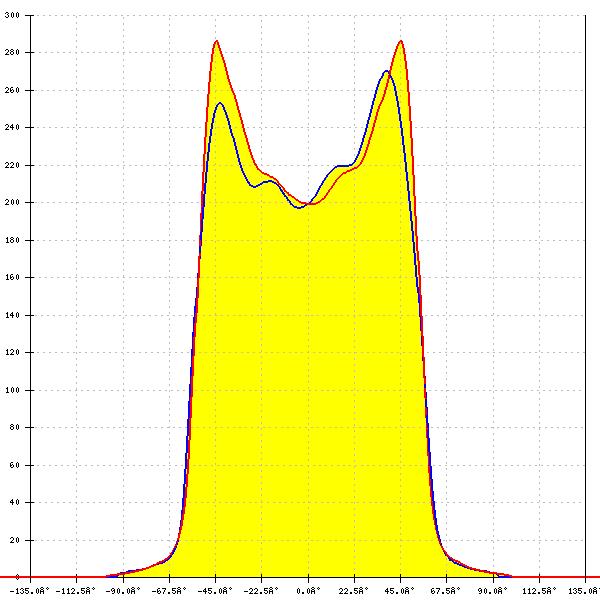

LED:
LH508A
FWHM:
114° + 113°
FWTM:
127° + 127°
Peak intensity:
0.370 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White
