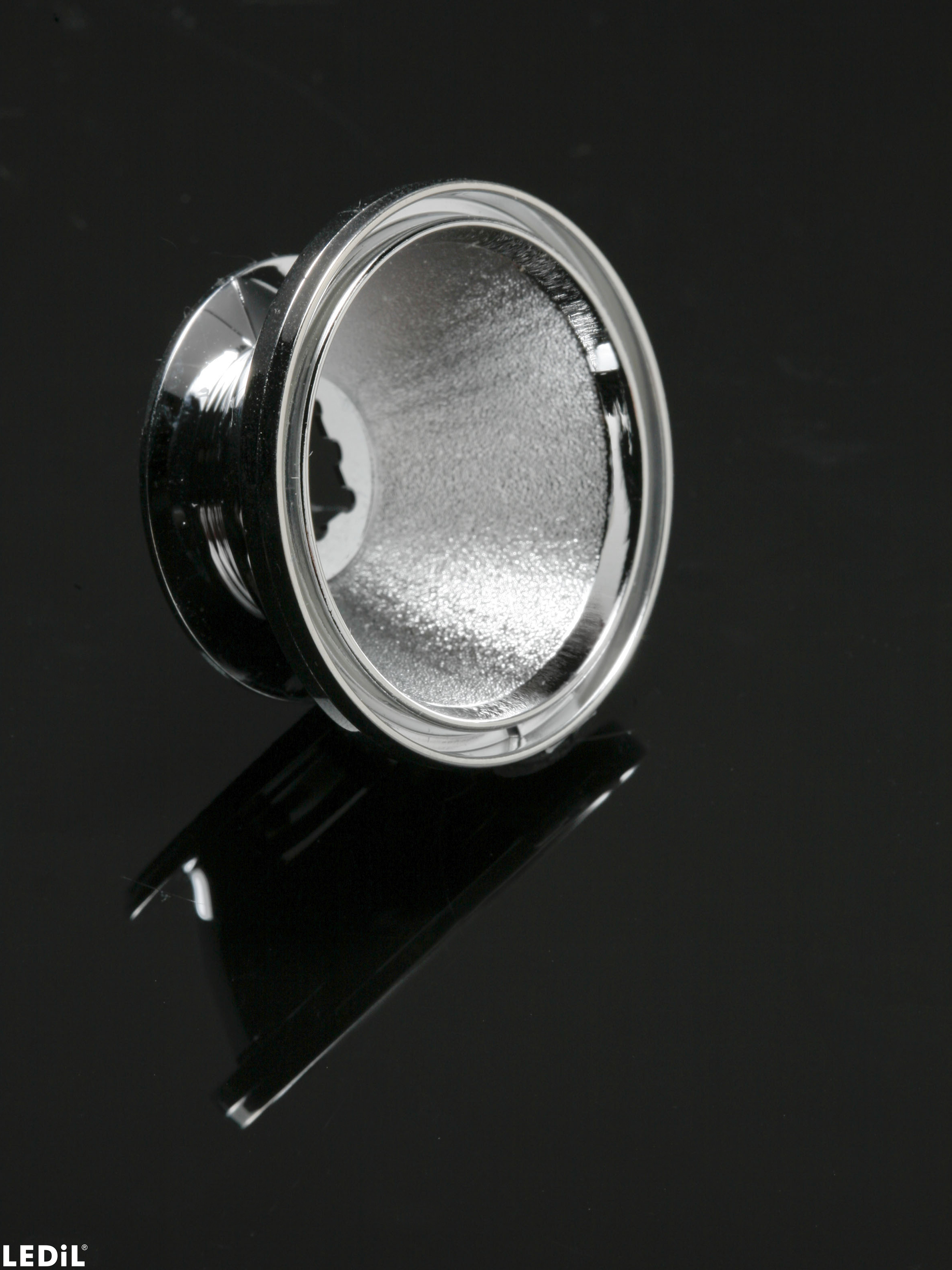

CA14434_MINNIE-LT-M

Print

~25° medium beam. Assembly with installation tape.

Specification
  • Dimensions:
    35 mm
  • Height:
    15.60 mm
  • Fastening:
    tape
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    720 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    4.0 kg
  • MPQ:
    45 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    0.9 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA14434_MINNIE-LT-M

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

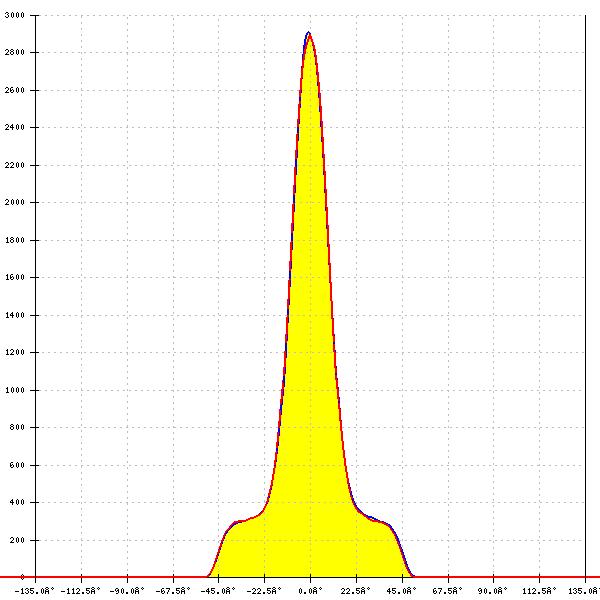

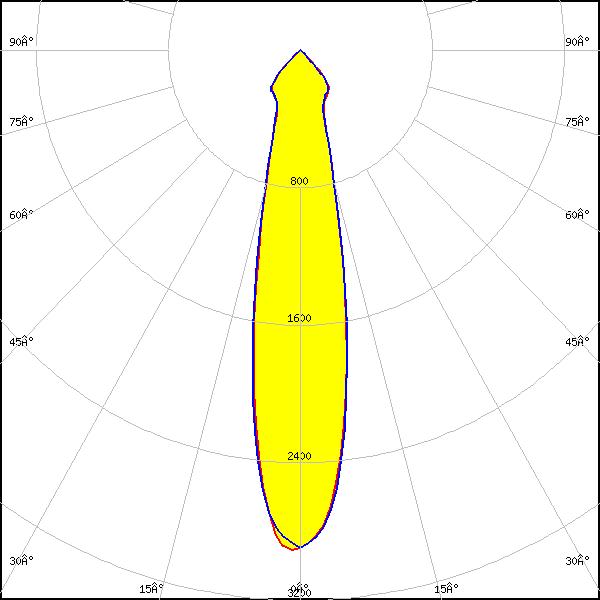

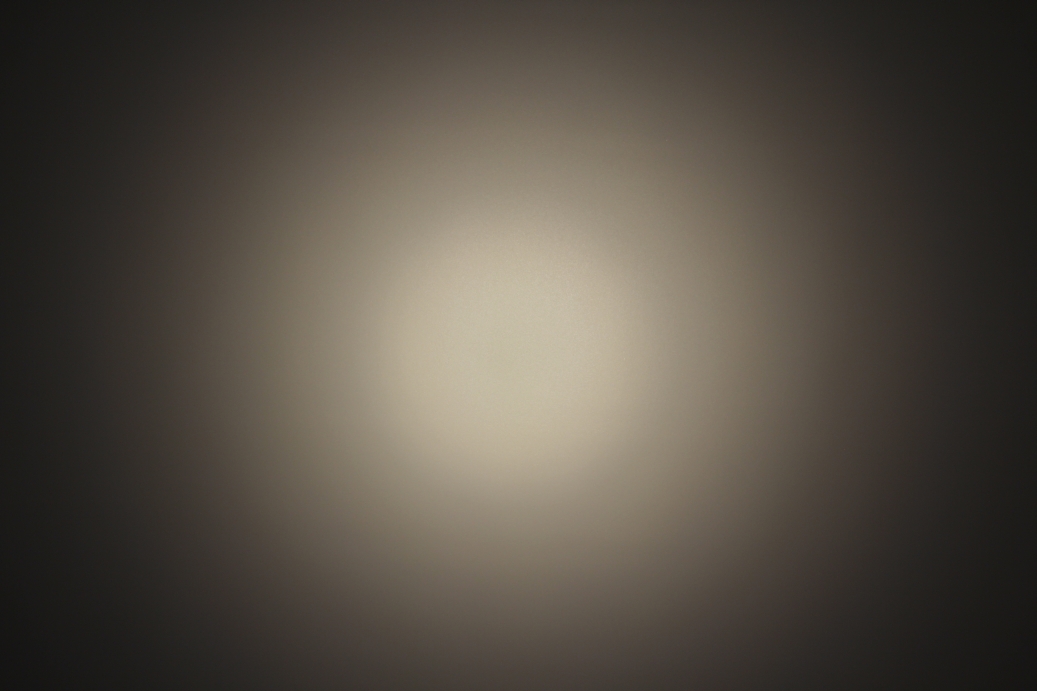

LED: MK-R
FWHM: 21°
FWTM: 78°
Peak intensity: 2.840 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

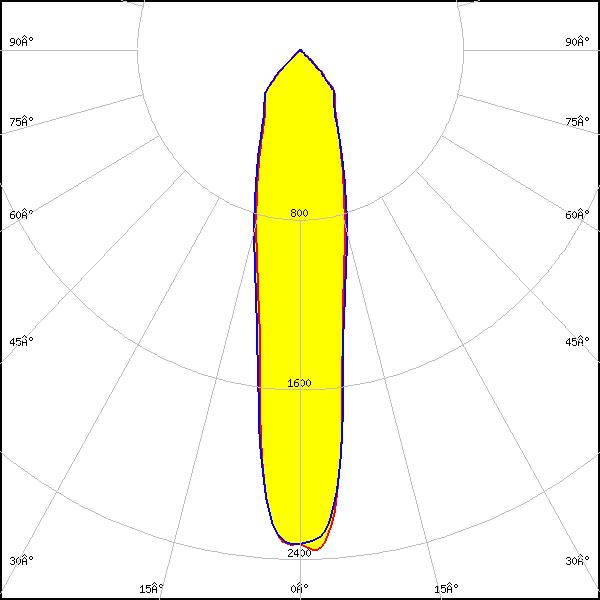

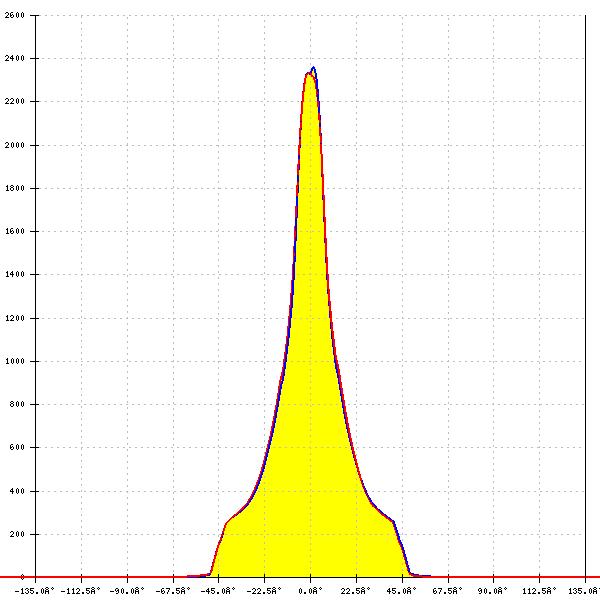

LED: XHP50
FWHM: 21°
FWTM: 83°
Peak intensity: 2.400 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

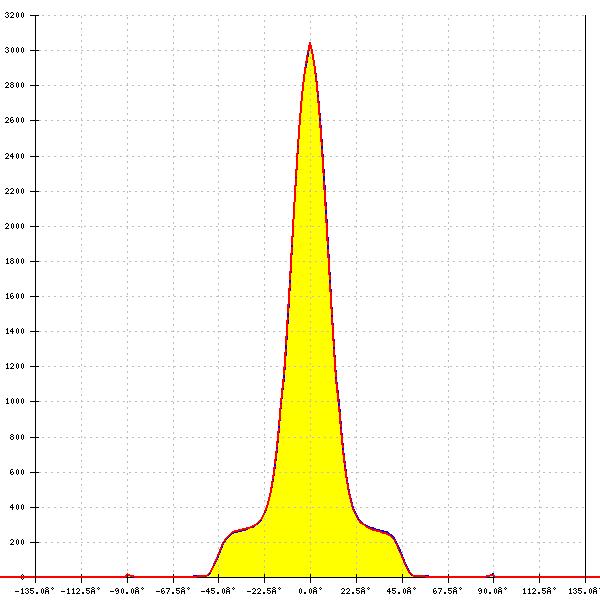

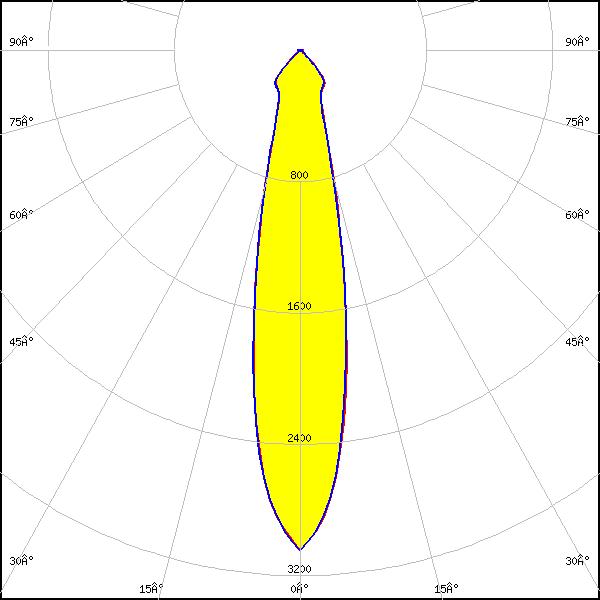

LED: XHP50.2
FWHM: 22°
FWTM: 52°
Peak intensity: 3.050 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White

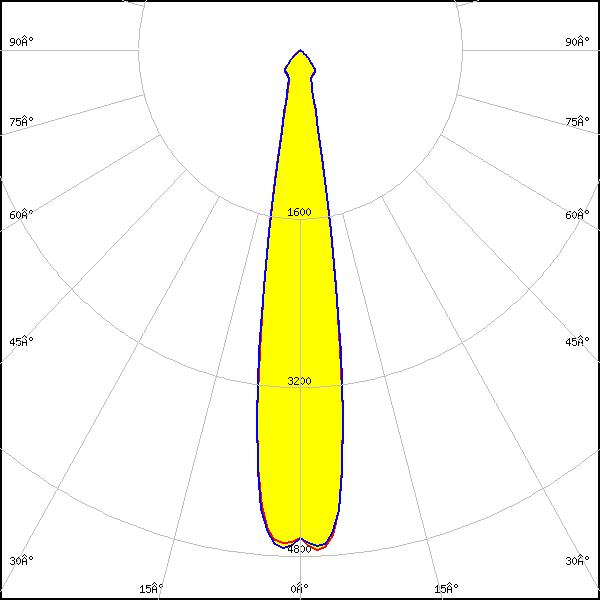

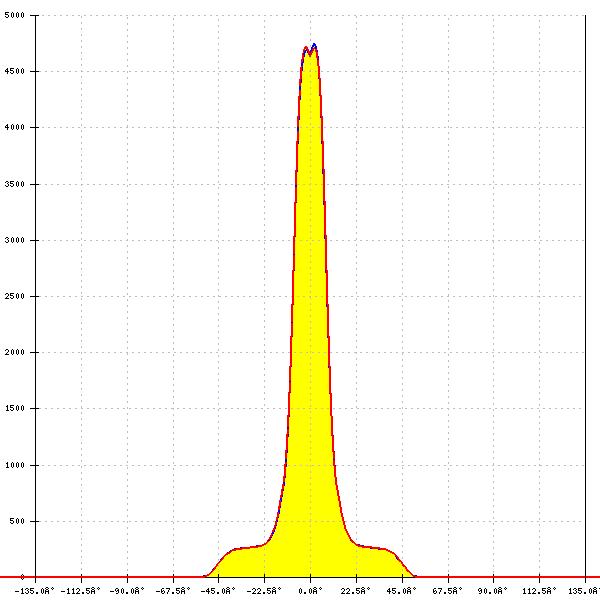

LED: XHP70.3 HD
FWHM: 18°
FWTM: 34°
Peak intensity: 4.750 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

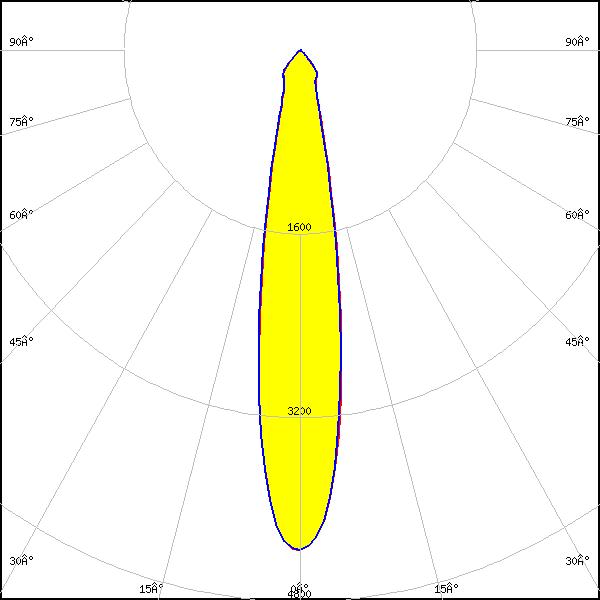

LED: LUXEON 7070
FWHM: 19°
FWTM: 42°
Peak intensity: 4.361 cd/lm
Efficiency: 95 %
LEDs/each optic: 1
Light colour/type: White

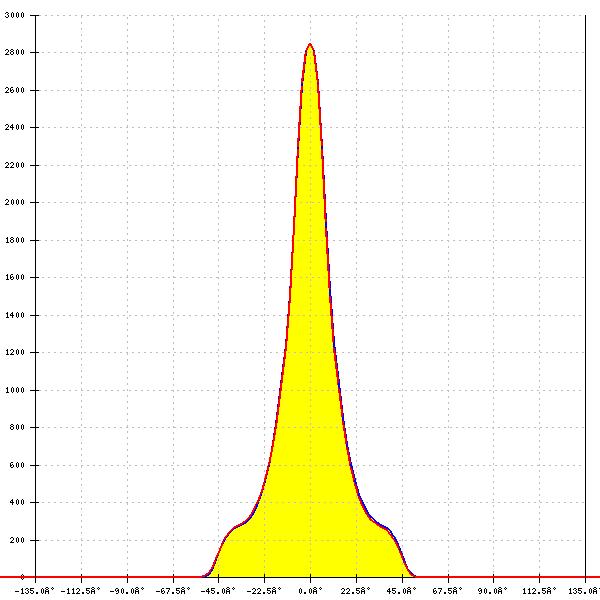

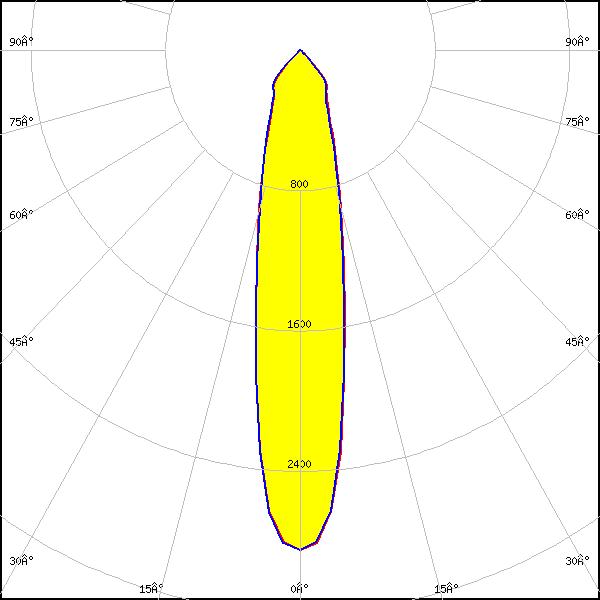

LED: LUXEON M/MX
FWHM: 21°
FWTM: 74°
Peak intensity: 2.900 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White
LED: OSCONIQ P 7070
FWHM: 18°
FWTM: 36°
Peak intensity: 4.800 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

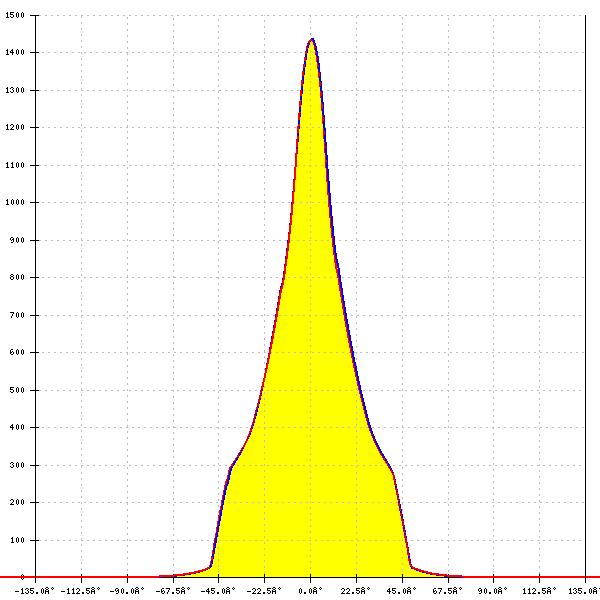

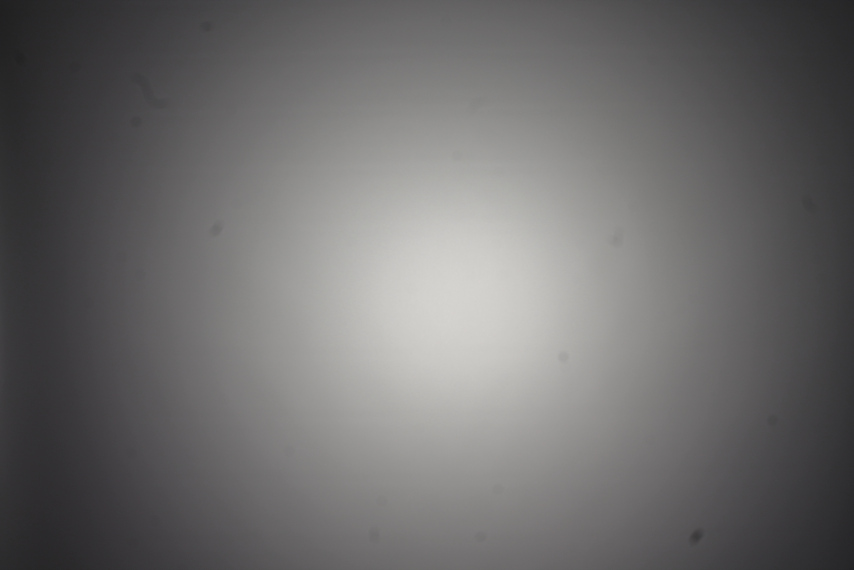

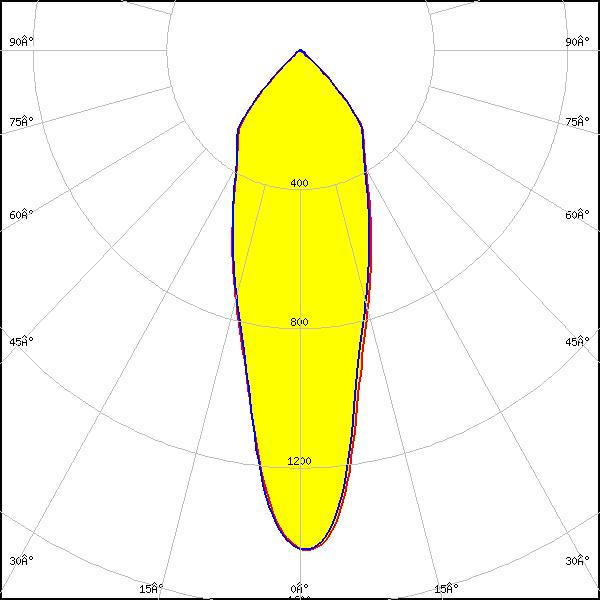

LED: PLW7070
FWHM: 32°
FWTM: 90°
Peak intensity: 1.400 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour/type: White
