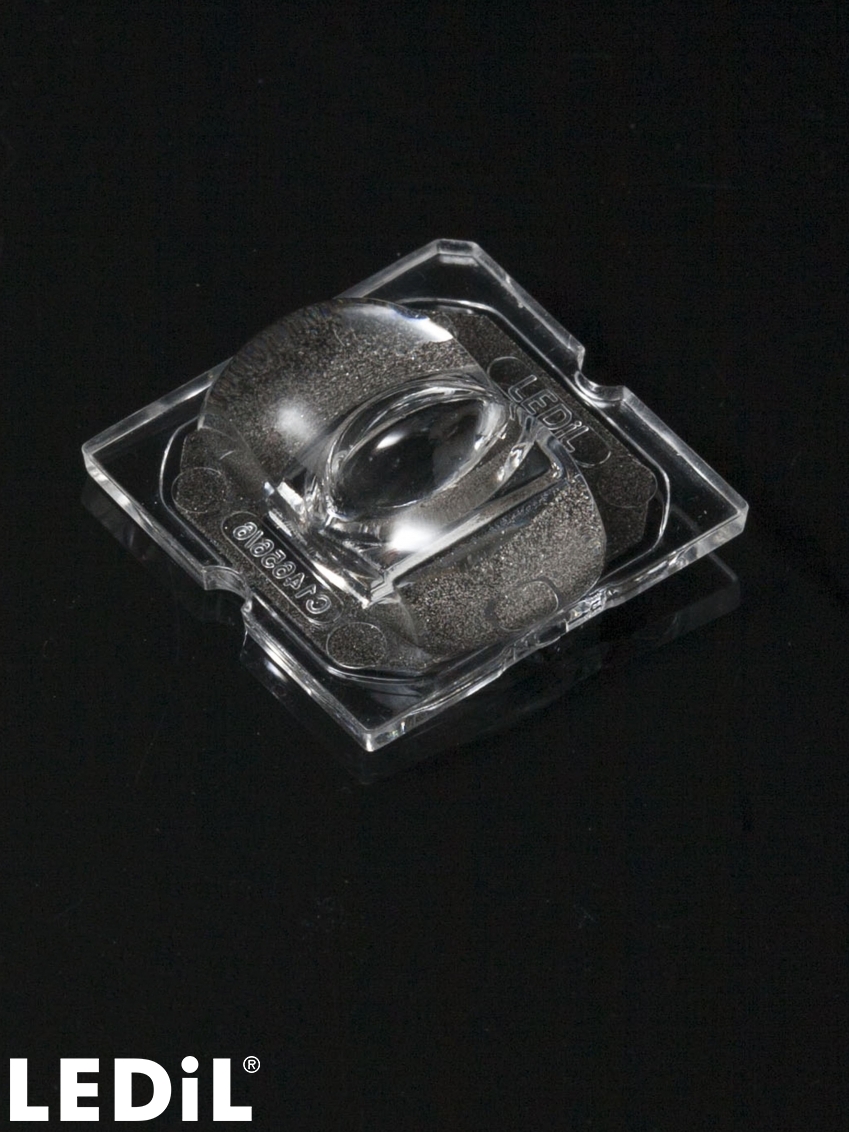

CA14744_STRADA-SQ-ANZ-P

Beam for pedestrian lighting (P4 & P5) in Australia and New Zealand. Version with location pins. Assembly with installation tape.

Special version that is manufactured to order. Please see the Minimum Order Quantity (MOQ) and contact us.

Specification

Dimensions:

25 x 25 mm
Height:

8.30 mm
Fastening:

tape, pin
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

STRADA-SQ-ANZ-P
Single lens
PMMA
ROSE-TAPE
Tape
Acryl tape
Request material files from Tech Support

Ordering information

Quantity in box:

2058 pcs
Box size:

480 x 280 x 300 mm
Box weight:

7.5 kg
MPQ:

2058 pcs
MOQ:

6174 pcs
MOQ size:

480 x 280 x 300 mm
MOQ weight:

7.5 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: CA14744_STRADA-SQ-ANZ-P

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CA14744_STRADA-SQ-ANZ-P

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

WHERE TO BUY

FIND A DISTRIBUTOR

Related Content

User and installation guide

General guide to LEDiL optics

News

PRODUCT NEWS - STRADA-SQ-ANZ

Application guide

Guide for Street lighting optics

News

PRODUCT NEWS - STRADA-SQ

Application area

Industrial Lighting

Application guide

Guide for Urban lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

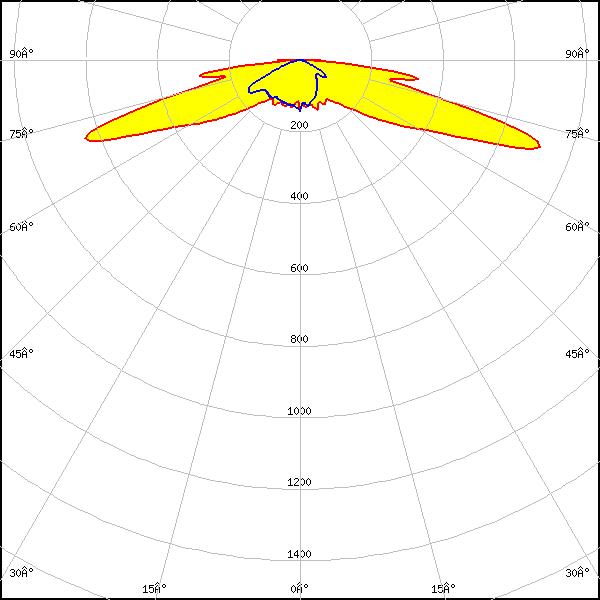

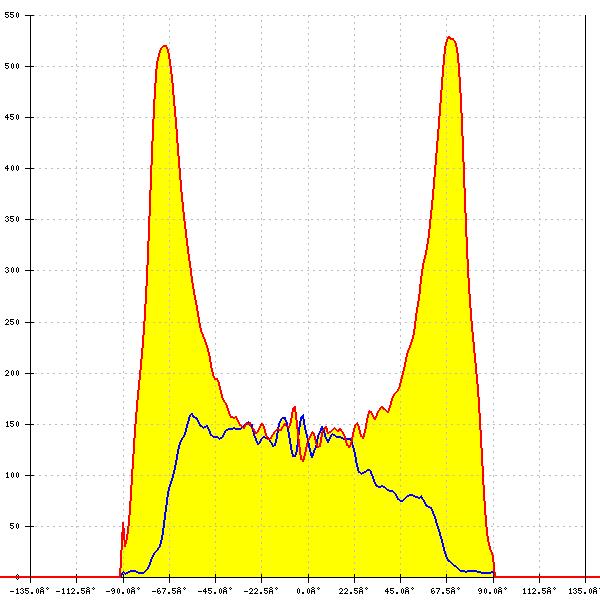

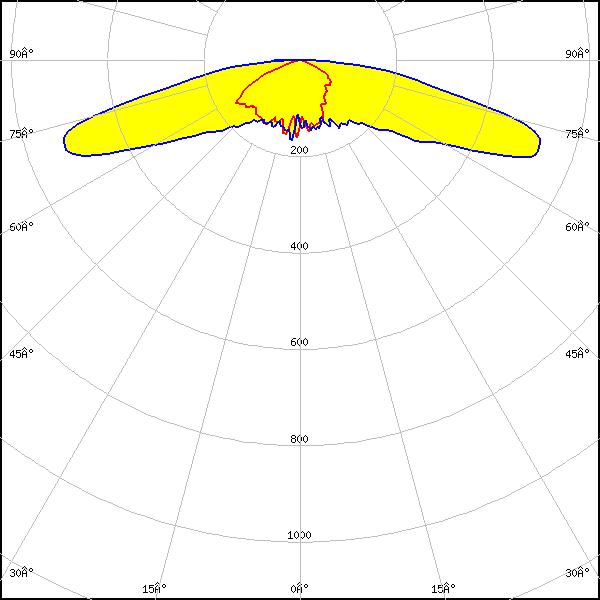

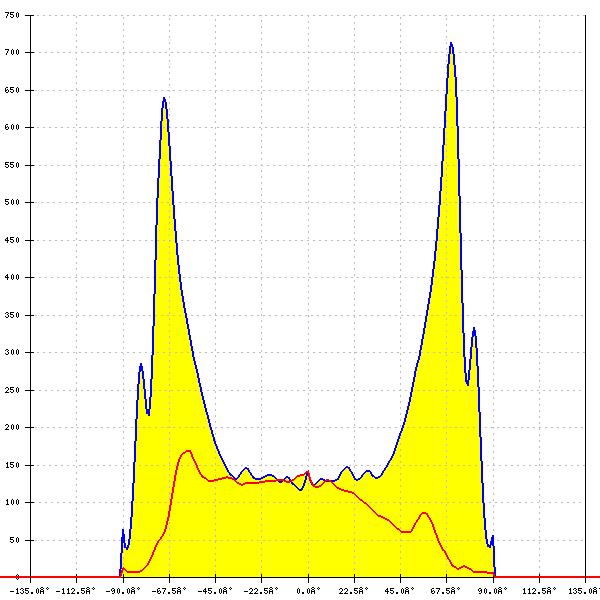

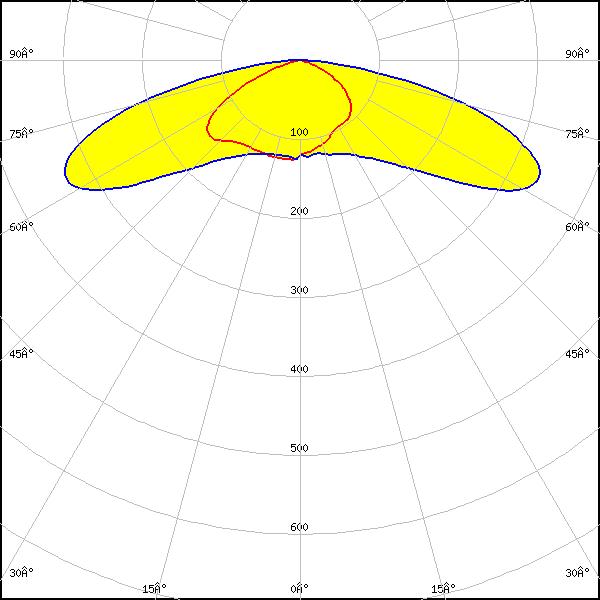

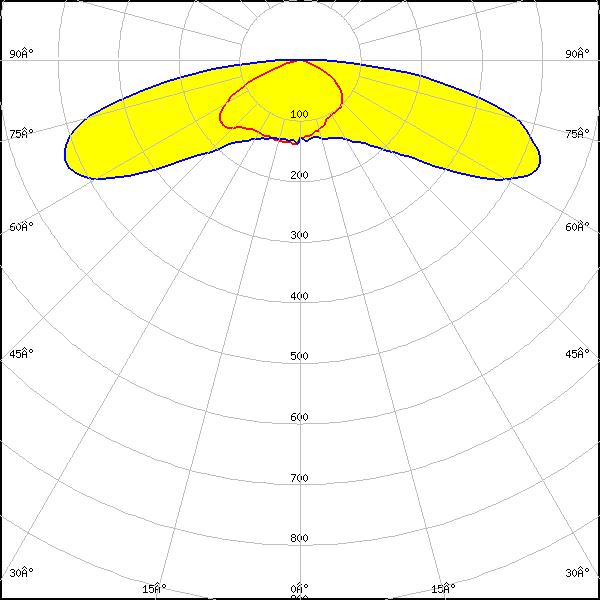

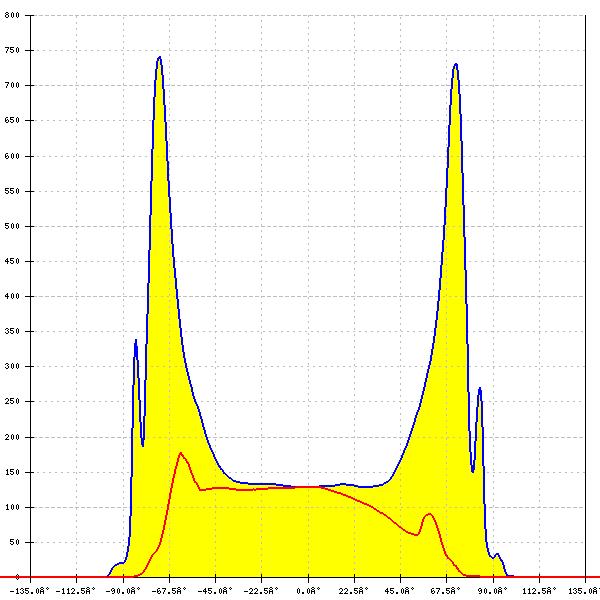

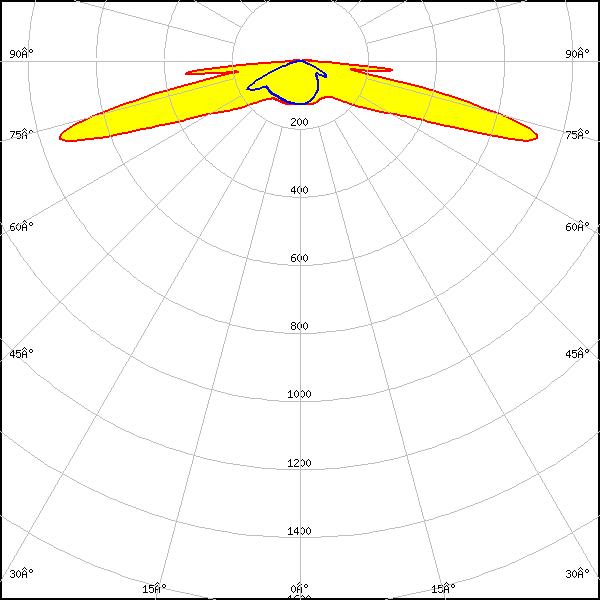

Optical results

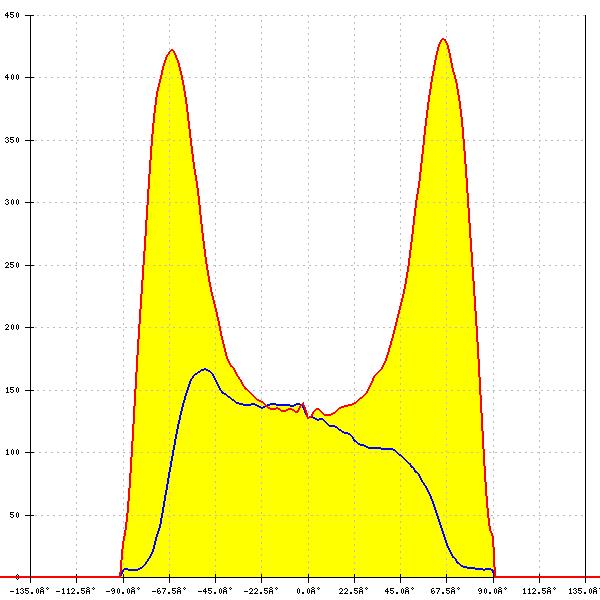

LED: J Series 7070B K Class

FWHM: asymmetric

Peak intensity: 0.469 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

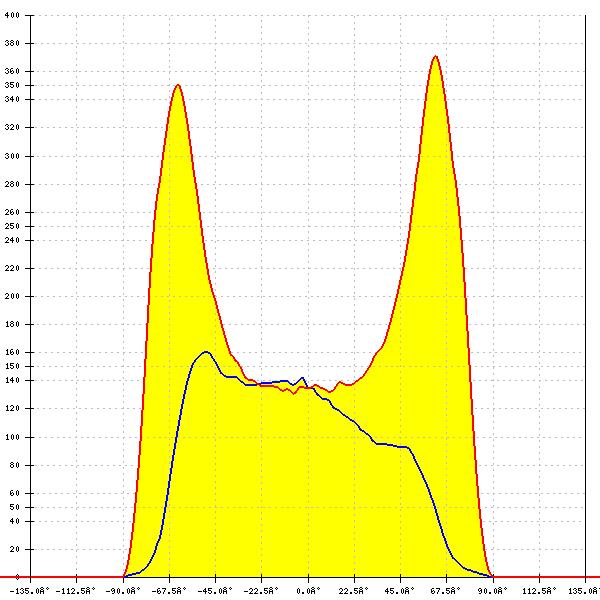

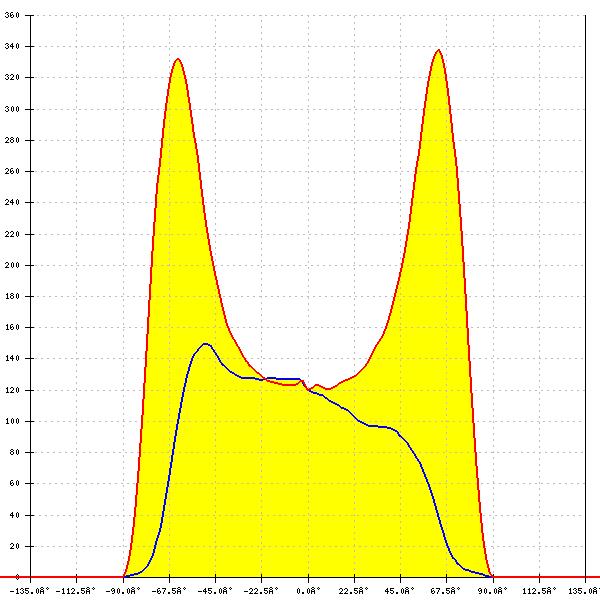

LED: J Series 7070B K Class

FWHM: asymmetric

Peak intensity: 0.358 cd/lm

Efficiency: 73 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

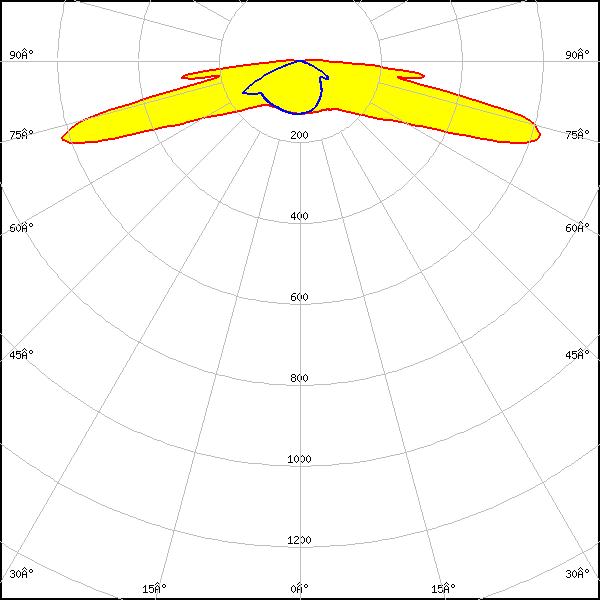

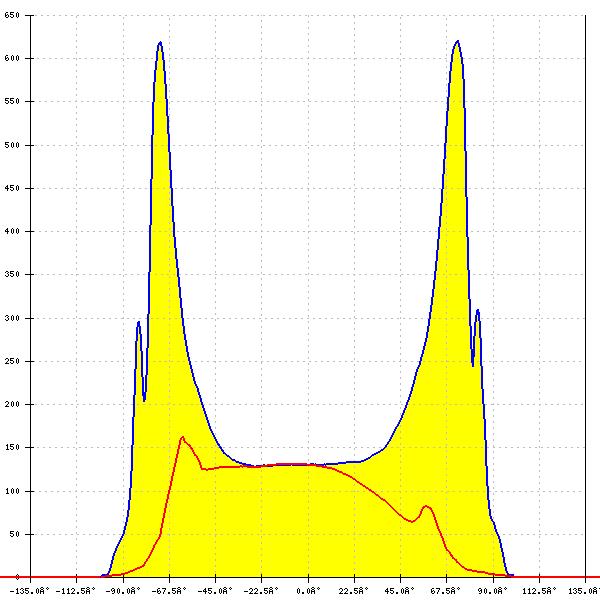

LED: XHP35 HD

FWHM: asymmetric

Peak intensity: 0.670 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

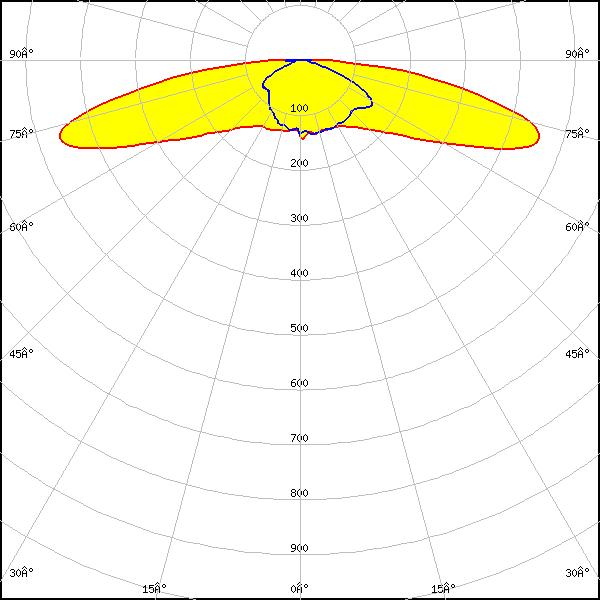

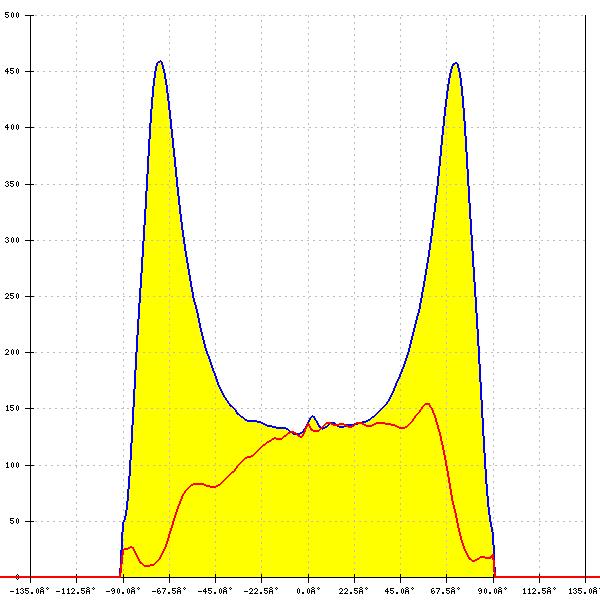

LED: XHP50.2

FWHM: asymmetric

Peak intensity: 0.490 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XM-L2

FWHM: asymmetric

Peak intensity: 0.760 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

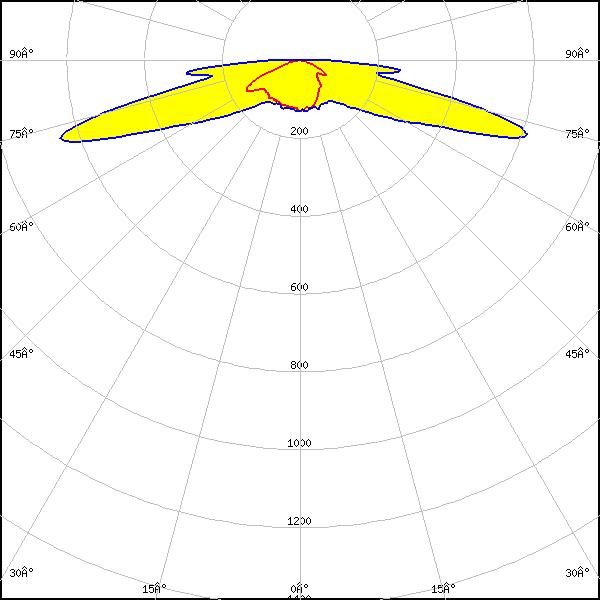

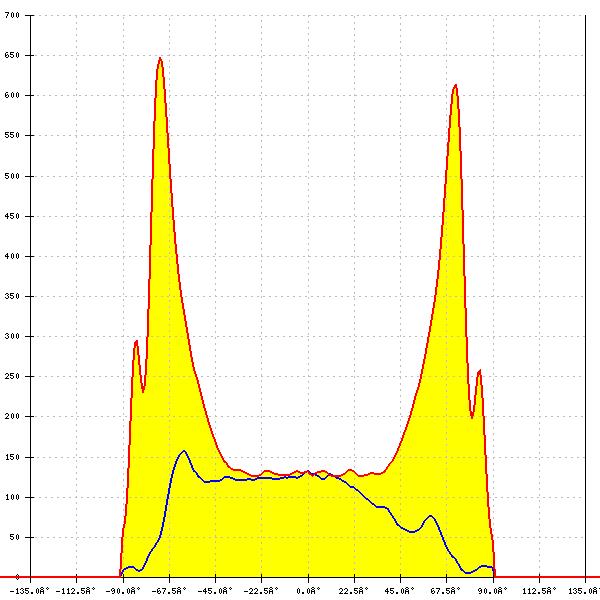

LED: XP-G3

FWHM: asymmetric

Peak intensity: 0.714 cd/lm

Efficiency: 90 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON 5050 Square LES

FWHM: asymmetric

Peak intensity: 0.449 cd/lm

Efficiency: 73 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

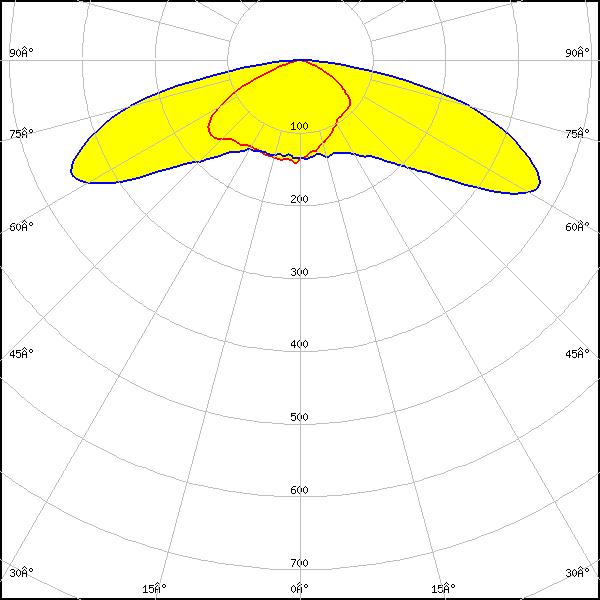

LED: LUXEON 7070

FWHM: asymmetric

Peak intensity: 0.391 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

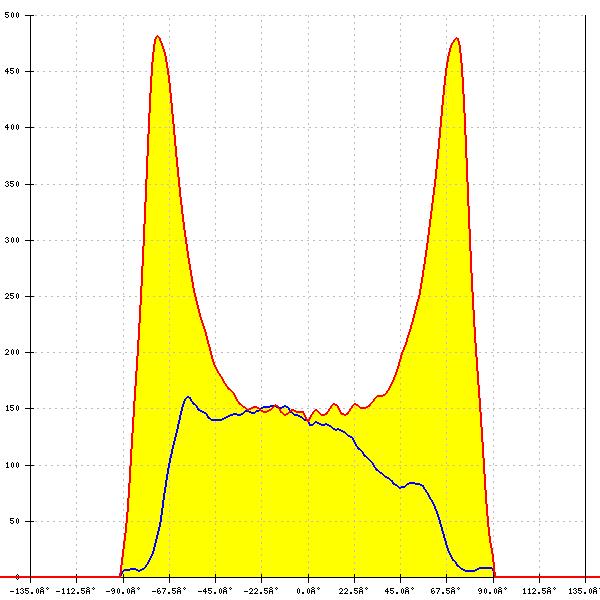

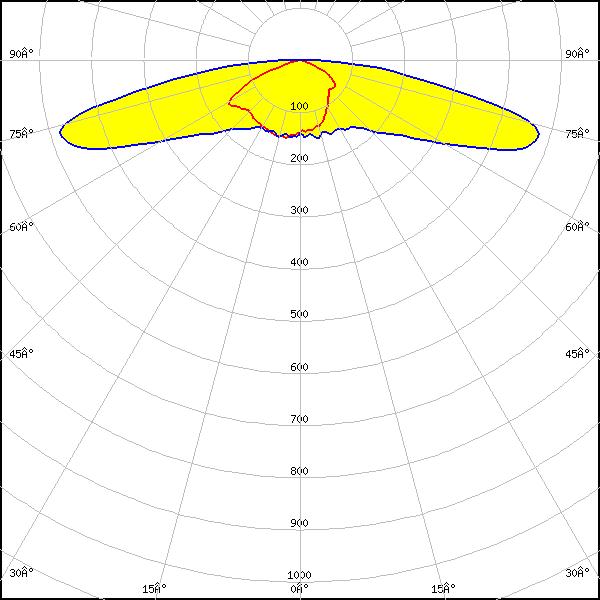

LED: LUXEON M/MX

FWHM: asymmetric

Peak intensity: 0.523 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON TX

FWHM: asymmetric

Peak intensity: 0.787 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: NVSW319B

FWHM: asymmetric

Peak intensity: 0.812 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 7070

FWHM: asymmetric

Peak intensity: 0.557 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

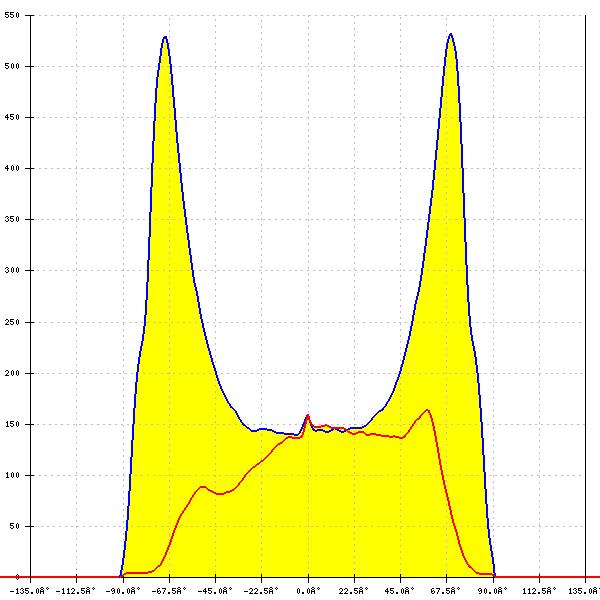

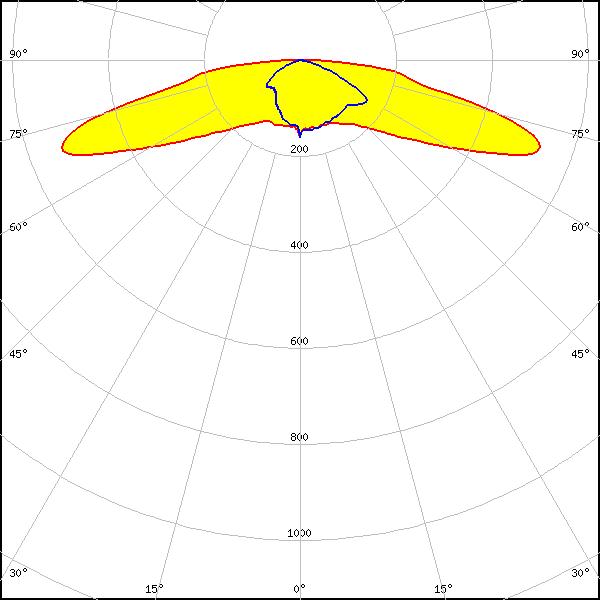

LED: OSCONIQ S 5050 (Q9LR33)

FWHM: asymmetric

Peak intensity: 0.573 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

Are we missing optical results for a certain LED?

SEND A MESSAGE

Are we missing optical results for a certain LED?

SEND A MESSAGE
