CA14942_MINNIE-LT-W-PIN

Print

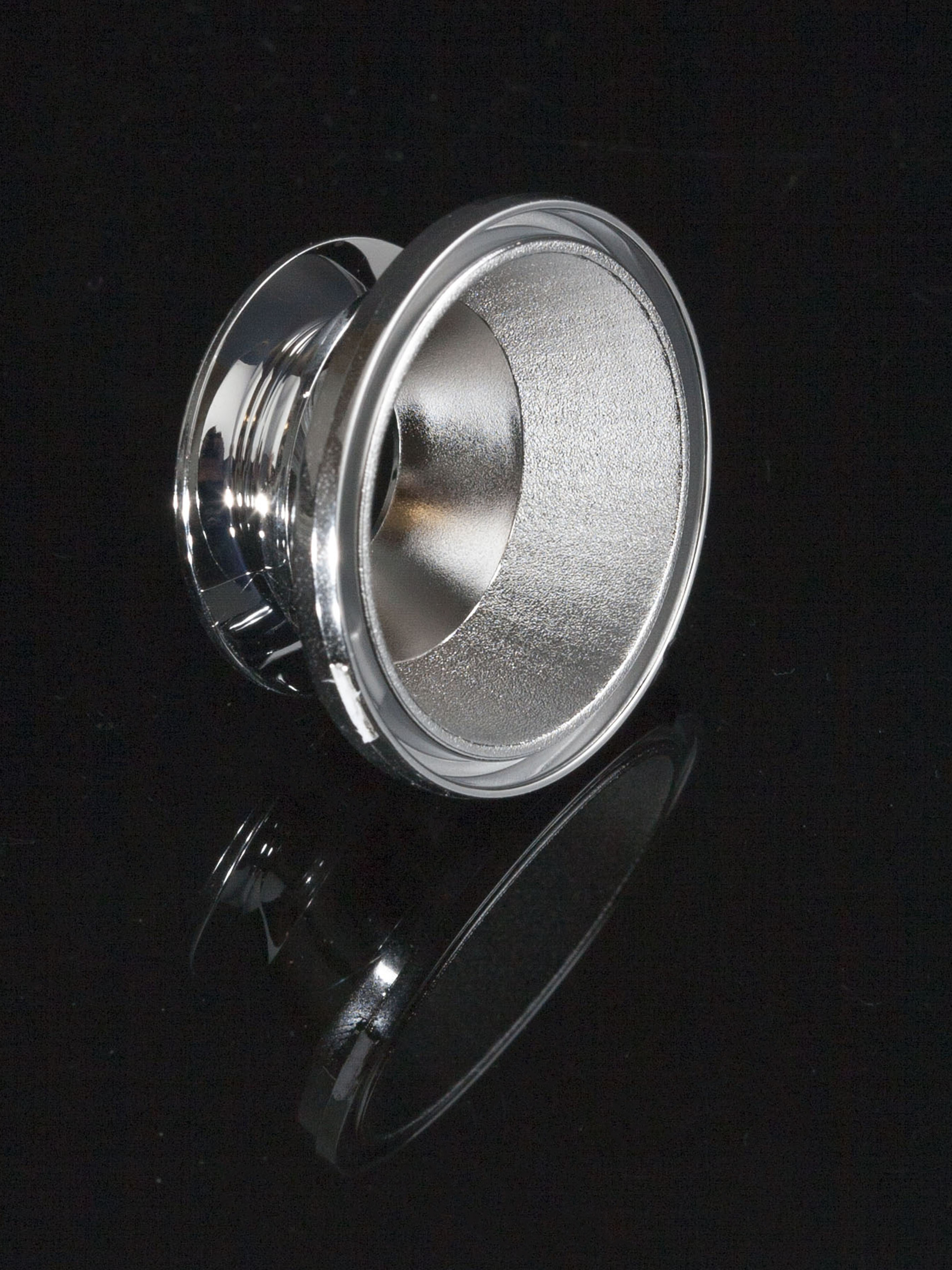

~35° wide beam. Assembly with location pins and installation tape.

Specification
  • Dimensions:
    35 mm
  • Height:
    15.6 mm
  • Fastening:
    tape, pin
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials
  • MINNIE-LT-W-PIN, Reflector, PC
  • SPUTNIK-TAPE3, Tape, Acrylic foam

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    720 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.6 kg
  • MPQ:
    45 pcs
  • MOQ:
    90 pcs
  • MOQ size:
    480 x 280 x 50 mm
  • MOQ weight:
    0.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA14942_MINNIE-LT-W-PIN

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

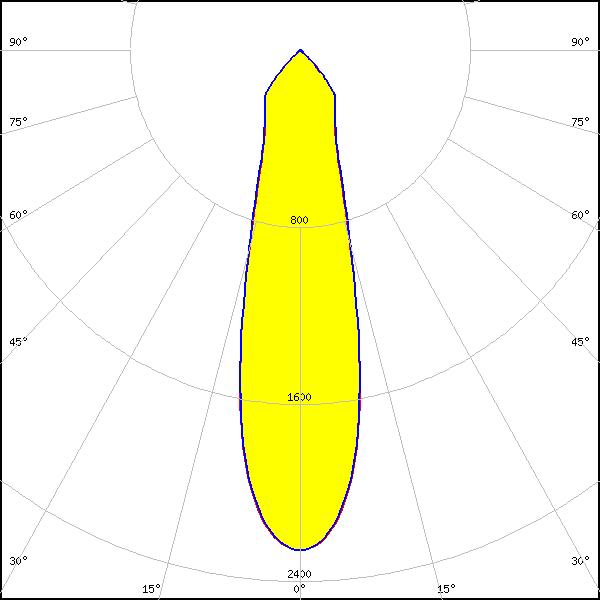

Optical results

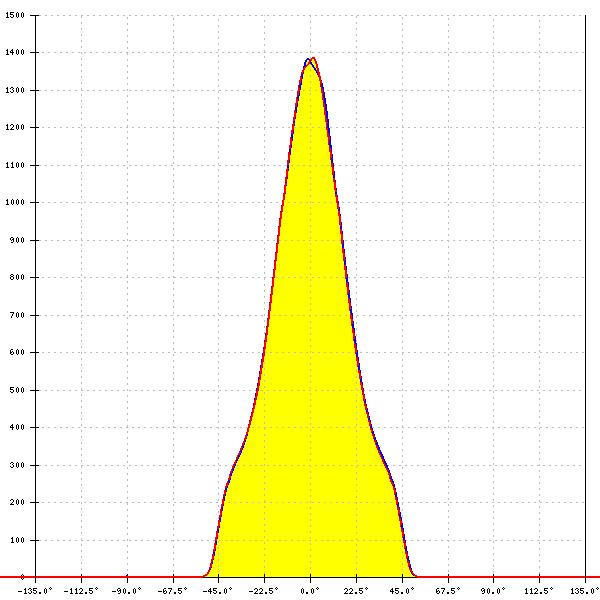

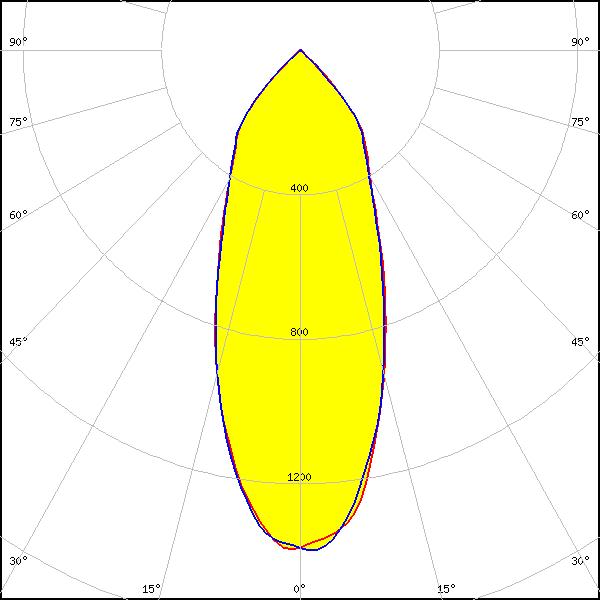

LED: MK-R
FWHM: 40°
FWTM: 89°
Peak intensity: 1.4 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

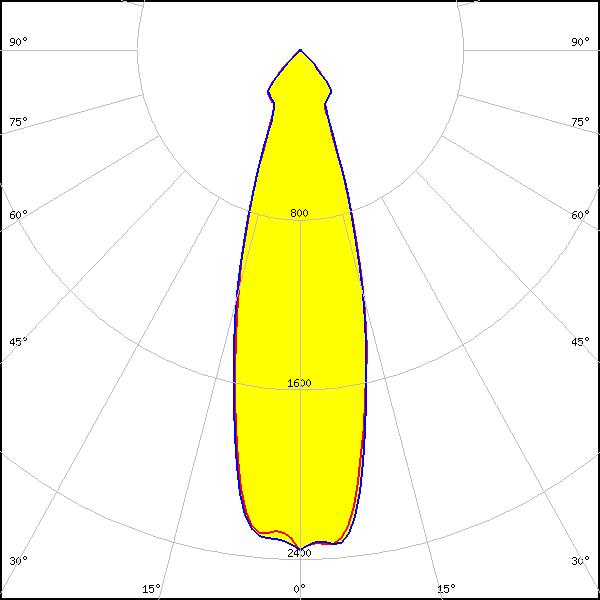

LED: XHP50.3 HD
FWHM: 30°
FWTM: 79°
Peak intensity: 2.4 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

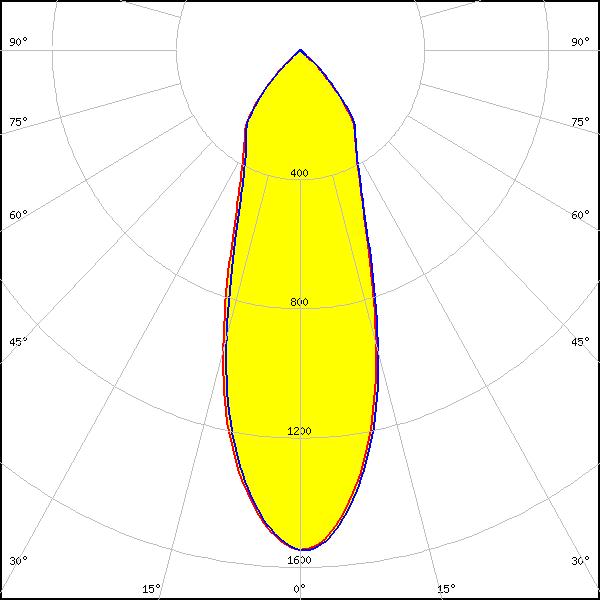

LED: XHP70.2
FWHM: 35°
FWTM: 87°
Peak intensity: 1.6 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White

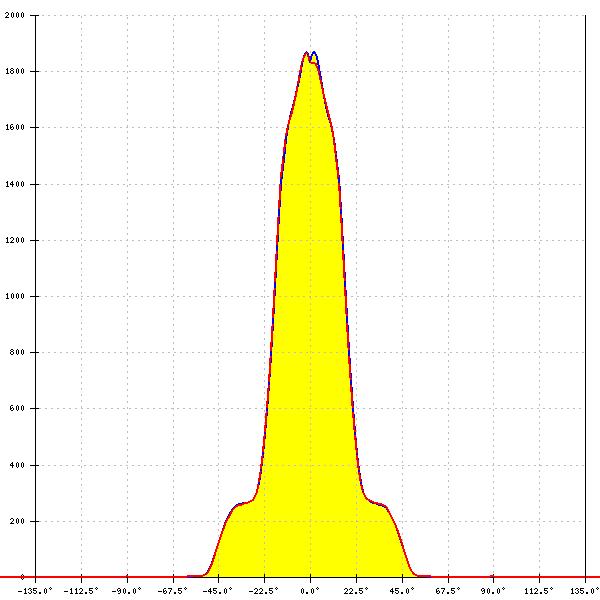

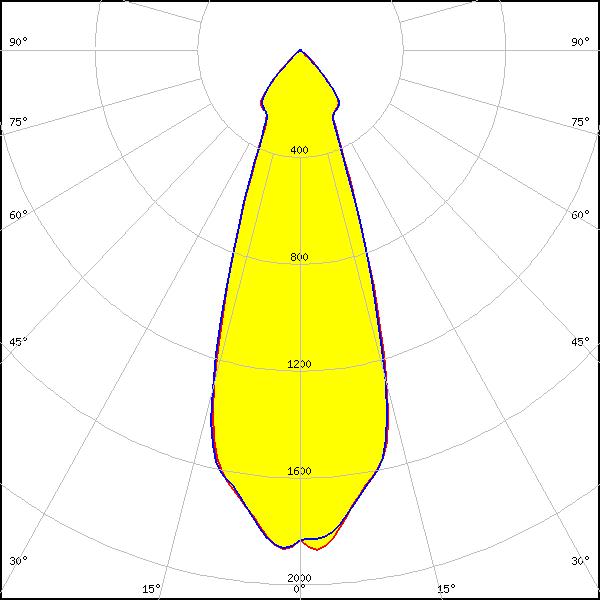

LED: XHP70.3
FWHM: 36°
FWTM: 84°
Peak intensity: 1.9 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour: White

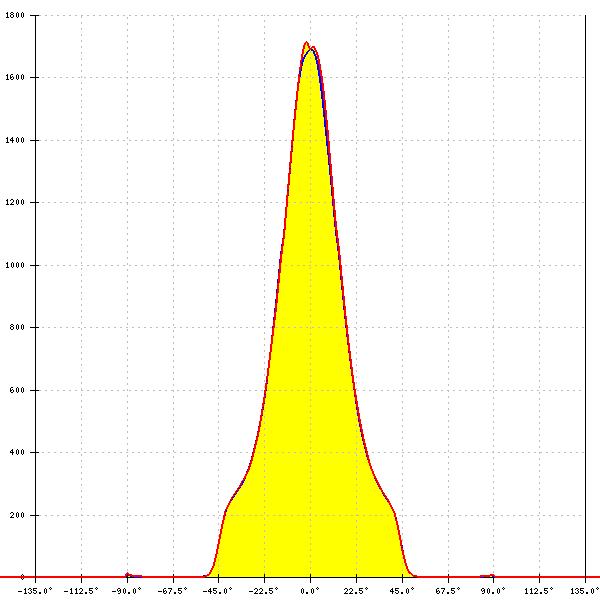

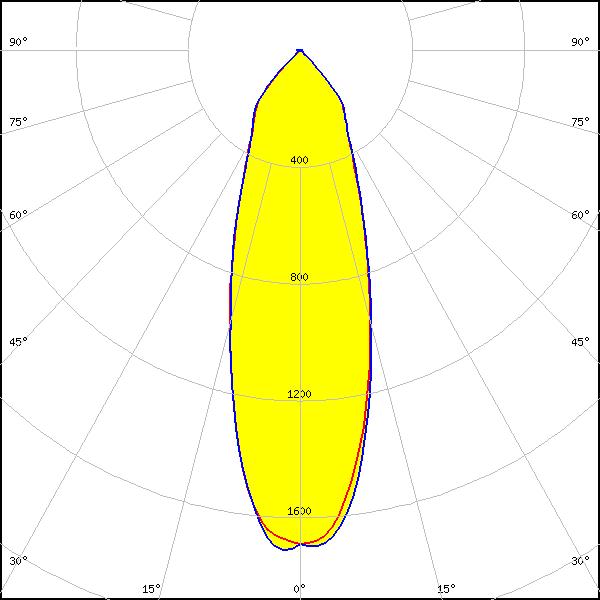

LED: XP-G3
FWHM: 34°
FWTM: 85°
Peak intensity: 1.7 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

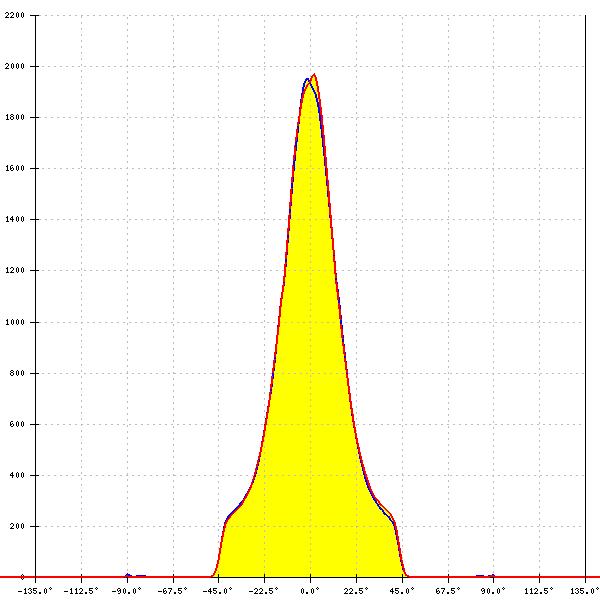

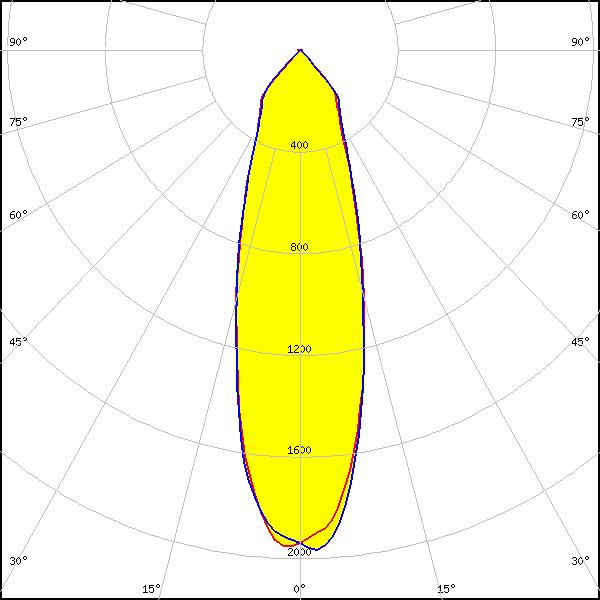

LED: XT-E
FWHM: 30°
FWTM: 83°
Peak intensity: 2.0 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour: White

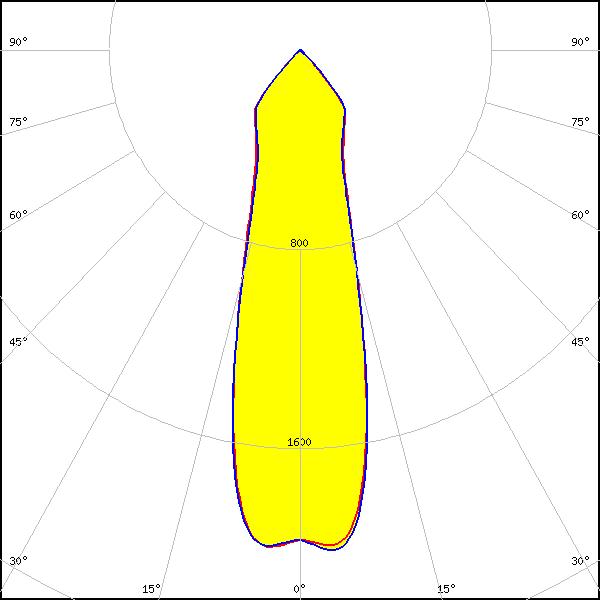

LED: LUXEON 5050 Round LES
FWHM: 29°
FWTM: 84°
Peak intensity: 2.0 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

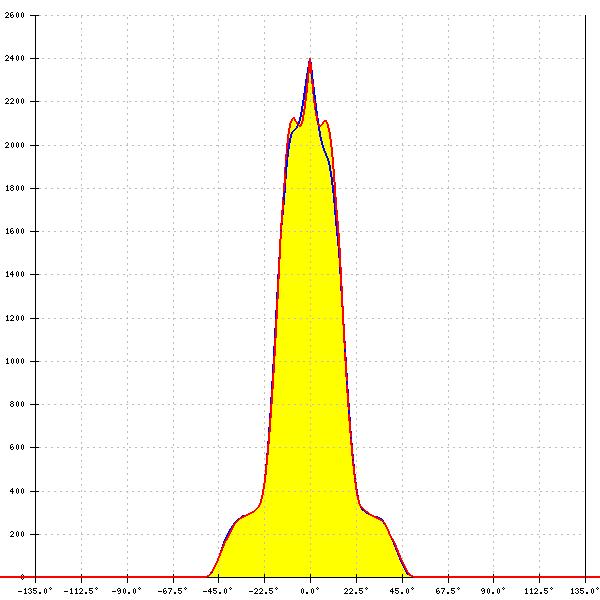

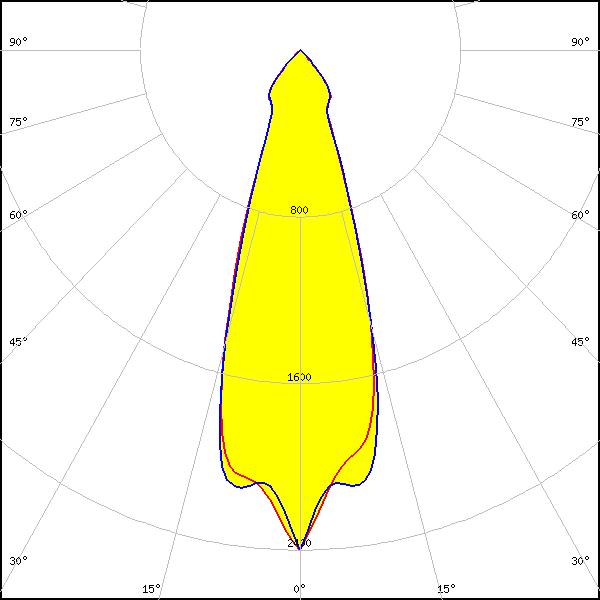

LED: LUXEON 7070
FWHM: 32°
FWTM: 75°
Peak intensity: 2.4 cd/lm
Efficiency: 96 %
LEDs/each optic: 1
Light colour: White

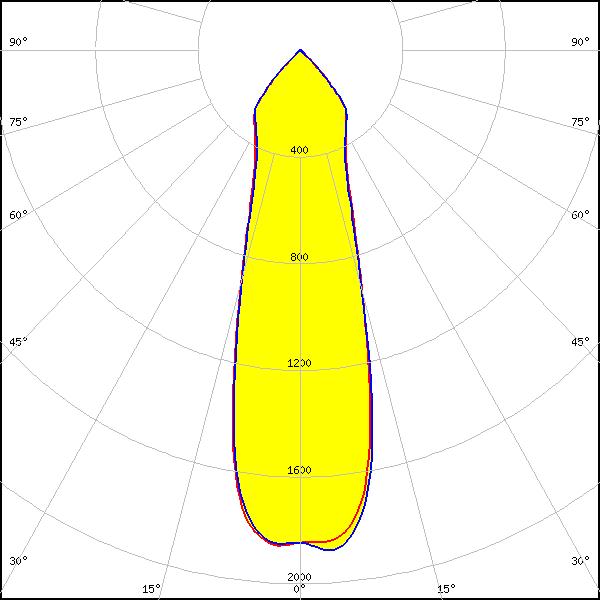

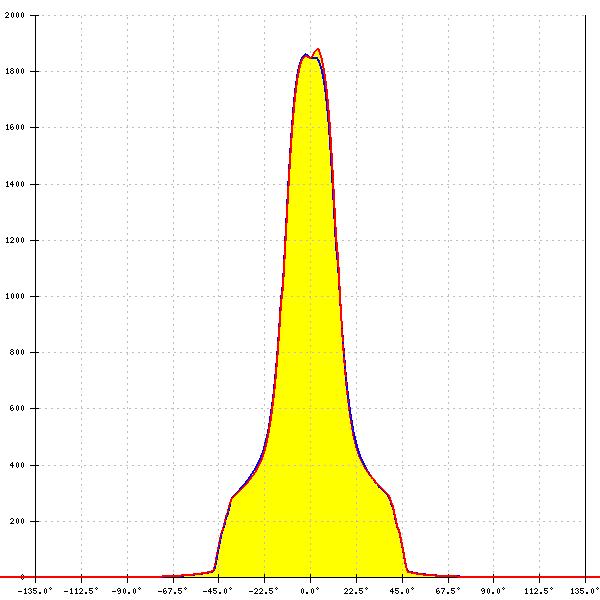

LED: LUXEON M/MX
FWHM: 30°
FWTM: 84°
Peak intensity: 1.9 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: LUXEON M/MX
FWHM: 30°
FWTM: 90°
Peak intensity: 1.9 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

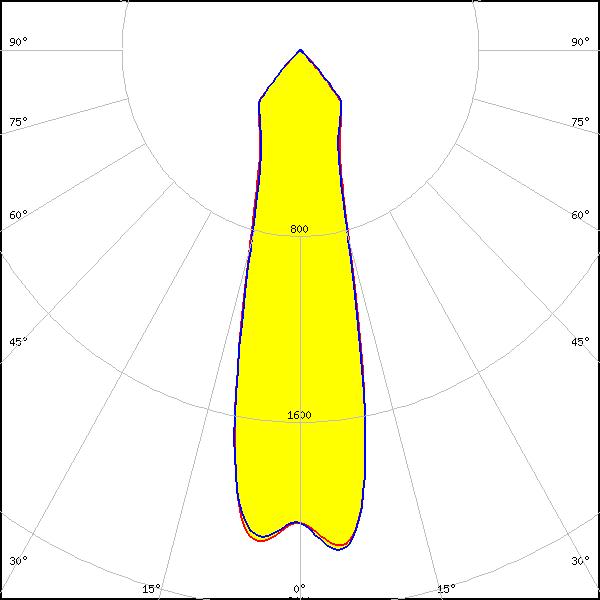

LED: LUXEON MZ
FWHM: 27°
FWTM: 83°
Peak intensity: 2.3 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour: White

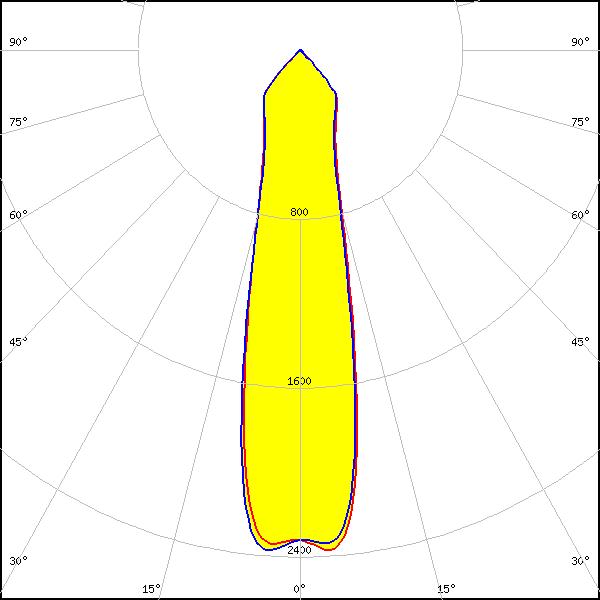

LED: LUXEON V
FWHM: 24°
FWTM: 83°
Peak intensity: 2.4 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

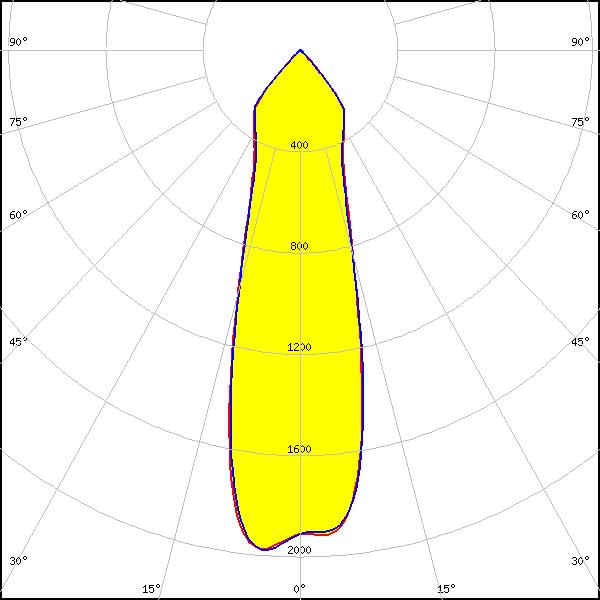

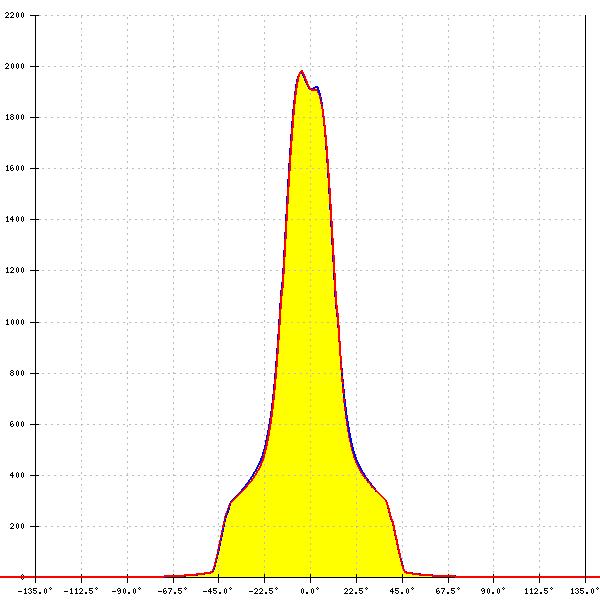

LED: NFMW48xA
FWHM: 29°
FWTM: 83°
Peak intensity: 2.0 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White

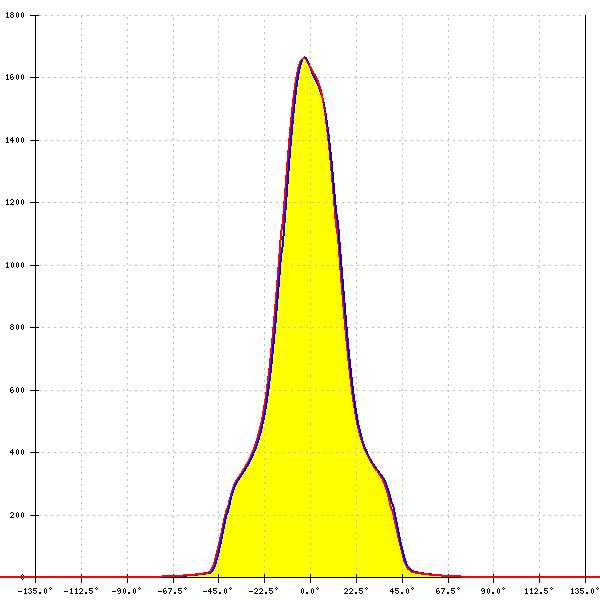

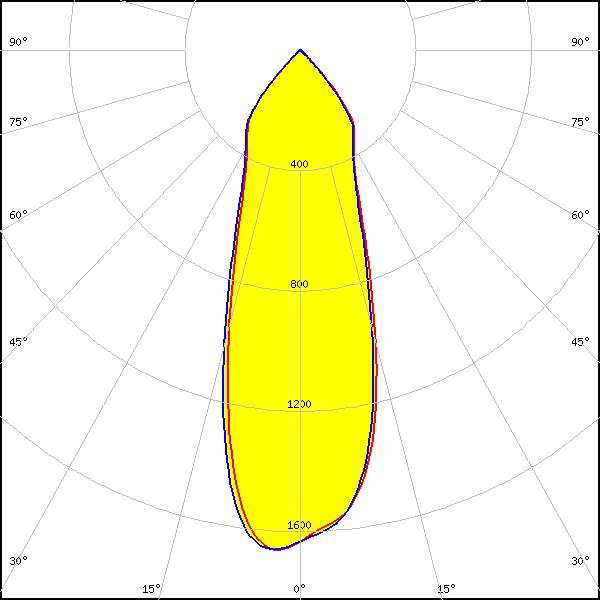

LED: Duris S10
FWHM: 34°
FWTM: 84°
Peak intensity: 1.7 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour: White
LED: OSCONIQ P 7070
FWHM: 29°
FWTM: 84°
Peak intensity: 1.9 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour: White
