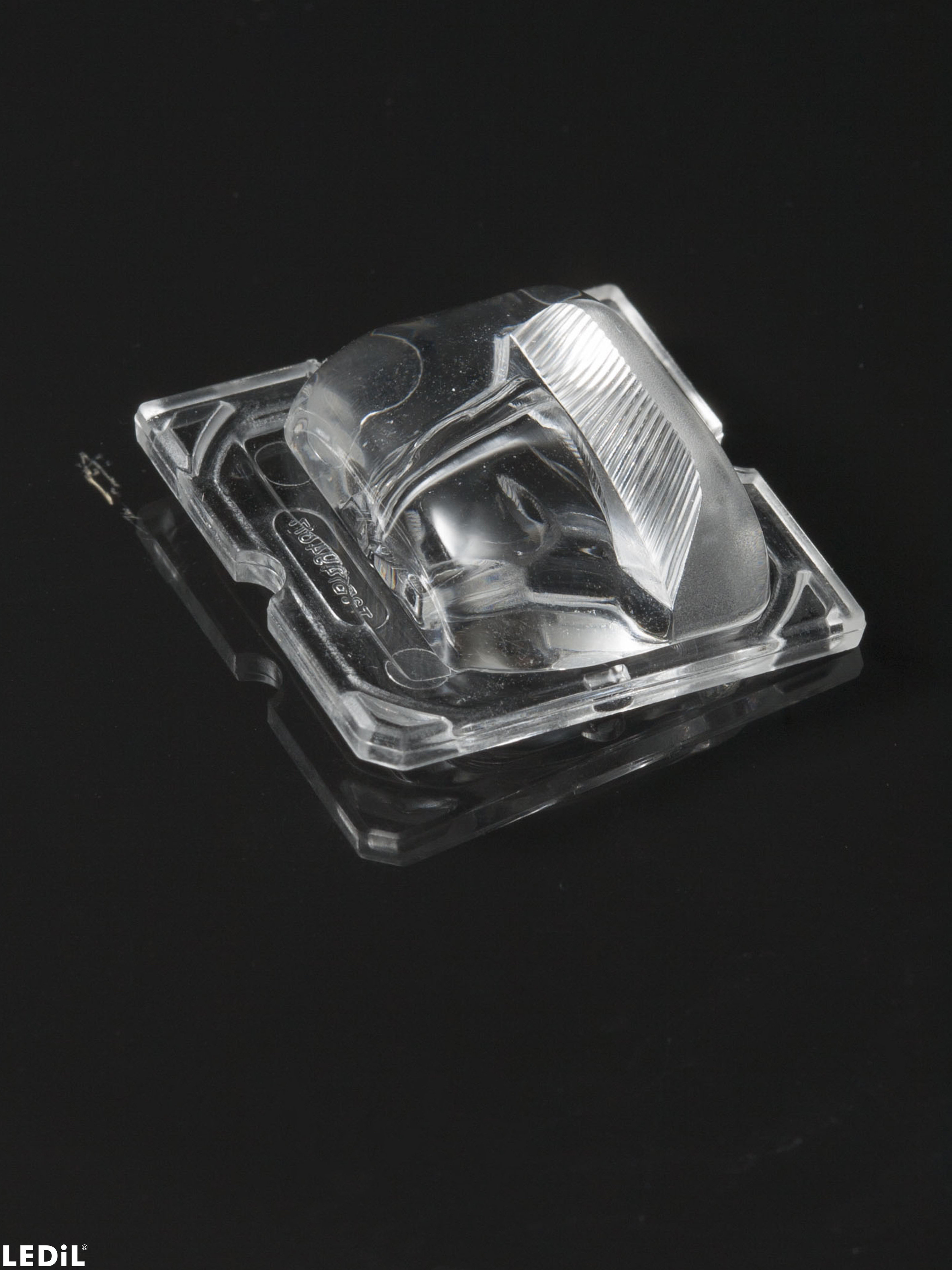

CA14949_STRADA-SQ-T3B

IESNA Type III (medium) beam with minimized backlight. Version with location pins. Assembly with installation tape.

Specification

Dimensions:

25 x 25 mm
Height:

8.40 mm
Fastening:

tape
Colour:

clear
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

STRADA-SQ-T3B
Single lens
PMMA
ROSE-TAPE
Tape
Acryl tape
Request material files from Tech Support

Ordering information

Quantity in box:

2058 pcs
Box size:

476 x 273 x 292 mm
Box weight:

7.8 kg
MPQ:

98 pcs
MOQ:

294 pcs
MOQ size:

480 x 280 x 60 mm
MOQ weight:

1.6 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: CA14949_STRADA-SQ-T3B

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CA14949_STRADA-SQ-T3B

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

PRODUCT NEWS - STRADA-SQ-T3B

Application guide

Guide for Street lighting optics

News

PRODUCT NEWS - STRADA-SQ

Application area

Industrial Lighting

Application guide

Guide for Urban lighting optics

PCN

Product change notification NR196 - Additional Optical PMMA material grade approved

PCN

Product change notification NR178 - Additional PMMA material approved

PCN

Product change notification NR174 - Additional PMMA material approved

Application guide

Street lighting optics - 2020_v.1.1_WEB

Application area

Architectural Outdoor Lighting

Application area

Area and Car Park Lighting

Application area

Street Lighting

Application area

Indoor Architectural Lighting

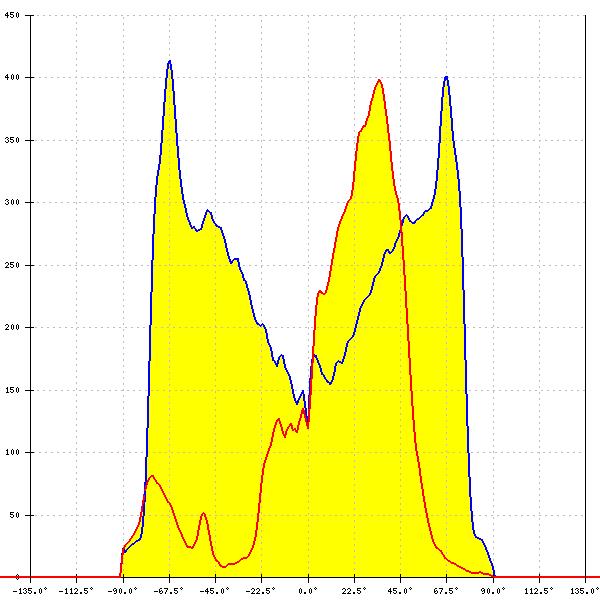

Optical results

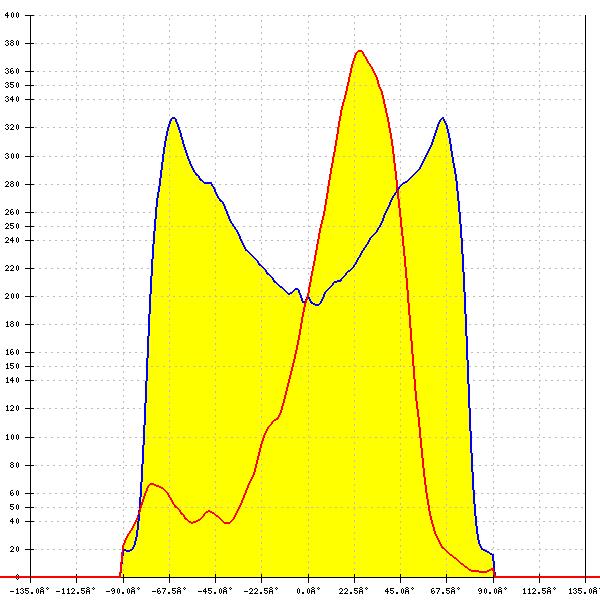

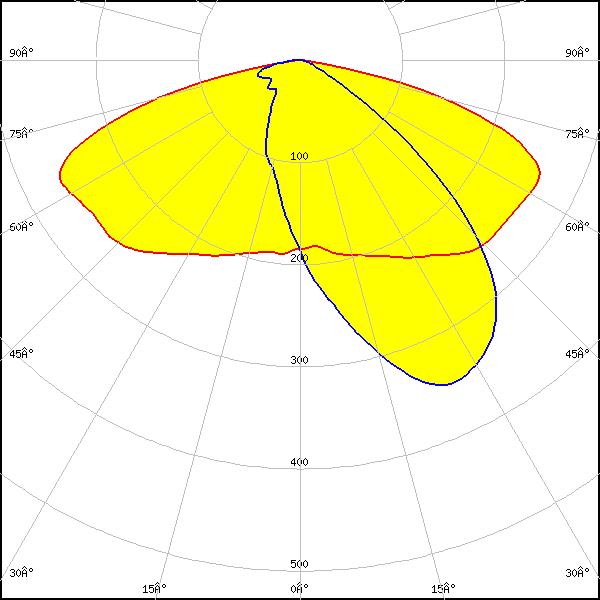

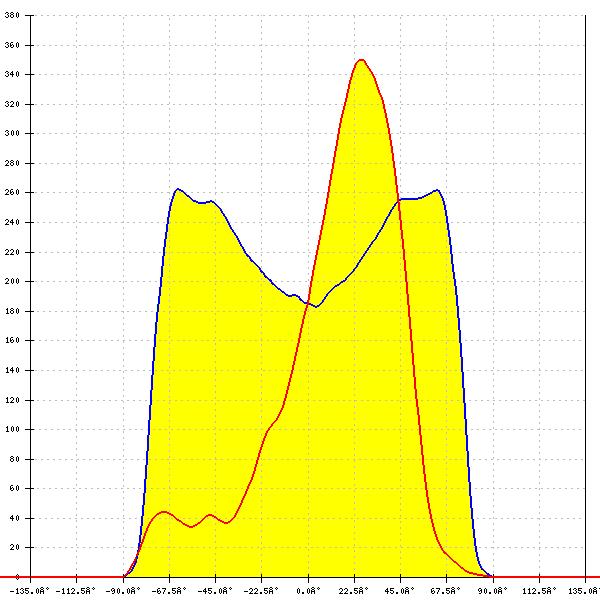

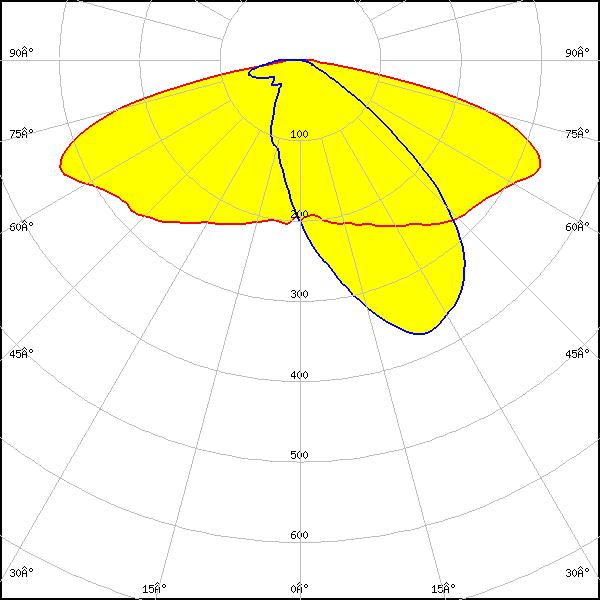

LED: J Series 7070B K Class

FWHM: asymmetric

Peak intensity: 0.418 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: J Series 7070B K Class

FWHM: asymmetric

Peak intensity: 0.373 cd/lm

Efficiency: 80 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: MHB-A/B

FWHM: asymmetric

LEDs/each optic: 1

Light colour/type: White

Datasheet

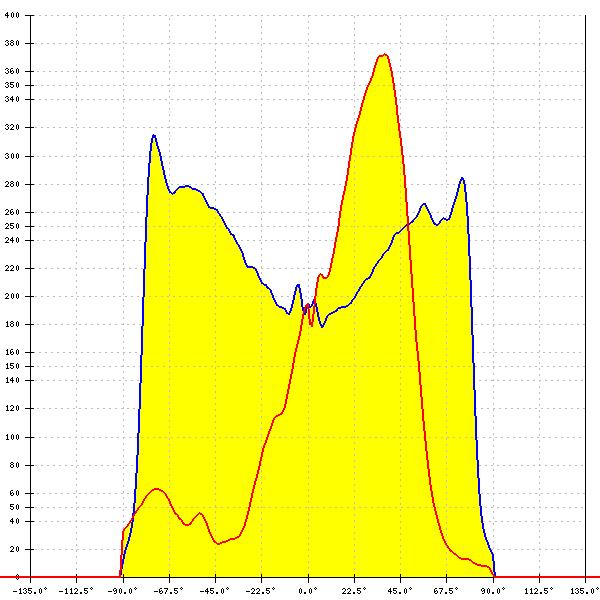

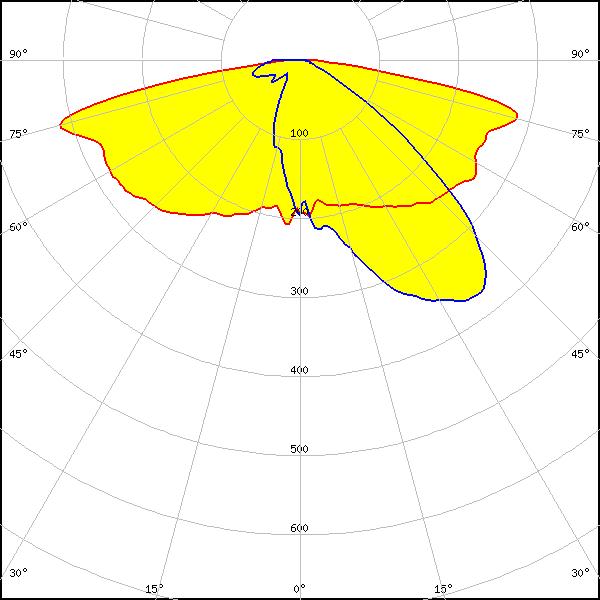

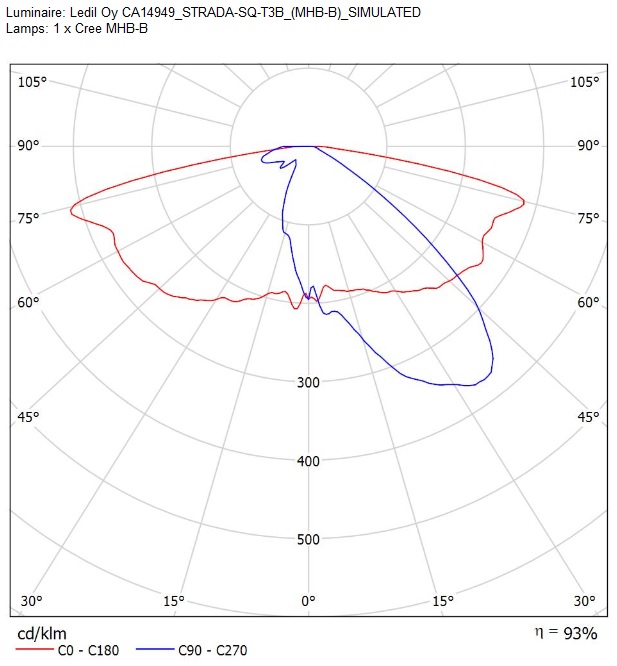

LED: MHB-A/B

FWHM: asymmetric

Peak intensity: 0.440 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

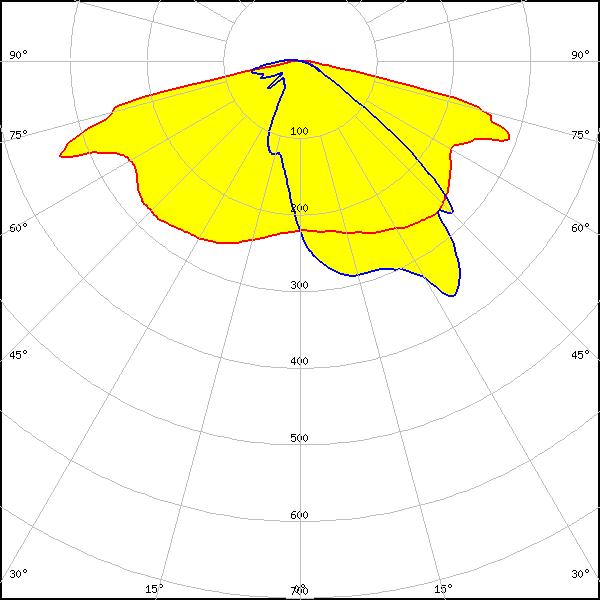

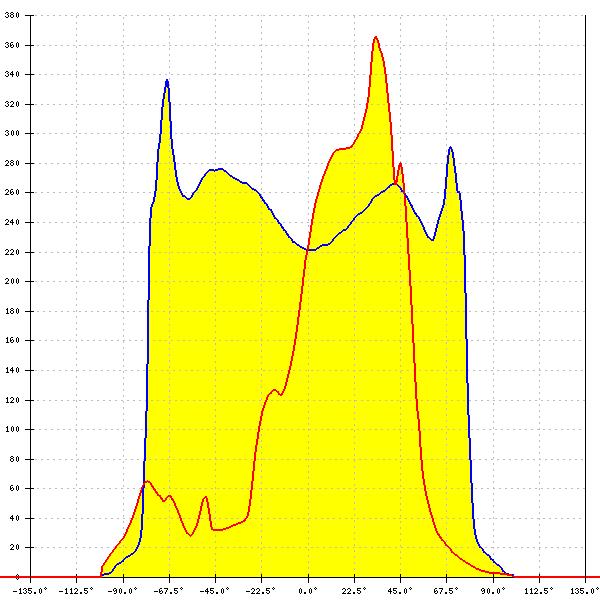

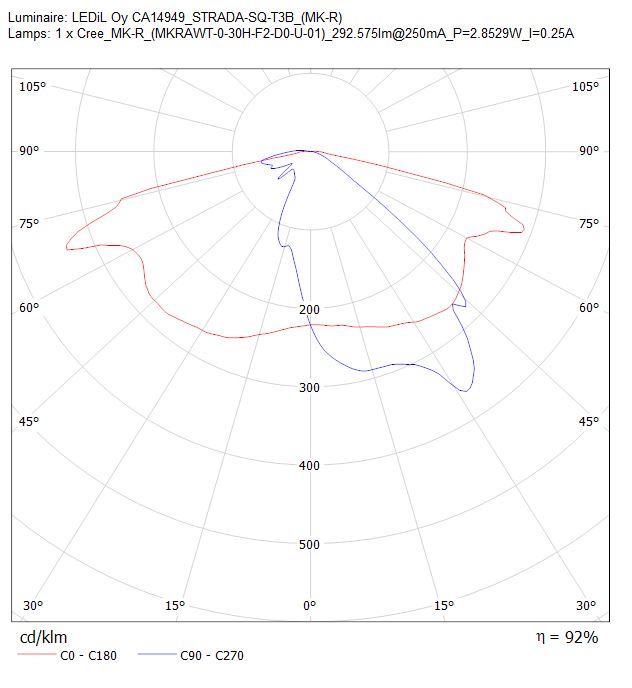

LED: MK-R

FWHM: asymmetric

Peak intensity: 0.530 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XHP50

FWHM: asymmetric

Peak intensity: 0.710 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

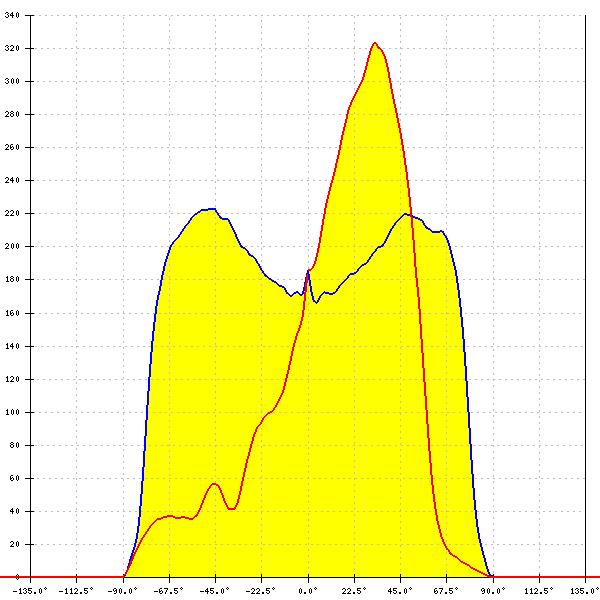

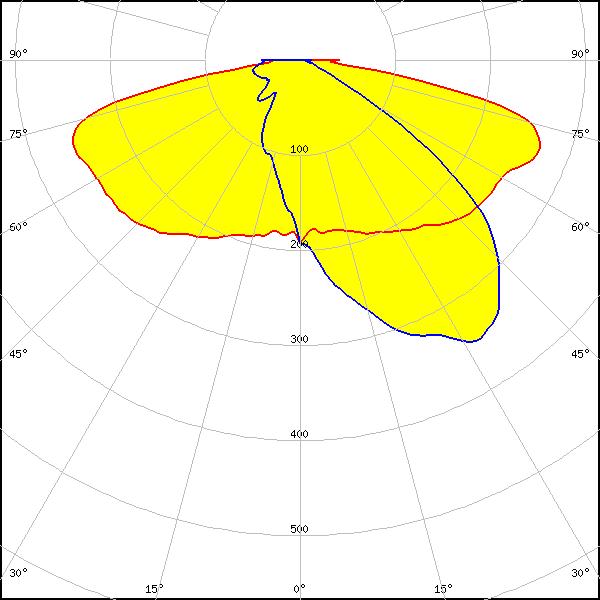

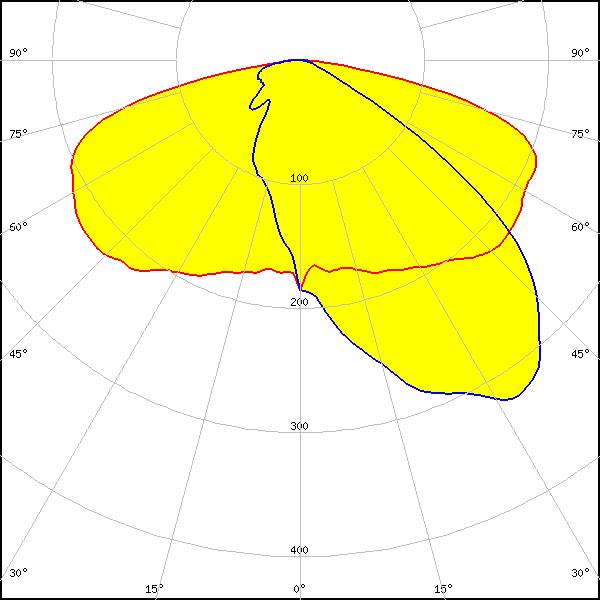

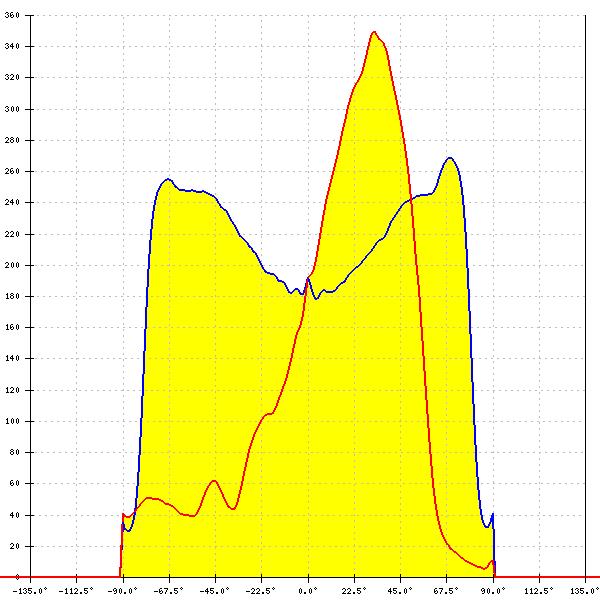

LED: XHP70.2

FWHM: asymmetric

Peak intensity: 0.364 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: XHP70.2

FWHM: asymmetric

Peak intensity: 0.337 cd/lm

Efficiency: 76 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

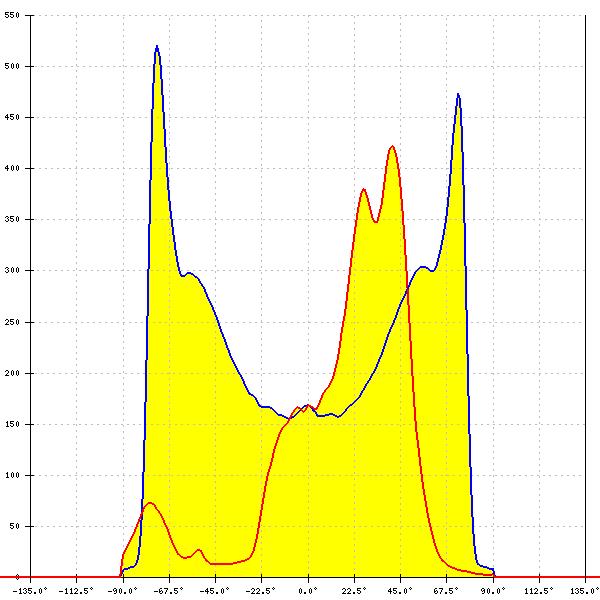

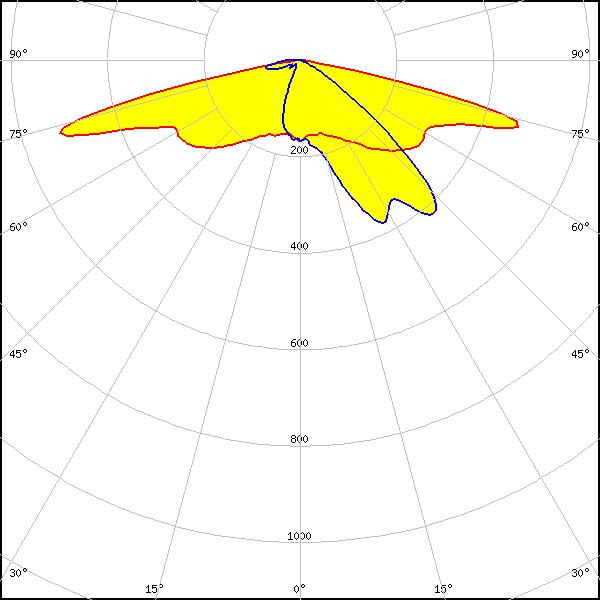

LED: XM-L2

FWHM: asymmetric

Peak intensity: 0.614 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

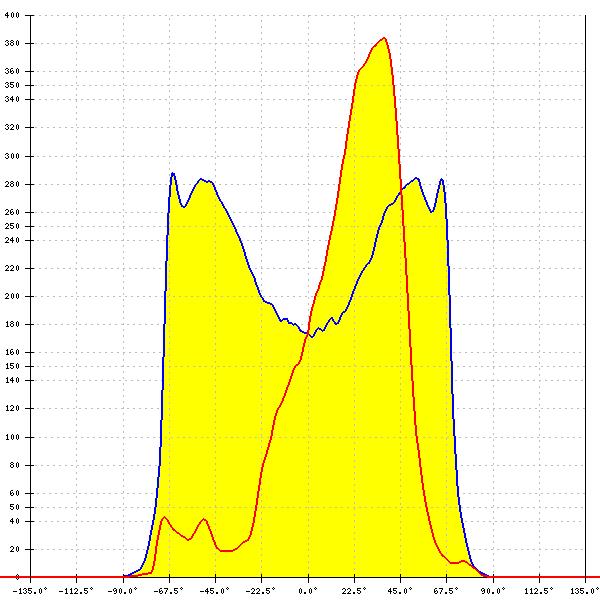

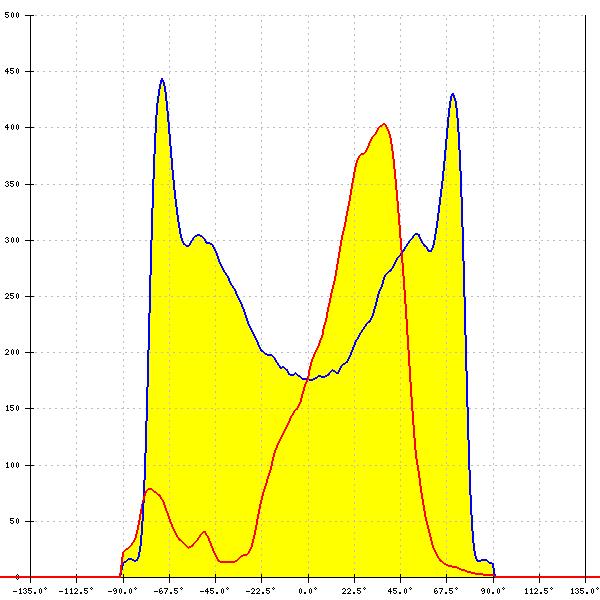

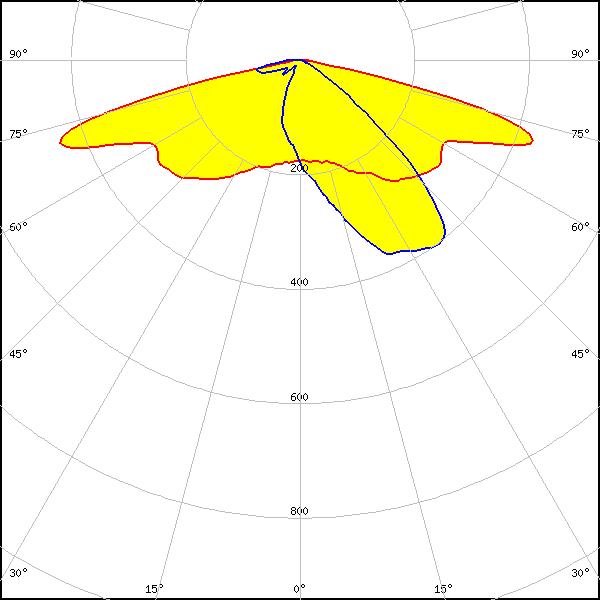

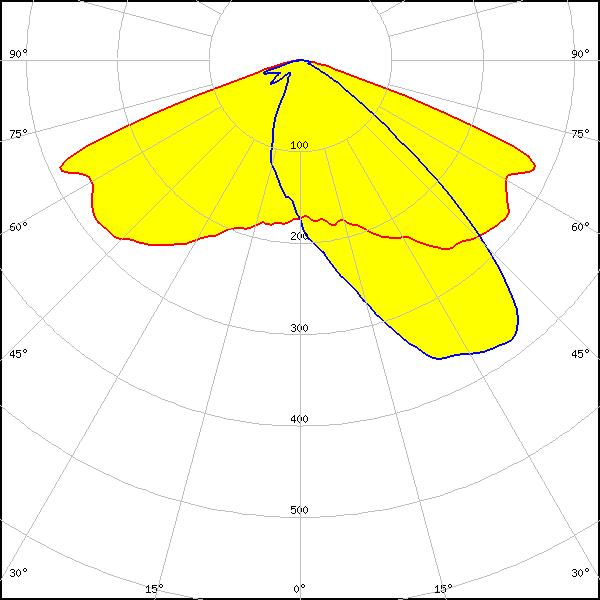

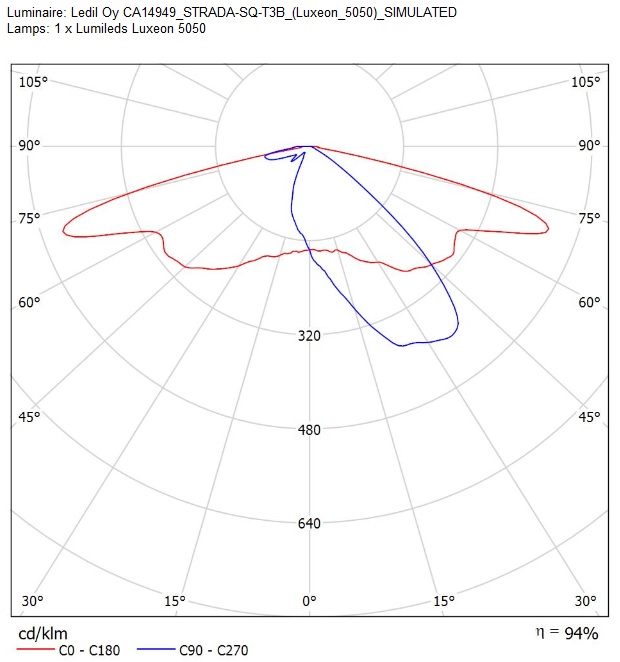

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.570 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

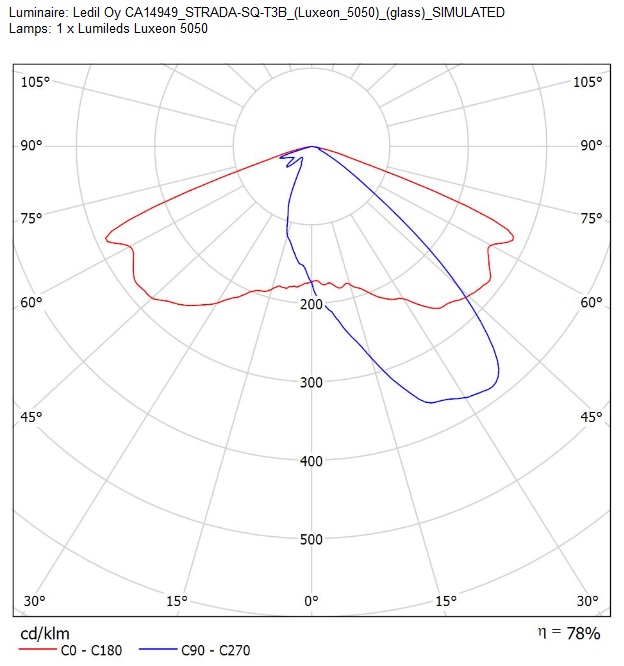

LED: LUXEON 5050 Round LES

FWHM: asymmetric

Peak intensity: 0.460 cd/lm

Efficiency: 78 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

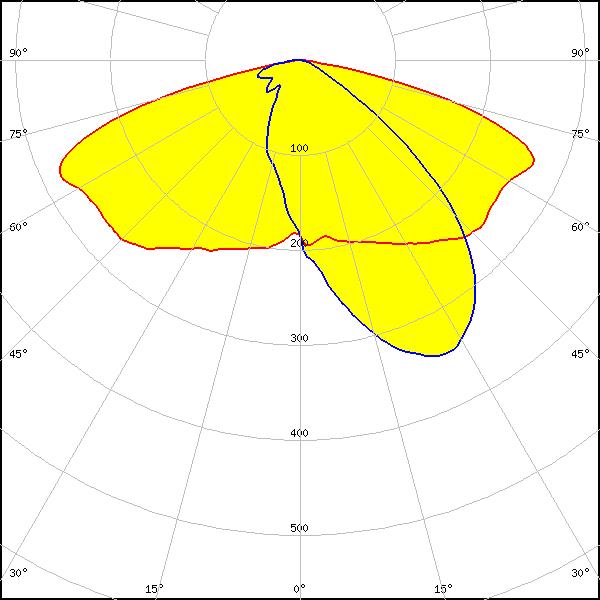

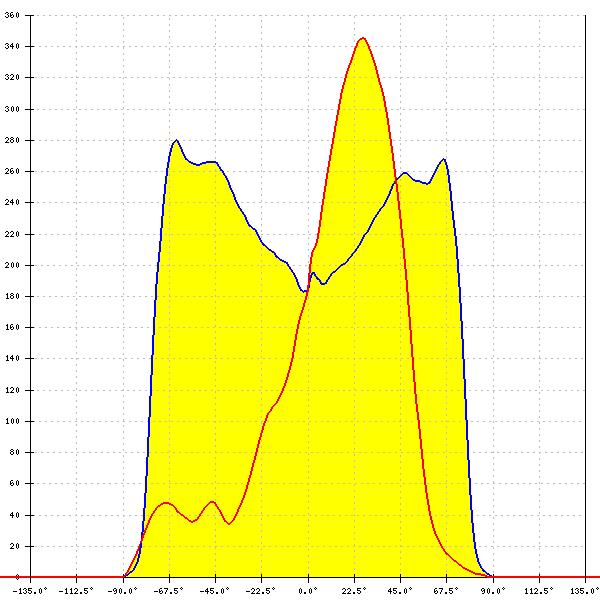

LED: LUXEON 7070

FWHM: asymmetric

Peak intensity: 0.392 cd/lm

Efficiency: 81 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

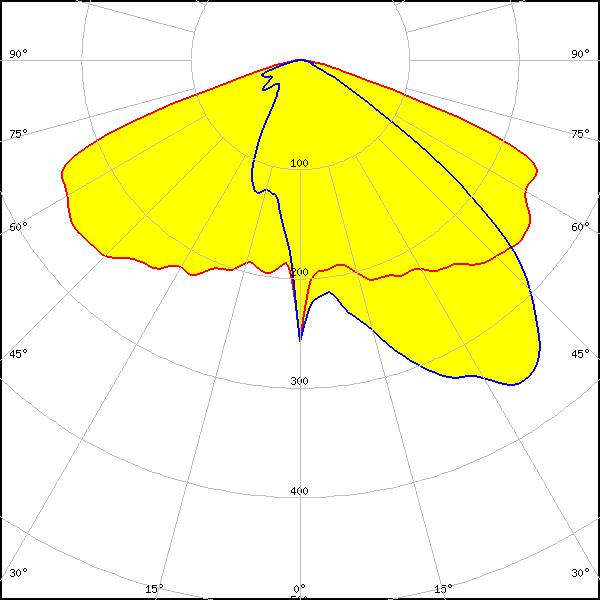

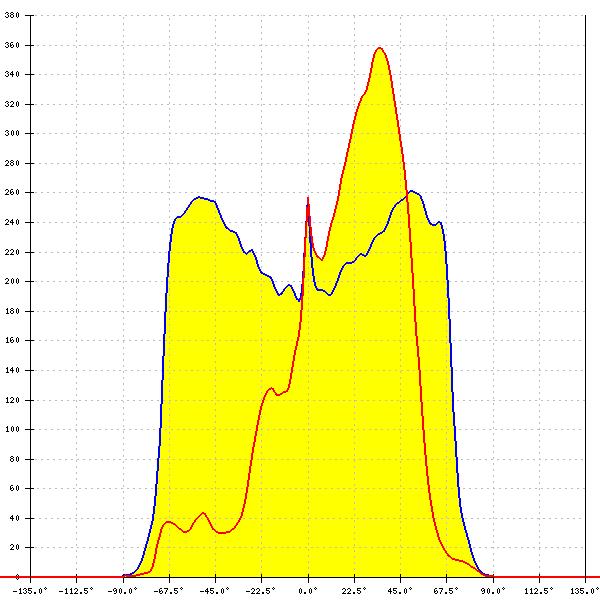

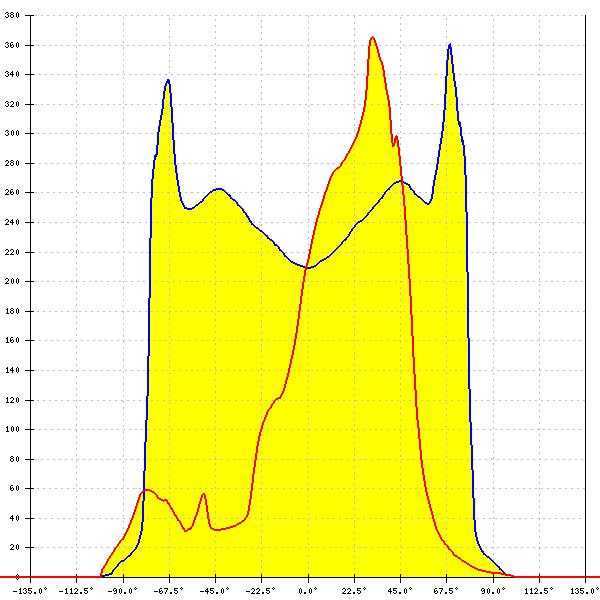

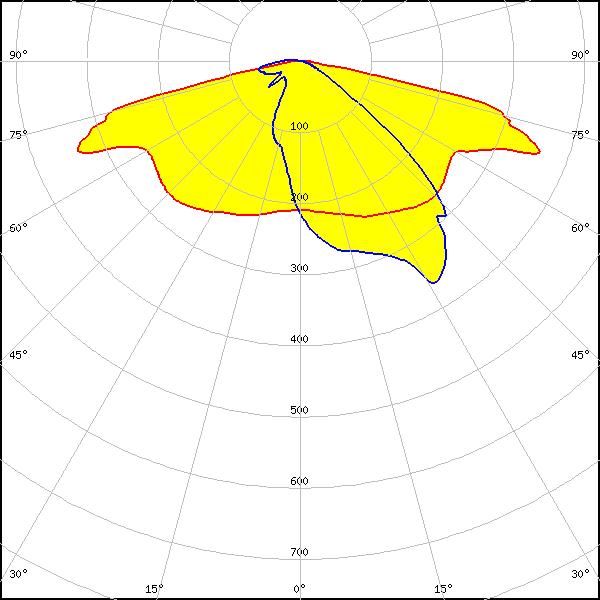

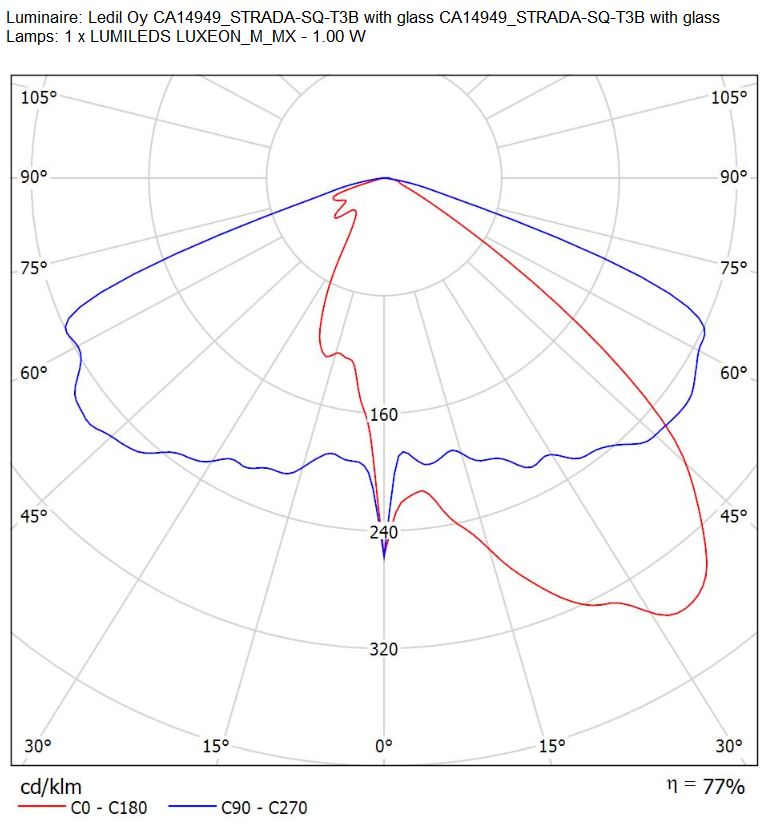

LED: LUXEON M/MX

FWHM: asymmetric

Peak intensity: 0.410 cd/lm

Efficiency: 77 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

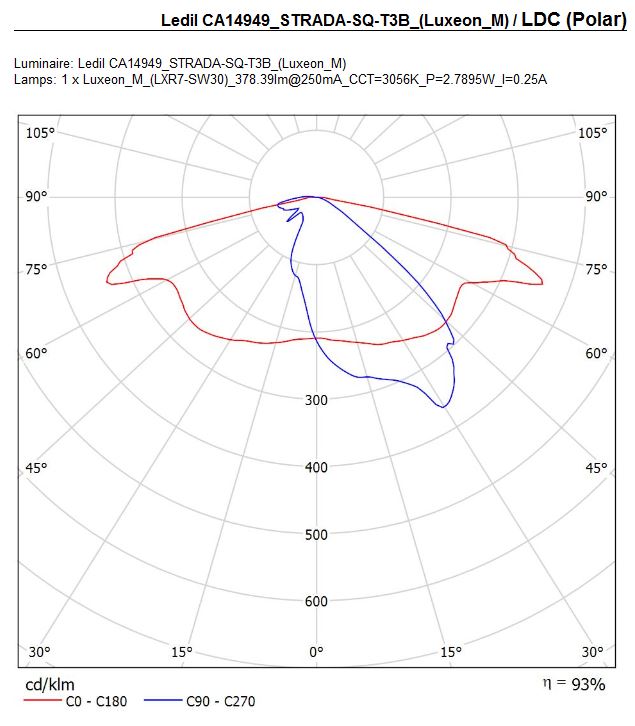

LED: LUXEON M/MX

FWHM: asymmetric

Peak intensity: 0.500 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: LUXEON MZ

FWHM: asymmetric

Peak intensity: 0.840 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

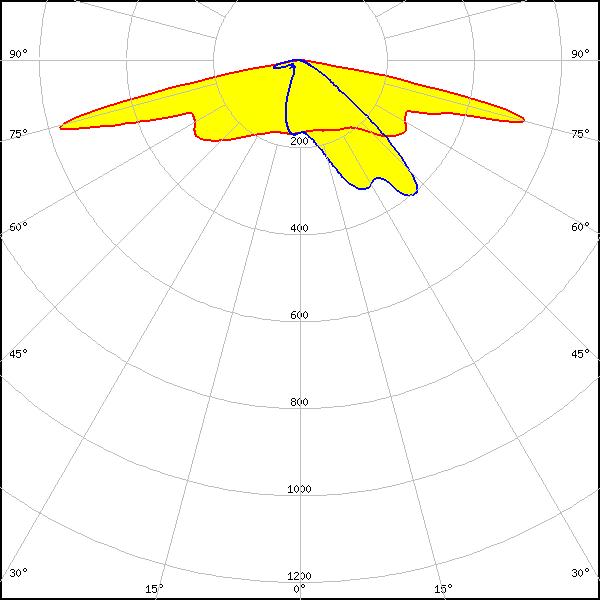

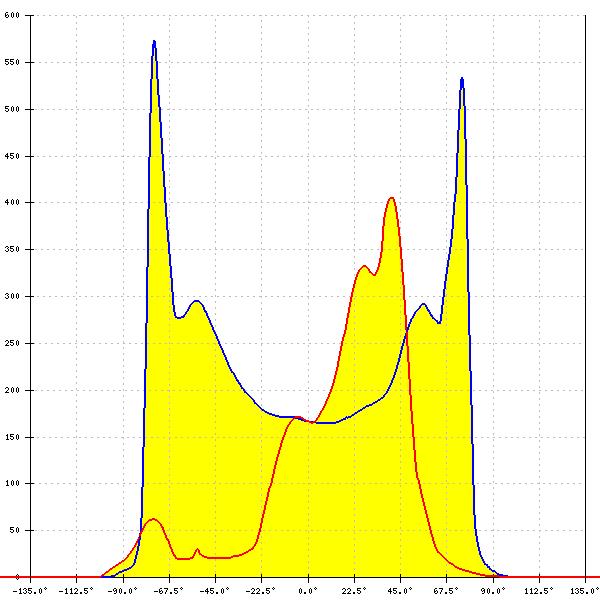

LED: NVSW319B

FWHM: asymmetric

Peak intensity: 0.710 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

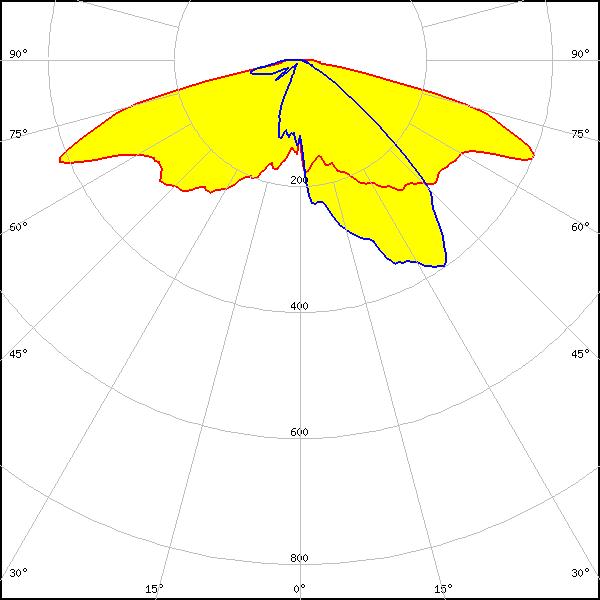

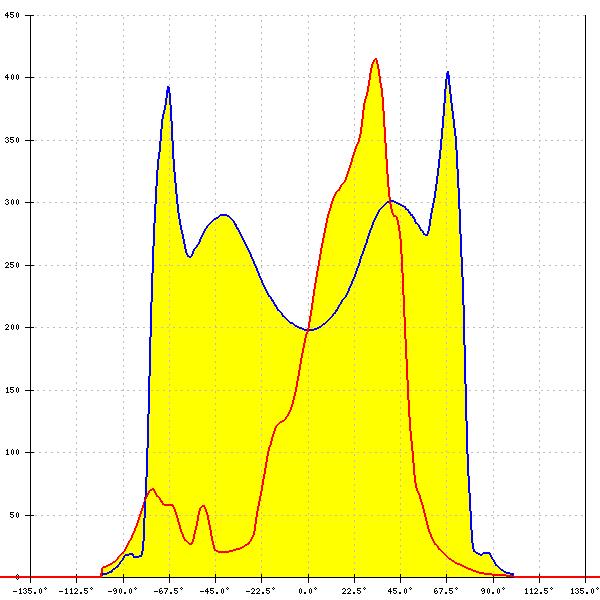

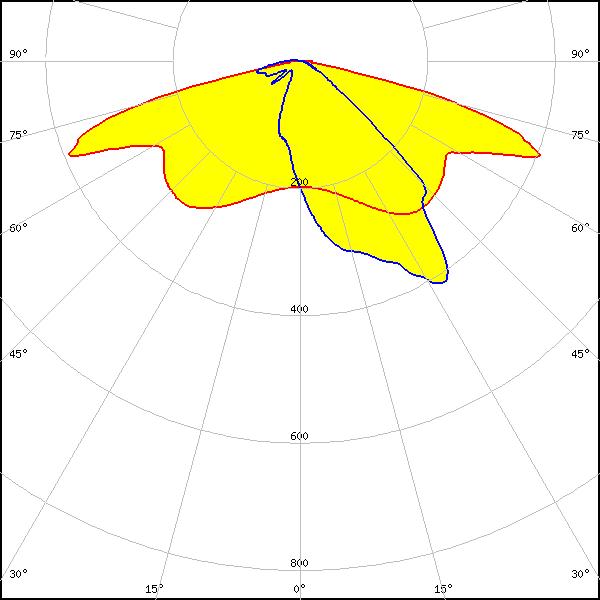

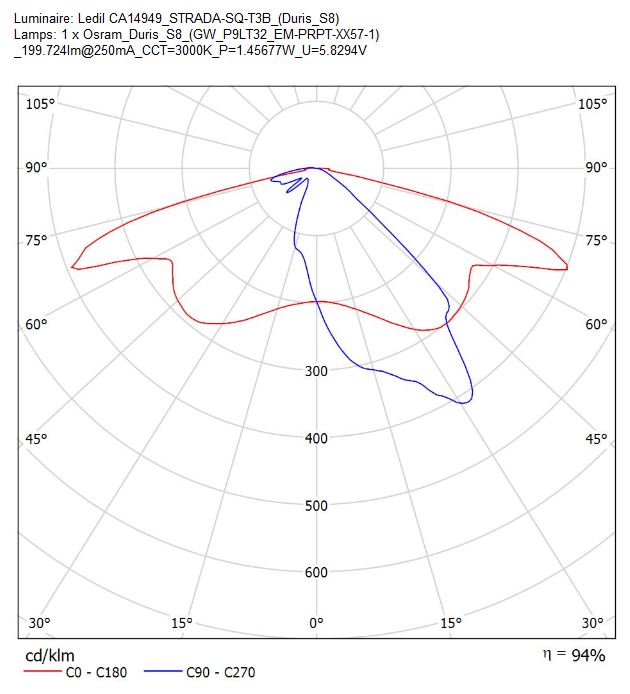

LED: Duris S8

FWHM: asymmetric

Peak intensity: 0.630 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

LED: OSCONIQ P 7070

FWHM: asymmetric

Peak intensity: 0.560 cd/lm

Efficiency: 92 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

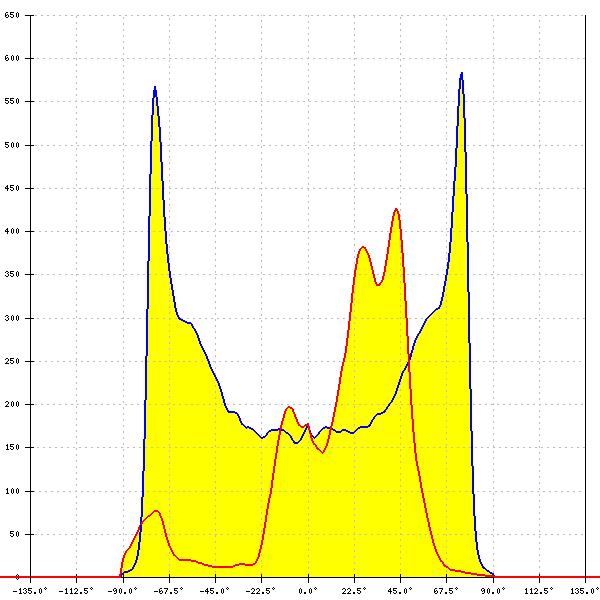

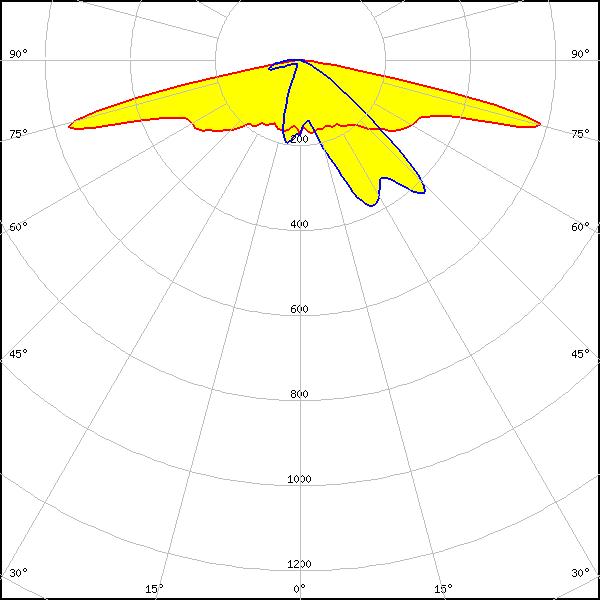

LED: OSLON Square CSSRM2/CSSRM3

FWHM: asymmetric

Peak intensity: 0.610 cd/lm

Efficiency: 94 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

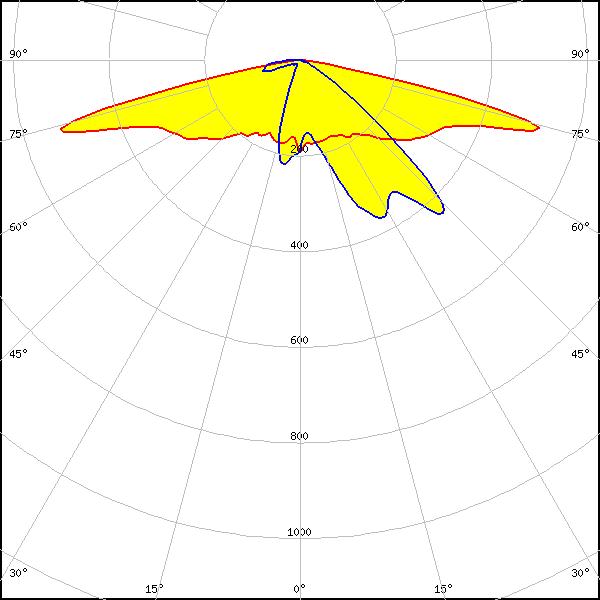

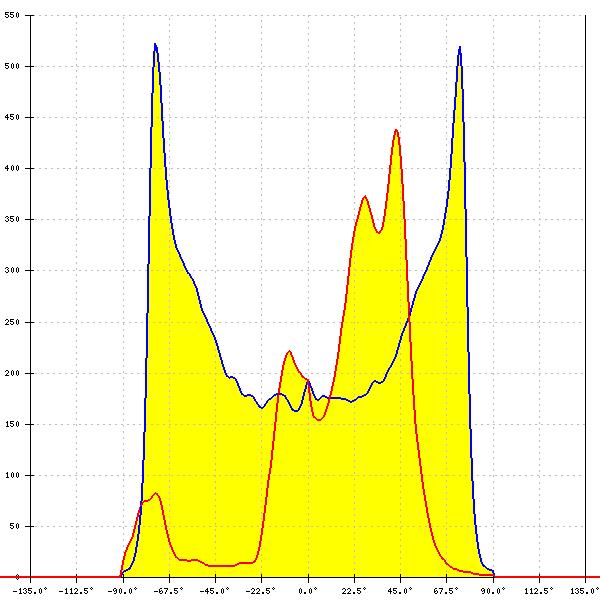

LED: OSLON Square EC

FWHM: asymmetric

Peak intensity: 0.570 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
