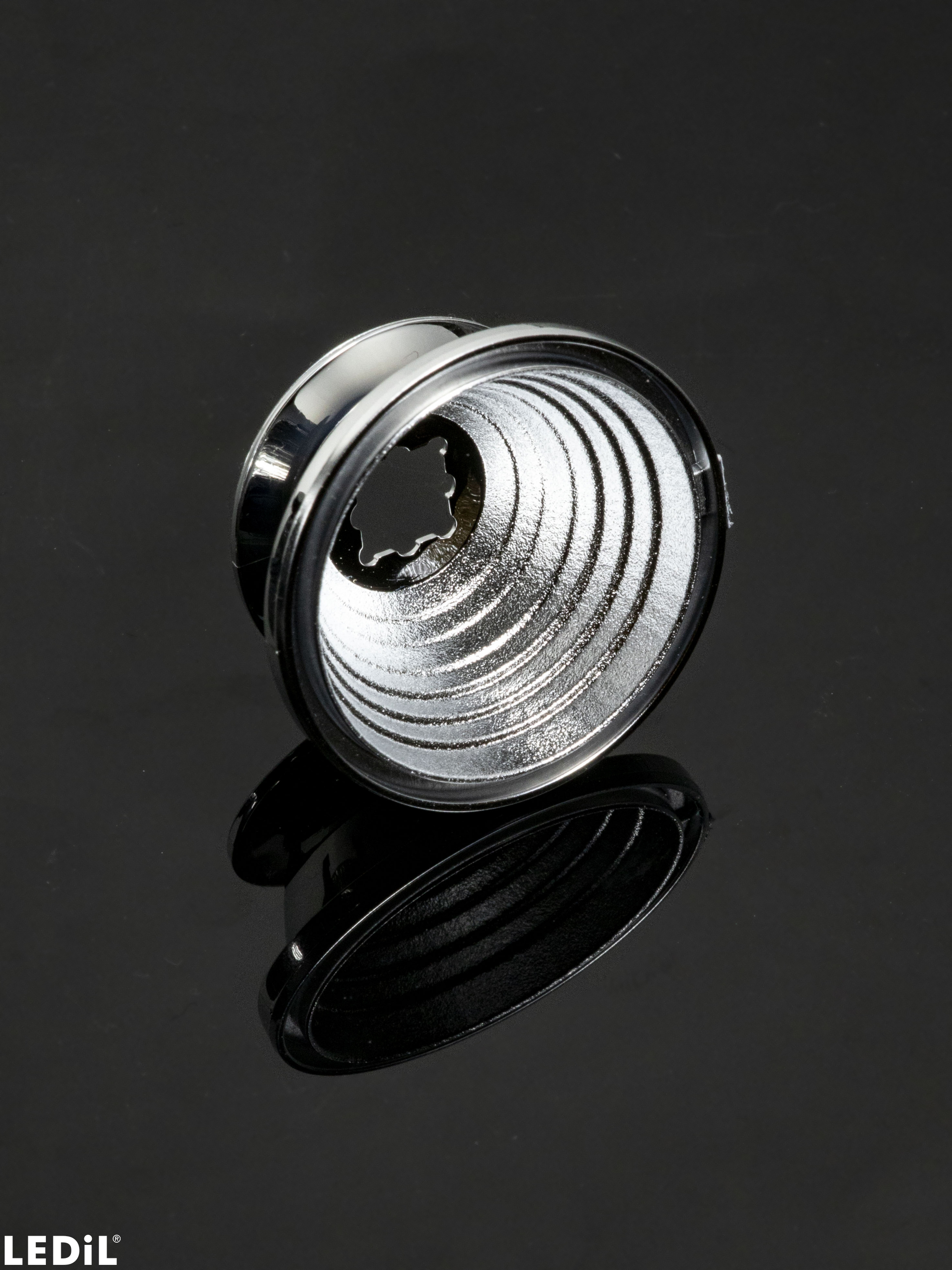

CA15027_MINNIE-LT-WWW

Print

~70° very wide beam. Assembly with installation tape.

Specification
  • Dimensions:
    35 mm
  • Height:
    15.80 mm
  • Fastening:
    tape
  • Colour:
    metal
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    720 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    3.7 kg
  • MPQ:
    45 pcs
  • MOQ weight:
    0.0 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA15027_MINNIE-LT-WWW

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

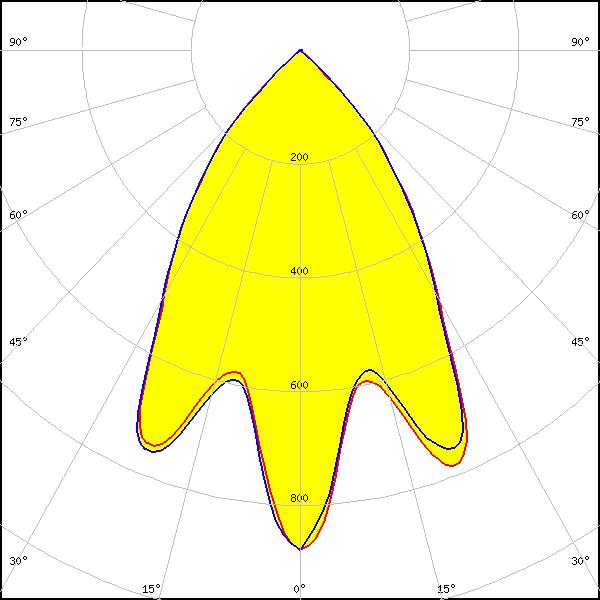

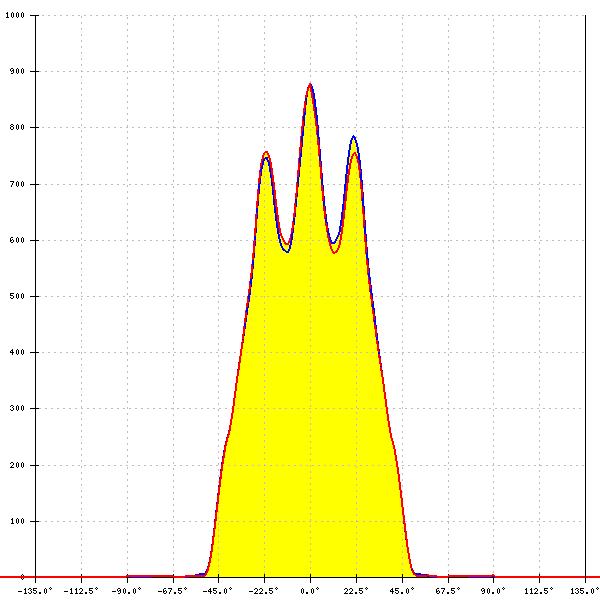

LED: XHP50.3 HD
FWHM: 65° + 64°
FWTM: 94° + 94°
Peak intensity: 0.881 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

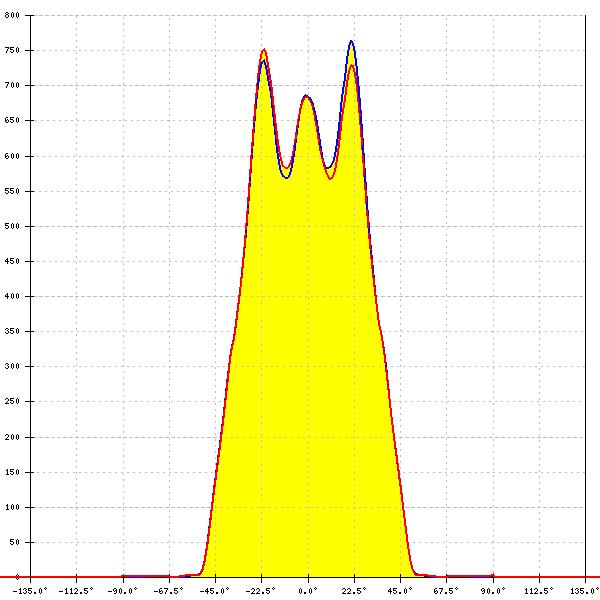

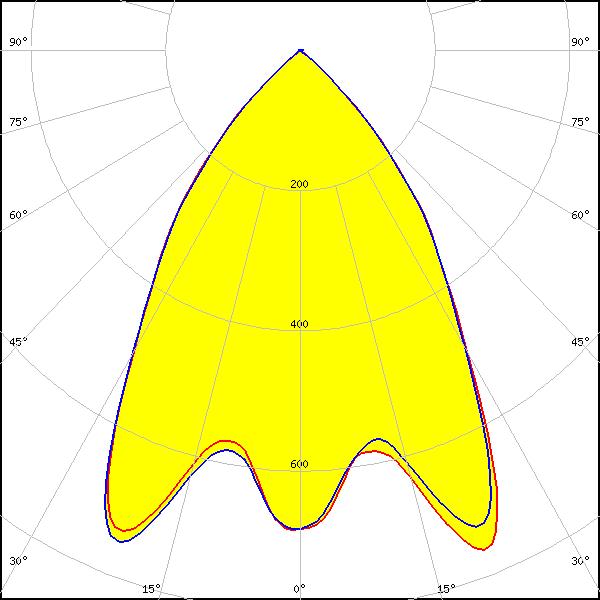

LED: XHP70.3 HD
FWHM: 68°
FWTM: 96°
Peak intensity: 0.783 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

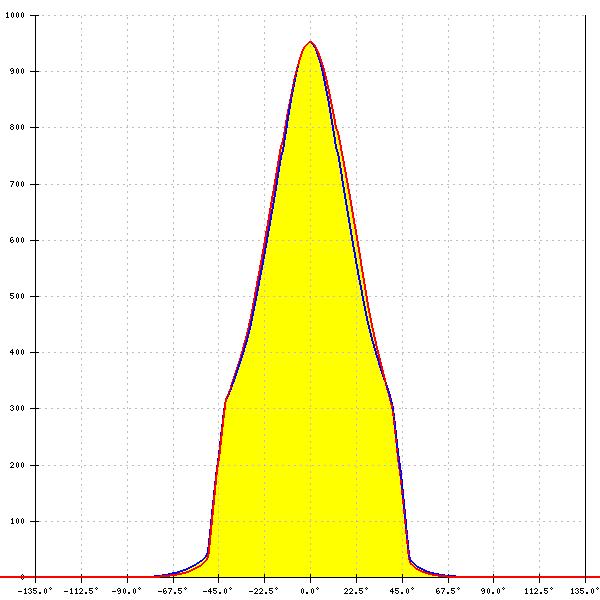

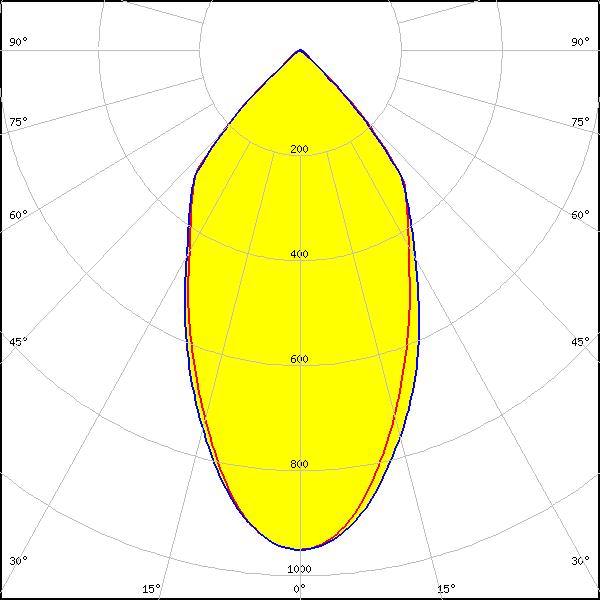

LED: LUXEON M/MX
FWHM: 56°
FWTM: 95°
Peak intensity: 0.950 cd/lm
Efficiency: 93 %
LEDs/each optic: 1
Light colour/type: White

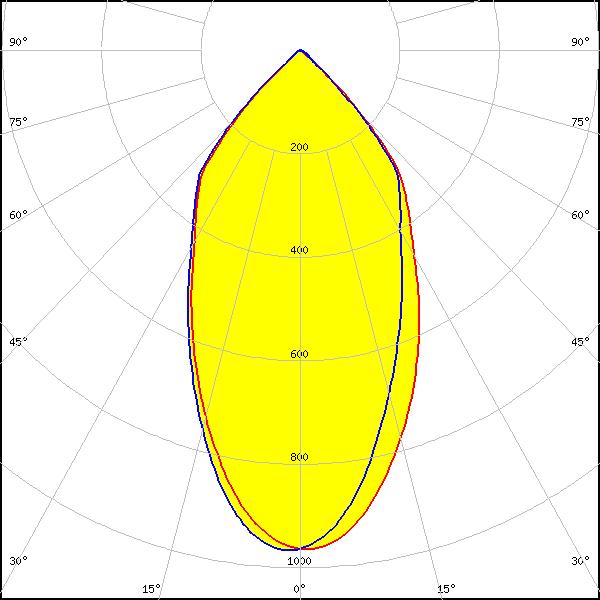

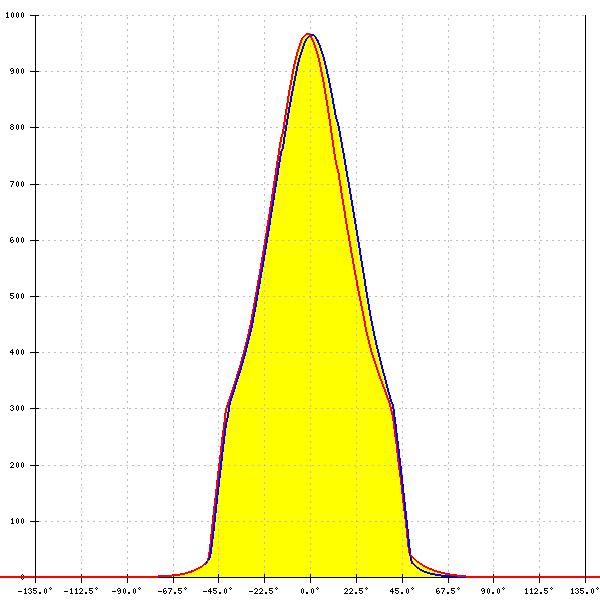

LED: PLW7070
FWHM: 54°
FWTM: 94°
Peak intensity: 1.000 cd/lm
Efficiency: 91 %
LEDs/each optic: 1
Light colour/type: White
