CA16015_STRADA-SQ-SCL

Print

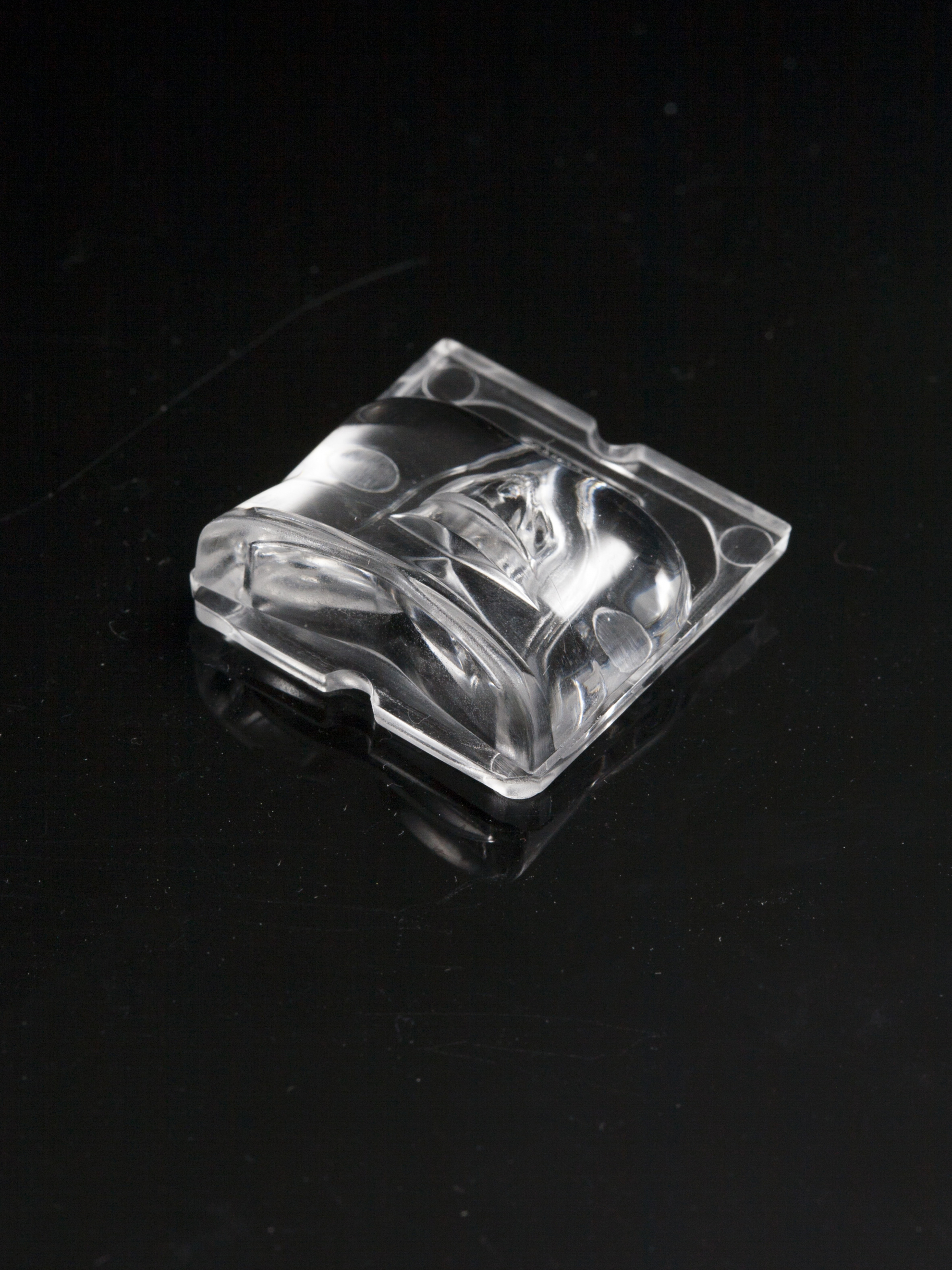

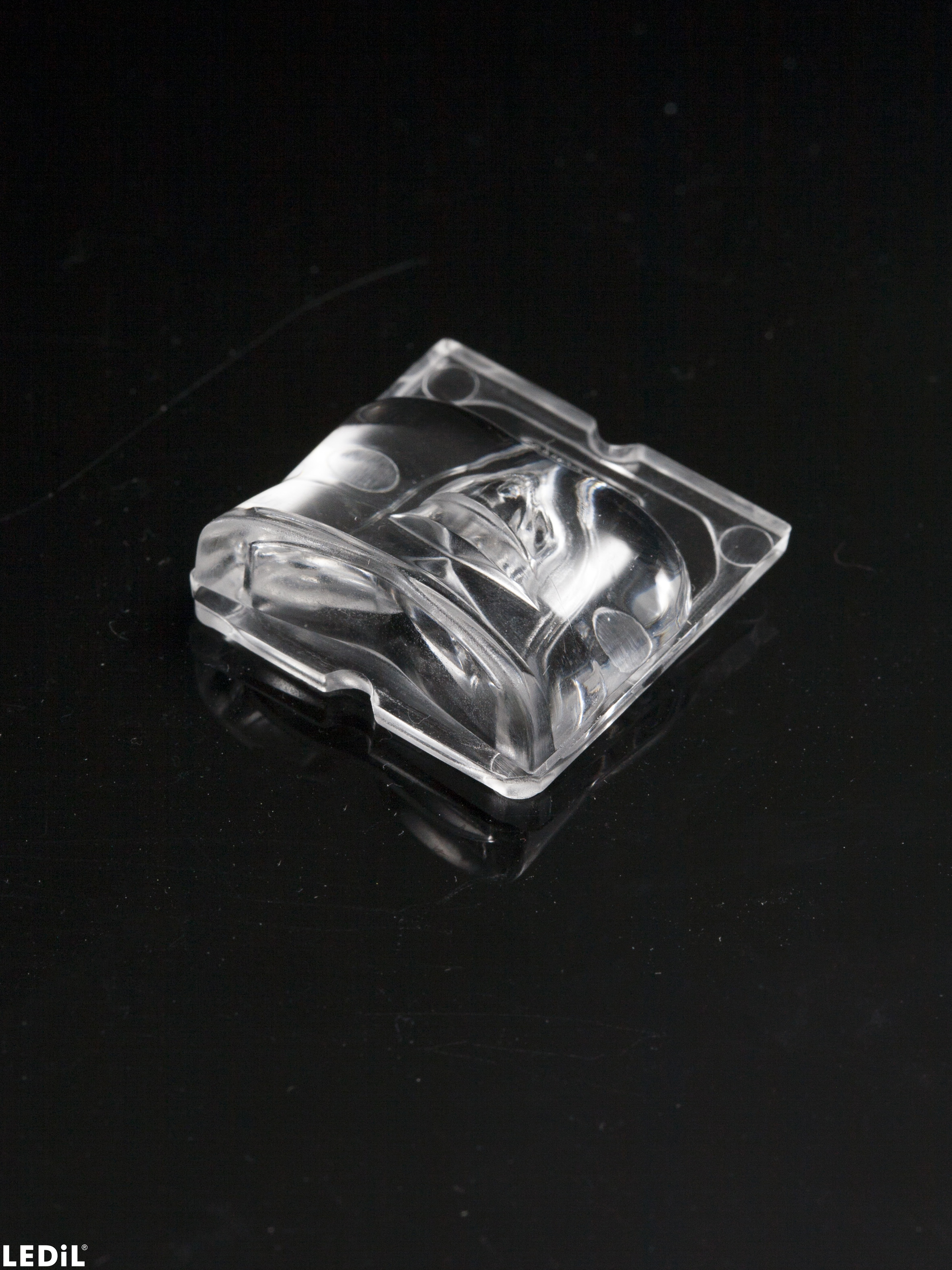

Type II/III (Long) beam for very wide pole to pole distances. Ideal for pedestrian path and residential road lighting. (EN13201 P-classes). Version with location pins. Assembly with installation tape.

Specification
  • Dimensions:
    25 x  25 mm
  • Height:
    9.10 mm
  • Fastening:
    tape, pin
  • Colour:
    clear
  • RoHS and REACH compliant:
    Yes
Materials
Ordering information
  • Quantity in box:
    2058 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.8 kg
  • MPQ:
    98 pcs
  • MOQ:
    294 pcs
  • MOQ size:
    480 x 280 x 60 mm
  • MOQ weight:
    1.7 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    CA16015_STRADA-SQ-SCL

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

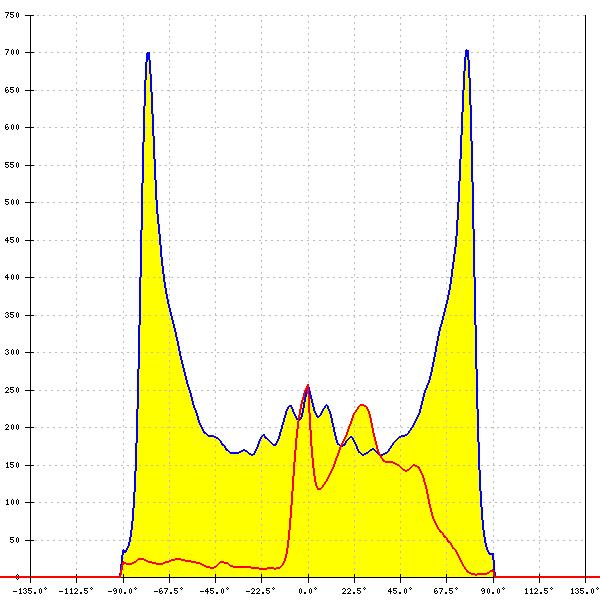

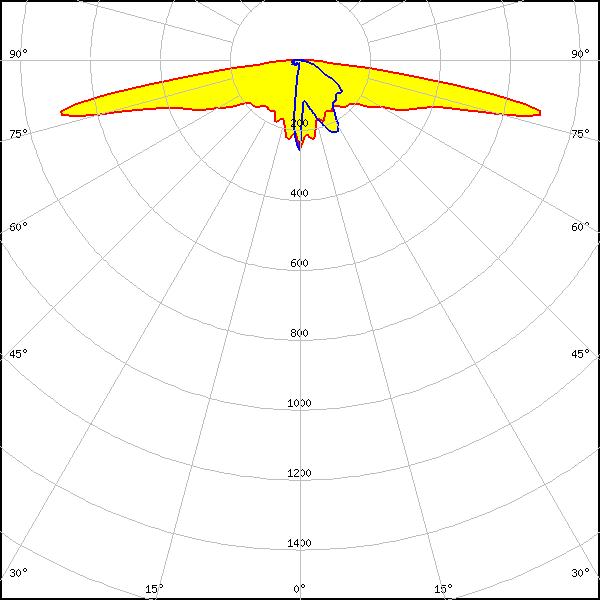

LED: XE-G
FWHM: asymmetric
Peak intensity: 0.953 cd/lm
Efficiency: 89 %
LEDs/each optic: 2
Light colour/type: Red

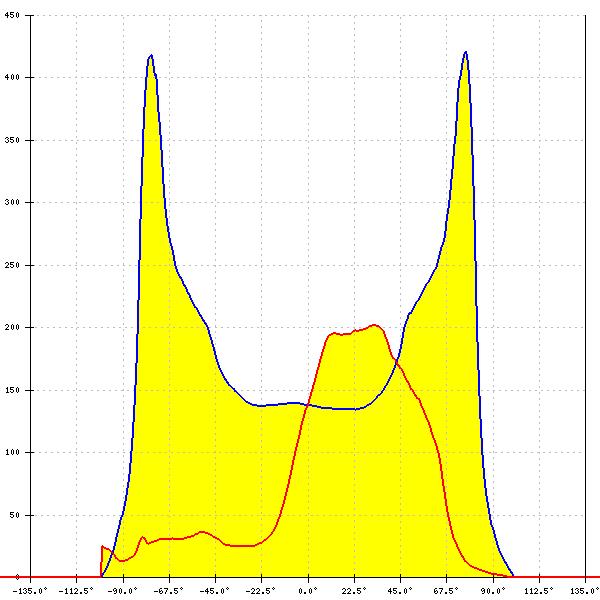

LED: XHP50.2
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

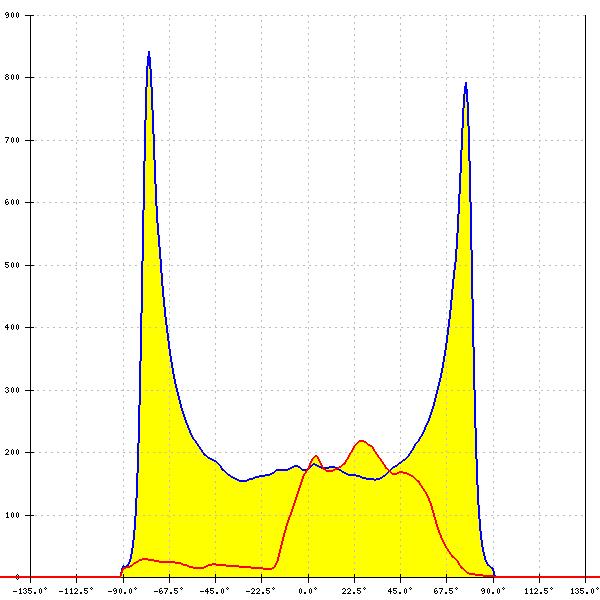

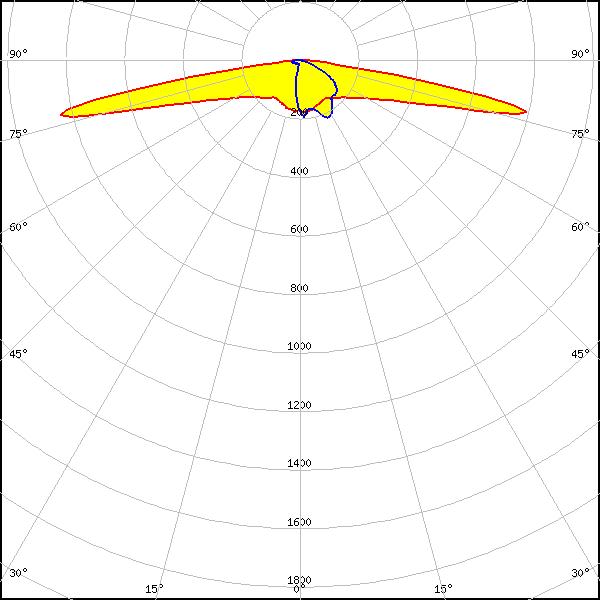

LED: XM-L2
FWHM: asymmetric
Peak intensity: 1.018 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

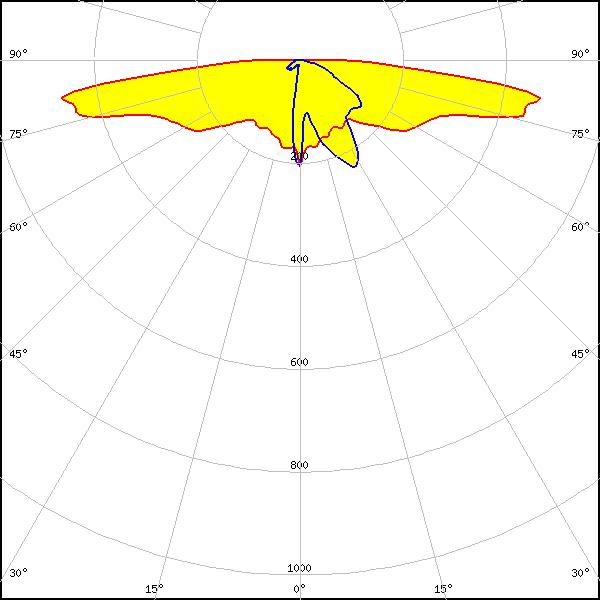

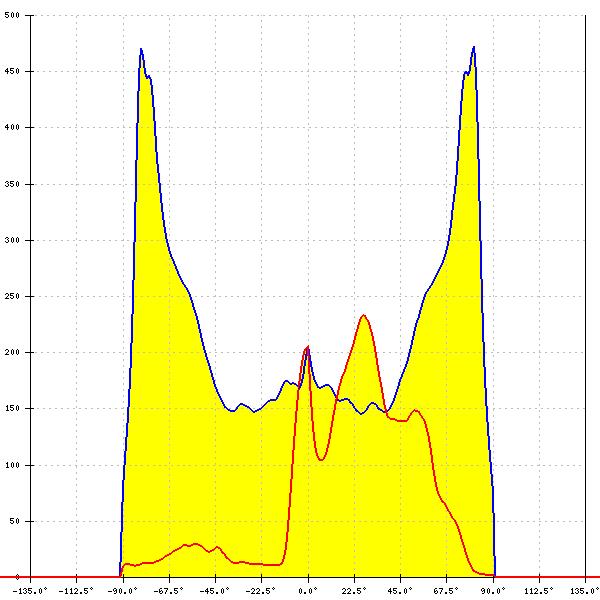

LED: XP-E2
FWHM: asymmetric
Peak intensity: 0.712 cd/lm
Efficiency: 87 %
LEDs/each optic: 2
Light colour/type: Amber

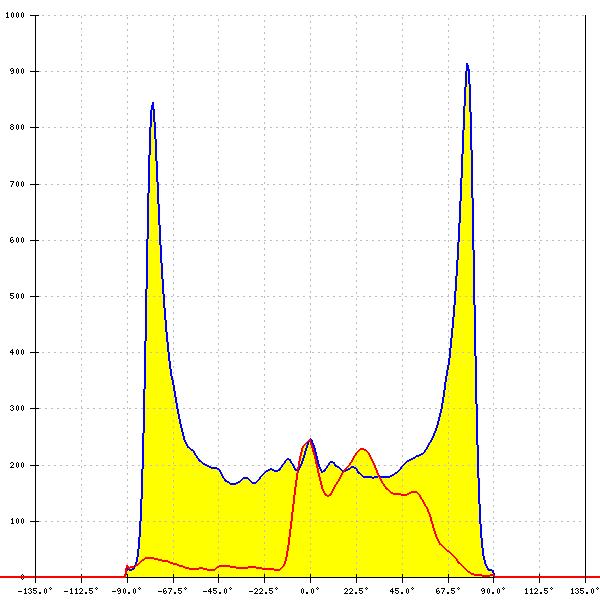

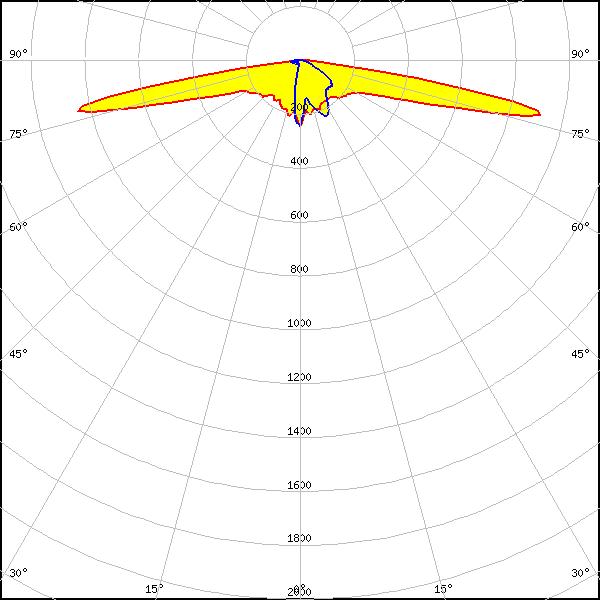

LED: XP-G2
FWHM: asymmetric
Peak intensity: 1.040 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White

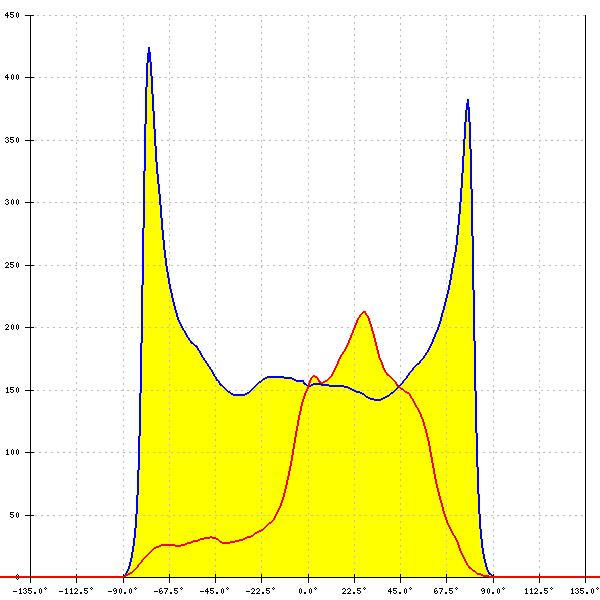

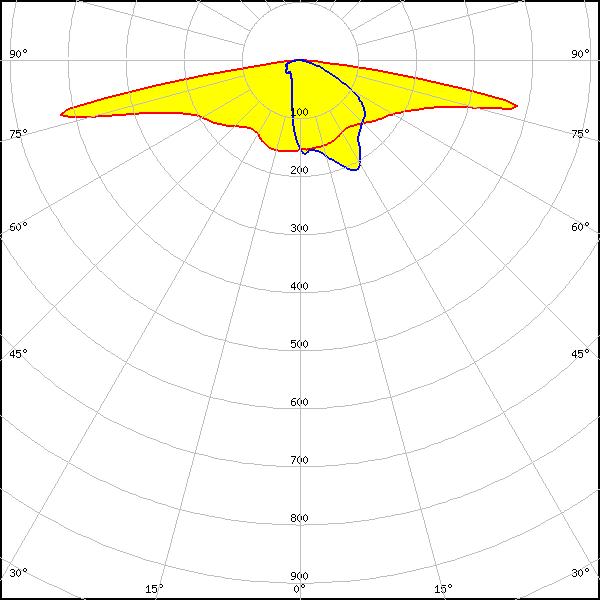

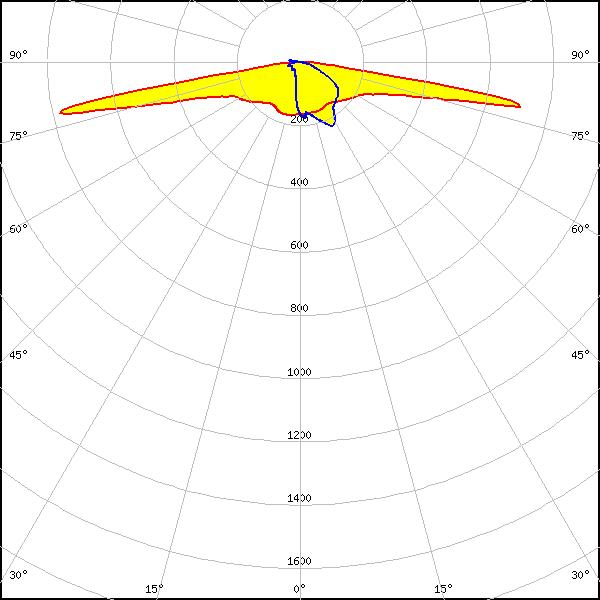

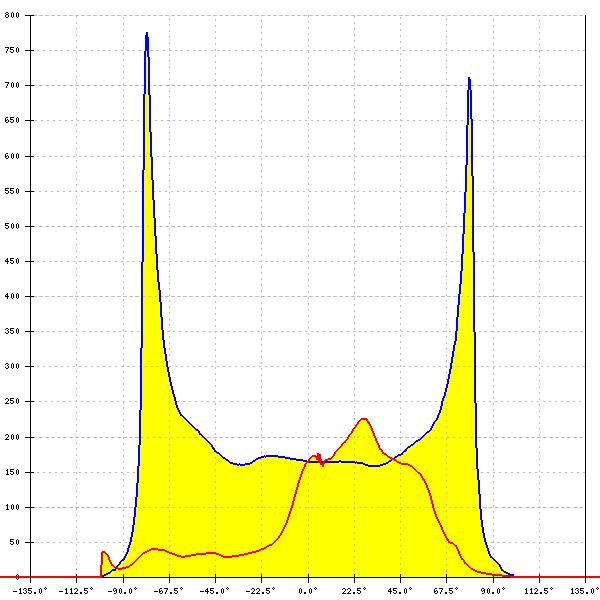

LED: XP-G3
FWHM: asymmetric
Peak intensity: 0.606 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White
LED: XP-G3
FWHM: asymmetric
Peak intensity: 1.512 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

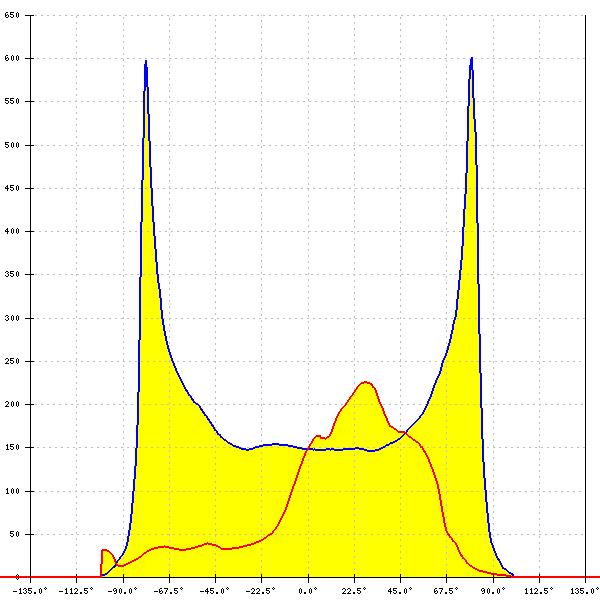

LED: XP-L HD
FWHM: asymmetric
Peak intensity: 1.326 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

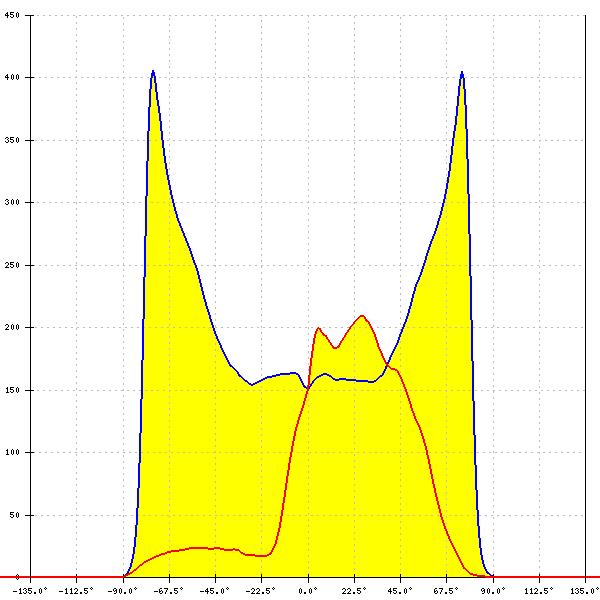

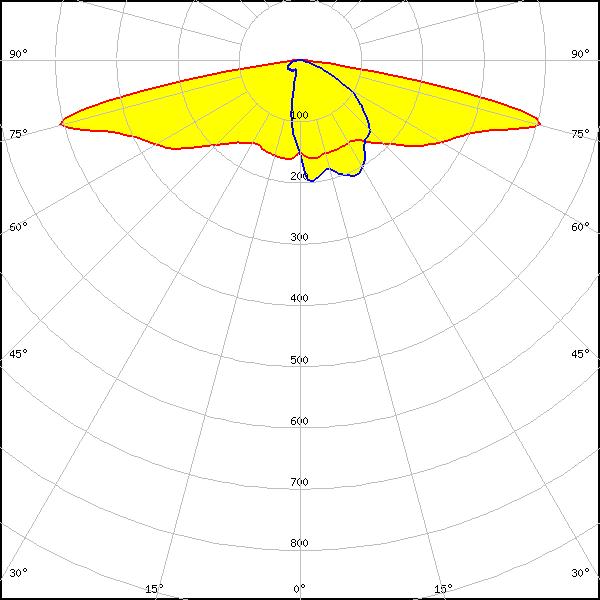

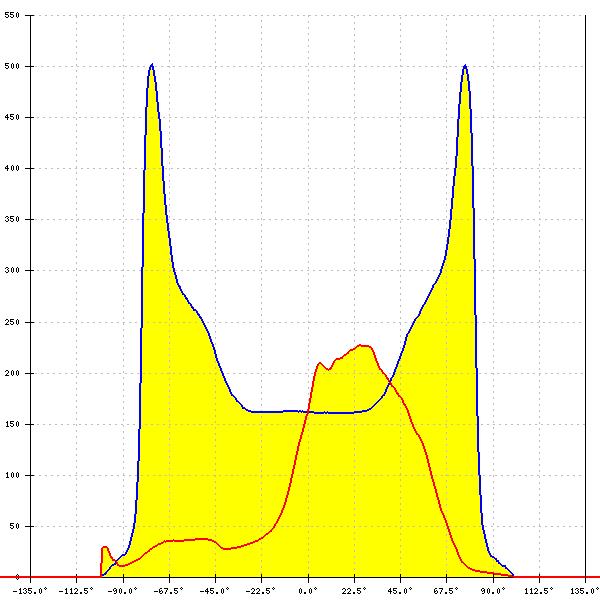

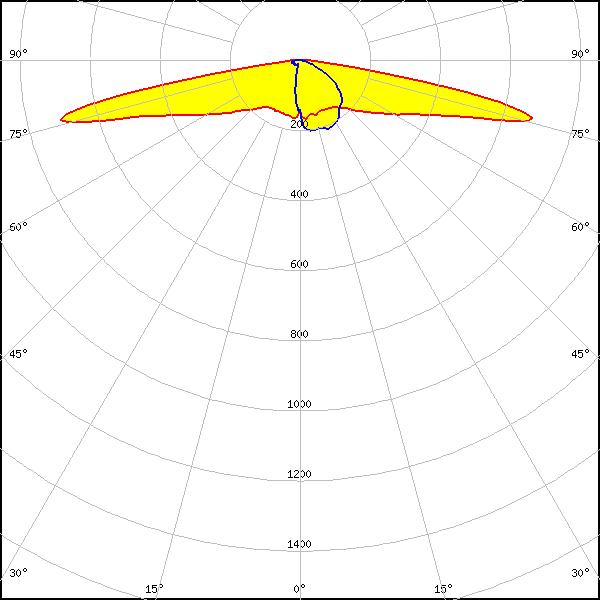

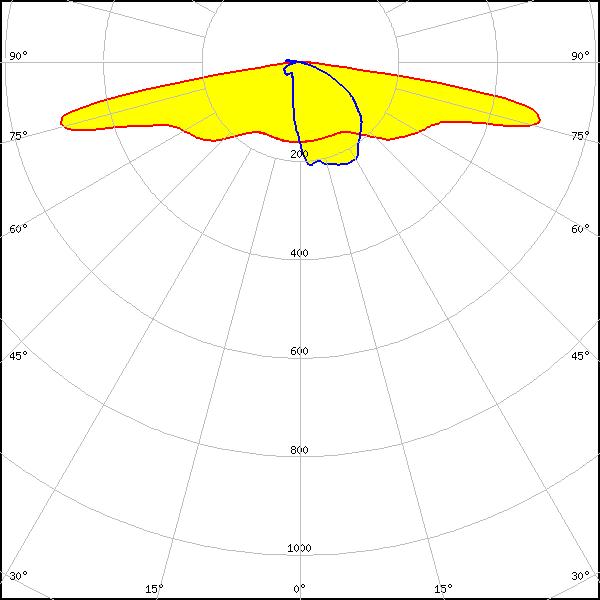

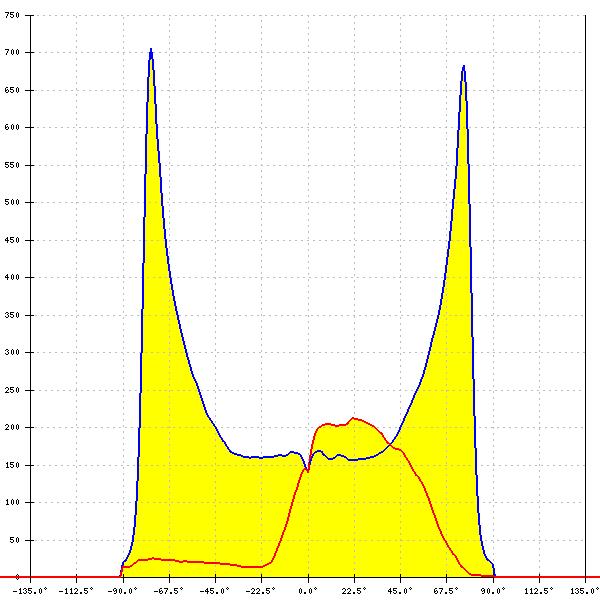

LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.529 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 5050 Round LES
FWHM: asymmetric
Peak intensity: 0.900 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White

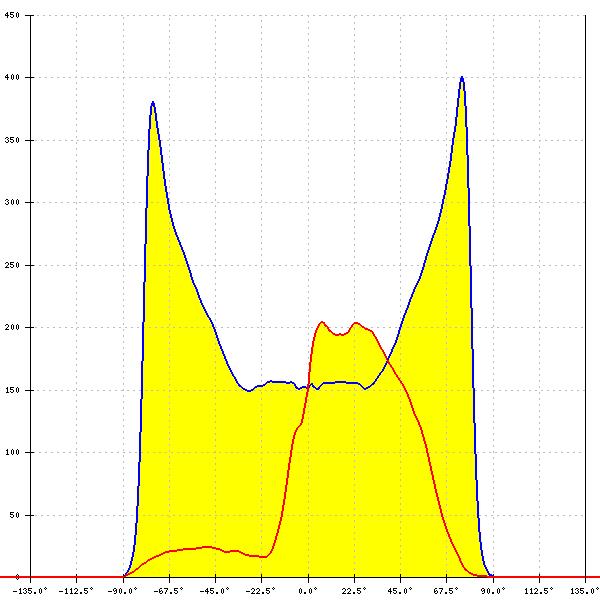

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 0.517 cd/lm
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

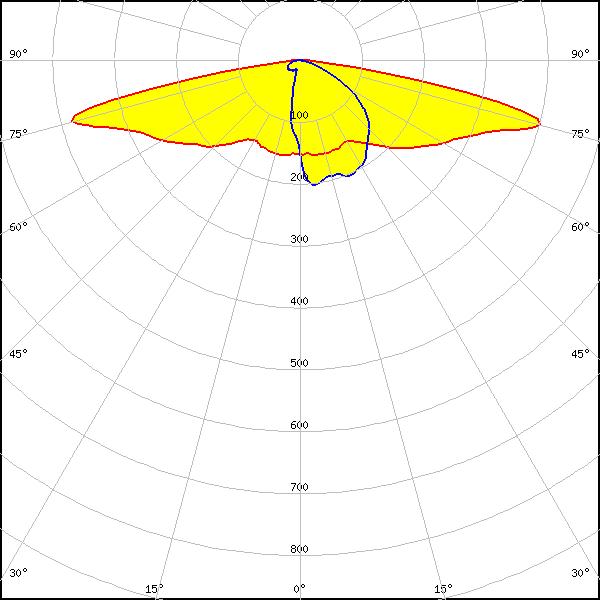

LED: LUXEON 5050 Square LES
FWHM: asymmetric
Peak intensity: 1.030 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

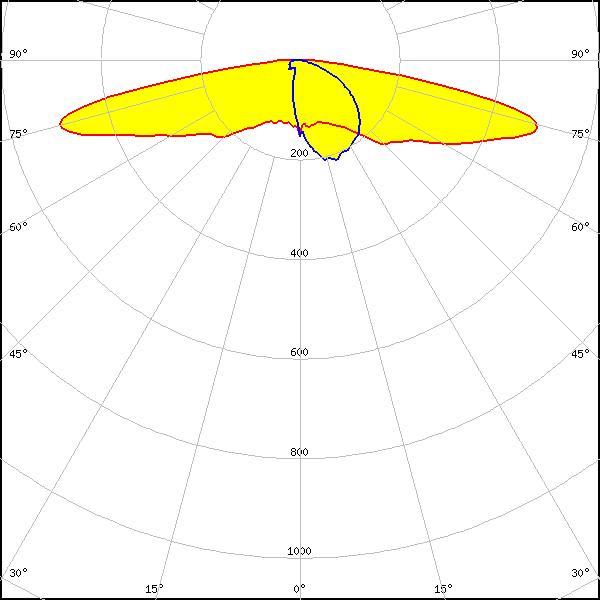

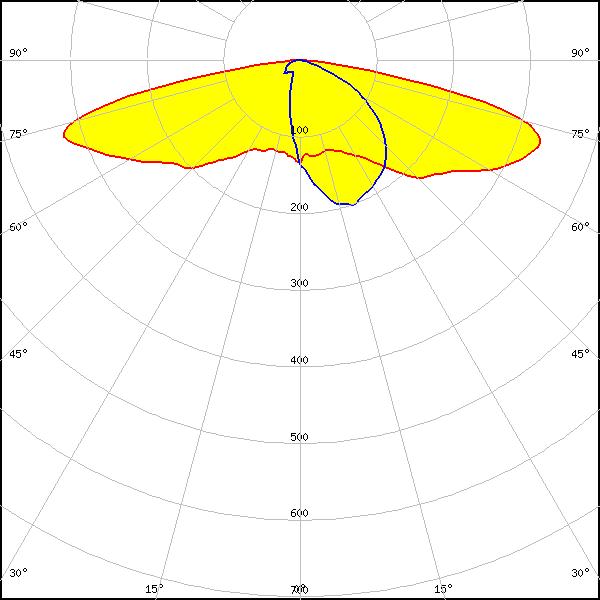

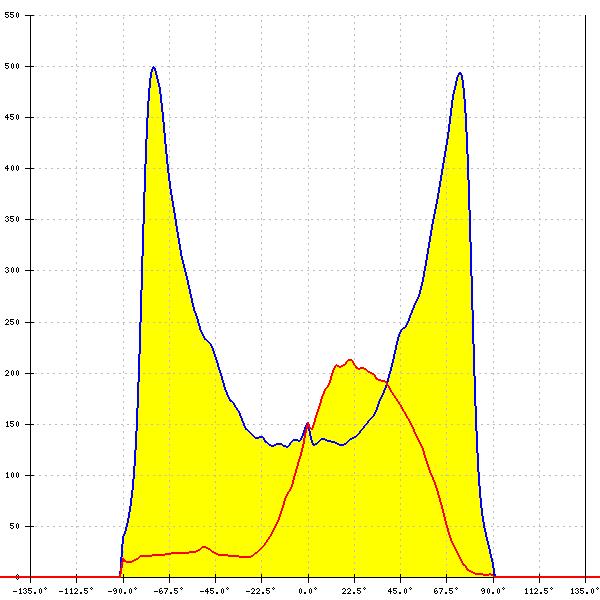

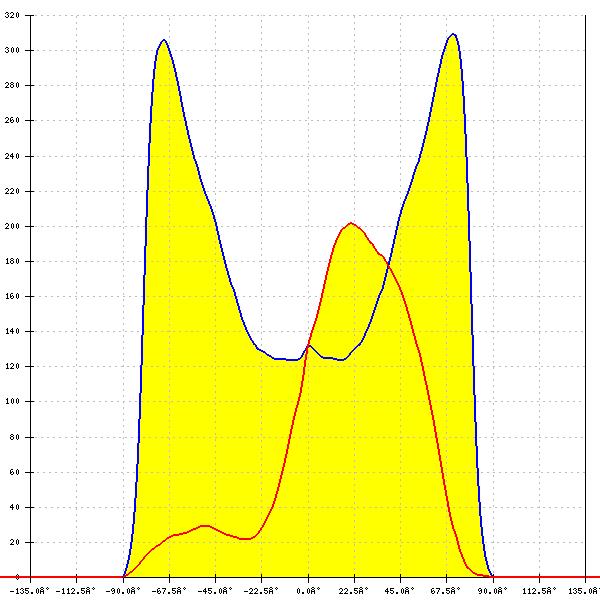

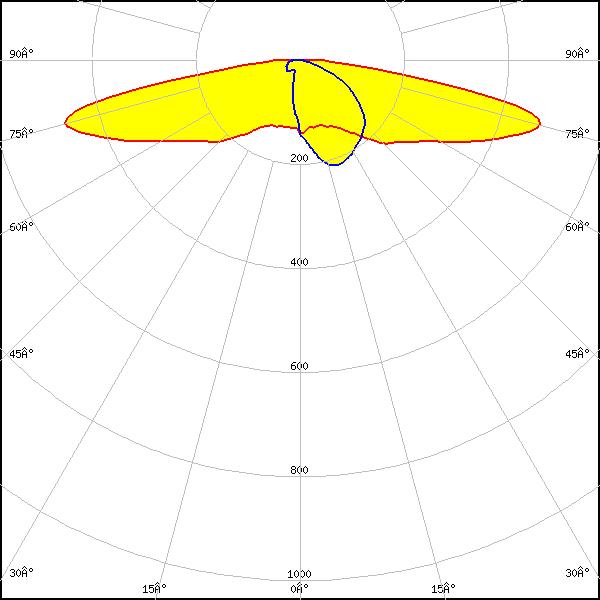

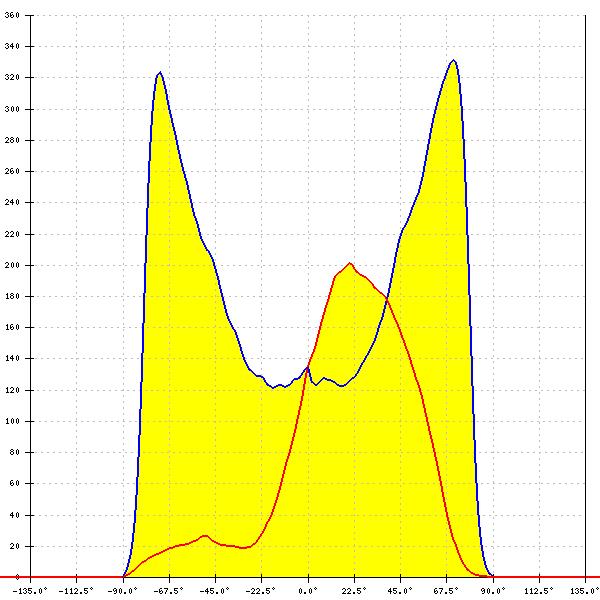

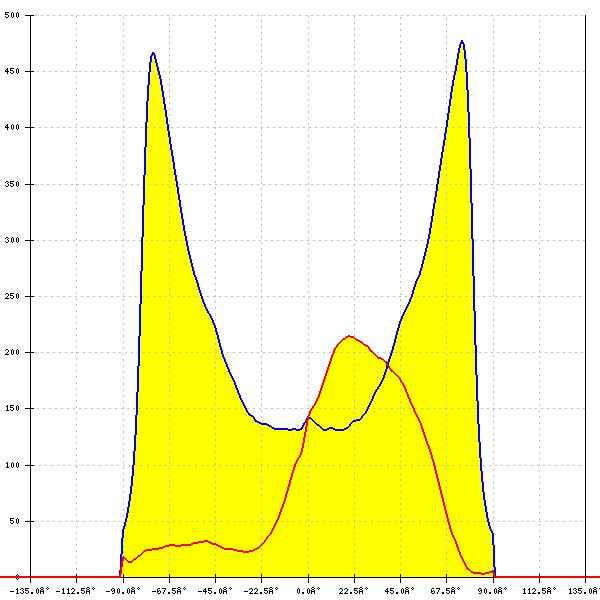

LED: LUXEON 7070
FWHM: asymmetric
Peak intensity: 0.607 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 7070
FWHM: asymmetric
Peak intensity: 0.408 cd/lm
Efficiency: 71 %
LEDs/each optic: 1
Light colour/type: White

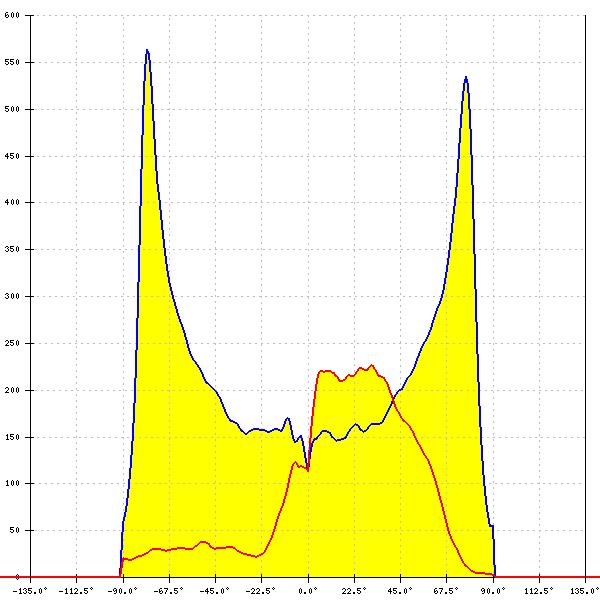

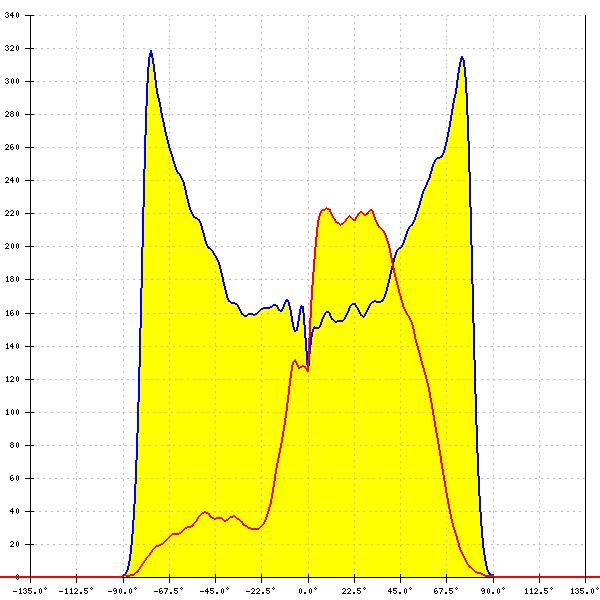

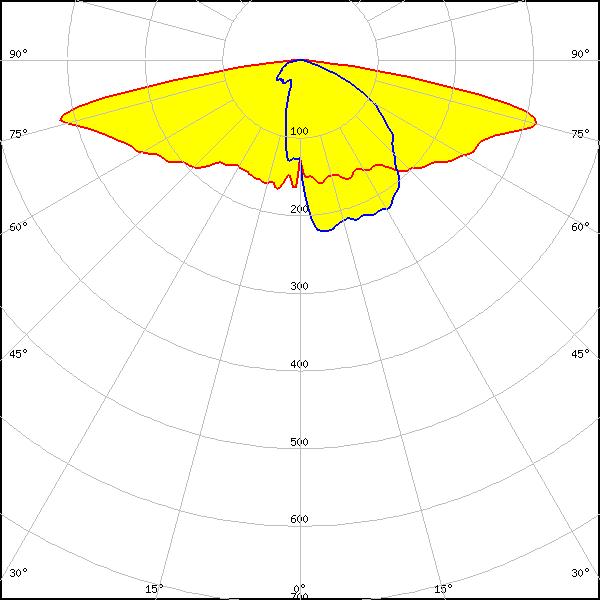

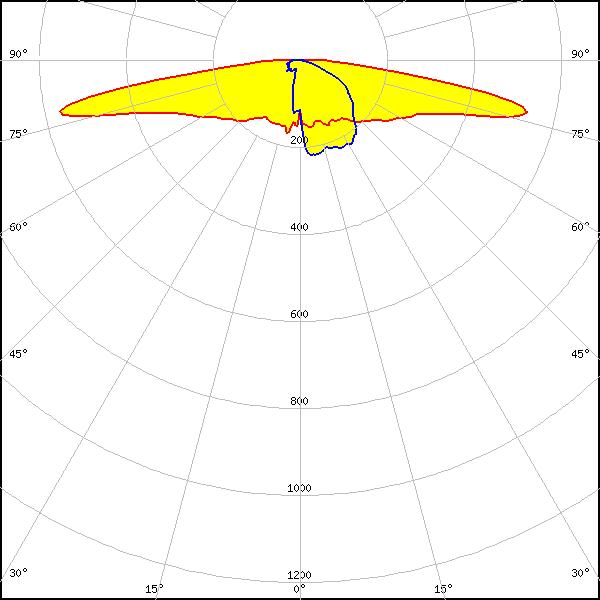

LED: LUXEON M/MX
FWHM: asymmetric
Peak intensity: 0.700 cd/lm
Efficiency: 90 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON M/MX
FWHM: asymmetric
Peak intensity: 0.400 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

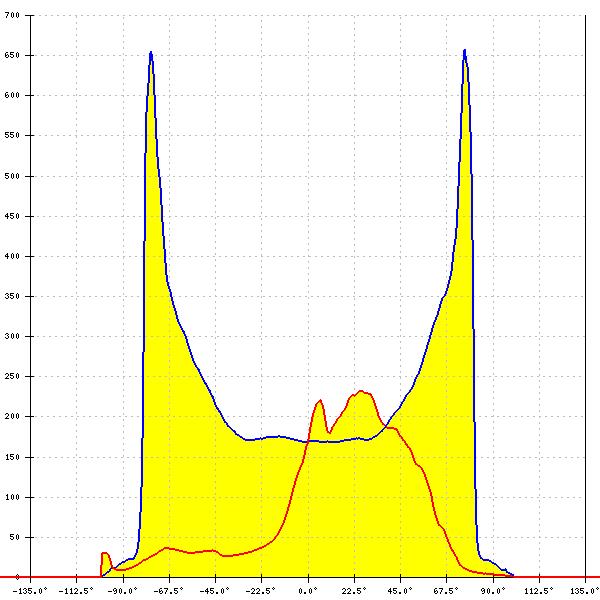

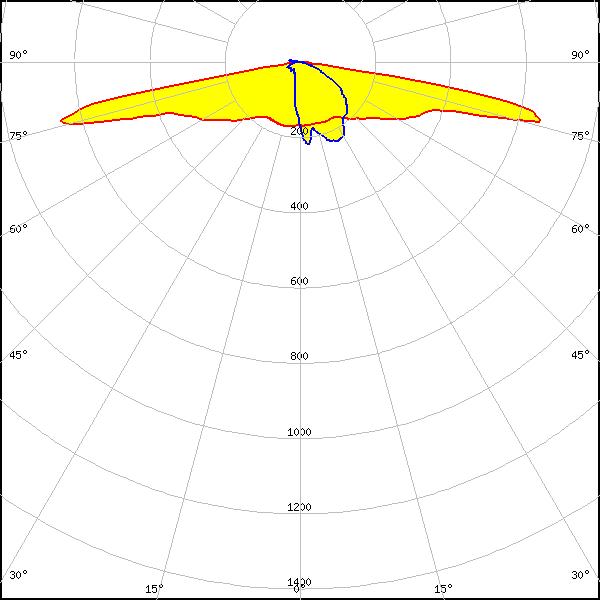

LED: LUXEON MZ
FWHM: asymmetric
Peak intensity: 1.304 cd/lm
Efficiency: 94 %
LEDs/each optic: 1
Light colour/type: White

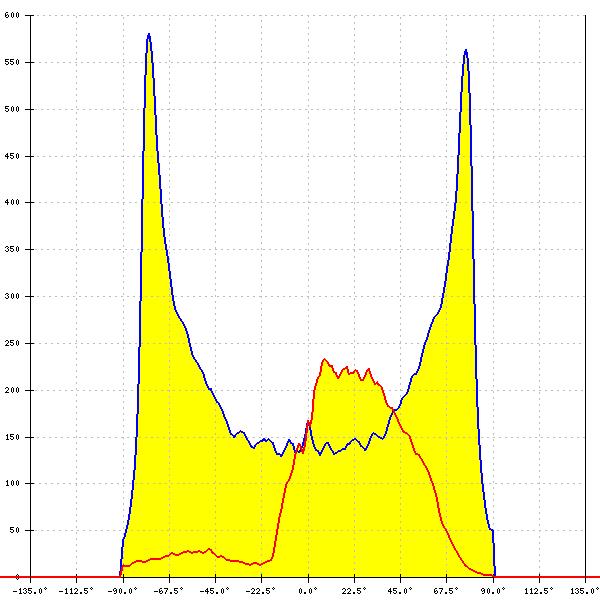

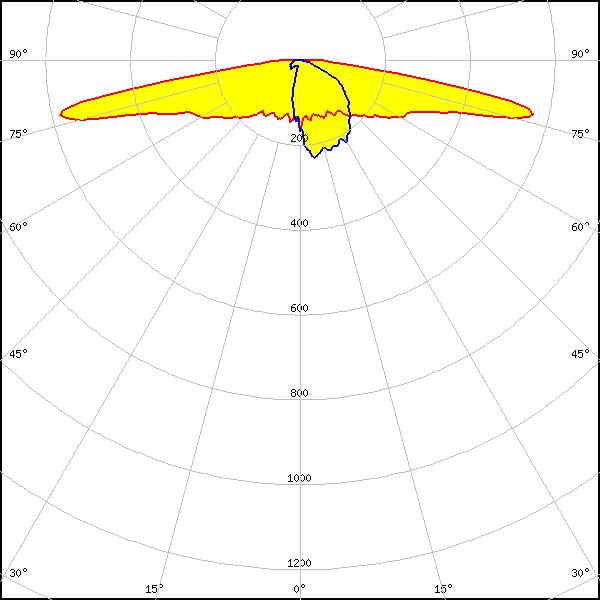

LED: OSCONIQ P 7070
FWHM: asymmetric
Peak intensity: 0.795 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour/type: White

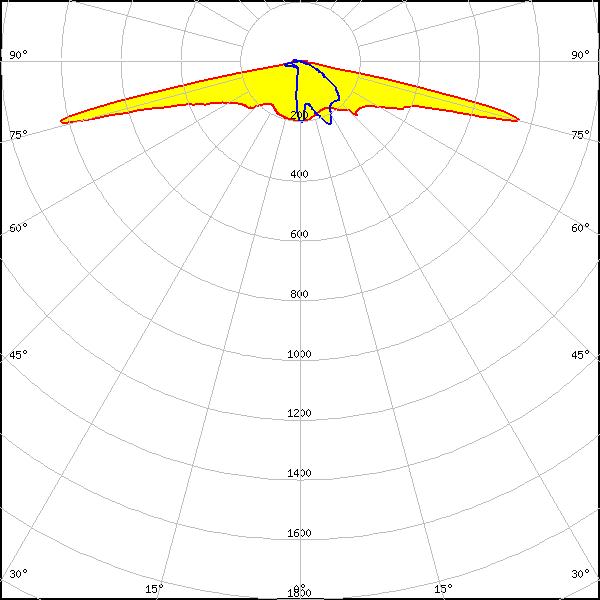

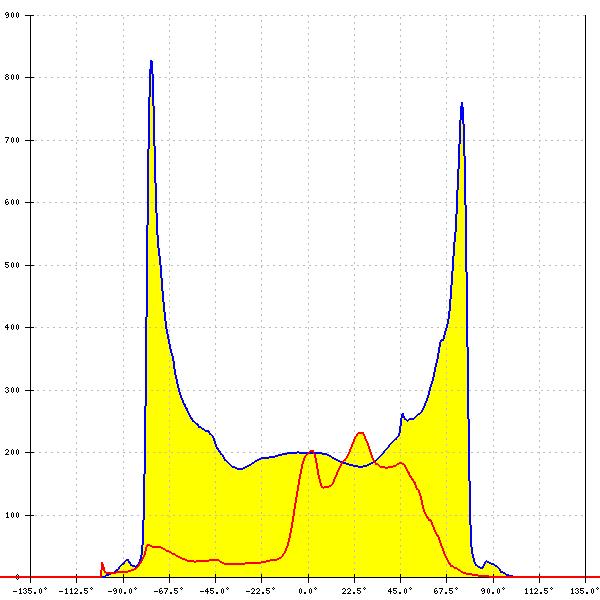

LED: LH181B
FWHM: asymmetric
Peak intensity: 1.760 cd/lm
Efficiency: 92 %
LEDs/each optic: 1
Light colour/type: White

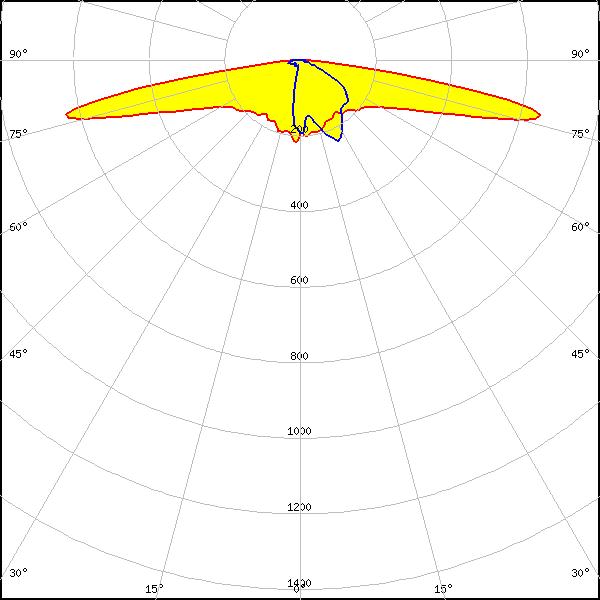

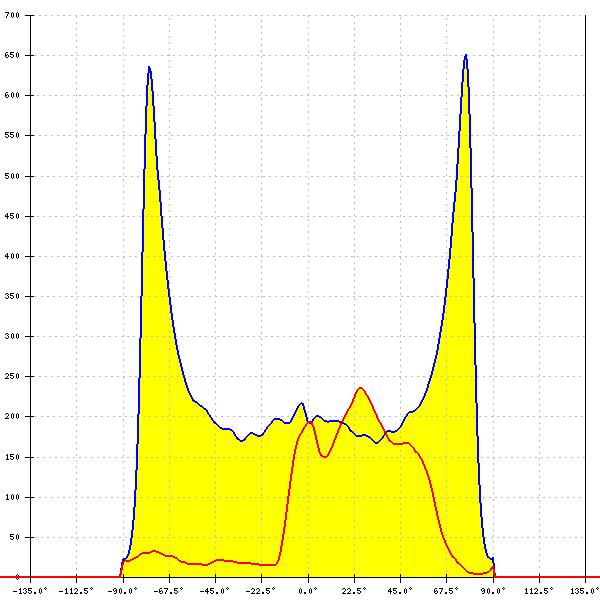

LED: LH351B
FWHM: asymmetric
Peak intensity: 0.903 cd/lm
Efficiency: 89 %
LEDs/each optic: 1
Light colour/type: White
