CA16204_GABRIELLA-MIDI-W

Print

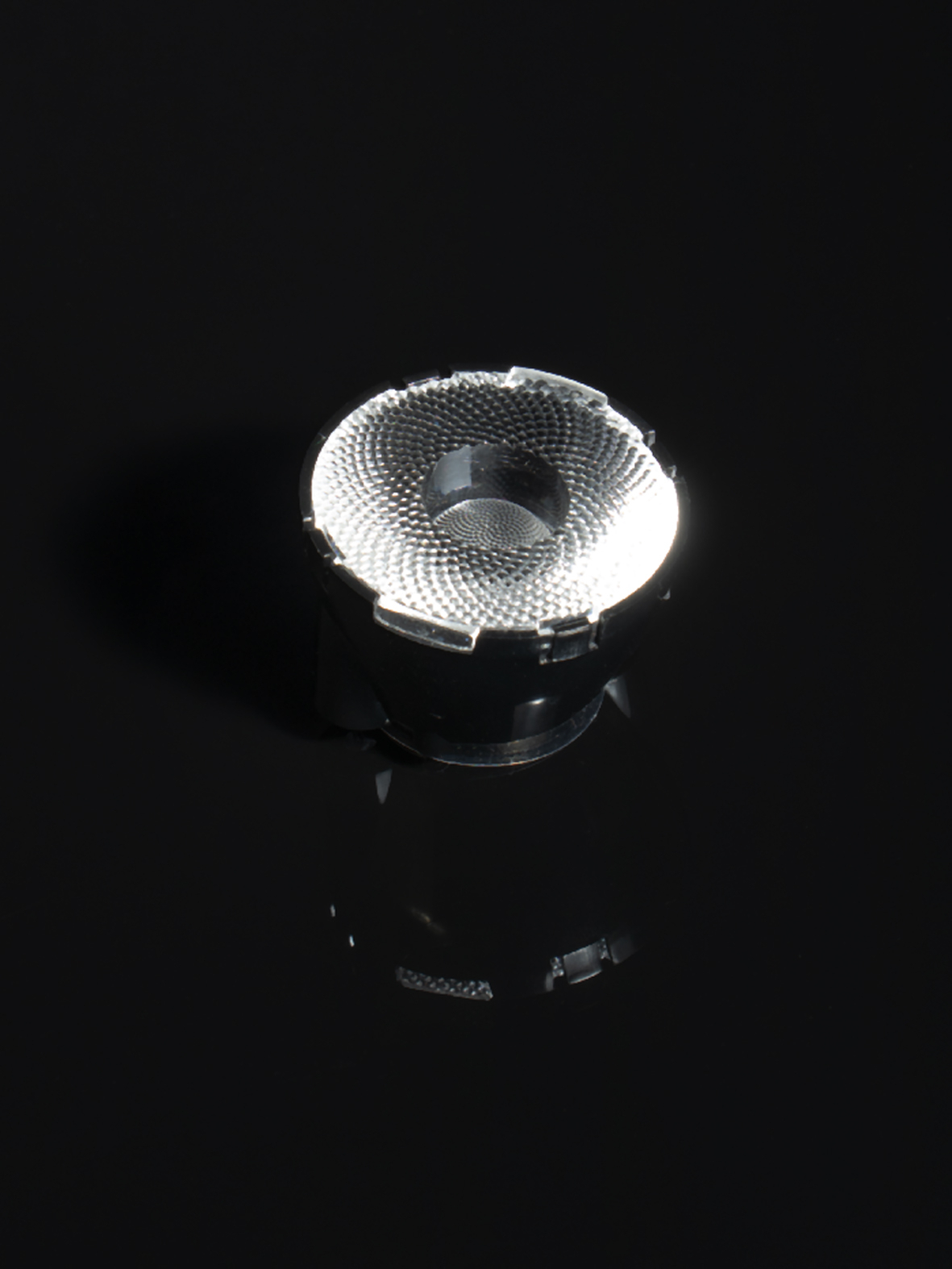

~35° spot beam with holder and installation tape

Specification
  • Dimensions:
    38 mm
  • Height:
    24.17 mm
  • Fastening:
    tape, pin
  • Colour:
    black
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantity in box:
    500 pcs
  • Box size:
    476 x 273 x 292 mm
  • Box weight:
    11.5 kg
  • MPQ:
    50 pcs
  • MOQ:
    100 pcs
  • MOQ size:
    480 x 280 x 70 mm
  • MOQ weight:
    2.4 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    CA16204_GABRIELLA-MIDI-W

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

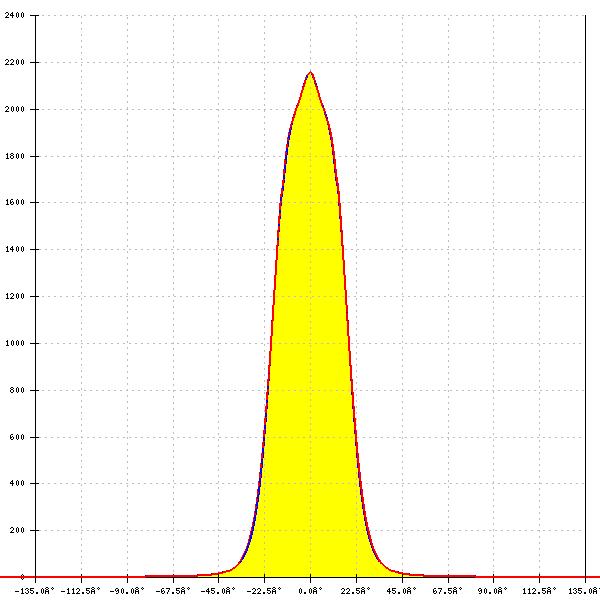

Optical results

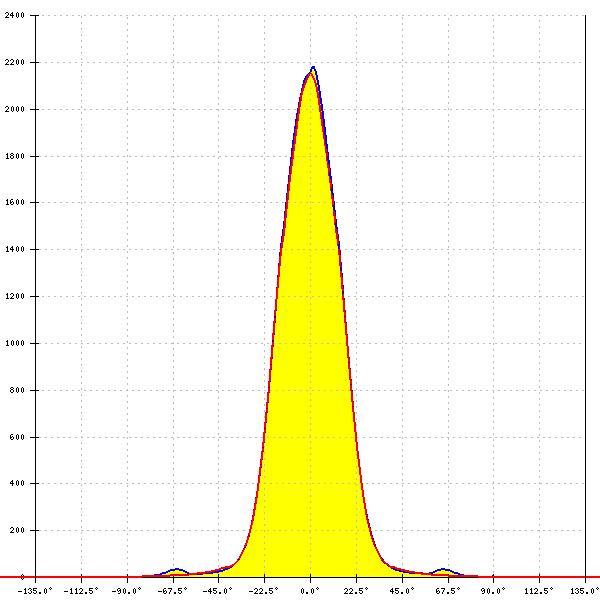

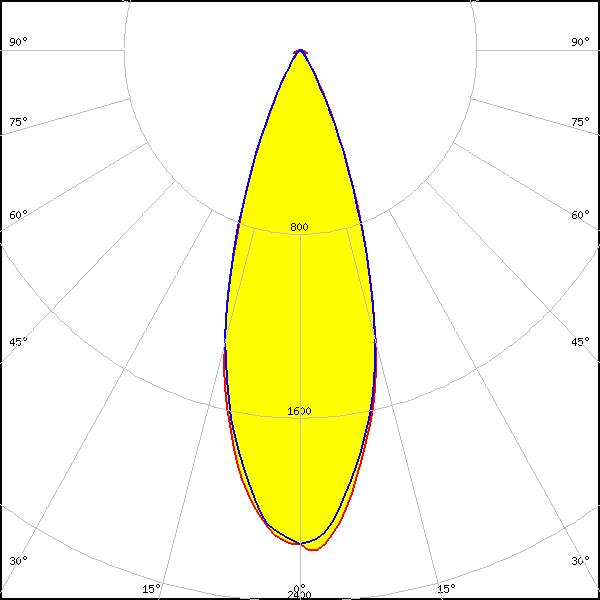

LED: J Series 5050 Round LES
FWHM: 34°
FWTM: 58°
Peak intensity: 2.184 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

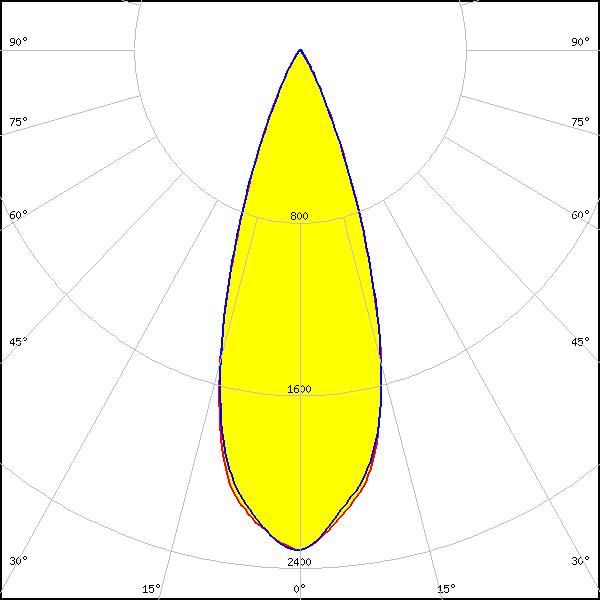

LED: XHP35 HI
FWHM: 35°
FWTM: 56°
Peak intensity: 2.320 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

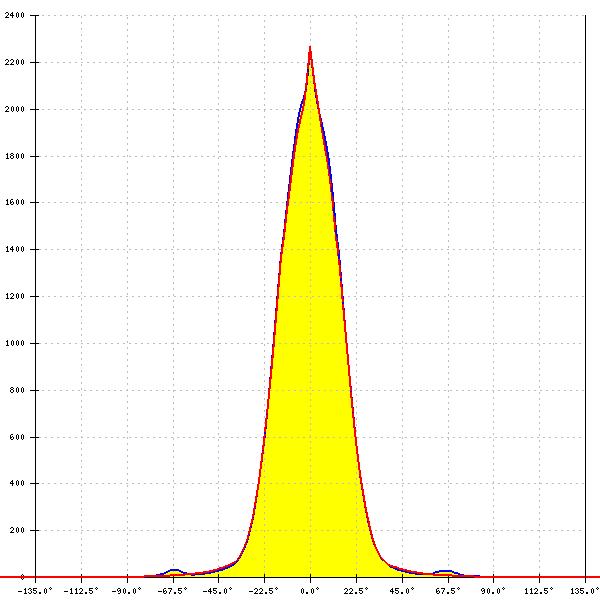

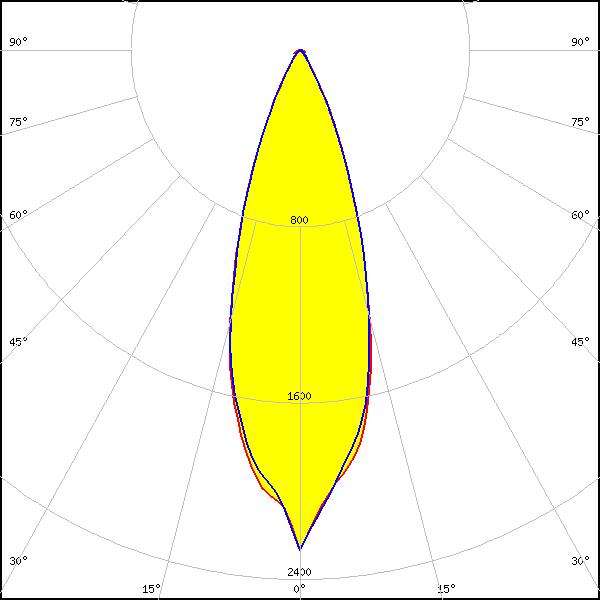

LED: XHP50
FWHM: 32°
FWTM: 58°
Peak intensity: 2.269 cd/lm
Efficiency: 83 %
LEDs/each optic: 1
Light colour: White

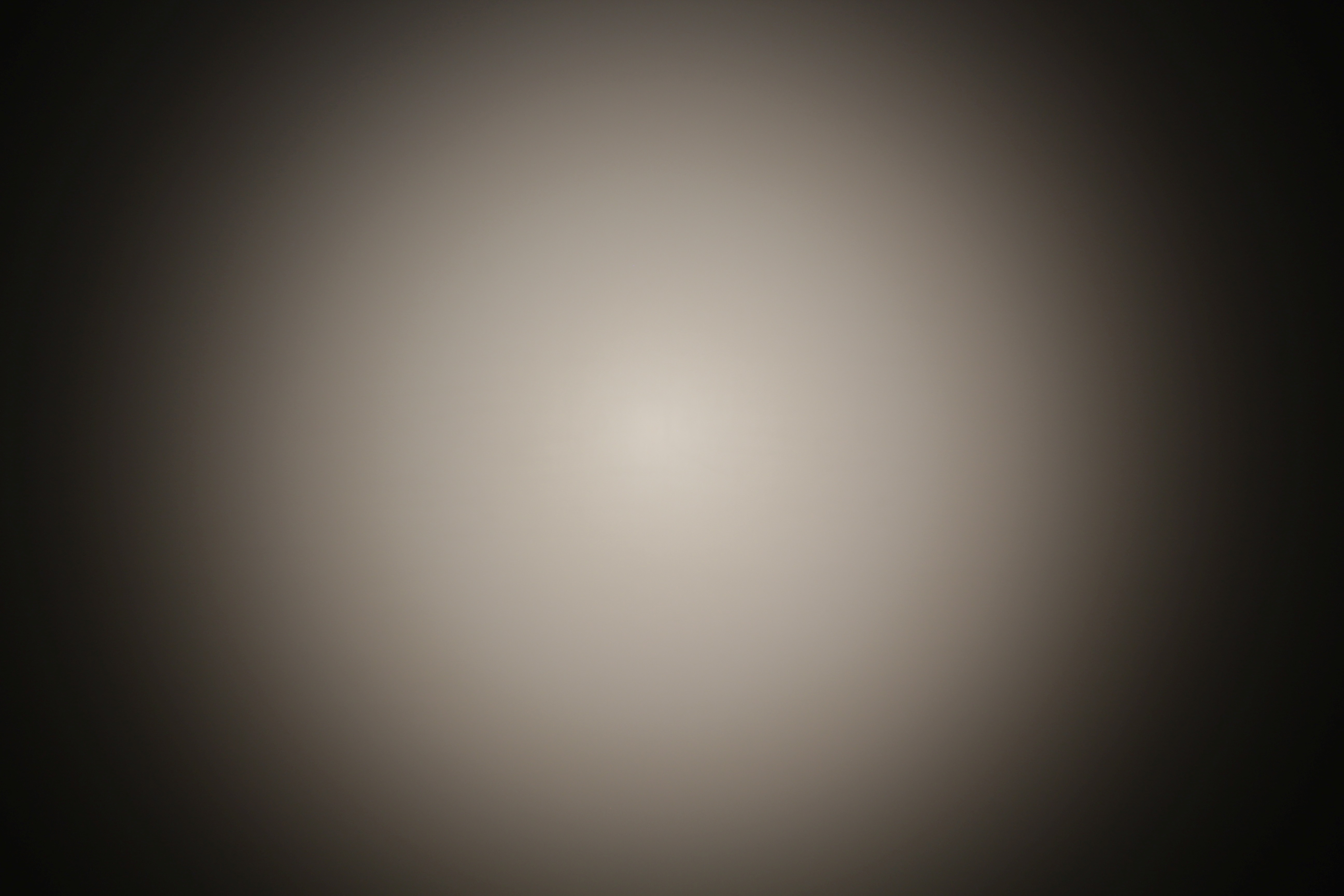

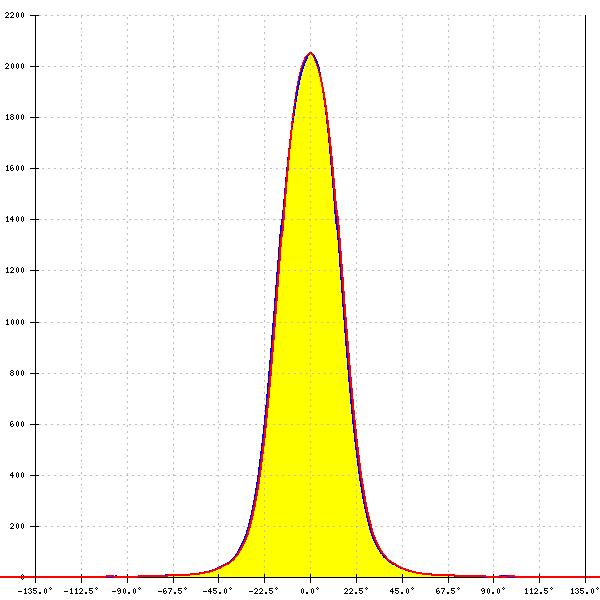

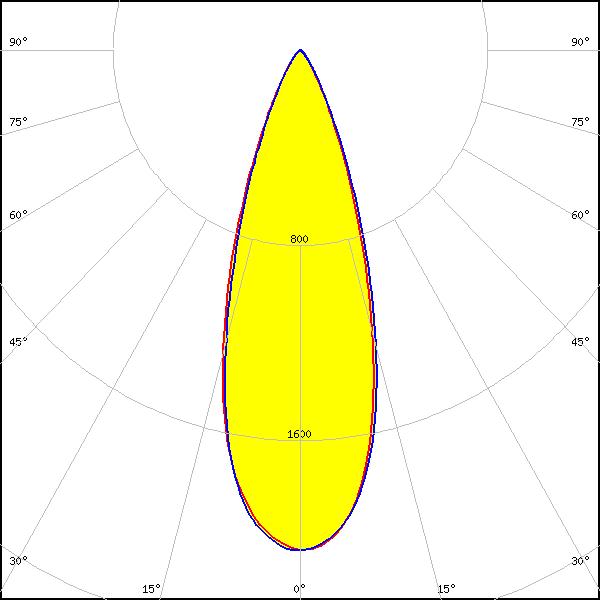

LED: XHP50.2
FWHM: 34°
FWTM: 59°
Peak intensity: 2.050 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

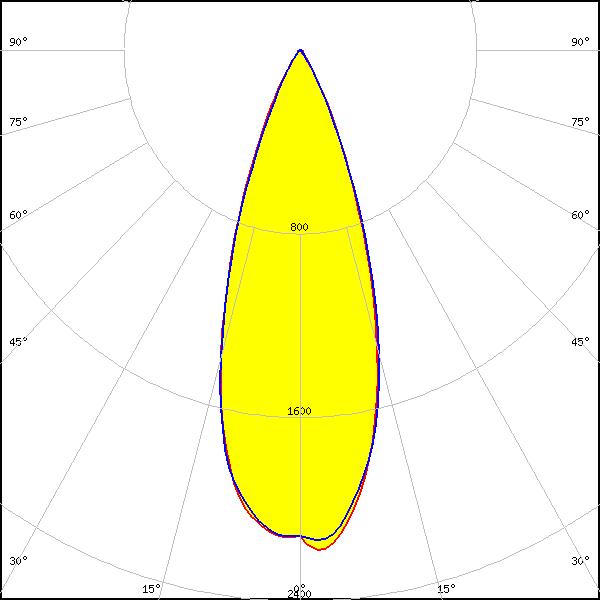

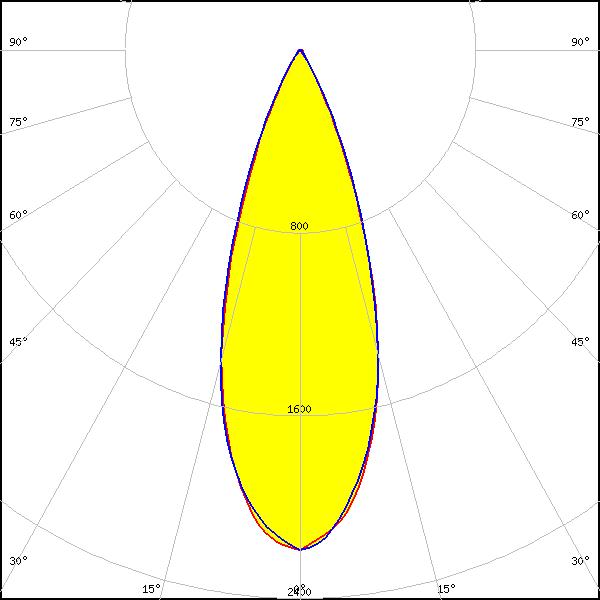

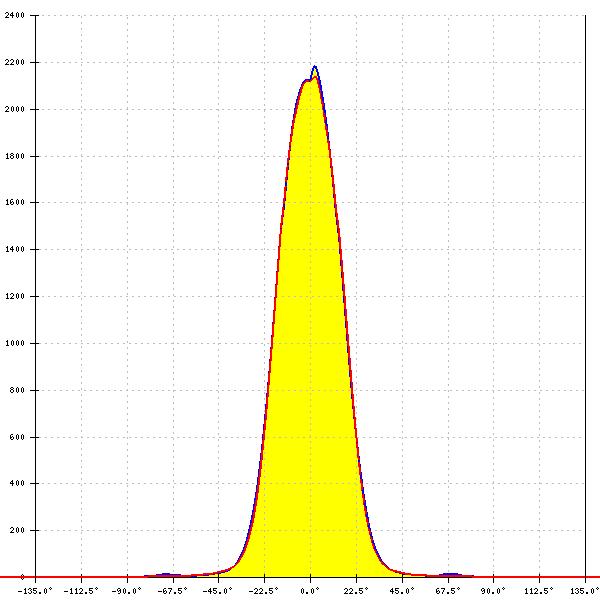

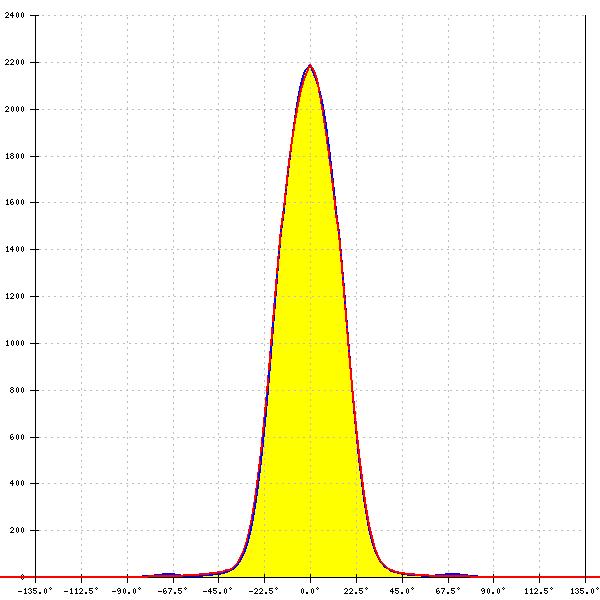

LED: XM-L RGBW (XMLCTW)
FWHM: 36°
FWTM: 58°
Peak intensity: 2.190 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

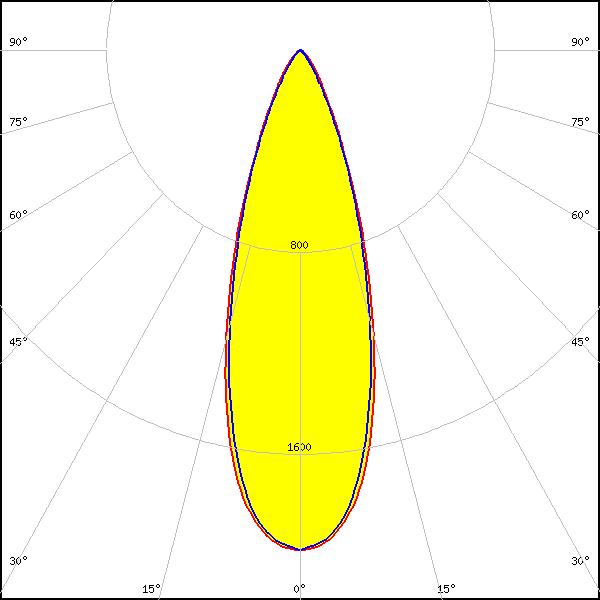

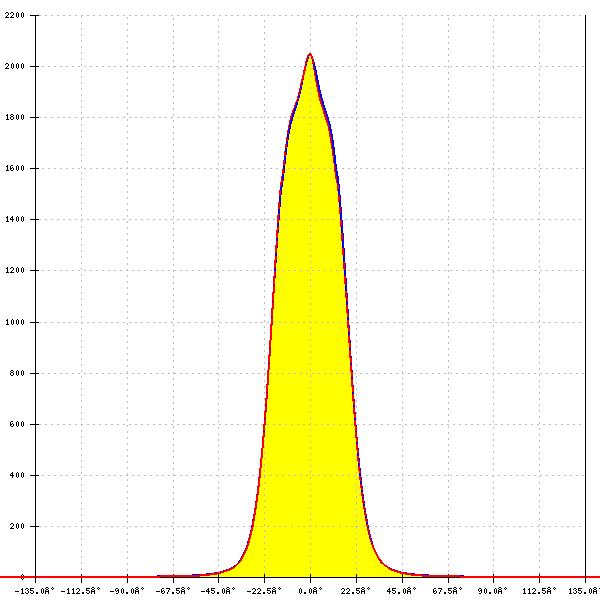

LED: XM-L RGBW (XMLDCL HI)
FWHM: 33°
FWTM: 61°
Peak intensity: 1.986 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: RGBW

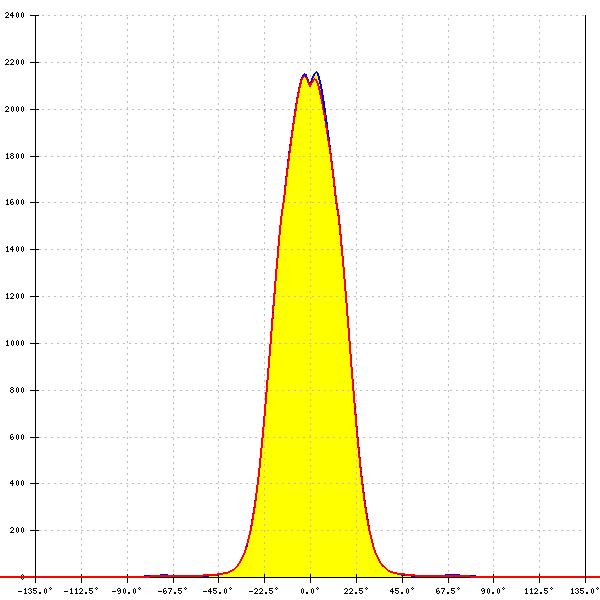

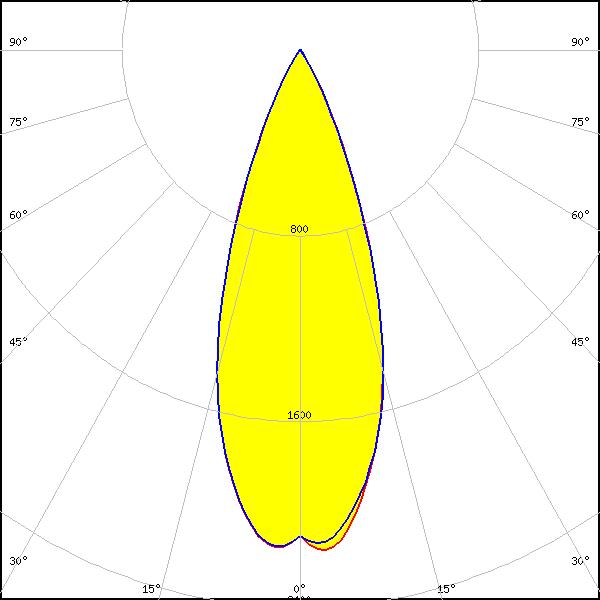

LED: XM-L2
FWHM: 37°
FWTM: 58°
Peak intensity: 2.160 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

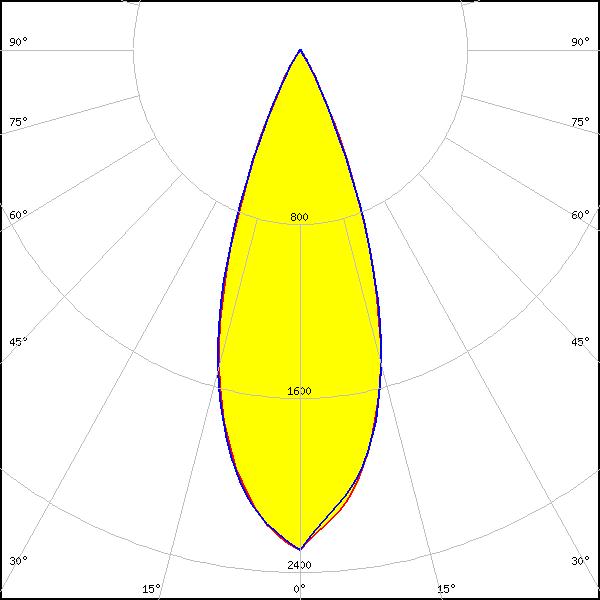

LED: XP-G2
FWHM: 37°
FWTM: 57°
Peak intensity: 2.300 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: White

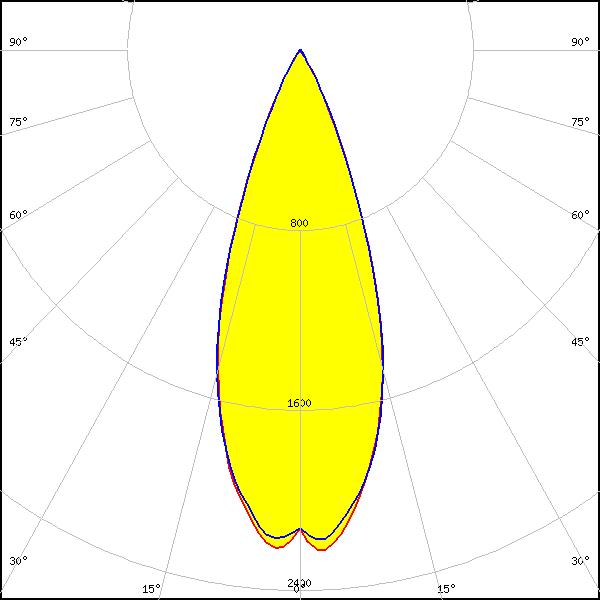

LED: XP-G2 HE
FWHM: 38°
FWTM: 56°
Peak intensity: 2.248 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

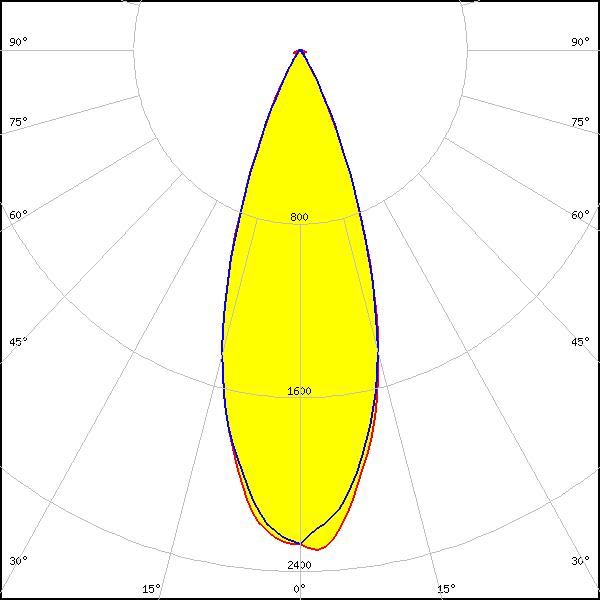

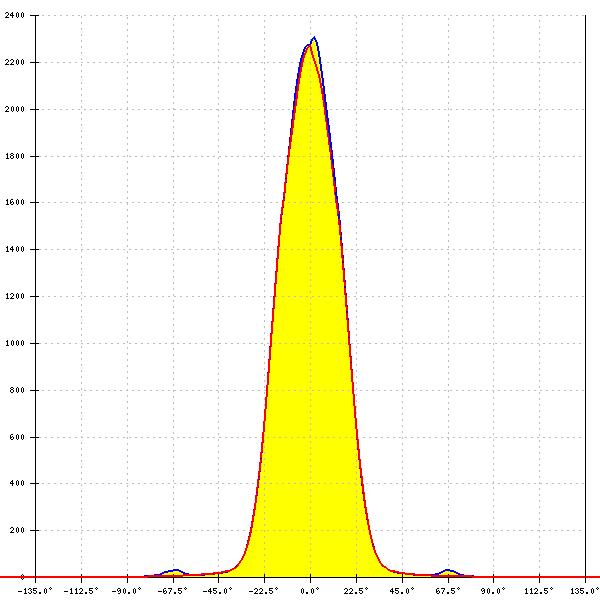

LED: LZ7 Plus (LZ7-04M2PD)
FWHM: 35°
FWTM: 57°
Peak intensity: 2.300 cd/lm
Efficiency: 87 %
LEDs/each optic: 1
Light colour: White

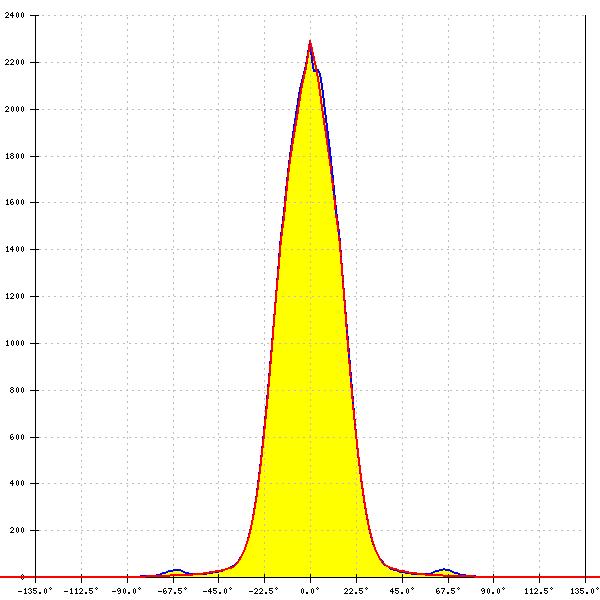

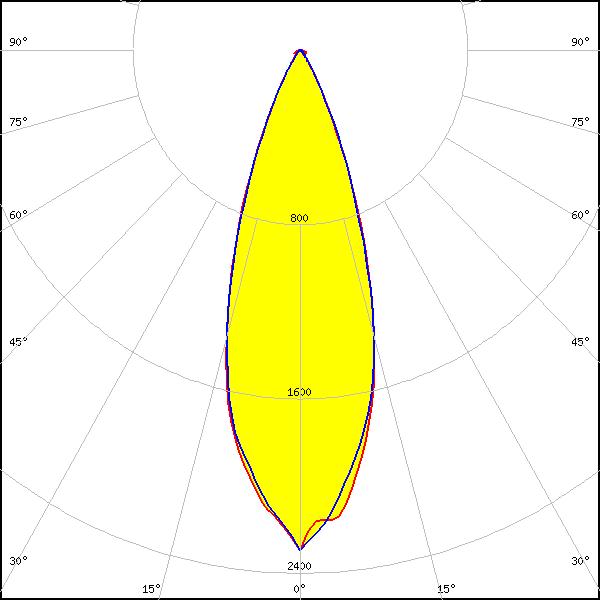

LED: LUXEON 5050 Round LES
FWHM: 34°
FWTM: 58°
Peak intensity: 2.295 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

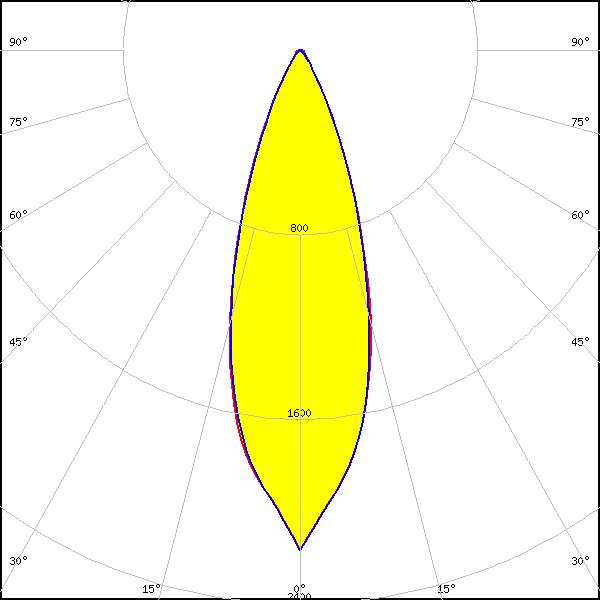

LED: LUXEON M/MX
FWHM: 33°
FWTM: 59°
Peak intensity: 2.170 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

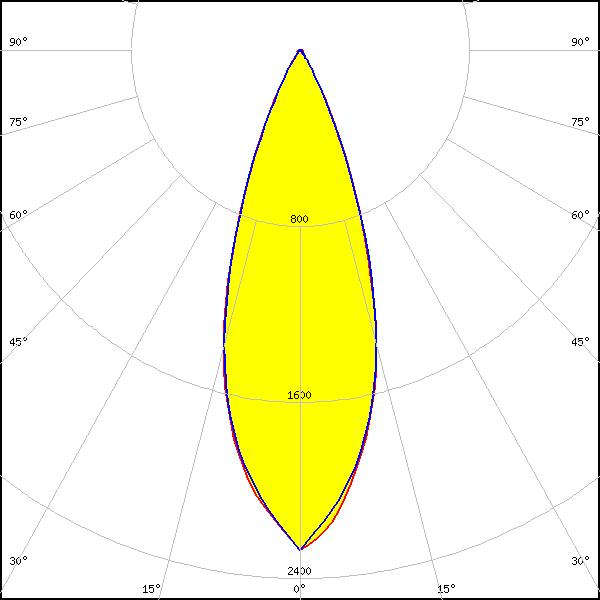

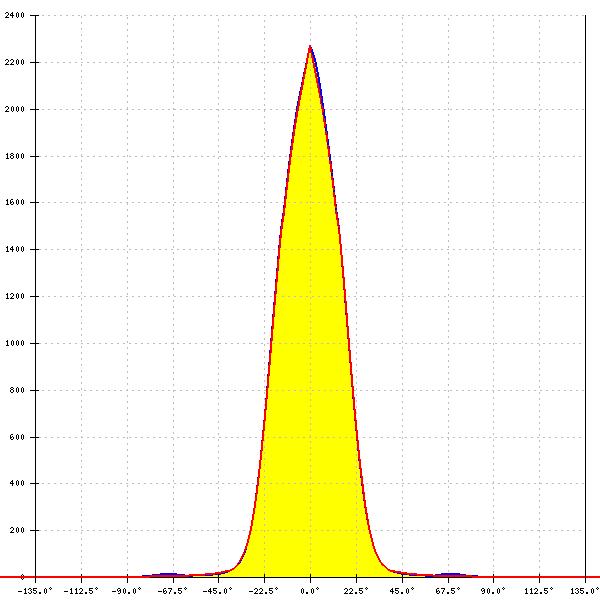

LED: LUXEON MZ
FWHM: 35°
FWTM: 57°
Peak intensity: 2.270 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White
LED: SBM-40-RGBW
LEDs/each optic: 1
Light colour: RGBW

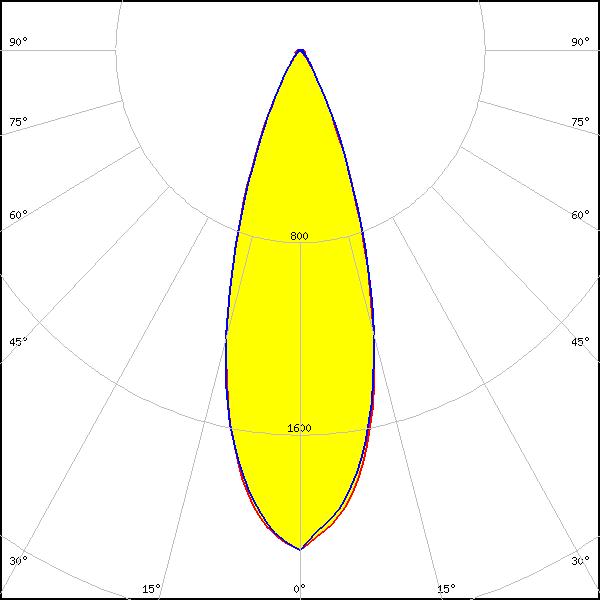

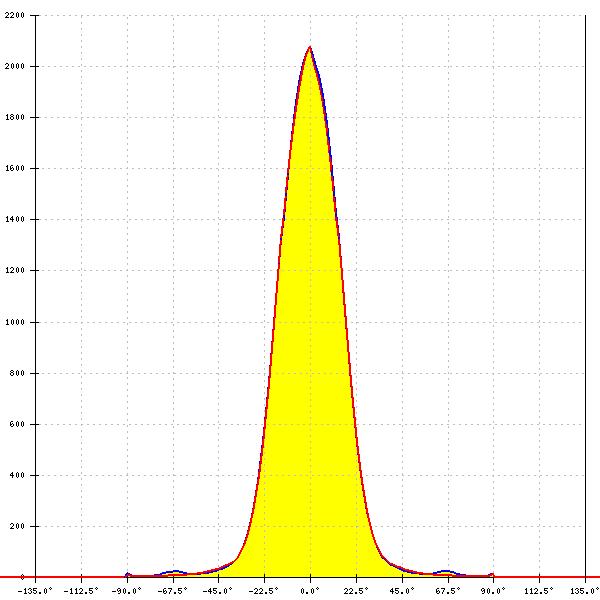

LED: NV4x144A
FWHM: 34°
FWTM: 59°
Peak intensity: 2.080 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour: White

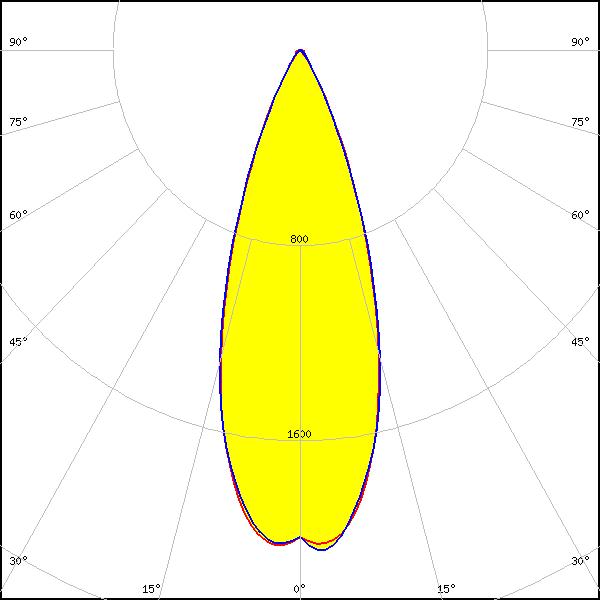

LED: Duris S8
FWHM: 36°
FWTM: 59°
Peak intensity: 2.060 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

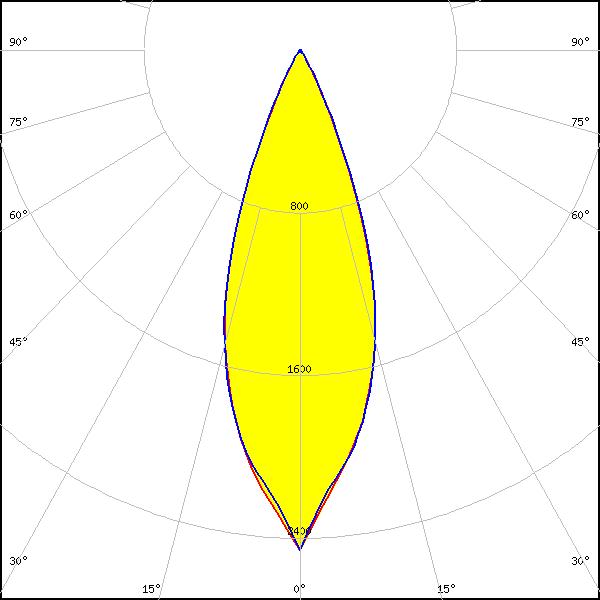

LED: OSLON Square EC
FWHM: 36°
FWTM: 56°
Peak intensity: 2.500 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour: White

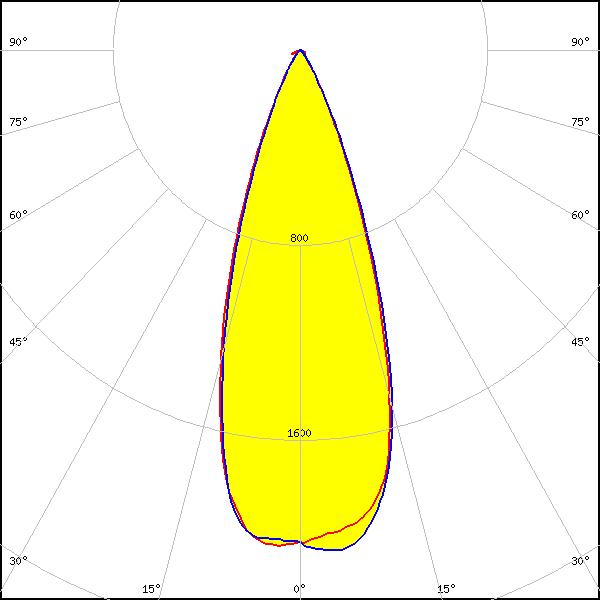

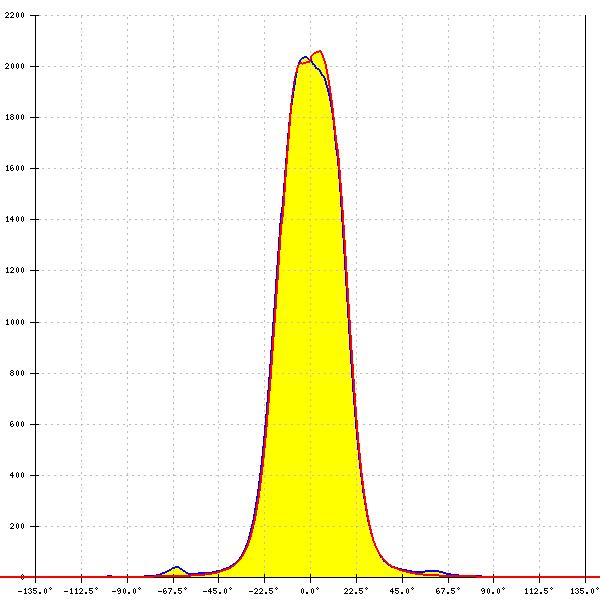

LED: OSTAR Stage (S2WP)
FWHM: 36°
FWTM: 57°
Peak intensity: 2.100 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: White

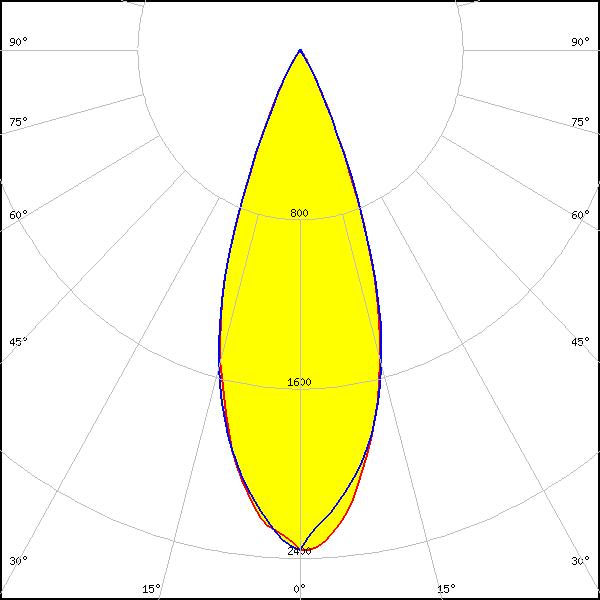

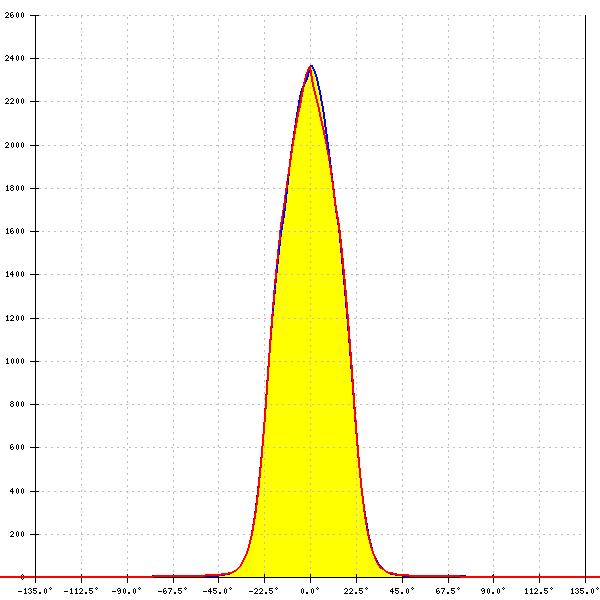

LED: LM28xB Series
FWHM: 38°
FWTM: 56°
Peak intensity: 2.371 cd/lm
Efficiency: 88 %
LEDs/each optic: 1
Light colour: White

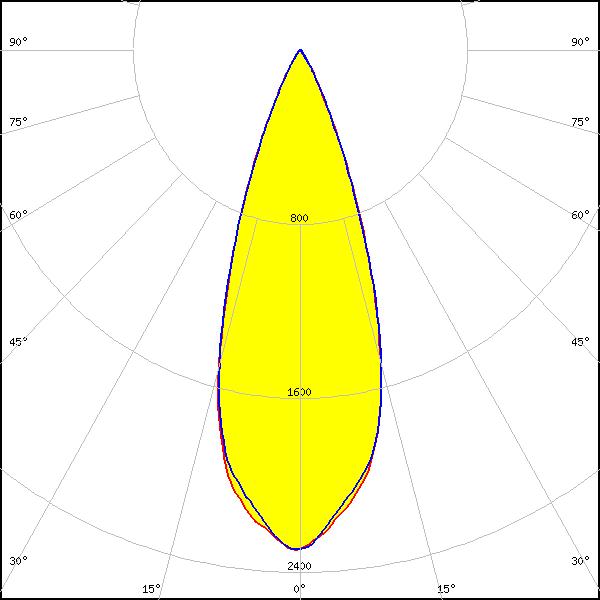

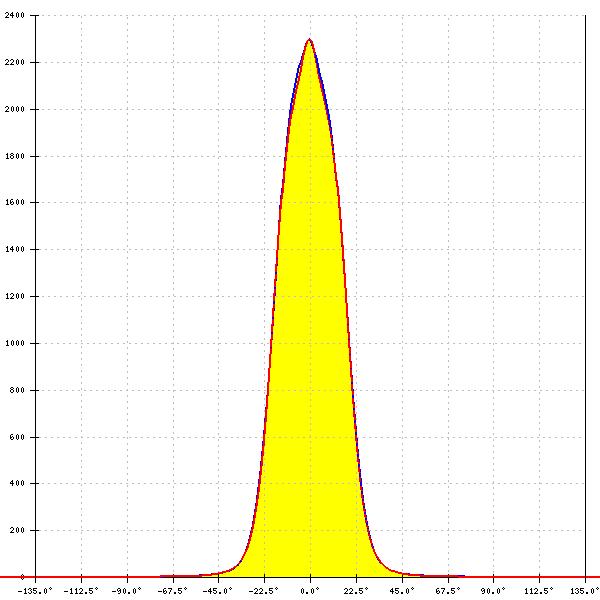

LED: SPF05F0A
FWHM: 36°
FWTM: 56°
Peak intensity: 2.301 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: RGBW

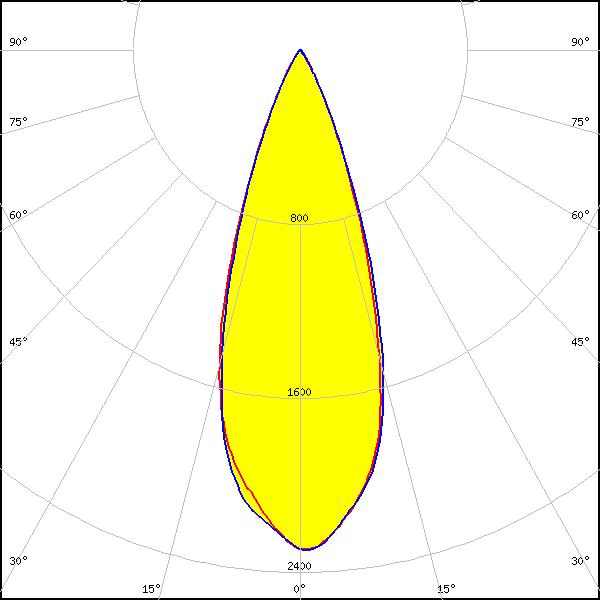

LED: SPF05F0B
FWHM: 36°
FWTM: 56°
Peak intensity: 2.301 cd/lm
Efficiency: 86 %
LEDs/each optic: 1
Light colour: RGBW

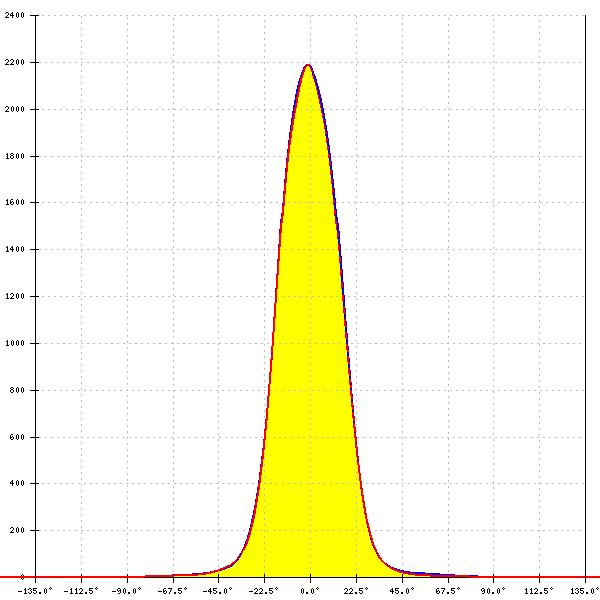

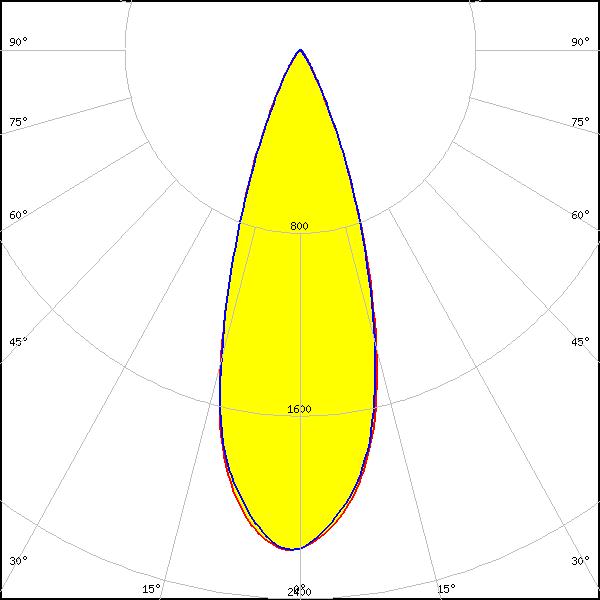

LED: SPF05F0C
FWHM: 35°
FWTM: 57°
Peak intensity: 2.190 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour: RGBW
