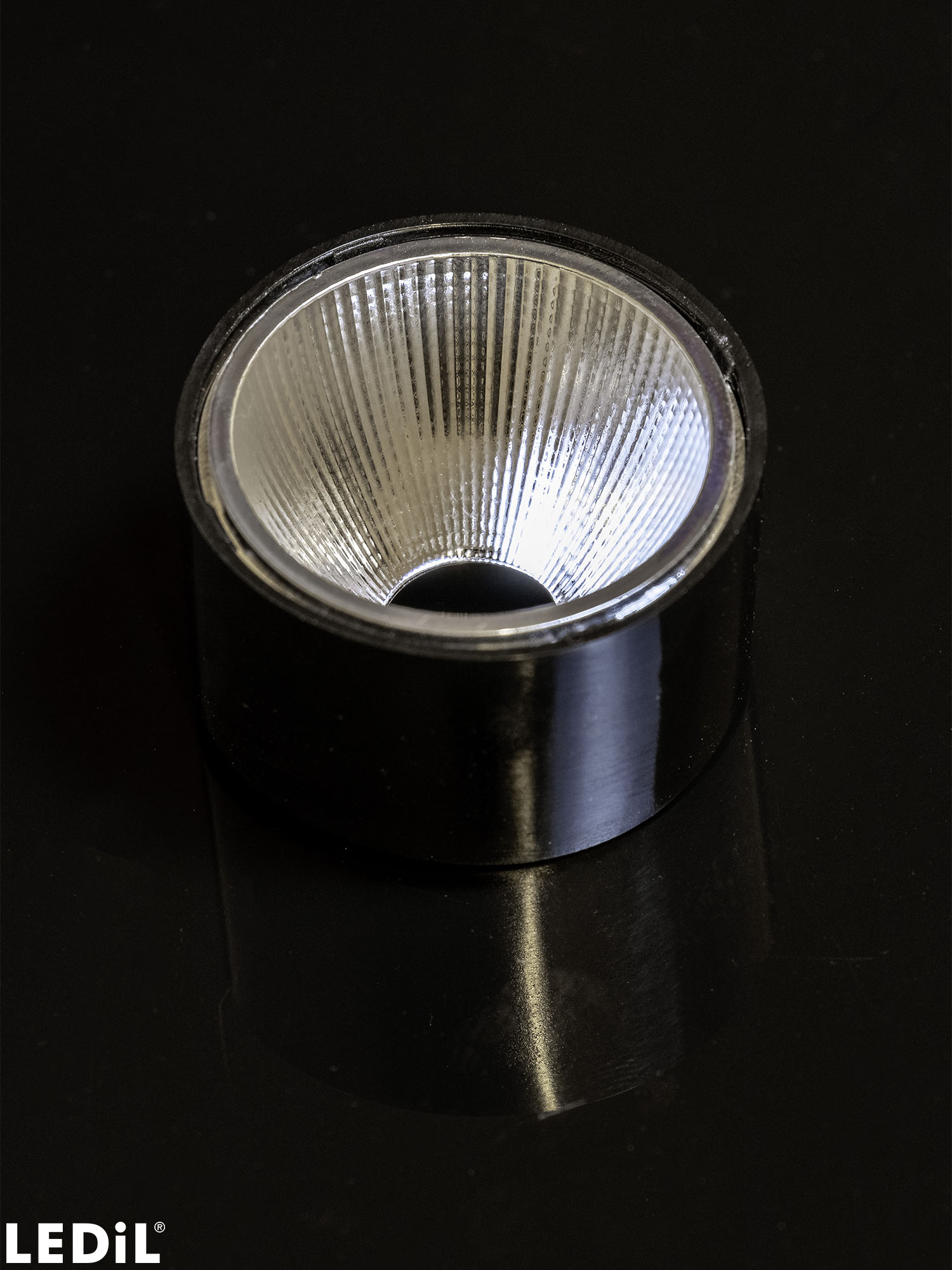

CA17281_ELLA-30-M

~28° wide beam. Assembly with black holder.

Specification

Dimensions:

32 mm
Height:

20.00 mm
Fastening:

tape
Colour:

black
RoHS and REACH compliant:

Yes

Product Data User Agreement and Disclaimer.

Component Materials

ELLA-30-M
Reflector
HTPC
OLGA-HLD
Holder
PC
SPUTNIK-TAPE3
Tape
Acryl tape
Request material files from Tech Support

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information

Quantity in box:

792 pcs
Box size:

480 x 280 x 300 mm
Box weight:

5.6 kg
MPQ:

66 pcs
MOQ:

264 pcs
MOQ size:

480 x 280 x 110 mm
MOQ weight:

2.1 kg

Documents

Family datasheet
Product datasheet
2D mechanical drawing
3D mechanical model

Request a 3D mechanical model: CA17281_ELLA-30-M

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Reason for request:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

PRODUCT NAME(S):

CA17281_ELLA-30-M

Add more products:

First name:

Last name:

Company:

Email:

Phone number:

Address:

Postal code:

City:

Country / Region:

State:

Application:

Architectural indoor lighting
Architectural outdoor lighting
Area and car park lighting
Entertainment lighting
Horticultural lighting
Industrial lighting
Office lighting
Retail lighting
Special indoor applications
Special outdoor applications
Sports indoor lighting
Sports outdoor lighting
Street lighting
Tunnel and transportation lighting
Other

Preferred distributor:

Request samples:

Message:

By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.

CONTACT US

REQUEST SAMPLES

WHERE TO BUY

FIND A DISTRIBUTOR

ORDER ONLINE

Related Content

User and installation guide

General guide to LEDiL optics

News

New Products 2019-12-16

News

ELLA – a new family of compact reflectors for miniature luminaires

Luminaire, example

Track light luminaire with ELLA-30

Application guide

Guide for Retail Lighting Optics

Application area

Indoor Architectural Lighting

Application area

Retail Lighting

Optical results

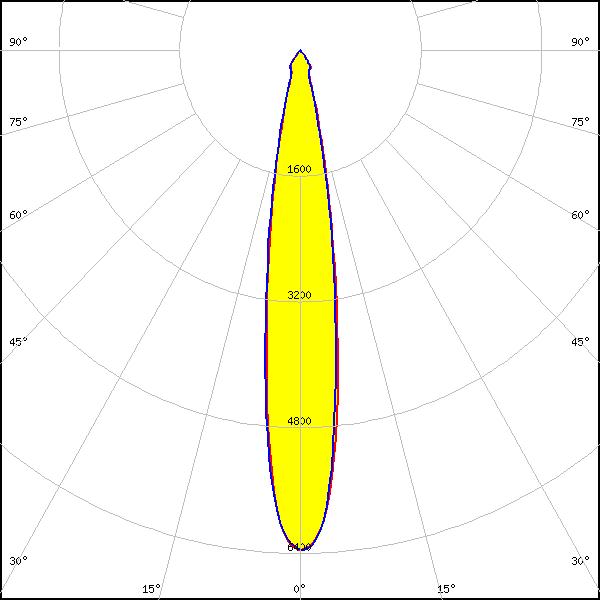

LED: XHP35 HD

FWHM: 17°

FWTM: 33°

Peak intensity: 6.362 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

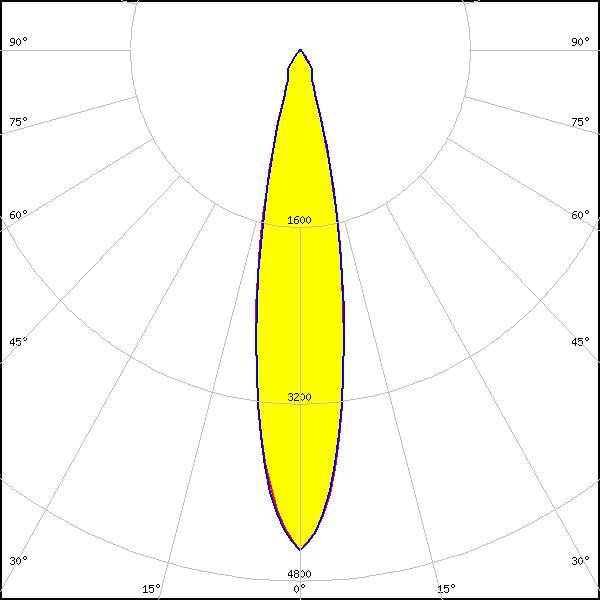

LED: XHP35.2 HD

FWHM: 21°

FWTM: 39°

Peak intensity: 1.440 cd/lm

Efficiency: 85 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

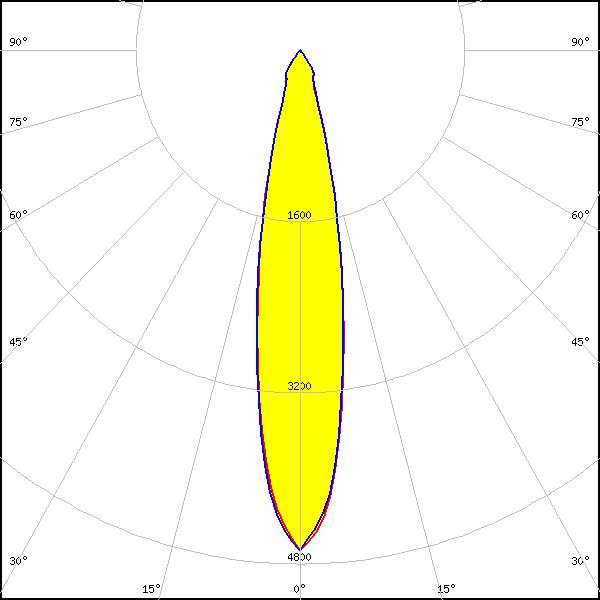

LED: XHP50.3 HD

FWHM: 20°

FWTM: 40°

Peak intensity: 4.673 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

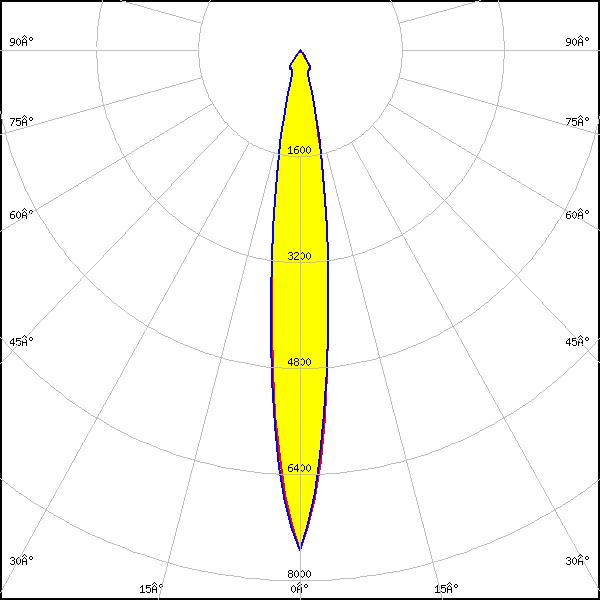

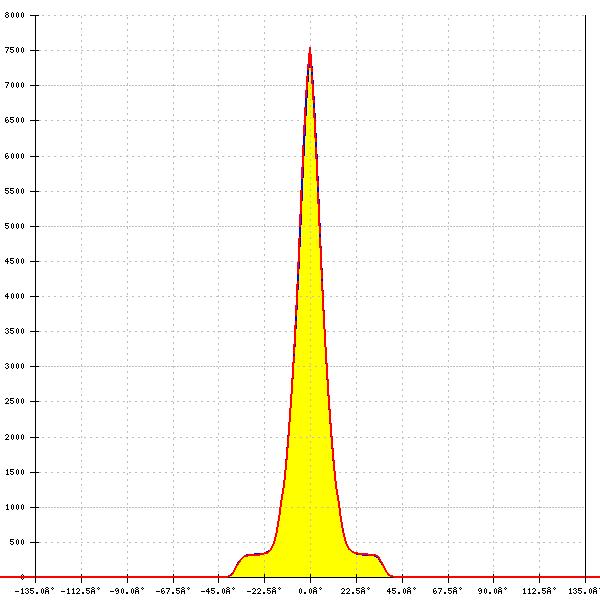

LED: XP-G4

FWHM: 14°

FWTM: 31°

Peak intensity: 7.541 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

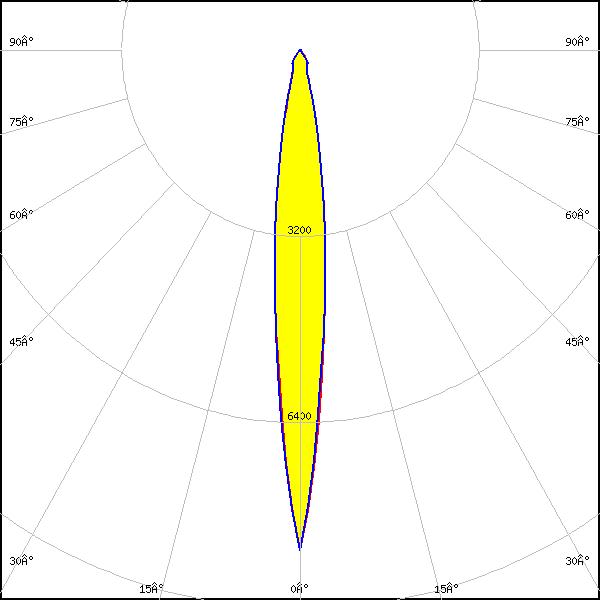

LED: XP-G4 HI

FWHM: 12°

FWTM: 30°

Peak intensity: 8.593 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

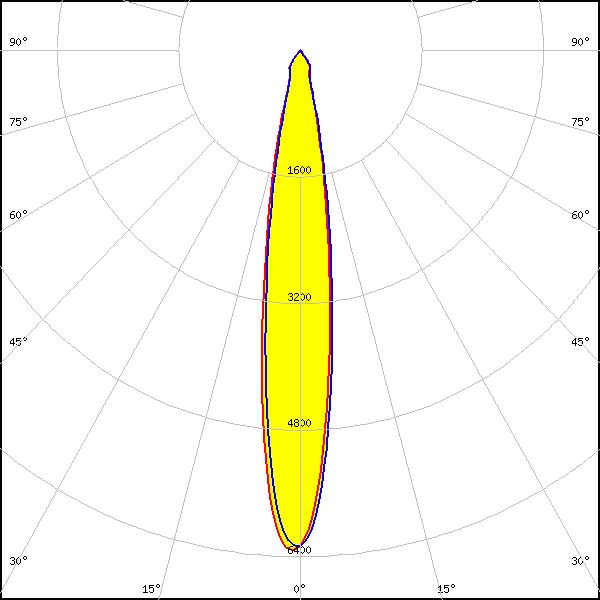

LED: XP-L2

FWHM: 16°

FWTM: 34°

Peak intensity: 6.329 cd/lm

Efficiency: 87 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

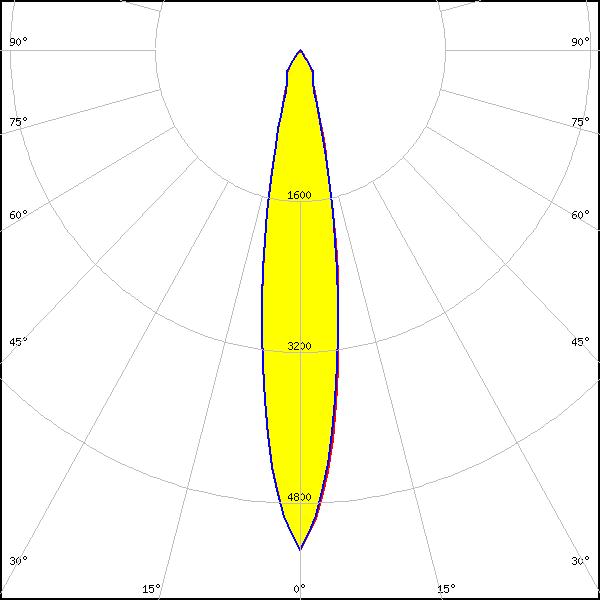

LED: LUXEON 5050 Round LES

FWHM: 18°

FWTM: 38°

Peak intensity: 5.297 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

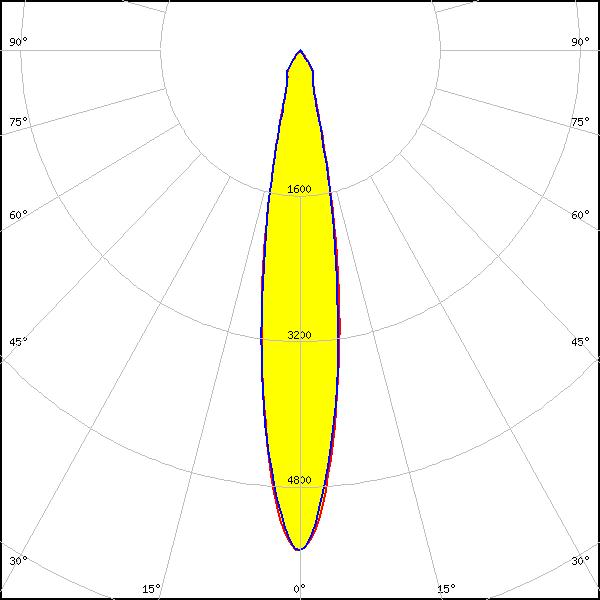

LED: LUXEON 5050 Square LES

FWHM: 19°

FWTM: 37°

Peak intensity: 5.495 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

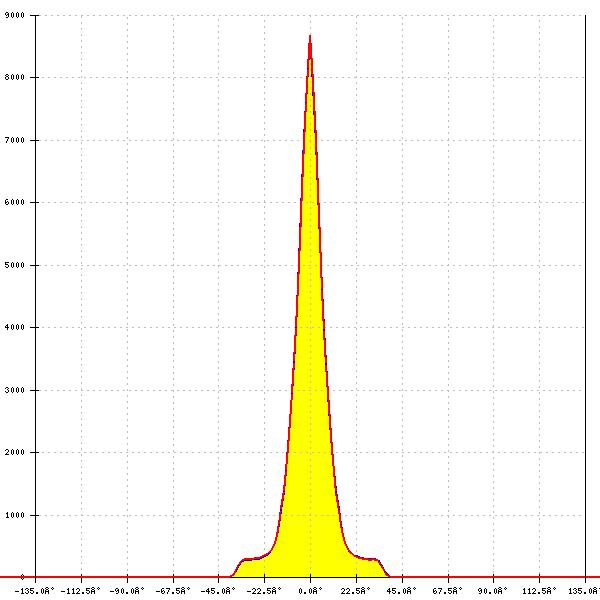

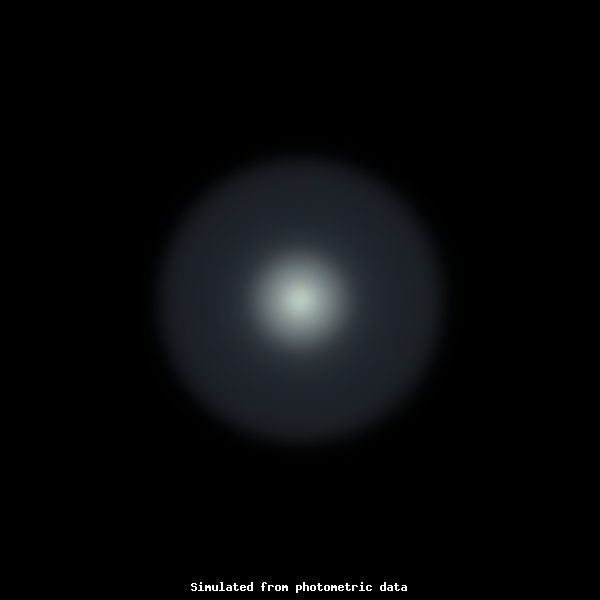

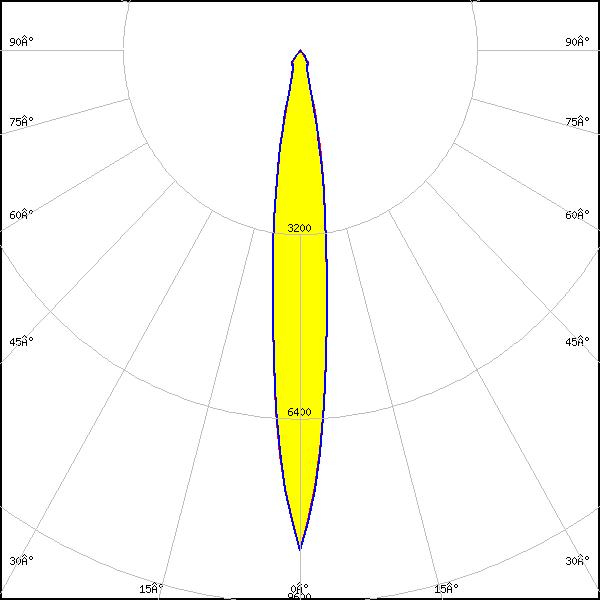

LED: SST-25-W

FWHM: 13°

FWTM: 30°

Peak intensity: 8.680 cd/lm

Efficiency: 93 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

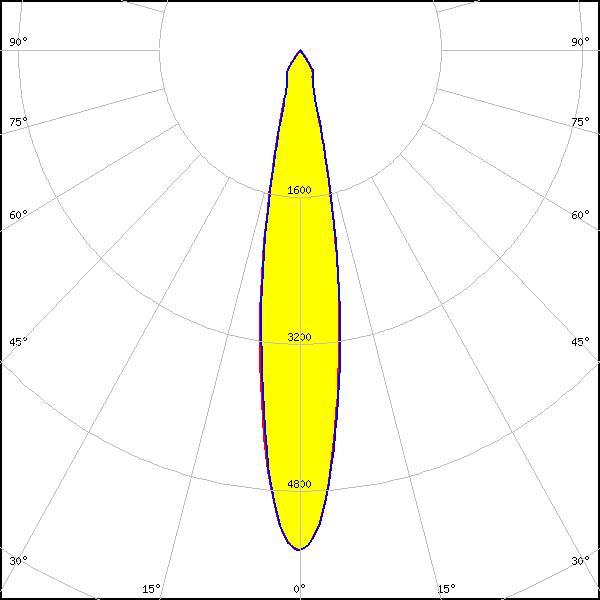

LED: NFMW48xA

FWHM: 19°

FWTM: 37°

Peak intensity: 5.447 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

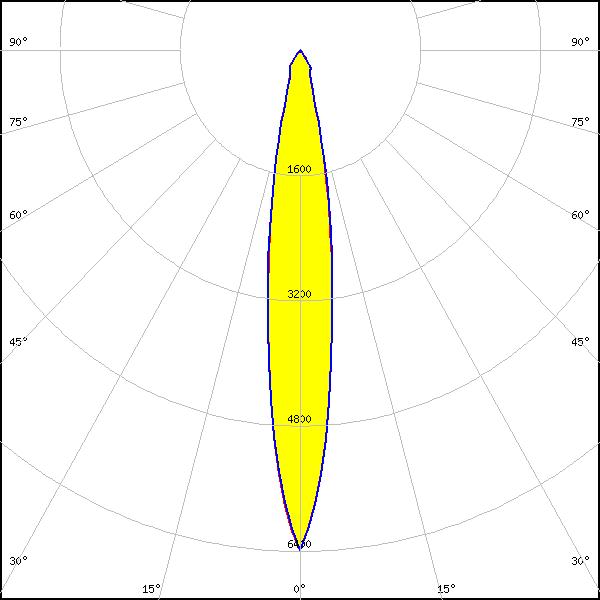

LED: NV4WB35AM

FWHM: 16°

FWTM: 34°

Peak intensity: 6.388 cd/lm

Efficiency: 89 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

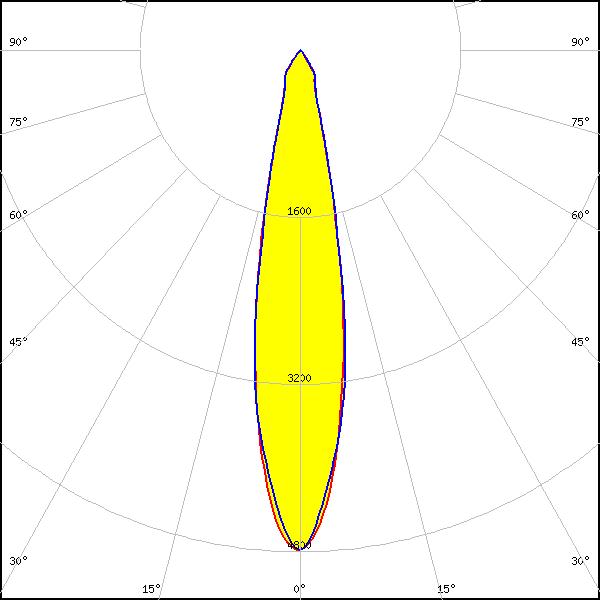

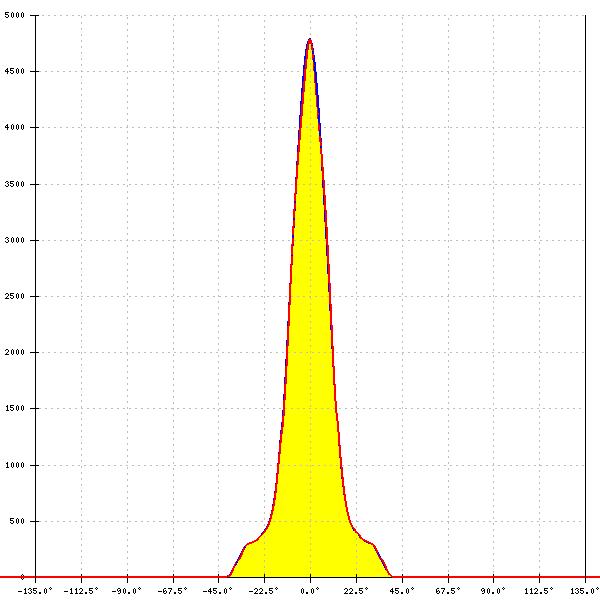

LED: Duris S8

FWHM: 21°

FWTM: 40°

Peak intensity: 4.787 cd/lm

Efficiency: 91 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files

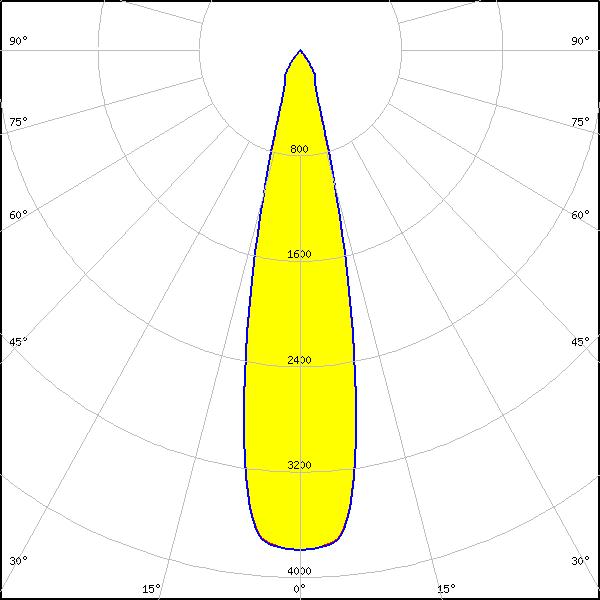

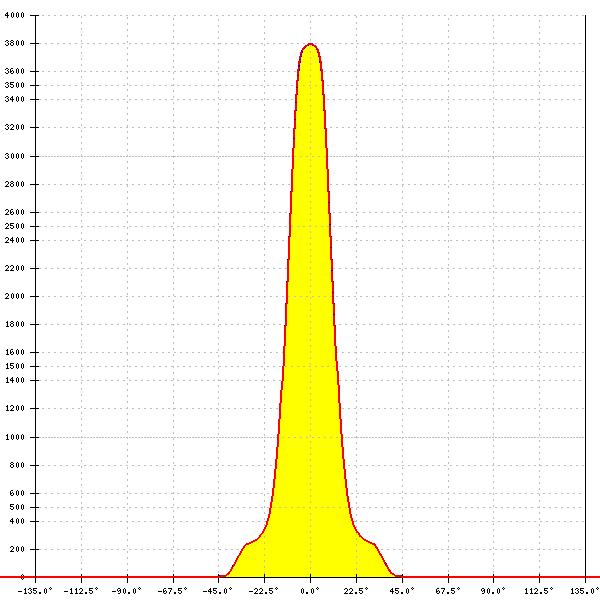

LED: WICOP 5050

FWHM: 24°

FWTM: 43°

Peak intensity: 3.796 cd/lm

Efficiency: 86 %

LEDs/each optic: 1

Light colour/type: White

Datasheet

Light distribution files
