CA18063_OLGA-WW

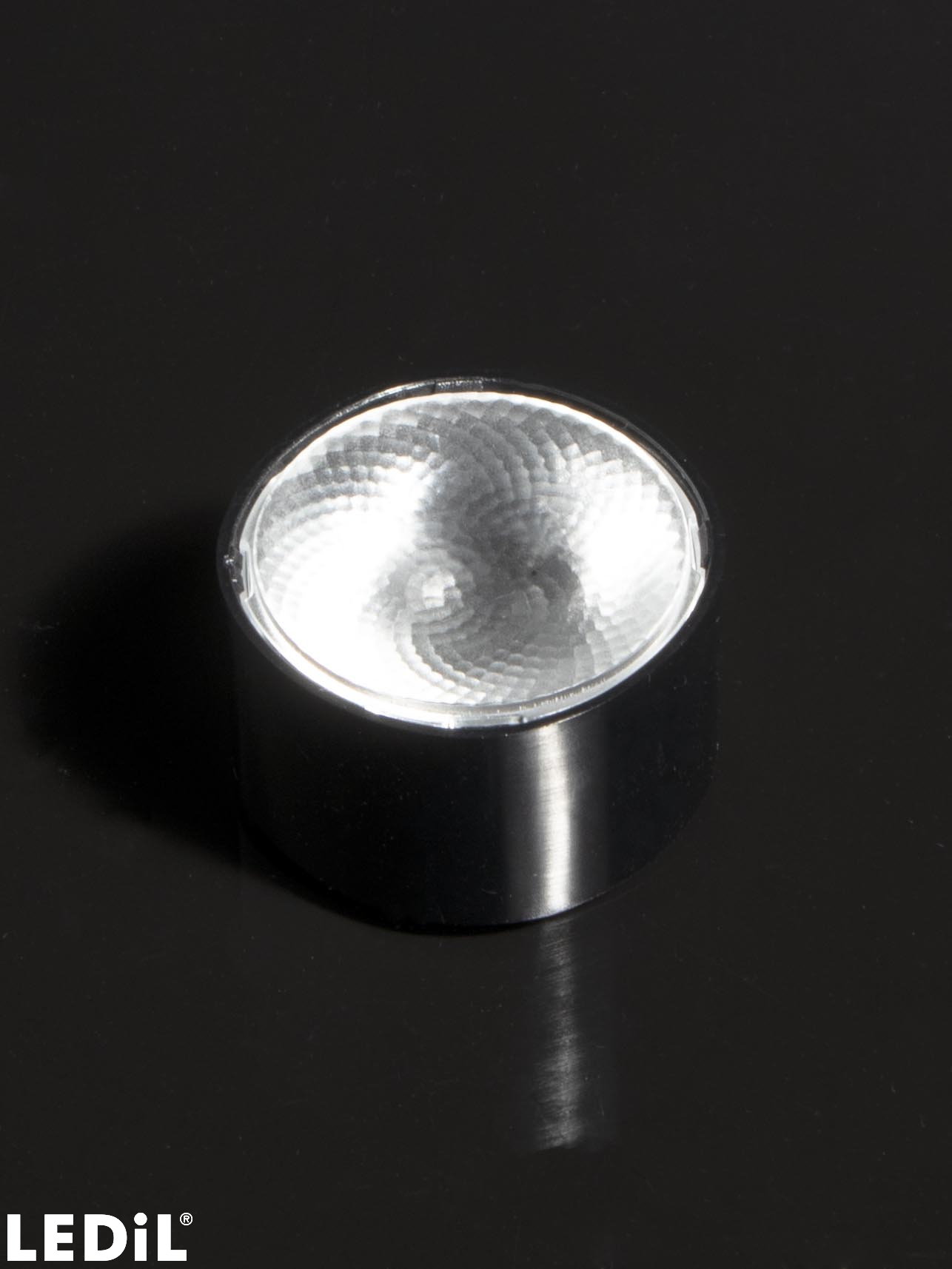

Print~60° wide beam. Assembly with holder and installation tape.
Specification
-
Dimensions:32 mm
-
Height:19.05 mm
-
Fastening:tape, pin
-
Colour:black
-
RoHS and REACH compliant:Yes
Component Materials
- OLGA-WWSingle lensPMMA
- OLGA-HLD2HolderPC
- SPUTNIK-TAPE3TapeAcryl tape
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:792 pcs
-
Box size:476 x 273 x 292 mm
-
Box weight:10.2 kg
-
MPQ:66 pcs
-
MOQ:132 pcs
-
MOQ size:480 x 280 x 60 mm
-
MOQ weight:2.0 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- 3D mechanical model
- PCB drawing
Related Content
Optical results

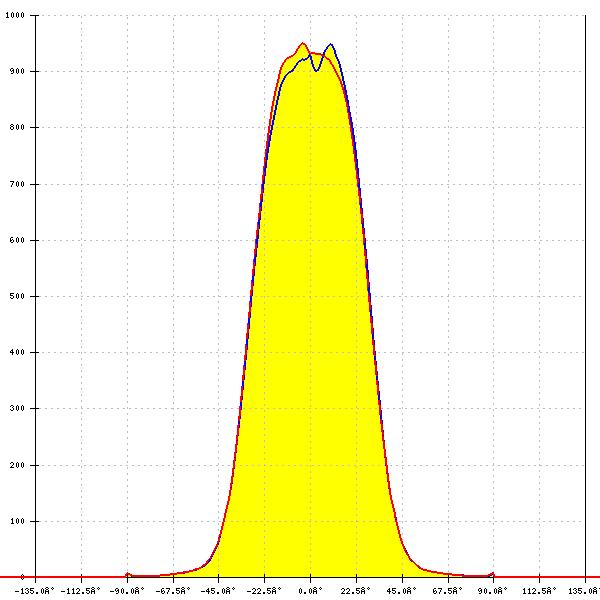

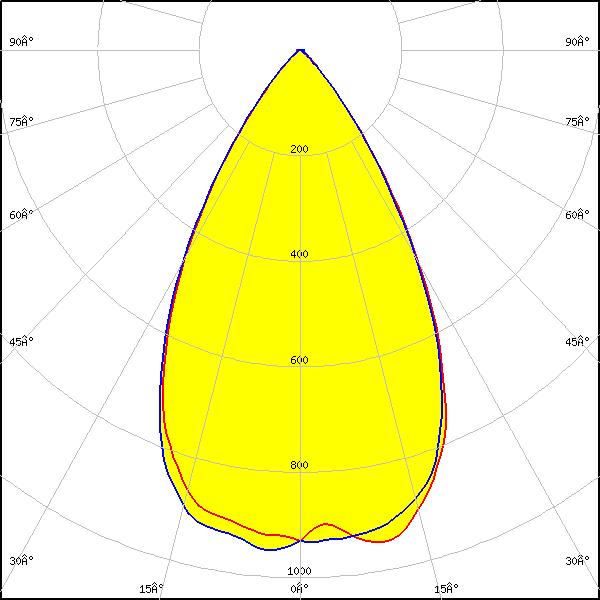

LED:
XHP35.2 HI
FWHM:
60°
FWTM:
84°
Peak intensity:
0.953 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

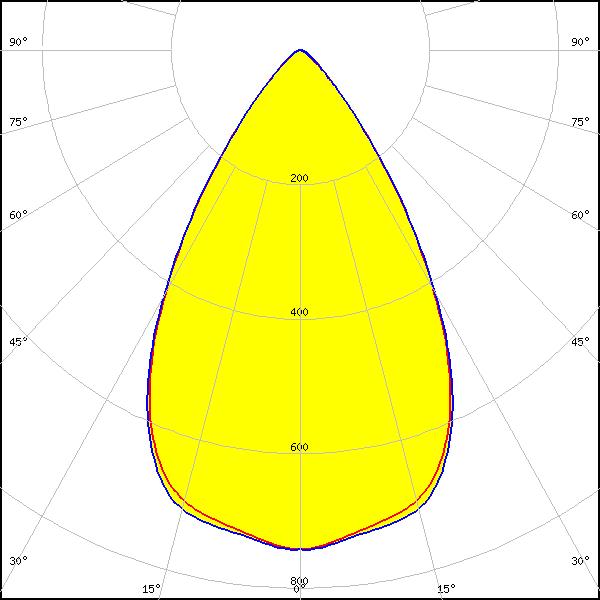

LED:
XHP50.2
FWHM:
63°
FWTM:
91°
Peak intensity:
0.747 cd/lm
Efficiency:
79 %
LEDs/each optic:
1
Light colour/type:
White

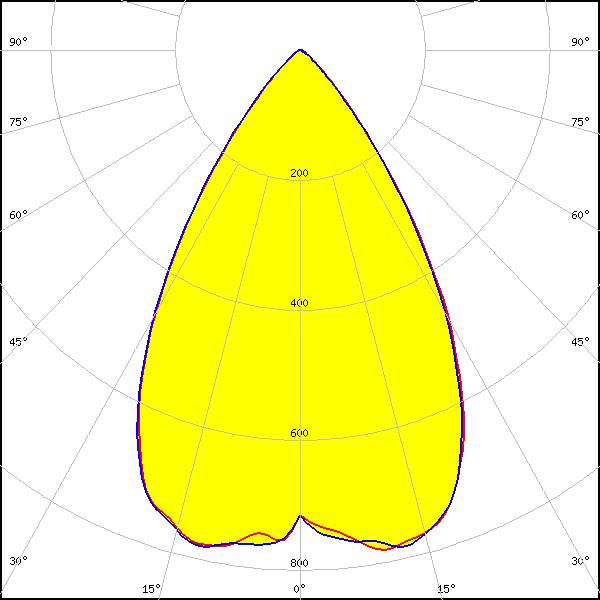

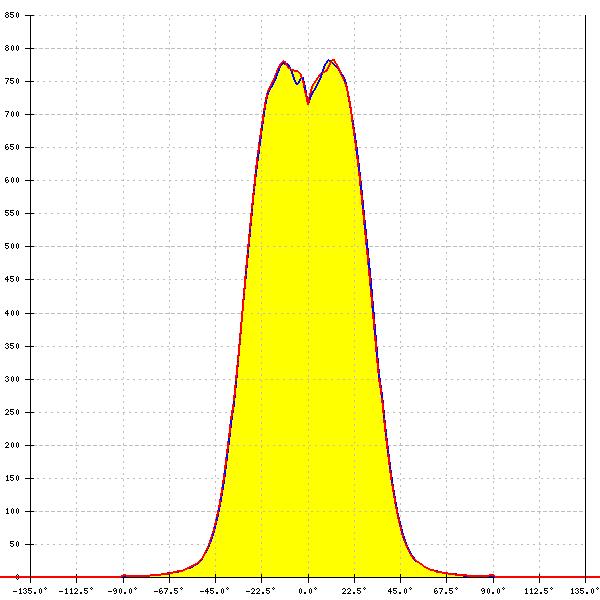

LED:
XHP50.3 HD
FWHM:
65°
FWTM:
90°
Peak intensity:
0.801 cd/lm
Efficiency:
86 %
LEDs/each optic:
1
Light colour/type:
White

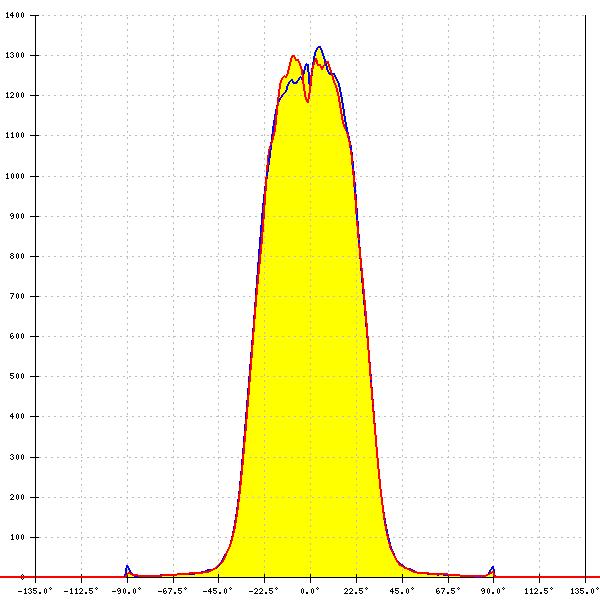

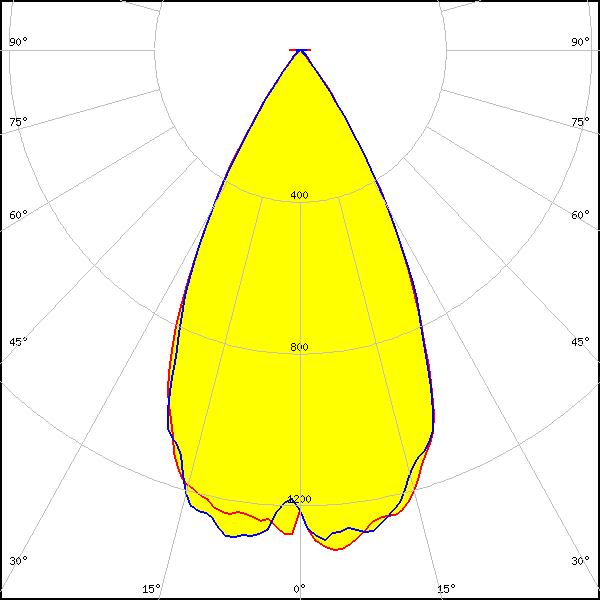

LED:
XP-G3
FWHM:
54°
FWTM:
74°
LEDs/each optic:
1
Light colour/type:
White

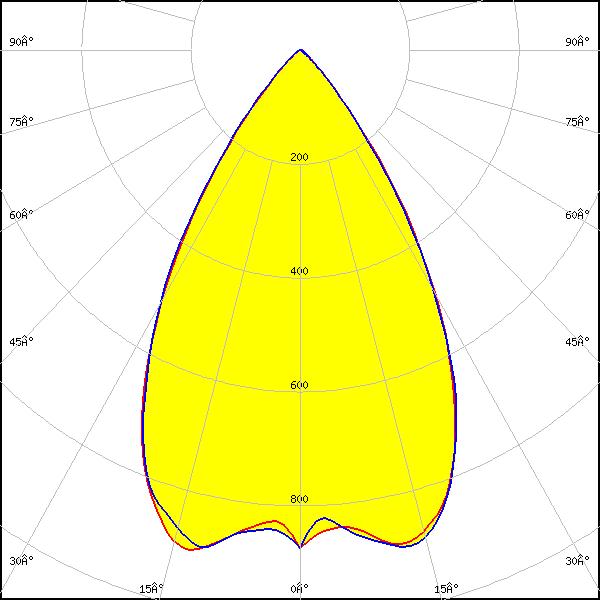

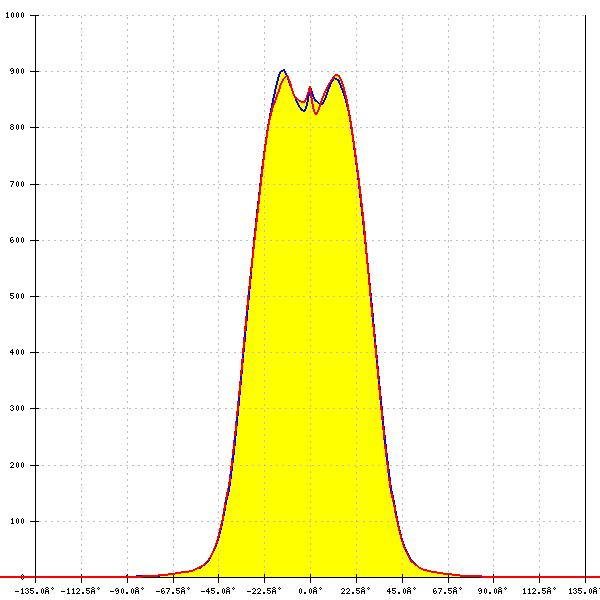

LED:
XP-G4
FWHM:
63°
FWTM:
87°
Peak intensity:
0.904 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
White

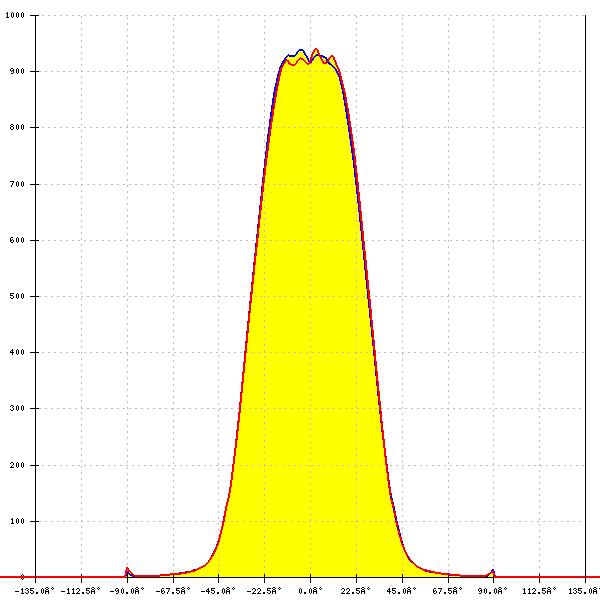

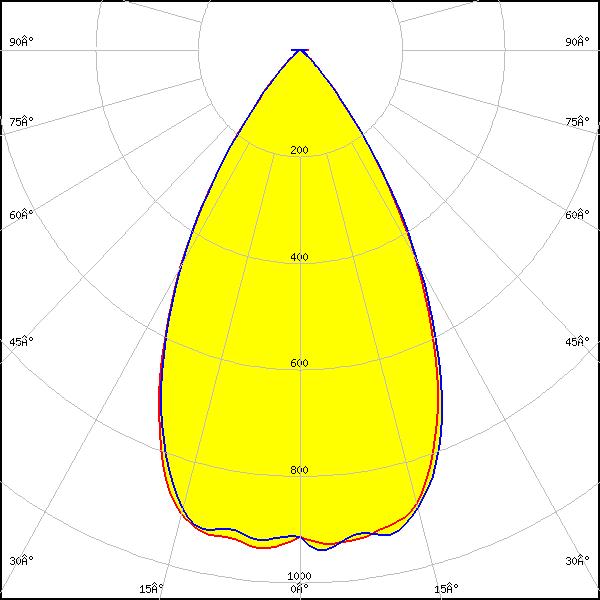

LED:
XP-G4 HI
FWHM:
60°
FWTM:
86°
Peak intensity:
0.948 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

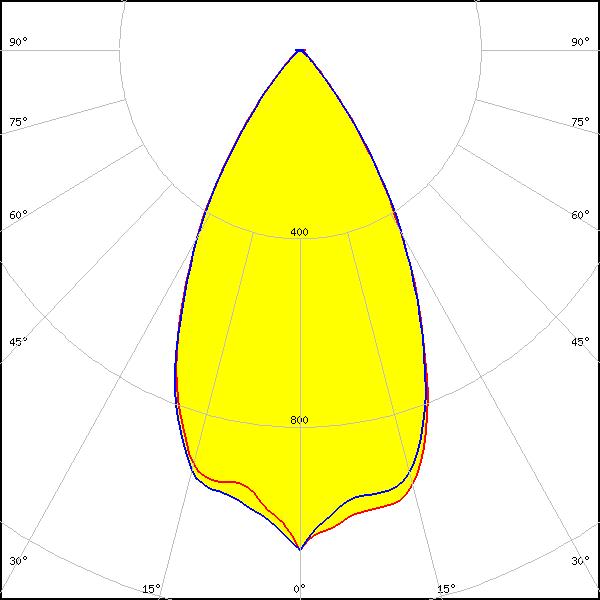

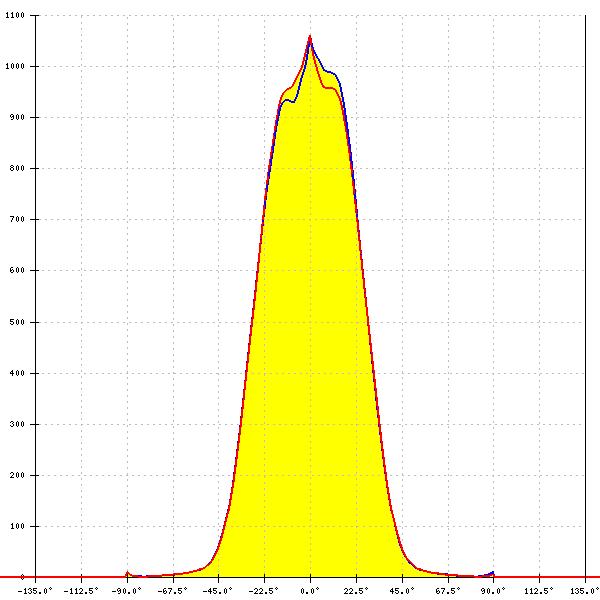

LED:
XQ-E HI
FWHM:
56°
FWTM:
83°
Peak intensity:
1.061 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

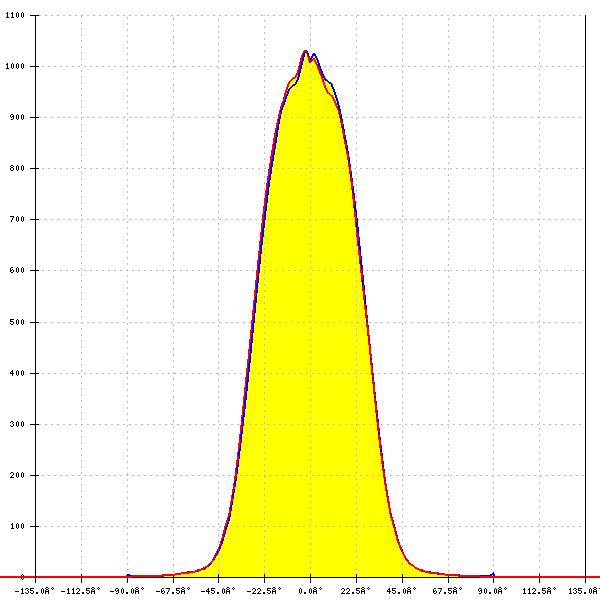

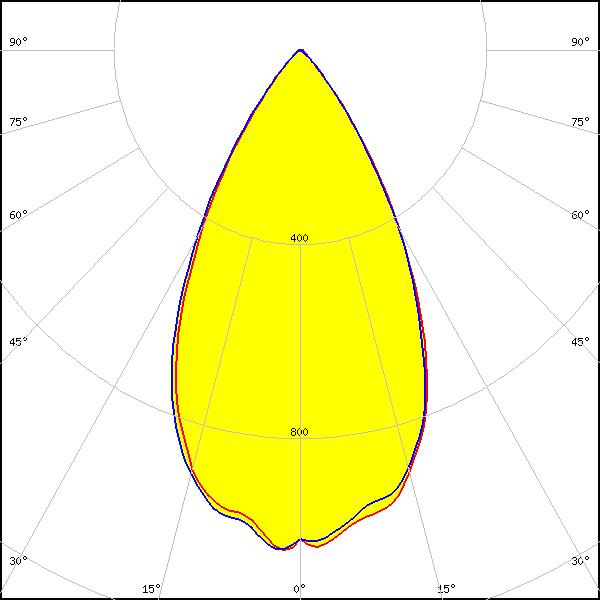

LED:
XT-E
FWHM:
56°
FWTM:
82°
Peak intensity:
1.031 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

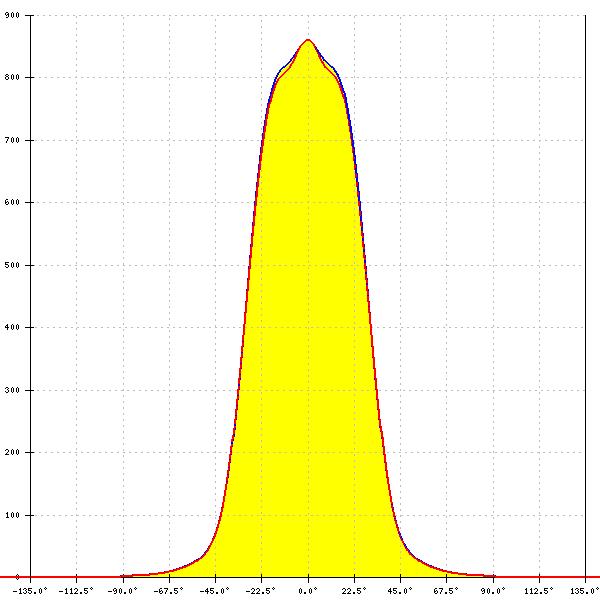

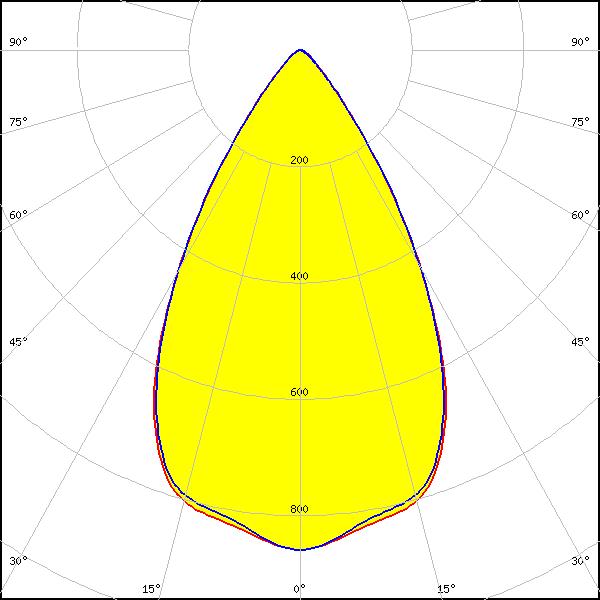

LED:
LUXEON 5050 Round LES
FWHM:
60°
FWTM:
86°
Peak intensity:
0.862 cd/lm
Efficiency:
83 %
LEDs/each optic:
1
Light colour/type:
White

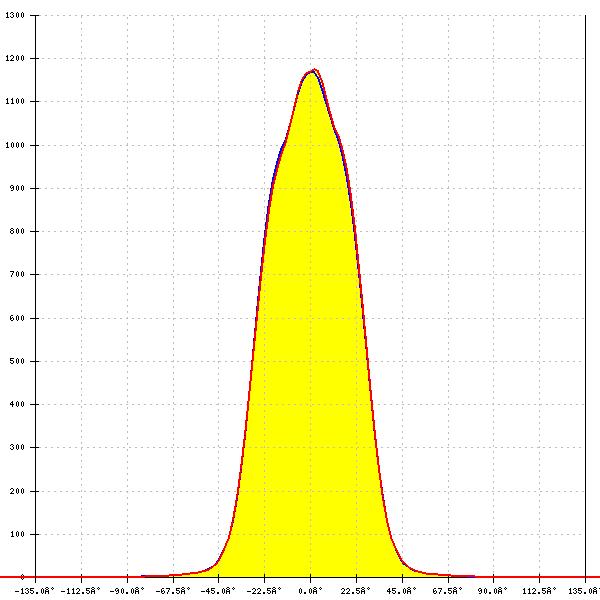

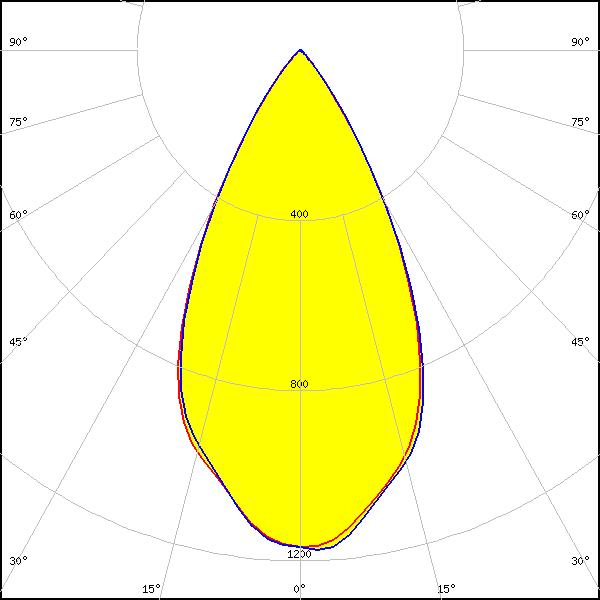

LED:
LUXEON HL2Z
FWHM:
52°
FWTM:
76°
Peak intensity:
1.177 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

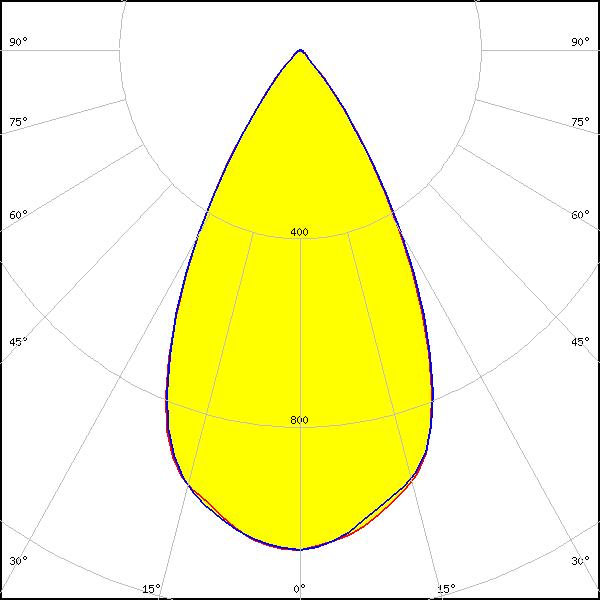

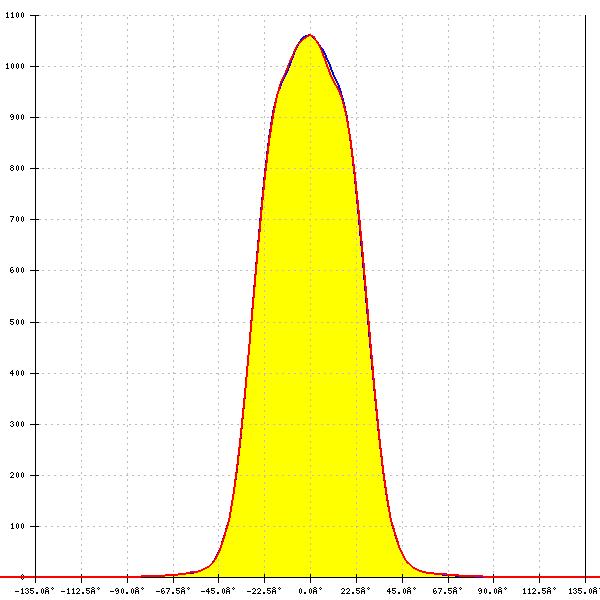

LED:
LUXEON HL4Z
FWHM:
56°
FWTM:
80°
Peak intensity:
1.063 cd/lm
Efficiency:
88 %
LEDs/each optic:
1
Light colour/type:
White

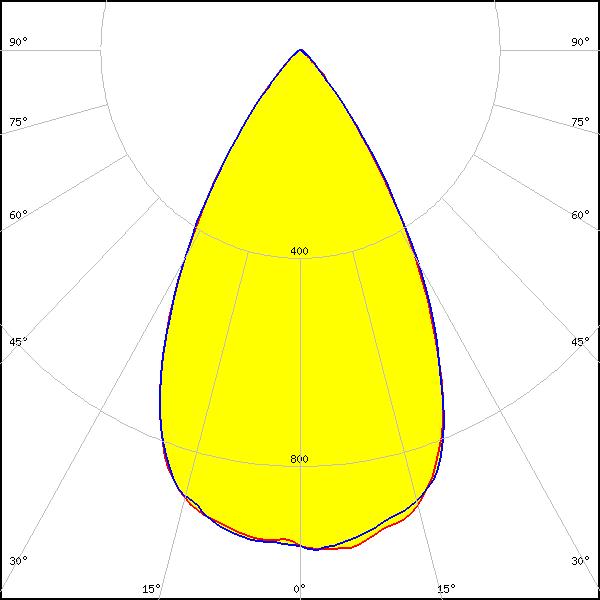

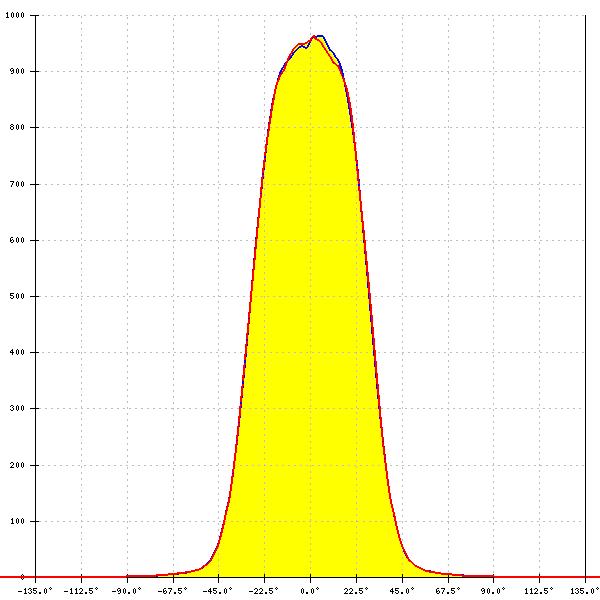

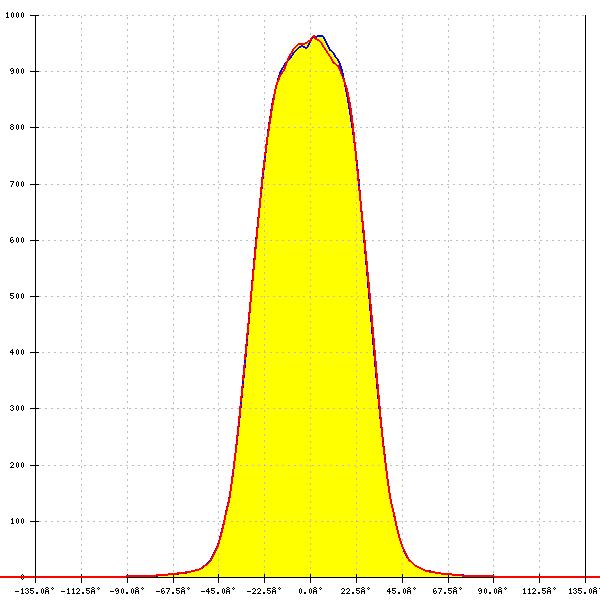

LED:
NV4WB35AM
FWHM:
60°
FWTM:
84°
Peak intensity:
0.986 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219GF
FWHM:
60°
FWTM:
84°
Peak intensity:
0.979 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
LED:
NVSW219GL
FWHM:
63°
FWTM:
88°
Peak intensity:
0.886 cd/lm
Efficiency:
89 %
LEDs/each optic:
1
Light colour/type:
White

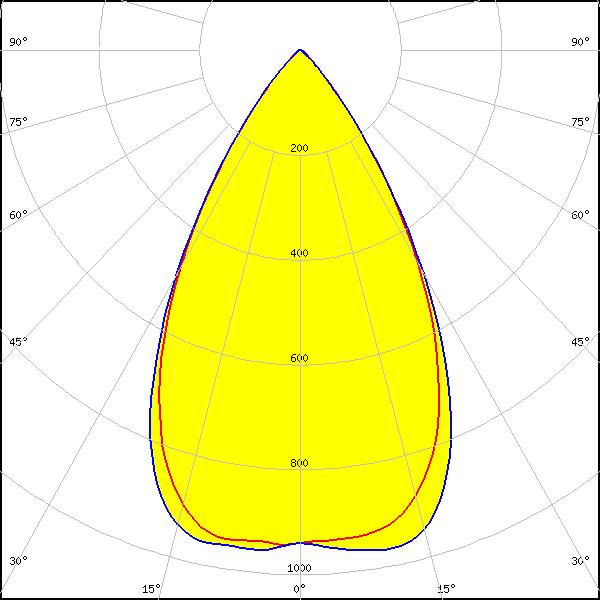

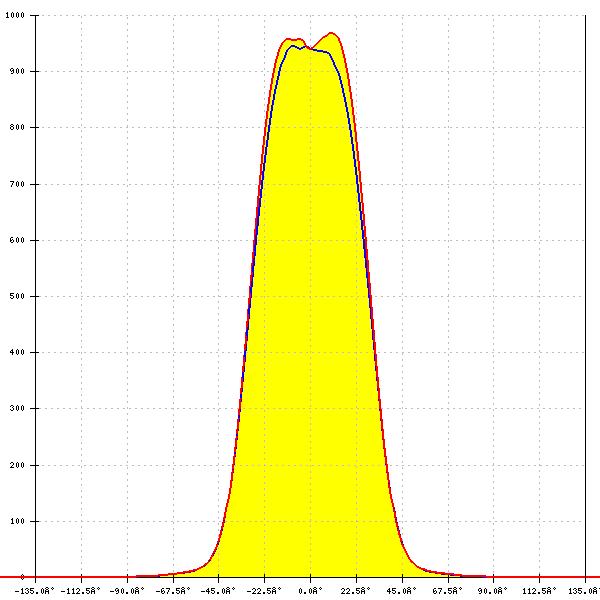

LED:
OSTAR Stage (S2WP)
FWHM:
60°
FWTM:
85°
Peak intensity:
0.969 cd/lm
Efficiency:
91 %
LEDs/each optic:
1
Light colour/type:
Red

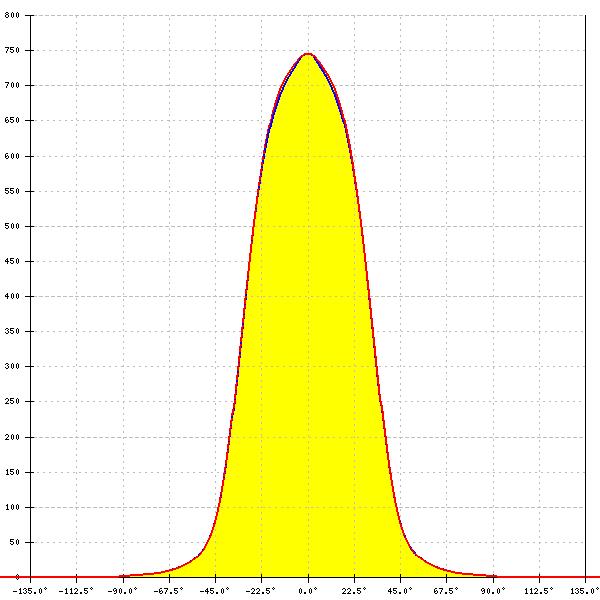

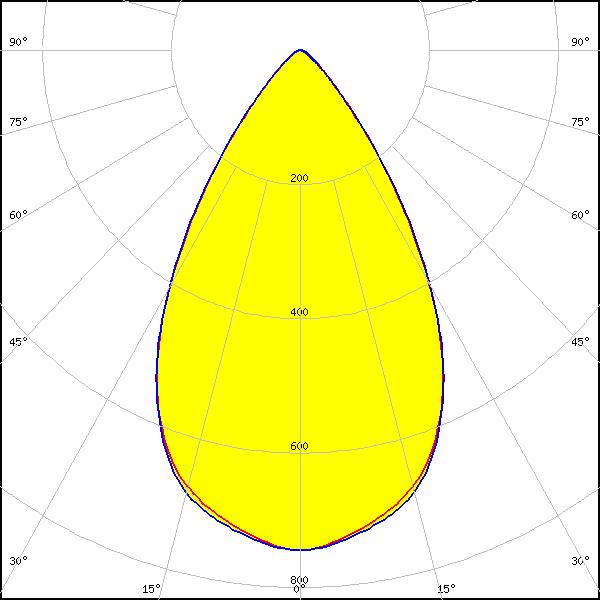

LED:
WICOP 5050
FWHM:
62°
FWTM:
91°
Peak intensity:
0.746 cd/lm
Efficiency:
78 %
LEDs/each optic:
1
Light colour/type:
White
LED:
Z5M4
FWHM:
59°
FWTM:
82°
Peak intensity:
1.016 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
