    IRIS-IR

    Print

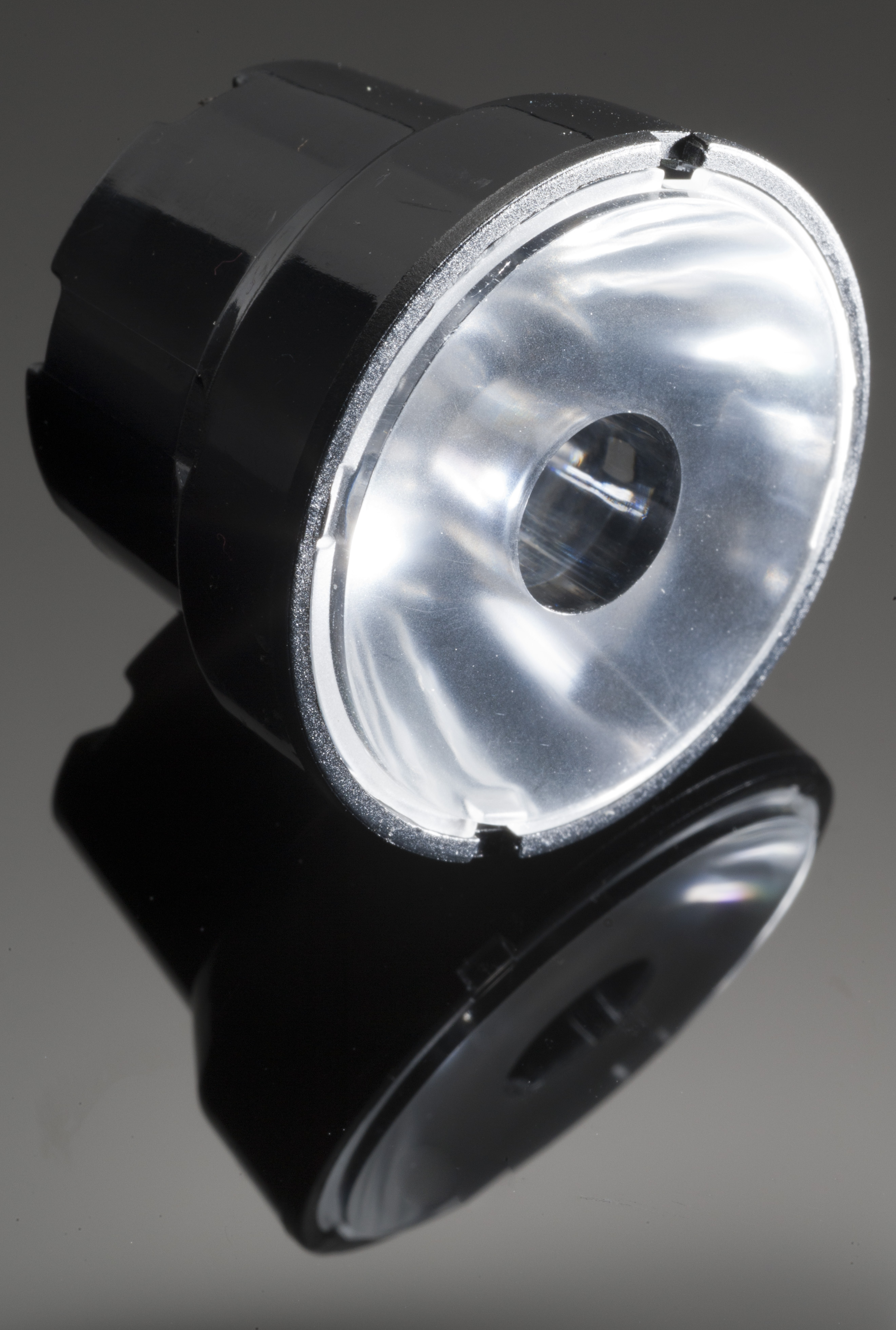

    ~10° infrared spot beam with holder

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      38 mm
    • Height:
      28.60 mm
    • Fastening:
      glue
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantities for one set:
    • Single lens
      1 pcs
    • Holder
      1 pcs
    • Single lens
    • C10781_IRIS
      clear
    • Quantity in box:
      580 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      9.00 kg
    • MPQ:
      58 pcs
    • MOQ:
      116 pcs
    • MOQ Size:
      480 x 280 x 80 mm
    • MOQ Weight:
      1.90 kg
    • Holder
    • C12741_IRIS-HLD-IR
      black
    • Quantity in box:
      1044 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      7.40 kg
    • MPQ:
      29 pcs
    • MOQ:
      116 pcs
    • MOQ Size:
      480 x 280 x 70 mm
    • MOQ Weight:
      1.00 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      C10781_IRIS
      C12741_IRIS-HLD-IR
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Training video

    Seeing further with LEDiL´s IR optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR175 - Change of amount in carton

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    Victory Square in Saint-Petersburg

    Application area

    Outdoor Special Applications

    Application area

    Architectural Outdoor Lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Installation guide

    IRIS Lens Assembly Instructions

    Optical results

    LED: LUXEON IR Domed 150 (L1I0-0xxx150000000)
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.037 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: LUXEON IR Domed 60 (L1I0-0xxx060000000)
    FWHM: 9°
    FWTM: 18°
    Peak intensity: 27.632 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: LUXEON IR Domed 90 (L1I0-0xxx090000000)
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 31.828 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4715AS
    FWHM: 10°
    FWTM: 18°
    Peak intensity: 28.132 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4715S
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 31.017 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4716AS
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 33.584 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4716S
    FWHM: 8°
    FWTM: 16°
    Peak intensity: 35.328 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: IR
    LED: SFH 4717AS
    FWHM: 10°
    FWTM: 20°
    Peak intensity: 21.987 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: IR
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
    Are we missing optical results for a certain LED?
    SEND A MESSAGE
