WINNIE-O-C

Print

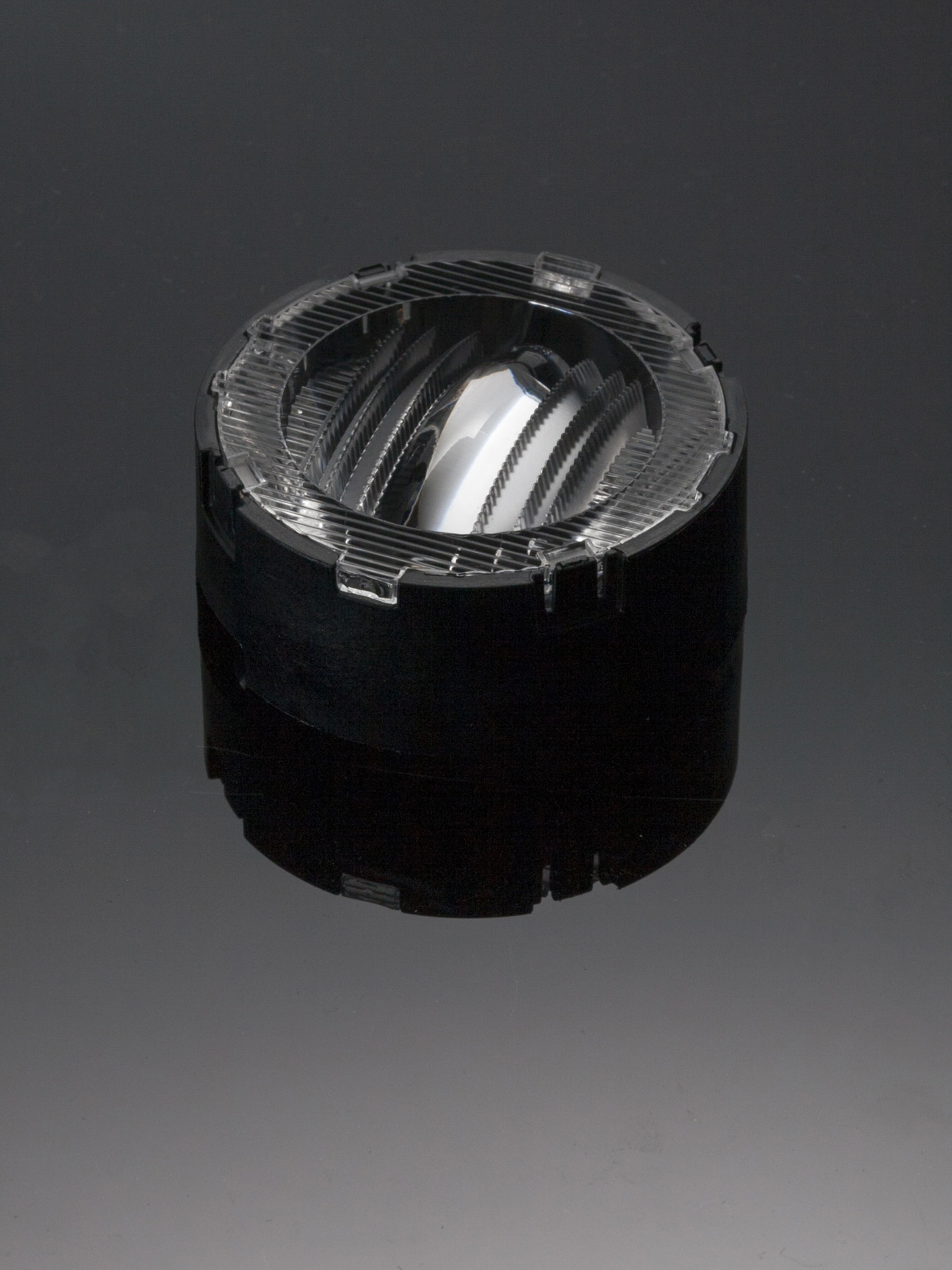

~60° + 20° oval beam with holder C compatible with LEDiL HEKLA

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    50 mm
  • Height:
    19.50 mm
  • Fastening:
    socket
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Single lens
    1 pcs
  • Holder
    1 pcs
  • Single lens
  • C14760_WINNIE-O
    clear
  • Quantity in box:
    364 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    6.95 kg
  • MPQ:
    28 pcs
  • MOQ:
    84 pcs
  • MOQ Size:
    480 x 280 x 80 mm
  • MOQ Weight:
    1.70 kg
  • Holder
  • C15821_WINNIE-HLD-C
    black
  • Quantity in box:
    420 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    4.10 kg
  • MPQ:
    28 pcs
  • MOQ:
    pcs
  • MOQ Size:
  • MOQ Weight:
    0.00 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    PRODUCT NAME(S):
    C14760_WINNIE-O
    C15821_WINNIE-HLD-C

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

Optical results

LED: CXM-4
LES size: 4.5 mm
Required components:
FWHM: 62° + 16°
FWTM: 78° + 39°
Peak intensity: 1.967 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White
