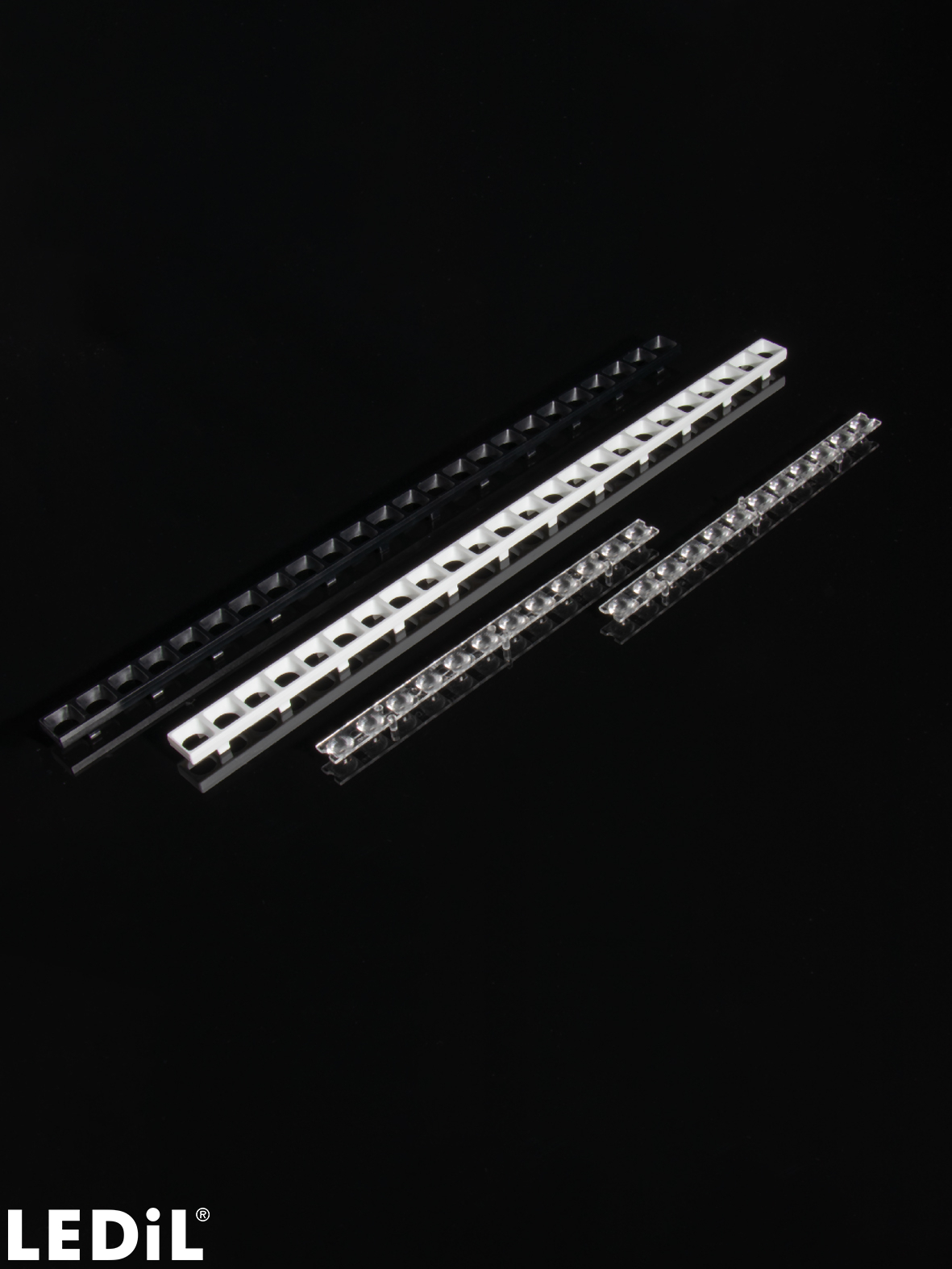

DALINE-10-O

Print

~25 + 60° oval beam

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    280 x  13 mm
  • Height:
    9.77 mm
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    2 pcs
  • Shade
    1 pcs
  • Linear lens
  • C19330_DALINE-10-O
    clear
  • Quantity in box:
    1560 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    7.90 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ Size:
    480 x 280 x 30 mm
  • MOQ Weight:
    0.50 kg
  • Shade
  • C19333_DALINE-10-SHD1-MATT
    black,matt
  • C19509_DALINE-10-SHD1-WHT-MATT
    white,matt
  • C19618_DALINE-10-SHD2-MATT
    black,matt
  • C19620_DALINE-10-SHD2-WHT-MATT
    white,matt
  • Quantity in box:
    390 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    5.90 kg
  • MPQ:
    26 pcs
  • MOQ:
    26 pcs
  • MOQ Size:
    400 x 300 x 50 mm
  • MOQ Weight:
    0.60 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  • Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting>
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C19330_DALINE-10-O
    C19333_DALINE-10-SHD1-MATT
    Architectural indoor lighting
    Architectural outdoor lighting
    Area and car park lighting
    Entertainment lighting
    Horticultural lighting
    Industrial lighting
    Office lighting
    Retail lighting
    Special indoor applications
    Special outdoor applications
    Sports indoor lighting
    Sports outdoor lighting
    Street lighting
    Tunnel and transportation lighting
    Other

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

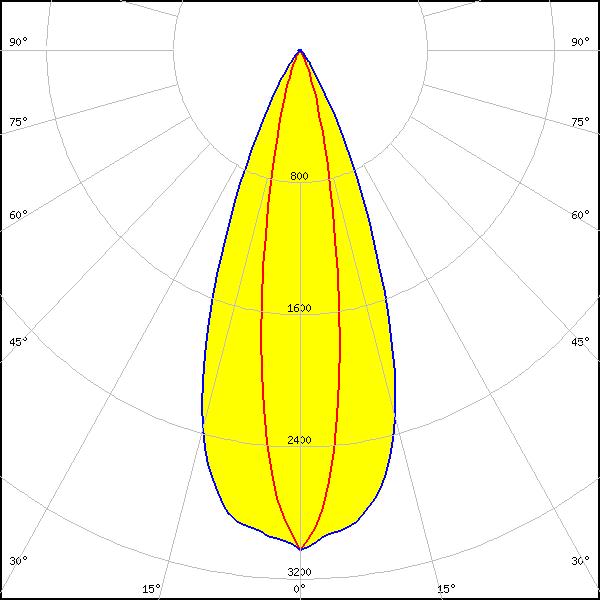

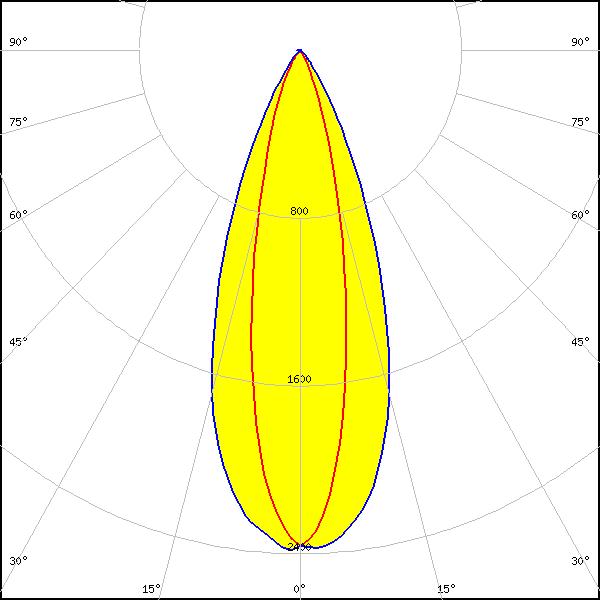

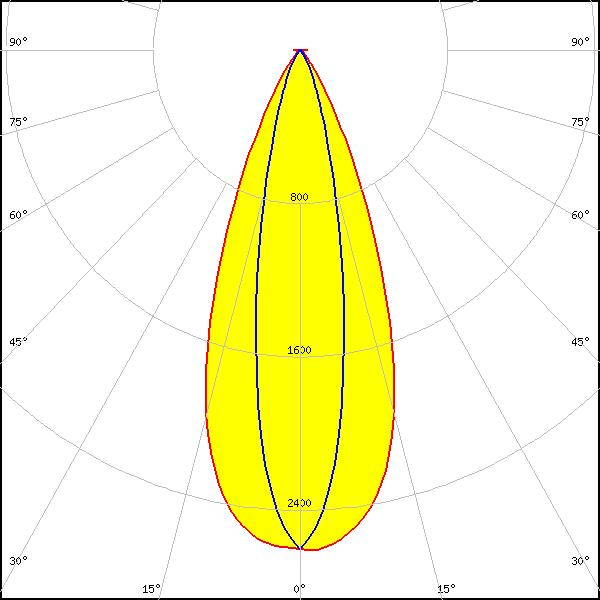

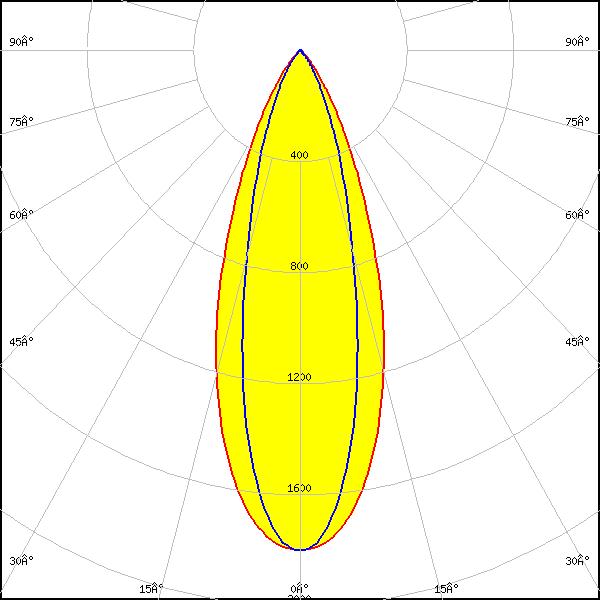

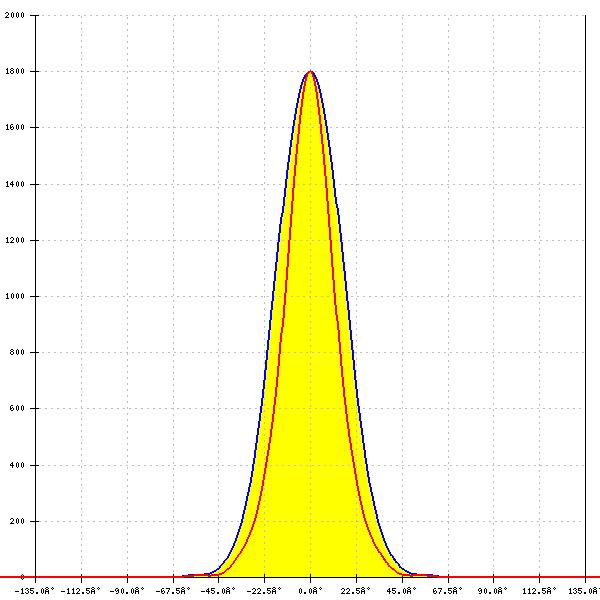

Optical results

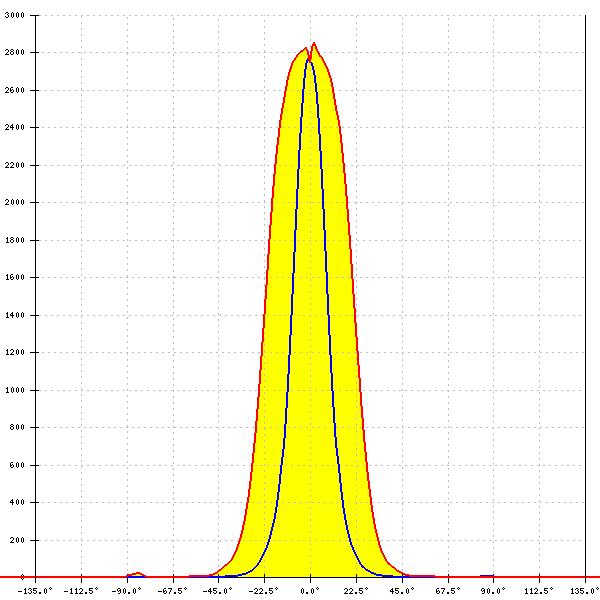

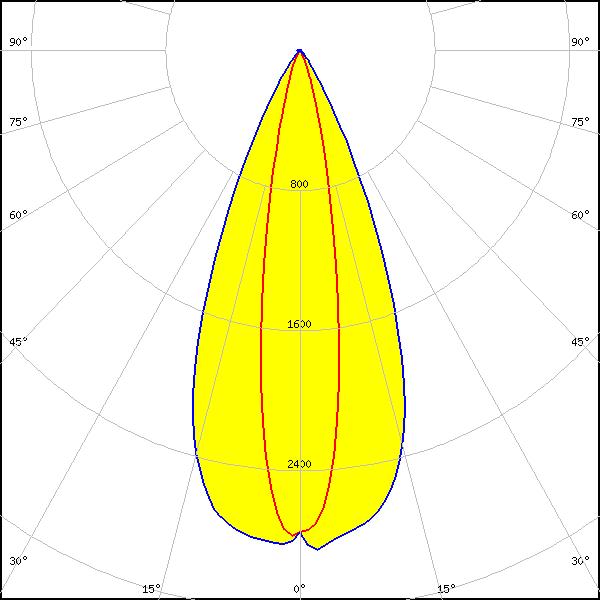

LED: CSP 1111 (BXCP)
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 44° + 19°
FWTM: 0° + 0°
Peak intensity: 2.800 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

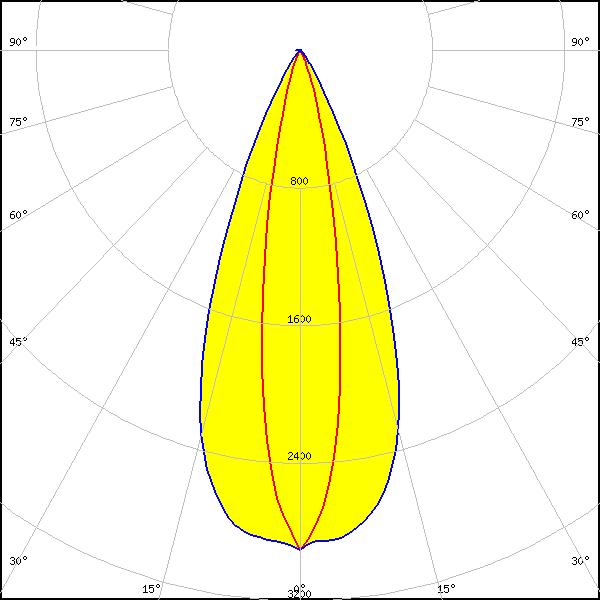

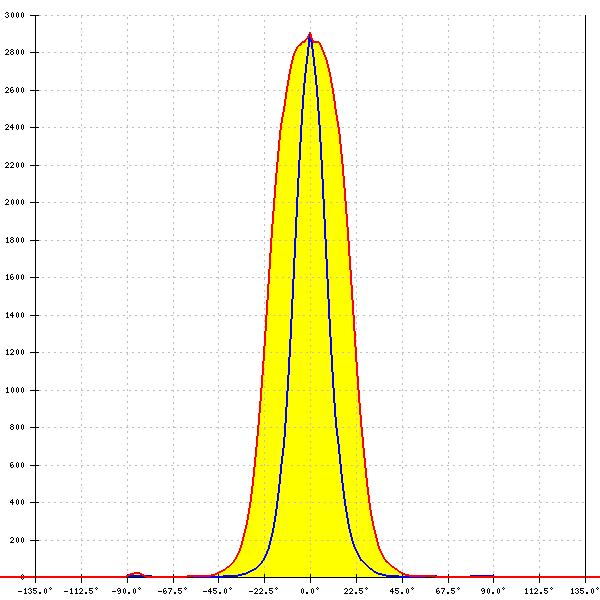

LED: XQ-E HI
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 42° + 19°
FWTM: 0° + 0°
Peak intensity: 2.900 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

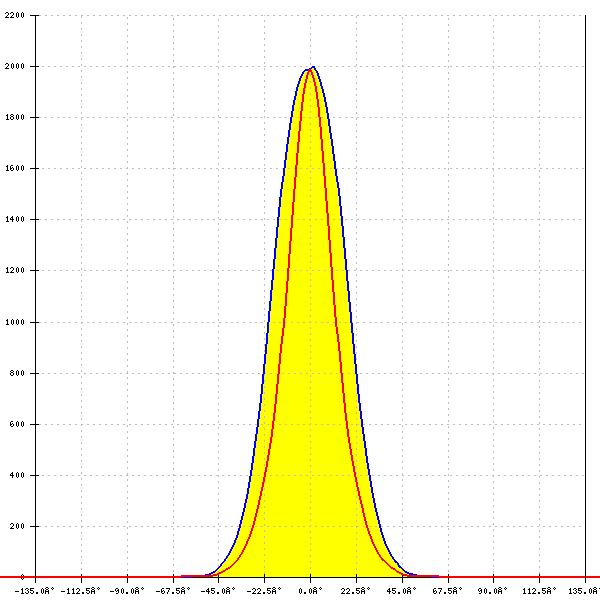

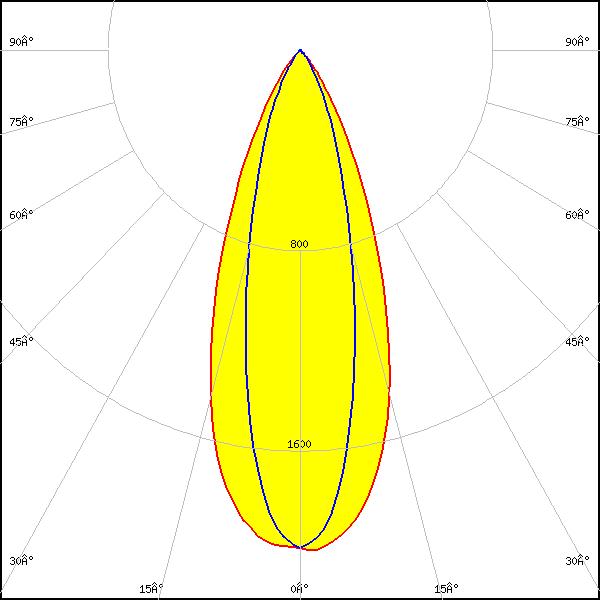

LED: LUXEON 2835 Line
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 40° + 26°
FWTM: 69° + 56°
Peak intensity: 2.003 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

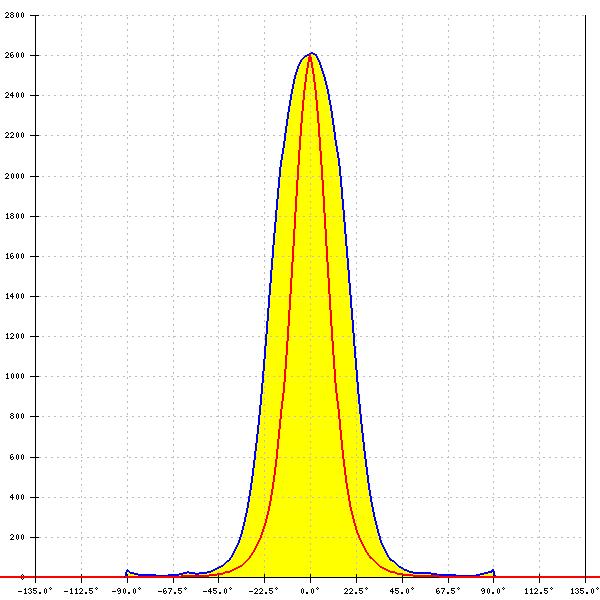

LED: LUXEON 3014
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 42° + 20°
FWTM: 66° + 44°
Peak intensity: 2.610 cd/lm
Efficiency: 86 %

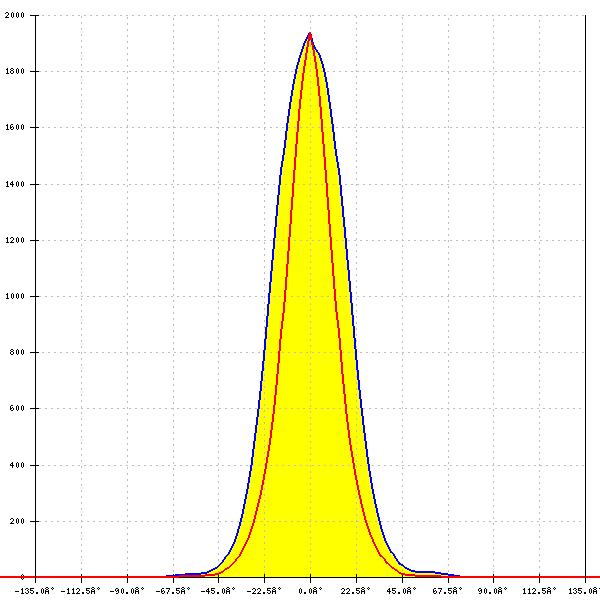

LEDs/each optic: 1
Light colour/type: White

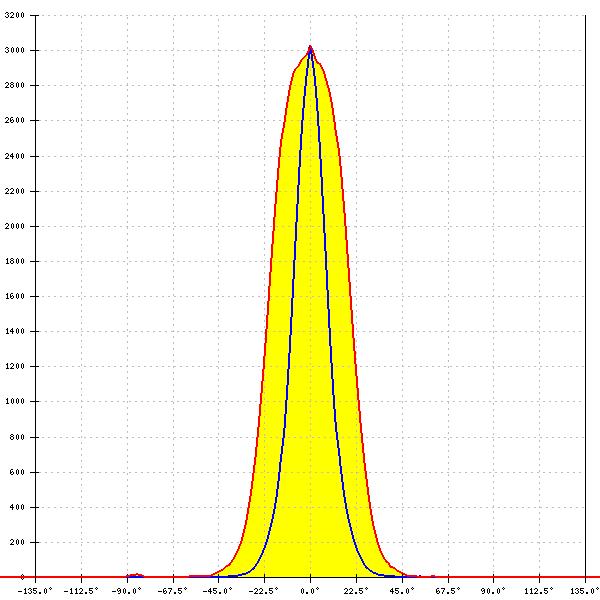

LED: LUXEON CSP HL1
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 41° + 19°
FWTM: 0° + 0°
Peak intensity: 3.000 cd/lm
Efficiency: 84 %
LEDs/each optic: 1
Light colour/type: White

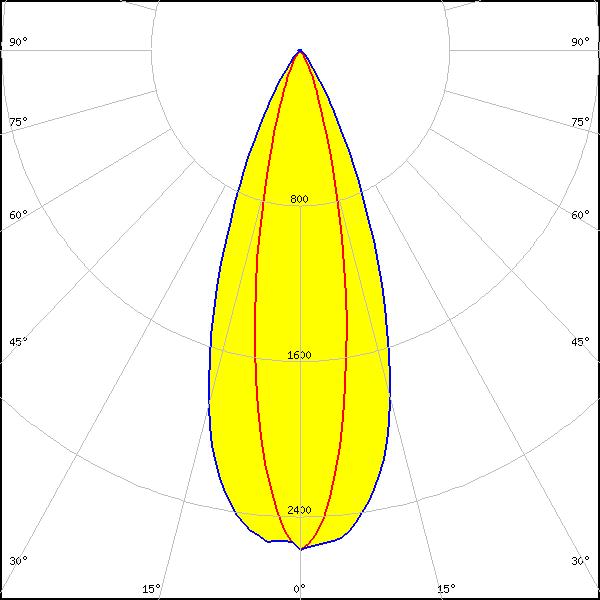

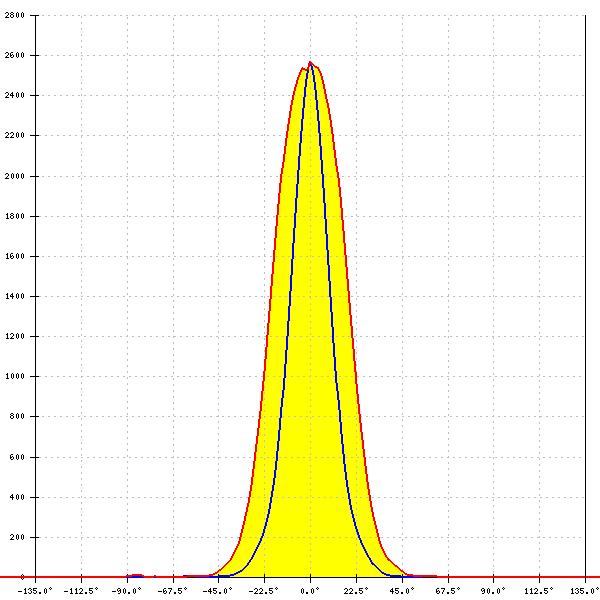

LED: LUXEON Z ES
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 40° + 22°
FWTM: 0° + 0°
Peak intensity: 2.570 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

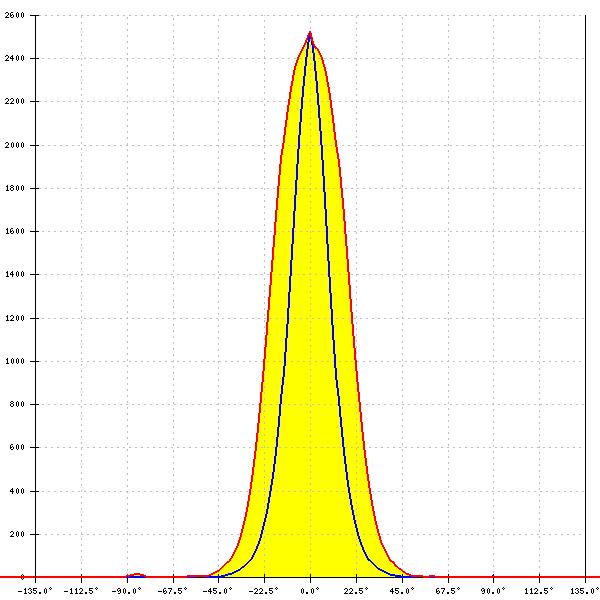

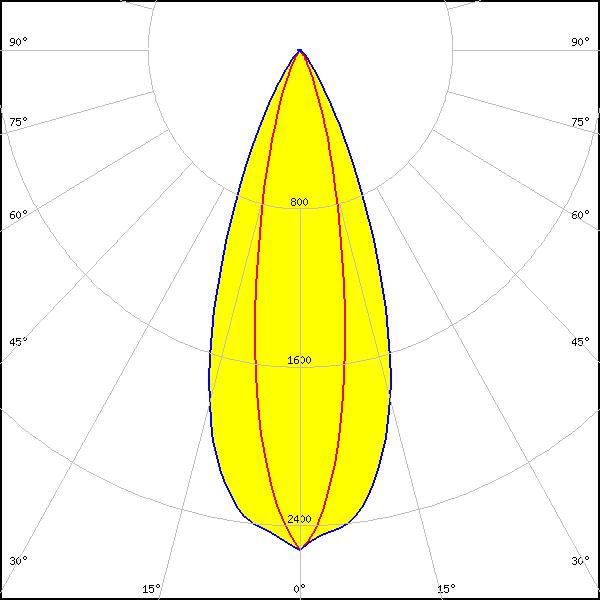

LED: NCSxE17A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 40° + 21°
FWTM: 0° + 0°
Peak intensity: 2.520 cd/lm
Efficiency: 79 %
LEDs/each optic: 1
Light colour/type: White

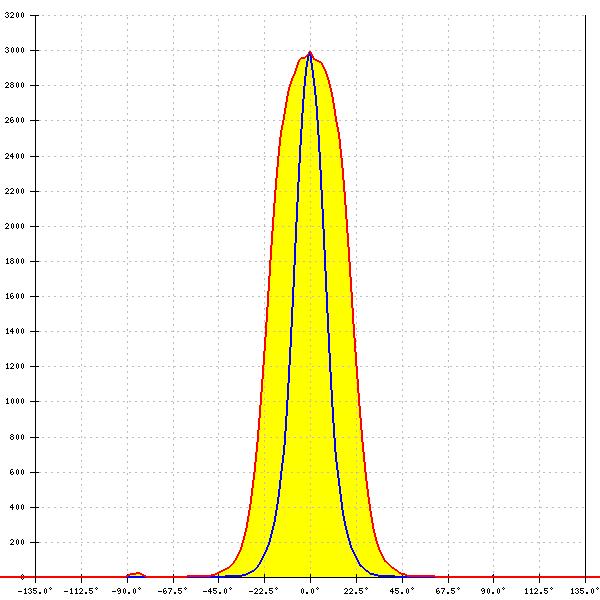

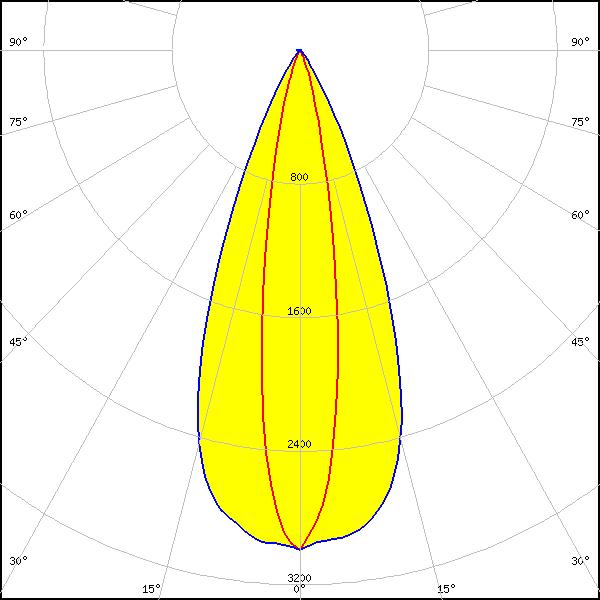

LED: NFSWE11A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 42° + 18°
FWTM: 0° + 0°
Peak intensity: 2.980 cd/lm
Efficiency: 80 %
LEDs/each optic: 1
Light colour/type: White

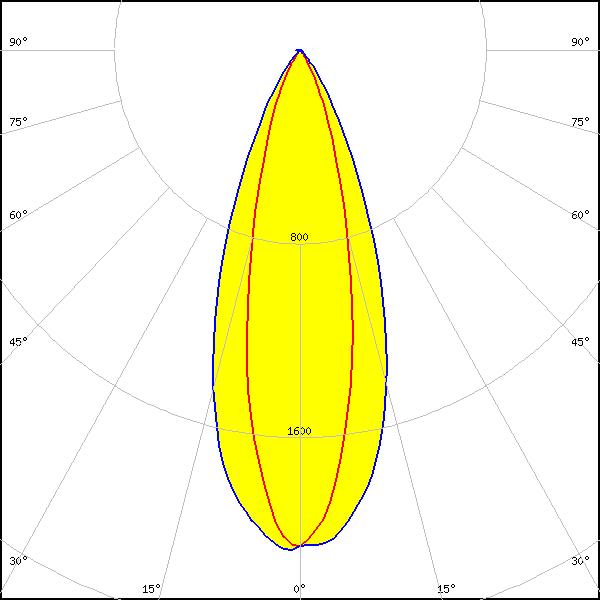

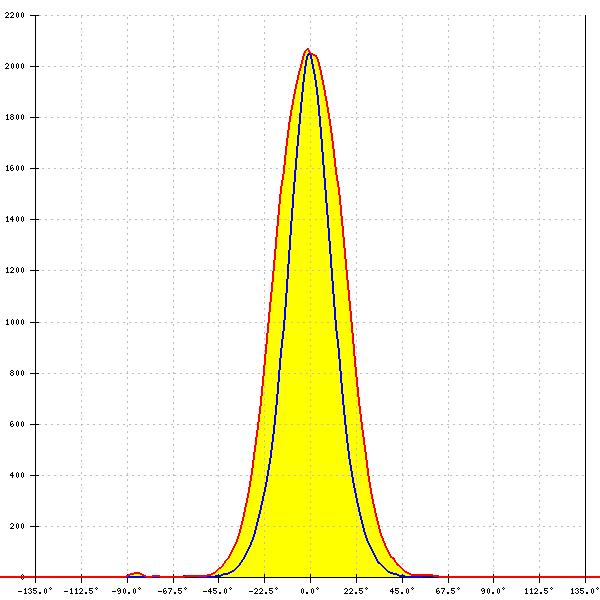

LED: NVSxE21A
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 40° + 25°
FWTM: 0° + 0°
Peak intensity: 2.030 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

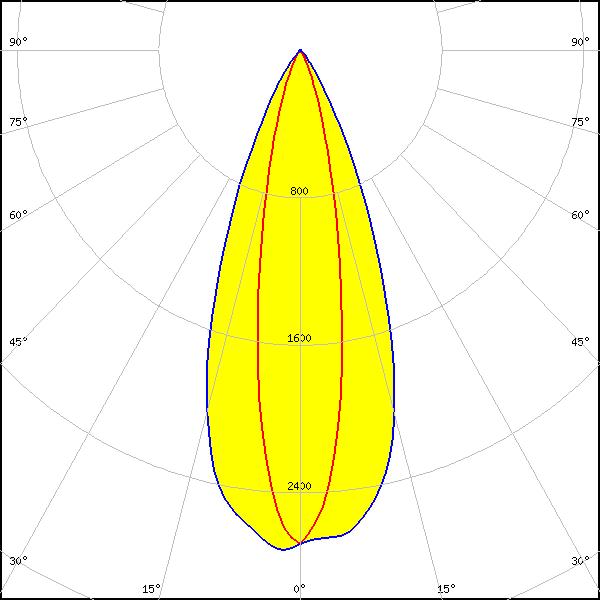

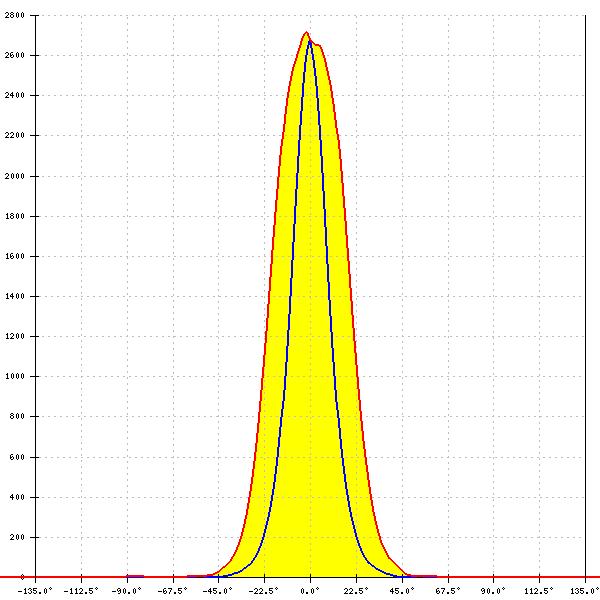

LED: LH151B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 40° + 20°
FWTM: 0° + 0°
Peak intensity: 2.710 cd/lm
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

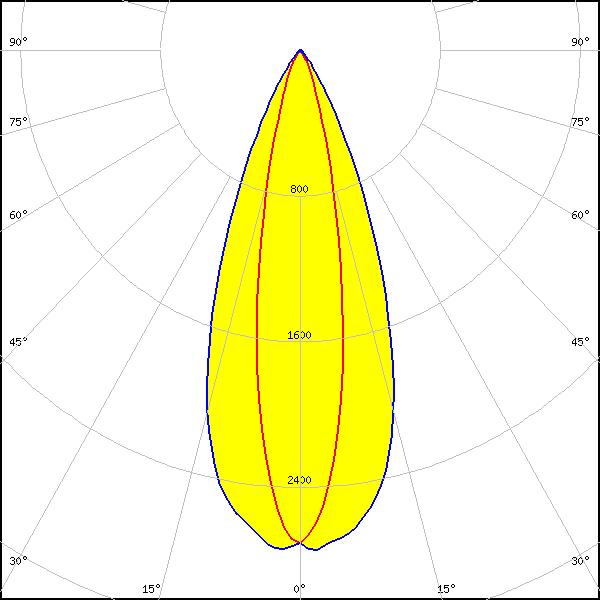

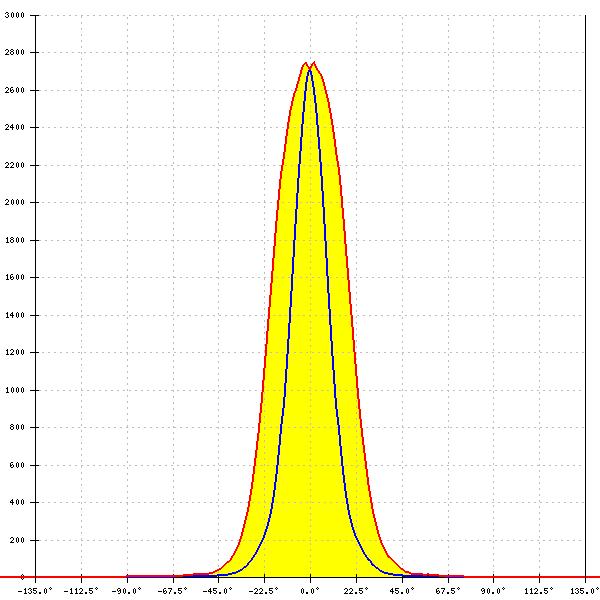

LED: LH151B
Required components:
C19509_DALINE-10-SHD1-WHT-MATT
FWHM: 40° + 20°
FWTM: 0° + 0°
Peak intensity: 2.750 cd/lm
Efficiency: 85 %
LEDs/each optic: 1
Light colour/type: White

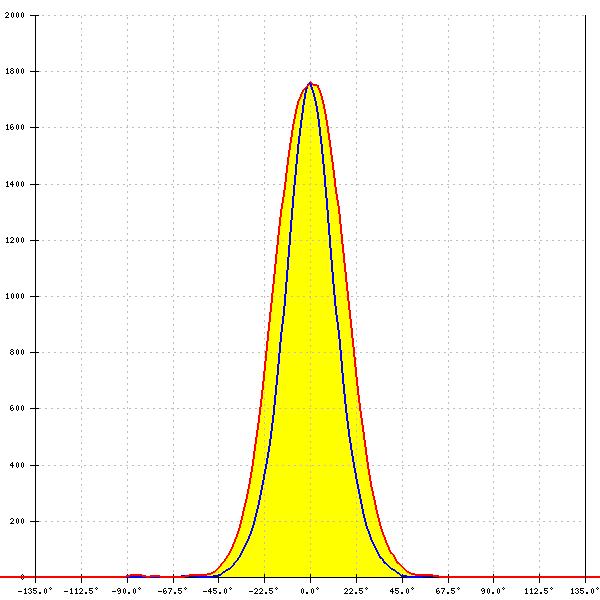

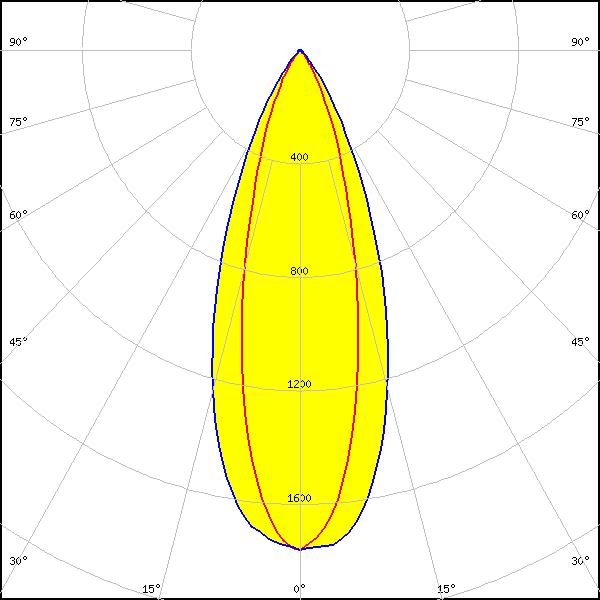

LED: LH181B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 40° + 28°
FWTM: 0° + 0°
Peak intensity: 1.760 cd/lm
Efficiency: 72 %
LEDs/each optic: 1
Light colour/type: White

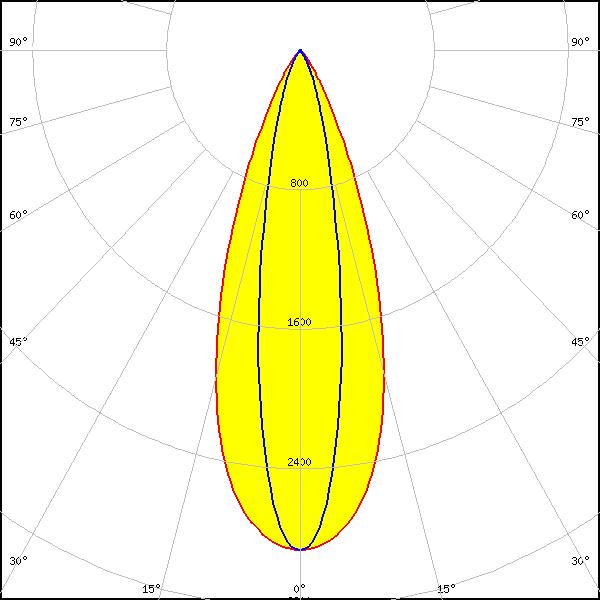

LED: LM101B
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 38° + 20°
FWTM: 63° + 43°
Peak intensity: 2.869 cd/lm
Efficiency: 81 %
LEDs/each optic: 1
Light colour/type: White

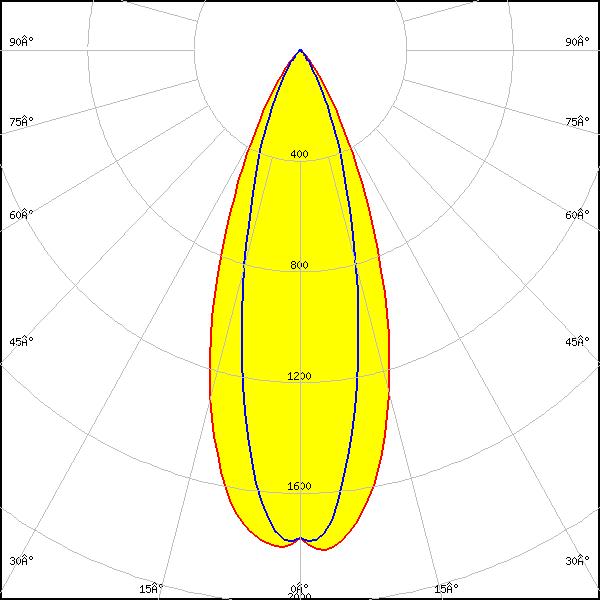

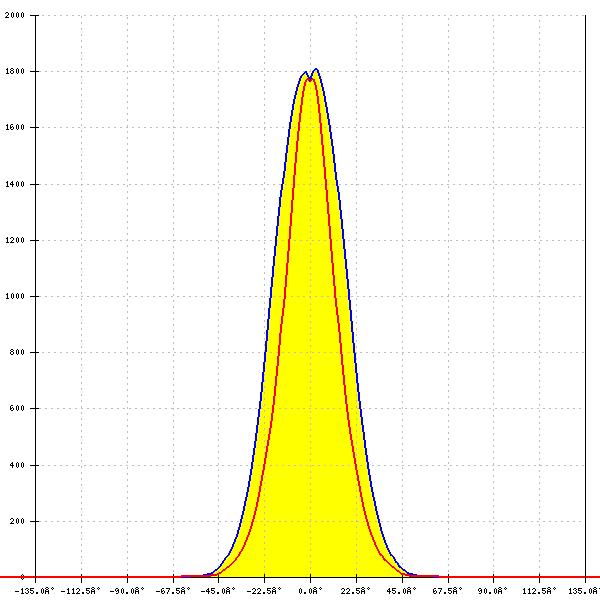

LED: LM28xB Series
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 40° + 28°
FWTM: 70° + 58°
Peak intensity: 1.827 cd/lm
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

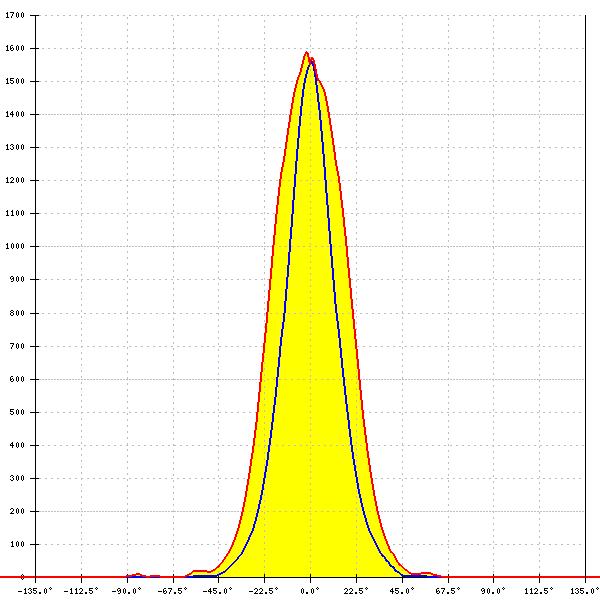

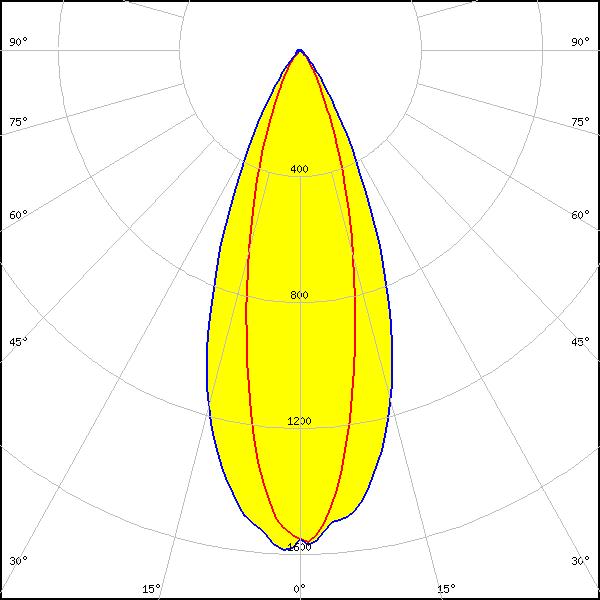

LED: LM301B
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 42° + 26°
FWTM: 0° + 0°
Peak intensity: 1.560 cd/lm
Efficiency: 65 %
LEDs/each optic: 1
Light colour/type: White

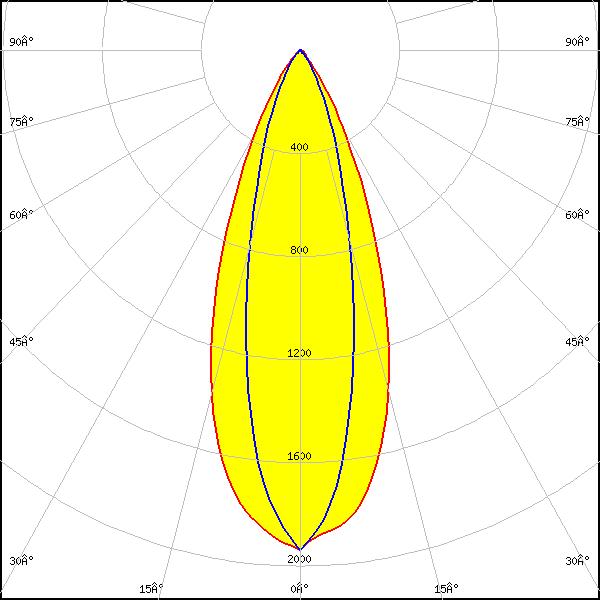

LED: SEOUL 3030
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 40° + 26°
FWTM: 68° + 56°
Peak intensity: 1.940 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

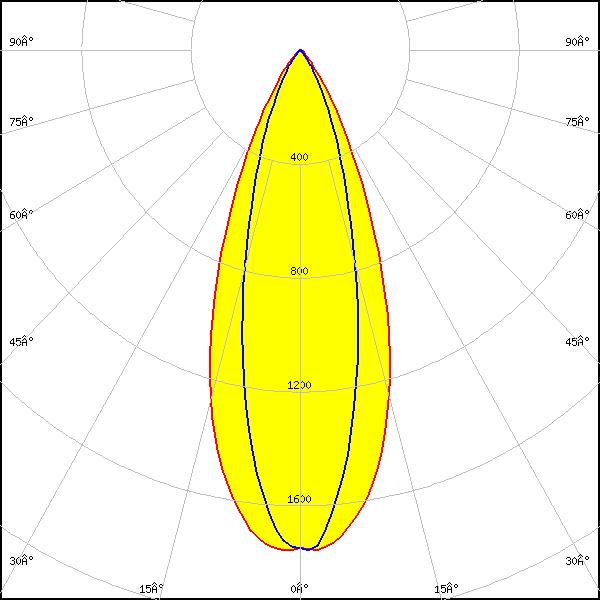

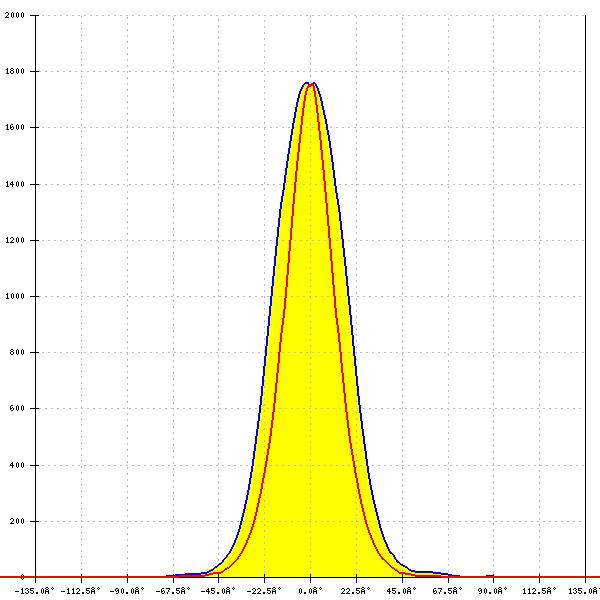

LED: SEOUL DC 3528
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 40° + 28°
FWTM: 70° + 56°
Peak intensity: 1.766 cd/lm
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

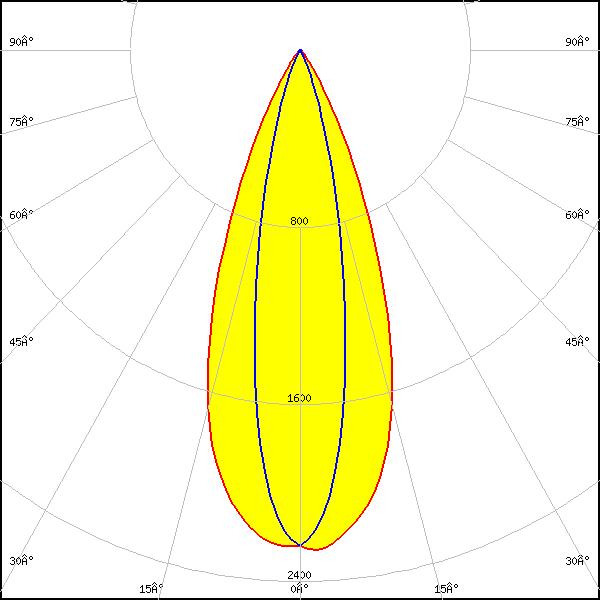

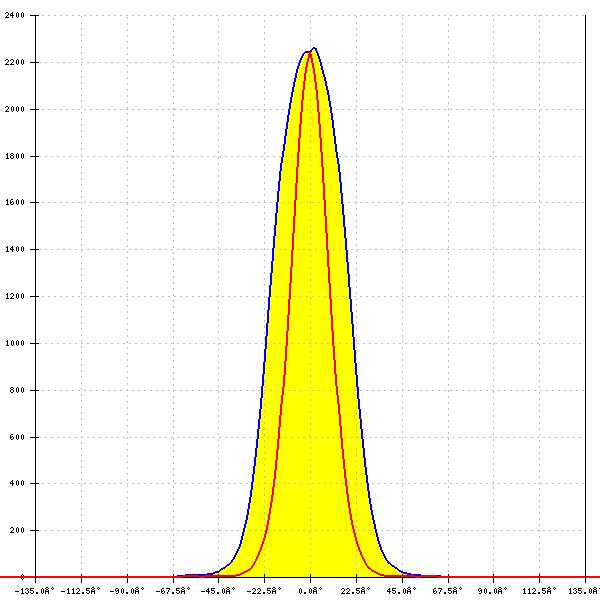

LED: Z8Y11
Required components:
C19618_DALINE-10-SHD2-MATT
FWHM: 40° + 22°
FWTM: 64° + 42°
Peak intensity: 2.268 cd/lm
Efficiency: 69 %
LEDs/each optic: 1
Light colour/type: White

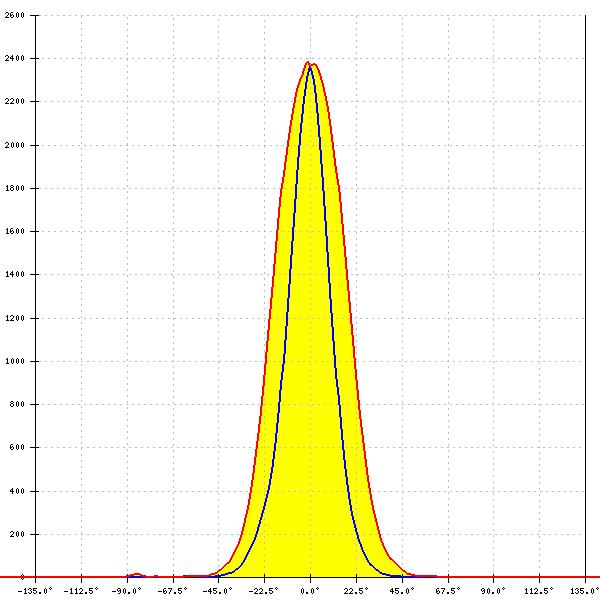

LED: CSP1919
Required components:
C19333_DALINE-10-SHD1-MATT
FWHM: 40° + 23°
FWTM: 0° + 0°
Peak intensity: 2.380 cd/lm
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White
