    DALINE-10-WW

    Print

    ~60° wide beam

    Use SHD1 (short pin) for 0.8 mm profiles and SHD2 (long pin) for 1.6 mm profiles. Note: MP LEDs always use the long pin for optimal focal point alignment.

    This product consists of multiple parts that need to be ordered separately. See ordering information.

    Specification
    • Dimensions:
      140 x  9 mm
    • Height:
      5.25 mm
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information

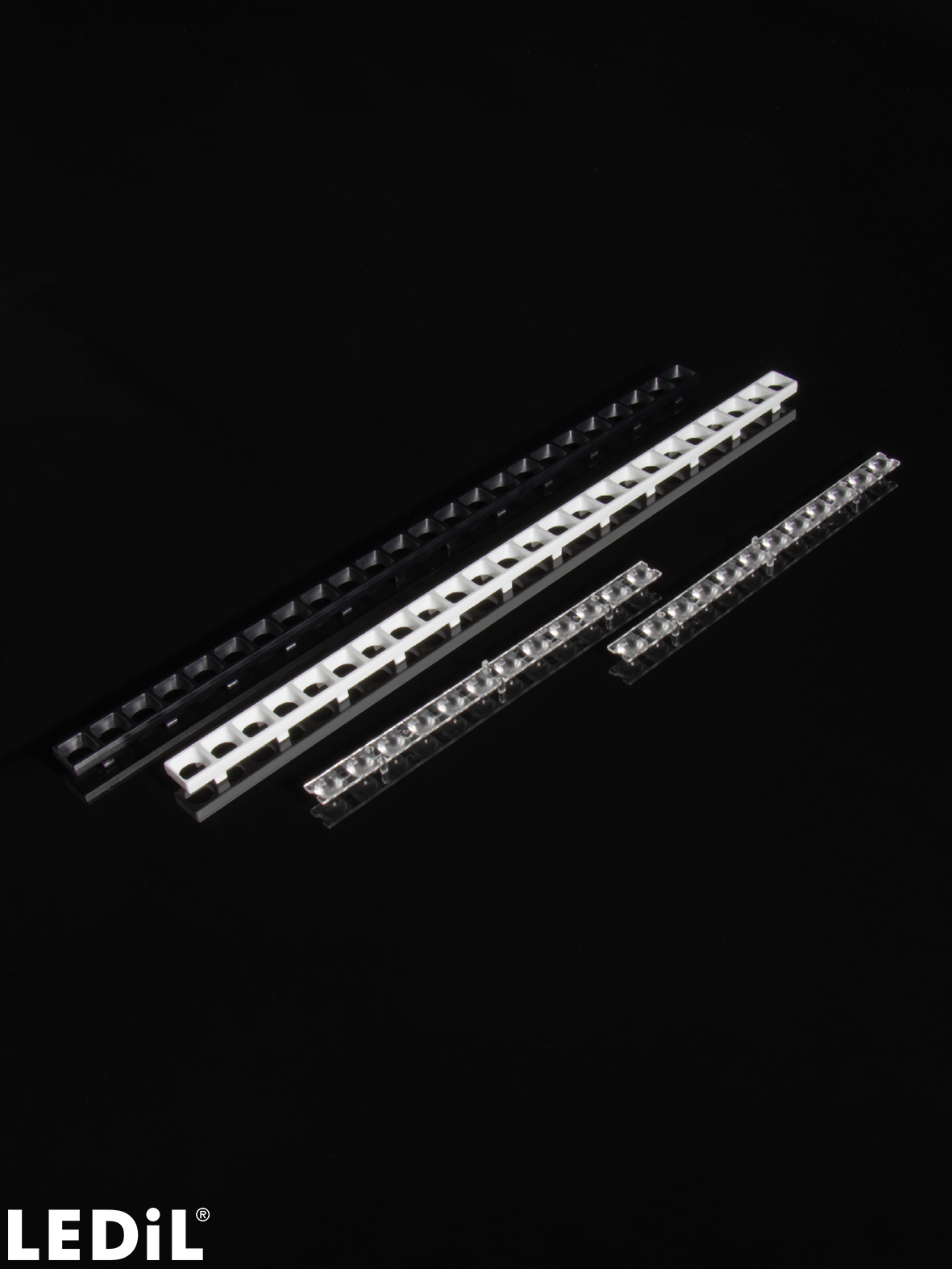

    • Quantities for one set:
    • Linear lens
      2 pcs
    • Shade
      1 pcs
    • Linear lens
    • C19331_DALINE-10-WW
      clear
    • Quantity in box:
      1560 pcs
    • Box size:
      480 x 280 x 300 mm
    • Box weight:
      8.10 kg
    • MPQ:
      52 pcs
    • MOQ:
      52 pcs
    • MOQ Size:
      480 x 280 x 30 mm
    • MOQ Weight:
      0.50 kg
    • Shade
    • C19333_DALINE-10-SHD1-MATT
      black,matt
    • C19509_DALINE-10-SHD1-WHT-MATT
      white,matt
    • C19618_DALINE-10-SHD2-MATT
      black,matt
    • C19620_DALINE-10-SHD2-WHT-MATT
      white,matt
    • Quantity in box:
      390 pcs
    • Box size:
      400 x 300 x 300 mm
    • Box weight:
      5.90 kg
    • MPQ:
      26 pcs
    • MOQ:
      26 pcs
    • MOQ Size:
      400 x 300 x 50 mm
    • MOQ Weight:
      0.60 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






    • PCB drawing
      • PRODUCT NAME(S):
      C19331_DALINE-10-WW
      C19333_DALINE-10-SHD1-MATT
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    Guide for Architectural lighting optics

    Downloadable content

    DALINE-10 aluminium profile examples

    News

    DALINE-10 ‒ Miniature Dark Light sophistication

    News

    New products – February 2024

    Optical results

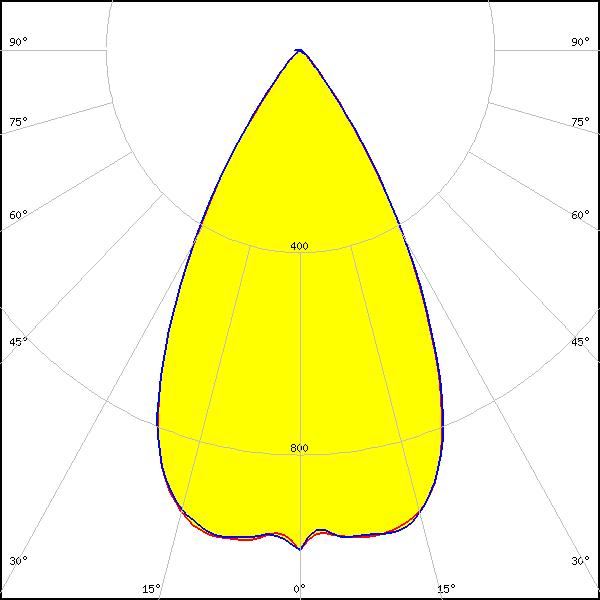

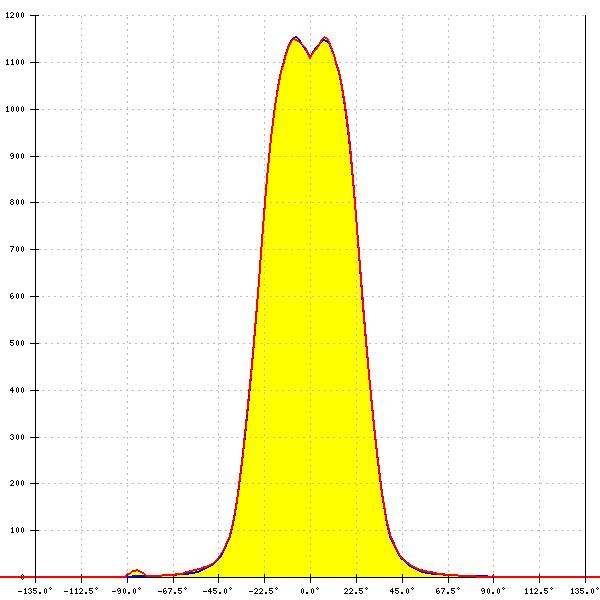

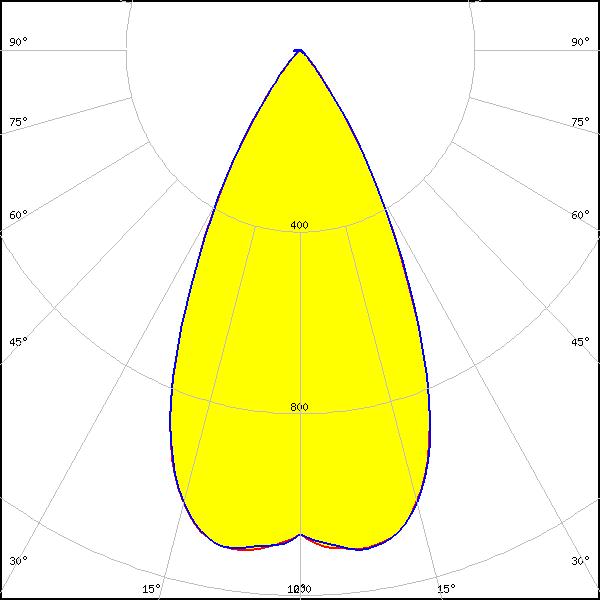

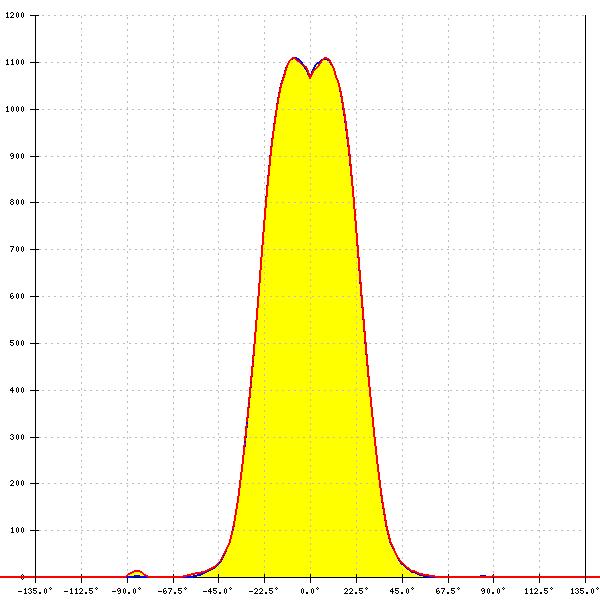

    LED: CSP 1919 (BXCP)
    Required components:

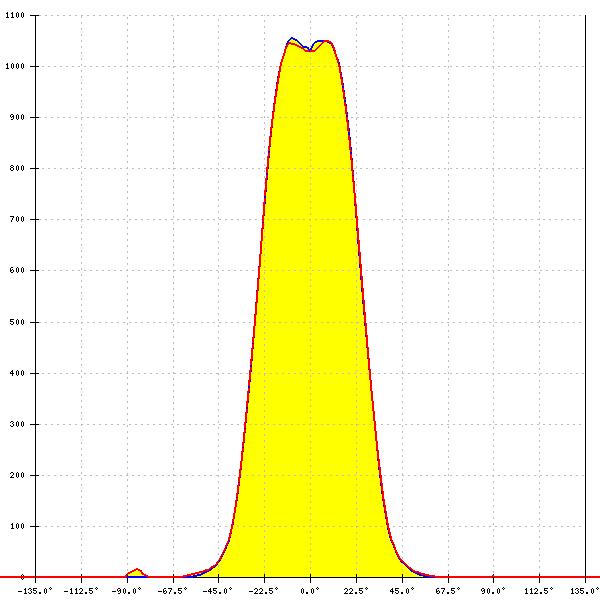

    C19333_DALINE-10-SHD1-MATT
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.115 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

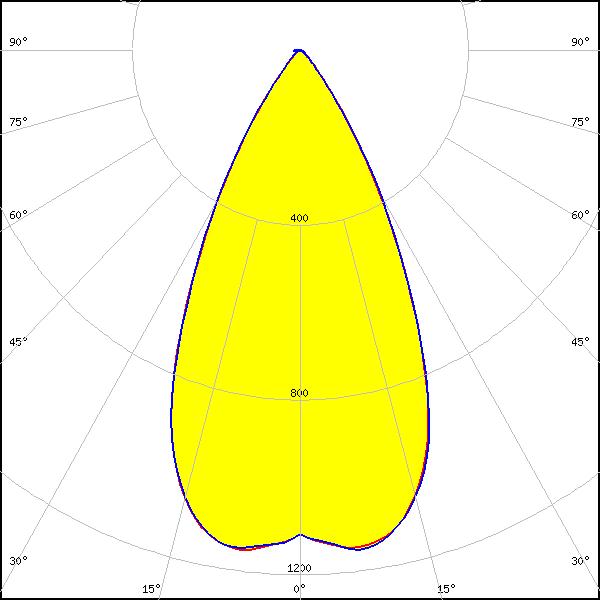

    LED: CSP 1919 (BXCP)
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.156 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

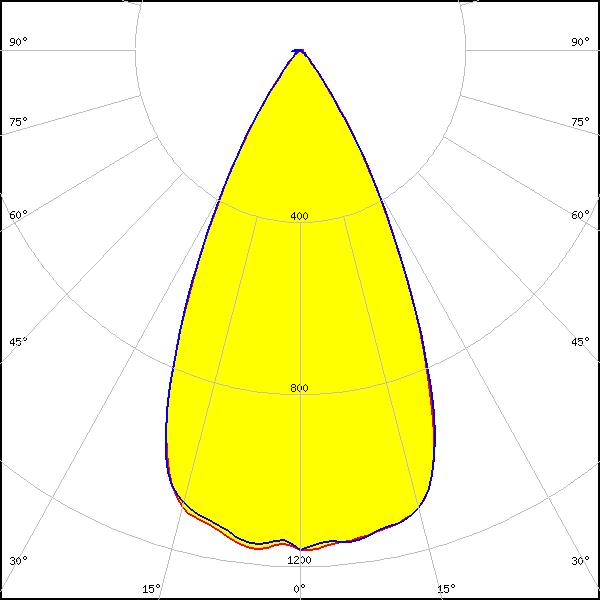

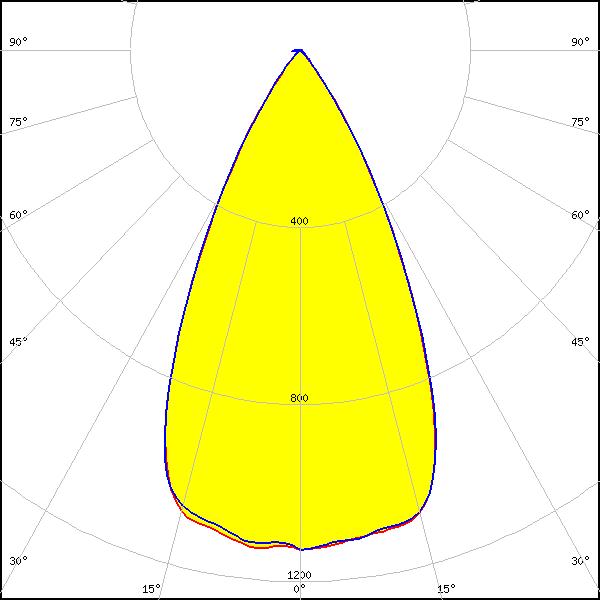

    LED: XQ-E HI
    Required components:

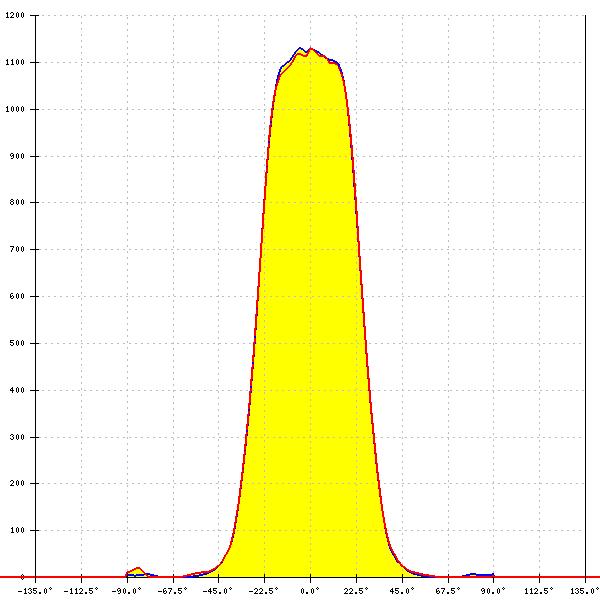

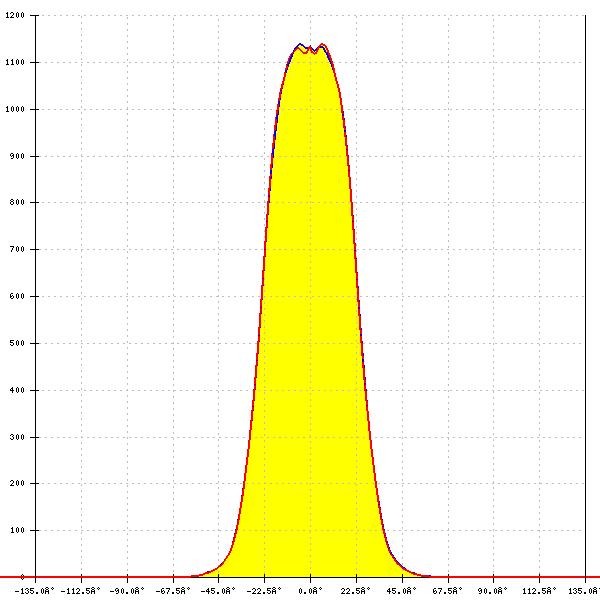

    C19618_DALINE-10-SHD2-MATT
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.146 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

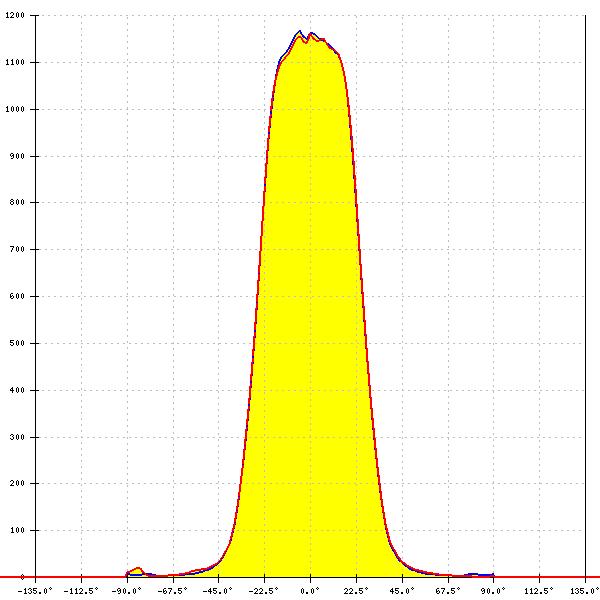

    LED: XQ-E HI
    Required components:
    C19620_DALINE-10-SHD2-WHT-MATT
    FWHM: 52°
    FWTM: 74°
    Peak intensity: 1.175 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

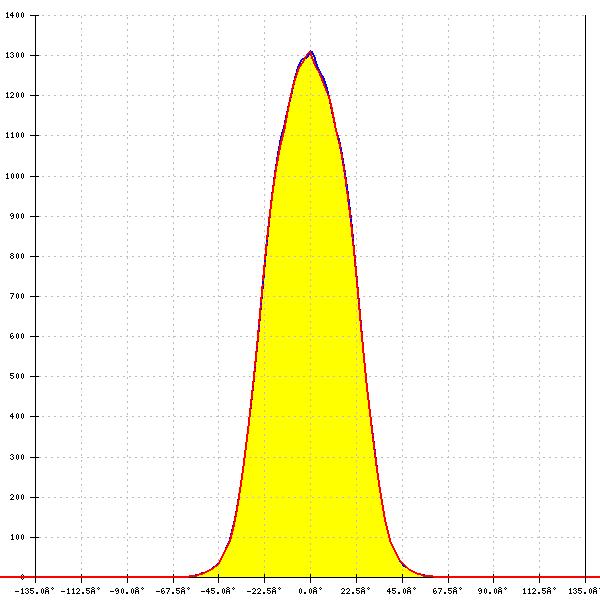

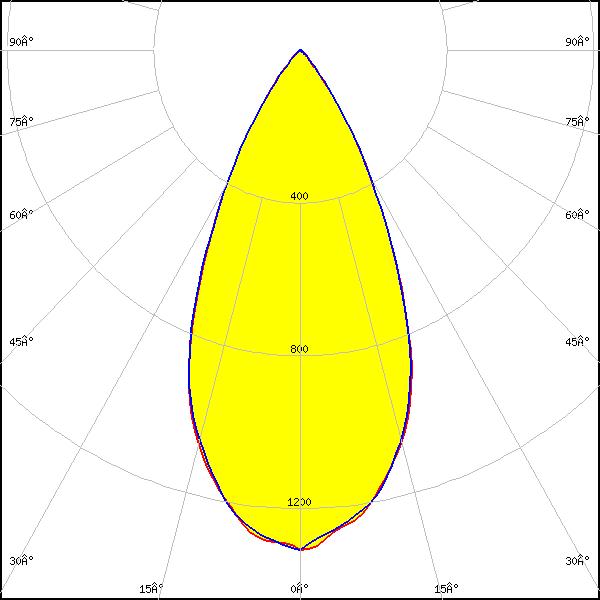

    LED: LUXEON 2835 Architectural
    Required components:
    C19618_DALINE-10-SHD2-MATT
    FWHM: 49°
    FWTM: 76°
    Peak intensity: 1.310 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

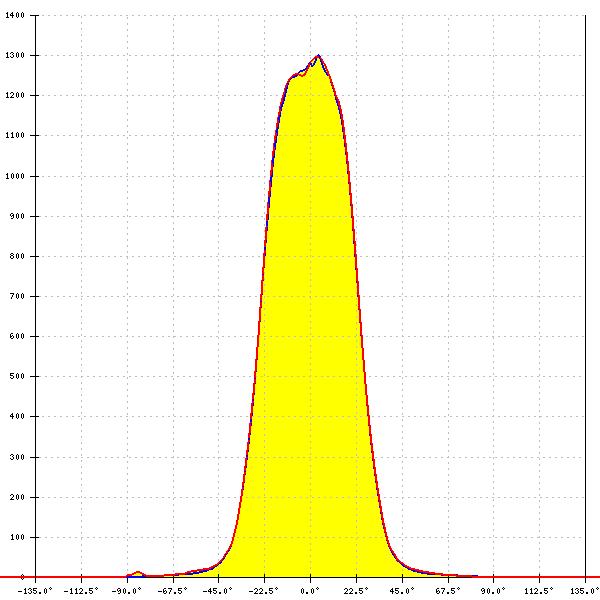

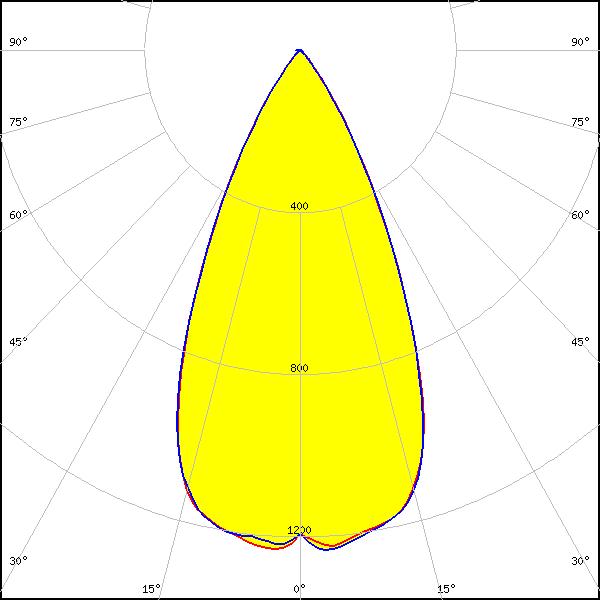

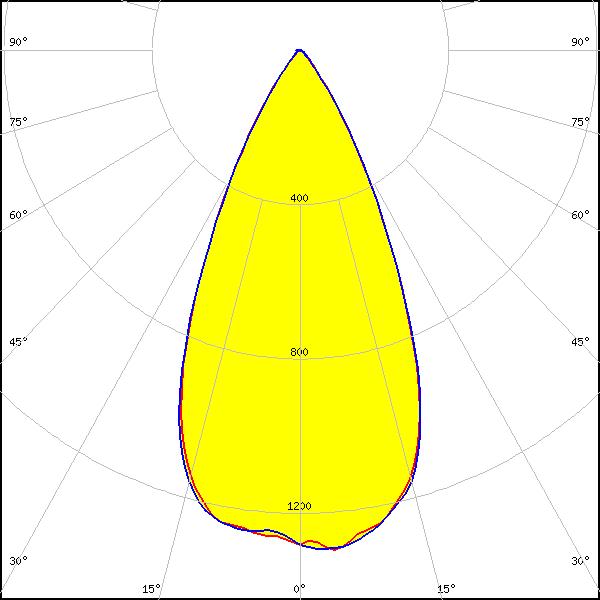

    LED: LUXEON 3014
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 50°
    FWTM: 73°
    Peak intensity: 1.310 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

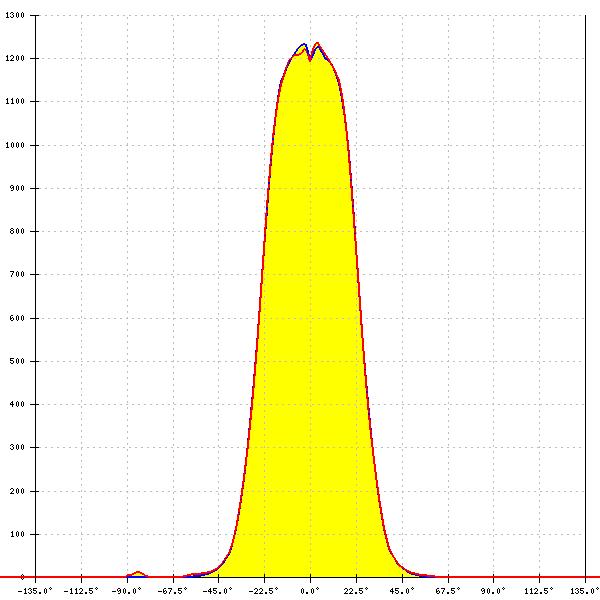

    LED: LUXEON 3014
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.245 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

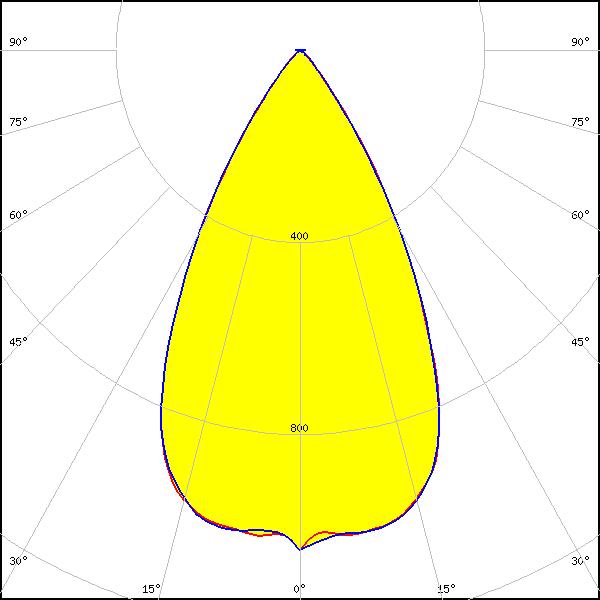

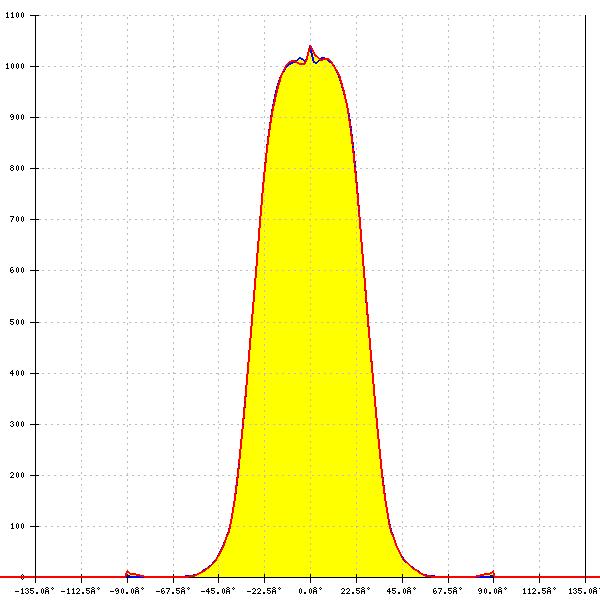

    LED: LUXEON HL1Z (White)
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 56°
    FWTM: 78°
    Peak intensity: 1.041 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

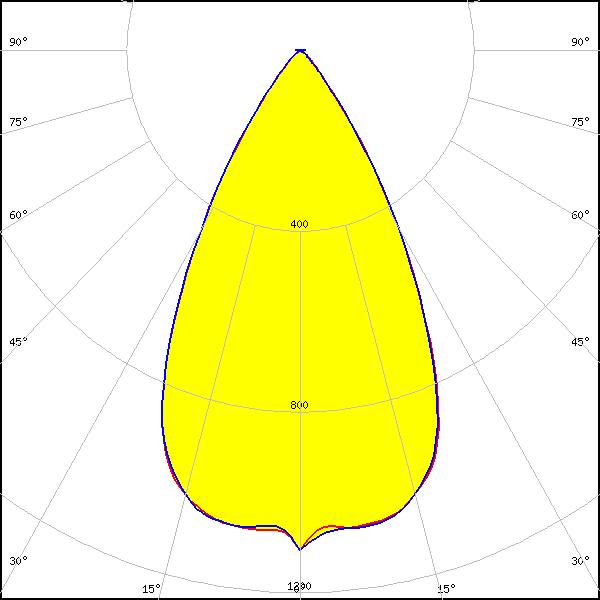

    LED: LUXEON HL1Z (White)
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 56°
    FWTM: 79°
    Peak intensity: 1.106 cd/lm
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

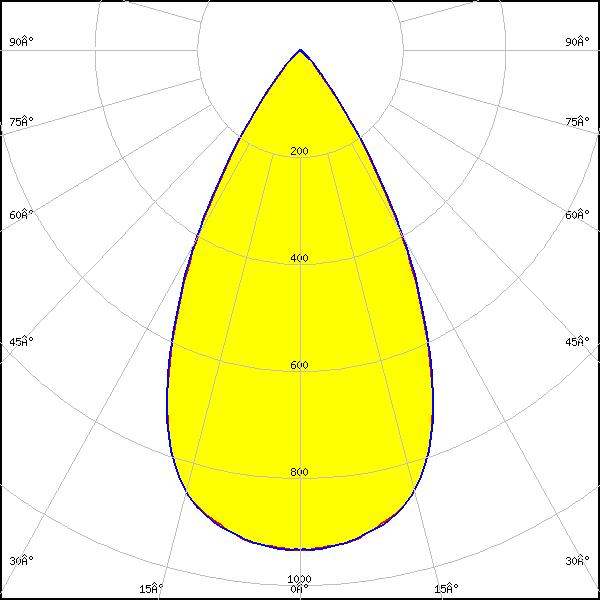

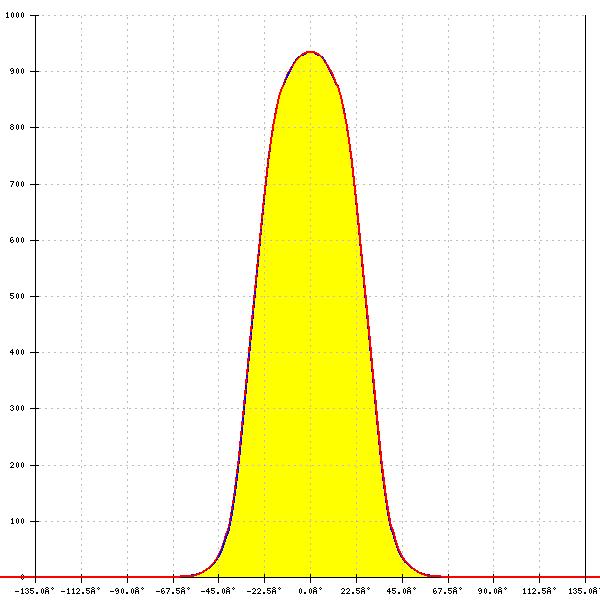

    LED: LinLED 279x10.5mm 1100lm 4C 36V DALINE-10 G1
    Required components:
    C19618_DALINE-10-SHD2-MATT
    FWHM: 56°
    FWTM: 79°
    Peak intensity: 0.974 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

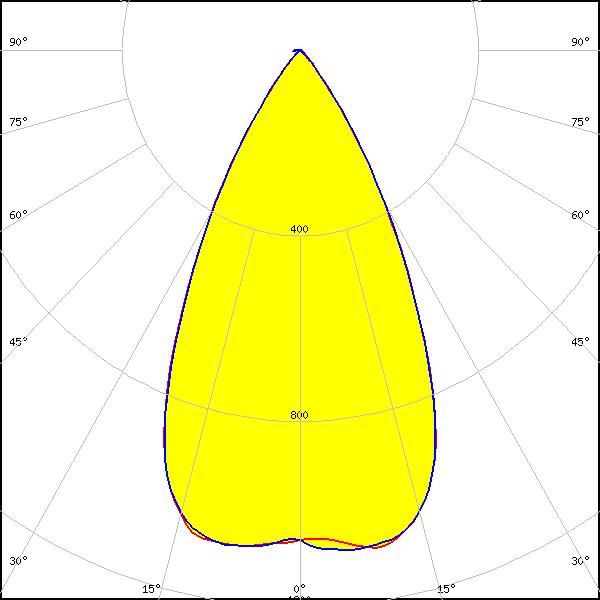

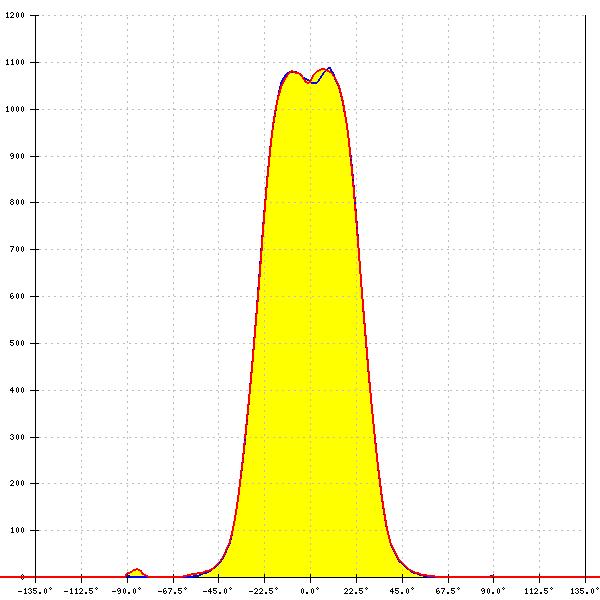

    LED: NCSxE17A
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.089 cd/lm
    Efficiency: 84 %
    LEDs/each optic: 1
    Light colour/type: White

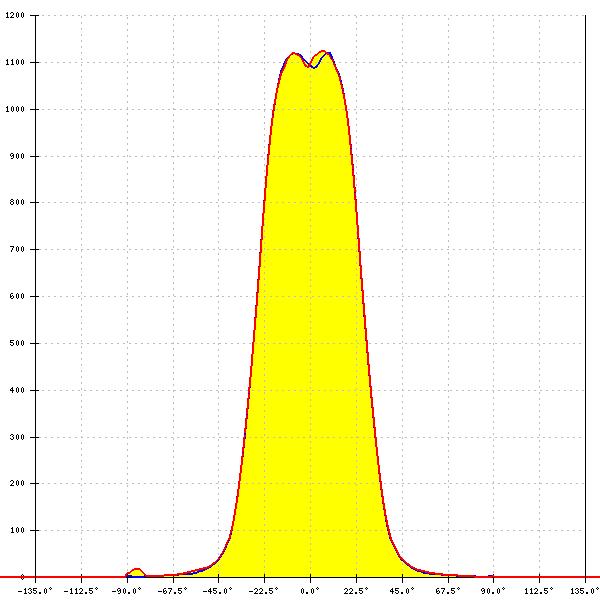

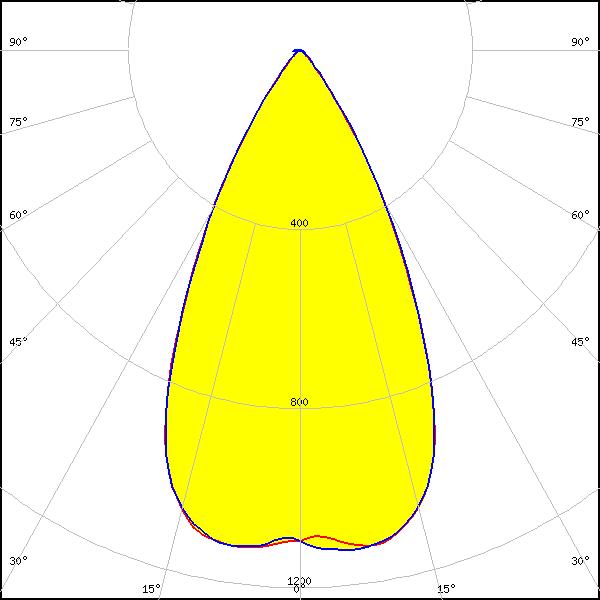

    LED: NCSxE17A
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.130 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White

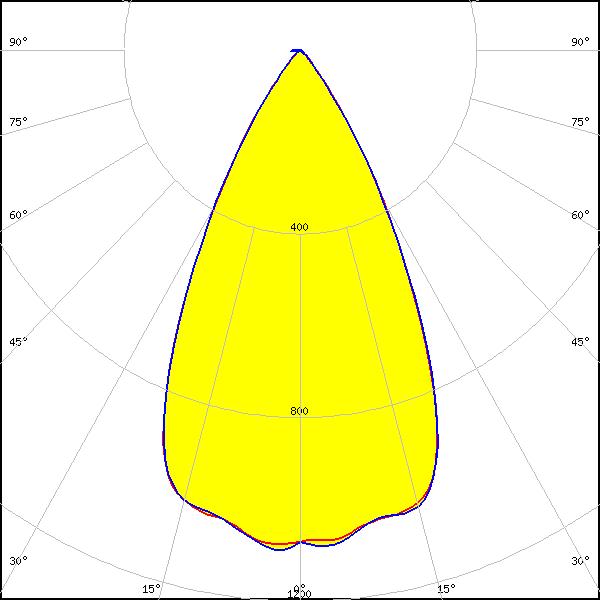

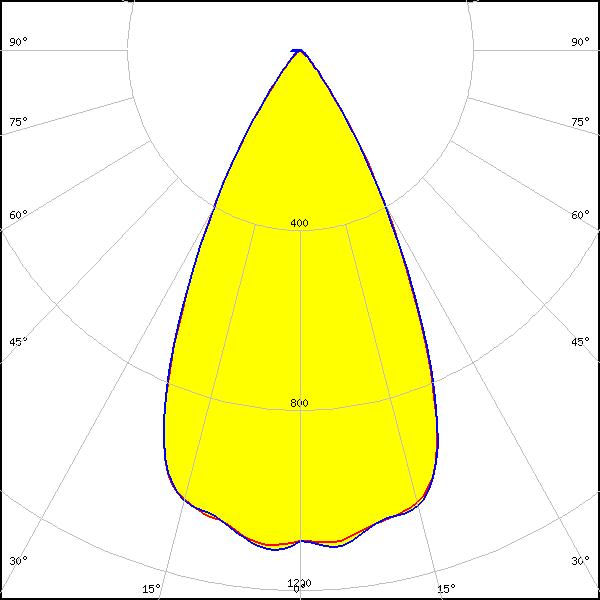

    LED: NFSWE11A
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.118 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

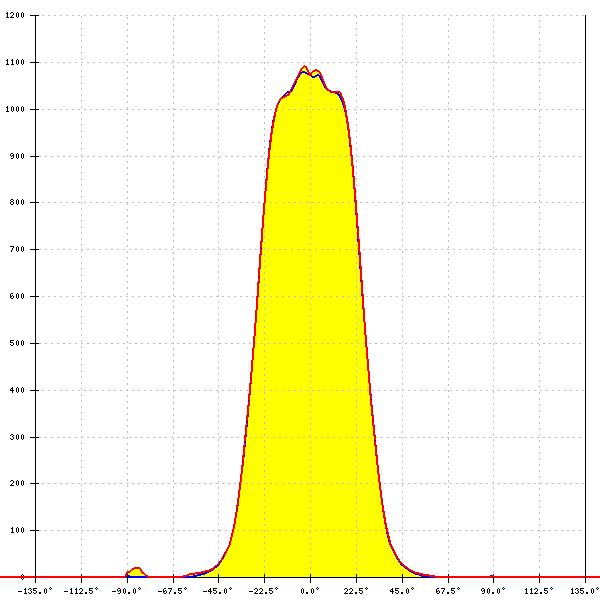

    LED: NFSWE11A
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 54°
    FWTM: 76°
    Peak intensity: 1.096 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

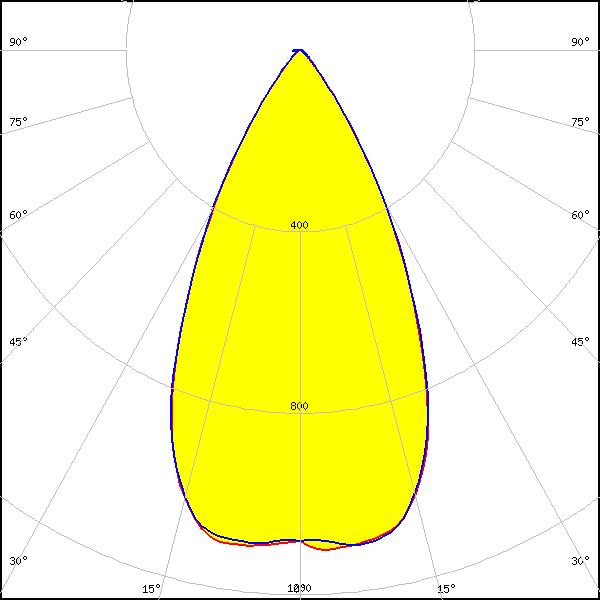

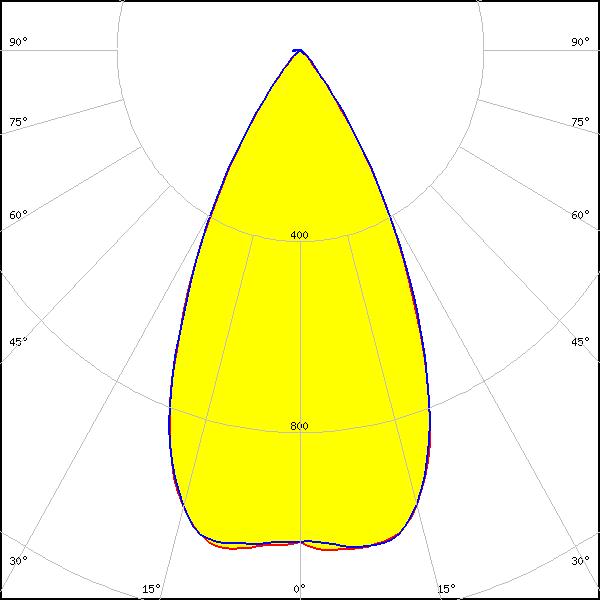

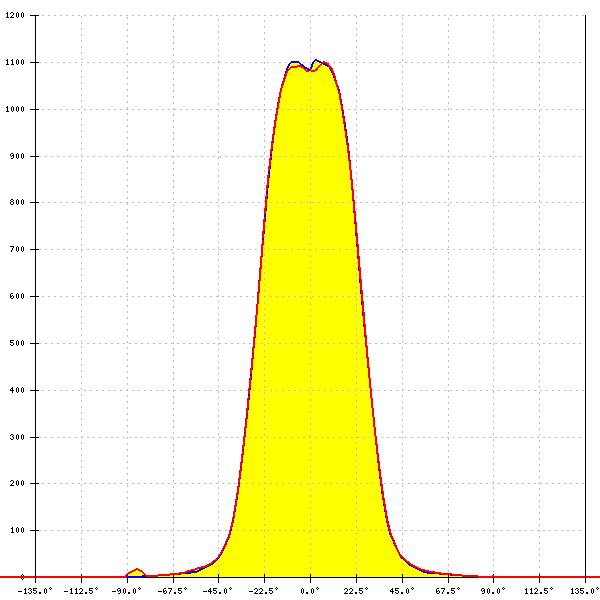

    LED: NVSxE21A
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 53°
    FWTM: 78°
    Peak intensity: 1.112 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxE21A
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 53°
    FWTM: 76°
    Peak intensity: 1.063 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

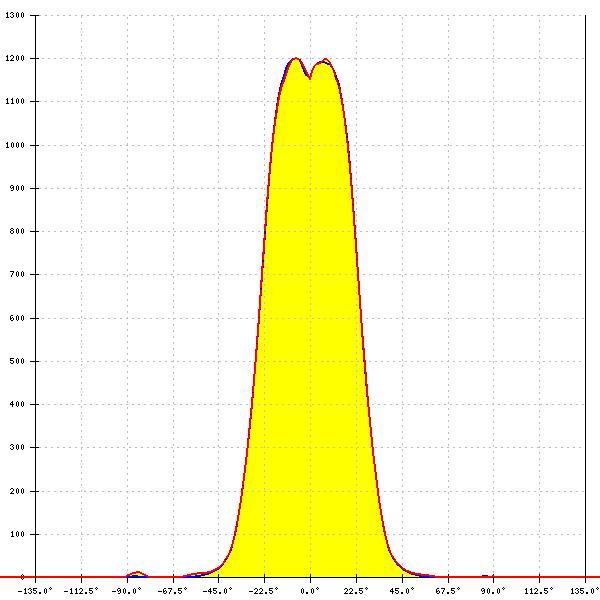

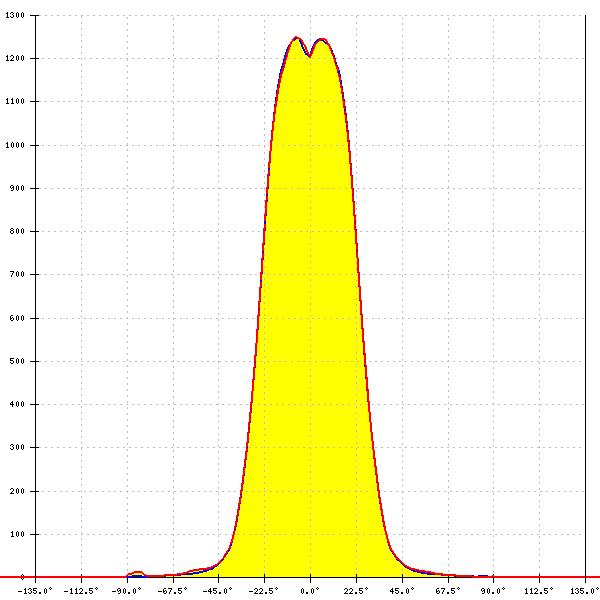

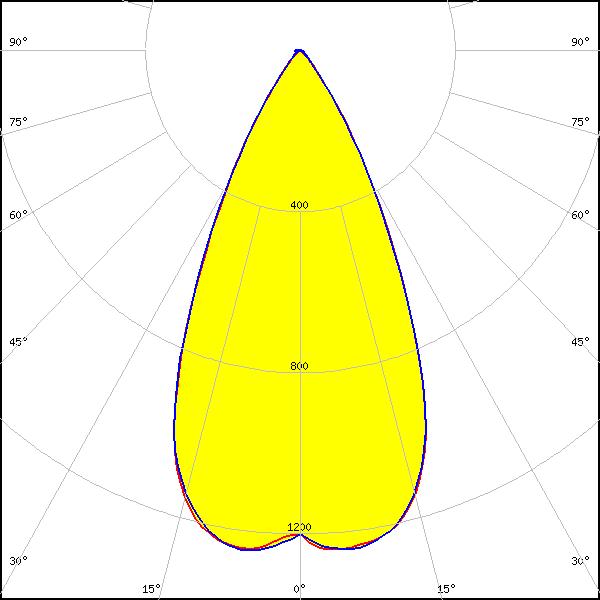

    LED: LH151B
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.252 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

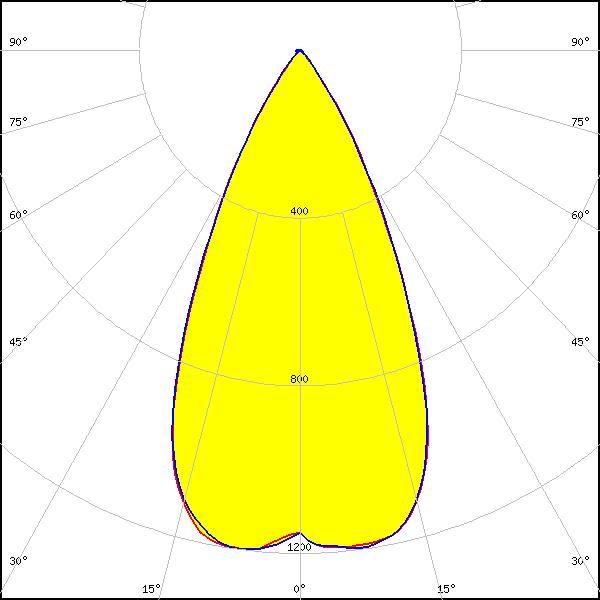

    LED: LH151B
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 50°
    FWTM: 72°
    Peak intensity: 1.203 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

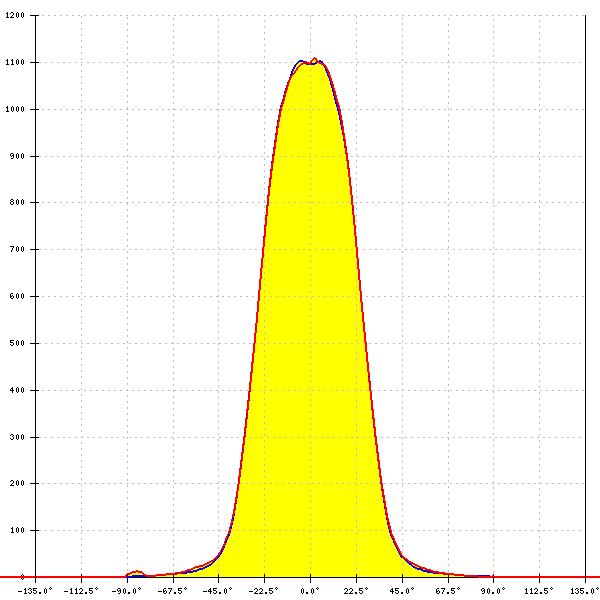

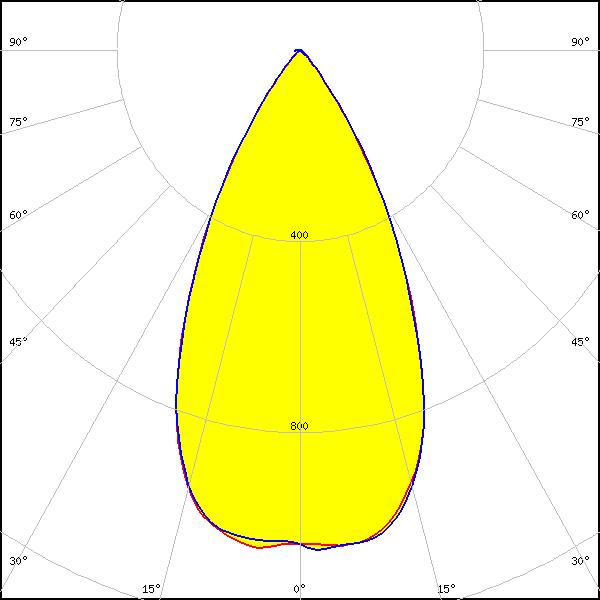

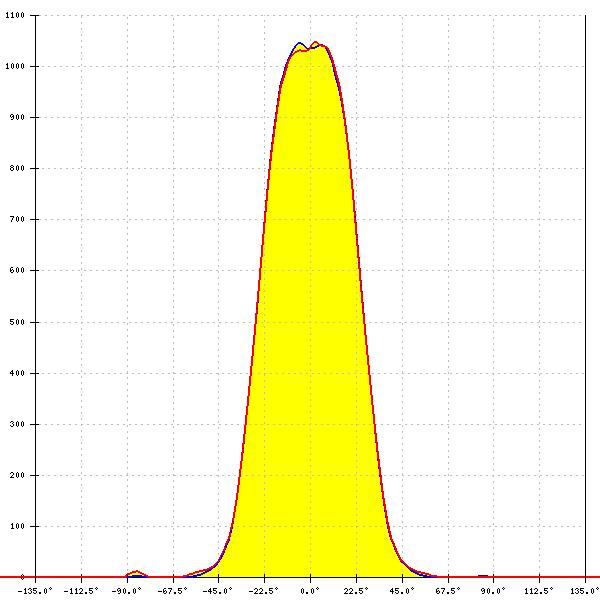

    LED: LH181B
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 52°
    FWTM: 76°
    Peak intensity: 1.059 cd/lm
    Efficiency: 79 %
    LEDs/each optic: 1
    Light colour/type: White

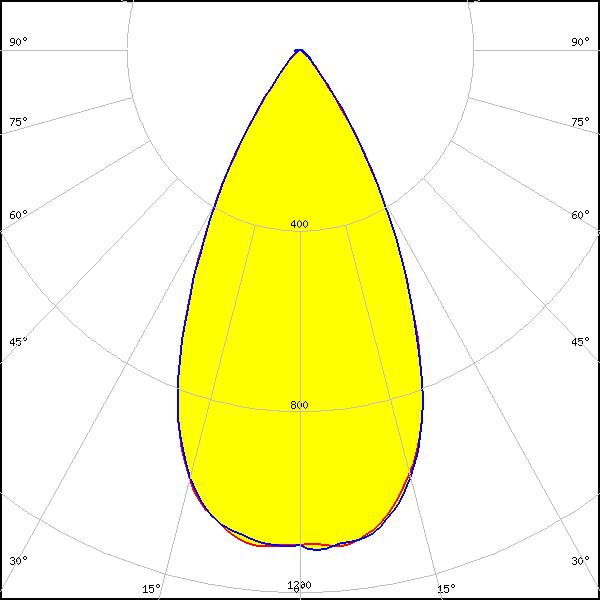

    LED: LH181B
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 52°
    FWTM: 78°
    Peak intensity: 1.121 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

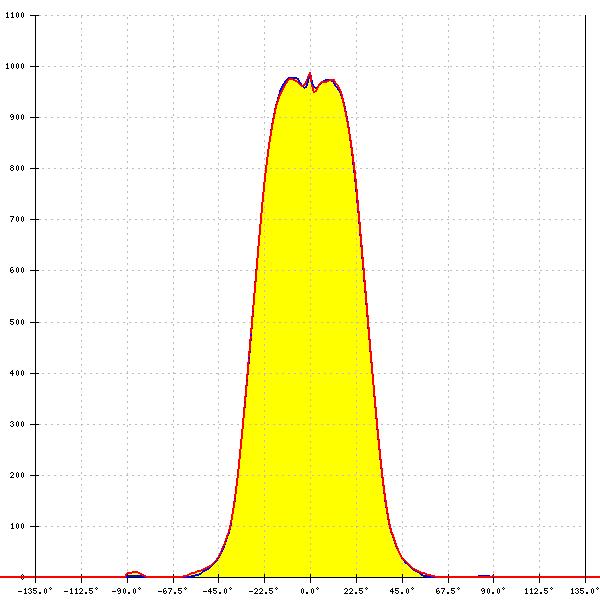

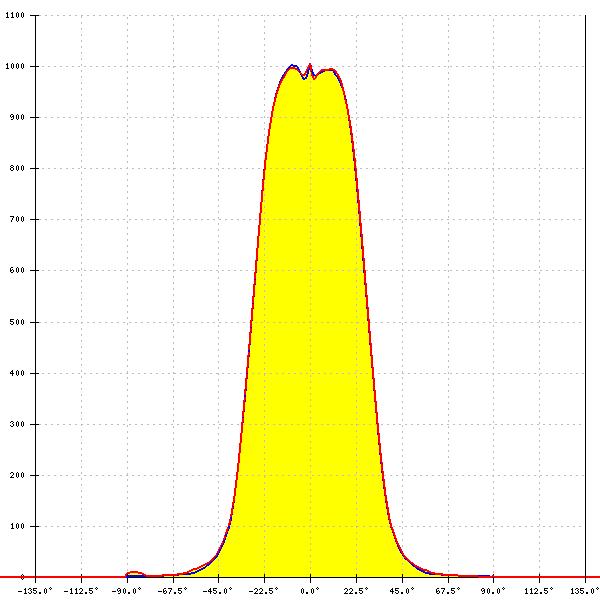

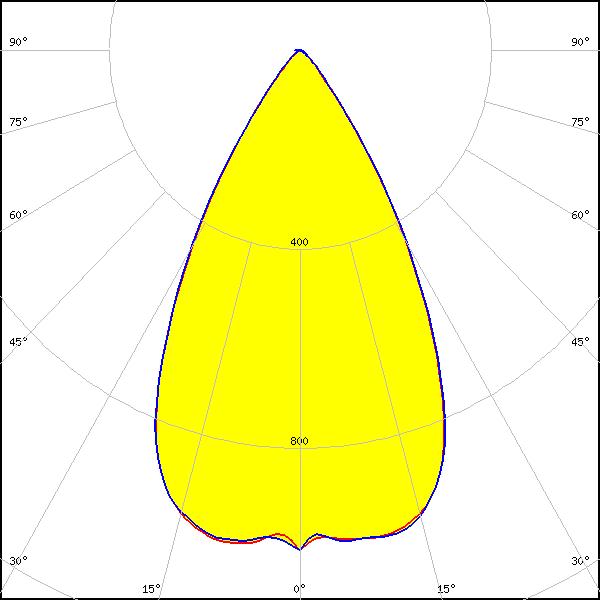

    LED: LM101B
    Required components:
    C19509_DALINE-10-SHD1-WHT-MATT
    FWHM: 58°
    FWTM: 80°
    Peak intensity: 1.007 cd/lm
    Efficiency: 89 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM101B
    Required components:
    C19333_DALINE-10-SHD1-MATT
    FWHM: 58°
    FWTM: 79°
    Peak intensity: 0.989 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

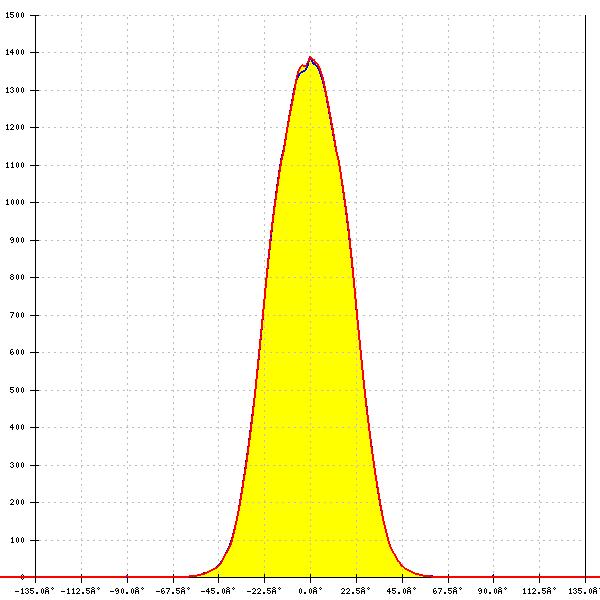

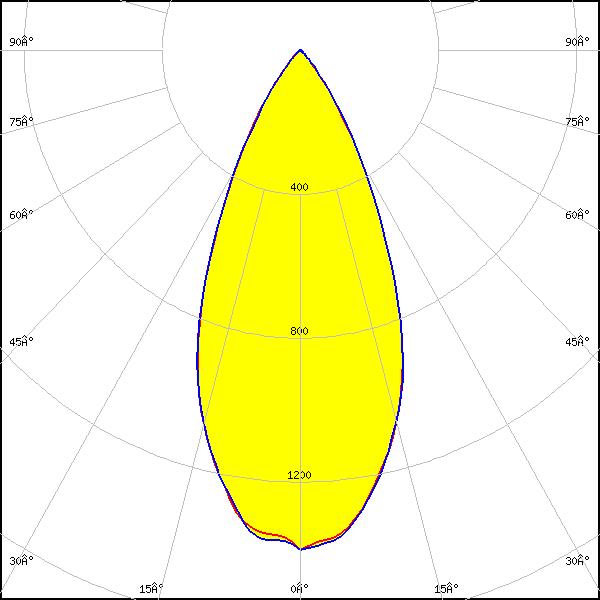

    LED: LM28xB Series
    Required components:
    C19618_DALINE-10-SHD2-MATT
    FWHM: 46°
    FWTM: 74°
    Peak intensity: 1.404 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

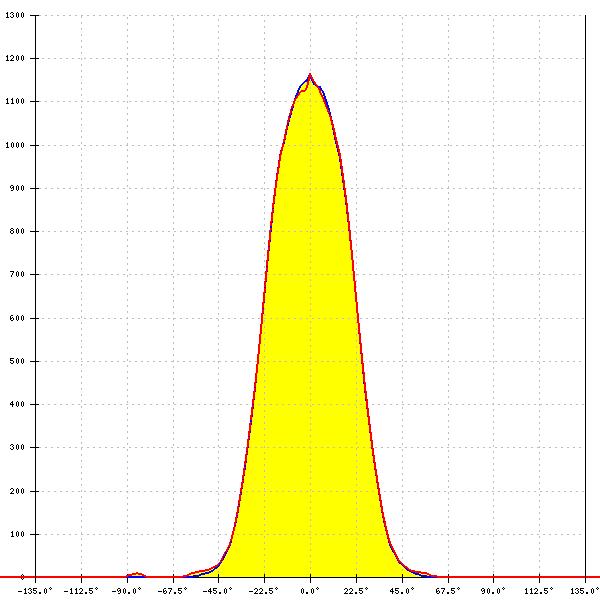

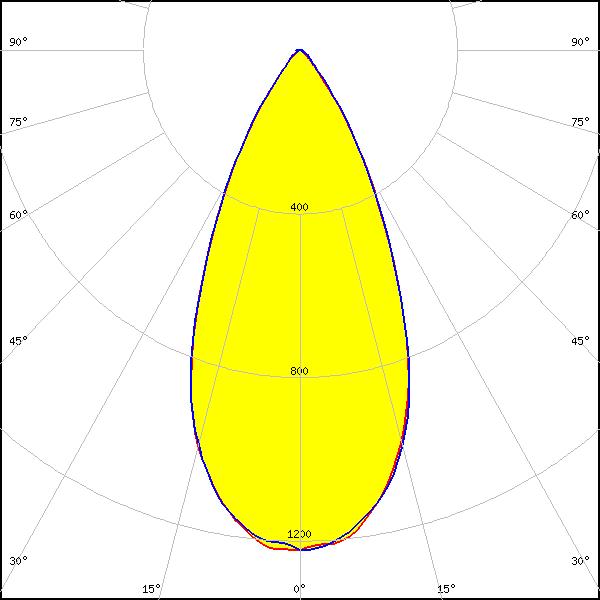

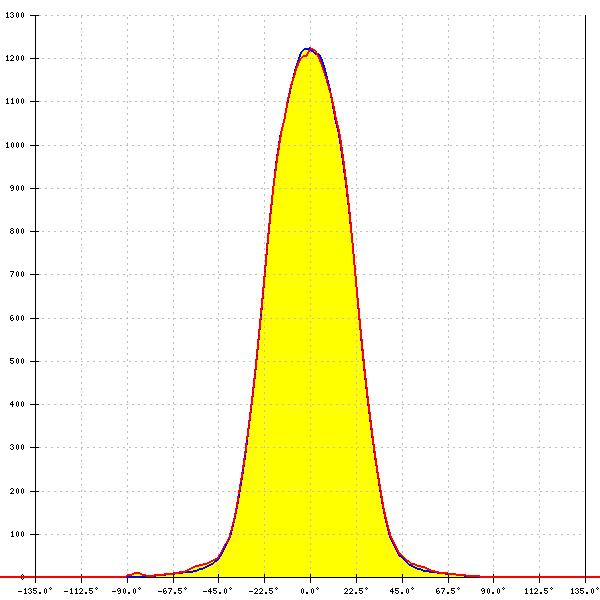

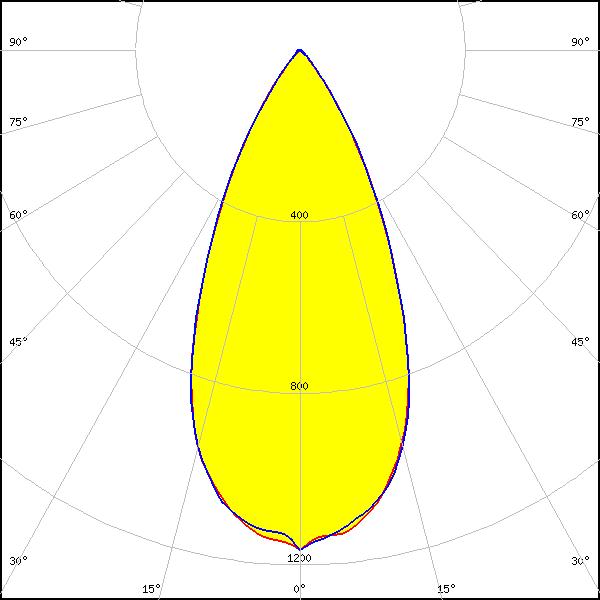

    LED: LM301B
    Required components:
    C19618_DALINE-10-SHD2-MATT
    FWHM: 48°
    FWTM: 74°
    Peak intensity: 1.166 cd/lm
    Efficiency: 77 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: LM301B
    Required components:
    C19620_DALINE-10-SHD2-WHT-MATT
    FWHM: 48°
    FWTM: 76°
    Peak intensity: 1.232 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

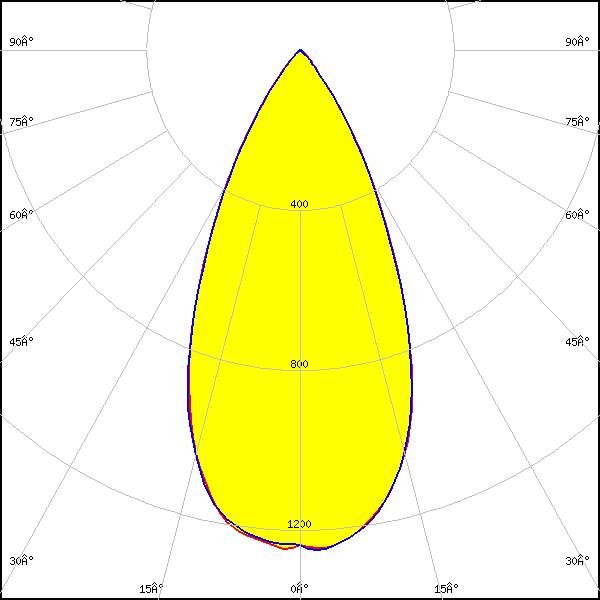

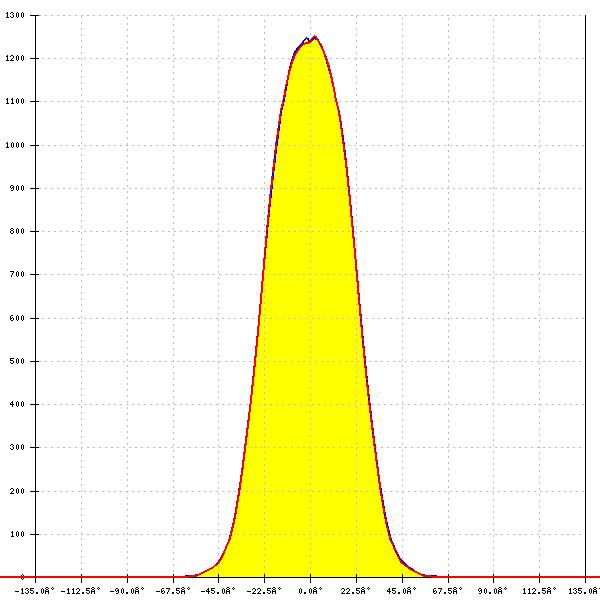

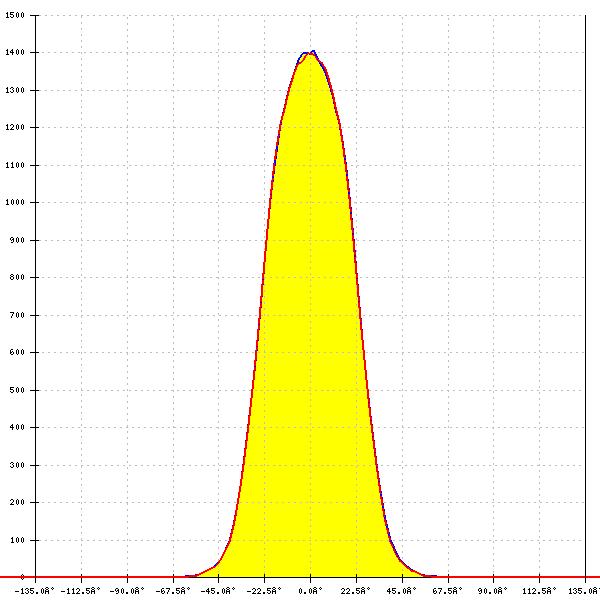

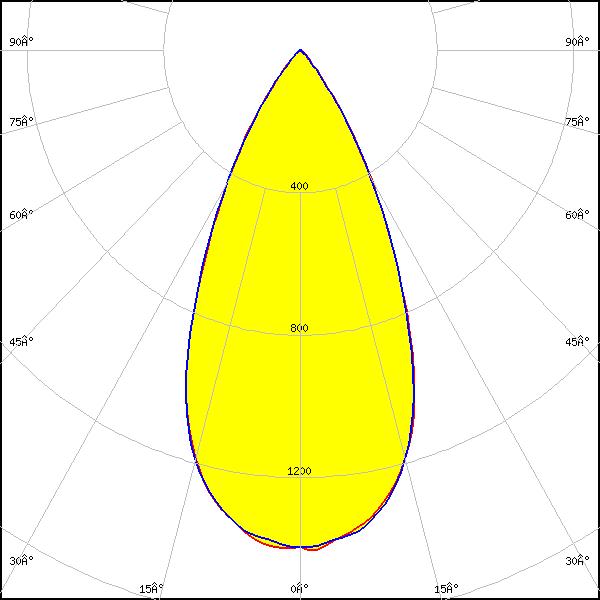

    LED: SEOUL DC 3030C
    Required components:
    C19618_DALINE-10-SHD2-MATT
    FWHM: 50°
    FWTM: 76°
    Peak intensity: 1.407 cd/lm
    Efficiency: 97 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: SEOUL DC 3528
    Required components:
    C19618_DALINE-10-SHD2-MATT
    FWHM: 48°
    FWTM: 76°
    Peak intensity: 1.263 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

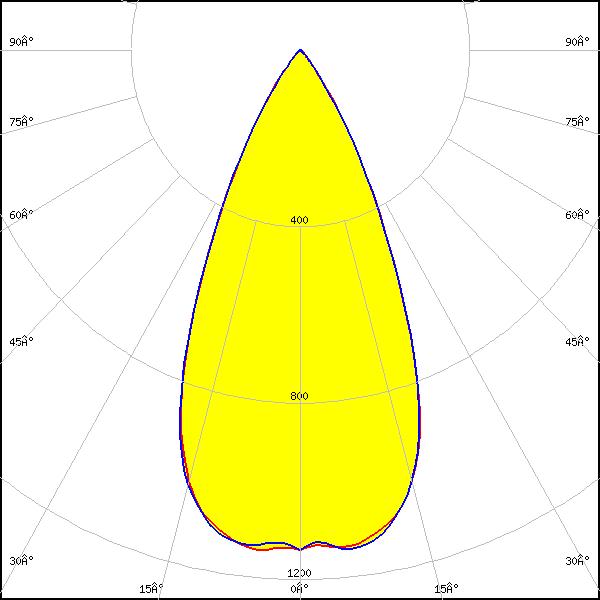

    LED: Z8Y11
    Required components:
    C19618_DALINE-10-SHD2-MATT
    FWHM: 48°
    FWTM: 72°
    Peak intensity: 1.141 cd/lm
    Efficiency: 74 %
    LEDs/each optic: 1
    Light colour/type: White
