DALINE-10-WAS

Print

Asymmetric beam for wall-washing

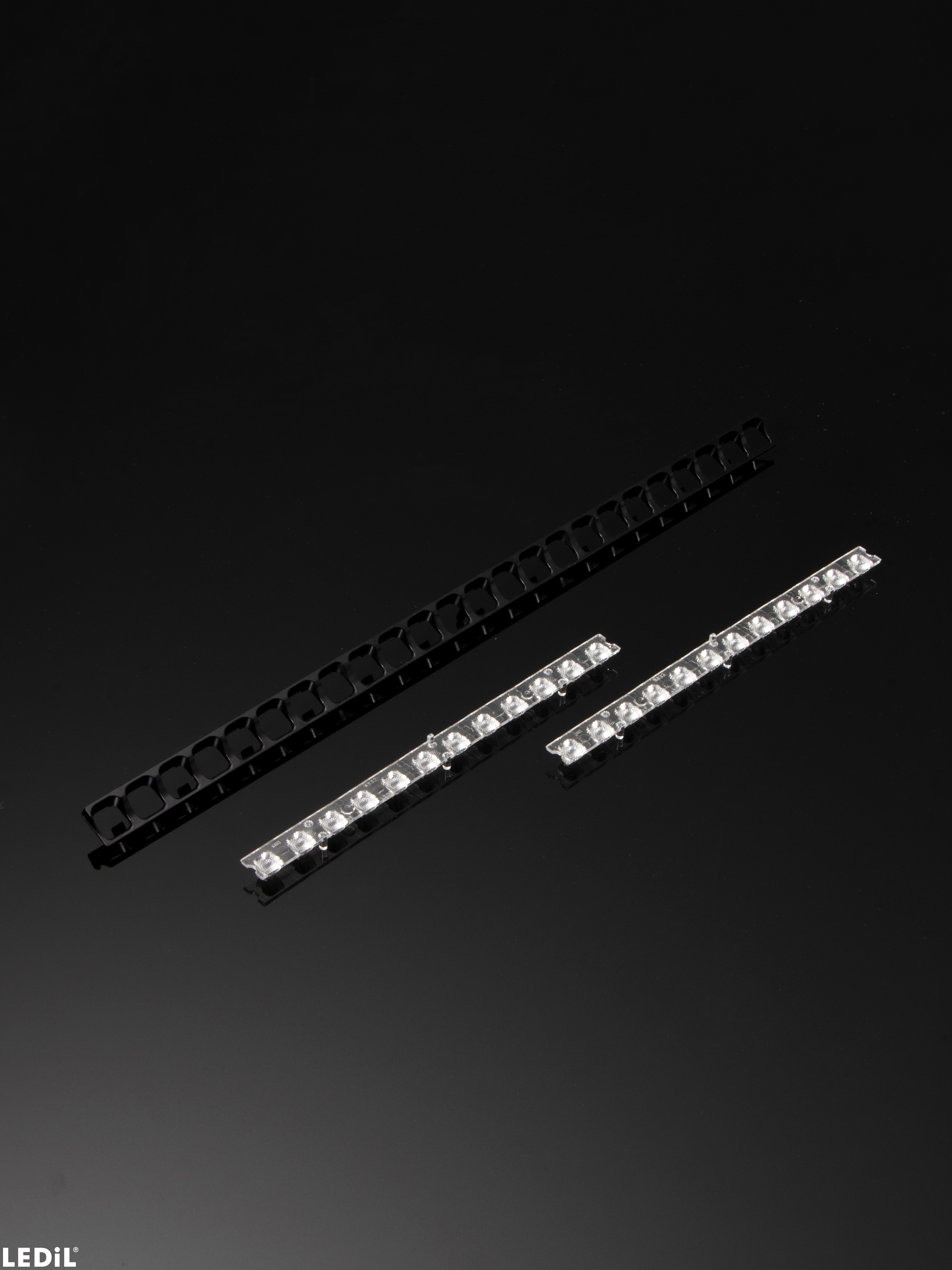

This product consists of multiple parts that need to be ordered separately. See ordering information.

Specification
  • Dimensions:
    140 x  9 mm
  • Height:
    5.25 mm
  • RoHS and REACH compliant:
    Yes
Materials

WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

Ordering information
  • Quantities for one set:
  • Linear lens
    2 pcs
  • Shade
    1 pcs
  • Linear lens
  • C19332_DALINE-10-WAS
    clear
  • Quantity in box:
    1560 pcs
  • Box size:
    480 x 280 x 300 mm
  • Box weight:
    8.30 kg
  • MPQ:
    52 pcs
  • MOQ:
    52 pcs
  • MOQ Size:
    480 x 280 x 30 mm
  • MOQ Weight:
    0.50 kg
  • Shade
  • C19334_DALINE-10-SHD1-WAS-MATT
    black,matt
  • C19510_DALINE-10-SHD1-WAS-WHT-MATT
    white,matt
  • C19619_DALINE-10-SHD2-WAS-MATT
    black,matt
  • C19621_DALINE-10-SHD2-WAS-WHT-MATT
    white,matt
  • Quantity in box:
    390 pcs
  • Box size:
    400 x 300 x 300 mm
  • Box weight:
    4.90 kg
  • MPQ:
    26 pcs
  • MOQ:
    26 pcs
  • MOQ Size:
    400 x 300 x 50 mm
  • MOQ Weight:
    0.50 kg
Documents
  • Family datasheet
  • Product datasheet
  • 2D mechanical drawing
  • Request a 3D mechanical model
  •
    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






  • PCB drawing
  • PRODUCT NAME(S):
    C19332_DALINE-10-WAS
    C19334_DALINE-10-SHD1-WAS-MATT

    By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






 CONTACT US
 REQUEST SAMPLES
WHERE TO BUY
ORDER ONLINE

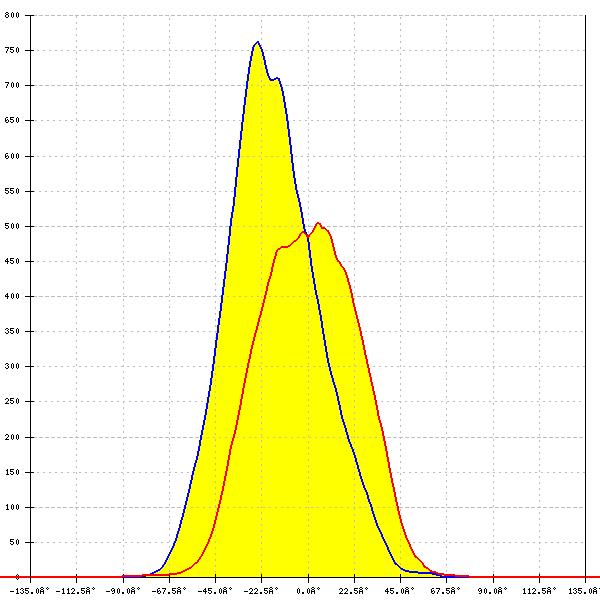

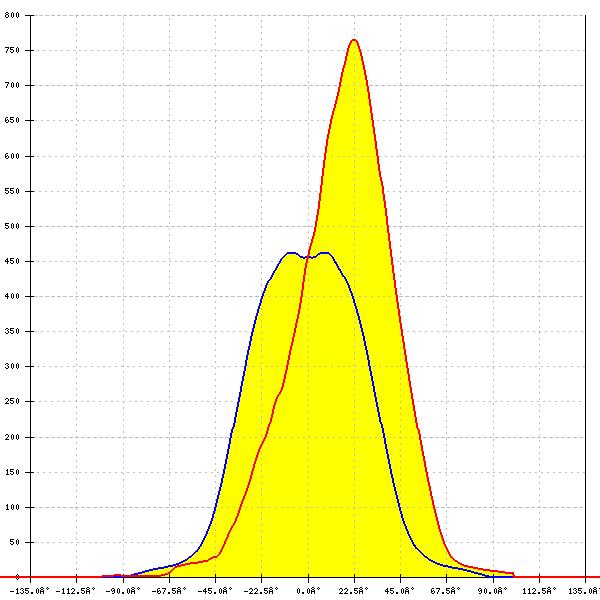

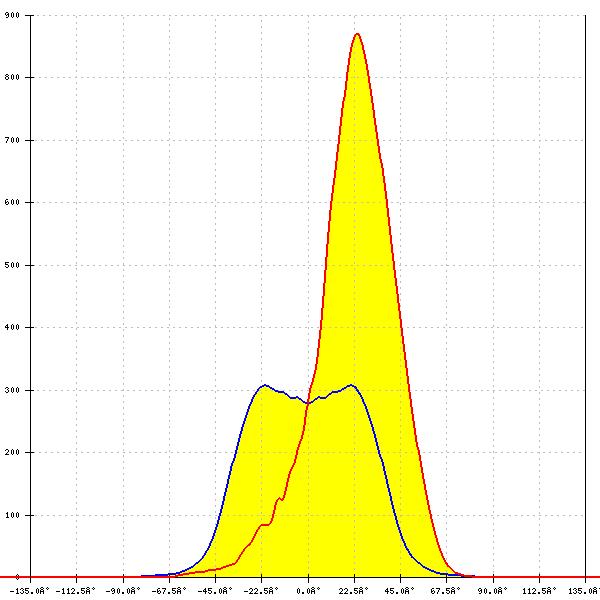

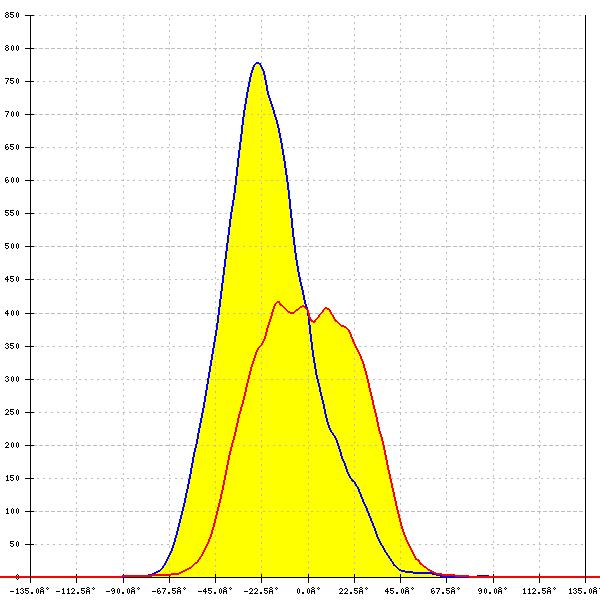

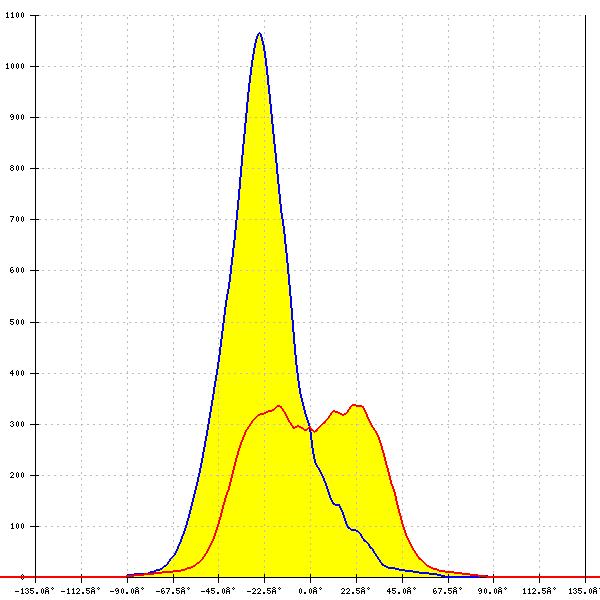

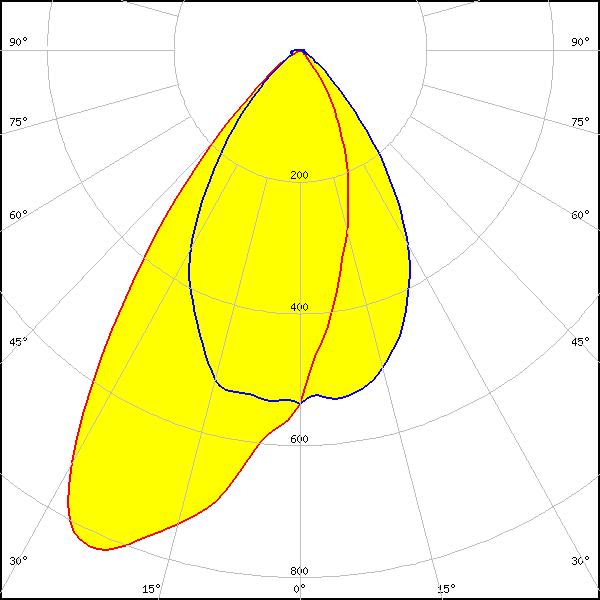

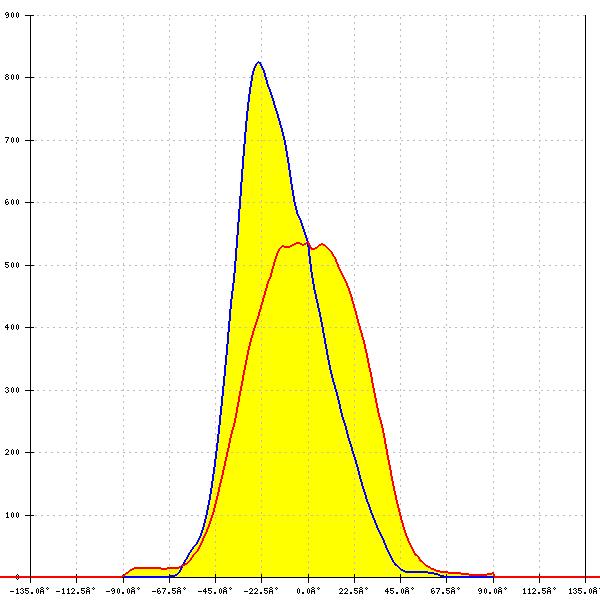

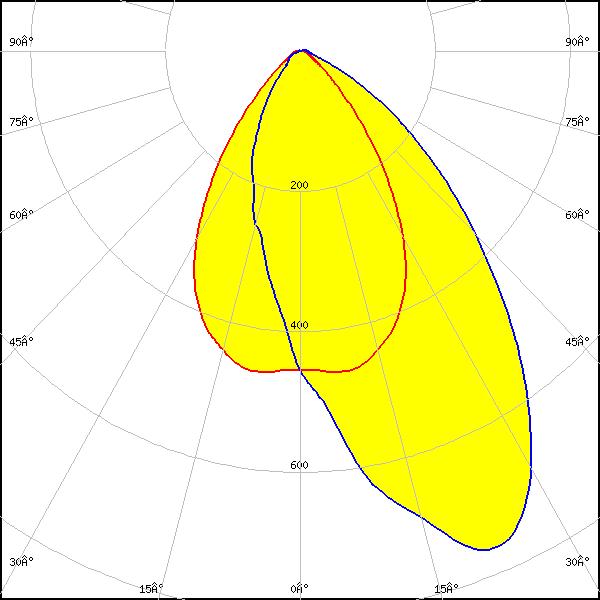

Optical results

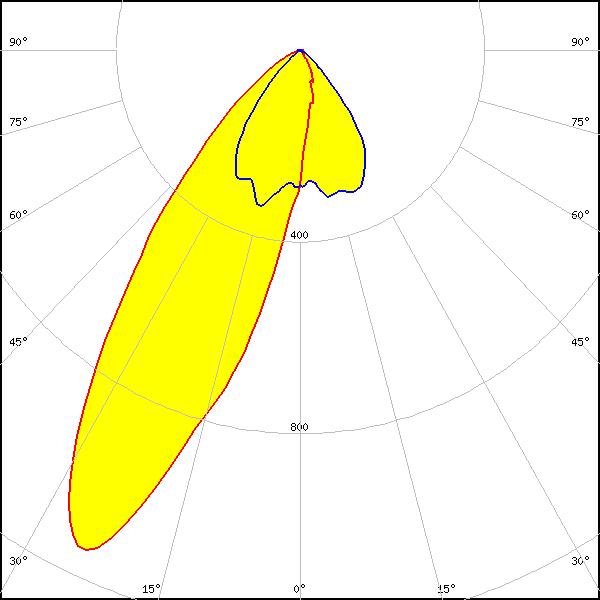

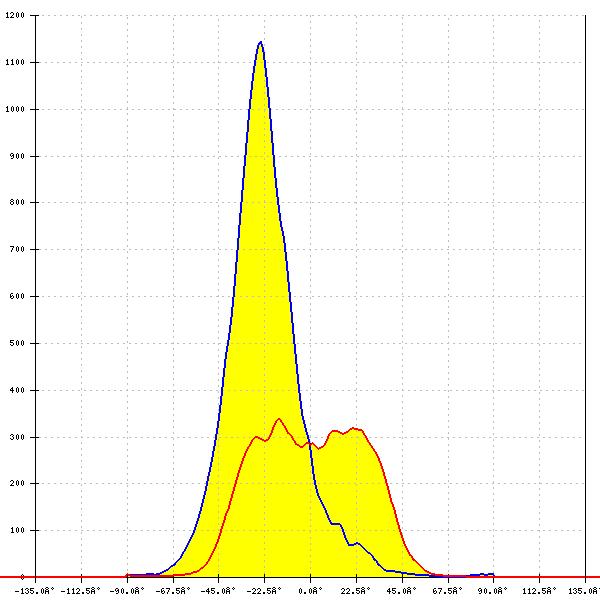

LED: XQ-E HI
Required components:
C19619_DALINE-10-SHD2-WAS-MATT
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White
LED: LUXEON 2835 Line
Required components:
C19619_DALINE-10-SHD2-WAS-MATT
FWHM: asymmetric
Peak intensity: 0.844 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

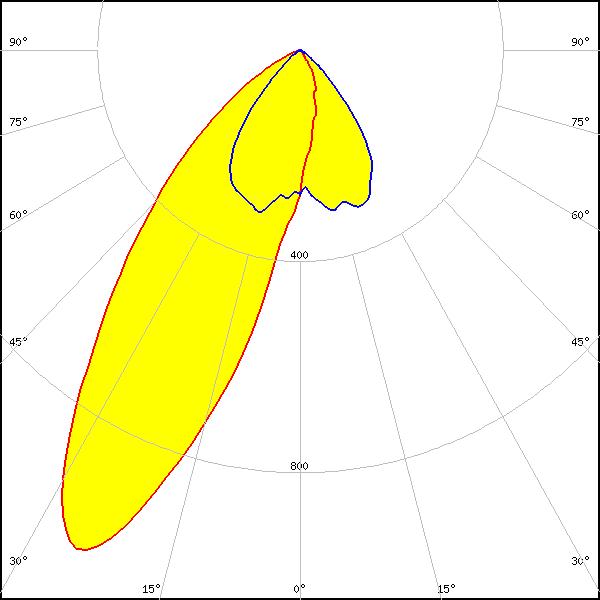

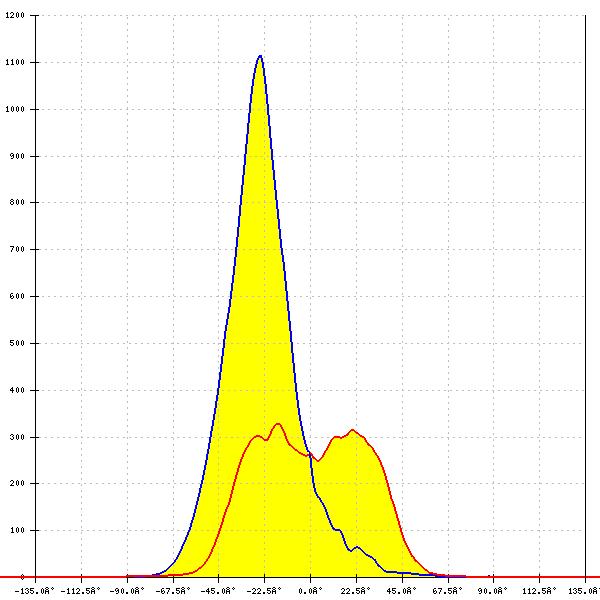

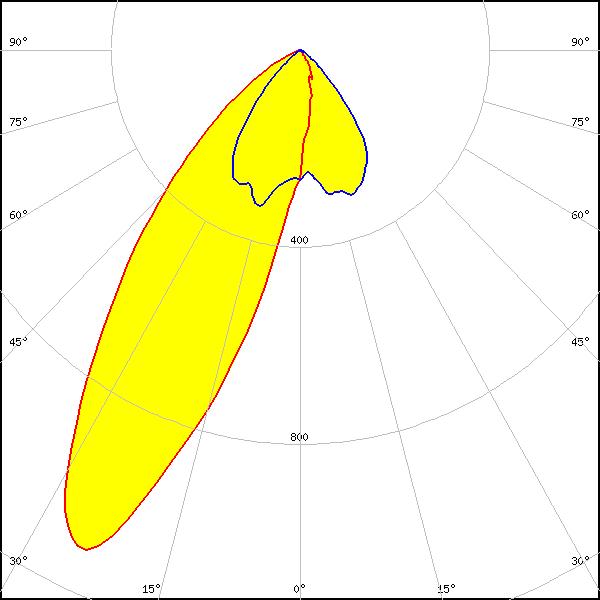

LED: LUXEON CSP HL1
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 78 %
LEDs/each optic: 1
Light colour/type: White

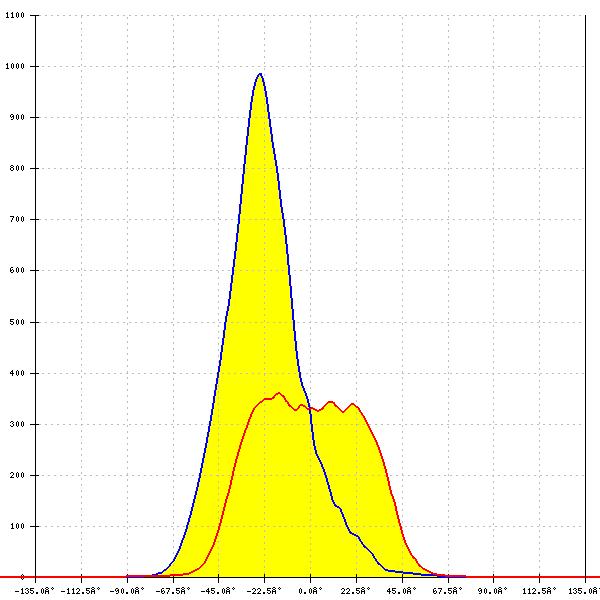

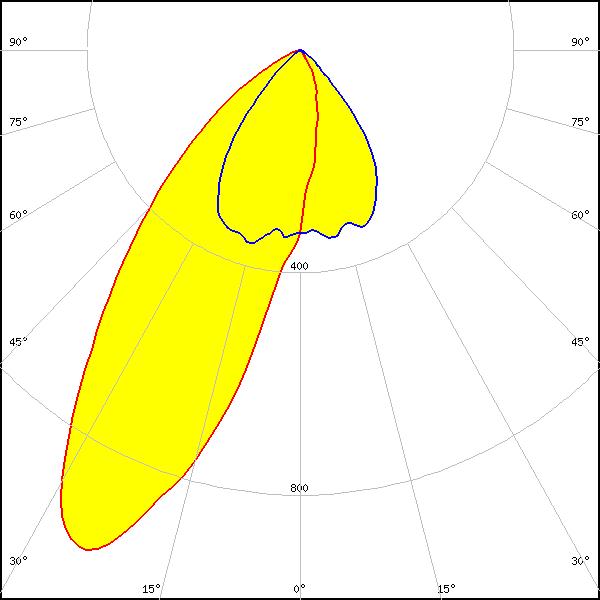

LED: LUXEON Z ES
Required components:
C19619_DALINE-10-SHD2-WAS-MATT
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

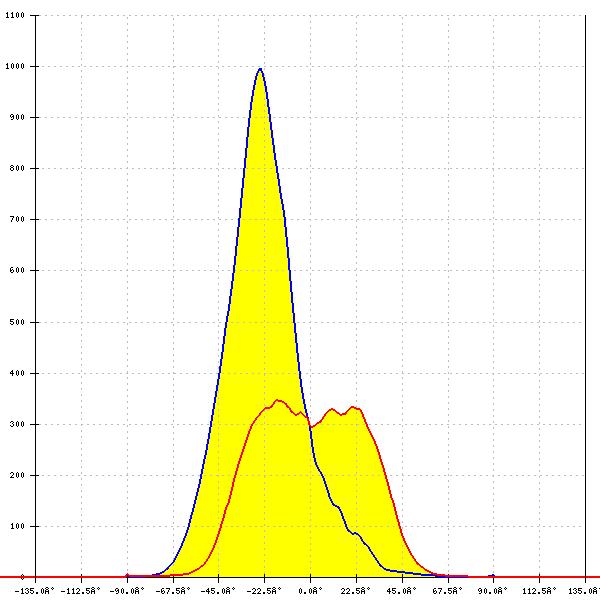

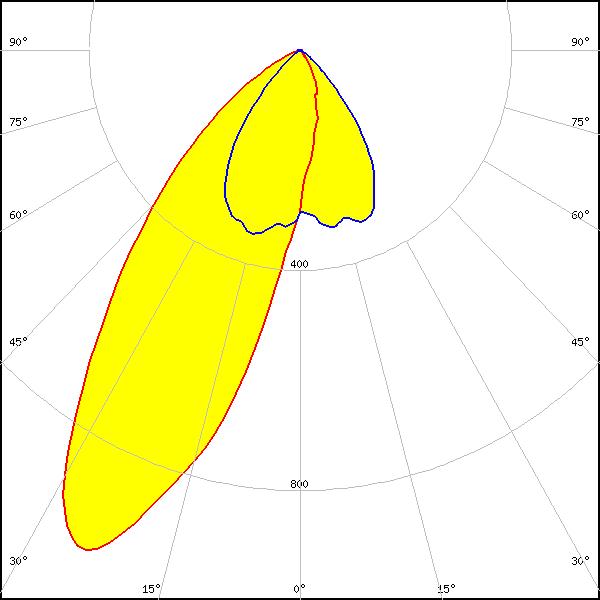

LED: NCSxE17A
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White

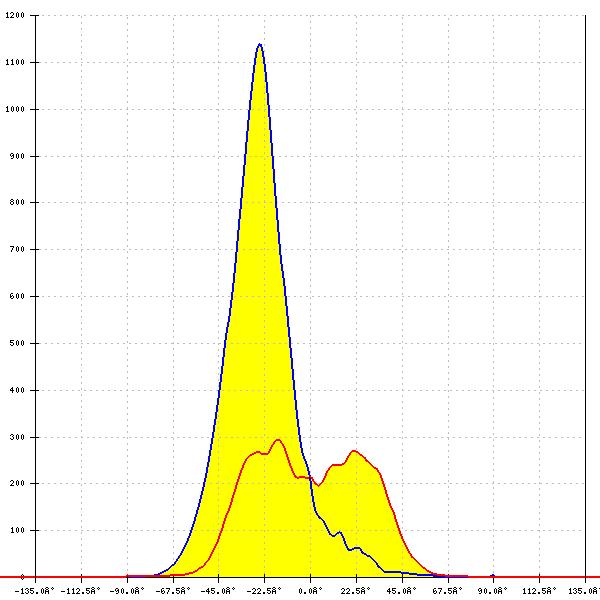

LED: NFSWE11A
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

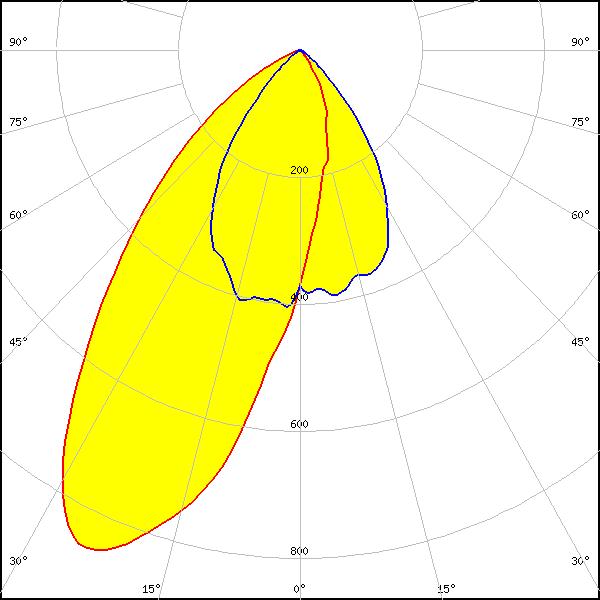

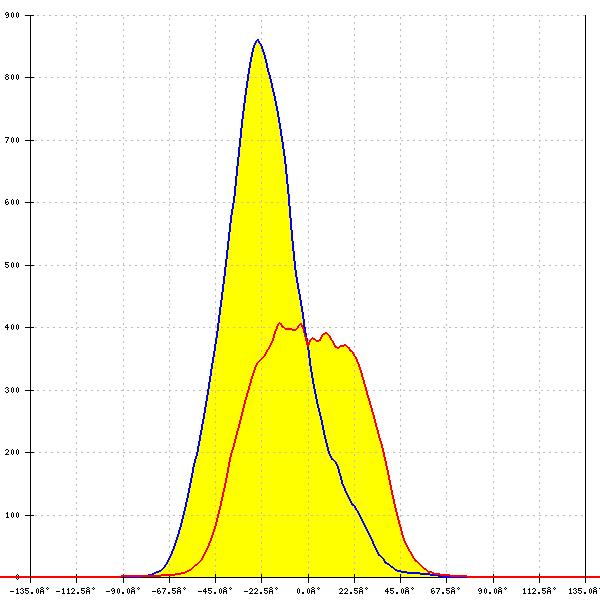

LED: NVSxE21A
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 75 %
LEDs/each optic: 1
Light colour/type: White

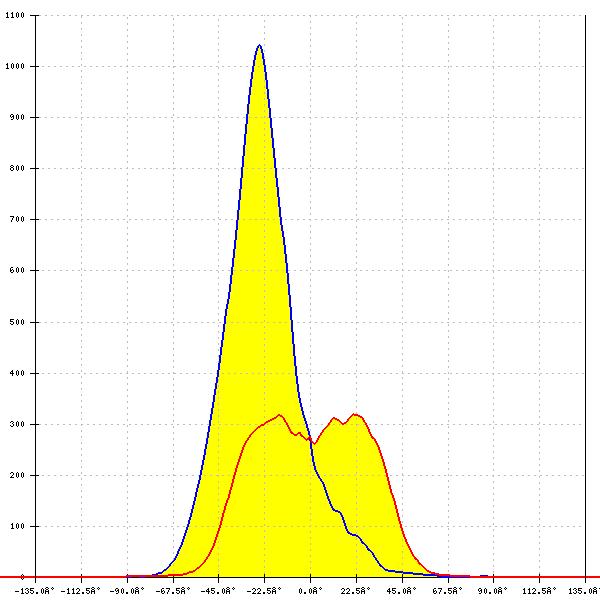

LED: LH151B
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

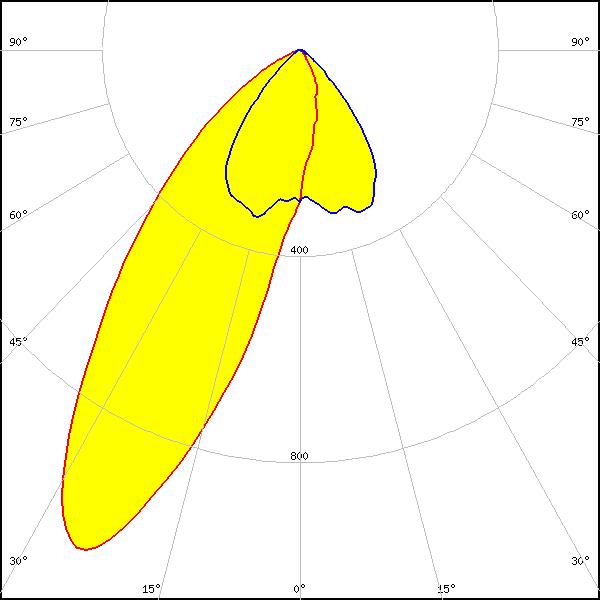

LED: LH151B
Required components:
C19510_DALINE-10-SHD1-WAS-WHT-MATT
Efficiency: 82 %
LEDs/each optic: 1
Light colour/type: White

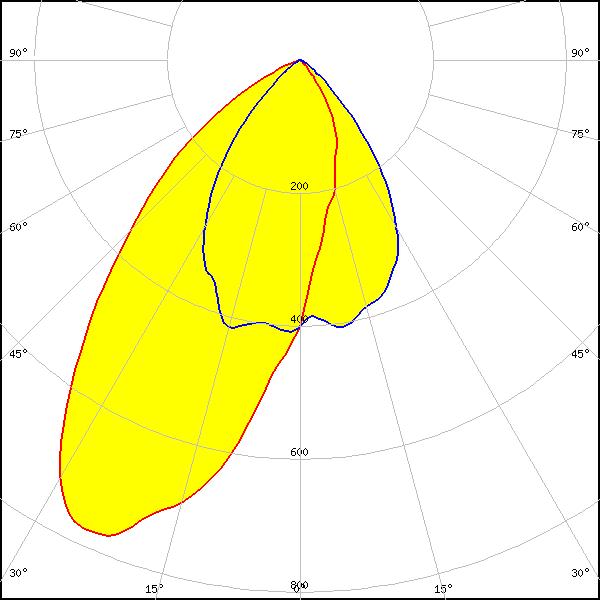

LED: LH181B
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

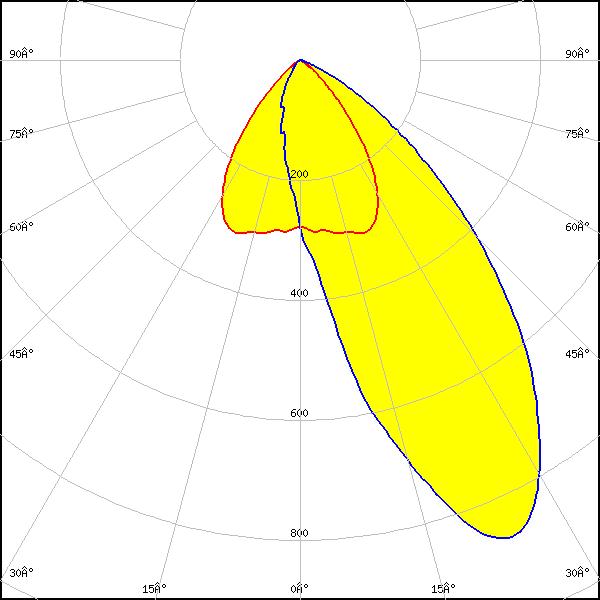

LED: LM101B
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 74 %
LEDs/each optic: 1
Light colour/type: White

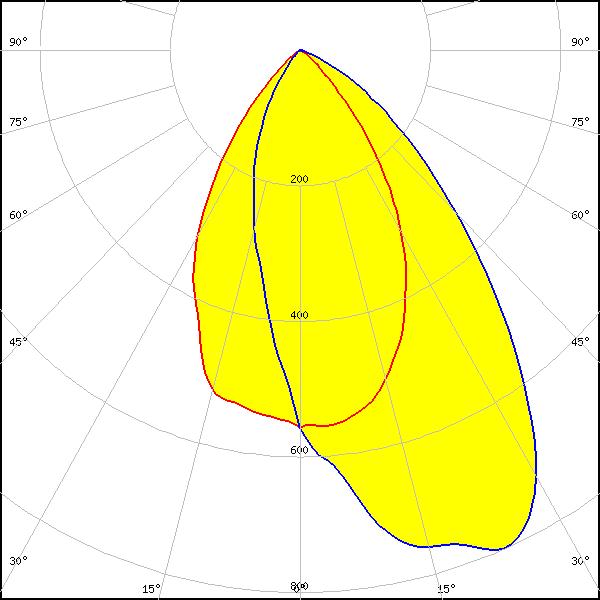

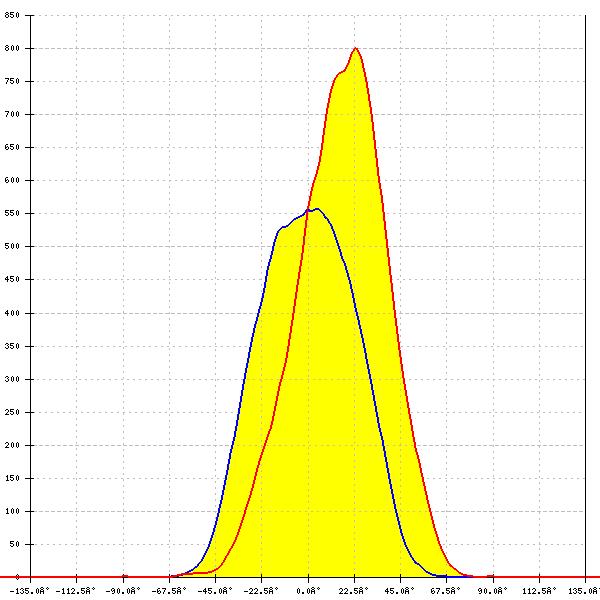

LED: LM28xB Series
Required components:
C19619_DALINE-10-SHD2-WAS-MATT
FWHM: asymmetric
Peak intensity: 0.800 cd/lm
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

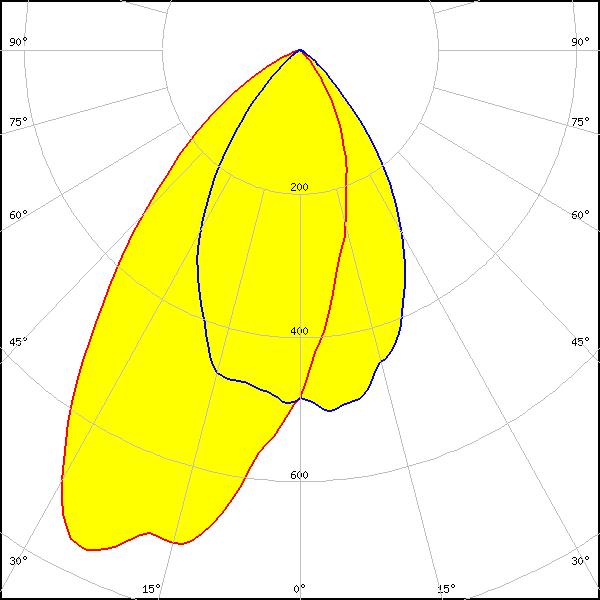

LED: LM301B
Required components:
C19619_DALINE-10-SHD2-WAS-MATT
Efficiency: 73 %
LEDs/each optic: 1
Light colour/type: White

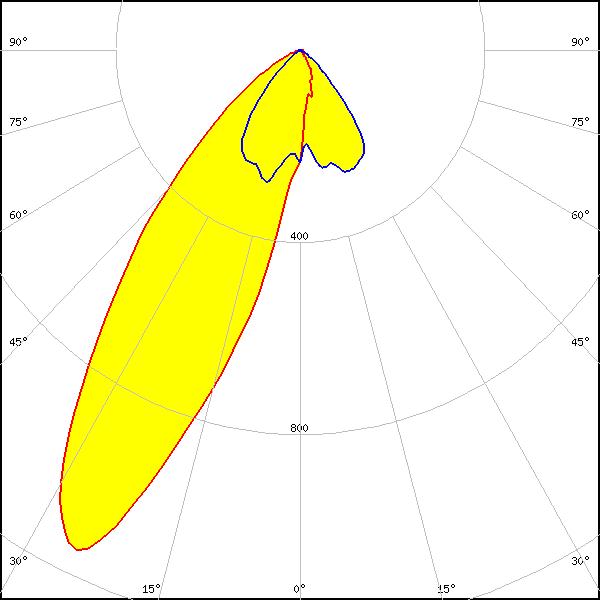

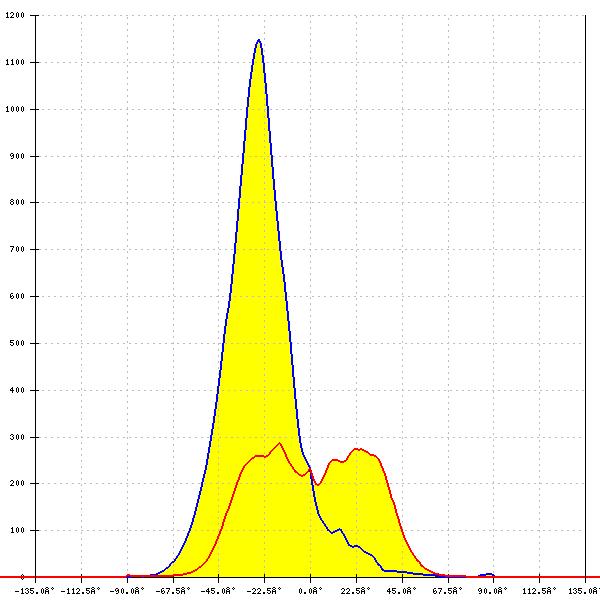

LED: CSP1111
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 77 %
LEDs/each optic: 1
Light colour/type: White

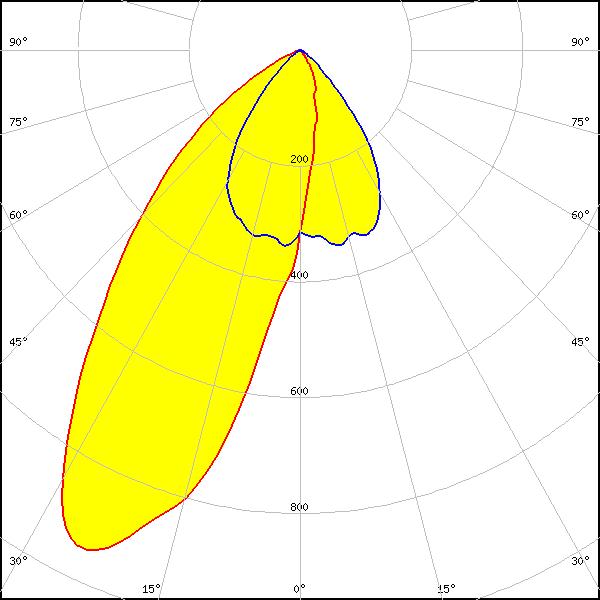

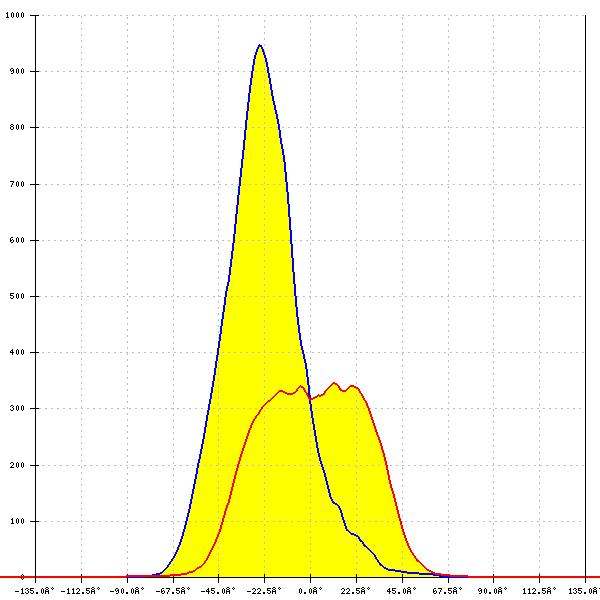

LED: CSP1919
Required components:
C19334_DALINE-10-SHD1-WAS-MATT
Efficiency: 76 %
LEDs/each optic: 1
Light colour/type: White
Are we missing optical results for a certain LED?
SEND A MESSAGE
Are we missing optical results for a certain LED?
SEND A MESSAGE
