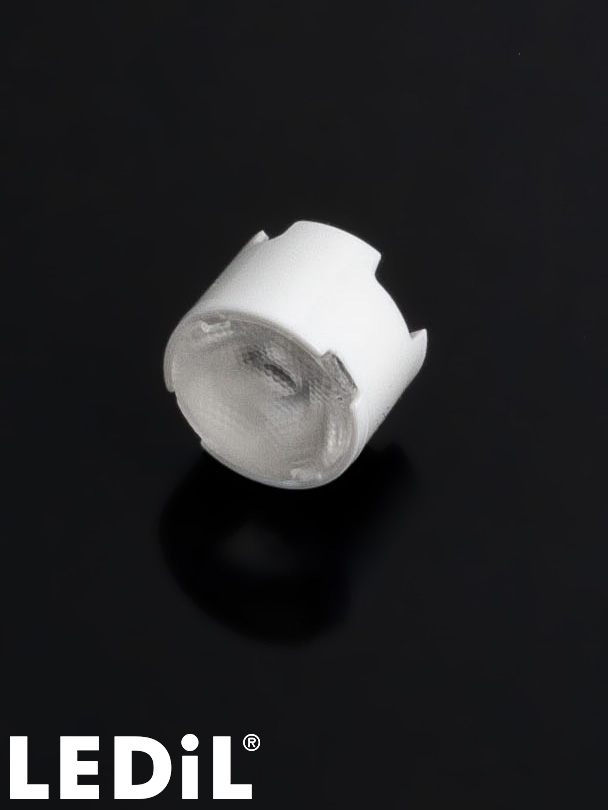

CP10444_LISA-SS
Print
~20° smooth spot beam optimized for Golden Dragon
Specification
-
Dimensions:11 mm
-
Height:7.30 mm
-
Fastening:glue
-
Colour:white
-
RoHS and REACH compliant:Yes
Component Materials
- LISA-O1-SSSingle lensPMMA
- LISA-O1-HLDHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:10000 pcs
-
Box size:300 x 250 x 250 mm
-
Box weight:6.6 kg
-
MPQ:100 pcs
-
MOQ:300 pcs
-
MOQ size:230 x 160 x 30 mm
-
MOQ weight:0.3 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

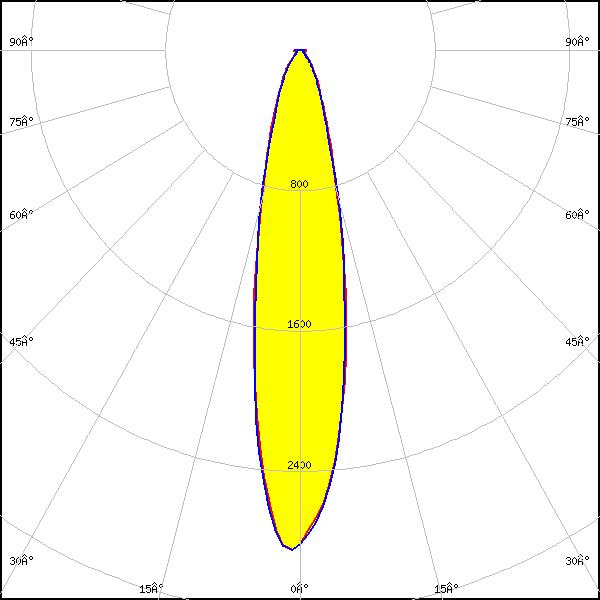

LED:
XP-G3
FWHM:
22°
FWTM:
51°
Peak intensity:
2.872 cd/lm
Efficiency:
84 %
LEDs/each optic:
1
Light colour/type:
White

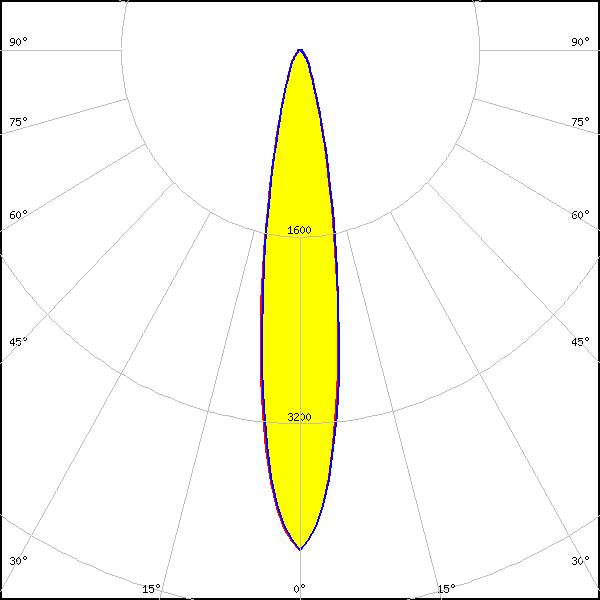

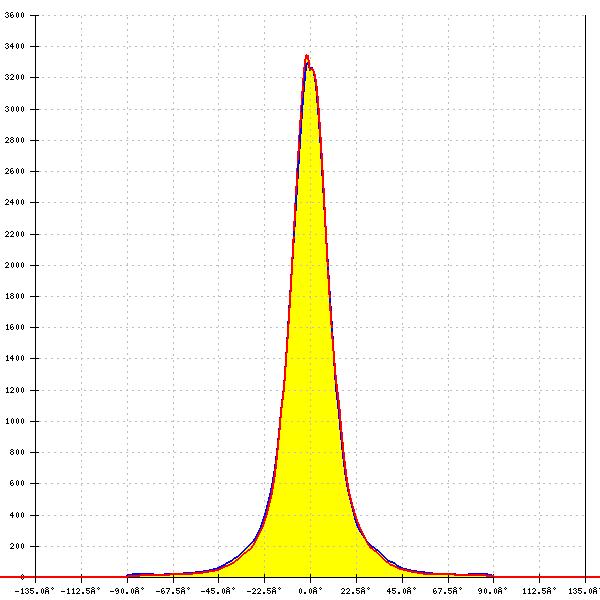

LED:
NVSW219C-V2
FWHM:
18°
FWTM:
40°
Peak intensity:
4.286 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

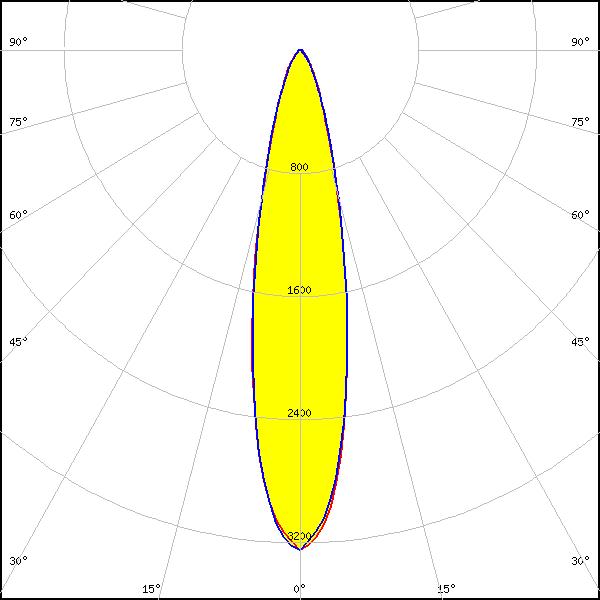

LED:
NVSW219F
FWHM:
22°
FWTM:
49°
Peak intensity:
3.249 cd/lm
Efficiency:
87 %
LEDs/each optic:
1
Light colour/type:
White

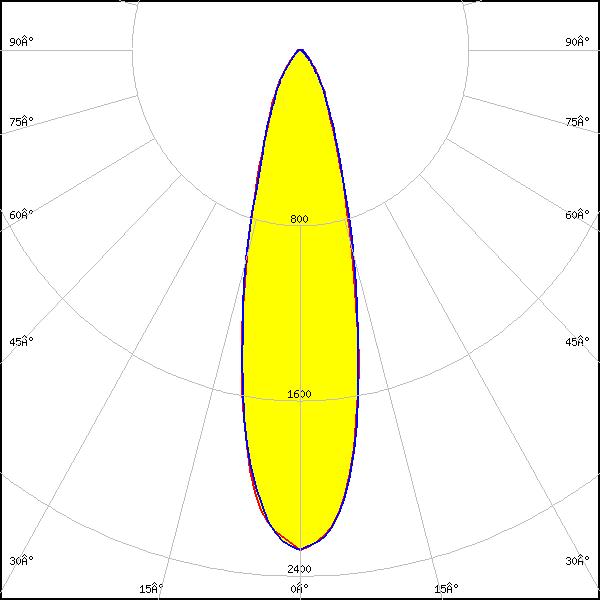

LED:
NVSW519A
FWHM:
28°
FWTM:
62°
Peak intensity:
2.308 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

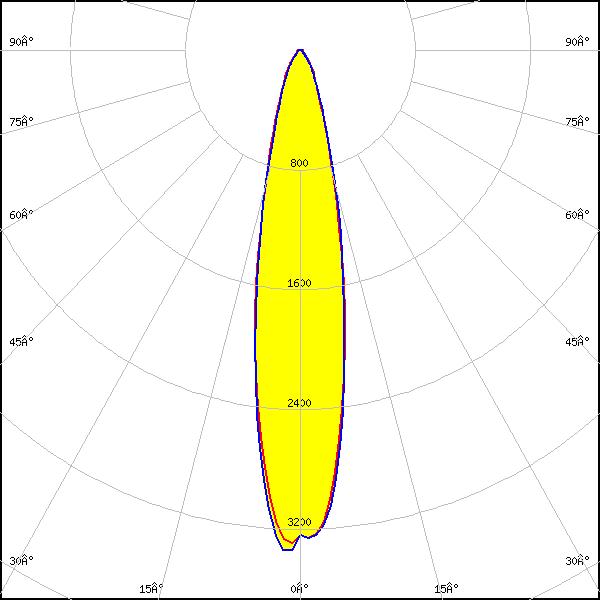

LED:
NVSxx19B/NVSxx19C
FWHM:
22°
FWTM:
47°
Peak intensity:
3.403 cd/lm
Efficiency:
85 %
LEDs/each optic:
1
Light colour/type:
White

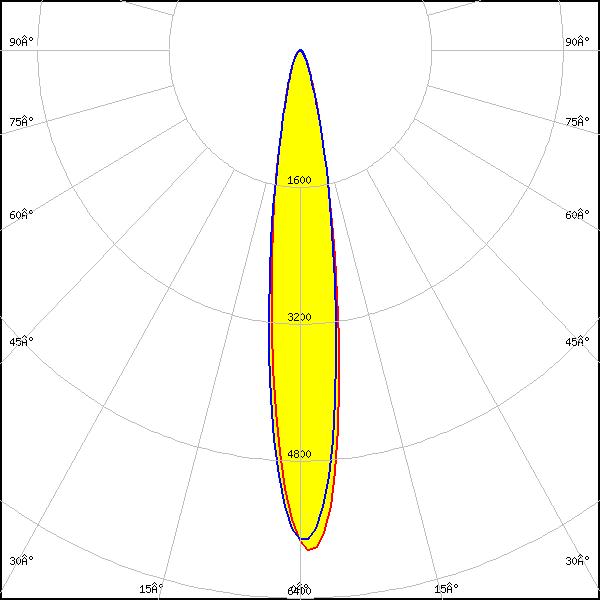

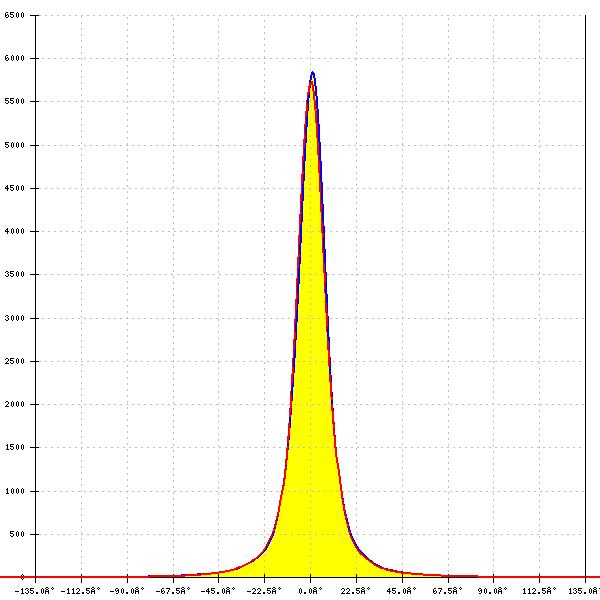

LED:
Golden Dragon
FWHM:
16°
FWTM:
36°
Peak intensity:
5.900 cd/lm
Efficiency:
90 %
LEDs/each optic:
1
Light colour/type:
White
