    CP11626_LISA-RS

    Print

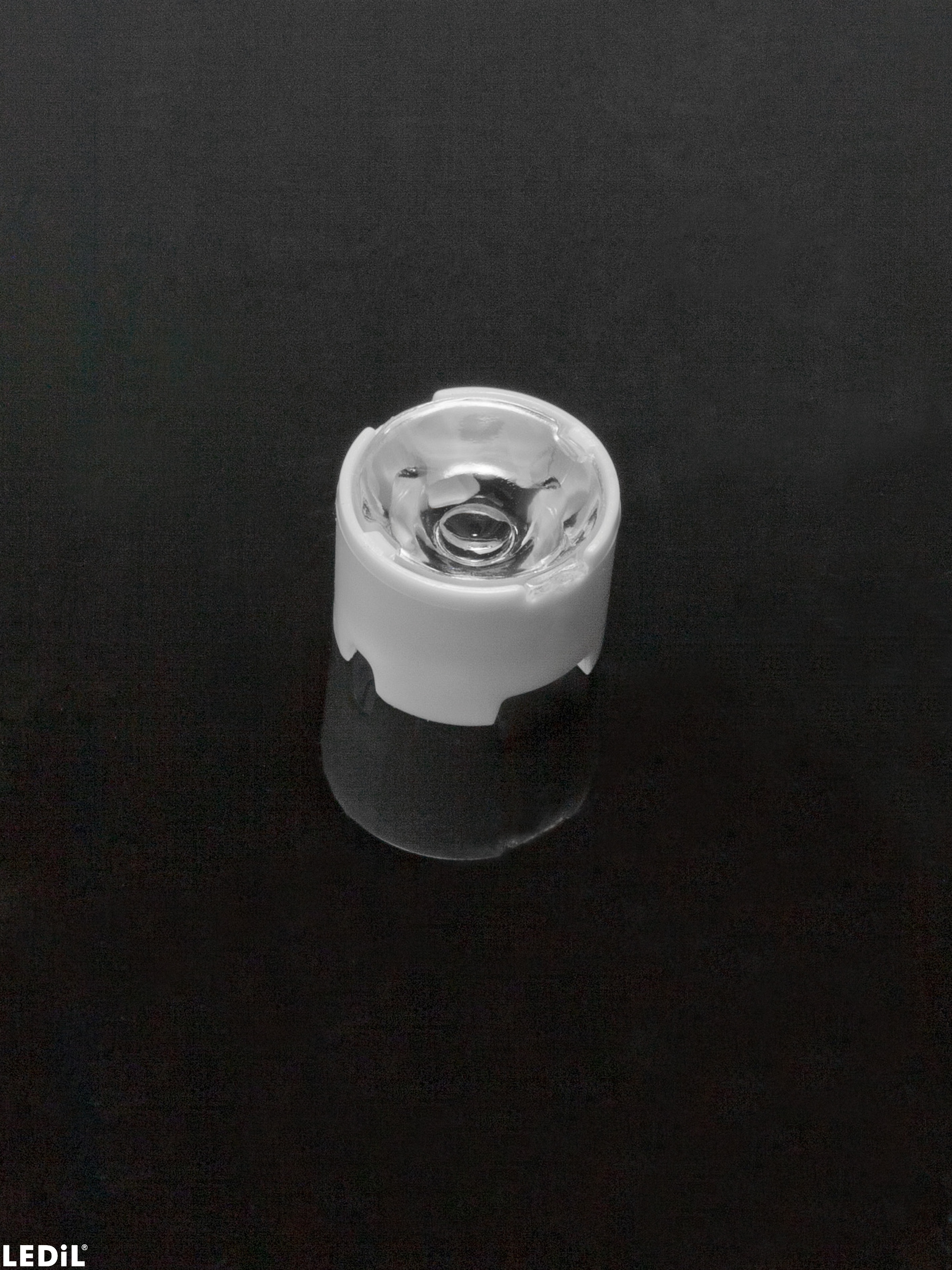

    ~15° spot beam optimized for Golden Dragon

    Specification
    • Dimensions:
      11 mm
    • Height:
      7.90 mm
    • Fastening:
      glue
    • Colour:
      white
    • RoHS and REACH compliant:
      Yes

    Product Data User Agreement and Disclaimer.

    Component Materials

    WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov

    Ordering information
    • Quantity in box:
      10000 pcs
    • Box size:
      254 x 298 x 241 mm
    • Box weight:
      5.5 kg
    • MPQ:
      100 pcs
    • MOQ:
      300 pcs
    • MOQ size:
      230 x 160 x 30 mm
    • MOQ weight:
      0.3 kg
    Documents
    • Family datasheet
    • Product datasheet
    • 2D mechanical drawing
    • Request a 3D mechanical model
      • Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






      PRODUCT NAME(S):
      CP11626_LISA-RS
      Architectural indoor lighting
      Architectural outdoor lighting
      Area and car park lighting
      Entertainment lighting
      Horticultural lighting
      Industrial lighting
      Office lighting
      Retail lighting
      Special indoor applications
      Special outdoor applications
      Sports indoor lighting
      Sports outdoor lighting
      Street lighting
      Tunnel and transportation lighting
      Other

      By giving your contact details you agree to your data being processed by LEDiL in accordance with applicable personal data legislation and LEDiL privacy policy.






     CONTACT US
     REQUEST SAMPLES
    WHERE TO BUY
    ORDER ONLINE

    Related Content

    User and installation guide

    General guide to LEDiL optics

    Application guide

    LEDiL Guide for Retail Lighting Optics

    Application guide

    Guide for Architectural lighting optics

    PCN

    Product change notification NR196 - Additional Optical PMMA material grade approved

    PCN

    Product change notification NR178 - Additional PMMA material approved

    PCN

    Product change notification NR174 - Additional PMMA material approved

    Case story

    LuxR landscape lighting

    Application area

    Special Indoor Applications

    Application area

    Indoor Architectural Lighting

    Optical results

    LED: Bridgelux SMD 3535 (3A1)
    FWHM: 22°
    FWTM: 44°
    Peak intensity: 3.679 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

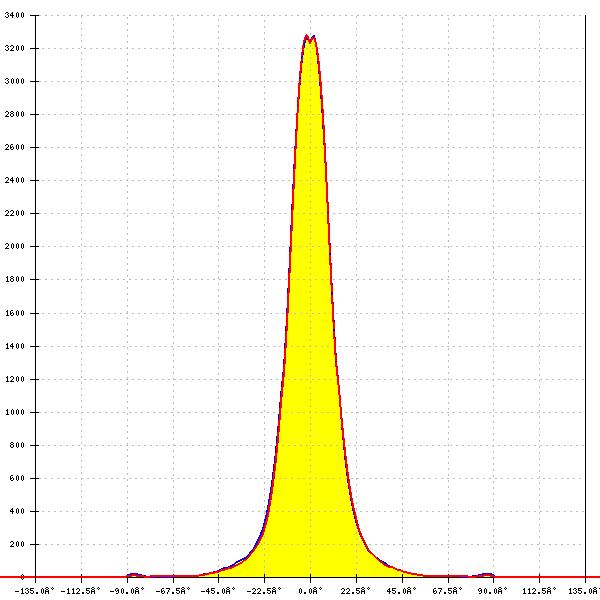

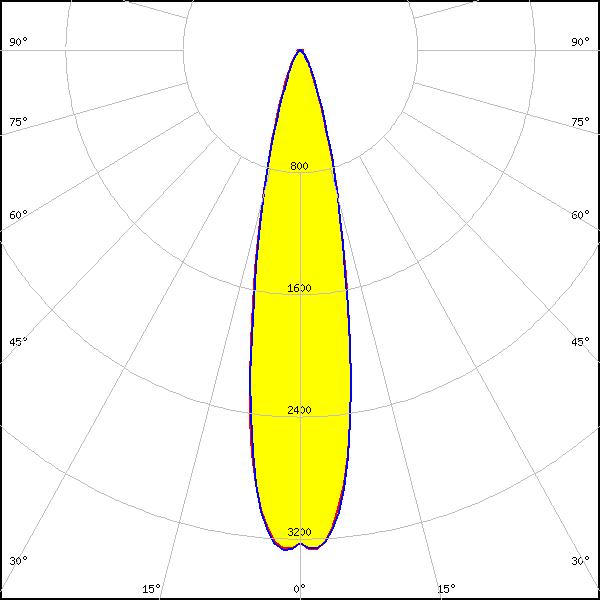

    LED: Bridgelux SMD 3535 (3B1)
    FWHM: 22°
    FWTM: 45°
    Peak intensity: 3.299 cd/lm
    Efficiency: 78 %
    LEDs/each optic: 1
    Light colour/type: White

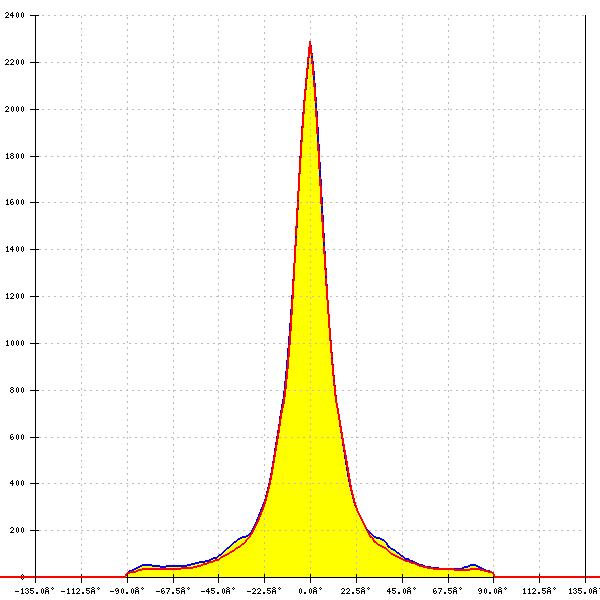

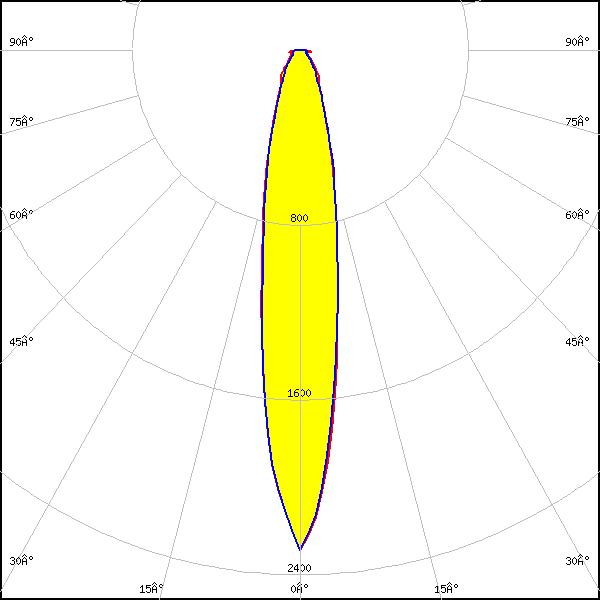

    LED: XHP35.2 HI
    FWHM: 18°
    FWTM: 53°
    Peak intensity: 2.288 cd/lm
    Efficiency: 76 %
    LEDs/each optic: 1
    Light colour/type: White

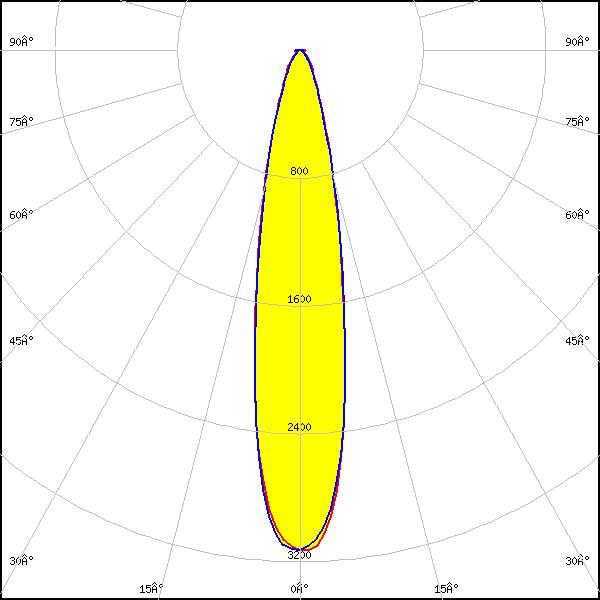

    LED: XP-G3
    FWHM: 21°
    FWTM: 47°
    Peak intensity: 3.153 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

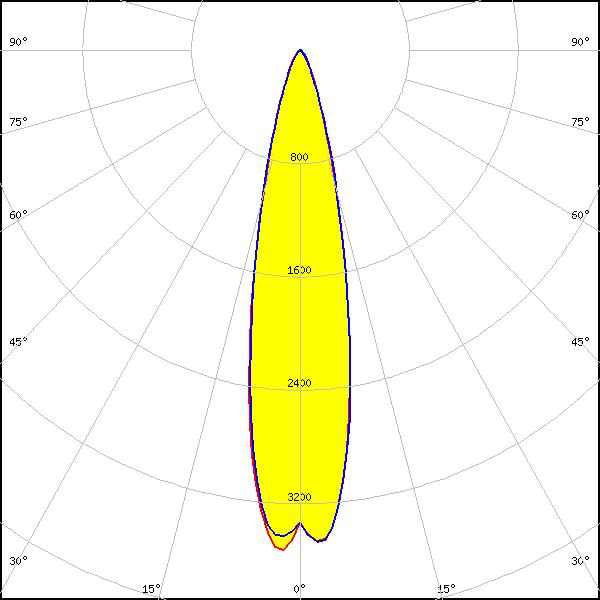

    LED: LUXEON HL2X-V
    FWHM: 22°
    FWTM: 45°
    Peak intensity: 3.585 cd/lm
    Efficiency: 82 %
    LEDs/each optic: 1
    Light colour/type: White

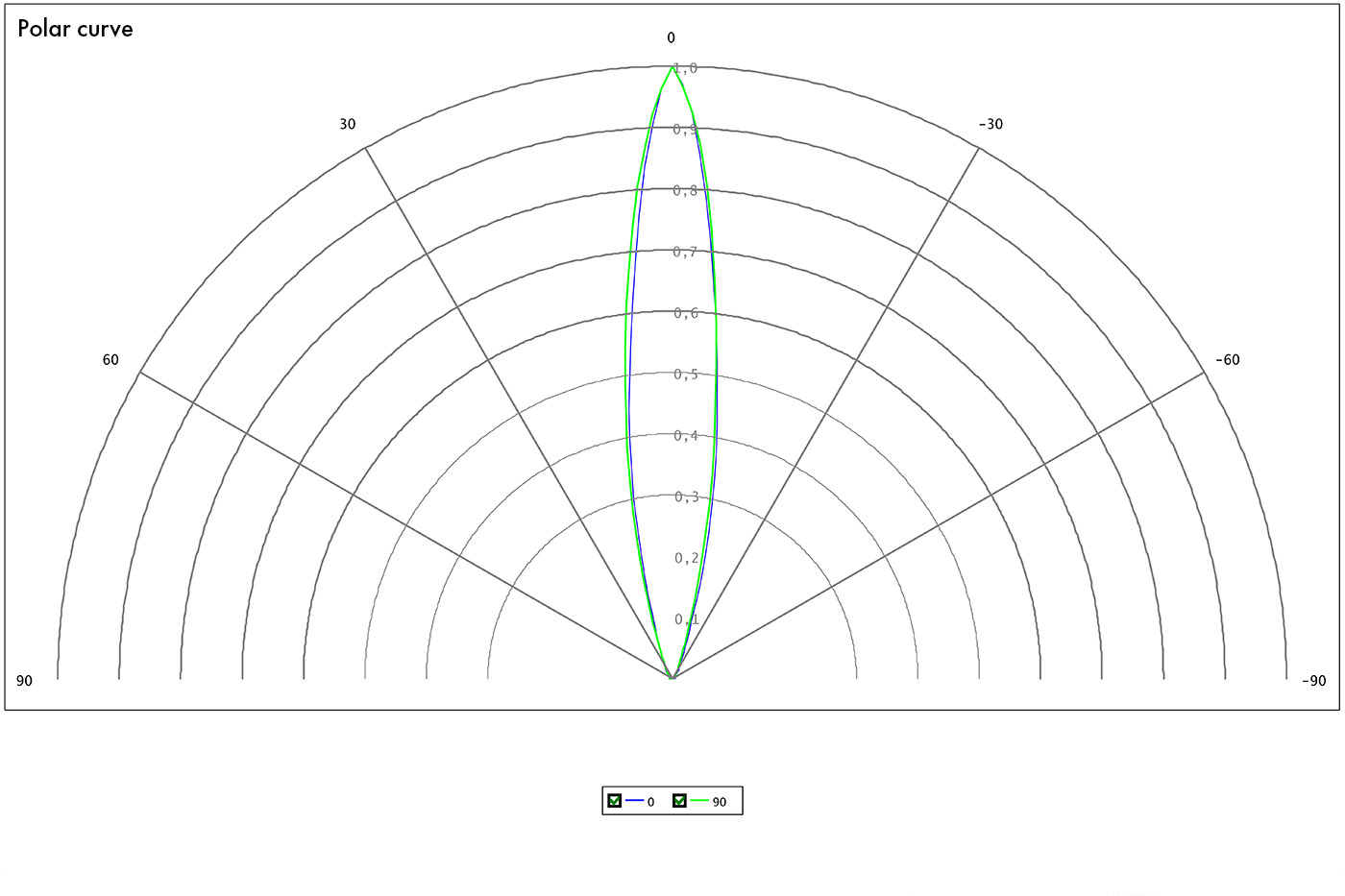

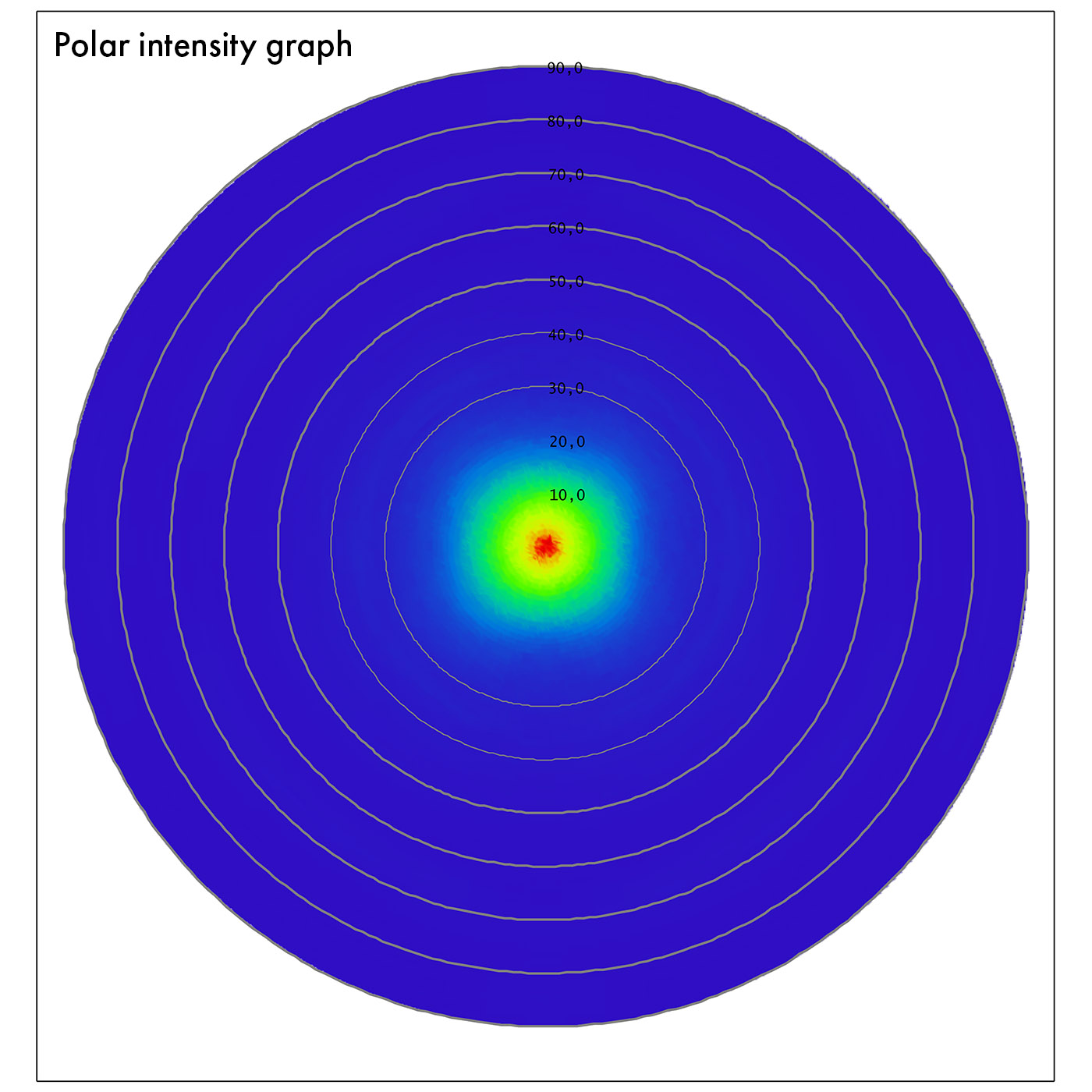

    LED: SST-10-IR-B90
    FWHM: 17°
    FWTM: 37°
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: IR

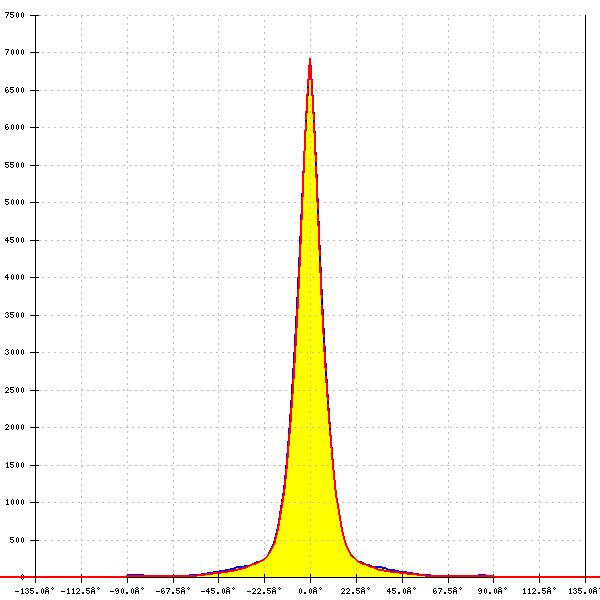

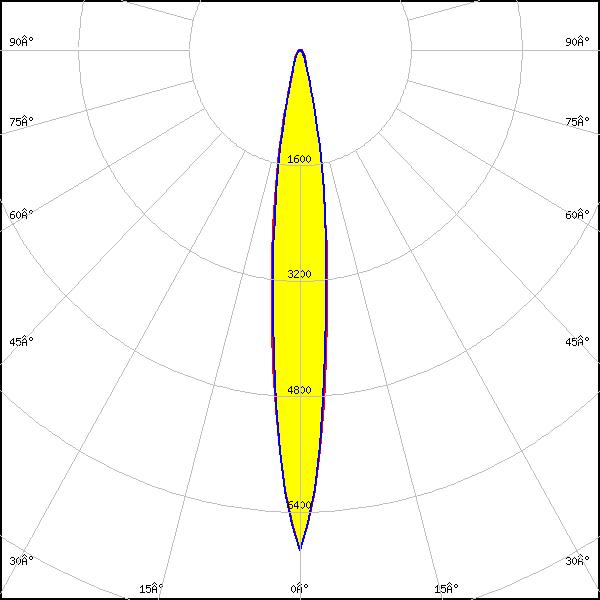

    LED: SST-12 Gen1
    FWHM: 13°
    FWTM: 30°
    Peak intensity: 6.929 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

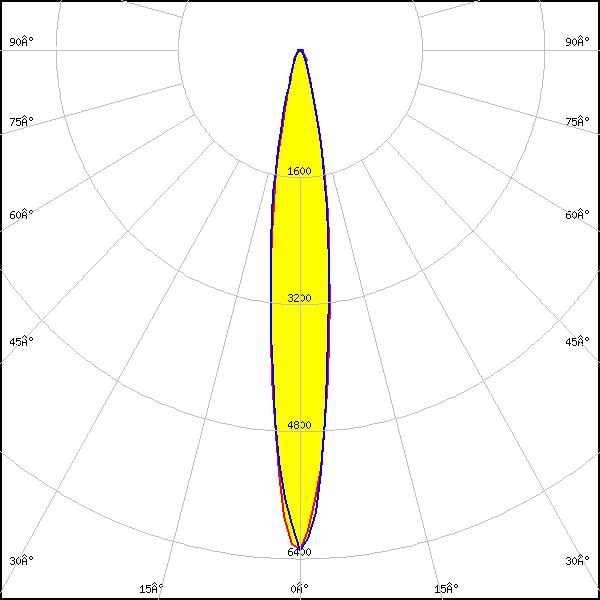

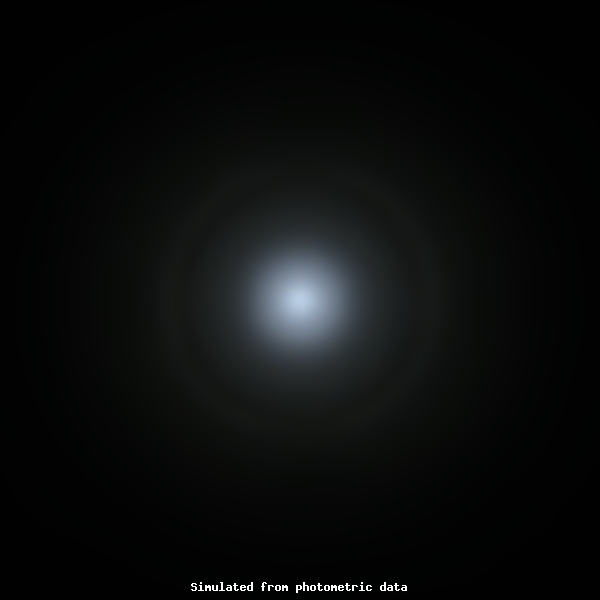

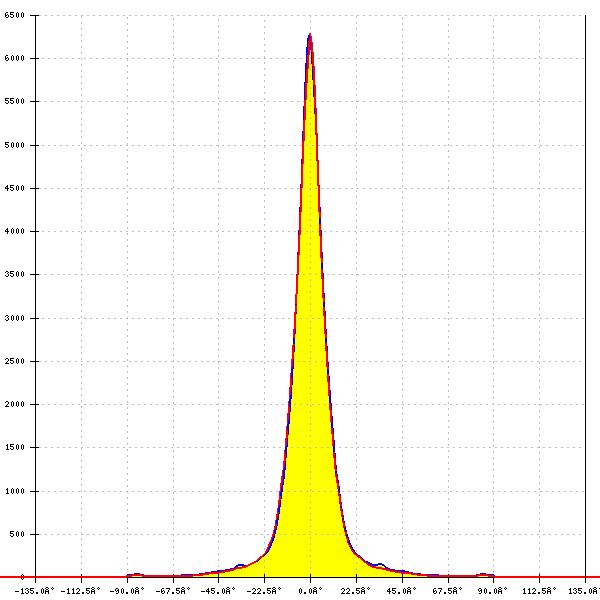

    LED: SST-12 Gen2
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 6.296 cd/lm
    Efficiency: 86 %
    LEDs/each optic: 1
    Light colour/type: White

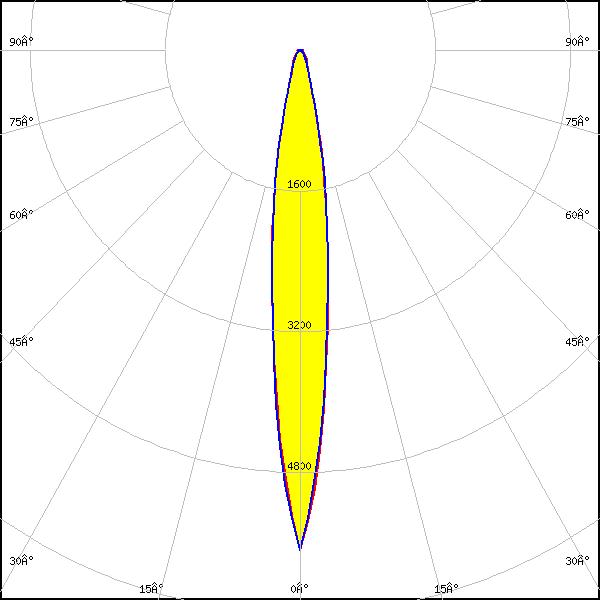

    LED: SST-20 Gen1
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 5.686 cd/lm
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: White

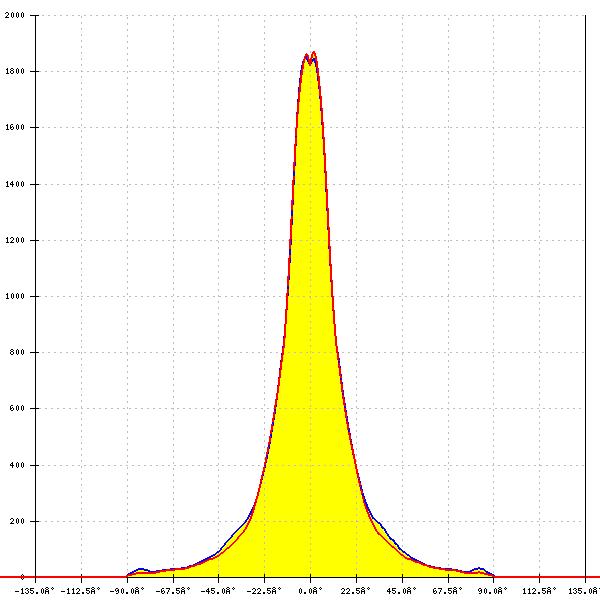

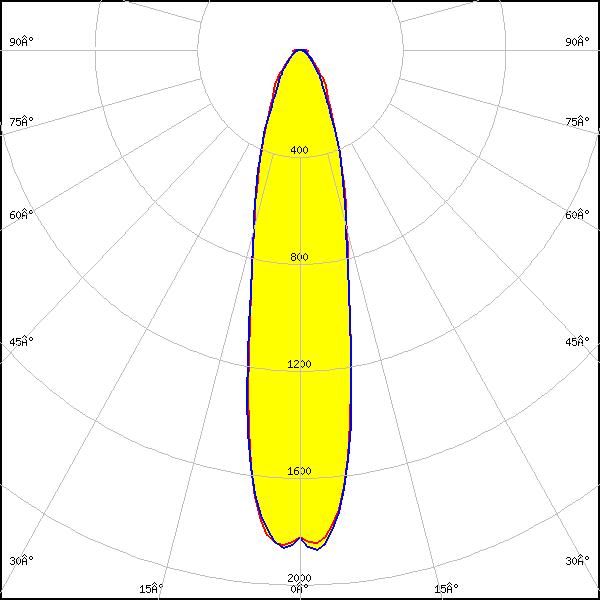

    LED: NV4WB35AM
    FWHM: 24°
    FWTM: 65°
    Peak intensity: 1.893 cd/lm
    Efficiency: 80 %
    LEDs/each optic: 1
    Light colour/type: White

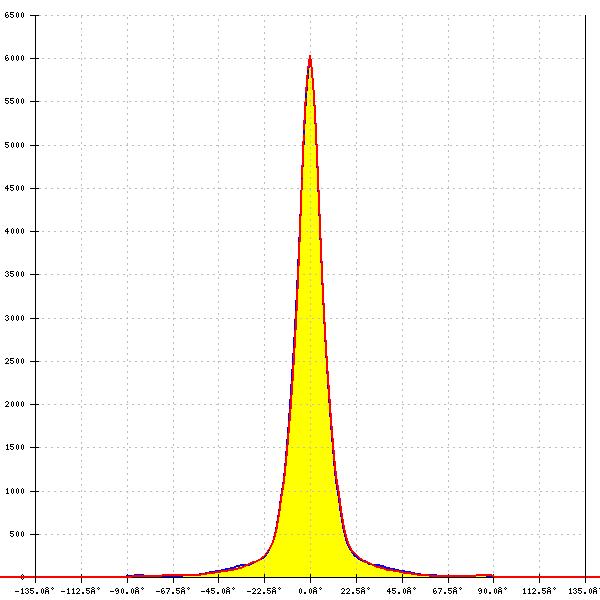

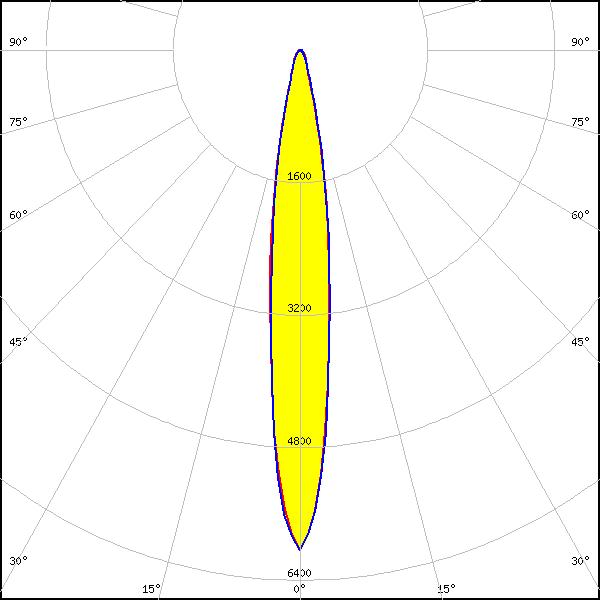

    LED: NVSW219C-V2
    FWHM: 14°
    FWTM: 32°
    Peak intensity: 6.040 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White

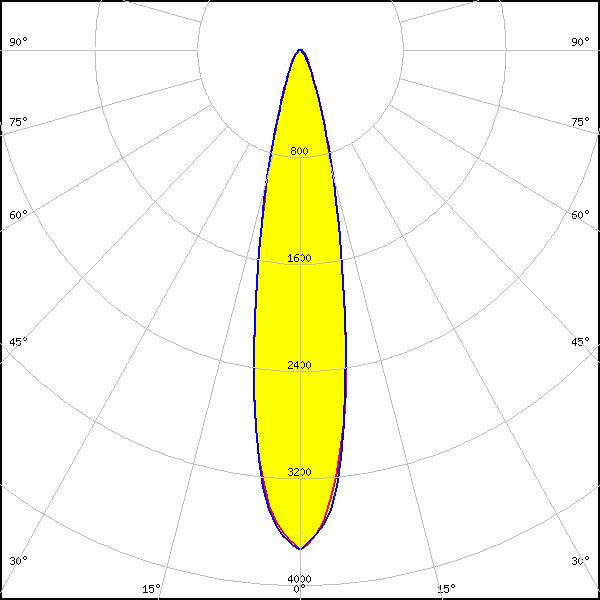

    LED: NVSW219F
    FWHM: 22°
    FWTM: 44°
    Peak intensity: 3.737 cd/lm
    Efficiency: 88 %
    LEDs/each optic: 1
    Light colour/type: White

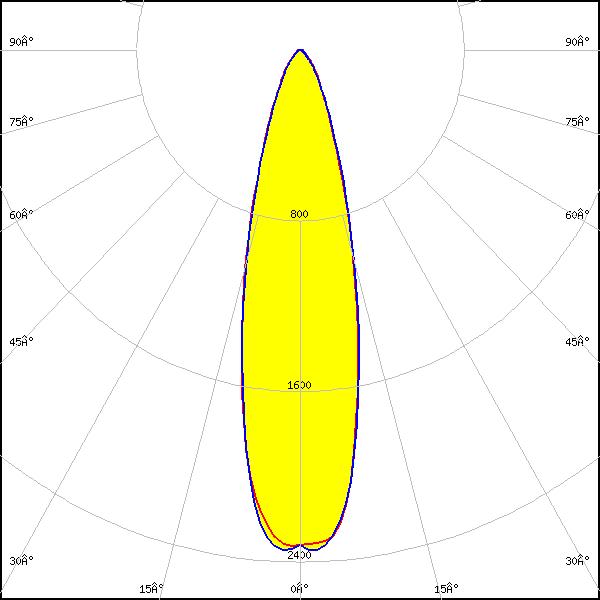

    LED: NVSW519A
    FWHM: 28°
    FWTM: 58°
    Peak intensity: 2.375 cd/lm
    Efficiency: 85 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: NVSxx19B/NVSxx19C
    FWHM: 19°
    FWTM: 44°
    Peak intensity: 3.436 cd/lm
    Efficiency: 81 %
    LEDs/each optic: 1
    Light colour/type: White
    LED: Golden Dragon
    FWHM: 12°
    FWTM: 31°
    Efficiency: 91 %
    LEDs/each optic: 1
    Light colour/type: White

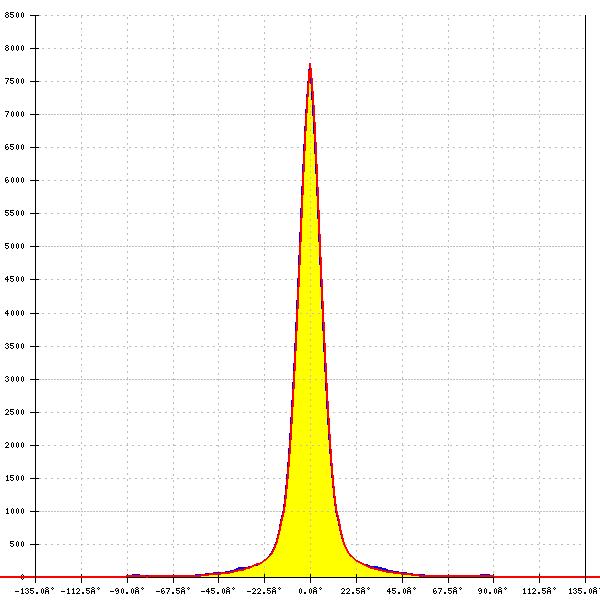

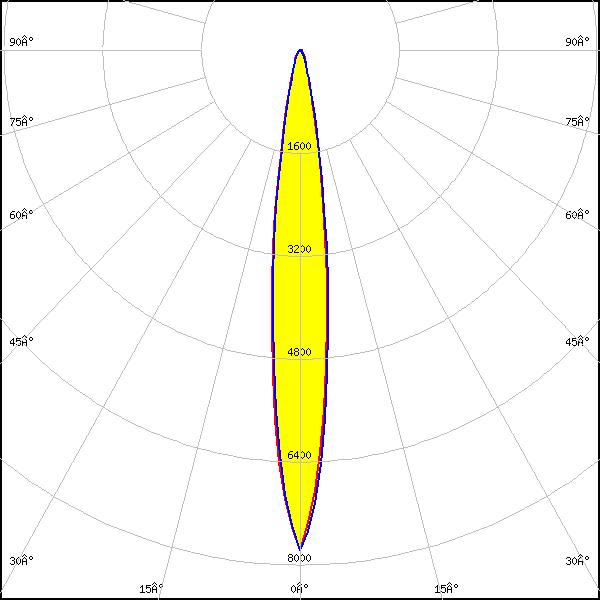

    LED: OSLON SSL 150
    FWHM: 13°
    FWTM: 28°
    Peak intensity: 7.774 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: White

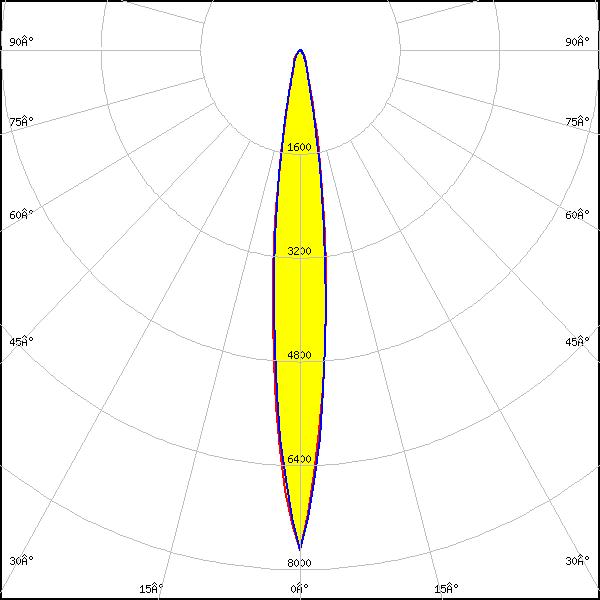

    LED: OSLON SSL 150
    FWHM: 12°
    FWTM: 28°
    Peak intensity: 7.704 cd/lm
    Efficiency: 87 %
    LEDs/each optic: 1
    Light colour/type: Red
    LED: SFH 4727AS
    FWHM: 17°
    FWTM: 49°
    Efficiency: 83 %
    LEDs/each optic: 1
    Light colour/type: IR

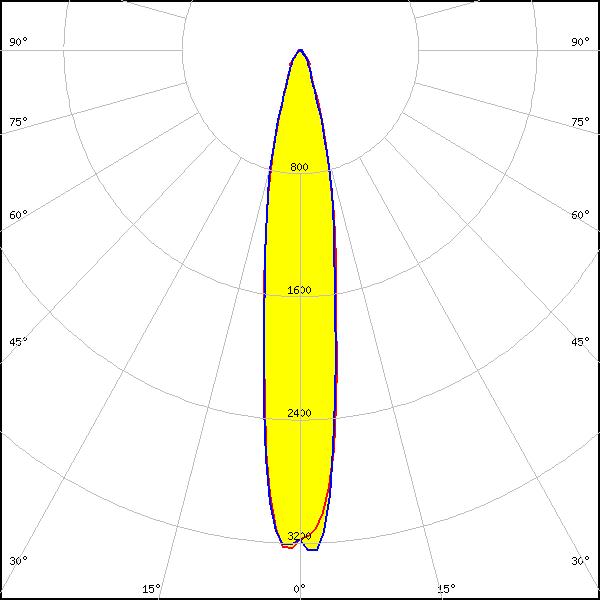

    LED: LH351C
    FWHM: 18°
    FWTM: 40°
    Peak intensity: 3.335 cd/lm
    Efficiency: 64 %
    LEDs/each optic: 1
    Light colour/type: White
