CP13059_LOS-RS2
Print

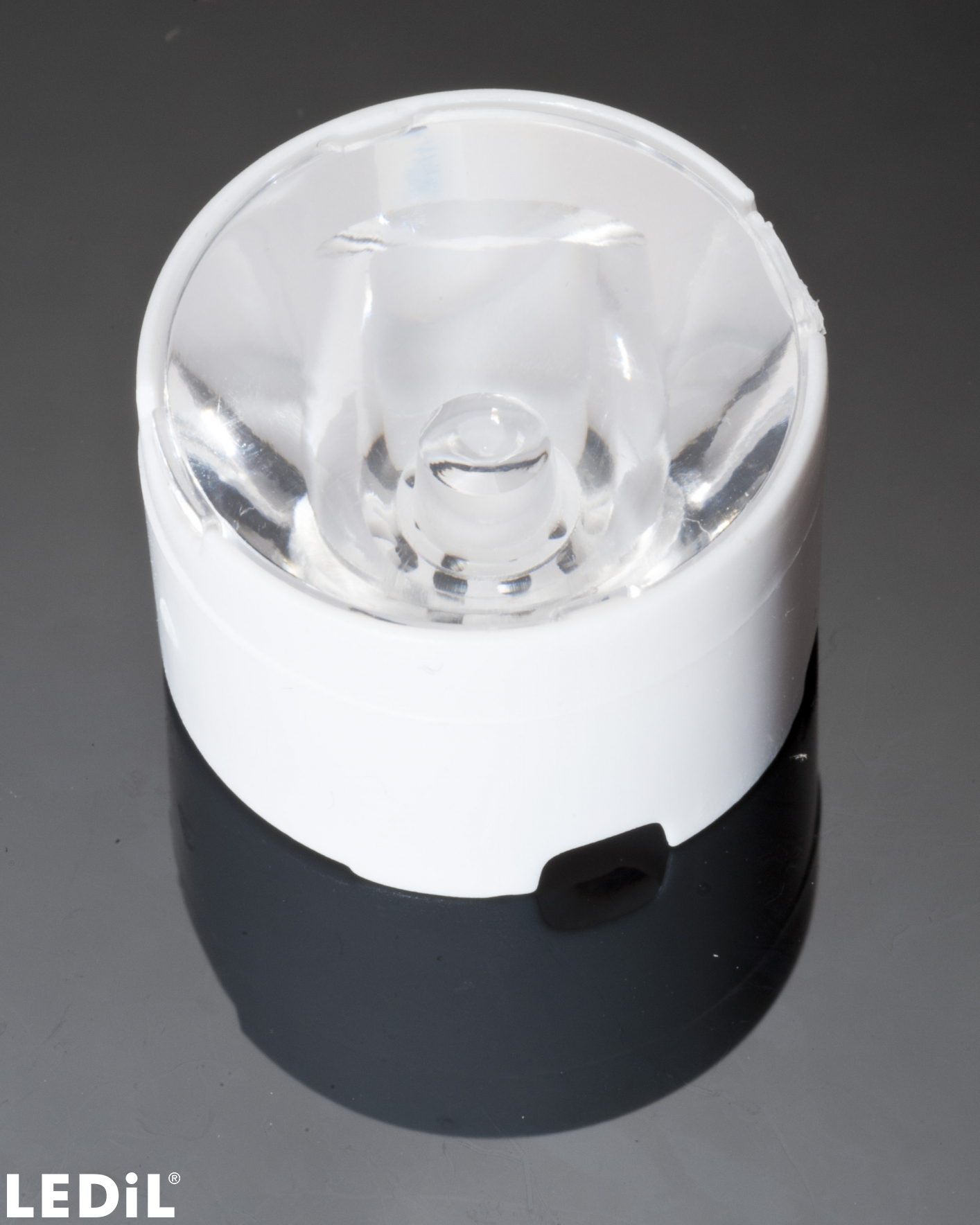

~8.5° spot beam optimized for Osram Oslon Square EC. 14.3 mm high assembly.
Specification
-
Dimensions:22 mm
-
Height:14.30 mm
-
Fastening:pin, glue
-
Colour:white
-
RoHS and REACH compliant:Yes
Component Materials
- LXP2-RS2Single lensPMMA
- LEILA-HLD-OSLHolderPC
- Request material files from Tech Support
WARNING: Cancer and Reproductive Harm – www.P65Warnings.ca.gov
Ordering information
-
Quantity in box:1680 pcs
-
Box size:480 x 280 x 300 mm
-
Box weight:10.0 kg
-
MPQ:112 pcs
-
MOQ:336 pcs
-
MOQ size:480 x 280 x 70 mm
-
MOQ weight:2.2 kg
Documents
- Family datasheet
- Product datasheet
- 2D mechanical drawing
- Request a 3D mechanical model
Related Content
Optical results

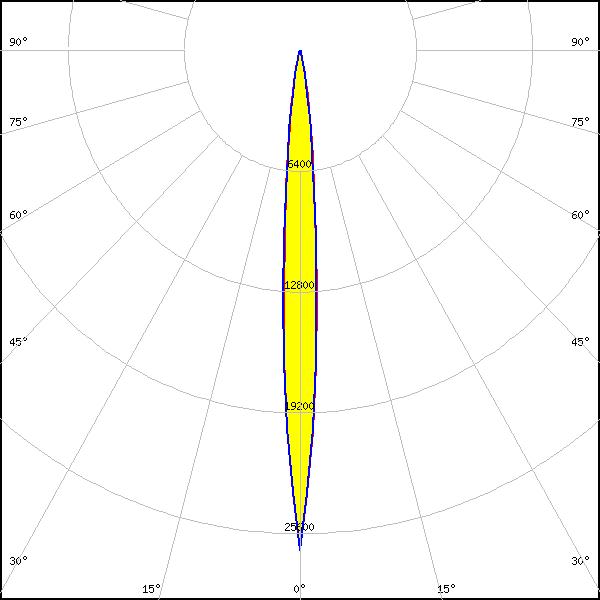

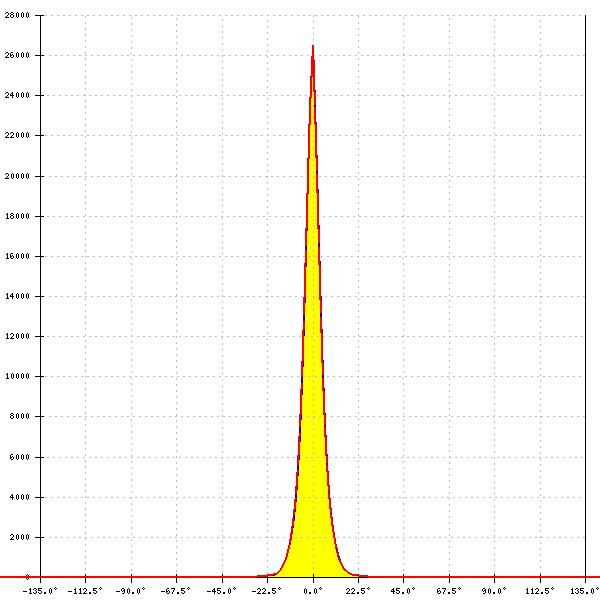

LED:
LUXEON C
FWHM:
8°
FWTM:
20°
Peak intensity:
26.484 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
White

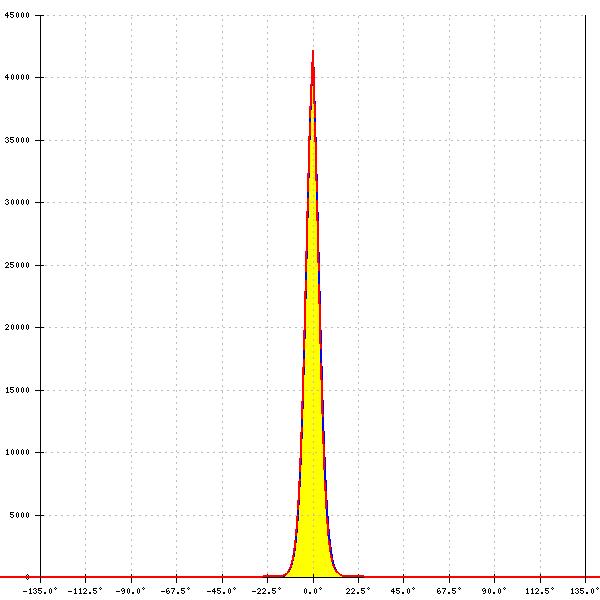

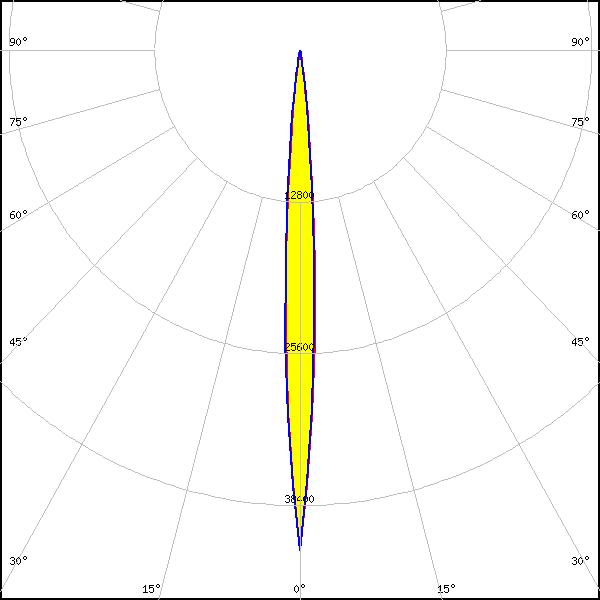

LED:
LUXEON CZ
FWHM:
7°
FWTM:
15°
Peak intensity:
42.184 cd/lm
Efficiency:
95 %
LEDs/each optic:
1
Light colour/type:
Red

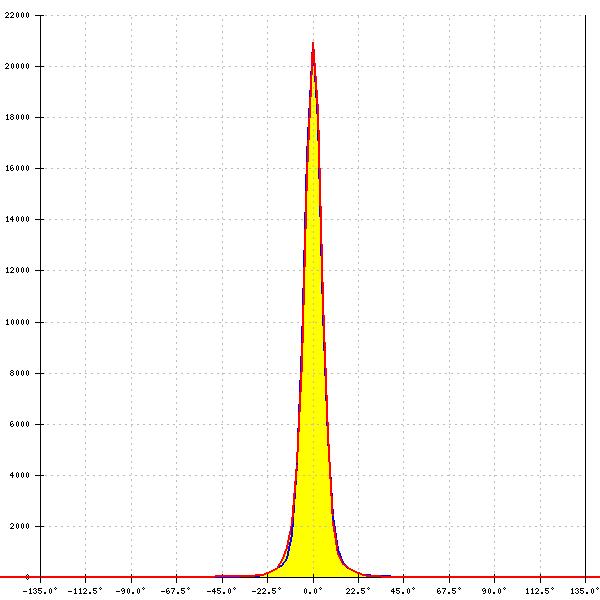

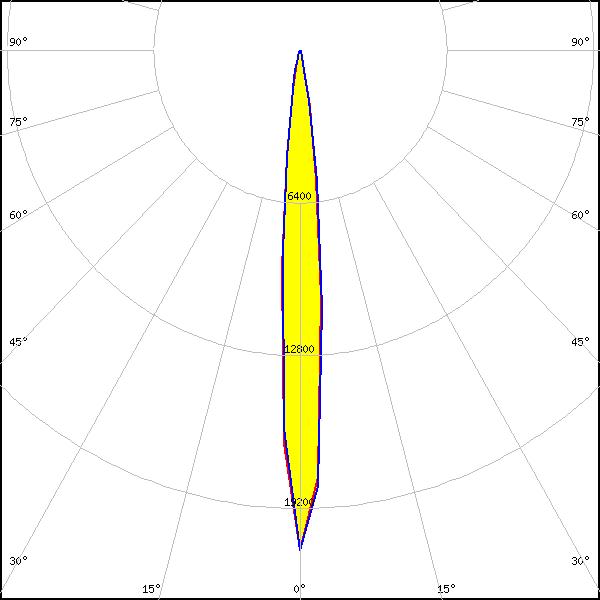

LED:
OSLON Square EC
FWHM:
10°
FWTM:
21°
Peak intensity:
21.000 cd/lm
Efficiency:
92 %
LEDs/each optic:
1
Light colour/type:
White

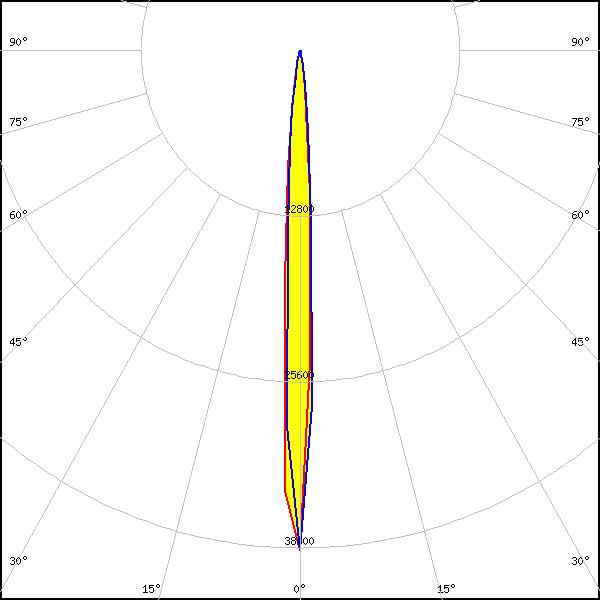

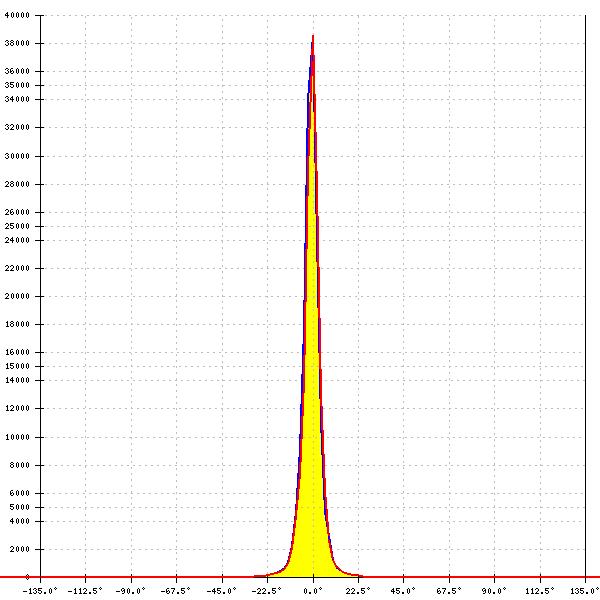

LED:
OSLON SSL 150
FWHM:
5°
FWTM:
14°
Peak intensity:
38.600 cd/lm
Efficiency:
93 %
LEDs/each optic:
1
Light colour/type:
White
